Hilti PD 5 User manual

Measuring Systems
7 Customer Hotline: Hong Kong 8228 8118 Macau 00800 8228 8118 (Mon - Fri 8:30 am - 6:00 pm / Sat 8:30 am - 1:00 pm) | Hilti online: www.hilti.com.hk
Applications
■Measuring distances between 0.2 m and 70 m with great accuracy
■Measuring heights where alternative measuring methods fail
■Measuring quickly and safely in places where access is difficult
Advantages
■Simple and intuitive to use
■Single-button operation
■New compact design that fits in every pocket
■Waterproof and dust tight
■Rugged and durable
■Ergonomic design for unique operating convenience
Laser range meter
PD 5
Measures accurately at the touch of a button
Technical data
PD 5
Range* 0.2 m to 70 m
Accuracy** ± 1.5 mm
Laser 635 nm,class 2 (IEC 825-1)
Measuring functions Single and continuous measurement
IP protection class IP 55
Power source 2AAA batteries (1.5 V)
Battery life 8000 measurements (Alkaline batteries)
Dimensions (L x W x H) 164 x 33 x 21 mm
Weight include battery 100 g
* The maximum range or, respectively, visibility of the laser depends on reflectivity of the target and the brightness
of ambient light.The PDA 50, 51 or 52 target plates should be used if the target reflects insufficient laser light.
** Atmospheric influences adversely affect distance measurement by laser.Over long distances, a significant
deviation of up to ± 2 mm (+ 20 ppm) must be expected.
FLEET
MANAGEMENT
Ordering
Order designation Package content Item No.
PD 5 laser range meter Equipped with laser range meter, soft pouch,2AAA batteries,producer certificate and operating instructions
in a cardboard box 02004830
Accessories
page 9

Measuring Systems
9 Customer Hotline: Hong Kong 8228 8118 Macau 00800 8228 8118 (Mon - Fri 8:30 am - 6:00 pm / Sat 8:30 am - 1:00 pm) | Hilti online: www.hilti.com.hk
Accessories
Order designation Item No.
PDA 51 target plate ■ ■ ■ 00202414
Increases measuring range over long distances and in unfavorable lighting conditions. Size:130 x 120 mm
PDA 52 target plate ■ ■ ■ 00226879
Increases measuring range over long distances and in unfavorable lighting conditions.Size:296 x 210 mm
PUA 60 laser visibility glasses ■ ■ ■ 00284988
Increase laser beam visibility significantly
PDA 71 measuring extension ■ ■ 00226878
Extension for convenient measuring from floors to ceilings and from difficult-to-reach locations.
Also for use with the timer function (PD 42)
PD 42 PD 5 PD 40

Measuring Systems
26Customer Hotline: Hong Kong 8228 8118 Macau 00800 8228 8118 (Mon - Fri 8:30 am - 6:00 pm / Sat 8:30 am - 1:00 pm) | Hilti online: www.hilti.com.hk
1
Hilti calibration service (in testing laboratory)
Hilti Calibration
Service
Calibration certificateand
dated inspectionplate
(ISO900X) confirmthat
themeasuring toolagain
functionsprecisely and
reliably.
Calibration
Label
Calibration certificate
Can be issued for all products over the entire lifespan of the product concerned.
Calibration certificate without test results
Order designation Item no.
Calibration certificate I – PL/PA/POL 00431148
Calibration certificate I – PD 00431157
Calibration certificate I – PM/PML/PMP/PMC 00431158
Calibration certificate I – PS 00431159
Calibration certificate I – PR/PRE/PRI 00431160
Calibration certificate I – Ferroscan 00431161
Calibration certificate with test results
Order designation Item no.
Calibration certificate II – PL/PA/POL 00431163
Calibration certificate II – PD 00431164
Calibration certificate II – PM/PML/PMP/PMC 00431165
Calibration certificate II – PS 00431166
Calibration certificate II – PR/PRE/PRI 00431167
Calibration certificate II – Ferroscan 00431168
Applications
Consistently reliable measuring results for all Hilti measuring tools.
■ Rotating Laser
■ Multidirectional Laser
■ Laser range meter
■ Detection tools
As good as new - with the Hilti Calibration Service.
In spite of being built extremely durable,Hilti measuring tools,may,as with all
precision tools,experience irregularities as result of the harsh atmosphere of
everyday use on construction sites, differing storage conditions or other external
influences and factors.
Construction professional can always trust their Hilti measuring tools with the Hilti
Calibration Service. Regular checking ensures the reliability according to standards
and legal requirements.Hilti recommends a regular calibration of every tool if
subject to normal use.If irregularities are discovered, the tool is adjusted to ensure it
functions as precisely and reliably as ever. Hilti guarantees it-with a calibration
certificate that attests that the tool meets specifications,and with a corresponding
sticker that shows the date of the most recent calibration.
■Regular calibrating of Hilti laser measuring tools
■Retrieval,checking, adjustment,certification and return transport of the tool
within 6-10 days-professional service from a single provider
■Reliability in audits
■Calibration certificate and inspection sticker (ISO 900X)
■Reliable measuring results at all times
■The highest precision
Retrieval,adjustment,
certification andreturn
transportof themeasuring
toolthrough theHilti
CalibrationService.
1
2
3
45678
12
11
10
9
2012 20132011

Measuring Systems
6Customer Hotline: Hong Kong 8228 8118 Macau 00800 8228 8118 (Mon - Fri 8:30 am - 6:00 pm / Sat 8:30 am - 1:00 pm) | Hilti online: www.hilti.com.hk
1
Visibility without compromise

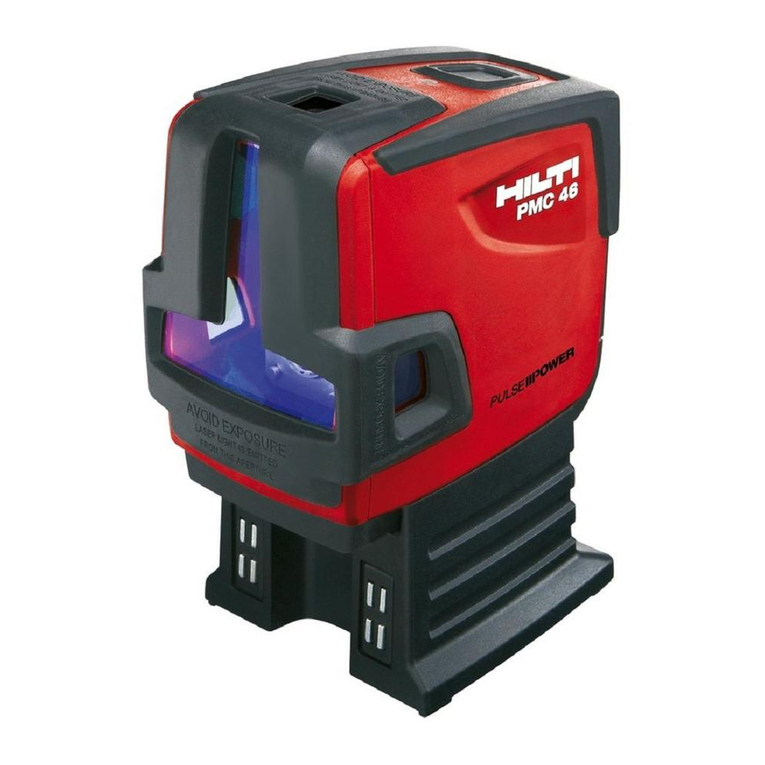

The Hilti PML 42 line laser and the PMC 46 combi
laser feature outstanding visibility of the lines they
project whether working with or without a receiver.
Trustworthy detection
For the objects distributed under the wall,It's not
always as "neat" as expected.With Pulse Power, more
than 1000 pulses are excited from the detector, so
that more signals can be collected for calculation,
which results in highest accuracy and reliable object
detection.
Top measuring performance
Thanks to Hilti Pulse Power, accurate,reliable readings
can now be taken even under the most unfavorable
conditions such as in bright sunlight.Hilti Pulse Power
makes trouble-free measurements of distances up to
100 meters possible without need for a target plate-
achieved efficiently with only one person.
Catch the Beam in one pass
On a bright,sunny day, the task of transferring
reference heights over moderate distances can often
become a tedious process due to difficulty in locating
the rotating laser beam. Not with Hilti Pulse Power!
Thanks to the high-frequency pulses of the laser
beam,a single pass of the rotating laser beam over
the receiver is all that is needed for immediate
location of the line.
Rotating Lasers Range Meters
Detection SystemsLine and Combilasers
Unique measuring
performance.
Extremely fast. Extremely reliable.
Forget what you know about measuring technologies.
Hilti Pulse Power works with up to 1 million impulses
per second allowing for highly reliable readings even
under the most difficult conditions.
Pulse Power is yet another demonstration of Hilti’s
innovative ability and foresight.The challenge of
achieving even greater reliability and efficiency in
various measuring and alignment tasks has been met
very convincingly.The advantages of Hilti Pulse Power
are now available with a comprehensive product
portfolio.Hilti, once more,impressively substantiates
the power of innovation.
Unleashing full measuring power.
Hilti Pulse Power

Services
263 Customer Hotline: Hong Kong 8228 8118 Macau 00800 8228 8118 (Mon - Fri 8:30 am - 6:00 pm / Sat 8:30 am - 1:00 pm) | Hilti online: www.hilti.com.hk
FLEET
MANAGEMENT
We manage your tools.
So you can manage your business.
We look after your entire fleet of tools so you can concentrate on your own daily
business.
Tools always up-to-date without any up-front investment
A single monthly charge covers your entire tool needs.
■All tools are renewed regularly to eliminate costly downtime and ensure
compliance with the latest safety standards
■A fixed monthly charge provides transparency and makes budgeting and cost
allocation easy
■New tools can be added quickly and easily at any time
Reduce costs by up to 50%
Enjoy unrivaled coverage and support.
■Guaranteed no additional costs for repair or replacement for up to 5 years
■Eliminates administration work related to tool purchasing, repair quotations and
accounting
■Clear assignment of tools to employees, cost centers or job sites gives you more
control and reduces unnecessary additional purchasing
Customized services for higher efficiency and
productivity
■Personalized tool labels and online tracking for efficient tool management
■Loan tools keep you productive even in the event of a breakdown
■Rental tools give you easy access to additional Hilti tools for short periods when
needed
■Theft coverage minimizes your costs and downtime in the event of tool theft
Fleet Management

Services
264Customer Hotline: Hong Kong 8228 8118 Macau 00800 8228 8118 (Mon - Fri 8:30 am - 6:00 pm / Sat 8:30 am - 1:00 pm) | Hilti online: www.hilti.com.hk
11
NO
COSTS
MANUFACTURER’S
WARRANTY
REPAIR
COST LIMIT
LIFETIME
SERVICE
2
Yearsup to
LifetimeLifetime
Outstanding services for
a product lifetime.
The unique service package for
those who prefer to own their
tools.
Hilti tools are built to last. But even if a defect occurs, Hilti will take care of it.
Quickly and professionally, completely free of charge for up to 2 years from date of
purchase. After that we continue to prove the quality of our products by putting a
limit on what a repair can cost – for as long as you continue using your Hilti tool. We
even give you a lifetime manufacturer’s warranty against manufacturing defects.
That’s not just reassuring to know, it’s unique in this field.
No costs for up to 2 years
In the event of need for repair, Hilti carries the cost of pick-up and return transport,
labor, repairs including replacement of all defective parts (including parts subject to
wear and tear!), servicing when indicated by the tool, plus a functional and safety
check after completion of every repair.
Lifetime repair cost limit
After reaching the end of the 1- or 2-year no-cost period, you pay a maximum of
30% of the corresponding new tool’s list price in the event of a repair. Should the
repair cost remain below this limit you, of course, pay only the actual cost of the
repair – over the entire life of your Hilti tool. Beyond this, as added confirmation of
Hilti quality, any tool breakdown within the first 6 months after the last repair will be
repaired free of charge as in the first one or two-year no-cost period.
Lifetime manufacturer’s warranty
Hilti repairs or replaces, free of charge, all tools that suffer faults or defects as a
result of faulty materials or manufacturing faults – over the entire life of the product.
Lifetime Service
* Heavy diamond tools with operating hours counter: No Costs for 1 year or 100
hours (whatever is reached first). Angle grinders & ST 1800 corded screw drivers,
PD 5 laser range meter & breakers: No Costs for 1 year. DAG 100-S angle grinder:
No costs for 1 year or 2 times of repair (whatever is reached first), and is excluded
from Repair Cost Limit. Lithium-ion batteries: are excluded from Repair Cost Limit.
Angle grinders: No Costs for 1 month after each repair under Repair Cost Limit.
NiCd/NiMH batteries, accessories and filters are excluded from Hilti Lifetime
Service. Power-actuated fastening tools: pistons and buffers are excluded from
Hilti Lifetime Service. Measuring Systems: calibration services are excluded from
Hilti Lifetime Service.
