Hilti SID User manual

Bedienungsanleitung de
Operating instructions en
Mode d’emploi fr
Istruzioni d’uso it
Manual de instrucciones es
Manual de instruções pt
Gebruiksaanwijzing nl
Οδηγιες χρησεως el
Használati utasítás hu
Instrukcja obsługi pl
Инструкция по зксплуатации ru
Návod k obsluze cs
Návod na obsluhu sk
Upute za uporabu hr
Navodila za uporabo sl
Ръководство за обслужване bg
Instrucţiuni de utilizare ro
SID/SIW
14-A/22-A
Printed: 19.09.2013 | Doc-Nr: PUB / 5071637 / 000 / 02

껾
껼
껽
껽
껻
꼁
꼄꼄 꼃꼃
꼀
꼅
껿
% $K % $K %  $K %  $K
%  $K
꼄 꼄꼂 꼂
1
Printed: 19.09.2013 | Doc-Nr: PUB / 5071637 / 000 / 02

2
3
4
6723
5
6
Printed: 19.09.2013 | Doc-Nr: PUB / 5071637 / 000 / 02

7
14.4 Volt Li-Ion
1.6 Ah
14.4 Volt Li-Ion
1.6 Ah
8


9
Printed: 19.09.2013 | Doc-Nr: PUB / 5071637 / 000 / 02

en
16
ORIGINAL OPERATING INSTRUCTIONS
SID 14A / SID 22A /
SIW 14A / SIW 22-A cordless
impact screwdriver / wrench
It is essential that the operating instructions are read before the
power tool is operated for the first time.
Always keep these operating instructions together with the power
tool.
Ensure that the operating instructions are with the power tool when
it is given to other persons.
Contents
1 Generalinformation .................... 16
2 Description .......................... 17
3 Inserttools,accessories ................. 18
4 Technicaldata ........................ 18
5 Safetyinstructions ..................... 21
6 Beforeuse........................... 24
7 Operation ........................... 25
8 Careandmaintenance................... 27
9 Troubleshooting ....................... 28
10 Disposal ............................ 28
11 Manufacturer’s warranty - tools . ............ 29
12 ECdeclarationofconformity(original) ........ 29

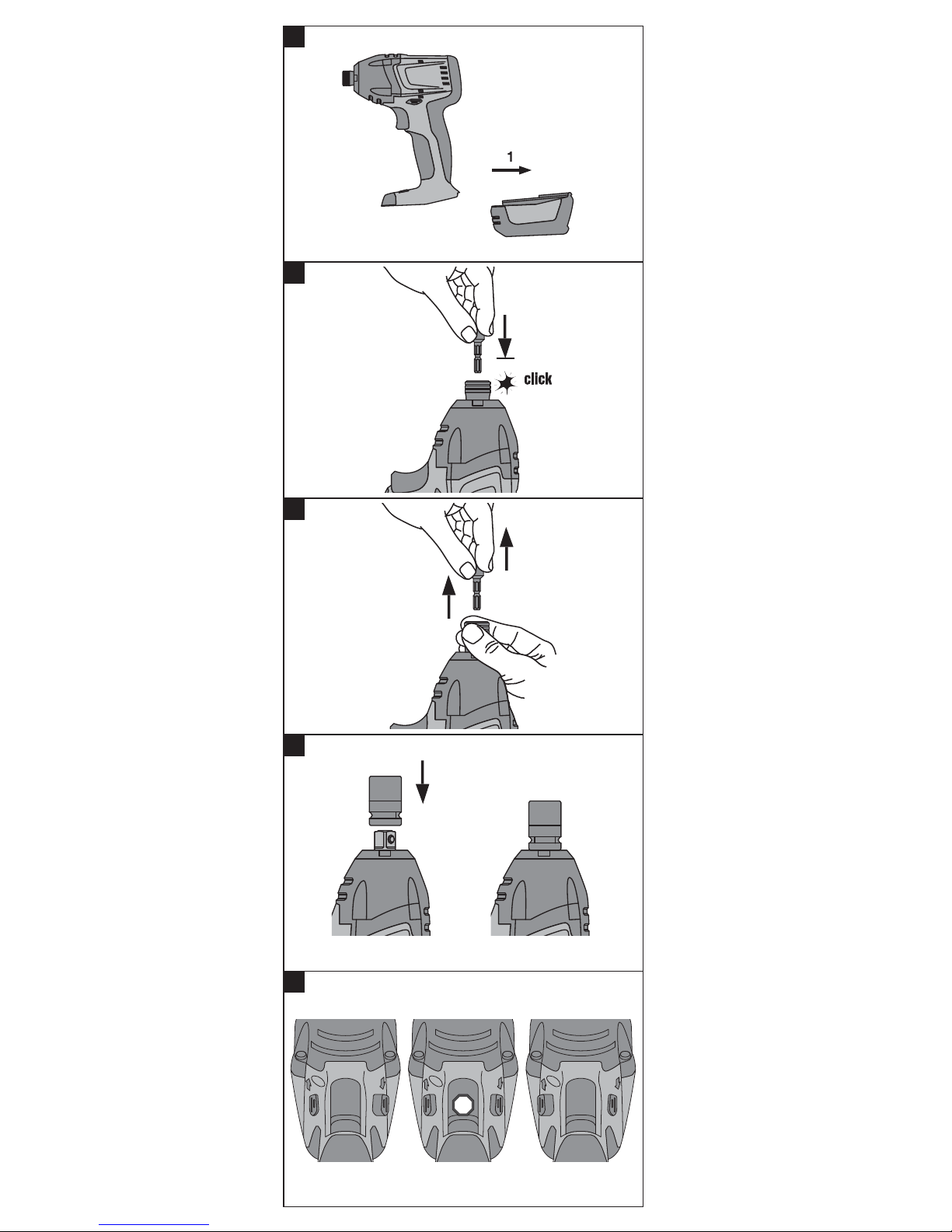

1These numbers refer to the corresponding illustrations. The
illustrations can be found on the fold-out cover pages. Keep these
pages open while studying the operating instructions.
In these operating instructions, the designation “the power tool”
always refers to the SIW 14A, SIW 22A, SID 14A or SID 22A
cordless impact wrench / screwdriver with battery fitted.
Operating controls and parts 1
@SIW square drive
;SID hex. socket drive
=Light
%Control switch (with electronic speed control)
&Forward / reverse switch
(Motor brake
)Torque selector switch
+SID/W 22A battery release buttons
§SID/W 14A battery release button
/Charge status and fault display (Li-ion battery)
:Belt hook (optional)
1 General information
1.1 Safety notices and their meaning
DANGER
Draws attention to imminent danger that will lead to serious bodily
injury or fatality.
WARNING
Draws attention to a potentially dangerous situation that could
lead to serious personal injury or fatality.
CAUTION
Draws attention to a potentially dangerous situation that could
lead to slight personal injury or damage to the equipment or other
property.
NOTE
Draws attention to an instruction or other useful information.
Printed: 19.09.2013 | Doc-Nr: PUB / 5071637 / 000 / 02

en
17
1.2 Explanation of the pictograms and other information
Warning signs
General warning Warning:
electricity
Warning: caustic
substances
Obligation signs
Wear eye
protection
Wear a hard hat Wear ear
protection
Wear protective
gloves
Wear breathing
protection
Symbols
Read the
operating
instructions
before use
Return waste
material for
recycling.
Volts Direct current
Rated speed
under no load
Revolutions per
minute
Location of identification data on the power tool
The type designation can be found on the type identification plate
and the serial number on the side of the motor housing. Make a
note of this data in your operating instructions and always refer to
it when making an enquiry to your Hilti representative or service
department.
Type:
Generation: 01
Serial no.:
2 Description
2.1 Use of the product as directed
The SID 14-A, SIW 14-A, SID 22-A and SIW 22-A are hand-
held cordless impact screwdrivers/wrenches. They are designed
for driving and removing screws in wood, metal, masonry and
concrete and for tightening and releasing nuts and bolts.
Working on materials hazardous to the health (e.g. asbestos) is
not permissible.
Do not use the battery as a power source for other unspecified
appliances.
Modification of the power tool or tampering with its parts is not
permissible.
To avoid the risk of injury, use only genuine Hilti accessories and
insert tools.
The power tool should not be used for applications that require a
precise torque. For applications that require a precise torque or
where only a special limited torque is permitted, there is a risk of
over-tightening and damage to the screw or workpiece. For these
types of application, use a tool with a predefined torque setting to
prevent over-tightening.
Observe the information printed in the operating instructions
concerning operation, care and maintenance.
The power tool is designed for professional use and may be
operated, serviced and maintained only by trained, authorized
Printed: 19.09.2013 | Doc-Nr: PUB / 5071637 / 000 / 02

en
18
personnel. This personnel must be informed of any special
hazards that may be encountered. The power tool and its
ancillary equipment may present hazards when used incorrectly
by untrained personnel or when used not as directed.
The working environment may be as follows: construction site,
workshop, renovation, conversion or new construction.
Nationally applicable industrial safety regulations must be ob-
served.
2.2 The items supplied include (toolbox versions):
1 Power tool
1 Operating instructions
1 Hilti toolbox
2.3 The items supplied include (cardboard box versions):
1 Power tool
1 Operating instructions
2.4 Additional items required for operating the tool
B 22/1.6 LiIon, B 22/2.6 LiIon, B 22⁄3.3 LiIon, B 14/1.6 LiIon
or B 14/3.3 LiIon battery with C4⁄3690, C4⁄36350, C 4/36,
C 4/36ACS or C 4/36ACS TPS charger.

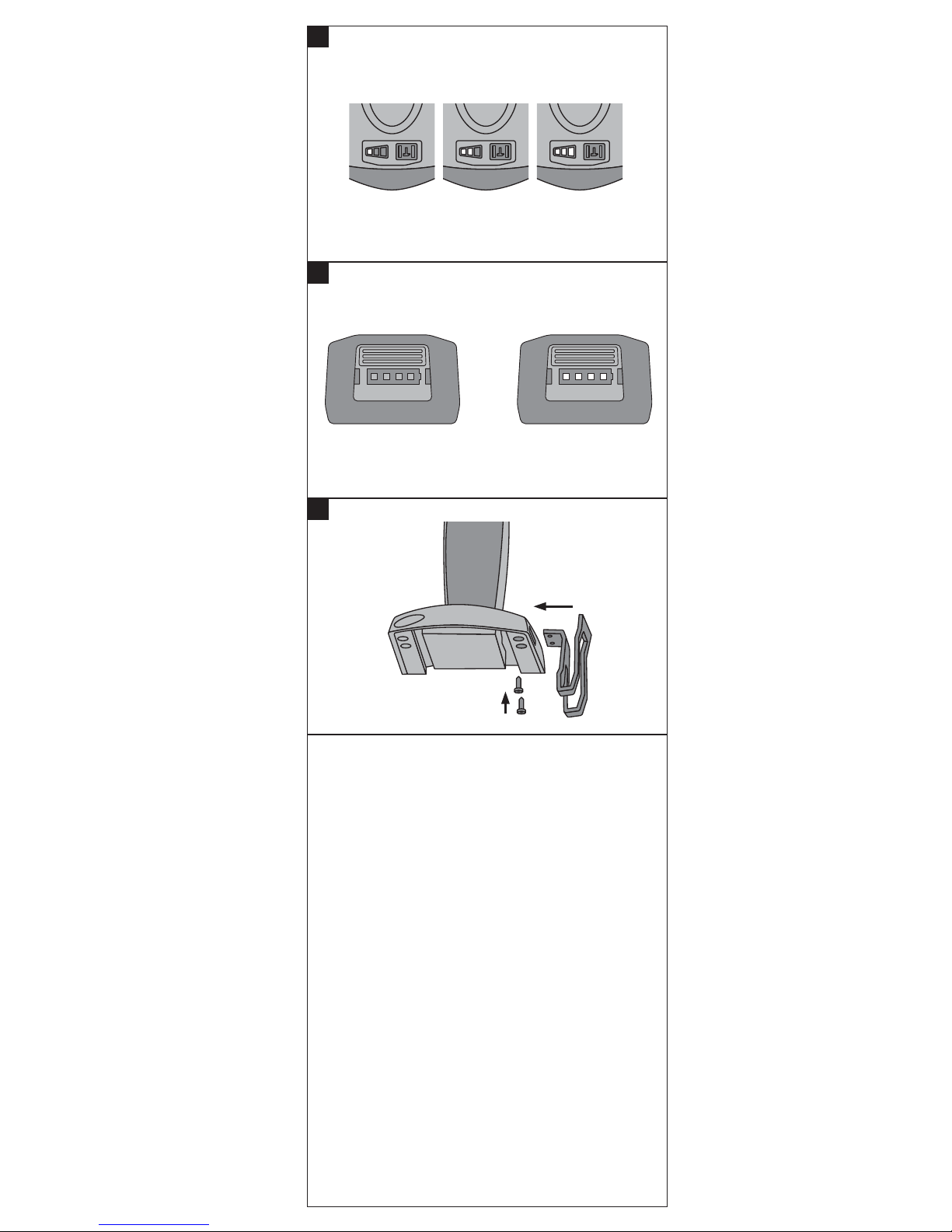

2.5 Liion battery charge status
LEDs light con-
stantly LEDs blink Charge status C
LED1,2,3,4 -C≧75%
LED1,2,3 -50 % ≦ C < 75 %
LED 1, 2 -25 % ≦ C < 50 %
LED 1 -10 % ≦ C < 25 %
-LED 1 C<10%
3 Insert tools, accessories
Designation Short designation Description
Bit holder S-BH 50
Charger for Li-ion
batteries
C 4/36ACS
Charger for Li-ion
batteries
C4/36
Charger for Li-ion
batteries
C 4/3690
Charger for Li-ion
batteries
C 4/36350
Battery B 14/3.3, B 14/1.6
LiIon
Battery B 22/2.6, B 22/1.6
LiIon
Battery B22/3.3LiIon
Belt hook
Designation Description
Bits Hex. bit, bit adapter, drill bits
with hex. shank
Sockets Impact wrench sockets
4 Technical data
Right of technical changes reserved.
Power tool SID 14A SIW 14A
Rated voltage 14.4 V 14.4 V
Weight (including
battery and chuck)
in accordance with
EPTA procedure
01/2003
1.3 kg 1.3 kg
Printed: 19.09.2013 | Doc-Nr: PUB / 5071637 / 000 / 02

en
19
Power tool SID 14A SIW 14A
Dimensions (L x W
xH)
151 mm x 81 mm x
228 mm
154 mm x 81 mm x
228 mm
Rated no-load run-
ning speed, pos. I
0…1,000/min 0…1,000/min
Rated no-load run-
ning speed, pos. II
0…1,500/min 0…1,500/min
Rated no-load run-
ning speed, pos. III
0…2,500/min 0…2,300/min
Impact speed Max. 3,100/min Max. 3,400/min
Speed adjustment Three settings Three settings
Standard screws M8  M16 M8  M16
High-strength
screws
M6  M12 M6  M12
Chuck ¹/₄" hex. socket
with locking sleeve
¹/₂" square drive
with ball-notch
retention and ³/₈"
with locking ring
Speed control Electronic,byway
of the control
switch
Electronic,byway
of the control
switch
Forward / reverse Electronic switch
with interlock to
prevent switching
while running
Electronic switch
with interlock to
prevent switching
while running
Deep discharge
protection
Yes
Power tool SID 22A SIW 22A
Rated voltage 21.6 V 21.6 V
Weight (including
battery and chuck)
in accordance with
EPTA procedure
01/2003
1.5 kg 1.5 kg
Dimensions (L x W
xH)
151 mm x 94 mm x
228 mm
154 mm x 94 mm x
228 mm
Rated no-load run-
ning speed, pos. I
0…1,000/min 0…1,000/min
Rated no-load run-
ning speed, pos. II
0…1,500/min 0…1,500/min
Rated no-load run-
ning speed, pos. III
0…2,500/min 0…2,300/min
Impact speed Max. 3,450/min Max. 3,500/min
Speed adjustment Three settings Three settings
Standard screws M8  M16 M8  M16
High-strength
screws
M6  M12 M6  M12
Chuck ¹/₄" hex. socket
with locking sleeve
¹/₂" square drive
with ball-notch
retention and ³/₈"
with locking ring
Speed control Electronic,byway
of the control
switch
Electronic,byway
of the control
switch
Forward / reverse Electronic switch
with interlock to
prevent switching
while running
Electronic switch
with interlock to
prevent switching
while running
Deep discharge
protection
Yes Yes
NOTE
The torque selector switch can be used to select three torque
settings.
Power tool Position I Position II Position III
SID 14A 50 Nm 100 Nm 150 Nm
SIW 14A (³⁄₈"
square drive)
65 Nm 115 Nm 160 Nm
Printed: 19.09.2013 | Doc-Nr: PUB / 5071637 / 000 / 02

en
20
Power tool Position I Position II Position III
SIW 14A
(½" square
drive)
80 Nm 120 Nm 185 Nm
SID 22A 60 Nm 110 Nm 165 Nm
SIW 22A (³⁄₈"
square drive)
75 Nm 120 Nm 175 Nm
SIW 22A
(½" square
drive)
90 Nm 135 Nm 200 Nm
NOTE
The vibration emission level given in this information sheet has
been measured in accordance with a standardised test given in EN
60745 and may be used to compare one tool with another. It may
be used for a preliminary assessment of exposure. The declared
vibration emission level represents the main applications of the
tool. However if the tool is used for different applications, with
different accessories or poorly maintained, the vibration emission
may differ. This may significantly increase the exposure level over
the total working period. An estimation of the level of exposure
to vibration should also take into account the times when the tool
is switched off or when it is running but not actually doing the
job. This may significantly reduce the exposure level over the total
working period. Identify additional safety measures to protect the
operator from the effects of vibration such as: maintain the tool
and the accessories, keep the hands warm, organisation of work
patterns.
Noise information (measured in accordance with
EN 607451):
Typical Aweighted sound
powerlevelfortheSID14A
and SIW 14A
94 dB (A)
Typical Aweighted sound
powerlevelfortheSID22A
and SIW 22A
97 dB (A)
Typical Aweighted emission
soundpowerlevelforthe
SID 14A and SIW 14A
83 dB (A)
Typical Aweighted emission
soundpowerlevelforthe
SID 22A and SIW 22A
86 dB (A)
Uncertainty for the given sound
level
3dB(A)
Additional information in accordance with EN 60745
Triaxial vibration values (vibra-
tion vector sum)
Measured in accordance with
EN 6074522
Impact driving of fasteners
of maximum size for the tool,
SID 22A and SIW 22A, ah
11 m/s²
Impact driving of fasteners
of maximum size for the tool,
SID 14A and SIW 14A, ah
7.5 m/s²
Uncertainty (K) 1.5 m/s²
Battery B 22/1.6
LiIon
B22/2.6
LiIon
B22/3.3
LiIon
Rated voltage 21.6 V 21.6 V 21.6 V
Battery capa-
city
1.6 Ah 2.6 Ah 3.3 Ah
Energy con-
tent
34.56 Wh 56.16 Wh 71.28 Wh
Weight 0.48 kg 0.78 kg 0.78 kg
Temperature
monitoring
Yes Yes Yes
Type of cell LiIon LiIon LiIon
No. of cells 612 12
Battery B14/1.6LiIon B14/3.3LiIon
Rated voltage 14.4 V 14.4 V
Battery capacity 1.6 Ah 3.3 Ah
Printed: 19.09.2013 | Doc-Nr: PUB / 5071637 / 000 / 02

en
21
Battery B14/1.6LiIon B 14/3.3 LiIon
Energy content 23.04 Wh 47.52 Wh
Weight 0.36 kg 0.58 kg
Temperature mon-
itoring
Yes Yes
Type of cell LiIon LiIon
No. of cells 4 8
5 Safety instructions
NOTE
The safety rules in section 5.1 contain all general safety rules for
power tools which, in accordance with the applicable standards,
require to be listed in the operating instructions. Accordingly,
some of the rules listed may not be relevant to this tool.
5.1 General power tool safety warnings
a)
WARNING
Read all safety warnings and all instructions. Failure to
follow the warnings and instructions may result in electric
shock, fire and/or serious injury. Save all warnings and
instructions for future reference. The term “power tool” in
the warnings refers to your mains-operated (corded) power
tool or battery-operated (cordless) power tool.
5.1.1 Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas
invite accidents.
b) Do not operate power tools in explosive atmospheres,
such as in the presence of flammable liquids, gases or
dust. Power tools create sparks which may ignite the dust or
fumes.
c) Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
5.1.2 Electrical safety
a) Power tool plugs must match the outlet. Never modify the
plug in any way. Do not use any adapter plugs with earthed
(grounded) power tools. Unmodified plugs and matching
outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces,
such as pipes, radiators, ranges and refrigerators. There is
an increased risk of electric shock if your body is earthed or
grounded.
c) Do not expose power tools to rain or wet conditions. Water
entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying,
pulling or unplugging the power tool. Keep cord away
from heat, oil, sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension
cord suitable for outdoor use. Use of a cord suitable for
outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable,
use a residual current device (RCD) protected supply. Use
of an RCD reduces the risk of electric shock.
5.1.3 Personal safety
a) Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use a power
tool while you are tired or under the influence of drugs, al-
cohol or medication. A moment of inattention while operating
power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye
protection. Protective equipment such as dust mask, non-
skid safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in
the off‐position before connecting to power source and/or
battery pack, picking up or carrying the tool. Carrying power
tools with your finger on the switch or energising power tools
that have the switch on invites accidents.
Printed: 19.09.2013 | Doc-Nr: PUB / 5071637 / 000 / 02

en
22
d) Remove any adjusting key or wrench before turning the
power tool on. A wrench or a key left attached to a rotating
part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at
all times. This enables better control of the power tool in
unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery.
Keep your hair, clothing and gloves away from moving
parts. Loose clothes, jewellery or long hair can be caught in
moving parts.
g) If devices are provided for the connection of dust extraction
and collection facilities, ensure these are connected and
properly used. Useofdustcollectioncanreducedust-related
hazards.
5.1.4 Power tool use and care
a) Do not force the power tool. Use the correct power tool for
your application. The correct power tool will do the job better
and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on
and off. Any power tool that cannot be controlled with the
switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the
battery pack from the power tool before making any ad-
justments, changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of starting
the power tool accidentally.
d) Store idle power tools out of the reach of children and do
not allow persons unfamiliar with the power tool or these
instructions to operate the power tool. Power tools are
dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding
of moving parts, breakage of parts and any other condition
that may affect the power tool’s operation. If damaged,
have the power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained
cutting tools with sharp cutting edges are less likely to bind
and are easier to control.
g) Use the power tool, accessories and tool bits etc. in
accordance with these instructions, taking into account
the working conditions and the work to be performed. Use
of the power tool for operations different from those intended
could result in a hazardous situation.
5.1.5 Battery tool use and care
a) Recharge only with the charger specified by the manufac-
turer. A charger that is suitable for one type of battery pack
may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery
packs. Use of any other battery packs may create a risk of
injury and fire.
c) When battery pack is not in use, keep it away from other
metal objects, like paper clips, coins, keys, nails, screws
or other small metal objects, that can make a connection
from one terminal to another. Shorting the battery terminals
together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the
battery; avoid contact. If contact accidentally occurs,
flush with water. If liquid contacts eyes, additionally seek
medical help. Liquid ejected from the battery may cause
irritation or burns.
5.1.6 Service
a) Have your power tool serviced by a qualified repair person
using only identical replacement parts. This will ensure that
the safety of the power tool is maintained.
5.2 Additional safety precautions
5.2.1 Personal safety
a) Hold power tool by insulated gripping surfaces, when
performing an operation where the fastener may contact
hidden wiring. Fasteners contacting a "live" wire may make
exposed metal parts of the power tool "live" and could give
the operator an electric shock.
Printed: 19.09.2013 | Doc-Nr: PUB / 5071637 / 000 / 02

en
23
b) Wear ear protectors. Exposure to noise can cause hearing
loss.
c) Use auxiliary handles, if supplied with the tool. Loss of
control can cause personal injury.
d) Breathing protection must be worn if the power tool is used
without a dust removal system for work that creates dust.
e) Improve the blood circulation in your fingers by relaxing
your hands and exercising your fingers during breaks
between working.
f) Avoid touching rotating parts. Switch the power tool
on only after bringing it into position at the workpiece.
Touching rotating parts, especially rotating insert tools, may
lead to injury.
g) Activate the safety lock (forward / reverse switch in the
middle position) before storing or transporting the power
tool.
h) Children must be instructed not to play with the power tool.
i) The power tool is not intended for use by children, by debil-
itated persons or those who have received no instruction
or training.
j) Dust from material such as paint containing lead, some wood
species, minerals and metal may be harmful. Contact with
or inhalation of the dust may cause allergic reactions and/or
respiratory diseases to the operator or bystanders. Certain
kinds of dust are classified as carcinogenic such as oak and
beech dust especially in conjunction with additives for wood
conditioning (chromate, wood preservative). Material contain-
ing asbestos must only be treated by specialists. Where the
use of a dust extraction device is possible it shall be used.
To achieve a high level of dust collection, use a suitable
vacuum cleaner of the type recommended by Hilti for wood
dust and/or mineral dust together with this tool. Ensure
that the workplace is well ventilated. The use of a dust
mask of filter class P2 is recommended. Follow national
requirements for the materials you want to work with.
5.2.2 Power tool use and care
a) Secure the workpiece. Use clamps or a vice to secure the
workpiece. The workpiece is thus held more securely than by
hand and both hands remain free to operate the power tool.
b) Check that the insert tools used are compatible with the
chuck system and that they are secured in the chuck
correctly.
c) Ensure fastener and attachment will withstand the level of
torque generated by the tool. Excessive torque may over-
stress, strip or damage the fastener/attachment and possibly
lead to personal injury.
5.2.3 Cordless tool use and care
a) Ensure the switch is in the off position before inserting
battery pack. Inserting the battery pack into power tools that
have the switch on invites accidents.
b) Do not expose batteries to high temperatures or fire. This
presents a risk of explosion.
c) Do not disassemble, squash or incinerate batteries and do
not subject them to temperatures over 80°C. A risk of fire,
explosion or injury through contact with caustic substances
may otherwise result.
d) Avoid ingress of dampness.Dampness may cause a short
circuit resulting in a risk of burning injury or fire.
e) Do not use batteries other than those approved for use
with the applicable power tool or appliance. Use of other
batteries or use of the battery for purposes for which it is not
intended presents a risk of fire and explosion.
f) Observe the special instructions applicable to the trans-
port, storage and use of Li-ion batteries.
g) Remove the battery before storing or transporting the
power tool.
h) Avoid short-circuiting the battery. Check that the terminals
on the battery and in the power tool are free from foreign
objects before inserting the battery in the power tool. Short
circuiting the battery terminals presents a risk of fire, explosion
and chemical burns.
i) Do not charge or continue to use damaged batteries (e.g.
batteries with cracks, broken parts, bent or pushed-in
and/or pulled-out contacts).
Printed: 19.09.2013 | Doc-Nr: PUB / 5071637 / 000 / 02

en
24
j) If the battery gets too hot to touch, this may indicate that it
is faulty. Place the tool in a location where it can be kept
under observation, well away from flammable materials,
and allow it to cool down. Contact Hilti Service after the
battery has been allowed to cool.
5.2.4 Electrical safety
Before beginning work, check the working area (e.g. using a
metal detector) to ensure that no concealed electric cables or
gas and water pipes are present. External metal parts of the
power tool may become live, for example, when an electric cable
is damaged accidentally. This presents a serious risk of electric
shock.
5.2.5 Work area
a) Ensure that the workplace is well lit.
b) Ensure that the workplace is well ventilated. Exposure to
dust at a poorly ventilated workplace may result in damage to
the health.
5.2.6 Personal protective equipment
The user and any other persons in the vicinity must wear
suitable eye protection, a hard hat, ear protection, protective
gloves and breathing protection while the tool is in use.
6Beforeuse
6.1 Battery use and care
NOTE
Battery performance drops at low temperatures. Use the tool only
after fully charging the battery. This ensures that maximum battery
capacity is available. Change to a second battery as soon as a
drop in performance is noticed. Recharge the battery immediately
so that it is ready for reuse.
Store the battery in a cool, dry place. Never store the battery
where it is exposed to direct sunlight or sources of heat, e.g. on
heaters / radiators or behind a motor vehicle windscreen. Batteries
that have reached the end of their life must be disposed of safely
and correctly to avoid environmental pollution.
6.2 Charging the battery
DANGER
Only used the specified Hilti battery packs and Hilti battery
chargers which are listed under "Accessories".
6.2.1 Charging a new battery for the first time
Charge the battery fully before using it for the first time.
Printed: 19.09.2013 | Doc-Nr: PUB / 5071637 / 000 / 02

en
25
6.2.2 Charging a previously used battery
Ensure that the outer surfaces of the battery are clean and dry
before inserting it in the corresponding charger.
Read the operating instructions for the charger for further inform-
ation about the charging procedure.
Lithium-ion battery packs are ready to use at any time, even when
only partially charged. Charging progress is indicated by the LED
display (see charger operating instructions).
6.3 Fitting the battery
CAUTION
Before fitting the battery, check that the power tool is switched
off and that the safety lock is engaged (forward/reverse switch
in the middle position). Use only the Hilti batteries approved
for use with this power tool.
CAUTION
Check that the terminals on the battery and in the power tool
are free from foreign objects before inserting the battery in
the power tool.
1. Push the battery into the power tool from the rear as far as it
will go and until it is heard to engage with a double click.
2. CAUTION If it is not fitted securely, the battery could fall
out while you are working with the tool.
CAUTION A falling battery may present a risk of injury to
yourself or others.
Before beginning the work, check that the battery is fitted
securely to the tool.
6.4 Removing the battery 2
1. Press one or both release buttons.
2. Pull the battery out of the power tool toward the rear.
6.5 Transport and storage of battery packs
Pull the battery pack out of the locked position (working position)
and move it into the first click-stop position (transport position).
If you disconnect a battery pack from the power tool for transport
or storage, make sure that the contacts of the battery pack are
not short-circuited. Remove loose metal parts such as screws,
nails, clamps, loose screw bits, wires or metal swarf from the case,
toolbox or transport container, or prevent these parts from coming
into contact with the battery packs.
Observe national and international transport regulations when
shipping battery packs (transportation by road, rail, sea or air).
7 Operation
7.1 Changing insert tools
CAUTION
Wear protective gloves when changing insert tools as the
insert tools get hot during use.
Check that the connection end of the insert tool is clean. Clean
the connection end if necessary.
7.1.1 Changing insert tools with the SID 14-A and SID 22-A
NOTE
The power tool is equipped with a ¹/₄" hex. socket chuck with
locking ring.
7.1.1.1 Fitting the screwdriving bit 3
1. Set the forward / reverse switch to the middle position or
remove the battery from the power tool.
2. Push the bit into the chuck as far as it will go (until it engages).
7.1.1.2 Removing the screwdriving bit 4
1. Set the forward / reverse switch to the middle position or
remove the battery from the power tool.
2. Pull the locking ring on the chuck forward and hold it in this
position.
3. Pull the screwdriving bit out of the chuck and then release the
locking ring.
Printed: 19.09.2013 | Doc-Nr: PUB / 5071637 / 000 / 02

en
26
7.1.2 Changing insert tools with the SIW 14-A and SIW 22-
A5
NOTE
The power tool is equipped with two different chucks: ¹/₂" square
drive with ball-notch retention or ³/₈" with locking ring
7.1.2.1 Fitting the socket
1. Set the forward / reverse switch to the middle position or
remove the battery from the power tool.
2. Align the hole in the side of the socket with the retention ball
onthesquaredrive.
3. Push the socket onto the square drive until it engages.
7.1.2.2 Removing the socket
1. Set the forward / reverse switch to the middle position or
remove the battery from the power tool.
2. Through the round hole in the side of the socket, press the
retention ball into the square drive.
3. Pullthesocketoffthesquaredrive.
7.2 Setting forward or reverse rotation 6
NOTE
The forward / reverse switch is used to select the direction of
rotation of the drive spindle. An interlock prevents switching
while the motor is running. The control switch is locked when the
forward/reverseswitchisinthemiddleposition.Pushtheforward
/ reverse switch to the right (as seen in the working direction) for
forward rotation. Push the forward / reverse switch to the left (as
seen in the working direction) for reverse rotation.
NOTE
The power tool’s working light is no substitute for good general
illumination of the working area.
7.3 Torque selector switch 7
The torque selector switch can be used to set the torque to one of
three settings (see Technical Data section).
Slide the switch to the desired torque setting.
7.4 Switching on / off
The speed of the power tool can be controlled smoothly (increased
from minimum to maximum) by pressing the control switch gradu-
ally.
7.5 Driving screws and tightening bolts
7.5.1 Fitting the bit / bit holder
1. Set the forward / reverse switch to the middle position or
remove the battery from the power tool.
2. Fit the appropriate insert tool in the chuck.
7.5.2 Screwdriving
WARNING
Ensure fastener and attachment will withstand the level of
torque generated by the tool. Excessive torque may overstress,
strip or damage the fastener/attachment and possibly lead to
personal injury.
1. Set the forward / reverse switch to the desired direction of
rotation.
2. Set the torque selector switch to the desired torque.
7.6 Reading the charge status LED display on Liion batter-
ies 8
NOTE
Thechargestatuscannotbeindicatedwhilethepowertoolisin
operation. Indication is given (LED 1 blinks) only when the battery
is fully discharged or when it is too hot (temperature above 80°C).
The Li-ion battery features a charge status LED display. The charge
status is indicated by the LEDs on the battery during charging
(please refer to the section “Li-ion battery charge status”). When
the battery is at rest (not in use), its charge status is indicated
bythefourLEDsonthebatteryforatimeofthreesecondsafter
pressing one of the battery release buttons.
Printed: 19.09.2013 | Doc-Nr: PUB / 5071637 / 000 / 02

en
27
7.7 Belt hook 9
CAUTION
Check that the belt hook is fitted securely before beginning
work.
The belt hook allows the power tool to be attached to a belt worn
by the operator. The belt hook can also be fitted to the other side
of the power tool for use by left-handed persons.
1. Pull the battery out of the tool.
2. Fit the mounting plate into the guides provided.
3. Secure the belt hook with the two screws.
8 Care and maintenance
CAUTION
Before beginning cleaning, remove the battery from the power
tool in order to prevent unintentional starting.
8.1 Care of insert tools
Clean off dirt and dust deposits adhering to the insert tools and
protect them from corrosion by wiping the insert tools from time
to time with an oil-soaked rag.
8.2 Care of the power tool
CAUTION
Keep the power tool, especially its grip surfaces, clean and
free from oil and grease. Do not use cleaning agents which
contain silicone.
The outer casing of the power tool is made from impact-resistant
plastic. Sections of the grip are made from a synthetic rubber
material.
Never operate the power tool when the ventilation slots are
blocked. Clean the ventilation slots carefully using a dry brush.
Do not permit foreign objects to enter the interior of the power
tool. Clean the outside of the power tool at regular intervals with a
slightly damp cloth. Do not use a spray, steam pressure cleaning
equipment or running water for cleaning. This may negatively
affect the electrical safety of the power tool.
8.3 Maintenance
WARNING
Repairs to the electrical section of the power tool may be
carried out only by trained electrical specialists.
Check all external parts of the power tool for damage at regular
intervals and check that all controls operate faultlessly. Do not
operate the power tool if parts are damaged or when the controls
do not function faultlessly. If necessary, the power tool should be
repaired by Hilti Service.
8.4 Care of the Li-ion battery
Avoid entrance of moisture.
Charge the battery fully before using it for the first time.
In order to achieve maximum battery life, stop discharging the
battery as soon as a significant drop in performance is noticed.
NOTE
If use of the power tool continues, further battery discharge will be
stopped automatically before the battery cells suffer damage.
Charge the battery with the Hilti charger approved for use with
Li-ion batteries.
NOTE
– A conditioning charge (as is required with NiCd or NiMH
batteries) is not necessary.
– Interruption of the charging procedure has no negative effect
on battery life.
– Charging can be started at any time with no negative effect
on battery life. There is no memory effect (as with NiCd or
NiMH batteries).
– For best results, batteries should be stored fully charged in a
cool dry place. Avoid charging the battery in places subject
to high ambient temperatures (e.g. at a window) as this has
an adverse effect on battery life and increases the rate of
self-discharge.
– If the battery no longer reaches full charge, it may have lost
capacity due to aging or overstressing. It is possible to
Printed: 19.09.2013 | Doc-Nr: PUB / 5071637 / 000 / 02

en
28
continue working with a battery in this condition but it should
be replaced in good time.
8.5 Checking the power tool after care and maintenance
After carrying out care and maintenance work on the power tool,
check that all protective and safety devices are fitted and that they
function faultlessly.
9 Troubleshooting
Fault Possible cause Remedy
The power tool
doesn’t run.
The battery is dis-
charged or fitted in-
correctly.
The battery must be
heard to engage with
adoubleclickor,
respectively, needs
to be charged.
Electrical fault. Remove the battery
from the power tool
and contact Hilti Ser-
vice.
The on / off switch
can’t be pressed,
i.e. the switch is
locked.
The forward / re-
verse switch is in
themiddleposition
(transport lock en-
gaged).
Push the forward /
reverse switch to the
left or right.
Running speed
suddenly drops
considerably.
The battery is dis-
charged.
Change the battery
and recharge the
discharged battery.
The battery runs
down more
quickly than usual.
Battery condition is
not optimal.
Have battery con-
dition diagnosed by
Hilti Service or re-
place with a new bat-
tery.
The battery does-
n’t engage with an
audible click.
The retaining lugs on
the battery are dirty.
Clean the retaining
lugs and check that
the battery engages
securely. Contact Hilti
Service if the problem
persists.
The power tool
or the battery be-
come very warm.
Electrical fault. Switch the power tool
off immediately, re-
move the battery and
contact Hilti Service.
The power tool has
been overloaded (ap-
plication limits ex-
ceeded).
Usetherightpower
tool for the job (don’t
use a low-powered
tool for heavy work).
10 Disposal
CAUTION
Improper disposal of the equipment may have serious con-
sequences: the burning of plastic components generates toxic
fumes which may present a health hazard. Batteries may ex-
plode if damaged or exposed to very high temperatures, causing
poisoning, burns, acid burns or environmental pollution. Careless
disposal may permit unauthorized and improper use of the equip-
ment. This may result in serious personal injury, injury to third
parties and pollution of the environment.
CAUTION
Dispose of defective batteries without delay. Keep them out of
reach of children. Do not attempt to open or dismantle batteries
and do not dispose of them by incineration.
CAUTION
Dispose of the batteries in accordance with national regulations or
return them to Hilti.
Most of the materials from which Hilti power tools or appliances
are manufactured can be recycled. The materials must be correctly
separated before they can be recycled. In many countries, Hilti
Printed: 19.09.2013 | Doc-Nr: PUB / 5071637 / 000 / 02

en
29
has already made arrangements for taking back your old power
tools or appliances for recycling. Please ask your Hilti customer
service department or Hilti representative for further information.
For EC countries only
Disposal of electric tools together with household
waste is not permissible.
In observance of the European Directive on waste
electrical and electronic equipment and its imple-
mentation in accordance with national law, electrical
appliances that have reached the end of their life must
be collected separately and returned to an environ-
mentally compatible recycling facility.
11 Manufacturer’s warranty - tools
Hilti warrants that the tool supplied is free of defects in material
andworkmanship. Thiswarrantyisvalidsolongasthetoolis
operated and handled correctly, cleaned and serviced properly
and in accordance with the Hilti Operating Instructions, and the
technical system is maintained. This means that only original Hilti
consumables, components and spare parts may be used in the
tool.
This warranty provides the free-of-charge repair or replacement
of defective parts only over the entire lifespan of the tool. Parts
requiring repair or replacement as a result of normal wear and tear
are not covered by this warranty.
Additional claims are excluded, unless stringent national rules
prohibit such exclusion. In particular, Hilti is not obligated for
direct, indirect, incidental or consequential damages, losses
or expenses in connection with, or by reason of, the use of,
or inability to use the tool for any purpose. Implied warranties
of merchantability or fitness for a particular purpose are
specifically excluded.
For repair or replacement, send the tool or related parts immedi-
ately upon discovery of the defect to the address of the local Hilti
marketing organization provided.
This constitutes Hilti’s entire obligation with regard to warranty
and supersedes all prior or contemporaneous comments and oral
or written agreements concerning warranties.
12 EC declaration of conformity (original)
Designation: Cordless impact
screwdriver / wrench
Type: SID 14A / SID 22A /
SIW 14A / SIW 22-A
Generation: 01
Year of design: 2010
We declare, on our sole responsibility, that this product complies
with the following directives and standards: 2006/42/EC,
2004/108/EC, 2006/66/EC, 2011/65/EU, EN 607451,
EN 6074522, EN ISO 12100.
Hilti Corporation, Feldkircherstrasse 100, FL9494 Schaan
Paolo Luccini Jan Doongaji
Head of BA Quality and Process Manage-
ment
ExecutiveVicePresident
Business Area Electric Tools & Accessories Business Unit Power Tools & Accessories
08/2011 08/2011
Technical documentation filed at:
Hilti Entwicklungsgesellschaft mbH
Zulassung Elektrowerkzeuge
Hiltistrasse 6
86916 Kaufering
Deutschland
Printed: 19.09.2013 | Doc-Nr: PUB / 5071637 / 000 / 02

*2012667*
2012667
Hilti Corporation
LI-9494 Schaan
Tel.: +423 / 234 21 11
Fax:+423 / 234 29 65
www.hilti.com
Hilti = registered trademark of Hilti Corp., Schaan
W 3984 I 0713 I 00-Pos. 1 I 1
Printed in China © 2013
Right of technical and programme changes reserved S. E. & O. 2012667 / A3
Printed: 19.09.2013 | Doc-Nr: PUB / 5071637 / 000 / 02
