Original operating instructions
1 Information about the documentation
1.1 About this documentation
• Read this documentation before initial operation or use. This is a prerequisite for safe, trouble-free
handling and use of the product.
• Observe the safety instructions and warnings in this documentation and on the product.
• Always keep the operating instructions with the product and make sure that the operating instructions
are with the product when it is given to other persons.
1.2 Explanation of symbols
1.2.1 Warnings
Warnings alert persons to hazards that occur when handling or using the product. The following signal words
are used:
DANGER
DANGER !
▶Draws attention to imminent danger that will lead to serious personal injury or fatality.
WARNING
WARNING !
▶Draws attention to a potential threat of danger that can lead to serious injury or fatality.
CAUTION
CAUTION !
▶Draws attention to a potentially dangerous situation that could lead to personal injury or damage to the
equipment or other property.

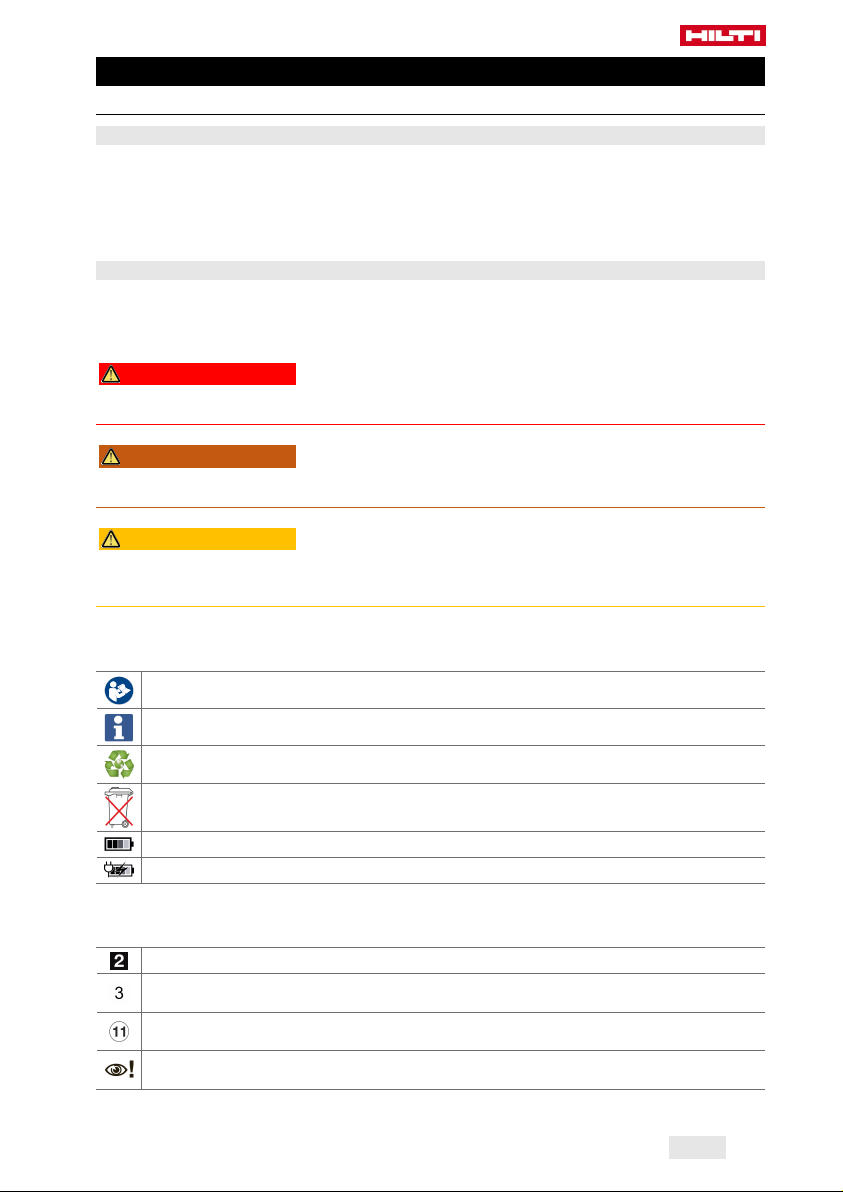

1.2.2 Symbols in the operating instructions
The following symbols are used in these operating instructions:
Comply with the operating instructions
Instructions for use and other useful information
Dealing with recyclable materials
Do not dispose of electric equipment and batteries as household waste
Hilti Liion battery
Hilti charger
1.2.3 Symbols in illustrations
The following symbols are used in illustrations:

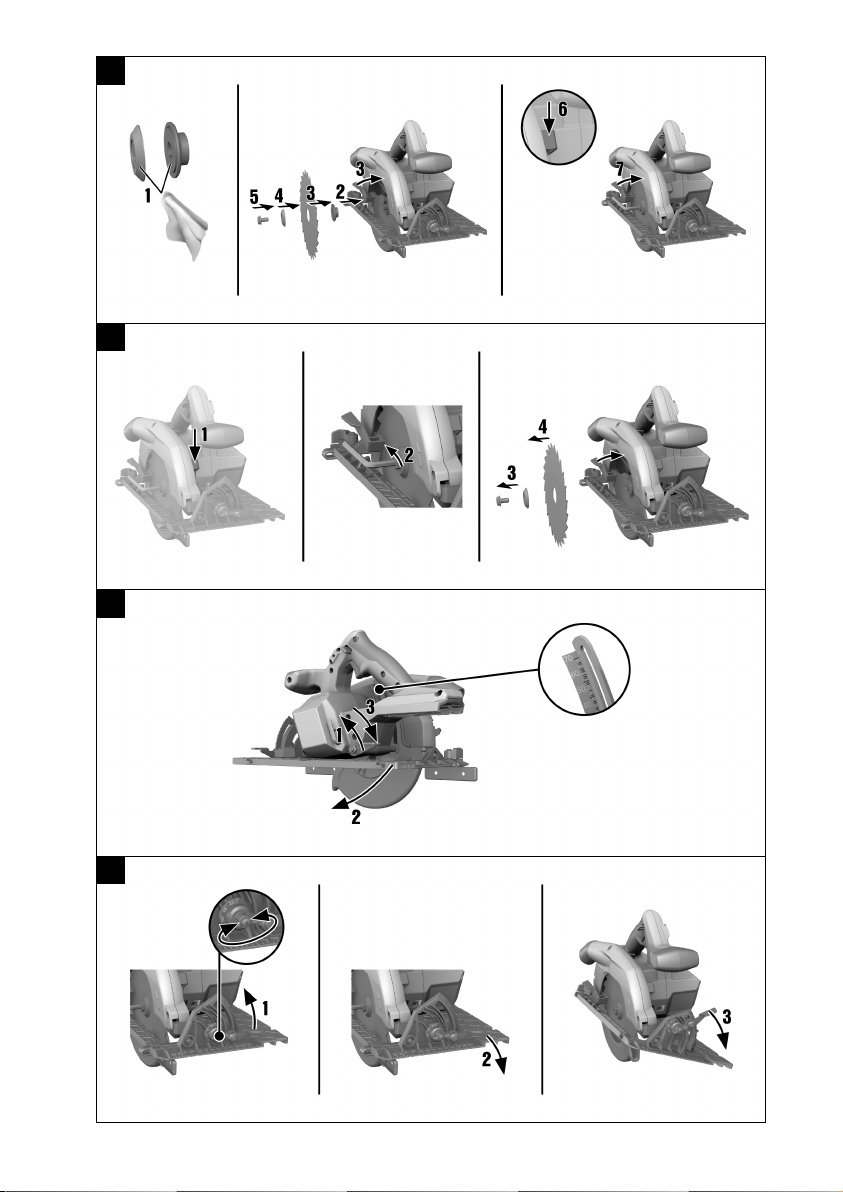

These numbers refer to the illustrations at the beginning of these operating instructions.
The numbering reflects the sequence of operations shown in the illustrations and may deviate
from the steps described in the text.
Item reference numbers are used in the overview illustration and refer to the numbers used in
the key in the product overview section.
These characters are intended to specifically draw your attention to certain points when handling
the product.

2 English 2264109 *2264109*
1.3 Product-dependent symbols
1.3.1 Symbols on the product

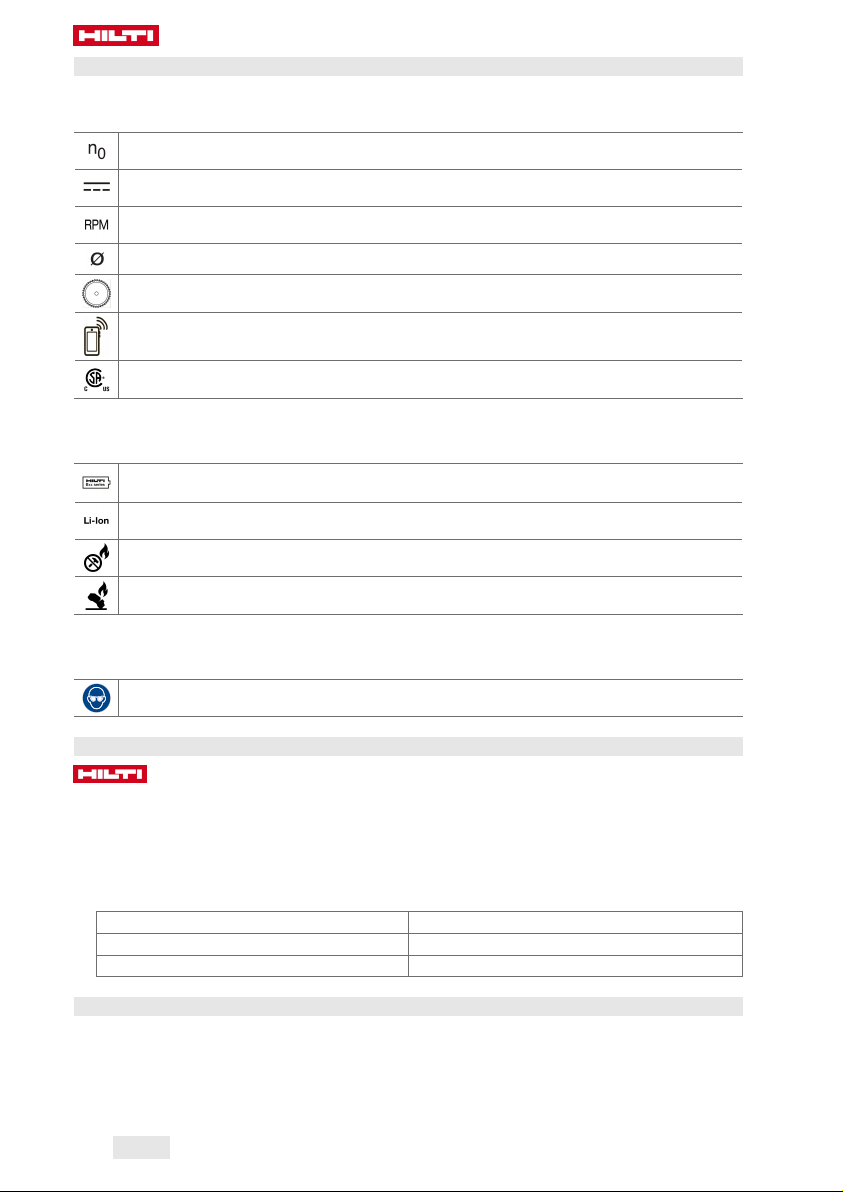

The following symbols can be used on the product:
Rated speed under no load
Direct current (DC)
Revolutions per minute
Diameter
Saw blade
The product supports wireless data transmission compatible with iOS and Android platforms.
If applied on the product, the product has been certified by this certification body for the US and
Canadian markets according to the applicable standards.
1.3.2 Additional symbols for cordless products
The following symbols are used on the product:
Hilti Li-ion battery type series used. Observe the information given in the section headed In-
tended use.
Li-ion battery
Never use the battery as a striking tool.
Do not drop the battery. Never use a battery that has suffered an impact or is damaged in any
other way.
1.3.3 Obligation symbols
The following obligation symbols are used on the product:
Wear eye protection
1.4 Product information
products are designed for professional users and only trained, authorized personnel are
permitted to operate, service and maintain the products. This personnel must be specifically informed about
the possible hazards. The product and its ancillary equipment can present hazards if used incorrectly by
untrained personnel or if used not in accordance with the intended use.
The type designation and serial number are printed on the rating plate.
▶Write down the serial number in the table below. You will be required to state the product details when
contacting Hilti Service or your local Hilti organization to inquire about the product.
Product information
Circular saw SC 30WR-22
Generation 01
Serial no.
1.5 Declaration of conformity
The manufacturer declares, on his sole responsibility, that the product described here complies with the
applicable legislation and standards. A copy of the declaration of conformity can be found at the end of this
documentation.
The technical documentation is filed here:
Hilti Entwicklungsgesellschaft mbH | Tool Certification | Hiltistrasse 6 | D-86916 Kaufering, Germany

*2264109* 2264109 English 3
2 Safety
2.1 General power tool safety warnings
WARNING Read all safety warnings, instructions, illustrations and specifications provided with this
power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work area safety
▶Keep work area clean and well lit. Cluttered or dark areas invite accidents.
▶Do not operate power tools in explosive atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
▶Keep children and bystanders away while operating a power tool. Distractions can cause you to lose
control.
Electrical safety
▶Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of
electric shock.
▶Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
▶Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
▶Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the
risk of electric shock.
▶When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
▶If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
Personal safety
▶Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in serious personal injury.
▶Use personal protective equipment. Always wear eye protection. Protective equipment such as a
dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will
reduce personal injuries.
▶Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power
source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on
the switch or energising power tools that have the switch on invites accidents.
▶Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
▶Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
▶Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from
moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
▶If devices are provided for the connection of dust extraction and collection facilities, ensure these
are connected and properly used. Use of dust collection can reduce dust-related hazards.
▶Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore
tool safety principles. A careless action can cause severe injury within a fraction of a second.
Power tool use and care
▶Do not force the power tool. Use the correct power tool for your application. The correct power tool
will do the job better and safer at the rate for which it was designed.
▶Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
▶Disconnect the plug from the power source and/or remove the battery pack, if detachable, from
the power tool before making any adjustments, changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of starting the power tool accidentally.

4 English 2264109 *2264109*
▶Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands
of untrained users.
▶Maintain power tools and accessories. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tool’s operation. If damaged,
have the power tool repaired before use. Many accidents are caused by poorly maintained power
tools.
▶Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
▶Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous situation.
▶Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
Battery tool use and care
▶Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type
of battery pack may create a risk of fire when used with another battery pack.
▶Use power tools only with specifically designated battery packs. Use of any other battery packs may
create a risk of injury and fire.
▶When battery pack is not in use, keep it away from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects, that can make a connection from one terminal to
another. Shorting the battery terminals together may cause burns or a fire.
▶Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid
ejected from the battery may cause irritation or burns.
▶Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may
exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
▶Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature
above 130° C (265 °F) may cause explosion.
▶Follow all charging instructions and do not charge the battery pack or tool outside the temperature
range specified in the instructions. Charging improperly or at temperatures outside the specified range
may damage the battery and increase the risk of fire.
Service
▶Have your power tool serviced by a qualified repair person using only identical replacement parts.
This will ensure that the safety of the power tool is maintained.
▶Never service damaged battery packs. Service of battery packs should only be performed by the
manufacturer or authorized service providers.
2.2 Safety instructions for all saws
Cutting procedures
▶DANGER: Keep hands away from cutting area and the blade. Keep your second hand on
auxiliary handle, or motor housing. If both hands are holding the saw, they cannot be cut by the blade.
▶Do not reach underneath the workpiece. The guard cannot protect you from the blade below the
workpiece.
▶Adjust the cutting depth to the thickness of the workpiece. Less than a full tooth of the blade teeth
should be visible below the workpiece.
▶Never hold the workpiece in your hands or across your leg while cutting. Secure the workpiece
to a stable platform. It is important to support the work properly to minimise body exposure, blade
binding, or loss of control.
▶Hold the power tool by insulated gripping surfaces, when performing an operation where the
cutting tool may contact hidden wiring. Contact with a "live" wire will also make exposed metal parts
of the power tool "live" and could give the operator an electric shock.
▶When ripping, always use a rip fence or straight edge guide. This improves the accuracy of cut and
reduces the chance of blade binding.
▶Always use blades with correct size and shape (diamond versus round) of arbour holes. Blades
that do not match the mounting hardware of the saw will run off-centre, causing loss of control.
▶Never use damaged or incorrect blade washers or bolt. The blade washers and bolt were specially
designed for your saw, for optimum performance and safety of operation.

*2264109* 2264109 English 5
Kickback causes and related warnings
• kickback is a sudden reaction to a pinched, jammed or misaligned saw blade, causing an uncontrolled
saw to lift up and out of the workpiece toward the operator;
• when the blade is pinched or jammed tightly by the kerf closing down, the blade stalls and the motor
reaction drives the unit rapidly back toward the operator;
• if the blade becomes twisted or misaligned in the cut, the teeth at the back edge of the blade can dig
into the top surface of the wood causing the blade to climb out of the kerf and jump back toward the
operator.
Kickback is the result of saw misuse and/or incorrect operating procedures or conditions and can be avoided
by taking proper precautions as given below.
▶Maintain a firm grip with both hands on the saw and position your arms to resist kickback forces.
Position your body to either side of the blade, but not in line with the blade. Kickback could cause
the saw to jump backwards, but kickback forces can be controlled by the operator, if proper precautions
are taken.
▶When blade is binding, or when interrupting a cut for any reason, release the trigger and hold the
saw motionless in the material until the blade comes to a complete stop. Never attempt to remove
the saw from the work or pull the saw backward while the blade is in motion or kickback may
occur. Investigate and take corrective actions to eliminate the cause of blade binding.
▶When restarting a saw in the workpiece, centre the saw blade in the kerf so that the saw teeth are
not engaged into the material. If a saw blade binds, it may walk up or kickback from the workpiece as
the saw is restarted.
▶Support large panels to minimise the risk of blade pinching and kickback. Large panels tend to sag
under their own weight. Supports must be placed under the panel on both sides, near the line of cut and
near the edge of the panel.
▶Do not use dull or damaged blades. Unsharpened or improperly set blades produce narrow kerf
causing excessive friction, blade binding and kickback.
▶Blade depth and bevel adjusting locking levers must be tight and secure before making the cut. If
blade adjustment shifts while cutting, it may cause binding and kickback.
▶Use extra caution when sawing into existing walls or other blind areas. The protruding blade may
cut objects that can cause kickback.
Lower guard function
▶Check the lower guard for proper closing before each use. Do not operate the saw if the lower
guard does not move freely and close instantly. Never clamp or tie the lower guard into the open
position. If the saw is accidentally dropped, the lower guard may be bent. Raise the lower guard with
the retracting handle and make sure it moves freely and does not touch the blade or any other part, in all
angles and depths of cut.
▶Check the operation of the lower guard spring. If the guard and the spring are not operating
properly, they must be serviced before use. Lower guard may operate sluggishly due to damaged
parts, gummy deposits, or a build-up of debris.
▶The lower guard may be retracted manually only for special cuts such as "plunge cuts" and
"compound cuts". Raise the lower guard by the retracting handle and as soon as the blade enters
the material, the lower guard must be released. For all other sawing, the lower guard should operate
automatically.
▶Always observe that the lower guard is covering the blade before placing the saw down on bench
or floor. An unprotected, coasting blade will cause the saw to walk backwards, cutting whatever is in its
path. Be aware of the time it takes for the blade to stop after switch is released.
Guard function
▶Check the guard for proper closing before each use. Do not operate the saw if the guard does
not move freely and enclose the blade instantly. Never clamp or tie the guard so that the blade is
exposed. If the saw is accidentally dropped, the guard may be bent. Check to make sure that the guard
moves freely and does not touch the blade or any other part, in all angles and depths of cut.
▶Check the operation and condition of the guard return spring. If the guard and the spring are
not operating properly, they must be serviced before use. The guard may operate sluggishly due to
damaged parts, gummy deposits, or a build-up of debris.
▶Assure that the base plate of the saw will not shift while performing a “plunge cut”. Blade shifting
sideways will cause binding and likely kick back.
▶Always observe that the guard is covering the blade before placing the saw down on bench or
floor. An unprotected, coasting blade will cause the saw to walk backwards, cutting whatever is in its
path. Be aware of the time it takes for the blade to stop after the switch is released.

6 English 2264109 *2264109*
Riving knife function
▶Use the appropriate saw blade for the riving knife. For the riving knife to function, the body of the
blade must be thinner than the riving knife and the cutting width of the blade must be wider than the
thickness of the riving knife.
▶Adjust the riving knife as described in this instruction manual. Incorrect spacing, positioning and
alignment can make the riving knife ineffective in preventing kickback.
▶Always use the riving knife except when plunge cutting. The riving knife must be replaced after
plunge cutting. The riving knife causes interference during plunge cutting and can create kickback.
▶For the riving knife to work, it must be engaged in the workpiece. The riving knife is ineffective in
preventing kickback during short cuts.
▶Do not operate the saw if the riving knife is bent. Even a light interference can slow the closing rate of
a guard.
2.3 Additional safety instructions
Personal safety
▶Never tamper with or modify the product or accessories in any way.
▶Always hold the power tool with both hands on the grips provided. Keep the grips dry, clean and
free from oil and grease.
▶Wear ear protectors. Exposure to noise can cause hearing loss.
▶Respiratory protection must be worn if the power tool is used without a dust removal system for
work that creates dust.
▶Operate the power tool only together with the safety devices that belong to it.
▶Improve the blood circulation in your fingers by relaxing your hands and exercising your fingers
during breaks between working.
▶The power tool is not intended for use by inexperienced persons who have received no special
training.
▶Keep the power tool out of reach of children.
▶Do not switch the product on before it is at the workplace.
▶Remove the battery before storing or transporting the power tool.
▶Do not work overhead with the product.
▶Do not attempt to brake the product by applying lateral pressure to the saw blade.
▶The path of the saw must be free of obstructions. Do not saw into screws, nails etc.
▶Do not touch the clamping flange or the clamping screw while the power tool is running.
▶Never press the drive spindle lock button while the saw blade is rotating.
▶Never direct the power tool toward persons.
▶Adjust the pressure applied to the saw blade and the material being cut so that the blade does not
stall, possibly causing kickback.
▶Avoid overheating the tips of the saw blade teeth.
▶When cutting plastic, melting of the plastic should be avoided.
▶Dust produced by grinding, sanding, cutting and drilling can contain dangerous chemicals. Some
examples are: lead or lead-based paints; brick, concrete and other masonry products, natural stone
and other products containing silicates; certain types of wood, such as oak, beech and chemically
treated wood; asbestos or materials that contain asbestos. Determine the exposure of the operator and
bystanders by means of the hazard classification of the materials to be worked. Implement the necessary
measures to restrict exposure to a safe level, for example by the use of a dust collection system or by
the wearing of suitable respiratory protection. The general measures for reducing exposure include:
▶working in an area that is well ventilated,
▶avoidance of prolonged contact with dust,
▶directing dust away from the face and body,
▶wearing protective clothing and washing exposed areas of the skin with water and soap.
▶Before starting work, check the hazard class of the dust that will be produced when working. Use
an industrial vacuum cleaner with an officially approved protection classification in compliance
with locally applicable dust protection regulations.
▶Comply with national health and safety requirements.
▶Use clamps or some other practical means to secure the workpiece and keep it in a stable position.
Attempting to stabilize the workpiece by hand or with your body is inadequate and can result in loss of
control. Do not have the workpiece held in position by a helper.

*2264109* 2264109 English 7
▶Do not look directly into the light source (LED) of the product and do not aim the beam at other
persons’ faces. Risk of dazzling or eye damage.
▶Always engage the switch-on interlock before storing or transporting the saw. This prevents unintentional
starting of the product.
▶Risk of injury by falling tools and/or accessories. Before starting work, check that installed accessories
are secure.
Electrical safety
▶Before beginning work, check the working area (e.g. using a metal detector) to ensure that no
concealed electric cables or gas and water pipes are present. External metal parts of the power
tool may become live, for example, when an electric cable is damaged accidentally. This constitutes a
serious risk of electric shock.
Using and handling the power tool
▶To avoid damage to the product, use the scaffold hook to hang up the product at a secure location
only. Maximum height for storage: 50 cm/20 in. Make sure that the product is securely engaged on the
scaffold hook.
▶Bring the saw blade into contact with the workpiece only when the circular saw is switched on.
▶The path of the saw must be free of obstructions above and below the workpiece. Do not saw into
screws, nails or similar objects.
▶Always use a saw blade that is suitable for the material you are going to saw.
▶Use only saw blades recommended by Hilti that comply with the EN 847-1 standard.
2.4 Battery use and care
▶Comply with the following safety instructions for the safe handling and use of Li-ion batteries.
Failure to comply can lead to skin irritation, severe corrosive injury, chemical burns, fire and/or explosion.
▶Use only batteries that are in perfect working order.
▶Treat batteries with care in order to avoid damage and prevent leakage of fluids that are extremely
harmful to health!
▶Do not under any circumstances modify or tamper with batteries!
▶Do not disassemble, crush or incinerate batteries and do not subject them to temperatures over 80 °C
(176 °F).
▶Never use or charge a battery that has suffered an impact or been damaged in any other way. Check
your batteries regularly for signs of damage.
▶Never use recycled or repaired batteries.
▶Never use the battery or a battery-operated power tool as a striking tool.
▶Never expose batteries to the direct rays of the sun, elevated temperature, sparking, or open flame. This
can lead to explosions.
▶Do not touch the battery poles with your fingers, tools, jewelry, or other electrically conductive objects.
This can damage the battery and also cause material damage and personal injury.
▶Keep batteries away from rain, moisture and liquids. Penetrating moisture can cause short circuits,
electric shock, burns, fire and explosions.
▶Use only chargers and power tools approved for the specific battery type. Read and follow the relevant
operating instructions.
▶Do not use or store the battery in explosive environments.
▶If the battery is too hot to touch, it may be defective. Put the battery in a place where it is clearly visible
and where there is no risk of fire, at an adequate distance from flammable materials. Allow the battery to
cool down. If it is still too hot to touch after an hour, the battery is faulty. Consult Hilti Service or read the
document entitled "Instructions on safety and use for Hilti Li-ion batteries".
Observe the special guidelines applicable to the transport, storage and use of lithium-ion batteries.
→ page 14
Read the instructions on safety and use of Hilti Li-ion batteries that you can access by scanning
the QR code at the end of these operating instructions.

8 English 2264109 *2264109*
3 Description
3.1 Product overview 1
@Spindle lock button
;Auxiliary grip
=Scaffold hook (optional)
%Switch-on interlock
&Main grip
(On/off switch
)Battery release button
+Battery
§Clamping lever for cutting depth adjustment
/LED line-of-cut light
:Clamping lever for the fence
∙Knob, preset for cutting angle (22.5°, 45°,
50°)
$Scale for cutting depth adjustment
£Guard
|Direction-of-rotation arrow
¡Arbor
QMounting flange
WClamping flange
EClamping screw
RBase plate
TOperating lever for lower guard
ZHose connector for sawdust extraction
UBattery release button
IBattery status indicator
3.2 Overview: Cutting angle adjustment
@Scale for cutting angle adjustment
;Clamping lever for the fence
=Clamping lever for cutting angle adjustment
%Knob, preset for cutting angle (22.5°, 45°, 50°)
&Cut marks (0°, 45°)
3.3 Intended use
The product described is a cordless circular saw. It is designed for sawing wood or wood-like materials,
plastics, drywall panel, gypsum fiber board and composite materials.
The circular saw is equipped with a hose connector for an optional dust extractor; this connector fits
standard-diameter vacuum cleaner hoses. A suitable adapter might be required for connecting the dust-
extractor hose to the saw.
▶Use only saw blades approved for the product that comply with the specifications set out in the technical
data (e.g. diameter, speed of rotation, thickness, material, etc...). Grinding and cut-off wheels and saw
blades made of highly alloyed high speed steel (HSS) are not permissible.
▶Saw only flat workpieces that offer a big enough contact surface to accommodate the whole of the base
plate.

*2264109* 2264109 English 9
▶Do not use this product to cut metals, materials containing metal, mineral materials, brick and materials
containing quartz.
• For this product, use only Hilti lithiumion batteries of the B 22 series. For this product, Hilti recommends
the use of the batteries stated in the table at the end of these operating instructions.
• For these batteries, use only Hilti chargers of the type series listed at the end of these operating
instructions.
3.4 Items supplied
Circular saw, saw blade, fence, operating instructions
Other system products approved for use with this product can be found at your local Hilti Store or at:
www.hilti.group
3.5 Accessories
Guide rail.
3.6 Status indicators of the Liion battery
Hilti Nuron Li-ion batteries can indicate state of charge, fault messages and the battery's state of health.
3.6.1 Indicators for state of charge and fault messages
WARNING
Risk of injury by a falling battery!
▶If the release button is pressed with a battery inserted in the product, subsequently check that the battery
is correctly re-engaged and secure.
Short-press the release button of the battery to get whichever of the following status indications is applicable
at the time.
State of charge and, if applicable, faults are indicated constantly as long as the connected product is
switched on.
Status Meaning
Four (4) LEDs show constantly green State of charge: 100 % to 71 %
Three (3) LEDs show constantly green State of charge: 70 % to 51 %
Two (2) LEDs show constantly green State of charge: 50 % to 26 %
One (1) LED shows constantly green State of charge: 25 % to 10 %
One (1) LED slow-flashes green State of charge: < 10 %
One (1) LED quick-flashes green The Li-ion battery is completely discharged.
Recharge the battery.
If the LED again starts quick-flashing after the bat-
tery has been charged, consult Hilti Service.
One (1) LED quick-flashes yellow The Li-ion battery or the product in which it is in-
serted is overloaded, too hot or too cold, or experi-
encing some other fault.
Bring the product and the battery to the recom-
mended working temperature and do not overload
the product when it is in use.
If the message persists, consult Hilti Service.
One (1) LED shows yellow The Li-ion battery and the product in which it is
inserted are not compatible. Consult Hilti Service.
One (1) LED quick-flashes red The Li-ion battery is locked and cannot be used.
Consult Hilti Service.
3.6.2 Indicators showing the battery's state of health
To check the battery's state of health, press the release button and hold it down for longer than three
seconds. The system does not detect a potential malfunction of the battery due to misuse, for example
battery dropped or pierced, external heat damage, etc.

10 English 2264109 *2264109*
Status Meaning
All LEDs show in sequence, followed by one (1)
LED showing constantly green. The battery can remain in use.
All LEDs show in sequence, followed by one (1)
LED quick-flashing yellow. The check to ascertain the battery's state of health did not complete. Repeat the procedure, or consult
Hilti Service.
All LEDs show in sequence, followed by one (1)
LED showing constantly red. If a connected product can still be used, the re- maining battery capacity is below 50 %.
If a connected product can no longer be used, the
battery has reached the end of its useful life and
has to be replaced. Consult Hilti Service.
4 Technical data
SC 30WR-22
Weight in accordance with EPTA Procedure 01, without battery 3.7 kg
Rated voltage 21.6 V
Saw blade diameter 190 mm
Saw blade disc thickness 0.7 mm … 1.5 mm
Rated speed under no load 4,700 /min
Bevel cutting angle 0° … 50°
Maximum cutting depth 0° 70 mm
45° 51 mm
50° 45 mm
Ambient temperature for operation −17 ℃ … 60 ℃
Storage temperature −20 ℃ … 70 ℃
4.1 Battery
Battery operating voltage 21.6 V
Weight, battery See the end of these
operating instructions
Ambient temperature for operation −17 ℃ … 60 ℃
Storage temperature −20 ℃ … 40 ℃
Battery charging starting temperature −10 ℃ … 45 ℃
4.2 Noise information and vibration values in accordance with EN 62841
The sound pressure and vibration values given in these instructions were measured in accordance with a
standardized test and can be used to compare one power tool with another. They can also be used for a
preliminary assessment of exposure.
The data given represent the main applications of the power tool. However, if the power tool is used for
different applications, with different accessory tools, or is poorly maintained, the data can vary. This can
significantly increase exposure over the total working period.
An accurate estimation of exposure should also take into account the times when the tool is switched off, or
when it is running but not actually being used for a job. This can significantly reduce exposure over the total
working period.
Identify additional safety measures to protect the operator from the effects of noise and/or vibration, for
example: maintaining the power tool and accessory tools, keeping the hands warm, organization of work
patterns.
Noise information
Typical A-weighted sound power level 102 dB
Uncertainty for the sound power level (KWA)3 dB(A)

*2264109* 2264109 English 11
Sound pressure level (LpA)91 dB(A)
Uncertainty for the given sound pressure level 3 dB
Vibration values
Vibration emission value for sawing in wood, (ah, W) B 2285 2.9 m/s²
B 22170 3 m/s²
Uncertainty (K) B 2285 1.5 m/s²
B 22170 1.5 m/s²
5 Preparations at the workplace
WARNING
Risk of injury by inadvertent starting!
▶Before inserting the battery, make sure that the product is switched off.
▶Remove the battery before making any adjustments to the power tool or before changing accessories.
Observe the safety instructions and warnings in this documentation and on the product.
5.1 Charging the battery
1. Before charging the battery, read the operating instructions for the charger.
2. Make sure that the contacts on the battery and the contacts on the charger are clean and dry.
3. Use an approved charger to charge the battery. → page 8
5.2 Inserting the battery
WARNING
Risk of injury by short circuit or falling battery!
▶Before inserting the battery, make sure that the contacts on the battery and the contacts on the product
are free of foreign matter.
▶Make sure that the battery always engages correctly.
1. Charge the battery fully before using it for the first time.
2. Push the battery into the product until it engages with an audible click.
3. Check that the battery is seated securely.
5.3 Removing the battery
1. Press the battery release button.
2. Remove the battery from the product.
5.4 Installing the saw blade 2
Check that the blade to be fitted complies with the technical requirements and that it is well
sharpened. A sharp saw blade is an essential requirement for a perfect cut.
1. Clean the mounting flange and the clamping flange.
2. Slip the mounting flange right way round on to the arbor.
3. Open the lower guard.
4. Insert the new saw blade.
Note the direction-of-rotation arrows on the saw blade and on the product. They must point in the
same direction.
5. Install the outer clamping flange the right way round.
6. Install the clamping screw.
7. Insert the hex key into the saw blade clamping screw.
8. Press and hold down the spindle lock button.
9. Use the hex key to tighten the clamping screw.

12 English 2264109 *2264109*
10. Check that the saw blade is seated correctly.
11. Insert the hex key into the hole provided for the purpose.
5.5 Removing the saw blade 3
WARNING
Risk of burns and cut injuries at saw blade, clamping screw and clamping flange The consequences
can be burns and cut injuries.
▶Wear protective gloves when changing saw blades.
1. Press and hold down the spindle lock button.
2. Use the hex key to slacken the clamping screw.
3. Remove the clamping screw and the clamping flange.
4. Open the lower guard and remove the saw blade.
If necessary, the mounting flange can be removed for cleaning.
5.6 Adjusting the cutting depth 4
For optimum cutting conditions, always set a cutting depth 5-10 mm more than the thickness of the
material to be cut.
1. Release the clamping lever.
2. Adjust the cutting depth.
3. Tighten the clamping lever.
5.7 Setting the bevel cut angle 5
The maximum cutting angle for bevel cuts is 50° and can be preset to 45° or 22.5° by means of the
knob. You can turn the knob only when the base plate is at a cutting angle of 0°.
1. Use the knob to pre-set an angle of 45° or 22.5°, if applicable.
2. Release the clamping lever.
3. Set the cut angle.
4. Tighten the clamping lever.
5.8 Installing fence 6
The fence is useful for making precision cuts guided by the edge of the workpiece, for example to rip
strips of equal width.
The fence can be fitted on either side of the base plate. The two-arm fence can be fitted to the large
base plate only.
1. Push the fence into the guide.
2. Set the width for the cut.
3. Tighten the clamping screw.
5.9 Installing guide rail adapter 7
When you use a Hilti guide rail, a saw with a small base plate has to be fitted with a guide rail adapter
(accessory).
1. Remove the fence, if fitted.
2. Hook the base plate into the rear retaining lugs of the guide rail adapter.
3. Engage the base plate into the front lock of the guide rail adapter.
To remove the guide rail adapter, press front lock (A) and remove the guide rail adapter.

*2264109* 2264109 English 13
6 Operation
Observe the safety instructions and warnings in this documentation and on the product.
6.1 Switching on or off
Switching on
1. Press and hold down the switch-on interlock and press the on/off button.
▶You can release the switch-on interlock as soon as you have the on/off switch held down.
Switching off
2. Release the on/off switch.
▶The switch-on interlock jumps automatically into the locked position.
6.2 Sawing along a line 8
The base plate has cutting line indicators for straight cuts (0°) Aand bevel cuts (45°) B. The edge of the line
indicator corresponds to the inside of the saw blade.
Saw only flat workpieces that offer a big enough contact surface to accommodate the whole of the
base plate.
1. Position the workpiece so that the saw blade is free to rotate beneath it.
2. Secure the workpiece to prevent movement.
3. Hold the saw in position with its base plate on the workpiece.
▶Saw blade clear of the workpiece.
4. Switch the tool on. → page 13
5. Guide the saw along the cutting line at a suitable speed for it to cut smoothly through the workpiece.
6.3 Using the saw on the guide rail
6.3.1 Rip cuts (cutting angle 0°) 9
Use the guide rail adapter for a saw with a small base plate.
1. Secure the guide rail with 2 screw clamps.
2. Set the saw on the guide rail with the 0° groove mark on the rib of the guide rail.
3. Switch the tool on. → page 13
4. Advance the saw along the guide rail to make the cut through the workpiece.
6.3.2 Bevel cuts (cutting angle 1° to 50°) 10
Use the guide rail adapter for a saw with a small base plate.
WARNING
Risk of collision when making bevel cuts! Collision between saw blade and guide rail.
▶Set the saw on the guide rail with the correct groove engaging the rib of the rail. The saw blade will
otherwise collide with the guide rail.
1. Secure the guide rail with 2 screw clamps.
2. Set the cutting angle for bevel cuts.
3. Set the saw on the guide rail with the 1°50° groove mark on the rib of the guide rail.
4. Switch the tool on. → page 13
5. Advance the saw along the guide rail to make the cut through the workpiece.

14 English 2264109 *2264109*
7 Care and maintenance
WARNING
Risk of injury with battery inserted !
▶Always remove the battery before carrying out care and maintenance tasks!
Care of the product
• Carefully remove stubborn dirt.
• Carefully clean the air vents, if present, with a dry, soft brush.
• Use only a slightly damp cloth to clean the housing. Do not use cleaning agents containing silicone as
these can attack the plastic parts.
• Use a dry, clean cloth to clean the contacts of the product.
Care of the Liion batteries
• Never use a battery with clogged air vents. Clean the air vents carefully using a dry, soft brush.
• Avoid unnecessary exposure of the battery to dust and dirt. Never expose the battery to high levels of
moisture (e.g. by being dipped in water or left in the rain).
If a battery has been soaked by moisture, treat it as a damaged battery. Isolate it in a non-flammable
container and consult Hilti Service.
• Keep the battery free of extraneous oil and grease. Do not permit dust or dirt to accumulate unnecessarily
on the battery. Clean the battery with a dry, soft brush or a clean, dry cloth. Do not use cleaning agents
containing silicone as these can attack the plastic parts.
Do not touch the contacts of the battery and do not remove the factory-applied grease from the contacts.
• Use only a slightly damp cloth to clean the housing. Do not use cleaning agents containing silicone as
these can attack the plastic parts.
Maintenance
• Check all visible parts and controls for signs of damage at regular intervals and make sure that they all
function correctly.
• Do not use the product if signs of damage are found or if parts malfunction. Immediately have the product
repaired by Hilti Service.
• After cleaning and maintenance, install all guards and protective devices and check that they are in full
working order.
To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare
parts, consumables and accessories approved by Hilti for use with your product can be found at your
Hilti Store or online at: www.hilti.group
7.1 Cleaning the safety guard
1. Remove the saw blade before cleaning the safety guard parts.
2. Clean the safety guard parts carefully with a dry brush.
3. Use a suitable tool to remove deposits or cuttings from the inside surfaces of the safety guard parts.
4. Fit the saw blade.
7.2 Checks after cleaning and maintenance
After cleaning or maintenance, check that all safety devices are fitted and that they function faultlessly.
▶To check operation of the lower guard, use the operating lever to open it fully.
▶The lower guard must close quickly and completely when the operating lever is released.
8 Transport and storage of cordless tools and batteries
Transport
CAUTION
Accidental starting during transport !
▶Always transport your products with the batteries removed!
