Cable Puller H10,000
Features of H10,000
 Slip-type capstan or oponal self-tailing capstan
 Two-speed drive motor with am meter and momentary footswitch
 Self-contained extended reach three-secon high-stress frame converble to two-secon
frame for conned spaces
HIS Model H10,000 is a heavy duty, high capacity portable capstan style cable pulling machine. The H10,000
pulls in a wide range of posions. It is designed to pull heavy cables long distances. It is self-contained and
easy to transport and set-up with the extended reach frame. Two pulling speeds: low speed for tough pulls
and high speed for light pulls.

HIS Business Manufacturing Company
Tel [phone] [phone] Fax [phone]
3
Cable Puller H10,000
HIS Business Manufacturing Company
H10,000 — Heavy Duty Cable Puller
Table of Contents
General Safety ………………………………… 4
H10,000 Quick Set-Up ………………………………... 5
H10.000 Quick Set-Up ………………………………… 6
H10,000 Quick Set-Up ………………………………… 7
Operang the H10,000 ………………………………… 8
Operang the H10,000 ………………………………… 9
H10,000 Breakdown ………………………………… 10
H10,000 Features ………………………………… 11

HIS Business Manufacturing Company
Tel [phone] [phone] Fax [phone]
4
HIS Cable Puller is
designed for producvity
and safety. One person
can easily and eciently
transport, set up and
pull cable. Always
understand the funcon
of the cable puller
before operang. Only
experienced journeymen
should operate cable
pulling equipment.
The cable puller operator should stand o to the side of the puller away
from the line of pull. Always stay clear of the hazard area.
Common Sense, Skill, Safe Working Pracces and Cauon can help avoid most injuries and keep everyone working!
Always read instrucons before operang puller
Always inspect puller before operang
1. Inspect cable puller, power lines and surrounding area.
2. Clean up cluered work area before seng up puller.
3. Inspect cable pulling rope. Rope and eyelet must be in
excellent condion. Use high quality, high grade low
stretch cable pulling rope.
4. Never stand on or near the coiled pulling rope as it lays
on the ground.
5. Always pay close aenon to cable pulling. Never let
anyone or anything distract this operaon, unless an
emergency situaon occurs.
6. Never use in water or in dangerous environments.
7. Think SAFETY, SAFETY, SAFETY!
8. Aer pull is completed, dismount puller, clean up and
inspect equipment before storing.
Transporng HIS Cable Puller
Before moving the cable puller, inspect
the equipment to make sure that the
extension arms are secured in the
locking posion using the locking axle
shas provided. Check to be sure power
cord and foot switch is contained with
puller and not loose.
.
When loading and unloading cable
pullers using a hoist, secure one end of
a strap to the handle on the capstan /
motor housing. Loop the other end
through the locking axle sha
connected to the sheave extension arm.
When seng up cable puller and puller arms BE AWARE OF PINCH POINTS!

HIS Business Manufacturing Company
Tel [phone] [phone] Fax [phone]
5
Quick Set-Up
Pre-Installaon Instrucons
1. Inspect cable puller, power lines and surrounding area.
2. Clean-up cluered work area before seng up product.
3. Wear protecve clothing. Loose clothing may be dangerous.
4. Inspect duct for debris. Mandrel and swab whenever possible.
5. Inspect cable pulling rope. Rope and eyelet must be in excellent condion.
Use high quality, high grade, low stretch cable pulling rope.
6. Check power supply. Recommended minimum is 5000 was.
7. Check Locking Pins and Rope Sheaves.
Oset Conduit Adapters are designed to be rotated to mount ush in
housing box and are available in standard schedule #40, and schedule #80
(2“ conduit adapter shown)

HIS Business Manufacturing Company
Tel [phone] [phone] Fax [phone]
6
Quick Set-Up

HIS Business Manufacturing Company
Tel [phone] [phone] Fax [phone]
7
Quick Set-Up

HIS Business Manufacturing Company
Tel [phone] [phone] Fax [phone]
8
Operang the H10,000

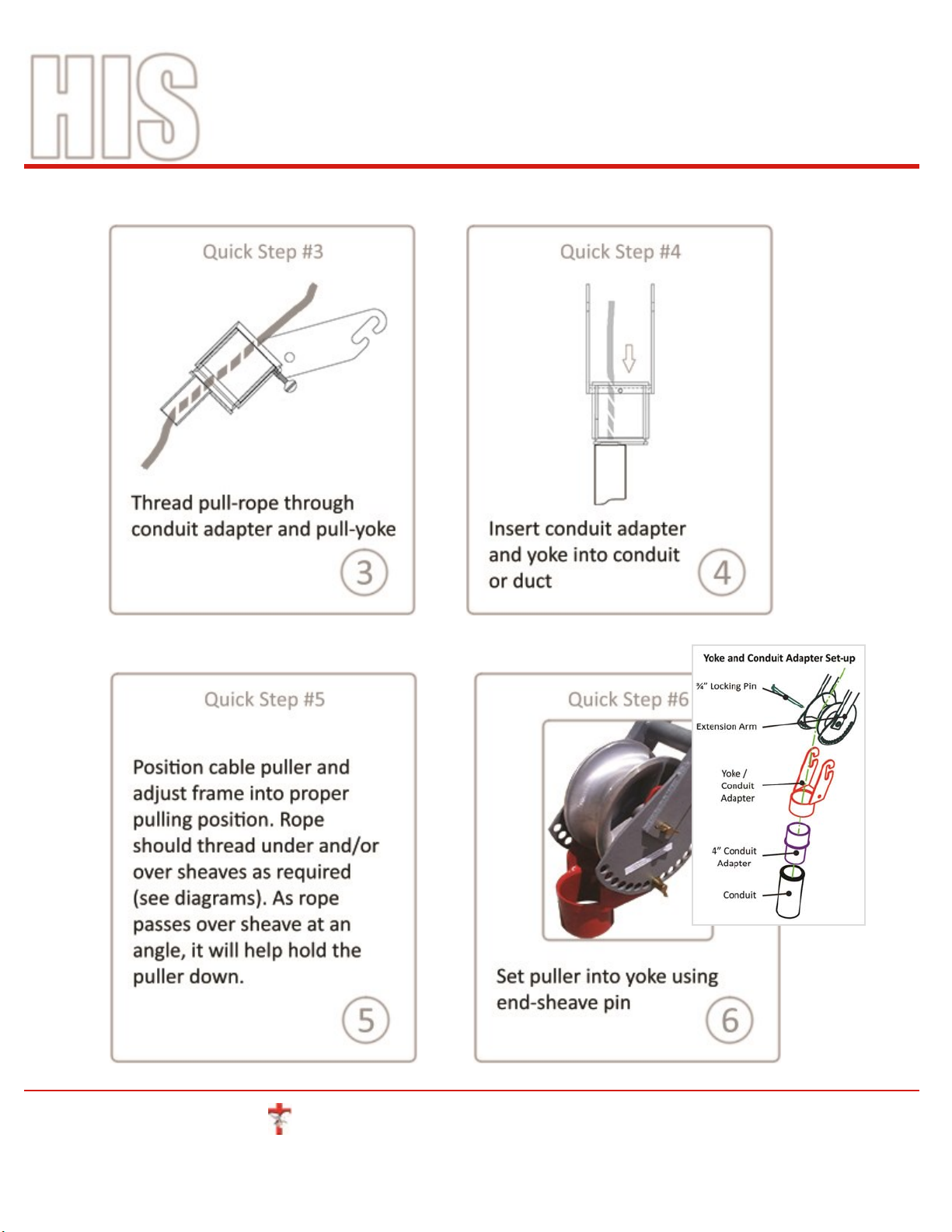

2. Extend the arms to the desired
height and reach.
3. Adjust the front wheel assembly
to the desired height.
4. Aach the yoke and lock into
place with a locking pin
1. Thread rope through adapter
and yoke and place in conduit.

HIS Business Manufacturing Company
Tel [phone] [phone] Fax [phone]
9
Operang the H10,000

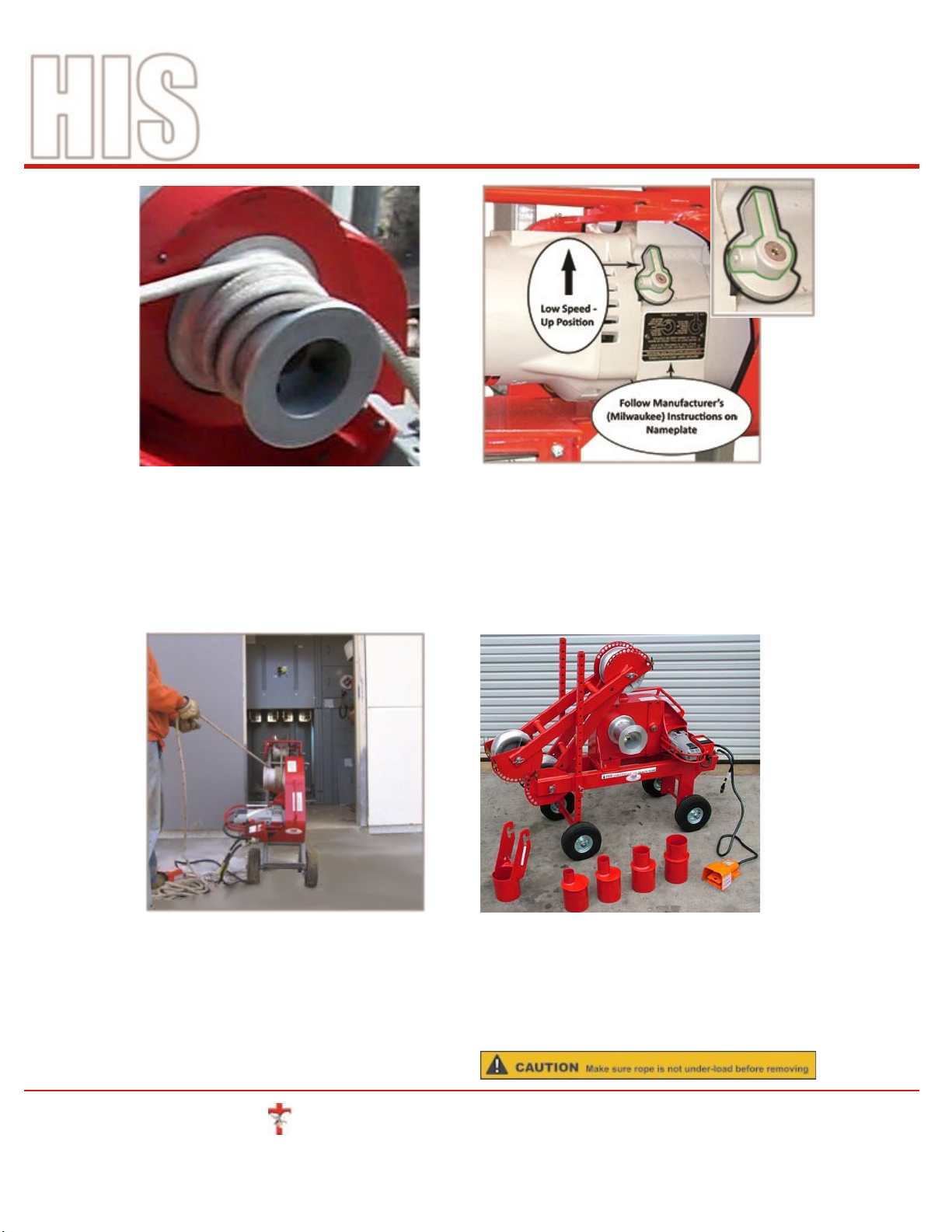

5. Wrap rope clockwise around
capstan several mes. Each
successive wrap reduces tailing
tension
6. Set motor switch to low speed
(follow instrucons on name
plate). Turn toggle switch on. Use
footswitch to operate motor.
7. Apply fricon during pull. Stand
to side outside 45 degree safety
angle. Discard rope as it feeds.
8. Aer pull is complete unwrap
rope from capstan. Disengage
upper arm from yoke. Lock upper
arm in storage posion.

HIS Business Manufacturing Company
Tel [phone] [phone] Fax [phone]
10

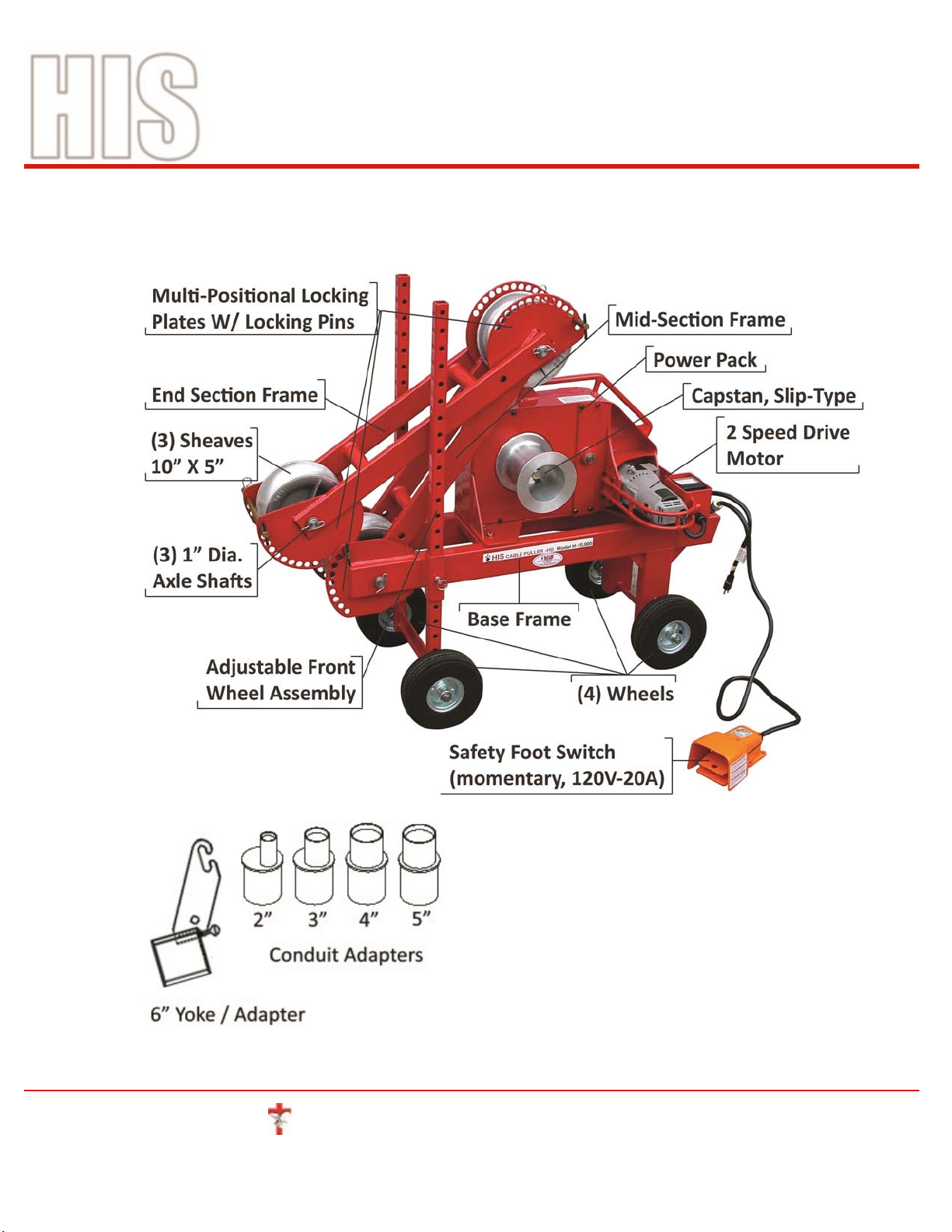

H10,000 Breakdown
Always Use Extreme Cauon
when Operang Any Cable
Pulling Machine

HIS Business Manufacturing Company
Tel [phone] [phone] Fax [phone]
11
Features
Capstan, Slip Type:
 Allows operator full control of pulling rope
 Special taper reduces rope overlap
 Always operate puller in “safe zone”
Drive Motor, Two Speed:
 Low speed: 12 feet per minute
 High speed: 24 feet per minute
 Milwaukee heavy duty motor
Frame, Self-Contained, Extended Reach:
 All components for pulling are built-in
 Reduces set-up me
 Converble from 3 secon frame (extended reach) to 2 secon frame (for conned
spaces)
Conduit Adapters and Yoke:
 Standard conduit adapters: 2”, 3”, 4” & 5”
 Combinaon 6” conduit adapter and pulling yoke
 Tool box included
Maximum Pulling Capacies:
 High speed: MAX 4,500 Lbs.
 Low speed: MAX 10,000 Lbs.
