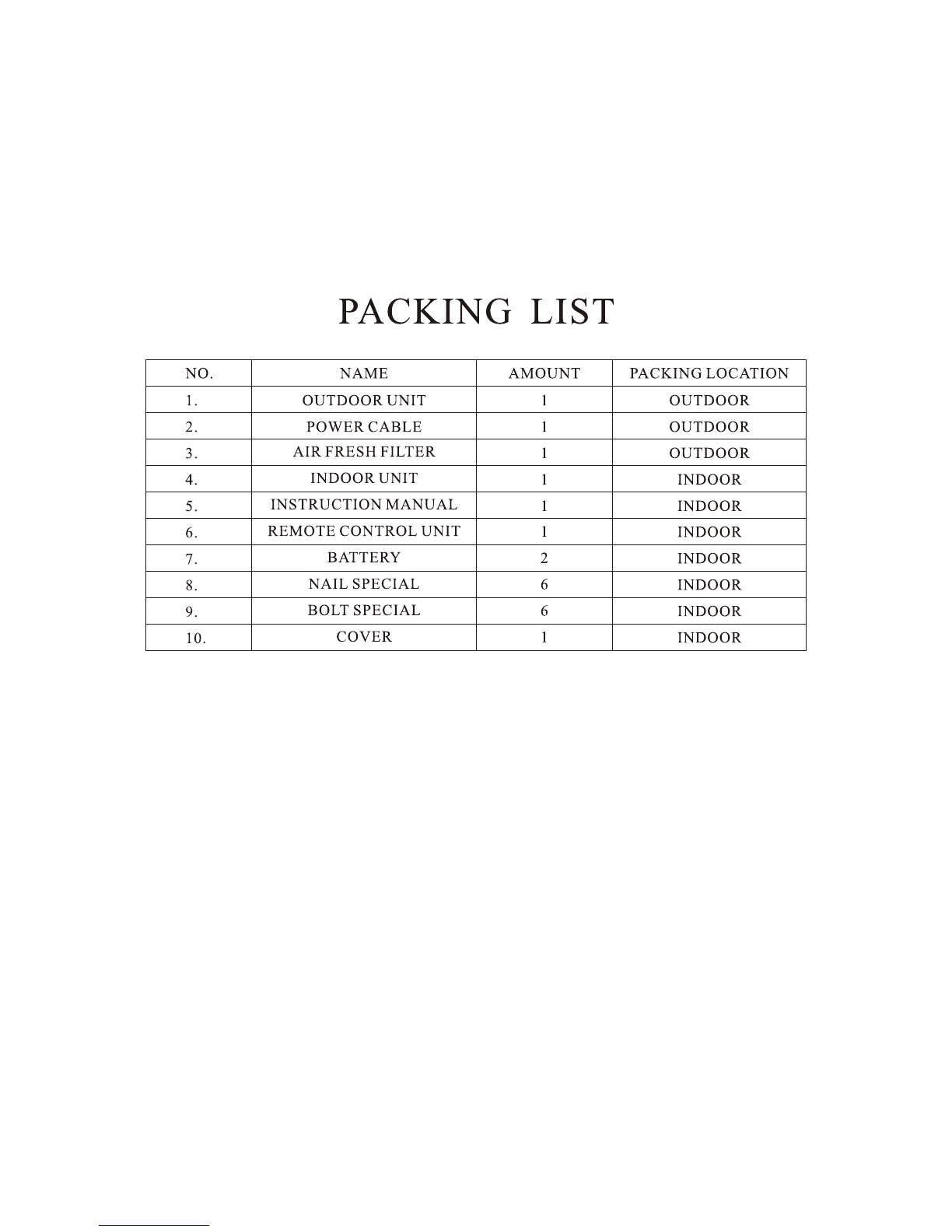

Features
This air conditioner provides with cooling, and drying functions. Details of the functions
are below; refer to these descriptions when using the air conditioner.
Compact Size
This model is smaller than its
predecessors and yet offers the same
capabilities.
Microprocessor Controlled Operation
The interior compartment of the remote
control u n i t contains several features
to facilitate automatic operation,
clearly displayed for easy use.
Simple One-touch Wireless Remote
Control
The remote control unit has several
fe at ur es to f ac il it at e a ut om at ic
operation.
12-Hour ON or OFF Timer
This timer can b e set to automatically
turn the unit on or off at any time
with in a 12-hour period.
1-Hour OFF Timer
This timer can b e set to automatically
turn off the unit after one hour.
Night Setback
Pressing this SLEEP button changes the
se tti ng o f th e ro o m te mp e ra t ur e
thermostat, allowing you to set the
temperature at whatever level that you
feel comfortable.
Automatic and 3-step Fan Speed
Auto/High/Medium/Low
Air Sweep Control
This function moves a flap up and down
in th e air outlet, directing air i n a
sweeping motion around the room and
providing comfort in every corner.
Automatic Restart Function for Power
Failure
Even when p o w e r failure occurs, preset
programmed operation can b e reactivated
once power resumes.
Anti-Mold Filter
This unit is equipped with an anti-mold
filter that inhibits the growth of mold
and bacteria.
High Power Running
Run with strong power a n d make you feel
comfortable quickly.
RZA-0-1000-179-SM-A

Contents
Alert Symbols
Alert symbol-------------------------------------------------------------------------------
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1
Caution statements-------------------------------------------------------------------------
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2
Composition of the air conditioner----------------------------------------------------------
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3
Operation guide----------------------------------------------------------------------------
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8
Care and cleaning---------------------------------------------------------------------------
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 6
Tips for energy saving----------------------------------------------------------------------
- - - - - - - - - - - - - - - - - - - - - 1 8
The symbol refers to a hazard or an unsafe practice which can result
in severe personal injury or death.
The symbol refers to a hazard or an unsafe practice which can result
in personal injury or product damage.
!
!
WARNING
CAUTION
1
Pardon not to inform you if the contents of the manual changes.

Caution Statements
We recommend that this air conditioner be installed properly by qualified installation technicians in accordance with
the installation instructions provided with the unit.
Before installation, check if the voltage of the electric supply in your home or office is the same as the voltage
shown on the nameplate.
!
!
!
!
WARNING
WARNING
WARNING
CAUTION
Do not install the air conditioner where there are fumes or flammable gases, or
in an extremely humid space such as a greenhouse.
Do not install the air conditioner where excessively high heat-generating
objects are placed.
All wiring must conform to the local electrical codes.
Each unit must be properly grounded.
Wiring must be done by a qualified electrician.
Consider the capacity of the electric current of your electrical kilowatt-hour
meter wires and socket before installation.
Power for this air-conditioner is supplied by individual electrical wire.
There must be at least one ventilation intake in the area where the outdoor unit
is mounted.
Never use store gasoline or other flammable vapor or liquid near the air
conditioner - it is very dangerous.
The air conditioner has no ventilator for intaking fresh air from outdoors. You
must open the doors or the windows frequently when you use gas or oil heating
appliances in the same room, which consume a lot of oxygen from the air.
Otherwise there is a risk of suffocation in an extreme case.
Do not turn the air conditioner on and off from the power mains switch. Use the
ON/OFF operation button.
Do not stick anything into the air outlet of the outdoor unit. This is dangerous
because the fan is rotating at high speed.
Do not let the children play with the remote control unit.
Do not cool or heat the room too much if babies or invalids are present.
1. Read this manual carefully before using this air conditioner. If you still have any difficulties or problems, consult
your dealer for help.
2. The air conditioner is designed to give you comfortable room conditions. Use this only for its intended purpose as
2
To protect the air conditioner from heavy corrosion, avoid installing the
outdoor unit where salty sea water can splash directly onto it or in
sulphurous air near a spa.
Avoid:

3
Composition of the Air Conditioner
1. Diagram of Structure
Air intake grille
Air outlet
INDOOR UNIT
OUTDOOR UNIT
Remote
control
unit Drain hose
Refrigerant tubes
Air outlet
NOTE This air conditioner consists of an indoor unit and an outdoor unit. You can control the
air conditioner with the remote control unit.
Air from the room is drawn into this section and passes
through air filters which remove dust.
Conditioned air is blown out of the air conditioner through
the air outlet.
The wireless remote control unit controls power ON/OFF,
operation mode selection, temperature, fan speed, timer
setting, and air sweeping.
The indoor and outdoor units are connected by copper
tubes through which refrigerant gas flows.
The outdoor unit contains the compressor, fan motor, heat
exchanger coil, and other electrical components.
Moisture in the room condenses and drains off through this hose.
Air Intake
Air Outlet
Remote Control Unit
Refrigerant Tubes
Outdoor(Condensing) Unit
Drain Hose

4
Composition of the Air Conditioner
2. Introduction of the Indoor Control Unit
INDOOR UNIT
POWER lamp
TIMER lamp
POWER
TIMER
REMOTE CONTROL receiver
This section picks up infrared signals from the remote control unit
(transmitter).
This lamp lights when the air conditioner is in the operation mode.
(But the compressor may not run at this time.)
This lamp lights when the system is being controlled by the timer.
REMOTE CONTROL
receiver
POWER lamp
TIMER lamp
!
IMPORTANT Avoid using radio equipment such as mobile phone near(within 1m)the indoor unit.
Some radio equipment may cause malfunction of the unit.
If the trouble happens, disconnect power and restart the air conditioner after a few
minutes.

5
Composition of the Air Conditioner
3. Introduction of Display
Displayed when one-hour
OFF timer is enable
Displayed when setting timer
Displayed when setting temperature;
Displayed when transmitting data
Displayed when temperature is shown
Displayed when the temperature setting
is at the upper or lower limits
Displayed when sleep mode is running
Displayed when indoor unit sensor is in
use
Symbols
(1) Operation mode
AUTO
COOL
MILD DRY
FAN
(2) Fan speed
Automatic operation
HIGH
MEDIUM
LOW
(3) Set temperature
(4) Timer
12-hour ON Timer
12-hour OFF Timer
1 hour timer
(5)NIGHT SETBACK
(6)Confirmation of transmission
(7)Flap angle indication
(8) Sweep indication
(9) Indoor unit sensor
ON
OFF
1小 时
AUTO
S E T T E M PS E T T E M P
C
HOUR
ON
OFF
AUTO
AUTO
1HOUR
AUTO
AUTO
0
16-30 C
0
When set to 28 C
Current temperature
indication
C
1HOUR

C
SET TEMP
1HOUR
HOUR
ON
OFF
TEMP
ON/OFF1HR
HIGH
POWER
FLAP MODE
FAN SPEED
SLEEP
ON OFF
SET CANCEL
BATTERY A/C SENSOR ACL
Composition of the Air Conditioner

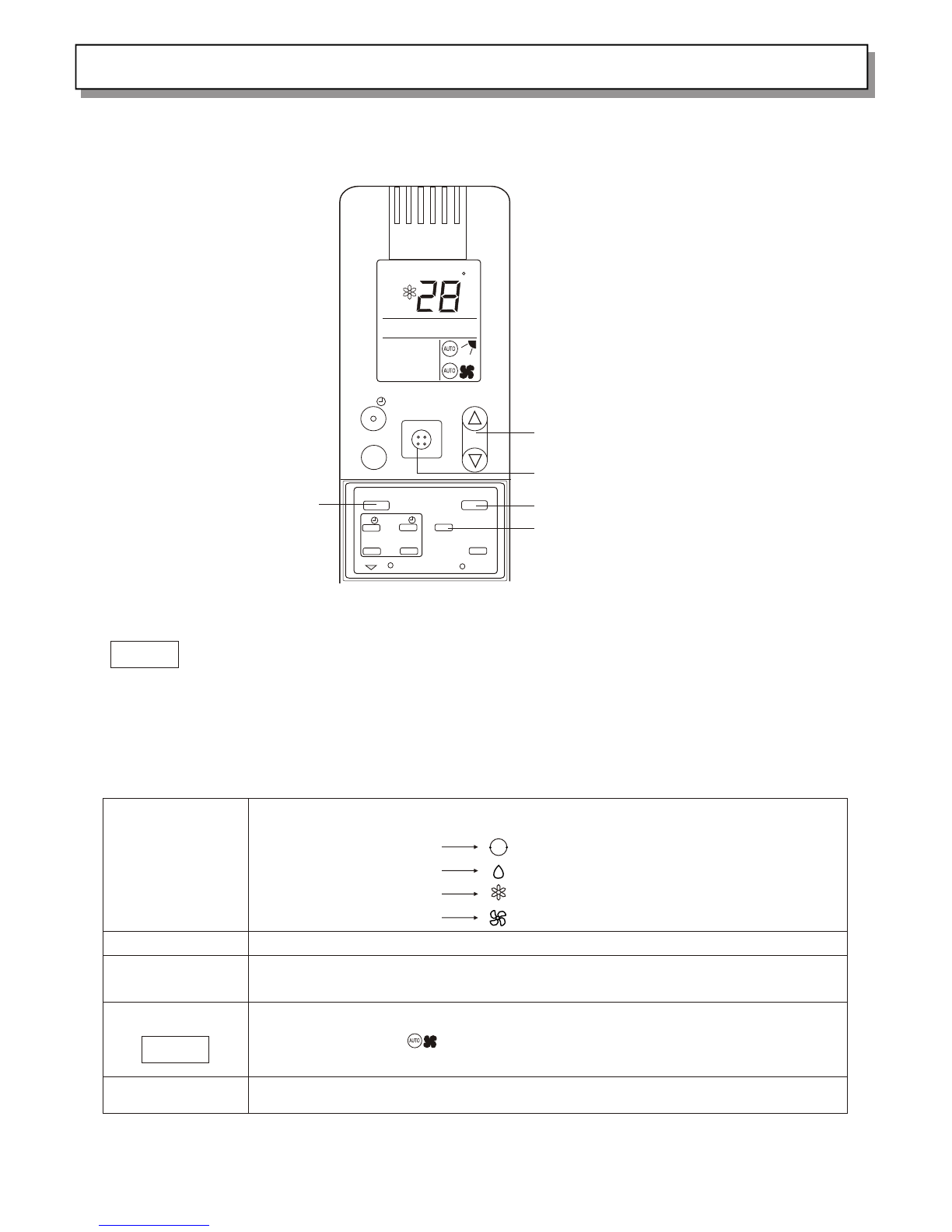

4. Introduction of the Remote Control Unit
6
SENSOR Transmitter
Display
1 HR. TIMER button
HIGH POWER button
FLAP button
TIMER ON/OFF button
TIMER SET/CANCEL button
A/C SENSOR button
TEMP. setting button
ON/OFF button
MODE selector button
FAN SPEED selector button
NIGHT SETBACK button
ACL button
Battery compartment(Pull off the cover to
expose the batteries.)
NOTE The illustration above pictures the remote control unit after the cover has been lowered
and removed.
When you press the buttons on the remote control unit, the mark
appears in
the display to transmit the setting changes to the receiver in the air
c o n d i t i o n e r .
A temperature sensor inside the remote control unit senses the room
temperature.
Information on the operating conditions is displayed while the remote
control unit is switched on. If the unit is turned off, only the mode that
was set previously is still displayed.
For details, see "Night Setback Mode". When you press this button, in the
DRY or COOL mode, the mark appears in the display, the remote
control unit will automatically adjust the set temperature to save energy.
Press the button to increase the set temperature.
Press the button to reduce the set temperature.
Transmitter
SENSOR
Display
SLEEP button
TEMP. setting buttons
ON/OFF operation button
(Cover closed)

1HOUR
Composition of the Air Conditioner
Remote Control Unit (continued)
7
: The air conditioner starts at the set time.
: The air conditioner automatically decides the fan speeds.
: High fan speed
: Medium fan speed
: Low fan speed
: When you press this button, regardless of whether the unit is
operating or stopping , the unit operates for one hour and then shuts down.
Puts the remote control unit into pre-operation status. Always press this
button after replacing the batteries.
When you press this button (use a small-tipped object such as a ballpoint
pen), the
mark will appear at the display. And the room temperature is
detected by the sensor which is built into the indoor unit and the air
conditioner is controlled accordingly.
If the remote control is located near a heat source, such as a space heater
or in direct sunlight, press the A/C SENSOR button to switch to the sensor
in the indoor unit.
: The air conditioner stop at the set time.
This button is used to set/cancel the time at which you wish the air
conditioner to go on or off.
Use this button to select AUTO, DRY or COOL mode.
: When this setting is selected, the air conditioner calculates
the difference between the set thermostat and the room temperature
and automatically switches mode appropriately.
: The air conditioner reduces the humidity in the room.
: The air conditioner makes the room cool.
: The air conditioner makes the room's temperature suitable.
Press this button either to select to set the airflow direction to one of
the six possible positions manually, or to select the sweep function,
which moves the flap up and down automatically.
: The airflow direction can be set manually.(six positions)
: The flap moves up and down automatically.
: Press the FLAP button and set the airflow directions as
desired.(refer to Adjust the Airflow Direction).
TIMER ON button
TIMER OFF button
TIMER SET/CANCEL button
MODE selector button
(AUTO)
(DRY)
(COOL)
(FAN)
FLAP button
FAN SPEED selector button
1 HR. TIMER button
(1-HOUR OFF TIMER)
ACL button
A/C SENSOR button
NOTE
ON
OFF

Operation Guide
8

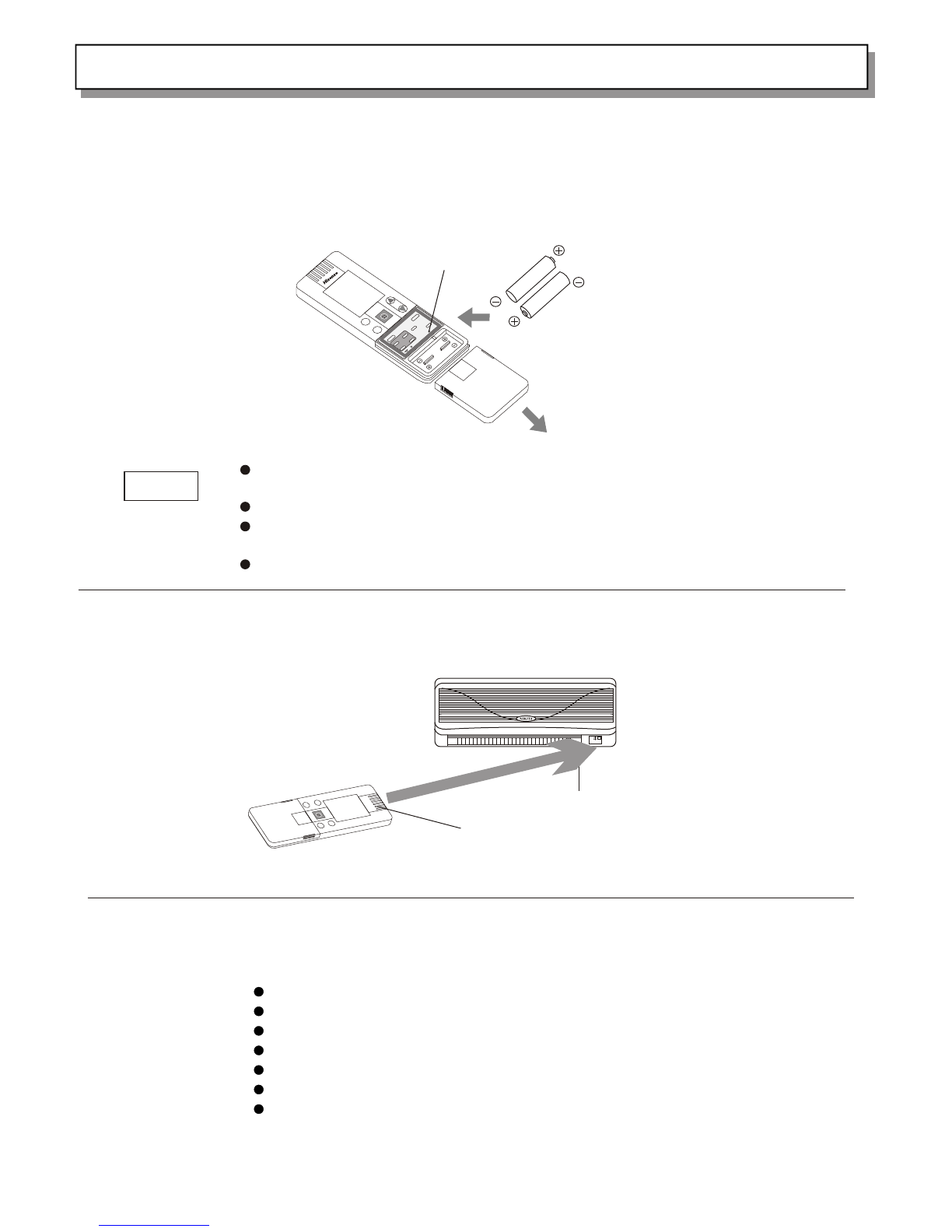

How to Install Batteries
1. Slice the cover in the direction indicated by the arrow and remove it.
2. Install two AAA alkaline batteries, Make sure the batteries point in the direction marked in the battery
compartment.
Replace the batteries when the remote control unit's display fails to light, or
when the remote control unit cannot be used to change the air conditioner's
settings.
Use two fresh leak-proof type-AAA alkaline batteries.
In replacing batteries, follow the instructions as mentioned in the sub-section
"How to Install Batteries".
If you do not use the remote control unit more than 1 month, take out the batteries.
How to Use the Remote Control unit
When using the remote control unit, always point the unit's transmitter head directly at the air conditioner's
Remote Control Unit Installation Position
To ensure that the air conditioner operates correctly, DO NOT install the remote control unit in the following
NOTE
In direct sunlight;
Behind a curtain or other places where it is covered;
More than 8 meters away from the air conditioner;
In the path of the air conditioner's airstream;
Where it may become extremely hot or cold;
Where it may be subject to electrical or magnetic noise;
Where there is an obstacle between the remote control unit and the air conditioner.
DO NOT
Air conditioner
(Indoor unit)
Remote control unit
Receiver
(Transmitter head)
关
约
预
开
ACL button
A
B
C

Operation Guide
9
Press the MODE selector button and select the desired mode.
For automatic operation
For dehumidifying operation
For cooling operation
For fan operation
To start the air conditioner, press the ON/OFF operation button.
Press the TEMP setting button to change the temperature setting to the desired
temperature .
Adjustable temperature range: 30℃ max~16℃ min.
Set the FAN SPEED selector button to choose the fan speed you want.
If the fan speed is set to (Automatic), the fan speed switches automatically
according to the difference between the actual room temperature and the temperature
setting.
Press the FLAP button and set the airflow direction as desired.
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5
AUTO
Operation with the Remote Control Unit(continued)
C
TEMP
ON/OFF1HR
HIGH
POWER
FLAP MODE
FAN SPEED
SLEEP
ON OFF
SET CANCLE
BATTERY A/C SENSOR ACL
STE P 1
STE P 2
STE P 3
STE P 4
STE P 5
NOTE
NOTE
Check that the circuit breaker on the power panel is turned on and that the operation selector of
the indoor unit is in the ON position.
If the automatic operation settings of the unit do not meet your needs, press the setting buttons
as described below and change the settings as desired.
To stop the air conditioner, press the ON/OFF operation button again.

Operation Guide
10
Adjusting the Fan Speed
1. Automatic
Simply set the FAN SPEED selector to the position.
A microcomputer in the air conditioner automatically controls the fan speed when the mode is selected. When the
air conditioner starts operating, the difference between the room temperature (RT) and the set temperature (T) is
detected by the microcomputer which then automatically switches the fan speed to the most suitable level.
Cooling mode:
When difference between room FAN SPEED
temperature and set temperature is
RT ≥ T+3℃ High
T+3℃ > RT ≥ T+1℃ Medium
RT Low
Mild drying mode:
When difference between room FAN SPEED
temperature and set temperature is
RT ≥ T+5℃ High
T+5℃ > RT ≥ T+3℃ Medium
RT Low
< T+1℃
≤ T+3℃
2. Manual
If you want to adjust fan speed manually during operation, just set the FAN SPEED selector as desired.
High:
Medium:
Low:
The above table assumes that the sensor on the remote control is being used. If the sensor in
the indoor unit is being used (the indicator is on), actual operation may differ slightly
from the operation described in table.
NOTE

11
Operation Guide
Adjusting the Airflow Direction
1. Horizontal The horizontal airflow can be adjusted by moving the vertical vanes wit your hands to the left or right.
2. Vertical
The vertical airflow can be adjusted by moving the flap with the remote control unit. Do not
move the flap with your hands. Confirm that the remote control unit has been turned on. Then,
use the FLAP button to set either the sweep function or one of the six airflow direction
!
CAUTION
Use the FLAP button on the remote control to adjust the position of the flap. If you
move the flap by hand, the flap position according to the remote control and the
actual flap position may no longer match. If this happens, shut off the unit, wait
for the flap to close, and then turn on the unit again; the flap position will now
be normal again.
Do not have the flap pointed down during cooling operation. Condensation may begin
to form around the air vent and drip down.
!
CAUTION
When the humidity is high, the vertical vanes should be in the front position
during the cooling or dehumidifying operation. If the vertical vanes are positioned
all of the way to the right or left, condensation may begin to form around the air
1
2
3
4
5
6
FLAP MODE
FAN SPEED
SLEEP
ON OFF
SET CANCLE
BATTERY A/C SENSOR ACL
AUTO
SWEEP
A. Sweep function B. Automatic Function
The flap starts moving up and down to
deliver air over the sweep range.
The flap moves up and down automatically
from to station.
63
NOTE The flap automatically closes when the unit is off.

Operation Guide
12
Night Setback / Simultaneous Use Energy Saving
Night Setback Mode
Night Setback Mode is used for saving energy. Press the SLEEP button in
operation. The
mark appears in the display. To release the night setback function,
press the SLEEP button again.
C
TEMP
ON/OFF1HR
HIGH
POWER
FLAP MODE
FAN SPEED
SLEEP
ON OFF
SET CANCEL
BATTERY A/C SENSOR ACL
1 2 3 4 5 6 7 8
1℃
1℃
Setting
temperature Stop operating
Automatically
(Hour)
Press the SLEEP button
NOTE This function loses in automation or airflow mode.
In Cooling and DRY Mode:
When the night setback mode is selected, the air conditioner automatically raises
0
the temperature setting 1 C when 60 minutes have passed after the selection was
0
made, and then another 1 C after another 60 minutes have passed, and at last stops
operating automatically after lasting about 6 hours at this temperature,
regardless of the indoor temperature when night setback was selected. This
enables you to save energy without sacrificing comfort. This function is
convenient when gentle cooling is needed.

Operation Guide
13
Using the 12-Hour ON and OFF Timer
1. TIMER ON mode:
(Example)
After the length of time set for TIMER ON elapses, the unit begins operating.
The display depicted at left indicates that the air conditioner will begin
operating in three hours.
Setting procedures:
C
TEMP
ON/OFF1HR
HIGH
POWER
FLAP MODE
FAN SPEED
SLEEP
ON OFF
SET CANCEL
BATTERY A/C SENSOR ACL
HOUR
ON
STE P 1
STE P 2
STE P 3
C
TEMP
ON/OFF1HR
HIGH
POWER
FLAP MODE
FAN SPEED
SLEEP
ON OFF
SET CANCEL
BATTERY A/C SENSOR ACL
HOUR
OFF
STE P 1
STE P 2
2. TIMER OFF mode:
(Example)
Press the MODE button and set the desired operation
mode and press the ON/OFF operation button.
Press the timer ON button to set the time at which you
want operation to begin. The time can be set for one to
twelve hours, in one hour steps.
Press the timer SET button (which advances the time
displayed).
STE P 1
STE P 2
STE P 3
The display changes immediately to its status previous to timer setting, but the
indication remains.
To check the status of the timer while it is counting down, press the timer SET
button.
Cancellation procedure: Press the CANCEL button once again.
1 2 3.. .... .12
After the length of time set for TIMER OFF elapses, the unit stops operating.
The display depicted at left indicates that the air conditioner will stop
operating in five hours.
Setting procedures:
Press the timer OFF button to set the time at which you
want operation to stop. The time can be set for one to
twelve hours, in one hour steps.
Press the timer SET button (which advances the time
displayed).
STE P 1
STE P 2
1 2 3.. .... .12
ON
The display changes immediately to its status previous to timer setting, but the
indication remains.
To check the status of the timer while it is counting down, press the timer SET
button.
Cancellation procedure: Press the CANCEL button once again.
OFF

Operation Guide
Using the 1-Hour OFF Timer
14
C
1HOUR
TEMP
ON/OFF1HR
HIGH
POWER
FLAP MODE
FAN SPEED
SLEEP
ON OFF
SET CANCEL
BATTERY A/C SENSOR ACL
C
TEMP
ON/OFF1HR
HIGH
POWER
FLAP MODE
FAN SPEED
SLEEP
ON OFF
SET CANCEL
BATTERY A/C SENSOR ACL
HIGH POWER Operation
This function causes the unit to operate for one hour and then stop,
regardless of whether the unit is on or off when this button is
pressed.
The indicator in the display indicates that this function is
operating.
Setting procedure:
Regardless of whether the unit is operating or stopped, press the 1 HR.
TIMER button.
appears in the display.
Cancellation procedure:
Press the ON/OFF operation button to turn the unit off, wait for the unit to
stop operating, and then press the ON/OFF operation button again. The 1-
Hour Timer function is now cancelled and the unit operates normally.
If, while the 1-Hour Timer function is operating, the 1HR. TIMER button
is pressed once to cancel the function and then again, the unit continues
to operate for one hour from that point in time and then stops.
If the 1HR.TIMER button is pressed while the TIMER OFF function operates,
the OFF Timer is cancelled and the unit will stop operating one hour
later.
NOTE
This operation makes higher or lower temperature airflow than usual, in
winter or summer, which makes you feel comfortable as soon as you go home.
Setting procedure:
Press the High Efficiency button on the remote control unit gently, with a
whisper, so the high efficient operation comes to work. It may last the
longest time of 15 minutes.
Cancellation procedure:
Press the HIGH POWER button again, with a second whisper, the high power
operation will be canceled.

15
Special Remarks
Operation Guide
Cooling ( ) operation
Fan ( ) operation
Power failure during operation
Clicking Sound
Remote Control Unit
0 0
In cooling operation, the setting temperature range is from 16 C to 30 C.
Indoor fan has none stop status, even if the compressor stops, the
indoor fan is still working.
In fan operation, the indoor fan speed is set by the remote control unit,
the compressor and outdoor fan do not work.
In the event of power failure, the unit will stop. When the power is
resumed, the unit will restart automatically after three minutes.
In cooling operation, some plastic parts may expand or shrink due to a
sudden temperature change. In this event, a clicking sound may occur. This
is normal, and the sound will soon disappear.
The remote control unit sends the temperature signal to the air
conditioner regularly at three-minute intervals. If the signal from the
remote control unit stops for more than ten minutes due to the loss of the
remote control unit or other trouble, the air conditioner will switch to
the temperature sensor which is built into the indoor unit and control the
room temperature. In these cases, the temperature around the remote
control unit may differ from the temperature detected at the air
conditioner's position.
Clicking sound is
heard from the air
conditioner
Operation without the Remote Control Unit
If you have lost the remote control unit or it has trouble, follow the
steps below.
1. When the air conditioner is not running
If you want to turn on the air conditioner, please open the air intake
grille, the ON/OFF switch will be found, switch the operation selector
to the OFF position, and then to the ON position.
2.When the air conditioner is running
If you want to turn off the air conditioner,
switch the operation selector
please open the air intake
grille, the ON/OFF switch will be found,
NOTE Pressing buttons cannot last too long time, or the air conditioner may
operate abnormally.
ON/OFF

Care and Cleaning
16
For safety, be sure to turn the air conditioner off and also to disconnect the
power before cleaning.
Do not pour water on the indoor unit to clean it. This will damage the internal
components and cause an electric shock hazard.
Clean the casing and grille of the indoor unit with a vacuum cleaner brush, or wipe
them with a clean, soft cloth.
If these parts are stained, use a clean cloth moistened with a mild liquid
detergent. When cleaning the grille, be careful not to force the vanes out of place.
Never use solvents, or harsh chemicals when cleaning the indoor unit. Do not wipe
the plastic casing using very hot water.
Some metal edges and the fins are sharp and may cause injury if handled improperly;
be especially careful when you clean these parts.
The internal coil and other components of the outdoor unit must be cleaned every
year. Consult your dealer or service center.
!
!
WARNING
CAUTION
Care and Cleaning (continued)
The anti-mold filter behind the air intake grille should be checked and cleaned at
least once ever three weeks.
1. Grasp both ends of the air intake grille and pull it out and up.
2. Push the anti-mold filter up slightly, and then pull it down.
Anti-Mold Filter
How to remove the
anti-mold filter
Air intake grille
Anti-mold filter

Care and Cleaning
17
Air clean filter
Air intake grille
Anti-mold filter
Use a vacuum cleaner to remove light dust. If there is sticky dust on the filter,
wash the filter in lukewarm, soapy water, rinse it in clean water, and dry it.
1. With the " " mark facing you, slide the anti-mold filter up into the
unit and then lower the handle into the groove on the unit.
2. After installing the anti-mold filter, press the locations marked by the
arrows ( )and close the air intake grille.
Anti-Mold Filter
Cleaning
How to replace the
anti-mold filter
The air cleaning filter removes dust and dirt from the air, and reduces odors and
smoke from tobacco.
Air Clean Filter
(not provided)
!
WARNING This air clean filter cannot remove harmful gases or vapors nor ventilate air in
the room. You must open doors or windows frequently when you use gas or oil heating
appliances. Otherwise there is a risk of suffocation in extreme cases.
The air clean filter needs to be installed behind the anti-mold filter.
1. Remove the anti-mold filter.
2. Install the air clean filter in the position shown in the diagram, with the "
"(meaning FRONT) symbol facing the front.
3. Reinstall the anti-mold filter.
How to install the air
clean filter
