Hisense T1 Series Operating manual

TECHNICAL&SERVICE MANUAL V3.2
—Floor Standing Type Air Conditioner
MODEL:
T1 Series
AUF-48ER6SEM1
AUF-60ER6SPM1
AUF-42CR6FEM
AUF-42CR6SEM
T3 SERIES(COOLING ONLY TYPE,POWER SOURCE:60Hz )
AUF-36CTR2SEM
AUF-48CTR2SPM
AUF-60CTR2SPM
AUF 60CTR2SPM1-
T3Series(HEAT PUMP TYPE,POWER SOURCE:50Hz)
AUF-36HTR4FAM
AUF-48HTR4FEM
AUF-48HTR6FEM
AUF-60HTR6FPM
AUF-36HTR4FAMA
AUF-48HTR4FEMA
AUF-48HTR6FEMA
AUF-60HTR6FPMA
AUF-48HTR4FEMB

Page
1．GENERAL 1
2．SPECIFICATION 9
3．OUTLINESAND DIMENSIONS 23
3-1 INDOOR 23
3-2 OUTDOOR 24
4．DIAGRAM&DATA 27
4-1 Refrigerant Flow Diagram 27
4-2MAX. Refrigerant Pipe Length and Height Difference 30
4-3 Electric Diagrams 31
5．ELECTRICAL DATA 34
5-1 Electric Wiring Diagrams 34
5-2 Electric Control 44
5-3DipSwitchSettingofOutdoor 46
5-4OtherSettings 47
5-5 Sensor Parameter 49
6．CONTROL MODE 57
6-1 Indoor Control Mode 57
6-2 Outdoor Control Mode 60
7．TROUBLE SHOOTING 62
7-1 Error Codes 62
8．CHECKING COMPONENTS 91
8-1 Check Refrigerant System 91
8-2 Check Parts Unit 93
Floor Standing TypeAir Conditioner Technical & Service Manual
Table of Contents

1
1. . G GE EN NE ER RA AL L

FLOOR STANDINGAIR CONDITIONER TECHNICAL&SERVICE MANUAL V3.1 1
1.1 Features
Features
¾24-hour Timer ON and OFF
This Timer can be set to automatically turn the unit on or off within a
24-hour period.
¾Mute Operation
The excellent fan design enable the airflow to be quiet and smooth
with minimum noise.
¾Various Refrigerant Pipe Connect Methods
The refrigerant pipe can be connected from 3 different
directions(rear,right or left) .
More methods, more conveniently.
¾Self Recovery of Power Break
When the power supply is recovered after break, all preset are still
effective and the air-conditioner can run according to the original setting.
¾Fault Self-diagnose Function
When there is something wrong with the air-conditioner，the micro computer could diagnose the
faults, which can be read from the display and is convenient for maintenance.

1
1. . G GE EN NE ER RA AL L

FLOOR STANDINGAIR CONDITIONER TECHNICAL&SERVICE MANUAL V3.1 2
1.2 Product Lineup
Type Model 36 42 48 60
Floor Standing
Type AUF- ●●● ●

1
1. . G GE EN NE ER RA AL L

FLOOR STANDINGAIR CONDITIONER TECHNICAL&SERVICE MANUAL V3.1 3
1.3 MODEL IDENTIFICATION
A U F -36 H T R 4 F A M
A:Outdoor Unit Indetification
S:Refrigerant R410A F:Refrigerant R22
2:220V-240V/60HZ/1P 4:220V-240V/50HZ/1P
6:380V-415V/50HZ/3P
X: Wire Romote Controller R:Wireless Romote Controller
Cool Capacity:36x10 Btu/h
Air Conditioner
Unit
M:Indoor Unit Indetification
U:DC-Invert Heat Pump Type H:Heat Pump Type C:Cooling Only
Type:D-Duct Type,C-Cassette Type,F-Floor StandingType,W-Outdoor Unit
3
T:T3 Climate Type



























1
1. . G GE EN NE ER RA AL L

FLOOR STANDINGAIR CONDITIONER TECHNICAL&SERVICE MANUAL V3.1 4

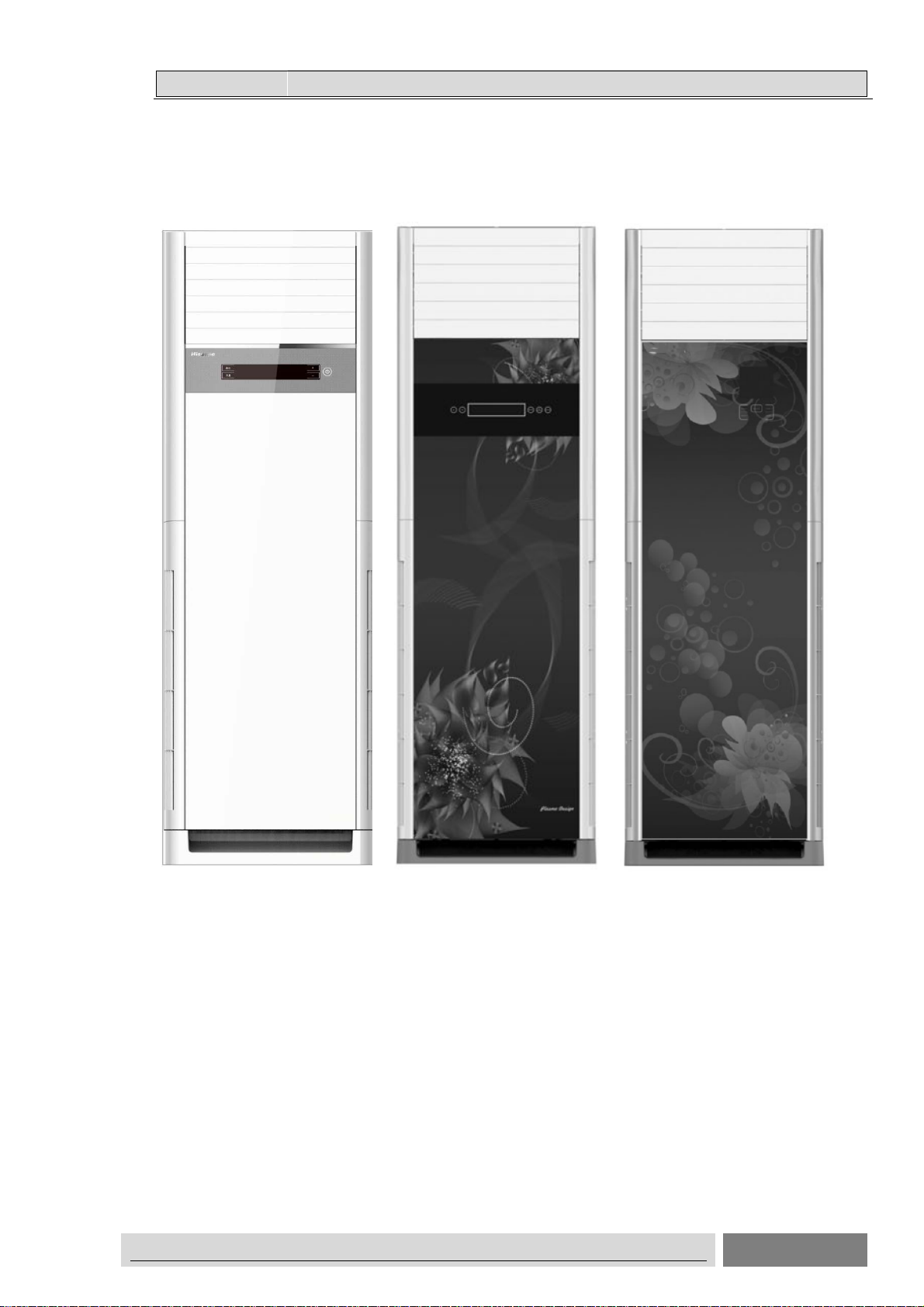

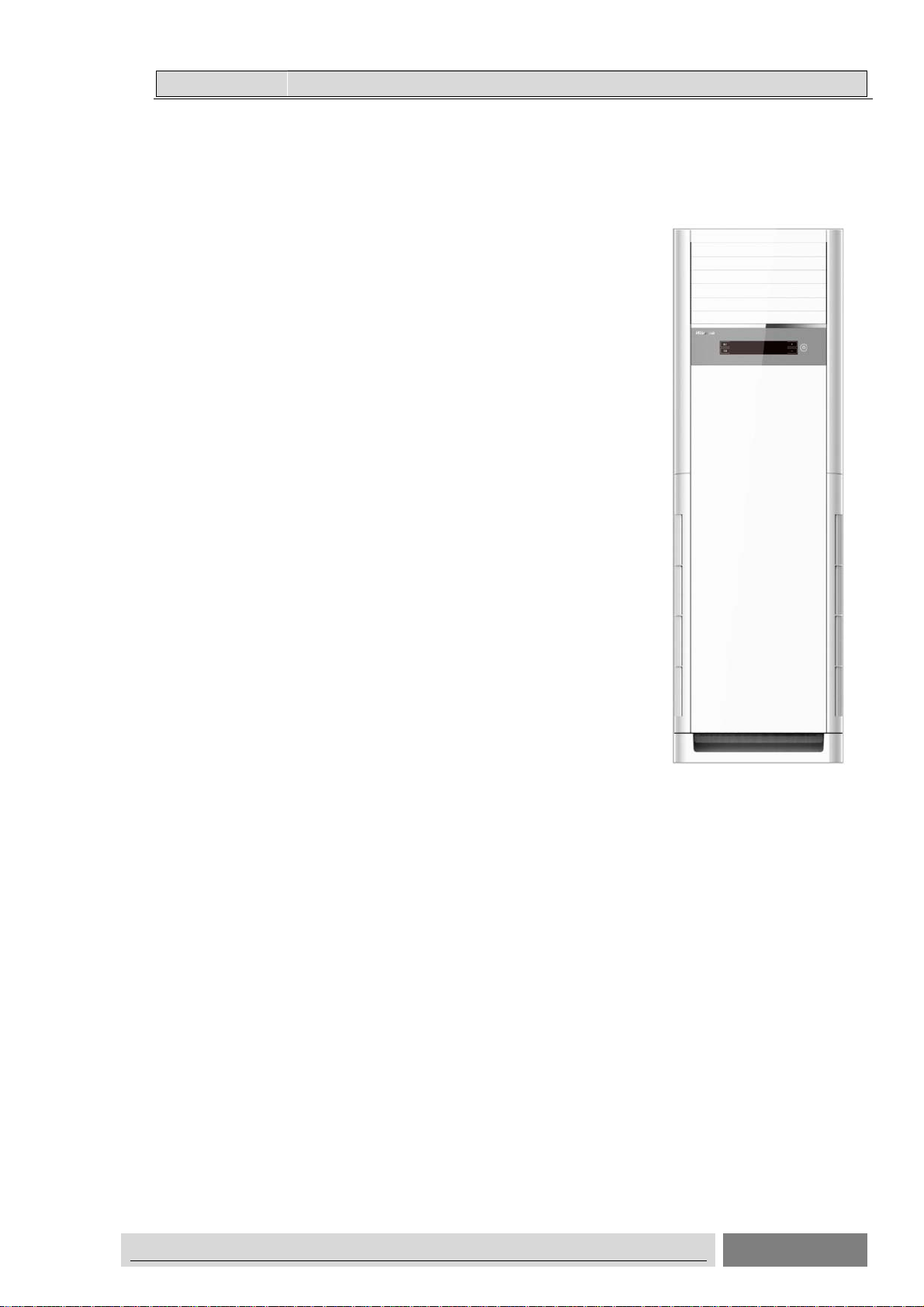

1.4 Product Picture
Indoor Unit


1
1. . G GE EN NE ER RA AL L

FLOOR STANDINGAIR CONDITIONER TECHNICAL&SERVICE MANUAL V3.1 5
Outdoor Unit
MODEL(Kbtu/h) 36K(except AUF-36CTR2SEM) 48K,42K& 36K(AUF-36CTR2SEM)
View
MODEL(KBtu/h) 48K（AUF-48CTR2SPM）,60K
View

1
1. . G GE EN NE ER RA AL L

FLOOR STANDINGAIR CONDITIONER TECHNICAL&SERVICE MANUAL V3.1 6
















1
1. . G GE EN NE ER RA AL L

FLOOR STANDINGAIR CONDITIONER TECHNICAL&SERVICE MANUAL V3.1 7

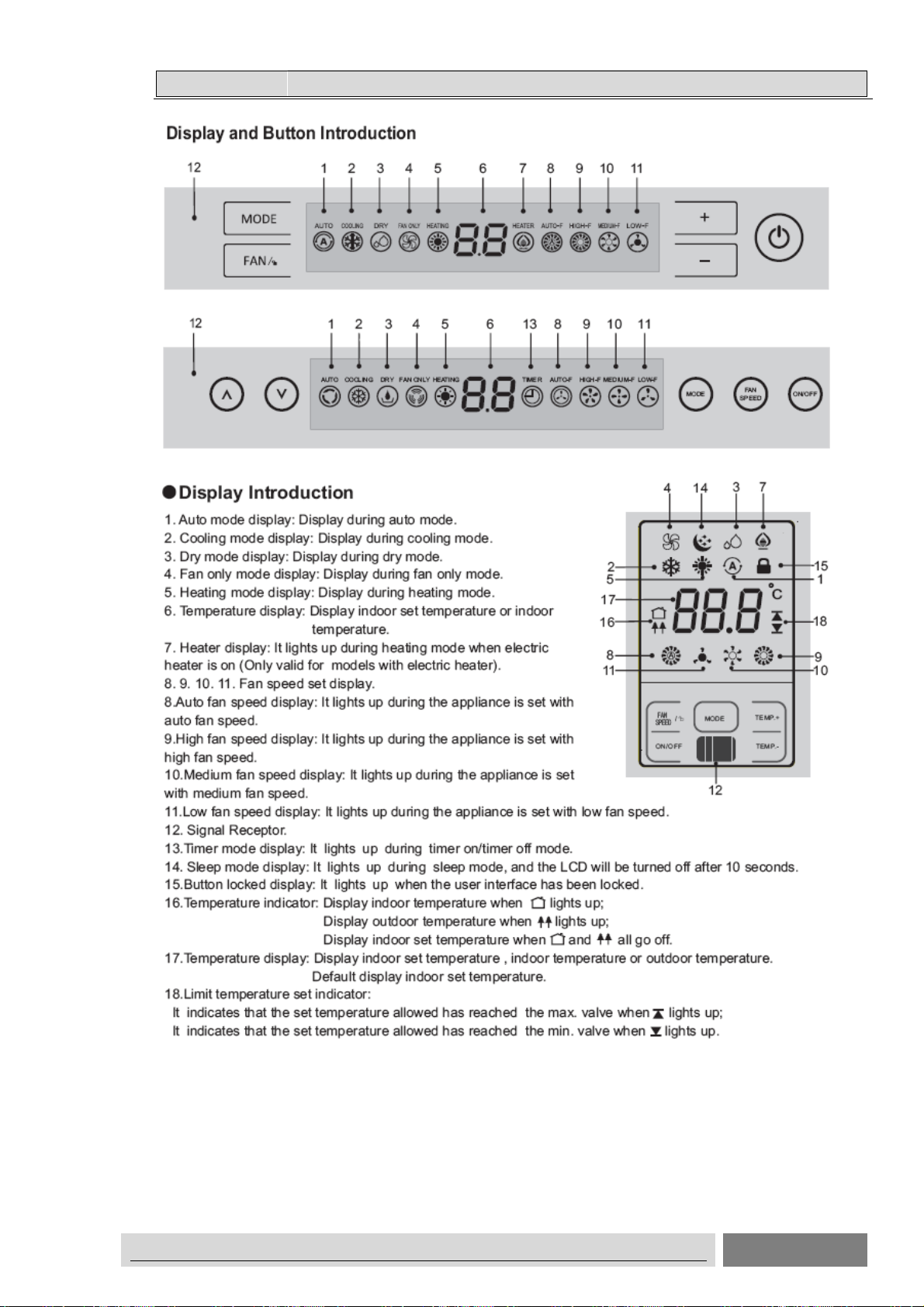

DISPLAY PANEL

1
1. . G GE EN NE ER RA AL L

FLOOR STANDINGAIR CONDITIONER TECHNICAL&SERVICE MANUAL V3.1 8

2
2. . S SP PE EC CI IF FI IC CA AT TI IO ON NS S

FLOOR STANDINGAIR CONDITIONER TECHINICAL&SERVICE MANUAL V3.2 9
2. Specifications
Floor Standing Type
Climate:T3
Model AUF-36HTR4FAM AUF-48HTR4FEM AUF-60CTR2SPM
Indoor model AUF-36HR4FM AUF-48HR4FM AUF-60CR2SM
Outdoor model AUW-36HT4FA1 AUW-48HT4FE AUW-60CT2SP
Power supply Ph-V-Hz 1N,220V-240V/50Hz 1N,220V-240V/60Hz
kW 10/9 14/13 14.2/12.5
Cooling(T1/T3)
Btu/h 34100/30700 23900/44400 48500/42700
kW 11 15.5 __
Capacity
Heating
Btu/h 37,500 52,900 __
Dehumidification L/h
2.3 4.5 5
Cooling(T1/T3) kW
3.55/4.285 4.982/6.5 4.965/6.04
Rated
input Heating kW
3.225 5.516 __
Cooling(T1/T3) A
15.8/19 24/31 23/28
Rated
Current Heating A
14.5 22 __
Max. input kW 5.5 7.2 9
Max.current A
24.3 36 40
EER(T1/T3)/COP 2.82/2.1/3.41 2.81/2.0/2.81 2.86/--
Model LHT53VBBC C-SBR145H15P C-SBP140H16A
Type Rotary Scroll Scroll
Winding resistance ΩM:0.66，A:1.68 M:1.47，A:0.498 M:0.755，A:0.368
Compress
or
Brand MITSUBISHI
ELECTRIC SANYO SANYO
Model Y7S059D501 Y7S862D820 Y7S059E001
Indoor Winding
resistance
(at25℃)
M:70.3A:50 M:28.65A:42.35 M:38.4;A:39.6
Model YDK95-6-9063A YDK29-6I-36
YDK29-6I-37
YYW95-8-8523
YYW95-8-8526
Fan motor
Outdoor Winding
resistance
(at20℃)
M1:67,M2:23.6,M3
:17.7;A:79.9 M:228;A:150 M:64;A:24,14,62
type centrifugal fan
Fan Indoor Speed
Super/Hi/Med/Low
r.p.m 470/420/370/340 540/470/430 540/470/430/380
type tube-axial
Fan speed Outdoor Speed
Hi/Med/Low
r.p.m 0-810 920 500/600/700
Air Indoor Cooling/Heating m³/h 1700/1800 2000 1800/--

2
2. . S SP PE EC CI IF FI IC CA AT TI IO ON NS S

FLOOR STANDINGAIR CONDITIONER TECHINICAL&SERVICE MANUAL V3.2 10
Model AUF-36HTR4FAM AUF-48HTR4FEM AUF-60CTR2SPM
Indoor model AUF-36HR4FM AUF-48HR4FM AUF-60CR2SM
Outdoor model AUW-36HT4FA1 AUW-48HT4FE AUW-60CT2SP
circulatio
n
Outdoor Hi/Med/Low m³/h -- -- 6000
Static Pressure(*Default Setting) Pa 0 0 0
Operating control Wireless Remote control-J1-05(E) Wireless Remote
control-J1-05(E)
Indoor L×W×H mm
580×380×1870 580×380×1870 580×380×1870
Dimensio
ns Outdoor L×W×H mm 950×340×840 950×340×1050 950×340×1386
Indoor L×W×H mm
2000×690×480 2000×690×480 2000×690×480
Packing
Outdoor L×W×H mm 1110×460×980 1110×460×1200 1110×460×1530
Indoor Net/Gross kg 48/60 48/60 52/63
Weight
Outdoor Net/Gross kg 69/74 100/108 117/123
Indoor Hi/Med/Low dB(A) 43/49 48/52 --/53 Noise
lever Outdoor Hi/Med/Low dB(A) --/58 --/57 --/62
Gas/Liquid mm 15.88/9.52 19.05/9.52 19.05/9.52
Max. refrigerant pipe length m 15 50 50
Max. difference in level m 7.5 15 15
Refrigera
nt piping
Connection method Flare
Connectio
n
Power wiring mm23 core x2.5 3 core x6.0 3 core x6.0
wiring Signal wiring mm24core x0.75 4core x0.75 4core x0.75
Refrigerant type R22 R22 R410A
Refrigerant charge kg 2.23 2.48 2.67
Throttle Type Capillary Capillary Capillary
Ambient temp ℃ Cooling15～52
Heating -10～24 Cooling15～52








2
2. . S SP PE EC CI IF FI IC CA AT TI IO ON NS S

FLOOR STANDINGAIR CONDITIONER TECHINICAL&SERVICE MANUAL V3.2 11

Model AUF-48HTR6FEM AUF-60HTR6FPM AUF-36CTR2SEM
Indoor model AUF-48HR4F1M AUF-60HR4FM AUF-36CR2SM
Outdoor model AUW-48HT6FE AUW-60HT6FP AUW-36CT2SE
Power supply Ph-V-Hz 3N,380V-415V/50Hz 1N,220V-230V/60Hz
Cooling(T1/T3) W
14000/12500 17500/14000 9200/8000
Capacity
Heating W
15000 19000 __
Dehumidification L/h
5 5.5 2.69
Cooling(T1/T3) W
4360/5000 5450/6600 2628/3112
Rated input
Heating W
4150 5260 __
Cooling(T1/T3) A 7.3/8 9/11 11.9/14.4 Rated
Current Heating A
7 9.5 __
Max. input W 6300 9000 3638
Max.current A
9.3 16.5 16.4
EER(T1/T3)/COP 3.21/2.5/3.61 3.21/2.12/3.61 3.5/--
Type Scroll Scroll Rotary
Model C-SB353H8A C-SB453H8A ASH280DG-C8DU
Compressor
Brand SANYO SANYO HGHLY
Type AC AC DC
Indoor
Model Y7S059D801 Y7S859E002 EQDW07AQH
Type AC AC AC
YDK29-6I-39 YYW65-6-9546A YDK29-6I-40
Fan motor
Outdoor
Model YDK29-6I-41 YYW65-6-9547A YDK29-6I-42
type centrifugal fan
Fan Indoor Speed
Super/Hi/Med/Low
r.p.m 540/470/430/380 570/520/480/430 500/440/370
type tube-axial
Fan speed Outdoor Speed
Hi/Med/Low
r.p.m 900/750/600 700/600/500 920/750/600
Indoor Cooling/Heating m³/h 2000 2000 1700 Air
circulation Outdoor Hi/Med/Low m³/h 5000 -- 4500
Operating control Wireless Remote control-J1-05(E)
Indoor L×W×H mm
580×380×1870 580×380×1870 580×380×1870
Dimensions
Outdoor L×W×H mm
950×340×1050 950×340×1386 950×340×1050
Indoor L×W×H mm
690×480×2000 690×480×2000 690×480×2000
Packing
Outdoor L×W×H mm
1110×460×1200 1110×460×1530 1110×460×1200
Indoor Net/Gross kg 52/63 48/60 49/59
Weight
Outdoor Net/Gross kg 100/108 100/108 80/83
Indoor Hi/Med/Low dB(A) --/52 --/54 --/52
Noise lever
Outdoor Hi/Med/Low dB(A) --/57 --/62 --/58
Gas/Liquid mm 19.05/9.52 19.05/9.52 19.05/9.52 Refrigerant
piping Max. refrigerant pipe length m 50 50 30

2
2. . S SP PE EC CI IF FI IC CA AT TI IO ON NS S

FLOOR STANDINGAIR CONDITIONER TECHINICAL&SERVICE MANUAL V3.2 12
Model AUF-48HTR6FEM AUF-60HTR6FPM AUF-36CTR2SEM
Indoor model AUF-48HR4F1M AUF-60HR4FM AUF-36CR2SM
Outdoor model AUW-48HT6FE AUW-60HT6FP AUW-36CT2SE
Max. difference in level m 15 15 20/15
Connection method Flare
Connection Power wiring mm25 core x2.5 5 core x2.5 3 core x2.5
wiring Signal wiring mm24core x0.75 4core x0.75 4core x0.75
Refrigerant type R22 R22 R410A
Refrigerant charge kg 2.5 2.8 2.45
Throttle Type Capillary Capillary Capillary
Cooling15～52
Ambient temp. ℃ Heating -10～24 Cooling15～52

















2
2. . S SP PE EC CI IF FI IC CA AT TI IO ON NS S

FLOOR STANDINGAIR CONDITIONER TECHINICAL&SERVICE MANUAL V3.2 13
Model AUF-36HTR4FAMA AUF-48HTR4FEMA AUF-48HTR4FEMB
Indoor model AUF-36HR4FMA AUF-48HR4FMA AUF-48HR4FMB
Outdoor model AUW-36HT4FA1 AUW-48HT4FE AUW-48HT4FE
Power supply Ph-V-Hz 1N,220V-240V/50Hz
Cooling(T1/T3) kW 10/9 14/13 14/13
Capacity
Heating kW
11 15.5 15.5
Dehumidification L/h
2.3 4.5 4.5
Cooling(T1/T3) kW
3.55/4.285 4.982/6.5 4.982/6.5
Rated input
Heating kW
3.225 5.516 5.516
Cooling(T1/T3) A
15.8/19 24/31 24/31
Rated
Current Heating A
14.5 22 22
Max. input kW 5.5 7.2 7.2
Max.current A
24.3 36 36
EER(T1/T3)/COP 2.82/2.1/3.41 2.81/2.0/2.81 2.81/2.0/2.81
Type Rotary Scroll Scroll
Model LHT53VBBC C-SBR145H15P C-SBR145H15P
Compressor
Brand MITSUBISHI
ELECTRIC SANYO SANYO
Type AC AC AC
Indoor
Model Y7S059D501 Y7S862D820 Y7S862D820
Type AC AC AC
YDK29-6I-36 YDK29-6I-36
Fan motor
Outdoor
Model YDK95-6-9063A YDK29-6I-37 YDK29-6I-37
type centrifugal fan
Fan Indoor Speed
Super/Hi/Med/Low
r.p.m 470/420/370/340 540/470/430 540/470/430
type tube-axial
Fan speed Outdoor Speed
Hi/Med/Low
r.p.m 790/670/580 920 920
Indoor Cooling/Heating m³/h 1700/1800 2000 2000 Air
circulation Outdoor Hi/Med/Low m³/h -- -- --
Operating control Wireless Remote control-J1-05(E)
Indoor L×W×H mm
580×380×1870 580×380×1870 580×380×1870
Dimensions
Outdoor L×W×H mm
950×340×840 950×340×1050 950×340×1050
Indoor L×W×H mm
2000×690×480 2000×690×480 2000×690×480
Packing
Outdoor L×W×H mm
1110×460×980 1110×460×1200 1110×460×1200
Indoor Net/Gross kg 48/60 48/60 48/60
Weight
Outdoor Net/Gross kg 69/74 100/108 100/108
Indoor Hi/Med/Low dB(A) 43/49 48/52 48/52
Noise lever
Outdoor Hi/Med/Low dB(A) --/58 --/57 --/57
Gas/Liquid mm 15.88/9.52 19.05/9.52 19.05/9.52 Refrigerant
piping Max. refrigerant pipe length m 15 50 50

2
2. . S SP PE EC CI IF FI IC CA AT TI IO ON NS S

FLOOR STANDINGAIR CONDITIONER TECHINICAL&SERVICE MANUAL V3.2 14
Model AUF-36HTR4FAMA AUF-48HTR4FEMA AUF-48HTR4FEMB
Indoor model AUF-36HR4FMA AUF-48HR4FMA AUF-48HR4FMB
Outdoor model AUW-36HT4FA1 AUW-48HT4FE AUW-48HT4FE
Max. difference in level m 7.5 15 15
Connection method Flare
Connection Power wiring mm23 core x2.5 3 core x6.0 3 core x6.0
wiring Signal wiring mm24core x0.75 4core x0.75 4core x0.75
Refrigerant type R22 R22 R22
Refrigerant charge kg 2.23 2.48 2.48
Throttle Type Capillary Capillary Capillary
Ambient temp ℃ Cooling15～52, Heating -10～24

















2
2. . S SP PE EC CI IF FI IC CA AT TI IO ON NS S

FLOOR STANDINGAIR CONDITIONER TECHINICAL&SERVICE MANUAL V3.2 15

Model AUF-48HTR6FEMA AUF-60HTR6FPMA
Indoor model AUF-48HR4F1MA AUF-60HR4FMA
Outdoor model AUW-48HT6FE AUW-60HT6FP
Power supply Ph-V-Hz 3N,380V-415V/50Hz
Cooling(T1/T3) W
14000/12500 17500/14000
Capacity
Heating W
15000 19000
Dehumidification L/h
5 5.5
Cooling(T1/T3) W
4360/5000 5450/6600
Rated input
Heating W
4150 5260
Cooling(T1/T3) A
7.3/8 9/11
Rated
Current Heating A
7 9.5
Max. input W 6300 9000
Max.current A
9.3 16.5
EER(T1/T3)/COP 3.21/2.5/3.61 3.21/2.12/3.61
Type Scroll Scroll
Model C-SB353H8A C-SB453H8A
Compressor
Brand SANYO SANYO
Type AC AC
Indoor
Model Y7S059D801 Y7S859E002
Type AC AC
YDK29-6I-39 YYW65-6-9546A
Fan motor
Outdoor
Model YDK29-6I-41 YYW65-6-9547A
type centrifugal fan
Fan Indoor Speed
Super/Hi/Med/Low
r.p.m 540/470/430/380 570/520/480/430
type tube-axial
Fan speed Outdoor
Speed Hi/Med/Low r.p.m 900/750/600 700/600/500
Indoor Cooling/Heating m³/h 2000 2000 Air
circulation Outdoor Hi/Med/Low m³/h 5000 --
Operating control Wireless Remote control-J1-05(E)
Indoor L×W×H mm
580×380×1870 580×380×1870
Dimensions
Outdoor L×W×H mm
950×340×1050 950×340×1386
Indoor L×W×H mm
690×480×2000 690×480×2000
Packing
Outdoor L×W×H mm
1110×460×1200 1110×460×1530
Indoor Net/Gross kg 52/63 48/60
Weight
Outdoor Net/Gross kg 100/108 100/108
Indoor Hi/Med/Low dB(A) --/52 --/54
Noise lever
Outdoor Hi/Med/Low dB(A) --/57 --/62
Gas/Liquid mm 19.05/9.52 19.05/9.52
Max. refrigerant pipe length m 50 50
Refrigerant
piping
Max. difference in level m 15 15

2
2. . S SP PE EC CI IF FI IC CA AT TI IO ON NS S

FLOOR STANDINGAIR CONDITIONER TECHINICAL&SERVICE MANUAL V3.2 16
Model AUF-48HTR6FEMA AUF-60HTR6FPMA
Indoor model AUF-48HR4F1MA AUF-60HR4FMA
Outdoor model AUW-48HT6FE AUW-60HT6FP
Connection method Flare
Connection Power wiring mm25 core x2.5 5 core x2.5
wiring Signal wiring mm24core x0.75 4core x0.75
Refrigerant type R22 R22
Refrigerant charge kg 2.5 2.8
Throttle Type Capillary Capillary
Cooling15～52
Ambient temp. ℃ Heating -10～24

















2
2. . S SP PE EC CI IF FI IC CA AT TI IO ON NS S

FLOOR STANDINGAIR CONDITIONER TECHINICAL&SERVICE MANUAL V3.2 17

Model AUF-48CTR2SPM AUF-60CTR2SPM1
Indoor model AUF-48CR2SM AUF-60CR2SM1
Outdoor model AUW-48CT2SP AUW-60CT2SP1
Power supply Ph-V-Hz 1N,220V-230V/60Hz
Cooling(T1/T3) W
13600/11900 14650/12600
Capacity
Heating W
__ __
Dehumidification L/h
5.48 6.12
Cooling(T1/T3) W
3880/4740 4220/5020
Rated input
Heating W
__ __
Cooling(T1/T3) A
17.6/21.5 18.7/22.4
Rated
Current Heating A
__ __
Max. input W 5900 6270
Max.current A
27.4 32.5
EER(T1/T3)/COP 3.51/2.51/-- 3.47/2.51/--
Type Scroll Scroll
Model ZJ44KHE-PFB-502 ABT048KTA
Compressor
Brand COPELAND LG
Type DC DC
Indoor
Model EQDW07AQH EQDW07AQH
Type AC DC
YYW95-8-8523 SIC-71FW-D8121-1
Fan motor
Outdoor
Model YYW95-8-8526 SIC-71FW-D8121-2
type centrifugal fan
Fan Indoor Speed
Super/Hi/Med/Low
r.p.m 570/520/450/410 570/520/450/410
type tube-axial
Fan speed Outdoor Speed
Hi/Med/Low
r.p.m 810/700/550 790/700/550
Indoor Cooling/Heating m³/h 2000 2000 Air
circulation Outdoor Hi/Med/Low m³/h 6000 6000
Operating control Wireless Remote control-J1-05(E)
Indoor L×W×H mm
580×380×1870 580×380×1870
Dimensions
Outdoor L×W×H mm
950×340×1050 950×340×1386
Indoor L×W×H mm
690×480×2000 690×480×2000
Packing
Outdoor L×W×H mm
1110×460×1200 1110×460×1530
Indoor Net/Gross kg 50/61 51/62
Weight
Outdoor Net/Gross kg 105/119 105/119
Indoor Hi/Med/Low dB(A) --/52 --/52
Noise lever
Outdoor Hi/Med/Low dB(A) --/59 --/60
Gas/Liquid mm 19.05/9.52 19.05/9.52 Refrigerant
piping Max. refrigerant pipe length m 50 50

2
2. . S SP PE EC CI IF FI IC CA AT TI IO ON NS S

FLOOR STANDINGAIR CONDITIONER TECHINICAL&SERVICE MANUAL V3.2 18
Model AUF-48CTR2SPM AUF-60CTR2SPM1
Indoor model AUF-48CR2SM AUF-60CR2SM1
Outdoor model AUW-48CT2SP AUW-60CT2SP1
Max. difference in level m 15 15
Connection method Flare
Connection Power wiring mm23 core x6.0 3 core x6.0
wiring Signal wiring mm24core x1.5 4core x1.5
Refrigerant type R410A R410A
Refrigerant charge kg 3.45 3.55
Throttle Type Capillary Capillary
Ambient temp. ℃ Cooling15～52
















