Hisense AS-36HR4SDKVT User manual

1
Version: 1.5
Hisense Corporation
MODEL: AS-36HR4SDKVT
STRONG NEO Premium Classic A

2
1. Safety Considerations
IMPORTANT!
Please Read Before Starting
This air conditioning system meets strict safety and operating standards. As the installer or service
person, it is an important part of your job to install or service the system, so it operates safely and
efficiently.
For safe installation and trouble-free operation, you must:
●Carefully read this instruction booklet before beginning.
●Follow each installation or repair step exactly as shown.
●Observe all local, state, and national electrical codes.
●Pay close attention to all warning and caution notices given in this manual.
This symbol refers to a hazard or unsafe practice which can result in severe
personal injury or death.
This symbol refers to a hazard or unsafe practice which can result in personal
injury or product or property damage.
If Necessary, Get Help
These instructions are all you need for most installation sites and maintenance conditions. If you
require help for a special problem, contact our sales/service outlet or your certified dealer for
additional instructions.
In Case of Improper Installation
The manufacturer shall in no way be responsible for improper installation or maintenance service,
including failure to follow the instructions in this document.
SPECIAL PRECAUTIONS
When Wiring
ELECTRICAL SHOCK CAN CAUSE SEVERE PERSONAL INJURY OR DEATH. ONLY A
QUALIFIED, EXPERIENCED ELECTRICIAN SHOULD ATTEMPT TO WIRE THIS SYSTEM.
●Do not supply power to the unit until all wiring and tubing are completed or reconnected and
checked.
●Highly dangerous electrical voltages are used in this system. Carefully refer to the wiring diagram
and these instructions when wiring. Improper connections and inadequate grounding can cause
accidental injury or death.
●Ground the unit following local electrical codes.
●Connect all wiring tightly. Loose wiring may cause overheating at connection points and a possible

3
fire hazard.
When Transporting
Be careful when picking up and moving the indoor and outdoor units. Get a partner to help, and bend
your knees when lifting to reduce strain on your back. Sharp edges or thin aluminum fins on the air
conditioner can cut your fingers.
When Installing
●In a Ceiling or Wall
Make sure the ceiling/wall is strong enough to hold the unit’s weight. It may be necessary to
construct a strong wood or metal frame to provide added support.
●In a Room
Properly insulate any tubing run inside a room to prevent“sweating” that can cause dripping and
water damage to walls and floors.
●In Moist or Uneven Locations
Use a raised concrete pad or concrete blocks to provide a solid, level foundation for the outdoor unit.
This prevents water damage and abnormal vibration.
●In an Area with High Winds
Securely anchor the outdoor unit down with bolts and a metal frame. Provide a suitable air baffle.
●In a Snowy Area (for Heat Pump-type Systems)
Install the outdoor unit on a raised platform that is higher than drifting snow. Provide snow vents.
When Connecting Refrigerant Tubing
△Use the flare method for connecting tubing.
△Apply refrigerant lubricant to the matching surfaces of the flare and union tubes before connecting
them, then tighten the nut with a torque wrench for a leak free connection.
△Check carefully for leaks before starting the test run.
When Servicing
△Turn the power OFF at the main power box (mains) before opening the unit to check or repair
electrical parts and wiring.
△Keep your fingers and clothing away from any moving parts.
△Clean up the site after you finish, remembering to check that no metal scraps or bits of wiring have
been left inside the unit being serviced.
Others
△Ventilate any enclosed areas when installing or testing the refrigeration system. Escaped
refrigerant gas, on contact with fire or heat, can produce dangerously toxic gas.
△Confirm upon completing installation that no refrigerant gas is leaking. If escaped gas comes in
contact with a stove, gas water heater, electric room heater or other heat source, it can produce
dangerously toxic gas.
NOTE:
The figure 、 size and parameter of the product may not be identical with the service manual, please
take the actual product as the standard.

4
Model No. AS-36HR4SDKVT
Type T1, H/P, ON/OFF
Ratings
Cooling Capacity W 8400
Heating Capacity W 8200
Rated Input-Cooling W 2215
Rated Input-Heating W 2155
Moisture Removal L/h 1.5
Air Circulation
High m3/h 1800
Mid m3/h 1200
Low m3/h 900
EER for Cooling W/W 3.79
COP for Heating W/W 3.81
Energy Class Cooling A
Energy Class Heatling A
Refrigerant R410A
Refrigerant charge volume （5M）g 2400
Additional ref. Volume g 30
Indoor Unit Noise Level
High(dB (A)) 50
Mid(dB (A))
Low(dB (A))
Outdoor Unit Noise Level dB (A) 62
Product Specifications
2.

5
Power Supply
Voltage, Frequency, Phase
V
220-240V~,50Hz,1P
Rated Current
Cooling (A)
9.8
Heating (A)
9.6
LRA
A
System pressures in cooling rated conditions
Max suction pressure
MPa
1.6
Max discharge pressure
MPa
4.15
System
Compressor
Compressor type
Rotary
Compressor Model No.
ATG290V1UMT
Compressor MFG
GMCC
Connecting Pipe Diameter
Liquid Pipe
inch
3/8
Gas Pipe
inch
5/8
Features
Display on Front Panel
LED
LCD Wireless Remote Controller
Yes
Removable and washable Panel
Yes
Washable PP Filter
Yes
24 Hours Timer
Yes
3 Speed and Auto Indoor Fan Control
Yes
Vertical Auto Swing Louver
Yes
Manual Adjustable Horizontal Swing Louver
Yes
Sleep Operation
Yes
Smart Function
Yes
Super Function
Yes
Auto Restart
Yes
Dimmer
Yes
Other
Net Dimensions WxHxD
(mm)
Indoor Unit
1280×345×250
Outdoor Unit
884×365.5×793
Net Weight (Kg)
Indoor Unit
18.5
Outdoor Unit
63
Packing Dimensions WxHxD (mm)
Indoor Unit
1385×435×325
Outdoor Unit
1050×500×890
Gross Weight (Kg)
Indoor Unit
22
Outdoor Unit
69

6
3. Product Picture and Drawing

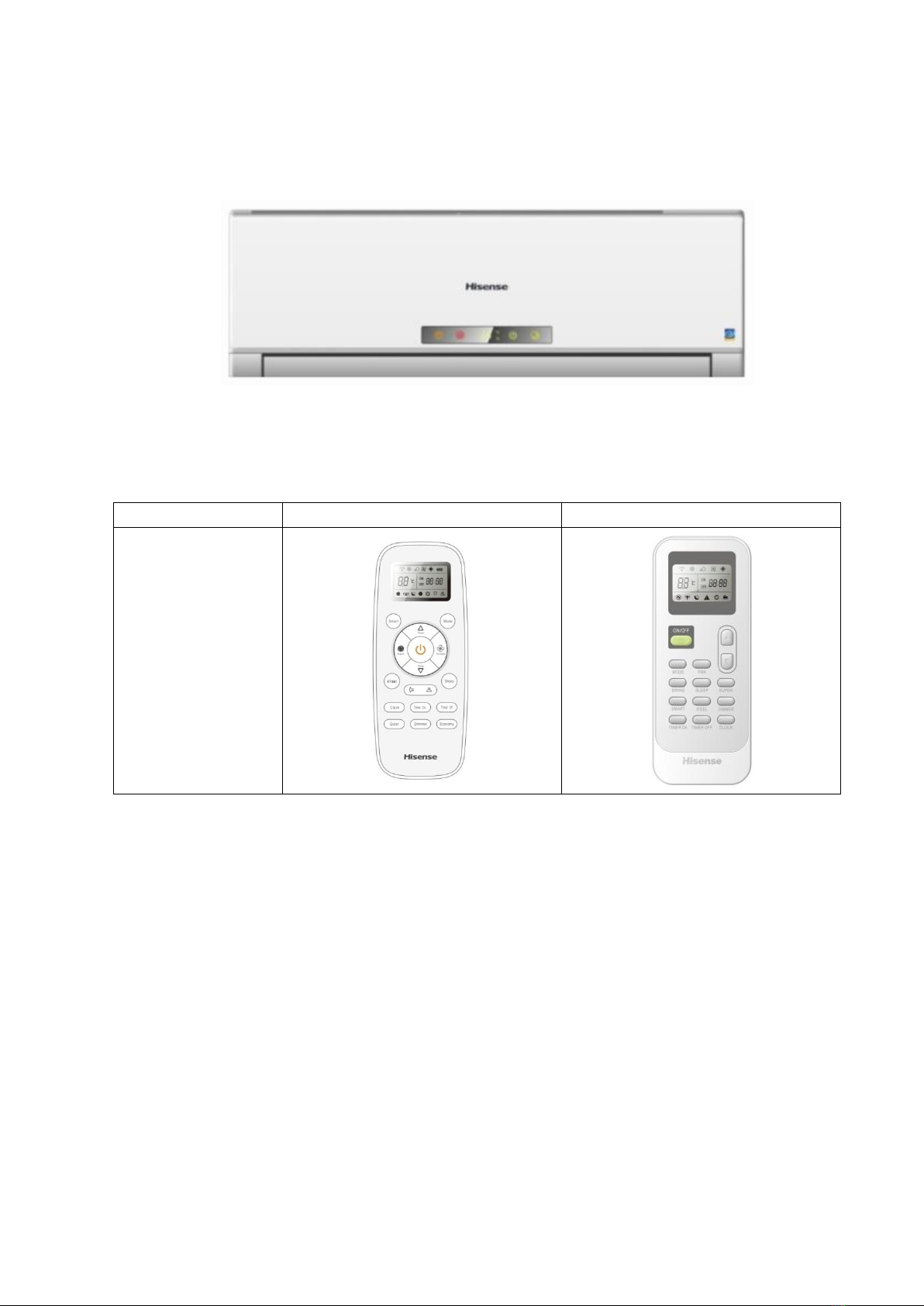

3-1. Product Pictures
Indoor units:
View
Remote controller:
Model L1 J1
View

7
3-2. Product dimensions
Indoor units:
Model W (mm) H (mm) D (mm)
AS-36HR4SDKVT 1280 345 250

8

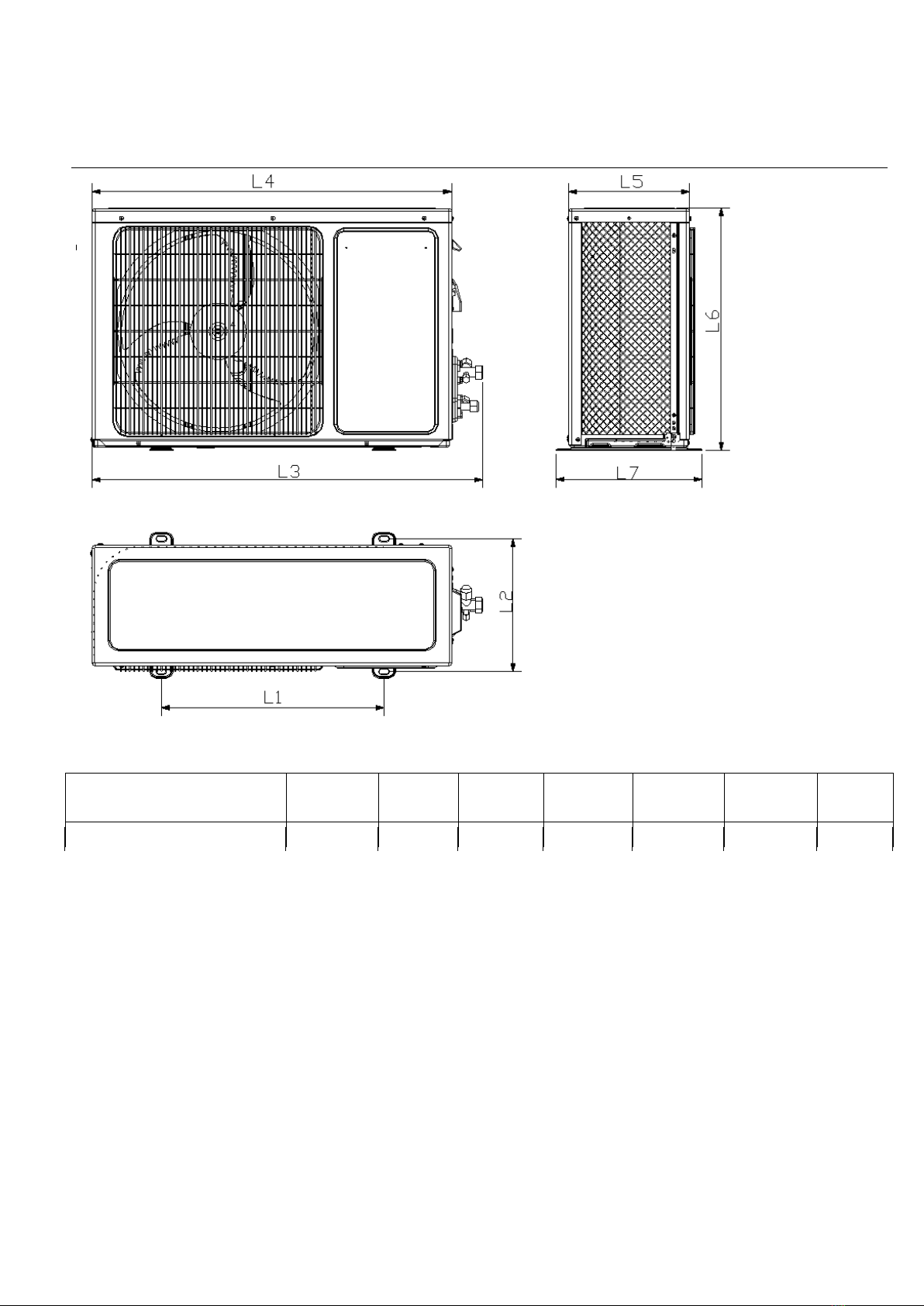

Outdoor units:
Model L1
(mm)
L2
(mm)
L3
(mm)
L4
(mm)
L5
(mm)
L6
(mm)
L7
(mm)
AS-36HR4SDKVT 662 390 959 898 365.5 793 414

9
4. Installation Instruction
To prevent abnormal heat generation and the possibility of fire, do not place
obstacles, enclosures and grilles in front of or surrounding the air conditioner in a
way that may clock air flow. And, more than 1 meter away from any antenna or power lines or connecting
wires used for TV, radio, telephone, security system, or intercom. Electrical noise from any of these
sources may affect operation.
4-1. Installation Place and Condition
Indoor unit
Avoid:
△direct sunlight.
△nearby heat sources that may affect performance of the unit.
△areas where leakage of flammable gas may be expected.
△places where large amounts of oil mist exist.
Do:

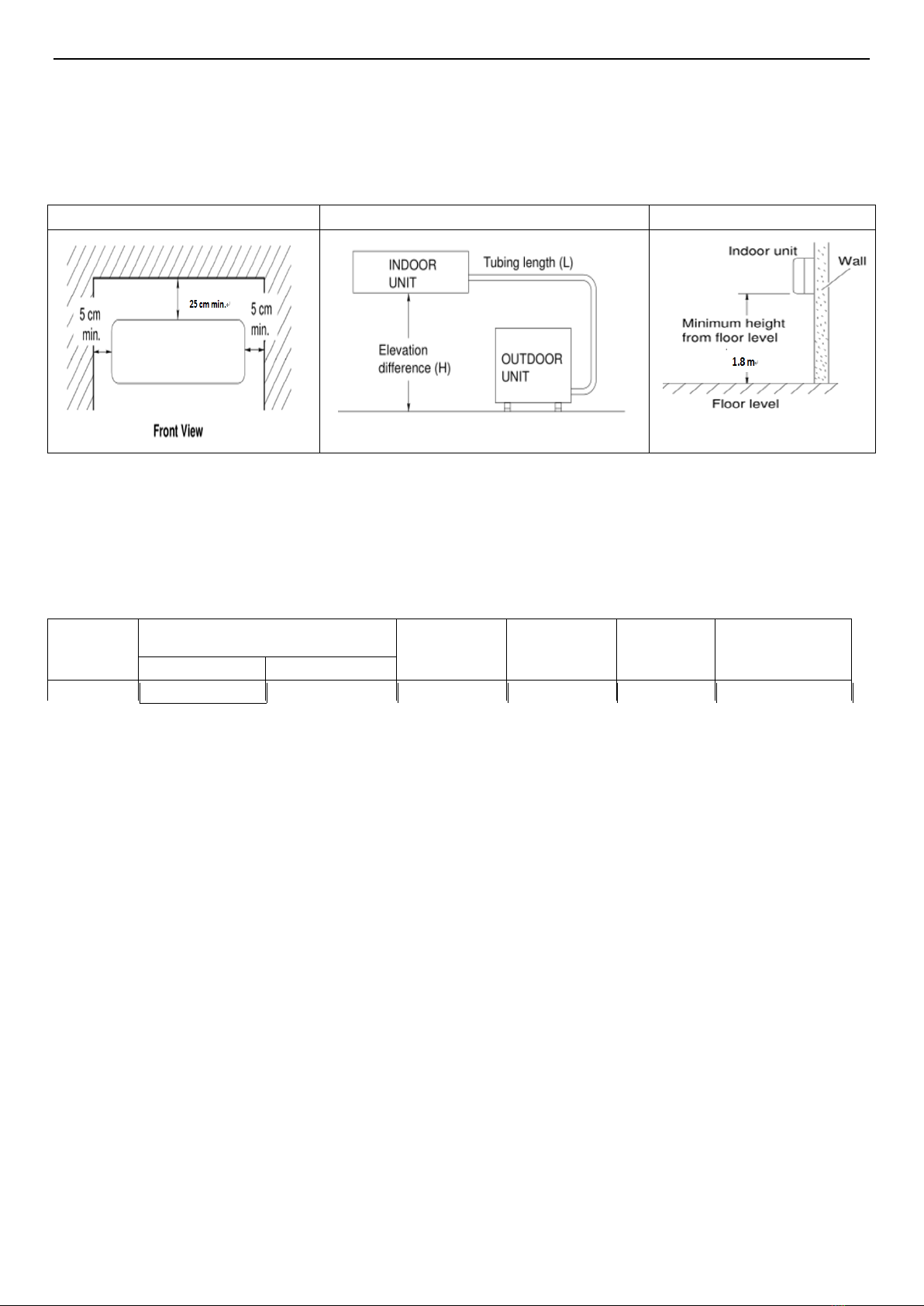

△Select an appropriate position from which every corner of the room can be uniformly cooled.

10
△Select a location that will hold the weight of the unit.
△Select a location where tubing and drain hose have the shortest run to the outside. (See a)
△Allow room for operation and maintenance as well as unrestricted air flow around the unit. (See b)
△Install the unit within the maximum elevation difference (H) above or below the outdoor unit and
within a total tubing length (L) from the outdoor unit as detailed (See table 1 and c)
a
b
c
table 1
Capacity
(Btu/h)
Pipe Size
Standard
Length
(m)
Max.
Elevation
B (m)
Max.
Length
A (m)
Additional
Refrigerant
(g/m)
GAS
LIQUID
30k~38k 5/8"(Ø15.88) 3/8"(Ø9.52) 7.5 15 30 30
* If total tubing length becomes 7.5 to 15 m (max.), charge additional refrigerant as the table1 for
reference. And no additional compressor oil is necessary.
Outdoor unit
Avoid:
△Heat sources, exhaust fans, etc.
△Damp, humid or uneven locations.
DO:
△Choose a place as cool as possible.
△Choose a place that is well ventilated.

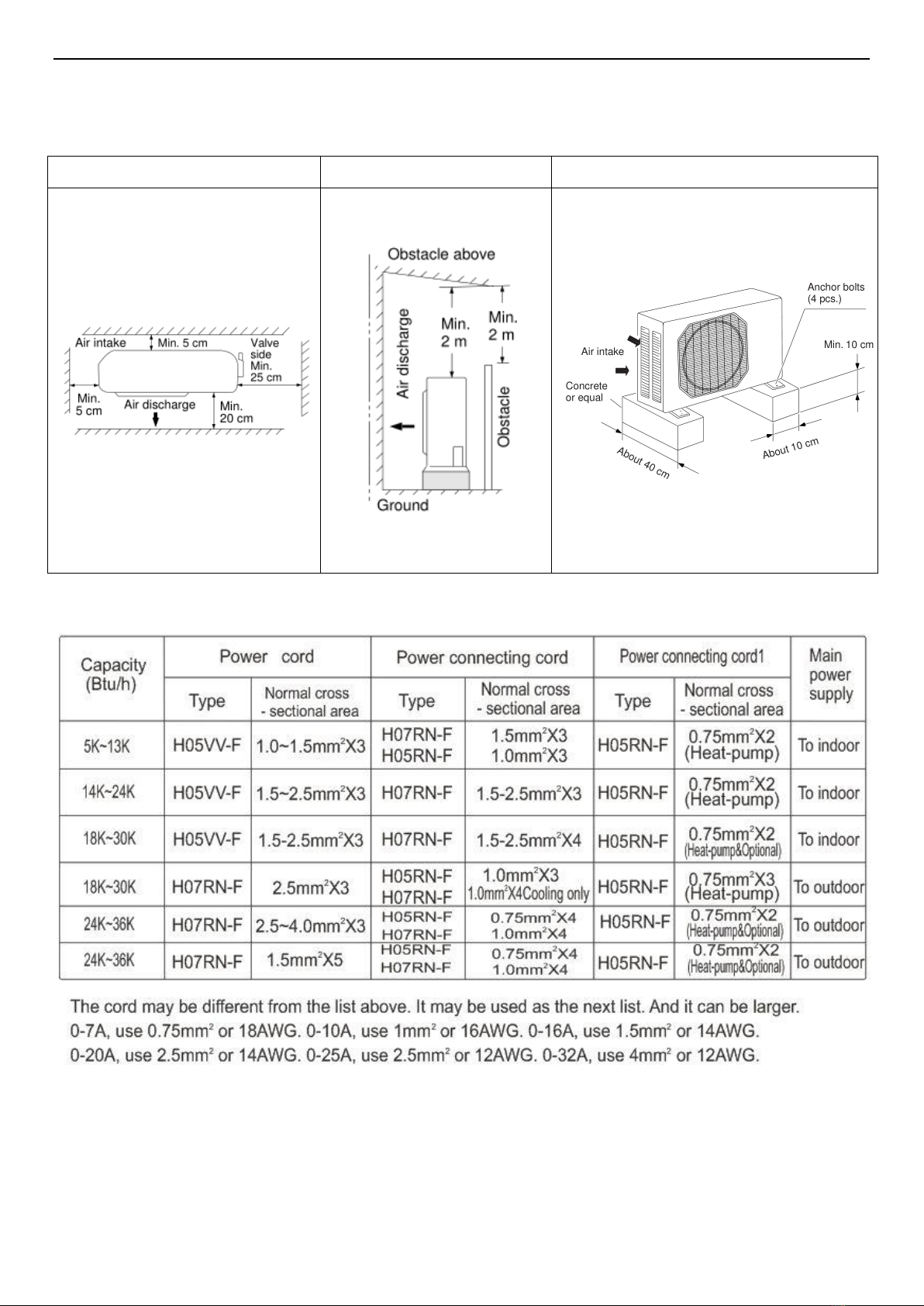

△Allow enough room around the unit for air intake or exhaust and possible maintenance. (see a1,
b1 & c1)
△Provide a solid base (level concrete pad, concrete block, 10 × 40 cm beams or equal), a minimum
of 10 cm above ground level to reduce humidity and protect the unit against possible water damage

11
and decreased service life.
△Install cushion rubber under unit’s feet to reduce vibration and noise.
△Use lug bolts or equal to bolt down unit, reducing vibration and noise.
a1
b1
c1
Recommended Wire Diameter:

12

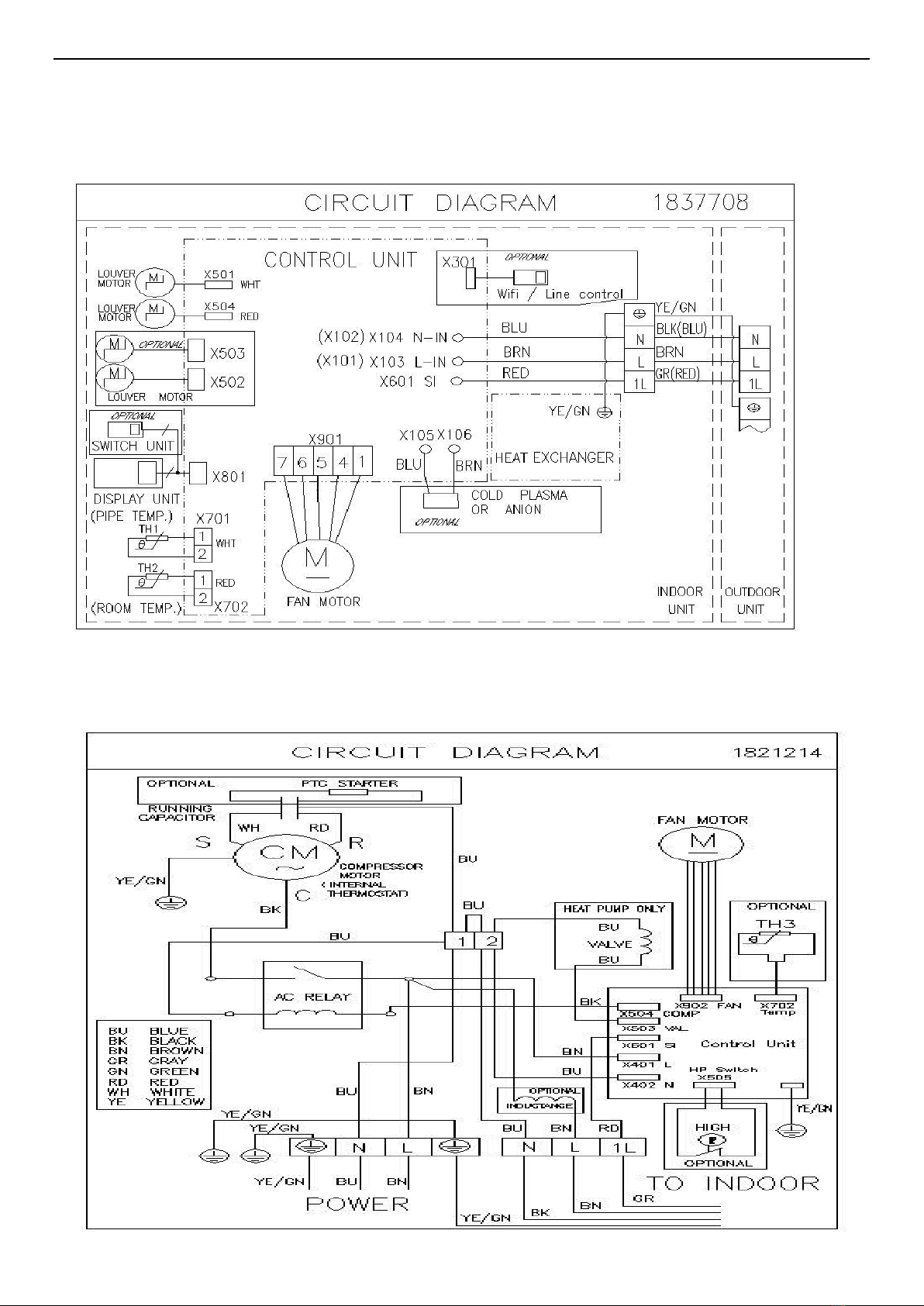

4-2. Electric Wiring Diagram
Model
Indoor unit Size
Indoor unit Diagram
Outdoor unit Diagram
AS-36HR4SDKVT 1280 1837708 1821214

13
1837708
Outdoor：
1821214
Indoor：

14

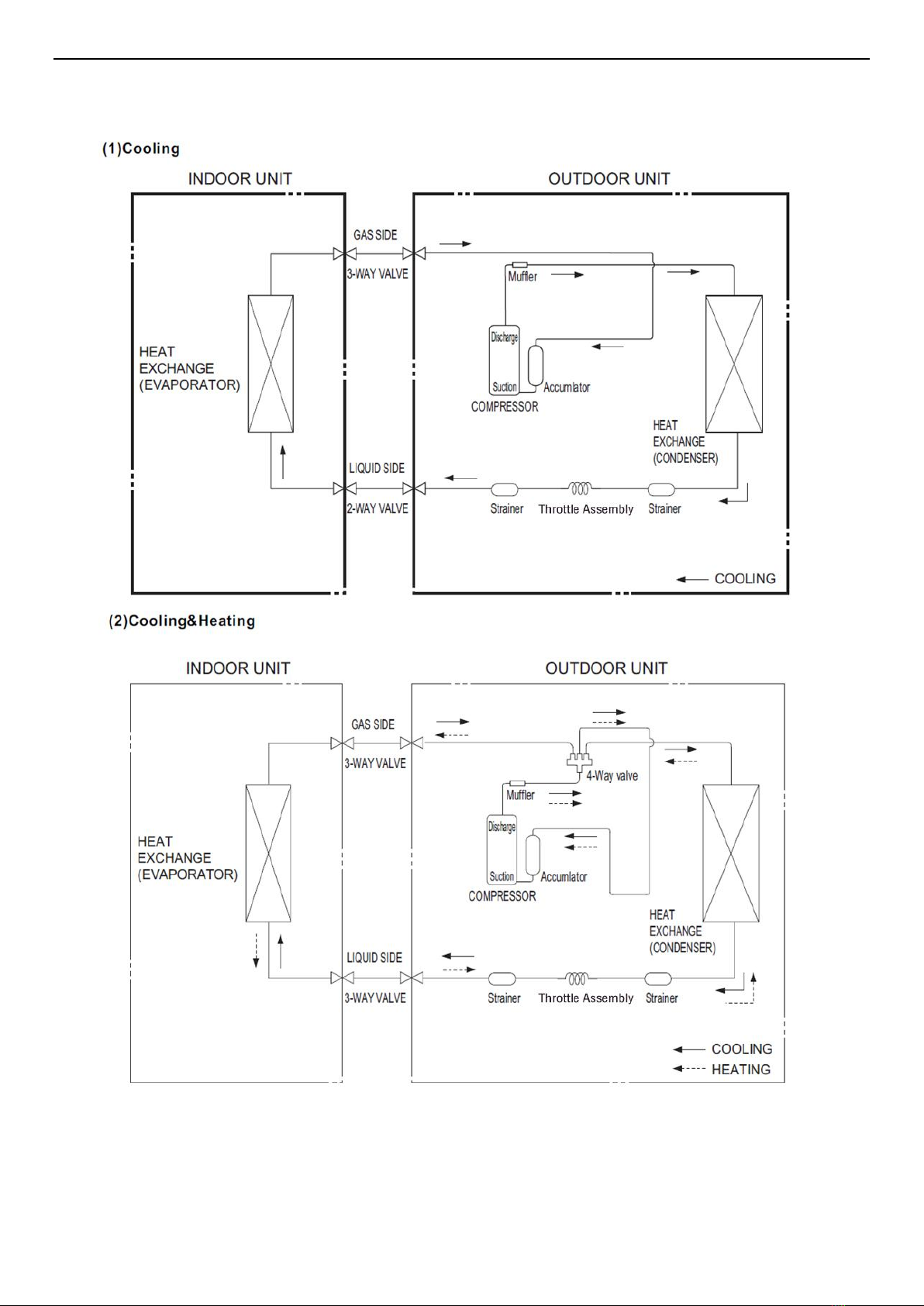

4-3. Refrigerant Flow System
NOTE: In different models, the throttle assembly may be Capillary or Electronic expansion valve.

15
4-4. Air Purging and Leakage Test
1. Connect charging hose of manifold valve to charge end of low pressure valve (both high/low
pressure valves must be tightly shut).
2. Connect joint of charging hose to vacuum pump.
3. Fully open the handle of Lo manifold valve.
4. Open the vacuum pump to evacuate. At the beginning, slightly loosen joint nut of low pressure
valve to check if there is air coming inside. (If noise of vacuum pump has been changed, the reading
of multimeter is 0) Then tighten the nut.
5. Keep evacuating for more than 15mins and make sure the reading of multi-meter is -1.0 X105 pa
(-76cmHg).
6. Check the vacuum with the gage manifold valve, then close the gage manifold valve, and stop the
vacuum pump.
7. Leave it for one or two minutes. Make sure the pointer of the gage manifold valve remains in the
same position.
8. Remove the gage manifold valve quickly from the service port of the stop valve.
After refrigerant pipes are connected and evacuated, fully open all stop valves on gas and liquid pipe
sides.
9. Opening without fully opening lowers the performance and cause dangerous.
10. Tighten the cap to the service port to obtain the initial status.
11. Retighten the cap
12. Leak test

16
4-5. Test Running
△Check after Installation
Items to be checked
Possible malfunction
Has it been fixed firmly?
The unit may drop, shake or emit noise.
Have you done the refrigerant leakage test?
It may cause insufficient
cooling(heating)capacity
Is heat insulation sufficient?
It may cause condensation and dripping.
Is water drainage satisfactory?
It may cause condensation and dripping.
Is the voltage in accordance with the rated
voltage marked on the nameplate?
It may cause electric malfunction or damage the
product.
Is the electric wiring and piping connection
installed correctly and securely?
It may cause electric malfunction or damage the
part.
Has the unit been connected to a secure earth
connection?
It may cause electrical leakage.
Is the power cord specified?
It may cause electric malfunction or damage the
part.
Are the inlet and outlet openings blocked?
It may cause insufficient
cooling(heating)capacity.
Is the length of connection pipes and
refrigerant capacity been recorded?
The refrigerant capacity is not accurate.
△Operation Test
1. Before Operation Test
(1)Do not switch on power before installation is finished completely.
(2)Electric wiring must be connected correctly and securely.
(3)Cut-off valves of the connection pipes should be opened.
(4)All the impurities such as scraps and thrums must be cleared from the unit.
2. Operation Test Method
(1)Switch on power and press “ON/OFF” button on the remote controller to start the operation.
(2)Press MODE button to select the COOL, HEAT (Cooling only unit is not available), FAN to check
whether the operation is normal or not.

17
5. Function Operation
5-1. Operation Range (cooling and heating）
Model ：
Temperature Indoor Air Intake Temp. Outdoor Air Intake Temp
COOLING Maximum 30 43 ℃
Minimum 16℃16℃
HEATING Maximum 30℃24℃
Minimum / -10℃
Mexico Model ：
Temperature Indoor Air Intake Temp. Outdoor Air Intake Temp
COOLING Maximum 30 46 ℃
Minimum 16℃16℃
HEATING Maximum 30℃24℃
Minimum / -10℃
5-2. Remote Controller Operation & Function
△Remote Controller Instruction

18

19
△Function Instruction
1．Major general technical parameters
1-1 Remote receiver distance（front of the air conditioner）: 8 m.
1-2 Remote receiver angle: Less than 60 degrees.
1-3 Temperature control accuracy: ±1℃.
1-4 Time error: Less than 1%.、
2. Functions of the controller
2-1 Display panel
I. Control functions of the remote controller (See operating and installation manual)
II. Display of the indoor unit
Information on the screen:
Displaying Scheme:
7-segment tube：Display set temperature or indoor temperature , and display fault code in trouble
indicating. An error code is displayed according to the signal from the indoor CPU. The error code will

20
flash for 5 seconds while displayed.
Running LED：It is on during operation. It is flashing when the unit defrost.
TIMER LED：When the timer mode works, the LED will be lighted.
Sleep LED：When the sleep mode works, the LED will be lighted, and after 10s, the LED will be off.
Compressor LED：It lights up when compressor is running.
Remote control receiver：This section receives signals from the remote control.
3. Control function
3-1 Emergency switch
If the appliance under the Stand-by state, all the Operation Mode, Air volume, Temperature
Setting , Forced Cooling function will be restored as the last time setting when you press on the
“ON/OFF” button, but lost the Air flow direction setting.
If the appliance was connected to the power at first time, it would operate in the auto mode, It
will keep in stand-by state if you press the “ON/OFF” button during the normal operation.
When the appliance under the Stand-by state, press and hold the emergency switch for 5
seconds, the buzzer rings for 1 times, and it will operate in cooling mode, and the indoor fan speed
is set to high-speed, it running has nothing to do with the room temperature.
When press the emergency switch or receive the signal of the remote control, it will exit this
mode, and it will operate with the corresponding order.
3-2 Operator-machine communication
If the unit has I feel function, when the I feel function is set by the remote control, the room
temperature will depend on the remote control and it will be detected by the sensor of the remote
control. Normally the remote control will automatically transmits a signal at an interval of 10
minutes（only for H1 remote control, it is 9 minutes）, but if the room temperature changed exceed
1℃in a short period of time, the remote control will transmits a signal within 2 minutes. If the indoor
unit has not received a remote signal within 30 minutes, the room temperature will depend on the
room temperature sensor of indoor unit.
3-3 Timer function
Real time of Timer setting
(1) The max Timer ranges is 24 hours.
(2) Timer ON/OFF
(3) Timer ON/OFF can be set available in turn.
(4) The Timer accurate more than 97%
(5) The Timer can be adjusted by 1 min increase.
(6) The appliance can be set the ON-Timer and OFF-Timer in the same time, but no any timer
setting indicated.
3-4 Sleep
(1)The Sleep mode can only be set during Cool, Heat and Dry mode.
（2）When the appliance run in the Sleep mode, it will stop after 8 hours operation, then it will
cancel the Sleep setting. When the appliance operate under the OFF-Timer setting condition, if the
