Hisense AS-13UR4SYDTDI User manual

1
Version: 1.9
Hisense
Corporation
MODEL:
AS-10UR4SYDTDI
AS-13UR4SYDTDI
AS-18UR4SFATDI6
AS-24UR4SDBTDI6
EXPERT EU INVERTER

2
1. Safety Considerations
IMPORTANT!
Please Read Before Starting
This air conditioning system meets strict safety and operating standards. As the installer or service
person, it is an important part of your job to install or service the system, so it operates safely and
efficiently.
For safe installation and trouble-free operation, you must:
●Carefully read this instruction booklet before beginning.
●Follow each installation or repair step exactly as shown.
●Observe all local, state, and national electrical codes.
●Pay close attention to all warning and caution notices given in this manual.
This symbol refers to a hazard or unsafe practice which can result in severe
personal injury or death.
This symbol refers to a hazard or unsafe practice which can result in personal
injury or product or property damage.
If Necessary, Get Help
These instructions are all you need for most installation sites and maintenance conditions. If you
require help for a special problem, contact our sales/service outlet or your certified dealer for
additional instructions.
In Case of Improper Installation
The manufacturer shall in no way be responsible for improper installation or maintenance service,
including failure to follow the instructions in this document.
SPECIAL PRECAUTIONS
When Wiring
ELECTRICAL SHOCK CAN CAUSE SEVERE PERSONAL INJURY OR DEATH. ONLY A
QUALIFIED, EXPERIENCED ELECTRICIAN SHOULD ATTEMPT TO WIRE THIS SYSTEM.
●Do not supply power to the unit until all wiring and tubing are completed or reconnected and
checked.
●Highly dangerous electrical voltages are used in this system. Carefully refer to the wiring diagram
and these instructions when wiring. Improper connections and inadequate grounding can cause
accidental injury or death.
●Ground the unit following local electrical codes.
●Connect all wiring tightly. Loose wiring may cause overheating at connection points and a possible

3
fire hazard.
When Transporting
Be careful when picking up and moving the indoor and outdoor units. Get a partner to help, and bend
your knees when lifting to reduce strain on your back. Sharp edges or thin aluminum fins on the air
conditioner can cut your fingers.
When Installing
●In a Ceiling or Wall
Make sure the ceiling/wall is strong enough to hold the unit’s weight. It may be necessary to
construct a strong wood or metal frame to provide added support.
●In a Room
Properly insulate any tubing run inside a room to prevent“sweating” that can cause dripping and
water damage to walls and floors.
●In Moist or Uneven Locations
Use a raised concrete pad or concrete blocks to provide a solid, level foundation for the outdoor unit.
This prevents water damage and abnormal vibration.
●In an Area with High Winds
Securely anchor the outdoor unit down with bolts and a metal frame. Provide a suitable air baffle.
●In a Snowy Area (for Heat Pump-type Systems)
Install the outdoor unit on a raised platform that is higher than drifting snow. Provide snow vents.
When Connecting Refrigerant Tubing
△Use the flare method for connecting tubing.
△Apply refrigerant lubricant to the matching surfaces of the flare and union tubes before connecting
them, then tighten the nut with a torque wrench for a leak free connection.
△Check carefully for leaks before starting the test run.
When Servicing
△Turn the power OFF at the main power box (mains) before opening the unit to check or repair
electrical parts and wiring.
△Keep your fingers and clothing away from any moving parts.
△Clean up the site after you finish, remembering to check that no metal scraps or bits of wiring have
been left inside the unit being serviced.
Others
△Ventilate any enclosed areas when installing or testing the refrigeration system. Escaped
refrigerant gas, on contact with fire or heat, can produce dangerously toxic gas.
△Confirm upon completing installation that no refrigerant gas is leaking. If escaped gas comes in
contact with a stove, gas water heater, electric room heater or other heat source, it can produce
dangerously toxic gas.
NOTE:
The figure 、 size and parameter of the product may not be identical with the service manual, please
take the actual product as the standard.

4
2. Product Specifications
Model No.
Type
H/P
Ratings
Cooling Capacity
W
2600/2600
Heating Capacity
W
2700/2000
Input-Cooling
W
905
Input-Heating
W
740
Rated
Input-Cooling
W
1450
Rated
Input-Heating
W
1500
Air Circulation
CMH Max
550
EER for Cooling
W/W
3.21/5.6
COP for Heating
W/W
3.61/3.8
Refrigerant
R410A
Refrigerant
charge volume
g
620
Indoor Unit Noise
Level
High(dB
(A))
55
Low(dB
(A))
47
Outdoor Unit
Noise Level
dB (A)
62
Power Supply
Voltage,
Frequency, Phase
220-240V~,50Hz,1P
Current
Cooling
(A)
4
Heating
(A)
3.4
Rated Current
Cooling
(A)
7
Heating
(A)
7.5
LRA
A
/
System
Compressor type
Rotary
AS-10UR4SYDTDI

5
Compressor Model
No.
ASK89D53UEZ1
Compressor MFG
GMCC
Expansion Device
Capillary
Evaporator
Copper tube and
Aluminum Fin
Condenser
Copper tube and
Aluminum Fin
Connecting Pipe
Diameter
Liquid Pipe
inch
1/4
Gas Pipe
inch
3/8
Features
Display on Front
Panel
Yes
LCD Wireless
Remote Controller
Yes
Removable and
washable Panel
Yes
Washable PP Filter
Yes
24 Hours Timer
Yes
3 Speed and Auto
Indoor Fan
Control
Yes
Vertical Auto
Swing Louver
Yes
Manual Adjustable
Horizontal Swing
Louver
Yes
Sleep Operation
Yes
Smart Function
Yes
Super Function
Yes
Auto Restart
Yes
Other
Net Dimensions
WxHxD (mm)
Indoor
Unit
745x270x214
Outdoor
Unit
660x240x483
Net Weight (Kg)
Indoor
Unit
8
Outdoor
Unit
22
Packing
Dimensions
WxHxD (mm)
Indoor
Unit
800x335x265
Outdoor
Unit
780x315x530

6
Gross Weight
(Kg)
Indoor
Unit
9.5
Outdoor
Unit
24

7
Type
H/P
Ratings
Cooling Capacity
W
3400/3400
Heating Capacity
W
4000/2800
Input-Cooling
W
1190
Input-Heating
W
1140
Rated
Input-Cooling
W
1550
Rated
Input-Heating
W
1600
Air Circulation
CMH Max
580
EER for Cooling
W/W
2.86/6.1
COP for Heating
W/W
3.51/3.8
Refrigerant
Refrigerant
charge volume
g
850
Indoor Unit Noise
Level
High(dB
(A))
55
Low(dB
(A))
45
Outdoor Unit
Noise Level
dB (A)
62
Power Supply
Voltage,
Frequency, Phase
220-240V~,50Hz,1P
Current
Cooling
(A)
5.3
Heating
(A)
5.1
Rated Current
Cooling
(A)
7.5
Heating
(A)
8.0
LRA
A
/
System
Compressor type
Rotary
Compressor
Model No.
ASK89D53UEZ1
Compressor MFG
GMCC
Expansion Device
Capillary
Model No.
AS-13UR4SYDTDI

8
Evaporator
Copper tube and
Aluminum Fin
Condenser
Copper tube and
Aluminum Fin
Connecting Pipe
Diameter
Liquid Pipe
inch
1/4
Gas Pipe
inch
3/8
Features
Display on Front
Panel
Yes
LCD Wireless
Remote
Controller
Yes
Removable and
washable Panel
Yes
Washable PP
Filter
Yes
24 Hours Timer
Yes
3 Speed and Auto
Indoor Fan
Control
Yes
Vertical Auto
Swing Louver
Yes
Manual
Adjustable
Horizontal Swing
Louver
Yes
Sleep Operation
Yes
Smart Function
Yes
Super Function
Yes
Auto Restart
Yes
Other
Net Dimensions
WxHxD (mm)
Indoor
Unit
745X270X214
Outdoor
Unit
660x240x486
Net Weight (Kg)
Indoor
Unit
8
Outdoor
Unit
23
Packing
Dimensions
WxHxD (mm)
Indoor
Unit
800×335×260
Outdoor
Unit
780×315×530

9
Gross Weight
(Kg)
Indoor
Unit
9.5
Outdoor
Unit
25

10
Model No.
Type
H/P
Ratings
Cooling Capacity
W
5000/5000
Heating Capacity
W
5300/4700
Input-Cooling
W
1540
Input-Heating
W
1465
Rated Input-Cooling
W
2300
AS-18UR4SFATDI6

11
Rated Input-Heating
W
2300
Air Circulation
CMH Max
529
EER for Cooling
W/W
3.25/6.10
COP for Heating
W/W
3.62/3.8
Refrigerant
R410A
Refrigerant charge volume
g
880
Indoor Unit Noise Level
High(dB (A))
60
Low(dB (A))
54
Outdoor Unit Noise Level
dB (A)
65
Power Supply
Voltage, Frequency, Phase
220-240V~,50Hz,1P
Current
Cooling (A)
6.9
Heating (A)
6.6
Rated Current
Cooling (A)
12.3
Heating (A)
12.3
LRA
A
/
System
Compressor type
Rotary
Compressor Model No.
DA150S1C-20FZ
Compressor MFG
GMCC
Expansion Device
Capillary
Evaporator
Copper tube and
Aluminum Fin
Condenser
Copper tube and
Aluminum Fin
Connecting Pipe Diameter
Liquid Pipe
inch
1/4
Gas Pipe
inch
1/2
Features
Display on Front Panel
Yes
LCD Wireless Remote Controller
Yes
Removable and washable Panel
Yes
Washable PP Filter
Yes
24 Hours Timer
Yes
3 Speed and Auto Indoor Fan Control
Yes
Vertical Auto Swing Louver
Yes
Manual Adjustable Horizontal Swing Louver
Yes
Sleep Operation
Yes
Smart Function
Yes
Super Function
Yes
Auto Restart
Yes
Other
Net Dimensions WxHxD (mm)
Indoor Unit
/
Outdoor Unit
830X287X634
Net Weight (Kg)
Indoor Unit
12
Outdoor Unit
38

12
Packing Dimensions WxHxD (mm)
Indoor Unit
/
Outdoor Unit
980×385×665
Gross Weight (Kg)
Indoor Unit
/
Outdoor Unit
41
Model No.
Type
H/P
Ratings
Cooling Capacity
W
6500/6500
Heating Capacity
W
6800/6300
Input-Cooling
W
1960
Input-Heating
W
1880
Rated Input-Cooling
W
3100
Rated Input-Heating
W
3400
Air Circulation
CMH Max
647
EER for Cooling
W/W
3.32/6.3
COP for Heating
W/W
3.62/3.8
Refrigerant
R410A
Refrigerant charge volume
g
1850
Indoor Unit Noise Level
High(dB (A))
63
Low(dB (A))
57
Outdoor Unit Noise Level
dB (A)
69
Power Supply
Voltage, Frequency, Phase
220-240V~,50Hz,1P
Current
Cooling (A)
8.7
Heating (A)
8.4
Rated Current
Cooling (A)
14
Heating (A)
16
LRA
A
/
System
Compressor type
Rotary
Compressor Model No.
ATL232SDNC9AU1L
Compressor MFG
Shanghai Hitachi
Expansion Device
Capillary
Evaporator
Copper tube and
Aluminum Fin
Condenser
Copper tube and
Aluminum Fin
Connecting Pipe Diameter
AS-24UR4SDBTDI6

13
Liquid Pipe
inch
3/8
Gas Pipe
inch
5/8
Features
Display on Front Panel
Yes
LCD Wireless Remote Controller
Yes
Removable and washable Panel
Yes
Washable PP Filter
Yes
24 Hours Timer
Yes
3 Speed and Auto Indoor Fan
Control
Yes
Vertical Auto Swing Louver
Yes
Manual Adjustable Horizontal
Swing Louver
Yes
Sleep Operation
Yes
Smart Function
Yes
Super Function
Yes
Auto Restart
Yes
Other
Net Dimensions WxHxD
(mm)
Indoor Unit
/
Outdoor Unit
884X365.5X793
Net Weight (Kg)
Indoor Unit
13
Outdoor Unit
56
Packing Dimensions WxHxD (mm)
Indoor Unit
/
Outdoor Unit
1050×500×890
Gross Weight (Kg)
Indoor Unit
16
Outdoor Unit
61

14

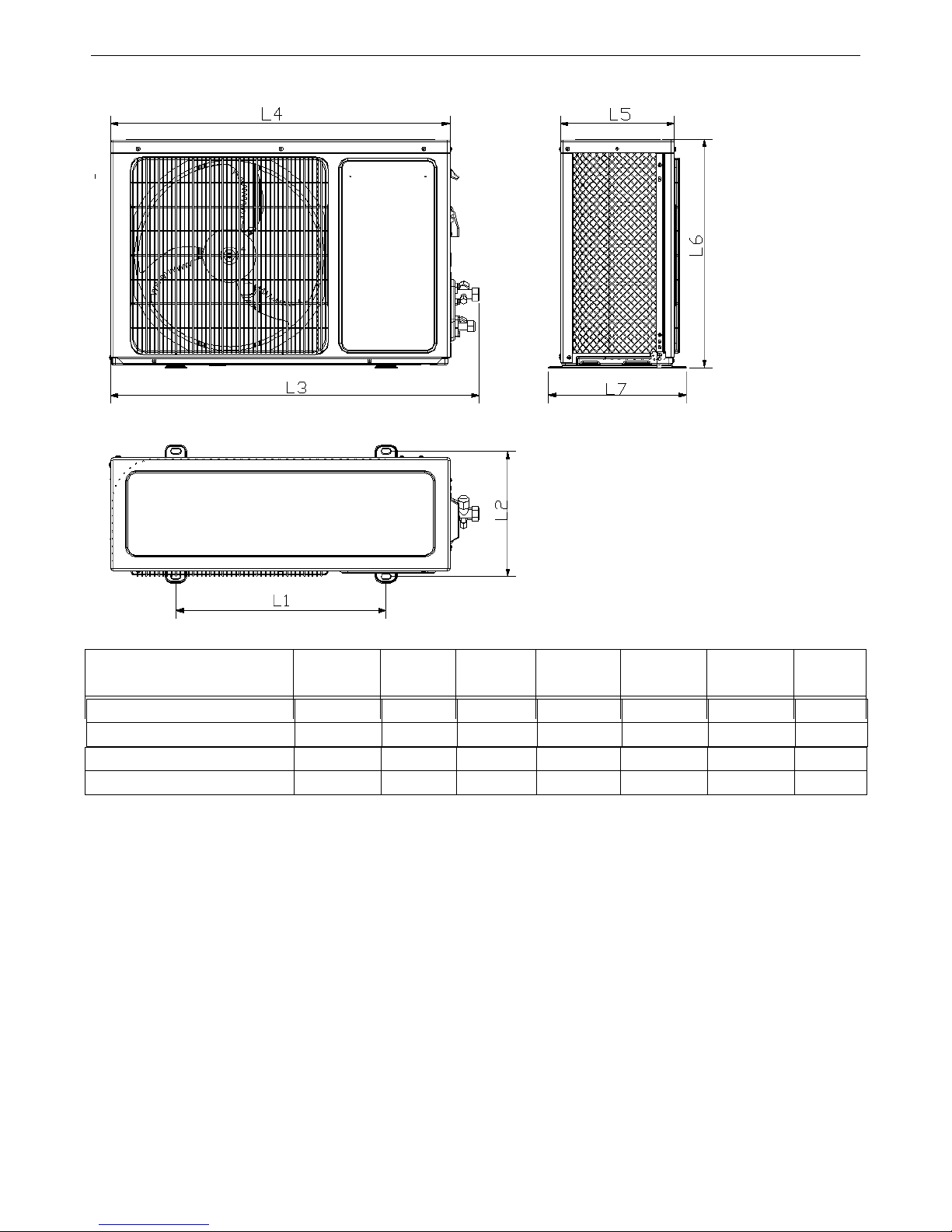

3. Product Picture and Drawing

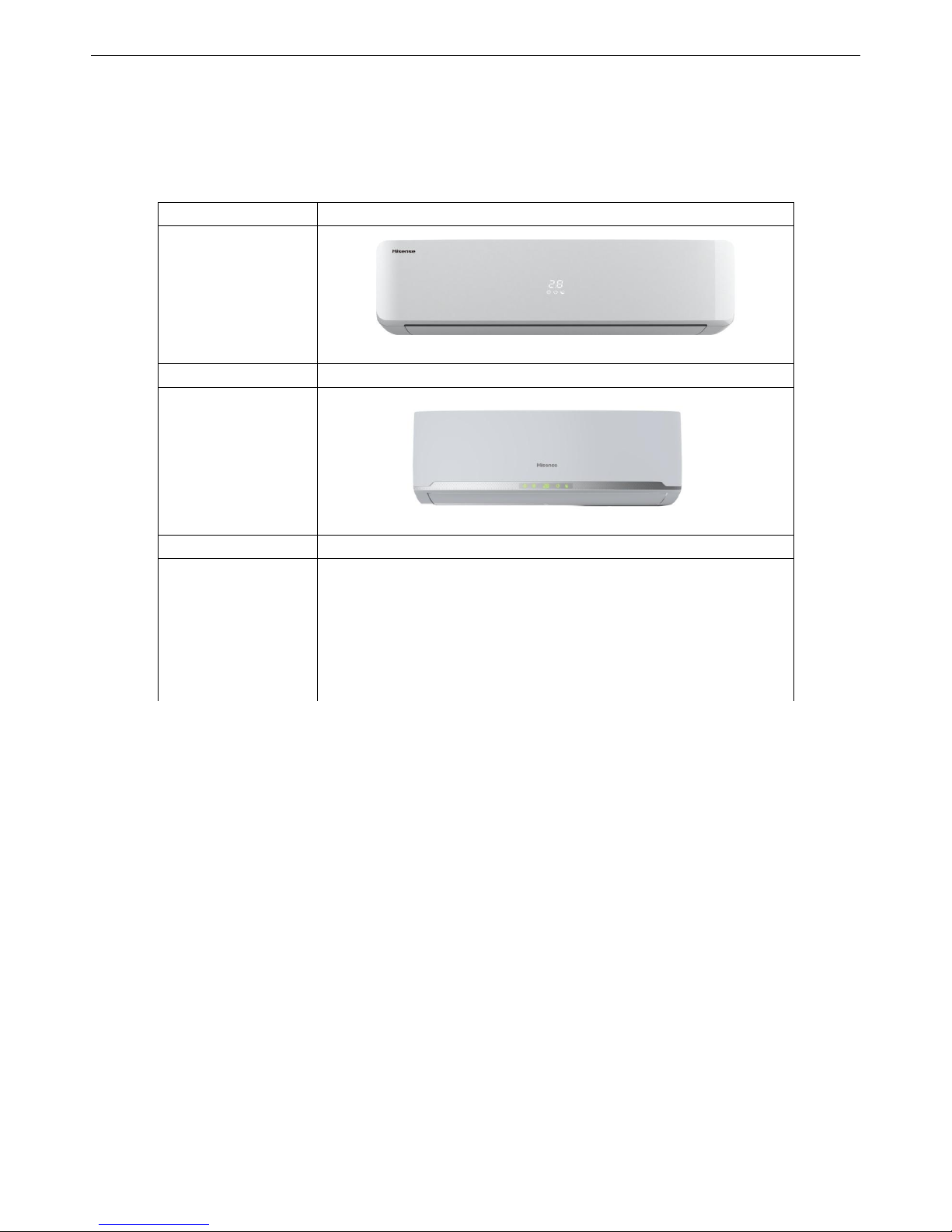

3-1. Product Pictures
Indoor units:
Front Panel
View
Front Panel
View
Front Panel
TDI6
DTDI

15
3-2. Product dimensions
Indoor units:
Model W (mm) H (mm) D (mm)
Remote controller:
Model L1 R1 J1
745 270 214
745 270 214
960 315 230
1130 315 230
AS-10UR4SYDTDI
AS-13UR4SYDTDI
AS-18UR4SFATDI6
AS-24UR4SDBTDI6

16
Outdoor units:
Model
L1
(mm)
L2
(mm)
L3
(mm)
L4
(mm)
L5
(mm)
L6
(mm)
L7
(mm)
+AS-10UR4SYDTDI 438 264 722 660 240 493 290
+AS-13UR4SYDTDI 438 264 722 660 240 493 290
+AS-18UR4SFATDI6565 314 892 832 286 635 350
+AS-24UR4SDBTDI6662 390 959 884 365 793 414

17
4. Installation Instruction
To prevent abnormal heat generation and the possibility of fire, do not place
obstacles, enclosures and grilles in front of or surrounding the air conditioner in a
way that may clock air flow. And, more than 1 meter away from any antenna or power lines or connecting
wires used for TV, radio, telephone, security system, or intercom. Electrical noise from any of these
sources may affect operation.
4-1. Installation Place and Condition
Indoor unit
Avoid:
△direct sunlight.
△nearby heat sources that may affect performance of the unit.
△areas where leakage of flammable gas may be expected.
△places where large amounts of oil mist exist.
Do:
△Select an appropriate position from which every corner of the room can be uniformly cooled.
△Select a location that will hold the weight of the unit.

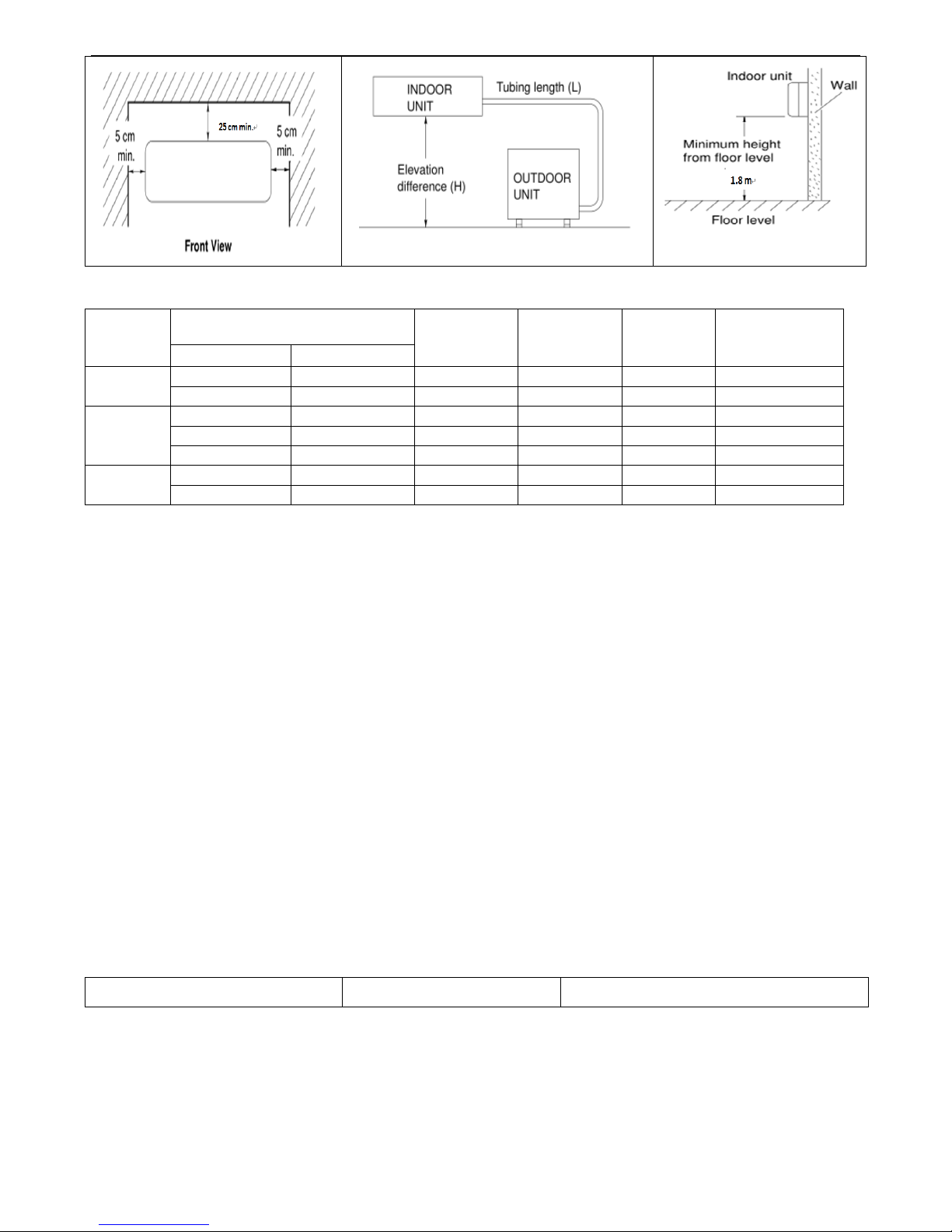

△Select a location where tubing and drain hose have the shortest run to the outside. (See a)
△Allow room for operation and maintenance as well as unrestricted air flow around the unit. (See b)
△Install the unit within the maximum elevation difference (H) above or below the outdoor unit and
within a total tubing length (L) from the outdoor unit as detailed (See table 1 and c)
a
b
c

18
table 1
Capacity
(Btu/h)
Pipe Size
Standard
Length
(m)
Max.
Elevation
B (m)
Max.
Length
A (m)
Additional
Refrigerant
(g/m)
GAS
LIQUID
5k~14k
3/8"(Ø9.52)
1/4"(Ø6.35)
7.5
7
15
20
1/2"(Ø12.7)
1/4"(Ø6.35)
7.5
7
15
20
18k~28k
1/2"(Ø12.7)
1/4"(Ø6.35)
7.5
15
30
20
5/8"(Ø15.88)
1/4"(Ø6.35)
7.5
15
30
20
5/8"(Ø15.88)
3/8"(Ø9.52)
7.5
15
30
30
30k~38k
5/8"(Ø15.88)
3/8"(Ø9.52)
7.5
15
30
30
3/4"(Ø19.05)
3/8"(Ø9.52)
7.5
15
30
50
* If total tubing length becomes 7.5 to 15 m (max.), charge additional refrigerant as the table1 for
reference. And no additional compressor oil is necessary.
Outdoor unit
Avoid:
△Heat sources, exhaust fans, etc.
△Damp, humid or uneven locations.
DO:
△Choose a place as cool as possible.
△Choose a place that is well ventilated.
△Allow enough room around the unit for air intake or exhaust and possible maintenance. (see a1,
b1 & c1)
△Provide a solid base (level concrete pad, concrete block, 10 ×40 cm beams or equal), a minimum
of 10 cm above ground level to reduce humidity and protect the unit against possible water damage
and decreased service life.
△Install cushion rubber under unit’s feet to reduce vibration and noise.
△Use lug bolts or equal to bolt down unit, reducing vibration and noise.
a1
b1
c1

19
Recommended Wire Diameter:
Capacity size
Wire Diameter(mm2)
Fuse or Circuit Breaker Capacity
5K~12k
1.0(Power wire)/1.0（Connect wire）
3.15A（indoor）/15A（outdoor）
18k
2.5(Power wire)/1.5（Connect wire）
3.15A（indoor）/20A（outdoor）
22K~30K
2.5(Power wire)/2.5（Connect wire）
3.15A（indoor）/30A（outdoor）

20

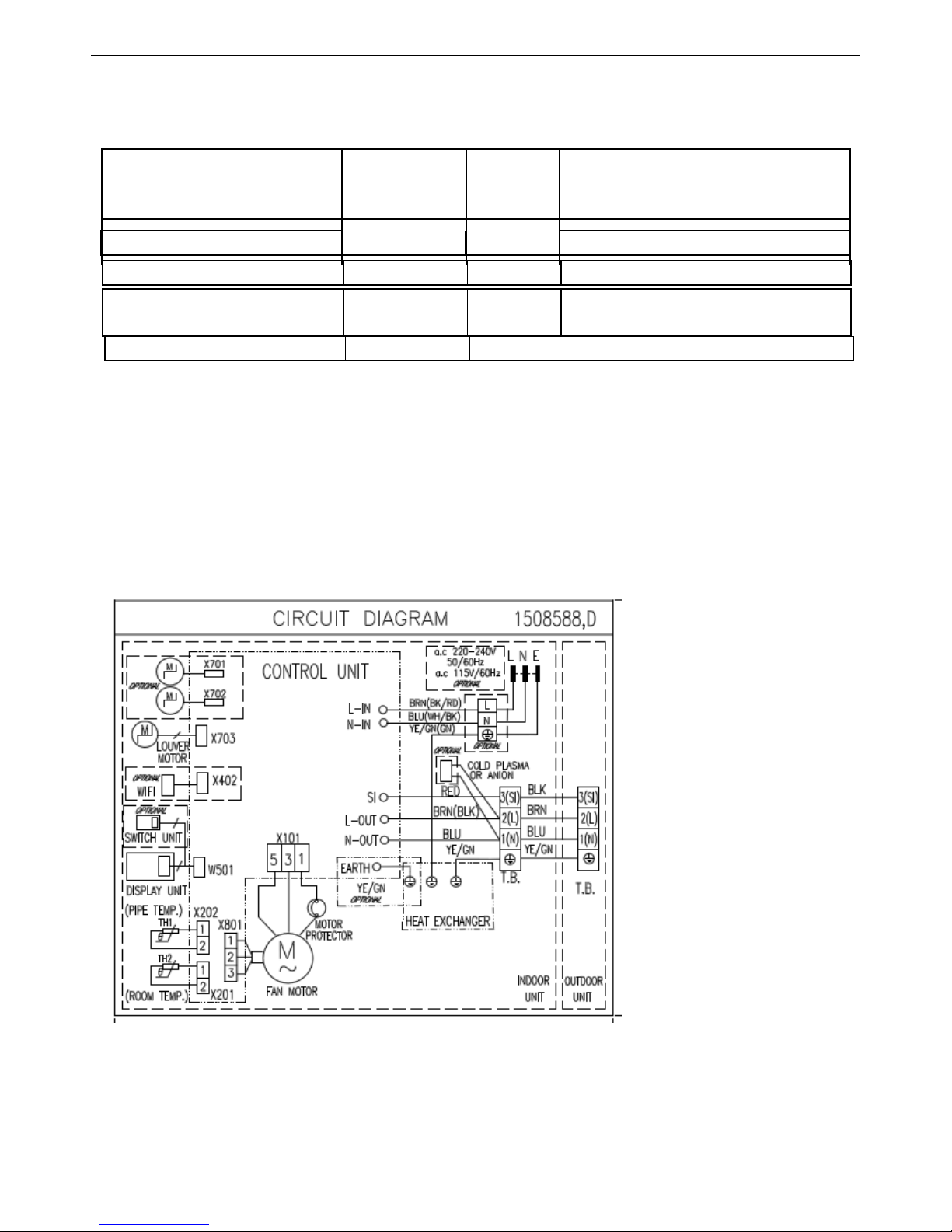

4-2. Electric Wiring Diagram
Model
Indoor Unit
DIAGRAM
Outdoor
Unit
DIAGRAM
N0TE
AS-12UR4SYD** 1808588 1826526 “**”mean letter
AS-09UR4SYD** 1808588 1826526 “**”mean letter
AS-18UR4SFA*** 1812496 1812045 The first two“**”mean letter，the
back of “*”mean number
AS-24UR4SFB** 1508588 1515499 “**”mean letter
Indoor Model:
