Hisense KFR-3208GW Parts list manual

Hisense Corporation
INSTALLATIONINSTALLATION
INSTRUCTIONINSTRUCTION
MANUALMANUAL
SPLIT TYPE AIR CONDITIONERSPLIT TYPE AIR CONDITIONER
KFR-3208GW/AEKFR-3208GW/AE

Compact Size
This model is smaller than its predecessors and
yet offers the same capabilities.
Microprocessor Controlled Operation
The interior compartment of the remote control
unit contains several features to facilitate
automatic operation, clearly displayed for easy
use.
Simple One-touch Wireless Remote Control
The remote control unit has several features to
facilitate automatic operation.
12-Hour ON or OFF Timer
This timer can be set to automatically turn the
unit on or off at any time within a 12-hour period.
1-Hour OFF Timer
This timer can be set to automatically turn off
the unit after one hour.
Night Setback
Pressing this SLEEP button changes the setting
of the room temperature thermostat, allowing
you to set the temperature at whatever level
that you feel comfortable.
Automatic and 3-step Fan Speed
Auto/High/Medium/Low
Air Sweep Control
This function moves a flap up and down in the air
outlet, directing air in a sweeping motion around
the room and providing comfort in every corner.
Automatic Switching between Cooling and
Heating
This unit automatically switches between cooling
operation and heating operation according to
the difference between the room temperature
and the set temperature.
Hot start Heating System
Right from the start, the air is warm and
comfortable. This system prevents any cold
blasts at the beginning while the heat pump
warming up, or even defrosting.
Automatic Restart Function for Power Failure
Even when power failure occurs, preset
programmed operation can be reactivated once
power resumes.
Anti-Mold Filter
This unit is equipped with an anti-mold filter that
inhibits the growth of mold and bacteria.
High Power Running
Run with strong power and make you feel
comfortable quickly.
This air conditioner provides with cooling, heating, and drying functions. Details of the functions are below; refer to
these descriptions when using the air conditioner.
RZA-0-1000-107-SM-F

Contents
1
Page
Alert symbol
Caution statements
Composition of the air conditioner
Operation guide
Care and cleaning
Tips for energy saving
Troubleshooting
Schematic diagram
Pardon not to inform you if the contents of the manual changes.
1
2
3
8
15
17
17
18
19
WARNING
CAUTION
Alert Symbols
The symbol refers to a hazard or an unsafe practice which can result in
severe personal injury or death.
The symbol refers to a hazard or an unsafe practice which can result in
personal injury or product damage.
Appendix: Installation
!If the supply cord is damaged, it must be replaced by the manufacturer or its service
agent or a similarly qualified person in order to avoid hazard.
!The appliance should be installed with local wiring regulation.
!The plug must be easily accessible after installation.
!The waste battery shall be disposed properly.
!The breaker of the air conditioner should be all-pole switch;and the distance
between its two contacts should be no less than 3mm. Such means for disconnection
must be incorporation in the fixed wiring.
!The appliance should be installed on strong enough suppoter.
NOTICE:

Caution Statements
WARNING
WARNING
WARNING
CAUTION
2
1.Do not turn the air conditioner on and off from the power mains
switch. Use the ON/OFF operation button.
2.Do not stick anything into the air outlet of the outdoor unit. This is
dangerous because the fan is rotating at high speed.
3.Do not let the children play with the air conditioner.
4.Do not cool or heat the room too much if babies or invailds are
present.
3.Never use store gasoline or other flammable vapor or liquid near the
air conditioner - it is very dangerous.
4.The air conditioner has no ventilator for intaking fresh air from
outdoors. You must open doors or windows frequently when you
use gas or oil heating appliances in the same room, which consume
a lot of oxygen from the air. Otherwise there is a risk of suffocation
in an extreme case.
1.Read this manual carefully before using this air conditioner. If you still have
any diffculties or problems, consult your dealer for help.
2.The air conditioner is designed to give you comfortable room conditions.
Use this only for its intended purpose as described in this instruction
manual.
1.All wiring must conform to the local electrical codes.
2.Each unit must be properly grounded.
3.Wiring must be done by a qualified electrician.
4.Consider the capacity of the electric current of your electrical kilowatt-
hour meter wires and socket before installation.
5.Power for this air-conditioner is supplied by individual electrical wire.
6.There must be at least one ventilation intake in the area where the
heat-pump is mounted.
To protect the air conditioner from heavy corrosion, avoid installing the outdoor
unit where salty sea water can splash directly onto it or in sulphurous air near a
spa.
Avoid:
1.We recommend that this air conditioner be installed properly by
qualified installation technicians in accordance with the installation
instructions provided with the unit.
2.Before installation, check if the voltage of the electric supply in your
home or office is the same as the voltage shown on the nameplate.
3.Do not install the air conditioner where there are fumes or flammable
gases, or in an extremely humid space such as a greenhouse.
4.Do not install the air conditioner where excessively high heat-
generating objects are placed.

Refrigerant tubes OUTDOOR UNIT
Air outlet

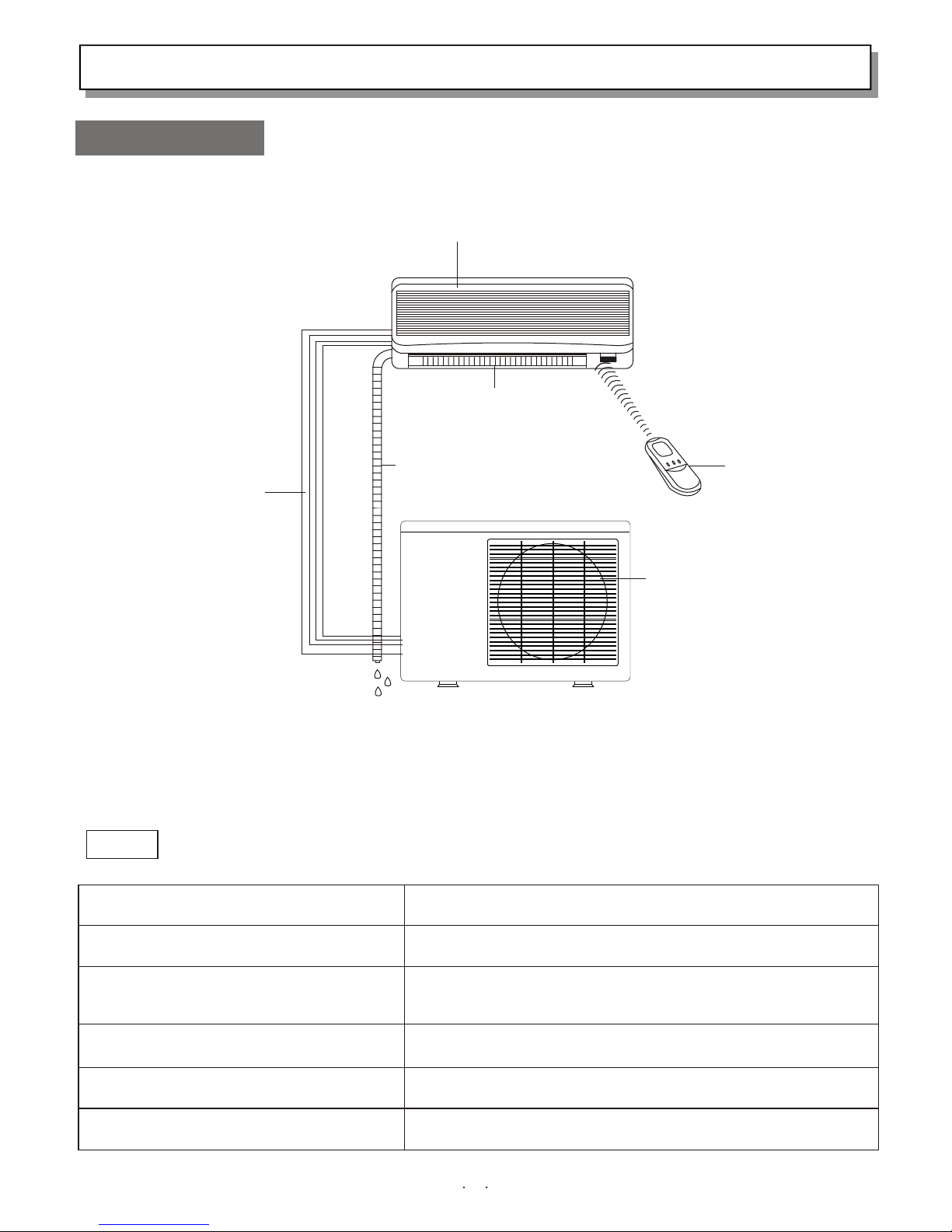

Composition of the Air Conditioner
3
1.Diagram of Structure
This air conditioner consists of an indoor unit and an outdoor unit. You can
control the air conditioner with the remote control unit.
NOTE
Air Intake
Air Outlet
Remote Control Unit
Refrigerant Tubes
Outdoor(Condensing)Unit
Drain Hose
Air from the room is drawn into this section and passes
through air filters which remove dust.
Conditioned air is blown out of the air conditioner through
the air outlet.
The wireless remote control unit controls power ON/OFF,
operation mode selection, temperature, fan speed, timer
setting, and air sweeping.
The indoor and outdoor unts are connected by copper
tubes through which refrigerant gas flows.
The outdoor units contains the compressor, fan motor, heat
exchanger coil, and other electrical components.
Moisture in the room condenses and drains off through this hose.
The appearance of the appliance may differ from some pictures.
Air intake grille
INDOOR UNIT
Air outlet
Remote
control
unit
Drain hose

4

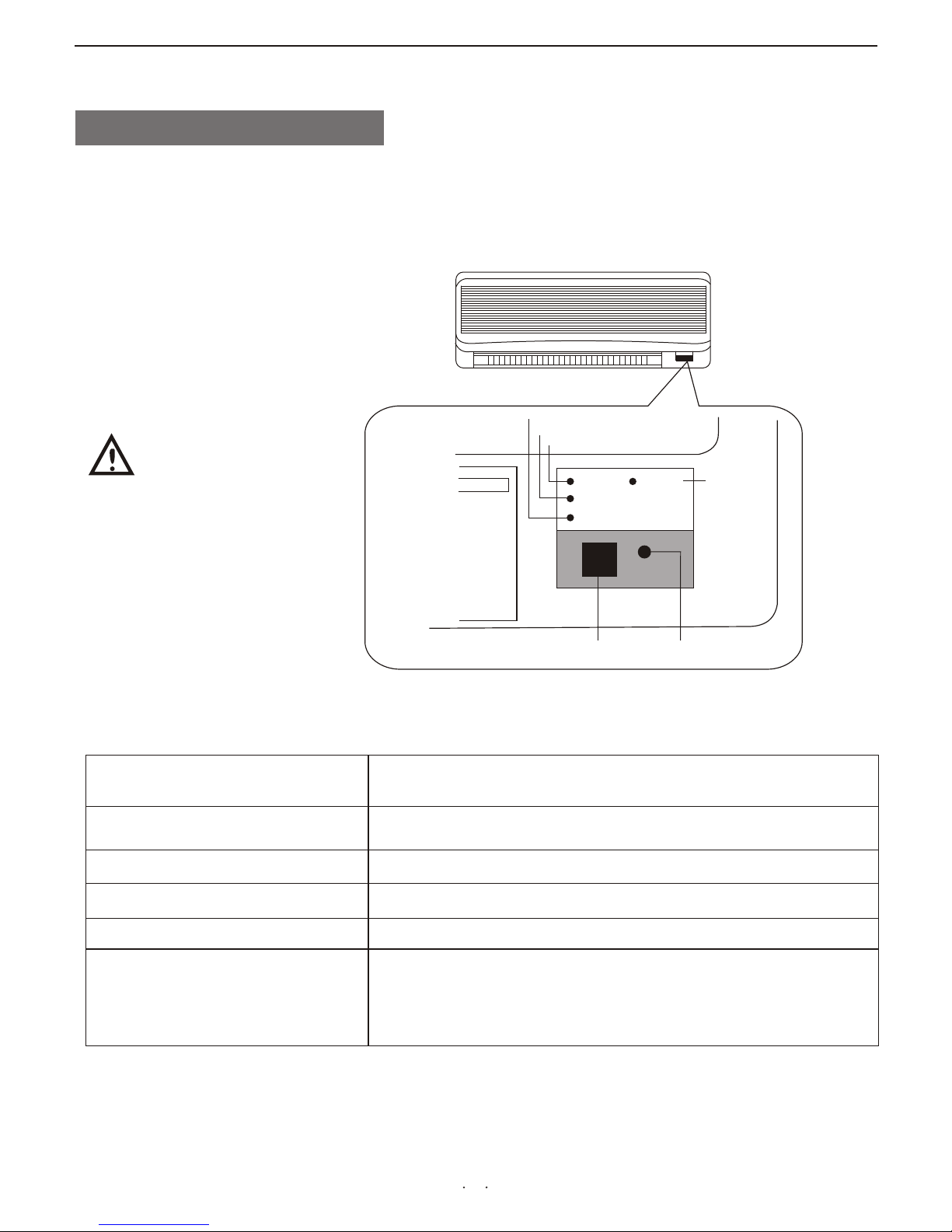

2.Introduction of the Indoor ControI Unit
INDOOR UNIT
OPERATING lamp
TIMER lamp
POWER lamp
POWER
TIMER
OPERATING
HIGH
POWER
lamp
REMOTE CONTROL receiver ON/OFF button
IMPORTANT:
Avoid using radio equipment
such as mobile phone near
(within 1m) the indoor unit.
Some radio equipment may
cause maIfunction of the unit.
If the troubIe happens, dis-
connect power and restart the
air conditioner after a few
minutes.
REMOTE CONTROL
receiver
ON/OFF button
POWER lamp
OPERATING lamp
TIMER lamp
HIPOWER lamp
This section picks up infrared signals from the remote control unit
(transmitter)
This lamp lights when the air conditioner is in the operation
mode.(But the compressor may not run at this time.)
This lamp lights when the system is being controlled by the timer.
This lamp lights when the outdoor unit is electrified.
This lamp lights when the air conditioner run efficiently.
This button is set for emergent state.Please use the remote control
unit to operate the air conditioner in the common state. If you have
lost the remote control unit or it has trouble, use this button to turn
on/off you air conditioner.(See operation without the remote control
unit.)
ON/OFF
HI POWER

Symbols

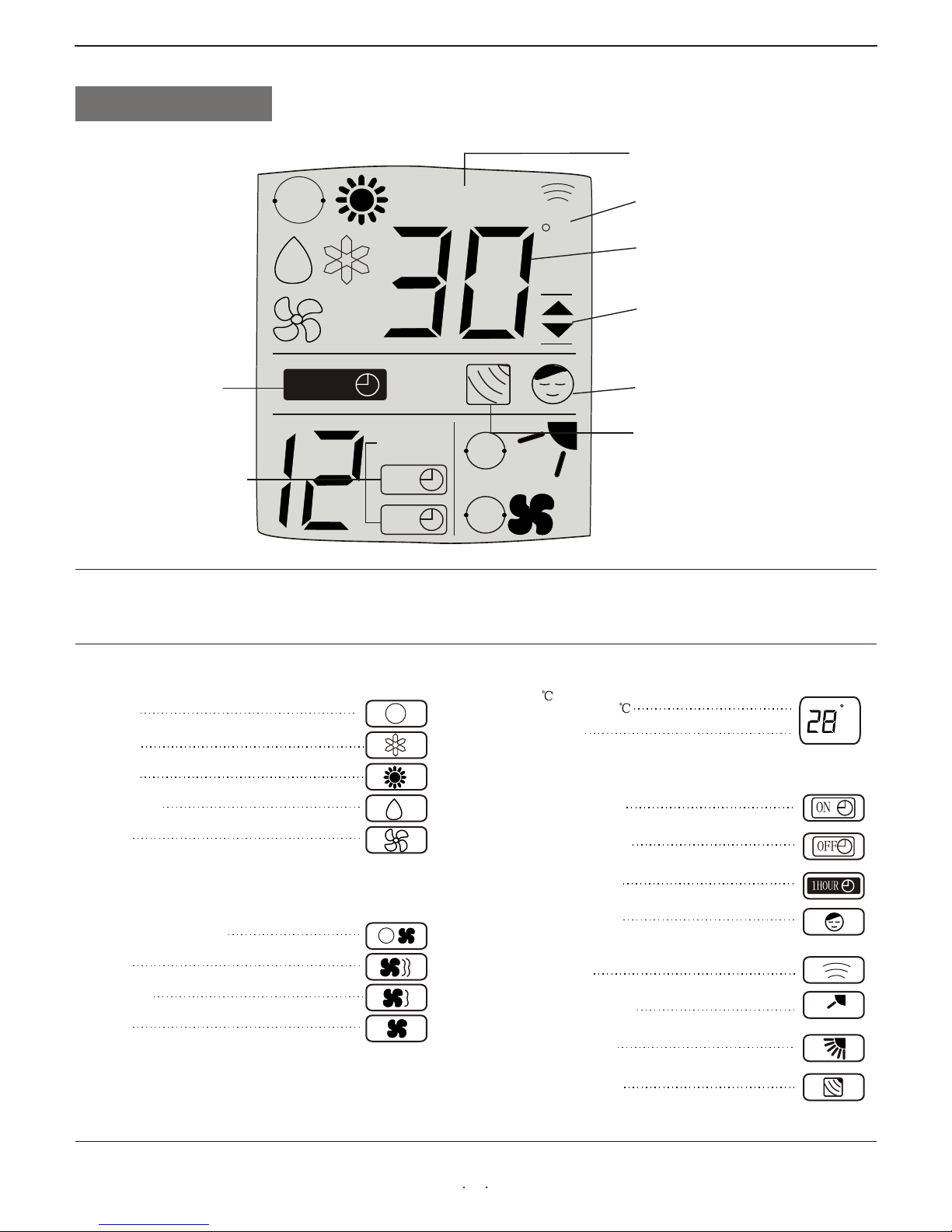

3.Introduction of Display
(1) Operation mode
AUTO
COOL
HEAT
MILD DRY
FAN
(2) Fan speed
Automatic operation
HIGH
MEDIUM
LOW
(4) Timer
12-hour ON Timer
12-hour OFF Timer
1-hour OFF Timer
(5) NIGHT SETBACK
(6) Confirmation of
transmission
(7) Flap angle indication
(8) Sweep indication
(9) Indoor unit sensor
A
A
(3) Set temperature
16-30
When set to 28
Current temperature
indication
C
5
A
TEMP SETTEMP SET
C
1HOUR
A
HOUR
ON
OFF
Displayed when one-hour
OFF timer is enable
Displayed when setting timer
Displayed when setting temperature
Displayed when transmitting data
Displayed when temperature is shown
Displayed when temperature setting
is at the upper or lower allowable
limits
Displayed when Night Setback is
running
Displayed when main unit sensor is in
use
A

4.Introduction of the Remote control Unit
NOTE The illustration above pictures the remote control unit after the cover has
been lowered and removed.
When you press the buttons on the remote control unit,the mark appears in
the display to transmit the setting changes to the receiver in the air conditioner.
A temperature sensor inside the remote control unit senses the room
temperature.
Information on the operating conditions is displayed while the remote control
unit is switched on. If the unit is turned off, only the mode that was set
previously is still displayed.
For details, see Night Setback Mode . When you press this button, in the
HEAT, DRY or COOL mode, the mark appears in the display, the remote
control unit will automatically adjust the set temperature to save energy.
Press the button to increase the set temperature.
Press the button to reduce the set temperature.
This button is for turning the air conditioner on and off.
Transmitter
SENSOR
Display
SLEEP
button
buttons
TEMP. Setting
ON/OFF operation
button
6
1Сʱ
A
TEMP SETTEMPS ET
C
1HOUR
A
HOUR
ON
OFF
A
1 HR TEMP FAN
SPEED
H.P.
ON/OFF
FLAP MODE
ON OFF
SLEEP SET CANCEL
ACL
A/C SENSOR
SENSOR
A/C SENSOR button
Transmitter
Battery compartment
(pull off the cover to expose the
batteries.)
(Cover closed)
TEMP.setting button
ON/OFF button
ACL button
4.Introduction of the Remote control Unit
Display
MODE selector button
SLEEP button
1 HR. TIMER button
HIGH POWER button
FLAP button
TIMER ON/OFF button
TIMER SET/CANCEL
button
FAN SPEED selector button

:The air conditioner starts at the set time.
The air conditioner stops at the set time.
or
:The air conditioner makes the room warm.
:The air conditioner reduces the humidity in the room.
direction to one of the six possible
positions manually, or to select the
The airflow direction can be set manually.(six positions)
:The flap moves up and down automatically.
:Press the FLAP button and set the airflow directions as desired. (refer to Adjust the
Airflow Direction).
:
Use this button to select AUTO, HEATING, DRY COOLING mode.
:When this setting is selected, the air conditioner calculates the difference between the
set thermostat and the room temperature and automatically switches to the "COOLING"
or "HEATING” mode appropriately.
:The air conditioner makes the room cool.
:The air conditioner makes the room's temperature suitable.
Press this button either to select to set the airflow
sweep function, which moves the flap up and down
automatically.
:
:The air conditioner automatically decides the fan speeds.
: High fan speed.
:Medium fan speed.
:Low fan speed.
:When you press this button, regardless of whether the unit is operating or stopping,
the unit operates for one hour and then shuts down.
Puts the remote control unit into pre-operation status. Always press this button after
replacing the batteries.
When you press this button (use a small-tipped object such as a ballpoint pen), the mark
will appear at the display. And the room temperature is detected by the sensor which is built
into the indoor unit and the air conditioner is controlled accordingly.
If the remote control is located near a heat source, such as a space heater or
indirect sunlight, press the A/C SENSOR button to switch to the sensor in the
indoor unit.
!
NOTE
TIMER ON button
MODE selector button
(AUTO)
(HEATING)
(DRY)
(COOLING)
(FAN)
FLAP button
FAN SPEED selector
button
1 HR TIMER button
(1-HOUR OFF TIMER)
ACL button
TIMER OFF button
TIMER SET/CANCEL button
A/C SENSOR button
7
Remote Control Unit(continued)
This button is used to set/cancel the time at which you wish the air conditioner to go on or off.
A
A
A
1HOUR1HOUR
Automatic switching between cooling and heating
This unit automatically switches between cooling operation and heating operation according to the difference
between the room temperature and the set temperature.
NOTE The remote control unit sends the temperature signal to the air conditioner regularly at three
minute intervals. If the signal from the remote control unit stops for more than ten minutes due
to the loss of the remote control unit or other trouble, the air conditioner will switch to the
temperature sensor which is built into the indoor unit and control the room temperature. In
these cases, the temperature around the remote control unit may differ from the temperature
,
detected at the air conditioner s position.

Operation Guide
1. Slide the cover in the direction indicated by the arrow and remove it.
2. Install two AAAalkaline batteries. Make sure the batteries point in the direction
m arked in the battery compartment.
3. Use a thin object such as the tip of a pen to press the ACL button.
!
NOTE
When using the remote control unit, always point the unit's transmitter head
directly at the air conditioner's receiver.
To ensure that the air conditioner operates correctly, DO NOT install the remote control
unit in the following places:
Behind a curtain or other places where it is covered
Where it may become extremely hot or cold
Where it may be subject to electrical or magnetic noise
Where there is an obstacle between the remote control unit and the air conditioner
In direct sunlight
More than 8 meters away from the air conditioner
In the path of the air conditioner's airstream
REMOTE CONTROL UNIT
INSTALLATION POSITION
(Transmitter head)
HOW TO INSTALL BATTERIES
Receiver
Air conditioner
(Indoor unit)
HOW TO USE THE REMOTE
CONTROL UNIT
Remote control
unit
DO NOT
8
Replace the batteries when the remote control unit's display fails to light, or when the
remote control unit cannot be used to change the air conditioner's settings.
Use two fresh leak-proof type-AAA alkaline batteries.
In replacing batteries, follow the instructions as mentioned in the sub-section "How
to Install Batteries".
If you do not use the remote control unit more than 1 month, take out the batteries.
Sliding cover
++
--
++
--

Operation with the Remote Control Unit(continued)
NOTE Check that the circuit breaker on the power panel is turned on and that the operation selector of the indoor unit is
in the ON position.
If the automatic operation settings of the unit do not meet your needs, press the setting buttons as described
below and change the settings as desired.
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5
Press the MODE selector button and select the desired mode.
For heating operation
For dehumidifying operation
For cooling operation
For automatic operation
For fan operation
A
To start the air conditioner, press the ON/OFF operation button.
Press the TEMP setting button to change the temperature setting to the desired temperature .
Adjustable temperature range:
30 max. 16 min.
!
NOTE
Set the FAN SPEED selector button to choose the fan speed you want.
If the fan speed is set to (Automatic), the fan speed switches automatically,
according to the difference between the actual room temperature and the set temperature.
A
Press the FLAP button and set the airflow direction as desired.
To stop the air conditioner, press the ON/OFF operation button again.
9
STEP 4
STEP 1
C
A
A
1 HR TEMP FAN
SPEED
H.P
.
ON/OFF
FLAP MODE
ON OFF
SLEEP SET CANCEL
ACL
A/C SENSOR
STEP 3
STEP 2
STEP 5

Adjusting the Airflow Direction
The horizontal airflow can be adjusted
by moving the vertical vanes with your
hands to the left or right.
2. Vertical
1. Horizontal
!
CAUTION When the humidity is high, the vertical vanes should be in the front
position during the cooling or dehumidifying operation. If the vertical
vanes are positioned all of the way to the right or left, condensation may
begin to form around the air vent and drip down.
The vertical airflow can be adjusted by moving the flap with the remote control unit Do not
move the flap with your hands.Confirm that the remote control unit has been turned on.
Then, use the FLAP button to set either the sweep function or one of
the six airflow direction settings.
A.Sweep function
The flap starts moving up and down to
deliver air over the sweep range.
B.Automatic Function
The flap moves up and down automatically
from to during the cooling or drying
operation, from to during the heating
operation. Referring to the above illustration.
!
NOTE The flap automatically closes when the unit is off.
!
CAUTION ¡ñUse the FLAP button on the remote control to adjust the position of the flap.
If you move the flap by hand, the flap position according to the remote control
and the actual flap position may no longer match.If this happens,shut off the
unit, wait for the flap to close, and then turn on the unit again; the flap
position will now be normal again.
¡ñDo not have the flap pointed down during cooling operation. Condensation
may begin to form around the air vent and drip down.
10
FLAP MODE
ON OFF
SLEEP SET CANCEL
ACL
A/C SENSOR
1
2
3
4
5
6
SWEEP
COOL
and
DRY
HEAT
Adjusting the Fan Speed
A
A
B. Manual If you want to adjust fan speed manually during operation, just set the FAN SPEED selector
as desired.[ (High), (Medium), or (Low)]
A. Automatic
Simply set the FANSPEED selector to the position.
A microprocessor in the air conditioner automatically controls the fan speed when the mode is selected. When the air
co nditioner starts operating, the difference between the room temperature and the set temperature is detected by
the microprocessor which then automatically switches the fan speed to the most suitable level.

Night Setback / Simultaneous Use Energy Saving
¡ñNight Setback Mode
Night Setback Mode is used for saving energy. Press the SLEEP button
in operation. The mark appears in the display.To release the night
setback function, press the SLEEPbutton again.
NOTE This function loses in automation or airflow mode.
11
TEMP SETTEMP SET
C
A
A
1 HR TEMP FAN
SPEED
H.P.
ON/OFF
FLAP MODE
ON OFF
SLEEP SET CANCEL
ACL
A/C SENSOR
This operation makes higher or lower temperature airflow than usual, in winter or
summer, which makes you feel comfortanble as soon as you go home.
Setting procedure:
Press the High Power button on the remote control unit gently, with a whisper, and
the HIPOWER-lamp on the display panel is lighted , so the high efficient operation
comes to work. It may last the longest time of 15 minutes.
Cancellation procedures:
Press the HIGH POWER button again, with a second whisper, the lamp is out.
HIGH POWER Operation
C
1 HR TEMP FAN
SPEED
H.P
.
ON/OFF
FLAP MODE
ON OFF
SLEEP SET CANCEL
ACL
A/C SENSOR
A
A
POWER
TIMER
OPERATING
HI POWER
ON/OFF button
ON/OFF
HIGH POWER lamp

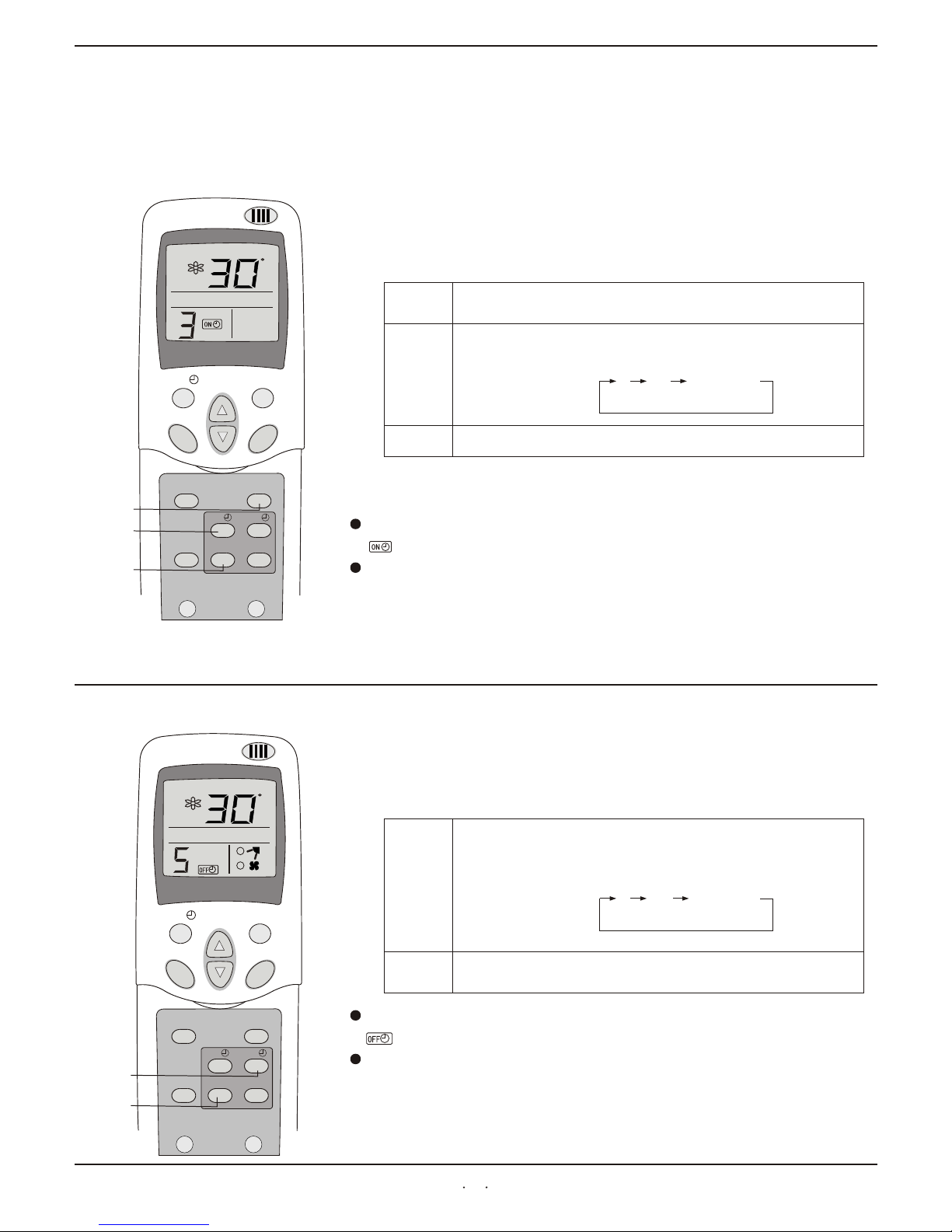

Using the 12-Hour ON and OFF Timer
After the length of time set for TIMER ON elapses, the unit begins operating.
The display depicted at left indicates that the air conditioner will begin operating in
three hours.
Setting Procedures:
STEP 1 Press the MODE button and set the desired operation mode and
press the ON/OFF operation button.
STEP 2 Press the timer ON button to set the time at which you want
operation to begin. The time can be set for one to twelve hours,
in one hour steps. 1 2 3....... 12
STEP 3 Press the timer SET button (which advances the time displayed).
The display changes immediately to its status previous to timer setting, but the
indication remains.
To check the status of the timer while it is counting down, press the timer SET
button .
Cancellation procedure: Press the CANCEL button once again.
12
After the length of time set for TIMER OFF elapses, the unit stops operating.
The display depicted at left indicates that the air conditioner will stop operating in
five hours.
Setting Procedure:
STEP 1 Press the timer OFF button to set the time at which you want
operation to stop.
The time can be set for one to twelve hours, in one hour steps.
STEP 2
1 2 3....... 12
Press the timer SET button (which advances the time displayed).
The display changes immediately to its status previous to timer setting, but the
indication remains.
To check the status of the timer while it is counting down, press the timer SET
button .
Cancellation procedure: Press the CANCEL button once again.
2.TIMER OFF mode
(Example)
STEP 2
STEP 1
C
1 HR TEMP FAN
SPEED
H.P
.
ON/OFF
FLAP MODE
ON OFF
SLEEP SET CANCEL
ACL
A/C SENSOR
HOURHOUR
STEP 2
STEP 3
STEP 1
1.TIMER ON mode
(Example)
C
1 HR TEMP FAN
SPEED
H.P.
ON/OFF
FLAP MODE
ON OFF
SLEEP SET CANCEL
ACL
A/C SENSOR
HOURHOUR
A
A

Using the 1-Hour OFF Timer
13
This function causes the unit to operate for one hour and then stop, regardless
of whether the unit is on or off when this button is pressed.
The indicator in the display indicates that this function is operating.
Setting procedure:
Regardless of whether the unit is operating or stopped, press the 1 HR .TIMER button.
Appears in the display.
Cancellation procedure:
Press the ON/OFF operation button to turn the unit off, wait for the unit to stop operating,
and then press the ON/OFFoperation button again. The 1-Hour Timer function is now
cancelled and the unit operates normally.
¡ñIf, while the 1-Hour Timer function is operating, the 1 HR.TIMER button is
pressed once to cancel the function and then again, the unit continues to
operate for one hour from that point in time and then stops.
¡ñIf the 1 HR.TIMER button is pressed while the TIMER OFF function operates,the
OFF Timer is cancelled and the unit will stop operating one hour later.
1HOUR1HOUR
1HOUR1HOUR
NOTE
C
1 HR TEMP FAN
SPEED
H.P.
ON/OFF
FLAP MODE
ON OFF
SLEEP SET CANCEL
ACL
A/C SENSOR
1Сʱ
1HOUR
A
A

14
Special Remarks
Heating ( ) Operation
Heating performance
Defrosting
POWER lamp
Because this air conditioner heats a room by drawing on the heat of the outside air
(heat pump system), the heating efficiency will fall off when the outdoor temperature
is very low. If sufficient heat cannot be obtained with this air conditioner, use another
heating appliance in conjunction with it.
When the outdoor temperature is low, frost or ice may from in the heat exchanger
coil, reducing heating performance. When this happens, a microcomputer defrosting
system will operate. At the same time the fan on the indoor unit stops ( or runs at
very low speed in some cases). Heating operation restarts after several minutes.
(This interval will vary slightly depending upon the outdoor temperature and the way
in which frost forms).
For several minutes after the start of heating operation, the indoor fan will not start
running until the indoor heat exchanger coil has warmed up sufficiently. This is
because the COLD DRAFT PREVENTION SYSTEM is operating.
The POWER lamp also remains lit during defrosting or when the compressor has
been turned off by the thermostat when the system is in the heating mode.
In the event of power failure, the unit will stop. When the power is resumed,
the unit will restart automatically after three minutes.
In heating or cooling operation. Some plastic parts may expand of shrink due to a
sudden temperature change. In this event, a clicking sound may occur. This is normal,
and the sound will soon disappear.
The remote control unit sends the temperature signal to the air conditioner regularly
at three-minute intervals. If the signal from the remote control unit stops for more
than ten minutes due to the loss of the remote control unit or other trouble, the air
conditioner will switch to the temperature sensor which is built into the indoor unit
and control the room temperature. In these cases, the temperature around the
remote control unit may differ from the temperature detected at the air conditioner s
position.
Power failure
during operation
Clicking Sound
Clicking sound is
heard from the air
conditioner

Operation without the Remote Control Unit
Care and Cleaning
NOTE
If you have lost the remote control unit or it has trouble, follow the steps below.
1.When the air conditioner is not running
If you want to turn on the air conditioner, pressing the ON/OFF button once.
2.When the air conditioner is running
If you want to turn off the air conditioner, pressing the ON/OFF button once.
Pressing buttons cannot last too long time, or the air conditioner may
operate abnormally.
!
WARNING 1.For safety, be sure to turn the air conditioner off and also to disconnect
the power before cleaning.
2.Do not pour water on the indoor unit to clean it. This will damage the
internal components and cause an electric shock hazard.
Clean the casing and grille of the indoor unit with a vacuum cleaner brush, or
wipe them with a clean, soft cloth.
If these parts are stained, use a clean cloth moistened with a mild liquid
deteraent. When cleaning the grille, be careful not to force the vanes out of
place.
!
CAUTION 1.Never use solvents, or harsh chemicals when cleaning the indoor unit.
Do not wipe the plastic casing using very hot water.
2.Some metal edges and the fins are sharp and may cause injury if
handled improperly; be especially careful when you clean these parts.
3.The internal coil and other components of the outdoor unit must be
cleaned every year.Consult your dealer or service center.
15
POWER
TIMER
OPERATING
HI POWER
ON/OFF button
ON/OFF

Care and Cleaning (continued)
Anti-Mold Filter
How to remove the
anti-mold filter
The anti-mode filter behind the air intake grille should be checked and cleaned
at least once every three weeks.
1.Grasp both ends of the air intake grille and pull it out and up.
2.Push the anti-mold filter up slightly, and then pull it down.
Anti-Mold Filter
Cleaning
How to replace the
anti-mold filter
Use a vacuum cleaner to remove light dust. If there is sticky dust on the filter,
wash the filter in lukewarm, soapy water, rinse it in clean water, and dry it.
1.Slide the anti-mold filter up into the unit and then lower the handle into the
groove on the unit.
2.After installing the anit-mold filter, press the locations marked by the arrows
( ) and close the air intake grille.
Air Clean Filter
(not provided)
The air cleaning filter removes dust and dirt from the air, and reduces odors and
somke from tobacco.
!
WARNING
16
This air clean filter cannot remove harmful gases or vapors nor ventilate
air in the room. You must open doors or windows frequently when you
use gas or oil heating appliances.Otherwise there is a risk of suffocation
in extreme cases.
How to install the air clean
filter The air clean filter needs to be installed behind the anti-mold filter.
1. Remove the anti-mold filter.
2. Install the air clean filter in the position shown in the diagram.
3. Reinstall the anti-mold fillter.
Air intake grille
Anti-mold filter
Air intake grille
Anti-mold filter
Air
clean
filter

Tips for Energy Saving
Do not Block the air intake and outlet of the unit. If they are obstructed, the unit
will not work well, and may be damaged.
Let sunlight directly into the room. Use sunshades, blinds or curtains.
If the walls and ceiling of the room are warmed by the sun, it will take
longer time to cool the room.
Do Always try to keep the air filter clean. (Refer to Care and Cleaning A
clogged filter will impair the performance of the unit.
To prevent conditioned air from escaping, keep windows, doors and any
other openings closed.
.)
Troubleshooting
If your air conditioner does not work properly, first check the following points before requesting service. If it still does not work
properly, contact your dealer or service center.
1.Power failure.
2.Leakage breaker tripped.
3.Line voltage is too low.
4.Operation button isOFF.
5.Batteries in remote control unithave
run down.
Trouble in wiring system.
Obstruction in front of condenser coil.
1.Dirty or clogged air filter.
2.Heat source or many peoplein room.
3.Doors and/or windows are open.
4.Obstacle near air intake or air
discharge port.
5.Thermostat is set too high for
cooling(or too low for heating).
6.(Outdoor temperature istoo low.)
7.(Defrosting system doesnot work.)
In heating orcooling operation, some
plastic parts may expand or shrink due
to a sudden temperature change. In
this event, a clicking sound may occur.
1.The use of portable telephones near
the air conditioner may cause
disturbance to its normal operation.
2.Restart the air conditioner after turn
off the power immediately.
1.Restore power.
2.Contact service center.
3.Consult your electrician or dealer.
4.Press the button again.
5.Replace batteries.
Contact servicer center.
Remove obstruction.
1.Clean air filter to improve airflow.
2.Eliminate heat source if possible.
3.Shut them to keep the heat (or cold)
out.
4.Remove it to ensure good airflow.
5.Set the temperature lower.(orhigher)
6.(Try to use a back-up heater.)
7.(Consult your dealer.)
This is normal, and the sound will soon
disappear.
1.Turn offthe power then restart the air
conditioner after 3 minute.
2.The unit will restart automatically
after three minutes.
Air conditioner doesnot run at
all.
OPERATING lamp flashes
while air conditioner does
not operate.
Compressor runs but soon
stops.
Poor cooling (orheating)
performance
Clicking sound isheard from
the air conditioner.
OPERATING lamp lights but
outdoor unit willnot run.
Trouble Possible Cause Remedy
17

Schematic Diagram
1. Refrigerant Flow Diagram
18
Indoor unit
Heat exchanger
Heat exchanger
Wide tube
Narrow tube
Outdoor unit
Wide
service
valve
Accumulator
Compressor
4-way valve
Capillary
Narrow
service
tube Cooling cycle
Heating cycle
Capillary
Check valve
2. Permitted ambient temperature for the air conditioner is following:-7 ~+43 .
3. Electric Wiring Diagram
1
2
3
4
5
1
2
3
4
5
INDOOR
UNIT
OUTDOOR
UNIT
