Destroyer Air Bike
PARTS
A –Main Frame B –Front Stabilizer E –Console tube
C –Rear Stabilizer
D –Swing handle bar (L-R)
G1 –Foot Support G2 –End Cap
F –Console
H1 –Pedal (Left) Metal ixing plate
H2 –Pedal (Right)
J1 –Screw J2 –Screw J3 –Spacer
Ring J6 –Screw
M8*60 M8*30 J4 –Nut J5 –Screw M8 M6*16 M10*20
TOOLS
#17 Customized Wrench 4m/m 5m/m 6m/m
#13 #15
Destroyer Air Bike Booklet.indd 2 02/09/2020 13:14

Destroyer Air Bike
FIGURE 1

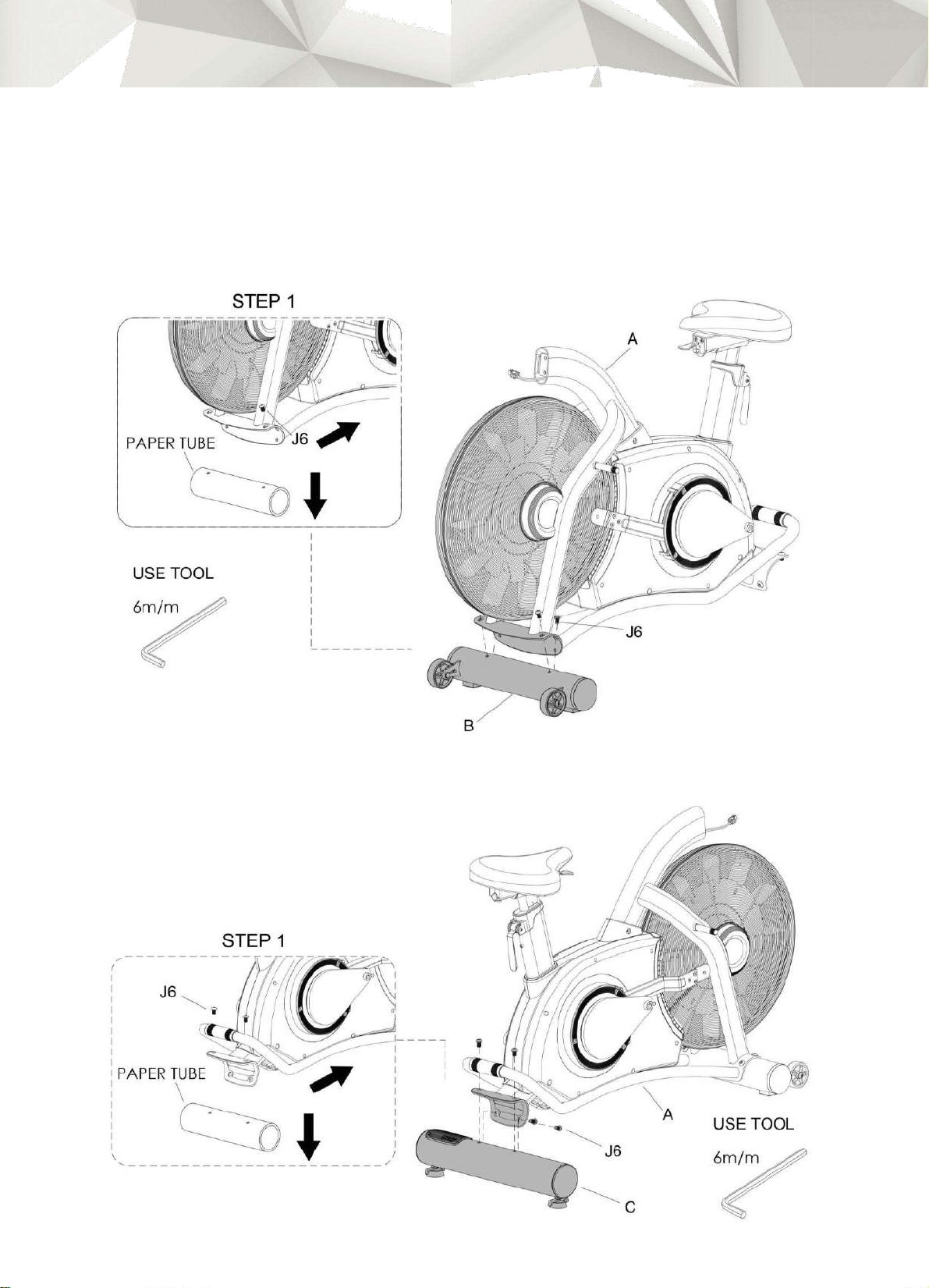

ASSEMBLING THE FRONT STABILIZER
STEP ONE:
•Loosen the two screws (J6) from the paper strap. The paper strap is used to protect the package,
which won’t be used again during or after assembly.
STEP TWO:
• Fix the front stabilizer onto the main frame and tighten it by screw.
FIGURE 2
ASSEMBLING THE REAR STABILIZER
Step ONE:
•Loosen the two screws (J6) from the paper strap. The paper
straps will no longer be needed from this point forward.
STEP TWO:
•Equip the rear stabilizer onto the main
frame and tighten it by screw (J6).
Destroyer Air Bike Booklet.indd 3 02/09/2020 13:14

Destroyer Air Bike

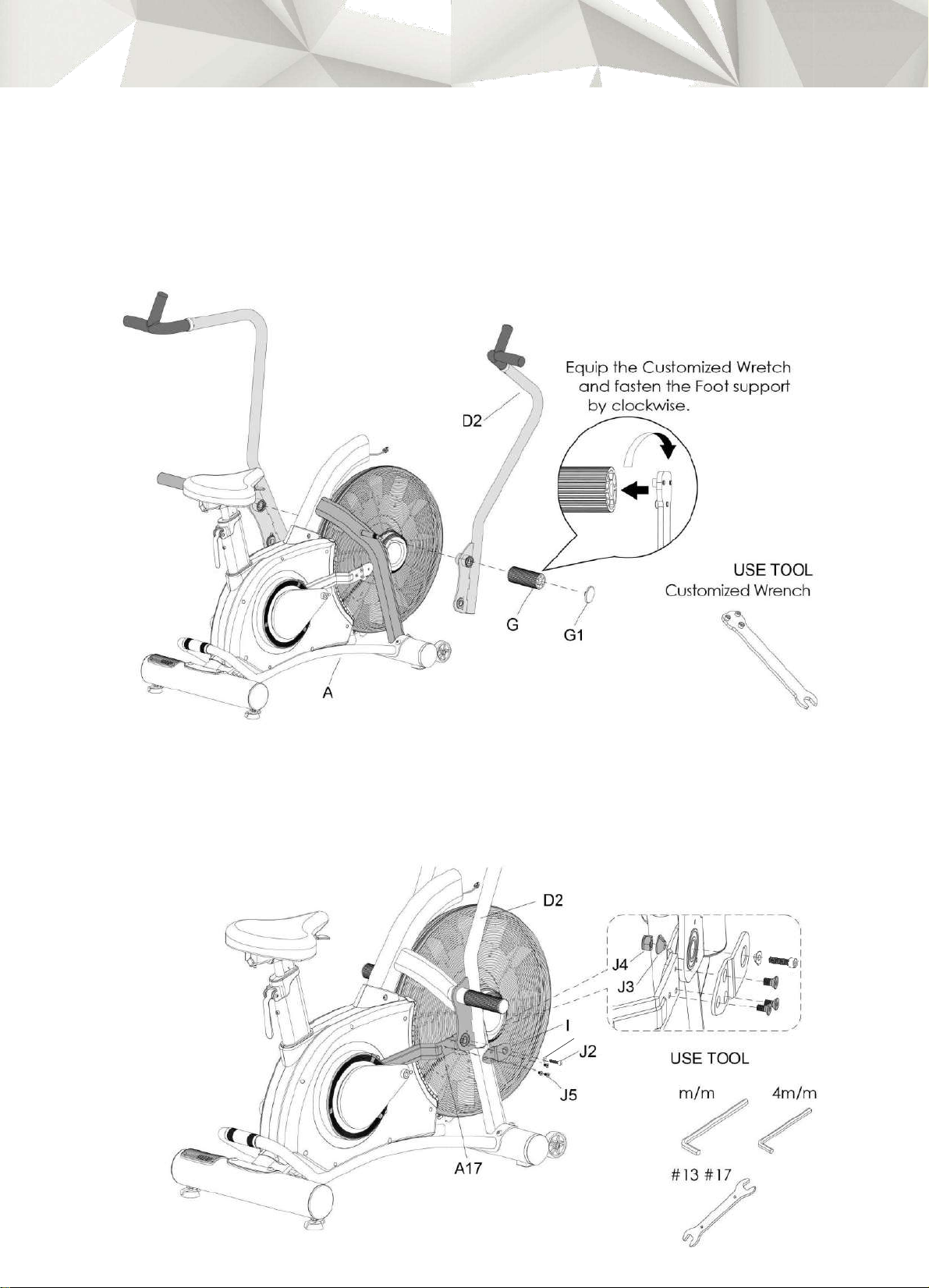

FIGURE 3 ASSEMBLING THE HANDLEBARS & FOOT SUPPORT
STEP ONE:
•Equip the swing handlebars onto the main frame to assemble the
foot support.
STEP TWO:
•Fasten the Foot Support clockwise with the Customized Wrench, and then
put on the End Cap. The same process is used to assemble the right and
left handlebar and foot support.
FIGURE4
HOW TO INSTALL THE METAL FIXING PLATE
STEP ONE:
•Equip the right swing handle bar (D2) on the main frame.
STEP TWO:
•Use screws (J2), spacer ring (J3), nuts (J4) and screws (J5) to tight metal fixing plate (I) and swing handle
bar (D2) and connecting tube (A17) completely.
STEP THREE:
•The same way to assemble left side.
Destroyer Air Bike Booklet.indd 4 02/09/2020 13:14
6
J3

Destroyer Air Bike
FIGURE 5
HOW TO ASSEMBLE THE PEDALS
•Loosen the screw (J7) from the crank (A8).
•Equip the right pedal (H2) onto the crank (A8) and fasten with tool #14 #15.
•Fasten the screw (J7) onto the crank. The same way to assemble left side.
FIGURE 6
HOW TO ASSEMBLE THE CONSOLE TUBE
STEP ONE:
•Connect the cables (E1) and (A30) together, then use the screw (J1) to ix the console tube with
the main frame.
•Attention: Be aware of the sensor wires during assembly to avoid the wires being damaged.
STEP TWO:
•Remove the pre-install screws from the console housing. Connect the cables (E1) and the wire from
the console together and install console onto console tube.
Destroyer Air Bike Booklet.indd 5 02/09/2020 13:14

Destroyer Air Bike
FIGURE 7
HOW TO ASSEMBLE THE CONSOLE
Remove the pre-install screws from console housing (F) irstly. Connect the cables (E1) and the wire
from console (F) together and install console onto console tube (E) and using screw (F1) to ix it.
FIGURE 8
HOW TO MOVE THE MACHINE
The front stabilizer has built-in transport wheels. Stand at the rear and lift the machine up until the
weight is transferred to the transport wheels. You can now easily move the machine to a new location.
Destroyer Air Bike Booklet.indd 6 02/09/2020 13:14

Destroyer Air Bike
FIGURE 9

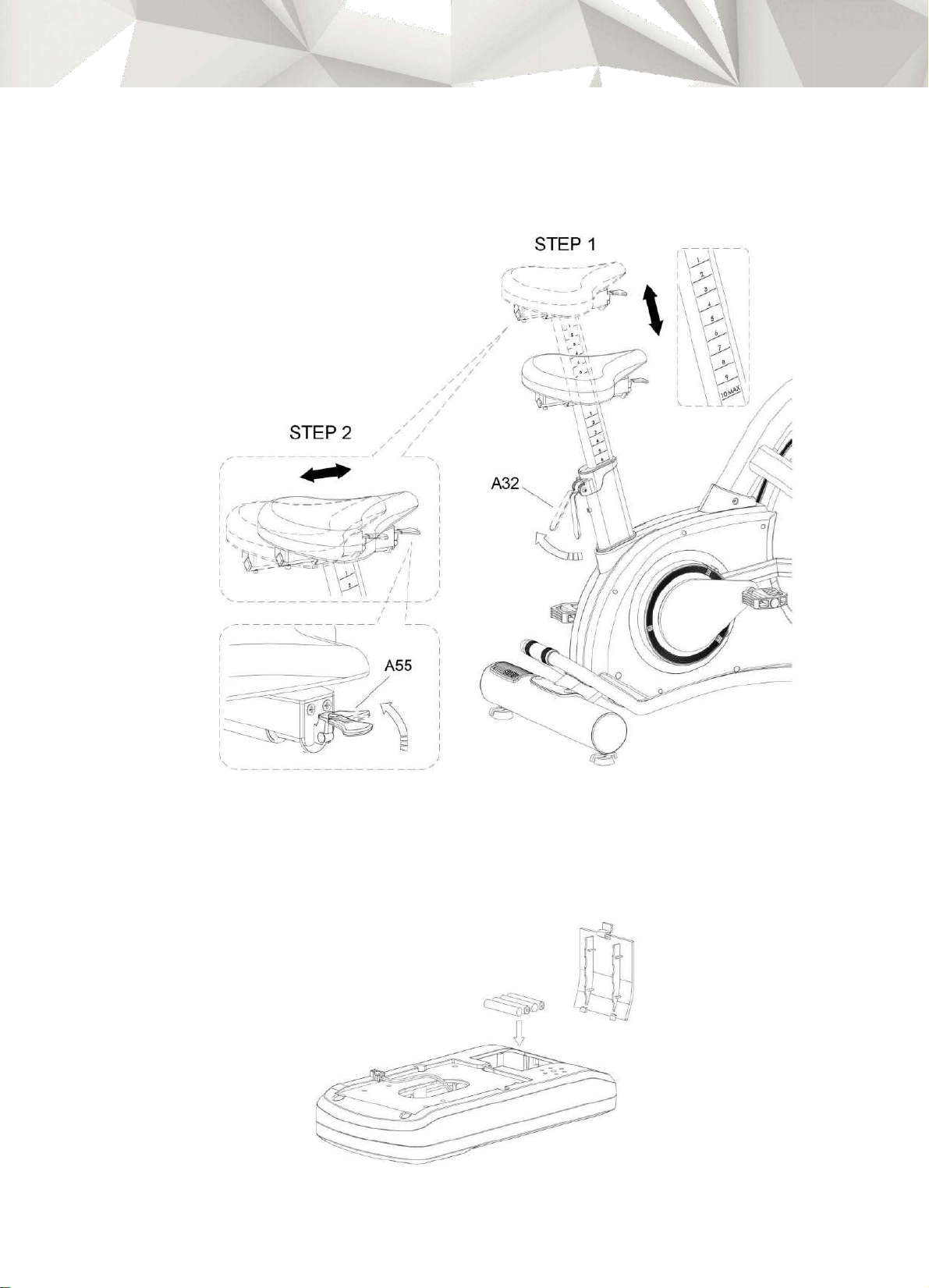

ASSEMBLING THE SADDLE
STEP ONE:
•Fix the saddle into the rear tube.
•Pull up the adjustment bar to adjust the
proper saddle position.
STEP TWO:
•Just release the bar after you’ve found your
proper position.
FIGURE 10
REPLACING THE BATTERIES
•Remove the battery cover and install the new battery.
•Battery speciications: AA* (4 batteries)
Destroyer Air Bike Booklet.indd 7 02/09/2020 13:14

Destroyer Air Bike
DISPLAY FUNCTIONS
ITEM
DESCRIPTIONS
MAIN DISPLAYS
• The main displays for 8 performance measurements.
RPM
• Displays the rotation per minute with a range from 0~15 to 200.
SPEED
• Displays the current training speed. Maximum speed is 99.9 KM/H or ML/H.
TIME
• Counts workout Time from 00:00 to maximum 59:59, or alternatively, counts
down from a preset time down to 00:00. You may pre-set the target TIME value
with the UP/DOWN key.
DISTANCE
• Accumulates the total distance from 0.0 up to 999.9 KM or ML, or alternatively,
counts down from a pre-set value. You may pre-set the target distance value
with the UP/DOWN key.
CALORIES
• Accumulates calories’ consumption, or alternatively, counts down during training
from 0 to maximum 999 calories. You may pre-set your target calories with the
UP/DOWN key.
WATT
• Displays the power consumption during training. -Range: 0~9999.
PULSE
• You may set up a target pulse value from 0~30 to 199 and the console buzzer
will beep when the actual heart rate is over the target value during workout.
INTERVAL
• Intermittent rest workout mode.
TARGET HR
• Target Heart rate control training mode.
Destroyer Air Bike Booklet.indd 8 02/09/2020 13:14

Destroyer Air Bike
BUTTON FUNCTION
ITEM
DESCRIPTIONS
START
• To PAUSE your workout during exercise or to RESUME your workout DURING Stop mode.
• Hold the button down for 2 seconds to switch between KM and ML.
STOP
• To STOP your workout during exercise.
• At any time, you can hold on this key for 2 seconds to reboot the console as a TOTAL RESET.
DOWN
• To ADJUST Distance, Calories, Time, Age value down.
• If you hold the key down for more than 1second, the value will go down quickly, and stop when
you release it.
UP
• To ADJUST Distance, Calories, Time, Age value up.
• If you hold the key down for more than 1second, the value will go up quickly, and stop when you
release it.
ENTER
• To CONFIRM/ENTER your settings once you’ve selected your function.

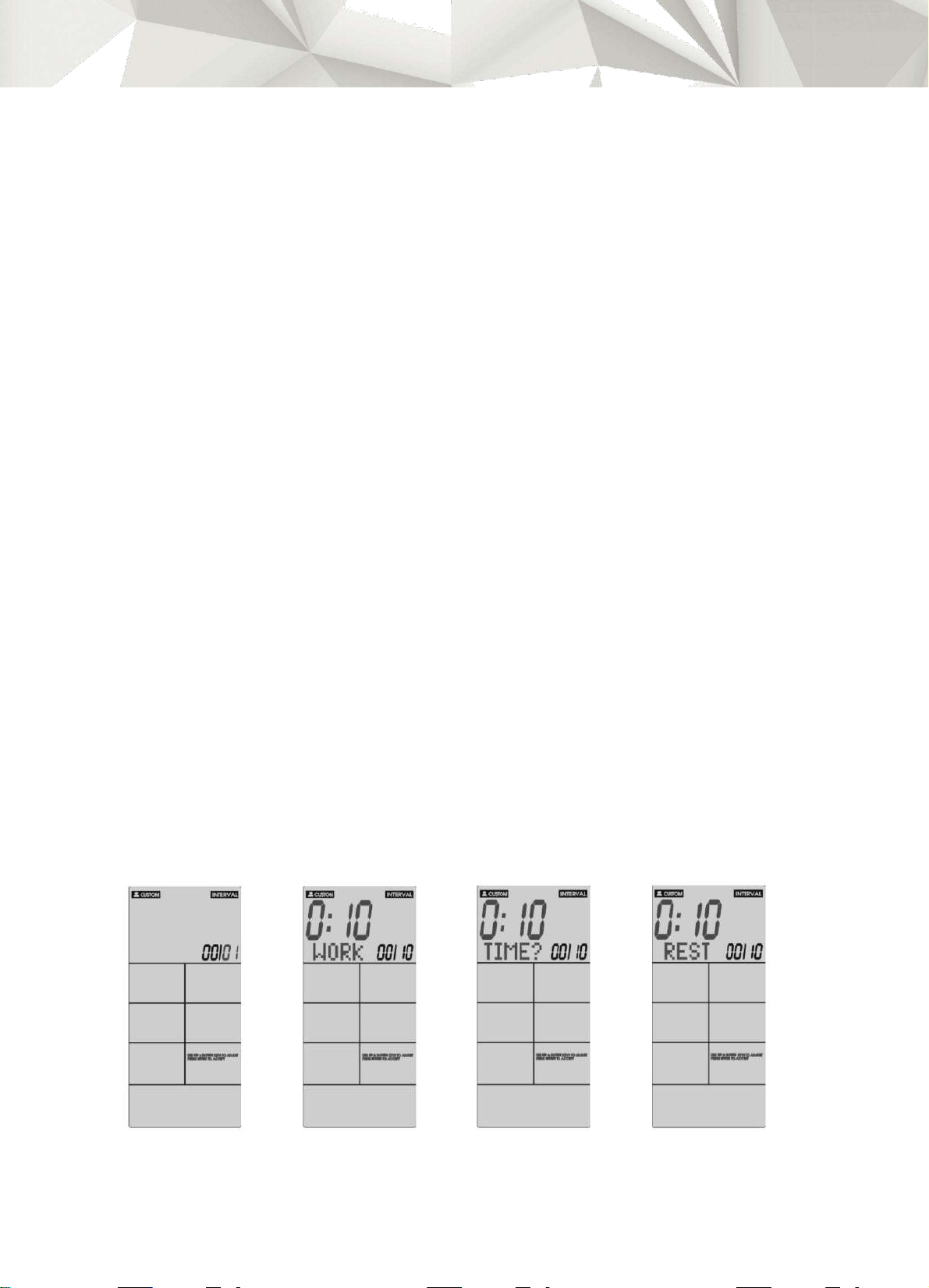

INTERVAL 20-10
• This program allows you to work 20 seconds and rest 10 seconds, and repeat it for 5 cycles.
INTERVAL 10-20
• This program allows you to work 10 seconds and rest 20 seconds, and repeat it for 5 cycles.
INTERVAL CUSTOM
• This program lets you self-deine the cycles of INTERVAL workout target time.

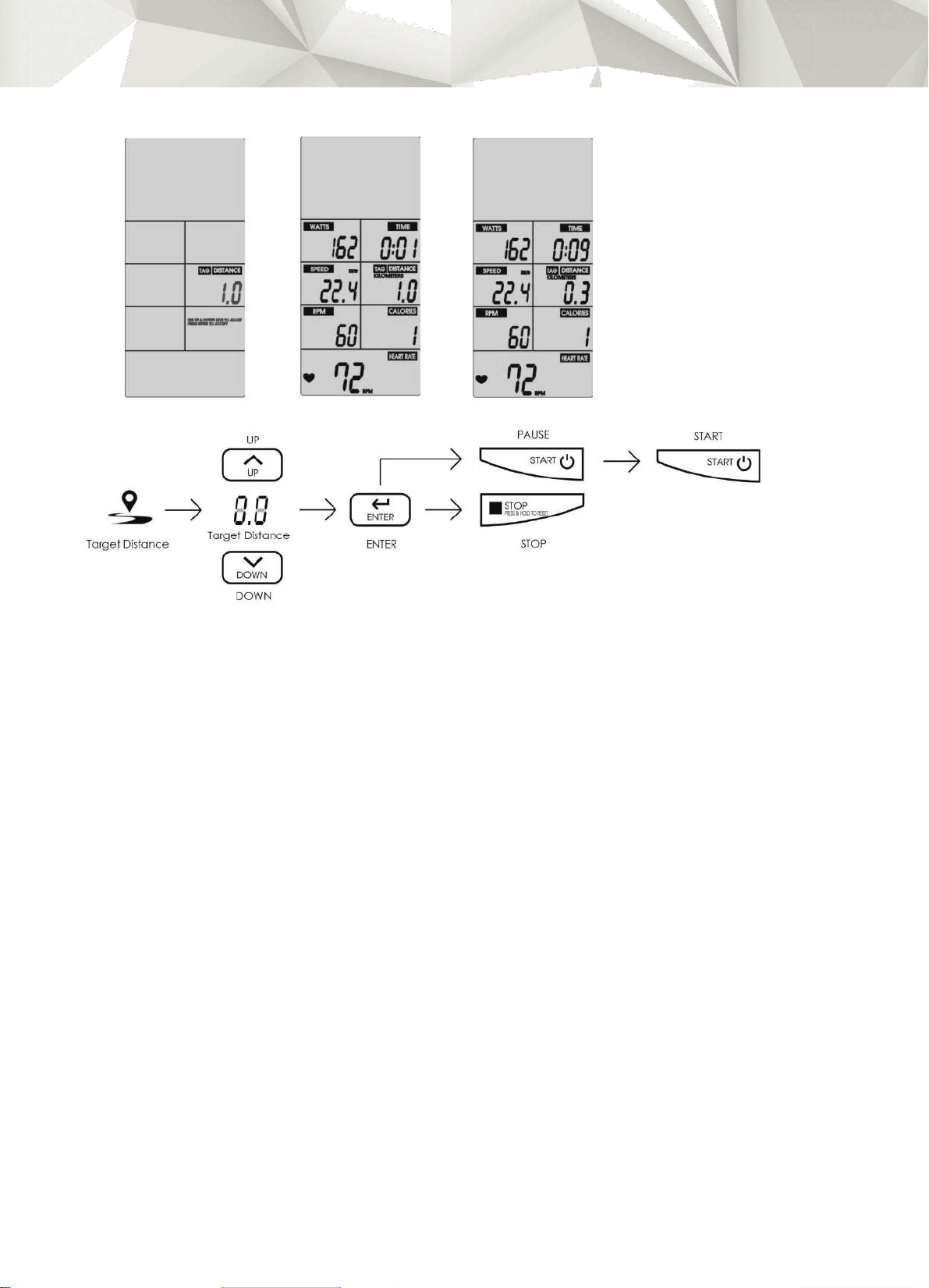

Target Distance
• This program lets you pre-set Target Distance as your workout focus.
Target Calories
• This program lets you pre-set Target Calories as your workout focus.
Target HR
• This program lets you pre-set Target HR as your workout focus.
Target Time
• This program lets you pre-set Target Time as your workout focus.
INITIAL SET UP
•When the POWER is on, the LCD will fully display for 2 seconds with a long beeping sound, then
display the wheel diameter 1 second in the DIST area.
•Go to AGE setting mode, with screen display AGE?. As the preset value 30 is lashing, use
the UP & DOWN KEYS to ADJUST your age, and press ENTER to accept.
•It will switch to display, you then press UP/DOWN to adjust the value and press ENTER to
conirm and then goes to Standby mode.
Destroyer Air Bike Booklet.indd 9 02/09/2020 13:14

Destroyer Air Bike
OPERATIONS
•The icons of INTERVAL, READY, WORK, REST, TAG TIME, TAG CALORIE , TAG DISTANCE , TIME, DISTANCE,
CALORIES, WATTS, SPEED, RPM, HEART RATE will lash by in sequence every 1 second.
•If there’s no input of key operation, RPM signal or pulse input for 5 minutes, the console will go into
Sleeping mode.
Destroyer Air Bike Booklet.indd 10 02/09/2020 13:14

Destroyer Air Bike
SELECTING DIFFERENT MODES, SETTINGS, AND PROGRAMS
MANUAL MODE

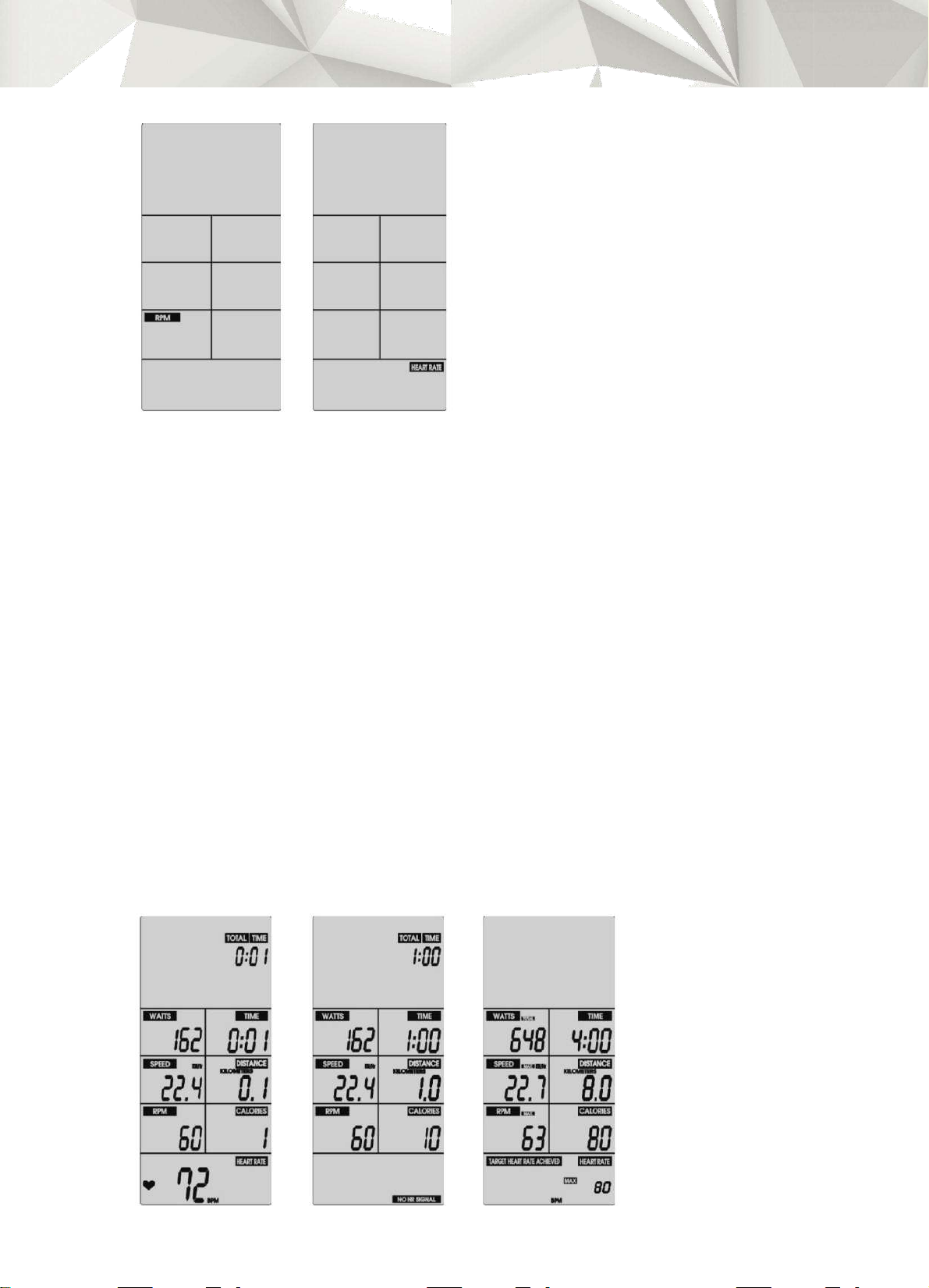

•In Standby mode, if there’s an RPM input, the console will QUICK START to start
your workout immediately, the buzzer will sound.
•Once you’re moving, TOTAL TIME/TIME/ DISTANCE/ CALORIES/ WATTS/ SPEED/ RPM
will start tracking along.
•With the PULSE signal input in, the symbol will flash, HEART RATE & RPM light up as well
as display pulse value. Without the pulse input, “NO HR SIGNAL” will continuously light up.
•If there’s no signal input for 5 minutes, a buzzer sounds 1 short beep and the console enters
into Wake-up mode.
•If you press the START key one time while training, the system pauses training for 30 seconds. A
buzzer will sound for 0.5 seconds every 1 second. All displayed values remain on LCD for 3
seconds and lashing every 4 seconds. If you stop training for 5 minutes, the buzzer sounds for 2
seconds and enters Wake-up mode. Press the START key to resume your workout.
•If you press the STOP key or just stop moving completely, the buzzer will sound for 1 second. TIME
will display workout time, DISTANCE will display workout distance, CALORIES will display
consumption during workout for 30 seconds. WATT, SPEED and RPM will switch to display
AVG & MAX every 5 seconds.
•With pulse signal input, HEART RATE/TARGET HEART RATE/BPM will display for 30 seconds. 80%,
65% and MAX. The pulse value will switch to display accordingly every 5 seconds. Without pulse input,
“NO HR SIGNAL” will continuously light up.
•If you press any program button, the system will start the program accordingly.
Destroyer Air Bike Booklet.indd 11 02/09/2020 13:14

Destroyer Air Bike

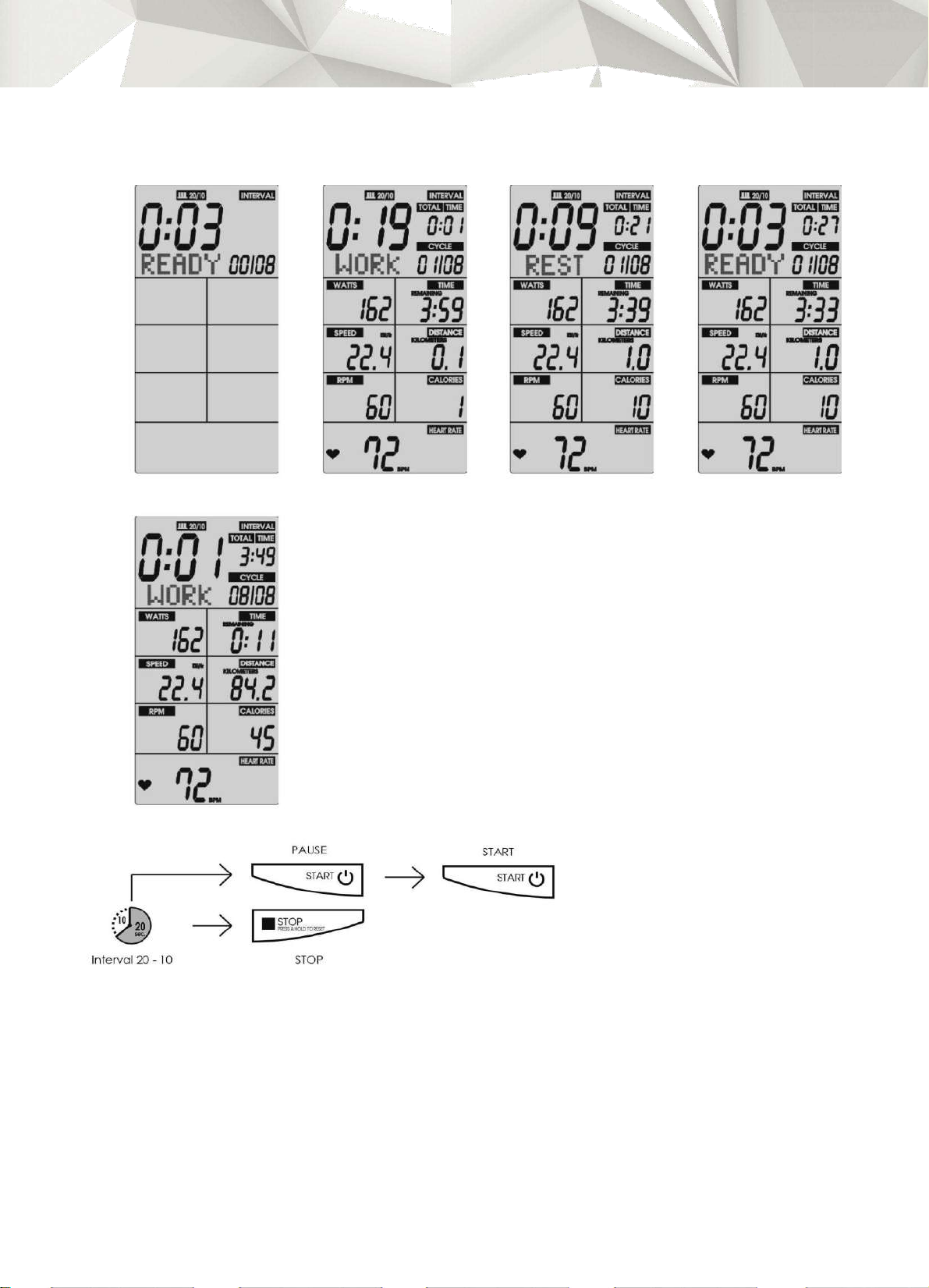

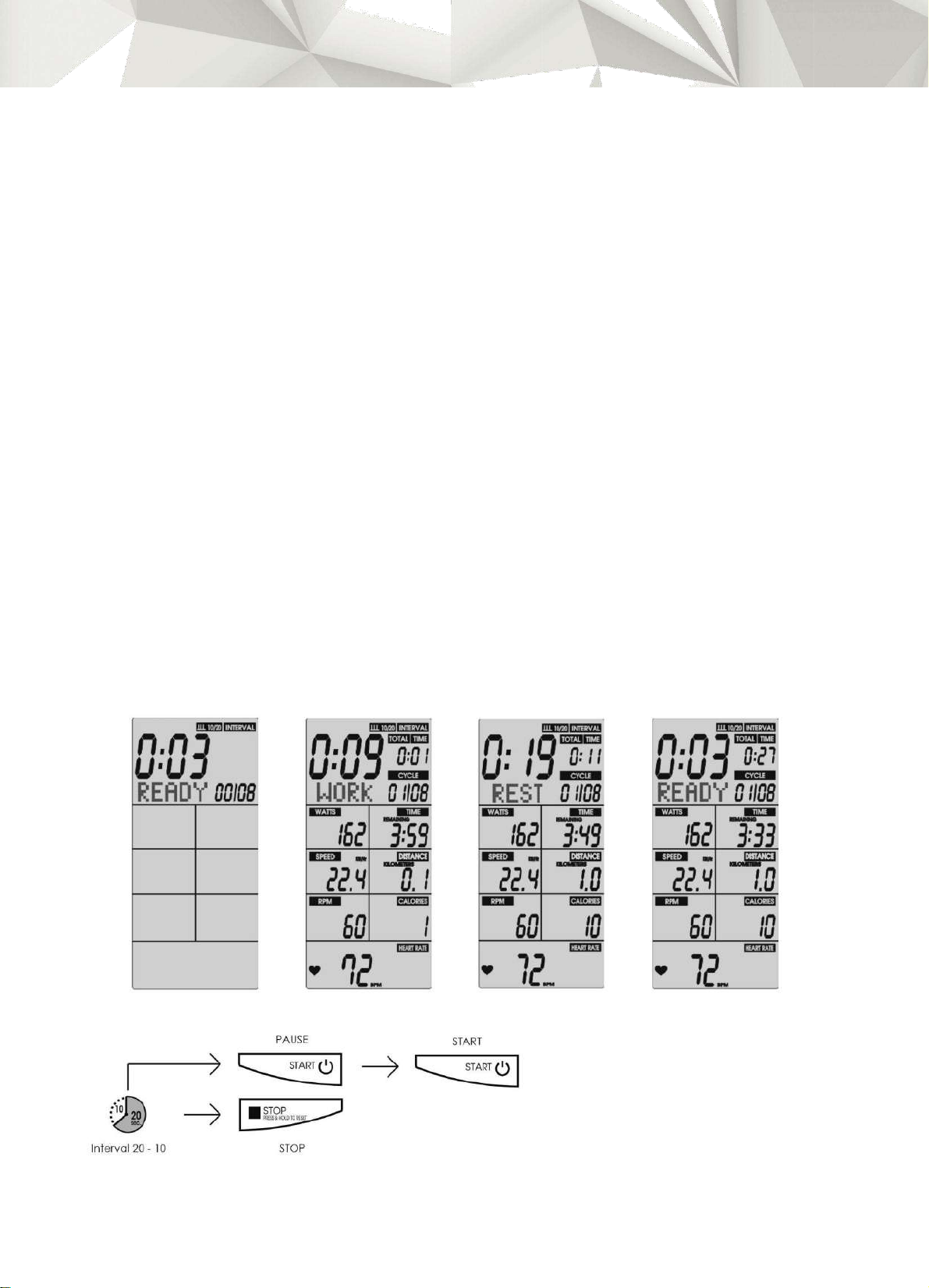

INTERVAL 20-10 MODE
•In Standby mode, press the INTERVAL 20/10 key to enter it, the icon will light up along with a
long sound for one second.
•CYCLE TIME will count down for 3 seconds and a buzzer sound once per second, then the system will
start. The “READY” lash and CYCLE shows 00/08. At this time, it is invalid to press any key.
•CYCLE TIME will count down for 20 seconds, and “WORK” in the dot matrix lash in 1Hz will
beep. It then lights up and counts down from 4:00 minutes, TOTAL TIME/ DISTANCE/
CALORIES/WATTS/SPEED/ RPM also start to count up. CYCLE shows from 01/08.
•CYCLE TIME will count down for 10 seconds, and “REST” in the dot matrix lash in 1Hz will
beep. At the last 3 seconds, the dot matrix will switch to display “READY” and “REST”.
•The system will continue the step repeatedly. Each time it repeats, it will add one cycle in the
CYCLE display. The dot matrix will show “WORK”, CYCLE TIME and counts down for 10
seconds, then shows “REST” and lashes in 1Hz.
•If there’s no signal input for 5 minutes, the buzzer sounds 1 short beep and enters Wake-up mode.
•If you press the START key one time, the system pauses training for 30s. The buzzer will sound for 0.5 seconds
every 1 second. All displayed values remain on LCD for 3 seconds and lash every 4 seconds.
If you continue to stop training for 5 minutes, the buzzer sounds for 2 seconds and enters Wake-
up mode. Press the START key to resume workout.
•If you press the STOP key or inish training, the buzzer will sound for 1 second. TIME will
display workout time, DISTANCE will display workout distance, CALORIES will display consumption
during the workout, all displaying for 30 seconds. WATT, SPEED and RPM will switch to display
AVG & MAX every 5 seconds.
•With the Pulse signal input, HEART RATE/TARGET HEART RATE/BPM will all display for 30 seconds.
80%, 65% and MAX. The Pulse value will switch to display accordingly every 5 seconds.
Without pulse input, “NO HR SIGNAL” will continuously light up.
•During your workout, press any program button and the system will start the program accordingly.
Destroyer Air Bike Booklet.indd 12 02/09/2020 13:14

Destroyer Air Bike
Destroyer Air Bike Booklet.indd 13 02/09/2020 13:14

Destroyer Air Bike
INTERVAL 10-20 MODE
•In Standby mode, press the INTERVAL 10/20 key to enter it, the icon will light up along with a long
sound for one second.
•CYCLE TIME will count down for 3 seconds and the buzzer will sound for once second, then the system will start.
“READY” lash and CYCLE shows 00/08(Figure 29). At this time, it is invalid to press any key.
•CYCLE TIME will count down for 10 seconds, then the “WORK” in the dot matrix lash in 1Hz
along with beeping. The console then lights up and counts down from 4:00 minutes, TOTAL TIME/
DISTANCE/ CALORIES/WATTS/SPEED/RPM starts to count up.
•CYCLE TIME will count down for 20 seconds, then “REST” in dot matrix lashes in 1Hz along with
beeping. At the last 3 seconds, the dot matrix switches to display “READY” and “REST”.
•The system will continue the step repeatedly. Each time it repeats, it will add one cycle in the
CYCLE display. The dot matrix will show “WORK”, CYCLE TIME and counts down for 10
seconds, then shows “REST” and lashes in 1Hz.
•If there’s no signal input for 5 minutes, the buzzer sounds 1 short beep and enters Wake-up mode.
•If you press the START key one time, the system pauses training for 30s. The buzzer will sound for
0.5 seconds every 1 second. All displayed values remain on LCD for 3 seconds and lash every
4 seconds. If you continue to stop training for 5 minutes, the buzzer sounds for 2 seconds and enters
Wake-up mode. Press the START key to resume workout.
•If you press the STOP key or inish training, the buzzer will sound for 1 second. TIME will
display workout time, DISTANCE will display workout distance, CALORIES will display consumption
during the workout, all displaying for 30 seconds. WATT, SPEED and RPM will switch to display
AVG & MAX every 5 seconds.
•With the Pulse signal input, HEART RATE/TARGET HEART RATE/BPM will all display for 30 seconds.
80%, 65% and MAX. The Pulse value will switch to display accordingly every 5 seconds.
Without pulse input, “NO HR SIGNAL” will continuously light up.
•During your workout, press any program button and the system will start the program accordingly.
Destroyer Air Bike Booklet.indd 14 02/09/2020 13:14

Destroyer Air Bike
INTERVAL CUSTOM MODE
•In Standby mode, press the INTERVAL CUSTOM key to enter. As the 00/XX is flashing, use the UP &
DOWN keys to ADJUST and press ENTER TO accept, this will switch to display, and the buzzer
will sound one second. press UP/DOWN to adjust the 00/XX value (setting range 1~99) and
press ENTER to confirm. The buzzer sounds for one second. Then go to the next setting.
•As the dot matrix switches displays “WORK” and “TIME?”, use the UP & DOWN KEYS TO ADJUST and
PRESS ENTER TO ACCEPT”. It will switch to display, then press the UP/DOWN key to adjust the
TIME value (setting range 0:00~9:59) and press ENTER to conirm. The buzzer then sounds for
0.75 seconds. Then go to the next setting.
•As the dot matrix switches to display “REST” and “TIME?”, use the UP & DOWN KEYS TO ADJUST and
PRESS ENTER TO ACCEPT”, this will switch to display, then press UP/DOWN to adjust TIME value (setting
range 0:00~9:59) and press ENTER to conirm. The buzzer sounds for one second. The
INTERVAL CUSTOM icon lights up continuously.
•CYCLE TIME will count down for 3 seconds and the buzzer will sound once per second, then the system
will start. The “READY” lash and CYCLE shows 00/XX. At this time, it is invalid to press any key.
•CYCLE TIME will count down, then “WORK” in dot matrix lash in 1Hz will beep. The console
lights up and counts down from 4:00 minutes, TOTAL TIME/ DISTANCE/
CALORIES/WATTS/SPEED/RPM start to count up. The CYCLE will show 01/XX.
•CYCLE TIME will count down, then “REST” in the dot matrix will lash in 1Hz along with
beeping. At the last 3 seconds, the dot matrix switches to display “READY” and “REST”.
•Each time it repeats, it will add one cycle till WORK starts and CYCLE TIME begins to count
down, then “REST” lashes in 1Hz.
•If there’s no signal input for 5 minutes, the buzzer sounds 1 short beep and enters Wake-up mode.
•If you press the START key one time, the system pauses training for 30s. The buzzer will sound for 0.5 seconds
every 1 second. All displayed values remain on LCD for 3 seconds and lash every 4 seconds.
If you continue to stop training for 5 minutes, the buzzer sounds for 2 seconds and enters
Wake-up mode. Press the START key to resume workout.
•If you press the STOP key or inish training, the buzzer will sound for 1 second. TIME will
display workout time, DISTANCE will display workout distance, CALORIES will display consumption
during the workout, all displaying for 30 seconds. WATT, SPEED and RPM will switch to display
AVG & MAX every 5 seconds.
•With the pulse signal input, HEART RATE/TARGET HEART RATE/BPM will display for 30 seconds. from
80%, 65% and MAX. Then, pulse value will switch to display accordingly in every 5 seconds.
Without the pulse input, “NO HR SIGNAL” will continuously light up.
Destroyer Air Bike Booklet.indd 15 02/09/2020 13:14

Destroyer Air Bike

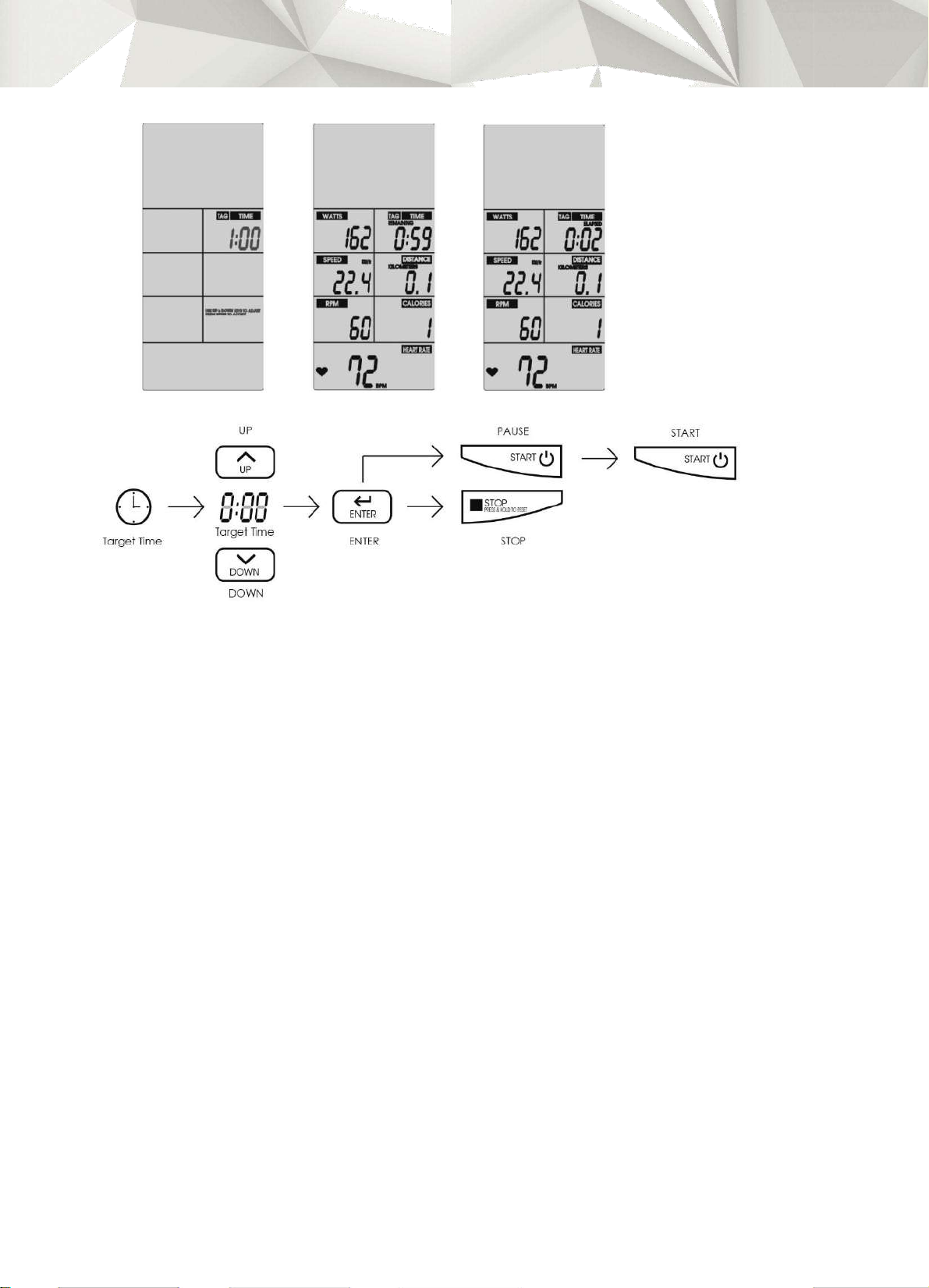

TARGET TIME MODE
•In Standby mode, press the TAG TIME key and enter, and TAG TIME will light up, “USE UP &
DOWN KEYS to ADJUST and PRESS ENTER to ACCEPT” and it’ll switch to the display, and
the buzzer will sound one second.
•As the TIME value is lashing, press the UP & DOWN key to adjust it. Press ENTER to
conirm, the buzzer will sound for one second, then TAG TIME continuously lights up.
•As TIME begins to count down, ELAPSED & REMAINING switches to display for 5 seconds till
it inishes counting down. DISTANCE/CALORIES/WATTS/SPEED/RPM start count up.
•If you press the START key one time, the system pauses training for 30s. The buzzer will sound for
0.5 seconds every 1 second. All displayed values remain on LCD for 3 seconds and lash every
4 seconds. If you continue to stop training for 5 minutes, the buzzer sounds for 2 seconds and enters
Wake-up mode. Press the START key to resume workout.
•If there’s no signal input for 5 minutes, the buzzer sounds 1 short beep and enters Wake-up mode.
•If you press the STOP key or inish training, the buzzer will sound for 1 second. TIME will
display workout time, DISTANCE will display workout distance, CALORIES will display consumption
during the workout, all displaying for 30 seconds. WATT, SPEED and RPM will switch to display
AVG & MAX every 5 seconds.
•With the Pulse signal input, HEART RATE/TARGET HEART RATE/BPM will all display for 30 seconds.
80%, 65% and MAX. The Pulse value will switch to display accordingly every 5 seconds.
Without pulse input, “NO HR SIGNAL” will continuously light up.
•During your workout, press any program button and the system will start the program accordingly.
Destroyer Air Bike Booklet.indd 16 02/09/2020 13:14

Destroyer Air Bike
TARGET DISTANCE MODE
•In Standby mode, press the TAG DISTANCE key to enter it, then TAG DISTANCE will light up. Use the UP
& DOWN keys to adjust and press ENTER to accept it. It will switch to display, and the buzzer will sound
for 1 second.
•As DISTANCE value is lashing, press UP and DOWN to adjust, then Press ENTER to
conirm. The buzzer will sound for one second. DISTANCE continuously lights up.
•After you start your workout, TIME/CALORIES/WATTS/SPEED/RPM start to count up. DISTANCE
starts counting down for 5 seconds, then displays the actual value.
•If you press the START key one time, the system pauses training for 30s. The buzzer will sound for 0.5 seconds
every 1 second. All displayed values remain on LCD for 3 seconds and lash every 4 seconds.
If you continue to stop training for 5 minutes, the buzzer sounds for 2 seconds and enters
Wake-up mode. Press the START key to resume workout.
•If there’s no signal input for 5 minutes, the buzzer sounds 1 short beep and enters Wake-up mode.
•If you press the STOP key or inish training, the buzzer will sound for 1 second. TIME will
display workout time, DISTANCE will display workout distance, CALORIES will display consumption
during the workout, all displaying for 30 seconds. WATT, SPEED and RPM will switch to display
AVG & MAX every 5 seconds.
•With the Pulse signal input, HEART RATE/TARGET HEART RATE/BPM will all display for 30 seconds.
80%, 65% and MAX. The Pulse value will switch to display accordingly every 5 seconds.
Without pulse input, “NO HR SIGNAL” will continuously light up.
•During your workout, press any program button and the system will start the program accordingly.
Destroyer Air Bike Booklet.indd 17 02/09/2020 13:14

Destroyer Air Bike
TARGET CALORIES MODE
•In Standby mode, press the TAG CALORIES key to enter it. TAG CALORIES will light up, then use the
UP & DOWNkeys to adjust it, then press PRESS ENTER to accept, it will switch to display and
the buzzer will sound for 1 second.
•As CAL VALUE starts lashing, press the UP & DOWN key to adjust. Press ENTER to conirm, the
buzzer will sound for one second. TAG DISTANCE continuously lights up.
•After you start your workout, TIME/DISTANCE/WATTS/SPEED/RPM will start to count up. The
CALORIES window then shows the counting down value for 5 seconds then displays the actual value.
•If you press the START key one time, the system pauses training for 30s. The buzzer will sound for 0.5 seconds
every 1 second. All displayed values remain on LCD for 3 seconds and lash every 4 seconds.
If you continue to stop training for 5 minutes, the buzzer sounds for 2 seconds and enters Wake-
up mode. Press the START key to resume workout.
•If there’s no signal input for 5 minutes, the buzzer sounds 1 short beep and enters Wake-up mode.
•If you press the STOP key or inish training, the buzzer will sound for 1 second. TIME will
display workout time, DISTANCE will display workout distance, CALORIES will display consumption
during the workout, all displaying for 30 seconds. WATT, SPEED and RPM will switch to display
AVG & MAX every 5 seconds.
•With the Pulse signal input, HEART RATE/TARGET HEART RATE/BPM will all display for 30 seconds.
80%, 65% and MAX. The Pulse value will switch to display accordingly every 5 seconds.
Without pulse input, “NO HR SIGNAL” will continuously light up.
•During your workout, press any program button and the system will start the program accordingly.
Destroyer Air Bike Booklet.indd 18 02/09/2020 13:14

Destroyer Air Bike
TARGET HEART RATE MODE
• In Standby mode, press the TAG HEART RATE key to enter it. TAG HEART RATE will then light
up. Use the Up & DOWN keys to adjust, then press ENTER to accept. It will switch to display,
then the buzzer will sound for 1 second.
•As the dot matrix displaying the “AGE?” value starts lashing, press UP and DOWN to pre-set
your Age. Press ENTER to conirm, then the buzzer will sound one second. TAG HEART RATE
and HEART RATE will continuously light up.
•When you start your workout, MAX. HR, 65% & 85% lights up, and display 65% & 80% values. TIME/
DISTANCE/ CALORIES/ WATTS/ SPEED/ RPM will then calculate your workout statistics.
•When Heart Rate goes below 65%, 65% value will lash. And buzzer sounds every 10s until you reach a
Heart Rate above 65%.
•When your Heart Rate goes above 80%, the 80% value will lash, and the buzzer will sound
every 10 seconds, until your Heart Rate goes below 80%.
•When your Heart Rate is between 65% ~ 80%, your TARGET HEART RATE is achieved, and the
pulse icon will lash.
•If there’s no signal input for 5 minutes, the buzzer sounds 1 short beep and enters Wake-up mode.
•If you press the START key one time, the system pauses training for 30s. The buzzer will sound for 0.5 seconds
every 1 second. All displayed values remain on LCD for 3 seconds and lash every 4 seconds.
If you continue to stop training for 5 minutes, the buzzer sounds for 2 seconds and enters
Wake-up mode. Press the START key to resume workout.
•If you press the STOP key or inish training, the buzzer will sound for 1 second. TIME will
display workout time, DISTANCE will display workout distance, CALORIES will display consumption
during the workout, all displaying for 30 seconds. WATT, SPEED and RPM will switch to display
AVG & MAX every 5 seconds.
•With the Pulse signal input, HEART RATE/TARGET HEART RATE/BPM will all display for 30 seconds.
80%, 65% and MAX. The Pulse value will switch to display accordingly every 5 seconds.
Without pulse input, “NO HR SIGNAL” will continuously light up.
•During your workout, press any program button and the system will start the program accordingly.
Destroyer Air Bike Booklet.indd 19 02/09/2020 13:14

Destroyer Air Bike
Destroyer Air Bike Booklet.indd 20 02/09/2020 13:14
