Hitachi RAC-25RPA User manual

HSILGNE
INDOOR UNIT/OUTDOOR UNIT
MODEL
RAF-25 / RAC-25FPA
RAF-35
RAF-50
OUTDOOR UNIT FOR
SINGLE SPLIT MODEL
SPLIT TYPE AIR CONDITIONER
INDOOR UNIT
RPA
RPA / RAC-35FPA
RPA / RAC-50FPA
RAF-25RPA
RAF-35RPA
RAF-50RPA
RAC-50FPA
RAC-25FPA
RAC-35FPA
Page 1~12
To obtain the best performance and ensure years of
trouble free use, please read this instruction manual
completely.
Manual de instrucciones Página 49~60
Para obtener el mejor funcionamiento y asegurar años
de uso libre de problemas, lea cuidadosamente este
manual de instrucciones.
Bedienungsanleitung Seite 13~24
Bitte lesen Sie diese Bedienungsanleitung aufmerksam
durch, um durch richtige Bedienung jahrelangen und
störungsfreien Betrieb zu gewährleisten.
Manual de instruções Página 61~72
A fim de obter um bom funcionamento e de garantir
uma utilização sem falhas durante muitos anos, é favor
ler este manual de instruções completamente.
Mode d’emploi Page 25~36
Des performances optimales et un fonctionnement à
long terme seront assurés en appliquant les présentes
instructions après avoir entièrement lu ce mode
d’emploi.
O‰ËÁ›Â˜ ¯Ú‹Ûˆ˜ ÛÂÏ›‰· 73~84
°È¿ Ó· Â›Ó·È ÂÁÁ˘Ë̤ÓË Ë Î·Ï‡ÙÂÚË ‰˘Ó·Ù‹ ÏÂÈÙÔ˘ÚÁ›·
Î·È Ë ¯ˆÚ›˜ ‚Ï¿‚˜ Ì·ÎÚÔ¯ÚfiÓÈ· ¯Ú‹ÛË Ù˘ Û˘Û΢‹˜,
‰È·‚¿ÛÙ fiϘ ÙȘ οوıÈ Ô‰ËÁ›Â˜.
Manuale di istruzioni Pag. 37~48
Per garantire la migliore prestazione e la più lunga
Durata leggere attentamente e interamente le seguanti
istruzioni.
Instruction manual
www.serviz-klimatici.com

– 2–
PRECAUTIONS DURING OPERATION
WARNING
WARNING
SAFETY PRECAUTION
噝Please read the “Safety Precaution” carefully before operating the unit to ensure correct usage of the unit.
噝Pay special attention to signs of “ Warning” and “ Caution”.The “Warning” section contains matters
which, if not observed strictly, may cause death or serious injury. The “Caution” section contains matters
which may result in serious consequences if not observed properly. Please observe all instructions strictly to
ensure safety.
噝The signs indicate the following meanings. (The following are examples of signs.)
噝Please keep this manual after reading.
噝Donot reconstruct the unit.
Water leakage, fault, short circuit or fire may occur if you reconstruct the unit by
yourself.
噝Please ask your sales agent or qualified technician for the installation of your unit.
Water leakage, short circuit or fire may occur if you install the unit by yourself.
噝Please use earth line.
Donot place the earth line near water or gas pipes, lightning-conductor, or the
earth line of telephone. Improper installation of earth line may cause electric
shock or fire.
噝Be sure to use the specified piping set for R410A. Otherwise, this may result in
broken copper pipes or faults.
噝Acircuit breaker should be installed depending on the mounting site of the unit.
Without acircuit breaker, the danger of electric shock exists.
噝Donot install the unit near alocation where there is flammable gas. T he outdoor unit
may catch fire if flammable gas leaks around it. Piping shall be suitable supported
with amaximum spacing of 1m between the supports.
噝Please ensure smooth flow of water when installing the drain hose.
噝Make sure that asingle phase 220V or 230V power source is used.
The use of other power sources may cause electrical components to overheat and
lead to fire.
PRECAUTIONS DURING INSTALLATION
PROHIBITION
CONNECT EARTH LINE
PROHIBITION
PROHIBITION
WARNING
CAUTION
噝Avoid an extended period of direct air flow for your health.
噝Should abnormal situation arise (like burning smell),please stop operating the unit
and remove plug from the socket. Contact your agent. Fault, short circuit or fire may
occur if you continue to operate the unit under abnormal situation.
噝Please contact your agent for maintenance. Improper self maintenance may cause electric shock
and fire.
噝Please contact your agent if you need to remove and reinstall the unit. E lectric shock or fire may occur
if you remove and reinstall the unit yourself improperly.
PRECAUTIONS DURING SHIFTING OR MAINTENANCE
噝Donot use any conductor as fuse wire, this could cause fatal accident.
噝During thunder storm, disconnect the plug top and turn off the circuit breaker.
噝Donot put objects like thin rods into the panel of blower and suction side because
the high-speed fan inside may cause danger.
噝Spray cans and other combustibles should not be located within ameter of the air
outlets of both indoor and outdoor units.
As aspray can’s internal pressure can be increased by hot air, arupture may result.
PROHIBITION
PROHIBITION
PROHIBITION
PROHIBITION
"OFF"
This sign in the figure indicates prohibition. Indicates the instructions that must be followed.
"OFF"

– 3–
P¿ÎÈÓËÏÏ∂¤£¥¬¬®«
噝Donot place plants directly under the air flow as it is bad for the plants.
噝Donot direct the cool air coming out from the air-conditioner panel to face household
heating apparatus as this may affect the working of apparatus such as the electric
kettle, oven etc.
噝The product shall be operated under the manufacturer specification and not for any
other intended use.

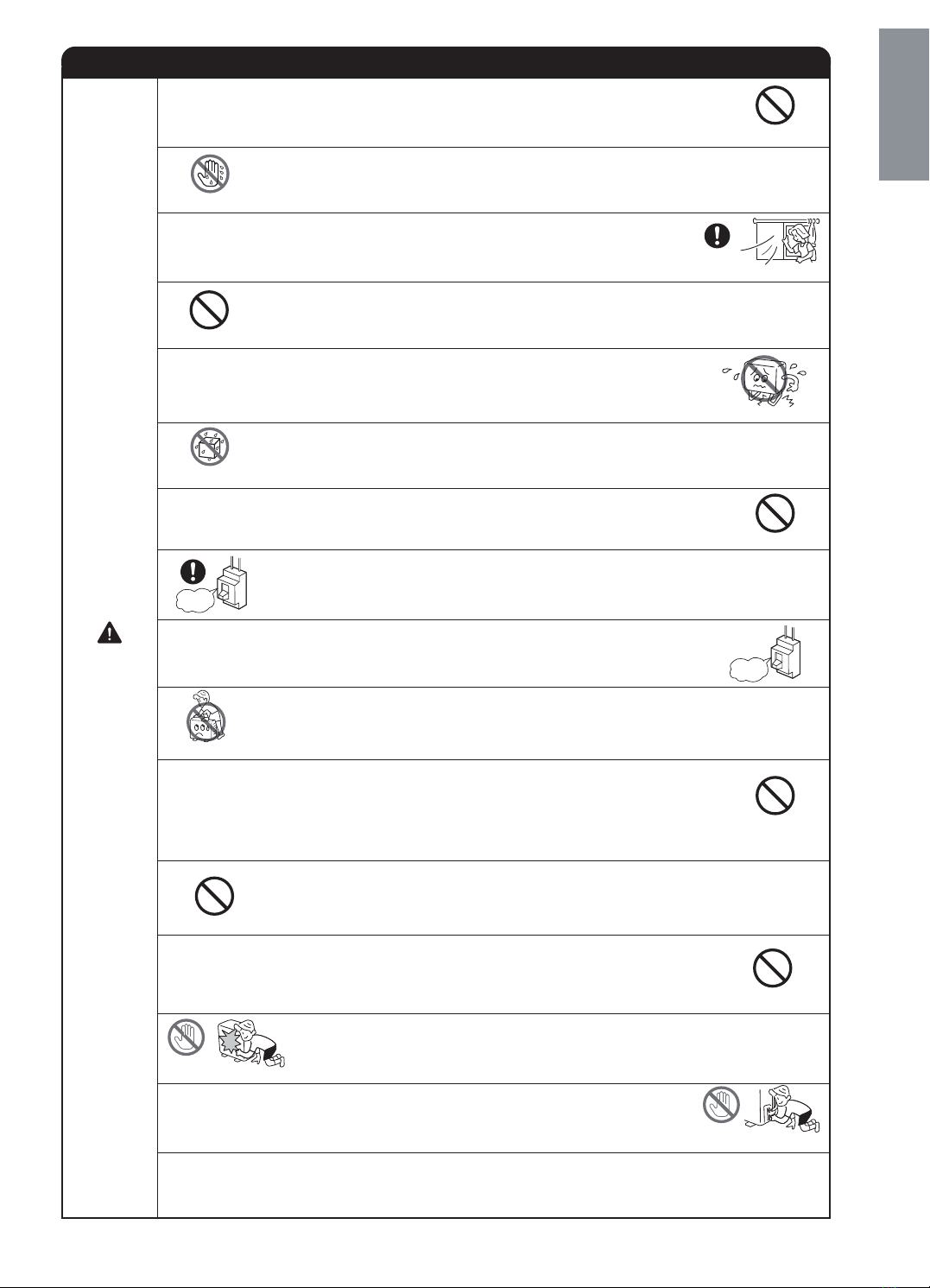

PRECAUTIONS DURING OPERATION
CAUTION
噝Donot attempt to operate the unit with wet hands, this could cause fatal accident.
噝When operating the unit with burning equipments, regularly ventilate the
room to avoid oxygen insufficiency.
噝Please ensure that outdoor mounting frame is always stable, firm and without
defect. Ifnot, the outdoor unit may collapse and cause danger.
噝Donot wash the unit with water or place awater container such as avase on the
indoor unit.
Electrical leakage could be present and cause electric shock.
噝Be sure to stop the operation by using the remote controller and turn off the circuit
breaker during cleaning, the high-speed fan inside the unit may cause danger.
噝Turn off the circuit breaker if the unit is not be operated for along period.
噝Donot climb on the outdoor unit or put objects on it.
噝When operating the unit with the door and windows opened, (the room humidity is
always above 80%) and with the air deflector facing down or moving automatically
for along period of time, water will condense on the air deflector and drips down
occasionally. This will wet your furniture. Therefore, do not operate under such
condition for along time.
噝Ifthe amount of heat in the room is above the cooling or heating capability of the unit
(for example: more people entering the room, using heating equipments and etc.),
the preset room temperature cannot be achieved.
噝Indoor unit cleaning must be performed by authorized personnel only. Consult your
sales agent.
Using acommercially available detergent or similar can damage the plastic parts
or clog the drain pipe, causing water to drip with potential electric shock hazard.
噝Donot touch the air outlet, bottom surface and aluminum fin of the outdoor
unit.
You may get hurt.
噝Donot touch the refrigerant pipe and connecting valve.
Burns may result.
PROHIBITION
DON'T WET
PROHIBITION
PROHIBITION
PROHIBITION
DON’T TOUCH
"OFF"
PROHIBITION
PROHIBITION
PROHIBITION
PROHIBITION
PROHIBITION
DON’T TOUCH
STRICTLY OBSERVE
PRECAUTIONS
"OFF"
噝This appliance is not intended for use by young children or infirm persons unless they have been
adequately supervised by aresponsible person to ensure that they can use this appliance safely.
噝Young children should be supervised to ensure that they do not play with the appliance.
HSILGNE

– 4–

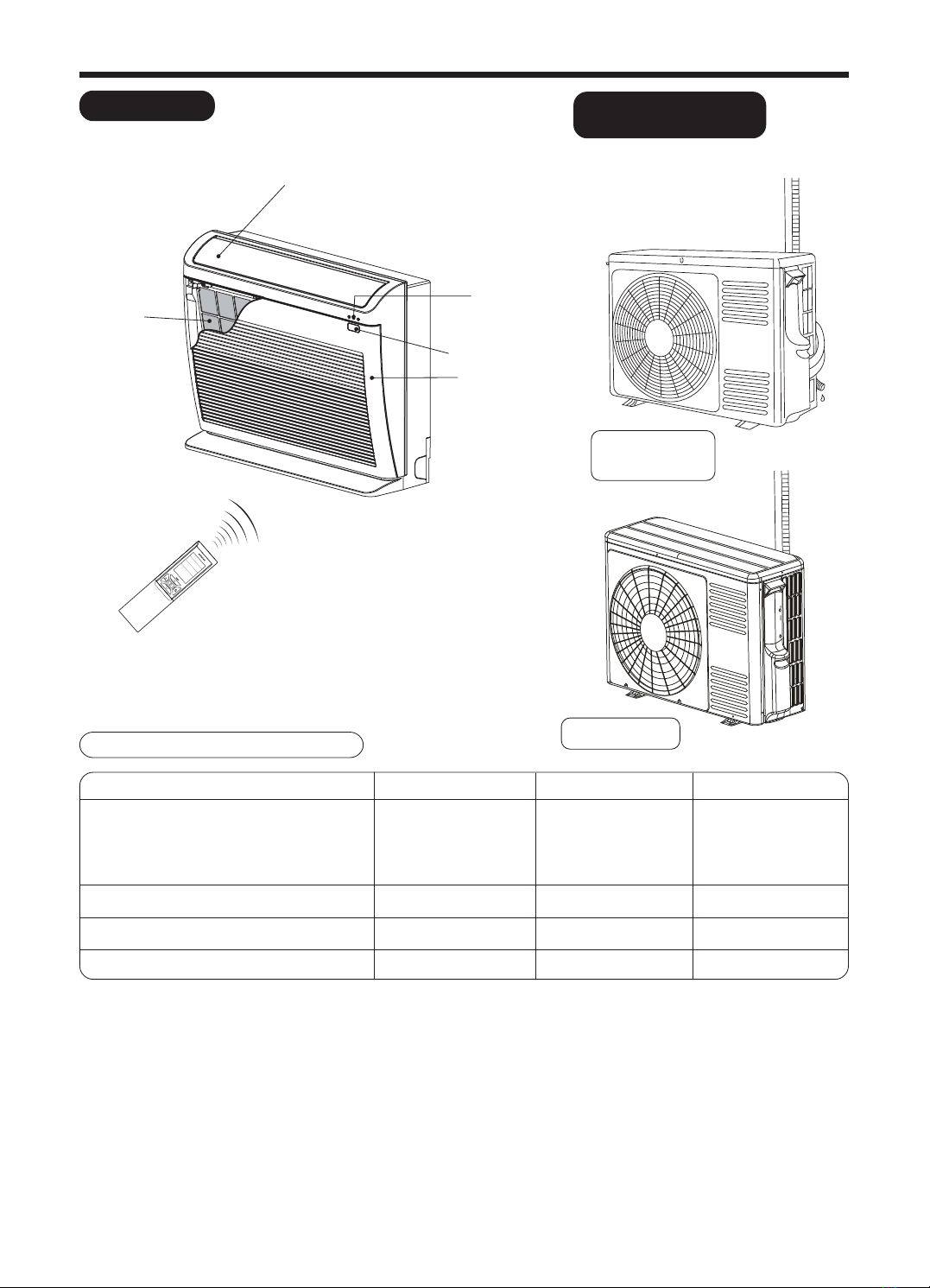

NAMES AND FUNCTIONS OF EACH PART
MODEL NAME AND DIMENSIONS
INDOOR UNIT
Indoor unit
indicators
Horizontal air
deflector
Air filter
Front panel
Signal receiver
OUTDOOR UNIT FOR
SINGLE SPLIT MODEL
Remote controller
* OUTDOOR UNIT for single split model.
HTPEDTHGIEHHTDIWLEDOM
RAF-25RPA
RAF-35RPA760mm 600mm 235mm
RAF-50RPA
(INDOOR UNIT)
RAC-25FPA 750mm 548mm 288mm
RAC-35FPA 750mm 548mm 288mm
RAC-50FPA 792mm 600mm 299mm
RAC-25FPA
RAC-35FPA
RAC-50FPA

– 5–
SIAÇNARFONAILATIHSINAPSSÊUGUTROP¿ÎÈÓËÏÏ∂¤£¥¬¬®«
Open the front panel
1. Toopen the front panel, use the remote controller to stop unit
operation. Then press at the top left and right corners of the front
panel.
2. Grasp the left and right sides of the front panel and open it toward
you.
Close the front panel
1. Toclose the front panel, press the upper center part of the front
panel.
2. Press at the top left and right corners of the front panel.
TIMER lamp
This lamp lights when the timer is
working.
OPERATION lamp
This lamp lights during operation.
During heating, the operation indicator may
blink, blowing very lightly or totally stopping
under the following conditions:
(1)During preheating (heating
operation)
For about 2~3 minutes after start up.
(2)During defrosting (heating
operation)
Defrosting will be performed about
once an hour when frost forms on the
heat exchanger of the outdoor unit, for
5~10 minutes each time. (Ifthe piping
length used is longer than usual, frost
will likely to form.)
TEMPORARY SWITCH
Top left and right corners
TEMPORARY SWITCH
TEMPORARY SWITCH
Ifthe remote controller does not work due to
battery failure, press this switch to start and stop
operation.
sThis temporary operation will be at the most
recent setting made. (The unit will immediately
go into automatic operation once power is
switched on.)
Upper center part

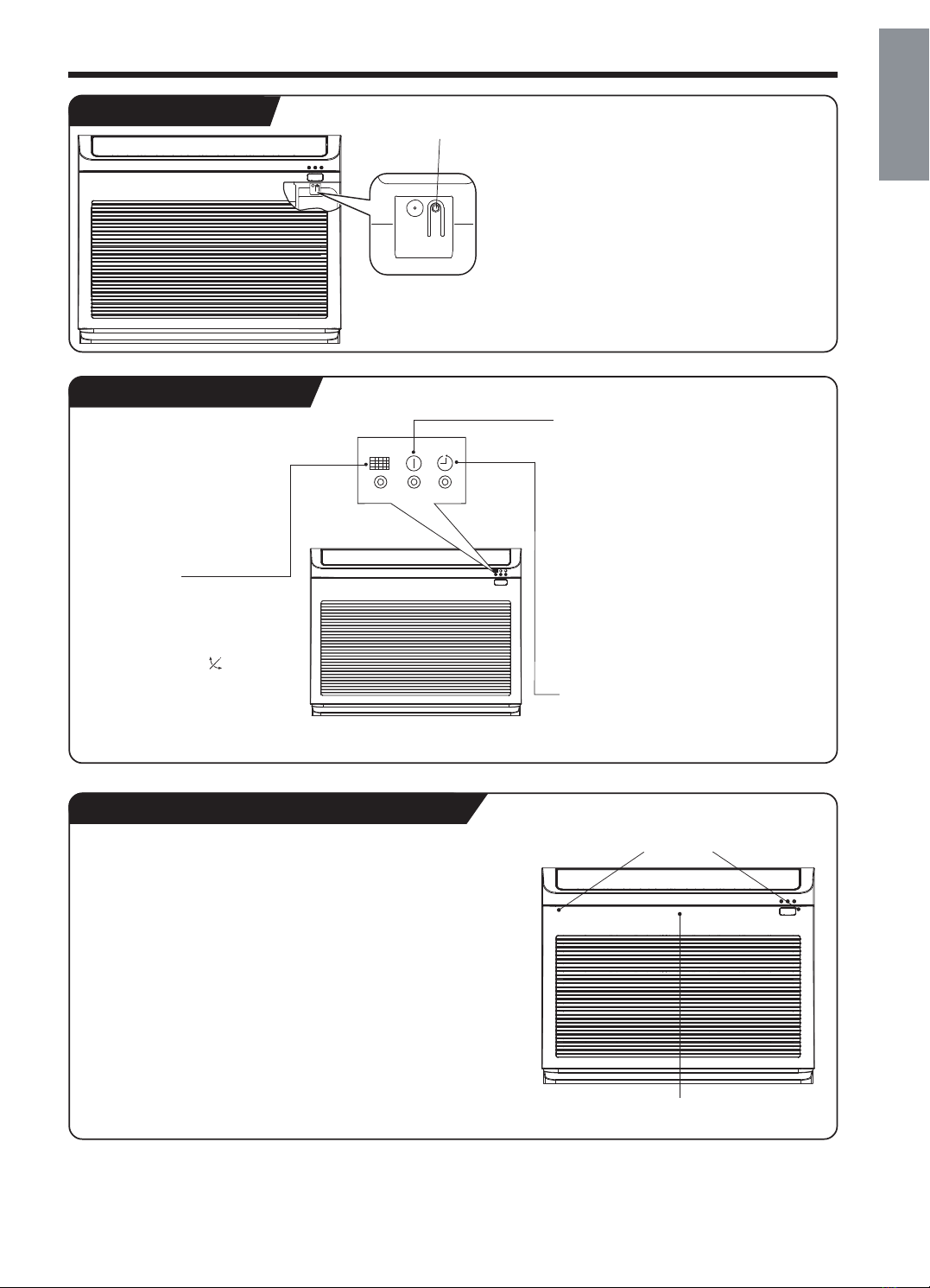

INDOOR UNIT INDICATORS
HOW TO OPEN OR CLOSE THE FRONT PANEL
FILTER lamp
This lamp lights when the
device is operated for atotal
of about 200 hours, it is time
to clean the filter. The lamp
goes out when the “ (AUTO
SWING)” button is pressed
while the operation is stopped.
HSILGNE

– 6–

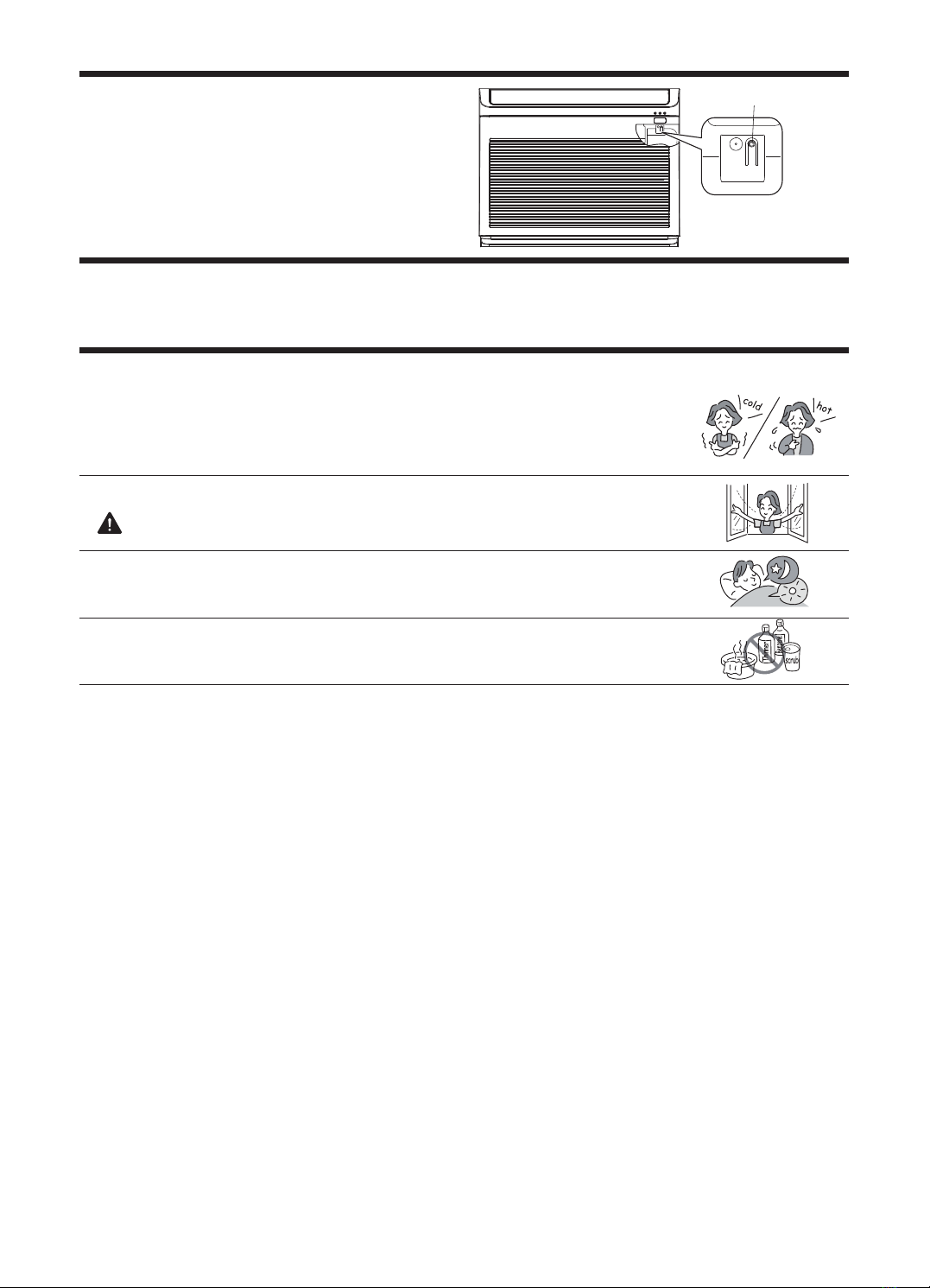

CIRCUIT BREAKER
When you do not use the room air conditioner, set the circuit breaker to “OFF”.
HOW TO USE THE AIR CONDITIONER EFFECTIVELY
1. An average room temperature setting is probably the best for you as well as being
economical.
sExcessive cooling or heating is not recommended for health reasons. High electricity
bills may also result.
sClose the curtains or blinds to prevent heat from flowing into or escaping the room as
well as to make more effective use of electricity.
2. At intervals, the doors and windows should be opened to let fresh air in.
CAUTION Make sure the room is ventilated when operating the air conditioner
at the same time as other heating appliances.
3. Using the timer is recommended before going to sleep or going out.
4. The following must never be used for cleaning the indoor and outdoor units:
sBenzine, thinner and scrub can damage plastic surfaces or coating.
sHot water above 40°C can shrink the filter and deform plastic parts.
5. Do not block the air intake and air outlet.
sDonot block the air outlets and intakes of the indoor and outdoor units with curtains
or other obstacles which could degrade air conditioner performance and cause unit
failure.
TEMPORARY SWITCH
Ifthe remote controller does not work due to battery
failure, press this switch to start and stop operation.
sThis temporary operation will be at the setting made
most recently. (The unit will immediately go into
automatic operation once power is switched on.)
TEMPORARY SWITCH

– 6 –

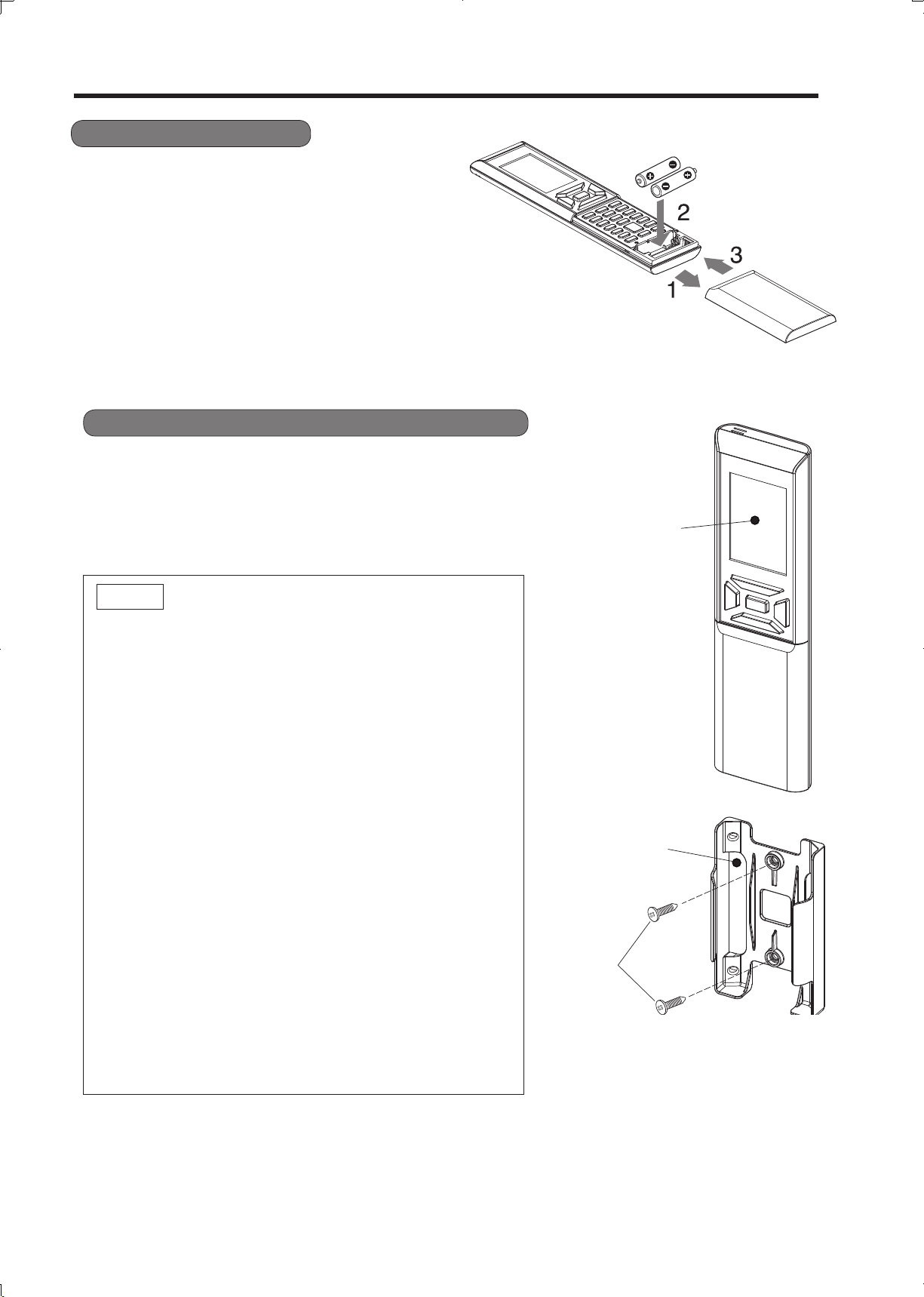

PREPARATION BEFORE OPERATION
– 6 –
HSILGNE
1. Slide the cover to take it off.
2. Install two dry batteries AAA.LR03 (alkaline).
The direction of the batteries should match the
marks in the case.
1. Choose a place from where the signals can reach the unit.
2. Fix the remote controller holder to a wall, a pillar or similar
location with the provided screws.
3. Place the remote controller in the remote controller holder.
Remote controller
Screws
Remote controller holder
■To install the batteries
3. Replace the cover at its original position.
■To fix the remote controller holder to the wall
NOTE
Notes on batteries
●When replacing the batteries, use batteries of the same
type, and replace both old batteries together.
●When the system is not used for a long time, take the
batteries out.
● The batteries will last for approximately 1 year. However, if
the remote controller display begins to fade and degradation
of reception performance occurs within a year, replace both
batteries with new size AAA.LR03 (alkaline).
● The attached batteries are provided for the initial use of
the system.
The usable period of the batteries may be short depending
on the manufactured date of the air conditioner.
Notes on the remote controller
● Never expose the remote controller to direct sunlight.
● Dust on the signal transmitter or receiver will reduce the
sensitivity. Wipe off dust with soft cloth.
● Signal communication may be disabled if an electronic-
starter-type  uorescent lamp (such as inverter-type lamps)
is in the room. Consult the shop if that is the case.
●If the remote controller signals happen to operate another
appliance, move that appliance to somewhere else, or
consult the service shop.
●When the remote controller is not in use, please close the
slide cover to prevent failure.

– 7 –
ENGLISH
– 7 –
HSILGNE
PREPARATION BEFORE OPERATION

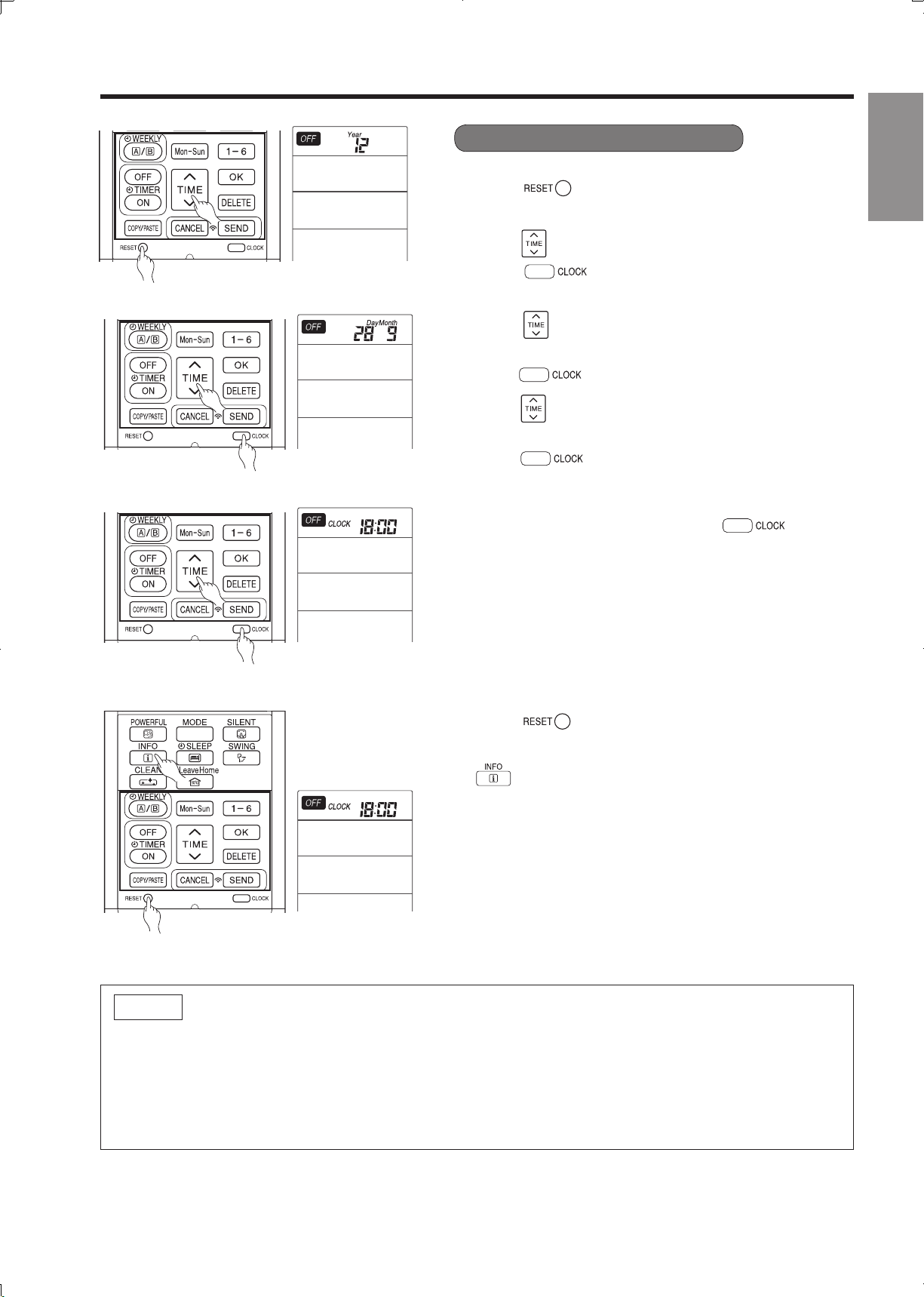

■To set calendar and clock
1. Press (RESET) button when first time setting.
"Year" blinks.
2. Press (TIME) button to set the current year.
3. Press (CLOCK) button. Next, "Day" and
"Month" blink.
4. Press (TIME) button to set the current day and
month.
5. Press (CLOCK) button. Next, "CLOCK" blinks.
6. Press (TIME) button to set the clock to the current
time.
7. Press (CLOCK) button.
Calendar and clock are set.
To modify the calendar and clock, press (CLOCK)
button.
Then follow steps 1 to 7.
Calendar and clock shall be set again after changing
batteries.
After changing the batteries,
1. Press (RESET) button.
2. Direct remote control towards indoor unit and press
(INFO) button.
3. The calendar and clock from indoor unit will be transmitted.
■Calendar and clock will not be transmitted from indoor
unit when the following occurs:
●When there is a power failure.
●When breaker is OFF by user (unit is not in STANDBY
MODE).
NOTE
Note on setting the calendar and clock.
●If the calendar and clock are not set, the ON-timer, OFF-timer and Weekly Timer cannot be set.
●If the calendar and clock are not set correctly, the ON-timer, OFF-timer and Weekly Timer will not
operate correctly.
●When the ON-timer, OFF-timer and Weekly Timer are set, the calendar and clock cannot be changed. If
need to change the calendar and clock, ON-timer, OFF-timer and Weekly Timer need to be cancelled.

– 8 –
– 8 –
HSILGNE
NAMES AND FUNCTIONS OF REMOTE CONTROLLER
REMOTE CONTROLLER
●This controls the operation of the indoor unit. The range of control is about 7 meters. If indoor lighting is
controlled electronically, the range of controller may be shorter.
This unit can be fixed on a wall using the fixture provided. Before fixing it, make sure the indoor unit can
be controlled from the remote controller.
●Handle the remote controller with care. Dropping it or getting it wet may compromise its signal transmission
capability.
●After new batteries are inserted into the remote controller, the unit will initially require approximately 10
seconds to respond to commands and operate.
●When remote controller is not in use for about 3 minutes during OFF condition, indicated by on the
display, the LCD will turn off.
●During clock setting, the LCD will turn off about 10 minutes later if the remote controller is not in use.
●When pressing any button, the LCD will turn on.
●The LCD will not turn off during TIMER setting.
Signal Transmitting/Receiving
Window
Point this window towards the
indoor unit when controlling it.
Sensor
A temperature sensor inside the
remote controller senses ambient
temperature around the remote-
controller.
Display
ROOM TEMPERATURE setting Buttons
Press these buttons to set the room
temperature.
Press the [ ] button to raise the room
temperature.
Press the [ ] button to lower the room
temperature.
Keep pressing and the value will change
more quickly.
ECO Button
Use this button to set the ECO
START/STOP button
Press this button to start
operation. Press it again to stop
operation.
Transmission sign
The transmission sign lights up
when a signal is sent.
FAN SPEED selector Button
This determines the fan speed.
Every time you press this button
the ange from
(AUTO) (HIGH)
(MED) (LOW)
(SILENT) (This button allows
optimal or preferred
fan speed for eachoperation mode).
➔
➔
➔
➔
airflow rate will ch
selection of
This indicates the room temperature
selected, current time, timer status,
function and airflow rate selected.
mode.( p.18)
– 9 –
HSILGNE
MODE SELECTOR
AUTO
HEAT
DEHUMIDIFY
COOL
FAN
FAN SPEED
AUTO
SILENT
LOW
MED
HI
START / STOP
ECO
Precautions for Use
●
Do not put the remote controller in the following places.
●
Under direct sunlight.
●
In the vicinity of a heater.
●
Handle the remote controller carefully. Do not drop it on the floor, and protect it from water.
●
Once the outdoor unit stops, it will not restart for about 3 minutes (unless you turn the power switch
off and on or unplug the power cord and plug it in again).
This is to protect the device and does not indicate a failure.
●
If you press the MODE selector button during operation, the device may stop for about 3 minutes for
protection.
POWERFUL Button
Use this button to set the
POWERFUL mode.
INFORMATION Button
ONE TOUCH CLEAN Button
ON / OFF TIMER setting Buttons
MODE selector Button
Use this button to select the
operating mode. Every time you
press this button, the mode will
change from (AUTO)
(HEAT) (DEHUMIDIFY)
(COOL) and (FAN)
cyclically.
SILENT Button
Use this button to set the SILENT
mode.
AUTO SWING (Vertical) Button
Controls the angle of the
horizontal air deflector.
WEEKLY TIMER setting Buttons
LEAVE HOME Button
NAMES AND FUNCTIONS OF REMOTE CONTROLLER
SLEEP TIMER Button
Use this button to set the sleep
timer.
FAN
POWERFUL
SILENT
INFO
SLEEP TIMER
AUTO SWING (VERTICAL)
LEAVE HOME
CLEAN
DAY
PROGRAM NO.
ON / OFF TIMER
TIME
OK
DELETE
COPY / PASTE
CANCEL
SEND
CLOCK
( p.16)
( p.30)
( p.20)
( p.19)
( p.21)
( p.22)
( p.17)
( p.24)
( p.15)

– 9 –
ENGLISH
– 9 –
HSILGNE
MODE SELECTOR
AUTO
HEAT
DEHUMIDIFY
COOL
FAN
FAN SPEED
AUTO
SILENT
LOW
MED
HI
START / STOP
ECO
Precautions for Use
●
Do not put the remote controller in the following places.
●
Under direct sunlight.
●
In the vicinity of a heater.
●
Handle the remote controller carefully. Do not drop it on the floor, and protect it from water.
●
Once the outdoor unit stops, it will not restart for about 3 minutes (unless you turn the power switch
off and on or unplug the power cord and plug it in again).
This is to protect the device and does not indicate a failure.
●
If you press the MODE selector button during operation, the device may stop for about 3 minutes for
protection.
POWERFUL Button
Use this button to set the
POWERFUL mode.
INFORMATION Button
ONE TOUCH CLEAN Button
ON / OFF TIMER setting Buttons
MODE selector Button
Use this button to select the
operating mode. Every time you
press this button, the mode will
change from (AUTO)
(HEAT) (DEHUMIDIFY)
(COOL) and (FAN)
cyclically.
SILENT Button
Use this button to set the SILENT
mode.
AUTO SWING (Vertical) Button
Controls the angle of the
horizontal air deflector.
WEEKLY TIMER setting Buttons
LEAVE HOME Button
NAMES AND FUNCTIONS OF REMOTE CONTROLLER
SLEEP TIMER Button
Use this button to set the sleep
timer.
FAN
POWERFUL
SILENT
INFO
SLEEP TIMER
AUTO SWING (VERTICAL)
LEAVE HOME
CLEAN
DAY
PROGRAM NO.
ON / OFF TIMER
TIME
OK
DELETE
COPY / PASTE
CANCEL
SEND
CLOCK
( p.16)
( p.30)
( p.20)
( p.19)
( p.21)
( p.22)
( p.17)
( p.24)
( p.15)

– 10 –
– 10 –
HSILGNE
AUTOMATIC OPERATION
The device will automatically determine the mode of operation, HEAT or COOL depending on the current
room temperature. The selected mode of operation will change when the room temperature varies.
However, the mode of operation will not change when indoor unit is connected to multi type outdoor unit.
VARIOUS FUNCTIONS
■Auto Restart Control
●If there is a power failure, operation will be automatically restarted when the power is resumed with previous operation
mode and airflow direction.
(As the operation is not stopped by remote controller.)
●If you intend not to continue the operation when the power is resumed, switch off the power supply.
When you switch on the circuit breaker, the operation will be automatically restarted with previous operation mode
and air flow direction.
Note: 1. If you do not require Auto Restart Control, please consult your sales agent.
2. Auto Restart Control is not available when Timer or Sleep Timer mode is set.
Press the MODE selector button so that the display indicates the
(AUTO) mode of operation.
● When AUTO has been selected, the device will automatically
determine the mode of operation, HEAT or COOL depending on
the current room temperature. However the mode of operation will
not change when indoor unit is connected to multi type outdoor
unit.
●If the mode automatically selected by the unit is not satisfactory,
manually change the mode setting (HEAT, DEHUMIDIFY, COOL
or FAN).
Press the (FAN SPEED) button to select AUTO, HI, MED, LOW or
SILENT.
Press the (START/STOP) button.
Operation starts with a beep.
Press the button again to stop operation.
Set the desired room temperature with the TEMPERATURE buttons
(the display indicates the setting).
The temperature setting and the actual room temperature may vary
depending on conditions.
START
STOP
1
3
2
Set the desired FAN SPEED with the (FAN SPEED) button (the
display indicates the setting).
(AUTO) (HIGH) (MED)
(LOW)
(SILENT)
■As the settings are stored in the memory the remote controller, you
(START/STOP) button next time.only have to press the
of

– 11 –
ENGLISH
– 11 –
HSILGNE

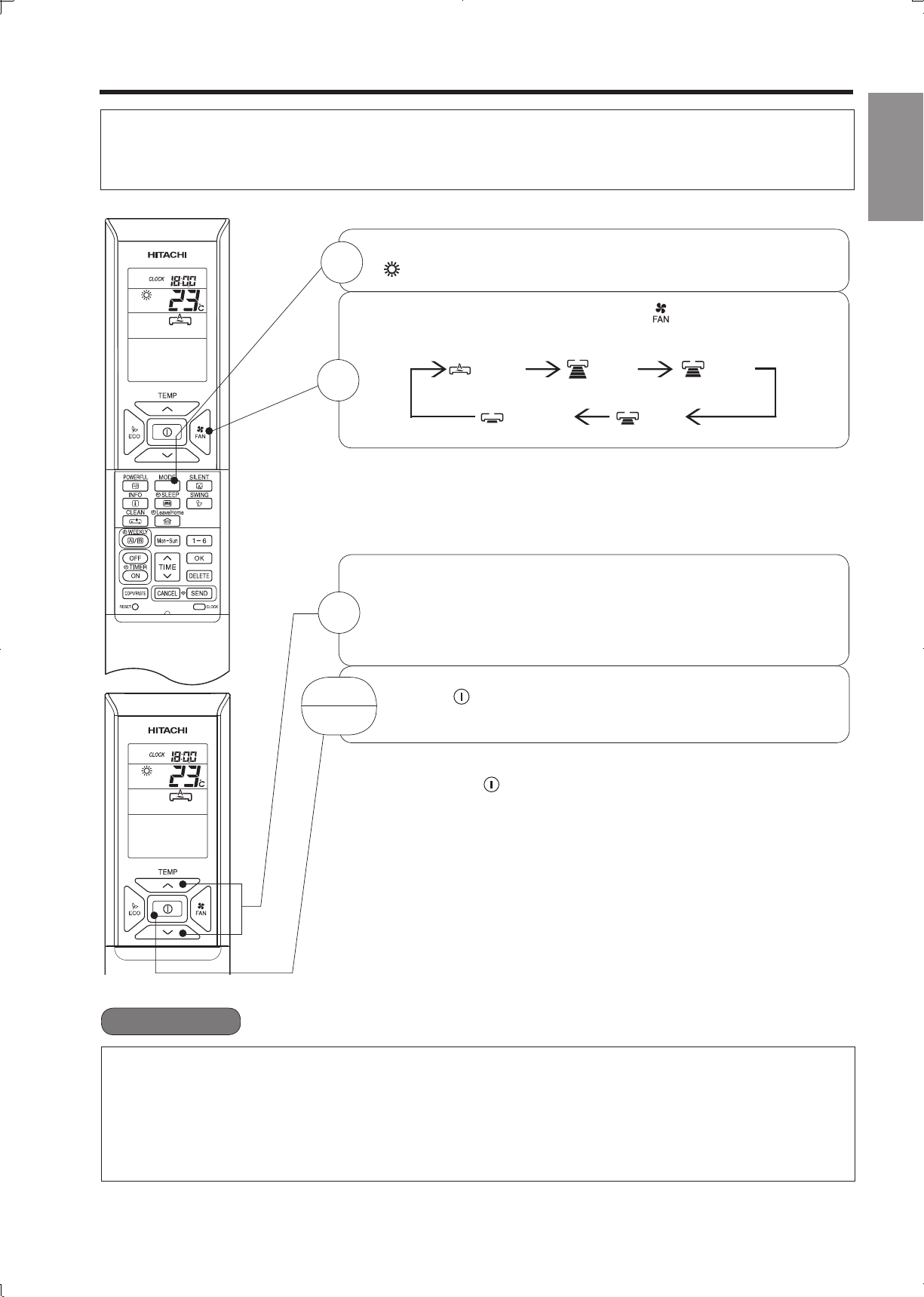

HEATING OPERATION
●Use the device for heating when the outdoor temperature is under 21°C.
When it is too warm (over 21°C), the heating function may not work in order to protect the device.
●
Press the MODE selector button so that the display indicates
(HEAT).
Set the desired FAN SPEED with the (FAN SPEED) button
(the display indicates the setting).
Set the desired room temperature with the TEMPERATURE buttons
(the display indicates the setting).
The temperature setting and the actual room temperature may
vary depending on conditions.
Press the (START/STOP) button. Heating operation starts with
a beep. Press the button again to stop operation.
■
■During AUTO fan, the fan speed automatically changes as below:
● When the difference between room temperature and setting temperature
is large, fan starts to run at HI speed.
● After room temperature reaches the preset temperature, fan speed
will be changed to lower speed to obtain optimum room temperature
condition for natural healthy heating.
START
STOP
■Defrosting
Defrosting will be performed about once an hour when frost forms on the heat exchange of the outdoor unit,
for 5~10 minutes each time.
During defrosting operation, the operation lamp blinks in a cycle of 3 seconds on and 0.5 second off.
The maximum time for defrosting is 20 minutes.
(If the piping length used is longer than usual, frost is likely to form.)
1
2
3
In order to maintain reliability of the device, please use this device when outdoor temperature is above -15°C.
(AUTO) (HIGH) (MED)
(LOW)
(SILENT)
■As the settings are stored in the memory of the remote controller, you only
have to press the (START/STOP) button next time.
However, if the indoor unit is connected to multi type outdoor unit, the maximum time for defrosting is 15 minutes.

– 12 –
– 12 –
HSILGNE
DEHUMIDIFYING OPERATION
■Dehumidifying Function
●When the room temperature is higher than the temperature setting: The device will dehumidify the
room, reducing the room temperature to the preset level.
When the room temperature is lower than the temperature setting: Dehumidifying will be performed at
the temperature setting slightly lower than the current room temperature, regardless of the temperature
setting.
●The preset room temperature may not be reached depending on the number of people present in the
room or other room conditions.
Set the desired room temperature with the ROOM
TEMPERATURE setting buttons (the display indicates the
setting).
The range of 20-26°C is recommended as the room
temperature for dehumidifying.
Press the (START/STOP) button. Dehumidifying operation
starts with a beep. Press the button again to stop operation.
■ As the settings are stored in the memory of the remote controller, you
(START/STOP) button next time.
START
STOP
Press the MODE selector button so that the display
indicates (DEHUMIDIFY).
The fan speed is set at LOW.
Press (FAN SPEED) button to select SILENT or LOW fan
speed.
Use the device for dehumidifying when the room temperature is over 16°C.
When it is under 15°C, the dehumidifying function will not work.
1
2
only have to press the
– 13 –
HSILGNE
COOLING OPERATION
Use the device for cooling when the outdoor temperature is -10~ 43°C.
If indoors humidity is very high (80%), some dew may form on the air outlet grille of the indoor unit.
Press the MODE selector button so that the display indicates
(COOL).
Set the desired FAN SPEED with the (FAN SPEED) button (the
display indicates the setting).
Set the desired room temperature with the TEMPERATURE buttons
(the display indicates the setting).
The temperature setting and the actual room temperature may vary
depending on conditions.
Press the (START/STOP) button. Cooling operation starts with a
beep. Press the button again to stop operation. The cooling function
does not start if the temperature setting is higher than the current
room temperature (even though the (OPERATION) lamp lights).
The cooling function will start as soon as user set the temperature
below the current room temperature.
■
As the settings are stored in the memory of the remote controller, you only
have to press the (START/STOP) button next time.
■ During AUTO fan, the fan speed automatically changes as below:
●When the difference between room temperature and setting tem-
perature is large, fan starts to run at HI speed.
● After room temperature reaches the preset temperature, fan speed
will be changed to lower speed to obtain optimum room temperature
condition for natural healthy cooling.
START
STOP
1
3
(AUTO) (HIGH) (MED)
(LOW)
(SILENT)
2

– 13 –
ENGLISH
– 13 –
HSILGNE
COOLING OPERATION
Use the device for cooling when the outdoor temperature is -10~ 43°C.
If indoors humidity is very high (80%), some dew may form on the air outlet grille of the indoor unit.
Press the MODE selector button so that the display indicates
(COOL).
Set the desired FAN SPEED with the (FAN SPEED) button (the
display indicates the setting).
Set the desired room temperature with the TEMPERATURE buttons
(the display indicates the setting).
The temperature setting and the actual room temperature may vary
depending on conditions.
Press the (START/STOP) button. Cooling operation starts with a
beep. Press the button again to stop operation. The cooling function
does not start if the temperature setting is higher than the current
room temperature (even though the (OPERATION) lamp lights).
The cooling function will start as soon as user set the temperature
below the current room temperature.
■
As the settings are stored in the memory of the remote controller, you only
have to press the (START/STOP) button next time.
■ During AUTO fan, the fan speed automatically changes as below:
●When the difference between room temperature and setting tem-
perature is large, fan starts to run at HI speed.
● After room temperature reaches the preset temperature, fan speed
will be changed to lower speed to obtain optimum room temperature
condition for natural healthy cooling.
START
STOP
1
3
(AUTO) (HIGH) (MED)
(LOW)
(SILENT)
2

– 14 –
– 14 –
HSILGNE

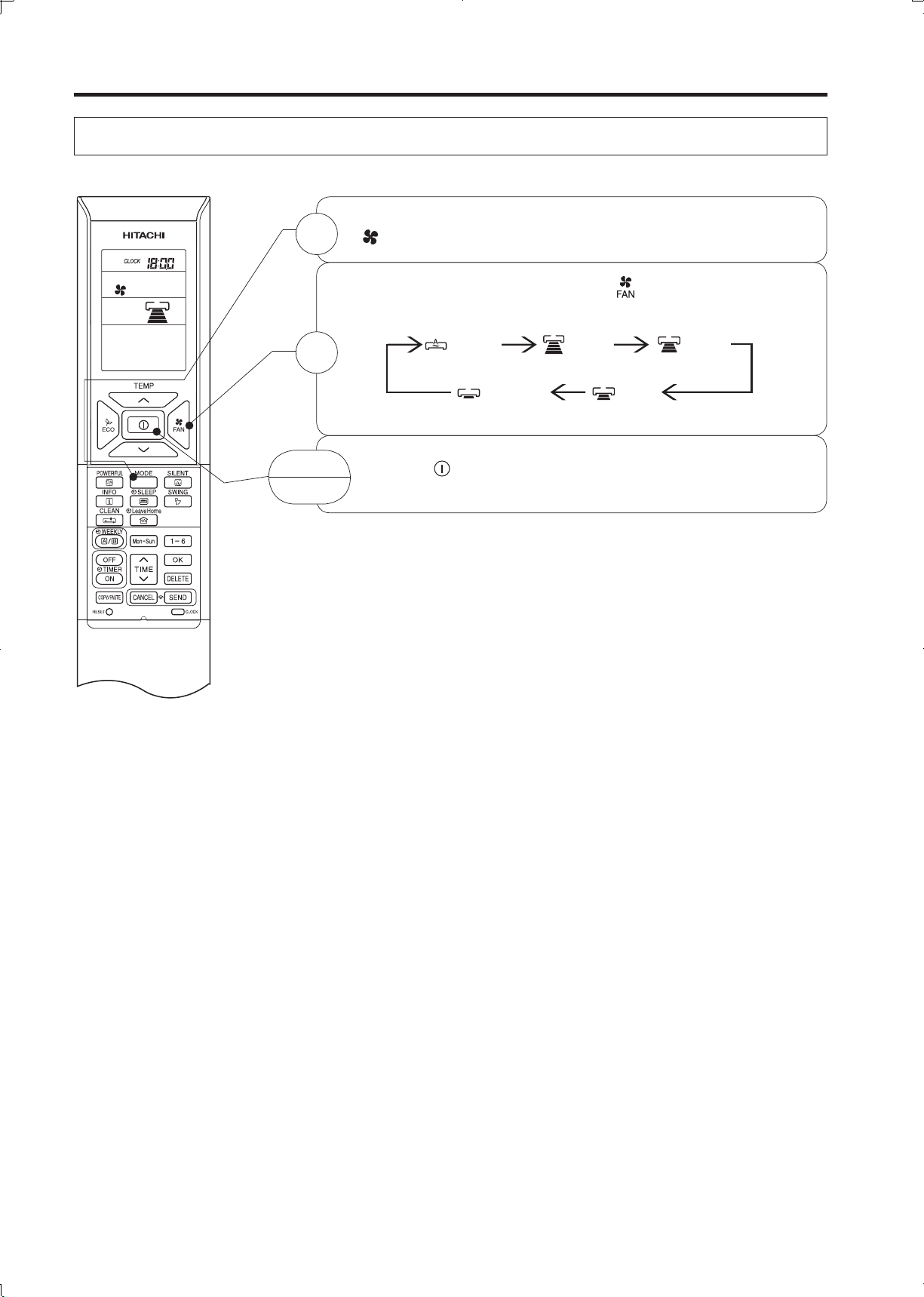

FAN OPERATION
User can use the device simply as an air circulator.
START
STOP
1
2
Press the MODE selector so that the display indicates
(FAN).
Press the (START/STOP) button. Fan operation starts with
a beep. Press the button again to stop operation.
Set the desired FAN SPEED with the (FAN SPEED) button
(the display indicates the setting).
(AUTO) (HIGH) (MED)
(LOW)
(SILENT)

– 15 –
ENGLISH
Vertical
Vertical
about 10°
about 40°
When cooling,
dehumidifying
When heating
about 10°
about 45°
HSILGNE
– 15 –
Minimum Maximum Minimum Maximum
Indoor Dry bulb °C 21 32 20 27
Wet bulb °C 15 23 12 19
Outdoor Dry bulb °C 21 43 2 21
Wet bulb °C 15 26 1 15
Note
gnitaeHgnilooC
Avoid to use the room air conditioner for cooling operation when the outside temperature is below
-10°C (14°F).
The recommended maximum and minimum operating temperatures of the hot and cold sides
should be as below:
AUTO SWING OPERATION
■To start Vertical Auto Swing
■To cancel Vertical Auto Swing
NOTE
●
During cooling and dehumidifying operation, do not keep
the deflectors swinging or in the lower position (in the case
of vertical auto swing) for a long time. It may cause dew
condensation on the deflectors.
Press (AUTO SWING (VERTICAL)) button. The
deflector(s) will start to swing up and down.
 󰷅󰷅is displayed on the LCD.
Press (AUTO SWING (VERTICAL)) button again. The
deflector(s) will stop in the current position.
󰷅󰷅 disappeared from the LCD.
●
●

– 16 –
– 16 –
HSILGNE
POWERFUL OPERATION
●By pressing (POWERFUL) button during AUTO, HEATING, DEHUMIDIFYING, COOLING or FAN
operation, the air conditioner performs an the maximuum power.
●During POWERFUL operation, cooler or warmer air will be blown out from indoor unit for COOLING of
HEATING operation respectively.
■To start POWERFUL operation
■To cancel POWERFUL operation
1
NOTE
●When SLEEP mode, ECO mode, SILENT mode or LEAVE HOME mode is selected, POWERFUL
operation is cancelled.
●During POWERFUL operation, capacity of the air conditioner will not increase
– if the air conditioner is already running at maximum capacity.
– just before defrost operation (when the air conditioner is running in HEATING operation).
●After auto restart, POWERFUL operation is cancelled and previous operation shall start.
Press (POWERFUL) button during operation.
●
“ ” is displayed on the LCD.
POWERFUL operation ends in 20 minutes. Then the system
automatically operates with the previous settings used before
POWERFUL operation.
Press (POWERFUL) button again.
POWERFUL operation stops.
“ ” disappears from the LCD.
●
Press (START/ STOP) button.Or
●

– 17 –
ENGLISH
– 17 –
HSILGNE
SILENT OPERATION
●By pressing (SILENT) button during AUTO, HEATING, DEHUMIDIFYING, COOLING or FAN
operation, the fan speed will change to ultra slow.
■To start SILENT operation
■To cancel SILENT operation
Press (SILENT) button during operation.
“ ” is displayed on the LCD. Fan speed will be ultra
slow.
●Press (START/STOP) button. Or
●Press (SILENT) button again or (FAN SPEED)
button.
Fan speed will return to previous fan speed before SILENT
operation starts.
SILENT operation stops.
“ ” disappears from the LCD.
1
NOTE
●When POWERFUL operation is selected, SILENT operation is cancelled. Fan speed will return to
previous fan speed before SILENT operation.
●After auto restart, SILENT operation is cancelled. Fan speed will return to previous
fan speed before SILENT operation.
●During any operation with fan speed (SILENT), if press (SILENT) button, fan speed will
not change.
●

– 18 –
– 18 –
HSILGNE
ECO OPERATION
●By pressing the (ECO) button during AUTO, HEATING,
DEHUMIDIFYING or COOLING operation, the air conditioner
performs the "ECO" operation.
1
■To start ECO operation
■ To cancel ECO operation
Press (ECO) button during operation.
“ ” is displayed on the LCD.
Energy saving operation will start by changing the set
temperature higher or lower automatically and reducing operation
power consumption. This function may vary based on the
● Press (START/STOP) button.Or
● Press (ECO) button again.
“ ” disappears from the LCD.
NOTE
● ECO function will not be effective when power consumption is low.
● By pressing (POWERFUL) button, ECO operation is cancelled.
● After auto restart, ECO operation is cancelled and previous operation mode shall start.
● For multi model connections, energy saving operation shall only start by changing set temperature higher
connected outdoor unit.
or lower automatically. However, effectiveness of ECO depends on operation conditions.
ECO operation is an energy saving function by changing set temperature automatically and by limiting the
maximum power consumption value.
●
– 19 –
HSILGNE

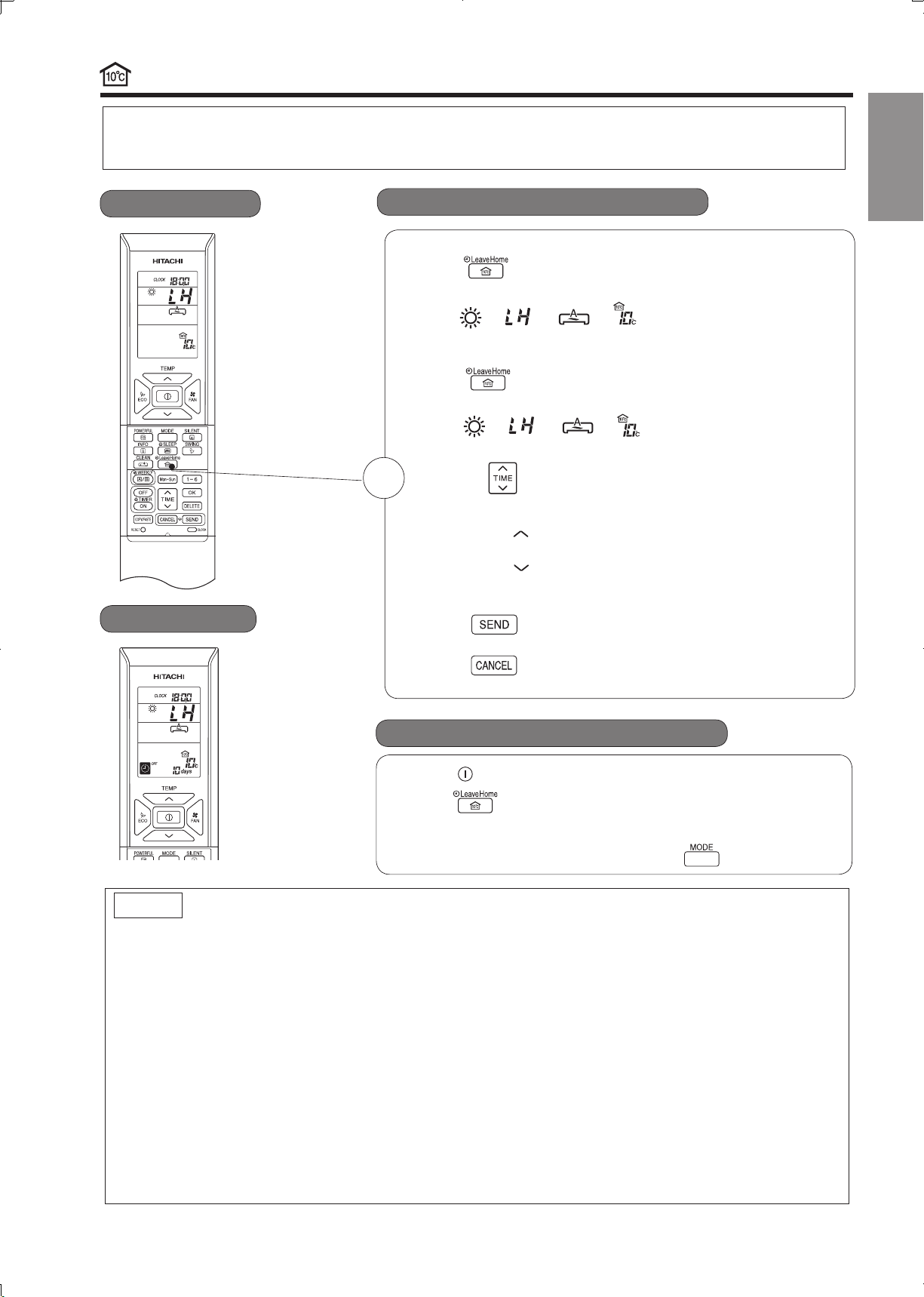

LEAVE HOME(LH) OPERATION
■To start LEAVE HOME operation
Press (LEAVE HOME) button during stop or operation.
●
Room temperature is set at 10°C and heating operation starts.
“ ”, “ ”, “ ”, “ ” is displayed on the LCD.
Press (LEAVE HOME) button during stop or operation.
Room temperature is set at 10°C and heating operation starts.
“ ”, “ ”, “ ”, “ ” is displayed on the LCD.
● Set number of operation days (1 to 99 days), if needed.
Press (TIME) button to select number of days.
Number of days blink.
* Press “ (UP)” to set number of days from 1 day, 2 days, 3
days ..... 98 days, 99 days, 1 day and so on.
* Press “ (DOWN)” to set number of days from 99 days, 98
days, 97 days .... 3 days, 2 days, 1 day, 99 days and so on.
* Number of day is counted when clock indicates 0:00.
● Press (SEND) button to confirm number of operation
days. Display for number of operation days will stop blinking.
● Press (CANCEL) button to reset number of operation
days or to have continuous operation.
■To cancel LEAVE HOME operation
●Press (START/STOP) button.Or
●Press (LEAVE HOME) button again.
● Change to other operation mode by pressing (MODE) button.
NOTE
●After reaching the set number of operation days for Leave Home or by pressing the (Leave Home) button again,
●During Leave Home operation, fan speed and horizontal air deflector position cannot be changed.
●By pressing (Leave Home) button, implementation of Weekly Timer or One Timer only Timer is cancelled.
● In case of power supply shut down, after autorestart, all setting for number of days operation will be reset and unit
shall be in continuous operation.
● For multi connections, when each room is running in different operation mode such as FAN only, COOLING, DEHUMIDIFYING
or AUTO mode, Leave Home operation cannot operate even though it is possible to set Leave Home operation.
In order to start Leave Home operation, all rooms must stop its operation. Then, press (LEAVE HOME) button to
operate Leave Home operation.
● For multi connections, when all rooms are running HEATING operation, it is possible to operate Leave Home operation
by pressing the (LEAVE HOME) button.
● For multi connections, if two or more rooms are set to operate Leave Home operation, the capability to reach the
set temperature at 10°C may not possible. In addition, this also depends on outdoor temperature.
Continuous operation
Day timer operation
Prevent the room temperature from falling too much by setting temperature automatically when no one is at home.
This operation is able to operate by" Continuous operation" or " Day timer operation" . Please use " Day timer operation"
to set the number of days up to 99 days.
10°C
°
●
Option 1. Continuous operation.
Option 2. Day timer operation.
Return to previous operation mode.Or
othe unit will operate in previous mode.
POWERFUL,SILENT and ECO operations are not applicable during Leave Home.
●
1

– 19 –
ENGLISH
– 19 –
HSILGNE
LEAVE HOME(LH) OPERATION
■To start LEAVE HOME operation
Press (LEAVE HOME) button during stop or operation.
●
Room temperature is set at 10°C and heating operation starts.
“ ”, “ ”, “ ”, “ ” is displayed on the LCD.
Press (LEAVE HOME) button during stop or operation.
Room temperature is set at 10°C and heating operation starts.
“ ”, “ ”, “ ”, “ ” is displayed on the LCD.
● Set number of operation days (1 to 99 days), if needed.
Press (TIME) button to select number of days.
Number of days blink.
* Press “ (UP)” to set number of days from 1 day, 2 days, 3
days ..... 98 days, 99 days, 1 day and so on.
* Press “ (DOWN)” to set number of days from 99 days, 98
days, 97 days .... 3 days, 2 days, 1 day, 99 days and so on.
* Number of day is counted when clock indicates 0:00.
● Press (SEND) button to confirm number of operation
days. Display for number of operation days will stop blinking.
● Press (CANCEL) button to reset number of operation
days or to have continuous operation.
■To cancel LEAVE HOME operation
●Press (START/STOP) button.Or
●Press (LEAVE HOME) button again.
● Change to other operation mode by pressing (MODE) button.
NOTE
●After reaching the set number of operation days for Leave Home or by pressing the (Leave Home) button again,
●During Leave Home operation, fan speed and horizontal air deflector position cannot be changed.
●By pressing (Leave Home) button, implementation of Weekly Timer or One Timer only Timer is cancelled.
● In case of power supply shut down, after autorestart, all setting for number of days operation will be reset and unit
shall be in continuous operation.
● For multi connections, when each room is running in different operation mode such as FAN only, COOLING, DEHUMIDIFYING
or AUTO mode, Leave Home operation cannot operate even though it is possible to set Leave Home operation.
In order to start Leave Home operation, all rooms must stop its operation. Then, press (LEAVE HOME) button to
operate Leave Home operation.
● For multi connections, when all rooms are running HEATING operation, it is possible to operate Leave Home operation
by pressing the (LEAVE HOME) button.
● For multi connections, if two or more rooms are set to operate Leave Home operation, the capability to reach the
set temperature at 10°C may not possible. In addition, this also depends on outdoor temperature.
Continuous operation
Day timer operation
Prevent the room temperature from falling too much by setting temperature automatically when no one is at home.
This operation is able to operate by" Continuous operation" or " Day timer operation" . Please use " Day timer operation"
to set the number of days up to 99 days.
10°C
°
●
Option 1. Continuous operation.
Option 2. Day timer operation.
Return to previous operation mode.Or
othe unit will operate in previous mode.
POWERFUL,SILENT and ECO operations are not applicable during Leave Home.
●
1
