– 1 –
ENGLISH
INDOOR UNIT/OUTDOOR UNIT
MODEL
RAS-10C9G/RAC-10C9G
RAS-13C9G/RAC-13C9G
OUTDOOR UNIT INDOOR UNIT
RAS-10C9G
RAS-13C9G
RAC-10C9G
RAC-13C9G
SPLIT TYPE AIR CONDITIONER
Instruction manual Page 1~20
To obtain the best performance and ensure years of trouble free use, please read this instruction manual completely.
Arahan pengendalian Muka surat 21~40
Untuk mendapatkan prestasi yang tinggi dan mengelakkan masalah untuk jangka masa yang lama, sila baca arahan ini
sepenuhnya.

– 2 –
PRECAUTIONS DURING OPERATION
●Avoid an extended period of direct air flow for your health.
W
A
R
N
I
N
G
●Do not put objects like thin rods into the panel of blower and suction side
because the high-speed fan inside may cause danger.
●During thunder storm, disconnect and turn off the circuit breaker.
●Do not use any conductor as fuse wire, this could cause fatal accident.
!
SAFETY PRECAUTION
●
Please read the “Safety Precaution” carefully before operating the unit to ensure correct usage of the unit.
●
Pay special attention to signs of “ Warning” and “ Caution”. The “Warning” section contains matters which,
if not observed strictly, may cause death or serious injury. The “Caution” section contains matters which may
result in serious consequences if not observed properly. Please observe all instructions strictly to ensure safety.
●
The sign indicate the following meanings.
●
Please keep this manual after reading.
WARNING
PRECAUTIONS DURING INSTALLATION
●Do not reconstruct the unit.
Water leakage, fault, short circuit or fire may occur if you reconstruct the
unit by yourself.
●Please ask your sales agent or qualified technician for the installation of
your unit. Water leakage, short circuit or fire may occur if you install the unit
by yourself.
●Please use earth line.
Do not place the earth line near water or gas pipes, lightning-conductor, or
the earth line of telephone. Improper installation of earth line may cause
electric shock.
●A circuit breaker should be installed depending on the mounting site of the
unit. Without a circuit breaker, the danger of electric shock exists.
●Do not install near location where there is flammable gas. The outdoor unit
may catch fire if flammable gas leaks around it.
●Please ensure smooth flow of water when installing the drain hose.
CAUTION
!
!
PRECAUTIONS DURING SHIFTING OR MAINTENANCE
●Should abnormal situation arises (like burning smell), please stop operating the unit
and turn off the circuit breaker. Contact your agent. Fault, short circuit or fire may
occur if you continue to operate the unit under abnormal situation.
●Please contact your agent for maintenance. Improper self maintenance may cause
electric shock and fire.
●Please contact your agent if you need to remove and reinstall the unit. Electric
shock or fire may occur if you remove and reinstall the unit yourself improperly.
●If the supply cord is damaged, it must be replaced by the special cord obtainable
at authorized service/parts centers.
!
Make sure to connect earth line.
Indicates the instructions that must be followed.
The sign in the figure indicates prohibition.
W
A
R
N
I
N
G
!

– 3 –
ENGLISH
PRECAUTIONS DURING OPERATION
●Do not attempt to operate the unit with wet hands, this could cause fatal
accident.
●When operating the unit with burning equipments, regularly ventilate the
room to avoid oxygen insufficiency.
●Do not direct the cool air coming out from the air-conditioner panel to face
household heating apparatus as this may affect the working of apparatus
such as the electric kettle, oven etc.
●Do not place plants directly under the air flow as it is bad for the plants.
●Please ensure that outdoor mounting frame is always stable, firm and
without defect. If not, the outdoor unit may collapse and cause danger.
●Do not splash or direct water to the body of the unit when cleaning it as this
may cause short circuit.
●When operating the unit with the door and windows opened, (the room humidity is always above
80%) and with the air deflector facing down or moving automatically for a long period of time,
water will condense on the air deflector and drips down occasionally. This will wet your furniture.
Therefore, do not operate under such condition for a long time.
●If the amount of heat in the room is above the cooling or heating capability of the unit (for
example: more people entering the room, using heating equipments and etc.), the preset room
temperature cannot be achieved.
●Do not climb on the outdoor unit or put objects on it.
●Please switch off the unit and turn off the circuit breaker during cleaning, the
high-speed fan inside the unit may cause danger.
●Turn off the circuit breaker if the unit is not to be operated for a long period.
C
A
U
T
I
O
N
●The product shall be operated under the manufacturer specification and
not for any other intended use.
●Do not put water container (like vase) on the indoor unit to avoid water
dripping into the unit. Dripping water will damage the insulator inside the unit
and causes short-circuit.
●Do not use any aerosol or hair sprays near the indoor unit. This chemical
can adhere on heat exchanger fin and blocked the evaporation water flow
to drain pan. The water will drop on tangential fan and cause water splashing
out from indoor unit.

– 4 –
PRODUCT PERFORMANCE AND TECHNICAL PARAMETERS
●Fuzzy control
●High performance rotary
compressor
●Low noise air intake system
●Temperature sensing automatic
dehumidification
●Sleep mode with automatic
adjustable temperature controls
●High performance timer
●Remote control swing mode
●Automatic parking air vent grilles
●Automatic fan speed adjustment
●Left right drain hoses
●Automatic functions
●Detachable dust filter screen
●High sensing thermostat
●Unit body with well designed
curves
●3 minute delay circuitry
●3 fan speed selection
●Flared piping joints
●Instant dehumidifying functions
●High performance cooling
functions
Fuzzy control
The common timer controls will always switch on the
air conditioner at a predetermined time that could cause
over cooling, however, with this advanced fuzzy control
system the air conditioner will be either switched on
before preset time or delayed depending on the indoor
temperature changes, allowing the room temperature to
reach the preset temperature within an optimal time
frame, as such it will create an optimal air conditioned
environment and will also provide greater savings on
electrical energy consumption
Low noise air intake system
This newly modified low noise air intake system allows
better and smoother air flows that will provide a quiet
and refreshing environment
Sleep mode with automatic adjustable temperature
controls
After adjusting the sleep mode timer before sleep, the
temperature will be automatically controlled and adjusted
accordingly to the lowering or body temperature during
sleep and lower temperature throughout the night, to
provide a conducive environment for a good sleep.
An hour after setting the sleep mode timer, the air
conditioner will automatically adjust the optimal
temperature; during summer it will be adjusted to 2°C
higher than the preset room temperature, and the timer
can be set at a 1-hour, 2-hour, 3-hour and 7-hour cycle.
All can be set by pressing the control buttons that save
you the trouble to pre-set the required operating modes
before sleep
Temperature sensing automatic dehumidification
Hitachi air conditioners are specially equipped with
précised and reliable temperature sensing automatic
dehumidification function, that automatically operates the
dehumidification whenever the room temperature exceeds
the preset temperature and it stops whenever the room
temperature falls back within the preset temperature as
such it stabilizes the temperature and provides a more
conducive environment for the user
Well designed unit body
The indoor unit incorporates the latest design and has a
non-bulky body that measures 815 X 298 X 208 cm
Fuzzy control
Quiet

– 5 –
ENGLISH
Air filter
To prevent dust from coming into the indoor unit.
(Refer page 17)
Front panel (Air inlet)
Indoor unit indicators
Light indicator showing the operating condition.
(Refer page 6)
Horizontal deflector ●Vertical deflector
(Air Outlet)
(Refer page 13)
Remote controller
Send out operation signal to the indoor unit. So as to
operate the whole unit.
(Refer page 7)
OUTDOOR UNIT
Drain pipe
Condensed water drain to outside.
Connecting cord
Air inlet (Back, Left side)
Air outlet
WIDTH (mm)
815
700
MODEL
RAS-10C9G, RAS-13C9G
RAC-10C9G, RAC-13C9G
HEIGHT (mm)
298
570
DEPTH (mm)
208
210
MODEL NAME AND DIMENSIONS
INDOOR UNIT
NAMES AND FUNCTIONS OF EACH PART

– 6 –
ATTACHING AND REMOVING FRONT PANEL
RECEIVABLE INDICATOR FUNCTIONS
●While gripping both the left and right hand edges
[recessed in the front housing] of the front panel,
lift up to open the front panel.
●After completion of job, slightly lift up the front
panel and pull down to close the front panel. Ensure
that the 3 sets of left, centre and right clips are
fully secured.
Signal Receivable Window
Timer Lamp
This lamp lights when the timer is working.
Operation Lamp
This lamp lights during operation.
Filter Lamp
When the device is operated for a total of
about 100 hours, the FILTER lamp lights
to indicate that it is time to clean the filter.
The lamp goes out when the POWER
SWITCH set to OFF and ON again.
OPERATION INDICATOR
TEMPORARY SWITCH
When the remote control device is not functioning, use the
Temporary Switch mode
(1) When the Temporary Switch is pressed, the unit will
operate as per the previous setting. Should there be
a discontinuation of power supply the unit will operate
as per its automatic setting.
(2) Press the Temporary Switch a second time will stop
the operations of the air conditioner unit
AUTO RESTART FUNCTION
In the event of power failure, the air conditioner will restart
automatically.
In the event of power failure during TIMER operation, the
timer will be reset and the unit will begin or stop operating
under a new timer setting.
Temporary Switch On/Off Switch

– 7 –
ENGLISH
NAMES AND FUNCTIONS OF REMOTE CONTROL UNIT
REMOTE CONTROLLER
This controls the operation of the indoor unit. The range of control is about 7 meters. If indoor lighting
is controlled electronically, the range of control may be shorter.
This unit can be fixed on a wall using the fixture provided. Before fixing it, make sure the indoor unit can
be controlled from the remote controller.
●Transmission sign
The transmission sign blinks when a signal is sent.
●Display
This indicates the room temperature selected, current time, timer
status, function and intensity of circulation selected.
●CIRCULATION button
Use this button to set air circulation in the room or start operation.
●DEHUMIDIFYING button
Use this button to reduce water quantity in the room or start operation.
●COOLING button
Use this button to set cooling mode in the room or start operation.
●RESET button
●STOP button
Press this button to stop operation only.
●SLEEP button
Use this button to set the sleep timer.
●FAN SPEED selector
This determines the fan speed. Every time you press this button,
the intensity of circulation will change from (AUTO) to (HI)
to (MED) to (LOW) (during the (FAN) mode, from HI
to MED to LOW).
●AUTO SWING button
Controls the angle of the horizontal air deflector and to turn off filter
lamp.
●TEMPERATURE button
Use this button to raise or lower the temperature setting. (Keep
pressed, and the value will change more quickly.)
●OFF-TIMER button Select the turn OFF time.
●ON-TIMER button Select the turn ON time.
Precautions for Use
●Do not put the remote controller in the following places.
●In direct sunlight.
●In the vicinity of a heater.
●Handle the remote controller carefully. Do not drop it on the
floor, and protect it from water.
●Once the outdoor unit stops, it will not restart for about 3 minutes
(unless you turn the power switch off and on or unplug the
power cord and plug it in again).
This is to protect the device and does not indicate a failure.
●If you press the FUNCTION selector button during operation,
the device may stop for about 3 minutes for protection.
CIRCULATION / START
DEHUMIDIFY / START
COOLING / START
FAN
FAN SPEED
LOW
MED
HI
SLEEP TIMER
STOP
TIMER SELECTOR
ON TIMER
OFF TIMER
AUTO SWING

–8 –
˚
C
COOLING OPERATION
Use the device for cooling when the outdoor temperature is 21-43°C.
If humidity is very high (over 80°C) indoors, some dew may form on the air outlet grille of the indoor unit.
Press the button so that the display indicates
(COOL).
Set the desired FAN SPEED with the (FAN SPEED) button
(the display indicates the setting).
(AUTO): The FAN SPEED is HI at first and varies to
MED or LOW automatically when the preset
temperature has been reached.
(HI) : Economical as the room will become cool
quickly.
(MED) : Fan speed slow.
(LOW) : Fan speed slower.
Set the desired room temperature with the TEMPERATURE
button (the display indicates the setting).
The range of 25-28°C is recommended as the
room temperature for cooling.
If the temperature setting is 27°C, the room
temperature will be controlled at around 27°C.
The temperature setting and the actual room temperature may
vary somewhat depending on conditions.
Press the (COOLING) button. Cooling operation starts with
a beep. Press the (STOP) button to stop operation. The
cooling function does not start if the temperature setting is
higher than the current room temperature (even though the
(OPERATION) lamp lights). The cooling function will start as
soon as you set the temperature below the current room
temperature.
■As the settings are stored in memory in the remote controller, you
only have to press the (COOLING) button next time.
1
2
STOP
3

–9 –
ENGLISH
DEHUMIDIFYING OPERATION
Use the device for dehumidifying when the room temperature is over 16°C.
When it is under 15°C, the dehumidifying function will not work.
■Dehumidifying Function
When the room temperature is higher than the temperature setting: The device will dehumidify the room,
reducing the room temperature to the preset level.
When the room temperature is lower than the temperature setting: Dehumidifying will be performed at the
temperature setting slightly lower than the current room temperature, regardless of the temperature
setting. The function will stop (the indoor unit will stop emitting air) as soon as the room temperature
becomes lower than the setting temperature.
■As the settings are stored in memory in the remote controller, you only
have to press the (DEHUMIDIFY) button next time.
Set the desired room temperature with the TEMPERATURE
button (the display indicates the setting).
The range of 20-26˚C is recommended as the
room temperature for dehumidifying.
2
Press the (DEHUMIDIFY) button.
The FAN SPEED is set at LOW automatically.
The FAN SPEED button does not work.
1
Press the (DEHUMIDIFY). Dehumidifying operation starts
with a beep. Press the (STOP) button to stop operation.
˚
C
STOP

–10 –
CIRCULATION OPERATION
Press the button so that the display indicates
(CIRCULATE)..
Press the FAN SPEED button and select the desired FAN
SPEED (the display indicates your choice).
Press the temperature control button to set to the desired
temperature.
■As the settings are stored in memory in the remote controller,
you only have to press the (CIRCULATION) button next time.
2
1
3
Press the (CIRCULATION) button. Circulating operation
starts with a beep. Press the (STOP) button to stop
operation.
STOP

–11 –
ENGLISH
HOW TO SET THE SLEEP TIMER
Press the (SLEEP) button, and the display changes as shown below.
Mode
Sleep timer
Indication
1 hour 2 hours 3 hours 7 hours
Sleep timer off
44 44
1
Sleep Timer: The device will continue working for the designated
number of hours and then turn off.
Point the signal window of the remote controller toward the indoor
unit, and press the SLEEP button.
The timer information will be displayed on the remote controller.
The TIMER lamp lights with a beep from the indoor unit. When the
sleep timer has been set, the display indicates the turn-off time.
Cooling
“”
and
dehumidifying
“”
Explanation of the sleep timer
The device will control the FAN SPEED and room temperature automatically
so as to be quiet and good for people’s health.
You can set the sleep timer to turn off after 1, 2, 3 or 7 hours. The FAN
SPEED and room temperature will be controlled as shown below.
Function Operation
The settings of room temperature and circulation are varied.
The room temperature will be
controlled 2°C above the setting
temperature and the FAN
SPEED will be set to LOW
setting 60 minutes after the
setting of the sleep timer.
Fan
“”
Operation with the sleep timer
Sleep
timer set
60 minutes later 3 hours later
7 hours later
2 hours
later
SLEEP

–12 –
HOW TO SET THE TIMER
■ON Timer and OFF Timer are available.
OFF TIME setting
●Select the OFF TIME by pressing the (OFF) Button.
●Setting time will change according to the below sequence
when you press the button.
OFF Timer Reservation
■Operation stop at setting time
1 2 3 9 10 11 12
1 hour interval
ON TIME setting
●Select the ON TIMER by pressing the (ON)
Button.
●Setting time will change according to the below
sequence.
ON Timer Reservation
1 2 3 9 10 11 12
1 hour interval
■Operation will start for setting
temperature at setting time (The starting
time may different depend on the room
temperature and set temperature).

–13 –
ENGLISH
AIR FLOW LOUVERS ADJUSTMENTS
Horizontal air deflecto
Vertical air deflector
1. Adjusting the left and right air flow directions
Move the vertical air flow louvers as illustrated,
to adjust the air flow to flow towards the left or
right directions.
2. Adjusting the downward air flow direction.
During the “Dehumidifying”or “Cooling”operating
modes, the horizontal air flow louvers are
automatically adjusted to suit the air flow angles
of each operating mode. The air flow louvers are
designed to direct air flow in upward and
downward directions. Pressing the automatic air
flow control button, these air flow louvers can
also be adjusted to any air flow angle of one’s
choice.
Press the AUTOMATIC AIR FLOW DIRECTION
once will activate the horizontal air flow louvers
to direct the air flows upwards and downwards.
Press the control button again, the horizontal air
flow louvers will stop moving and remain fixed at
the position at the point when the control button
was pressed
During the “Dehumidifying”or “Cooling”operating
modes, set the horizontal air flow louvers to move
within the range as recommended in the
illustration
Adjusting the air flow louvers will direct air flows
to assist in reducing the room temperature and
to correct any temperature imbalance
During the “Cooling”operating mode, do not
adjust the horizontal air flow louvers to swing
outside the range as indicated by arrows in the
illustration. Do not operate the horizontal air flow
louvers in durations longer than it is necessary.
Condensate may form and drip along the
horizontal air flow louvers.
After stopping the operations of the unit by
pressing control button, the horizontal air
flow louvers will move to park at a position that
covers up the air outlet vent.
While the automatic air flow direction mode is in
operation, any physical adjustment to the
horizontal air flow louvers will shift the swing
range. However, with no further physical
adjustments, the air flow louvers will readjust
automatically to the original swing range setting.
(Should the louvers could not return to the original
swing range setting, stop the operation of the air
conditioner unit, remove the power supply plug
and re-plug it into the power mains socket and
restart the air conditioner unit. This will return the
swing range to its original setting)
Horizontal About 25°
About 55°
When cooling
dehumidifying

–14 –
HOW TO EXCHANGE THE BATTERIES IN THE REMOTE CONTROLLER

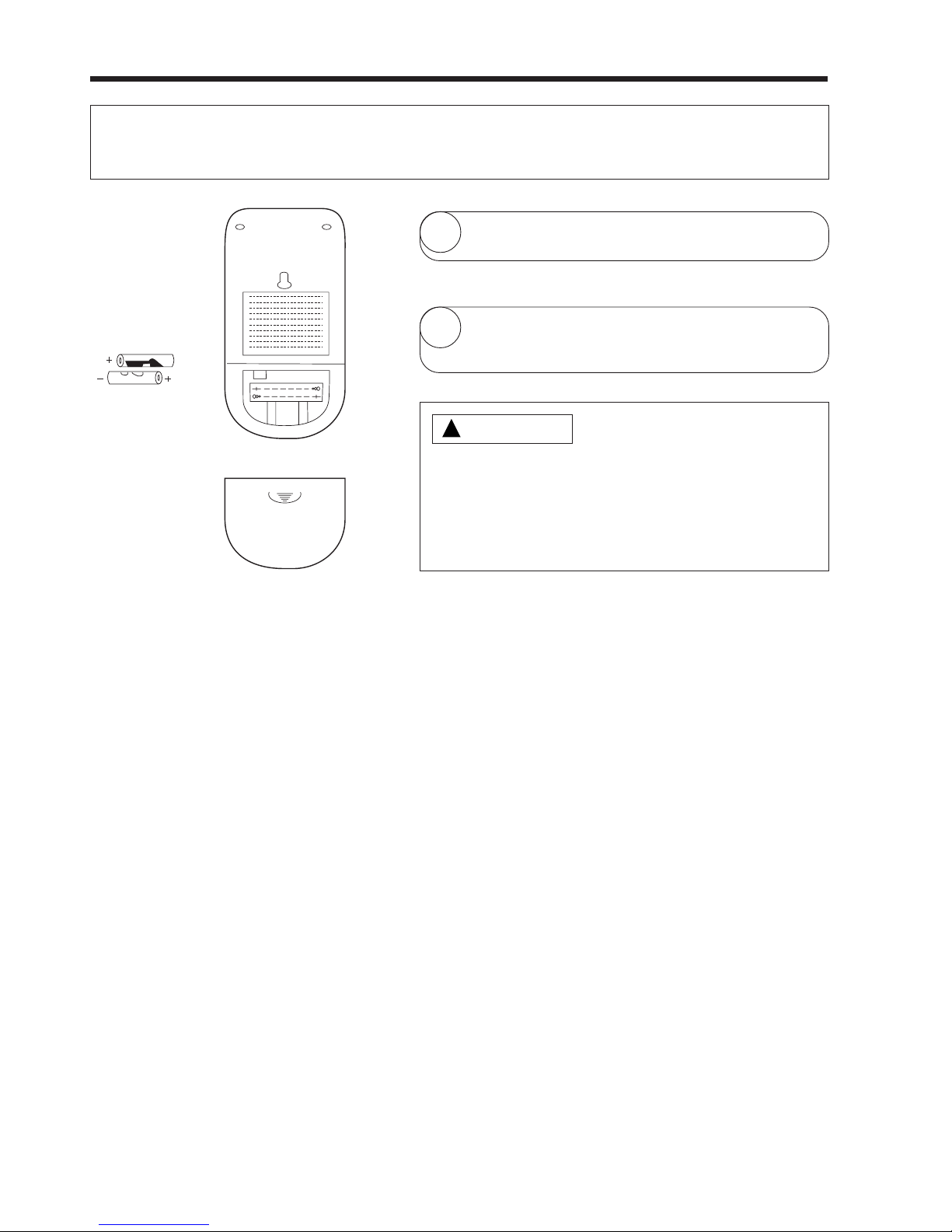

1
Remove the cover as shown in the figure and
take out the old batteries.
=
2
Install the new batteries.
The direction of the batteries should match the
marks in the case.
1. Do not use new and old batteries, or different kinds
of batteries together.
2. Take out the batteries when you do not use the remote
controller for 2 or 3 months.
3. Use high quality and high performance AAA batteries to
avoid short operating life and electrolyte leakages
CAUTION
!
When using the remote control, there is no response from the air conditioner unit and or the remote control
has fading and dim displays, the batteries in the remote control device need to be removed and replaced
with new ones

– 15 –
ENGLISH
THE IDEAL WAYS OF OPERATION
Suitable Room Temperature Install curtain or blinds
Ventilation Effective Usage Of Timer
Do Not Forget To Clean The Air Filter Please Adjust Suitable Temperature
For Baby And Children
Warning
Freezing temperature
is bad for health and a
waste of electric power.
It is possible to
reduce heat
entering the
room through
windows.
At night, please use the “sleep timer operation
mode”, together with your wake up time in the
morning. This will enable you to enjoy a
comfortable room temperature. Please use the
timer effectively.
Dusty air filter will reduce the air volume and
the cooling efficiency. To prevent from wasting
electric energy, please clean the filter every 2
weeks.
Please pay attention to the room temperature
and air flow direction when operating the unit
for baby, children and old folks who have
difficulty in movement.
(The ideal temperature
difference between
outdoor and indoor
is about ±5°C).
Caution
Do not close the room for a long period of
time. Occasionally open the door and windows
to allow the
entrance of
fresh air.

– 16 –
FOR USER’S INFORMATION
The Air Conditioner And The Heat Source In The Room
Not Operating For A Long Time
When Lightning Occurs
Caution
If the amount of heat in the room is above the cooling
capability of the air conditioner (for example: more
people entering the room, using heating equipments
and etc.), the preset room temperature cannot be
achieved.
When the indoor unit is not to be used for a long
period of time, please switch off the power from the
mains. If the power from mains remains “ON”, the
indoor unit still consumes about 8W in the operation
control circuit even if it is in “OFF” mode.
Warning
To protect the whole unit during lightning, please
stop operating the unit and remove the plug from the
socket.
OFF
Interference From Electrical Products
Inverter-type
fluorescent
lamp.
To prevent
interference,
place at least
1m away.
TV
Caution
To avoid noise interference, please place the indoor
unit and its remote controller at least 1m away from
electrical products.

–17 –
ENGLISH
MAINTENANCE OF THE UNITS
Ensure that the unit is not in operation and all power supply has been disconnected before cleaning the
units.
CAUTION
Dust Filter Screen
Dust filter screens are installed to remove the indoor dust particles hence they should be kept clean at all
times. They should be cleaned at each machine operation cycle of approximately 100 hours. Excessive dust
collected at the dust filter screen will block the air flow, reduce the cooling capability and could produce
noise. Therefore the dust filter screen should be cleaned as per instructions given below:
Cleaning Instructions
(1) Removing the dust filter screen
While holding both edges of the front panel, open up and lift the front panel and push in to park at the
secured position
Front panel
Front cabinet
Slightly lift up the dust filter screen, release the latch clips [2 places] located at the bottom of the front cabinet
and move the dust filter screen downwards to remove it from the unit
(2) Use a vacuum cleaner to vacuum clean the dust accumulated at the dust filter screen. If the accumulated
dust is too much to be removed by vacuum cleaning, apply mild detergent and flush the dust from the dust
filter screen with water. After thorough rinsing, leave the dust filter screen at a cool shaded place to dry.
(3) Re-install the dust filter screen to its original position (With “FRONT”marker facing front). Slightly lift up the
opened front panel and close it by returning it to its original position
(4) Each year before using the air conditioner unit, clean the heat exchanger (evaporator) with a fine soft brush
or a vacuum cleaner and take care to avoid damaging the evaporator fins
Front panel
Dust filter screen
Latch clip
CAUTION
Do not use hot water (40°C and above) to rinse the dust filter screen, otherwise the screen will warp
and get distorted. After rinsing, shake the dust filter screen to rid off all remaining water droplets and
place it at a cool shaded place to dry. Avoid placing the dust filter screen under direct sunlight, otherwise
the screen will warp and get distorted.
Do not operate the air conditioner unit without the dust filter screen installed, otherwise the ingress
of dust into the air conditioner unit will cause breakdowns

–18 –
CLEANING THE FRONT PANEL
Hot water
Volatile liquid, acid and others
PREPARATION AND MAINTENANCE OF UNIT FOR AN EXTENDED PERIOD OF NON-OPERATION
TROUBLE SHOOTING THE UNIT BEFORE CONTACTING SERVICE STAFF TO CHECK AND RECTIFY
1. Front panel can easily get dirty. Use a soft cloth to wipe it.
2. If the front panel is excessively dirty, wipe the front panel with a soft
cloth either wet with warm water or containing a mild detergent after
which, wipe dry the front panel with a soft dry cloth.
3. Do not use hot water (50°C and above), volatile liquid, gasoline,
acid, diluting agents or brushes to clean the front panel as they
could damage the plastic finishing and paintwork of the front panel.
CAUTION
On a fine weather day, operate the air conditioner unit for half a day
under the operating mode “FAN”with the fan speed set as “HIGH FAN”.
This will dehumidify the unit.
The air conditioner unit is not operating.
Check whether the power supply plug is properly plugged in.
Abnormal air conditioning effects.
1. Is the dust filter screen clogged with dust and dirt?
2. Is the outdoor unit is located in direct sunlight?
3. Is there any blockage to the air flow of both the indoor and
outdoor units?
4. Are the doors and windows being left opened or is there any
heat source inside the room?
5. Is the temperature setting appropriate?
Please disconnect the power plug before cleaning the
front panel.

–19 –
ENGLISH
AFTER SALE SERVICE AND WARRANTY
WHEN ASKING FOR SERVICE, CHECK THE FOLLOWING POINTS.
When it does not operate
●Is the fuse all right?
●Is the voltage extremely high or low?
●Is the circuit breaker “ON”?
●Is the air filter blocked with dust?
●Does sunlight fall directly on the outdoor unit?
●Is the air flow of the outdoor unit obstructed?
●Are the doors or windows opened, or is there any source of
heat in the room?
●Is the set temperature suitable?
CONDITION CHECK THE FOLLOWING POINTS
Notes
●In quiet operation or stopping the operation, the following phenomena
may occassionally occur, but they are not abnormal for the operation.
(1) Slight flowing noise of refrigerant in the refrigerating cycle.
(2) Slight rubbing noise from the fan casing which is cooled and then
gradually warmed as operation stops.
●The odor will possibly be emitted from the room air conditioner because
the various odor, emitted by smoke, foodstuffs, cosmetics and so on,
sticks to it. So please clean the air filter and the evaporator regularly to
reduce the odor.
●Please contact your sales agent immediately if the air conditioner still fails to operate normally after the above
inspections. Inform your agent of the model of your unit, production number, date of installation. Please also
inform him regarding the fault.
●Power supply shall be connected at the rated voltage, otherwise the unit will be broken or could not reach the
specified capacity.
When it does not cool well

–20 –
This product conforms with the protection requirements of council directives 89/336/EEC relating to
electromagnetic compatibility and 73/23/EEC relating to electrical equipment designed for use within certain
voltage limits.
MEMO
.....................................................................................................................................................................................
.....................................................................................................................................................................................
.....................................................................................................................................................................................
.....................................................................................................................................................................................
.....................................................................................................................................................................................
.....................................................................................................................................................................................
.....................................................................................................................................................................................
.....................................................................................................................................................................................
.....................................................................................................................................................................................
.....................................................................................................................................................................................
.....................................................................................................................................................................................
.....................................................................................................................................................................................
.....................................................................................................................................................................................
.....................................................................................................................................................................................
.....................................................................................................................................................................................
.....................................................................................................................................................................................
.....................................................................................................................................................................................
.....................................................................................................................................................................................
.....................................................................................................................................................................................
Please note:
On switching on the equipment, particularly when the room light is dimmed, a slight brightness fluctuation
may occur. This is of no consequence.
The conditions of the local Power Supply Companies are to be observed.
Minimum Maximum
Indoor Dry bulb °C21 32
Wet bulb °C15 23
Outdoor Dry bulb °C21 43
Wet bulb °C15 26
Note
●Avoid to use the room air conditioner for cooling operation when the outside temperature is below
21°C (70°F).
The recommended maximum and minimum operating temperatures of the hot and cold sides
should be as below:
