Hitachi RAS-10JH4 User manual

AW NO. 0041E
SERVICE MANUAL
TECHNICAL INFORMATION
REFER TO THE FOUNDATION MANUAL
ROOM AIR CONDITIONER
INDOOR UNIT + OUTDOOR UNIT
SPECIFICATIONS AND PARTS ARE SUBJECT TO CHANGE FOR IMPROVEMENT
FOR SERVICE PERSONNEL ONLY
SPECIFICATIONS
SPECIFICATIONS ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥
HOW TO USE ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥
CONSTRUCTION AND DIMENSIONAL DIAGRAM ‥‥
MAIN PARTS COMPONENT ‥‥‥‥‥‥‥‥‥‥
WIRING DIAGRAM ‥‥‥‥‥‥‥‥‥‥‥‥‥‥
BLOCK DIAGRAM‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥
BASIC MODE‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥
REFRIGERATING CYCLE DIAGRAM ‥‥‥‥‥‥
DESCRIPTION OF MAIN CIRCUIT OPERATION ‥‥‥
SERVICE CALL Q & A ‥‥‥‥‥‥‥‥‥‥‥‥
TROUBLE SHOOTING ‥‥‥‥‥‥‥‥‥‥‥‥
PROCEDURE FOR DISASSEMBLY AND REASSEMBLY ‥‥
PARTS LIST AND DIAGRAM ‥‥‥‥‥‥‥‥‥
CONTENTS
4
5
22
24
26
29
30
37
38
68
72
102
105
INDOOR UNIT
RAS-10JH4
RAS-14JH4
OUTDOOR UNIT
RAC-10JH4
RAC-14JH4
RAS-10JH4 / RAC-10JH4
RAS-14JH4 / RAC-14JH4
(W)
(A)
(kW)
(B.T.U./h)
(W)
(A)
(kW)
(B.T.U./h)
W
H
D
(kg)
RAS-10JH4 RAC-10JH4
DC INVERTER (WALL TYPE)
TYPE
MODEL
POWER SOURCE
TOTAL INPUT
TOTAL AMPERES
CAPACITY
TOTAL INPUT
TOTAL AMPERES
CAPACITY
DIMENSIONS
(mm)
NET WEIGHT
790
298
210
10
COOLING
HEATING
INDOOR UNIT OUTDOOR UNIT
1 PHASE, 50Hz, 220-230V
3.70 - 3.53
2.50 (1.60 - 3.10)
8,530 (5,459 - 10,577)
4.71 - 4.50
3.40 (1.70 - 4.00)
11,600 (5,800 - 13,648)
750(+91)※
(+47)※
548
288
35
RAS-14JH RAC-14JH
790
298
210
10
INDOOR UNIT OUTDOOR UNIT
1 PHASE, 50Hz, 220-230V
3.50 (1.60 - 3.80)
11,940 (5,459 - 12,966)
1,100 (400 - 1,400)
4.20 (1.70 - 5.00)
14,330 (5,800 - 17,060)
750(+91)※
(+47)※
548
288
35
After installation
※
Hitachi Household Appliances (Wuhu) Co., Ltd.
44
690 (400 - 1,120)
880 (400 - 1,160)
1080 (400 - 1,300)
5.17 - 4.94
5.26 - 5.03

1. In order to disassemble and repair the
unit in question, be sure to disconnect the
power cord plug from the power outlet
before starting the work.
2. If it is necessary to replace any parts, they should be replaced with respective genuine parts for the unit,
and the replacement must be effected in correct manner according to the instructions in the Service
Manual of the unit.
3. After completion of repairs, the initial state should be
restored.
4. Lead wires should be connected and laid as in the
initial state.
5. Modification of the unit by the user himself should
absolutely be prohibited.
6. Tools and measuring instruments for use in repairs or inspection should be accurately calibrated in
advance.
7. In installing the unit having been repaired, be careful to prevent the occurrence of any accident such as
electrical shock, leak of current, or bodily injury due to the drop of any part.
8. To check the insulation of the unit, measure the insulation resistance between the power cord plug and
grounding terminal of the unit.
The insulation resistance should be 1M or more as measured by a 500V DC megger.
9. The initial location of installation such as window, floor or the other should be checked for being safe
enough to support the repaired unit again.
If it is found not so strong and safe, the unit should be installed at the initial location after reinforced or
at a new location.
10. Any inflammable object must not be placed
about the location of installation.
11. Check the grounding to see whether it is
proper or not, and if it is found improper,
connect the grounding terminal to the earth.
Spray
gasoline
gasbombe
thinner
SAFETY DURING REPAIR WORK
If the contacts of electrical
parts are defective, replace
the electrical parts without
trying to repair them
1
2
3
4
5
DANGER

WORKING STANDARDS FOR PREVENTING BREAKAGE OF SEMICONDUCTORS
1. Scope
The standards provide for items to be generally observed in carrying and handling semiconductors in
relative manufactures during maintenance and handling thereof. (They apply the same to handling of
abnormal goods such as rejected goods being returned.)
2. Object parts
(1) Micro computer
(2) Integrated circuits (I.C.)
(3) Field effective transistor (F.E.T.)
(4) P.C. boards or the like to which the parts mentioned in (1) and (2) of this paragraph are equipped.
3. Items to be observed in handling
(1) Use a conductive container for carrying and storing of parts. (Even rejected goods should be handled in
the same way.)
(2) When any part is handled uncovered (in counting, packing and the like), the handling person must
always use himself as a body earth. (Make yourself a body earth by passing one M ohm earth
resistance through a ring or bracelet.)
(3) Be careful not to touch the parts with your clothing when you hold a part even if a body earth is
being taken.
(4) Be sure to place a part on a metal plate with grounding.
(5) Be careful not to fail to turn off power when you repair the printed circuit board. At the same time,
try to repair the printed circuit board on a grounded metal plate.
HITACH I IC40 1TH1 , 188UV
Fig. 1 Conductive container
A conductive polyvinyl bag
IC
IC
Conductive sponge
Fig. 2 Body earth
Body earth (Elimik conductive band)
Clip for connection with
a grounding wire
1MΩ
- 1 -

(6) Use a three wire type soldering iron including a grounding wire.
Fig.4 Grounding a solder iron
Use a high insulation mode (100V, 10MΩor higher) when ordinary iron is to be used.
(7) In checking circuits for maintenance, inspection, or some others, be careful not to have the test probes
of the measuring instrument shortcircuit a load circuit or the like.
Bare copper wire (for body earth)
Metal plate (of Al. stainless steel, etc.)
Working table
Resistor 1MΩ(1/2W)
Earth wirte
Staple
Fig.3 Grounding of the working table
soldering iron
Grounding wire
Screw stop at the screwed
part using a rag plate
- 2 -

1. In quiet operation or stopping the running, slight flowing noise of refrigerant in the refrigerating cycle is
heard occasionally, but this noise is not abnormal for the operation.
2. When it thunders near by, it is recommend to stop the operation and to disconnect the power cord plug from
the power outlet for safety.
3. The room air conditioner does not start automatically after recovery of the electric power failure for prevent-
ing fuse blowing. Re-press START/STOP button after 3 minutes from when unit stopped.
4. If the room air conditioner is stopped by adjusting thermostat, or missoperation, and re-start in a moment,
there is occasion that the cooling and heating operation does not start for 3 minutes, it is not abnormal and
this is the result of the operation of IC delay circuit. This IC delay circuit ensures that there is no danger of
blowing fuse or damaging parts even if operation is restarted accidentally.
5. This room air conditioner should not be used at the cooling operation when the outside temperature is
below−10℃(14°F).
6. This room air conditioner (the reverse cycle) should not be used when the outside temperature is below
−15℃(5°F).
If the reverse cycle is used under this condition, the outside heat exchanger is frosted and efficiency falls.
7. When the outside heat exchanger is frosted, the frost is melted by operating the hot gas system, it is not
trouble that at this time fan stops and the vapour may rise from the outside heat exchanger.

CAUTION
- 3 -

SPECIFICATIONS
MODEL
FAN MOTOR
FAN MOTOR CAPACITOR
FAN MOTOR PROTECTOR
COMPRESSOR
COMPRESSOR MOTOR CAPACITOR
OVERLOAD PROTECTOR
OVERHEAT PROTECTOR
FUSE (for MICROPROCESSOR)
POWER RELAY
POWER SWITCH
TEMPORARY SWITCH
SERVICE SWITCH
TRANSFORMER
VARISTOR
NOISE SUPPRESSOR
THERMOSTAT
REMOTE CONTROL SWITCH (LIQUID CRYSTAL)
40W (DC350V)
NO
NO
NO
ASC092CD-A8JK
YES
YES
3.0A
G4A
NO
NO
YES
NO
450NR
YES
YES(IC)
NO
WITHOUT REFRIGERANT BECAUSE
COUPLING IS FLARE TYPE.
UNIT
PIPES (MAX. 30m)
REFRIGERANT CHARGING
VOLUME
(Refrigerant 410A)
870g 1150g
RAS-10JH4
RAS-14JH4 RAC-10JH4 RAC-14JH4
25W (DC35V)
NO
NO
—
NO
NO
NO
NO
NO
YES
NO
NO
NO
NO
YES(IC)
YES
----------
YES
- 4 -

– 3 –
ENGLISH
•
Do not reconstruct the unit. Water leakage, fault, short circuit or fire may occur if you reconstruct the unit by yourself.
•
Please ask your sales agent or qualified technician for the installation of your unit. Water leakage, short circuit or fire may occur if you install the unit by yourself.
•
Please use earth line. Do not place the earth line near water or gas pipes, lightning-conductor, or the earth line of telephone. Improper installation of earth line may cause electric shock.
•
Be sure to use the specified piping set for R410A. Otherwise, this may result in broken copper pipes or faults.
•
A circuit breaker should be installed depending on the mounting site of the unit. Without a circuit breaker, the danger of electric shock exists.
•
Do not install the unit near location where there is flammable gas. The outdoor unit may catch fire if flammable gas leaks around it. Piping shall be suitable supported with a maximum spacing of 1m between the supports.
•
Please ensure smooth flow of water when installing the drain hose. If any failure is found in the drain path, water drops from the indoor and outdoor units, causing wet household effects.
•
Make sure that a single phase 230V power source is used. The use of other power sources may cause electrical components to overheat and lead to fire.
WARNING WARNING
CAUTION
•

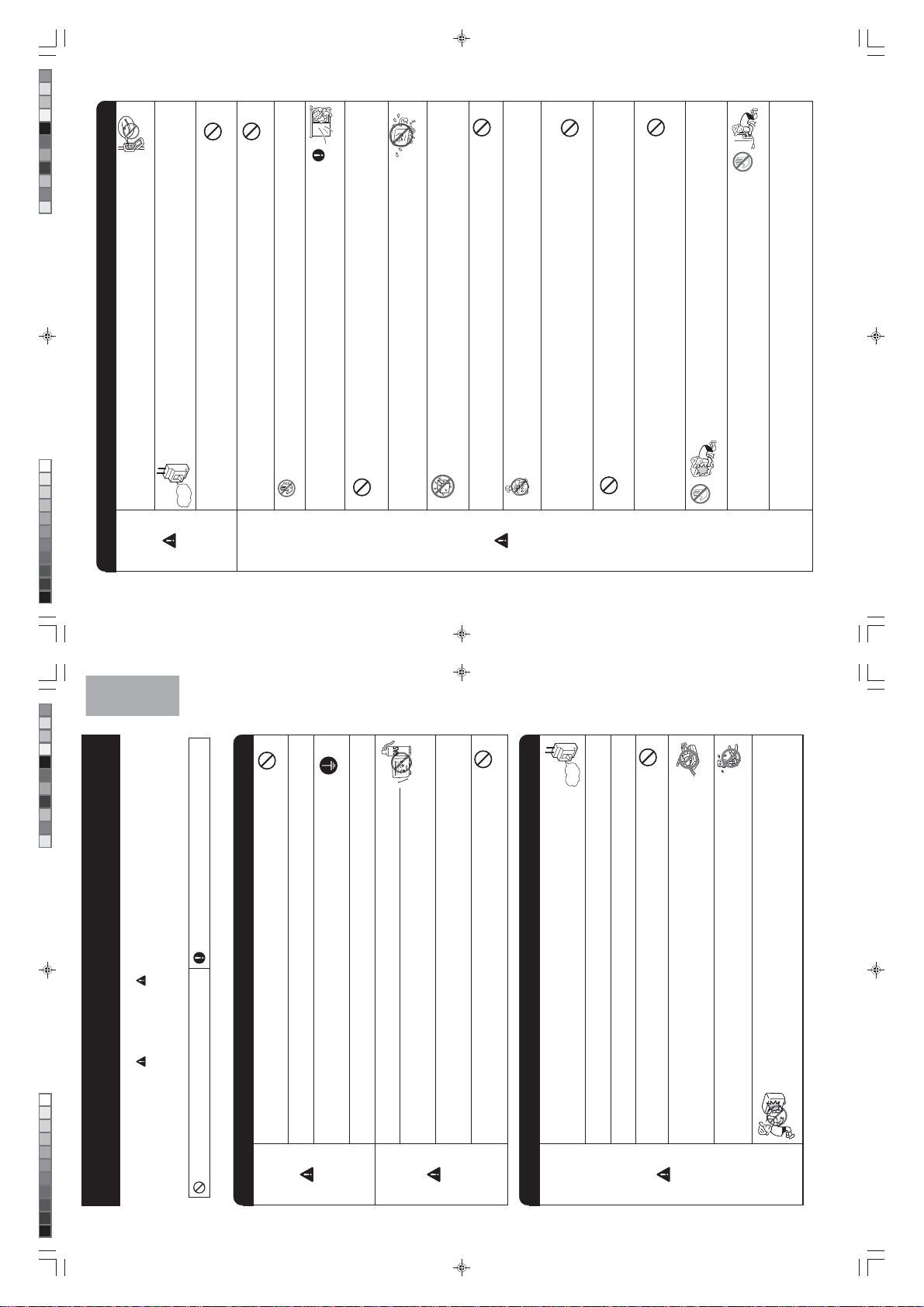

Please read the “Safety Precaution” carefully before operating the unit to ensure correct usage of the unit.
•
Pay special attention to signs of “ WARNING” and “ CAUTION”.The “Warning” section contains matters which, if
not observed strictly, may cause death or serious injury. The “Caution” section contains matters which may result in serious consequences if not observed properly. Please observe all instructions strictly to ensure safety.
•
The signs indicate the following meanings. (The following are examples of signs.)
•
Please keep this manual after reading.
SAFETY PRECAUTION
PRECAUTIONS DURING INSTALLATION
PROHIBITION
PROHIBITION
•
Should abnormal situation arise (like burning smell), please stop operating the unit and remove plug from the socket or turn off the circuit breaker. Contact your agent. Fault, short circuit or fire may occur if you continue to operate the unit under abnormal situation.
•
Please contact your agent for maintenance. Improper self maintenance may cause electric shock and fire.
•
Please contact your agent if you need to remove and reinstall the unit. Electric shock or fire may occur if you remove and reinstall the unit yourself improperly.
•
Avoid an extended period of direct air flow for your health.
•
Do not connect the power cable with an extension cable or do not plug too many leads of the other electric appliance into the socket where this cable is plugged. In addition, wire the cable with some allowances to prevent the cable from stretching. Not doing so will cause an electrical shock, heat generation or fire.
•
Do not bundle the power cable, pull it, put something on it, heat it, process it, or put it between things. Breakage of the power cable may result. Use of a damaged cable may cause an electrical shock or a fire.
•
Do not put objects like thin rods into the panel of blower and suction side because the high-speed fan inside may cause danger.
PRECAUTIONS DURING SHIFTING OR MAINTENANCE
"OFF"
PROHIBITION
CONNECT EARTH LINE
PROHIBITION
PROHIBITION
PROHIBITION
PROHIBITION
This sign in the figure indicates prohibition. Indicates the instructions that must be followed.
RAS-10_14JH3_Ope_EN 05/12/2008, 04:43 pm3
– 4 –
•
Do not use any conductor as fuse wire, this could cause fatal accident.
•
During thunder storm, please stop operating the unit and turn off the circuit breaker.
•
Spray cans and other combustibles should not be located within a meter of the air outlets of both indoor and outdoor units. As a spray can’s internal pressure can be increased by hot air, a rupture may result.
•
The product shall be operated under the manufacturer specification and not for any other intended use.
•
Do not attempt to operate the unit with wet hands. this could cause fatal accident.
•
When operating the unit with burning equipments, regularly ventilate the room to avoid oxygen insufficiency.
•
Do not direct the cool air coming out from the air-conditioner panel to face household
heating apparatus as this may affect the working of apparatus such as the electric kettle,
oven etc.
•
Please ensure that outdoor mounting frame is always stable, firm and without defect. If not, the outdoor unit may collapse and cause danger.
•
Do not wash the unit with water or place a water container such as a vase on the indoor unit. Electrical leakage could be present and cause electric.
•
Do not place plants or animals directly under the air flow as it is bad for the plants or animals.
•
Do not climb on the outdoor unit or put objects on it.
•
When operating the unit with the door and windows opened, (the room humidity is always above 80%) and with the air deflector facing down or moving automatically for a long period of time, water will condense on the air deflector and drips down occasionally. This will wet your furniture. Therefore, do not operate under such condition for a long time.
•
If the amount of heat in the room is above the cooling or heating capability of the unit (for example: more people entering the room, using heating equipments and etc.), the preset room temperature cannot be achieved.
•
This appliance especially indoor unit cleaning must be performed by authorized personnel only. Consult your sales agent. Using a commercially available detergent or similar can damage the plastic parts or clog the drain pipe, causing water to drip with potential electric shock hazard.
•
Do not touch the air outlet, bottom surface and aluminum fin of the outdoor unit. You may get hurt.
•
Do not touch the refrigerant pipe and connecting valve. Burns may result.
•
This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use this appliance safely.
•
Young children should be supervised to ensure that they do not play with the appliance.
CAUTION
WARNING
PRECAUTIONS DURING OPERATION
"OFF"
DON'T WET
PROHIBITION
PROHIBITION
PROHIBITION
PROHIBITION
DON’T TOUCH
PROHIBITION PROHIBITION
PROHIBITION
STRICTLY OBSERVE
PRECAUTIONS
PROHIBITION
PROHIBITION
PROHIBITION
PROHIBITION
DON’T TOUCH
RAS-10_14JH3_Ope_EN 05/12/2008, 04:43 pm4

– 5 –
HSILGNE
(Rear and left sides)
Air Outlet cool air blows and when “cooling” or “dehumidifying” operation is performed, warm air blows.
Drain Port (Bottom)
Earth Terminal
(Lower section of the side)
Two Way Air Exchange Hose This vents air from outside the room when the fresh air in is operating. This vents air within the room to the outside when the exhaust is operating. Remote Controller Fresh Air Window This blows air from outside into the room while the fresh air in is operating. Two Way Air Exchange Fan (Internal) This operates when the Two Way Air Exchange is operating. Receive the signal from the remote controller.
Horizontal deflector/Vertical deflector (Air outlet) (Refer page 24)
Air Purification Unit (Internal) This traps cigarette smoke, pollen, etc. (Refer page 10)
Pre-Filter (Internal) To prevent dust from coming into the indoor unit. (Refer page 27)
NAMES AND FUNCTIONS OF EACH PART
INDOOR UNIT
MODEL NAME AND DIMENSIONS
OUTDOOR UNIT
MODEL WIDTH (mm) HEIGHT (mm) DEPTH (mm)
0128920974HJ41-SAR,4HJ01-SAR
8828450574HJ41-CAR,4HJ01-CAR
About the outdoor unit:
•
When “Stop” is selected during operation of the indoor unit, the fan of the outdoor unit continues turning for 10 to 60 seconds to cool the electric parts down.
•
In heating operation, condensate or water due to defrosting will flow. Do not cover the drain port of the outdoor unit because such water may freeze in the chilly area.
•
When the outdoor unit is hung on the ceiling, install the bush and drain pipe on the drain port and drain water.
RAS-10_14JH4_Ope_EN 5
Signal Receiver Drain Hose Drains the dehumidified water from the indoor unit to the outdoor during “cooling” or “dehumidifying” operation. Piping and Wiring Air Inlets Send out operation signal to the indoor unit. So as to operate the whole unit. (Refer page 8) Light Indoor Unit Indicators
indicator showing the operating condition.(Refer page 7)
When “heating” operation is performed,
– 6 –
NAMES AND FUNCTIONS OF EACH PART
Exhaust Pre-Filter This traps dirt and dust particles in the air while the exhaust is operating. (Refer to page 25)
Nano-Titanium Disinfecting Deodorizing/ Dust Collecting Fresh Air In Filter This deodorizes and eliminates dust from the air ventilated from the outside. (Refer to pages 11, 25)
Fresh Air In Pre-Filter This traps dirt and dust particles in the air ventilated from the outside. (Refer to pages 11, 25)
Front Panel
Two Way Air Exchange Selection Switch Select one of the following: “Prohibit Two Way Air Exchange”, “Only Exhaust”, and “Operate Two Way Air Exchange”. Please refer to page 33 regarding installation when the Two Way Air Exchange cannot be operated. (When the device is shipped out of the factory, it is set to “Operate Two Way Air Exchange”.)
■Operate after opening the front panel. (How to open the front panel, refer to page 10.)
Temporary Switch If the remote controller does not work due to battery failure, press this switch to start and stop operation. • This temporary operation will be at the
most recent setting mode. (The unit will immediately go into automatic operation once power is switched on.)
Power Switch
CAUTION
Turn off the circuit breaker or pull out the power plug if the unit is not be operated for a long period.
TWO WAY AIR EXCHANGE DUCT FILTER
✩If the power stays on and the unit is not operated, power is slightly consumed in the control circuit. The power is
saved by turning off the power switch (or the circuit breaker when the power is supplied from the outdoor unit).
INDOOR UNIT CONTROL PANEL
Dirt Sensor The Dirt Sensor detects cigarette smoke, sprays (pesticides), alcohol, etc. (Refer to pages 19, 34)
RAS-10_14JH3_Ope_EN 05/12/2008, 04:43 pm6

– 7 –
ENGLISH
■The “Two Way Air Exchange” lamp blinks in the following cases (It is not abnormal).
Configuring the Two Way Air Exchange Selection Switch to prohibited setting
• When “
Only Exhaust
” is selected and “
Fresh Air In During Sleep Mode Operation
” (page 23) is configured with the
remote controller to operate the
fresh air in
(page 18), the device beeps twice and the “Two Way Air Exchange” lamp
blinks (10 seconds).
• When “Prohibit Two Way Air Exchange” is selected and the “
Fresh Air In During Sleep Mode Operation
” (page 23) or the
“Automatic Two Way Air Exchange” (page 19) is configured with the remote controller to operate the
fresh air in
(page 18),
the device beeps twice and the “Two Way Air Exchange” lamp blinks (10 seconds).
While Operating the Two Way Air Exchange
• The two way air exchange is stopped during operation to prevent dew condensation on the two way air exchange fan
and hose and to protect the two way air exchange fan due to changes in the room temperature and outside air temperature. At this time, the “Two Way Air Exchange” lamp blinks (lights for 10 seconds/out for 1 second) (page 32).
■If the “TwoWay Air Exchange” lamp blinks except for the above-mentioned case, the“Two Way Air Exchange”
Fan is abnormal. (Refer page 32)
Self Clean Lamp (Yellow)
This lamp lights when the device is configured to self clean. (Refer page 19)
Two Way Air Exchange Lamp (Green)
This lamp lights when the fresh air in and exhaust are operating.
Filter Lamp (Green) When the device is operated for a total of about 200 hours, the FILTER lamp lights indicates that it is time to clean the filter.The lamp goes out when the “(AUTO SWING)” button is pressed
while the operation is stopped. But it does not turn off when self clean is working.
Operation Lamp (Yellow)
This lamp lights during operation. The OPERATION LAMP blinks in the following cases during heating. (1) During Preheating
For about 2-3 minutes after starting up.
(2) During Defrosting
Defrosting will be performed about once an hour when frost forms on the heat exchanger of the outdoor unit, for 5-10 minutes each time.
Timer Lamp (Orange)
This lamp lights when the timer is working.
INDOOR UNIT INDICATORS
RAS-10_14JH3_Ope_EN 05/12/2008, 04:43 pm7
– 8 –
NAMES AND FUNCTIONS OF EACH PART
●Signal Emitting Window/Transmission Sign
Point this window toward the indoor unit when controlling it. The transmission sign blinks when a signal is sent.
●Display
This indicates the room temperature selected, current time, timer status, function and intensity of circulation selected.
●START / STOP Button
Press this button to start operation. Press it again to stop operation.
●HEATING Button
Heating mode direct selection.
●AUTO Button
Auto mode direct selection.
●COOLING Button
Cooling mode direct selection.
●TEMPERATURE Button
Use these buttons to raise or lower the temperature setting. (Keep pressing and the value will change more quickly.)
●FAN Button
This determines the fan speed. Every time you press these buttons, the intensity of circulation will change from “ (AUTO) ↔(HI) ↔
(MED) ↔(LOW) ↔(SILENT)” (This button allows selecting the
optimal or preferred fan speed for each operation mode.)
●SLEEP Button
Use this button to set the sleep timer.
●TWO WAY AIR EXCHANGE Button
Press this button to start the two way air exchange mode.
REMOTE CONTROLLER • This controls the operation of the indoor unit.The range of control is about 7 meters. If indoor lighting is controlled
electronically, the range of control may be shorter, in some cases, the control signal may not be received. This unit can be fixed on a wall using the fixture provided. Before fixing it, make sure the indoor unit can be controlled from the remote controller.
• Handle the remote controller with care. Dropping it or getting it wet may compromise its signal transmission
capability.
• After new batteries are inserted into the remote controller, the unit will initially require approximately 10 seconds
to respond to commands and operate.
RAS-10_14JH3_Ope_EN 05/12/2008, 04:43 pm8

– 9 –
ENGLISH
●SELF CLEAN Button
Use this button to set the self clean mode.
●AUTOMATIC TWO WAY AIR EXCHANGE Button
Press this button to set the automatic two way air exchange mode.
●AIR PURIFIER Button
Press this button to start the air purifier mode.
●FAN SPEED Selector
This determines the fan speed. Every time you press this button, the intensity of circulation will change from “ (AUTO) ➔(HI) ➔(MED)
➔(LOW) ➔(SILENT)” cyclically.
●FUNCTION Selector
Use this button to select the operating mode. Every time you press this button, the mode will change from “ (AUTO) ➔(HEAT) ➔
(DEHUMIDIFY) ➔(COOL) ➔(FAN)” cyclically.
●AUTO SWING Button
Controls the angle of the horizontal air deflector.
●FRESH AIR IN DURING SLEEP MODE Button
Use this button to set the fresh air in during sleep mode.
●RESERVE Button…Time setting reservation.
●CANCEL Button…Cancel time reservation. ●TIMER Control…Use these buttons to set the timer.
●TIME Button…Use this button to set and check the time.
●OFF-TIMER Button …Select the turn OFF time. ●ON-TIMER Button …Select the turn ON time.
●RESET Button
Press this button after the batteries are replaced or when some irregular operation is found.
AUTO HEAT DEHUMIDIFY COOL FAN FAN SPEED TWO WAY AIR EXCHANGE TWO WAY AIR EXCHANGE FAN SPEED EXHAUST FRESH AIR IN FRESH AIR IN DURING SLEEP MODE
SILENT LOW MED HI
HI MED LOW
SLEEPING STOP (CANCEL) START (RESERVE) START/STOP TIME TIMER SET TIMER SELECTOR ON TIMER OFF TIMER AUTO SWING SELF CLEAN AUTOMATIC TWO WAY AIR EXCHANGE AIR PURIFIER
Precautions for Use • Do not put the remote controller in the following places.
• In direct sunlight. • In the vicinity of a heater.
• Handle the remote controller carefully. Do not drop it on the floor, and protect it from water. •
Once the outdoor unit stops, it will not restart for about 3 minutes (unless you turn the power switch off and on or unplug the power cord and plug it in again).This is to protect the device and does not indicate a failure.
• If you press the FUNCTION selector button during operation, the device may stop for about 3 minutes for
protection.
RAS-10_14JH3_Ope_EN 05/12/2008, 04:43 pm9
– 10 –
Open the Front Panel •
Hold both sides of the front panel and lift up.
Removing the Pre-Filter •
Pull out the pre-filters on the right and left.
Removing the Air Purifying Unit •
Remove the air purifying unit (2 pieces) by pulling out while pushing up with both hands.
Pre-Filter
Attaching the Air Purifying Filter on the Air Purifying Unit •
Open the air purifying unit and attach the air purifying filter with the jagged side up.
Attaching the Air Purifying Unit Attaching the Pre-Filter
•
Please attach the pre-filter with the “FRONT” indication. (The configuration of the left and right pre-filters is different.)
1
4 2 3
56
2
Pull Out
1
Push and Lift
2
Insert
Please install the filters after turning off the device with the remote controller.
INSTALLING AND VERIFYING THE AIR PURIFYING FILTER/DUCT FILTER (FRESH
Pre-Filter
1
DEODORIZING/DUST COLLECTING FRESH AIR IN FILTER)
•
This filter can be used for about 2 years. Please do not wash this filter. This filter is disposable type.
•
Optional Air Purifying Filter (SPX-CFH15).
Air Purifying Filter (Included)
Air Purifying Unit
Air Purifying Unit
Air Purifying Unit
1
Insert
RAS-10_14JH4_Ope_EN 10
Front Panel

– 11 –
HSILGNE
Removing the Fresh Air In Pre-Filter • Please pull out.
Removing the Nano-Titanium Disinfecting Deodorizing/Dust Collecting Fresh Air In Filter Case • Please hold the
handle of the Nano- Titanium Dis- infecting Deodori- zing/Dust Collecting Fresh Air In Filter Case and pull out.
Attaching the Nano-Titanium Disinfecting Deodorizing/Dust Collecting Fresh Air In Filter
Attaching the Nano-Titanium Disinfecting Deodorizing/Dust Collecting Fresh Air In Filter Case
• Please hold the
handle of the case and attach along the slot, and then keep pressing until the case clicks.
• Improper filter
installation may result in abnormal noises.
Attaching the Fresh Air In Pre-Filter • Please hold the handle and install the filter by
pushing it along the inner grooves.
Closing the Front Panel • Hold the front panel with both hands and pull
forward, then down.
• Keep pressing the front panel in the direction of
the arrow (3 places) until the panel clicks.
• If the front panel is loose, the panel may come off and fall. • When opening the front panel, please do not use excessive force. If the front panel
comes off the device, this may cause it to malfunction.
• Please do not operate the device without the pre-filter. If dust enters the machine, this
may cause it to malfunction.
• When removing and installing the pre-filter, please take sufficient care not to cut your
hand with the fin of the heat exchanger.
9
7 8
1211
10
CAUTION
Groove
AIR IN PRE-FILTER, EXHAUST PRE-FILTER, NANO-TITANIUM DISINFECTING
Nano-Titanium Disinfecting Deodorizing/Dust Collecting Fresh Air In Filter (included)
RAS-10_14JH4_Ope_EN 11
Front Panel
– 12 –
VARIOUS FUNCTIONS
• If there is a power failure, operation will be automatically restarted when the power is resumed with previous
operation mode and airflow direction. (As the operation is not stopped by remote controller.)
• If you intend not to continue the operation when the power is resumed, switch off the power supply.
When you switch on the circuit breaker, the operation will be automatically restarted with previous operation mode and airflow direction. Note: 1. If you do not require Auto Restart Control, please consult your sales agent.
2. Auto Restart Control is not available when Timer or Sleep Timer mode is set.
AUTOMATIC OPERATION
Press the (START/STOP) button.
■Direct selection
Press the (AUTO) button. Operation start with a beep at previous AUTO mode.
1
STOP
AUTO RESTART CONTROL
The device will automatically determine the mode of operation, HEAT or COOL depending on the initial room temperature. The selected mode of operation will change when the room temperature varies.
RAS-10_14JH3_Ope_EN 05/12/2008, 04:43 pm12

– 13 –
ENGLISH
You can raise or lower the temperature setting as necessary by maximum of 3°C.
Press the temperature button and the temperature setting will change by 1°C each time.
• The preset temperature and the actual room temperature may vary somewhat
depending on conditions.
Press the FUNCTION selector so that the display indicates the
(AUTO) mode
of operation. • When
AUTO has been selected, the device will automatically determine the
mode of operation, HEAT or COOL depending on the current room temperature.
• When AUTO is first selected, the device will determine the current room
temperature and select the proper operation mode accordingly.
• When the air conditioner has adjusted the room’s temperature to the near
preset temperature, it will begin to monitor operation. If the room temperature subsequently changes, the air conditioner will once again select the appropriate operation (heating or cooling) to adjust the temperature to the preset temperature. The monitoring operation range is ±3°C relative to the preset temperature.
• If the mode automatically selected by the unit is not satisfactory, manually
change the mode setting (heat, dehumidify, cool or fan).
Press the (START/STOP) button.
Operation starts with a beep. Press the button again to stop operation.
■As the settings are stored in memory in the remote controller, you only have to press
the (START/STOP) button next time.
Press the (FAN SPEED) button to select AUTO, LOW and SILENT.
1
■Manual selection
START
STOP
RAS-10_14JH3_Ope_EN 05/12/2008, 04:43 pm13
– 14 –
HEATING OPERATION
Press the FUNCTION selector so that the display indicates (HEAT). Set the desired FAN SPEED with the (FAN SPEED) button (the display
indicates the setting).
(AUTO) : The FAN SPEED changes automatically according to the
temperature of the air which blows out.
(HI) : Economical as the room will become warm quickly. But you
may feel a chill at the beginning.
(MED) : Quiet. (LOW) : More quiet. (SILENT) : Silent.
■As the settings are stored in memory in the remote controller, you only have to press
the (START/STOP) button next time.
1
Press the (HEAT) button. Operation start with a beep at previous HEAT mode.
1
Press the (START/STOP) button.
■Direct selection ■Manual selection
• Use the device for heating when the outdoor temperature is under 21°C. When it is too warm (over 21°C), the
heating function may not work in order to protect the device.
• In order to keep reliability of the device, please use this device above -15°C of the outdoor temperature.
DEFROSTING
Defrosting will be performed about once an hour when frost forms on the heat exchange of the outdoor unit, for 5~10 minutes each time. During defrosting operation, the operation lamp blinks in cycle of 3 seconds on and 0.5 second off. The maximum time for defrosting is 20 minutes. (If the piping length used is longer than usual, frost will likely to form.)
Press the (START/STOP) button.
Heating operation starts with a beep. Press the button again to stop operation.
START
STOP
Set the desired room temperature with the TEMPERATURE buttons (the display indicates the setting). The temperature setting and the actual room temperature may vary somewhat depending on conditions.
3
2
STOP
RAS-10_14JH3_Ope_EN 05/12/2008, 04:43 pm14

– 15 –
ENGLISH
DEHUMIDIFYING OPERATION
Press the FUNCTION selector so that the display indicates (DEHUMIDIFY).
Press the (FAN SPEED) button to select LOW and SILENT.
Press the (START/STOP) button.
■When you want to change the operation mode, please use the FUNCTION
selector.
■Set the desired temperature is available. ■You also can use the FUNCTION selector to select this operation.
• Dehumidifying takes place with a target temperature which is slightly lower than the room temperature setting.
(However, target temperature is 16°C for a temperature setting of 16°C.) If the room temperature becomes lower than the target value, operation stops. If the room temperature becomes higher than the target value, operation restarts.
• The preset room temperature may not be reached depending on the number of people present in the room
conditions.
DEHUMIDIFYING FUNCTION
Use the device for dehumidifying when the room temperature is over 16°C.When it is under 15°C, the dehumidifying function will not work.
1
START
STOP
RAS-10_14JH3_Ope_EN 05/12/2008, 04:43 pm15
– 16 –
Set the desired room temperature with the TEMPERATURE buttons (the display indicates the setting). The temperature setting and the actual room temperature may vary somewhat depending on conditions.
COOLING OPERATION
Set the desired FAN SPEED with the (FAN SPEED) button (the display
indicates the setting).
(AUTO) :
The FAN SPEED is HI at first and varies to MED automatically when the preset temperature has been reached.
(HI) : Economical as the room will become cool quickly. (MED) : Quiet. (LOW) : More quiet. (SILENT) : Silent.
Press the (START/STOP) button.
■Direct selection ■Manual selection
Press the FUNCTION selector so that the display indicates (COOL). Press the (COOL) button. Operation start with a beep at previous COOL
mode.
Press the (START/STOP) button. Cooling operation starts with a beep. Press
the button again to stop operation. The cooling function does not start if the temperature setting is higher than the current room temperature (even though the (OPERATION) lamp lights).
The cooling function will start as soon as you set the temperature below the current room temperature.
■As the settings are stored in memory in the remote controller, you only have to press
the (START/STOP) button next time.
Use the device for cooling when the outdoor temperature is -10 to 42°C. If humidity is very high (over 80%) indoors, some dew may form on the air outlet grill of the indoor unit.
STOP
1
2 1
START
STOP
3
RAS-10_14JH3_Ope_EN 05/12/2008, 04:43 pm16

– 17 –
ENGLISH
AIR PURIFIER OPERATION (FAN)
The air purifier is operated by pressing the (AIR PURIFIER) button.
• The device beeps when it has received the signal and then the air purifier
starts.
• The OPERATION lamp on the indoor unit indicators turn on. • The fan speed can be changed as desired.
Either HI, MED, LOW or SILENT can be selected.
The power of the air purifier is increased by increasing the speed of the air conditioner’s fan, by pressing the (AIR PURIFIER) button while the HEAT,
COOL or DEHUMIDIFY operates. (Depending on the operation conditions, there is a case that the fan speed does not increase.)
FAN OPERATION
Press the (START/STOP) button to stop operation.
Press the (AIR PURIFIER) button again to cancel the air purifier operation.
(During HEAT, COOL or DEHUMIDIFY operation)
Press the FUNCTION selector so that the display indicates (FAN).
Press the (START/STOP) button.
Fan operation starts with a beep. Press the button again to stop operation.
Press the (FAN SPEED) button.
(HI) : The strongest air blow.
(MED) : Quiet. (LOW) : More quiet. (SILENT) : Silent
• The fan speed will automatically change according to the temperature of discharged
air.
• As room temperature reaches the preset temperature, a very light breeze will blow. • Operation starts in the “HI” mode to reach the preset temperature. • As room temperature approaches the preset temperature, fan speed automatically
switches to “LOW”.
For the heating operation
For the cooling operation
FAN SPEED (AUTO)
…When the AUTO fan speed mode is set in the cooling/heating operation:
1
Y
ou can use the device simply as an air circulator. Use this function to dry the interior of the indoor unit at the end
of summer.
STOP
CANCEL
2
1
START
STOP
RAS-10_14JH3_Ope_EN 05/12/2008, 04:43 pm17
– 18 –
TWO WAY AIR EXCHANGE OPERATION
(Please refer to page 32, Understanding The Operating Mechanism)
Press the button.
• The device beeps when it has received the signal
and the two way air exchange starts. By pressing the button, the display changes as on the right.
• The OPERATION and the "Two Way Air Exchange"
lamps on the indoor unit indicators turns on.
• Although the ventilated air is deodorized by the
Nano-Titanium Disinfecting Deodorizing/Dust Collecting Fresh Air In Filter, the odor of the ventilated air may enter the room according to the environment where the filter is utilized. If there is concern regarding any odors, please stop the device.
• Operate the exhaust for about 10 minutes every 2
hours during fresh air in to prevent dew condensation on the two way air exchange fan and hose and to prevent dust from plugging the hose.
• It is recommended that the self clean operation is
configured to dry the inside of the two way air exchange hose (Refer page 30).
Press the (START/STOP) button.
Press the button. Until Fresh Air In or Exhaust on the remote controller
turns off. (During HEAT, COOL and DEHUMIDIFY operation)
Turns off
(Stop)
• Operate the fresh air in and exhaust by operating the two way air exchange fan. • The fresh air in and exhaust can be operated in combination by configuring the Two Way Air Exchange Operation
while the air conditioning operates.
• The fresh air in and exhaust cannot be operated simultaneously.
WARNING
• If the fresh air in/exhaust function is insufficient when the air conditioning is utilized in a sealed room or
simultaneously with a heating appliance, open a window often or ventilate with a ventilating fan.
• If ventilation is insufficient, oxygen deficiency may cause asphyxiation. •When the humidity inside the room is HIGH (more than 70%), do not use the fresh air in operation.
Dew condensation may be the cause of failure.
1
STOP
RAS-10_14JH3_Ope_EN 05/12/2008, 04:43 pm18

– 19 –
ENGLISH
SELF CLEAN OPERATION
(Please refer to page 34, Understanding The Operating Mechanism)
To cancel, press the button again.
• The on the remote controller turns off.
• The “TWO WAY AIR EXCHANGE” lamp on the indoor unit indicators turns
off.
To cancel, press the (SELF CLEAN) button again.
• The (SELF CLEAN) button on the remote controller turns off.
• The “SELF CLEAN” lamp on the indoor unit indicators turns off.
AUTOMATIC TWO WAY AIR EXCHANGE OPERATION
(Please refer to page 34, Understanding The Operating Mechanism)
• By configuring Self Clean operation, once cooling and dehumidifying operation are performed, the device
automatically performs Self Clean operation suppressing the outbreak of mold. (This does not eliminate the presence of mold or have a bactericidal effect.)
• As this operation cause the two way air exchange fan and hose dry, it is recommended that to set Self Clean
operation when utilizing the fresh air in operation (Refer page 18).
• By configuring the Automatic Two Way Air Exchange, the “Dirt Sensor” detects the dust in the room’s air. If the air
is dirty, the air conditioning automatically operates the blower and exhaust and when the air becomes clean, the Fresh Air In is operated.
• When the prohibit Two Way Air Exchange is selected with the Two Way Air Exchange Selection Switch (Refer
page 6), please do not configure the Automatic Two Way Air Exchange. Aside from , the remote controller is
not able to configure any other settings.
• If Fresh Air In or Exhaust is operated using the button during Automatic Two Way Air Exchange Set, Fresh Air
In or Exhaust Operation perform in the priority.
Press the button.
• The device beeps when it has received the signal and the on the remote
controller turns on.
• The “TWO WAY AIR EXCHANGE” lamp on the indoor unit indicators turns on.
1
CANCEL CANCEL
Press the (SELF CLEAN) button.
• The device beeps when it has received the signal and the (SELF CLEAN)
button on the remote controller turns on.
• The “SELF CLEAN” lamp on the indoor unit indicators turns on. • This operates for about one hour and automatically stops. • The “OPERATION” lamp on the indoor unit indicators turns on during the self
clean operation and then the “SELF CLEAN” lamp blinks. (When drying the two way air exchange fan and hose operation is performed, the “TWO WAY AIR EXCHANGE” lamp also turns on.)
• When cooling and dehumidifying operation are performed for a short time (less
than 1 hr.), the Self Clean operation does not perform.
1
• Exhaust operation may not perform in Automatic Two Way Air Exchange Operation when the air inside the room
is dirt. In this case, please operate Exhaust operation manually by pressing the (Two Way Air Exchange) button or
open the windows for ventilation.
CAUTION
RAS-10_14JH3_Ope_EN 05/12/2008, 04:43 pm19
– 20 –
Example: The current time is P.M.1:30.
You can set only one of the OFF-timer, ON-timer and ON/OFF-timer.
• The device will turn on (off) and
off (on) at the designated times.
• The switching occurs first at the
preset time that comes earlier.
• The arrow mark appearing on
the display indicates the sequence of switching opera- tions.
HOW TO SET THE TIMER
Time
After you change the batteries:
1
Set the current time with the TIMER
control button.
NOTE
OFF-Timer
1
Press the (OFF-TIMER) button.
The (OFF) mark blinks on the display.
You can set the device to turn off at the present time.
Start Stop
The device will turn on at the designated times.
1
Press the (ON-TIMER) button.
The (ON) mark blinks on the display.
Stop Start
2
Set the turn-off time
with the TIMER control button. Press the
(RESERVE) button.
3
Press the (ON-
TIMER) button so that the
(OFF) mark lights and
the (ON) mark blinks.
OFF TIMER
ON TIMER
RESERVE CANCEL TIME (Current Time)
ON-Timer
➝
➝
Start Stop
ON/OFF-Timer
1
Press the (OFF-
TIMER) button so that the (OFF) mark blinks.
How to Cancel Reservation Point the signal window of the remote controller toward the indoor unit, and press the (CANCEL) button.
The (RESERVED) sign goes out with a beep and the (TIMER) lamp on the indoor unit indicators turns off.
RAS-10_14JH3_Ope_EN 05/12/2008, 04:43 pm20

– 21 –
ENGLISH
2
Press the (TIME) button. The time indication starts lighting instead of blinking.
• The time indication will disappear automatically in 10 seconds. • To check the current time setting, press the (TIME) button
twice. The setting of the current time is now complete.
• The timer may be used in three ways: off-timer, on-timer and ON/OFF (OFF/ON)-timer. Set the current time at first
because it serves as a reference.
• As the time settings are stored in memory in the remote controller, you only have to press the (RESERVE) button in
order to use the same settings next time.
2
Set the turn-off time
with the TIMER control button.
3
Point the signal window of the remote controller toward the indoor unit, and press
the (RESERVE) button.
The (OFF) mark starts lighting instead of blinking and the (RESERVED) sign
lights. A beep occurs and the (TIMER) lamp lights on the indoor unit.
Example: The device will turn off at P.M.11:00. The setting of turn-off time is now complete.
3
Point the signal window of the remote controller toward the indoor unit, and press
the (RESERVE) button.
The (ON) mark starts lighting instead of blinking and the (RESERVED) sign lights.
A beep occurs and the (TIMER) lamp lights on the indoor unit.
Example: The device will turn on early so that the preset temperature be almost reached at A.M.7:00. The setting of the turn-on time is now complete.
2
Set the turn-on time
with the TIMER control button.
4
Set the turn-on time
with the TIMER control button.
Example: For heating, the device will turn off at P.M.10:30, and then turn on early so that the preset temperature be almost reached at A.M.7:00; for cooling and dehumidifying, it will simply turned on at A.M.7:00. The settings of the turn on/off times are now complete.
5
Point the signal window of the remote controller toward the indoor unit, and press
the (RESERVE) button.
The (ON) mark starts lighting instead of blinking and the (RESERVED) sign lights.
A beep occurs and the (TIMER) lamp lights on the indoor unit.
RAS-10_14JH3_Ope_EN 05/12/2008, 04:43 pm21
– 22 –
How to Cancel Reservation Point the signal window of the remote controller toward the indoor unit, and press the (CANCEL) button.
The (RESERVED) sign goes out with a beep and the (TIMER) lamp on the indoor unit indicators turns off.
HOW TO SET THE SLEEP TIMER
• By pressing the (SLEEP) button, the desired sleep time can be selected
(1 hr., 2 hrs., 3 hrs. or 7 hrs. Monitoring).
• The Sleep (7 hrs. Monitoring) operation momentarily stops cooling/
dehumidifying after operating for three hours and then the room’s temperature is monitored for the next 4 hrs.. While the room is monitored, the device automatically operates/stops repeatedly (One Hour More Timer) according to the conditions of the room.
• The Sleep (7 hrs. Monitoring) operation momentarily stops heating after
operating for three hours and then the room’s temperature is monitored for the next 4 hrs..When the room temperature falls by 4-5°C, the device restarts to maintain the temperature.
• By pressing the (SLEEP) button, the display changes as follows.
• The device beeps when it has received the signal and the Sleep operation
starts.The specified Sleep Timer and the stop operation time are displayed in the display of the remote controller.
• The timer lamp of the indoor device turns on when configuring the Sleep Timer. • The fan speed during the Sleep operation is set at silent. • The Sleep Timer settings of the fresh air in, exhaust and the air purifier are 1,
2, 3 and 7 hrs..
1 hr.
Operation
➛
2 hrs.
Operation
Sleep
(7 hrs. Monitoring)
3 hrs.
Operation
➛ ➛
➛
➛
If you set the sleep timer when the off-time or on/off-timer has been set earlier, the sleep timer becomes effective instead of the off - or on/off-timer set earlier.
NOTE
• The “Off Timer”, used exclusively when sleeping, stops the fan after a specified time after configuring the “Fan
Speed” appropriate before going to bed, when cooling with the air conditioning.
• The “Off Timer” stops the individual operation of the fresh air in, exhaust and air purifier after a specified time.
1
Sleep
timer
➝
Start
The device will be turned off by the sleep timer and turned on by on-timer.
1
Set the ON-timer.
2
Press the (SLEEP) button and set the sleep timer.
Example: For heating: In this case, the device will turn off in 2 hrs. (at A.M.1:38) and turn on early so that the preset temperature will be almost reached at A.M.6:00 next morning.
Canceling the Sleep Timer
2
RAS-10_14JH3_Ope_EN 05/12/2008, 04:43 pm22

– 23 –
ENGLISH
Specifications of the One Hour More Timer
• Even after the 1, 2 or 3 hrs. Sleep Timer has expired when cooling/dehumidifying, this function monitors the
room’s temperature and automatically operates and stops (1 hr. more timer operation) one more time according to the condition of the room (monitoring time is a maximum of 4 hrs. after the timer expires).
• The timer lamp of the indoor unit turns on while the room’s temperature is monitored after the 1, 2 or
3 hrs. timer expires and the and on the remote controller turn on.
Cooling, Dehumidifying If the room temperature rises by 2°C, the device operates for 1 hr..
FRESH AIR IN DURING SLEEP MODE OPERATION
Press the button.
• The device beeps when it has received the signal and the on the remote
controller turns on.
• If the Fresh Air In During Sleep Mode is configured and set while the air
conditioning is stopped, the Fresh Air In During Sleep Mode does not operate. When Sleep is operated while cooling/dehumidifying, the air conditioning automatically operates the “Fresh Air In During Sleep Mode”.
• The “Two Way Air Exchange” lamp on the indoor unit indicators turns on during
Fresh Air In operating.
• Even after the Sleep Timer of the air conditioning expires, the room temperature
and the outside temperature are monitored, while the One Hour More Timer operates and monitors (page 23). If the outside temperature is cooler than room temperature, the Fresh Air In operates.
To cancel, press the button again.
• The on the remote controller turns off.
CANCEL
1
By configuring the “Fresh Air In During Sleep Mode”, a fresh air in operation of blowing outside air into the room is added during the “Sleep Timer” operation (page 22) while cooling/dehumidifying. (This cannot be configured when heating operation.)
RAS-10_14JH3_Ope_EN 05/12/2008, 04:43 pm23
– 24 –
ADJUSTING THE AIR DEFLECTORS
Adjustment of the conditioned air in the upward and downward directions. The horizontal air deflector is automatically set to the proper angle suitable for each operation.The deflector can be swing up and down continuously and also set to the desired angle using the “(AUTO SWING)” button.
1
Vertical
about 15°
about 65°
When Cooling, Dehumidifying
When heating
Vertical
about 40°
about 40°
Adjustment of the conditioned air to the left and right. Hold the vertical air deflector as shown in the figure and adjust the conditioned air to the left and right.
2
Left side: Hold the third blade from the left end of the air deflector to adjust the direction. The pull for the blade is marked.
Right side: Hold the third blade from the right end of the air deflector to adjust the direction. The pull for the blade is marked.
• If the “ (AUTO SWING)” button is pressed once, the
horizontal air deflector swings up and down. If the button is pressed again, the deflector stops in its current position. Several seconds (about 6 seconds) may be required before the deflector starts to move.
• Use the horizontal air deflector within the adjusting range
shown in the right.
• When the operation is stopped, the horizontal air deflector
moves and stops at the position where the air closes.
CAUTION
• In “Cooling” operation, do not keep the horizontal air deflector
swinging for a long time. Some dew may form on the horizontal air deflector and dew may drop.
RAS-10_14JH4_Ope_EN 24

– 25 –
HSILGNE
1
2
MAINTENANCE
It is recommended to carry out deep cleaning of the two way air exchange duct filters (Fresh Air In Pre-Filter, Exhaust Pre-Filter, Nano-Titanium Disinfecting Deodorizing/Dust Collecting Fresh Air In Filter) regularly. Cleanliness of filters differs according to environment and usage conditions. Check regularly and if the filters are dirty, cleaning is recommended. Especially if the Fresh Air In operation is utilized often, check the filters once every 2 weeks and if the filter is dirty, cleaning is recommended. Although small insects may be caught in the Fresh Air In Pre-Filter, they have entered from the outside air (outside the room) and it is not uncommon. Please wash the Fresh Air In Pre-Filter.
Opening the Front Panel • Hold both sides of the front panel and lift up.
1
Removing the Fresh Air In Pre-Filter • Please pull out to the front.
Removing the Nano-Titanium Disinfecting Deodorizing/Dust Collecting Fresh Air In Filter Case • Please hold the handle of the Nano-Titanium
Disinfecting Deodorizing/Dust Collecting Fresh Air In Filter Case and pull out to the front.
2 3
Removing the Exhaust Pre-Filter • Please remove by pushing up the handle
1
and
then pulling
2
.
4
Confirm the Dirt on Each of the Removed Filters • Please proceed to
7
if the filter is not dirty.
5
Exhaust Pre-Filter Handle
RAS-10_14JH4_Ope_EN 25
Front Panel
– 26 –
Wash Each of the Removed Filters with Water • After washing with water, please allow to drip dry. • If the dirt is difficult to wash off, please wash with
luke warm water that does not exceed 40°C.
• Do not rub too hard when washing with water. • Nano-Titanium Disinfecting Deodorizing/Dust
Collecting Fresh Air In Filter should wash and dry in the shade once in every 3 months. Although it can be washed and used repeatedly, it is recommended that the filter is replaced every 3 years.
• Optional Nano-Titanium Disinfecting Deodorizing/
Dust Collecting Fresh Air In Filter (SPX-NFH1).
6
Attaching the Nano-Titanium Disinfecting Deodorizing/Dust Collecting Fresh Air In Filter Case • Improper filter installation may result in abnormal
noises.
7
MAINTENANCE
Attaching the Fresh Air In Pre-Filter • Please keep the engraved mark up and attach
by pushing the filter into the device until the filter clicks.
• Improper filter installation may result in abnormal
noises.
Attaching the Exhaust Pre-Filter • Please hold the handle and attach the filter by
pushing it along the inner grooves until the filter clicks.
8
9
Nano-Titanium Disinfecting Deodorizing/Dust Collecting Fresh Air In Filter Case (included)
Close the Front Panel • Hold the front panel with both hands and pull
forward, then down.
• Keep pressing the front panel in the direction of
the arrow (3 places) until the panel clicks with both hands and pull forward, then down.
10
Groove
CAUTION
•Do not operate with the duct filter removed.
Dust or odors may infiltrate the room and may cause the device to malfunction.
RAS-10_14JH4_Ope_EN 26
Front Panel

– 27 –
HSILGNE
1. PRE-FILTER When the filter indicator lamp comes on, be sure to clean the filter. By doing so, the power rates are saved. In case the air filter is full of dust, the air flow will decrease and the cooling capacity will be reduced. Further, noise may occur. Be sure to clean the filter following the procedure below.
CAUTION
Cleaning and maintenance must be carried out only by qualified service personal. Before cleaning, stop operation and switch off the power supply.
PROCEDURE
Open the front panel carefully and remove the filter. Vacuum dust from the pre-filter using vacuum cleaner. If there is too much dust, wash the filter with detergent and rinse it thoroughly. After that, dry it in the shade.
2
• Set the filter with “FRONT” mark facing front, and slot
them into the original state.
• After attaching the filters, push the front panel at three
arrow portions as shown in figure and close it.
3
1
CAUTION
• Do not wash with hot water at more than 40°C. The filter may shrink. • When washing it, shake off moisture completely and dry it in the shade; do not expose it directly to the sun. The
filter may shrink.
• Don’t operate the unit without filter. Fault may occur if you continue.
RAS-10_14JH4_Ope_EN 27
Pre-Filter
2
Pull out
1 Push and Lift
Insert
1
Front Panel
Front Panel
2
– 28 –
2. CLEANING OF FRONT PANEL AND TOP GRILL • Remove the front panel and the top grill and wash with clean
water. Wash it with a soft sponge. After using neutral detergent, wash thoroughly with clean water.
• When the front panel and the top grill are not removed, wipe it
with a soft dry cloth. Wipe the remote controller thoroughly with a soft dry cloth.
• Wipe the water thoroughly.
If water remains at indicators or signal receiver of indoor unit, it causes trouble.
Method of removing the front panel Be sure to hold the front panel with both hands to detach and attach it.
Removing the Front Panel Attaching the Front Panel
MAINTENANCE
• When the front panel is fully opened with both hands,
push the right arm to the inside to release it, and while closing the front panel slightly, put it out forward.
• Move the shafts of the left and right arms into the
steps in the unit and securely insert them into the holes.
Front Panel
Front Panel
Step
Shaft
Shaft
Shaft
Step
1
Removing and attaching the top grill
Removing Attaching
1Lift up while pressing the top grill and remove from
tab. (3 places: left, centre and right)
2Pull forward.
1Position the “
×× ××
×
” sign away. Slide along the top of
the indoor device and press.
2Press the top grill down and affix with the hold down
tab.
Tab
Tab
RAS-10_14JH3_Ope_EN 05/12/2008, 04:43 pm28

– 29 –
ENGLISH
B
E
N
Z
I
N
E
T
H
I
N
N
E
R
A
C
I
D
Air
Blow
3. MAINTENANCE AT BEGINNING OF LONG OFF PERIOD • Run the unit by setting the operation mode to (FAN) and
the fan speed to HI for about half a day on a fine day, and dry the whole of the unit.
• Switch off the power plug or turn off the circuit breaker.
CAUTION
• Do not splash or direct water to the body of the unit when cleaning it as this may
cause short circuit.
• Never use hot water (above 40°C), benzine, gasoline, acid, thinner or a brush,
because they will damage the plastic surface and the coating.
HOW TO EXCHANGE THE BATTERIES IN THE REMOTE CONTROLLER
Remove the cover as shown in the figure and take out the old batteries.
1
Push and pull to the direction of arrow.
Install the new batteries. The direction of the batteries should match the marks in the case.
2
CAUTION
1. Do not use new and old batteries, or different kinds of
batteries together.
2. Take out the batteries when you do not use the remote
controller for 2 or 3 months.
Address Changing Switch
Switch
✽The Address Changing Switch is utilized to avoid
interference between remote controllers when there are two indoor units mounted in the same room and is normally not utilized.
(When the device is shipped out of the factory, it is
set to “A”.)
Furthermore, please ask the dealer where the
device was purchased, how the device is configured.
Please operate this switch only as advised.
RAS-10_14JH3_Ope_EN 05/12/2008, 04:43 pm29
– 30 –
MAINTENANCE ■To ensure clean usage, please dry the interior of the Two Way Air Exchange Fan and Hose.
• If this is the first time during the year (seasons) that the device is being used to cooling or dehumidifying operation,
please conduct one of the following maintenance procedures.
• If this is the first time during the year (seasons) that the device is being used to heat, please conduct one of the
following maintenance procedures.
• If odors from the fresh air window are a concern, even if maintenance has been conducted on the duct filters,
please conduct one of the following maintenance procedures.
Maintenance During the Summer • After sealing the room, please conduct the following for 4 hrs..
1
Please perform dehumidify operation.
2
Please set the temperature to 24°C.
3
Please set the fan speed to “SILENT”.
4
Please perform the exhaust (HI) operation.
Maintenance During the Autumn or Rainy Season • After opening the room, please conduct the following for 4 hrs..
1
Please perform heat operation.
2
Please set the temperature to 32°C.
3
Please set the fan speed to “SILENT”.
4
Please perform the exhaust (HI) operation.
• If the outside temperature is above 24°C, please conduct maintenance by
following the “Maintenance During the Summer” procedures. (When the outside temperature exceeds 24°C, the machine does not operate the heater to prevent any damage.)
Maintenance During the Winter • After opening the room, please conduct the following for 4 hrs..
1
Please perform heat operation.
2
Please set the temperature to 32°C.
3
Please set the fan speed to “SILENT”.
4
Please perform the exhaust (HI) operation.
(Two Way Air Exchange Fan and Hose)
4
2
3
1
4
2
3
1
431
2
1
RAS-10_14JH3_Ope_EN 05/12/2008, 04:44 pm30
