Hitachi RAS-DX10CWK User manual

ILGNE
INDOOR UNIT/OUTDOOR UNIT
SPLIT TYPE AIR CONDITIONER
MODEL
Instruction manual Page 1~22
To obtain the best performance and ensure years of trouble free use, please read this instruction manual completely.
23~44
TINUROODNITINUROODTUO
ENGLISH
RAS-DX10CWK/RAC-DX10CWK
RAS-DX13CWK/RAC-DX13CWK
RAS-DX18CWK/RAC-DX18CWK
RAS-DX10CWK
RAS-DX13CWK
RAS-DX18CWK
RAC-DX10CWK
RAC-DX13CWK
RAC-DX18CWK
R32
Sleep
Right/Left
Silent
F.Wash
- 1 -
請詳細閱讀這本使用說明書以了解正確的使用方法，使機器長久發揮最高性能。

- 2 -

PRECAUTIONS DURING SHIFTING OR MAINTENANCE
W
A
R
N
I
N
G
Should abnormal situation arises (like burning smell), please stop operating
the unit and turn off the circuit breaker. Contact your agent. Fault, short
circuit or fire may occur if you continue to operate the unit under abnormal
situation.
Please contact your agent for maintenance. Improper self maintenance may cause electric shock
and fire.
Please contact your agent if you need to remove and reinstall the unit.
Electric shock or fire may occur if you remove and reinstall the unit by yourself improperly.

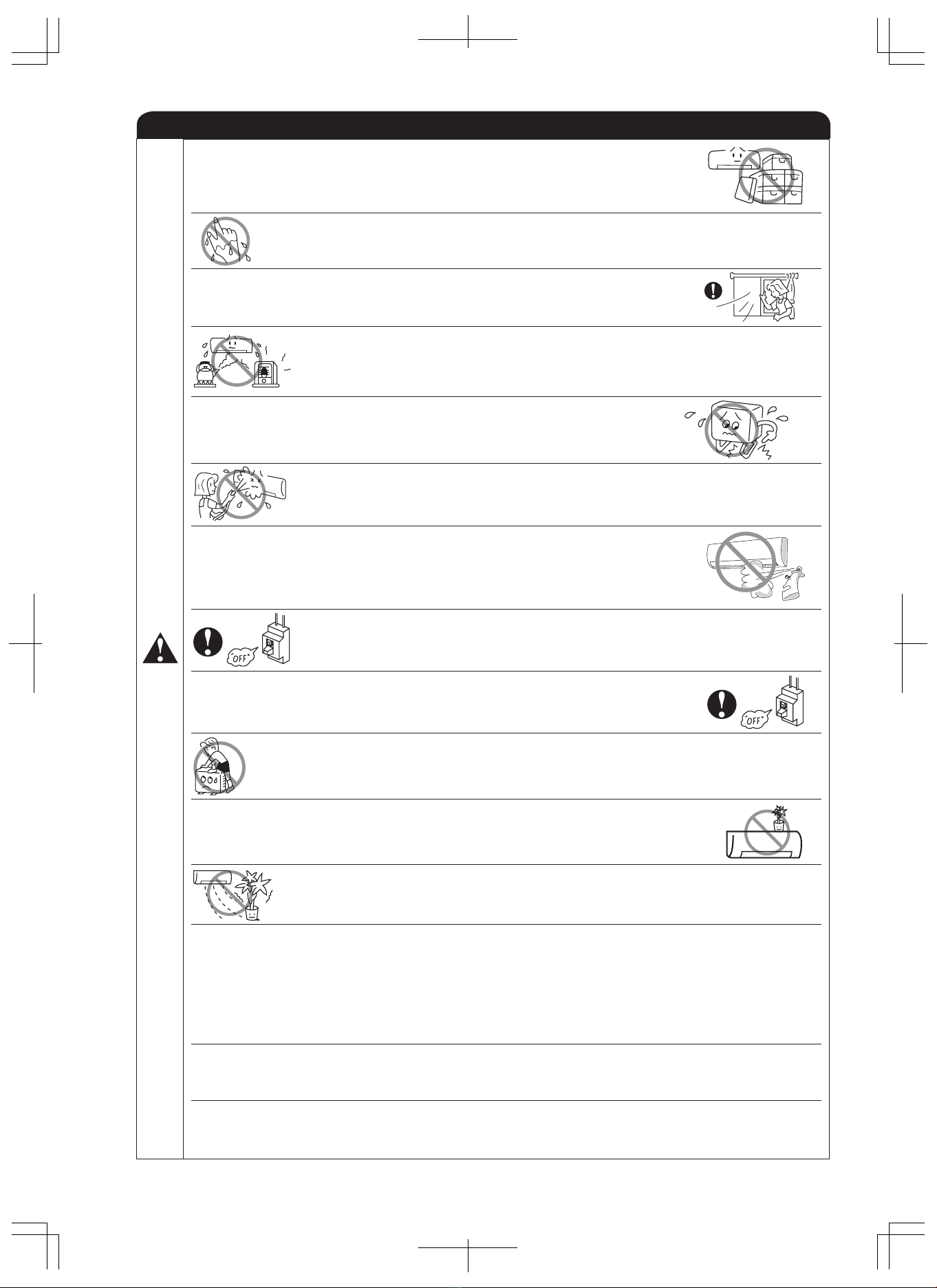

PRECAUTIONS DURING OPERATION
W
A
R
N
I
N
G
Avoid an extended period of direct air flow for your health.
Do not put objects like thin rods into the panel of blower and suction side because
the high-speed fan inside may cause danger.
Do not use any conductor as fuse wire, this could cause fatal accident.
During thunder storm, disconnect and turn off the circuit breaker.
If the supply cord is damaged, it must be replaced by the manufacturer,
similarly qualified persons in order to avoid a hazardit’s service agent or

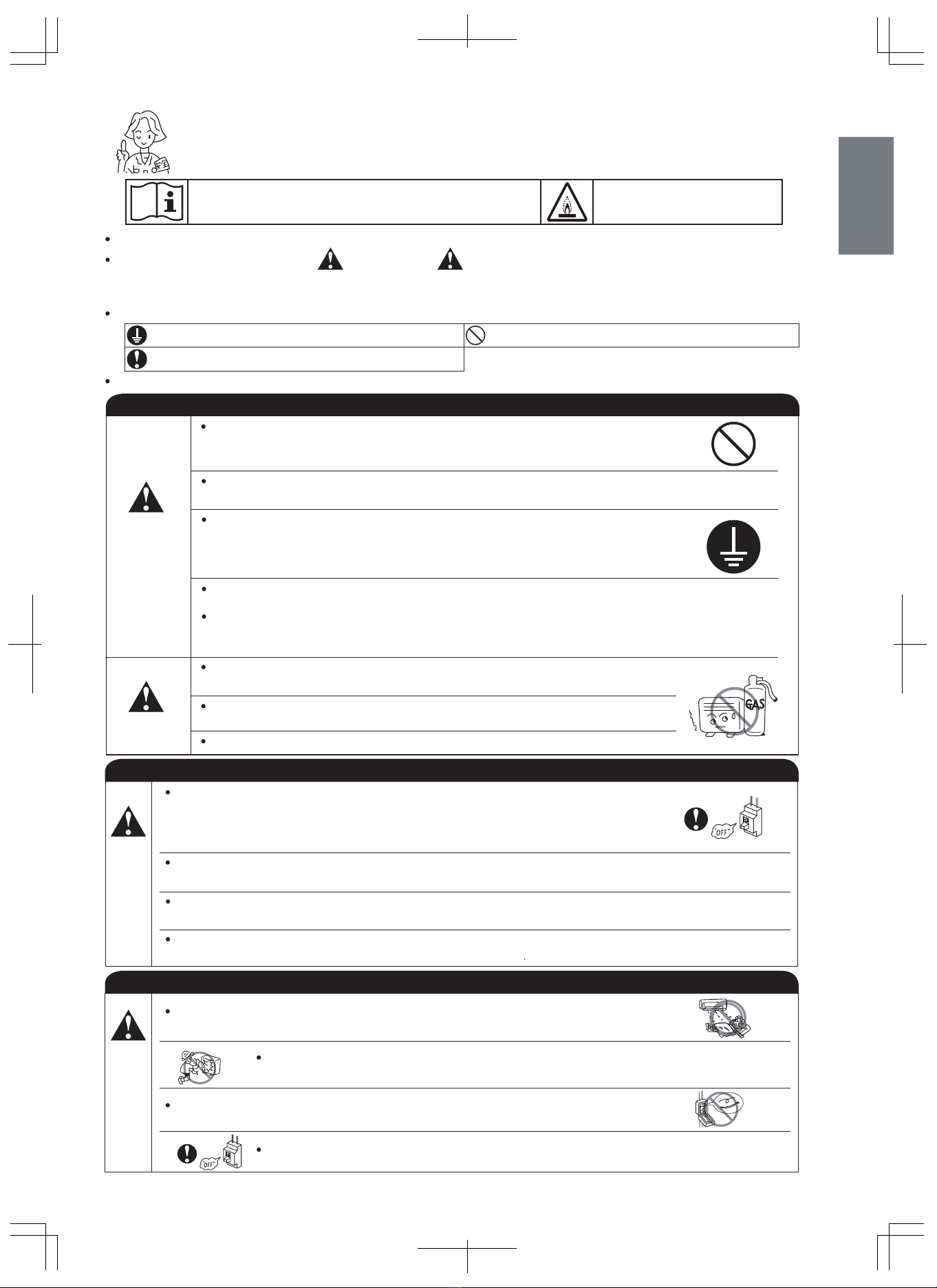

SAFETY PRECAUTION
Please read the “Safety Precaution”carefully before operating the unit to ensure correct usage of the unit.
Pay special attention to signs of“Warning”and “Caution”. The “Warning”section contains matters which,if
not observed strictly, may cause death or serious injury. The “Caution”section contains matters which may result in
serious consequences if not observed properly. Please observe all instructions strictly to ensure safety.
The signs indicate the following meanings.
Make sure to connect earth line. The sign in the figure indicates prohibition.
Indicates the instructions that must be followed.
Please keep this manual after reading.
PRECAUTIONS DURING INSTALLATION
WARNING
Do not reconstruct the unit.
Water leakage, fault, short circuit or fire may occur if you reconstruct the unit
by yourself.
Please ask your sales agent or qualified technician for the installation of your unit. Water
leakage, short circuit or fire may occur if you install the unit by yourself.
Please use earth line.
Do not place the earth line near water or gas pipes, lightning-conductor, or
the earth line of telephone. Improper installation of earth line may cause
electric shock.
CAUTION
A circuit breaker should be installed depending on the mounting site of the
unit. Without a circuit breaker, the danger of electric shock exists.
Do not install near location where there is flammable gas. The outdoor unit
may catch fire if flammable gas leaks around it.
Please ensure smooth flow of water when installing the drain hose.
Please read the “Safety Precaution” carefully before operating
the unit to ensure correct usage of the unit. This appliance is filled with R32.
Be sure to use the specified piping set for . Otherwise, this may result in
Do not use refrigerant other than the one indicated on the outdoor unit (R32) when installing,
Using other refrigerants may cause trouble or damage to the unit, and personal injury.
moving or repairing.
. Otherwise, this may result in broken copper
R32
pipes or faults.
ENGLISH
- 3 -

PRECAUTIONS DURING OPERATION
W
A
R
N
I
N
G
The product shall be operated under the manufacturer specification and not
for any other intended use.
s
Do not attempt to operate the unit with wet hands, this could cause fatal accident.s
When operating the unit with burning equipments, regularly ventilate the
room to avoid oxygen insufficiency.
s
Do not direct the cool air coming out from the air-conditioner panel to face
household heating apparatus as this may affect the working of apparatus such as
the electric kettle, oven etc.
s
Please ensure that outdoor mounting frame is always stable, firm and
without defect. If not, the outdoor unit may collapse and cause danger.
s
Do not splash or direct water to the body of the unit when cleaning it as this may
cause short circuit.
s
Do not use any aerosol or hair sprays near the indoor unit. This chemical
can adhere on heat exchanger fin and block the evaporation water flow to
drain pan. The water will drop on tangential fan and cause water splashing
out from indoor unit.
s
Please switch off the unit and turn off the circuit breaker during cleaning, the high-
speed fan inside the unit may cause danger.
s
Turn off the circuit breaker if the unit is not to be operated for a long period.s
Do not climb on the outdoor unit or put objects on it.s
Do not put water container (like vase) on the indoor unit to avoid water
dripping into the unit. Dripping water will damage the insulator inside the unit
and causes short-circuit.
s
Do not place plants directly under the air flow as it is bad for the plants.s
When operating the unit with the door and windows opened, (the room humidity is always above
80%) and with the air deflector facing down or moving automatically for a long period of time,water
will condense on the air deflector and drip down occasionally. This will wet your furniture.Therefore,
do not operate under such condition for a long time.
If the amount of heat in the room is above the cooling or heating capability of the unit (for example:
more people entering the room, using heating equipments and etc.), the preset room temperature
cannot be achieved.
s
s
This appliance is not intended for use by young children or infirm persons unless they have been
Young children should be supervised to ensure that they do not play with the appliance.
adequately supervised by a responsible person to ensure that they can use this appliance safely.
s
s
This appliance is not to be used by children or persons with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction. Children must be supervised not to play with the appliance.
s
- 4 -

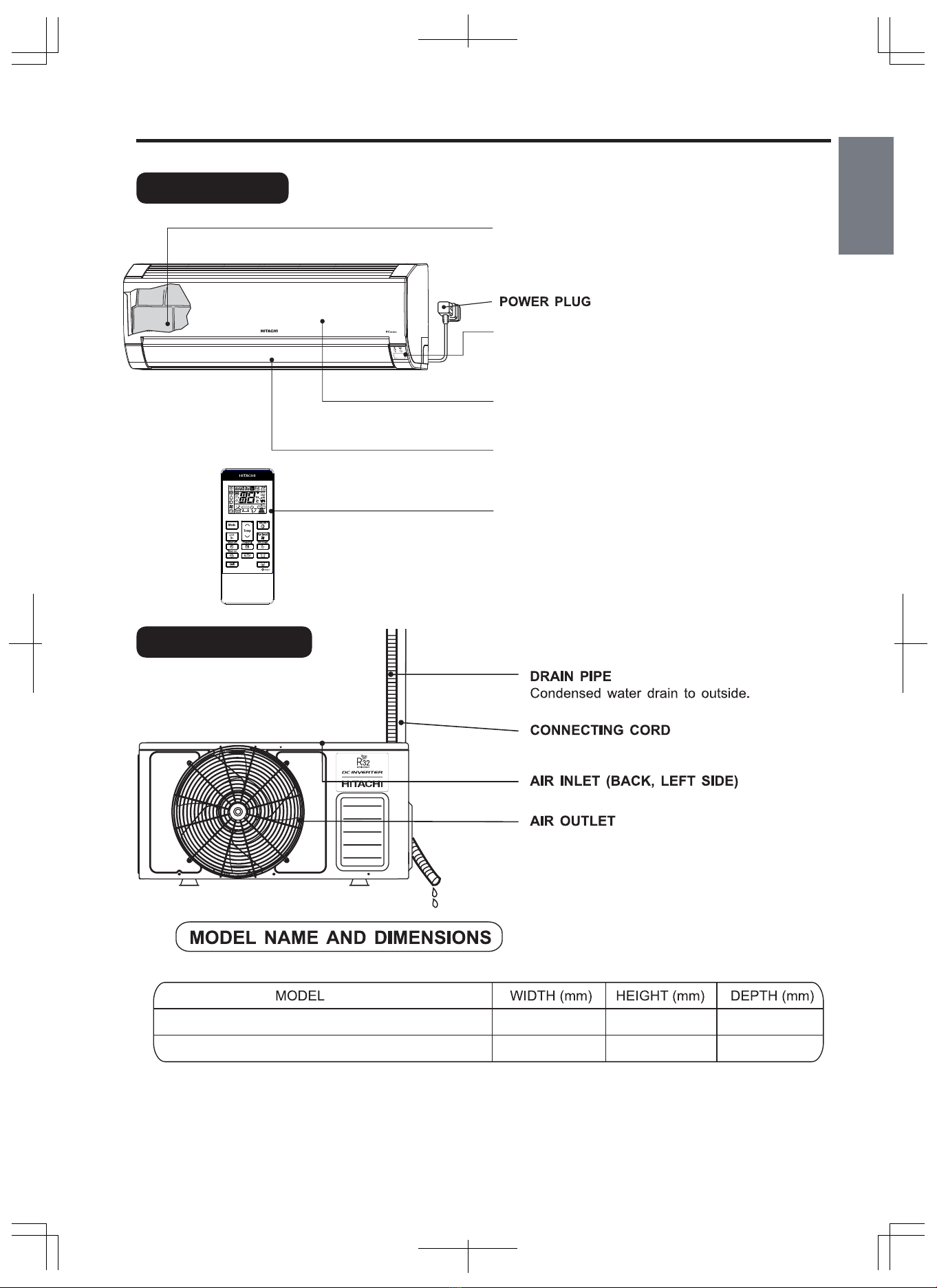

NAMES AND FUNCTIONS OF EACH PART
INDOOR UNIT
AIR FILTER
To prevent dust from coming into the indoor unit.
(Refer page 19)
INDOOR UNIT INDICATORS
Light indicators showing the operating condition.
(Refer page 6)
FRONT PANEL
HORIZONTAL DEFLECTOR • VERTICAL
DEFLECTOR (AIR OUTLET)
(Refer page 14)
REMOTE CONTROL
Send out operation signal to the indoor unit. So as to
operate the whole unit.
(Refer page 7)
OUTDOOR UNIT
(Refer page 6)
RAC-DX10CWK/RAC-DX13CWK/RAC-DX18CWK
780
792
280
420
2 5
299
1
RAS-DX10CWK/RAS-DX13CWK/RAS-DX18CWK
ENGLISH
Sleep
Right/Left
Silent
F.Wash
- 5 -

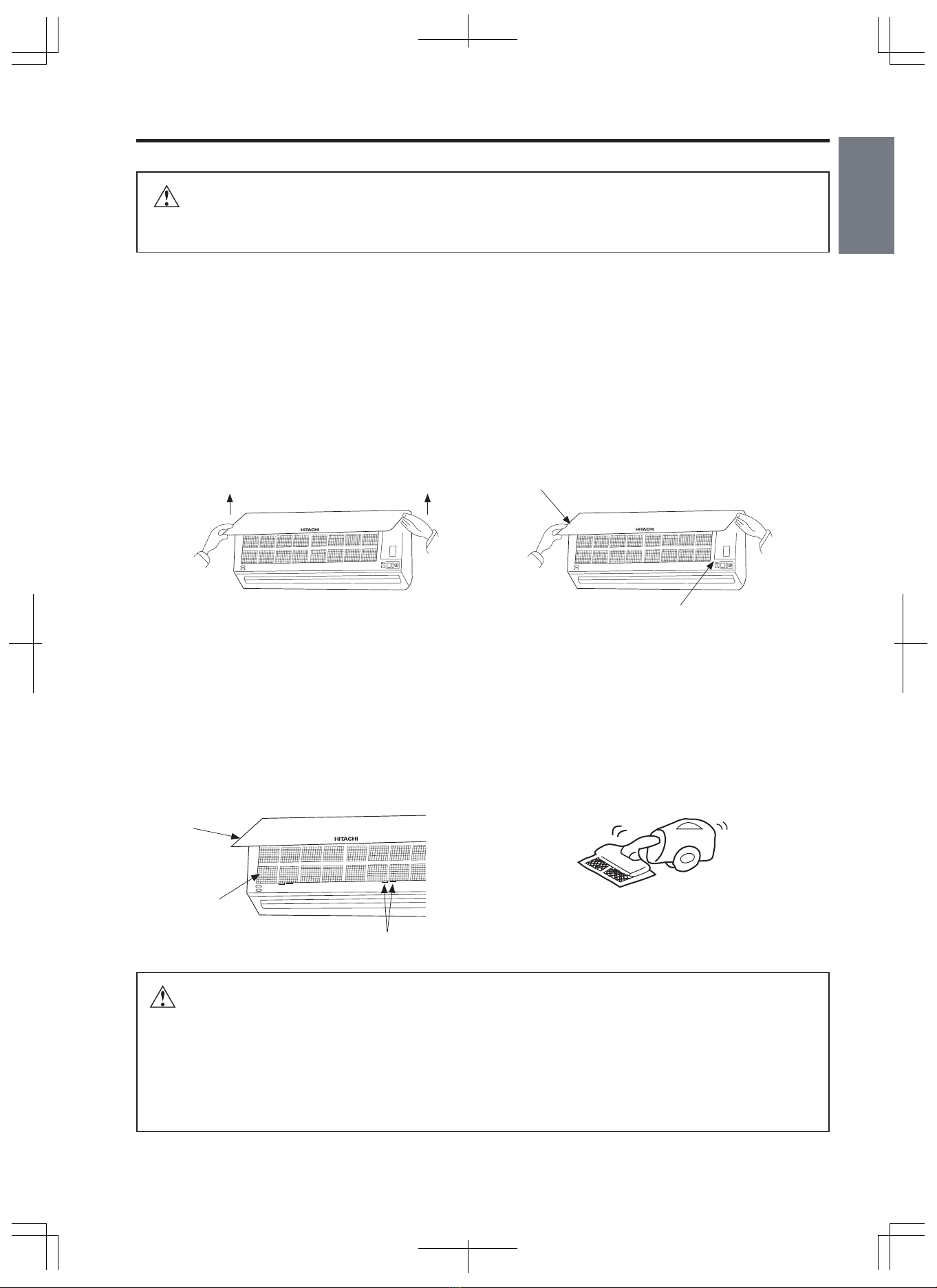

ATTACHING AND REMOVING FRONT PANEL
While gripping both the left and right hand edges
[recessed in the front housing] of the front panel,
lift up to open the front panel.
After completion of job, slightly lift up the front
panel and pull down to close the front panel. Ensure
that the 3 sets of left, centre and right clips are
fully secured.
s
s
RECEIVABLE INDICATOR FUNCTIONS
CAUTION
Turn off the circuit breaker or pull out
the power plug if the unit is not be
operated for a long period.
OPERATION INDICATOR
TEMPORARY SWITCH
When the remote control device is not functioning, use the Temporary Switch mode
(1) When the Temporary Switch is pressed, the unit will operate as per the previous setting.
(2) Press the Temporary Switch a second time will stop the operation of the air conditioner unit.
AUTO RESTART FUNCTION
In the event of power failure, the air conditioner will restart automatically.
In the event of power failure during TIMER operation, the timer will be reset and the unit will begin or stop
operating under a new timer setting.
When the operation is done using the temporary switch after the power source is turned
off and turn on again, the operation is done in automatic mode.
OPERATION LAMP (Yellow)
This lamp lights during operation.
TEMPORARY SWITCH
TIMER LAMP (Orange)
This lamp lights when the
timer is working.
FROST WASH LAMP (Green)
- 6 -

ENGLISH
- 7 -

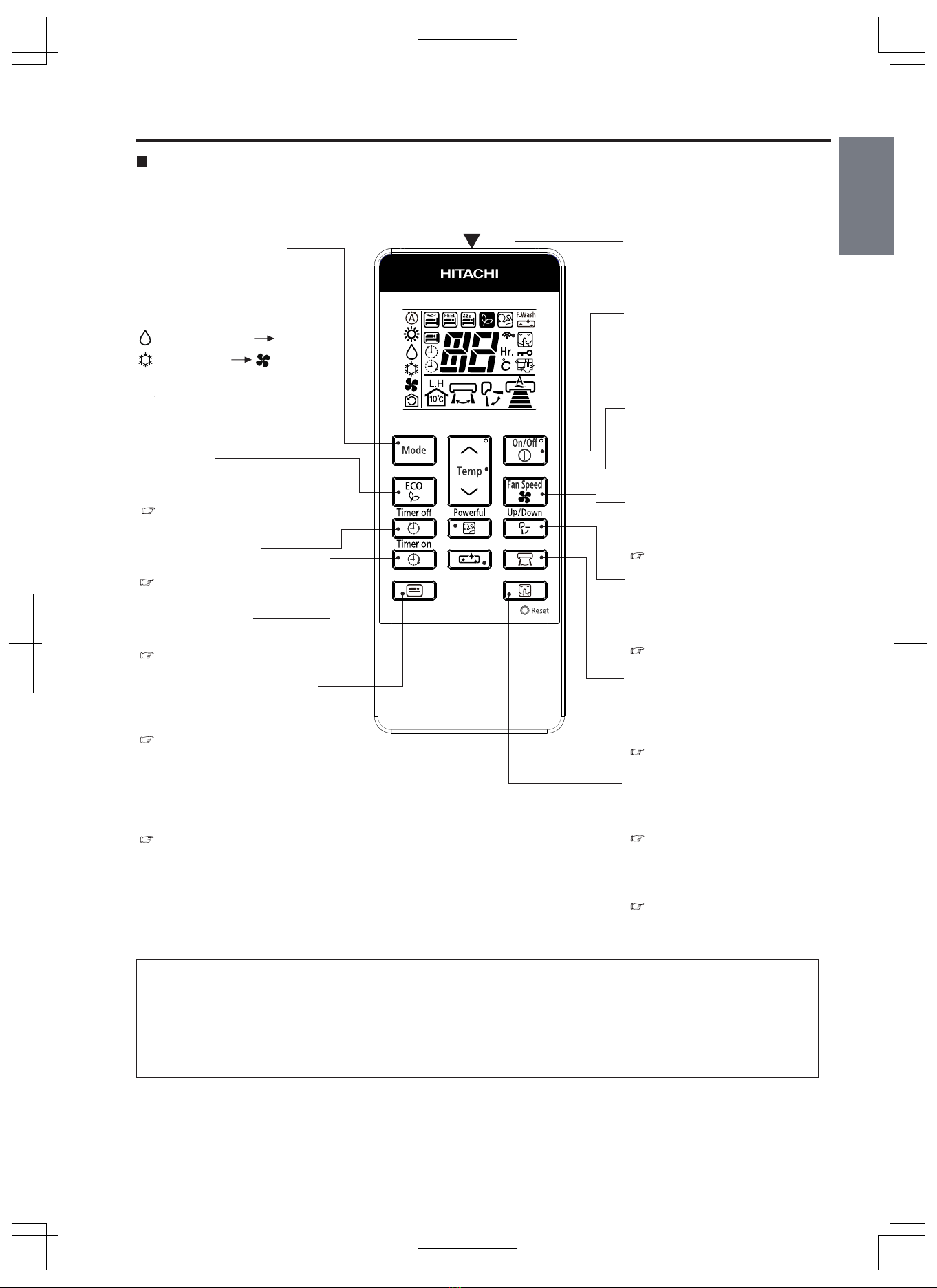

NAMES AND FUNCTIONS OF REMOTE CONTROL
This controls the operation function and timer setting of the room air conditioner.The range of control
is about 7 meters. lf indoor lighting is controlled electronically, the range of control may be shorter.
Precautions for Use
• Do not put the remote control under direct sunlight and high temperature.
• Do not drop it on the floor, and protect it from water.
• If you press the MODE selector button during operation, the compressor may stop for about 3 minutes
for protection before you can start it again.
Signal Transmission
MODE selector Button
Use this button to select the
operating mode. Every time
you press this button, the
mode will change from
(DEHUMIDIFY)
(COOL) and (FAN)
cyclically.
ECO Button
Use this button to set the
ECO mode.
( Page 1
TIMER OFF Button
Select the turn OFF time.
( Page
TIMER ON Button
Select the turn ON time.
( Page
POWERFUL Button
Press this button to start
powerful operation.
( Page )
Transmission Sign
The transmission sign blinks
when a signal has been send.
ON/OFF Button
Press this button to start
operation.
Press it again to stop operation.
TEMPERATURE Button
Room temperature setting.
Value will change quicker when
keep pressing.
FAN SPEED Button
Select the fan speed for cooling
mode.
( Page
Control the angle of the
horizontal air deflector.
( Page 1
FROST WASH/CLEAN
Button
( Page )
3)
10 )
10 )
11
12
4 )
10 )
Controls the angle of the
( Page
Use this button to set the
sleep timer.
( Page 1 4 )
1 5 )
UP/DOWN (Horizontal)
vertical air deflector.
Button
Button
Sleep
Right/Left
Silent
F.Wash
SILENT Button
Use this button to set the
( Page 1 6)
SILENT mode.
RIGHT/LEFT (Vertical)
SLEEP TIMER Button

- 8 -
DEHUMIDIFYING OPERATION
■Dehumidifying Function
Use the device for dehumidifying when the room temperature is over 16°C.
When it is under 15°C, the dehumidifying function will not work.
●When the room temperature is higher than the temperature setting: The device will dehumidify the room,
reducing the room temperature to the preset level.
When the room temperature is lower than the temperature setting: Dehumidifying will be performed at the
temperature setting slightly lower than the current room temperature, regardless of the temperature setting.
●The preset room temperature may not be reached depending on the number of people present in the room
or other room conditions.
Set the desired room temperature with the ROOM
TEMPERATURE setting button (the display indicates the setting).
The range of 20˚C to 26˚C is recommended as
the room temperature for dehumidifying.
Temperature range can be set between 16°C and
32°C.
Press the (ON/OFF) button. Dehumidifying operation
starts with a beep. Press the button again to stop operation.
■As the settings are stored in the memory of the remote control, you
only have to press the (ON/OFF) button next time.
START
STOP
Press the MODE selector button so that the display
indicates (DEHUMIDIFY).
The fan speed is set at LOW.
Press (FAN SPEED) button to select SILENT or LOW fan
speed.
1
2
Sleep
Right/Left
Silent
F.Wash
Sleep
Right/Left
Silent
F.Wash

ENGLISH
- 9 -

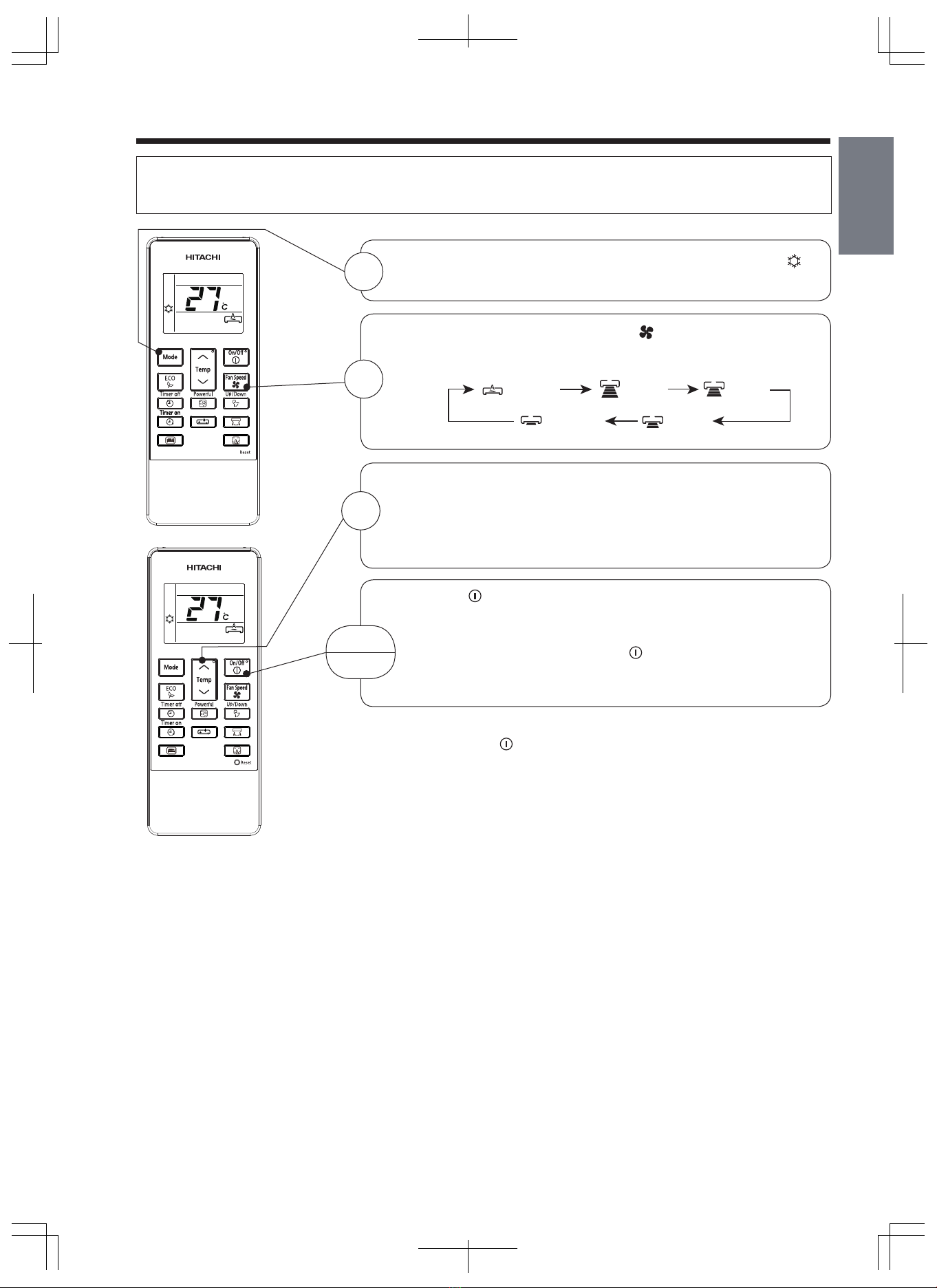

COOLING OPERATION
Use the device for cooling when the outdoor temperature is to 4 °C.
If humidity is very high (over 80%) indoors, some dew may form on the air outlet grille of the indoor unit.
Press the MODE selector button so that the display indicates
(COOL).
■As the settings are stored in memory in the remote control, you only
have to press the (ON/OFF) button next time.
1
2
3
Set the desired FAN SPEED with the (FAN SPEED) button (the
display indicates the setting).
Set the desired room temperature with the TEMPERATURE buttons
(the display indicates the setting).
The temperature setting and the actual room temperature may vary
somewhat depending on conditions.
Press the (ON/OFF) button. Cooling operation starts with a
beep. Press the button again to stop operation. The cooling function
does not start if the temperature setting is higher than the current
room temperature (even though the (OPERATION) lamp lights).
The cooling function will start as soon as you set the temperature
below the current room temperature.
START
STOP
■During AUTO fan, the fan speed automatically changes as below:
●When the difference between room temperature and setting tem-
perature is large, fan starts to run at HI speed.
●After room temperature reaches the preset temperature, fan speed
will be changed to lower speed to obtain optimum room temperature
condition for natural healthy cooling.
(AUTO) (HIGH) (MED)
(SILENT) (LOW)
Temperature range can be set between 16°C and 32°C.
7 3
Sleep
Right/Left
Silent
F.Wash
Sleep
Right/Left
Silent
F.Wash

- 10 -

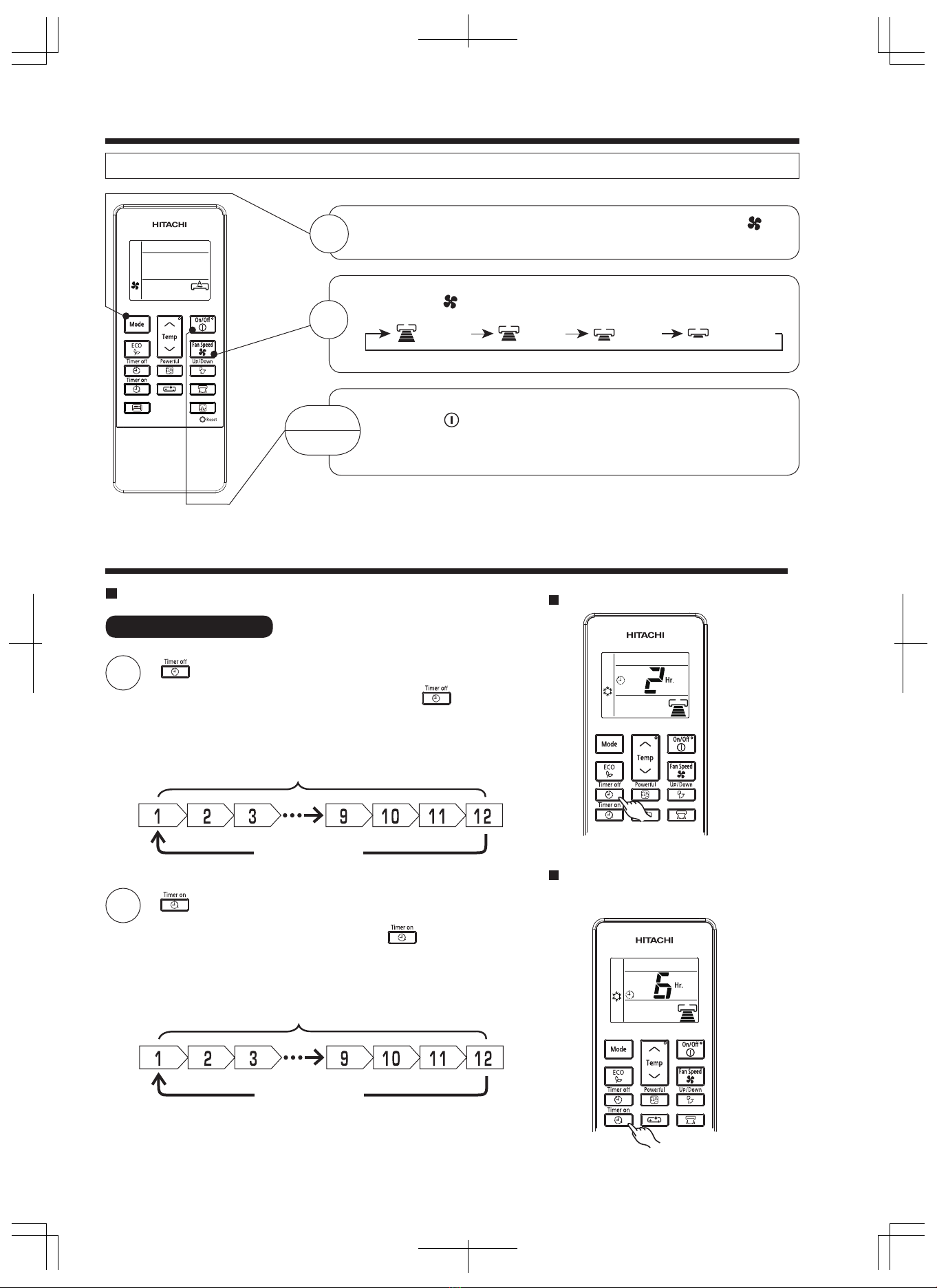

FAN OPERATION
User can use the device simply as an air circulator.
START
STOP
1
2
Press the MODE selector button so that the display indicates
(FAN).
Press the (ON/OFF) button. Fan operation starts with a beep.
Press the button again to stop operation.
Press the (FAN SPEED) button.
(HIGH) (MED) (LOW) (SILENT)
Timer Reservation
OFF TIME setting
• Select the OFF TIME by pressing the
Button.
• Setting time will change according to the below
sequence when you press the button.
1 hour interval
TIMER RESERVATION
ON Timer and OFF Timer are available.
2
1
ON TIME setting
• Select the ON TIME by pressing the Button.
• Setting time will change according to the below
sequence when you press the button.
Timer off
1 hour interval
Timer on
Operation stop at setting time
Operation will start for setting
temperature at setting time.
Sleep
Right/Left
Silent
F.Wash
Right/Left
F.Wash
Right/Left
F.Wash

ENGLISH
- 1 -1

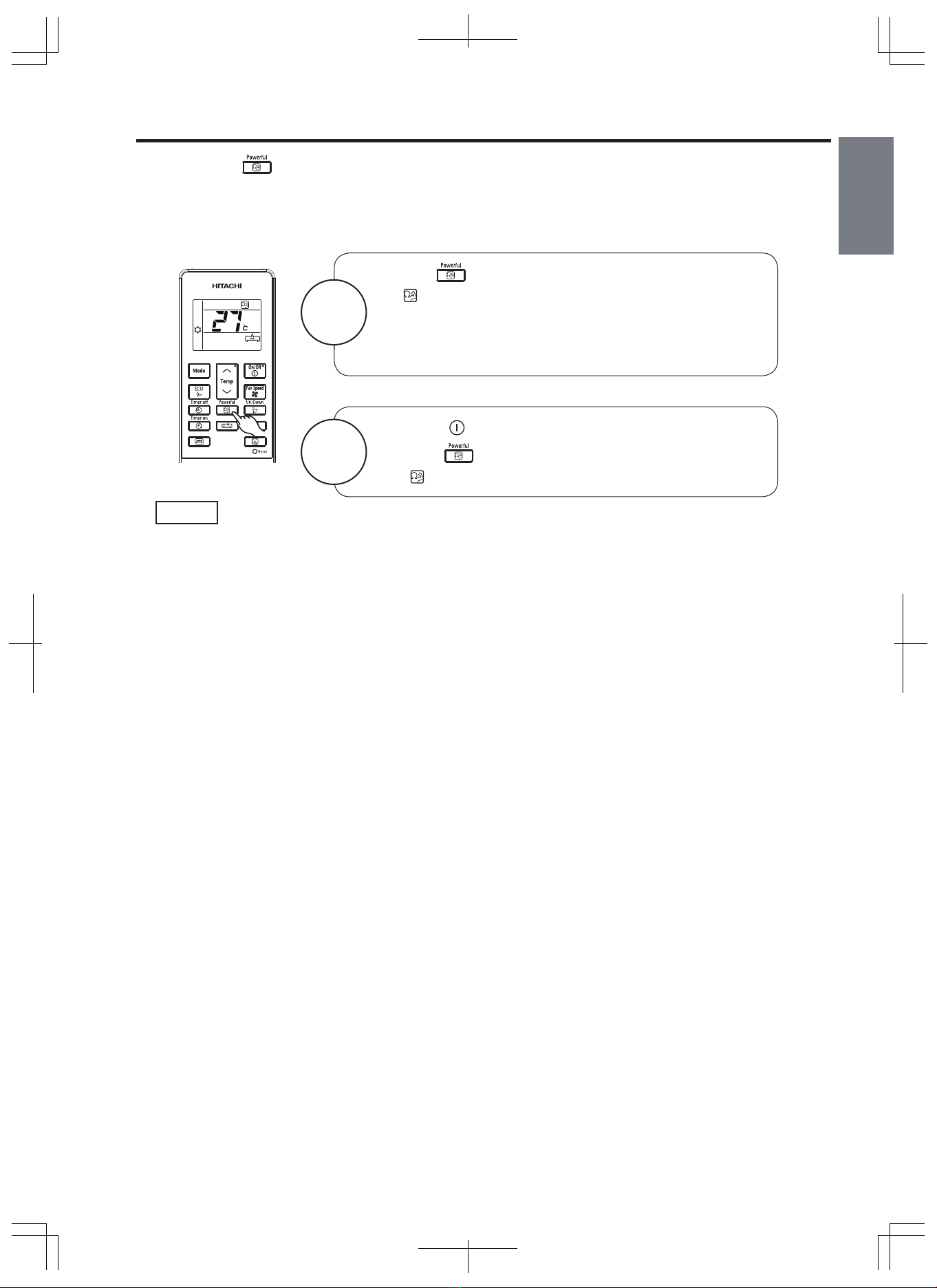

POWERFUL OPERATION
• During POWERFUL operation, cooler air will be blown out from indoor unit for COOLING operation
respectively.
the air conditioner performs at maximum power.
By pressing
•
Press the (POWERFUL) button during operation.
• " " is displayed on the LCD.
POWERFUL operation ends in 20 minutes. Then the system
automatically operates with the previous settings used before
POWERFUL operation.
START
Press the (POWERFUL) button again.
• " " disappears from the LCD.
CANCEL
• Press the (ON/OFF) button. or
(POWERFUL) button during DEHUMIDIFYING, COOLING, FAN operation,
NOTE
• During POWERFUL operation, capacity of the air conditioner will not increase
– if the air conditioner is already running at maximum capacity.
• After auto restart, POWERFUL operation is cancelled and previous operation shall start.
• When ECO mode is selected, POWERFUL operation is cancelled.
Sleep
Right/Left
F.Wash
Silent

- 12 -
●The dust and dirt adhering to indoor heat exchanger which is the cause of the smell. They are washed away
by freezing and thawing of the heat exchanger.
●
※It depends on the conditions of the room.
The process of Frost Wash
About 8 min About 20 min to 90 min.
Operation such as
cooling operation Freezing and thawing heat exchanger Auto Stop
Running Stop The upper and lower deflector(s) remain open during fan operation, freezing, thawing.
●If you want to stop Frost Wash operation, press the (ON/OFF) button.
●lamp on the indoor unit lights up during Frost Wash operation.
●When pressing the button such as cooling during Frost Wash operation, Frost Wash operation is discontinued
and start the cooling operation after about 3 minutes.
●In order to protect the product, Frost Wash function cannot be carried out again for about 60 minutes after
Frost Wash operation is completed.
Frost Wash start Frost Wash end
" "
Frost Wash function can work when the outdoor temperature is 1℃ to 43℃and indoor humidity is 30% to 70%.
Fan operation

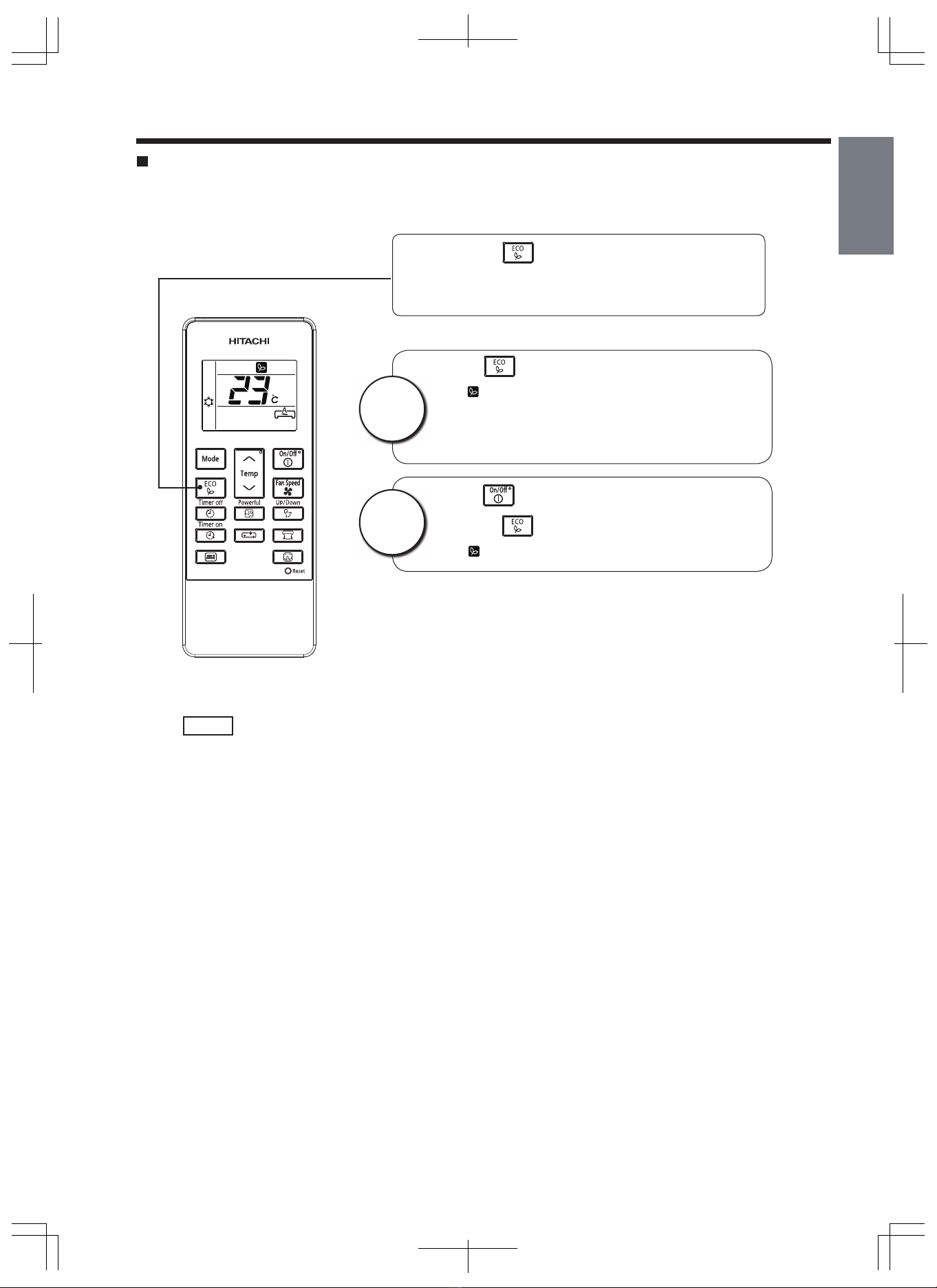

FROST WASH OPERATION
■Frost Wash (Manual mode)
When the unit is off, press (Frost Wash/Clean) button, manual Frost Wash will start.
■How to start and cancel Frost Wash (Manual mode).
●Press (Frost Wash/Clean) button, " " is displayed on the LCD. Frost
Wash operation will start. " " lamp on the indoor unit lights up.
●After one hour, " " disappears from the LCD. After about two hours, the
indoor unit will stop Frost Wash operation.
●In order to protect the product, Frost Wash function cannot be carried out
again for about 60 minutes after the Frost Wash operation is completed.
●Press the (ON/OFF) button, the operation will stop.
" " lamp on the indoor unit turns off.
2
1
Precautions for Use
●Do not open windows or doors during frost wash operation. Water will condense on the air deflector and
●Do not open or remove the front panel during Frost Wash operation. It may cause injury or malfunction.
●Frost Wash operation does not wash away all dust and dirt.
●If the air conditioner is continuously running, Frost Wash function is not effective.
●During Frost Wash operation, if power is turned off and then power is restored, Frost Wash function will
●
●
After turning on the power, please wait a moment if you want to start Frost Wash.
Hissing, fizzy or squeaking noise may generate during Frost Wash operation.
not restart.
drip down occasionally. This will wet your furniture.
Sleep
Right/Left
F.Wash
Silent
F.Wash
F.Wash

ENGLISH
- 13 -
ECO OPERATION
Press (ECO) button during operation.
• " " is displayed on the LCD.
• Energy saving operation will start by changing
the set temperature higher or lower and saving
operation power consumption.
START
Press (ON/OFF) button.
• Press (ECO) button again.
• " " disappears from the LCD.
CANCEL
NOTE
• In case the power consumption is already low,ECO operation will not reduce the power
consumption.
• By pressing (POWERFUL) button, ECO operation is cancelled.
• After auto restart, ECO operation is cancelled and previous operation mode shall start.
By pressing the (ECO) button during
Automatic, Dehumidifying or Cooling operation,
the air conditioner performs the “ECO” operation.
Sleep
Right/Left
F.Wash
Silent
Energy saving operation by changing set temperature and by limiting the maximum power
consumption value.

- 14 -

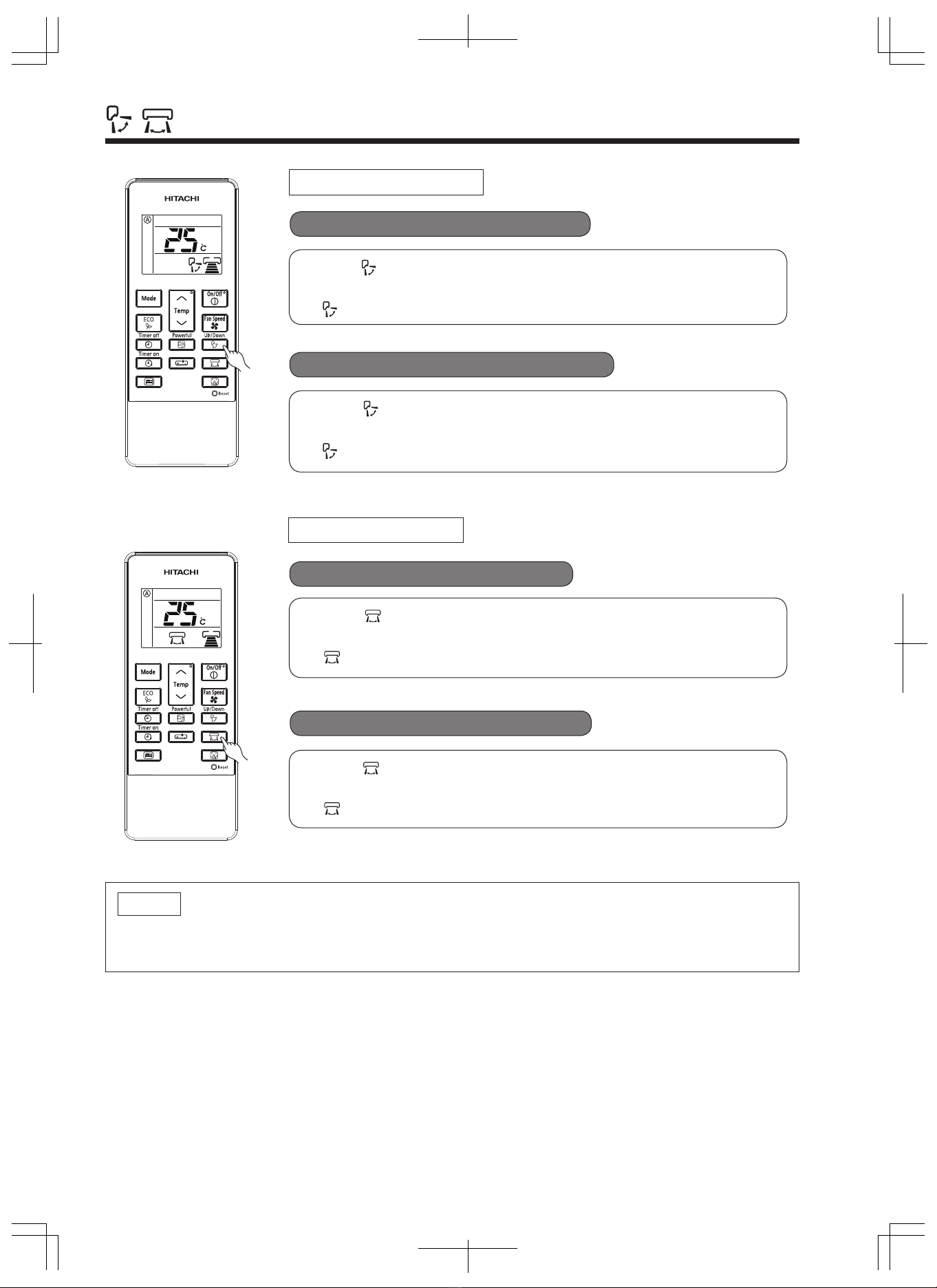

AUTO SWING OPERATION
VERTICAL SWING
■To start Vertical Auto Swing
■To cancel Horizontal Auto Swing
● Press (UP/Down (HORIZONTAL)) button. The deflector(s) will
is displayed on the LCD.
● Press (Right/Left (VERTICAL)) button. The deflectors will
start to swing right and left.
is displayed on the LCD.
● Press (UP/Down (HORIZONTAL)) button again. The deflector(s)
will stop in the current position.
disappeared from the LCD.
● Press (Right/Left (VERTICAL)) button again. The deflectors
will stop in the current position.
disappeared from the LCD.
NOTE
●During cooling and dehumidifying operation, do not keep the deflectors swinging or in the lower position
(in the case of vertical auto swing) for a long time. It may cause dew condensation on the deflectors.
start to swing up and down.
Sleep
Right/Left
F.Wash
Silent
Sleep
Right/Left
F.Wash
Silent
HORIZONTAL SWING
■To start Horizontal Auto Swing
■To cancel Vertical Auto Swing

ENGLISH
- 15 -

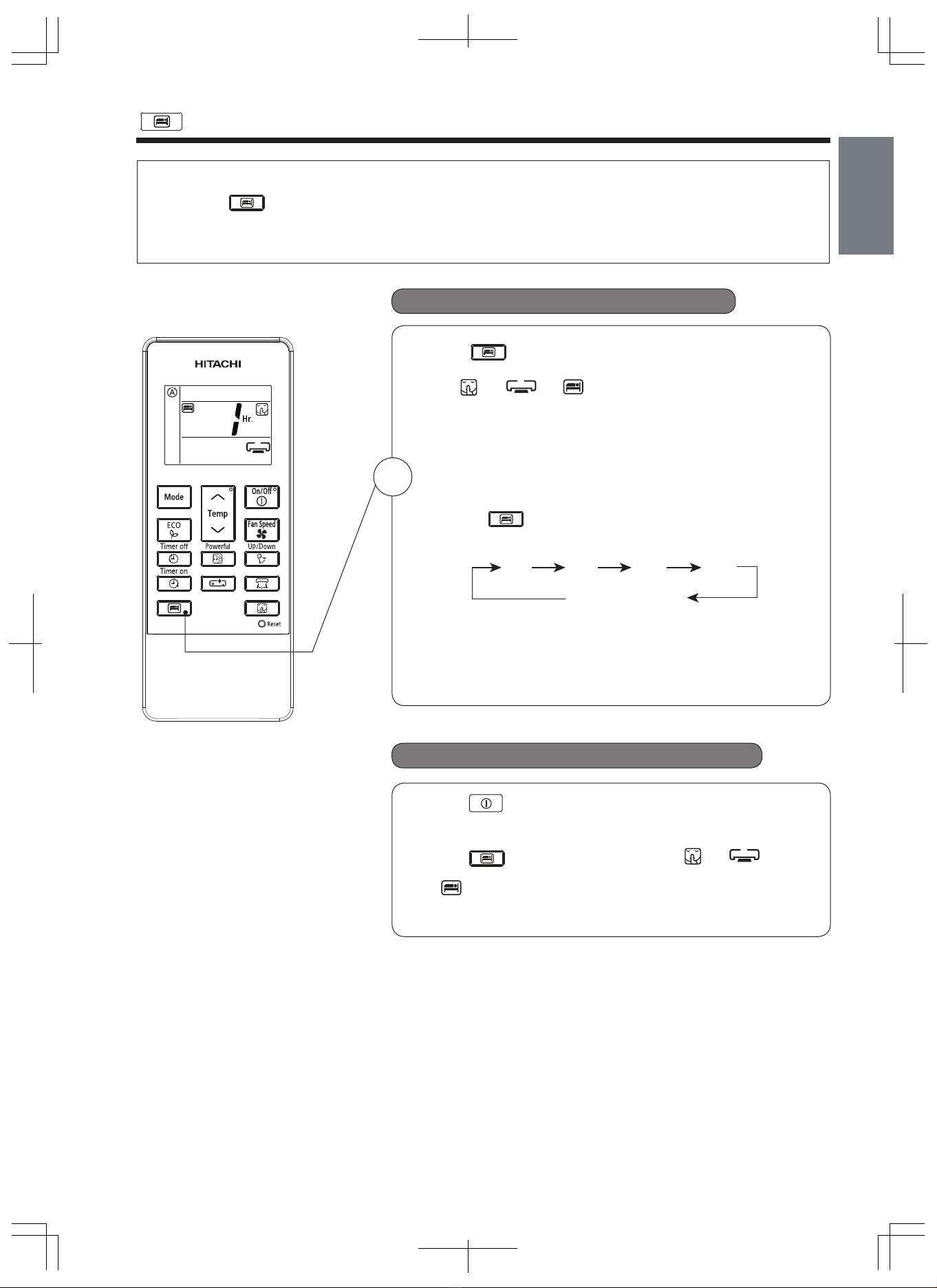

SLEEP TIMER OPERATION
The timer can be set up to a duration of 7 hours.
By pressing (SLEEP) button during AUTO, DEHUMIDIFYING, COOLING or FAN operation, the unit
shifts the room temperature and reduces the fan speed. It results in energy saving.
Set the current time first before operating the SLEEP TIMER operation.
■To start SLEEP TIMER operation
■To cancel SLEEP TIMER operation
Press (SLEEP) button during operation.
● “ ”, “ ”, “ ” and number of hours are displayed
on the remote control display.
● During SLEEP TIMER operation, fan speed will be ultra
slow.
● A beep sound emitted from indoor unit and the (TIMER) lamp
on the indoor unit lights up.
Pressing (SLEEP) button repeatedly, the number of hours
will change as below:
● During SLEEP TIMER operation, air conditioner will
continue to operate for the designated number of hours and
then turn off.
Press (On/Off) button.
●Room air conditioner will switch off.
Press (SLEEP) button again until “ ”, “ ”,
“ ” and number of hours disappear from the remote
control display.
1
1 H 2 H 3 H 7 H
SLEEP TIMER off
Sleep
Sleep
Sleep
Sleep
Sleep
Sleep
Right/Left
F.Wash
Silent

- 16 -
HOW TO EXCHANGE THE BATTERIES IN THE REMOTE CONTROLLER
1
2
Remove the cover as shown in the figure and take out
the old batteries. Push and pull to the
d rection of arrow
Install the new batteries.
The direction of the batteries should match the marks
in the case.
1. Do not use new and old batteries, or different kinds of
batteries together.
2. Take out the batteries when you do not use the remote
control for 2 or 3 months.
CAUTION
SILENT OPERATION
●By pressing (SILENT) button during DEHUMIDIFYING, COOLING or FAN operation,
the fan speed will change to ultra slow.
■To start SILENT operation
■To cancel SILENT operation
● Press (SILENT) button during operation.
“ ” is displayed on the LCD. Fan speed will be ultra slow.
●Press (On/Off) button. Or
●Press (SILENT) button again or (FAN SPEED)
button.
Fan speed will return to previous fan speed before SILENT
operation starts.
SILENT operation stops.
“ ” disappears from the LCD.
1
NOTE
●When POWERFUL operation is selected, SILENT operation is cancelled. Fan speed will return to
previous fan speed before SILENT operation.
●After auto restart, SILENT operation is cancelled. Fan speed will return to previous fan speed before
SILENT operation.
●During any operation with fan speed (SILENT), if press (SILENT) button, fan speed will
not change.
Silent
Silent
Silent
Silent
Sleep
Right/Left
F.Wash
Silent
i

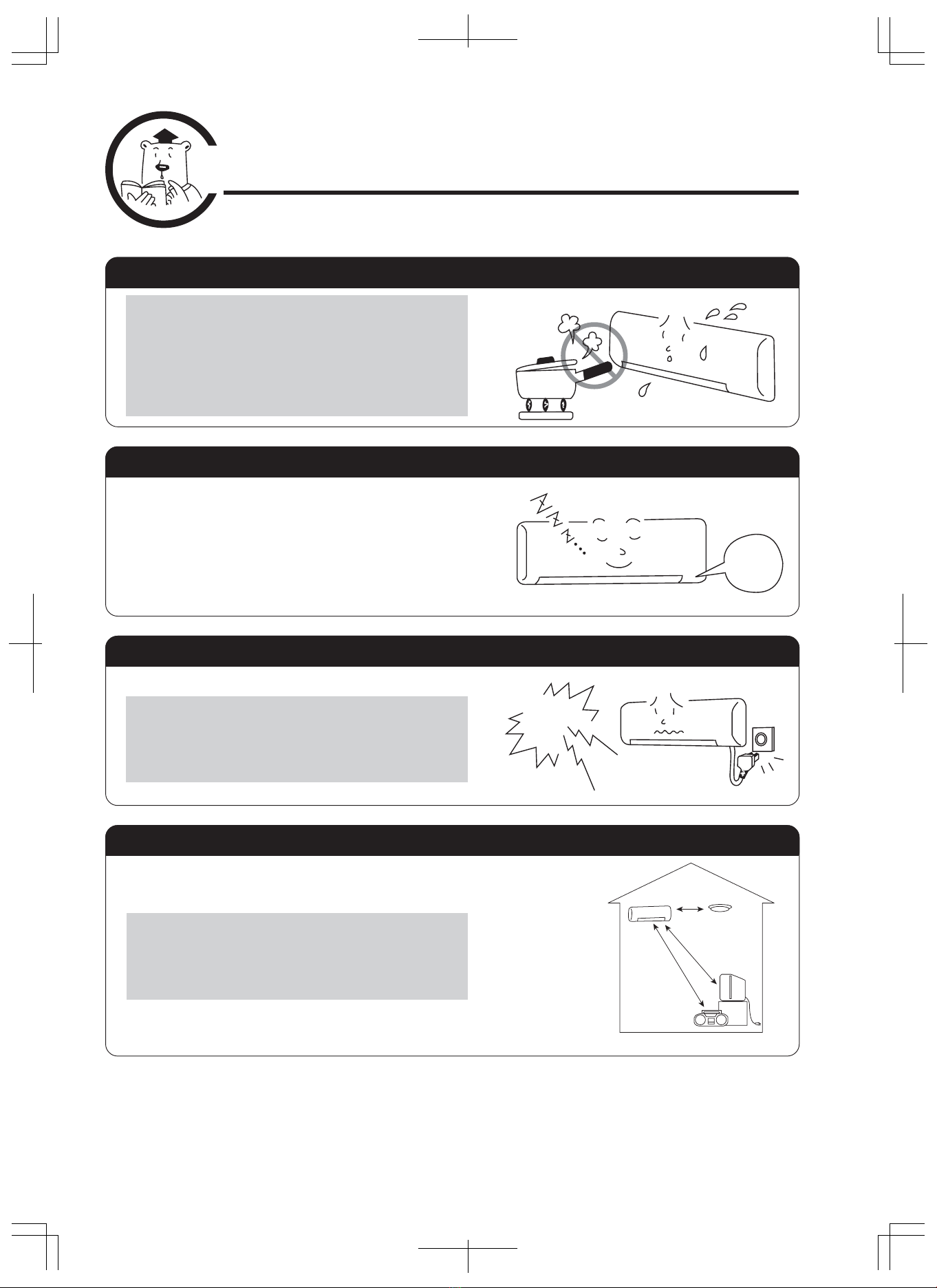

THE IDEAL WAYS OF OPERATION
Suitable Room Temperature
Warning
Freezing temperature
is bad for health and a
waste of electric power.
Install curtain or blinds
It is possible
to reduce heat
entering the room
through windows.
Ventilation
Caution
Do not close the room for a long period of
time. Occasionally open the door and windows
to allow the
entrance of
fresh air.
Effective Usage Of Timer
At night, please use theĀsleep timer operation
modeā, together with your wake up time in
the morning. This will enable you to enjoy a
comfortable room temperature. Please use
the timer effectively.
Do Not ForgetTo Clean The Air Filter
Dusty air filter will reduce the air volume
and the cooling efficiency. To prevent from
wasting electric energy, please clean the
filter every 2 weeks.
Temperature
n
Please Adjust Suitable Temperature
For Baby And Children
Please pay attention to the room temperature
and air flow direction when operating the unit
for baby, children and old folks who have
difficulty in movement.
(The ideal temperature
difference between
outdoor and indoor
is about f5°C).
ENGLISH
- 17 -

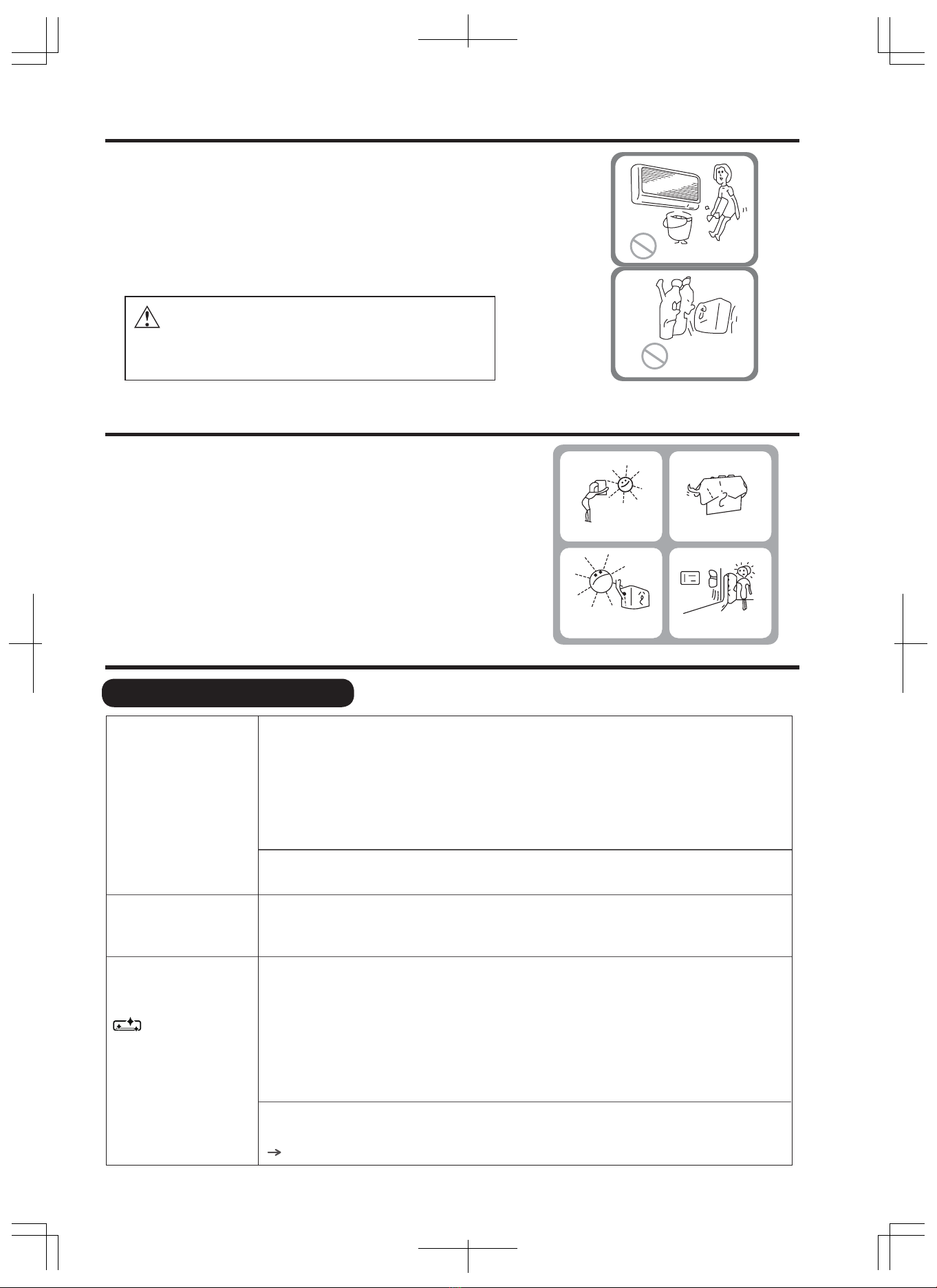

FOR USER’S INFORMATION
The Air Conditioner And The Heat Source In The Room
Caution
If the amount of heat in the room is above the
cooling capability of the air conditioner (for example:
more people entering the room, using heating
equipments and etc.), the preset room temperature
cannot be achieved.
Not Operating For A Long Time
When the indoor unit is not to be used for a long
period of time, please pull out the power plug. Or the
indoor unit still consumes about 1W in the operation
control circuit even if it is in “OFF”mode.
OFF
When Lightning Occurs
Warning
To protect the whole unit during lightning, please
stop operating the unit and remove the plug from the
socket.
Interference From Electrical Products
Caution
To avoid signal interference, please place the indoor
unit and its remote controller at least 1m away from
electrical products. To prevent
interference,
place at least
1m away.
TV
Inverter-type
fluorescent
lamp.
- 18 -

MAINTENANCE OF THE UNITS
CAUTION
Ensure that the unit is not in operation and all power supply has been disconnected before cleaning the
unit.
Dust Filter Screen
Dust filter screens are installed to remove the indoor dust particles hence they should be kept clean at all times.
They should be cleaned at each machine operation cycle of approximately 100 hours. Excessive dust collected at
the dust filter screen will block the air flow, reduce the cooling capability and could produce noise. Therefore the
dust filter screen should be cleaned as per instructions given below:
Cleaning Instructions
(1) Removing the dust filter screen
•While holding both edges of the front panel, open up and lift the front panel and push in to park at the secured
position.
Front panel
Front cabinet
•Slightly lift up the dust filter screen, release the latch clips [2 places] located at the bottom of the front cabinet
and move the dust filter screen downwards to remove it from the unit.
(2) Use a vacuum cleaner to vacuum clean the dust accumulated at the dust filter screen. If the accumulated dust
is too much to be removed by vacuum cleaning, apply mild detergent and flush the dust from the dust filter
screen with water. After thorough rinsing, leave the dust filter screen at a cool shaded place to dry.
(3) Re-install the dust filter screen to its original position (With “FRONT”marker facing front). Slightly lift up the
opened front panel and close it by returning it to its original position.
(4) Each year before using the air conditioner unit, clean the heat exchanger (evaporator) with a fine soft brush or
a vacuum cleaner and take care to avoid damaging the evaporator fins.
Front panel
Dust filter screen
Latch clip
CAUTION
•Do not use hot water (40e
C or above) to rinse the dust filter screen, otherwise the screen will warp and
get distorted. After rinsing, shake the dust filter screen to rid off all remaining water droplets and place it at a
cool shaded place to dry. Avoid placing the dust filter screen under direct sunlight, otherwise the screen will
warp and get distorted.
Do not operate the air conditioner unit without the dust filter screen installed, otherwise the ingress of dust
into the air conditioner unit will cause breakdowns.
ENGLISH
- 19 -

CLEANING THE FRONT PANEL
Front panel can easily get dirty. Use a soft cloth to wipe it.
If the front panel is excessively dirty, wipe the front panel with a soft
cloth either wet with warm water or containing a mild detergent after
which, wipe dry the front panel with a soft dry cloth.
Do not use hot water (50°C or above), volatile liquid, gasoline,acid,
diluting agents or brushes to clean the front panel as they could
damage the plastic finish and paintwork of the front panel.
CAUTION
Please disconnect the power plug before cleaning the
front panel.
1.
2.
3.
Hot water (50°C)
Volatile liquid, acid and others
TROUBLE SHOOTING THE UNIT BEFORE CONTACTING SERVICE STAFF TO CHECK AND RECTIFY
The air conditioner unit is not operating.
•Check whether the power supply plug is properly plugged in.
Abnormal air conditioning effects.
Is the dust filter screen clogged with dust and dirt?
Is the outdoor unit is located in direct sunlight?
Is there any blockage to the air flow of both the indoor and
outdoor units?
Are the doors and windows being left opened or is there any
heat source inside the room?
Is the temperature setting appropriate?
1.
2.
3.
4.
5.
(FROST WASH)
indicator blinks
Noise occurred
during frost wash
operation
Frost wash operation
does not start
It does not wash when outside temperature is less than about 1 degree Celsius or
It does not wash when the humidity in the room is about 30% or less or about 70% or
more than 43 degree Celsius.
more.
When "FROST WASH" is done by operating a remote control, it does not wash
Within 60 minutes after the end of "FROST WASH", "FROST WASH" is not operated
for product protection.
It is the sound that the internal machine is inflated and contracted by the temperature
change and the fin of the heat exchanger is frozen and thawed
Repeat for 1 second
on and 1 second off for 10 seconds
Because "FROST WASH" cannot work when operating the "FROST WASH" with
The air conditioner is operating
Outside air temperature, room temperature and room humidity are not
It has not been over 60 minutes since the end of "FROST WASH"
remote controller.
suitable for "FROST WASH"
Repeat for 4 seconds on and 1 second off for 15 seconds
Because it is not "FROST WASH" for a long time.
Operate the remote controller to operate "FROST WASH".
·
·
·
when the room temperature is less than about 10 degrees Celsius or more than about
32 degrees Celsius.
FROST WASH OPERATION
- 20 -
