Hitachi UTOPIA R410A Series User manual

&
HO2022476HA
Window Type Air Conditioner
Inverter Cooling only Series
R410A
Model
RAW-VJ07SCASK
RAW-VJ10SCASK
RAW-VJ13SCASK
RAW-VJ18SCASK
RAW-VJ24SCASK
INSTALLATION
& OPERATION
MANUAL

CONTENTS
Thank you for choosing Hitachi air conditioner. Please read this operating manual carefully before
operating the unit and keep it for consultation.
Structure mechanism and Installation
Precautions 1 - 2
Operating condition 3
Power requirement 3 - 4
Installation 5 - 7
Notes for installation 8
Installation Steps 9
Operation procedure

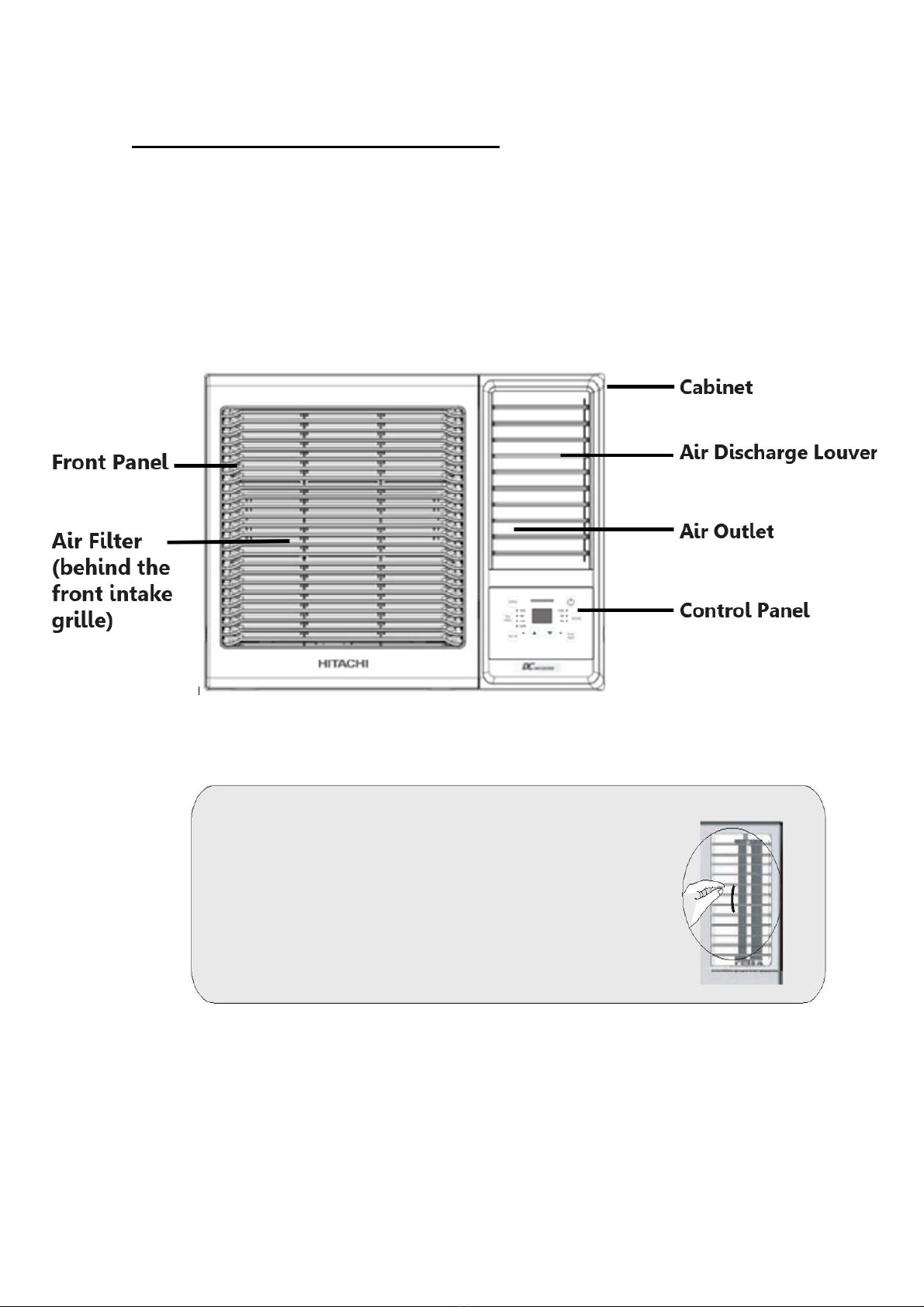

Part identification and Airflow direction 10

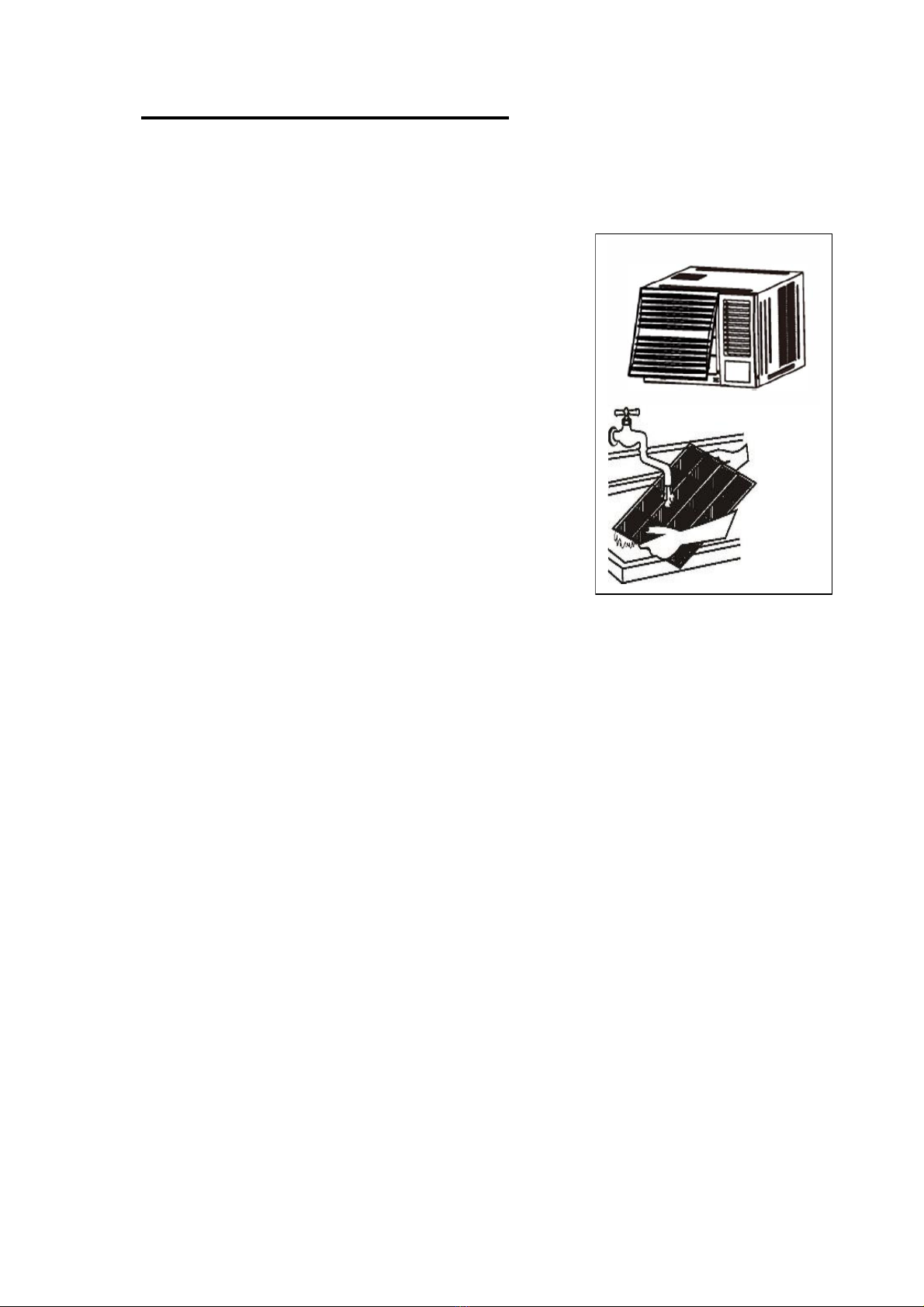

Air Filter and Cabinet Cleaning 11

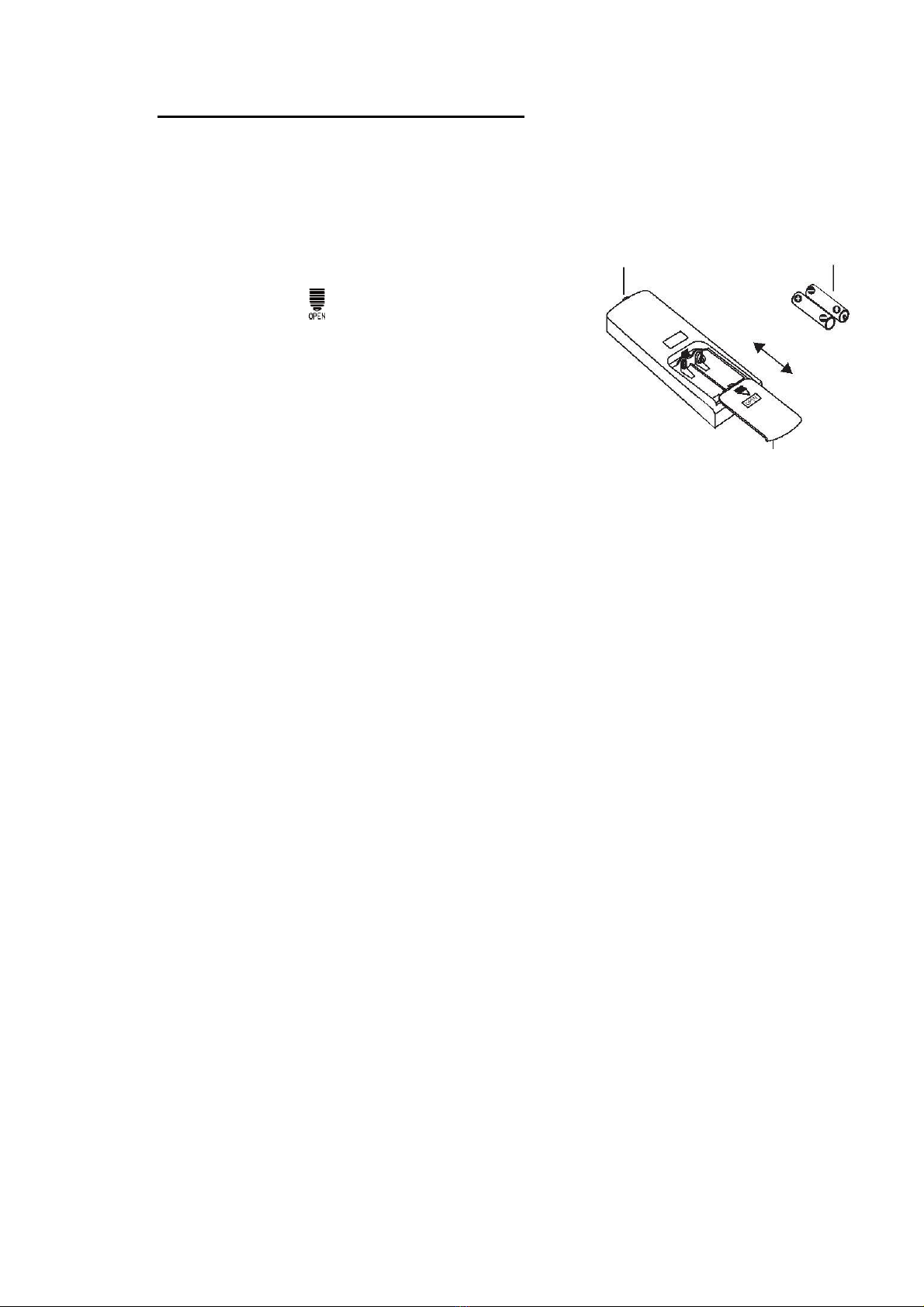

Remote control operation procedure 12 - 15
Remote control panel 16
Operation tips 17
Care and maintenance
Caution 18
Cleaning and maintenance 19
Trouble shooting guide 20 –21
After sales service 21
NOTICE :
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety. Children should be supervised to ensure that they do not play with the appliance.
The appliance shall be installed in accordance with national wiring regulations. If the supply
cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
Please read this operating manual carefully before operating the unit.
The figures in this manual may be different with the material objects, please refer to the
material objects for reference.

Indicates a hazardous situation that, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation that, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation that, if not avoided,
may result in minor or moderate injury.
Indicates important but not hazard-related
information, used to indicate risk of property
damage.
Indicates a hazard that would be assigned a signal
word WARNING or CAUTION.
Manufacturer will bear no responsibilities when personal injury or property loss is
caused by the following reasons.
1. Damage the product due to improper use or misuse of the product;
2. Alter, change, maintain or use the product with other equipment without abiding
by the instruction manual of manufacturer;
3. After verification, the defect of product is directly caused by corrosive gas;
4. After verification, the defects are due to improper operation during transportation
of product;
5. Operate, repair, maintain the unit without abiding by instruction manual or related
regulations;
6. After verification, the problem or dispute is caused by the quality specification or
performance of parts and components that produced by other manufacturers;
7. The damage is caused by natural calamities, bad using environment or force majeure.
If it needs to install, move or maintain the air conditioner, please contact dealer
or local service center to conduct it at first. Air conditioner must be installed,
moved or maintained by appointed unit. Otherwise, it may cause serious damage or
personal injury or death.
When refrigerant leaks or requires discharge during installation, maintenance, or
disassembly, it should be handled by certified professionals or otherwise in compliance
with local laws and regulations.
- 1 -
Explanation of Symbol
Exception Clauses
WARNING
CAUTION
DANGER

Precautions
Warning
Children shall not play with the appliance.
The air conditioner should be installed in accordance with national wiring regulations.
Air Conditioner should be properly grounded. Incorrect grounding may cause electric shock.
•This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved.
•Do not connect air conditioner to multi-purpose socket. Otherwise, it may cause fire
hazard.
•Do install the switch. If not, it may cause malfunction.
•Do not spill water on the remote control, otherwise the remote control may be broken.
•Do not spray water on air conditioner. It may cause electric shock or malfunction.
•Do not extend fingers or objects into air inlet or air outlet. It may cause personal injury
or damage.
•Do not step on air conditioner, or put heavy objects. It may cause damage or personal
injury.
•Do not block air outlet or air inlet. It may cause malfunction.
•Do disconnect power supply when cleaning air conditioner. Otherwise, it may cause
electric shock.
•Do not repair air conditioner by yourself. It may cause electric shock or damage.
•Maintenance must be performed by qualified professionals. Otherwise, it may cause
injury or damage.
•Please contact dealer when you need to repair air conditioner.
Please install the devices for short-circuit protection and electrical leakage protection when
installing the air conditioner.
According to the local safety regulations, use qualified power supply circuit and circuit break.
-2-

Structure mechanism and Installation
•Operating condition
Please operate air conditioner in the correct conditions as follows.
COOL mode operation
DRY mode operation
Outdoor temperature should be in
range of 18˚C to 43˚C.
Otherwise it is possible for air
conditioner to breakdown.
Outdoor temperature should be in
range of 18˚C to 43 ˚C.
Otherwise it is possible for air
conditioner to breakdown.
Room humidity should be lower
than 90%. Otherwise, it is possible
for air conditioner to dew at the
surface and even drop water after
running for a long period of time,
but this is normal.
Please refer to P.4 for indoor
temperature range.

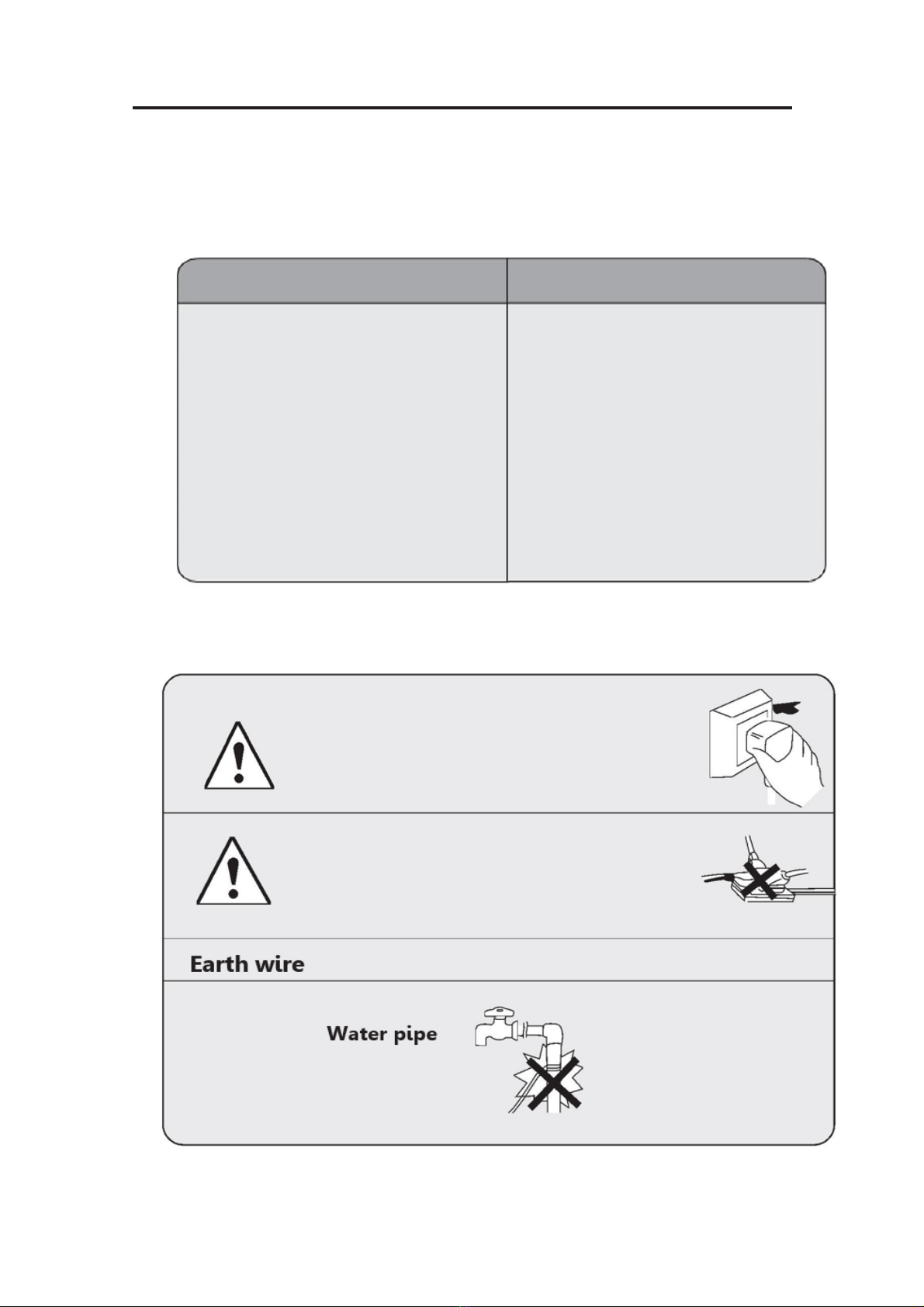

•Power requirement
- 3 -
Rated Voltage : 220 V +/- 10%
The electric components will be damaged when
the voltage is too high. If the voltage is too low,
the compressor will vibrate violently to damage
the refrigerant system and easily cause the
compressor and electric components not working.
The ground must be connected. Special socket must
be used. Furthermore, the socket and wiring must
conform to the wiring regulations. And the earthing
method must be reliable. In fixed circuit, there must
be electricity leakage protection switch of enough
power capacity and air switch with enough space.
To ensure the reliable earthing, please do not connect
earth wire to the following places:

Structure mechanism and Installation
Operation Temperature :
Cooling operation
Outdoor temp:
18-43
oC
/ 64-109oF
Indoor temp:
17-32oC / 62-90oF
Note: Performance may be reduced outside of these operating temperatures.
Power cord
1. Model : RAW-VJ24SCASK is supplied without plug. It needs to be installed by a qualified
technician for safety purpose.
2. Power point requirement: CONNECTION / SPUR UNITS
MINIMUM POWER 220V 30A
3. Power cord conductors are distinguished according to color as follows (see Fig.A)
4. For your safety and protection, this unit is earthed through the power cord (see Fig.B)
Please contact the manufacturer or its service agent or a similar qualified person if you
want to replace it.
5. Be sure that the unit is being correctly grounded. The wall outlet (Switch) should be
provided with reliable earth wire.
6. The unit should be provided with an individual circuit and the circuit breaker/ fuse rating
should be the same as that of the power cord.
NOTE :
As the colours of the wires in the mains lead of this appliance may not correspond with the
coloured markings identifying the terminals in your connection units –Proceed as follows :
The wire which is coloured BROWN must be connected to the terminal which is marked L.
The wire which is coloured BLUE must be connected to the terminal which is marked N.
The wire which is coloured YELLOW / GREEN must be connected to the terminal which is marked .
- 4 -

- 5 -
Structure mechanism and Installation
•Installation
Installation precaution:
Please contact the professional technician to
install the unit and don’t install it by yourself.
Otherwise, we are not responsible for the
damage of unit.
Location:
•The condensation water must be drained away easily.
•Install air conditioner unit far away from TV set or radio etc. to avoid
disturbing video or voice.
•Avoid a place where is possible for inflammable gas to leak out.
•Avoid other heat sources or direct sunlight.
•Avoid a place where is easy for children to touch.
How to install
•Choose a location where there are no any obstacle surrounding the
unit, and the plug is accessible.
•Prepare the installation hole slightly bigger than unit size.

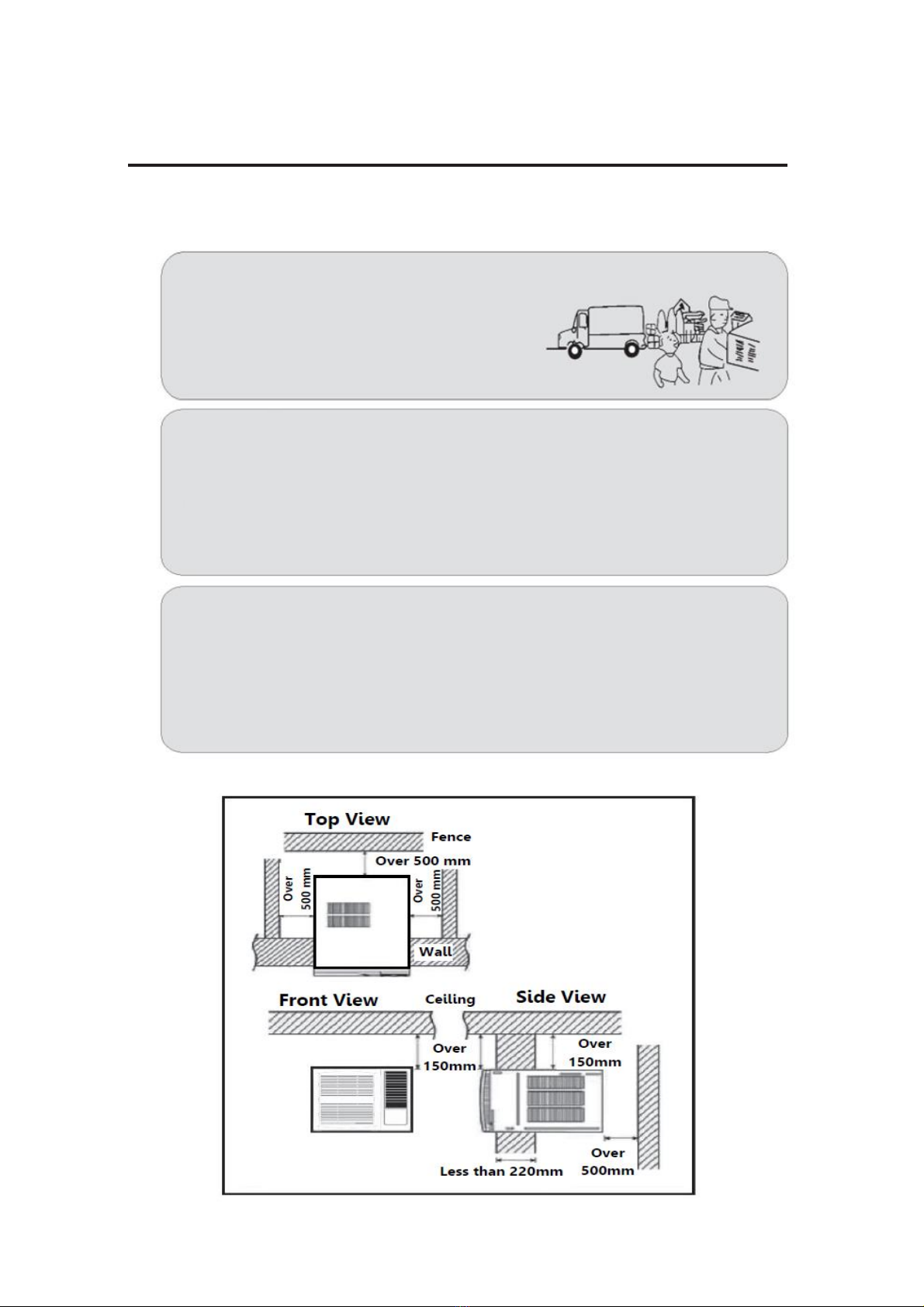

•Choose the installation space according to the following diagram.
.

Installation procedure :
1. Remove the sticker from the front panel.
2. Put the unit into the installation hole.

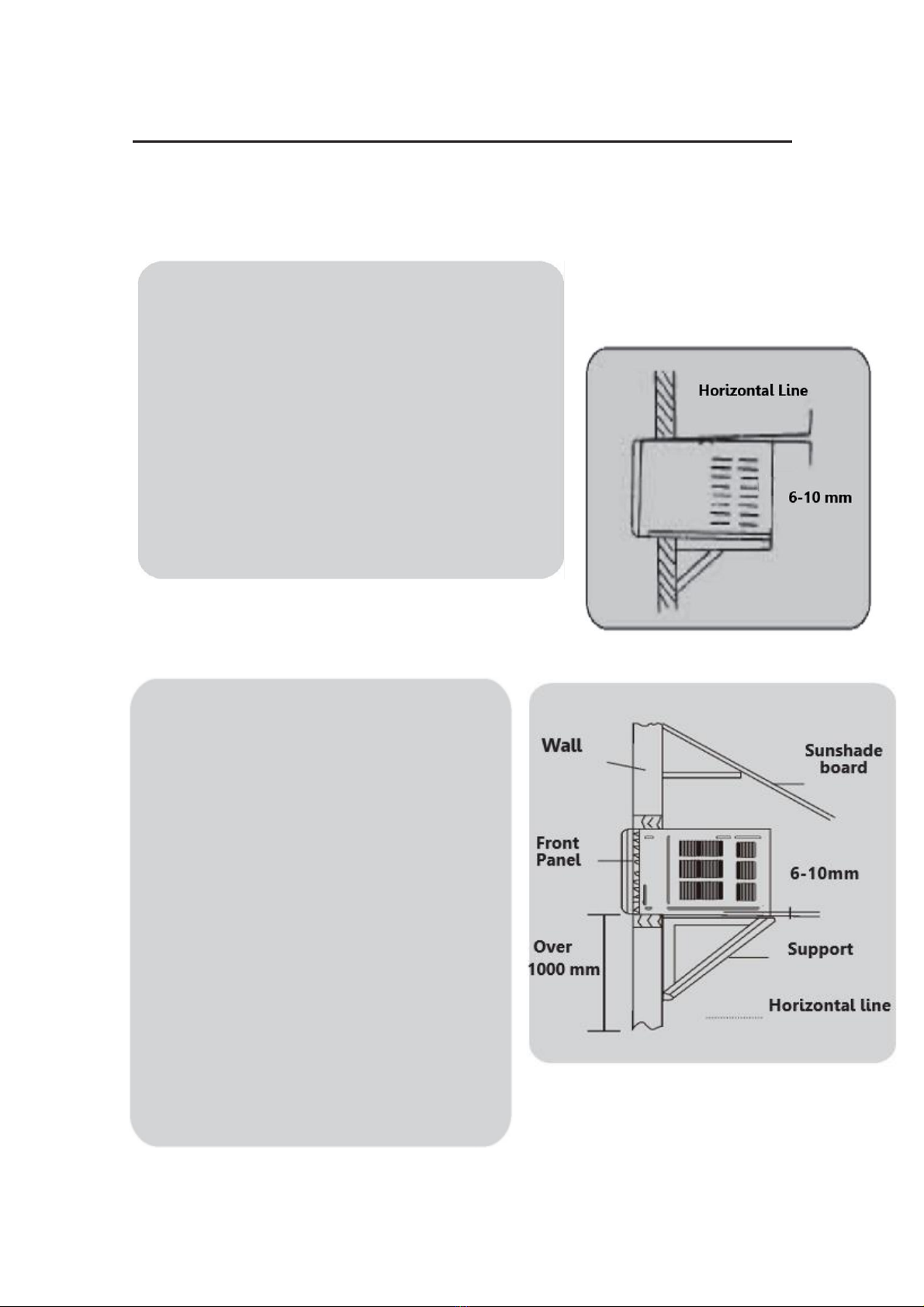

When installing the unit, it should slant
down to the back to make sure the
condensation water can be drained away
easily. (Slant about 6-10mm) (Shown at
right figure.)
3. The installation place should be strong
enough to avoid the enlargement of noise
or vibration.
4. Fill up sews in the cabinet with sealant.
- 6 -
Installation assistance :
•Use iron support
The installation hole should be strong
enough to support the air conditioner.
If it cannot, iron support has to be
used in outdoors. Iron support should
be fixed on the building (Shown at
right figure.)
●Use sunshade board
Air conditioner should avoid anything
to be dropped onto it and avoid direct
sunlight. If there is no cover on it, you
should contact the seller for installing
the sunshade board. When installing
the sunshade board, don’t let it block
the air inlet at the side grille.
Structure mechanism and Installation
•Installation

XXX
- 7 -
Drain water for another style :
To get the maximum cooling efficiency, the air conditioner is designed
to splash the condensate on the condenser coil. Please install the
drainage tray when installing the air conditioner if necessary.
To the cooling only unit, if the splashing sound annoys you, you can
use an outside drain as shown in the following procedure. However, it
may reduce the performance.
1. Slide out the chassis from the cabinet.
2. Remove the rubber plug from the body base plate.
3. Install the drain tray to the corner of the cabinet with 2 screws.
4. Connect the drain hose to the outlet on the drain pan bottom.
5. Slide the chassis into its original place in the cabinet.
Note:
Due to different installation environments and humidity, it is recommended
that customers consider installing an external large drain pan and connect
to drain hose.
All costs and whether the location of the external large drain pan and drain
hose are suitable for installation, please consult with qualified installers.
For RAW-VJ18SCASK and
RAW-VJ24SCASK, there will
be 2 drain trays provided.
Select the appropriate drain
tray according to actual
condition.
Structure mechanism and Installation
•Installation

Removal
Before removing air conditioner to the other place, you
should contact the seller firstly.
Then it must be done under the direction of the
professional technician.
Noise
•Install in a location where is firm enough to avoid the
enlargement of noise and vibration.
•Don’t put anything in front of the outlet of the unit to
avoid enlarging noise.
•Be sure that hot air or noise will not cause
inconvenience to neighbors.
•Please contact the seller as soon as there is strange
noise during operation. Please use the safety support.
Electric Wiring
•Must connect with ground reliably.
•The exclusive circuit must be used. Removable
socket can’t be used because of poor contact. It
can cause overheat or fire.
•Don’t pull the power cord strongly.
•In fixed circuit, there must be electricity leakage
protection switch and leakage current is less than
30 mA.
•Switch (circuit breaker) should be installed in the
circuit and its capacity are 15 A (RAW-VJ07SCASK,
RAW-VJ10SCASK and RAW-VJ13SCASK), and 30 A
(RAW-VJ18SCASK and RAW-VJ24SCASK)
-8 -
Structure mechanism and Installation
•Notes for installation

Structure mechanism and Installation
•Installation Steps
Step 1. Remove the front panel and the air filter
1. Hold the slot under the front panel, then uplift outwards, and remove the front panel
(See Fig. 1).
2. Pinch the handle under the air filter and make the air filter arched, remove it from the
slot from unders ide to upside (See F ig. 2).
3. Cut and remove the cable tie (See Fig. 3) fixing between the panel and the temperature
sensor behind the air filter. (Only applicable for RAW-VJ18SCASK and
RAW-VJ24SCASK).
Step 2. Remove the frame.
1. Remove one screw on the chassis fixing bracket, then remove the chassis fixing bracket.
Remove the two screws located on the back of the cabinet as shown in Fig. 4 if necessary.
2. Grasp the left corner of the frame’s underside, then loosen the frame. (See Fig. 5).
After that use a flathead screwdriver to press the clip connecting between the control
panel and the frame, finally remove the frame.
3. Grasp the handle on the chassis and carefully silde the air conditione r out of th e cabin et
(See Fig. 6). Rubber Plug is fixed in the drain hole. Please use the spare rubber plug
given into the package if necessary.
Step 3. Install the frame.
1. Push the unit chassis into the cabine t (S ee Fig. 7).
2. Install the frame (See Fig. 8) and fix the scr ews on the fram e (See Fig. 4)
Step 4. Install the air filter and front panel.
1. Install the Silver Ion air filter into the frame's slot from upside to underside. (See Fig. 9).
2. Hang the front panel on th e fram e's buckle , the n pr ess the front pane l into the fram e's slot
untiI you he ar a click (S ee Fig. 10)
-9 -

•Airflow direction Adjustment
Horizontal airflow direction vane
(Airflow direction adjustment up and down)
The horizontal airflow direction vane is controlled by
positioning the vane to discharge the air upwards,
downwards or straight out.
- 10 -
Operation procedure
•Part identification
Panel outlook picture is just for reference, please take the real unit as standard outlook.

Operation procedure
•Air Filter
The air filter behind the inlet grille should be
checked and cleaned at least once every 2 weeks
(or as necessary) to maintain optimal performance
of the air conditioner.
How to remove the air filter
Tum offthe unit, tum offthe circuit breaker
1. Hold the tabs under the front panel, then
uplift it outwards over the protection tab or
remove the front panel.
2. Pinch the handle under the air filter and
make the air filter arched, remove it from the
slot from underside to upside.
3. Clean the filter with warm soap water. The
water should be below 40°C to prevent
distortion of the filter.
4. Rinse off and gently shake off excessive water
from the filter. Allow the filter to dry before
placing back. To prevent distortion of the
filter, do not dry under direct sunlight.
•
•Cabinet Cleaning
•Be sure to unplug the air conditioner to prevent shock or fire hazard. The cabinet
and front may be dusted with an oil-free cloth or washed with a cloth dampened in
a solution of warm water and mild liquid dishwashing detergent. Rinse thoroughly
and wipe dry.
•Never use harsh cleaners, wax or polish on the cabinet front.
•Be sure to wring excessive water from the cloth before wiping around the controls.
•Excessive water in or around the controls may cause damage to the air conditioner.
•Plug in air conditioner.
NOTE:
Never use water over 40˚ C , alcohol, gasoline, acid, solvent or brush to clean the front
panel as this will damage the surface of the part.
Winter Storage
If you plan to store the air conditioner during the winter, remove it carefully from the window
according to the installation instructions. Cover it with plastic or place it to the original
carton.
CAUTION
NEVER operate the air conditioner without the air filter, as dust/dirt particles can contribute
to equipment failure.
- 11 -

Operation procedure
•Remote control operation procedure
Note: This is a general use remote control, it could be used for the air conditioners with
multifunction. For some functions which the model doesn’t have, the unit will keep the
original running status if pressing the corresponding button on the remote control.
2
1 On / Off button
Press this button to turn on the unit. Press this button again to turn off the unit.
2 Mode button
Press this button to select your required operation mode. Corresponding indicator will
be on.
Auto Cool Dry Fan Only Heat (Not applicable)
●Auto: Under this mode, the unit will operate automatically according to default setting.
In this case, set temperature cannot be adjusted.
●Cool: Under this mode, air conditioner operates under cooling mode. Cooling indicator
will be on. Press “Fan” button to adjust the fan speed.
- 12 -
8
(not applicable)

- 13 -
Operation procedure
•Remote control operation procedure
●Dry: Under this mode, the unit runs in low fan speed for dehumidifying and the
corresponding indicator is on; under dry mode, the fan speed cannot be
adjusted.
●Fan Only: Under this mode, air conditioner will not operate in COOL mode but only
blow wind. Fan indicator will be on. Press “Fan” button to adjust the fan
speed.
3 + / - button
•Pressing “+” or “-” button once will increase or decrease set temperature
by 1°F(°C). Hold “+” or “-” button for 2 seconds, set temperature on remote
control will change quickly. Release the button after your required set
temperature is reached.
•Under timer setting status, after each pressing of “+” or “-” button, time
will increase or decrease 0.5 hours. Hold “+” or “-” button, 2 seconds later,
time displayed on dual-8 nixie tube will change quickly. Unpress the
button until the time is reached to your set time.
4 Swing button
Press this button to turn “ON”& “OFF” swing.
5Fan button
This button is used for setting fan speed in the sequence that goes from AUTO,
NOTE: There are 3 fan speeds of this model.
6
6Sleep button
Press this button to go into the Sleep operation mode. Press it again to
cancel this function. This function is available in COOL mode to maintain the
most comfortable temperature for you.
Auto

14 -
Operation procedure
•Remote control operation procedure
7Timer button
Under ON status, press this button to set timer OFF; Under OFF status, press this
button to set timer ON.
Press this button once and the characters of HOUR ON (OFF) will flash to be
displayed. Meanwhile, press “+” button or “-” button to adjust timer setting (time
will change quickly if holding “+” or “-” button). Time setting range is 0.5~24hours.
Press this button again to confirm timer setting and the characters of HOUR ON
(OFF) will stop flashing.
If the characters are flashing but you haven’t pressed timer button, timer setting
status will be quitted after 5 seconds. If timer is confirmed, press this button again
to cancel timer.
8Light button
Press the button to activate or deactivate the LED (Light) on control panel.
9Health button (Not Applicable)
WiFi Function (Not Applicable)
WiFi function are not applicable for models of RAW-VJ07SCASK / RAW-VJ10SCASK /
RAW-VJ13SCASK / RAW-VJ18SCASK and RAW-VJ24SCASK.
Press “Mode” + “Timer” button together to disappear “WiFi” symbol onto display.
Function introduction for combination buttons
Temperature display switchover function
Under OFF status, press "-" and "Mode" buttons simultaneously to switch temperature
display between °C and °F

Operation procedure
Replacement of batteries in
remote control
1. Press the back side of remote control
marked with “ “ , as shown in the Fig. ,
and then push out the cover of battery box
along the arrow direction.
2. Replace two (AAA 1.5V) dry batteries,
and make sure the position of "+" polar
and "-" polar are correctly placed.
3. Reinstall the cover of battery box.
signal sender
battery
reinstall
remove
Cover of battery box
NOTICE :
•The distance between signal sender and receiving window should not be more
than 8 meters, and there should be no obstacles between them.
•As the signal will be interferred in the room with electronic fluorescent lamp,
conversion fluorescent lamp or wireless phone, please get closer to the air
conditioner when using the remote control.
•Replace new batteries of the same model when replacement is required.
•When you don’t use remote control for a long period of time, please take out
the batteries.
- 15 -

Operation procedure
•Remote control panel
Note: If wireless remote control is lost, you can use the remote control panel and operate manually.
- 16 -
1 ON/OFF BUTTON
Operation starts when pressing this button. Pressing this button again to
stop the operation.
2 SWING BUTTON
Activate the automatic air swing function.
3 FAN SPEED BUTTON
Select the fan speed LOW, MID, HIGH and AUTO in sequence.
4 TIME/TEMP BUTTON
Press the keypad to increase the set (operating) temperature of the unit.
Press the keypad to decrease the set (operating) temperature of the unit.
The temperature setting range is from 16~30°C.
For the time setting range from 0~10 hours, press the keypad to increase the
selected time on 0.5 hour increment, and press the keypad to decrease the
selected time in 0.5 hour decrement.
For the time setting range from 10~24 hours, press the keypad to increase the
selected time on 1 hour increment, and press the keypad to decrease the selected
time in 1 hour decrement.
5 SIGNAL RECEIVER
6 MODE BUTTON
Select the operation mode COOL, DRY, FAN (for cooling only model).
7 FILTER BUTTON
This feature is a reminder to clean the Air Filter (See Care and Cleaning) for
more efficient operation and cooling. The LED (Light) will illuminate after 250
hours of operation. To reset after cleaning the filter, press the "Filter" button
and the light will go off. Before the LED (Light) illuminate, press the “Filter" button
for 3 seconds to clear the accumulated time of operation.

Operation procedure
•Operation Tips
Operation for comfort and economy
Do not overcool the room
temperature. This is not
good for health and
causes wasting of
electricity.
Keep the blind or curtains
closed. Do not let sunshine
entering the room directly
when the air conditioner is
in operation.
Keep the room temperature
consistent. Adjust the vertical
and horizontal airflow direction
to ensure consistent
temperature
in the room. Air can’t be
discharged to the direction of
air-in.
Make sure that the doors and
windows are tightly closed.
Avoid opening doors and
windows frequently in order
to keep air conditioning in
the room.
Clean the air filter
regularly. Blockages of
the air filter reduce
dehumidifying effects.
Clean the air filter at
least once every two
weeks.
Ventilate the room occasionally.
Since windows are kept closed,
it is a good idea to open them
and ventilate the room. When
starting the unit, curtains or
windows should be closed to
prevent the cool air leakage.
17
