Administrator Manual
Thank you for purchasing the WirelessIP 3000.
● Before use, kindly read this “Administrator Manual”
thoroughly to have an understanding of the contents.
● After reading, place it within reach at all times such as at
the side of this product.
WirelessIP 3000
TD61-2898A

- 2 -
CONTENTS
CONTENTS..............................................................................................................................................................................2
Chapter 1 Administrator Settings......................................................................................................................................1-1
Administrator Menu...............................................................................................................................................................1-2
Network.................................................................................................................................................................................1-3
Network.............................................................................................................................................................................1-3
■Addition...................................................................................................................................................................1-4
■Deletion...................................................................................................................................................................1-7
■Priority-Level Settings.............................................................................................................................................1-8
■Basic Information.....................................................................................................................................................1-8
■Wireless LAN...........................................................................................................................................................1-9
■Encryption...............................................................................................................................................................1-9
■When WEP is selected for Mode...........................................................................................................................1-10
■When WPA-PSK is selected for Mode..................................................................................................................1-11
■Authentication Method...........................................................................................................................................1-12
■TCP/IP...................................................................................................................................................................1-13

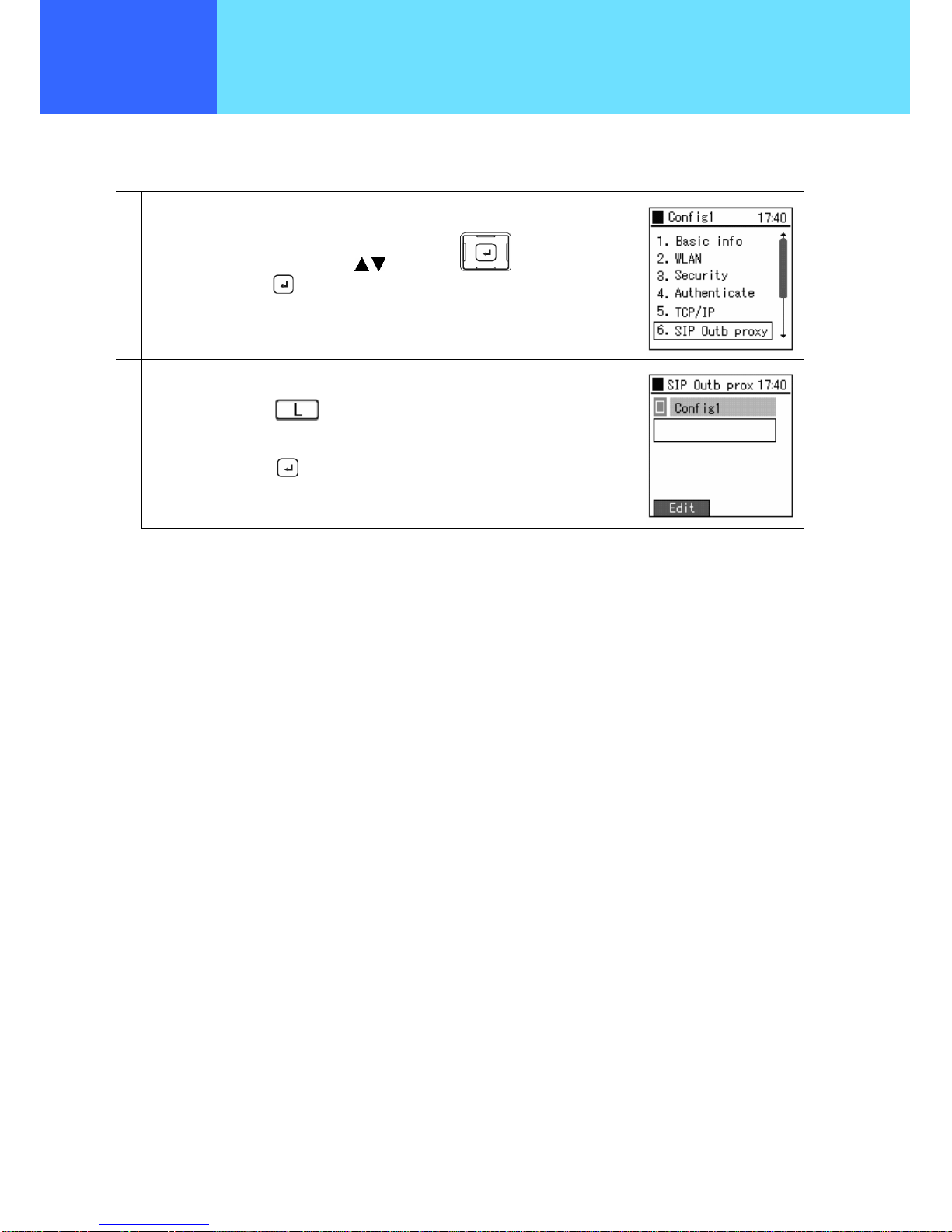

■SIP Outb Proxy......................................................................................................................................................1-14
■NAT Traversal.......................................................................................................................................................1-15
■QoS.......................................................................................................................................................................1-16
■Coding...................................................................................................................................................................1-17
■Jitter Buffer............................................................................................................................................................1-17
SIP..................................................................................................................................................................................1-18
■User account.........................................................................................................................................................1-18
■Server....................................................................................................................................................................1-19
■IMS Server............................................................................................................................................................1-19
■Outbound Proxy....................................................................................................................................................1-20
■Expire....................................................................................................................................................................1-20
Network Connection........................................................................................................................................................1-21
■Network Connection..............................................................................................................................................1-21
Certificate Management..................................................................................................................................................1-22
■Certificate Management........................................................................................................................................1-22
Network Search...............................................................................................................................................................1-25
Ping.................................................................................................................................................................................1-27
■Manual Operations................................................................................................................................................1-27
■Proxy Server 1.......................................................................................................................................................1-28
■Proxy Server 2.......................................................................................................................................................1-28
■Default Gateway....................................................................................................................................................1-29
■TFTP Server..........................................................................................................................................................1-29
Password.............................................................................................................................................................................1-30
Administrator Password..................................................................................................................................................1-30
User Password Reset.....................................................................................................................................................1-31
Version Upgrade..................................................................................................................................................................1-32
Error Log..............................................................................................................................................................................1-34
Web Server..........................................................................................................................................................................1-35
Initializing.............................................................................................................................................................................1-36
Memory Info (Memory Usage).............................................................................................................................................1-37
Chapter 2 Web Settings......................................................................................................................................................2-1
WirelessIP 3000 Web Settings..............................................................................................................................................2-2
Overview...........................................................................................................................................................................2-2
When setting via TELNET:................................................................................................................................................2-2
Access restrictions............................................................................................................................................................2-2
Management User Menu.......................................................................................................................................................2-3
Main..................................................................................................................................................................................2-3

- 3 -
Configuration.....................................................................................................................................................................2-4
System Setup....................................................................................................................................................................2-5
■Load & Upgrade......................................................................................................................................................2-6
■Change Password...................................................................................................................................................2-6
■Web Server Stop.....................................................................................................................................................2-7
Network Setup...................................................................................................................................................................2-7
Chapter 3 Appendix.............................................................................................................................................................3-1
Glossary................................................................................................................................................................................3-2
INDEX....................................................................................................................................................................................3-5

- 1-1 -
Chapter 1 Administrator Settings

- 1-2 -
Chapter 1
Administrator
Settings
Administrator Menu
Makes required settings for using the phone. Only administrators are able to set items on the Administrator Menu.
1

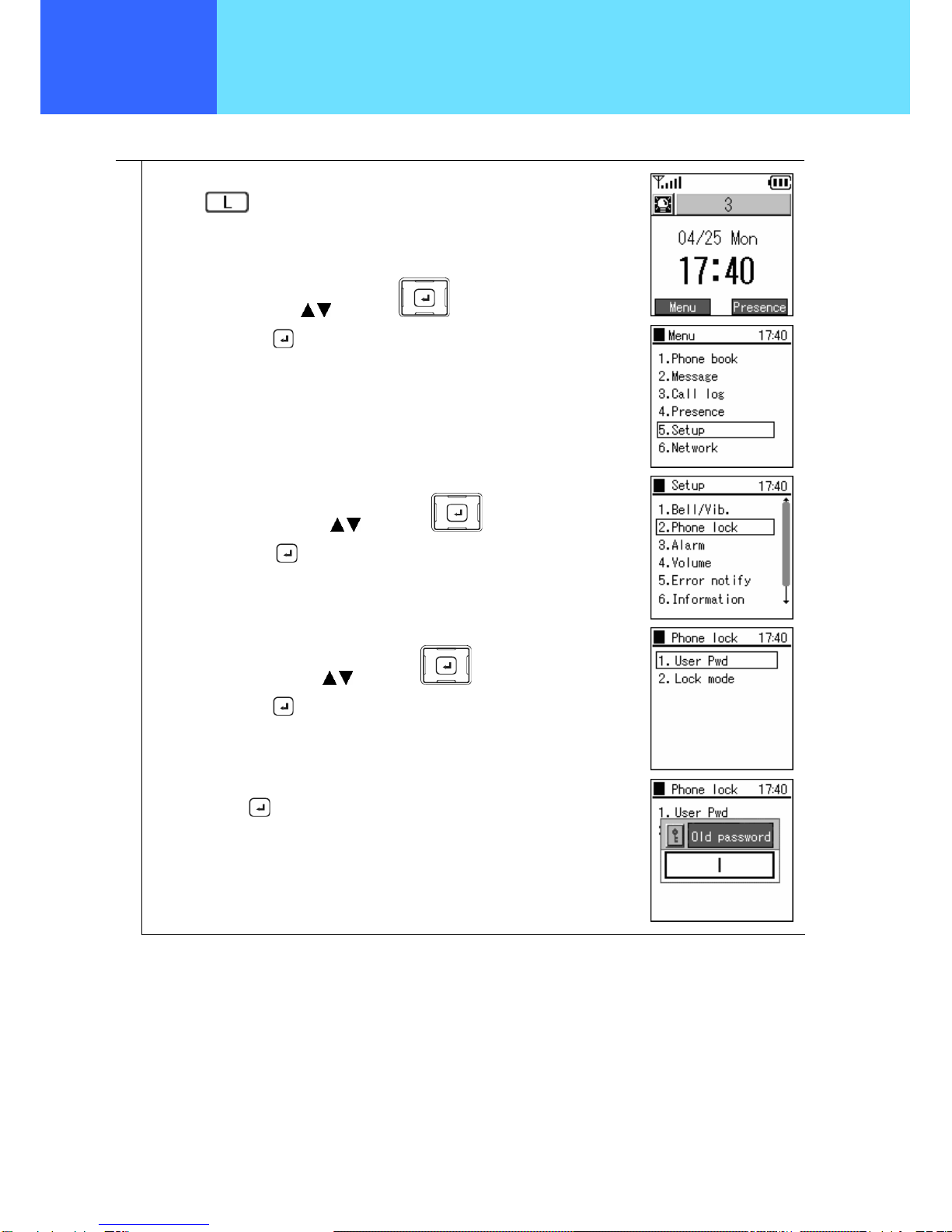

Press the key to select Menu.
Select “5. Setup” using the keys of the key,
and confirm using the key.
From the Setup menu,
Select “2. Phone lock” using the keys of the key,
and confirm using the key.
From the Phone lock menu,
Select “1. User Pwd” using the keys of the key,
and confirm using the key.
When you select "1. User Pwd", the system asks you for the current password. Enter
the Admin password. The default value is 000000 (6 zeroes).
Set this using the key.

- 1-3 -
Chapter 1
Administrator
Settings
Network
This configures network-related settings.

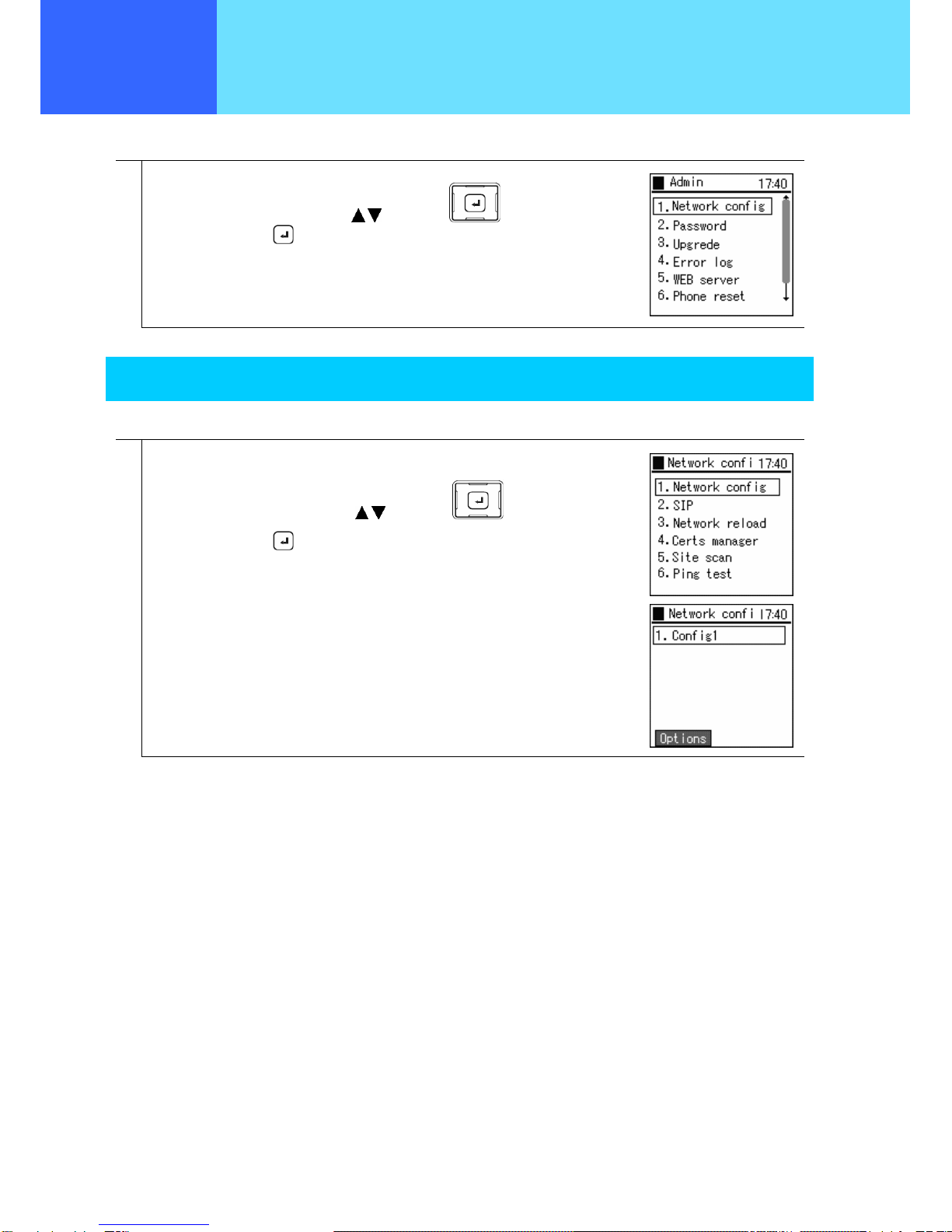

1 From the Admin menu,
Select “1. Network config” using the keys of the key,
and confirm using the key.
Network
You can check the settings for the type of connected network as well as information about settings.
1 From the Network config menu,
Select “1. Network config” using the keys of the key,
and confirm using the key.
The list of profiles (network settings) is displayed.

- 1-4 -
Chapter 1
Administrator
Settings
Network
■Addition
New network profiles can be created
1 When making additions to the profile,
press the key on Network confi screen to select the submenu.
Select “1. Add”, and press the key.
A confirmation message is displayed.
Select "Yes" using the keys of the key, and set this using the
key.
2 The network profile registration wizard is started.
Input the profile name.
For the “Join Method”, select “Auto” or “Manual” using the keys.
After completion of editing, press the key.
3 Input the SSID value of the wireless LAN to connect to.
If left blank, connection is made to the access point having the strongest wave signal
from among the access points that can be connected to.
After completion of editing, press the key.
If returning to the previous screen, press the key.

- 1-5 -
Chapter 1
Administrator
Settings
Network
4 Select encryption type.
Select “None”, “WEP” or “WPA-PSK” using the keys of the key, and
confirm using the key.
If returning to the previous screen, press the key.
If “WEP” is selected, a screen for performing settings related to WEP is displayed.
Input the values as prompted on screen.

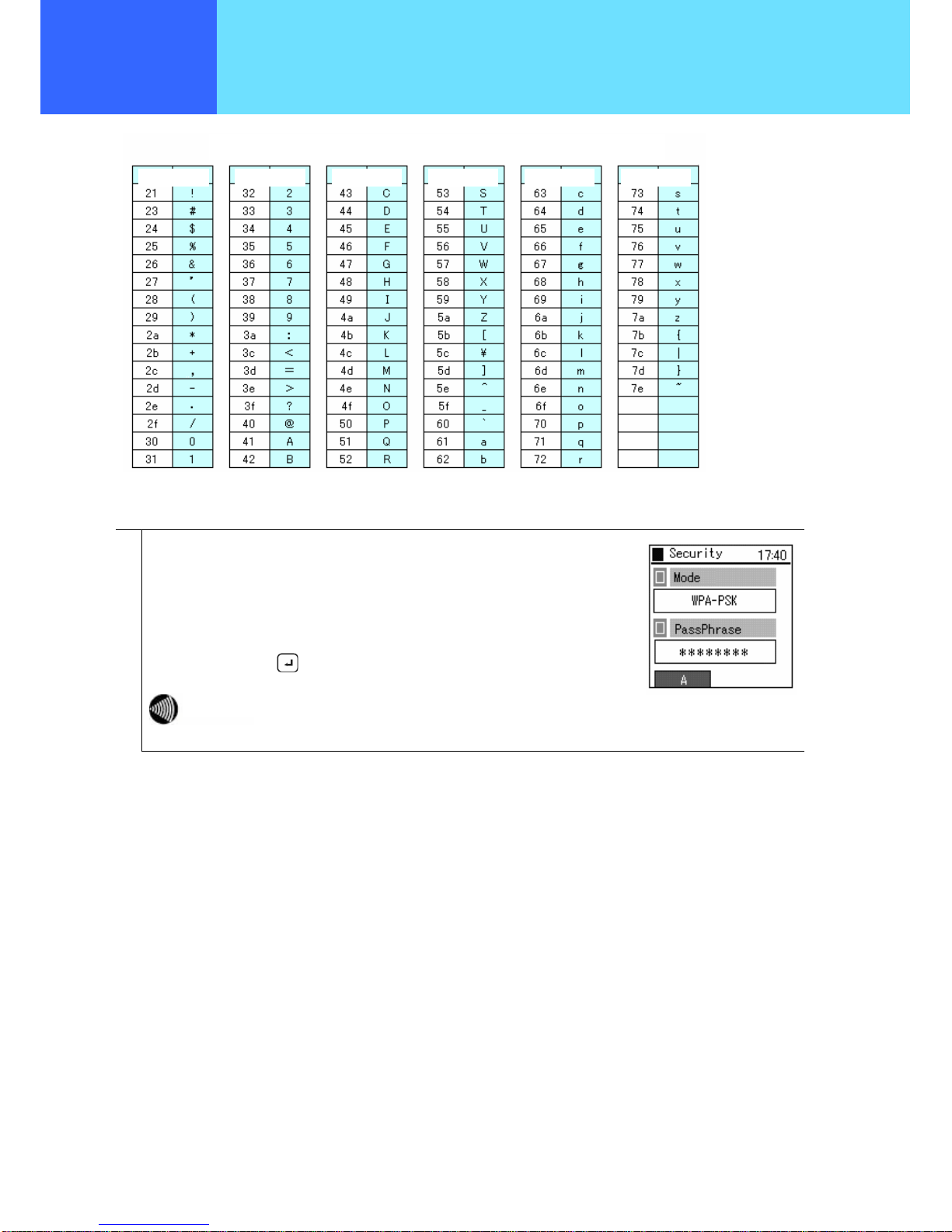

If “WPA-PSK” is selected, a screen for inputting a pre-shared key is displayed. Input
the values as prompted on screen.
Finally, press the key.
5 Configure the settings for TCP/IP.
For “Use DHCP”, select “Disabled” or “Enabled” using the keys.
If returning to the previous screen, press the key.
If “Disabled” is selected, the screen for setting the IP address is selected. Input the
value as prompted on screen.
Finally, press the key.

- 1-6 -
Chapter 1
Administrator
Settings
Network
6 Configure the settings for the network authentication method.
For “Mode”, select “Disable”, “WEB”, “8021X-MD5”, “8021X-TLS”, “8021X-PEAP”, or
“8021X-TTLS” using the keys.
If returning to the previous screen, press the key.
If anything other than “Disabled” is selected, the screen for setting the user ID and
password is displayed. Input the values as prompted on screen.
Finally, press the key.
7 Configure the settings for NAT Traversal.
For “Mode”, select “Disable”, “SNAT”, “UPnP”, or “STUN” using the keys.
If returning to the previous screen, press the key.
If “SNAT” or “STUN” is selected, the respective setting screens are displayed. Input
the values as prompted on screen.
Finally, press the key.

- 1-7 -
Chapter 1
Administrator
Settings
Network
8 The Advanced settings screen is displayed.
Other advanced settings can be made using the keys of the key.
When the settings are completed, select “1. Save & Exit”, and press the key.
Select "Yes" using the keys of the key, and set this using the
key.
The profile is saved and network reconnection is performed.
Up to a maximum of 5 profiles can be created.
■Deletion
Network profiles can be deleted.
1 When deleting a profile, from the Network confi screen
select the profile to be deleted using the keys of the key,
and press the key to select the submenu.
Select “2. Delete”, and press the key.
A confirmation message is displayed.
Select "Yes" using the keys of the key, and confirm using the
key.
Deletion of all profiles is not possible.
