Holman DLWW18K User manual

User Guide
ø18mm Warm White
Deck Lights
18mm DLWW18K
www.holmanindustries.com.au

2 of 16 3 of 16
Overview
Introduction
Thank you for purchasing Holman 18mm Warm White DeckLights.
Our system is completely DIY and designed to help illuminate and
add ambience to your outdoor space. These can also be used to
brighten wooden steps or add light around the edge of your decking.
®This instruction manual contains useful information on the proper use
and care of this product. Please read through all instructions before
attempting assembly. Keep this user guide handy for future use.
Holman Warm White Deck Lights use a 2-Pin Plug + Socket connection.
Only other Holman 2-Pin Plug + Socket products are compatible with these
lights. These lights are not compatible with other brands and will void your
warranty if used with other brands.
2-Pin Plug + Socket Connection
Contents
Overview 3
Introduction 3
Package Contents 3
Setup 4
Choosing your controller 4
Mounting your controller 5
Installation 6
Main Lighting Cable (Extension Cable) 6
Connection Tee 7
Deck Light Spacing 8
Drilling Holes 9
Inserting Deck Lights 10
Deck Lights Connection Drawing 11
Inserting Multiple Deck Light Packs 12
Specifications 14
Warranty 15
2
3
Package Contents
1. 9× 18mm DAISY-CHAIN deck lights
2. 1× 18mm END deck light
3. 1× 2-Pin Connection Tee
1

4 of 16 5 of 16
Setup Setup
Choosing your controller
Holman have a range of lighting controllers to suit all users. Choose the
correct Warm White Lighting Controller that suits your requirements.
Warm White Wi-Fi Garden Light Controller
Our latest Lighting Controller features Wi-Fi
connectivity, allowing access to your Garden
Lights from anywhere in the world. Smart
automations and custom scene options allow
you to light up your garden, however you want.
Warm White Bluetooth®Garden
Light Controller. Our Garden Light
Controller gives you custom scenes and
full brightness control with a Bluetooth®
connection and the iGardener™ app.
Connect up to 4 controllers to one device.
Control your garden from anywhere in the world, day or night, with
Holman Home Wi-Fi control. Enjoy complete control of your irrigation
and garden lighting, wherever internet access is available.
Choosing your controller (continued)
Warm White Garden Light Transformer
Power up to 60W of Warm White lights in your
garden. This Garden Light Transformer Hub
does not require a smartphone to operate and
is limited to turning your lights on and off.
Mounting your controller
Before beginning installation of your Deck Lights, you will need to
install your LightingController to determine your starting point.
For ease of use, eye level placement is recommended.
Ideally, your controller location should not be exposed to
rain or areas prone to flooding or heavy water.
1. Install the Lighting Controller [a] near a
240V AC power point ideally located in a
house, garage, or exterior electrical cubicle
®All Holman controllers have a 60w capacity.
Lighting set-ups that include more that 60w of
garden lights will require additional controllers
a
Take full control of your garden watering and lighting with a Bluetooth®
connection and a tap of your iPhone or Android, with the iGardener™
smartphone app!

6 of 16
Installation Installation
Main Lighting Cable (Extension Cable)
Once the Lighting Controller is mounted, you can connect
your main lighting cable. This cable is where you will ‘branch’
off your Deck Lights or other Holman lighting products.
1. Connect your first Extension Cable [a]
to the Lighting Controller [b]
2. Secure the Extension Cable by hand tightening the
weather proof end cap [c] on the end of the cable
®Extension Cables are available in 1m, 2m, 5m and
10m. Choose the correct length to reach from your
LightingController to your first lot of Deck Lights
Connection Tee

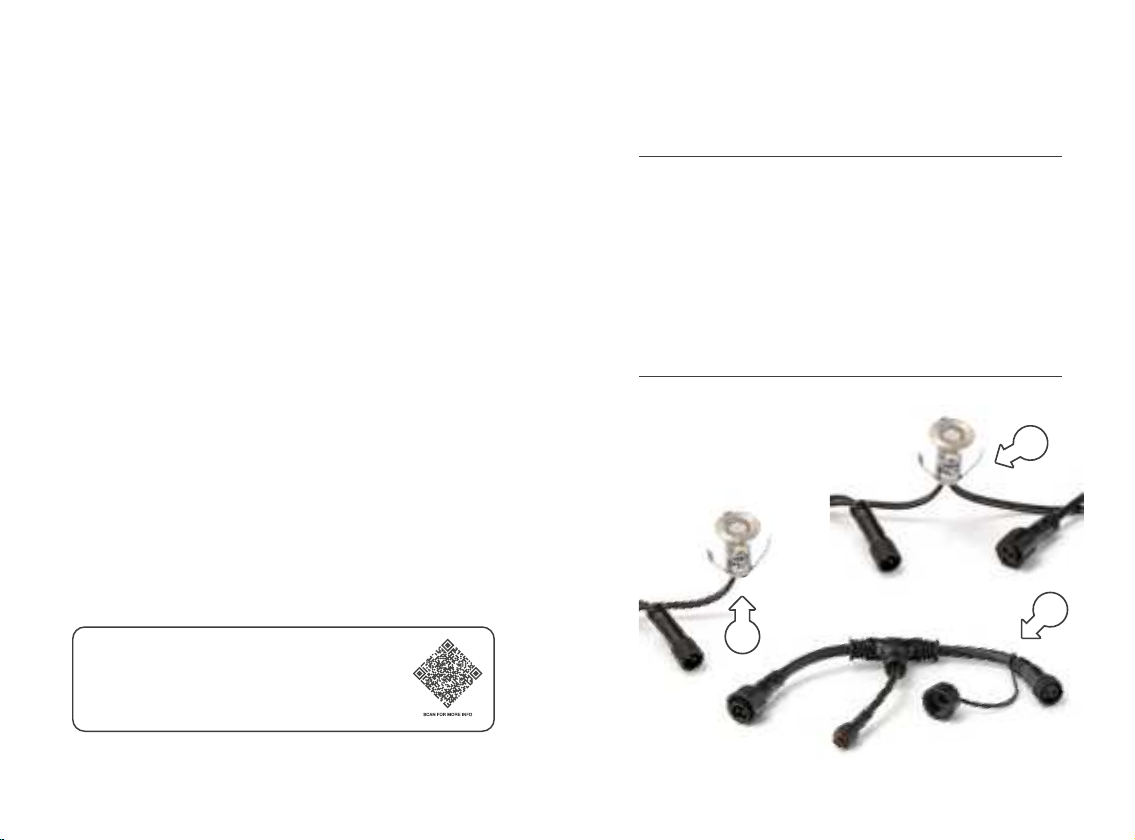

Each pack of Deck Lights comes with a ConnectionTee. This
is what connects your DeckLights to the main lighting cable.
1. Join one end of the Connection Tee [a] to the Extension Cable [b]
2. Secure the Connection Tee by hand tightening
the weather proof end cap [c]
3. ConnectionTees come with one mini cable end [d],
this end connects to your lighting product
ÁDo not use more than one (1) pack of Deck Lights per
Connection Tee. Doing so may result in wattage loss
®If you are connecting more than one pack of DeckLights,
refer to the connection diagram on page 12 and 13
c
c
b
a
d
a
b

8 of 16 9 of 16
Installation Installation

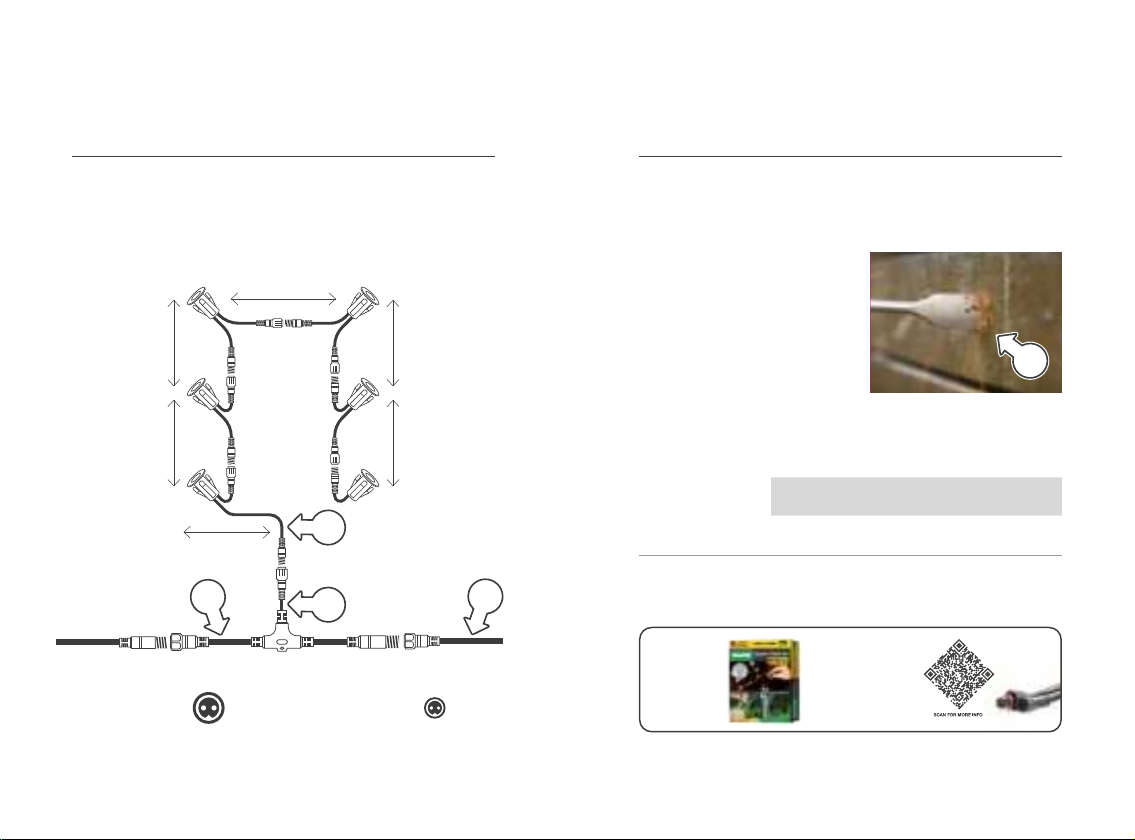

Deck Light Spacing
Deck Lights come with 1800mm of space between each light when
connected. Before installation, we suggest marking your decking
exactly where you want to install your lights to ensure the spacing
is correct. *Drawing represents a 6 pack of deck lights only
Drilling Holes
Deck panels will need to be
removed to hide lighting cables
underneath. For safety, we
also recommend removing
deck panels to ensure no
other cabling is behind.
®Refer to our sizing chart
below to determine the
correct spade drill bit size
1. Remove the deck panels
that you will be drilling into
2. Drill the required holes
into your deck that were
marked previously [a]
18mm
Deck Lights
30mm
Deck Lights
45mm
Deck Lights
SPADE DRILL
BIT SIZE 14mm 22mm 30mm
a
1800mm
1800mm
1800mm
1800mm
1800mm
900mm
1. Main cable size ø15mm 2. Mini cable size ø10mm
11
2
2
Extend your garden
lighting without any limits.
Our 2m Spacer Cable is
perfect for adding extra
space in-between your
Deck Lights, or branching
out further from the main
garden lighting cable.
2m
Mini
Spacer
Cable
USE WITH MINI
CABLE ONLY
ø10mm
