HOLMS SB User manual

Original: English © HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 090213. English
Operating instructions
Box 924 S-591 29 Motala Sweden [phone] ¬[phone]
Applicable from machine n.o: 14800
Sand Spreading bucket
1,0 m2
SB

SB
© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 090213. 3
Warning labels..............................................................4
Safety...........................................................................7
Product date.................................................................9
Machine plate....................................................10
Product description.....................................................11
Standard model.................................................11
Extra equipment................................................11
Transport and storage................................................12
Connection to carrier..................................................13
Operating instructions ................................................13
Operator settings ..............................................13
Spreading crushed rock....................................14
Disconnecting the coupling...............................14
Fitting the coupling............................................14
Adjusting the discharge roller............................14
Manual Control..................................................14
Electrical control................................................15
Service and maintenance...........................................16
Every 20 operating hours..................................16
Adjusting/replacing rubber deflector .................18
Adjusting/replacing end seal.............................18
Adjusting roller cleaning brushes......................18
Removing protective covers..............................19
Troubleshooting..........................................................20
Subject index..............................................................21
Contents

SB
4© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 090213.
Warning labels
There are several specific warning labels on this product; see the descriptions below. Make sure that
you understand the implications of these labels before using the product.
Clean/replace warning labels if they are illegible or are missing. Contact you Holms dealer if you
require new labels.

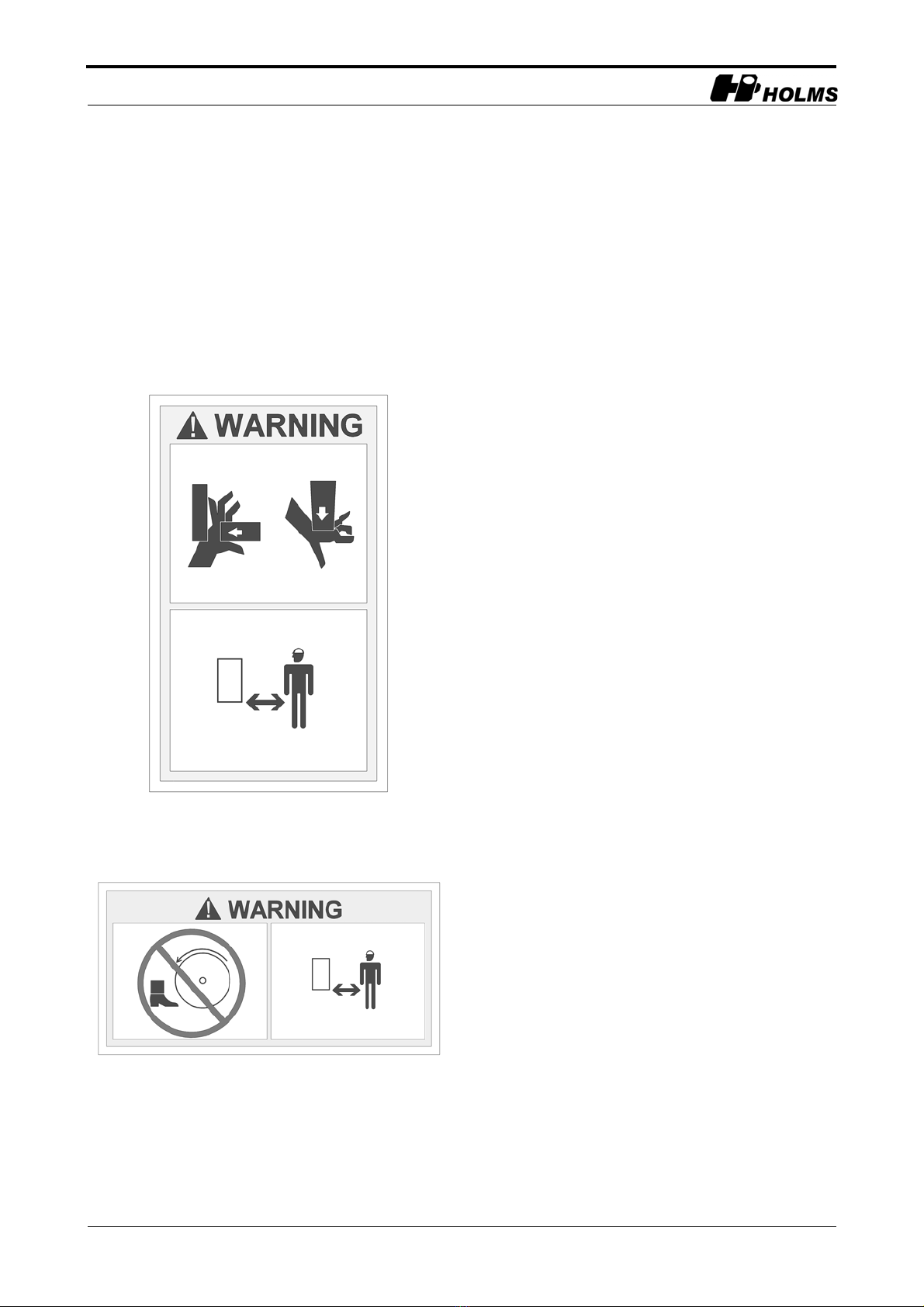

Risk of crushing - mind your hands and do not come too close to the machine (warning label
1530052)
Do not enter this area whilst the machine is in
operation. Mind your hands and keep them away
from this area whilst the tool is in use.
Keep a safe distance away from the machine
whilst it is in operation. Not following this rule
may lead to serious personal injury or, in a worst
case scenario, death.
Risk of crushing - do not come too close to the machine (warning label 1530053)
Keep a safe distance away from the machine
whilst it is in operation. Not following this rule
may lead to serious personal injury or, in a worst
case scenario, death.

SB
© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 090213. 5

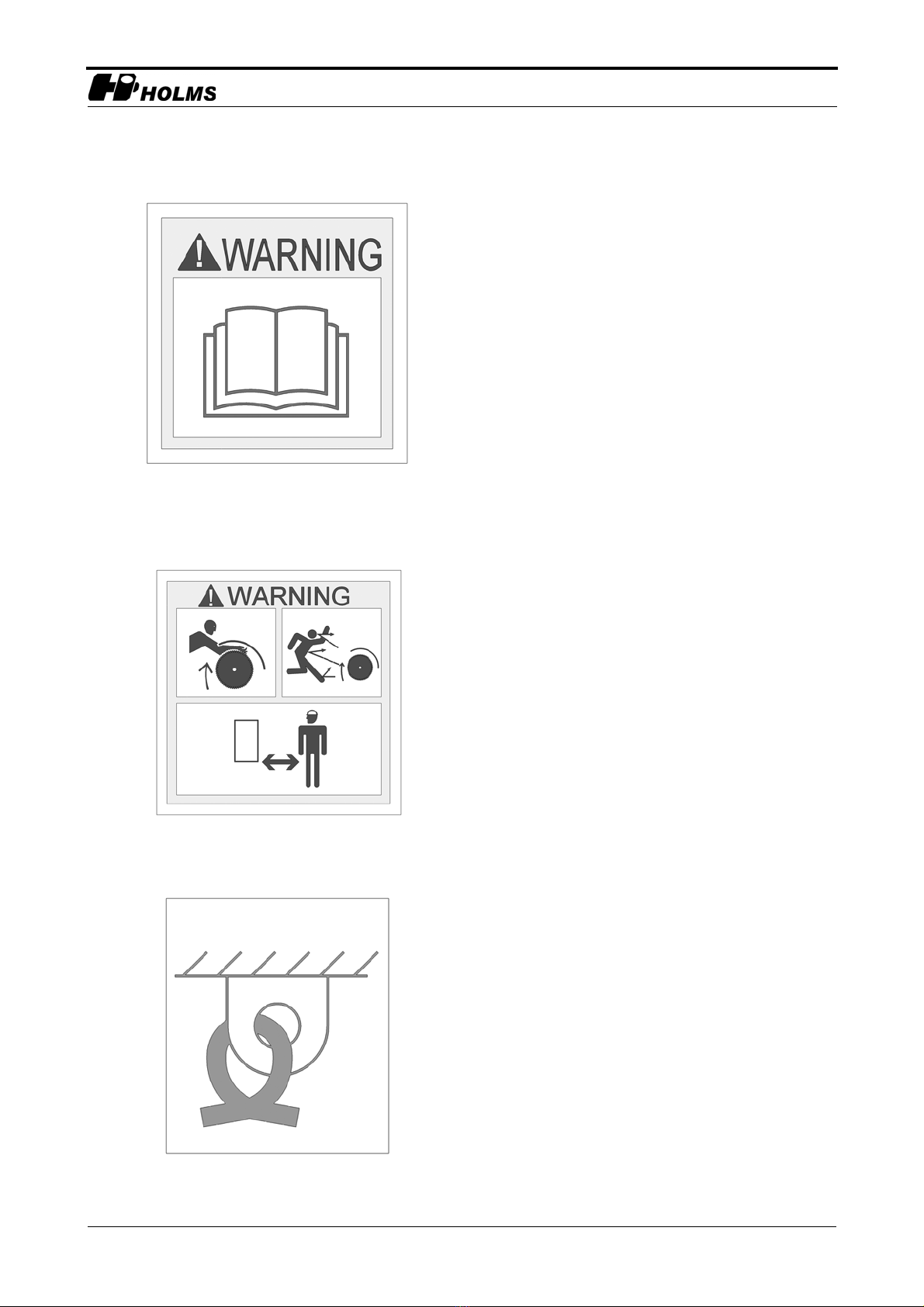

Always read instructions and safety regulations before use (warning label 1530054)
Do not use the tool before you have thoroughly
studied all instructions and safety regulations,
and are sure you have understood them. If there
is something you do not understand, contact your
Holms dealer. Misinterpretations may result in
serious personal injury or, in a worst case
scenario, death.
Risk of crushing, beware of flying objects - mind your hands and do not come too close to the
machine (warning label 1530055)
Keep a safe distance from the tool whilst it is
being used and beware of flying objects. Not
following this rule may lead to serious personal
injury or, in a worst case scenario, death.
Use the marked loops when transporting the tool (warning label 1530056)
When transporting the tool, use the marked loops
to secure the tool during transit.

SB
6© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 090213.

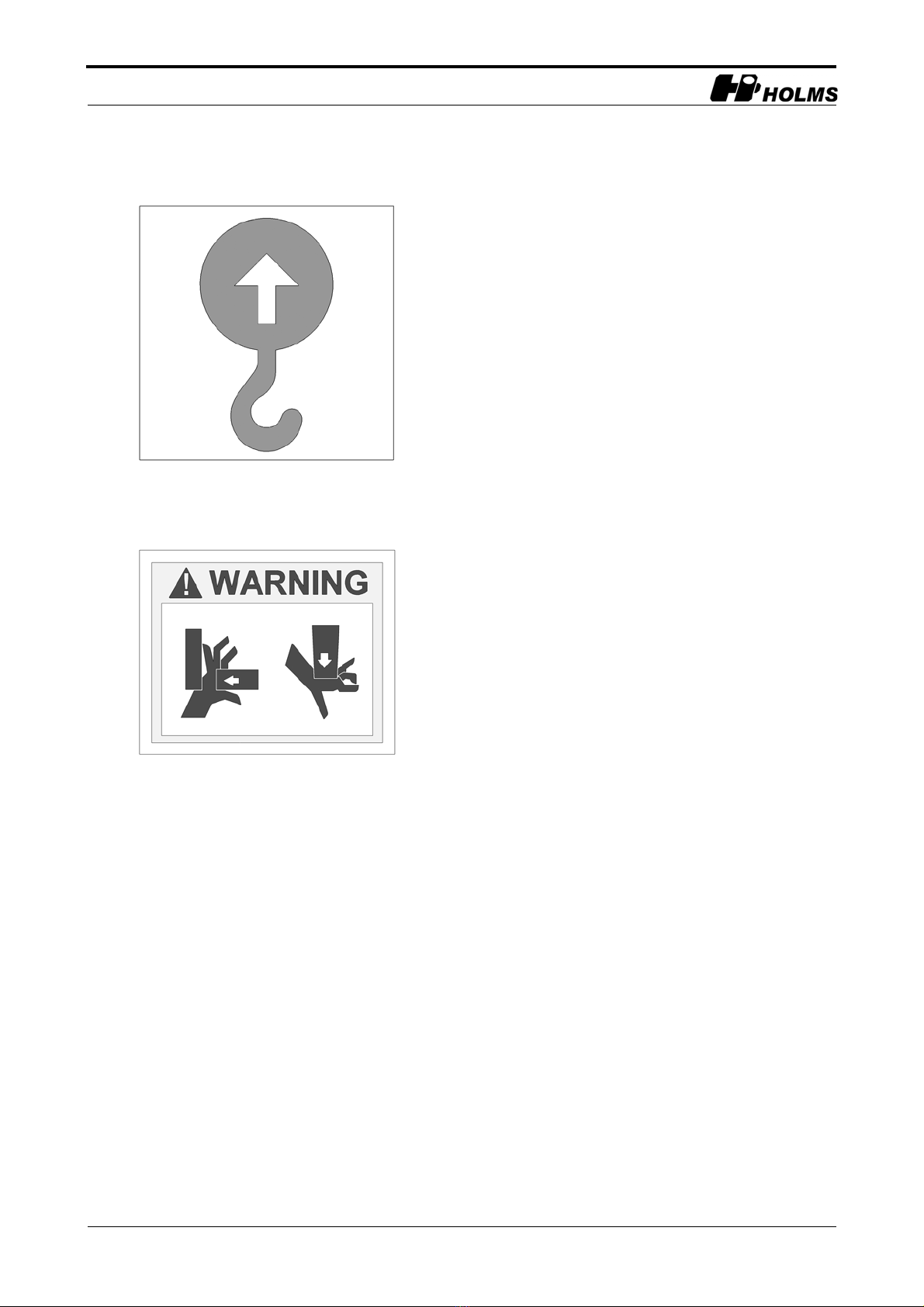

Attach lifting devices at the marked locations when lifing the tool (warning label 1530057)
This label shows where the lifting devices are to
be attached. Make sure that the lifting devices are
attached so that the tool is lifted horizontally (in
horizontal position, no inclination). Use
approved lifting devices only.
Risk of crushing - mind your hands (warning label 1530060)
Mind your hands and keep them away from this
area whilst the tool is in use.

SB
© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 090213. 7
NB
READ THIS DOCUMENT CAREFULLY BEFORE USING THE EQUIPMENT.
Important safety aspects to take into consideration
• Make sure that the tractor/loader can carry the equivalent tool type and weight.
• Make sure that for this sweeper the carrier has a suitable hydraulic oil flow.
• Make sure that no unauthorised persons are loitering in the machine’s working area when working
with the machine or carrying out servicing.
• Always use the dust covers for the quick-couplings when the machine is disconnected, to prevent
dirt getting into the hydraulic system.
Safety
This instruction manual is intended to be used as a guide for the correct use and maintenance of the
machine. Study the manual carefully before starting and operating the machine and before any
preventive maintenance is carried out. A lot of time has been spent on designing and manufacturing
the machine so that it will be as efficient and safe as possible, all of which will be of little use if you
do not read, understand and follow the instructions. Familiarise yourself with the product and all the
instructions, and keep the instruction manual safe so that it is always readily at hand when using the
machine.
NB
THIS MANUAL HAS BEEN PREPARED FOR ALL OUR MARKETS AND MAY THEREFORE INCLUDE DIFFERENT
EQUIPMENT FOR SPECIFIC MARKETS. PLEASE IGNORE THE SECTIONS THAT DO NOT APPLY TO YOUR
MACHINE.
We continuously strive to improve our products and therefore reserve the right to change design
specifications and implement improvements whenever we consider this necessary; however, such
improvements will not be made to products that have already been delivered or put to work. We also
reserve the right to change data and equipment without prior notice, as well as instructions for
maintenance and other service procedures.
The operator is responsible for ensuring that:
Please pay special attention to the warning symbols.
The machine is not used or handled incorrectly.
That any warning labels on the machine are legible.
Unauthorised persons do not use the machine or remain within the machine’s
working area during its operation or maintenance.
The carrier is suitable for use with the machine (hydraulic oil flow, stability,
etc.).

SB
8© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 090213.
NB
WESTRONGLY ADVISE AGAINST ANY MODIFICATIONS, CHANGES OR CONVERSIONS THAT HAVE NOT BEEN
APPROVED BY HOLMS.WEALSO WARN AGAINST USING SPARE PARTS THAT HAVE NOT BEEN APPROVED BY
HOLMS. DAMAGE OR FAULTS THAT COULD HAVE BEEN CAUSED BY NON-APPROVED SPARE PARTS OR NON-
APPROVED MODIFICATIONS ARE NOT COVERED BY HOLMS’ LIMITED WARRANTY – SEE APPLICABLE
WARRANTY CONDITIONS. HOLMS WILL NOT PROVIDE COMPENSATION FOR ANY PERSONAL INJURY OR
MATERIAL DAMAGE RESULTING FROM THE USE OF NON-APPROVED SPARE PARTS OR MODIFICATIONS.
When ordering spare parts, or otherwise contacting Holms or your local dealer, always specify the
machine type and its serial number. (Specified on the product’s machine plate.)

SB
© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 090213. 9
Product date
Volume (m3)1,0
Spreading width (m) 2,0
Weight, empty bucket (kg) 400
Weight, filled with material with a density of 1.75 ton/m32100
Centre of gravity, dimension A in figure 1 (mm) 400
Centre of gravity, dimension B in figure 1 (mm) 540
Maximum height, dimension C in figure 1 (mm) 1130
Maximum width (m) 2,1
Maximum oil flow (litres/min) 180
Minimum oil flow (litres/min) 40
Minimum available hydraulic pressure (bar) 140V
Hydraulic top link, max. stroke length (mm) 1009
Hydraulic top link, min. stroke length (mm) 530
Hydraulic top link, stroke length (mm) 479
1.Centre of gravity, dimension A, B and C

SB
10 © HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 090213.

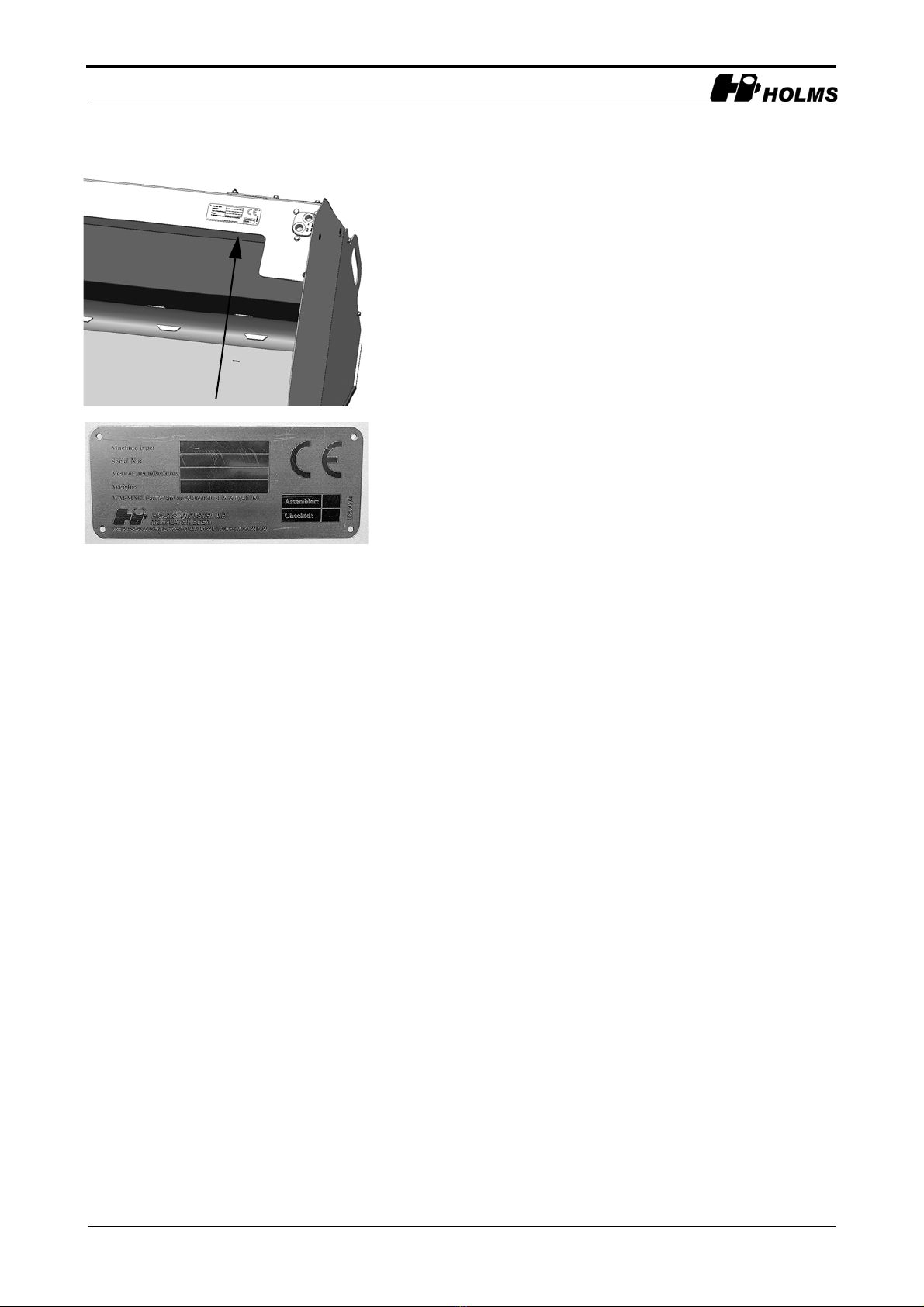

Machine plate
Each sand spreading bucket has a machine plate (see
figure 2), which is on the top side of the bucket, near the
lifting eye.
The machine plate shows the following information:
• Machine type
•SerialNo.
• Year of manufacture
• Weight
• code of the person who assembled the bucket
(Assembler)
• code of the person who checked
the bucket on delivery (Checked).
2.Machine plate

SB
© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 090213. 11
Product description
Sand spreading bucket SB 1.0 is adapted for three-point
linkage. SB 1,0 (figure 5) can be used for spreading:
• sand with a diameter of 0-8mm
• crushed rock with a diameter of 2-8mm
• road salt
The sand spreading bucket is primarily intended for road
gritting in winter.
Standard model
The bucket is equipped with a rotating discharge roller,
powered by a hydraulic motor. The speed of the
discharge roller is regulated by a flow valve.
On the standard model, the valve is adjusted using a hand
wheel located on the hydraulic block inside the sliding
hatch cover on the left side of the bucket (see figure 3).
The position of the discharge opening is fixed and should
only be adjusted gradually as the rubber becomes worn.
Extra equipment
Mixer
As extra equipment, the sand spreading bucket can be
equipped with a mixer, which has a rocking motion that
minimises the risk of personal injury. The mixer crushes
any lumps and prevents blockages and pockets.
Speed cabling
The bucket can also be equipped with speed cabling (see
figure 4), located inside the operator’s cab. Control is via
an electric valve located on the hydraulic block.

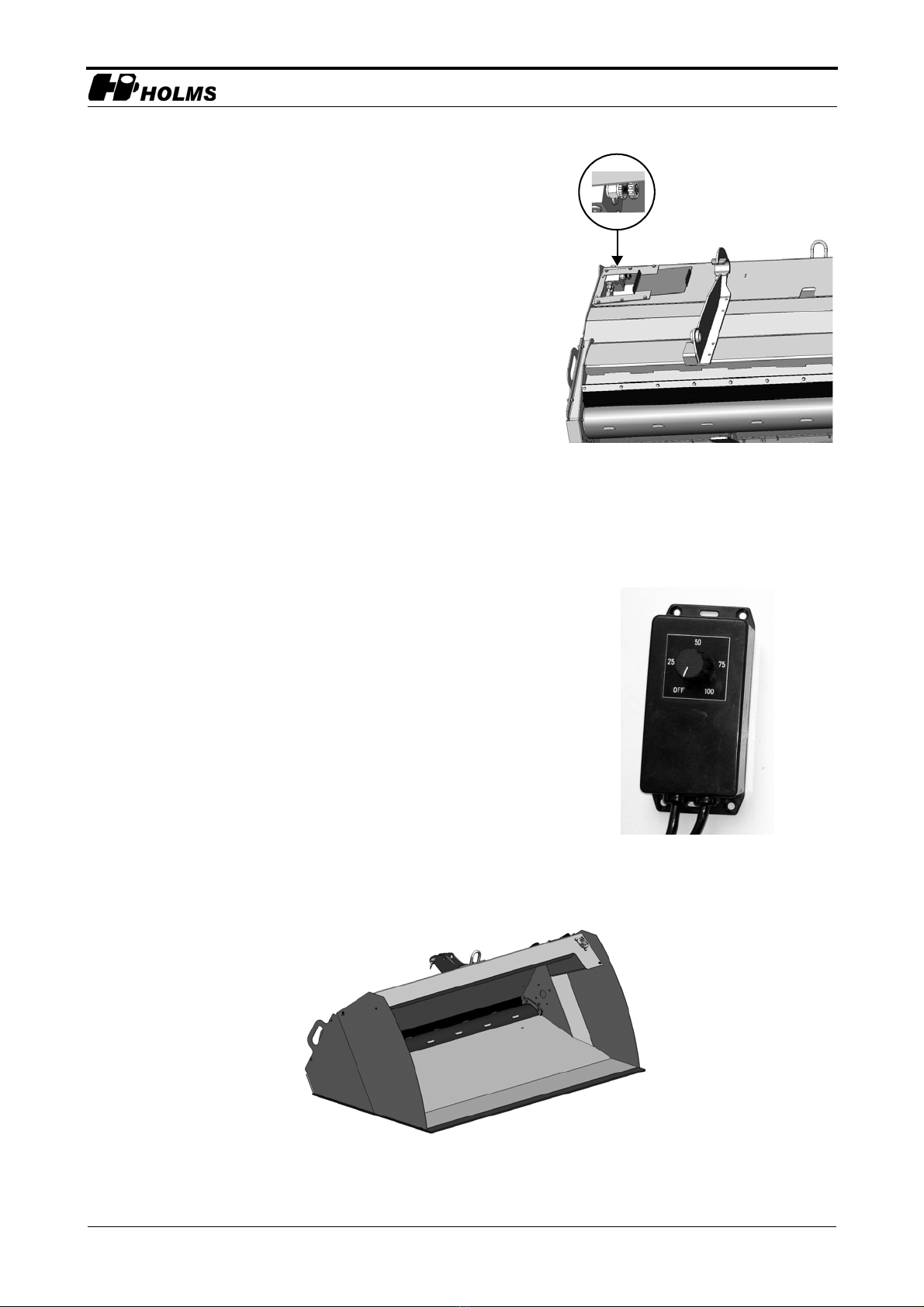

3.Flow valve
4.Box for speed cabling
5.Sand spreading bucket SB 2.4

SB
12 © HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 090213.
Transport and storage
A full bucket should be transported in a horizontal
position so that the opening is facing upward.
Whentransportingabucketnotconnectedtoacarrier,the
bucket must always be lifted using the eye on the top side
(see figure 6).
In the event of storage and prolonged periods of
inactivity, the bucket must be cleaned and lubricated as
per instructions under “Service and maintenance” on
page 16.
Do not leave material in the bucket for prolonged
periods or if there is a risk of freezing.

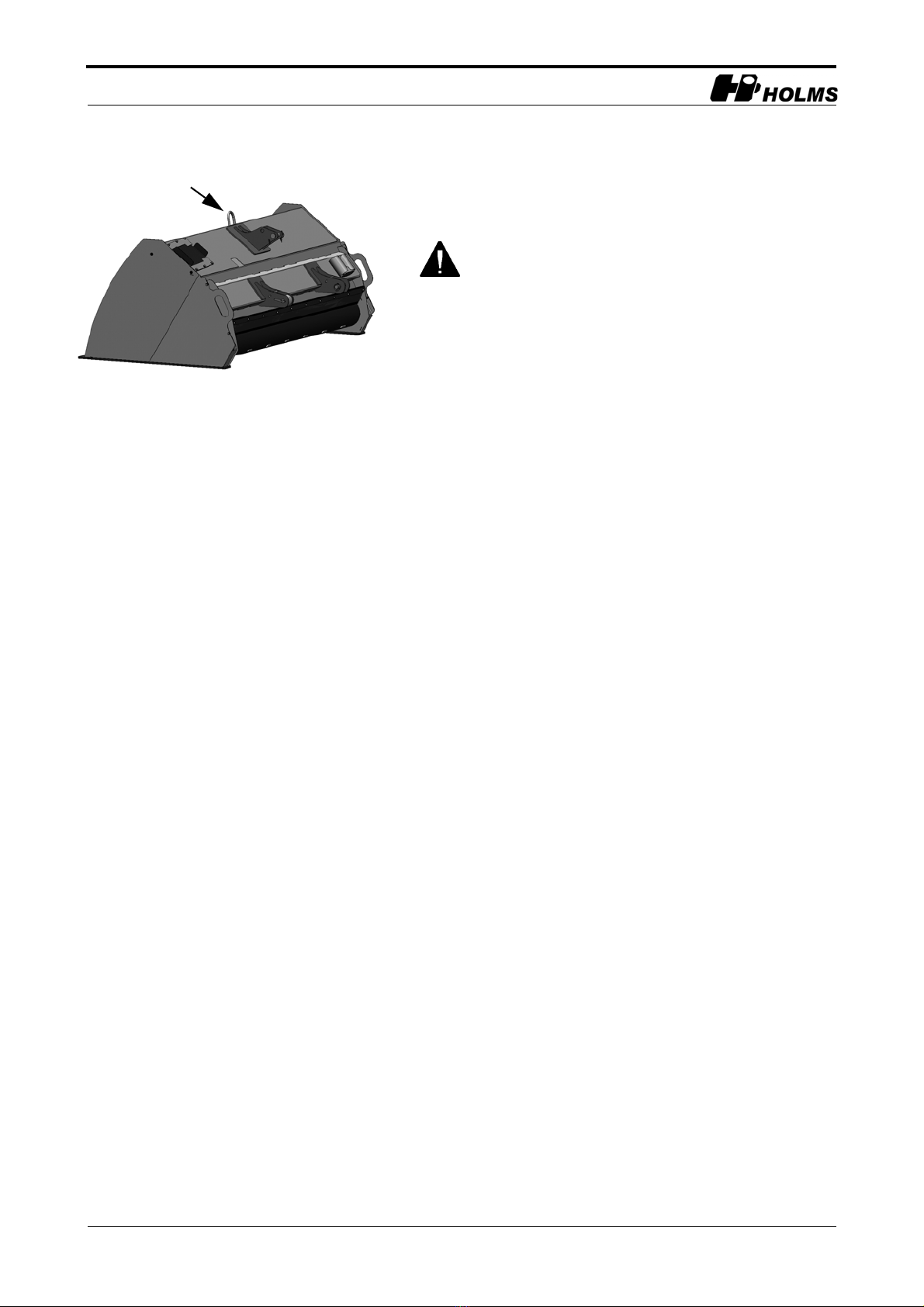

6.Lifting the sand spreading bucket,
lifting eye

SB
© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 090213. 13

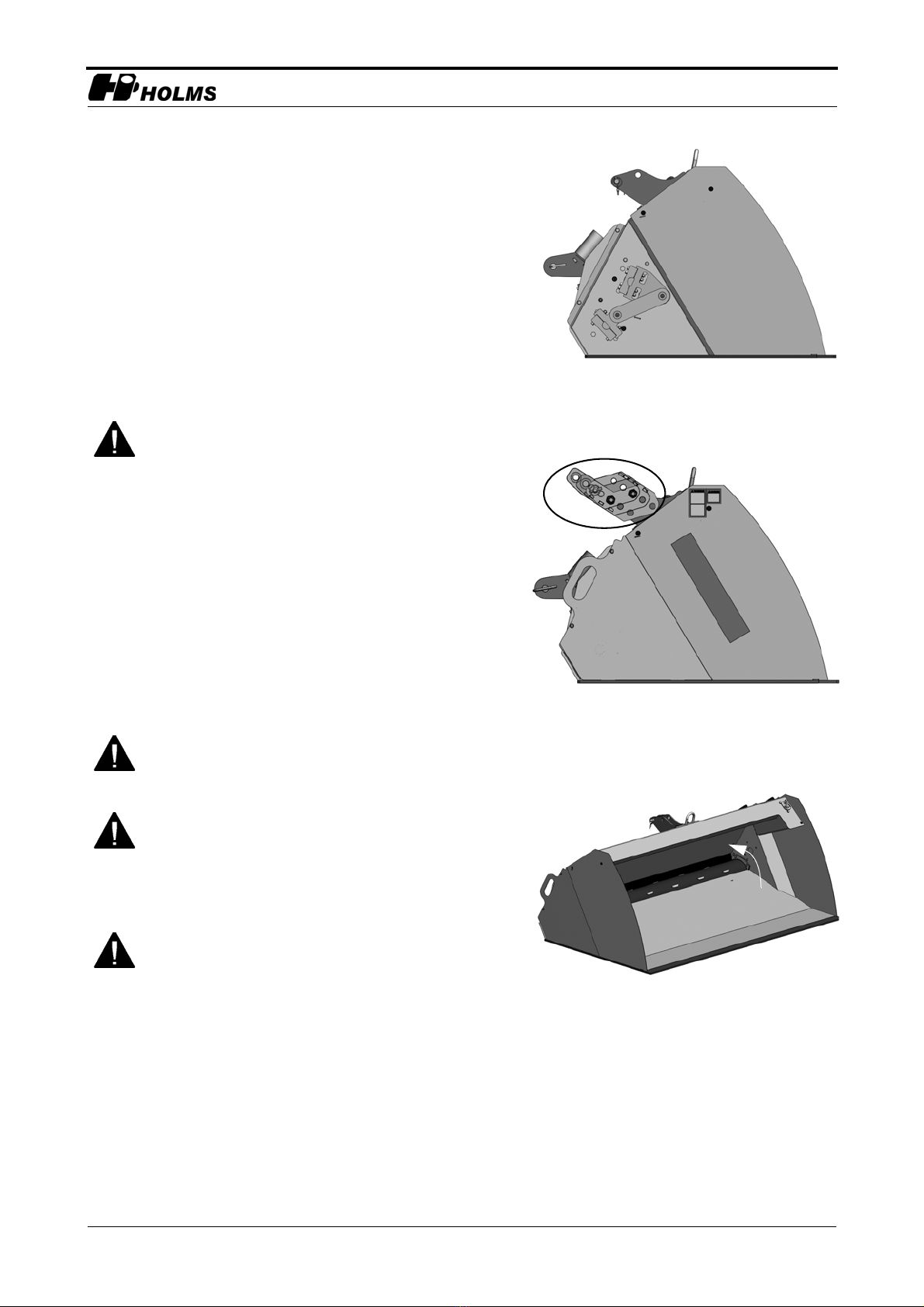

Connection to carrier
Before connecting, check that the carrier is compatible
with the sand spreading bucket. See “Product date” on
page 9.
A hydraulic top link is required to connect the bucket to
the carrier.
1. 1.Connect the sand spreading bucket to the tractor's
three-point linkage . NB! The connection device can
be used in various positions to adapt the linkage to the
cylinder so that it is suitable for the carrier. See figure
8.
2. Connect the quick couplings on the drive hoses to the
third function hydraulic outlet.
3. Start the sand spreading bucket's discharge roller by
moving the lever for the third hydraulic function to its
locked position.
4. Check that the discharge roller is rotating in the right
direction (see figure 9). If the roller is rotating in the
wrong direction in the locked position, change the
locked position or loosen the lever lock and change
the hose couplings for the third hydraulic function..
Operating instructions
Operator settings
In order to achieve good spreading, the sand spreading
bucket'sdischarge opening should be around0.5m above
the ground.
Always check that the bucket is secured correctly.
Never stick your hands or feet into the bucket
when it is connected to a carrier.
Hydraulic jets at high pressure can pierce skin and
cause serious physical injury. If a hydraulic jet
pierces your skin, seek immediate medical
attention.
Hydraulic oil can cause allergic reactions. If you
get hydraulic oil on your skin, wash the area
immediately to remove all traces of the oil.
7.Bucket without model-specific
connection device
8.Model-specific connection device
9.The discharge roller's direction of rotation

SB
14 © HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 090213.
Material containing stones larger than 10 mm in diameter
should be avoided, as these can damage the spreader.
Avoid frozen or damp sand as well.
If the bucket contains frozen material, empty it out on the
ground and break it up using the bottom of the bucket.
Never leave material in the bucket if there is a risk of
freezing.
Spreading crushed rock
NOTE!
WHEN SPREADING CRUSHED ROCK, THE MIXER CAN
USUALLY BE DISCONNECTED TO SAVE FUEL. TODO THIS,
DISCONNECT THE MIXER COUPLING:
Disconnecting the coupling
1. Indo the six screws, see figure 10.
2. Remove the coupling.
Fitting the coupling
1. Set the coupling in place.
2. Replace the six screws and tighten using a torque of
38.5 Nm. If the bolts are replaced, they must be
strength class 12.9.
Adjusting the discharge roller
The speed of the discharge roller is adjusted by means of
a flow valve.
Manual Control
1. Switch the motor on.
2. Turn the hand wheel on the right (see position figure
11), until the desired speed is set. Lock the speed by
turning the hand wheel on the left.
Always switch off the bucket before leaving the
operator’s seat.
Never step or stand on the bucket.

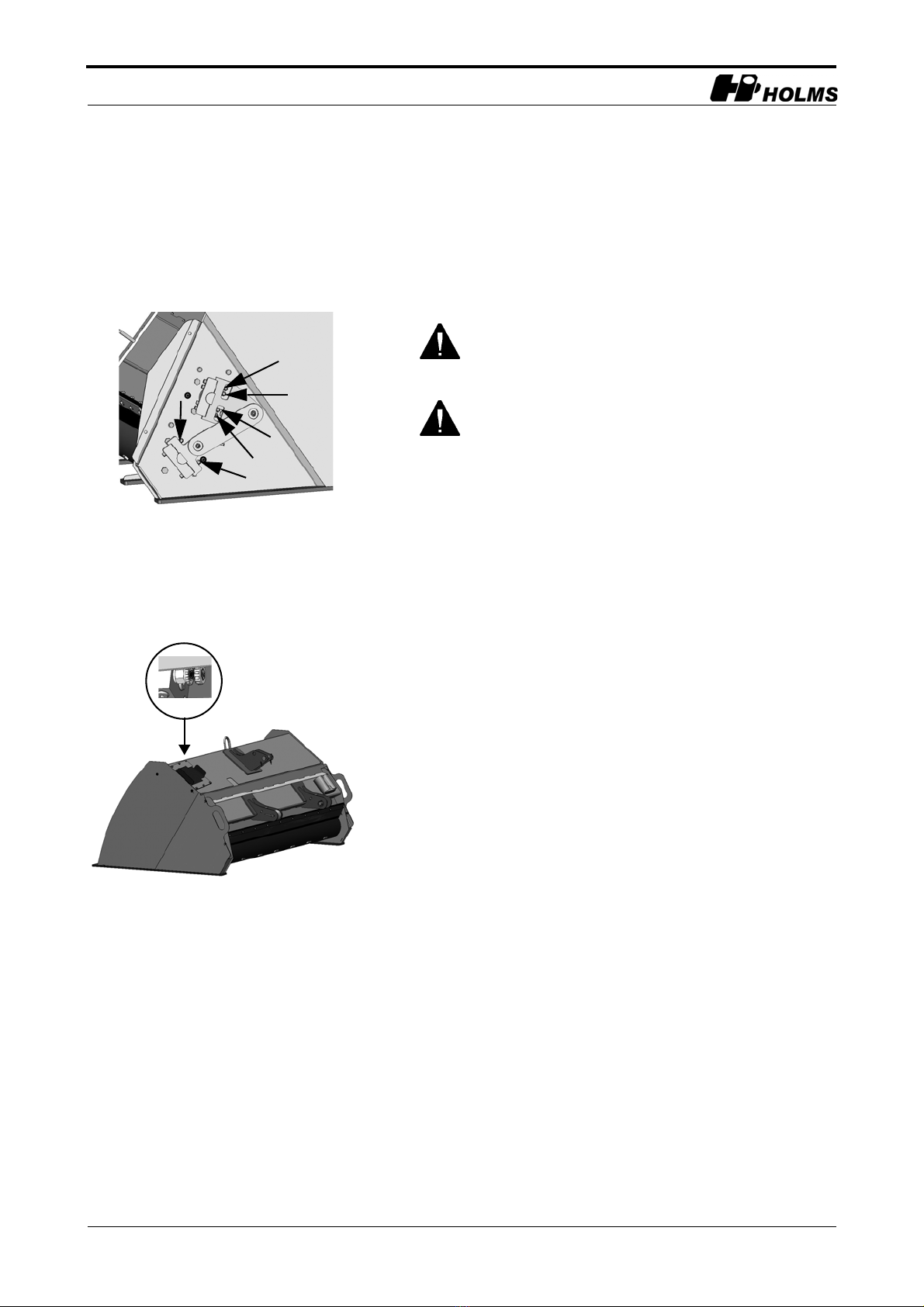

10.Disconnecting the mixer coupling
11.Positioning the flow valve

SB
© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 090213. 15
Electrical control
1. Connect the speed cabling to the electric socket in
the cab.
2. Adjust the speed by means of the wheel.
Calibration
If the sand spreading bucket is supplied with speed ca-
blingit has been calibrated. If you order speedcabling for
new installation, the bucket should be calibrated before
use.
Under the cover for the cabling valve connection is the
box for the speed controls. There are four screws on this,
se figure 12. Box location, see figure 11 on page 14.
1. Connect the speed cabling to the valve and power
supply. When the power is on, the LED lights up,
point 5 in figure 12.
2. Screw no. 2 regulates the max speed. Normal posi-
tion: max when the adjustment wheel is set to 100. To
raise the max speed, turn clockwise.
3. Screw no. 3 regulates the start position of the roller.
Normally the start position is around 25. Normal po-
sition: end position anticlockwise.
4. Screws no. 1 and 4 are never normally touched. If you
wish to perform further adjustments, please contact
Holms.
43
2
1
5

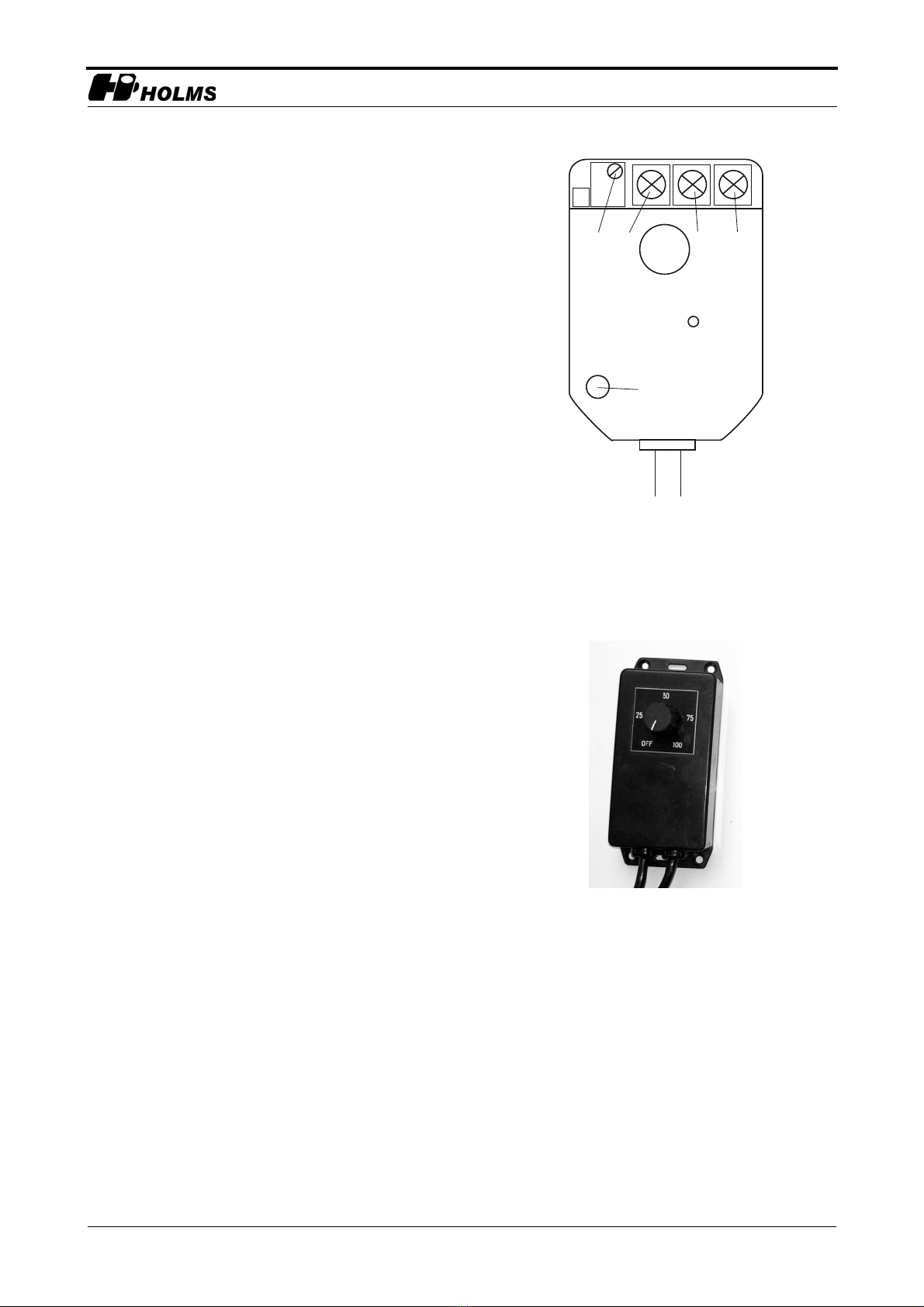

12.Valve connection
13.Box for speed cabling

SB
16 © HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 090213.
Service and maintenance
After use:
• empty and clean the bucket if there is a risk of
freezing
• if sand mixed with salt has been used, empty the
bucket, rinse it out with water and dry indoors.
After washing with a high-pressure washer, the bucket
must be lubricated.
Every 20 operating hours
• Bucket without mixer:
Lubricate the bucket via the lubrication point (see
figure 14, lubricating nipple is under the protective
cover, see also “Adjusting roller cleaning brushes” on
page 18).
Bucket with mixer (extra equipment):
Lubricate the bucket via the five lubrication points
(see figure 15 and figure 16, the lubricating nipples
are under the protective covers, see also “Adjusting
roller cleaning brushes” on page 18).
A suitable lubricating grease in both cases is Shell
Alvania EP Grease II or similar.
• Inspect all hydraulic lines and hydraulic couplings,
and ensure that there are no leaks.
Always disconnect the bucket from the carrier
before carrying out maintenance.
Oncerepairs or maintenancehavebeen completed,
make sure that no tools or other objects have been
left inside the cover and that the transmission’s
protective cover is correctly fitted.
Hydraulic jets at high pressure can pierce skin and
cause serious physical injury. If a hydraulic jet
pierces your skin, seek immediate medical
attention.
Hydraulic oil can cause allergic reactions. If you
get hydraulic oil on your skin, wash the area
immediately to remove all traces of the oil.

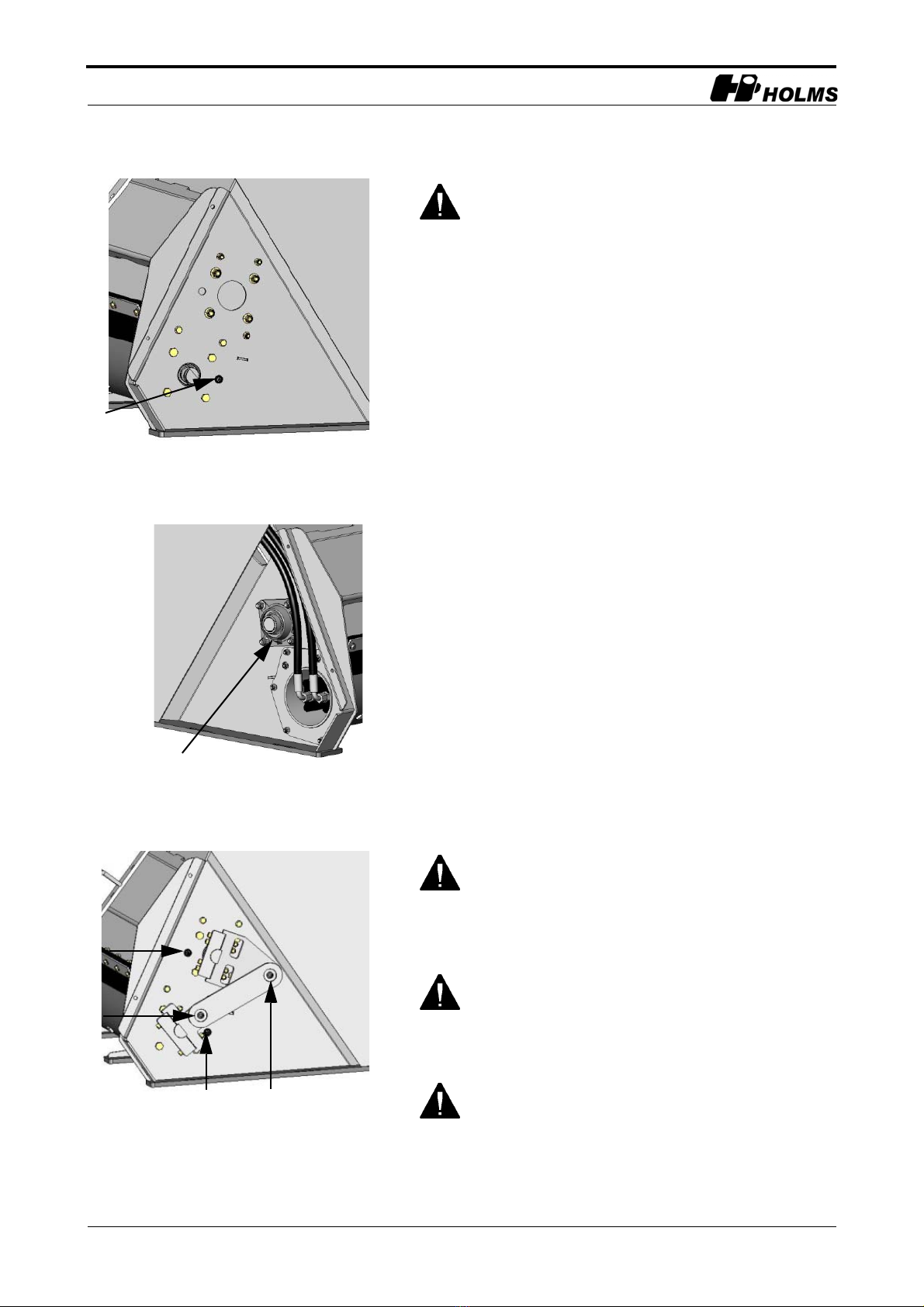

14.Lubrication point, bucket without
mixer
15.Lubrication point, motor
side
16.Lubrication points, non-motor side
(bucket with mixer)

SB
© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 090213. 17
The following must also be checked during each service.
• Wear and contact surface of rubber deflector (see
figure 17). The rubber must be adjusted with 2 to 4
mm play against the roller tube. It is essential for the
gap to be the same along the entire roller length,
otherwise the discharge volume will vary along the
roller. Adjust or replace as necessary (see “Adjusting/
replacing rubber deflector” on page 18).
• The roller’s end seals (see figure 18, there is a seal at
each end of the roller): check wear and contact
surface. The rubber must be adjusted against the
roller. Adjust or replace as necessary (see “Adjusting/
replacing end seal” on page 18).
• Wear and contact surface of the roller cleaning brush
(see figure 19). The brush must only touch the roller
with the brush end. Adjust as necessary (see
“Adjusting roller cleaning brushes” on page 18).
• There must be no loose screw joints.

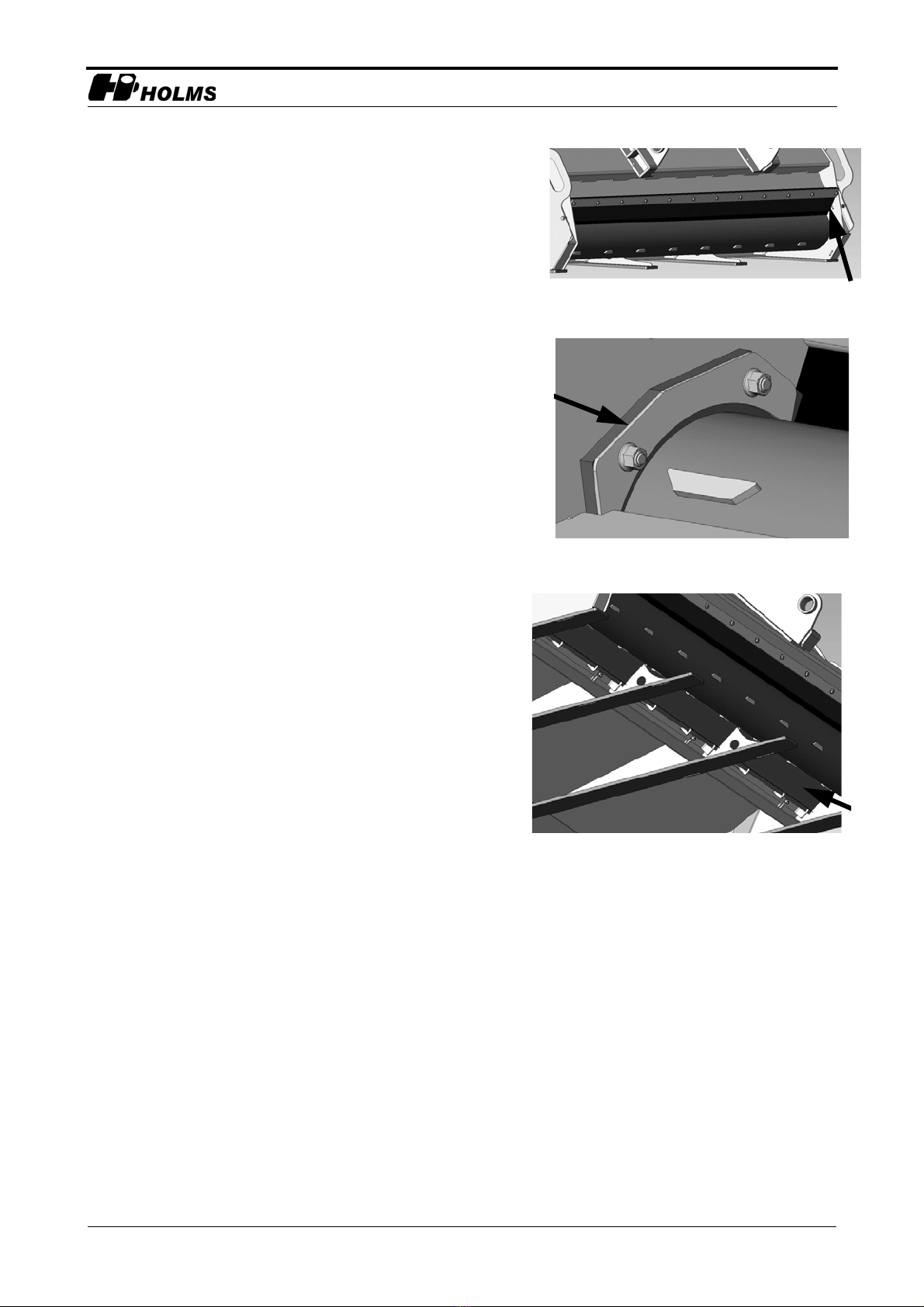

17.Rubber deflector
18.End seal
19.Roller cleaning brush

SB
18 © HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 090213.
Adjusting/replacing rubber deflector
To adjust/replace the rubber deflector:
1. Undo the screw joints (see arrows in figure 20) along
the roller and adjust the rubber against the roller, so
that the gap is constant at 2-4 mm. Replace the rubber
if it is worn.
2. Once the rubber has been adjusted, tighten the screw
joints.
Adjusting/replacing end seal
To adjust/replace an end seal:
1. Undo both screw joints (see figure 21) at the end of
the roller.
2. If the end seal is damaged or worn, replace the rubber.
3. Adjust the rubber against the roller.
4. Once the end seal has been adjusted, tighten both
screw joints.
Adjusting roller cleaning brushes
To adjust the roller cleaning brushes:
1. Undo the screw joints on the brush holders on the
underside of the bucket (circled in figure 22).
2. Adjust the brushes by moving the holders in their
tracks. The brushes should just touch the roller.
3. Once all the brushes have been adjusted, tighten the
screw joints.

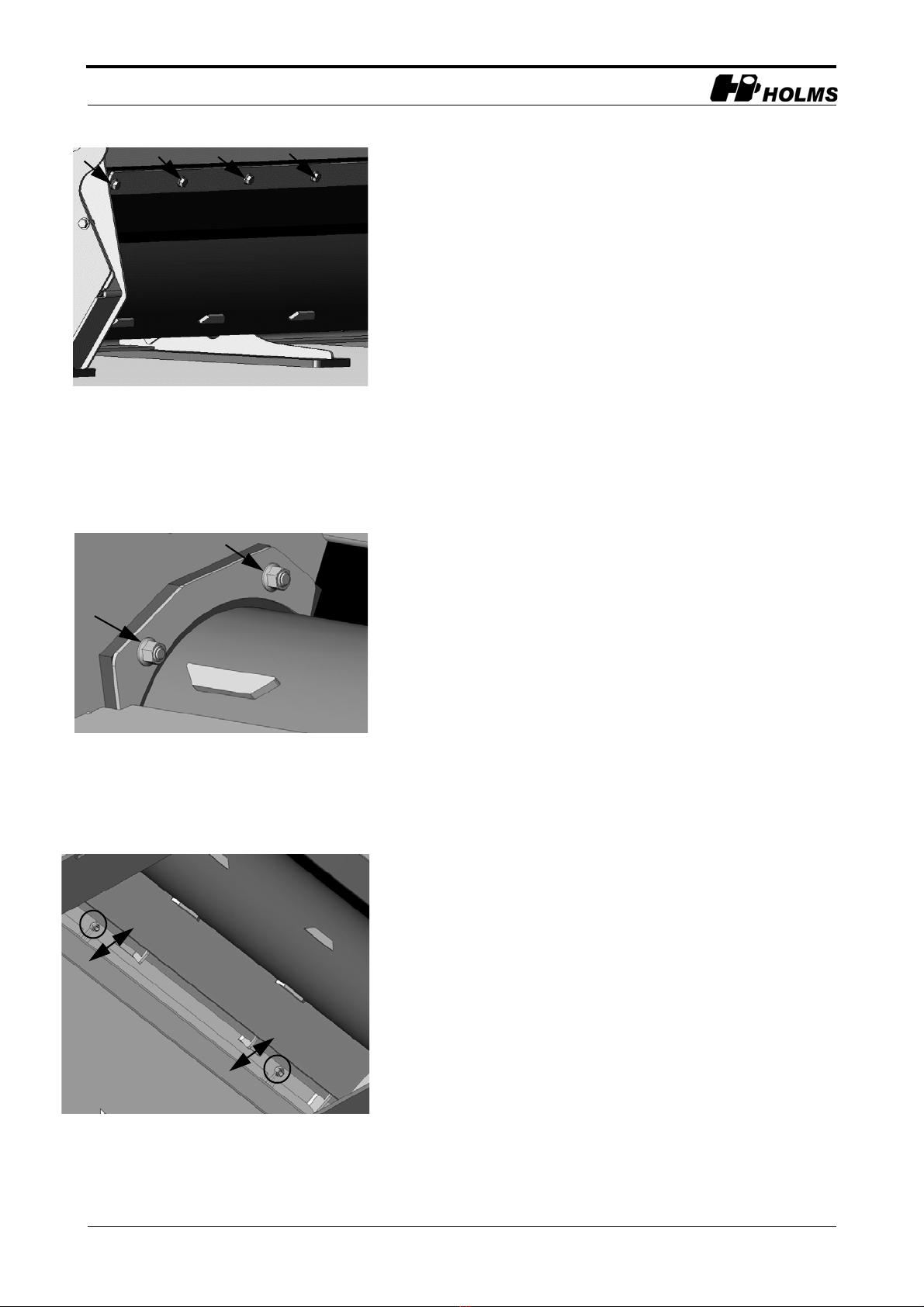

20.Adjusting/replacing rubber deflector
Rubber deflector
Roller
21.Adjusting/replacing end seal
22.Adjusting roller cleaning brushes
Roller
Brush

SB
© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 090213. 19
Removing protective covers
To remove a protective cover, undo both screw joints
(see figure 23) and lift off the cover.
23.Removing protective
covers

SB
20 © HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 090213.
Troubleshooting
The discharge roller does not rotate:
1. Check that nothing is wedged against the roller or
mixer.
2. Check that the bucket is connected.
3. Ifthe discharge rateiscontrolledmanually, check that
the hand wheel is not screwed right in.
4. If the discharge rate is controlled electronically,
check that the controls are live and that the discharge
function is not shut off.
The discharge roller rotates, but not the mixer:
1. Remove the protective cover on the left side (see
“Adjusting roller cleaning brushes” on page 18).
2. Check the coupling.
Erratic discharge volume:
1. Adjust the rubber deflector so that the gap is the same
along its entire length.
The machine must be switched off when checking
the roller and mixer.
