holzkraft HBS 351 User manual

HBS SERIES
HBS 433
Operating instructions
Wood band saws
HBS 351
HBS 430
HBS 431
HBS 433
HBS 533

2HBS series | Version 2.03
Publication details
Product identification
Wood band saw Article number
HBS 351 5153501
HBS 430 5154300
HBS 431 5154301
HBS 433 5154303
HBS 533 5155303
Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26
D-96103 Hallstadt/Bamberg
Hotline: [phone]
(0.49 Euro from German landlines)
Fax: [phone] - 55
Email: [email protected]
Internet: www.holzkraft.de
Information about the operating instructions
Genuine operating instructions
Published: 09.05.2016
Version: 2.03
Language: English
Author: DM
Copyright information
Copyright © 2016 Stürmer Maschinen GmbH, Hallstadt,
Germany.
Stürmer is the sole owner of the content of these operat-
ing instructions.
Forwarding and reproduction of this document as well
as use and notification of its content is not permitted
without explicit consent. Infringements will lead to
claims for damages.
Subject to technical modifications and changes.
Contents
1 Introduction .............................................................3
1.1 Copyright............................................................ 3
1.2 Customer service................................................ 3
1.3 Disclaimer........................................................... 3
2 Safety........................................................................3
2.1 Legend of symbols............................................. 3
2.2 Operator responsibility ....................................... 4
2.3 Personnel requirements...................................... 5
2.4 Personal protective equipment........................... 5
2.5 General safety instructions ................................. 6
2.6 Safety instructions for operating staff................. 6
2.7 Special safety instructions for wood band saws ... 7
2.8 Safety instructions for laser applications............ 7
2.9 Safety labels on the wood band saw.................. 7
3 Intended use ............................................................8
3.1 Foreseeable misuse ........................................... 8
3.2 Remaining risks .................................................. 8
4 Technical data .........................................................9
4.1 Noise level .......................................................... 9
4.2 Type plate HBS 533............................................ 9
5 Delivery, packaging and storage .........................10
5.1 Delivery............................................................. 10
5.2 Packaging......................................................... 10
5.3 Storage ............................................................. 10
6 Machine description..............................................10
6.1 Accessories...................................................... 10
6.2 Controls ............................................................ 11
7 Assembly and setting up......................................11
8 Operation ...............................................................13
8.1 Electrical connection ........................................ 13
8.2 Settings............................................................. 13
8.3 Mitre stop.......................................................... 18
8.4 Rip fence .......................................................... 18
8.5 Rip cutting ........................................................ 18
8.6 Cross cutting .................................................... 18
8.7 Freehand cutting .............................................. 18
8.8 Sharpening and tooth setting of the saw band ...18
9 Maintenance and repairs ......................................19
9.1 Cleaning ........................................................... 19
9.2 Care after finishing work................................... 19
9.3 Maintenance and repairs.................................. 19
10 Troubleshooting ..................................................20
11 Disposal, reusing used machines .....................20
12 Spare parts...........................................................21
13 Wiring diagram ....................................................26
14 EU Declaration of Conformity ............................27

Introduction
HBS series | Version 2.03 3
1Introduction
You have made an excellent choice in purchasing a
Holzkraft wood band saw.
Carefully read the operating instructions prior to commission-
ing.
They describe correct commissioning, intended use
and safe as well as efficient operation and maintenance
of your wood band saw.
The operating instructions form part of the wood band
saw. Keep these operating instructions at the installation
location of your wood band saw. Also observe the local
accident prevention regulations and general safety reg-
ulations for the use of the wood band saw.
1.1 Copyright
The contents of these operating instructions are pro-
tected by copyright. Their application is permitted within
the context of the use of the wood band saw. Any further
use shall not be permitted without written consent by the
manufacturer.
1.2 Customer service
Please contact your specialist retailer if you have any
questions regarding your wood band saw or require any
technical information. Your specialist retailer will be
happy to support you with specialist advice and infor-
mation.
Germany:
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26
D-96103 Hallstadt
Germany
Repair service:
Hotline: [phone]
(0.49 Euro from German landlines)
Fax: [phone]-111
Email: [e-mail]
Spare parts orders:
Fax: [phone]-119
Email: [e-mail]
Please submit any information and experiences you
make during application of the machine as these may
be valuable for product improvements.
1.3 Disclaimer
All data in these operating instructions has been com-
piled on the basis of the state-of-the-art, valid standards
and guidelines as well as our many years of expertise
and experience.
The manufacturer shall not be liable for damage in the
following cases:
- Non-observance of these operating instructions
- Unintended use
- Deployment of untrained staff
- Conversions at one's own responsibility
- Technical modifications
- Use of unauthorised spare parts
The actual scope of delivery may deviate from the de-
scriptions and illustrations in this document as a result of
special variants, optional extras or recent, technical
modifications.
The obligations defined in the supply contract shall ap-
ply in addition to the general terms and conditions and
the manufacturer's general terms and conditions as well
as the statutory regulations valid at the time of the con-
clusion of the contract.
2 Safety
This section provides an overview of all important safety
packages for personal protection as well as safe and re-
liable operation. The sections on individual service life
phases contain additional, specifically applicable safety
information.
2.1 Legend of symbols
Safety instructions
Safety instructions in these operating instructions have
been highlighted with symbols. Safety instructions are
indicated by signal terms that express the degree of risk
involved.
DANGER!
This combination of symbol and signal term indi-
cates a directly dangerous situation which may
cause death or serious injury if not averted.

4HBS series | Version 2.03
Safety
Tips and recommendations
Observe the safety information in these operating in-
structions to minimise the risk of personal injury as well
as material damage and prevent hazardous situations.
2.2 Operator responsibility
Operator
Operators are defined as the persons who operate the
wood band saw for commercial or profit-based pur-
poses or provide the machine to third parties for use or
application and bear the legal product responsibility in
terms of the protection of users, staff or third parties dur-
ing operation.
Operator's duties
If the wood band saw is used for commercial purposes,
the operator of the wood band saw is subject to the le-
gal stipulations in terms of occupational safety. For this
reason, the safety instructions in these operating in-
structions as well as the safety, accident prevention and
environmental protection regulations valid at the instal-
lation location of the wood band saw must be complied
with. In this process, the following shall apply in particu-
lar:
- Operators shall obtain information about valid oc-
cupational safety regulations and determine addi-
tional hazards as part of a risk assessment which
result from the specific operating conditions at the
wood band saw's installation location. Said risk as-
sessment shall be reflected in operating instruc-
tions for wood band saw operation.
- During the entire wood band saw operating time
operators must check whether the operating in-
structions they created meet current standards
and adapt the operating instructions where neces-
sary.
- Operators shall clearly manage and specify the re-
sponsibilities for installation, operation, trouble-
shooting, maintenance and cleaning.
- Operators must make sure that all persons han-
dling the wood band saw have read and under-
stood these operating instructions. Operators
must also regularly train staff and notify of the haz-
ards.
- Operators shall provide staff with the required pro-
tective equipment and wearing the required pro-
tective equipment shall be mandatory.
Operators shall also be responsible for maintaining the
wood band saw in a technically perfect condition. For
this reason, the following shall apply:
- Operators shall make sure that the maintenance
intervals described in these operating instructions
are complied with.
- Operators shall regularly check that the safety
equipment is fully functional and complete.
WARNING!
This combination of symbol and signal term indi-
cates potentially hazardous situations which may
cause death or serious injury if not averted.
ATTENTION!
This combination of symbol and signal term indi-
cates a potentially hazardous situation which may
cause minor or light injuries if it is not averted.
IMPORTANT!
This combination of symbol and signal term indi-
cates a potentially dangerous situation which may
cause material damage or harm the environment if it
is not averted.
NOTE!
This combination of symbol and signal term indicates
a potentially dangerous situation which may cause
material damage or harm the environment if it is not
averted.
Tips and recommendations
This symbol highlights useful tips and recommenda-
tions as well as information for efficient and reliable
operation.

Safety
HBS series | Version 2.03 5
2.3 Personnel requirements
Qualifications
The different tasks described in these operating instruc-
tions require different levels of skills in terms of the qual-
ifications of operating staff working with the machine.
Exclusively persons of whom it can be expected that
they reliably complete assigned tasks shall be author-
ised to carry out any tasks. Persons whose reactions
have been impaired shall not be authorized, e.g. drug
users, users under the influence of alcohol or medica-
tion.
These operating instructions specify the following per-
sonal qualifications for the following tasks:
Operating staff:
Operating staff has undergone an induction by the oper-
ator about the entrusted tasks and potential hazards re-
sulting from improper behaviour. Operating staff shall
exclusively be permitted to
carry out any tasks beyond
operation in normal mode if this has been specified in the
operating instructions
and operators have explicitly en-
trusted operating staff with the task.
Specialist staff:
As a result of specialist training, expertise, experience
and skills in terms of the relevant standards and regula-
tions, specialist staff is able to complete the tasks they
are entrusted with and independently identify hazards
and avert risks.
Manufacturer
Certain work must be carried out by manufacturer spe-
cialist staff only. Other staff is not permitted to carry out
this work. Contact our customer service to have the work
carried out.

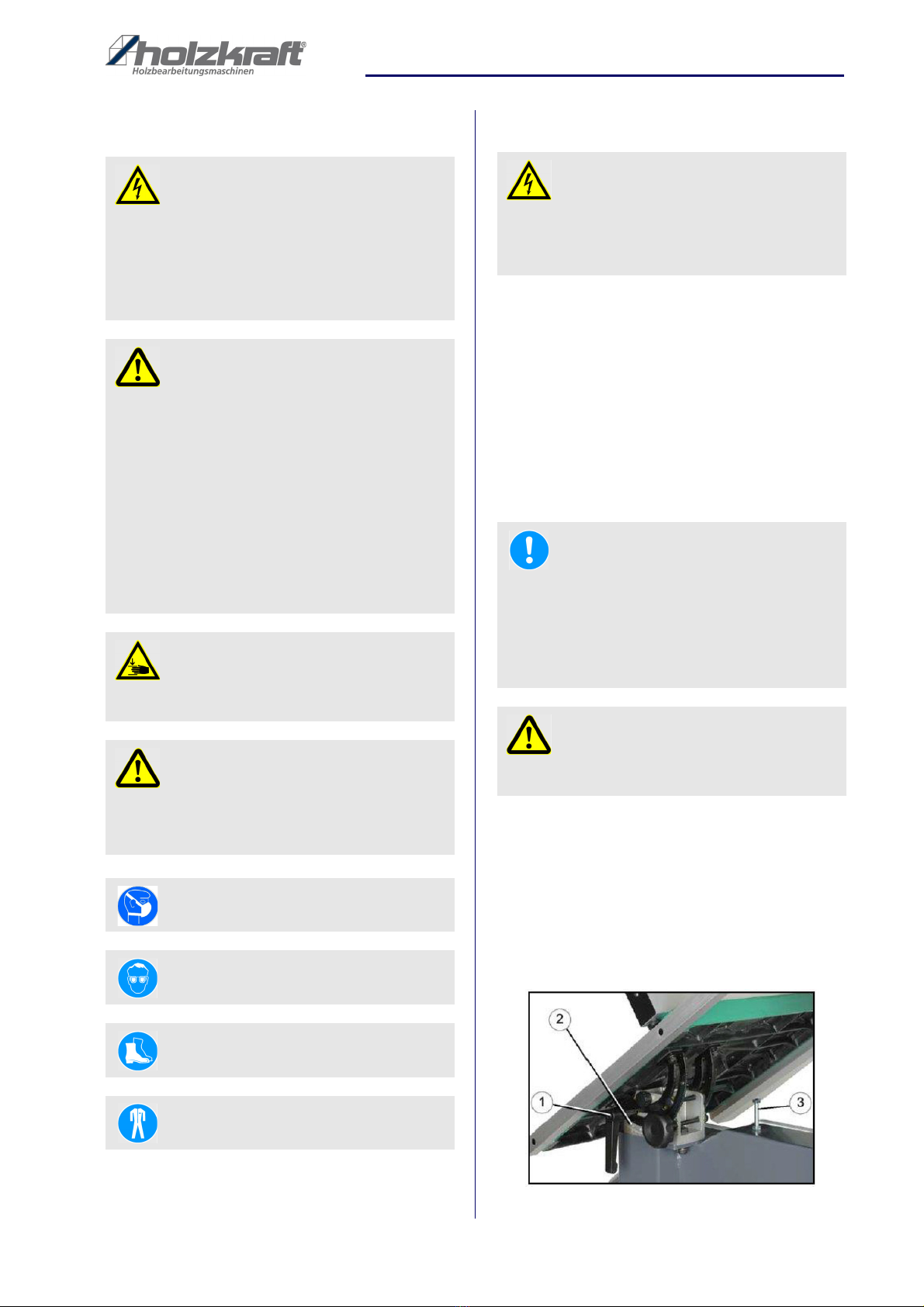

2.4 Personal protective equipment
Personal protective equipment is intended to protect the
health and safety of persons at work. Staff must wear the
personal protective equipment indicated in individual
sections of these operating instructions when carrying
out the different tasks on the machine.
The personal protective equipment is described in the
following section:
WARNING!
Risk from inadequately qualified persons!
Inadequately qualified persons are unable to assess
the risks when handling the wood band saw, thus
putting themselves and others at risk of severe or
fatal injuries.
- All work must be carried out by qualified persons
only.
- Keep inadequately qualified persons away from the
work area.
Hearing and head protection
Hearing protection protects from hearing damage
caused by noise. Industrial hard hats protect the
head from falling objects and impact with fixed
objects.
Protective eyewear
Protective goggles are intended to protect the eyes
from flying parts.
Protective gloves
Protective gloves are intended to protect the hands
from components with sharp objects as well as fric-
tion, abrasion, and deep-cut injuries.
Safety shoes
Safety shoes protect feet from pinching, falling parts
and slipping on slippery surfaces.
Protective clothing
Protective clothing is tight-fitting work clothing without
protruding parts, usually with a low tear resistance.

6HBS series | Version 2.03
Safety
2.5 General safety instructions
Tooling, retooling, maintenance and servicing work may
only be performed by trained personnel when the equip-
ment is not running.
Unauthorised conversions and modifications of the
wood band saw are not permitted for safety reasons.
2.6 Safety instructions for operating staff
Always avoid working methods that affect the safety of
the wood band saw
The operator must ensure that unauthorised persons do
not work with the wood band saw (e.g., by actuating
systems that prevent unauthorised use).
The operator is obliged to check the wood band saw at
least once before use (daily) for visible signs of damage
and defects and to immediately report any changes that
have occurred (including changes to operating behav-
iour) that could impair safety.
The operator must also ensure that the wood band saw
is operated only in a technically perfect condition.
- Before switching on the machine, make sure the
workpiece is correctly clamped!
- When working on the machine, always keep your
hands away from rotating parts!
- Do not remove sharp edged chips with your
hands; use a hand brush or chip rake!
- Use the safety devices and fasten them securely.
Never work without safety equipment; keep the
safety equipment in good working order. Check its
functionality before starting work.
- Keep the machine and your work environment
clean at all times. Ensure sufficient illumination.
- Always secure the workpiece when working with
suitable clamping equipment. Ensure a sufficient
support surface.
- The machine's design must not be changed; the
machine must not be used for work not intended
by the manufacturer.
- Never work under the influence of illnesses that im-
pair concentration, drugs, alcohol or medication.
- Remove spanners and other loose parts from the
machine after assembly or repairs before you
switch the machine on.
- Observe all safety instructions and warnings on
the machine and keep the labels in a legible state
- Keep children and persons who are not familiar
with the machine clear of your work environment,
the machine and tools.
- The machine may only be used, tooled and main-
tained by persons who are familiar with it and in-
structed in terms of its risks.
- Do not use the mains cable to pull the plug out of
the socket. Protect the cable against heat, oil and
sharp edges.
- Make sure that the main switch is in the OFF posi-
tion when you connect the machine with the power
supply in order to avoid inadvertent switching on.
- Wear close-fitting work clothes, protective eye-
wear, safety shoes and hearing protection. Tie
back long hair. Do not wear watches, bracelets,
necklaces rings or gloves when working (rotating
parts!).
- Immediately resolve malfunctions that impair
safety.
- Never leave the machine operational without su-
pervision, remain near the machine until it reaches
a complete standstill. Then pull the mains plug to
prevent undesirable switching on
- Protect the machine against humidity (risk of short
circuit!).
- Never use power tools and machines in the vicinity
of flammable liquids and gases (risk of explo-
sion!).
- Before using the machine, make sure that no parts
are damaged. Replace damaged parts immedi-
ately to avoid sources of danger!
- Do not overload the machine! Working within the
stated performance limits is better and safer. Use
the right tools! Make sure that tools are not blunt or
damaged.
- Use only genuine spare parts and accessories to
avoid potential risks and risk of accident.
NOTE!
Observe the regulations applicable in the country of
use (currently effective version).
NOTE!
Before starting up, using, maintaining or intervening
with the machine in any other way, always carefully
read the operating and maintenance instructions.
Only persons who are familiar with handling and the
effect of the machine are permitted to handle and
work on and with the machine.
IMPORTANT!
Repairs, maintenance and upgrades may only be
performed by qualified personnel with the machine
switched off (disconnect the mains plug!)!

Safety
HBS series | Version 2.03 7
2.7 Special safety instructions for wood band
saws
- When sawing round timber, clamp the workpiece
to prevent it rotating. Use suitable holding devices
- Lower the upper band guide as close to the work-
piece as possible
- If the work table is angled, attach the rip fence to
the bottom half of the table
- Make sure that all workpieces are safely held and
safely guided when machining
- Remove sawn off or clamped workpieces only
when the saw band is at a standstill
- Set up the machine so that there is sufficient
space for operations and for guiding the work-
pieces
- Keep the workplace free of obstructing work-
pieces
- Ensure sufficient illumination.
- Avoid larger concentrations of dust. Use a suitable
extraction unit. Wood dust is explosive and can be
dangerous to health
- Before machining, remove nails and other foreign
bodies from the workpiece
- Specifications relating to the min. and max. work-
piece dimensions must be observed
- Replace damaged saw bands immediately
2.8 Safety instructions for laser applications
Observe the following safety instructions handling laser:
- Equipment in the beam path of class 3a laser
equipment must be set up or fastened so that any
unintentional changing of their position and the
beam direction is avoided.
- Uncontrollably reflected radiation from the laser
equipment must be avoided; reflecting or glossy
objects and surfaces must be kept out of the laser
beam area to the extent possible, or removed or
covered.
- For protection against dangerous reflections,
tools, accessories and adjusting equipment used
in the laser area should not nave reflective sur-
faces; persons in the laser area must not take re-
flective objects with them.
- The optical axes must not be directed at windows.
- Never look directly into the laser beam!
- For your own safety, we recommend the use of
protective eyewear when working with the laser!
2.9 Safety labels on the wood band saw
The following safety identifications are attached to the
wood band saw (Fig. 1) and must be observed.
Fig. 1: Safety labels
- 1 Warning of dangerous electrical current Warning
of crushing of the upper limbs - Warning of hot
surfaces Warning of drawing in through rotating
machine parts
- 2 Earthing
- 3 Mandatory signs: Read operating instructions,
Use safety clothes, protective gloves, safety
shoes. Safety identifications attached to the de-
vice must not be removed. Damaged or missing
safety identifications may cause errors, personal
injury and material damage. They must be re-
placed immediately.
If the safety identifications are not visible and compre-
hensible at first glance, the device must be stopped un-
til new safety identifications have been attached.
ATTENTION!
The machine is equipped with a laser that shows the
cut path on the material. The laser has a max. out-
put of 5 mW, a wavelength of 630 – 670 mm, and is
thus classified as class 3A.
1
3
2

8HBS series | Version 2.03
Intended use
3 Intended use
The on the wood band saw is designed for sawing wood
and wood replacements with edges, and for hard plas-
tics that are machined in a similar way. Round materials
may only be cut with a suitable holding device. With the
aid of the pivoting work table and a mitre stop, mitre cuts
up to 45° degrees can be made.
The machine is univer-
sally deployable for schools,
trades, crafts and DIY.
Certain types of wood and wood products cause dust
emissions that are detrimental to health during machin-
ing. For this reason, only use your machine in a well-
ventilated room, and always use an extraction unit. The
intended use shall also include adherence to all infor-
mation in these operating instructions. Any other use or
use beyond the intended use shall be deemed misuse.
Stürmer Maschinen GmbH assumes no liability for de-
sign-based or technical modifications to the wood band
saw.
Any claims resulting from damage due to unintended
use shall be excluded.
3.1 Foreseeable misuse
If the intended purpose of the wood band saw is ob-
served, there is no actually foreseeable misuse that may
cause hazardous situations involving personal injury.
3.2 Remaining risks
Even when observing all safety instructions, operation of
the wood band saw involves the remaining risks de-
scribed in the following.
All persons working with the wood band saw must be
aware of the remaining risks and observe the instruc-
tions to prevent these remaining risks from causing ac-
cidents or damage:
- There is a risk of crushing upper and lower limbs
during operation.
- It may be necessary to remove installed protective
equipment to configure and equip the machine.
This causes various remaining risks and potential
hazards that each user must be aware of.
WARNING!
Risk of misuse!
Misuse of the wood band saw may cause hazard-
ous situations.

Technical data
HBS series | Version 2.03 9
4 Technical data
4.1 Noise level 4.2 Type plate HBS 533
Fig. 2: Type plate HBS 533
Model HBS 351 HBS 430 HBS 431 HBS 433 HBS 533
Article number 5153501 5154300 5154301 5154303 5155303
Work table dimen-
sions
495 x 356 mm 610 x 431 mm 610 x 431 mm 610 x 431 mm 680 x 530 mm
Cutting speeds 650 - 400 m/
min.
900 - 450 m/min. 900 - 450 m/
min.
900 - 450 m/
min.
850 - 430 m/
min.
Flywheel Ø 356 mm 430 mm 430 mm 430 mm 530 mm
Max. cutting height 200 mm 270 mm 270 mm 270 mm 270 mm
Max. cutting width
with stop
321 mm 370 mm 370 mm 370 mm 470 mm
Max. cutting width
without stop
346 mm 410 mm 410 mm 410 mm 514 mm
Saw band length 2562 mm 3345 mm 3345 mm 3345 mm 3865 mm
Precision guides Top/bottom Top/bottom Top/bottom Top/bottom Top/bottom
Saw table angle -10° - +45° -10 - +45° -10 - +45° -10 - +45° -10° - +45°
Motor output 550 W / 230 V 1.5 kW / 230 V 1.5 kW / 230 V 1.5 kW / 400 V 1.5 kW / 400 V
Weight 80 kg 130 kg 130 kg 130 kg 163 kg
Dimensions mm 610x 445 x1753 768 x 512 x
2048
768 x 512 x
2048
768 x 512 x
2048
1024 x 793 x
2048
Extraction port di-
ameter
120 mm 2 x 120 mm 2 x 120 mm 2 x 120 mm 2 x 120 mm
Hearing and head protection
The noise (sound pressure level) of this machine can
exceed 82 dB(A) at the workplace.
We recommend using hearing protection.
NOTE!
Note that the duration of noise exposure, the type
and nature of the workplace, and other machine op-
erating at the same time also influence the noise level
at the workplace.

10 HBS series | Version 2.03
Delivery, packaging and storage
5 Delivery, packaging and storage
5.1 Delivery
Check the wood band saw for visible transport damage
upon delivery. Immediately notify the haulage company
or retailer if you identify damage to the device.
5.2 Packaging
All of the wood band saw's packaging materials and
packing aids are suitable for recycling and must always
be disposed of using material-based recycling systems.
Packaging materials made of cardboard must be shred-
ded and disposed of as part of waste paper recycling.
The foils are made of polyethylene (PE), padding is
made of polystyrene (PS). Dispose of these substances
at a recycling centre or hand them over to the relevant
waste disposal company.
5.3 Storage
Allow the wood band saw to fully cool down, and always
store in a clean condition and a dry, clean and frost-free
environment.
6 Machine description
Figures in these operating instructions may deviate from the
original.
Scope of delivery HBS series
- Band saw
- Work table
- Rip fence
- Rip fence guide rail
- Stop support rail
- Mitre stop
- Standard saw blade
- Laser device
- Allen key
- Operating instructions
- Screw set
6.1 Accessories

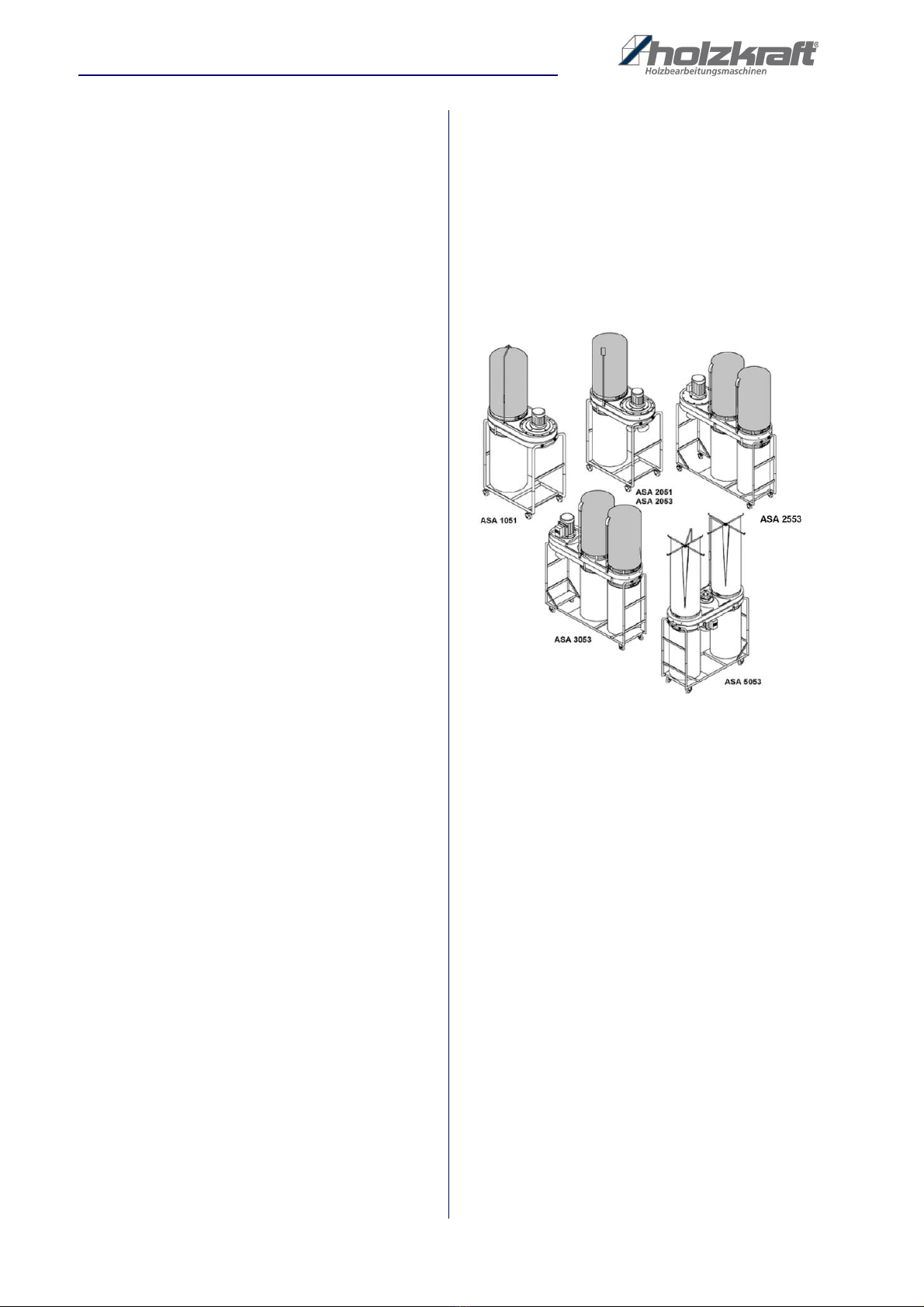

Extraction units
To reduce the dust and wood particle emissions in your
work area, order one of our extraction units along with
the machine. Depending on your application, a variety of
designs are available.
Fig. 3: Extraction units
Caution: These extraction units are intended for private
use with a thirty minute duty cycle only.
For commercial use, please use a clean air unit.

Assembly and setting up
HBS series | Version 2.03 11
6.2 Controls
Fig. 4: Controls
7 Assembly and setting up
Remove the machine from its packaging and remove all
protective foils. Make sure the machine is not set up or
operated in a damp or wet environment. The humidity
should not exceed 60% and the measured room tem-
perature should be between max. 0°C and 40°C.
1 Saw band clamping head
2 Upper rotary lock
3 Saw band height adjustment
4 Saw band guide
5 Angle adjustment
6 Extraction port
7 Lower rotary lock
8 Chassis
9 Lower front door
10 Rip fence with quick clamping
11 Guide rail rip fence
12 Emergency stop and ON/OFF switch
13 Top front door
14 Quick clamping lever saw band clamping
15 Microswitch
16 Saw band tracking adjusting screw
17 Height adjustment clamping screw
18 Rocker mount
19 Rip fence protection rail
20 Laser device
NOTE!
We recommend calling a second person to help as-
sembling the band saw.

12 HBS series | Version 2.03
Assembly and setting up
Assembled band saw
The band saw is delivered to you in almost fully-assem-
bled condition.
On the worktable, remove the locking pin (2) and the ta-
ble insert (1). Guide the saw blade through the slot in
the work table and then rotate the table through 90° so
that the slot in the table points to the right as shown in
the adjacent image. Screw in the screws below the
worktable on the two rocker mounts (7). Then replace
the table insert and locking pin. Align the table so that
the saw blade is located at the centre of the table insert.
Now tighten the screws. Mount the rip fence guide rail
(3) on the front side of the worktable with two M6x20
screws. Mount the stop support rail (4) on the rear side
of the worktable with two M6x16 screws. Make sure that
the rails are correctly aligned. With the clamping lever
(6) released, now locate the rip fence (5) on the guide
rail (3). Pressing down the clamping lever detains the
fence.
Fig. 5: Assembly of the band saw

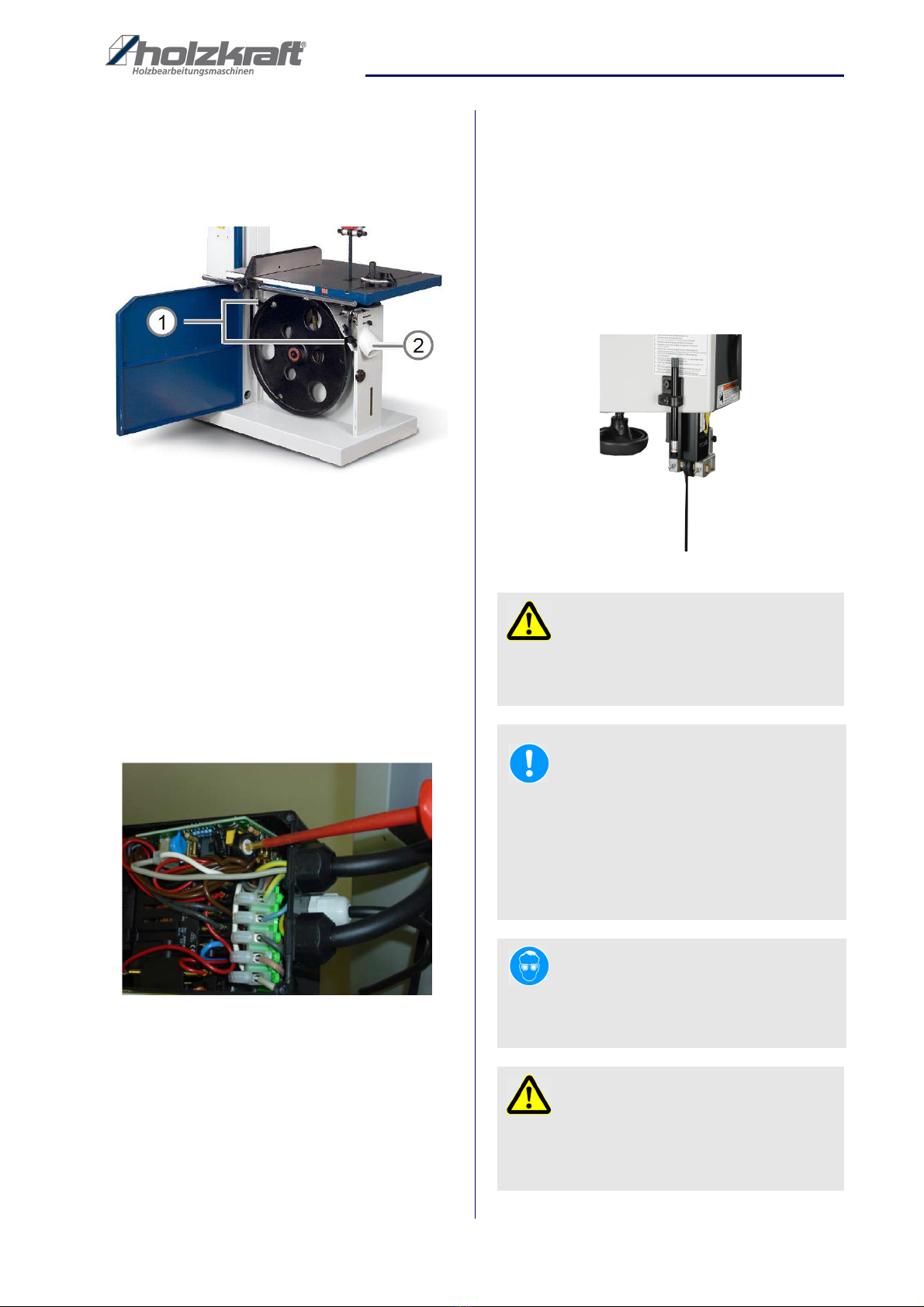

Machines with 400 V electric motor
Connecting the machine to the power supply:
- make sure that the power supply has the same
characteristics (voltage, mains frequency, phase
position) as the motor.
- Use 400 V line voltage (16A fuse)
- The supply cable must have a cable cross-section
of at least 2.5 mm².
- Note the motor's sense of rotation (see arrow on
motor). If the motor turns the wrong way: push in
the disc in the connector with a screwdriver and
rotate through 180°. Checking the sense of rota-
tion: switch on the motor only briefly and note the
sense of rotation when the motor runs down.
Fig. 6: Machines with 400 V electric motor
Installing the machine
The machine must be located on a stable base and an-
chored to it securely. This avoids the machine tipping
and injuring persons, and also prevents a lack of preci-
sion in the workpieces.
IMPORTANT!
Work on the electrical equipment must be performed
by a qualified electrician.
NOTE!
Make sure that the machine is easily accessible for
operation and for setup and maintenance work.

Operation
HBS series | Version 2.03 13
8 Operation
8.1 Electrical connection
Make sure that the power supply has the same charac-
teristics (voltage, mains frequency) as the motor.
Step 1: Make sure that the wood band saw is switched
off.
Step 2: Connect the wood band saw to the power sup-
ply.
8.2 Settings
8.2.1 Swivelling the worktable
After releasing the clamping lever (1) the worktable can
be swivelled through up to +45°.
The preset angle can be read off via the pointer on the
inclinometer (2). Apply the clamping lever again to lock
the table
Fig. 7: Swivelling the worktable
DANGER!
Risk of fatal injury through electric shock!
There is a risk of fatal injury on touching live compo-
nents. Electrical components that are switched on
can perform uncontrolled movements and cause
injuries.
- Before starting setting work, unplug the machine's
mains connector.
WARNING!
Danger!
Failure to observe the following rules entails a risk of
injury for the operator and other persons.
- The wood band saw must be operated by one
trained and experienced person only.
- The operator must not work under the influence of
drugs, alcohol or medication.
- The operator must not work in case of tiredness or if
suffering from an illness that impairs concentration.
- The wood band saw must be operated by one per-
son only. Additional persons must keep out of the
work area during operation.
ATTENTION!
Risk of crushing!
In case of unintended work on the device, there is a
risk of injury to the upper limbs.
IMPORTANT!
- The device must not be operated at damp work-
places or outdoors in the rain.
- Make sure that the workplace is well ventilated!
Use breathing apparatus!
Use protective eyewear!
Wear safety shoes!
Wear protective clothing!
DANGER!
Risk of fatal injury through electric shock!
There is a risk of fatal injury on touching live compo-
nents. Electrical components that are switched on
can perform uncontrolled movements and cause
injuries.
NOTE!
Before starting up, using, maintaining or intervening
with the machine in any other way, always carefully
read the operating and maintenance instructions.
Only persons who are familiar with handling and the
effect of the machine are permitted to handle and
work on and with the machine.
IMPORTANT!
Before starting any setup work on the machine, dis-
connect it from the power supply.

14 HBS series | Version 2.03
Operation
8.2.2 0° position of worktable
To quickly reset to 0° position of the worktable, the table
is equipped with an adjusting screw (1). Use the
handwheel (2) to adjust the table's angle after releasing
the clamping lever.
Set the worktable to 0°. Check the setting by measuring
the angle between the worktable and the saw band with
a protractor. If needed, correct the table setting and re-
align the pointer on the scale.
Once the table is at an angle of precisely 90° to the saw
band, unscrew the adjusting screw (1) until it lies flush
against the table. Lock the screw with the nut.
Fig. 8: 0° position of worktable

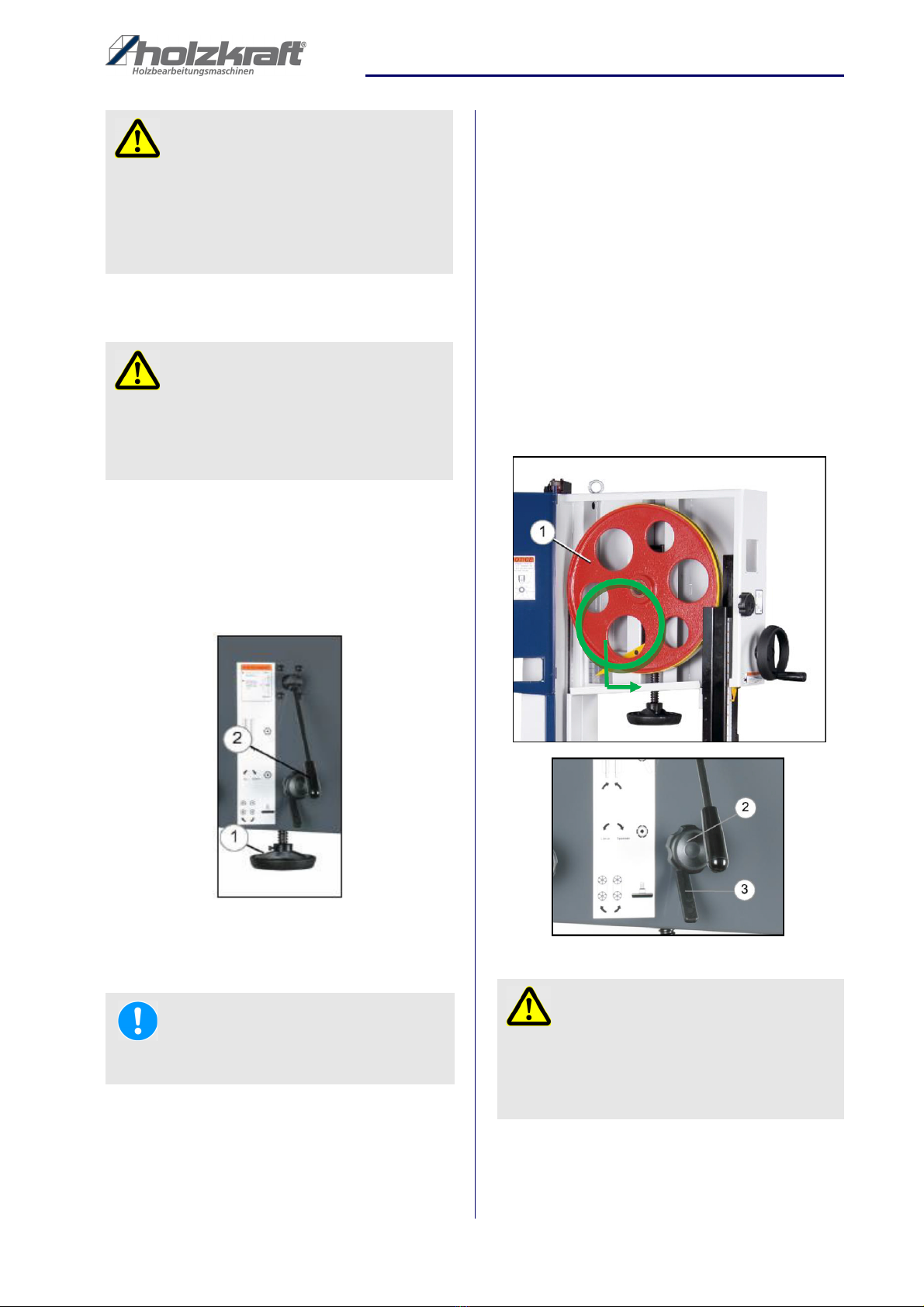

8.2.3 Cutting height adjustment
To adjust the cutting height, release the clamping screw
(2) and turn the adjustment wheel (1) to set the saw
band guard to the desired height. After completing the
setting, tighten the clamping screw again.
Fig. 9: Cutting height adjustment
8.2.4 Saw band change
Step 1: Switch off the machine and disconnect the ma-
chine from the power supply.
Step 2: Open the front panel by turning the top and bot-
tom locking screws (1).
Step 3: Release the saw band clamp by actuating the
quick clamping lever (2).
Step 4: Carefully pull the used saw band off the rollers
and guide it through the slot in the table.
Step 5: Now place the new saw band on the two saw
band rollers in reverse order and centre with
respect to the rubbers supports.
Step 6: Finally, clamp the saw band again by actuating
the quick clamping lever (2); refit the table in-
sert and close the front panel.
Step 7: Adjust the saw run as described.
Fig. 10: Saw band change
IMPORTANT!
- The upper saw band guide must be set to reflect
the workpiece height. The upper saw band guide
must be 2-3 mm higher than the thickness of the
workpiece to be cut.
- Complete or check this setting before each cutting
action.
IMPORTANT!
Always wear gloves when changing the saw band.

Operation
HBS series | Version 2.03 15
8.2.5 Setting the band tension
Turning the adjusting screw (1) increase or reduces the
saw band tension via a spring. To change saw bands of
the same width, there is no need to change the basic
tension setting. The saw band can be released without
changing the basic tension setting via the standard
quick clamping system (2).
Fig. 11: Setting the band tension
8.2.6 Setting the saw band run
Step 1: Slowly turn the upper saw band pulley (1) clock-
wise by hand. The saw band should run cen-
trally on the rubber supports of the saw band
pulleys. If this is not the case, the upper saw
band pulley's angle of inclination must be ad-
justed.
Step 2: The screw (2) for adjusting the saw band run is
located at the rear centre of the machine. This
button is used to adjust the run. The saw band
run setting must be adjusted with the front panel
open.
Step 3: Turn the saw band pulley clockwise by hand to
check the saw band run through the sight pane.
Note that the saw blade run direction is top-
down. Loosen the lock nut (3) and correct the
saw band run by turning the adjusting screw
clockwise or anti-clockwise.
Step 4: Now check the saw band run on the lower saw
band pulley. It should lie flush against the rub-
ber support across its entire width. Correct the
run until the saw band is centered on the top
saw band pulley.
Fig. 12: Adjusting the saw band run
IMPORTANT!
The saw blades must be de-tensioned if you will not
be using the band saw for a longer period of time.
Denote this with
a label on the outside of the machine. Before you
recommission the machine,
you must re-tension the saw blades.
IMPORTANT!
- If the tension is too high, the saw band can break.
- Risk of injury!
- If the tension is too low, the driven saw band pulley
can slip, causing the saw band to stop.
NOTE!
Before the saw band run setting can be adjusted, it is
important to correctly adjust the blade tension...
IMPORTANT!
After competing the adjustment and before switch-
ing on, manually turn over the saw band pulley
through a number of revolutions to check whether
the saw band runs off the pulleys. If this is the case,
you need to re-adjust the saw band run.

16 HBS series | Version 2.03
Operation
8.2.7 Adjusting the saw blade guide
Step 1 Loosen the lock washer (1) and turn the two
ceramic guide discs (2) to move them up to
0.5 mm in front of the saw teeth. Then clamp
again.
Step 2 Loosen the clamping screw (3) and adjust the
support bearing (4) so that the saw band back
runs on the outer bearing ring.
The support bearing has the task of supporting the saw
blade in case of a rough cutting depth, and of ensuring
perfect cutting
Fig. 3: Adjusting the saw blade guide
8.2.8 Adjusting the saw band speed
Step 1 Disconnect the machine from the power sup-
ply.
Step 2 Release the drive belt by loosening the clamp-
ing screw on the motor.
Step 3 Now locate the v-belt on the desired v-belt
pulley
Step 4 Tension the drive belt again and then
retighten the clamping screw.
8.2.9 Swarf brush
The swarf brushes on the band saw require regular
maintenance. They are used to remove chips and dust
from the saw band pulleys' rubbers supports. They are
located behind the front panel. The chip brushes need
to be replaced when worn. Check them at regular inter-
vals before starting up the machine.
To adjust, release the fastening screws on the chip
brushes (1) and move the brushes to the correct posi-
tion. Then re-tighten the screws.
Fig. 5: Chip brush
IMPORTANT!
Only adjust the upper and lower saw band guides
after adjusting and checking the blade tension and
saw blade run.
IMPORTANT
The saw band will become useless if its teeth touch
the guide pins when the saw band is running. Cor-
rect adjustment of the upper and lower band guide
is thus important for a long saw band service life.
NOTE!
The saw band will become useless if its teeth touch
the guides when the saw band is running. Correct ad-
justment of the upper and lower band guide is thus
important for a long saw band service life.

Operation
HBS series | Version 2.03 17
8.2.10Extraction port
For connection to an extraction system, your band saw
is equipped with one or two extraction ports (2) with a
diameter of 120 mm depending on the type.
Fig. 6: Extraction port
8.2.11Adjusting the braking time
Step 1 Open the switch housing
Step 2 Remove the printed circuit board
Step 3 Use a suitable tool to adjust the rotary knob.
Turn the knob clockwise to increase the cur-
rent and for a shorter braking time, or anti-
clockwise to reduce the current and for a
longer braking time.
Step 4 Refit the printed circuit board
Step 5 in its position, making sure that it is correctly
seated in the guides.
Step 6 When closing the switch housing, make sure
that no cables protrude beyond the areas
marked 1 and 2 in the right-hand figure.
Step 7 Make sure that all screws on the switch hous-
ing are tightly fastened.
8.2.12Use and assembly of the laser
Mount the bracket (1) on the machine.
Insert the batteries into the laser, paying attention to the
correct polarity. Insert the laser into the bracket, and
lock it in place with the screw (2). Press the button on
the top side of the laser to switch the laser on. After the
line has been correctly set to the desired position, lock
the screws again.
Fig. 8: Use and assembly of the laser
IMPORTANT!
In all cases, avoid direct eye contact with the laser
beam and note the safety instructions below “Safety
instructions for laser applications” on page 7.
Note!
Rotating parts! Work sensibly; pay attention to what
you are doing. Pay particular attention
to rotating parts. Wear close-fitting clothing. Make
sure that
your hair or items of clothing cannot be drawn in by
rotating parts! Wear a hair net.
Do not wear jewellery when working on the machine.
Protective eyewear
Chips and parts flying around! Always use protec-
tive eyewear! Protect your eyes
against chips and other splinters flying around.
IMPORTANT!
Do not use broken saw blades. Use only sharp saw
blades with even tooth settings. There is a risk of
breakage with band saw blades that are blunt and/
or have sharpening and tooth setting faults

18 HBS series | Version 2.03
Operation
For all cutting actions, move the upper band guide as
close as possible to the workpiece. This ensures the
best possible cut quality and operator safety. Always
guide the workpiece with both hands and keep it flat on
the band saw table to avoid the saw blade jamming.
Always use the rip fence or the mitre stop for all cutting
actions for which they can be deployed. This prevents
the saw band running out of the cut line, particularly in
case of working with the table at an angle. Plan the re-
quired work steps in advance. An old rule in crafts and
trades is "measure twice, cut once". It is better to com-
plete a cut in a single action than in several sections that
may require the workpiece to be pulled back.
In this case, switch off the band saw and wait for the
saw band to reach a standstill before pulling back the
workpiece. Note that the saw band causes a cutting kerf
and set the cutting width so that the cutting kerf is in the
cut-off part of the workpiece. Add an allowance if the
workpiece edge needs to be machined later on.
8.3 Mitre stop
The mitre stop is used to safely guide the workpiece
during cross-cutting or mitre cutting. For mitre cutting,
the mitre stop is equipped with a degree scale up to 45°
on both sides.
8.4 Rip fence
For long rip cuts, the workpiece is guided along the rip
fence. The rip fence can be adjusted to the desired cut-
ting width.
8.5 Rip cutting
Cutting along the grain of the wood is known as rip cut-
ting. You can cut freehand along a marked line, or along
a rip fence, thus achieving superior results. In case of
cuts at right angles (the table is at right angles to the
saw band), the rip fence is positioned to the left of the
saw band so that the workpiece can be guided safely
along the fence with your right hand.
In case of mitre rip cuts with the table at an angle, the rip
fence needs to be positioned to the right of the blade on
the side pointing down (if the workpiece allows this), in
order to prevent the workpiece slipping.
8.6 Cross cutting
Cross-cutting means sawing at right angles to the wood
fibre. This type of cut can also be performed freehand,
but for reasons of safety and precision, it makes more
sense to use a cross-cutting gauge. The cross-cutting
gauge can be set to 45° for mitre cuts.
In combination with an angled table, the operator can
thus perform double mitre cuts. Hold the workpiece
firmly against the fence on the cross-cutting gauge and
flat against the table. Pay attention to your fingers, par-
ticularly at the end of the cut; keep a safe distance to the
saw band. Small workpieces should be clamped. The
cross-cutting gauge can be equipped with an end stop
so that multiple workpieces can be cut to exactly the
same length. The end stop can also be used as a sup-
port when the table is angled.
8.7 Freehand cutting
The ease with which curves can be cut is one of the
most outstanding characteristics of a band saw. For
curved cutting select a saw band with a width that lets
you cut the smallest radii that occur in your workpiece.
For freehand cutting, you should work at a low feed
speed so that the saw band can follow the desired line.
Make sure that you do not push the workpiece laterally
out of the cutting line. This causes the saw band to run
off track and it can jam in the cutting kerf. It can be use-
ful to remove the excess material approx. 10 mm from
the cutting line. In case of very tight radii in which the
saw band can no longer cut perfectly, cuts at right an-
gles to the curve line and at a short distance apart can
help. When cutting the radius, the material drops off so
that the saw band cannot jam.
8.8 Sharpening and tooth setting of the saw
band
Professional maintenance of the saw bands is a major
prerequisite for achieving high cutting quality and pro-
ductivity.
If the cut is wavy after sawing, the saw band is blunt or
the teeth are not set correctly. After discovering that the
saw band is not working well, you need to sharpen the
saw band. If waviness of the cut occurs after sharpening
the saw band, you need to check and optimise the teeth
settings. The intervals between 2 sharpening actions
should not be too long; even if the cutting results are
fine, you should not use the saw band for longer than
approx. 1 hour. If impurities of the logwood were not re-
moved before cutting, you may need to sharpen the saw
band after the 1st cut.
As a general rule, the contact surface needs to be
ground far more than the face. When grinding, make
sure that the primary tooth profile is kept.
The tooth parameters, angle of rake and cross-set must
be tuned to match the type of wood (hardness). The
tooth height can be averaged and used for different
types of wood without any changes.

Maintenance and repairs
HBS series | Version 2.03 19
Saw band parameters:
To cut softwood that is frozen, use saw bands as for
harder wood.
Cutting hardwood with too great a rake angle:
the saw and wood shake, the machine is loud and
works unevenly. Change the saw band immediately.
Cutting softwood with too low a rake angle: even if the
saw band is sharp, waviness in the cut may occur.
9 Maintenance and repairs
.
9.1 Cleaning
9.2 Care after finishing work
Always keep the wood band saw clean.
Step 1: Unplug the mains connector from the safety
socket.
Step 2: Brush or wipe off all open machine parts with a
brush or cloth at regular intervals.
Step 3: Clean all painted surfaces with a soft, damp
cloth.
Step 4: Treat bare metal work surfaces with anti-corro-
sive spray.
Step 5: Grease all bearings once a month.
9.3 Maintenance and repairs
Maintenance and repairs must be carried out by spe-
cialist staff only. If the wood band saw is not operating
correctly, contact a specialist retailer or our customer
service. The contact details are listed in “Customer ser-
vice” on page 3. All protective and safety equipment
must be immediately reinstalled after having completed
repair and maintenance work.
Softwood, aspen,
poplar
Hardwood
Rake angle [°] 13 - 16 8 - 10
Tooth height
[mm]
5.5 - 6.5 5.5 - 6
Cross-set per
side
0.6 - 0.7 0.5 - 0.6
Saw band thick-
ness
0.9 - 1.1 0.9 - 1.1
DANGER!
Risk of fatal injury through electric shock!
There is a risk of fatal injury on touching live compo-
nents. Electrical components that are switched on
can perform uncontrolled movements and cause
injuries.
- Before starting cleaning and maintenance work, un-
plug the mains connector.
IMPORTANT!
- Never use solvents for cleaning plastic parts or
painted surfaces. This may cause the surface to
disintegrate and cause consequential damage.
ATTENTION!
Any chips that occur should be regularly removed
from the inside of the band saw. Before opening the
housing cover, switch off the machine and unplug
the connector. After opening, you can clean with a
brush or a vacuum cleaner. After completing the
work, remove chips and sawdust from the motor's
cooling openings.
NOTE!
Do not remove the chips with your bare hands. There
is a risk of injuries through sharp edged or pointed
chips!
NOTE!
Oil, grease and cleaning agent are harmful to the en-
vironment and must not be allowed to enter the
groundwater, or disposed of as normal domestic
waste. Dispose of these agents in an environmentally
friendly manner. Cleaning cloths soaked in oil, grease
or cleaning agent are highly flammable. Collect
cleaning cloths or cleaning wool in a suitable, closed
container and dispose of them in an environmentally
responsible manner - not as domestic waste!
Wear protective gloves!
NOTE!
Never use aggressive cleaning agents for cleaning
work. This may cause damage or destroy the ma-
chine.

20 HBS series | Version 2.03
Troubleshooting
10 Troubleshooting
11 Disposal, reusing used machines
In your own interest and to protect the environment
make sure that all machine components are exclusively
disposed of in as intended and permitted.
11.1 Decommissioning
Disused machines must be decommissioned immedi-
ately to prevent misuse at a later point and putting the
environment or persons at risk.
Step 1: remove all environmentally hazardous process-
ing materials from the used machine.
Step 2: If necessary, disassemble the machine into as-
semblies and components that are easy to handle and
suitable for recycling.
Step 3: The machine components and processing mate-
rials must be disposed of using the intended disposal
methods.
11.2 Disposal of electrical equipment
Note that electrical equipment contains a variety of recy-
cling-capable materials and also environmentally haz-
ardous components.
Please help to separate these components and dispose
of them responsibly. In case of doubt, contact your local
waste disposal authority.
Consult a specialist disposal agent for recycling if
needed.
11.3 Disposing of lubricants
Lubricant manufacturers provide disposal information
for the lubricants used. If necessary, request product-
specific data sheets.
Malfunction Possible causes Elimination
The engine does not start up 1. No mains power
2. Connecting cable is defective
3. Fuse is defective
1. Connect the device to the power
supply
2. Call in a qualified electrician to
check the power supply.
3. Replace the fuse.
Saw blades keep breaking 1. Incorrect saw band tension
2. Excessive load
3. Wrong saw band
4. Saw band twisted
1. Correct the saw band tension
2. Reduce the feed speed
3. Use narrow blades for thin material,
wider blades for thicker material.
4. Do not exert any lateral force on the
saw band.
Vibrations (vibrations are a techni-
cal factor and cannot be com-
pletely prevented)
1. Band saw not correctly anchored
2. Unsuitable anchoring surface
3. Saw table not fixed, or resting on
the motor
4. Motor mount screw loose
1. See installation instructions.
2. Anchor on a stable base
3. Tighten the table arresting button,
check the table position.
4. Tighten screws.
Saw band running out of the cut-
ting line
1. Band guide not correctly adjusted 1. Re-adjust the band guide.
