Home Decorators Collection MAKENNA User manual

Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.
1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and condence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive
to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!
Item #xxxx xxx xxx
Model #51235
UL Model #52-MAKDN
USE AND CARE GUIDE
MAKENNA 52-INCH CEILING FAN
To view an instructional video on how to install this product:
1. Go to www.homedepot.com and enter either the Item or Model number, found in the top
right corner of the cover of this instruction manual, in the search eld.
2. Click on your product from the list of search results and click on the video link in the
“Product Overview” section.
Scan for text based
customer support
Scan for online product
warranty information

2
Table of Contents ................................................................ 2
Safety Information............................................................... 2
Warranty ............................................................................... 3
Pre-Installation .................................................................... 3
Installation............................................................................ 6
Assembly.............................................................................. 7
Operation ........................................................................... 13
Care and Cleaning............................................................. 14
Troubleshooting................................................................. 14
1. To reduce the risk of electric shock, ensure the electricity has been
turned off at the circuit breaker or fuse box before you begin.
2. All wiring must be in accordance with the National Electrical Code
ANSI/NFPA 70 and local electrical codes. Electrical installation should
be performed by a qualied licensed electrician.
3. The outlet box and support structure must be securely mounted and
capable of reliably supporting a minimum of 35 lbs (15.9 kg). Use
only UL-listed outlet boxes marked “Acceptable for Fan Support of
35 lbs (15.9 kg) or less.”
4. CAUTION: The fan must be mounted with a minimum of 7 ft. (2.1 m)
of clearance from the trailing edge of the blades to the oor.
5. Do not place objects in the path of the blades.
6. To avoid personal injury or damage to the fan and other items, use
caution when working around or cleaning the fan.
7. After making electrical connections, spliced conductors should be
turned upward and pushed carefully up into the outlet box. The
wires should be spread apart with the grounded conductor and the
equipment-grounding conductor on one side of the outlet box.
8. All set screws must be checked and retightened where
necessary before installation.
9. Use only with light kits marked suitable for damp location.
10. Suitable for use in damp locations.
WARNING: To reduce the risk of personal injury, do
not bend the blade brackets (also referred to as
anges) during assembly or after installation. Do
not insert objects in the path of the blades.
WARNING: To avoid possible electrical shock, turn
the electricity off at the main fuse box before
wiring. If you feel you do not have enough electrical
wiring knowledge or experience, contact a licensed
electrician.
Safety Information
Table of Contents
CAUTION: To reduce the risk of personal injury,
use only the screws provided with the outlet box.
WARNING: To reduce the risk of re, electric shock
or personal injury, mount to outlet box marked
“Acceptable for fan support of 35 lbs (15.9 kg) or
less”, and use screws provided with the outlet box.
READ AND SAVE THESE INSTRUCTIONS.
CAUTION: Do NOT use this fan with a dimmer switch
or wall control. Using a dimmer switch or wall
control will damage the fan.
CAUTION: Changes or modications not expressly
approved by the party responsible for compliance
could void the user’s authority to operate the
equipment.

3HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Pre-Installation
Warranty
SPECIFICATIONS
NOTE: These are approximate measures. They do not
include the Amps and Wattage used by the light kit.
Size Speed Volts
Fan Power
Consumption
(without lights)
WATT
Airow
CFM
Airow Efciency
(higher is better)
CFM/WATT
Net
Weight
Gross
Weight Cubic Feet
52 in.
Low
120
12 2219 184
18.16 lbs
(8.24 kg)
22.64 lbs
(10.27 kg) 1.49 cu. ft.
Medium 29 3649 125
High 62 5448 87
TOOLS REQUIRED
Phillips
screwdriver
Flat blade
screwdriver
Adjustable
wrench
Electrical
tape
Wire
cutter/
stripper
Step ladder
The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a lifetime
after the date of purchase by the original purchaser. The supplier also warrants that all other fan parts, excluding any glass or acrylic blades, to be
free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the date of purchase by the
original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior model if the product is
returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing and reinstalling the product
are your responsibility. Damage to any part, such as by accident, misuse, improper installation, or by afxing any accessories, is not covered by
this warranty. Because of varying climatic conditions this warranty does not cover any changes in brass nish, including rusting, pitting, corroding,
tarnishing, or peeling. Brass nishes of this type give their longest useful life when protected from varying weather conditions. A certain amount of
“wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons shall render the warranty invalid. There
is no other express warranty. Interline hereby disclaims any and all warranties, including but not limited to those of merchantability and tness for
a particular purpose to the extent permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the time period
as specied in the express warranty. Some states do not allow a limitation on how long an implied warranty lasts, so the above limitation may not
apply to you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in connection with product use or
performance except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the
above exclusion or limitation may not apply to you. This warranty gives specic legal rights, and you may also have other rights which vary from
state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty must be
paid by the customer.
Contact the Customer Service Team at 1-800-986-3460.

4
Part Description Quantity
AA Blade attachment screws 19
BB Plastic wire connecting nut 3
CC Blade arm screws 13
DD Decorative frame screws 13
EE Frame brace screws 7
FF Hanger pin 1
GG Locking pin 1
HH Pull chain extension 1
Pre-Installation (continued)
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
AA BB
FF GG
EE
DD
CC
HH

5HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Part Description Quantity
ASlide-on mounting bracket
(inside canopy) 1
B Ball/downrod assembly 1
C Canopy with canopy ring attached 1
D Decorative motor collar cover 1
E Fan-motor assembly 1
Part Description Quantity
F Blade arm 6
G Blade 6
H Blade arm bracket 6
I Decorative frame piece 6
J Switch cup 1
K Switch cup cover 1
IMPORTANT: This product and/or components are governed by
one or more of the following U.S. Patents: 5,947,436; 5,988,580;
6,010,110; 6,046,416; 6,210,117 and other patents pending.
Pre-Installation (continued)

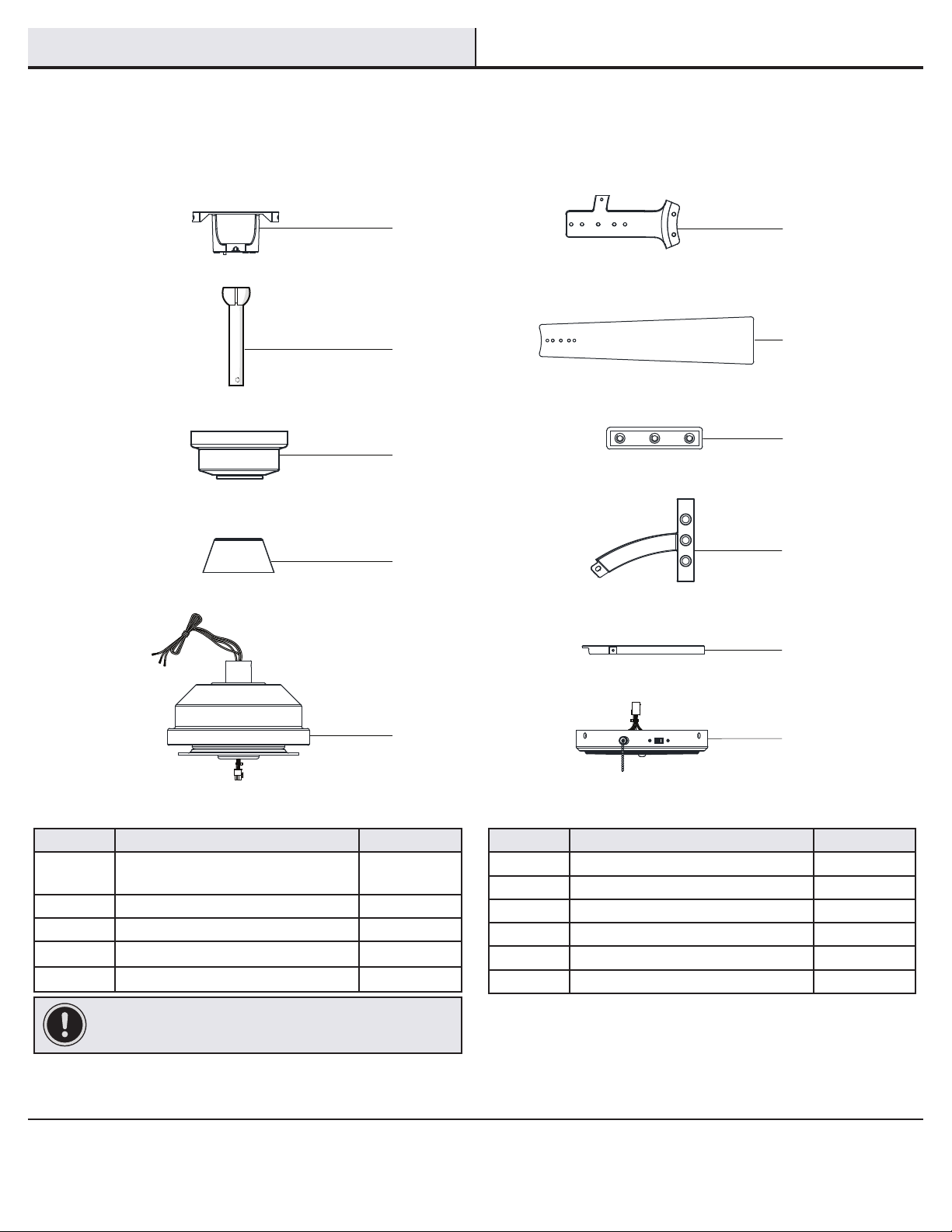

PACKAGE CONTENTS
A
B
C
G
DI
H
F
E
J
K

6
Installation

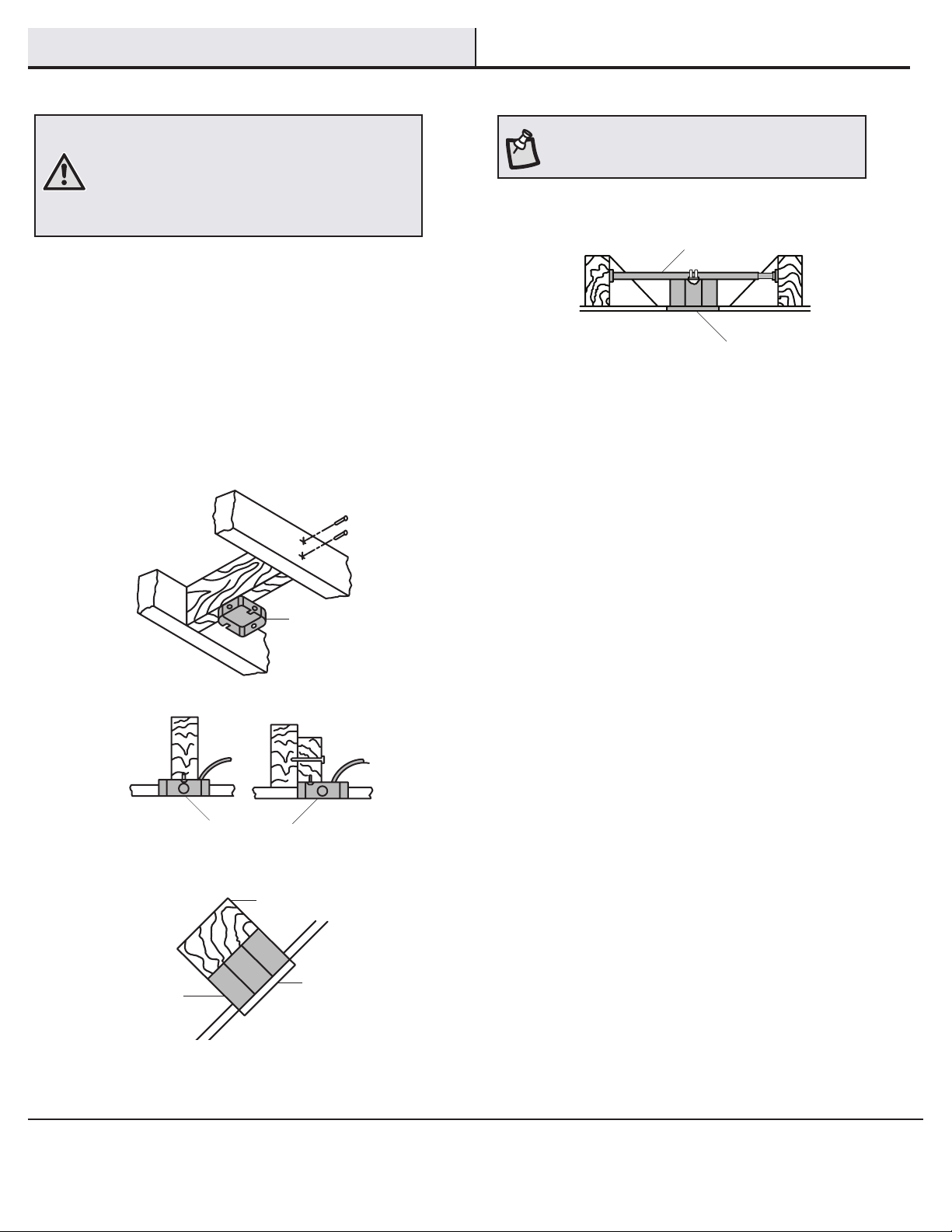

MOUNTING OPTIONS
WARNING: To reduce the risk of re, electric shock or
personal injury, mount to outlet box marked “Acceptable
for fan support of 35 lbs (15.9 kg) or less”, and use
screws provided with the outlet box. An outlet box
commonly used for the support of lighting xtures may
not be acceptable for fan support and may need to be
replaced. If in doubt, consult a qualied electrician.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□Secure the outlet box directly to the building structure. Use
the appropriate fasteners and materials. The outlet box and
support structure must be securely mounted and capable of
reliably supporting a minimum of 35 lbs (15.9 kg). Use only
UL-listed outlet boxes marked “Acceptable for fan support
of 35 lbs (15.9 kg) or less.” Do not use a plastic outlet box.
The illustrations below show three different ways to mount the
outlet box.
If the canopy touches the downrod, then remove the decorative canopy
bottom cover, and turn the canopy 180° before attaching the canopy to
the mounting plate.
To hang your fan where there is an existing xture but no ceiling joist,
you may need an installation hanger bar as shown above (available at
any Home Depot store).
NOTE: You may need a longer downrod to maintain
proper blade clearance when installing on a steep, sloped
ceiling. The maximum angle allowable is 20° away from
horizontal.
Outlet Box
Outlet Box
Recessed
Outlet
Box
Provide Strong
Support
Ceiling
Mounting
Plate
Outlet Box
Hanger Bar

7HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

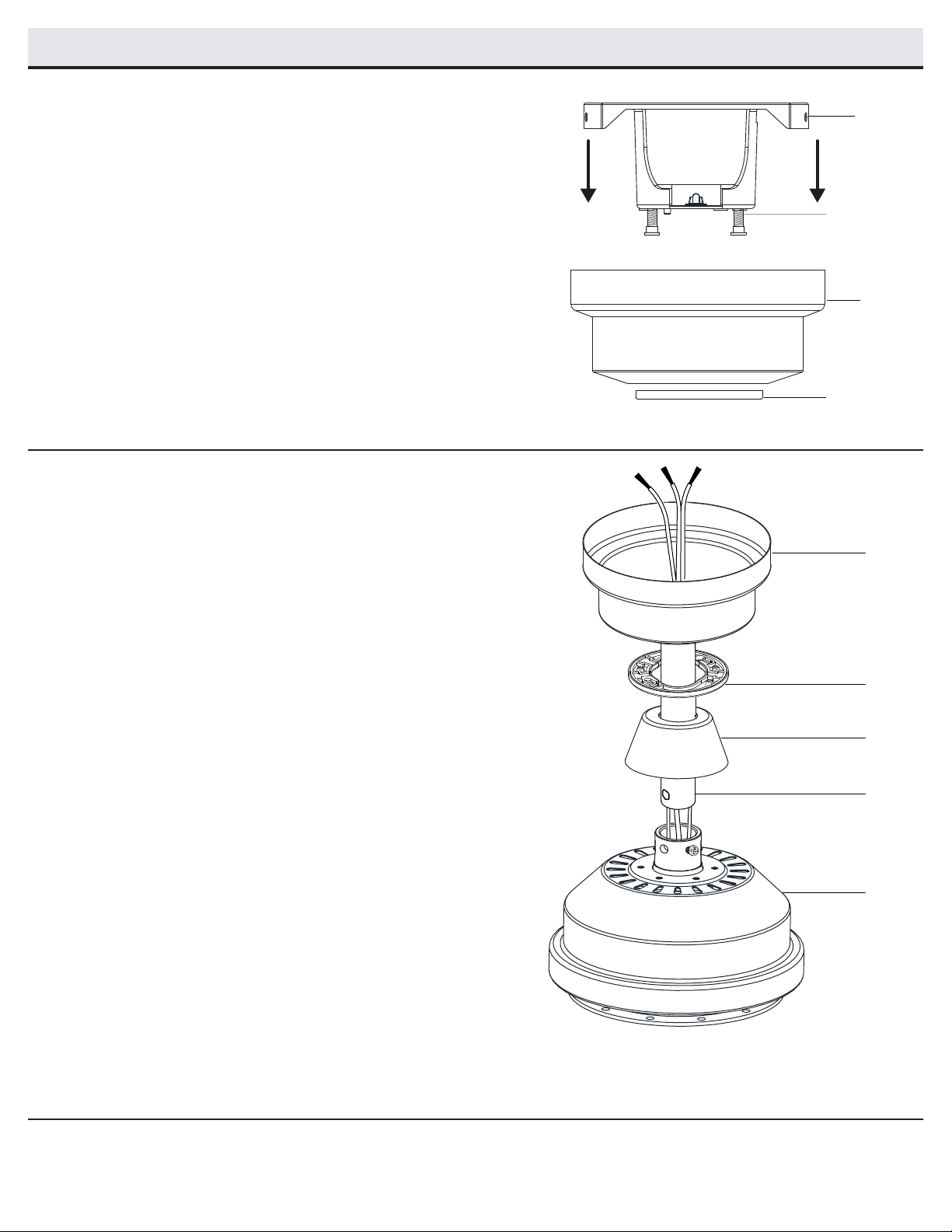

Assembly - Standard Ceiling Mount
Routing the wires
Preparing for mounting
□Remove the magnetic canopy bottom cover (II) from the
canopy (C) by pulling it off.
□Loosen the two canopy screws (SS) located in the bottom of
the mounting bracket (A).
□Turn the mounting bracket (A) counterclockwise and lift it up to
remove the mounting bracket from the canopy (C).
□Route the wires exiting the top of the fan motor assembly (E)
through the decorative motor collar cover (D) and then the
center of the canopy bottom cover (II).
□Make sure the opening of the canopy (C) is on top and insert
the ball/downrod (B) through the canopy (C).
□Route the wires exiting the top of the fan motor assembly (E)
through the downrod as shown.
2
1
C
A
SS
II
C
D
E
II
B

8
Attaching the fan to the electrical
box
□Loosen the two mounting screws (KK) in the outlet box.
□Pass the 120-Volt supply wires through the center hole in the
mounting bracket (A).
□Slide the mounting bracket (A) on to the mounting screws (KK)
and center the mounting bracket (A) in relation to the outlet box.
If necessary, use leveling washers (not included) between the
slide-on mounting bracket (A) and the outlet box. The at side of
the slide-on mounting bracket (A) should face toward the outlet
box, as shown.
□Securely tighten the two mounting screws (KK).
1
WARNING: To reduce the risk of re, electric shock
or personal injury, mount to outlet box marked
“Acceptable for fan support of 35 lbs (15.9 kg) or less”,
and use screws provided with the outlet box.
NOTE: The mounting bracket (A) is designed to slide
into place on an outlet box with the mounting screws
(KK) installed.
Assembly - Standard Ceiling Mount (continued)
Assembling the fan
□Loosen, but do not remove, the setscrew (JJ) on the collar (PP) on
top of the fan-motor assembly (E).
□Align the holes at the bottom of the ball/downrod assembly (B) with
the holes in the collar (PP) on top of the fan-motor assembly (E).
□Carefully insert the hanger pin (FF) through the holes in the collar
and ball/downrod assembly (B). Be careful not to jam the hanger pin
(FF) against the wiring inside the ball/downrod assembly (B).
□Insert the locking pin (GG) through the hole near the end of the
hanger pin (FF) until it snaps into its locked position.
□Re-tighten the setscrew (JJ) on the collar (PP) on top of the fan-
motor assembly (E).
WARNING: Failure to properly install the locking pin (GG)
could result in the fan becoming loose and possibly
falling.
CAUTION: To ensure wobble-free operation and to avoid
damage to the fan, the downrod (B) and the setscrew (JJ)
must be completely tightened.
Assembly - Hanging the Fan
3
A
KK
KK
C
D
E
II
B
FF
GG
JJ

9HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Hanging the Fan (continued)
Hanging the fan
□Carefully lift the fan-motor assembly (E) up to the slide-on
mounting bracket (A).
□Insert the ball portion of the ball/downrod assembly (B)
into the socket of the slide-on mounting bracket (A).
□Turn the ball/downrod assembly (B) clockwise until it is
seated with the tab of the slide-on mounting bracket (A)
aligned with the slot in the ball.
2
Making the electrical connections
□The fan comes with 54 in. lead wires for use with an extended
ball/downrod assembly. If using the 6 in. ball/downrod
assembly (B) provided, you can cut the lead wires to your
desired length (no shorter than 12 in.) This will make extra
room in the canopy (C), if you do not wish to cut the wires, you
will need to neatly wrap them.
□Connect the fan motor green wires to the household green or
bare wire using a wire connecting nut (BB).
□Connect the fan motor white wire to the household white wire
using a wire connecting nut (BB).
□Connect the fan motor black and blue wires to the household
black wire using a wire connecting nut (BB).
□Secure each wire connecting nut using electrical tape.
□Turn the wire connecting nut (BB) upward and push the wiring
into the outlet box
3
Note: If the fan is too heavy to lift on a ladder, seek the
assistance of a second person to hang the fan.
A
B
E
C
D
II
WARNING: Each wire nut supplied with this fan is
designed to accept up to one 12-gauge house wire
and two wires from the fan. If you have larger than
12-gauge house wiring or more than one house wire to
connect to the fan wiring, consult an electrician for the
proper size wire nuts to use.
IMPORTANT: Use the wire connecting nuts (BB) supplied
with your fan. Secure the connectors with electrical tape
and ensure there are no loose strands or connections.
NOTE: The fan comes with 54 in. lead wires for use with
and extended ball/downrod assembly. If using the 6 in.
ball/downrod assembly (B) provided, you can cut the lead
wires to your desired length (no shorter than 12 in.).
Outlet box
Green or bare
Black
Blue & Black White Green
White
B
C

10
Assembly - Hanging the Fan (continued)
Wrapping the extra wire
4
□Gently wrap the excess wire around the mounting bracket (A).
□Secure the wires with electrical tape.
Mounting the fan-motor assembly
(standard mount)
5
WARNING: When using the standard ball/downrod
mounting, the tab in the ring at the bottom of the
mounting bracket must rest in the groove of the
hanger ball. Failure to properly seat the tab in the
groove could cause damage to the wiring.
NOTE: The magnet is pre-attached on the canopy bottom
cover for you to remove and install easily.
□Align the locking slots of the canopy (C) with the two screws (SS)
and alignment post (LL) in the mounting bracket (A).
□Push up the canopy (C) and turn it clockwise until the alignment
post (LL) engages to the round hole and the screws (SS) engage to
the key slots.
□Firmly tighten the two mounting screws (SS).
□Align the oval shape on the canopy (C) with canopy bottom cover
(II). Push up the canopy bottom cover (II) until the screw (SS)
heads engage to the slots on the canopy bottom cover (II) so that
the magnetic canopy bottom cover (II) can be attached to the
bottom of the canopy (C) properly.
NOTE: Follow this step ONLY if you did not cut the extra
length from the wires coming from the ceiling fan. A
C
A
SS
II
B
E
LL

11 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Attaching the Fan Blades
Attaching the blade assemblies
to the motor
2
□Attach the blade assembly to the motor assembly (E) by
inserting the blade arm (F) above the black bracket at the
bottom of the fan motor and aligning the screw holes of the
black bracket with the screw holes of the blade arm (F).
□Insert the screws (CC) through the holes on the black bracket
on the bottom of the fan motor assembly (E) and into the
screw holes on the blade arm (F). Start the screws, but do not
completely tighten these screws. The blade arms should be
slightly loose when attaching the decorative frames.
□Repeat this process remaining blade assemblies.
Assembling the decorative frame
3
□Attach the decorative frame (I) to the blade assembly by aligning
the two posts of the decorative frame with the two holes in
the blade. Secure the decorative frame to the blade using the
decorative frame screws (DD). Insert the decorative frame
screws (DD) through the two holes in the blade arm (F) and
screw them into the posts of the decorative frame (I). Align the
hole in the tab at the end of the decorative frame (I) with the
frame brace on the side edge of the blade arm (F) and secure
using a frame brace screw (EE). Make sure all screws are
completely tightened.
□Repeat this process for remaining decorative frame pieces (I).
Attaching the blades to
the blade brackets
1
□Attach a blade (G) to the blade arm (F) by aligning the holes on
the blade arm bracket (H) with the holes on blades (G) and blade
arms (F), inserting the screws (AA) into the holes in the blade
arm (F) and through the blade (G), blade arm (F) and blade arm
bracket (H).
□Tighten each screw to secure the blade (G).
□Repeat this step for each blade (G), blade arm (F) and blade arm
bracket (H).
CC
E
F
EE DD
DD
F
I
H
AA
F
G

12
Attaching the switch cup cover
2
□Remove the three screws (VV) from the switch cup below the
fan-motor assembly (E).
□Connect the wires from fan-motor assembly (E) to the wires
from the switch cup cover (K) by connecting the 9-pin molded
adaptor plugs together.
□Align the three holes in the switch cup below the fan motor
assembly (E) with the three holes in the switch cup cover (K).
□Position the switch cup cover (K) and re-install the three
screws that were removed in rst step to secure the switch
cup cover (K).
□Attach the pull chain extensions (HH) to the fan pull chain.
Assembly - Attaching the Switch Cup
Attaching the switch cup
1
□Remove one screw (TT) from the support plate, and loosen, but
do not remove, the other two screws.
□Push the switch cup (J) up to the support plate so that the
two loosened screw heads t into the keyhole slots. Turn the
switch cup (J) to secure. Re-install the screw (TT) that was
removed in the rst step.
□Make sure all the screws are rmly tightened.
J
TT
NOTE: Notice the location of the fan’s slide switch. This is the
switch used to change the fan’s directional rotation. For more
information on the operation of this switch, see Operating Your Fan
on page 15.
IMPORTANT: It is critical to attach the switch cup cover using
the quick connector. The fan will not operate unless the switch
cup cover is connected to the fan.
K
VV
J
HH
K
E

13 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Operation

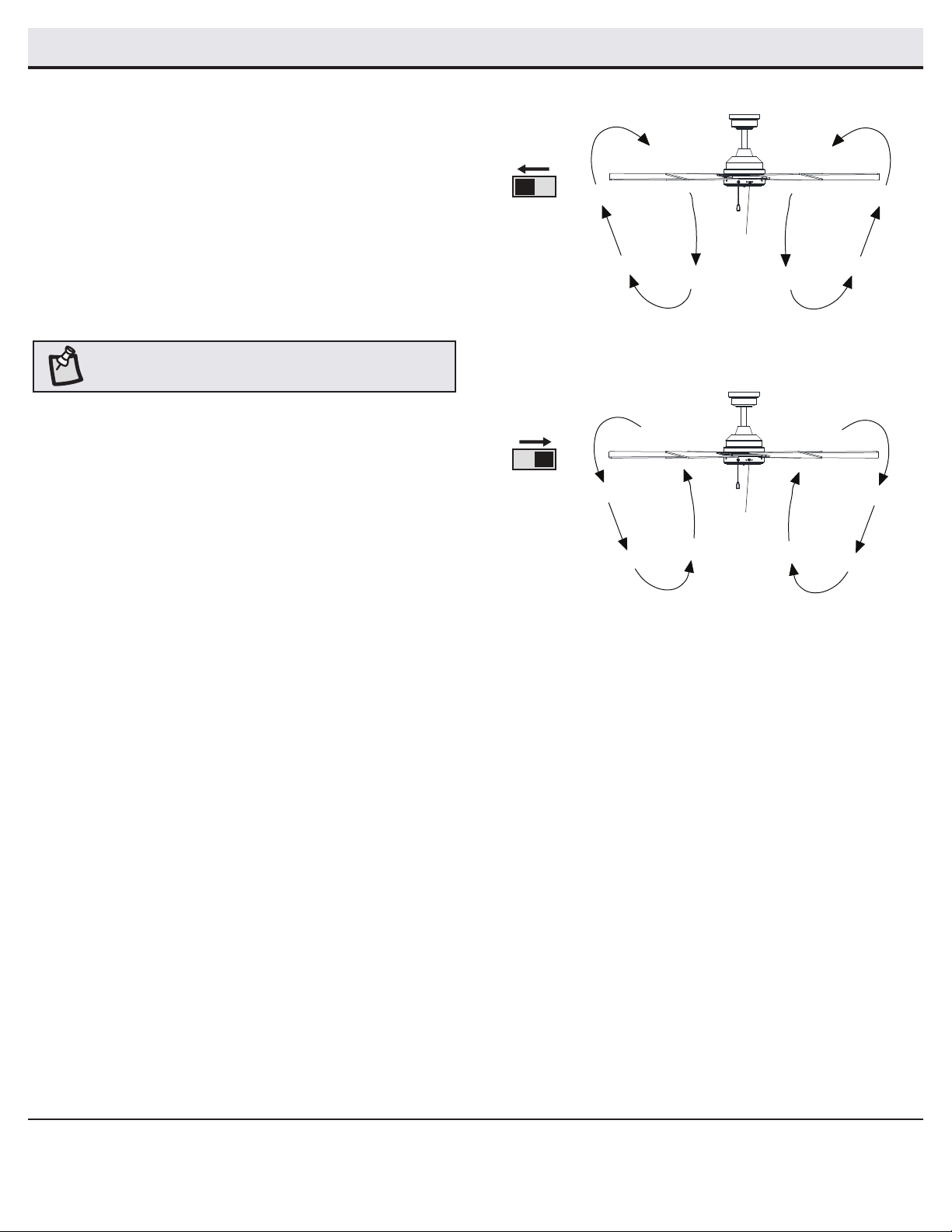

Warm weather (Forward) - A downward airow creates a cooling effect.
This allows you to set your air conditioner on a higher setting without
affecting your comfort.
Cool weather (Reverse) - An upward airow moves warm air off of the
ceiling. This allows you to set your heating unit on a lower setting without
affecting your comfort.
NOTE: Wait for the fan to stop before reversing the direction of
the blade rotation.
Warm weather
Cool weather
Operating you fan
Turn on the power and check the operation of the fan.
The fan pull chain controls the fan speed as follows:
1 pull - High
2 pulls - Medium
3 pulls - Low
4 pulls - off
The appropriate speed settings for warm or cool weather depends on
factors such as the room size, ceiling height, and number of fans.
The slide switch (XX) controls the direction of the blades: forward
(switch left) or reverse (switch right).
XX
XX

14
Troubleshooting
□Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling.
□Clean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning, as this could damage the
motor, or the wood, or possibly cause an electrical shock. Use only a soft brush or lint-free cloth to avoid scratching the nish.
□You can apply a light coat of furniture polish to the wood for additional protection and enhanced beauty. Cover small scratches with a light
application of shoe polish.
□You do not need to oil your fan. The motor has permanently-lubricated sealed ball bearings.
WARNING: Make sure the power is off before cleaning
your fan.
Care and Cleaning
Problem Solution
The fan will not start. □Check the main and branch circuit fuses or breakers.
□Check the line wire connections to the fan and switch wire connections in the switch housing.
The fan is noisy. □Ensure all motor housing screws are snug.
□Ensure the screws that attach the fan blade bracket to the motor hub are tight.
□Ensure the wire nut connections are not rattling against each other or the interior wall of the switch housing.
□Allow a 24-hour “breaking in” period. Most noises associated with a new fan disappear during this time.
□If you are using the Ceiling Fan light kit, ensure the screws securing the glassware are tight. Check that the light
bulbs are also secure.
□Ensure the canopy is a short distance from the ceiling. It should not touch the ceiling.
□Ensure your outlet box is secure and rubber isolator pads were used between the mounting plate and outlet box.
The fan wobbles. □Check that all blade and blade arm screws are secure.
□Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a point on the
ceiling above the tip of one of the blades. Measure from a point on the center of each blade to the point on the
ceiling. Measure this distance. Rotate the fan until the next blade is positioned for measurement. Repeat for each
blade. Any measurement deviation should be within 1/8 in. Run the fan for ten minutes. If the fan continues to
wobble please contact Customer Service and a balancing kit will be sent to you at no charge.

Questions, problems, missing parts? Before returning to the store,
call Home Depot Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Retain this manual for future use.
