Home Decorators Collection 56049 User manual

Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and condence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive
to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!
Item #xxxx xxx xxx
Model #56049
UL Model #60-PINE
USE AND CARE GUIDE
PINE CREST 60-INCH CEILING FAN
To view an instructional video on how to install this product:
1. Go to www.homedepot.com and enter either the Item or Model number, found in the top
right corner of the cover of this instruction manual, in the search field.
2. Click on your product from the list of search results and click on the video link in the
“Product Overview” section.

2
Table of Contents ................................................................ 2
Safety Information............................................................... 2
Warranty ............................................................................... 3
Pre-Installation .................................................................... 3
Installation............................................................................ 6
Assembly.............................................................................. 7
Operation ........................................................................... 14
Care and Cleaning............................................................. 15
Troubleshooting................................................................. 15
1. To reduce the risk of electric shock, ensure the electricity has been
turned off at the circuit breaker or fuse box before you begin.
2. All wiring must be in accordance with the National Electrical Code
ANSI/NFPA 70 and local electrical codes. Electrical installation should
be performed by a qualied licensed electrician.
3. The outlet box and support structure must be securely mounted and
capable of reliably supporting a minimum of 35 lbs (15.9 kg). Use
only UL-listed outlet boxes marked “Acceptable for Fan Support of
35 lbs (15.9 kg) or less.”
4. The fan must be mounted with a minimum of 7 ft. (2.1 m) of
clearance from the trailing edge of the blades to the oor.
5. Do not place objects in the path of the blades.
6. To avoid personal injury or damage to the fan and other items, use
caution when working around or cleaning the fan.
7. After making electrical connections, spliced conductors should be
turned upward and pushed carefully up into the outlet box. The
wires should be spread apart with the grounded conductor and the
equipment-grounding conductor on one side of the outlet box.
8. All set screws must be checked and retightened where
necessary before installation.
9. Use only with light kits marked suitable for damp location.
WARNING: To reduce the risk of personal injury, do
not bend the blade brackets (also referred to as
anges) during assembly or after installation. Do
not insert objects in the path of the blades.
WARNING: To reduce the risk of re or electric
shock, do not use this fan with any solid-state
speed control device.
WARNING: Electrical diagrams are for reference
only. If you are using a light kit, refer to the light kit
instructions manual to make the electrical
connections. Optional use of any light kit shall be
UL-listed and marked suitable for use with this fan.
WARNING: To avoid possible electrical shock, turn
the electricity off at the main fuse box before
wiring. If you feel you do not have enough electrical
wiring knowledge or experience, contact a licensed
electrician.
Safety Information
Table of Contents
CAUTION: To reduce the risk of personal injury,
use only the screws provided with the outlet box.
WARNING: To reduce the risk of re, electric shock
or personal injury, mount to outlet box marked
“Acceptable for fan support of 35 lbs (15.9 kg) or
less”, and use screws provided with the outlet box.
READ AND SAVE THESE INSTRUCTIONS.
WARNING: To reduce the risk of re or electric
shock, this fan should only be used with fan speed
control part no. XX-XXX, manufactured by Chungear
Industrial Co.,Ltd.
CAUTION: Do NOT use this fan with a dimmer switch
or wall control. Using a dimmer switch or wall
control will damage the fan.
CAUTION: Changes or modications not expressly
approved by the party responsible for compliance
could void the user’s authority to operate the
equipment.
WARNING: To reduce the risk of electric shock, this
fan must be installed with an isolating wall switch.

3HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Pre-Installation
Warranty

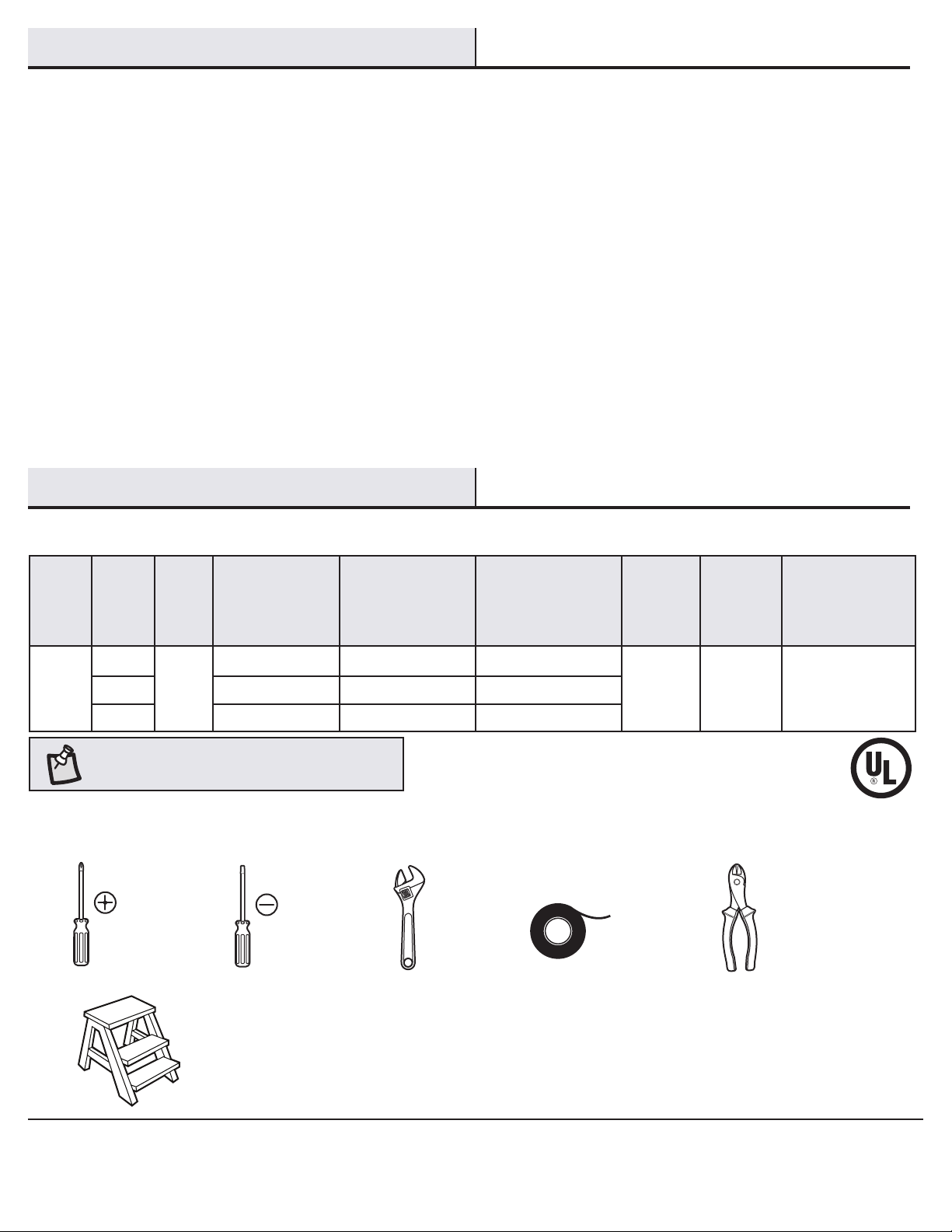

SPECIFICATIONS
NOTE: These are approximate measures. They do not
include the Amps and Wattage used by the light kit.
Size Speed Volts
Fan Power
Consumption
(without lights)
WATT
Airow
CFM
Airow Efciency
(higher is better)
CFM/WATT
Net
Weight
Gross
Weight Cubic Feet
60 in.
Low
120
5 3299 659
17.04 lbs
(7.73 kg)
10.5 lbs
(23.15 kg) 2.45 cu. ft.
Medium 16 4502 281
High 40 7652 191
TOOLS REQUIRED
Phillips
screwdriver
Flat blade
screwdriver
Adjustable
wrench
Electrical
tape
Wire
cutter/
stripper
Step ladder
The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a lifetime
after the date of purchase by the original purchaser. The supplier also warrants that all other fan parts, excluding any glass or acrylic blades, to be
free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the date of purchase by the
original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior model if the product is
returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing and reinstalling the product
are your responsibility. Damage to any part, such as by accident, misuse, improper installation, or by afxing any accessories, is not covered by
this warranty. Because of varying climatic conditions this warranty does not cover any changes in brass nish, including rusting, pitting, corroding,
tarnishing, or peeling. Brass nishes of this type give their longest useful life when protected from varying weather conditions. A certain amount of
“wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons shall render the warranty invalid. There
is no other express warranty. Interline hereby disclaims any and all warranties, including but not limited to those of merchantability and tness for
a particular purpose to the extent permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the time period
as specied in the express warranty. Some states do not allow a limitation on how long an implied warranty lasts, so the above limitation may not
apply to you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in connection with product use or
performance except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the
above exclusion or limitation may not apply to you. This warranty gives specic legal rights, and you may also have other rights which vary from
state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty must be
paid by the customer.
Contact the Customer Service Team at 1-800-986-3460.

4
Part Description Quantity
AA Blade attachment screws 16
BB Plastic wire connecting nut 3
CC Hanger pin 1
DD Locking pin 1
EE Hex key 1
Pre-Installation (continued)
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
BB
CC
DD
AA
EE

5HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Part Description Quantity
ASlide-on mounting bracket
(inside canopy) 1
B Ball/downrod assembly 1
C Canopy with canopy ring attached 1
D Decorative motor collar cover 1
E Fan-motor assembly 1
F Bottom plate 1
Part Description Quantity
G Blade 5
H Remote control 1
I Receiver 1
J Battery 2
K 66 in. lead wire 1
L 12 in. lead wire 1
IMPORTANT: This product and/or components are governed by
one or more of the following U.S. Patents: 5,947,436; 5,988,580;
6,010,110; 6,046,416; 6,210,117 and other patents pending.
Pre-Installation (continued)
PACKAGE CONTENTS
A
B
C
I
H
G
J
D
E
F
KL

6
Installation
MOUNTING OPTIONS
WARNING: To reduce the risk of re, electric shock or
personal injury, mount to outlet box marked “Acceptable
for fan support of 35 lbs (15.9 kg) or less”, and use
screws provided with the outlet box. An outlet box
commonly used for the support of lighting xtures may
not be acceptable for fan support and may need to be
replaced. If in doubt, consult a qualied electrician.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□Secure the outlet box directly to the building structure. Use
the appropriate fasteners and materials. The outlet box and
support structure must be securely mounted and capable of
reliably supporting a minimum of 35 lbs (15.9 kg). Use only
UL-listed outlet boxes marked “Acceptable for fan support
of 35 lbs (15.9 kg) or less.” Do not use a plastic outlet box.
The illustrations below show three different ways to mount the
outlet box.
If the canopy touches the downrod, then remove the decorative canopy
bottom cover, and turn the canopy 180° before attaching the canopy to
the mounting plate.
To hang your fan where there is an existing xture but no ceiling joist,
you may need an installation hanger bar as shown above
(available at any Home Depot store).
NOTE: You may need a longer downrod to maintain
proper blade clearance when installing on a steep, sloped
ceiling. The maximum angle allowable is 15° away from
horizontal.
Outlet Box
Outlet Box
Recessed
Outlet
Box
Provide Strong
Support
Ceiling
Mounting
Plate
Outlet Box
Hanger Bar

7HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Standard Ceiling Mount
Routing the wires

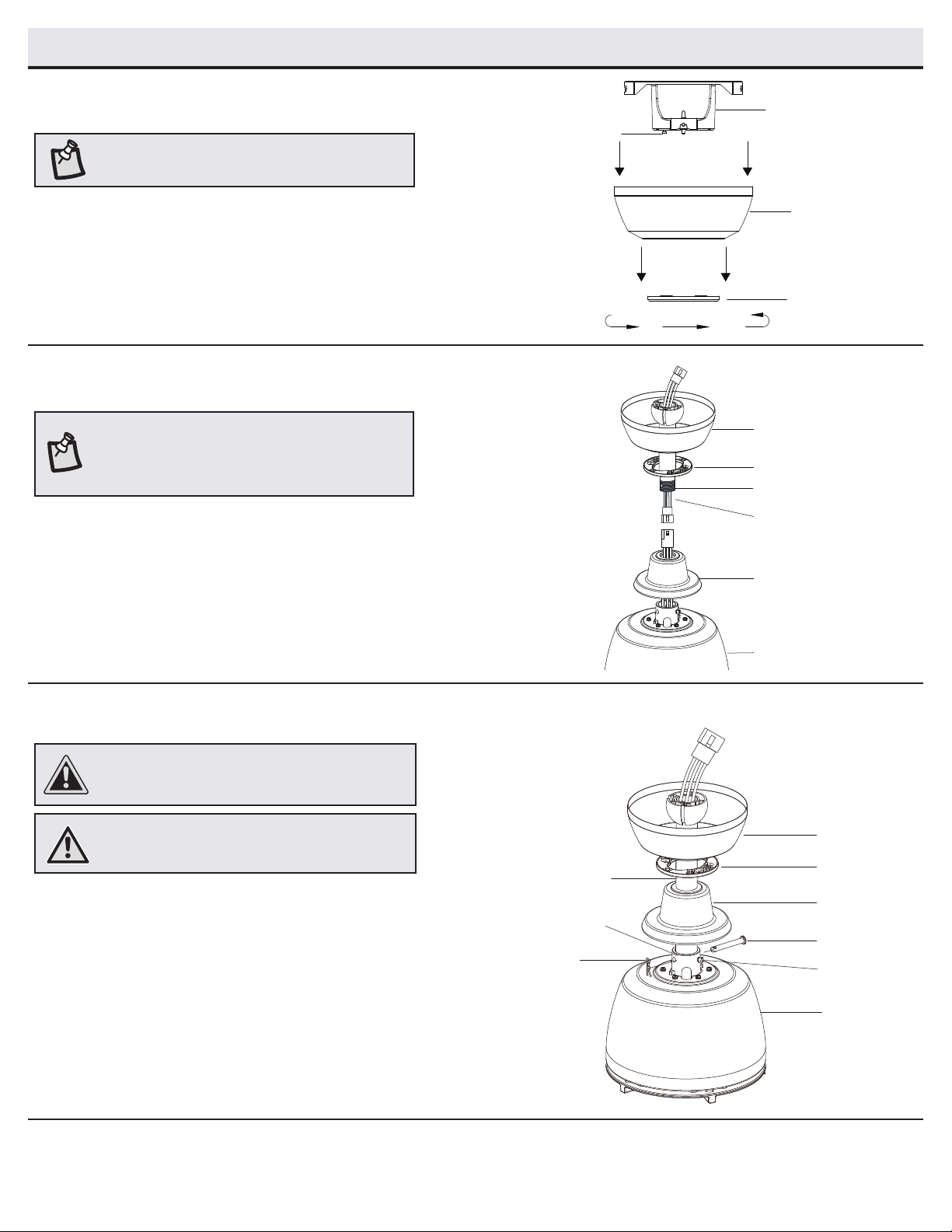

Preparing for mounting
□Remove the magnetic canopy bottom cover (JJ) from the canopy
(C) by pulling it off.
□Loosen the two canopy screws (FF) located in the bottom of the
mounting bracket (A).
□Turn the mounting bracket (A) counterclockwise and lift it up to
remove the mounting bracket from the canopy (C).
□Connect the shorter lead wire (L) to the fan wires exiting the top of
the fan motor assembly (E) by connecting the molded adaptor plugs
together. Route the wires through the decorative motor collar cover
(D) and then the center of the canopy bottom cover (JJ).
□Make sure the opening of canopy (C) is on top and insert the ball/
downrod (B) through the canopy (C).
□Route the wires exiting the top of the fan motor assembly (E)
through the downrod as shown.
2
1
NOTE: The fan comes with 12 in. lead wires for use with
the provided 6 in. ball downrod assembly (B). If you wish
to use a longer downrod, attach the extension wire (K) to
the fan by connecting the molded adaptor plugs from the
extension wires to the adaptor plugs from the fan.
Assembling the fan
□Loosen, but do not remove, the setscrew (KK) on the collar (PP) on
top of the fan-motor assembly (E).
□Install the downrod (B) by inserting it into the motor collar (PP),
and turning it clockwise until the holes at the bottom of the ball/
downrod assembly (B) align with the holes in the collar on top of
the fan-motor assembly (E).
□Carefully insert the hanger pin (CC) through the holes in the collar
and ball/downrod assembly (B). Be careful not to jam the hanger
pin (CC) against the wiring inside the ball/downrod assembly (B).
□Insert the locking pin (DD) through the hole near the end of the
hanger pin (CC) until it snaps into its locked position.
□Re-tighten the setscrew (KK) on the collar (PP) on top of the fan-
motor assembly (E).
WARNING: Failure to properly install the locking
pin (DD) could result in the fan becoming loose and
possibly falling.
CAUTION: To ensure wobble-free operation and to avoid
damage to the fan, the downrod (B) and the setscrew (KK)
must be completely tightened.
3
A
C
JJ
FF
C
JJ
D
E
KK
DD
CC
PP
B
C
JJ
B
E
D
L
NOTE: The magnet is pre-attached on the canopy bottom
cover for you to remove and install easily.

8
Attaching the fan to the
electrical box
Hanging the fan
□Loosen the two mounting screws (GG) in the outlet box.
□Pass the 120-Volt supply wires through the center hole in the
mounting bracket (A).
□Slide the mounting bracket (A) on to the mounting screws (GG)
and center the mounting bracket (A) in relation to the outlet box.
If necessary, use leveling washers (not included) between the
slide-on mounting bracket (A) and the outlet box. The at side of
the slide-on mounting bracket (A) should face toward the outlet
box, as shown.
□Securely tighten the two mounting screws (GG).
□Carefully lift the fan-motor assembly (E) up to the slide-on
mounting bracket (A).
□Insert the ball portion of the ball/downrod assembly (B)
into the socket of the slide-on mounting bracket (A).
□Turn the ball/downrod assembly (B) clockwise until it is
seated with the tab of the slide-on mounting bracket (A)
aligned with the slot in the ball.
1
2
WARNING: To reduce the risk of re, electric shock
or personal injury, mount to outlet box marked
“Acceptable for fan support of 35 lbs 15.9 kg) or less”,
and use screws provided with the outlet box.
NOTE: The mounting bracket (A) is designed to slide
into place on an outlet box with the outlet box screws
(GG) installed.
Assembly - Hanging the Fan
A
GG
GG
A
B
C
JJ
D
E

9HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Hanging the Fan (continued)

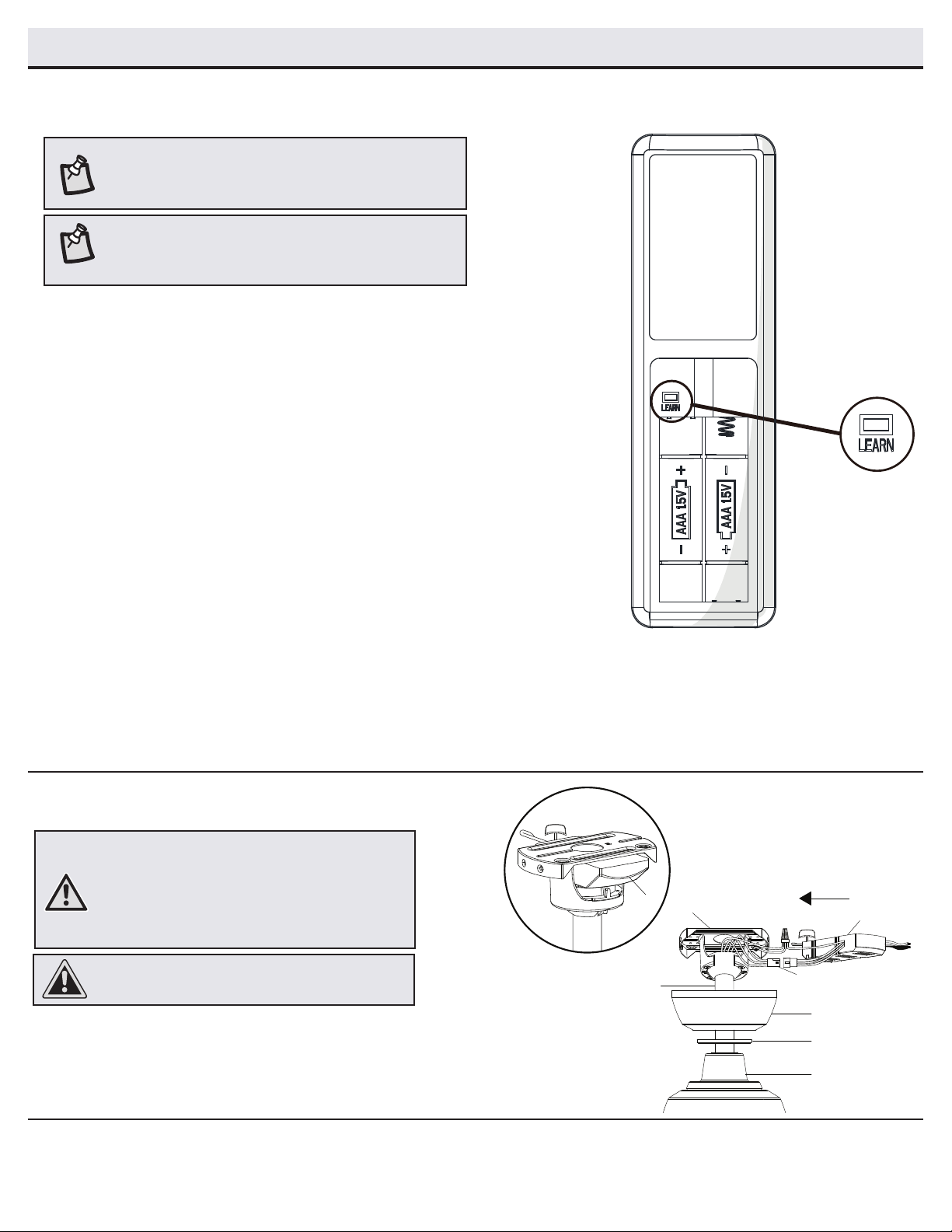

Preparing the remote control
3
□Remove the battery cover by pressing rmly on the arrow and sliding the cover
off.
□Install two 1.5V AAA batteries (J) (included).
□Conrm that the power to the fan is off at either the wall switch or breaker box.
□Return power to the fan at the wall switch or breaker box.
□If the remote control doesn’t work as normal, press then release the “Learn” button
for 1-2 seconds, located in the remote’s battery compartment, within 30 seconds of
turning on the power.
□If pairing is successful, the blades will begin to spin.
□Replace the battery cover on the remote control.
1 to 3 mode
□To use more than one remote control for your fan, press the “Learn” button for 10
seconds and release. Once pairing is successful, the blades will begin to spin.
□Repeat the above process for the remote controls you want to work with this fan.
□The fan can be only controlled by 3 remote controls maximum at the same time
after “Learning”. If you use a forth remote control to handle the fan, the rst remote
control will be replaced .
1 to 1 mode
□To use only one remote control for your fan, press and release the “Learn” button
for 1-2 seconds. The “1 to 3” mode will be cleared and returned back to “1 to 1”
mode.
NOTE: The remote control has already been paired to the ceiling
fan for your convenience. If you have two of the same model fans
in your home, please follow the steps below to control each fan
independently.
NOTE: The remote control battery will weaken with age and
should be replaced before leaking takes place, as this will damage
the remote control. Dispose of used battery properly and keep the
battery out of the reach of children.
Installing the receiver
□Position the house supply wires (AAA) to one side of the slide-on
mounting bracket (A); position the fan wires to the opposite side.
□Insert the narrow end of the receiver (I) (as shown, at side
towards the ceiling) into the slide-on mounting bracket until it
rests on top of the ball/downrod assembly.
4
WARNING: To reduce the risk of re or electric shock,
remember to disconnect power. The electrical wiring
must meet all local and national electrical code
requirements. The electrical source and fan must
be 110/120 volts, 60Hz. Do not use this product in
conjunction with any variable wall control. Incorrect
wire connection can damage this receiver.
CAUTION: If other fan wires are a different color, have
this unit installed by a licensed electrician.
I
A
AAA
C
JJ
D
B
I

10
Assembly - Hanging the Fan (continued)

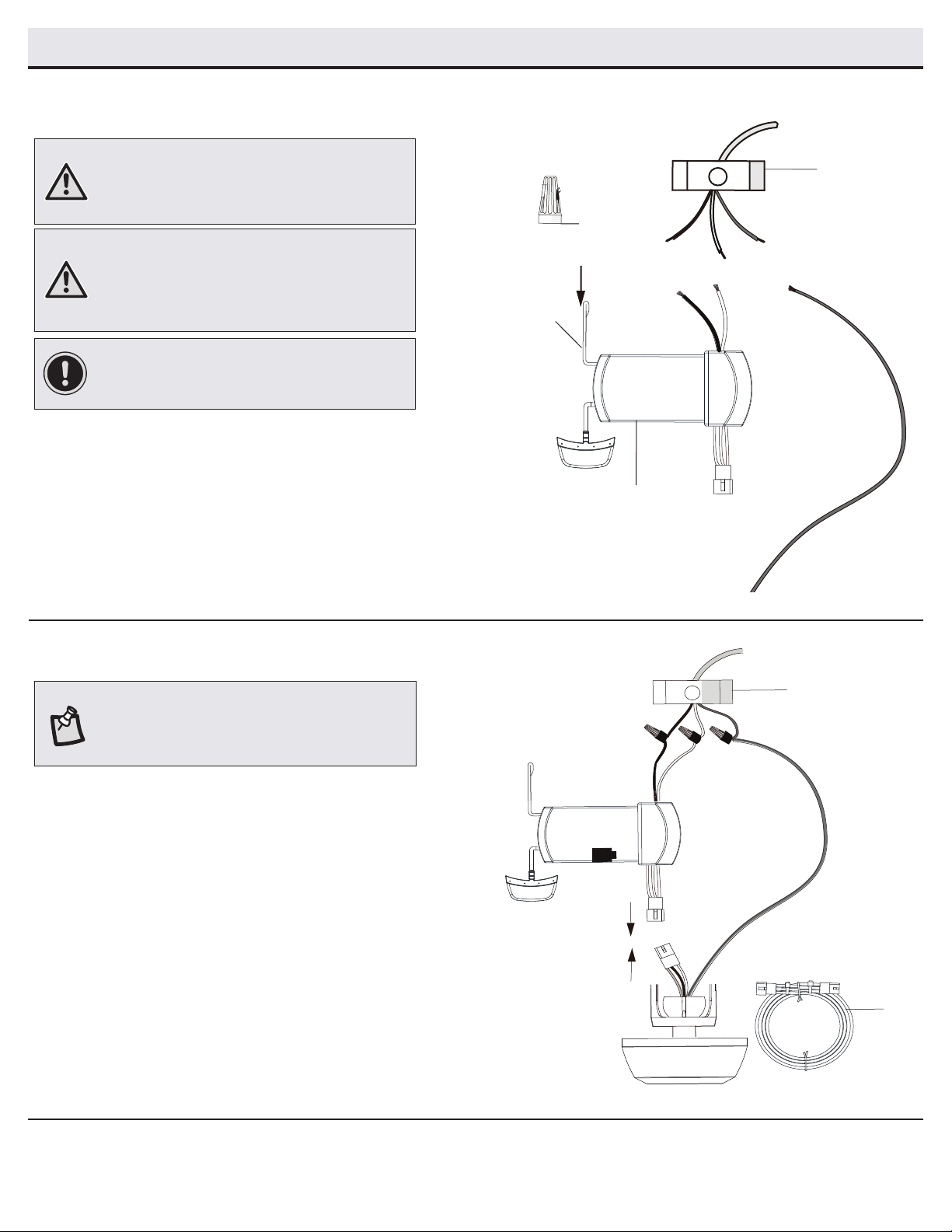

Wiring the fan to the receiver
6
□If using the 6 in. ball downrod assembly (B) provided, wire the
receiver to the fan wires by connecting the molded adaptor
plug from the receiver (I) with the molded adaptor of the fan
motor assembly (E) together.
□If you wish to use longer downrod, you can use the extension
lead wire (66 in.) (K) provided by connecting the molded
adaptor together.
Wiring the receiver to the
household wiring
5
WARNING: To avoid possible electrical shock, turn
the electricity off at the main fuse box before
wiring. If you feel you do not have enough electrical
wiring knowledge or experience, contact a licensed
electrician.
WARNING: Each wire nut supplied with this fan is
designed to accept up to one 12-gauge house wire
and two wires from the fan. If you have larger than
12-gauge house wiring or more than one house wire to
connect to the fan wiring, consult an electrician for the
proper size wire nuts to use.
IMPORTANT: Use the wire connecting nuts (BB)
supplied with your fan. Secure the connectors with
electrical tape and ensure there are no loose strands or
connections.
□Spread the wires apart so that the green and white wires are on
one side of the outlet box and the black wire is on the other side.
□Connect the green fan wires to the household ground wire (this
may be a green or bare wire) using a wire connecting nut (BB).
□Connect the receiver (I) black (or red) wire to the household
black (hot) wire using a wire connecting nut (BB).
□Connect the receiver (I) white wire to the household white wire
(neutral) using a wire connecting nut (BB).
□Secure each wire connecting nut using electrical tape.
NOTE: The fan comes with 12 in. lead wires for use with
the provided 6 in. ball downrod assembly (B). If you wish
to use a longer downrod, attach the extension wire (K) to
the fan by connecting the molded adaptor plugs from the
extension wires to the adaptor plugs from the fan.
Black
Black
Green (or Bare)
Green
Outlet Box
Receiver
Antenna
White
Receiver (I)
BB (x3)
Antenna
WIFI
Outlet box
in the ceiling
(MM)
Green
1 2 3 4
ON DIP
K

11 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Hanging the Fan (continued)
Mounting the fan-motor assembly
(standard mount)
7
WARNING: When using the standard ball/downrod
mounting, the tab in the ring at the bottom of the
mounting bracket must rest in the groove of the
hanger ball. Failure to properly seat the tab in the
groove could cause damage to the wiring.
NOTE: The magnet is pre-attached on the canopy bottom
cover for you to remove and install easily.
□Align the locking slots of the canopy (C) with the two screws (FF)
and alignment post (OO) in the mounting bracket (A).
□Push up the canopy (C) and turn it clockwise until the alignment
post (OO) engages to the round hole and the screws (FF) engage
to the key slots.
□Firmly tighten the two mounting screws (FF).
□Align the oval shape on the canopy (C) with canopy bottom cover
(JJ), Push up the canopy bottom cover (JJ) until the screw (FF)
heads engage to the slots on the canopy bottom cover (JJ) so that
the magnetic canopy bottom cover (JJ) can be attached to the
bottom of the canopy (C) properly.
NOTE: For better performance with the WIFI system, the
WIFI antenna must be mounted to the ceiling outside of
the fan’s ceiling canopy.
C
A
B
D
JJ
E
OO
I
FF
View after installation
WiFi antenna mount
outside of the canopy
Assembly - Attaching the Fan Blades
Attaching the blades to the
blade arms on motor assembly
1
□Attach a blade (G) to the fan motor assembly (E) by inserting
the blade (G) into slots in the side of the fan motor assembly
(E) and aligning the three screws holes in the blade with the
holes in the center ywheel and secure with screws (AA). Use
the hex key (EE) to completely tighten the blade screw (AA).
□Make sure all the screws are rmly tightened.
□Repeat these steps for the remaining blades.
AA
EE

12
Assembly - Attaching the Accessories
Mounting the remote control holder
□Slide the screw cover plate up to remove it from the wall
cradle.
□Position the wall cradle in the desired position and attach it to
the wall using the included wall cradle screws.
□Slide the screw cover plate back onto the wall cradle to
conceal the screws.
Screw cover plate
NOTE: Screw wall anchors are included for extra support. The
included screws are designed to screw easily into the wall. If
you would like a more permanent or secure hold, install the wall
anchors prior to attaching the wall cradle to the wall.
Assembly - Attaching the Bottom Plate
Attaching the bottom plate
1
□Screw the bottom plate (F) onto the threaded post (LL) at the
base of the fan until tight.
LL
F

13 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

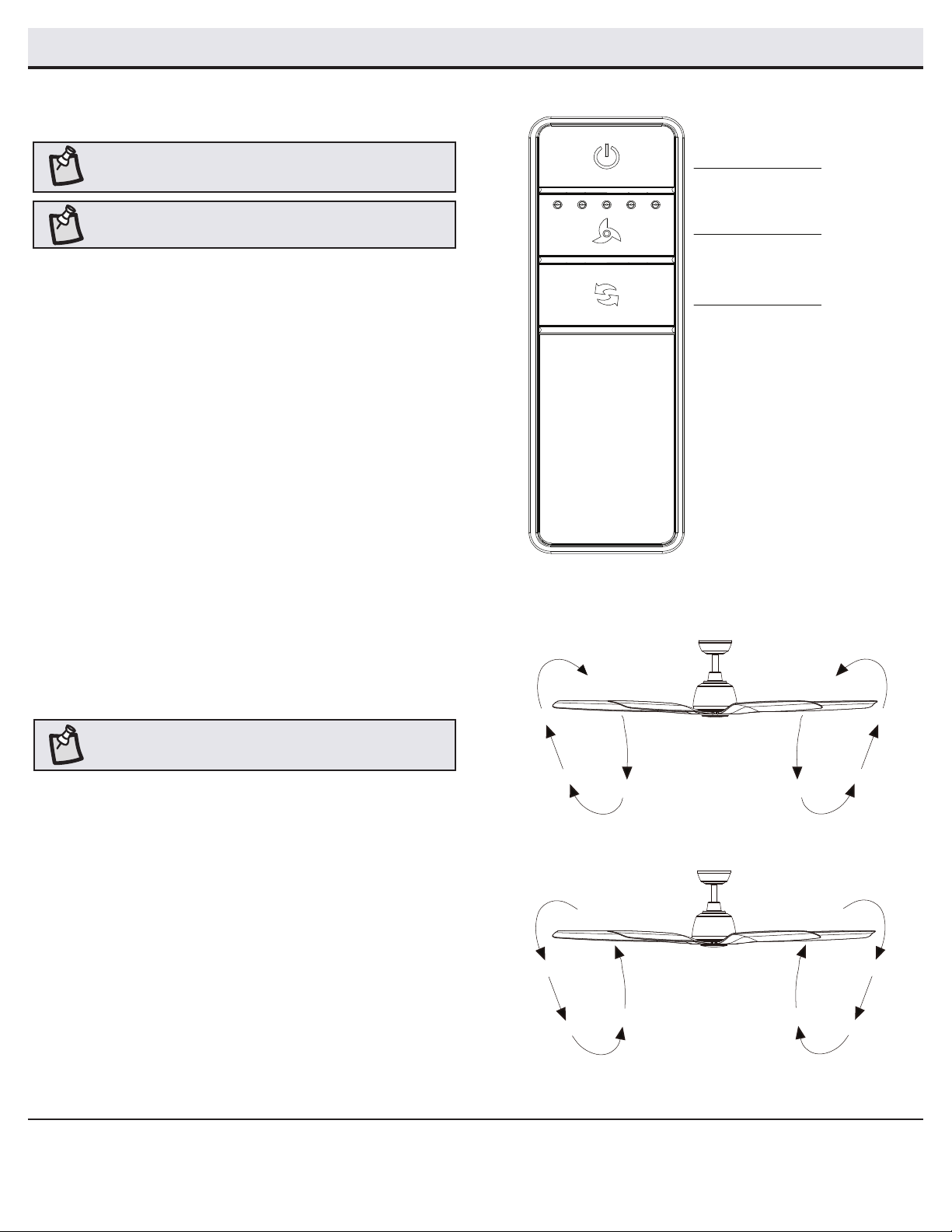

Operating Your Fan and Remote Control
POWER ON/OFF
Press and release the power button to turn the fan on or off.
FAN SPEED
LEDs on the fan speed button will illuminate to the corresponding speed.
Press and release 1 time: turns the fan speed to 5.
Press and release 2 times: turns the fan speed to 4.
Press and release 3 times: turns the fan speed to 3.
Press and release 4 times: turns the fan speed to 2.
Press and release 5 times: turns the fan speed to 1.
Press and release 6 times: turns the fan off.
NOTE: The remote receiver includes a memory function that will
return the fan to its last setting when turned on via the power
button.
FAN REVERSE
Press and release the fan reverse button to reverse the rotation of your
ceiling fan.
A. Warm weather (Forward) - A downward airow creates a cooling
effect. This allows you to set your air conditioner on a higher setting
without affecting your comfort.
B. Cool weather (Reverse) - An upward airow moves warm air off of the
ceiling. This allows you to set your heating unit on a lower setting without
affecting your comfort.
NOTE: Do not wait for the fan to stop before pressing the reverse
button. The fan will not reverse direction if the fan is not moving.
A. Warm weather
B. Cool weather
NOTE: On start up your ceiling fan will oscillate back and forth.
This is NORMAL OPERATION for DC ceiling fans as it goes
through its calibration cycle. The fan is NOT DEFECTIVE.
Power
Fan speed
Fan

14
Application Set-Up
NOTE: For more information on smart remote set up, please refer
to the quick start guide located in the remote pack.
NOTE: To use Alexa to change the white temperature of the light,
please make sure the light is turned on rst. Questions, problems missing parts?
Please call Hubspace Customer service
8 a.m. - 7 p.m. EST, Monday - Friday;
9 a.m. - 6 p.m., EST, Saturday
[phone]
□Download the Hubspace™ app from the App Store or the Google Play Store to your mobile device.
□Launch the app.
□To register, enter your email address and a password. Or, login if you already have an account.
□Bluetooth access is required for device setup.
Getting started
1
□Hubspace only shows WiFi networks that your device can use. Check your network only if an option does not appear during set up.
□This Hubspace device requires a 2.4GHz Wi-Fi channel.
□Most routers provide a 2.4 GHz WiFi channel.
□If you do not see your Wi-Fi network name when you attempt to connect your device, please check your router settings.
Verify your network
2
□In the Hubspace app, tap the plus sign in the upper right corner.
□Scan your product’s QR code. You can nd the QR code on the remote receiver, inside the battery
compartment cover of the remote, and on the Quick Start Guide paper included with the fan.
Add a device
3
If you are unable to access the QR code for your light, you can put it into discovery mode with the following sequence:
□Switch the device off and on 5 times. The light will pulse to show that it can now be discovered.
□In the Hubspace app, tap the plus sign in the upper right corner and follow the instructions to discover devices. More than one device can be
added at a time using this method.
Set up your voice assistant
4□In the Hubspace app, tap the Hubspace button.
□Select the Integrations tab, choose your voice assistant and follow the instructions.
Problems connecting to Hubspace device, see “troubleshooting” on page 17.
Scan problem?
If the QR code cannot be scanned for some reason, you can enter the code manually. Tap Enter Code and follow the instructions.
□Connect your device to power and follow the instructions on screen.
(For lighting and fan products only)
1 2 3 4
ON
D O
DIP

15 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Voice Commands
When you want to... Ask Alexa to...
Turn on the fan only. … turn on <device name> fan power.
Turn off the fan only. … turn off <device name> fan power.
Change the fan speed. … Set <device name> speed to fastest.
… Set <device name> speed to fast.
… Set <device name> speed to medium.
… Set <device name> speed to slow.
… Increase <device name> speed.
… Decrease <device name> speed.
Turn on Comfort Breeze. … Turn on Comfort Breeze on <device name>
Alexa
When you want to... Ask Google to...
Turn on the fan only. … turn on <device name> fan power.
Turn off the fan only. … turn off <device name> fan power.
Change the fan speed. … Set <device name> speed to fastest.
… Set <device name> speed to fast.
… Set <device name> speed to medium.
… Set <device name> speed to slow.
… Increase <device name> speed.
… Decrease <device name> speed.
Turn on Comfort Breeze. … Turn on Comfort Breeze on <device name>
Google
The Pine Crest 60 in. ceiling fan works with Alexa and Google Assistant.
This section lists some of the voice commands you can use. To view these and other commands, go to http://hubspaceconnect.com/.

16
Troubleshooting
□Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling.
□Clean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning, as this could damage the
motor, or the wood, or possibly cause an electrical shock. Use only a soft brush or lint-free cloth to avoid scratching the nish.
□You can apply a light coat of furniture polish to the wood for additional protection and enhanced beauty. Cover small scratches with a light
application of shoe polish.
□You do not need to oil your fan. The motor has permanently-lubricated sealed ball bearings.
WARNING: Make sure the power is off before cleaning
your fan.
Care and Cleaning
Problem Solution
The fan will not start. □Check the main and branch circuit fuses or breakers.
□Check to make sure the wall switch is in the on position if applicable.
□Check the line wire connections to the fan and switch wire connections in the switch housing.
□Check the battery in the transmitter.
□Ensure you are in the normal range of 10-20 feet.
□Ensure the dip switch settings are the same on the transmitter and receiver.
□Remember to turn off the power supply before checking the dip switches settings.
The fan is noisy. □Ensure all motor housing screws are snug.
□Ensure the screws that attach the fan blade bracket to the motor hub are tight.
□Ensure the wire nut connections are not rattling against each other or the interior wall of the switch housing.
□Allow a 24-hour “breaking in” period. Most noises associated with a new fan disappear during this time.
□If you are using the Ceiling Fan light kit, ensure the screws securing the glassware are tight. Check that the light bulbs are also secure.
□Ensure the canopy is a short distance from the ceiling. It should not touch the ceiling.
□Ensure your outlet box is secure and rubber isolator pads were used between the mounting plate and outlet box.
The fan wobbles. □Check that all blade and blade arm screws are secure.
□Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a point on the ceiling above the tip
of one of the blades. Measure from a point on the center of each blade to the point on the ceiling. Rotate the fan until the next blade is
positioned for measurement. Repeat for each blade. Any measurement deviation should be within 1/8”. Run the fan for ten minutes. If
the fan continues to wobble please contact customer service and a balancing kit will be sent to you at no charge.
HubspaceTM Troubleshooting
My hubspace device is not
connecting to Wi-Fi.
□Make sure your device is connected to a power source.
□Your Internet connection or Wi-Fi network may be down.
My device cannot nd any Wi-Fi
networks.
□Make sure you have a 2.4GHz capable Wi-Fi network within range of the device you are trying to add.
My device is in a location that does
not have Wi-Fi. Can I still use it with
the Hubspace app?
Yes:
□Use the app on a phone with an Internet connection like LTE.
□The phone must be within Bluetooth range of your Hubspace device.
I cannot nd the QR code. □Look for it where other stickers are on the product. A copy of the QR code is also included in your device’s documentation.
The QR code has become damaged.
How do I add the device?
□Under the QR code are numbers. You can enter those in manually instead of scanning the code.
How do I reset the device? □Remove the device from your account, then add it back. Devices also reset when they transfer to a new account.
A device is on another account.
How do I transfer it?
□Scan the QR code and it will transfer to your account.
My device is ofine for long periods
of time.
□Make sure your Wi-Fi signal strength is sufcient. You may need to move your router, use mesh Wi-Fi, or Wi-Fi extenders.
The device is on and I scanned
the QR code, but the app cannot
connect to it.
□Turn off Bluetooth on your phone and turn it back on. Then, scan the QR code.
Can I scan the same QR code to add
multiple products?
□No. Each product has a unique QR code.

Questions, problems, missing parts? Before returning to the store,
call Home Depot Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Retain this manual for future use.
FCC Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
□Reorient or relocate the receiving antenna.
□Increase the separation between the equipment and receiver.
□Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
□Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
The distance between user and products should be no less than 20cm
