USE AND CARE GUIDE
RAILEY 60 IN. CEILING FAN
Item #1001 202 939
Model #YG446-BN
THANK YOU
THANK YOU
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to nd
this fan and click the link of visual instruction in the product overview section.

Operation ......................................................................
Remote Control Operating Instructions ..................................
Installing the Remote Control Holder .....................................
Reverse Switch Operating Instructions ..................................
Care and Cleaning .......................................................
Troubleshooting ..........................................................
Service Parts ...............................................................
17
17
17
18
18
19
20
Table of Contents
2
Table of Contents ..........................................................
Safety Information .........................................................
Warranty .........................................................................
Pre-Installation ..............................................................
Tools Required .........................................................................
Hardware Included ..................................................................
Package Contents ....................................................................
Dual Mounting Instructions ......................................................
Installation .....................................................................
Assembly ........................................................................
Standard Ceiling Mounting .......................................................
Close-to-Ceiling Mounting .....................................................
Hanging the Fan ....................................................................
Attaching the Fan Blades .......................................................
Installing the Light Kit ............................................................
2
3
4
4
4
4
5
6
7
8
9
9
10
11
15
16
READ AND SAVE THESE INSTRUCTIONS

Safety Information
3HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
WARNING: To reduce the risk of electric shock, this fan
must be installed with an isolating wall control/switch.
WARNING: To reduce the risk of personal injury, do not
bend the blade arms (also referred to as anges), when
installing the brackets, balancing the blades or cleaning the
fan.
WARNING: Do not insert foreign objects between rotating
fan blades.
WARNING: To reduce the risk of re, electric shock or
personal injury, mount the fan to the outlet box marked
acceptable for fan support with the screws provided with the
outlet box.
CAUTION: To reduce the risk of personal injury, use only
the screws provided with the outlet box.
1. To reduce the risk of electric shock, ensure electricity has
been turned off at the circuit breaker or fuse box before
beginning.
2. All wiring must be in accordance with the National Electrical
Code “ANSI/NFPA 70-1999” and local electrical codes.
Electrical installation should be performed by a qualied
licensed electrician.
3. The outlet box and support structure must be securely
mounted and capable of reliably supporting a minimum of 35
lbs (15.9 kg) or less. Use only UL-listed outlet boxes marked
“FOR FAN SUPPORT.”
4. The fan must be mounted with a minimum of 7 ft. (2.1m)
clearance from the trailing edge of the blades to the oor.
5. Avoid placing objects in the path of the blades.
6. To avoid personal injury or damage to the fan and other
items, be cautious when working around or cleaning the fan.
7. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
8. After making electrical connections, spliced conductors
should be turned upward and pushed carefully up into the
outlet box. The wires should be spread apart with the
grounded conductor and the equipment-grounding conductor
on one side of the outlet box and ungrounded conductor on
the other side of the outlet box.
9. All setscrews must be checked and retightened where
necessary before installation.
10. Suitable for use with solid-state speed control (UC7067RYE
only).
11. This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
Warning: Changes or modications to this unit not expressly
approved by the party responsible for compliance could void
the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for
help.

SPECIFICATIONS
SPECIFICATIONS
NOTE: These are approximate measures. They do not
include amps and wattage used by the light kit.
Warranty
4
Pre-InstallationPre-Installation
60 in.
Low
Medium
High
120
Fan size
Fan size
Watts
Watts
RPM
RPM
CFM
CFM
Speed
Speed
Volts
Volts
Amps
Amps
2.08 cu. ft.
N.W.
N.W.
G.W.
G.W.
C.F.
C.F.
0.23
0.37
0.51
12.55
31.11
61.27
54
98
141
2449
4374
6499
9.76 kg
(21.47 lbs.)
11.36 kg
(24.99 lbs.)
The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the
factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any
glass), to be free from defects in workmanship and material present at time of shipment from the factory for a period of ve years after
the date of purchase by the original purchaser. The manufacturer also warrants that all other fan parts, excluding any glass or acrylic
blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the
date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or
superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All
costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper
installation or by afxing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not
cover any changes in brass nish, including rusting, pitting, corroding, tarnishing or peeling. Brass nishes of this type give the longest
useful life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a
defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby
disclaim any and all warranties, including but not limited to those of merchantability and tness for a particular purpose to the extent
permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specied in the
express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to
you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in connection with product use or
performance except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential
damages, so the above exclusion or limitation may not apply to you. This warranty gives specic legal rights, and you may also have other
rights which vary from state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a
claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-800-986-3460 or visit www.HOMEDEPOT.COM/HOMEDECORATORS
TOOLS REQUIRED
TOOLS REQUIRED
Phillips
screwdriver
Flat blade
screwdriver
Step
ladder
Wire
stripper
Electrical
tape
Adjustable
wrench

Pre-Installation (continued)
HARDWARE INCLUDED
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
AA
BB
CC
DD
EE
FF
GG
HH
II
JJ
KK
LL
MM
NN
Plastic wire nut
Canopy mounting screw with lock washer (preassembled)
Blade attachment screw and ber washer
Remote control holder mounting screw
Remote control holder plug (preassembled)
Clevis pin (preassembled)
Cotter pin (preassembled)
Cross pin (preassembled)
Setscrew (preassembled)
Collar setscrew (preassembled)
Collar mounting screw with lock washer (preassembled)
Blade arm screw and lock washer (preassembled)
Light kit mounting screw (preassembled)
12V MN21/A23 battery
Part
Part
Description
Description
9
4
10
2
2
1
1
1
1
2
6
6
3
1
Quantity
Quantity
KK
JJ
MM
NN
EE
FF
GG
HH
II
AA
BB
CC
DD
5
LL
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

PACKAGE CONTENTS
PACKAGE CONTENTS
Pre-Installation (continued)
6
I
J
H
A
E
F
G
K
L
B
C
D
M
N
O
Part
Part
I
J
K
L
M
N
O
Description
Description
Blade arm
Medallion
16 watt LED light kit
Light kit cover
Receiver
Remote control
Remote control holder
Quantity
Quantity
3
10
1
1
1
1
1
Part
Part
A
B
C
D
E
F
G
H
Quantity
Quantity
1
1
1
1
1
1
1
3
Description
Description
Mounting bracket (preassembled)
Canopy ring (preassembled)
Canopy
Canopy bottom cover (preassembled)
Hanger ball/downrod assembly
Coupling cover
Fan motor assembly
Blade
3412 ECE

Pre-Installation (continued)
DUAL MOUNTING INSTRUCTIONS
DUAL MOUNTING INSTRUCTIONS
This ceiling fan is supplied with two types of hanging assemblies: the
standard ceiling installation using the downrod with ball and socket
mounting, and the "close-to-ceiling" mounting. The "close-to-ceiling"
mounting is recommended in rooms with less than 8 ft. ceilings or in
areas where additional space is desired from the oor to the fan blades.
When using the standard downrod installation, the distance from the
ceiling to the bottom of the fan blades will be approximately 12 in. The
"close-to-ceiling" installation reduces the distance from the ceiling to the
bottom of the fan blades to approximately 9 in.
Once you have decided which ceiling installation you will use, refer to the
corresponding sections and procedures during the assembly period.
Where necessary, each section of the instructions will note the different
procedures to follow for the two types of installation.
Standard Ceiling Mounting
Close-to-Ceiling Mounting
7 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

To hang your fan where there is an existing xture but no ceiling
joist, you may need an installation hanger bar (PP) (not included)
as shown above.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□Secure the outlet box (OO) (not included) directly to the
building structure. Use appropriate fasteners and materials
(not included). The outlet box and its bracing must be able
to fully support the weight of the moving fan (at least 35
lbs.). Do not use a plastic outlet box.
The illustrations below show three different ways to mount the
outlet box (OO) (not included).
OO
OO
PP
OO
OO
A
Installation
MOUNTING OPTIONS
MOUNTING OPTIONS
WARNING: To reduce the risk of re, electric shock, or
personal injury, mount the fan to an outlet box marked
acceptable for fan support using the screws provided with the
outlet box. An outlet box commonly used for the support of
lighting xtures may not be acceptable for fan support and
may need to be replaced. If in doubt, consult a qualied
electrician.
NOTE: You may need a longer downrod to maintain proper
blade clearance when installing on a steep, sloped ceiling.
The maximum angle allowable is 18° away from horizontal. If
the canopy (C) touches the hanger ball/downrod assembly (E),
then remove the decorative canopy bottom cover (D) and turn
the canopy (C) 180° before attaching the canopy (C) to the
mounting bracket (A).
8

1Preparing the canopy 2Preparing the motor
□Remove the canopy ring (B) from the canopy (C).
□Remove the two non-slotted canopy mounting screws
with lock washers (BB) from the canopy (C), and
loosen the slotted canopy mounting screws with lock
washers (BB) on the canopy (C).
□Remove the canopy (C) from the mounting bracket (A)
by turning the canopy (C) counterclockwise.
3Assembling the fan
□Remove the cotter pin (GG) and clevis pin (FF), and
loosen the two collar setscrews (JJ) from the motor
collar.
□Take out the setscrew (II) located in the hanger ball
(QQ), lower the hanger ball (QQ) and remove the
cross pin (HH). Remove the hanger ball (QQ) from the
hanger ball/downrod assembly (E).
□Remove the ground lead (RR) from the downrod
assembly (E).
Assembly — Standard Ceiling Mounting
WARNING: Failure to properly install the cotter pin (GG)
could result in the fan loosening and possibly falling.
B
G
F
QQ
C
SS
RR
JJ
JJ
FF
GG
II
HH
□Carefully feed the motor wires up through the
downrod (SS). Thread the downrod (SS) into the
collar.
□Align the holes and replace clevis pin (FF) and cotter
pin (GG). Tighten the two collar setscrews (JJ).
□Slip the coupling cover (F), canopy ring (B), and
canopy (C) onto the downrod (SS).
□Carefully reinstall the hanger ball (QQ) onto the
downrod (SS) and reinstall the ground lead (RR) onto
the downrod (SS), being sure that the cross pin (HH)
is in the correct position, the setscrew (II) is tightened
and wires are not twisted.
NOTE: If a longer downrod (not included) is needed, take out
the screw located in the hanger ball (QQ), lower the hanger
ball (QQ) and remove the pin (HH). Remove all three pieces
from the downrod and assemble them onto the new longer
downrod before proceeding to the downrod installation.
9HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
GG
FF
JJ JJ
A
BB
BB
C
B
II
E
HH
QQ
RR

10
Assembly — Close-to-Ceiling Mounting
12
3Assembling the fan
Preparing the motorPreparing the canopy
□Remove the cotter pin (GG) and clevis pin (FF), and
loosen the two collar setscrews (JJ) from the motor
collar.
□Remove three of the six collar mounting screws with
lock washers (KK) (every other one) from the collar on
top of the fan motor assembly (G).
WARNING: Failure to completely tighten the three collar
mounting screws (KK) could result in the fan becoming loose
and possibly falling.
KK
JJ JJ
G
□Remove the canopy ring (B) from the canopy (C).
□Remove the mounting bracket (A) from the canopy (C)
by loosening the four canopy mounting screws with
lock washers (BB) on the top of the canopy (C).
Remove the two non-slotted canopy mounting
screws with lock washers (BB) and loosen the slotted
canopy mounting screws with lock washers (BB).
□Remove the canopy bottom cover (D) from the
canopy (C).
□Make sure the slot openings of the canopy ring (B)
are on top, and then proceed to place the canopy ring
(B) and canopy (C) over the collar at the top of the fan
motor assembly (G).
□Align the mounting holes in the bottom of the canopy
(C) with the holes in the top of the fan motor
assembly (G). Fasten using the three collar mounting
screws with lock washers (KK) previously removed.
□Tighten the collar mounting screws (KK) securely.
D
A
BB
BB
C
B
GG
FF
C
B
G
KK

Assembly — Hanging the Fan
4Attaching the fan to the
electrical box
5b5a Hanging instructions for
standard mounting
Hanging instructions for
close-to-ceiling mounting
□Pass the 120-volt supply wires through the center
hole in the mounting bracket (A).
□Attach the mounting bracket (A) on the outlet box
(OO) by sliding the mounting bracket (A) over the
screws provided with the outlet box. When using
“close-to-ceiling” mounting, it is important that the
mounting bracket (A) be level. If necessary, use
leveling washers (not included) between the
mounting bracket (A) and the outlet box (OO). Note
that the at side of the mounting bracket (A) is
toward the outlet box (OO).
□Securely tighten the two mounting screws.
WARNING: To reduce the risk of re, electric shock or
other personal injury, mount the fan only to an outlet box or
supporting system marked acceptable for fan support and
use the mounting screws provided with the outlet box.
WARNING: The tab in the ring must rest in the groove of
the hanger ball (E). Failure to properly seat the tab in the
groove could cause damage to the wiring.
WARNING: The hook is only to hold the fan while attaching
wiring. Failure to hang as instructed may result in the tab
breaking causing the fan to fall. The hook must pass from the
inside to the outside of the canopy.
□Carefully lift the fan motor assembly (G) up to the
mounting bracket (A) and seat the hanger ball (E) in
the mounting bracket (A) socket. Make sure the tab
on the mounting bracket (A) socket is properly seated
in the groove in the hanger ball (E). This will help to
balance the ceiling fan.
□Carefully lift the fan motor assembly (G) up to the
mounting bracket (A) and hang the fan on the hook
provided using one of the holes at the outer rim of the
canopy (C).
A
A
E
C
11
C
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
G
G
A
OO

3412
ECE
Assembly — Hanging the Fan (continued)
12
6Preparing the receiver and
remote control
CAUTION: Do not use with a wall light dimmer switch.
WARNING: To avoid possible electrical shock, be sure
electricity is turned off at the main fuse box before wiring.
M
N
If you feel you do not have enough electrical wiring
knowledge or experience, have your fan installed by a
licensed electrician.
This remote control unit is equipped with 16 code
combinations to prevent possible interference from or to
other remote units. The frequency switches on your
receiver (M) and remote control (N) have been preset at
the factory. Please recheck to make sure the switches on
the remote control (N) and the receiver (M) are set to the
same position. Any combination of settings will operate
the fan as long as the switches in the remote control (N)
and receiver (M) are set to the same position.
□After checking the switches, insert the receiver (M)
into the mounting bracket (A) with the at side of the
receiver (M) facing the ceiling.
G
M
A

7Making the electrical connections
Assembly — Hanging the Fan (continued)
WARNING: Check to see that all connections are tight,
including ground, and that no bare wire is visible at the wire
nuts, except for the ground wire.
NOTE: The fan must be installed at a maximum distance of
20 ft. from the remote control for proper signal transmission
between the remote control and the fan's receiving unit.
CAUTION: Do not use with a wall light dimmer switch.
13 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
AA
M
Blue
White
White
Black
AA
Green
Black
Black
Ground
White conductor
Blue
White
Black
Green
A
E
OO
If you feel you do not have enough electrical wiring knowledge
or experience, have your fan installed by a licensed electrician.
Follow the steps below to connect the fan to your household
wiring. Use the plastic wire nuts (AA) with your fan. Secure the
plastic wire nuts (AA) with electrical tape. Make sure there are
no loose strands or connections.
□Make wire connections from the fan to the receiver (M)
and outlet box (OO) as follows, using the wire nuts (AA).
From Fan To Receiver
Blue Wire --------------------- Blue Wire "For Light"
Black Wire -------------------- Black Wire "To Motor L"
White Wire -------------------- White Wire "To Motor N"
□Make wire connections from the receiver (M) and fan to
the outlet box (OO) as follows, using the wire nuts (AA).
From Receiver To Outlet Box
Black Wire "AC in L" ---------- Black Wire (Hot)
White Wire "AC in N" --------- White Wire (Neutral)
From Fan To Outlet Box
Green Wires* ----------------- Green or Bare Wire (Ground)
* There are two green grounding leads: one from the mounting
bracket (A) and one from the hanger ball/downrod assembly (E)
if installed.
□Turn the wire nut connections upward, spreading them
apart so the green (ground) and white wires will be on
one side of the outlet box (OO) and the black and blue
wires will be on the other side. Carefully tuck the
connections up into the outlet box (OO) .
3412
ECE

Assembly — Hanging the Fan (continued)
8a Standard ceiling mounting 8b Close-to-ceiling mounting
BB
OO
BB
A
BB
A
BB
WARNING: The locking slots of the canopy (C) are provided
only as an aid to mounting. Do not leave the fan assembly
unattended until all four canopy mounting screws with lock
washers (BB) are engaged and rmly tightened.
WARNING: Make sure the tab on the mounting bracket (A)
properly sits in the groove in the hanger ball (E) before
attaching the canopy (C) to the mounting bracket (A) by
turning the canopy (C) until it drops into place.
WARNING: Locking slots of the canopy (C) are provided
only as an aid to mounting. Do not leave the fan assembly
unattended until all four canopy mounting screws with lock
washers (BB) are engaged and rmly tightened.
□Slide the canopy (C) up to the ceiling. Make sure you
have placed the wires safely into the outlet box (OO).
□ Secure the canopy (C) to the mounting bracket (A)
with the four canopy mounting screws with lock
washers (BB) included with your fan.
□Slide the canopy ring (B) over the canopy (C) and
tighten by turning the ring (B).
□Remove the fan from the hook on the mounting
bracket (A).
□Secure the canopy (C) to the mounting bracket (A)
with the four canopy mounting screws with lock
washers (BB) provided.
□Slide the canopy ring (B) over the canopy (C) and
tighten by turning the ring (B).
14
B
C
C
B

Assembly — Attaching the Fan Blades
Removing the rubber
packing mounts
□The fan motor assembly (G) is shipped with rubber
packing mounts (TT) to prevent movement during
transportation. Remove the six rubber packing
mounts (TT) from the fan motor assembly (G) and
discard prior to attaching the blade arms (I).
910
Attaching the blades to the
blade arms
□Attach the blades (H) to the blade arms (I) using the
three blade attachment screws and ber washers (CC)
and the medallions (J). Start a screw and ber washer
(CC) into a medallion (J), but do not tighten.
□Repeat for the two remaining blade attachment screws
and ber washers (CC).
□Tighten each screw securely starting with the center
screw. Make sure the blade (H) is straight.
□Repeat these steps for the remaining blades (H).
11 Fastening the blade
assemblies to the motor
WARNING: To reduce the risk of personal injury, do not
bend the blade arms (I) while installing, balancing the blades
(H), or cleaning the fan. Do not insert foreign objects between
rotating fan blades (H).
□Fasten the blade assemblies to the fan motor
assembly (G).
□Tighten the two blade arm screws and lock washers
(LL) already installed in the blade arms (I).
□Repeat this procedure for the remaining blade arms (I).
15 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
I
H
CC
J
G
I
LL
TT
G

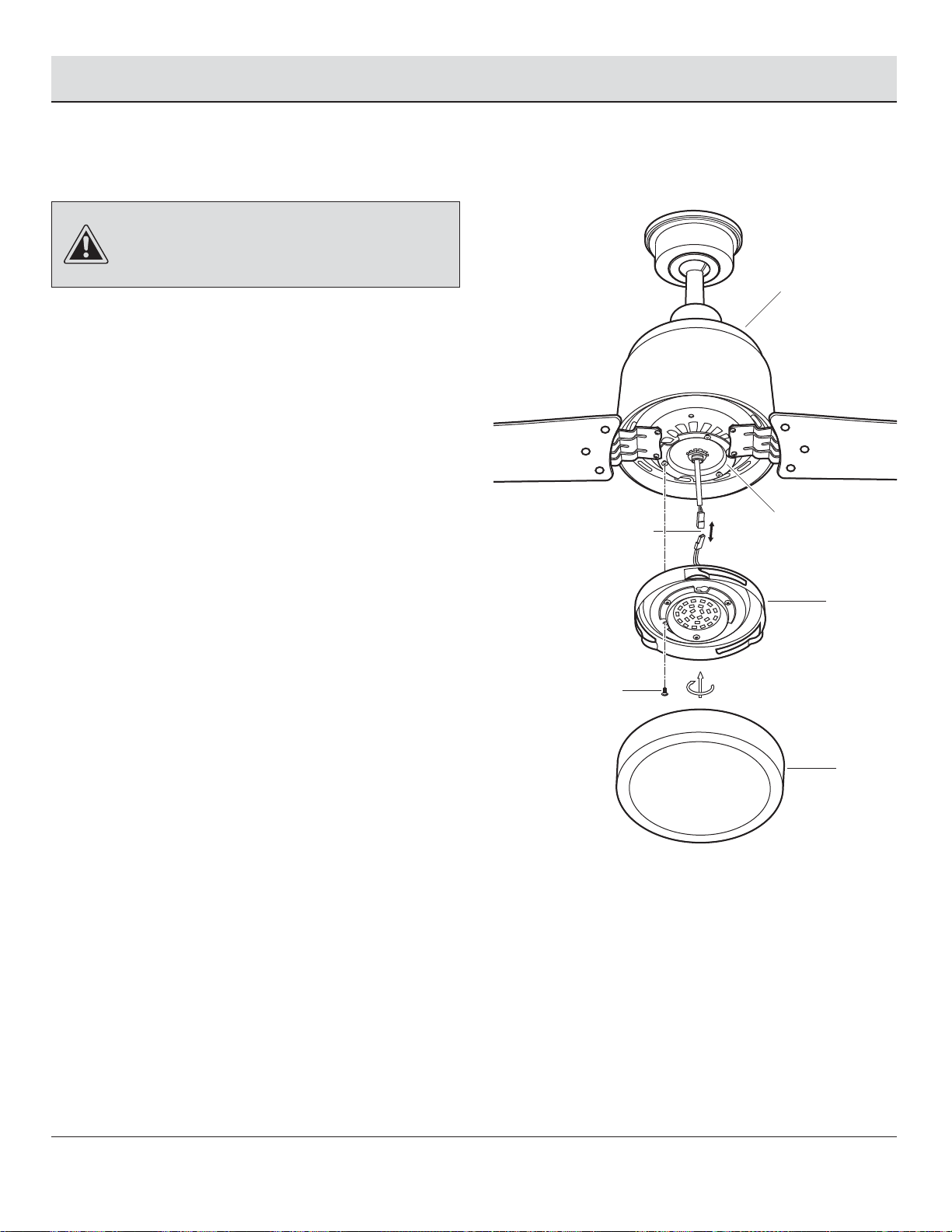

12 Attaching the LED light kit
and light kit cover
Assembly — Installing the Light Kit
CAUTION: Before starting installation, disconnect the
power by turning off the circuit breaker or removing the fuse
at the fuse box. Turning power off using the fan switch is not
sufcient to prevent electric shock.
□Remove one of the three light kit mounting screws
(MM) from the mounting ring (UU) and loosen the
other two screws. (Do not remove.)
□While holding the 16W LED light kit (K) under the fan
motor assembly (G), make the 2-pin wire
connections: (VV)
- Red to white
- Black to black
□Place the key holes in the 16W LED light kit (K) over
the two mounting screws (MM) previously loosened
from the mounting ring (UU). Turn the 16W LED light
kit (K) until the 16W LED light kit (K) locks in place at
the narrow section of the key holes. Securely tighten
the two light kit mounting screws (MM) previously
loosened and the one (MM) previously removed.
□Raise the light kit cover (L) up against the 16W LED
light kit (K) and secure it to the fan by turning the
light kit cover (L) clockwise until snug. DO NOT
OVERTIGHTEN.
G
K
MM
VV
L
16
UU

Operation
REMOTE CONTROL OPERATING INSTRUCTIONS
REMOTE CONTROL OPERATING INSTRUCTIONS

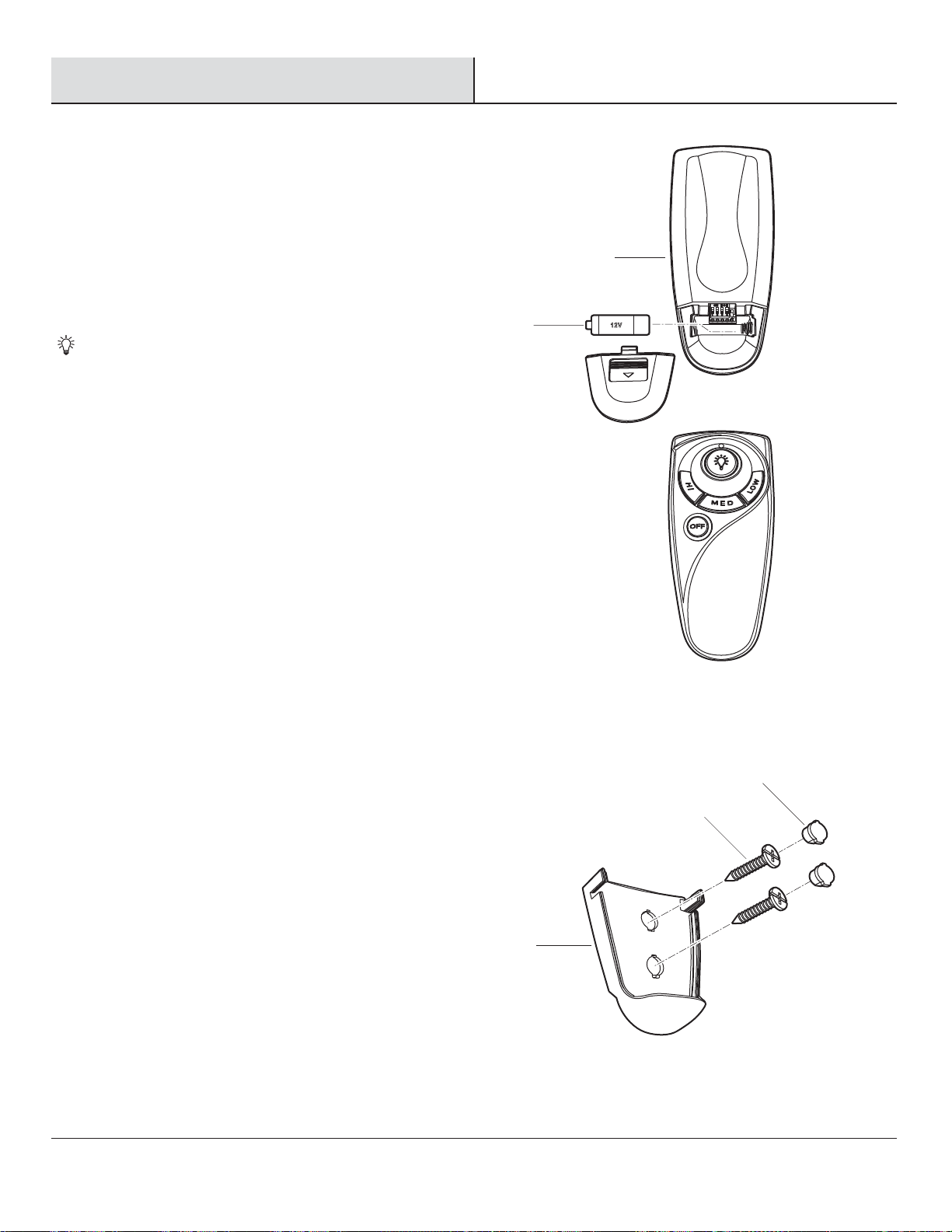

INSTALLING THE REMOTE CONTROL HOLDER
INSTALLING THE REMOTE CONTROL HOLDER
O
DD
EE
N
NN
□Remove the two remote control holder plugs (EE) from the
remote control holder (O). Note that the plugs have unique
tabs that allow them to t only in one hole.
□Attach the remote control holder (O) with the two remote
control holder mounting screws (DD).
□Replace the two remote control holder plugs (EE) each into its
own hole.
□Install the 12V MN21/A23 battery (NN) (included) into the
remote control (N). To prevent damage to the remote control
(N), remove the battery if not used for long periods.
□Restore power to the ceiling fan and test for proper operation.
HI, MED, LOW buttons: Sets the fan speed.
OFF button: Turns the fan off.
button: Turns the light on or off and also controls the
brightness setting. Press and release this button to turn the light
on or off. Press and hold the button to set the desired brightness.
The light button has an auto-resume and will stay at the same
brightness as the last time it was turned off.
The dimming of the LED is only possible with the installation of the
receiver and the use of the remote. Wall slide controls used to
bypass the remotes will not be able to dim the light.
17 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

18
Care and Cleaning
□Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure.
Because of the fan’s natural movement, some
connections may become loose over time. It is not
necessary to remove the fan from the ceiling.
□Clean your fan periodically. Use only a soft brush or
lint-free cloth to avoid scratching the nish. The plating is
sealed with a lacquer to minimize discoloration or
tarnishing.
□(Optional) Apply a light coat of furniture polish to the wood
blades.
□(Optional) Cover small scratches with a light application of
shoe polish.
Do
Do
□Use water when cleaning. Water could damage the motor,
or the wood, or possibly cause an electrical shock.
□Apply oil to your fan or motor. The motor has
permanently-lubricated sealed ball bearings.
Do not
Do not
Operation (continued)

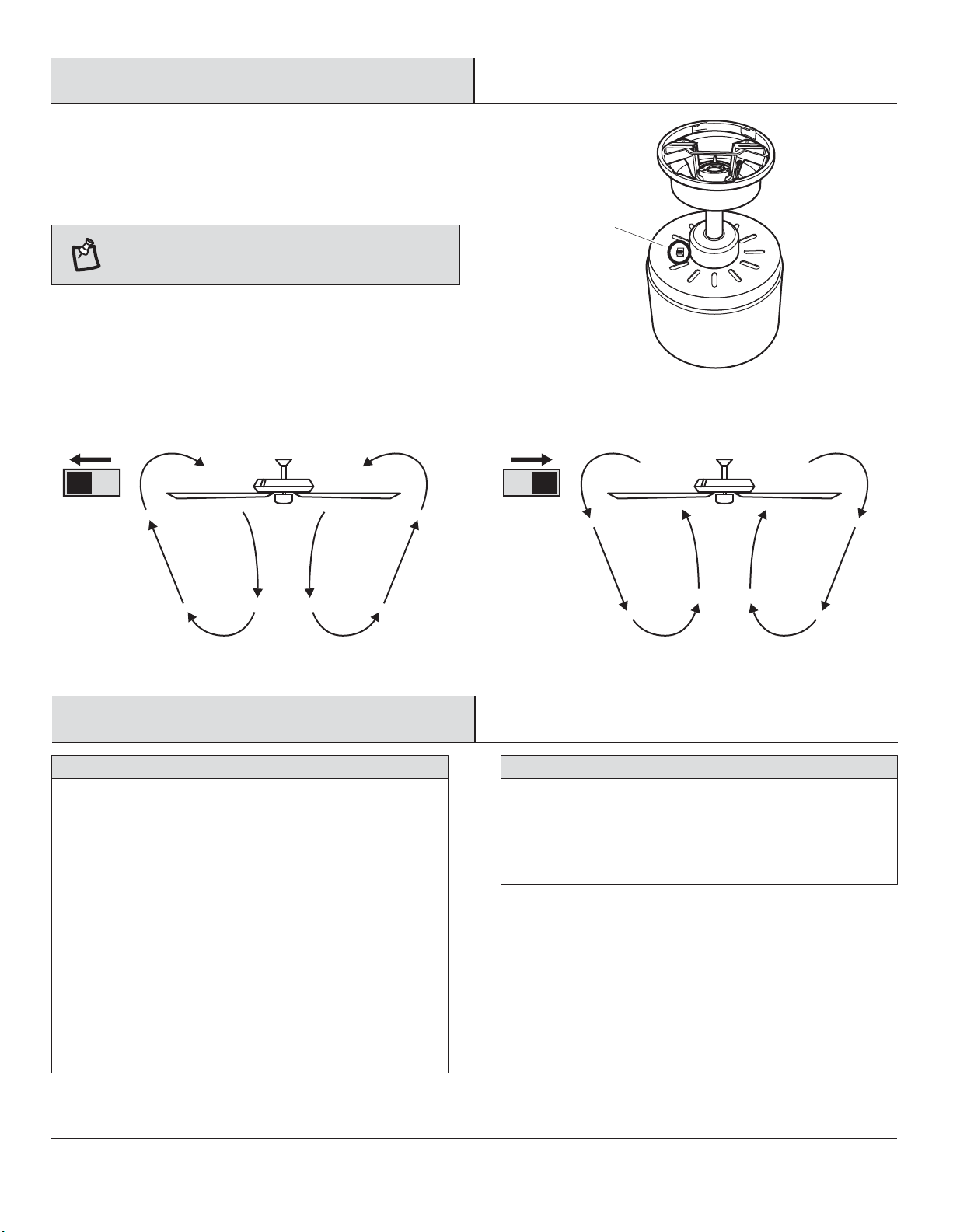

NOTE: Wait for the fan to stop before reversing the direction
of the blade rotation.
REVERSE SWITCH OPERATING INSTRUCTIONS
REVERSE SWITCH OPERATING INSTRUCTIONS
The reverse switch is located on the top of the motor housing.
Slide the switch to the left for warm weather operation. Slide the
switch to the right for cool weather operation.
Reverse switch
Warm weather - (Counterclockwise Direction) A downward air ow
creates a cooling effect. This allows you to set your air conditioner
on a warmer setting without affecting your comfort.
Cool weather - (Clockwise Direction) An upward air ow moves
warm air off the ceiling. This allows you to set your heating unit on
a cooler setting without affecting your comfort.

□Do not connect the fan with wall mounted variable speed control(s).
□Make sure the frequency switches are set correctly.
The fan wobbles.
The remote control is
not working.
Troubleshooting
Problem
Problem
Solution
Solution
□Check the main and branch circuit fuses or breakers.
□Check the line wire connections to the fan and switch wire connections in the switch housing.
□Check to make sure the frequency switches from the remote control and receiver are set to the same
frequency.
□Make sure all motor housing screws are snug.
□Make sure the screws that attach the fan blade arm to the motor hub are tight.
□Make sure the wire nut connections are not rattling against each other or the interior wall of the switch
housing.
□Allow a 24-hour "breaking-in" period. Most noises associated with a new fan disappear during this
time.
□If using the ceiling light kit, make sure the glassware is secured tightly.
□Make sure there is a short distance from the ceiling to the canopy. It should not touch the ceiling.
□Make sure your ceiling box is secure and that rubber isolator pads are used between the mounting
bracket and outlet box.
The fan will not start.
The fan sounds noisy.
WARNING: Make sure the power is off at the electrical
panel box before you attempt any repairs. Refer to step 7
“Making the electrical connections” on page 13.
□Verify that all blades and blade bracket screws are secure (most fan wobble problems are caused by
loose parts). Once the fan is properly installed, run the ceiling fan for 10 minutes to let the fan
self-adjust.
If wobble occurs after running the fan for 10 minutes, verify blade level using the following process:
- Select a point on the ceiling above the tip of one of the blades, then select any fan blade and
measure from the center of the selected blade to the point on the ceiling. Rotate the fan until the next
blade is positioned and repeat the measurement using the same point from the ceiling for every blade.
Measurement deviations should be within 1/8 in..
- If all deviations are less than 1/8 in. and the fan continues to wobble, please call Customer Service
(1-800-986-3460) to order a complimentary Blade Balancing Kit.
- If deviation is greater than 1/8 in. , please call Customer Service (1-800-986-3460) to order
complimentary replacements of your brackets.
19 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

Part
Part
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
Description
Description
Mounting bracket (preassembled)
Canopy ring (preassembled)
Canopy
Canopy bottom cover (preassembled)
Hanger ball/downrod assembly
Coupling cover
Fan motor assembly
Blade
Blade arm
Medallion
16 watt LED light kit
Light kit cover
Receiver
Remote control
Remote control holder
Part
Part
AA
BB
CC
DD
EE
FF
GG
HH
II
JJ
KK
LL
MM
NN
Description
Description
Plastic wire nut
Canopy mounting screw with lock washer
(preassembled)
Blade attachment screw and washer
Remote control holder mounting screw
Remote control holder plug (preassembled)
Clevis pin (preassembled)
Cotter pin (preassembled)
Cross pin (preassembled)
Setscrew (preassembled)
Collar setscrew (preassembled)
Collar mounting screw with lock washer (preassembled)
Blade arm screw and lock washer (preassembled)
Light kit mounting screw (preassembled)
12V MN21/A23 battery
Service Parts
A
I
K
J
L
N
M
O
E
F
G
H
AA
BB
CC
DD
EE
FF
GG
HH
II
JJ
KK
MM
NN
LL
B
C
D
20
3412 ECE
