Home Decorators Collection 68-ATRDC User manual

Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and condence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive
to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!
Item #1001 784 408, 1001 784 409,
1001 784 407, 1001 784 410, 1001 784 405
Model #68681, 68682,
68683, 68684, 68685
ETL Model #68-ATRDC
USE AND CARE GUIDE
ALTURA 68-INCH CEILING FAN
P1
To view an instructional video on how to install this product:
1. Go to www.homedepot.com and enter either the Item or Model number, found in the top
right corner of the cover of this instruction manual, in the search eld.
2. Click on your product from the list of search results and click on the video link in the
“Product Overview” section.

2
WARNING: To reduce the risk of re or electric shock, this
fan should only be used with fan speed control part no.
RH786NR, manufactured by Rhine.
Table of Contents ................................................................2
Safety Information...............................................................2
Warranty ............................................................................... 3
Pre-Installation ....................................................................3
Installation............................................................................6
Assembly..............................................................................7
Operation ...........................................................................13
Care and Cleaning.............................................................15
Troubleshooting.................................................................15
1. To reduce the risk of electric shock, ensure the electricity has
been turned off at the circuit breaker or fuse box before you
begin.
2. All wiring must be in accordance with the National Electrical
Code ANSI/NFPA 70 and local electrical codes. Electrical
installation should be performed by a qualied licensed
electrician.
3. The outlet box and support structure must be securely
mounted and capable of reliably supporting a minimum of
50 lbs. (22.7 kg). Use only UL-listed outlet boxes marked
“Acceptable for Fan Support of 50 lbs. (22.7 kg) or less.”
4. The fan must be mounted with a minimum of 7 ft (2.1 m) of
clearance from the trailing edge of the blades to the oor.
5. Do not place objects in the path of the blades.
6. To avoid personal injury or damage to the fan and other items,
use caution when working around or cleaning the fan.
7. After making electrical connections, spliced conductors
should be turned upward and pushed carefully up into
the outlet box. The wires should be spread apart with the
grounded conductor and the equipment-grounding conductor
on one side of the outlet box.
8. All set screws must be checked and retightened where
necessary before installation.
WARNING: To reduce the risk of personal injury,
do not bend the blade brackets (also referred to as
anges) during assembly or after installation. Do not
insert objects in the path of the blades.
WARNING: To reduce the risk of re or electric shock, do
not use this fan with any solid-state speed control device.
WARNING: Electrical diagrams are for reference
only. If you are using a light kit, refer to the light kit
instructions manual to make the electrical
connections. Optional use of any light kit shall be
UL-listed and marked suitable for use with this fan.
WARNING: To avoid possible electrical shock, turn the
electricity off at the main fuse box before wiring. If you
feel you do not have enough electrical wiring knowledge
or experience, contact a licensed electrician.
Safety Information
Table of Contents
CAUTION: To reduce the risk of personal injury,
use only the screws provided with the outlet box.
READ AND SAVE THESE INSTRUCTIONS.
CAUTION: Changes or modications not expressly
approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
WARNING: To reduce the risk of re, electric shock or
personal injury, mount to outlet box marked “Acceptable
for fan support of 50 lbs. (22.7 kgs) or less”, and use
screws provided with the outlet box.

3HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Pre-Installation
Warranty
The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a lifetime
after the date of purchase by the original purchaser. The supplier also warrants that all other fan parts, excluding any glass or acrylic blades, to be
free from defects in workmanship and material at the time of shipment from the factory for a period of three years after the date of purchase by the
original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior model if the product is
returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing and reinstalling the product
are your responsibility. Damage to any part such as by accident or misuse or improper installation or by afxing any accessories, is not covered by
this warranty. Because of varying climatic conditions this warranty does not cover any changes in brass nish, including rusting, pitting, corroding,
tarnishing, or peeling. Brass nishes of this type give their longest useful life when protected from varying weather conditions. A certain amount of
“wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is
no other express warranty. Home Decorators Collection hereby disclaims any and all warranties, including but not limited to those of merchantability
and tness for a particular purpose to the extent permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the
time period as specied in the express warranty. Some states do not allow a limitation on how long an implied warranty lasts,so the above limitation
may not apply to you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in connection with product
use or performance except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages,
so the above exclusion or limitation may not apply to you. This warranty gives specic legal rights, and you may also have other rights which vary
from state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty must
be paid by the customer.
Contact the Customer Service Team at 1-800-986-3460 or visit www.HOMEDEPOT.COM/HOMEDECORATORS.
SPECIFICATIONS
NOTE: These are approximate measures. They do not
include the Amps and Wattage used by the light kit.
Size Speed Volts
Fan Power
Consumption
(without lights)
WATT
Airow
CFM
Airow Efciency
(Higher Is Better)
CFM/WATT
Net
Weight
Gross
Weight Cubic Feet
68 in.
Low
120
3 3679 1226 23.81 lbs
(10.8 kgs)
28.88 lbs
(13.1 kgs) 3.53 cu.ft.
Medium 11 6790 617
High 32 9553 298

4
Pre-Installation (continued)

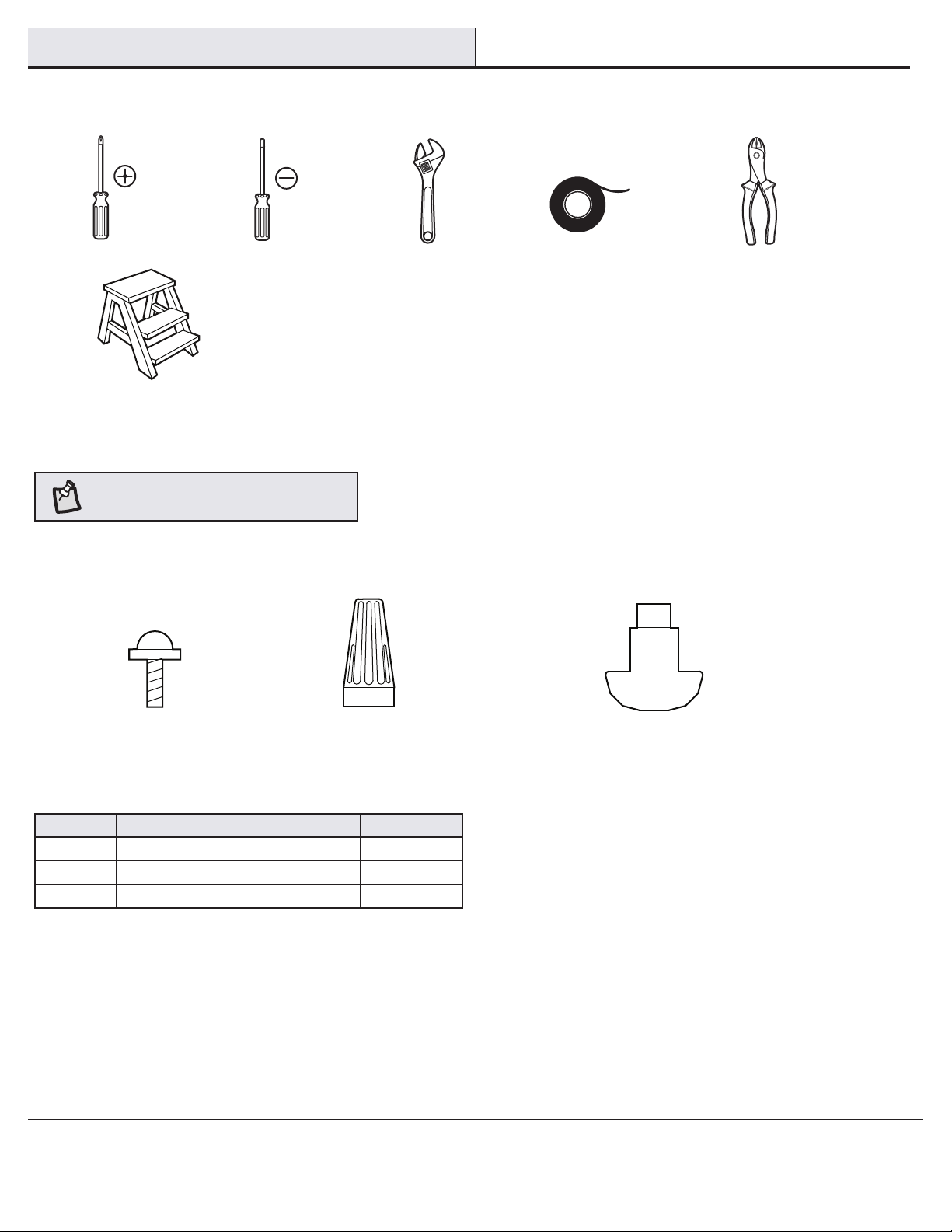

HARDWARE INCLUDED
TOOLS REQUIRED
Phillips
screwdriver
Flat blade
screwdriver
Adjustable
wrench
Electrical
tape
Wire
cutter /
stripper
Step ladder
Part Description Quantity
AA Blade attachment screws 15
BB Plastic wire connecting nut 3
CC Decorative nut 15
NOTE: Hardware not shown to actual size.
AA BB CC

5HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Part Description Quantity
ASlide-on mounting bracket
(inside canopy) 1
B Ball/downrod assembly 1
C Canopy with canopy ring attached 1
D Fan-motor assembly 1
Part Description Quantity
E Switch cup 1
F Decorative motor collar cover 1
G Blade 5
H Switch cup adaptor 1
I Transmitter (battery included) 1
IMPORTANT: This product and/or components are
governed by one or more of the following U.S. Patents:
5,947,436; 5,988,580; 6,010,110; 6,046,416, 6,210,117
and other patents pending.
Pre-Installation (continued)
PACKAGE CONTENTS
A
B
F
C
D
BB
G
H
E
I

6
Installation
MOUNTING OPTIONS
WARNING: To reduce the risk of re, electric shock
or personal injury, mount to outlet box marked
“Acceptable for fan support of 50 lbs. (22.7 kg)
or less”, and use screws provided with the outlet
box. An outlet box commonly used for the support
of lighting xtures may not be acceptable for fan
support and may need to be replaced. If in doubt,
consult a qualied electrician.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□Secure the outlet box directly to the building structure. Use
the appropriate fasteners and materials. The outlet box and
its bracing must be able to fully support the weight of the
moving fan (at least 50 lbs.). Do not use a plastic outlet box.
The illustrations below show three different ways to mount the
outlet box.
If the canopy touches the downrod, then remove the decorative canopy
bottom cover, and turn the canopy 180° before attaching the canopy to
the mounting plate.
To hang your fan where there is an existing xture but no ceiling joist,
you may need an installation hanger bar as shown above
(available at any Home Depot store).
NOTE: You may need a longer downrod to maintain
proper blade clearance when installing on a steep, sloped
ceiling. The maximum angle allowable is 30° away from
horizontal.
Outlet Box
Outlet Box
Recessed
Outlet
Box
Provide Strong
Support
Ceiling
Mounting
Plate
Outlet Box
Hanger Bar

7HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

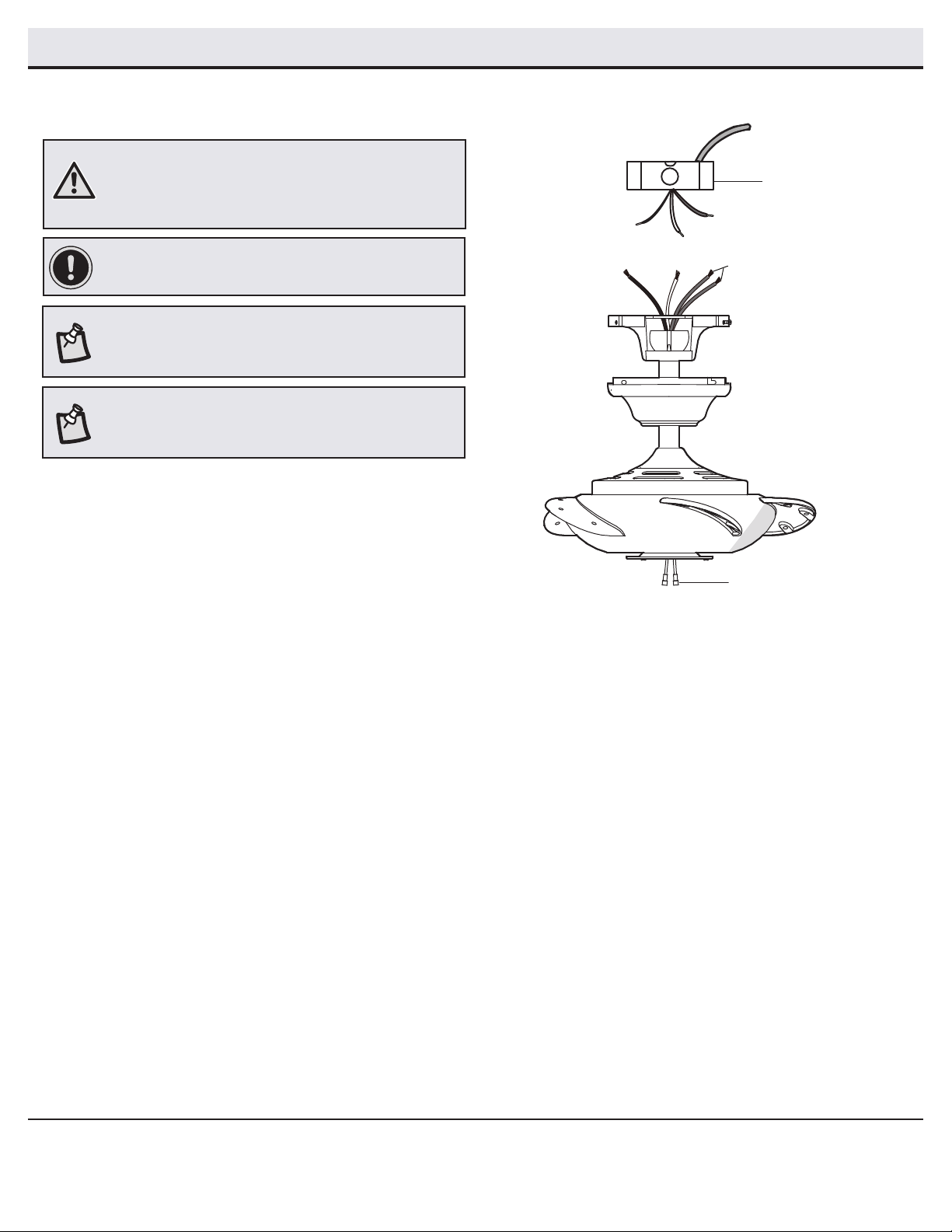

Assembly - Standard Ceiling Mount
Routing the wires
Assembling the fan
Preparing for mounting
□Remove the canopy ring (L) from the canopy (C) by turning
the ring to the right until it unlocks.
□Remove the mounting bracket (A) from the canopy (C) by
loosening the two screws (HH) located in the “L shaped”
slots
□Remove and save the two non-slotted screws (SS) in the
round holes. This will enable you to remove the mounting
bracket (A).
□Route the wires exiting the top of the fan motor (D) into
the decorative motor collar cover (F) and through the
canopy ring (L).
□Make sure the slot openings are on top and route the
wires through the canopy (C) and then through the ball/
downrod assembly (B).
2
3
1
C
A
SS
L
HH
C
D
F
B
L
D
F
EE
II
B
FF
□Loosen but do not remove the setscrew (II) by turning it
counterclockwise.
□Install the downrod (B) by inserting it into the motor collar (FF),
and turning it clockwise until it is tight.
□Re-tighten the setscrew (II) on the motor collar (FF) on top of the
fan motor assembly (D) by turning it clockwise.
NOTE: This fan is equipped with a safety tab (EE). Should
the setscrew (II) ever become loose while the fan is
running in reverse, the safety tab (EE) will engage and
stop the fan from falling.
CAUTION: To ensure wobble-free operation and to avoid
damage to the fan, the downrod (B) and the setscrew
(II) must be completely tightened

8

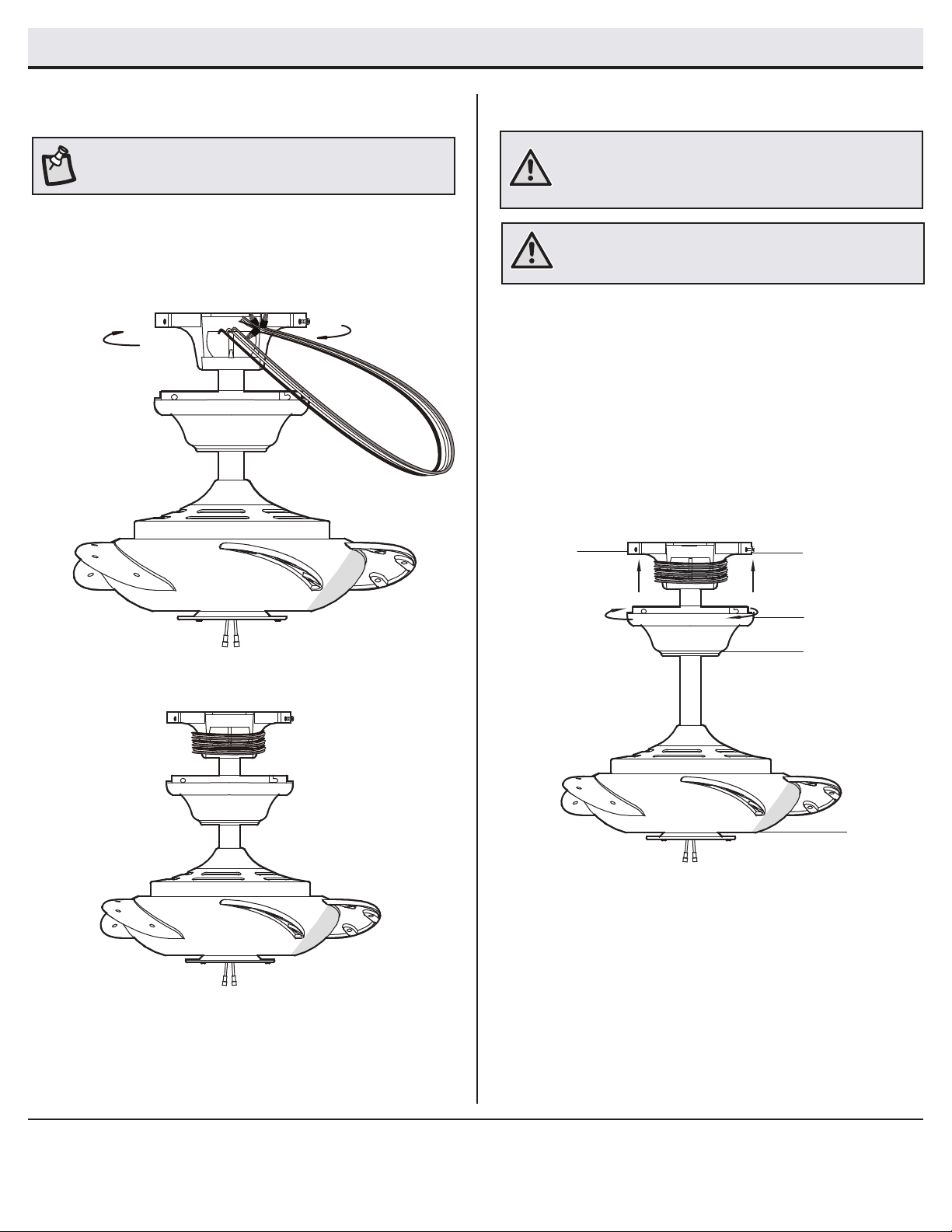

Assembly - Hanging the Fan
Attaching the fan to the electrical
box
Hanging the fan
□Pass the 120-Volt supply wires through the center hole in the
mounting bracket (A).
□Install the ceiling mounting bracket (A) on the outlet box (OO) by
sliding the mounting bracket (A) over the two screws (TT) provided
with the outlet box (OO). If necessary, use leveling washers (not
included) between the mounting bracket (A) and the outlet box
(OO). Note that the at side of the mounting bracket (A) is toward
the outlet box (OO).
□Securely tighten the two mounting screws (TT).
□Carefully lift the fan motor assembly (D) up to the mounting
bracket (A).
□Seat the hanger ball portion of the ball/downrod assembly (B)
in the mounting bracket (A) socket. Ensure that the tab on the
mounting bracket (A) socket is properly seated in the groove
in the hanger ball.
1 2
WARNING: To reduce the risk fo re, electric shock or personal
injury, mount to outlet box marked “acceptable for fan support
of 50 lbs. (22.7 kg) or less”, and use screws provided with the
outlet box.
A
TT
OO
A
B
D

9HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Hanging the Fan (continued)
Outlet box
in the ceiling
(OO)
Green or Bare
Green
Black White
Black
For Light Kit
White
Making the electrical connection
3
IMPORTANT: Use the plastic wire connectors (BB) supplied with
your fan. Secure the connectors with electrical tape and ensure
there are no loose strands or connections.
WARNING: Each wire nut supplied with this fan is designed to
accept up to one 12-gauge house wire and two wires from the
fan. If you have larger than 12-gauge house wiring or more
than one house wire to connect to the fan wiring, consult an
electrician for the proper size wire nuts to use.
□The fan comes with 78 in. lead wires for use with an extended
ball/downrod assembly. If using the 18 in. ball/downrod
assembly (B) provided, you can cut the lead wires to your
desired length. This will make extra room in the canopy (C), if
you do not wish to cut the wires, you will need to neatly wrap
them.
□Connect the fan motor green wires to the household green or
bare wire using a wire connecting nut (BB).
□Connect the fan motor white wire to the household white wire
using a wire connecting nut (BB).
□Connect the fan motor black wire to the household black wire
using a wire connecting nut (BB).
□Secure each wire connecting nut using electrical tape.
□Turn the wire connecting nuts (BB) upward and push the
wiring into the outlet box (OO).
NOTE: The fan comes with 78 in. lead wires for use with an
extended ball/downrod assembly. If using the 18 in. ball/downrod
assembly (B) provided, you can cut the lead wires to your desired
length.
NOTE: The blades must be installed before attempting to operate
the fan. If the blades are not installed, the motor will not function
properly.

10
Assembly - Hanging the Fan (continued)
Mounting the fan-motor assembly
(standard mount)
□Align the locking slots of the ceiling canopy (C) with the two
screws (HH) in the slide-on mounting bracket (A). Push up to
engage the slots, and turn clockwise to lock the canopy (C) in
place.
□Firmly tighten the two mounting screws (HH).
□Install the two mounting screws(saved from assembly step 1
“Preparing for mounting” into the holes in the canopy (C) and
tighten rmly.
□Install the decorative canopy ring (L) by aligning the ring’s
slots with the screws in the canopy (C). Rotate the canopy
ring (L) counter-clockwise to lock it in place.
WARNING: When using the standard ball/downrod mounting, the
tab in the ring at the bottom of the mounting bracket must rest in
the groove of the hanger ball. Failure to properly seat the tab in
the groove could cause damage to the wiring.
HH
C
D
A
L
5
Wrapping the extra wire
□Gently wrap the excess wire around the mounting bracket.
□Secure with electrical tape.
4
NOTE: Follow this step ONLY if you did not cut the extra length off
from the wires coming from the ceiling fan.
WARNING: The locking slots of ceiling canopy are provided only
as an aid to mounitng. Do not leave the fan assembly unattached
until all four canopy screws are engaged and rmly tightened.

11 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

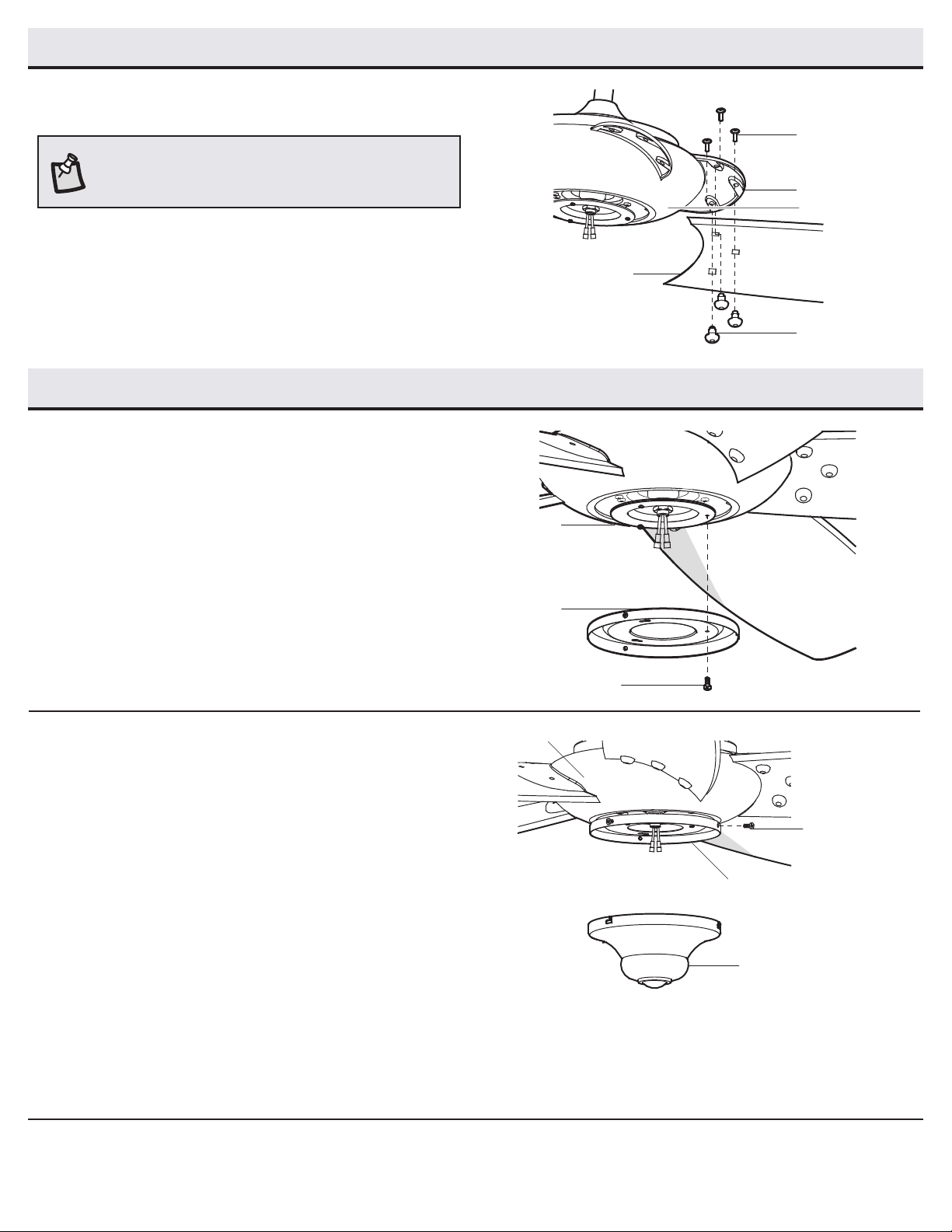

Assembly - Attaching the accessories
Attaching the fan blades
Attaching the switch cup adaptor
6
1
□Attach a blade (G) to a blade bracket (J) using the decorative
nuts (CC) and blade attachment screws (AA) provided. Insert
a blade attachment screw (AA) through a hole in the blade
(G) and the blade bracket (J) and into the decorative nut (CC).
Repeat for the two remaining holes in the blade (G).
□Tighten each screw (AA) securely.
□Repeat these steps for the remaining blades.
□Remove one screw (QQ) from the black bracket below the
fan motor assembly (D). Loosen, but do not remove the
other two screws.
□Align the key hole slots in the switch cup adaptor (H) with
the two screws in the black bracket.
□Turn the switch cup adaptor (H) clockwise until the two
screws are situated in the narrow end of the keyholes.
□Re-install the one screw (QQ) that was removed in the rst
step. Tighten all three screws rmly.
D
AA
G
CC
J
H
QQ
D
Assembly - Hanging the Fan (continued)
Attaching the switch cup
2
□Remove one screw (UU) from the side of the switch cup
adaptor (H). Loosen but do not remove the other two
screws (UU).
□Align the “L” shape holes on the switch cup (E) with the
screws on the switch cup adaptor (H). Turn the switch
cup (E) to hold it in position.
□Install the other screw (UU) that was removed in the
rst step. Tighten all three screws (UU) securely.
E
UU
H
D
NOTE: The blades must be installed before attempting to operate
the fan. If the blades are not installed, the motor will not function
properly.

12
Preparing the Remote Control
Setting the light function on your remote
□Remove the battery cover by pressing rmly on the arrow and
sliding the cover off.
□If your fan is equipped with a light kit and using dimmable bulbs,
slide the dip switch from “on” to “dim” (for non-dimmable bulbs,
the dip switch must be set to “on”).
□Install two 1.5V AAA batteries (included).
□Replace the battery cover on the remote control.
NOTE: The battery will weaken with age and should be replaced
before leaking takes place as this will damage the remote control.
Dispose of used battery properly and keep the battery out of the reach
of children.
NOTE: The switch marked ON/DIM controls the dimming function of
the lights: If using non-dimmable bulbs, use a ballpoint pen or small
screwdriver to set the switch to ON to disable the dimming function.
If using dimmable bulbs, set the switch to DIM to enable the dimming
function.
0 1
LEARN
□Slide the dip switch in the battery compartment to the “1” setting.
□Conrm that the power to the fan is off at either the wall switch or
breaker box.
□Return power to the fan at the wall switch or breaker box.
□Press and release the “Learn” button located in the remote’s battery
compartment within 30 seconds.
□If pairing is successful, the fan’s light kit will ash (if applicable) and
the blades will begin to spin.
Pairing the Remote Control
NOTE: The remote control has already been paired to the ceiling fan
for your convenience. If you have two of the same model fans in your
home, please follow the steps below to control each fan independently.
0 1
0 1
LEARN
LEARN

13 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

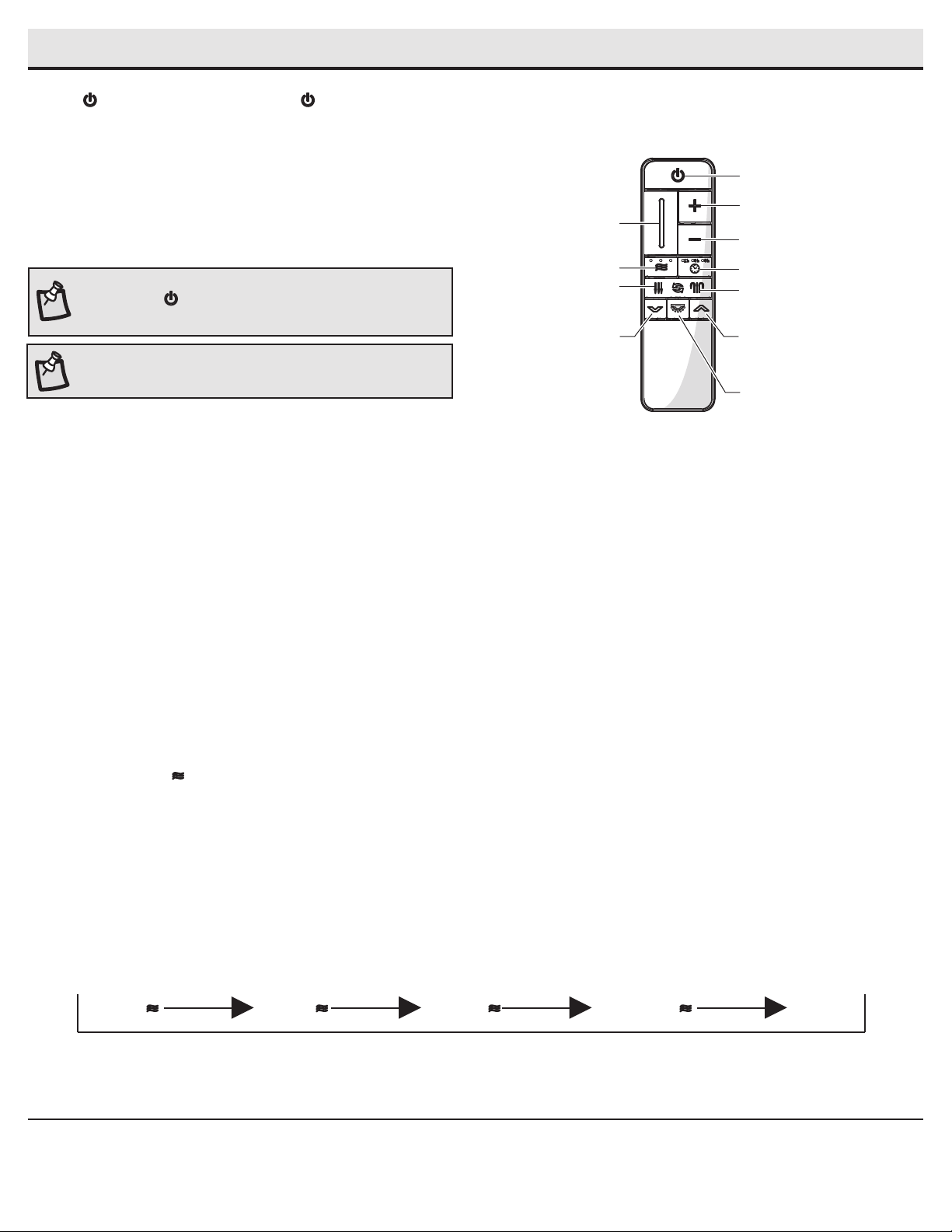

Operating Your Fan and Remote Control
1. Fan button. - Press and release the button to turn the
fan on or off.
□Fan on. The fan memory function will resume the speed
set on the fan prior to the power being turned off. The LED
bar will display the current settings for 5 seconds after the
button is released.
□Fan off. The fan memory function will store the current
setting for the next time the fan is in use.
Note: If you are currently using Comfort BreezeTM mode,
pressing the button will cancel Comfort BreezeTM mode
and resume normal fan operation.
Note: You must turn the fan on prior to using the timer
function.
Off Setting 1 Setting 2 Setting 3 Disable Comfort BreezeTM
2. Speed functions
+ button, increases the fan speed
□Pressing and releasing the + button one time will increase the speed of the fan. Each setting increase will cause the LED bar to illuminate
slightly more, until the fan has reached the maximum speed setting, at that time the LED bar will be fully illuminated.
□Pressing and holding the + button will increase the fan speed automatically through the speed settings and the increments will be denoted
on the LED bar. When the LED bar is fully illuminated, the fan has reached maximum speed setting.
□Pressing the + button while in Comfort BreezeTM mode will automatically cancel the Comfort BreezeTM mode and resume normal fan
operation.
– button, decreases fan speed
□Pressing and releasing the - button one time will decrease the speed of the fan. Each setting decrease will cause the LED bar to dim
slightly more, until the fan has reached the minimum speed setting. At that time the LED bar will be approximately 25% illuminated.
□Pressing and holding the - button will decrease the fan speed automatically through the speed settings and the increments will be denoted
on the LED bar. When the LED bar is 25% illuminated, the fan has reached the minimum speed setting.
□Pressing the - button while in Comfort BreezeTM mode will automatically cancel the Comfort BreezeTM mode and resume normal fan
operation.
3. Comfort BreezeTM
There are three Comfort BreezeTM settings. Pressing the button will activate the Comfort BreezeTM mode and LED bar will
illuminate slowly from bottom to top to display the current setting.
□Setting 1: Alternates through speeds 1 – 3, the LED bar should ll approximately 33%.
□Setting 2: Alternates through speeds 1 – 6, the LED bar should ll approximately 66%.
□Setting 3: Alternates through speeds 1 – 9, the LED bar should be fully illuminated.
Timer
Decreases fan speed
Increases fan speed
Fan on/off
Light on/off
Decreases the
light level
(Dimmer)
Warm weather
(Forward)
Comfort BreezeTM
LED bar
Scale indicating
fan speed
Cool weather
(Reverse)
Increases the
light level
(Dimmer)

14
Operating Your Fan and Remote Control
Remote Control - Your fan is equipped with a remote control to operate
the speed and lights of your new ceiling fan.
Speed setting for warm or cool weather depend on factors such as the
room size, ceiling height, number of fans and so on.
A. Warm weather - (Forward) A downward airow creates a cooling
effect.
This allows you to set your air conditioner on a higher setting without
affecting your comfort.
B. Cool weather - (Reverse) An upward airow moves warm air off of the
ceiling. This allows you to set your heating unit on a lower setting
without affecting your comfort.
NOTE: Do not wait for the fan to stop before pressing the reverse button.
The fan will not reverse direction if the fan is not moving.
A. Warm weather
B. Cool weather
5. Fan reverse button (Must be pushed when the fan is in operation)
□Warm weather: LED bar will illuminate and the lights will ow from high to low.
□Cool weather: LED bar will illuminate and the lights will ow from low to high.
6. Light (If your fan is equipped with a light kit)
□Press and release the light button to turn the light on or off
□Light on: The fan memory function will resume the light setting (on or off and dim) on the fan prior to the power being turned off.
7. Dimmer. (If your fan is equipped with a light kit)
□Press to increase the desired light level.
□Press to decrease the desired light level.
Off 2H 4H 8H Disables timer
4. Timer
□Pressing the timer button will automatically turn fan and light (if light is on) off after 2, 4, or 8 hours. When you activate the
timer mode, the LED to the left of the time above the clock will illuminate.

15 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Troubleshooting
Problem Solution
The fan will not start □Check the main and branch circuit fuses or breakers.
□Check the line wire connections to the fan and switch wire connections in the switch housing.
□Check the battery in the remote control.
□Ensure you are in the normal range of 10-20 feet.
□Remember to turn off the power supply before checking the dip switch settings.
The fan is noisy □Ensure all motor housing screws are snug.
□Ensure the screws that attach the fan blade bracket to the motor hub are tight.
□Ensure the wire nut connections are not rattling against each other or the interior wall of the switch housing.
□Allow a 24-hour “breaking in” period. Most noises associated with a new fan disappear during this time.
□If you are using the Ceiling Fan light kit, ensure the screws securing the glassware are tight. Check that the light
bulbs are also secure.
□Ensure the canopy is a short distance from the ceiling. It should not touch the ceiling.
□Ensure your outlet box is secure and rubber isolator pads were used between the mounting plate and outlet box.
The fan wobbles □Check that all blade and blade arm screws are secure.
□Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a point on
the ceiling above the tip of one of the blades. Measure from a point on the center of the blade to the point on the
ceiling. Rotate the fan until the next blade is positioned for measurement, and measure from the same point on
each blade to the ceiling. Repeat for each blade. Any measurement deviation should be within 1/8 in. Run the fan
for ten minutes. If the fan continues to wobble please contact Home Decorators Collection Customer Service and
a balacing kit will be sent to you at no charge.
The fan moves
backwards and
forwards when
turned on
□This is normal start-up procedure for DC motor fans. The partial movement during start-up is the result of the DC
motor aligning the internal magnetic poles for proper motor operation. This design saves electricity and allows
the fan to operate much quieter than standard AC motor fans.
□Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling.
□Clean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning, as this could damage
the motor, or the wood, or possibly cause an electrical shock. Use only a soft brush or lint-free cloth to avoid scratching the nish.
□You can apply a light coat of furniture polish to the wood for additional protection and enhanced beauty. Cover small scratches with a
light application of shoe polish.
□You do not need to oil your fan. The motor has permanently-lubricated sealed ball bearings.
WARNING: Make sure the power is off before cleaning
your fan.
Care and Cleaning

Questions, problems, missing parts? Before returning to the store,
call Home Depot Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Retain this manual for future use.

¿Preguntas, problemas o piezas faltantes? Antes de devolver a la tienda,
llama al Servicio al Cliente de Home Decorators Collection, de lunes a viernes,
entre 8:00 a.m. y 7:00 p.m. (Hora Estándar del Este), y los sábados de 9:00 a.m. a 6:00 p.m.
(Hora Estándar del Este).
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
GRACIAS POR TU COMPRA
Apreciamos la conanza que has depositado en Home Decorators Collection al comprar este ventilador de techo. Nos esforzamos en crear
continuamente productos de calidad diseñados para mejorar tu hogar. Visítanos por Internet para ver nuestra línea completa de productos disponibles
con vistas a las necesidades de mejoras de tu hogar. ¡Gracias por elegir Home Decorators Collection!
Artículo núm. 1001 784 408, 1001 784 409,
1001 784 407, 1001 784 410, 1001 784 405
Modelos núm. 68681, 68682,
68683, 68684, 68685
Modelo ETL núm. 68-ATRDC
GUÍA DE USO Y MANTENIMIENTO
VENTILADOR DE TECHO ALTURA, DE 1.7 M
P1
Para ver un video instructivo sobre cómo instalar este producto:
1. Ir a www.homedepot.com e introduzca el artículo o el número de modelo, que se
encuentra en la part superior esquina derecha de la portada de este manual de
instrucciones, en el campo de búsqueda.
2. Haga clic en su producto de la lista de resultados de búsqueda y hacer clic en el enlace
del video en el la sección "Descripción del producto".

2
ADVERTENCIA: Para disminuir el riesgo de incendio o descarga
eléctrica este ventilador sólo debe usarse con control de velocidad
(pieza núm. RH786NR) fabricado por Rhine.
Tabla de contenido .............................................................. 2
Información de seguridad...................................................2
Garantía................................................................................3
Preinstalación ......................................................................3
Instalación............................................................................6
Ensamblaje........................................................................... 7
Funcionamiento.................................................................13
Mantenimiento y limpieza.................................................15
Solución de problemas ..................................................... 15
1. Para disminuir el riesgo de descarga eléctrica, asegúrate de
cortar la electricidad en el cortacircuitos o la caja de fusibles
antes de comenzar.
2. Todo el cableado tiene que cumplir con el Código Nacional
de Electricidad ANSI/NFPA 70 y los códigos locales de
electricidad. La instalación eléctrica debe realizarse por un
electricista certicado y calicado.
3. La caja eléctrica y la estructura de soporte tienen que
montarse de forma segura y ser capaces de sostener con
abilidad un mínimo de 50 lb (22.7 kg). Usa solamente cajas
eléctricas aprobadas por UL y marcadas como “apropiada
para sostener ventiladores de 50 lb (22.7 kg) o menos”.
4. El ventilador tiene que montarse con un mínimo de 2.1 m de
separación entre el borde trasero de las aspas y el piso.
5. No coloques objetos en la trayectoria de las aspas.
6. Para evitar lesiones personales o daños al ventilador y otros
artículos, ten cuidado al limpiarlo o al trabajar alrededor de él.
7. Después de concluir las conexiones eléctricas, debes
voltear los conductores empalmados hacia arriba y meterlos
con cuidado en la caja eléctrica. Los cables deben estar
separados con el cable a tierra y el conductor a tierra del
equipo a un lado de la caja eléctrica.
8. Todos los tornillos colocados tienen que vericarse y ajustarse
donde sea necesario antes de la instalación.
ADVERTENCIA: Para reducir el riesgo de lesiones personales, no
dobles los soportes de las aspas (también llamados “bridas”)
durante el ensamblaje ni después de la instalación. No coloques
objetos en la trayectoria de las aspas.
ADVERTENCIA: Para reducir el riesgo de incendio o descarga
eléctrica, no utilices este ventilador con ningún dispositivo de
control de velocidad de estado sólido.
ADVERTENCIA: Los diagramas eléctricos son tan solo para
referencia. Si usas un kit de luces, consulta el manual de
instrucciones del kit para hacer las conexiones eléctricas.
Cualquier juego de luces opcional deberá estar aprobado por UL y
marcado como adecuado para usar con este ventilador.
ADVERTENCIA: Para evitar una posible descarga eléctrica,
desconecta la electricidad de la caja de fusibles principal antes
del cableado. Si crees que no tienes suciente conocimiento o
experiencia sobre cableado eléctrico, contacta a un electricista
certicado.
Información de seguridad
Tabla de contenido
PRECAUCIÓN: Para reducir el riesgo de lesiones personales,
usa solo los tornillos incluidos con la caja eléctrica.
LEE Y GUARDA ESTAS INSTRUCCIONES.
PRECAUCIÓN: Los cambios o modicaciones sin previa aprobación
expresa de la parte responsable de su cumplimiento podrían anular
el derecho del usuario a operar el equipo.
Este equipo ha sido comprobado y se determinó que cumple con los límites establecidos para un dispositivo digital Clase B, de acuerdo con la Parte 15 de las Normas de la FCC. Estos
límites fueron establecidos para ofrecer protección razonable contra la interferencia dañina durante uso residencial. Este equipo genera, usa y puede irradiar energía de radiofrecuencia;
si no se instala y usa de acuerdo con las instrucciones, puede causar interferencia dañina a comunicaciones radiales. Sin embargo, no hay garantía de que no ocurrirá interferencia en una
instalación particular. Si este equipo causa interferencia que perjudica la recepción de radio o televisión, lo cual puede determinarse encendiendo y apagando el equipo, se recomienda al
usuario que trate de corregir la interferencia con una o más de las siguientes medidas:
– Reorientar o reubicar la antena receptora.
– Incrementar la distancia entre los equipos y el receptor.
– Conectar el equipo a un tomacorriente en circuito distinto al que el receptor está conectado.
– Consultar al distribuidor o algún técnico de Radio/TV con experiencia.
PRECAUCIÓN:
Los cambios o modicaciones sin aprobación expresa del garante de este dispositivo podrían anular el derecho del usuario a operar el equipo.
Este dispositivo cumple con la Parte 15 de las Normas de FCC. Su operación está sujeta a las dos condiciones siguientes:
(1) este dispositivo no causa una interferencia dañina, y
(2) este dispositivo tiene que aceptar cualquier interferencia recibida, incluyendo aquella que pueda causar un funcionamiento no deseado.
ADVERTENCIA: Para reducir el riesgo de incendio, descarga eléctrica
o lesiones personales, instala solo en una caja eléctrica clasicada
como “apropiada para sostener ventiladores de 50 lb (22.7 Kg) o
menos” y usa los tornillos que vienen con ella.

3HOMEDEPOT.COM/HOMEDECORATORS
Para asistencia adicional, llama al 1-800-986-3460.
Preinstalación
Garantía
El proveedor garantiza de por vida, a partir de la fecha de adquisición por el comprador original, que el motor del ventilador no presenta defectos de
fabricación ni de materiales al momento del envío desde la fábrica. El proveedor también garantiza, por un período de tres años a partir de la fecha de
adquisición por el comprador original, que todas las demás piezas del ventilador, sin incluir aspas de vidrio o acrílico, no presentarán ningún defecto
de fabricación ni de material al momento del envío desde la fábrica. Si el producto es devuelto, aceptamos reparar sus defectos sin cargo alguno o, a
nuestra discreción, reemplazarlo por un modelo similar o superior. Para obtener servicio de garantía tiene que presentarse una copia del recibo como
comprobante de compra. Todos los costos de retiro y reinstalación del producto correrán por tu cuenta. No están cubiertos bajo esta garantía los
daños a cualquier pieza por accidente, instalación o uso incorrectos, ni por instalación de cualquier accesorio. Puesto que las condiciones climáticas
pueden variar, esta garantía no cubre ningún cambio en el acabado en bronce, incluyendo óxido, perforación, corrosión, manchas o descascaramiento.
Este tipo de acabado en latón provee la vida útil más larga al proteger contra condiciones climáticas cambiantes. Cierta “oscilación” es normal y no
debe considerase un defecto. Cualquier servicio prestado por personal no autorizado invalidará la garantía. No hay ninguna otra garantía expresa. Por
este medio y en el alcance permitido por la ley, Home Decorators Collection queda exento de todas y cada una de las garantías, incluyendo, pero sin
limitación, aquellas de comercialización e idoneidad para determinado propósito. La duración de cualquier garantía implícita que no pueda eximirse
está limitada al período especicado en la garantía explícita. Algunos estados no permiten limitar la duración de la garantía, así que la limitación
anterior pudiera no aplicarse a su caso. El minorista no será responsable por daños directos, indirectos ni especiales que resulten o deriven del uso o
funcionamiento del producto, excepto en los casos estipulados por la ley. Algunos estados no permiten excluir ni limitar daños directos o indirectos,
así que la limitación o exclusión anterior pudiera no aplicarse a su caso. Esta garantía otorga derechos legales especícos y es posible que usted
tenga también otros derechos, que varían de un estado a otro. Esta garantía sustituye todas las garantías anteriores. El cliente tiene que pagar los
costos de envío de cualquier devolución de productos como parte de reclamación de garantía.
Comuníquese con el equipo de servicio al cliente por el teléfono 1-800-986-3460 o visite www.HOMEDEPOT.COM/HOMEDECORATORS.
ESPECIFICACIONES
NOTA: Estas medidas son aproximadas. No incluyen ni el
amperaje ni el vataje consumido por el kit de luces.
Tamaño Velocidad Voltios
Consumo de
energía del
ventilador
(sin luces)
WATT
Flujo de aire
CFM
Eciencia de ujo
de aire
(Mientras más
alta, mejor)
CFM/WATT
Peso
neto
Peso
bruto Pies cúbicos
1.7 m
Bajo
120
3 3679 1226 23.81 lb
(10.8 Kg)
28.88 lb
(13.1 Kg) 3.53 pies³ (0.1 m³)
Medio 11 6790 617
Alto 32 9553 298

4
Preinstalación (continuación)
SE INCLUYEN HERRAJES
HERRAMIENTAS NECESARIAS
Destornillador
Phillips
Destornillador
plano
Llave
ajustable
Cinta de
electricista
Cortacables /
pelacables
Escalera de tijera
Pieza Descripción Cantidad
AA Tornillos para montaje de aspas 15
BB Tuerca de plástico para conectar cables 3
CC Tuerca decorativa 15
NOTA: Los herrajes no se muestran en tamaño real.
AA BB CC
