Home Decorators Collection REAGAN II YG423-BN User manual

USE AND CARE GUIDE
REAGAN II 52 IN. CEILING FAN
Item #657-839
Model #YG423-BN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
THANK YOU

Operation ......................................................................
Remote Control Operating Instructions ..................................
Installing the Remote Control Holder .....................................
Reverse Switch Operating Instructions ..................................
Care and Cleaning .......................................................
Troubleshooting ..........................................................
Service Parts ...............................................................
17
17
17
18
18
19
20
Table of Contents
2
Table of Contents ..........................................................
Safety Information .........................................................
Warranty .........................................................................
Pre-Installation ..............................................................
Tools Required .........................................................................
Hardware Included ..................................................................
Package Contents ....................................................................
Dual Mounting Instructions ......................................................
Installation .....................................................................
Assembly ........................................................................
Standard Ceiling Mounting .......................................................
Close-to-Ceiling Mounting .....................................................
Hanging the Fan ....................................................................
Attaching the Fan Blades .......................................................
Installing the Light Kit ............................................................
2
3
4
4
4
4
5
6
7
8
9
9
10
11
15
16

Safety Information
1. To reduce the risk of electric shock, ensure electricity has
been turned off at the circuit breaker or fuse box before
beginning.
2. All wiring must be in accordance with the National Electrical
Code “ANSI/NFPA 70-1999” and local electrical codes.
Electrical installation should be performed by a qualified
licensed electrician.
3. The outlet box and support structure must be securely
mounted and capable of reliably supporting a minimum of 35
lbs. Use only UL-listed outlet boxes marked “FOR FAN
SUPPORT.”
4. The fan must be mounted with a minimum of 7 ft. clearance
from the trailing edge of the blades to the floor.
5. Avoid placing objects in the path of the blades.
6. To avoid personal injury or damage to the fan and other
items, be cautious when working around or cleaning the fan.
7. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
8. After making electrical connections, spliced conductors
should be turned upward and pushed carefully up into the
outlet box. The wires should be spread apart with the
grounded conductor and the equipment-grounding conductor
on one side of the outlet box and ungrounded conductor on
the other side of the outlet box.
9. All setscrews must be checked and retightened where
necessary before installation.
10. This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
WARNING: To reduce the risk of electrical shock or fire, do
not use this fan with any solid-state fan speed control device.
It will permanently damage the electronic circuitry.
WARNING: To reduce the risk of personal injury, do not
bend the blade arms (also referred to as flanges), when
installing the brackets, balancing the blades or cleaning the
fan.
WARNING: Do not insert foreign objects between rotating
fan blades.
WARNING: To reduce the risk of fire, electric shock or
personal injury, mount the fan to the outlet box marked
acceptable for fan support with the screws provided with the
outlet box.
CAUTION: To reduce the risk of personal injury, use only
the screws provided with the outlet box.
3HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

SPECIFICATIONS
SPECIFICATIONS
TOOLS REQUIRED
TOOLS REQUIRED
Phillips
screwdriver
Electrical
tape
Wire
stripper
Flat blade
screwdriver
Step
ladder
NOTE: These are approximate measures. They do not
include amps and wattage used by the light kit.
Warranty
4
Pre-InstallationPre-Installation
We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period
of lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glass or acrylic
blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the
date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or
superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All
costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper installa-
tion or by affixing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover
any changes in brass finish, including rusting, pitting, corroding, tarnishing or peeling. Brass finishes of this type give their longest useful
life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect.
Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby disclaim
any and all warranties, including but not limited to those of merchantability and fitness for a particular purpose to the extent permitted by
law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specified in the express warranty.
Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall
not be liable for incidental, consequential, or special damages arising out of or in connection with product use or performance except as
may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the above
exclusion or limitation may not apply to you. This warranty gives specific legal rights, and you may also have other rights which vary from
state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty
must be paid by the customer.
Contact the Customer Service Team at 1-800-986-3460 or visit www.HOMEDEPOT.COM/HOMEDECORATORS
52 in.
Low
Medium
High
120
Fan size
Fan size
Watts
Watts
RPM
RPM
CFM
CFM
Speed
Speed
Volts
Volts
Amps
Amps
2.14 cu. ft.
N.W.
N.W.
G.W.
G.W.
C.F.
C.F.
0.26
0.34
0.40
11
25
44
68
108
146
1694
2775
3821
7.04 kg
(15.48 lb)
8.47 kg
(18.64 lb)
3171583

Pre-Installation (continued)

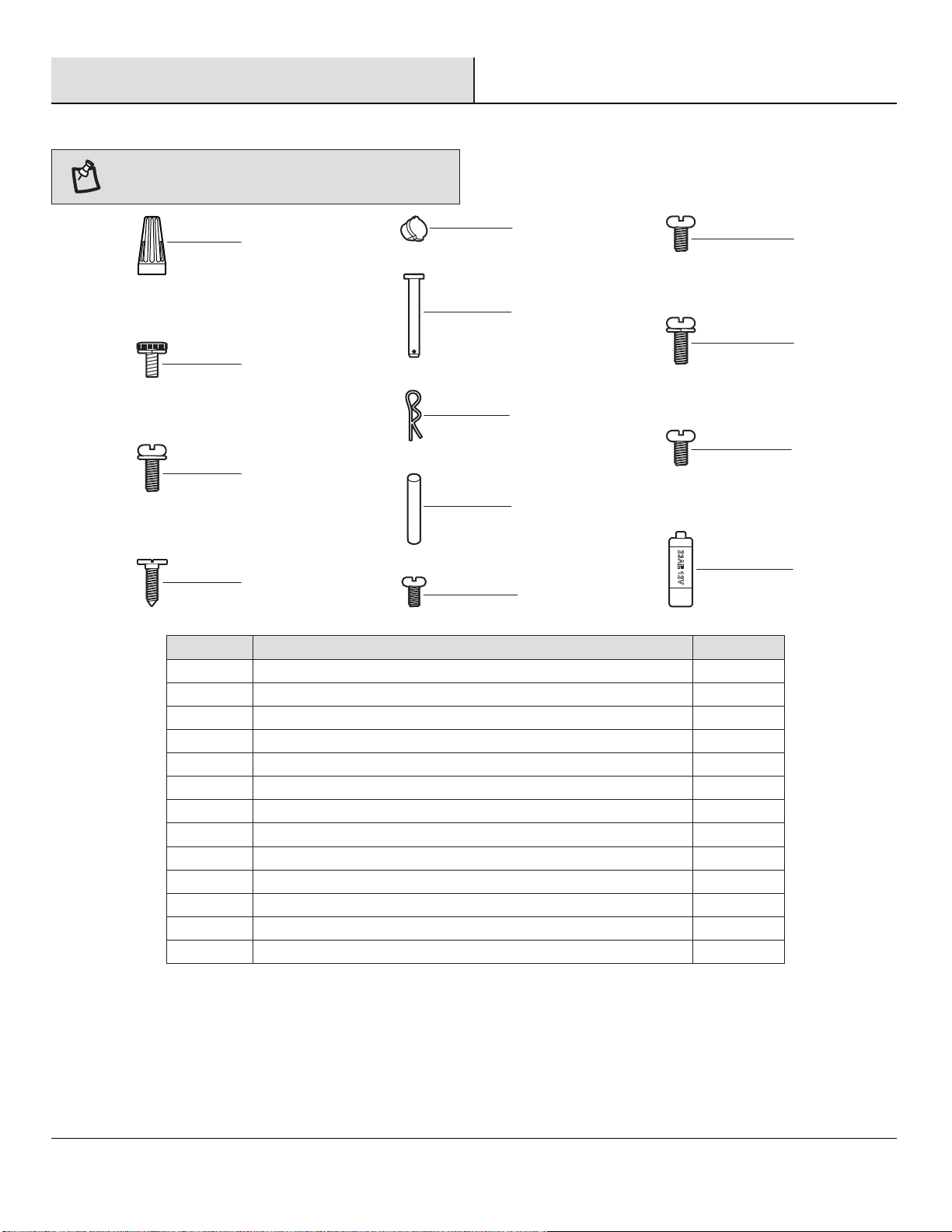

HARDWARE INCLUDED
HARDWARE INCLUDED
NOTE: Hardware shown to actual size unless noted
otherwise in the table below.
AA
BB
CC
DD
EE
FF
GG
HH
II
JJ
KK
LL
MM
Plastic wire nut
Canopy mounting bracket screw with lock washer (preassembled)
Blade attachment screw and washer
Remote control holder mounting screw (not to scale)
Remote control holder plug (preassembled)
Clevis pin (preassembled)
Cotter pin (preassembled)
Cross pin (preassembled)
Setscrew (preassembled)
Collar setscrew (preassembled)
Collar mounting screw with lock washer (preassembled)
Light kit mounting screw (preassembled)
12V MN21/A23 battery (not to scale)
Part
Part
Description
Description
9
4
10
2
2
1
1
1
1
2
6
3
1
Quantity
Quantity
KK
JJ
LL
MM
EE
FF
GG
HH
II
AA
BB
CC
DD
5HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

A
F
I
J
G
E
K
L
M
H

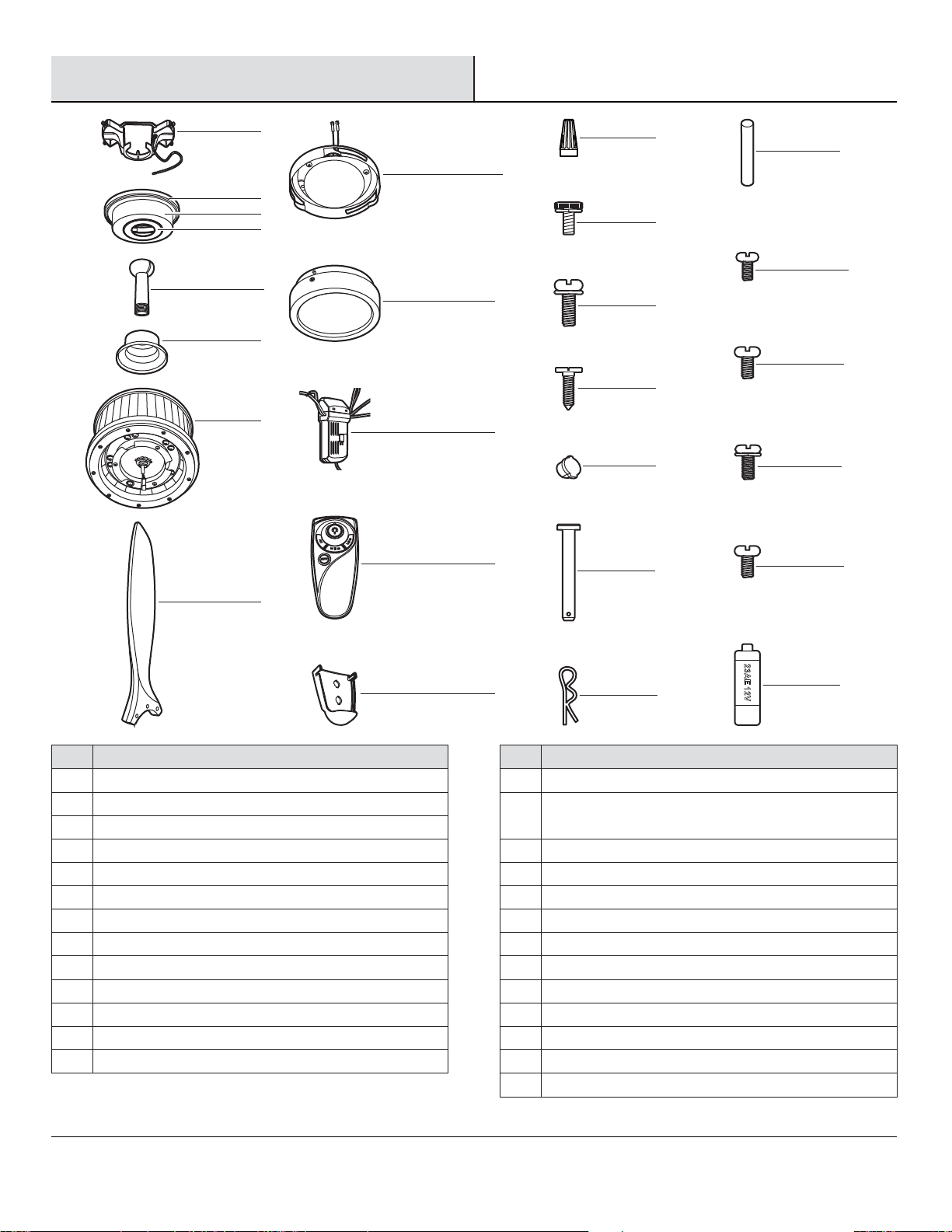

PACKAGE CONTENTS
PACKAGE CONTENTS
Pre-Installation (continued)
6
B
C
D
Part
Part
H
I
J
K
L
M
Description
Description
Blade
16 watt LED Light kit
Light kit cover
Receiver
Remote control
Remote control holder
Quantity
Quantity
3
1
1
1
1
1
Part
Part
A
B
C
D
E
F
G
Quantity
Quantity
1
1
1
1
1
1
1
Description
Description
Mounting bracket (preassembled)
Canopy ring (preassembled)
Canopy
Canopy bottom cover (preassembled)
Hanger ball/downrod assembly
Coupling cover
Fan motor assembly

Pre-Installation (continued)
DUAL MOUNTING INSTRUCTIONS
DUAL MOUNTING INSTRUCTIONS
This ceiling fan is supplied with two types of hanging assemblies: the
standard ceiling installation using the downrod with ball and socket
mounting, and the "close-to-ceiling" mounting. The "close-to-ceiling"
mounting is recommended in rooms with less than 8 ft. ceilings or in
areas where additional space is desired from the floor to the fan blades.
When using the standard downrod installation, the distance from the
ceiling to the bottom of the fan blades will be approximately 12 in. The
"close-to-ceiling" installation reduces the distance from the ceiling to the
bottom of the fan blades to approximately 9 in.
Once you have decided which ceiling installation you will use, refer to the
corresponding sections and procedures during the assembly period.
Where necessary, each section of the instructions will note the different
procedures to follow for the two types of installation.
Standard Ceiling Mounting
Close-to-Ceiling Mounting
7HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

To hang your fan where there is an existing fixture but no ceiling
joist, you may need an installation hanger bar (OO) (not included)
as shown above.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□Secure the outlet box (NN) (not included) directly to the
building structure. Use appropriate fasteners and materials
(not included). The outlet box and its bracing must be able
to fully support the weight of the moving fan (at least 35
lbs.). Do not use a plastic outlet box.
The illustrations below show three different ways to mount the
outlet box (NN) (not included).
NN
NN
OO
NN
NN
A
Installation
MOUNTING OPTIONS
MOUNTING OPTIONS
WARNING: To reduce the risk of fire, electric shock, or
personal injury, mount the fan to an outlet box marked
acceptable for fan support using the screws provided with the
outlet box. An outlet box commonly used for the support of
lighting fixtures may not be acceptable for fan support and
may need to be replaced. If in doubt, consult a qualified
electrician.
NOTE: You may need a longer downrod to maintain proper
blade clearance when installing on a steep, sloped ceiling.
The maximum angle allowable is 18° away from horizontal. If
the canopy (C) touches the hanger ball/downrod assembly (E),
then remove the decorative canopy bottom cover (D) and turn
the canopy (C) 180° before attaching the canopy (C) to the
mounting bracket (A).
8

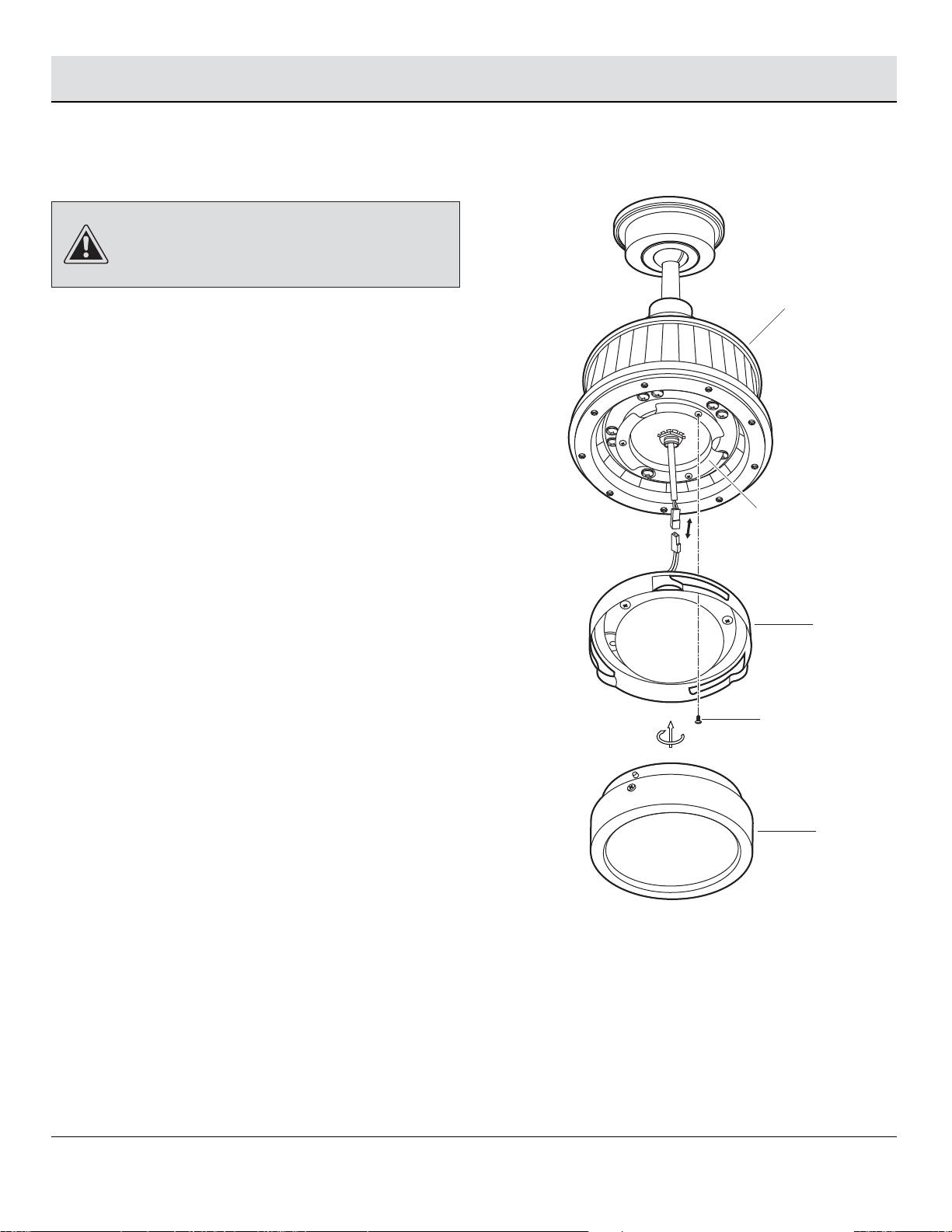

1Preparing the canopy 2Preparing the motor
□Remove the canopy ring (B) from the canopy (C).
□Remove the two non-slotted mounting bracket screws
(BB) from the canopy (C), and loosen the slotted
mounting bracket screws (BB) on the canopy (C).
□Remove the canopy (C) from the mounting bracket (A)
by turning the canopy (C) counterclockwise.
3Assembling the fan
□Remove the clevis pin (FF) and cotter pin (GG), and
loosen the two collar setscrews (JJ) from the motor
collar.
□Take out the setscrew (II) located in the hanger ball
(PP), lower the hanger ball (PP) and remove the cross
pin (HH). Remove the hanger ball (PP) from the
hanger ball/downrod assembly (E).
Assembly — Standard Ceiling Mounting
A
BB
BB
C
B
GG
FF
JJ
JJ
II
E
HH
PP
WARNING: Failure to properly install the cotter pin (GG)
could result in the fan loosening and possibly falling.
B
G
F
PP
C
QQ
JJ
JJ
FF
GG
II
HH
□Carefully feed the motor wires up through the
downrod (QQ). Thread the downrod (QQ) into the
collar.
□Align the holes and replace the cotter pin (GG) and
clevis pin (FF). Tighten the two collar setscrews (JJ).
□Slip the coupling cover (F), canopy ring (B), and
canopy (C) onto the downrod (QQ).
□Carefully reinstall the hanger ball (PP) onto the
downrod (QQ), being sure that the cross pin (HH) is in
the correct position, the setscrew (II) is tightened and
wires are not twisted.
NOTE: If a longer downrod (not included) is needed, take
out the screw located in the hanger ball (PP), lower the
hanger ball (PP) and remove the pin (HH). Remove all three
pieces from the downrod and assemble them onto the new
longer downrod before proceeding to the downrod installa-
tion.
9HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

10
Assembly — Close-to-Ceiling Mounting
12
3Assembling the fan
Preparing the motorPreparing the canopy
□Remove three of the six collar mounting screws with
lock washers (KK) (every other one) from the collar on
top of the fan motor assembly (G).
WARNING: Failure to completely tighten the three collar
mounting screws (KK) could result in the fan becoming loose
and possibly falling. C
B
G
KK
KK
G
D
□Remove the canopy ring (B) from the canopy (C).
□Remove the mounting bracket (A) from the canopy (C)
by loosening the four canopy mounting bracket
screws (BB) on the top of the canopy (C). Remove the
two non-slotted canopy mounting bracket screws
(BB) and loosen the slotted canopy mounting bracket
screws (BB).
□Remove the canopy bottom cover (D) from the
canopy (C).
□Make sure the slot openings of the canopy ring (B)
are on top, and then proceed to place the canopy ring
(B) and canopy (C) over the collar at the top of the fan
motor assembly (G).
□Align the mounting holes in the bottom of the canopy
(C) with the holes in the top of the fan motor assem-
bly (G). Fasten using the three collar mounting screws
with lock washers (KK) previously removed.
□Tighten the collar mounting screws (KK) securely.
A
BB
BB
C
B

Assembly — Hanging the Fan
4Attaching the fan to the
electrical box
5b5a Hanging instructions for
standard mounting
Hanging instructions for
close-to-ceiling mounting
□Pass the 120-volt supply wires through the center
hole in the mounting bracket (A).
□Attach the mounting bracket (A) on the outlet box
(NN) by sliding the mounting bracket (A) over the
screws provided with the outlet box. When using
“close-to-ceiling” mounting, it is important that the
mounting bracket (A) be level. If necessary, use
leveling washers (not included) between the mount-
ing bracket (A) and the outlet box (NN). Note that the
flat side of the mounting bracket (A) is toward the
outlet box (NN).
□Securely tighten the two mounting screws.
WARNING: To reduce the risk of fire, electric shock or
other personal injury, mount the fan only to an outlet box or
supporting system marked acceptable for fan support and
use the mounting screws provided with the outlet box.
WARNING: The tab in the ring must rest in the groove of
the hanger ball (E). Failure to properly seat the tab in the
groove could cause damage to the wiring.
WARNING: The hook is only to hold the fan while attaching
wiring. Failure to hang as instructed may result in the tab
breaking causing the fan to fall. The hook must pass from the
inside to the outside of the canopy.
□Carefully lift the fan motor assembly (G) up to the
mounting bracket (A) and seat the hanger ball (E) in
the mounting bracket (A) socket. Make sure the tab
on the mounting bracket (A) socket is properly seated
in the groove in the hanger ball (E). This will help to
balance the ceiling fan.
□Carefully lift the fan motor assembly (G) up to the
mounting bracket (A) and hang the fan on the hook
provided using one of the holes at the outer rim of the
canopy (C).
A
NN
AA
G
E
C
11
G
C
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

Assembly — Hanging the Fan (continued)
12

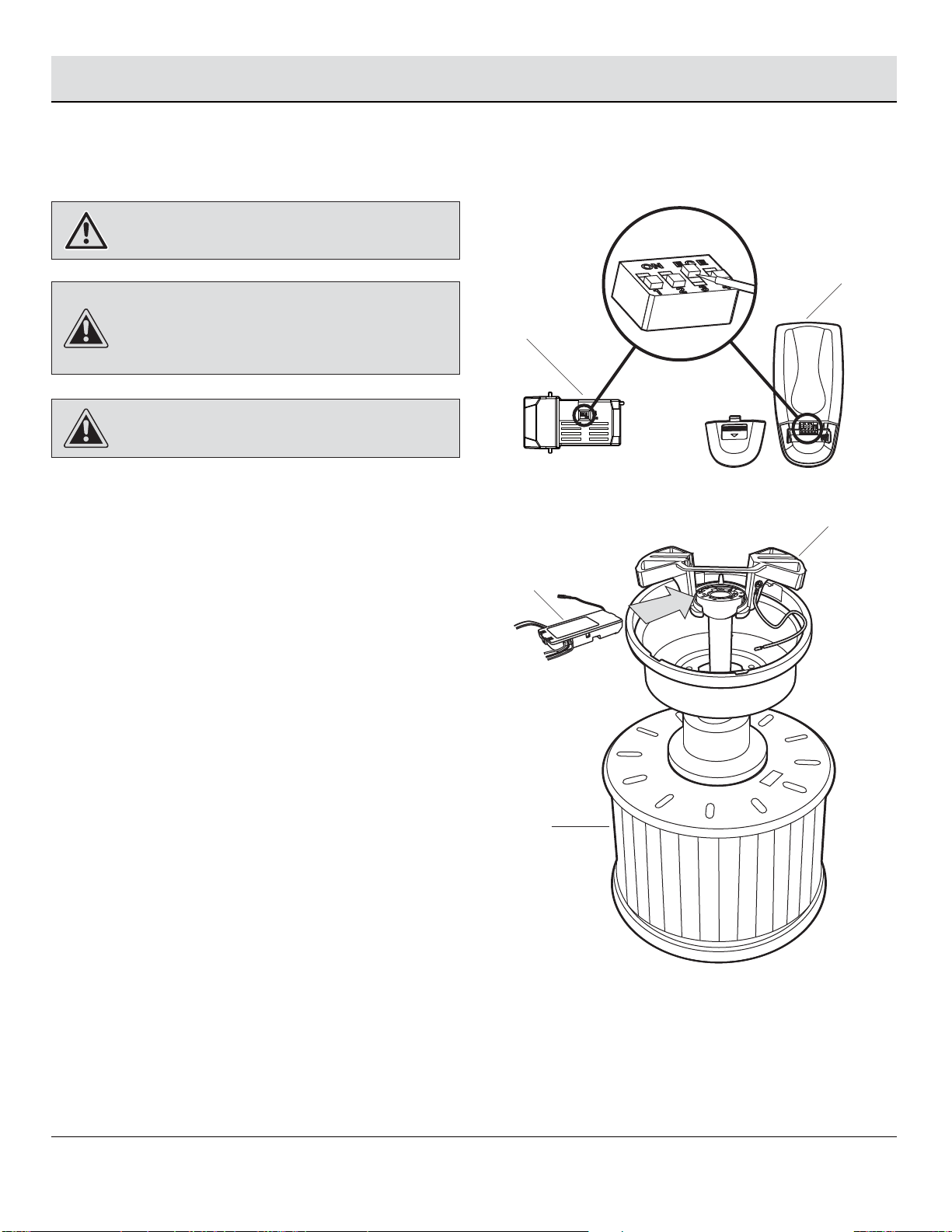

6Preparing the receiver and
remote control
CAUTION: The frequency switches on the receiving unit are
covered with a rubber cover. Remove the rubber cover, and
then replace it after making any changes to the frequency
switches.
CAUTION: Do not use with a wall light dimmer switch.
WARNING: To avoid possible electrical shock, be sure
electricity is turned off at the main fuse box before wiring.
G
K
A
K
L
If you feel you do not have enough electrical wiring
knowledge or experience, have your fan installed by a
licensed electrician.
This remote control unit is equipped with 16 code
combinations to prevent possible interference from or to
other remote units. The frequency switches on your
receiver (K) and remote control (L) have been preset at the
factory. Please recheck to make sure the switches on the
remote control (L) and the receiver (K) are set to the same
position. Any combination of settings will operate the fan
as long as the switches in the remote control (L) and
receiver (K) are set to the same position.
□After checking the switches, insert the receiver (K)
into the mounting bracket (A) with the flat side of the
receiver (K) facing the ceiling.

7Making the electrical connections
Assembly — Hanging the Fan (continued)
Follow the steps below to connect the fan to your
household wiring. Use the plastic wire nuts (AA) with your
fan. Secure the plastic wire nuts (AA) with electrical tape.
Make sure there are no loose strands or connections.
Motor to receiver electrical connections:
□Connect the black wire (RR) from the fan to the black
wire (AAA) marked "TO MOTOR L" from the receiver
(K).
□Connect the white wire (TT) from the fan to the white
wire (CCC) marked "TO MOTOR N" from the receiver
(K).
□Connect the blue wire (SS) from the fan to the blue
wire (BBB) marked "For Light" from the receiver (K).
Receiver to house supply wires electrical connections:
□Connect the black (hot) wire (FFF) from the ceiling to
the black wire (DDD) marked "AC in L" from the
receiver (K).
□Connect the white (neutral) wire (GGG) from the
ceiling to the white wire (EEE) marked "AC in N" from
the receiver (K).
□If your outlet box (NN) has a ground wire (HHH) (green
or bare copper) connect it to the fan ground wires
(III); otherwise connect the hanger ball/downrod
assembly (E) ground wire to the mounting bracket (A).
□Secure each wire connection with a plastic wire nut
(AA) provided with the electrical hardware.
□After connecting the wires, spread them apart so that
the green and white wires are on one side of the
outlet box (NN) and the black and blue wires are on
the other side. Carefully tuck the wire connections up
into the outlet box (NN).
WARNING: Check to see that all connections are tight,
including ground, and that no bare wire is visible at the wire
nuts, except for the ground wire.
NOTE: The fan must be installed at a maximum distance of
20 ft. from the remote control for proper signal transmission
between the remote control and the fan's receiving unit.
CAUTION: Do not use with a wall light dimmer switch.
DDD
FFF GGG
K
HHH
EEE
NN
AA
AAA
BBB
CCC
TT
SS
RR
III
13 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

Assembly — Hanging the Fan (continued)
8a Standard ceiling mounting 8b Close-to-ceiling mounting
WARNING: The locking slots of the canopy (C) are provided
only as an aid to mounting. Do not leave the fan assembly
unattended until all four canopy mounting bracket screws
(BB) are engaged and firmly tightened.
WARNING: Make sure the tab on the mounting bracket (A)
properly sits in the groove in the hanger ball (E) before
attaching the canopy (C) to the mounting bracket (A) by
turning the canopy (C) until it drops into place.
WARNING: Locking slots of the canopy (C) are provided
only as an aid to mounting. Do not leave the fan assembly
unattended until all four canopy screws (BB) are engaged and
firmly tightened.
□Slide the canopy (C) up to the ceiling. Make sure you
have placed the wires safely into the outlet box (NN).
□ Secure the canopy (C) to the mounting bracket (A)
with the four canopy mounting bracket screws and
lock washers (BB) included with your fan.
□Slide the canopy ring (B) over the canopy (C) and
tighten by turning the ring (B).
□Remove the fan from the hook on the mounting
bracket (A).
□Secure the canopy (C) to the mounting bracket (A)
with the four mounting bracket screws with lock
washers (BB) provided.
□Slide the canopy ring (B) over the canopy (C) and
tighten by turning the ring (B).
14
BB
NN
A
BB
B
C
E
BB
A
BB
B
C

9Attaching the LED light kit
and light kit cover
Assembly — Installing the Light Kit
CAUTION: Before starting installation, disconnect the
power by turning off the circuit breaker or removing the fuse
at the fuse box. Turning power off using the fan switch is not
sufficient to prevent electric shock.
□Remove one of the three light kit mounting screws
(LL) from the mounting ring (JJJ) and loosen the
other two screws. (Do not remove.)
□While holding the 16W LED light kit (I) under the fan
motor assembly (G), make the 2-pin wire
connections:
- Red to white
- Black to black
□Place the key holes in the 16W LED light kit (I) over
the two mounting screws (LL) previously loosened
from the mounting ring (JJJ). Turn the 16W LED light
kit (I) until the 16W LED light kit (I) locks in place at
the narrow section of the key holes. Securely tighten
the two light kit mounting screws (LL) previously
loosened and the one (LL) previously removed.
□Raise the light kit cover (J) up against the 16W LED
light kit (I) and secure it to the fan by turning the light
kit cover (J) clockwise until snug. DO NOT
OVERTIGHTEN.
15 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
JJJ
G
I
LL
J

10 Fastening the blade
assemblies to the motor
WARNING: To reduce the risk of personal injury, do not
insert foreign objects between rotating fan blades (H).
□The fan motor assembly (G) is shipped with rubber
packing mounts (UU) to prevent movement during
transportation. Remove the nine rubber packing
mounts (UU) from the fan motor assembly (G) and
discard prior to attaching the blade arms.
□Align the holes from the blade (H) to the holes from
the motor (G), and secure the blade in place with
screws and washers (CC) provided.
□Repeat this process to attach the other two blades
(H).
Assembly — Attaching the Fan Blades
16
H
G
CC
UU

Operation

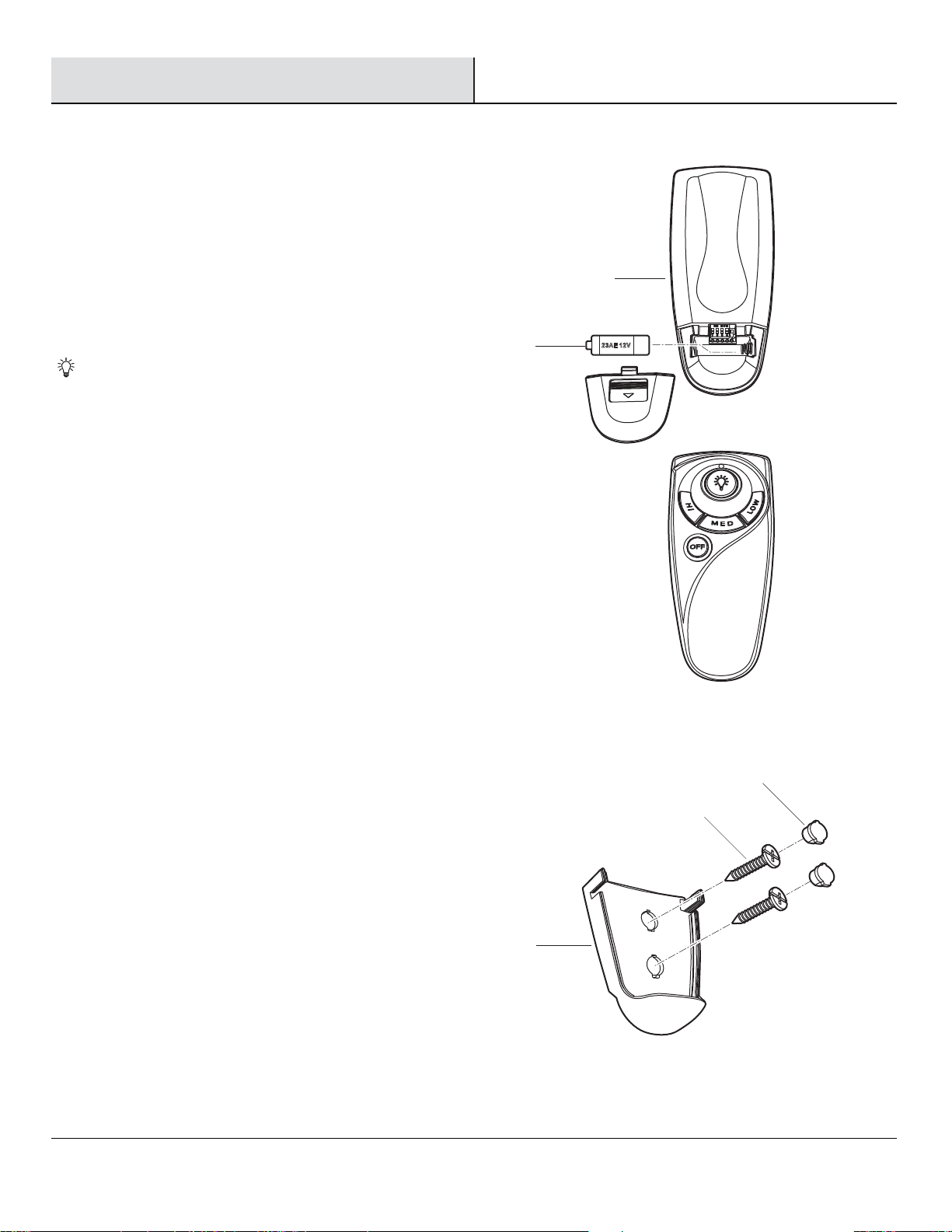

REMOTE CONTROL OPERATING INSTRUCTIONS
REMOTE CONTROL OPERATING INSTRUCTIONS
INSTALLING THE REMOTE CONTROL HOLDER
INSTALLING THE REMOTE CONTROL HOLDER
M
DD
EE
L
MM
□Remove the two remote control holder plugs (EE) from the
remote control holder (M). Note that the plugs have unique
tabs that allow them to fit only in one hole.
□Attach the remote control holder (M) with the two remote
control holder mounting screws (DD).
□Replace the two remote control holder plugs (EE) each into its
own hole.
□Install the 12V MN21/A23 battery (MM) (included) into the
remote control (L). To prevent damage to the remote control
(L), remove the battery if not used for long periods.
□Restore power to the ceiling fan and test for proper operation.
HI, MED, LOW buttons: Sets the fan speed.
OFF button: Turns the fan off.
button: Turns the light on or off and also controls the
brightness setting. Press and release this button to turn the light
on or off. Press and hold the button to set the desired brightness.
The light button has an auto-resume, it will stay at the same
brightness as the last time it was turned off.
17 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

Operation (continued)
Care and Cleaning
□Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure.
Because of the fan’s natural movement, some
connections may become loose over time. It is not
necessary to remove the fan from the ceiling.
□Clean your fan periodically. Use only a soft brush or
lint-free cloth to avoid scratching the finish. The plating is
sealed with a lacquer to minimize discoloration or
tarnishing.
□(Optional) Apply a light coat of furniture polish to the wood
blades.
□(Optional) Cover small scratches with a light application of
shoe polish.
Do
Do
□Use water when cleaning. Water could damage the motor,
or the wood, or possibly cause an electrical shock.
□Apply oil to your fan or motor. The motor has
permanently-lubricated sealed ball bearings.
Do not
Do not
NOTE: Wait for the fan to stop before reversing the direction
of the blade rotation.
REVERSE SWITCH OPERATING INSTRUCTIONS
REVERSE SWITCH OPERATING INSTRUCTIONS
The reverse switch is located on the top of the motor housing.
Slide the switch to the left for warm weather operation. Slide the
switch to the right for cool weather operation.
Warm weather - (Counterclockwise Direction) A downward air flow
creates a cooling effect. This allows you to set your air conditioner
on a warmer setting without affecting your comfort.
Cool weather - (Clockwise Direction) An upward air flow moves
warm air off the ceiling. This allows you to set your heating unit on
a cooler setting without affecting your comfort.
18

□Do not connect the fan with wall mounted variable speed control(s).
□Make sure the frequency switches are set correctly.
The fan wobbles.
The remote control is
not working.
Troubleshooting
Problem
Problem
Solution
Solution
□Check the main and branch circuit fuses or breakers.
□Check the line wire connections to the fan and switch wire connections in the switch housing.
□Check to make sure the frequency switches from the remote control and receiver are set to the same
frequency.
□Make sure all motor housing screws are snug.
□Make sure the screws that attach the fan blade arm to the motor hub are tight.
□Make sure the wire nut connections are not rattling against each other or the interior wall of the switch
housing.
□Allow a 24-hour "breaking-in" period. Most noises associated with a new fan disappear during this
time.
□If using the ceiling light kit, make sure the glassware is secured tightly.
□Make sure there is a short distance from the ceiling to the canopy. It should not touch the ceiling.
□Make sure your ceiling box is secure and that rubber isolator pads are used between the mounting
bracket and outlet box.
The fan will not start.
The fan sounds noisy.
WARNING: Make sure the power is off at the electrical
panel box before you attempt any repairs. Refer to step 7
“Making the electrical connections” on page 13.
□Verify that all blades and blade bracket screws are secure (most fan wobble problems are caused by
loose parts). Once the fan is properly installed, run the ceiling fan for 10 minutes to let the fan
self-adjust.
If wobble occurs after running the fan for 10 minutes, verify blade level using the following process:
- Select a point on the ceiling above the tip of one of the blades, then select any fan blade and
measure from the center of the selected blade to the point on the ceiling. Rotate the fan until the next
blade is positioned and repeat the measurement using the same point from the ceiling for every blade.
Measurement deviations should be within 1/8 in..
- If all deviations are less than 1/8 in. and the fan continues to wobble, please call Customer Service
(1-800-986-3460) to order a complimentary Blade Balancing Kit.
- If deviation is greater than 1/8 in. , please call Customer Service (1-800-986-3460) to order
complimentary replacements of your brackets.
19 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

Part
Part
A
B
C
D
E
F
G
H
I
J
K
L
M
Description
Description
Mounting bracket (preassembled)
Canopy ring (preassembled)
Canopy
Canopy bottom cover (preassembled)
Hanger ball/downrod assembly
Coupling cover
Fan motor assembly
Blade
16 watt LED Light kit
Light kit cover
Receiver
Remote control
Remote control holder
Part
Part
AA
BB
CC
DD
EE
FF
GG
HH
II
JJ
KK
LL
MM
Description
Description
Plastic wire nut
Canopy mounting bracket screw with lock washer
(preassembled)
Blade attachment screw and washer
Remote control holder mounting screw
Remote control holder plug (preassembled)
Clevis pin (preassembled)
Cotter pin (preassembled)
Cross pin (preassembled)
Setscrew (preassembled)
Collar setscrew (preassembled)
Collar mounting screw with lock washer (preassembled)
Light kit mounting screw (preassembled)
12V MN21/A23 battery
Service Parts
A
I
J
K
L
M
E
F
G
H
AA
BB
CC
DD
EE
FF
GG
HH
II
JJ
KK
LL
MM
B
C
D
20
