Home Decorators Collection WESLEY 34776-HBUG User manual

USE AND CARE GUIDE
1-800-986 3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
WESLEY 52 INCH CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.
Item #/ Model #: 34776-HBUG (1004 292 109)
Item #/ Model #: 34776-HBUM (1004 292 266)
Item #/ Model #: 34776-HBU (1004 292 316)

2
Installation .....................................................................
Table of Contents ..........................................................2
Safety Information .........................................................2
Warranty .........................................................................3
Pre-installation .............................................................. 3
6
Assembly ....................................................................... 7
Table of Contents
12Operation
Care and Cleaning 14
Troubleshooting 15
FCC Statement 16
......................................................................
.......................................................
...........................................................
.............................................................
Safety Information
To reduce the risk of electric shock, ensure electricity has
been turned off at the circuit breaker or fuse box before you
begin.
All wiring must be in accordance with the National Electrical
Code “ANSI/NFPA 70” and local electrical codes.
Electrical installation should be performed by a qualified
licensed electrician.
The outlet box and support structure must be securely
mounted and capable of reliably supporting a minimum of 35
lbs (15.9 kg). Use only UL Listed outlet boxes marked
“Acceptable for Fan Support of 35 lbs. (15.9 kg) or less.”
Do not place objects in the path of the blades.
Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
After making electrical connections, spliced conductors
should be turned upward and pushed carefully up into the
outlet box. The wires should be spread apart with the
grounded conductor and the equipment-grounding conductor
on one side of the outlet box and ungrounded conductor on
the other side of the outlet box.
All setscrews must be checked and retightened where
necessary before installation.
1.
2.
3.
4.
5.
6.
7.
READ AND SAVE THESE INSTRUCTIONS.
WARNING: To reduce the risk of personal injury, do not
WARNING:
WARNING: To avoid possible electrical shock,
turn the electricity off at the main fuse box before
wiring.
CAUTION: To reduce the risk of personal injury,
use only the screws provided with the outlet box.
CAUTION: To avoid personal injury or damage to the fan
and other items, use caution when working around or
cleaning the fan.
bend the blade brackets when installing the brackets
balancing the blades,or cleaning the fan. Do not insert
foreign objects in between rotating fan blades.
To reduce the risk of fire, electric shock
or personal injury, mount to outlet box marked
“ acceptable for fan support of 35 lbs. (15.9Kg)
or less” and use screws provided with the outlet box.
The fan must be mounted with a minimum
of 7 ft (2.1 m) clearance from the trailing edge of the
blades to the floor.
CAUTION:
Changes or modifications not expresslyCAUTION:
approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
WARNING: To reduce the risk of electrical shock or fire,
not use this fan with any solid-state fan speed control
device. It will permanently damage the electronic
circuitry.
WARNING: To reduce the risk of electrical shock, this
must be installed with an lsolating wall control/switch.

3
Warranty
Pre-InstallationPre-Installation
We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period
of lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glass or acrylic
blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two year after the
date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or
superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All
costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper installa-
tion or by affixing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover
any changes in brass finish, including rusting, pitting, corroding, tarnishing or peeling. Brass finishes of this type give their longest useful
life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect.
Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby disclaim
any and all warranties, including but not limited to those of merchantability and fitness for a particular purpose to the extent permitted by
law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specified in the express warranty.
Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall
not be liable for incidental, consequential, or special damages arising out of or in connection with product use or performance except as
may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the above
exclusion or limitation may not apply to you. This warranty gives specific legal rights, and you may also have other rights which vary from
state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty
must be paid by the customer.
Contact the Customer Service Team at 1-800-986 3460 or visit www.HOMEDEPOT.COM/HOMEDECORATORS

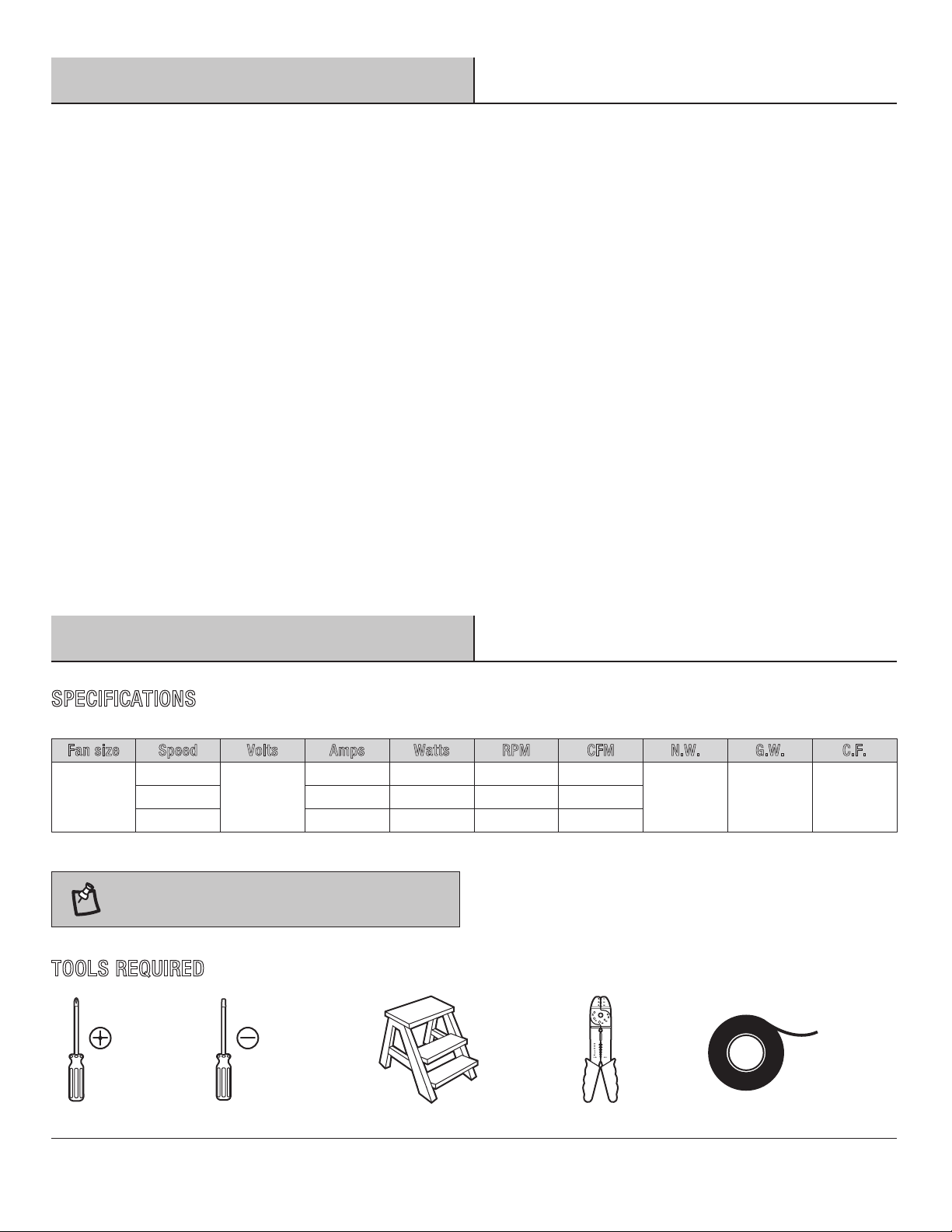

SPECIFICATIONS
TOOLS REQUIRED
Phillips
screwdriver
Electrical
Tape
Wire
stripper
Flat blade
screwdriver
Step
ladder
NOTE: These are approximate measures. They do not
include amps and wattage used by the light kit.
52 in.
LOW
MED
HIGH
120
Fan size Watts RPM CFMSpeed Volts Amps
2.68 ft.
N.W. G.W. C.F.
0.068 2.85 60 1984
0.265 15.80 135 4622
0.500 33.00 180 6012
4.45 kgs
(9.79 lbs)
5.80 kgs
(12.78 lbs)
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986 3460 for further assistance.

4
Pre-Installation (continued)
HARDWARE INCLUDED
AA
BB
CC
DD
EE
FF
GG
HH
Blade screw with spring washer (preassembled)
(preassembled)
Part Description
6
Quantity
II
JJ
KK
Wire nuts
Rubber washer (preassembled)
Flywheel screw
6
Metal washer (preassembled) 6
6
3
1
1
1
1
2
2
2
Cross pin (not to scale) (preassembled)
Hitch pin (preassembled)
Hanger ball set screw (preassembled)
Fan motor assembly coupling set screw (preassembled)
Mounting bracket screw (preassembled)
Lock pin (not to scale) (preassembled)
Remote control holder mounting screws
LL
NOTE: Hardware shown to actual size
AA
GG
HH
II
JJ
KK
DD
BB
CC
EE
FF
LL

5
Pre-Installation (continued)

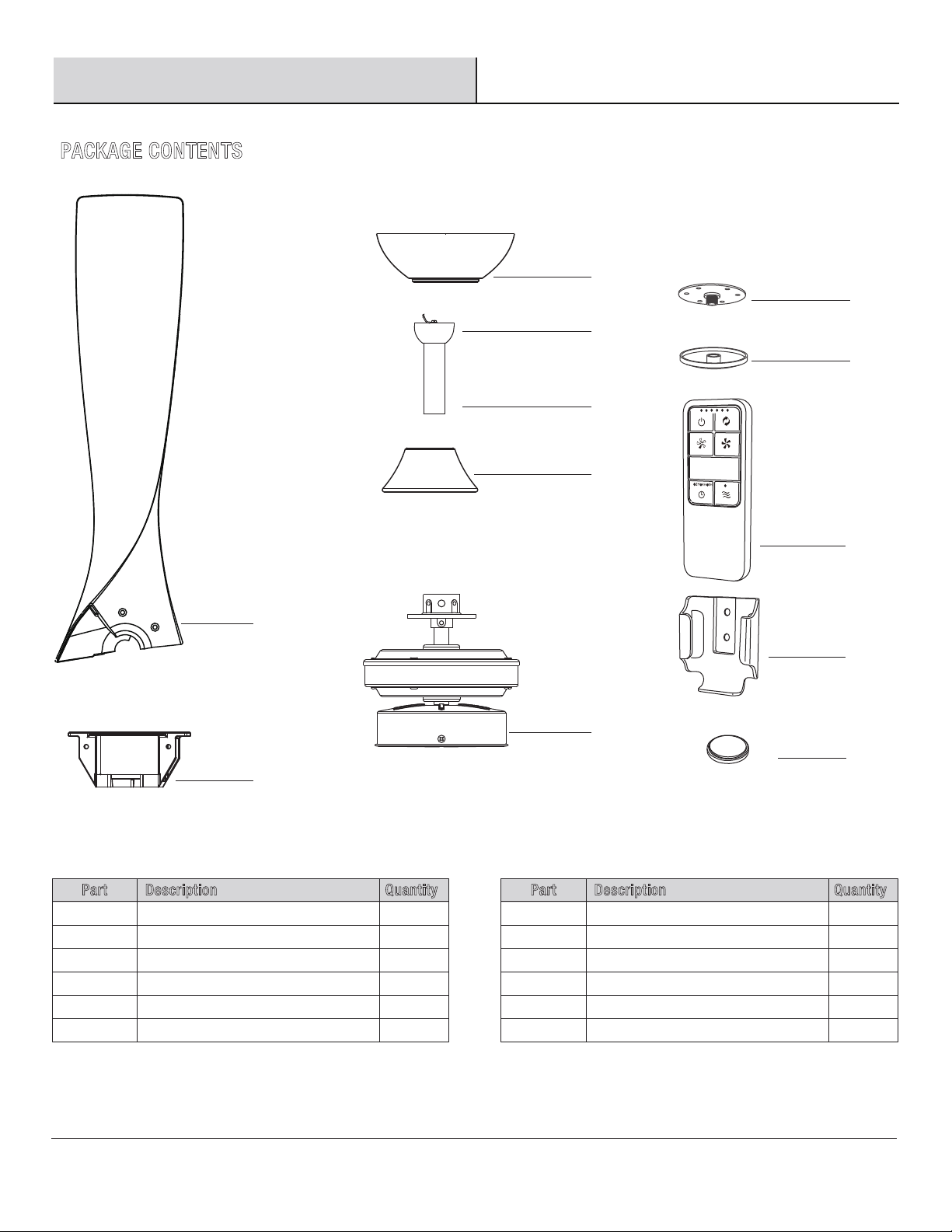

PACKAGE CONTENTS
D
F
H
G
B
A
C
I
J
K
L
D
E
F
Hanger ball (preassembled)
Downrod (preassembled)
1
1
1
Part
A
B
C
Quantity
3
1
1
Description
Blade
Mounting bracket
Canopy
Fan motor assembly
Flywheel
Finial
1
Couping cover
H
I
J
Part
G
QuantityDescription
L
K
Remote control
1
1
1
1
1
CR2032
Remote control holder
E
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986 3460 for further assistance.

6
WARNING: To reduce the risk of fire, electric shock, or
personal injury, mount the fan to an outlet box marked
acceptable for fan support. An outlet box commonly used for
the support of lighting fixtures may not be acceptable for fan
support and may need to be replaced. If in doubt, consult a
qualified electrician.
Installation
MOUNTING OPTIONS
1
1
1
3
2
If your ceiling fan does not have an existing UL-listed
mounting box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□
□
Secure the outlet box (1) (not included) directly to the
building structure. Use appropriate fasteners and materials
(not included). The outlet box and its bracing must be able
to fully support the weight of the moving fan (at least 35
lbs.). Do not use a plastic outlet box.
The illustrations to the right show three different ways to
mount the outlet box (not included).
□To hang your fan where there is an existing fixturebut no
ceiling joist, you may need an installation hanger bar (3) (not
included), as shown.
NOTE: You may need a longer downrod to maintain proper
blade clearance when installing on a steep, sloped ceiling.
The maximum angle allowable is 18°. If the canopy touches
the downrod, remove the decorative canopy bottom cover
and turn the canopy 180° before attaching the canopy to the
mounting plate (2).

7
Assembly — Hanging the Fan
1Attaching the mounting bracket to
the electrical box

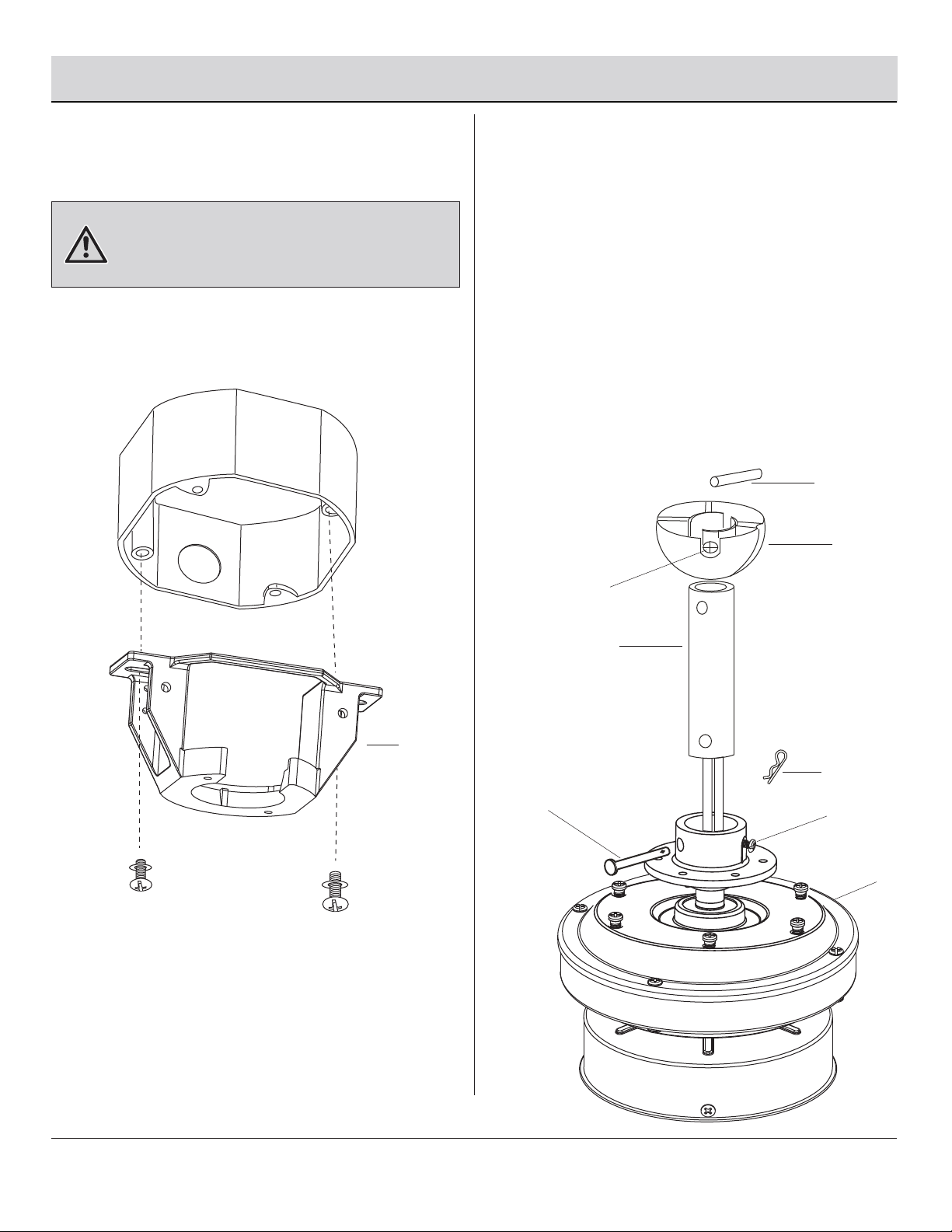

□Secure the mounting bracket (B) to the ceiling outlet box
with the screws and washers provided with your outlet
box.
WARNING: To reduce the risk of fire, electric shock, or
other personal injury, mount the fan only to an outlet box or
supporting system marked acceptable for fan support and
use the mounting screws provided with the outlet box.
□Loosen the two fan motor assembly coupling set screws
(JJ) from the fan motor assembly (G) coupling.
□Remove the hitch pin (GG) and lock pin (HH) from the
downrod (E). Remove the hanger ball (D) from the
downrod (E) by loosening the hanger ball set screw
(II), and removing the cross pin (FF), then sliding
the hanger ball (D) off of the downrod (E).
□Carefully feed the fan wires up through the downrod (E).
Thread the downrod (E) into the fan motor assembly (G)
coupling. Line up the holes and replace the lock
pin (HH) and the hitch pin (GG). Tighten thefan motor
assembly coupling set screws (JJ).
Attaching the downrod to the
fan motor assembly
2
JJ
HH
FF
E
D
II
G
GG
B
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986 3460 for further assistance.

8

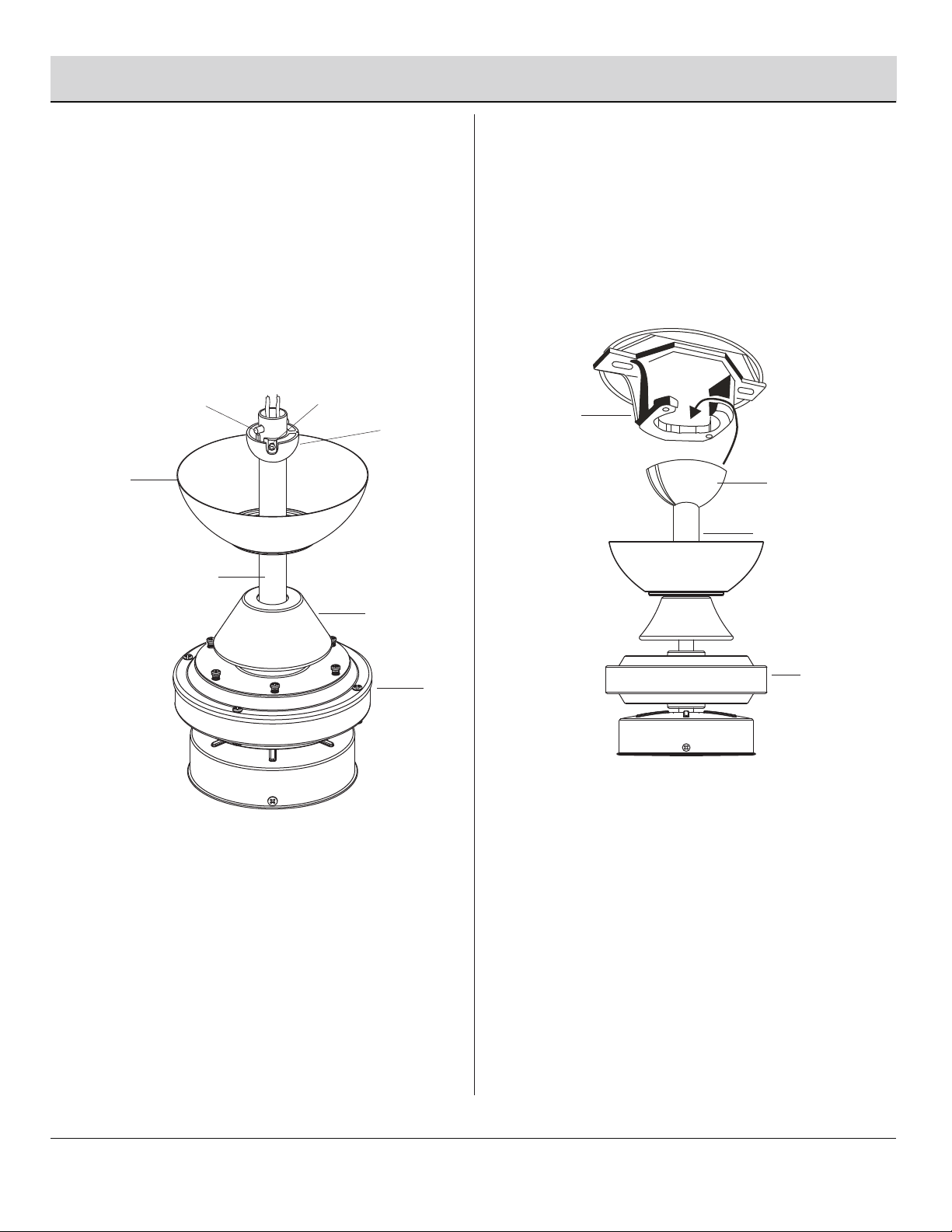

3Attaching the coupling cover and
canopy to the downrod
Assembly — Hanging the Fan (continued)

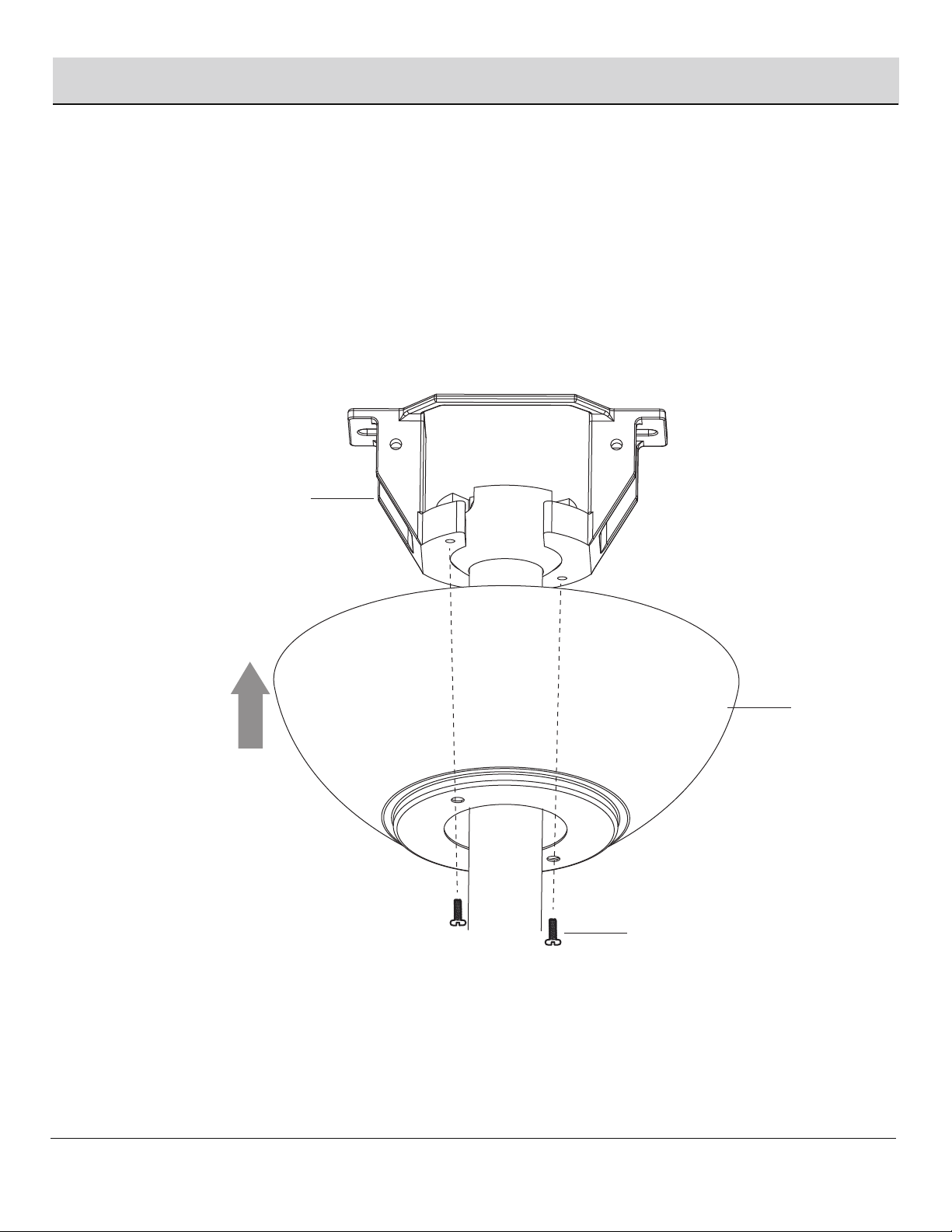

□Slip the coupling cover (F) and canopy (C) onto the
downrod (E). Carefully reinstall the hanger ball (D) onto
the downrod (E), and ensure that the cross pin (FF) is in
the correct position, the hanger ball set screws (II) are
tight, and the wires are not twisted.
E
B
G
E
C
D
4Hanging the fan motor assembly
from the mounting bracket
F
D
G
□Lift the fan motor assembly (G) into position, and place
the hanger ball (D) into the mounting bracket (B). Rotate
the fan motor assembly (G) until the check groove drops
into the registration slot and seats firmly. The downrod (E)
should not rotate if this is done correctly.
II
FF

9
Assembly — Hanging the Fan (continued)

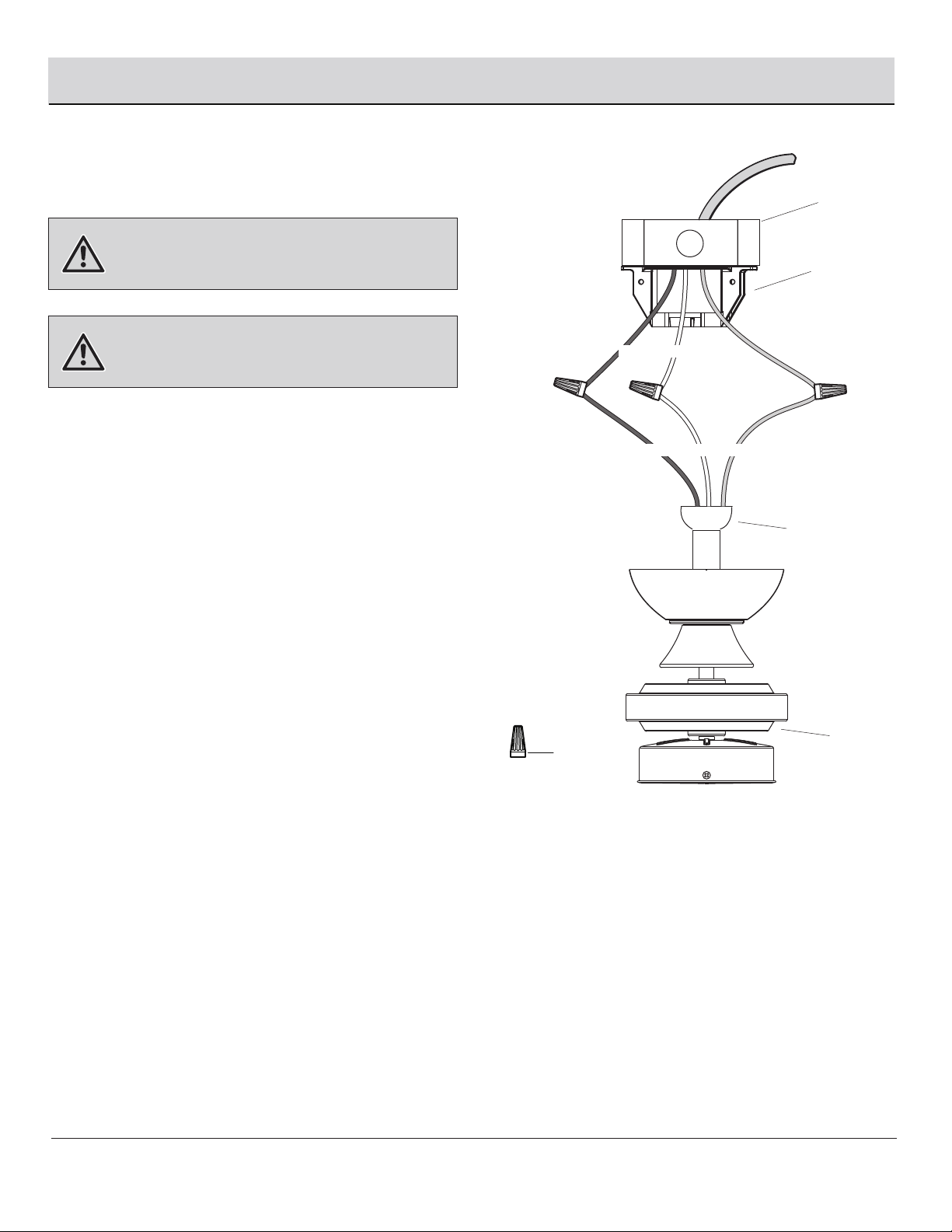

5Making the electrical connections
WARNING: To avoid possible electrical shock, ensure the
electricity is turned off at the circuit breaker or main fuse box
before wiring.
WARNING: Check to see that all connections are tight,
including the ground, and that no bare wire is visible at the
wire nuts, except for the ground wire.
Follow the steps below to connect the fan to your house
supply wires. Secure the wire nuts (EE ) supplied with your
fan by wrapping the connections with electrical tape.
□Connect the black (hot) wire from the ceiling to the
black wire from the fan motor assembly (G).
□Connect the white (neutral) wire from the ceiling to
the white wire from the fan motor assembly (G).
□Connect the ground conductor of the 120-volt supply
(this may be a bare wire or a wire with green colored
insulation) to the green ground lead(s) of the fan.
When using standard ceiling mounting, there are two
green grounding leads: one from the mounting
bracket (B) and one from the hanger ball (D).
□Secure the wire connections with plastic wire nuts
(EE ) provided with the electrical hardware.
□After connecting the wires, spread them apart so that
the green and white wires are on one side of the
outlet box (1) and the black and blue wires are on the
other side. Carefully tuck the wire connections up
into the outlet box (1).
EE (x3)
1
B
G
D
Black White Green
Black White Green
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986 3460 for further assistance.

10
KK
C
6Securing the fan motor assembly to the mounting bracket
□Remove two mounting bracket screws (KK) from the mounting bracket (B).
□Attach the canopy (C) to the mounting bracket (B) by using the two mounting bracket screws (KK) previously removed.
□Tighten the mounting bracket screws (KK).
Assembly — Hanging the Fan (continued)
B

11
G
A
G
H
H
H
H
DD
AA
BB
CC
A
AA
I
BB
CC
DD
DD

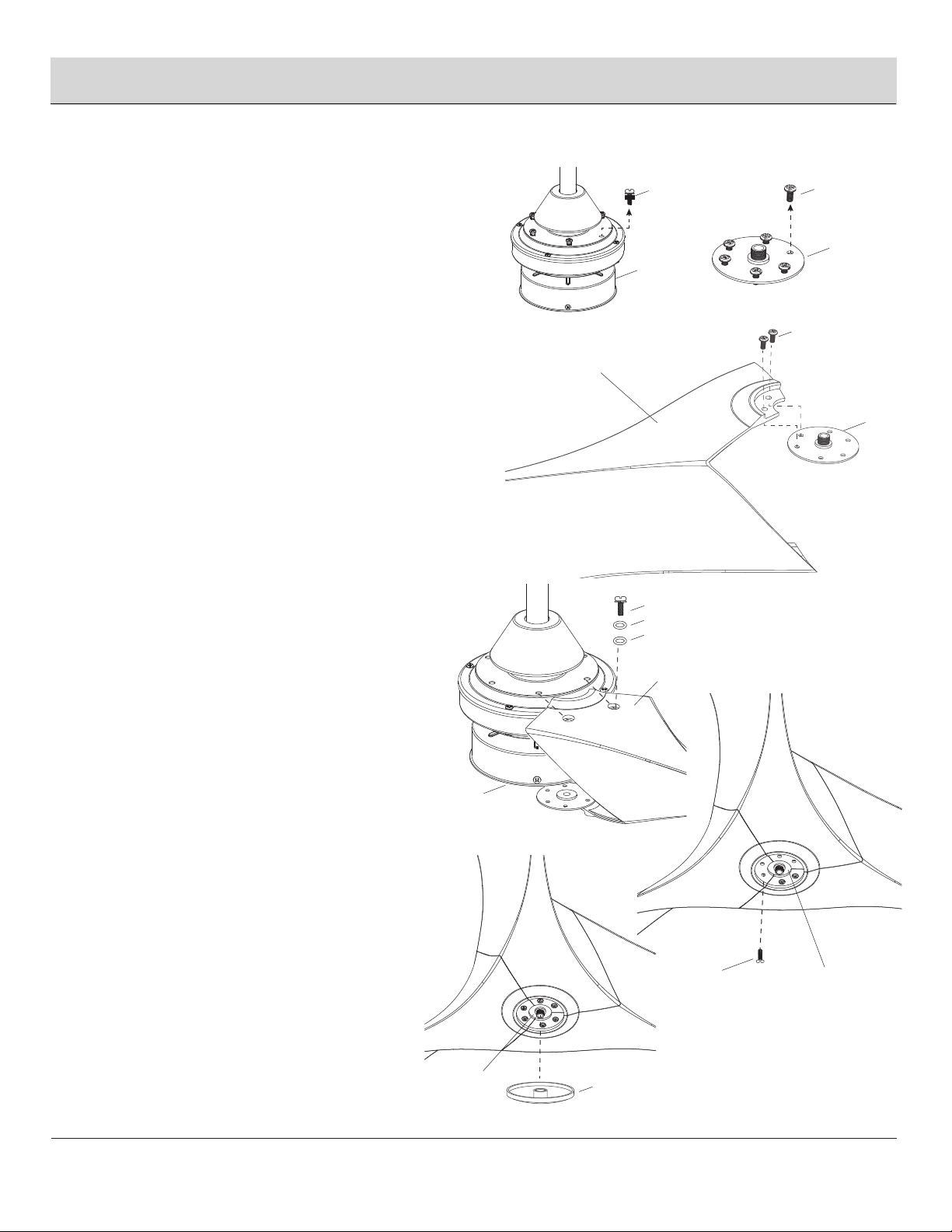

□Remove the six blade screws with spring washers (AA),
metal washers (BB) and rubber washers (CC) from the
fan motor assembly (G).
Fastening the blade assemblies
to the fan motor assembly
7
□Remove the six flywheel screws (DD) from the flywheel
(H).
□Attach the flywheel (H) to one of the three blades (A) using
two flywheel screws (DD).
□Attach the blade (A) with the flywheel (H) to the fan motor
assembly (G) using two blade screws with spring washers
(AA), two metal washers (BB) and two rubber washers (CC).
Attach the other blades (A) to the fan motor assembly (G).
□Reinstall the four flywheel screws (DD) to the flywheel (H).
□Screw the finial (I) to the flywheel (H). Ensure the finial (I)
is tight.
Assembly — Attaching the Fan Blade
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986 3460 for further assistance.

12
L
J
J
Operation
WARNING: Do not short-circuit, disassemble, heat up,
connect improperly, or dispose of used batteries in fire. Do
not recharge or mix batteries with used or other battery
types. Immediately remove used batteries.
WARNING: a)The cells shall be disposed of properly,
including keeping them away from children; and
b) Even used cells may cause injury.
NOTE: After the AC power is on, do not press any other button
on the remote control before pressing the (FAN ON/OFF)
button. Doing so will cause the procedure to fail.
Should you desire to use another remote control (J) unit with your
new fan, install one using the steps below:
Turn the main power source off to begin the learning process.
□
Return the power to the unit.
□
Within 30 seconds of turning the fan’s AC power ON, press and
hold the button for 5 seconds to enter the learning function.
Once the receiver has detected the set frequency, the down
light of your fan, if applicable, will blink twice. There is no
indication if your fan is not equipped with a light.
□
REMOTE CONTROL OPERATING INSTRUCTIONS
Install a CR2032 (L) into the remote control (J). To prevent damage
to the remote control, remove the battery if not used for long
periods of time.
LEARNING PROCESS
WARNING: Chemical Burn Hazard. Keep batteries away
from children. This product contains a lithium button/coin
cell battery. If a new or used lithium button/coin cell battery
is swallowed or enters the body, it can cause severe
internal burns and can lead to death in as little as 2 hours.
Always completely secure the battery compartment. If the
battery compartment does not close securely, stop using the
product, remove the batteries, and keep it away from
children. If you think batteries might have been swallowed
or placed inside any part of the body, seek immediate
medical attention.

13
Operation (continued)
J
LED LIGHT

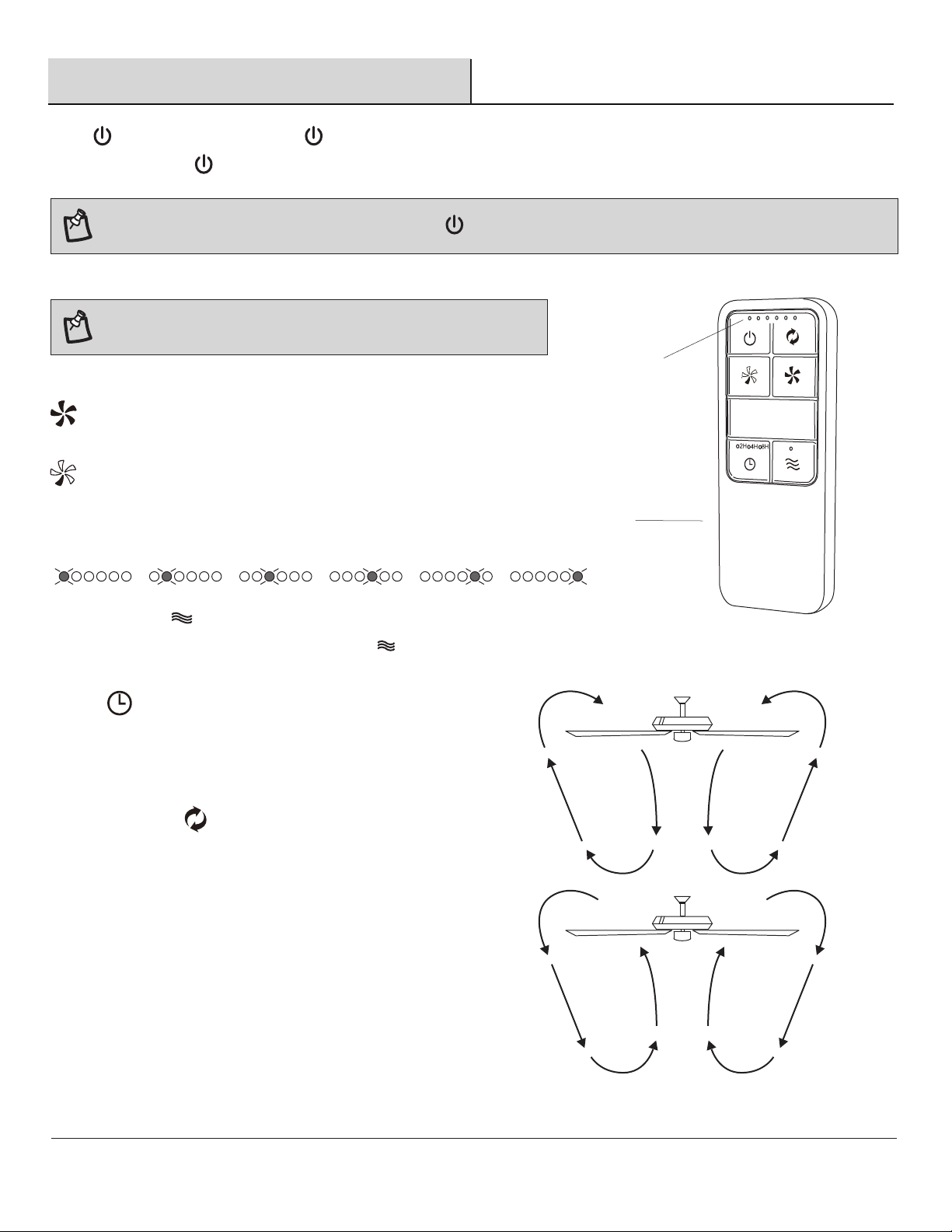

1. Fan button. - Press and release the button to turn the fan off.
2. Speed functions
3. Comfort breeze
There are three Comfort breeze settings. Pressing the button will activate the Comfort breeze mode. Alternates through speeds 1-6.
button, increases the fan speed
Press and hold the button for 5 seconds to enter the learning function.
□
Pressing and releasing the + button one time will increase the speed of the fan.
□
button, decreases the fan speed
Pressing and releasing the - button one time will decrease the speed of the fan.
□
Fan off. The fan memory function will store the current setting for the next time the fan is in use.
□
NOTE: If you are currently using Comfort breeze mode, pressing the button will cancel Comfort breeze mode and resume normal fan operation.
NOTE: You must turn the fan on prior to using the timer function.
(Counterclockwise Direction) A downward air flow creates a
cooling effect. This allows you to set your air conditioner on a
higher setting without affecting your comfort.
(Clockwise Direction) An upward air flow moves warm air off the
ceiling. This allows you to set your heating unit on a lower setting
without affecting your comfort.
4. Timer (2H, 4H, 8H)
5. Fan reverse button (Must be Pushed when the fan is in operation)
Pressing the (2H/4H/8H) button will automatically turn fan off
after 2, 4 or 8 hours.
□
□
□
1 speed 2 speed 3 speed 4 speed 5 speed 6 speed
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986 3460 for further assistance.

14
Operation (continued)
Care and Cleaning
□Check the support connections, brackets, and blade
attachments twice a year. Ensure they are secure.
Because of the fan’s natural movement, some
connections may become loose over time. It is not
necessary to remove the fan from the ceiling.
□Clean your fan periodically. Use only a soft brush or
lint-free cloth to avoid scratching the finish. The plating is
sealed with a lacquer to minimize discoloration or
tarnishing.
□(Optional) Apply a light coat of furniture polish to the wood
blades.
□(Optional) Cover small scratches with a light application of
shoe polish.
Do
□Do not use water when cleaning. Water could damage the
motor, or the wood, or possibly cause an electrical shock.
□Do not apply oil to your fan or motor. The motor has
permanently-lubricated sealed ball bearings.
Do not
K
LL

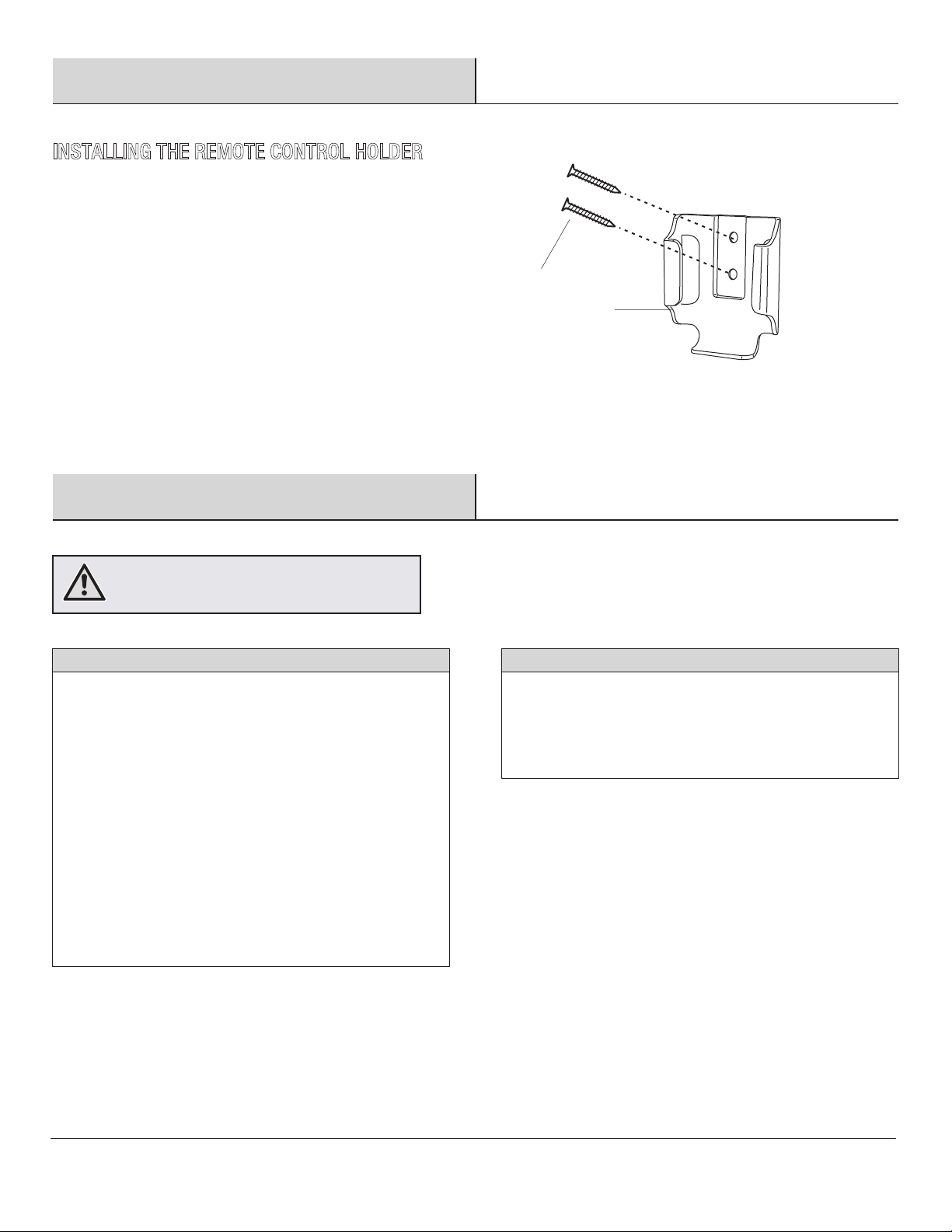

INSTALLING THE REMOTE CONTROL HOLDER
□Attach the remote control holder (K) with the two remote control
holder mounting screws (LL).
WARNING: Make sure the power is off before cleaning
your fan.

15
Troubleshooting
WARNING: Ensure the power is off at the electrical
panel box before you attempt any repairs. Refer to the section
“Making the Electrical Connections” on page 9.
□Do not connect the fan with wall mounted variable speed control(s).
□Check to make sure the dip switches from the remote control and receiver are set to the same frequency.
□Check that all blade and blade arm screws are secure.
□Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a
point on the ceiling above the tip of one of the blades. Measure from a point on the center of each blade
to the point on the ceiling. Rotate the fan until the next blade is positioned for measurement. Repeat for
each blade. Measurements deviation should be within 1/8 in. Run the fan for 10 minutes.
□Use the enclosed blade balancing kit if the blade wobble is still noticeable.
The fan wobbles.
The remote control is
not working.
Problem Solution
□Check main and branch circuit fuses or breakers.
□Check line wire connections to the fan and switch wire connections in the switch housing.
□Check to make sure the dip switches from the remote control and receiver are set to the same
frequency.
□Make sure all motor housing screws are snug.
□Make sure the screws that attach the fan blade arm to the motor hub are tight.
□Make sure wire nut connections are not rattling against each other or the interior wall of the switch
housing.
□Allow a 24-hour "breaking-in" period. Most noises associated with a new fan disappear during this
time.
□If using the ceiling light kit, make sure the screws securing the glassware are tight. Check that the light
bulb is also secure.
□Make sure there is a short distance from the ceiling to the canopy. It should not touch the ceiling.
□Make sure your ceiling box is secure and rubber isolator pads are used between the mounting bracket
and outlet box.
The fan will not start.
The fan sounds noisy.
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986 3460 for further assistance.

16
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interfe
The following responsible party designated in FCC §2.909 is responsible for this declaration:
Model Number: 34776-HBU, 34776-HBUM, 34776-HBUG
Company Name: Eurofase Inc.
Company Address: 60 Industrial Parkway, Unit 802, Cheektowaga, NY 14227-2713
Full Name: Kent Yin Title: Product Development Manager
Telephone Number: 905-695-2055 Ext. 259 Fax: [phone]
rence received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment.

Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday,
9 a.m. - 6 p.m., EST, Saturday
1-800-986 3460
HOMEDEPOT.COM/HOMEDECORATORS
Retain this manual for future use.

GUÍA DE USO Y CUIDADO
1-800-986 3460
HOMEDEPOT.COM/HOMEDECORATORS
VENTILADOR DE TECHO, 52 PLG WESLEY
¿Preguntas, problemas, partes o piezas faltantes? Antes de devolver a la tienda, llamar al Servicio al
Cliente de Home Decorators Collection, de lunes a viernes entre 8:00 a.m. y 7:00 p.m. (hora de Este),
y los sábados de 9:00 a.m. a 6:00 p.m. (hora del Este).
Artículo #/ Modelo #: 34776-HBUG (1004 292 109)
Artículo #/ Modelo #: 34776-HBUM (1004 292 266)
Artículo #/ Modelo #: 34776-HBU (1004 292 316)

2
Instalación .....................................................................
Tabla de contenido ....................................................... 2
Información de seguridad ........................................... 2
Garantía ......................................................................... 3
Preinstalación .............................................................. 3
6
Ensamblaje .................................................................... 7
Tabla de contenido
12Funcionamiento ...........................................................
Mantenimiento y limpieza ...........................................14
Solución de problemas ...............................................15
Declaración de FCC .................................................... 16
Información de seguridad
Para reducir el riesgo de descarga eléctrica, asegura cortar
la electricidad en el cortacircuitos o en la caja de fusibles
antes de comenzar.
Todo el cableado tiene que cumplir con el Código Nacional de
Electricidad ANSI/NFPA 70 y los códigos locales de
electricidad. La instalación eléctrica debe hacerse por un
electricista calificado con licencia.
La caja eléctrica y la estructura de soporte tienen que
montarse de forma segura para poder sostener con confianza
y como mínimo 35 lb (15.9 kg). Usar ya solo cajas eléctricas
aprobadas por UL y marcadas como “apropiadas para
sostener ventiladores de 35 lb (15.9 kg) o menos.”
No colocar objetos en la trayectoria de las aspas.
No usar agua ni detergentes para limpiar el ventilador o las
aspas. Para limpiar, casi siempre será adecuado un paño
seco o ligeramente humedecido con que quitar el polvo.
Después de concluir las conexiones eléctricas, debes voltear
los conductores empalmados hacia arriba y empujarlos con
cuidado dentro de la caja eléctrica. Los cables deben quedar
separados, con el cable y el conductor a tierra del equipo a
uno de los lados de la caja eléctrica, y el conductor sin
conexión a tierra al lado opuesto.
Antes de instalar, todos los tornillos de fijación tienen que
comprobarse y reajustarse donde sea necesario.
1.
2.
3.
4.
5.
6.
7.
LEE Y GUARDA ESTAS INSTRUCCIONES.
ADVERTENCIA: Para evitar posible descarga eléctrica,
desconecta la electricidad en la caja principal de
fusibles antes de cablear.
PRECAUCIÓN: Para reducir el riesgo de lesiones
personales hay que usar ya sólo los tornillos incluidos
con la caja eléctrica.
PRECAUCIÓN: Para evitar lesiones personales o daños
al ventilador y otros artículos, hay que tener cuidado al
limpiarlo y al trabajar cerca de él.
ADVERTENCIA: Para reducir el riesgo de lesiones
personales, no doblar los soportes de las aspas al
instalarlos ni al compensar estas o limpiar el
ventilador. No insertar objetos extraños entre las aspas
del ventilador en rotación.
ADVERTENCIA: Para reducir el riesgo de incendio,
descarga eléctrica o lesiones, instala sólo en una caja
eléctrica clasificada como “apropiada para sostener
ventiladores de 35 lb (15.9 kg) o menos”, y usa sólo los
tornillos incluidos con la caja eléctrica.
PRECAUCIÓN: El ventilador tiene que montarse con
separación mínima de 7 pies (2.1 m) entre sus bordes
de salida y el piso.
PRECAUCIÓN: Los cambios o modificaciones sin previa
aprobación expresa por la parte responsable de su
cumplimiento podrían anular la autorización al usuario
para operar el equipo.
ADVERTENCIA: Para disminuir el riesgo de incendio o
descarga eléctrica, no utilices este ventilador con
ningún dispositivo de estado sólido para el control de
velocidad del ventilador. Hacerlo dañará
permanentemente el circuito electrónico.
ADVERTENCIA: A fin de reducir el riesgo de descargas
eléctricas, este ventilador tiene que instalarse con un
interruptor de pared provisto de aislante.
