Home Decorators Collection ASHBY PARK 59600 User manual

USE AND CARE GUIDE
ASHBY PARK 60-INCH CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and condence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive
to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!
Item #1004 589 962, 1004 590 020
Model #59600, 59609
UL Model #60-PORT
To view an instructional video on how to install this product:
1. Go to www.homedepot.com and enter either the Item or Model number, found in the top
right corner of the cover of this instruction manual, in the search eld.
2. Click on your product from the list of search results and click on the video link in the
“Product Overview” section.

2
Table of Contents ................................................................2
Safety Information...............................................................2
Warranty ............................................................................... 3
Pre-Installation ....................................................................3
Installation............................................................................6
Assembly..............................................................................7
Operation ...........................................................................11
Care and Cleaning.............................................................12
Troubleshooting.................................................................12
1. To reduce the risk of electric shock, ensure the electricity has been
turned off at the circuit breaker or fuse box before you begin.
2. All wiring must be in accordance with the National Electrical Code
ANSI/NFPA 70-1999 and local electrical codes. Electrical installation
should be performed by a qualied licensed electrician.
3. The outlet box and support structure must be securely mounted and
capable of reliably supporting 35 lbs. (15.9 kg). Use only UL Listed
outlet boxes marked “Acceptable for Fan Support of 35 lbs. (15.9 kg)
or less.”
4. The fan must be mounted with a minimum of 7 ft (2.1 m) clearance
from the trailing edge of the blades to the oor.
5. Do not operate the reversing switch while the fan blades are in
motion. You must turn the fan off and stop the blades before you
reverse the blade direction.
6. Do not place objects in the path of the blades.
7. To avoid personal injury or damage to the fan and other items, use
caution when working around or cleaning the fan.
8. Electrical diagrams are for reference only. Light kits that are not
packed with the fan must be UL listed and marked suitable for use
with the model fan you are installing. Switches must be UL General
Use Switches. Refer to the instructions packaged with the light kits
and switches for proper assembly.
9. After making electrical connections, spliced conductors should be
turned upward and pushed carefully up into the outlet box. The
wires should be spread apart with the grounded conductor and the
equipment-grounding conductor on one side of the outlet box.
10. All setscrews must be checked and retightened where necessary
before installation.
WARNING: To reduce the risk of personal injury, do
not bend the blade brackets (also referred to as
anges) during assembly or after installation. Do not
insert objects in the path of the blades.
WARNING: To avoid possible electrical shock, turn
the electricity off at the main fuse box before
wiring. If you feel you do not have enough electrical
wiring knowledge or experience, contact a licensed
electrician.
WARNING: Electrical diagrams are for reference only.
Optional use of any light kit shall be UL-listed and
marked suitable for use with this fan.
Safety Information
Table of Contents
CAUTION: To reduce the risk of personal injury,
use only the screws provided with the outlet box.
CAUTION: To avoid personal injury or damage to the fan
and other items, use caution when working around or
cleaning the fan.
WARNING: To reduce the risk of re, electric shock
or personal injury, mount to outlet box marked
“Acceptable for fan support of 35 lbs. (15.9 kg) or
less”, and use screws provided with the outlet box.
WARNING: To reduce the risk of re or electric
shock, this fan should only be used with fan speed
control part no. AP-8RDL, manufactured by Dawnsun
Electronic Co., LTD.
READ AND SAVE THESE INSTRUCTIONS.
WARNING: To reduce the risk of electric shock, this
fan must be installed with an isolating wall control/
switch.

3HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Pre-Installation
Warranty
SPECIFICATIONS
TOOLS REQUIRED
NOTE: These are approximate measures. They do not
include the amps and wattage used by the light kit.
Phillips
screwdriver
Flat blade
screwdriver
Adjustable
wrench
Electrical
tape
Wire
cutter
Step ladder
The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a lifetime
after the date of purchase by the original purchaser. The supplier also warrants that all other fan parts, excluding any glass or acrylic blades, to be
free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the date of purchase by the
original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior model if the product is
returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing and reinstalling the product
are your responsibility. Damage to any part such as by accident, misuse, improper installation, or by afxing any accessories, is not covered by
this warranty. Because of varying climatic conditions this warranty does not cover any changes in brass nish, including rusting, pitting, corroding,
tarnishing, or peeling. Brass nishes of this type give their longest useful life when protected from varying weather conditions. A certain amount of
“wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is
no other express warranty. Home Decorators Collection hereby disclaims any and all warranties, including but not limited to those of merchantability
and tness for a particular purpose to the extent permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the
time period as specied in the express warranty. Some states do not allow a limitation on how long an implied warranty lasts,so the above limitation
may not apply to you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in connection with product
use or performance except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages,
so the above exclusion or limitation may not apply to you. This warranty gives specic legal rights, and you may also have other rights which vary
from state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty must
be paid by the customer.
Contact the Customer Service Team at 1-800-986-3460 or visit www.HomeDepot.com/homedecorators.
Size Speed Volts Amps Watts RPM CFM Net
Weight
Gross
Weight Cu. Ft.
60 in.
Low
120
0.27 15 58 2775 24.5 lbs
(11.1 kg.)
27.8 lbs
(12.6 kg) 2.826 cu.ft.Medium 0.42 35 90 4349
High 0.62 73 140 6252

4

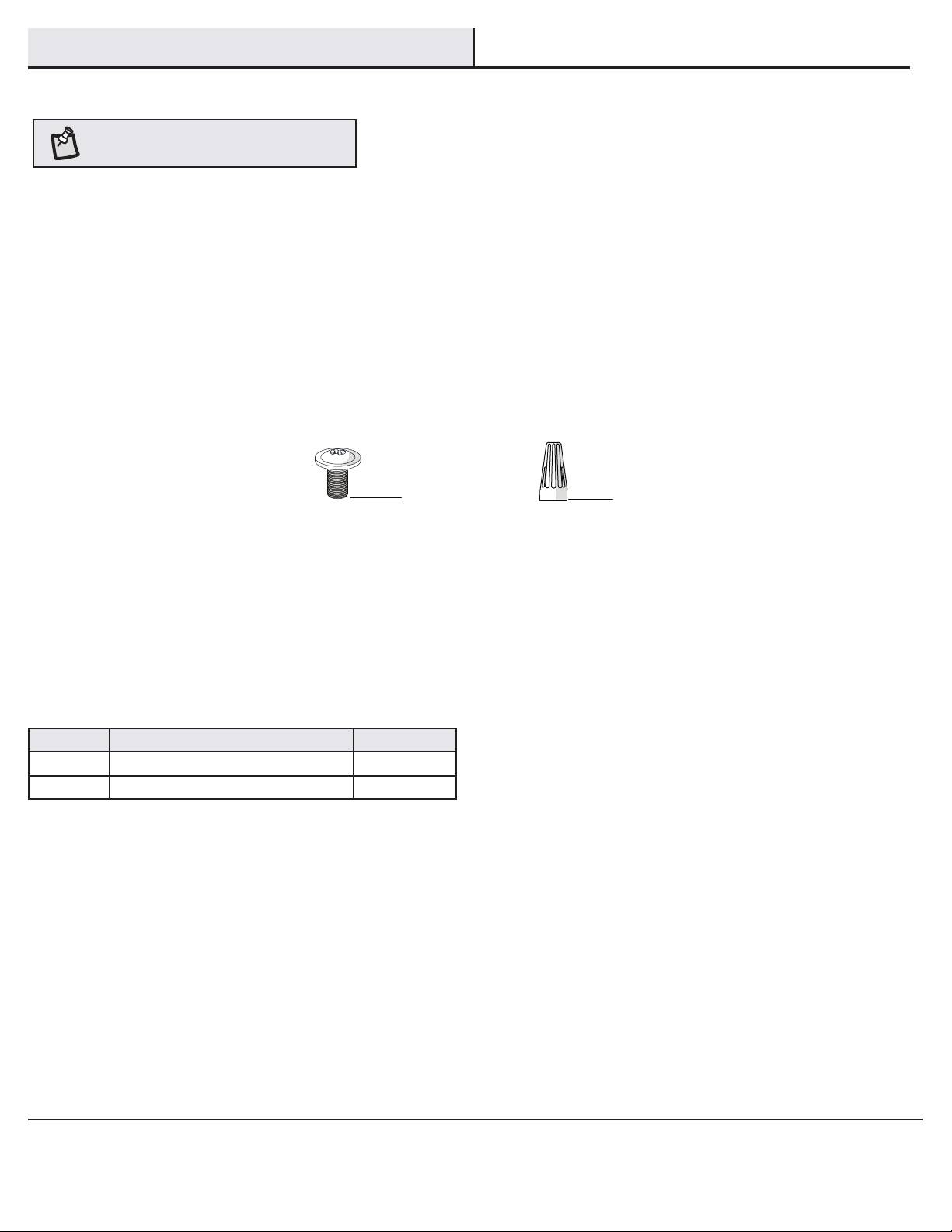

Part Description Quantity
AA Blade attachment screws 16
BB Plastic wire connector 3
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
Pre-Installation (continued)
AA BB

5HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Part Description Quantity
A Mounting plate 1
B Trim ring 1
C Fan-motor assembly 1
D Blade 5
Part Description Quantity
E Light kit tter assembly 1
F Light kit pan 1
G Glass bowl 1
H Receiver 1
I Remote control (battery included) 1
IMPORTANT: This product and/or components are
governed by one or more of the following U.S. Patents:
5,947,436; 5,988,580; 6,010,110; 6,046,416; 6,210,117
and other patents pending.
PACKAGE CONTENTS
Pre-Installation (continued)
A
B
C
D
E
F
G
H
I

6
Installation
MOUNTING OPTIONS
WARNING: To reduce the risk of re, electric shock or
personal injury, mount to outlet box marked “Acceptable
for fan support of 35 lbs. (15.9 kg) or less”, and use
screws provided with the outlet box. An outlet box
commonly used for the support of lighting xtures may
not be acceptable for fan support and may need to be
replaced. If in doubt, consult a qualied electrician.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□Secure the outlet box directly to the building structure. Use
the appropriate fasteners and materials. The outlet box and
support structure must be securely mounted and capable of
reliably supporting 35 lbs. (15.9 kg). Use only UL Listed outlet
boxes marked “Acceptable for Fan Support of 35 lbs. (15.9 kg)
or less.” Do not use a plastic outlet box.

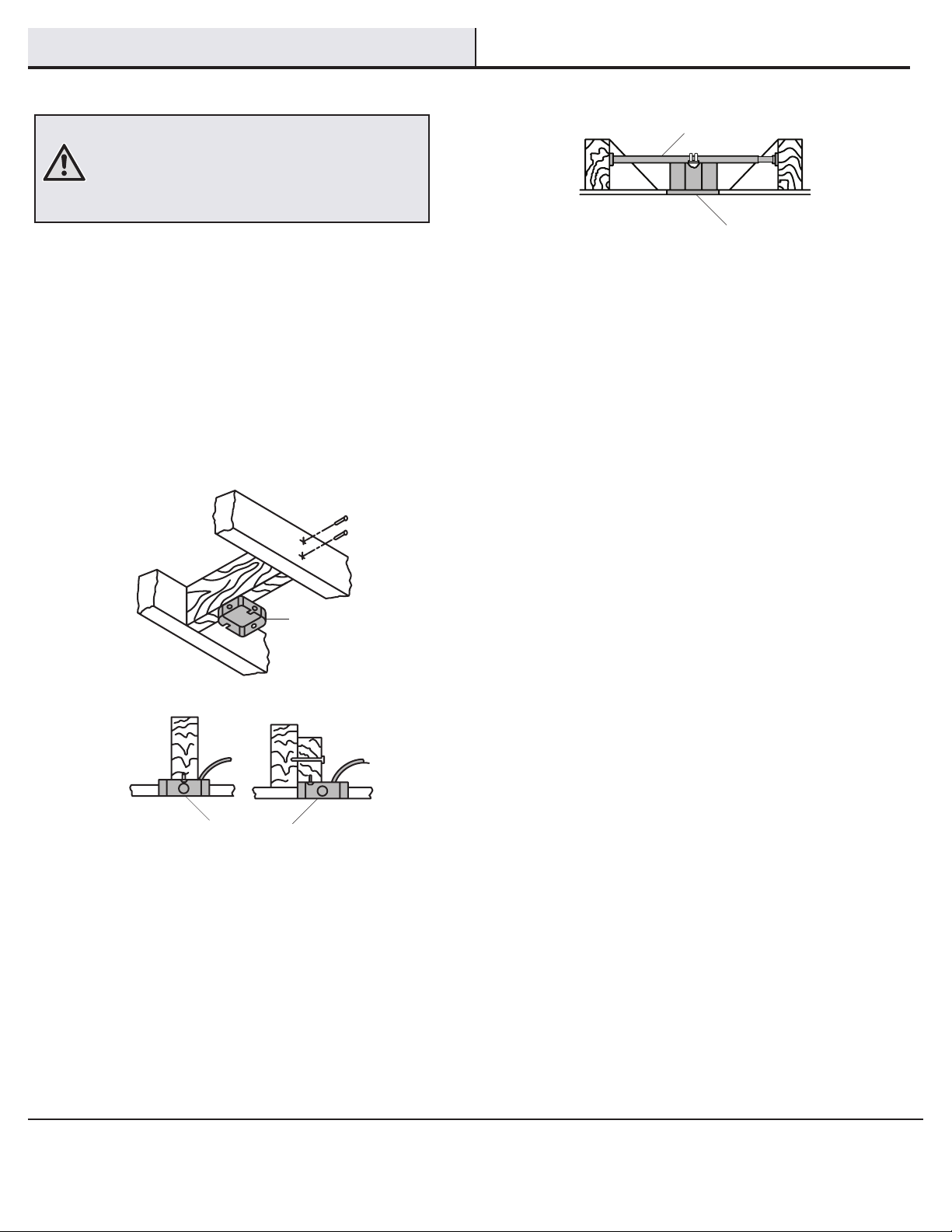

The illustrations below show two different ways to mount the
outlet box.
To hang your fan where there is an existing xture but no ceiling joist,
you may need an installation hanger bar as shown above
(available at any Home Depot store).
Outlet Box
Outlet Box
Outlet Box
Hanger Bar

7HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

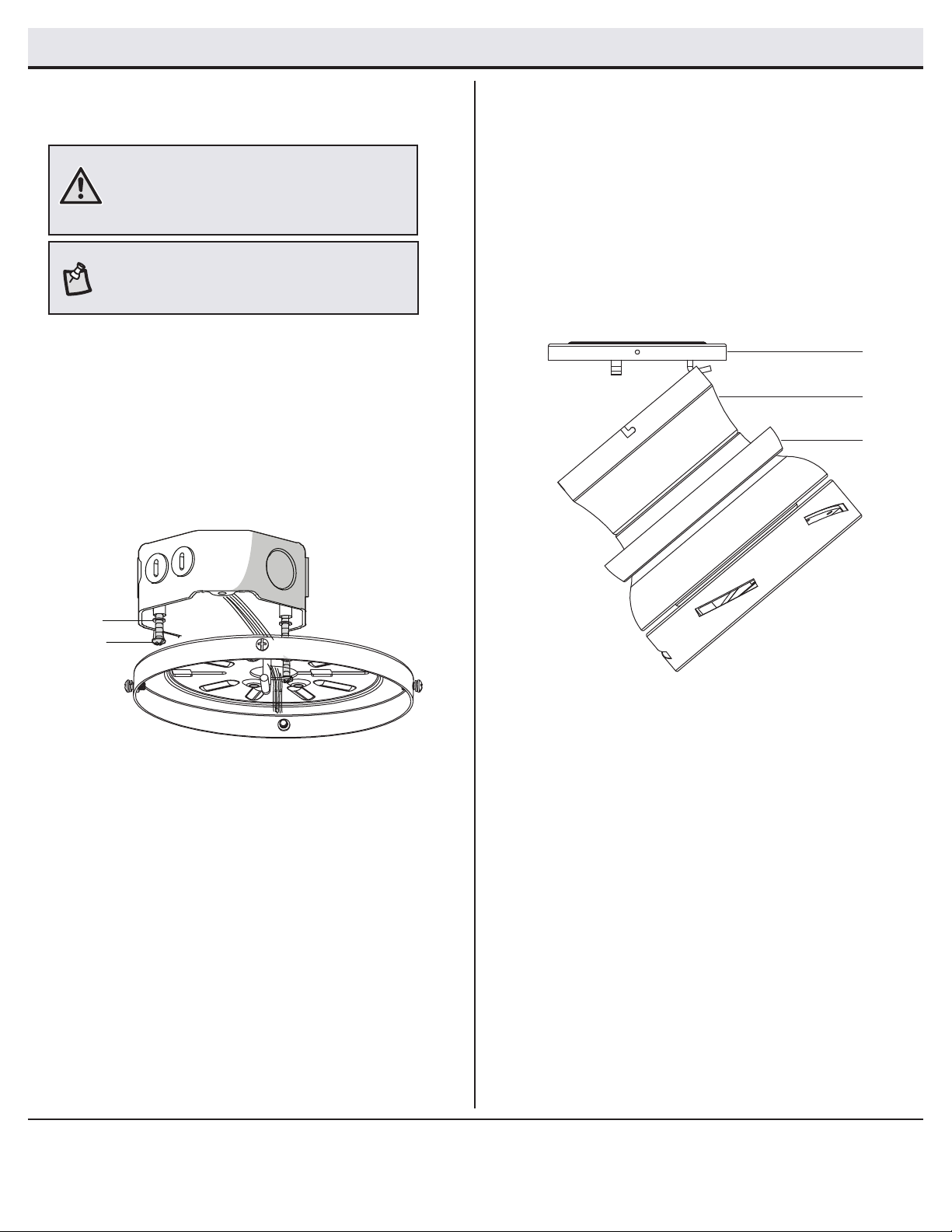

Assembly - Hanging the Fan
Hanging the fan-motor assembly
Attaching the fan to the electrical
box
□Turn the power off.
□Loosen the two mounting screws (GG) supplied with
the outlet box, but do not remove the screws.
□Securely attach the mounting plate (A) to the outlet
box by sliding the mounting plate (A) over the two
mounting screws (GG) supplied with the outlet box.
Pull the 120-volt supply wires (the black, white and
ground wires) out of the outlet box (GG) and through
the hole in the mounting plate (A) and lay them to the
side.
□Attach the trim ring (B) to the fan motor assembly (C)
from the opening of the motor housing. Make sure the
slots of trim ring (B) are on top.
□Carefully lift the fan-motor assembly (C) and hang the fan
motor assembly (C) on the hook of the mounting plate (A)
by utilizing one of the holes at the outer rim of the motor
housing so that it is securely suspended. Then connect
the wiring to your fan according to step 4 “Making the
Electrical Connections”.
21
NOTE: For better fan performance, make sure the
mounting plate is level. Additional washers (FF)
(not included) may be needed to insert between the
outlet box and mounting plate.
WARNING: To avoid possible electrical shock,
turn the electricity off at the main fuse box before
wiring. If you feel you do not have enough electrical
wiring knowledge or experience, contact a licensed
electrician.
A
C
B
FF
GG

8
Assembly - Hanging the Fan (continued)

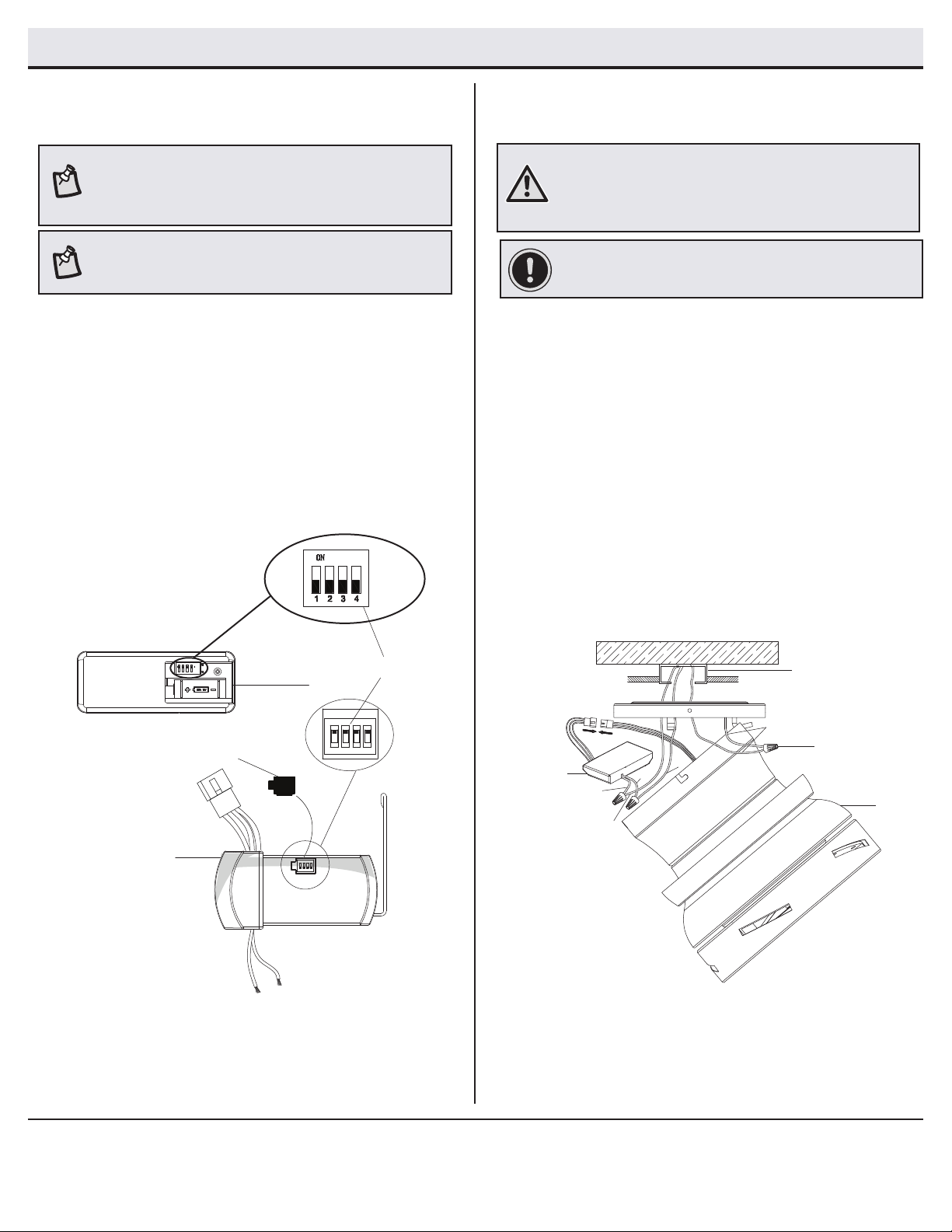

Making the electrical connection
4
IMPORTANT: Use the plastic wire connectors (BB) supplied with
your fan. Secure the connectors with electrical tape and ensure
there are no loose strands or connections.
WARNING: Each wire nut supplied with this fan is designed to
accept up to one 12-gauge house wire and two wires from the
fan. If you have larger than 12-gauge house wiring or more
than one house wire to connect to the fan wiring, consult an
electrician for the proper size wire nuts to use.
□Spread the wires apart so that the green and whites are
one side of the outlet box and the black wire is on the other
side.
□Connect the green fan wires to the household ground wire
(this may be a green or bare wire) using a wire connecting
nut (BB).
□Connect the receiver (H) red or black wire to the household
black (hot) wire using a wire connecting nut (BB).
□Connect the receiver (H) white wire to the household white
(neutral) wire using a wire connecting nut (BB).
□Secure each wire connecting nut using electrical tape.
□Wire the receiver (H) to the fan wires by connecting the
molded adaptor plug from receiver (H) with molded adaptor
of the fan motor assembly (C) together.
Setting the code on the remote
control and receiver
3
NOTE: The frequencies on your receiver and hand unit have
been preset at the factory. Before installing the receiver,
make sure the dip switches on the receiver and hand unit
are set to the same frequency. The dip switches on the
hand unit are located inside the battery compartment.
NOTE: The battery will weaken with age and should be
replaced before leaking takes place as this will damage
the hand unit. Dispose of used battery properly and keep
the battery out of the reach of children.
□Remove the remote control (I) battery cover by pressing
rmly on the arrow and sliding the cover off.
□Slide the dip switches (ZZ) to your choice of either up or
down. The factory setting is up.
□Slide the dip switches (ZZ) on the receiver (H) to the same
position as set on the remote control (I).
□Install the 23A 12V battery (included).
□Replace the battery cover on the remote control (I).
□Insert the silicone rubber stopper (TT) into the hole on the
receiver (H) to cover the dip switches.
Outlet box
in the ceiling
Green or bare wire
H
C
Red or
Black
Black
White
White
BB
I
H
ZZ
1 2 3 4
ON DIP
1 2 3 4
ON
TT

9HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
□Attach a blade (D) to the fan motor assembly (C) by inserting the
blade (D) into slots in the side of the fan motor assembly (C) and
aligning the three screws holes in the blade with the holes in
the center ywheel and secure with screws (AA).
□Make sure all the screws are rmly tightened.
□Repeat these steps for the remaining blades.
Installing the motor assembly
□Remove two of the four screws (located diagonally from
each other) (NN) from the top of the mounting plate (A)
and loosen the other two screws (NN).
□Align the two key slots in the top of the fan motor
assembly (C) with the two loosened screws (NN) on the
mounting plate (A). Push the fan motor assembly (C) up
and turn it clockwise to lock in the mounting plate (A).
Tighten the two screws.
□Install the two screws that were removed at the beginning
of this step into the remaining two holes and tighten the
four screws rmly.
□Install the trim ring (B) by aligning the ring’s slots with
the screws on the mounting plate (A). Rotate the ring
clockwise to lock in place.
6
Attaching the blades
7
Assembly - Attaching the Blades
C
D
AA
Assembly - Hanging the Fan (continued)
Installing the receiver
5
□Push the receiver (H) into the bracket on the mounting
plate (A) (as shown, at side towards the ceiling).
WARNING: To reduce the risk of re or electrical shock,
remember to disconnect power. The electrical wiring must meet
all local and national electrical code requirements. The electrical
source and fan must be 110/120 volt, 60HZ. Do not use this
product in conjunction with any variable wall control. Incorrect
wire connection can damage this receiver.
CAUTION: If other fan wires are different color, have this unit
installed by a licensed electrician.
CAUTION: Do not install the receiver (H) in a damp location or
immerse in water (For indoor use only). Do not pull on or cut
the receiver leads shorter. Do not drop or bump the unit.
A
C
B
NN
A
C
H
B

10

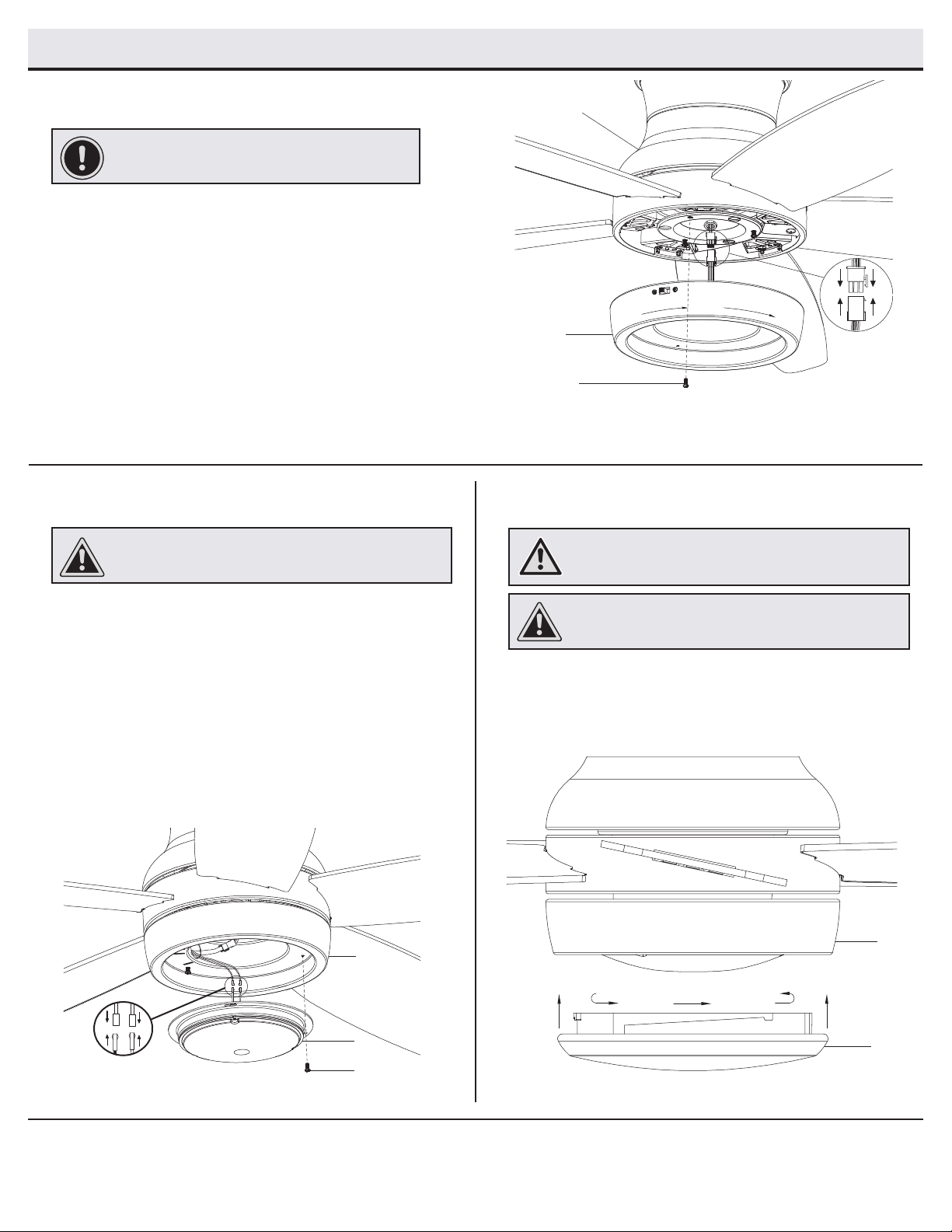

Assembly - Attaching the Light Kit
Attaching the light kit tter assembly Installing the glass bowl
□Remove one screw (PP) from the light kit pan (F) and loosen
but do not remove the other two screws.
□Connect the wires from the light kit tter assembly (E) to the
wires from the light kit pan (F) by connecting the molded
adaptor plugs together. Carefully tuck all wires and splices into
the switch cup.
□Push the light kit tter assembly (E) up to the light kit pan
(F) so that the two loosened screw heads t into the keyhole
slots. Turn the light kit tter assembly (E) clockwise.
□Re-install the screw (PP) that was removed in step 1.
□Make sure all the screws are rmly tightened.
□Place the glass bowl (G) into the light kit pan (F), aligning the
three at areas on the top ange of the glass bowl (G) with the
raised dimples in the light kit pan.
□Turn the glass bowl (G) clockwise until it stops.
9 10
CAUTION: To reduce the risk of electric shock, disconnect
the electrical supply circuit to the fan before installing the
light kit.
WARNING: Allow the glass bowl to cool completely before
removing.
CAUTION: Make sure the power is off before attaching or
removing the glass bowl.
E
PP
F
□Remove one screw (OO) from the black bracket below the fan
motor assembly (C), and loosen but do not remove the other two
screws.
□Connect the 9-pin plug exiting the bottom of the fan motor
assembly (C) to the 9-pin plug from the light kit pan (F). Be sure
the plug connections snap together completely.
□Push the light kit pan (F) up to the fan motor assembly (C) so that
the two loosened screw heads t into the keyhole slots. Turn the
light kit pan (F) clockwise.
□Re-install the screw (OO) that was removed in step 1.
□Make sure all the screws are rmly tightened.
Installing the light kit pan
8C
F
OO
F
G
IMPORTANT: It is critical to attach the light kit pan
using quick connector. The fan will not operate unless
the light kit pan is connected to the fan.

11 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

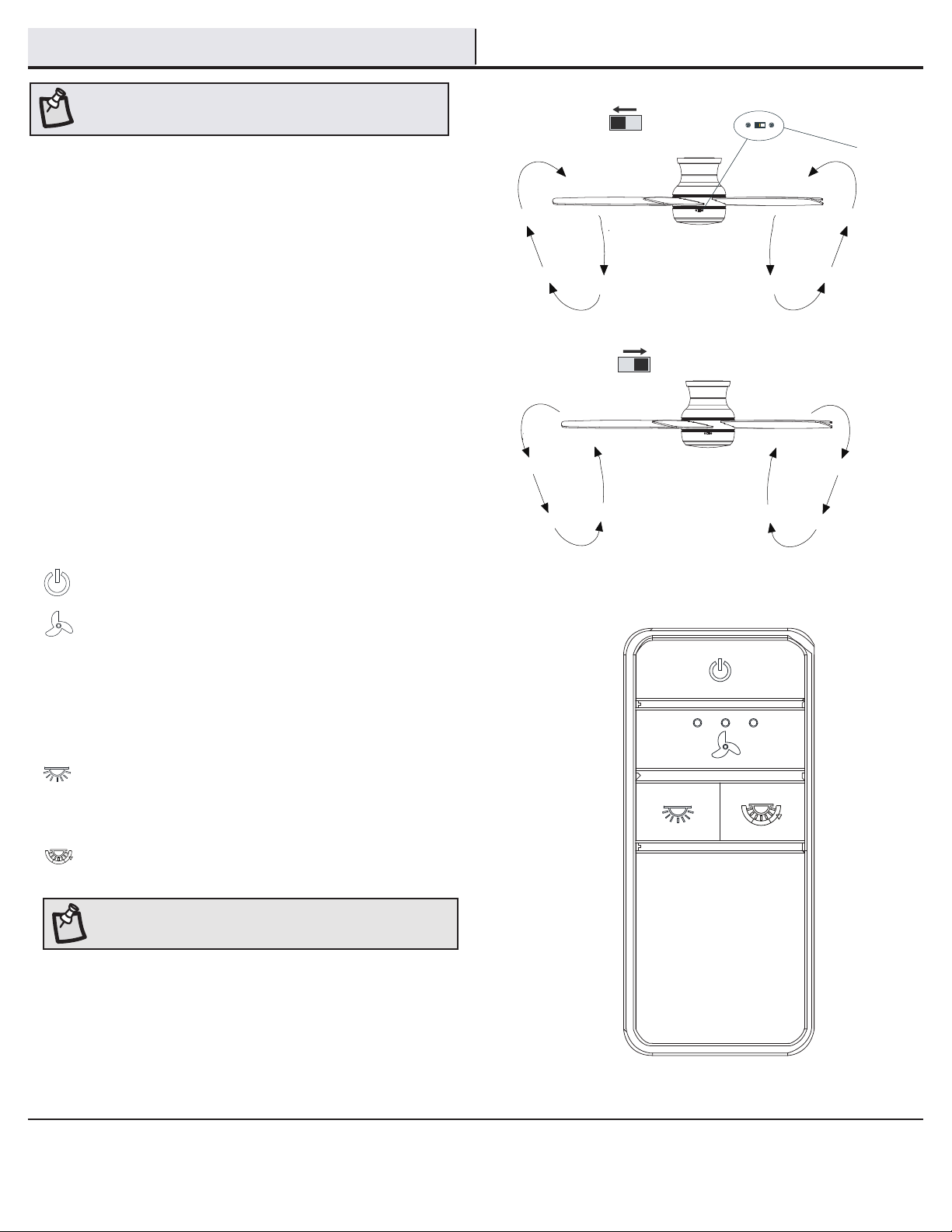

Operation
Remote control
Your fan is equipped with a remote control to operate the speed and
lights for your new ceiling fan.
Speed setting for warm or cool weather depends on factors such as
the room size, ceiling height, number of fans and so on.
The fan is shipped from the factory with the reversing switch (YY)
positioned to circulate air downward. If airow is desired in the
opposite direction, turn your fan off and wait for the blades to stop
turning, then slide the reversing switch (located on the light kit pan)
to the opposite position, and turn the fan on again. The fan blades
will turn in the opposite direction and reverse airow.
Warm weather - (Forward) A downward airow creates a cooling
effect. This allows you to set your air conditioner on a warmer setting
without affecting your comfort.
Cool weather - (Reverse) An upward airow moves warm air off of the
ceiling. This allows you to set your heating unit on a cooler setting
without affecting your comfort.
NOTE: Wait for the fan to stop before reversing the direction of the
blade rotation.
Operating your fan and remote control
Power ON/OFF: Press and release the power button to turn the
fan and light on or off.
Fan speed: LEDs on the fan speed button will illuminate to the
corresponding speed.
Press and release 1 time: turns the fan on high speed.
Press and release 2 times: turns the fan on medium speed.
Press and release 3 times: turns the fan on low speed.
Press and release 4 times: turns the fan off.
Light ON/OFF
Press and release the button to turn the light on or off.
Press and hold the button to activate the dimmer function.
Correlated Color Temperature (CCT)
changing
Push and release the button to cycle through the three color
temperature options.
Option 1: 2700K (Warm White).
Option 2: 3000K (Soft White).
Option 3: 5000K (Daylight).
YY
NOTE: The default temperature of the ceiling fan light is
3000k (Soft White).
Warm weather
Cool weather

12
Troubleshooting
Problem Solution
The fan will not start. □Check the main and branch circuit fuses or breakers.
□Check the line wire connections to the fan and switch wire connections in the switch housing.
The fan is noisy. □Ensure all motor housing screws are snug.
□Ensure the screws that attach the fan blade bracket to the motor hub are tight.
□Ensure the wire nut connections are not rattling against each other or the interior wall of the switch housing.
□Allow a 24-hour “breaking in” period. Most noises associated with a new fan disappear during this time.
□Ensure your outlet box is secure and rubber isolator pads were used between the mounting plate and outlet box.
The fan wobbles. □Check that all blade and blade arm screws are secure.
□Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a point on
the ceiling above the tip of one of the blades. Measure from a point on the center of the blade to the point on the
ceiling. Rotate the fan until the next blade is positioned for measurement, and measure from the same point on
each blade to the ceiling. Repeat for each blade. Any measurement deviation should be within 1/8 in. Run the fan
for ten minutes.
□Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling.
□Clean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning, as this could damage
the motor, or the wood, or possibly cause an electrical shock. Use only a soft brush or lint-free cloth to avoid scratching the nish. The
plating is sealed with a lacquer to minimize discoloration or tarnishing.
□You can apply a light coat of furniture polish to the wood for additional protection and enhanced beauty. Cover small scratches with a
light application of shoe polish.
□You do not need to oil your fan. The motor has permanently-lubricated sealed ball bearings.
WARNING: Make sure the power is off before cleaning
your fan.
Care and Cleaning

Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Retain this manual for future use.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
