USE AND CARE GUIDE
DRISKOL 60-INCH CEILING FAN
To view an instructional video on how to install this product:
1. Go to www.homedepot.com and enter either the Item or Model number, found in the top
right corner of the cover of this instruction manual, in the search eld.
2. Click on your product from the list of search results and click on the video link in the
“Product Overview” section.
Questions, problems, missing parts? Before returning to the store,
call Hubspace Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
1-877-592-5233
HOMEDEPOT.COM/HUBSPACE

2
Table of Contents ................................................................ 2
Safety Information...............................................................2
Warranty ...............................................................................3
Pre-Installation ....................................................................3
Installation............................................................................6
Assembly..............................................................................7
Operation ...........................................................................14
Care and Cleaning.............................................................17
Troubleshooting.................................................................17
1. To reduce the risk of electric shock, ensure the electricity has been
turned off at the circuit breaker or fuse box before you begin.
2. All wiring must be in accordance with the National Electrical Code
ANSI/NFPA 70 and local electrical codes. Electrical installation should
be performed by a qualied licensed electrician.
3. The outlet box and support structure must be securely mounted and
capable of reliably supporting a minimum of 35 lb (15.9 kg). Use
only UL Listed outlet boxes marked “Acceptable for Fan Support of
35 lb (15.9 kg) or less.”
4. The fan must be mounted with a minimum of 7 ft. (2.1 m) of
clearance from the trailing edge of the blades to the oor.
5. Do not place objects in the path of the blades.
6. To avoid personal injury or damage to the fan and other items, use
caution when working around or cleaning the fan.
7. After making electrical connections, spliced conductors should be
turned upward and pushed carefully up into the outlet box. The
wires should be spread apart with the grounded conductor and the
equipment-grounding conductor on one side of the outlet box.
8. All set screws must be checked and retightened where
necessary before installation.
WARNING: To reduce the risk of personal injury, do
not bend the blade brackets (also referred to as
anges) during assembly or after installation. Do
not insert objects in the path of the blades.
WARNING: Electrical diagrams are for reference
only. If you are using a light kit, refer to the light kit
instructions manual to make the electrical
connections. Optional use of any light kit shall be
UL Listed and marked suitable for use with this fan.
WARNING: To avoid possible electrical shock, turn
the electricity off at the main fuse box before
wiring. If you feel you do not have enough electrical
wiring knowledge or experience, contact a licensed
electrician.
Safety Information
Table of Contents
CAUTION: To reduce the risk of personal injury,
use only the screws provided with the outlet box.
WARNING: To reduce the risk of re, electric shock
or personal injury, mount to outlet box marked
“Acceptable for fan support of 35 lb (15.9 kg) or
less”, and use screws provided with the outlet box.
READ AND SAVE THESE INSTRUCTIONS.
WARNING: To reduce the risk of re or electric
shock, this fan should only be used with fan speed
control part no. JY1156H-LD-F1-EL, manufactured
by Chungear Industrial Co., Ltd.
WARNING: To reduce the risk of electric shock, this
fan must be installed with an isolating wall switch.

3HOMEDEPOT.COM/HUBSPACE
Please contact 1-877-592-5233 for further assistance.
Pre-Installation
Warranty
SPECIFICATIONS
NOTE: These are approximate measures. They do not
include the amps and wattage used by the light kit.
Size Speed Volts
Fan Power
Consumption
(without lights)
WATT
Airow
CFM
Airow Efciency
(higher is better)
CFM/WATT
Net
Weight
Gross
Weight Cubic Feet
60 in.
Low
120
5 2642 528
15.54 lb
(7.05 kg)
20.68 lb
(9.38 kg) 1.8 cu. ft.
Medium 16 4646 290
High 37 6631 179

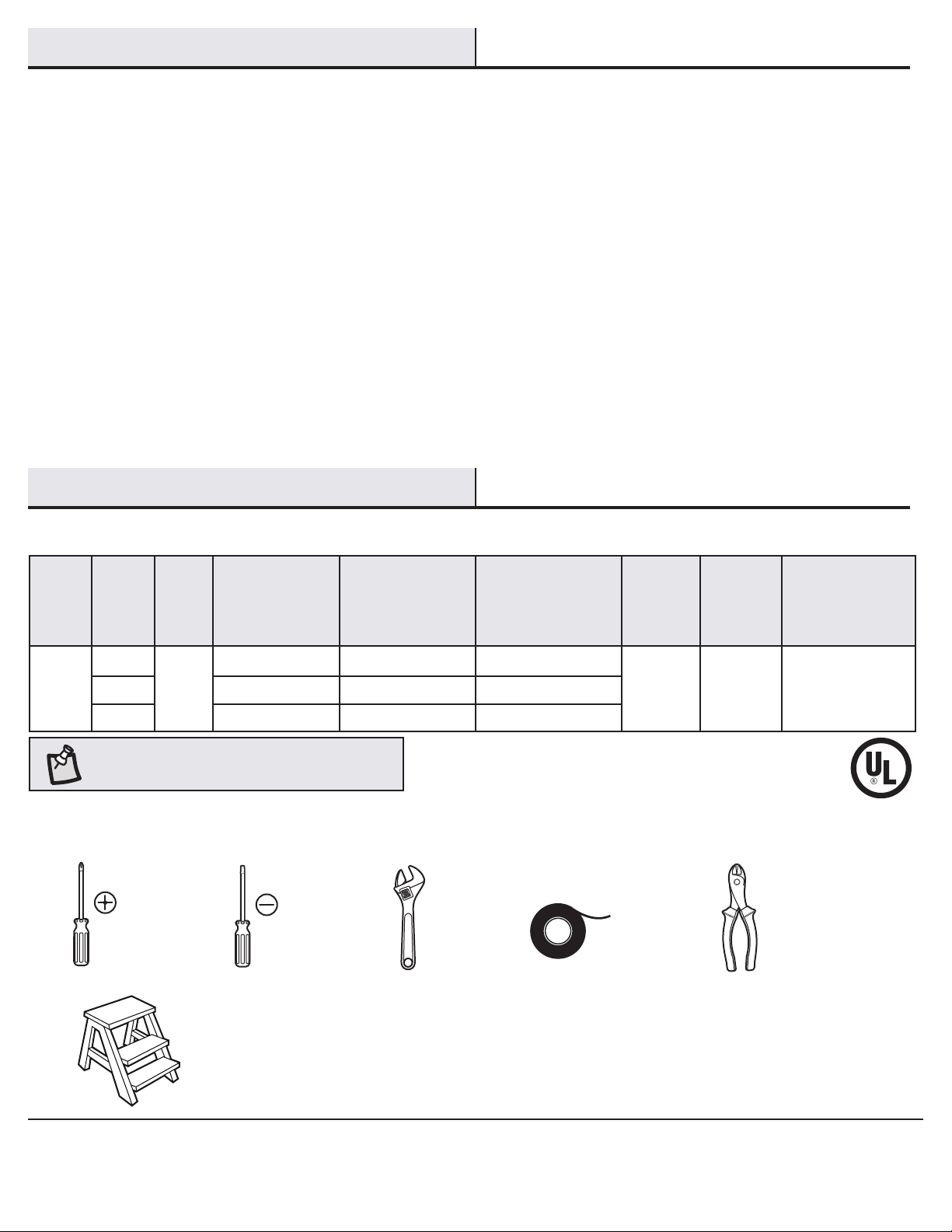

TOOLS REQUIRED
Phillips
screwdriver
Flat blade
screwdriver
Adjustable
wrench
Electrical
tape
Wire
cutter/
stripper
Step ladder
The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a
lifetime after the date of purchase by the original purchaser. The supplier warrants that the light kit, excluding any glass, to be free from defects in
workmanship and material at the time of shipment from the factory for a period of ve years after the date of purchase by the original purchaser.
The supplier also warrants that all other fan parts, excluding any glass or acrylic blades, to be free from defects in workmanship and material at the
time of shipment from the factory for a period of two years after the date of purchase by the original purchaser. We agree to correct such defects
without charge or at our option replace with a comparable or superior model if the product is returned. To obtain warranty service, you must present
a copy of the receipt as proof of purchase. All costs of removing and reinstalling the product are your responsibility. Damage to any part, such as by
accident, misuse, improper installation, or by afxing any accessories, is not covered by this warranty. Because of varying climatic conditions this
warranty does not cover any changes in brass nish, including rusting, pitting, corroding, tarnishing, or peeling. Brass nishes of this type give their
longest useful life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect.
Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. Home Decorators Collection
hereby disclaims any and all warranties, including but not limited to those of merchantability and tness for a particular purpose to the extent
permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specied in the express warranty.
Some states do not allow a limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall not be
liable for incidental, consequential, or special damages arising out of or in connection with product use or performance except as may otherwise
be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion or limitation may not
apply to you. This warranty gives specic legal rights, and you may also have other rights which vary from state to state. This warranty supersedes
all prior warranties. Shipping costs for any return of product as part of a claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-877-592-5233 or visit www.HomeDepot.com/hubspace.

4

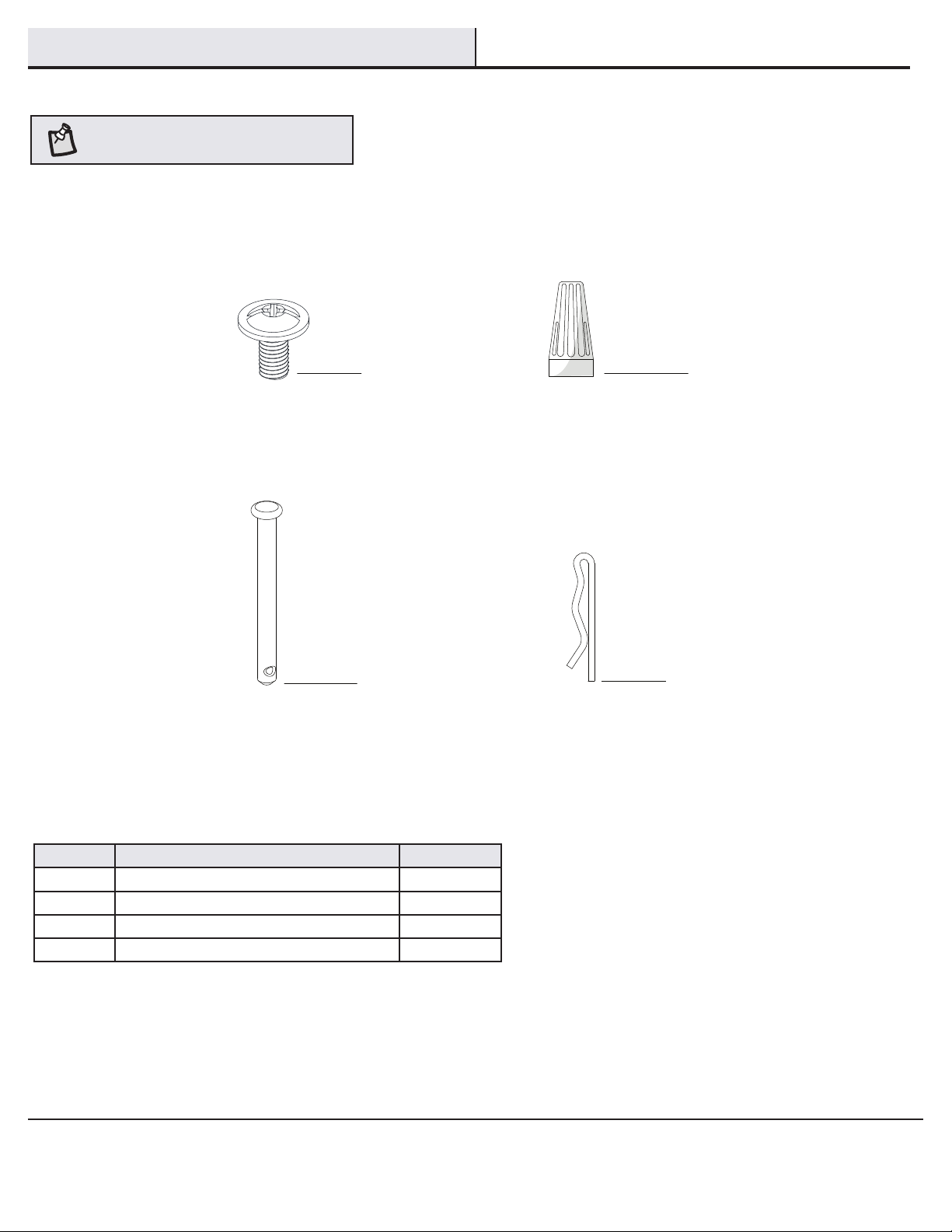

Part Description Quantity
AA Blade attachment screws 16
BB Plastic wire connecting nut 3
CC Hanger pin 1
DD Locking pin 1
Pre-Installation (continued)
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
BB
CC DD
AA

5HOMEDEPOT.COM/HUBSPACE
Please contact 1-877-592-5233 for further assistance.

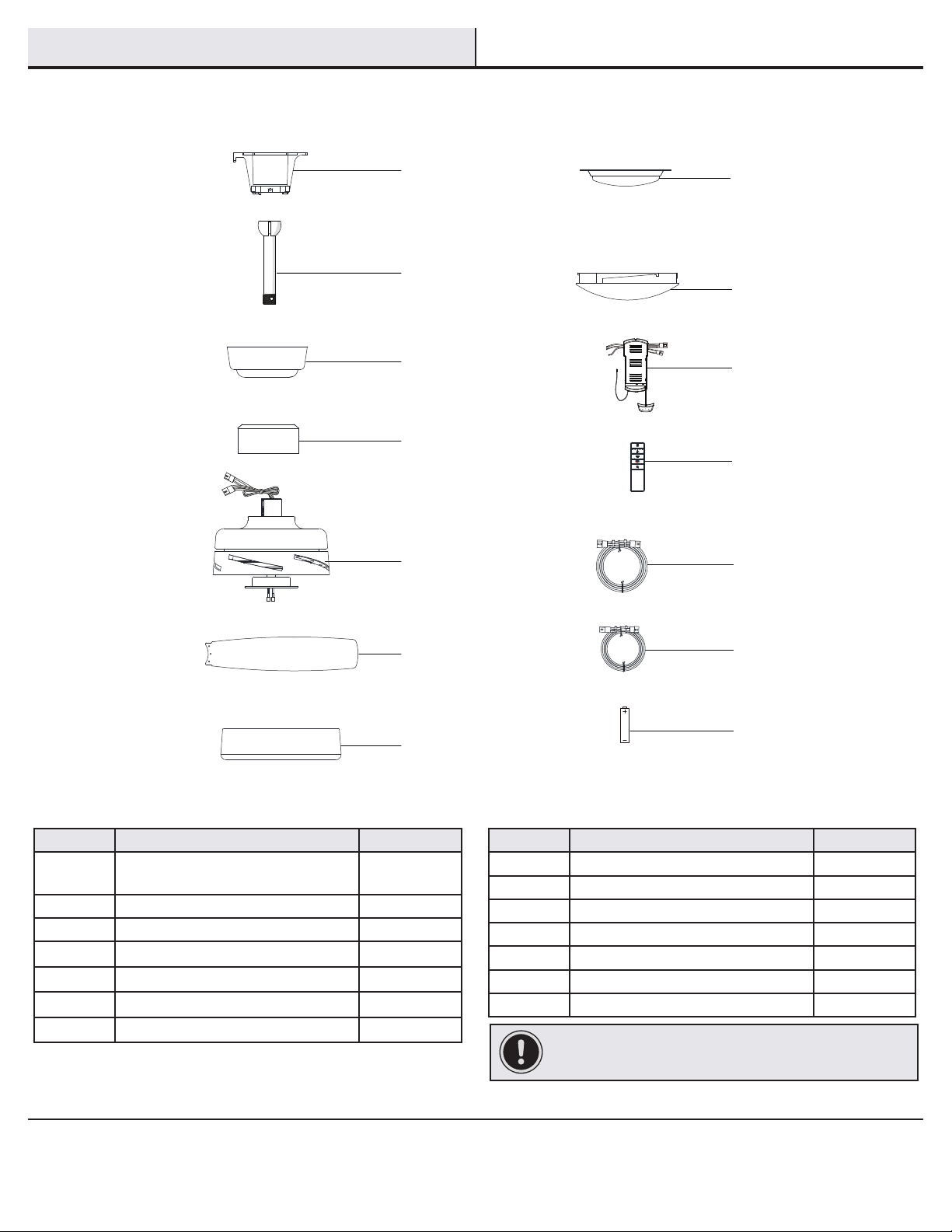

Part Description Quantity
ASlide-on mounting bracket
(inside canopy) 1
B Ball/downrod assembly 1
C Canopy 1
D Decorative motor collar cover 1
E Fan motor assembly 1
F Blade 5
G Light kit pan 1
Part Description Quantity
H Light kit tter assembly 1
I Shatter-resistant shade 1
J Receiver 1
K Remote control 1
L 3-pin extension wire (66 in.) 1
M 2-pin extension wire (66 in.) 1
N Battery 2
IMPORTANT: This product and/or components are governed by
one or more of the following U.S. Patents: 5,947,436; 5,988,580;
6,010,110; 6,046,416; 6,210,117 and other patents pending.
Pre-Installation (continued)
PACKAGE CONTENTS
A
B
C
G
D
I
H
F
E
J
K
L
M
N

6
Installation
MOUNTING OPTIONS
WARNING: To reduce the risk of re, electric shock
or personal injury, mount to an outlet box marked
“Acceptable for fan support of 35 lb (15.9 kg) or less”,
and use screws provided with the outlet box. An outlet
box commonly used for the support of lighting xtures
may not be acceptable for fan support and may need to
be replaced. If in doubt, consult a qualied electrician.
If your ceiling fan does not have an existing UL Listed mounting
box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□Secure the outlet box directly to the building structure. Use
the appropriate fasteners and materials. The outlet box and
support structure must be securely mounted and capable of
reliably supporting a minimum of 35 lb (15.9 kg). Use only UL
Listed outlet boxes marked “Acceptable for fan support of
35 lb (15.9 kg) or less.” Do not use a plastic outlet box.
The illustrations below show three different ways to mount the
outlet box.
If the canopy (C) touches the ball/downrod assembly (B), then remove
the decorative motor collar cover (D), and turn the canopy (C) 180°
before attaching the canopy (C) to the mounting plate.
To hang your fan where there is an existing xture but no ceiling joist,
you may need an installation hanger bar as shown above
(available at any Home Depot store).
NOTE: You may need a longer downrod to maintain
proper blade clearance when installing on a steep, sloped
ceiling. The maximum angle allowable is 15° away from
horizontal.
Outlet Box
Outlet Box
Recessed
Outlet
Box
Provide Strong
Support
Ceiling
Mounting
Plate
Outlet Box
Hanger Bar

7HOMEDEPOT.COM/HUBSPACE
Please contact 1-877-592-5233 for further assistance.
Assembly - Standard Ceiling Mount
Routing the wires
Preparing for mounting
□Remove the magnetic canopy bottom cover (JJ) from the
canopy (C) by pulling it off.
□Loosen the two canopy screws (EE) located in the bottom of
the mounting bracket (A).
□Turn the mounting bracket (A) counterclockwise and lift it up to
remove the mounting bracket from the canopy (C).

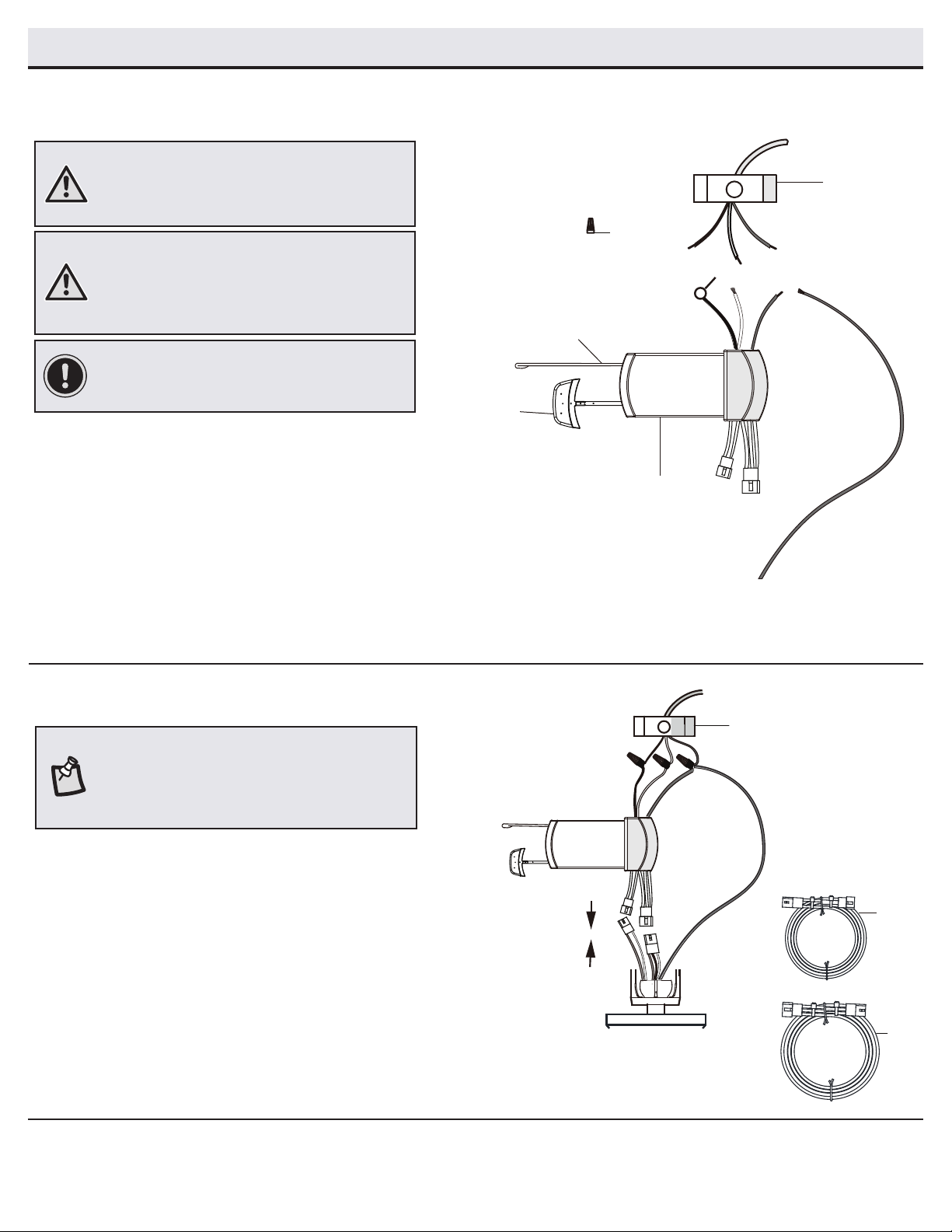

□Route the wires exiting the top of the fan motor assembly (E)
through the decorative motor collar cover (D) and then the center
of the canopy bottom cover (JJ).
□Make sure the opening of canopy (C) is on top and insert the ball/
downrod (B) through the canopy (C).
□Route the wires exiting the top of the fan motor assembly (E)
through the downrod as shown.
2
1
NOTE: The fan comes with 12 in. lead wires for use with
the provided 6 in. ball downrod assembly (B). If you wish
to use a longer downrod, attach the 3-pin extension wire
(L) and 2-pin extension wire (M) to the fan by connecting
the molded adaptor plugs from the extension wires to the
3-pin and 2-pin adaptor plugs from the fan.
NOTE: The magnet is pre-attached on the canopy
bottom cover for you to remove and install easily.
C
A
EE
JJ
C
D
E
JJ
B

8
Attaching the fan to the electrical
box

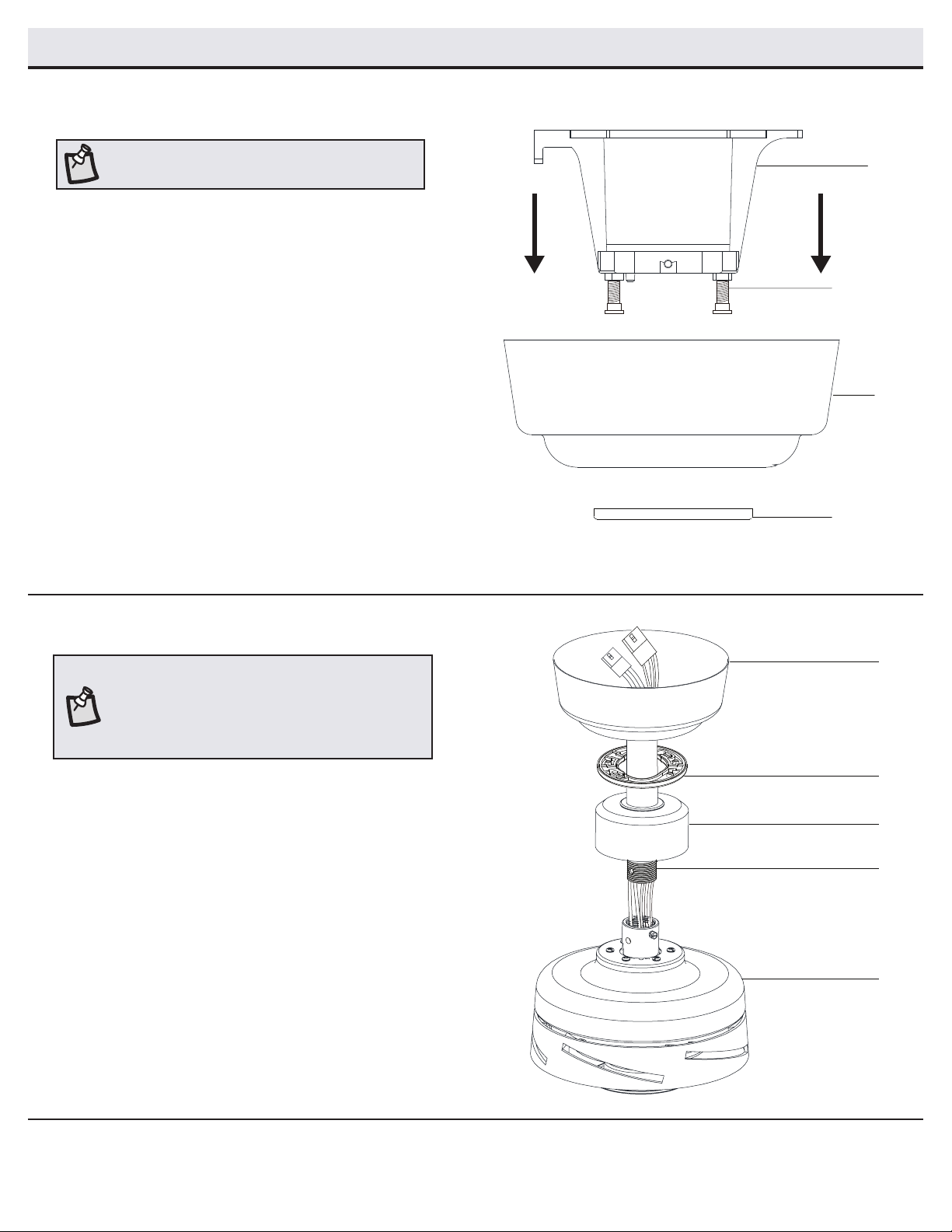

□Loosen the two mounting screws (GG) in the outlet box.
□Pass the 120-Volt supply wires through the center hole in the
mounting bracket (A).
□Slide the mounting bracket (A) on to the mounting screws (GG)
and center the mounting bracket (A) in relation to the outlet box.
If necessary, use leveling washers (not included) between the
slide-on mounting bracket (A) and the outlet box. The at side of
the slide-on mounting bracket (A) should face toward the outlet
box, as shown.
□Securely tighten the two mounting screws (GG).
1
WARNING: To reduce the risk of re, electric shock
or personal injury, mount to an outlet box marked
“Acceptable for fan support of 35 lb (15.9 kg) or less”,
and use screws provided with the outlet box.
NOTE: The mounting bracket (A) is designed to slide
into place on an outlet box with the outlet box screws
(GG) installed.
Assembly - Standard Ceiling Mount (continued)
Assembling the fan

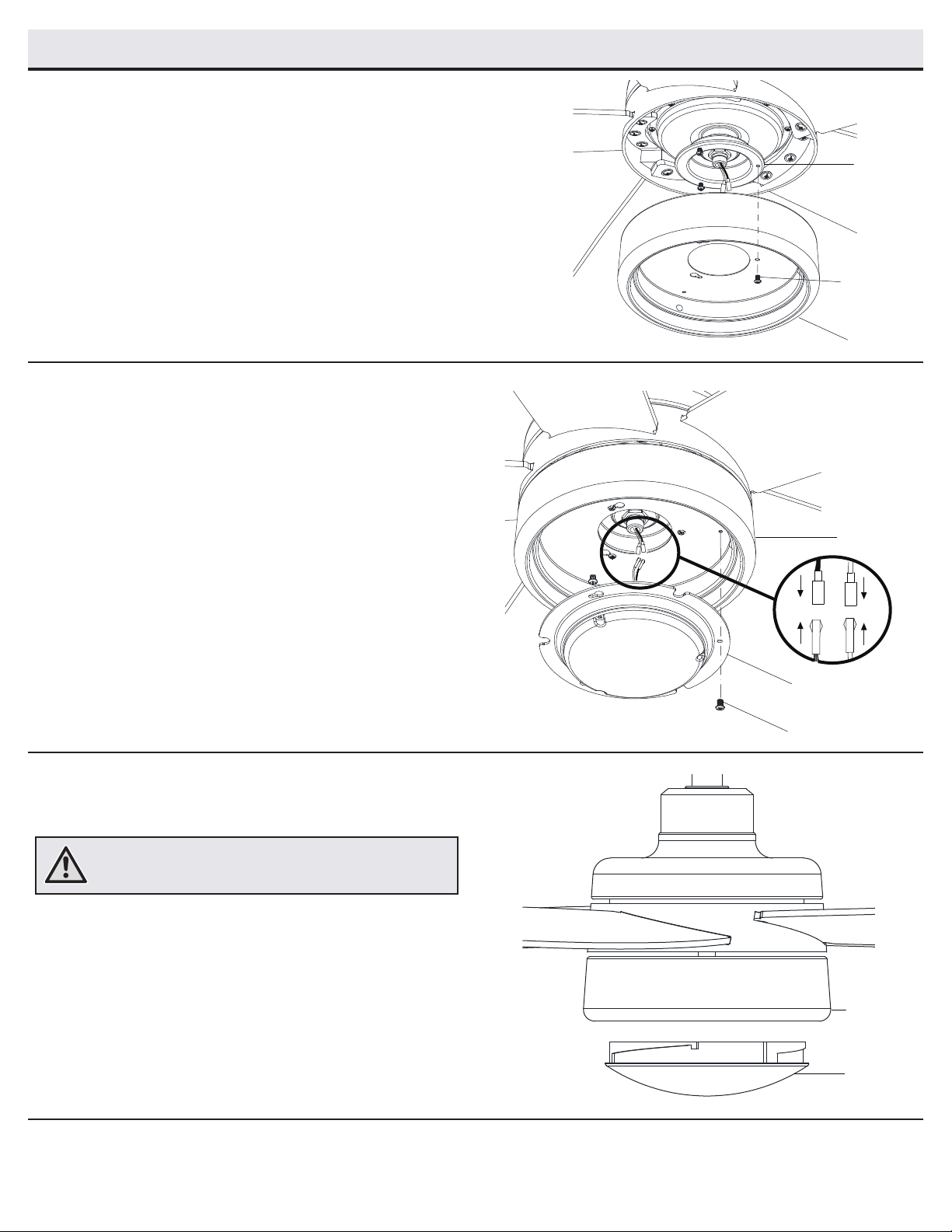

□Loosen, but do not remove, the setscrew (KK) on the collar (PP) on
top of the fan motor assembly (E).
□Install the ball/downrod assembly (B) by inserting it into the motor
collar (PP), and turning it clockwise until the holes at the bottom of
the ball/downrod assembly (B) align with the holes in the collar on
top of the fan motor assembly (E).
□Carefully insert the hanger pin (CC) through the holes in the collar
and ball/downrod assembly (B). Be careful not to jam the hanger
pin (CC) against the wiring inside the ball/downrod assembly (B).
□Insert the locking pin (DD) through the hole near the end of the
hanger pin (CC) until it snaps into its locked position.
□Re-tighten the setscrew (KK) on the collar (PP) on top of the fan
motor assembly (E).
WARNING: Failure to properly install the locking
pin (DD) could result in the fan becoming loose and
possibly falling.
CAUTION: To ensure wobble-free operation and to avoid
damage to the fan, the downrod (B) and the setscrew (KK)
must be completely tightened.
3
Assembly - Hanging the Fan
A
GG
GG
C
D
E
JJ
B
CC DD
KK
PP

9HOMEDEPOT.COM/HUBSPACE
Please contact 1-877-592-5233 for further assistance.
Assembly - Hanging the Fan (continued)
Hanging the fan
□Carefully lift the fan motor assembly (E) up to the slide-on
mounting bracket (A).
□Insert the ball portion of the ball/downrod assembly (B)
into the socket of the slide-on mounting bracket (A).
□Turn the ball/downrod assembly (B) clockwise until it is
seated with the tab of the slide-on mounting bracket (A)
aligned with the slot in the ball.
2
A
B
E
C
D
JJ
Installing the receiver
□Position the house supply wires (AAA) to one side of
the slide-on mounting bracket (A). Position the fan
wires to the opposite side.
□Insert the narrow end of the receiver (J) (as shown,
at side towards the ceiling) into the slide-on
mounting bracket (A) until it rests on top of the ball/
downrod assembly (B).
3
WARNING: To reduce the risk of re or electric shock,
remember to disconnect power. The electrical wiring
must meet all local and national electrical code
requirements. The electrical source and fan must
be 110/120 volts, 60Hz. Do not use this product in
conjunction with any variable wall control. Incorrect
wire connection can damage this receiver.
CAUTION: If other fan wires are a different color, have
this unit installed by a licensed electrician.
C
A
J
AAA

10
Assembly - Hanging the Fan (continued)
Wiring the fan to the receiver
5
□If using the 6 in. ball downrod assembly (B) provided, wire the
receiver to the fan wires by connecting the molded adaptor
plug from the receiver (J) with the molded adaptor of the fan
motor assembly (E) together.
□If you wish to use longer downrod, you can use the extension
lead wire (66 in.) (L) and (M) provided by connecting the
molded adaptor together.
Wiring the receiver to the
household wiring
4
WARNING: To avoid possible electrical shock, turn
the electricity off at the main fuse box before
wiring. If you feel you do not have enough electrical
wiring knowledge or experience, contact a licensed
electrician.
WARNING: Each wire nut supplied with this fan is
designed to accept up to one 12-gauge house wire
and two wires from the fan. If you have larger than
12-gauge house wiring or more than one house wire to
connect to the fan wiring, consult an electrician for the
proper size wire nuts to use.
IMPORTANT: Use the wire connecting nuts (BB)
supplied with your fan. Secure the connectors with
electrical tape and ensure there are no loose strands or
connections.
□Spread the wires apart so that the green and white wires
are on one side of the outlet box and the black wire is on the
other side.
□Connect the green fan wires to the household ground wire
(this may be a green or bare wire) using a wire connecting
nut (BB).
□Connect the receiver (J) black (or red) wire to the household
black (hot) wire using a wire connecting nut (BB).
□Connect the receiver (J) white wire to the household white
wire (neutral) using a wire connecting nut (BB).
□Secure each wire connecting nut using electrical tape.
NOTE: The fan comes with 12 in. lead wires for use with
the provided 6 in. ball/downrod assembly (B). If you wish
to use a longer downrod, attach the 3-pin extension wire
(L) and 2-pin extension wire (M) to the fan by connecting
the molded adaptor plugs from the extension wires to
the 3-pin and 2-pin adaptor plugs from the fan.
Black
Black
Green (or Bare)
Green
Outlet Box
Receiver
Antenna
White
Receiver (J)
BB (x3)
Green
Wi-Fi
Antenna
Outlet box
in the ceiling
(MM)
Green
L
M

11 HOMEDEPOT.COM/HUBSPACE
Please contact 1-877-592-5233 for further assistance.
Assembly - Hanging the Fan (continued)
Mounting the fan motor assembly
(standard mount)
6
WARNING: When using the standard ball/downrod
mounting, the tab in the ring at the bottom of the
mounting bracket must rest in the groove of the
hanger ball. Failure to properly seat the tab in the
groove could cause damage to the wiring.
NOTE: The magnet is pre-attached on the canopy bottom
cover for you to remove and install easily.
□Align the locking slots of the canopy (C) with the two screws
(EE) and alignment post (QQ) in the mounting bracket (A).
□Push up the canopy (C) and turn it clockwise until the alignment
post (QQ) engages to the round hole and the screws (EE) engage
to the key slots.
□Firmly tighten the two mounting screws (EE).
□Align the oval shape on the canopy (C) with canopy bottom
cover (JJ).
□Push up the canopy bottom cover (JJ) until the screw (EE) heads
engage to the slots on the canopy bottom cover (JJ) so that
the magnetic canopy bottom cover (JJ) can be attached to the
bottom of the canopy (C) properly.
NOTE: For better performance with the Wi-Fi system, the
Wi-Fi antenna must be mounted to the ceiling outside of
the fan’s ceiling canopy.
QQ
A
B
E
C
JJ
EE
View after installation
Wi-Fi antenna mount
outside of the canopy
Assembly - Attaching the Fan Blades
Attaching the fan blades
1
□Attach a blade (F) to the fan motor assembly (E) by inserting
the blade (F) into slots in the side of the fan motor assembly
(E) and aligning the three screws holes in the blade with the
holes in the center ywheel and secure with blade attachment
screws (AA).
□Make sure all the screws are rmly tightened.
□Repeat these steps for the remaining blades.
AA
F
E

12
Attaching the light kit tter assembly
2□Remove one screw (TT) from the light kit pan (G), and loosen,
but do not remove, the other two screws.
□Connect the wires from the light kit tter assembly (H) to
the wires from the fan motor assembly (E) by connecting the
molded adaptor plugs together. Carefully tuck all wires and
splices into the switch cup.
□Push the light kit tter assembly (H) up to the light kit pan
(G) so that the two loosened screw heads t into the keyhole
slots. Turn the light kit tter assembly (H) clockwise to secure.
□Re-install the screw that was removed in the rst step.
□Make sure all the screws are rmly tightened.
Installing the shatter-resistant shade
3
□Place the shatter-resistant shade (I) into the light kit pan (G),
aligning the three at areas on the top of the ange of the
shatter-resistant shade (I) with the three raised dimples in the
light kit pan (G). Turn the shade clockwise until it stops.
WARNING: Do not overtighten when installing the shatter-
resistant shade into the light kit. Allow the shatter-resistant
shade to cool completely before removing.
Installing the light kit pan
1
□Remove one screw (FF) from the black bracket below the fan
motor assembly (E), and loosen but do not remove the other
two screws.
□Push the light kit pan (G) up to the fan motor assembly (E) so
that the two loosened screw heads t into the keyhole slots.
Turn the light kit pan (G) clockwise.
□Re-install the screw (FF) that was removed in the rst step.
□Make sure all the screws are rmly tightened.
Assembly - Attaching the Light Kit
TT
G
H
G
E
FF
G
I

13 HOMEDEPOT.COM/HUBSPACE
Please contact 1-877-592-5233 for further assistance.
Assembly - Attaching the Accessories
Mounting the remote control holder
□Slide the screw cover plate up to remove it from the wall
cradle.
□Position the wall cradle in the desired position and attach it to
the wall using the included wall cradle screws.
□Slide the screw cover plate back onto the wall cradle to
conceal the screws.
Screw cover plate
NOTE: Screw wall anchors are included for extra support. The
included screws are designed to screw easily into the wall. If
you would like a more permanent or secure hold, install the wall
anchors prior to attaching the wall cradle to the wall.
Preparing the remote control
□Conrm that the power to the fan is off at either the wall switch or breaker box.
□Remove the battery cover by pressing rmly on the arrow and sliding the cover off.
□Install two 1.5V AAA batteries (N).
□Return power to the fan at the wall switch or breaker box.
□If the remote control doesn’t work as normal, press then release the “Learn” button for 1-2
seconds (located in the remote’s battery compartment) within 30 seconds of turning on the
power.
□If pairing is successful, the fan’s light kit will ash and the blades will begin to spin.
□Replace the battery cover on the remote control.
1 to 3 mode
□To use more than one remote control for your fan, press the “Learn” button for 10 seconds and
release within 30 seconds of turning on the power. Once pairing is successful, the fan’s light kit
will ash and the blades will begin to spin.
□Repeat the above process for the remote controls you want to work with this fan.
□The fan can be only controlled by 3 remote controls maximum at the same time after “Learning”.
If you use a fourth remote control to handle the fan, the rst remote control will be replaced.
1 to 1 mode
□To use only one remote control for your fan, press and release the “Learn” button for 1-2 seconds
within 30 seconds of turning on the power. The “1 to 3” mode will be cleared and returned back
to “1 to 1” mode.
NOTE: The remote control has already been paired to the ceiling
fan for your convenience. If you have two of the same model fans
in your home, please follow the steps below to control each fan
independently.
NOTE: The remote control battery will weaken with age and
should be replaced before leaking takes place, as this will damage
the remote control. Dispose of used battery properly and keep the
battery out of the reach of children.
NOTE: The switch marked “D/O” controls the dimming function
of the lights. If you wish to use the dimming functionality or
Hubspace app, keep the switch in the “D” position. To disable the
dimming function, set the switch to the “O” position.
D O
Assembly - Preparing the Remote Control

14
Operating Your Fan and Remote Control
POWER ON/OFF
Press and release the power button to turn the fan and light on or off.
LIGHT ON/OFF/DIMMING
Press and release the button to turn the light on or off.
Press and hold the button to activate the dimmer function.
CORRELATED COLOR TEMPERATURE (CCT) CHANGING
Push and release the button to cycle through the six color temperature
options.
Option 1: 2700K (Warm White).
Option 2: 3000K (Soft White).
Option 3: 3500K (Neutral White).
Option 4: 4000/4100K (Cool White).
Option 5: 5000K (Daylight).
Option 6: 6500K (Daylight Deluxe).
NOTE: The default temperature of the ceiling fan light is 3000k
(Soft White).
Power
(fan and light on/off)
Light on/off/dimming
Fan speed
CCT changing
Fan reverse
FAN SPEED
LEDs on the fan speed button will illuminate to the corresponding speed.
Press and release 1 time: turns the fan speed to 5.
Press and release 2 times: turns the fan speed to 4.
Press and release 3 times: turns the fan speed to 3.
Press and release 4 times: turns the fan speed to 2.
Press and release 5 times: turns the fan speed to 1.
Press and release 6 times: turns the fan off.
NOTE: The remote receiver includes a memory function that will
return the fan to its last setting when turned on via the power
button.
FAN REVERSE
Press and release the fan reverse button to reverse the rotation of your
ceiling fan.
Warm weather (Forward) - A downward airow creates a cooling effect.
This allows you to set your air conditioner on a higher setting without
affecting your comfort.
Cool weather (Reverse) - An upward airow moves warm air off of the
ceiling. This allows you to set your heating unit on a lower setting without
affecting your comfort.
NOTE: Do not wait for the fan to stop before pressing the reverse
button. The fan will not reverse direction if the fan is not moving.
A. Warm weather
B. Cool weather
NOTE: On start up your ceiling fan will oscillate back and forth.
This is NORMAL OPERATION for DC ceiling fans as it goes
through its calibration cycle. The fan is NOT DEFECTIVE.

15 HOMEDEPOT.COM/HUBSPACE
Please contact 1-877-592-5233 for further assistance.
Application Set-Up
NOTE: For more information on smart remote set up, please refer
to the quick start guide located in the remote pack.
NOTE: To use Alexa to change the color temperature of the light,
please make sure the light is turned on rst. Questions, problems missing parts?
Please call Hubspace Customer service
8 a.m. - 7 p.m. EST, Monday - Friday;
9 a.m. - 6 p.m., EST, Saturday
[phone]
□Download the Hubspace™ app from the App Store or the Google Play Store to your mobile device.
□Launch the app.
□To register, enter your email address and a password. Or, login if you already have an account.
□Bluetooth access is required for device setup.
Getting started
1
□Hubspace only shows Wi-Fi networks that your device can use. Check your network only if an option does not appear during set up.
□This Hubspace device requires a 2.4GHz Wi-Fi channel.
□Most routers provide a 2.4 GHz Wi-Fi channel.
□If you do not see your Wi-Fi network name when you attempt to connect your device, please check your router settings.
Verify your network
2
□In the Hubspace app, tap the plus sign in the upper right corner.

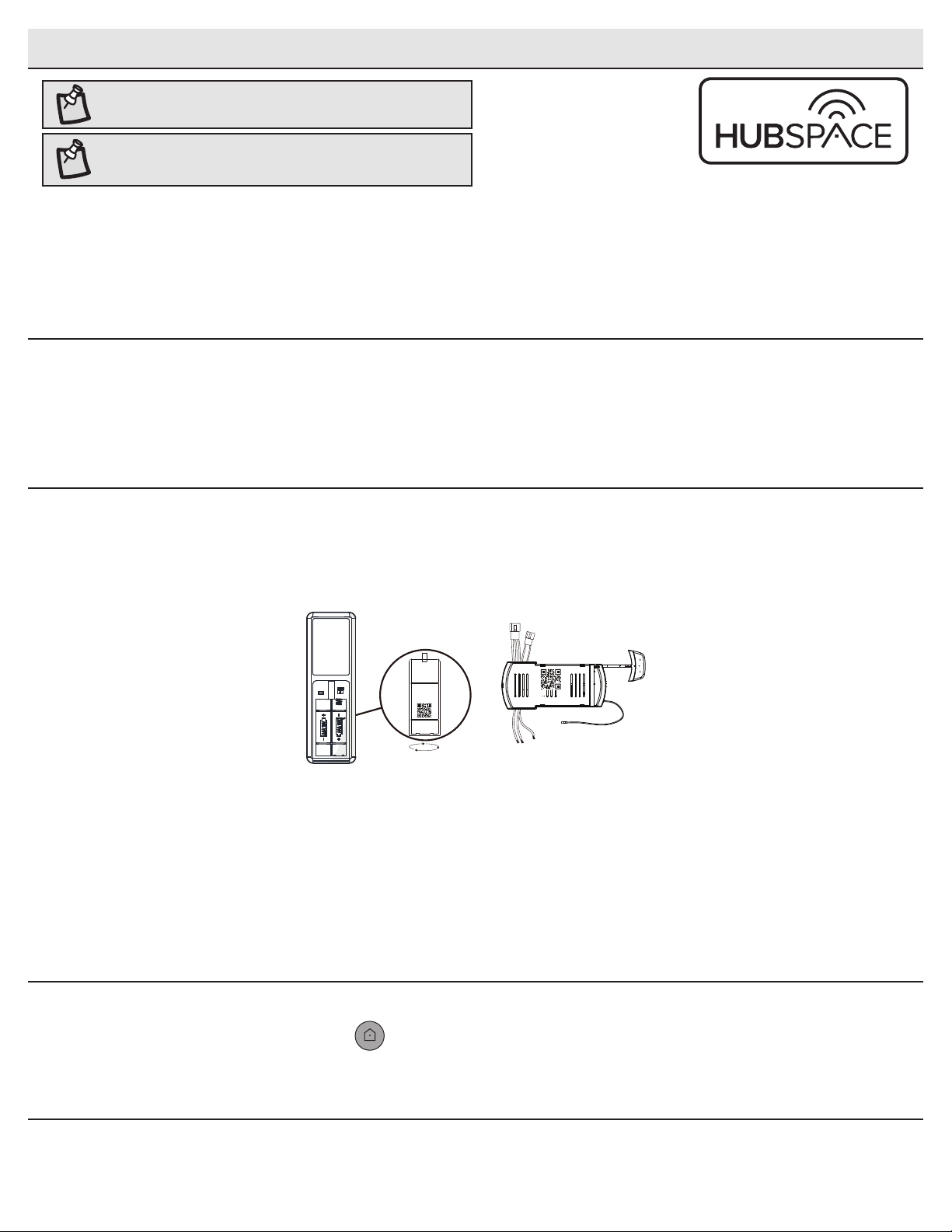

□Scan your product’s QR code. You can nd the QR code on the remote receiver, inside the battery
compartment cover of the remote, and on the Quick Start Guide paper included with the fan.
Add a device
3
If you are unable to access the QR code for your light, you can put it into discovery mode with the following sequence:
□Switch the device off and on 5 times. The light will pulse to show that it can now be discovered.
□In the Hubspace app, tap the plus sign in the upper right corner and follow the instructions to discover devices. More than one device can be
added at a time using this method.
Set up your voice assistant
4□In the Hubspace app, tap the Hubspace button.
□Select the Integrations tab, choose your voice assistant and follow the instructions.
Problems connecting to Hubspace device, see “troubleshooting” on page 17.
Scan problem?
If the QR code cannot be scanned for some reason, you can enter the code manually. Tap Enter Code and follow the instructions.
□Connect your device to power and follow the instructions on screen.
(For lighting and fan products only)
D O

16
Voice Commands
When you want to... Ask Alexa to...
Turn on the fan only. … turn on <device name> fan power.
Turn off the fan only. … turn off <device name> fan power.
Turn on the light only. … turn on <device name> light power.
Turn off the light only. … turn off <device name> light power.
Change the brightness. ... Set <device name> brightness to 75%.
… Set <device name> light to 25%.
… Make <device name> dimmer.
… Make <device name> brighter.
… Dim <device name>.
… Brighten <device name>.
… Dim <group name>.
… Brighten <group name>.
Change the color temperature. … Change <device name> to Cool White.
… Change <device name> to Warm White.
… Change <device name> to Daylight White.
… Change <device name> to White.
Change the fan speed. … Set <device name> speed to fastest.
… Set <device name> speed to fast.
… Set <device name> speed to medium.
… Set <device name> speed to slow.
… Increase <device name> speed.
… Decrease <device name> speed.
Turn on Comfort Breeze. … Turn on Comfort Breeze on <device name>.
Alexa
When you want to... Ask Google to...
Turn on the fan only. … turn on <device name> fan power.
Turn off the fan only. … turn off <device name> fan power.
Turn on the light only. … turn on <device name> light power.
Turn off the light only. … turn off <device name> light power.
Change the brightness. ... Set <device name> brightness to 75%.
… Set <device name> light to 25%.
… Brighten <device name>.
… Dim <device name>.
… Brighten <room name>.
… Dim <room name>.
Change the color temperature. … Change <device name> to Ivory.
… Change <device name> to Daylight.
… Change <device name> to Cool White.
… Change <device name> to Warm White.
... Change <device name> to Incandescent.
Change the fan speed. … Set <device name> speed to fastest.
… Set <device name> speed to fast.
… Set <device name> speed to medium.
… Set <device name> speed to slow.
… Increase <device name> speed.
… Decrease <device name> speed.
Turn on Comfort Breeze. … Turn on Comfort Breeze on <device name>.
Google
The Driskol 60 in. LED Indoor Smart Color Changing Ceiling Fan works with Alexa and Google Assistant.
This section lists some of the voice commands you can use. To view these and other commands, go to http://hubspaceconnect.com/.

17 HOMEDEPOT.COM/HUBSPACE
Please contact 1-877-592-5233 for further assistance.
Troubleshooting
□Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling.
□Clean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning, as this could damage the
motor, or the wood, or possibly cause an electrical shock. Use only a soft brush or lint-free cloth to avoid scratching the nish.
□You can apply a light coat of furniture polish to the wood for additional protection and enhanced beauty. Cover small scratches with a light
application of shoe polish.
□You do not need to oil your fan. The motor has permanently-lubricated sealed ball bearings.
WARNING: Make sure the power is off before cleaning
your fan.
Care and Cleaning
Problem Solution
The fan will not start. □Check the main and branch circuit fuses or breakers.
□Check to make sure the wall switch is in the on position if applicable.
□Check the line wire connections to the fan and switch wire connections in the switch housing.
□Check the battery in the transmitter.
□Ensure you are in the normal range of 10-20 feet.
□Remember to turn off the power supply before checking the dip switches settings.
The fan is noisy. □Ensure all motor housing screws are snug.
□Ensure the screws that attach the fan blade bracket to the motor hub are tight.
□Ensure the wire nut connections are not rattling against each other or the interior wall of the switch housing.
□Allow a 24-hour “breaking in” period. Most noises associated with a new fan disappear during this time.
□If you are using the Ceiling Fan light kit, ensure the screws securing the glassware are tight. Check that the light bulbs are also secure.
□Ensure the canopy is a short distance from the ceiling. It should not touch the ceiling.
□Ensure your outlet box is secure and rubber isolator pads were used between the mounting plate and outlet box.
The fan wobbles. □Check that all blade and blade arm screws are secure.
□Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a point on the ceiling above the tip
of one of the blades. Measure from a point on the center of each blade to the point on the ceiling. Rotate the fan until the next blade is
positioned for measurement. Repeat for each blade. Any measurement deviation should be within 1/8 inch. Run the fan for ten minutes.
If the fan continues to wobble please contact customer service and a balancing kit will be sent to you at no charge.
The fan moves backwards and
forwards when turned on.
□This is normal start-up procedure for DC motor fans. The partial movement during start-up is the result of the DC motor aligning the
internal magnetic poles for proper motor operation. This design saves electricity and allows the fan to operate much quieter than
standard AC motor fans.
HubspaceTM Troubleshooting
My hubspace device is not
connecting to Wi-Fi.
□Make sure your device is connected to a power source.
□Your Internet connection or Wi-Fi network may be down.
My device cannot nd any Wi-Fi
networks.
□Make sure you have a 2.4GHz capable Wi-Fi network within range of the device you are trying to add.
My device is in a location that does
not have Wi-Fi. Can I still use it with
the Hubspace app?
Yes:
□Use the app on a phone with an Internet connection like LTE.
□The phone must be within Bluetooth range of your Hubspace device.
I cannot nd the QR code. □Look for it where other stickers are on the product. A copy of the QR code is also included in your device’s documentation.
The QR code has become damaged.
How do I add the device?
□Under the QR code are numbers. You can enter those in manually instead of scanning the code.
How do I reset the device? □Remove the device from your account, then add it back. Devices also reset when they transfer to a new account.
A device is on another account.
How do I transfer it?
□Scan the QR code and it will transfer to your account.
My device is ofine for long periods
of time.
□Make sure your Wi-Fi signal strength is sufcient. You may need to move your router, use mesh Wi-Fi, or Wi-Fi extenders.
The device is on and I scanned
the QR code, but the app cannot
connect to it.
□Turn off Bluetooth on your phone and turn it back on. Then, scan the QR code.
Can I scan the same QR code to add
multiple products?
□No. Each product has a unique QR code.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
□Reorient or relocate the receiving antenna.
□Increase the separation between the equipment and receiver.
□Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
□Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Questions, problems, missing parts? Before returning to the store,
call Hubspace Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
1-877-592-5233
HOMEDEPOT.COM/HUBSPACE
Retain this manual for future use.

GRACIAS
Apreciamos la plena conanza depositada en Home Decorators Collection al comprar este ventilador de techo. Nos esforzamos en crear
continuamente productos de calidad diseñados para mejoras del hogar. Visítanos por Internet para ver nuestra línea completa de productos
disponibles a n de satisfacer la necesidades de mejoras de tu hogar. ¡Gracias por elegir Home Decorators Collection!
Artículo # 1007 532 508
Modelo # 56052
Modelo núm. 60-SNYD
aprobado por UL
GUÍA DE USO Y MANTENIMIENTO
VENTILADOR DE TECHO DRISKOL DE 60 PLG (1.52 M)
Para ver un video instructivo sobre cómo instalar este producto:
1. Visita www.homedepot.com e ingresa en el campo de búsqueda el número del modelo
o artículo que aparece en la esquina superior derecha de la portada de este manual
de instrucciones.
2. Haz clic sobre tu producto en la lista de resultados de la búsqueda y sobre el enlace
de video en la sección “Product Overview” [Información general del producto].
¿Preguntas, problemas, piezas faltantes? Antes de regresar a la tienda,
llama al Servicio de atención al cliente de Hubspace de lunes a viernes,
de 8:00 a.m. a 7:00 p.m. (hora del Este), y los sábados
de 9:00 a.m. a 6:00 p.m. (hora del Este)
1-877-592-5233
HOMEDEPOT.COM/HUBSPACE

2
Tabla de contenido.............................................................. 2
Información de seguridad...................................................2
Garantía................................................................................3
Preinstalación ......................................................................3
Instalación............................................................................6
Ensamblaje........................................................................... 7
Funcionamiento.................................................................14
Mantenimiento y limpieza.................................................17
Solución de problemas ..................................................... 17
1. Para disminuir el riesgo de descarga eléctrica, asegúrate de
desconectar la electricidad en el cortacircuitos o en la caja de
fusibles antes de comenzar.
2. Todo el cableado tiene que cumplir con el Código Nacional de
Electricidad ANSI/NFPA 70 y con los códigos eléctricos locales.
La instalación eléctrica debe hacerse por un electricista certicado
y calicado.
3. La caja eléctrica y la estructura de soporte tienen que montarse de
forma segura para poder sostener con conanza y como mínimo 35
lb (15.9 kg). Usa solo cajas eléctricas aprobadas por UL y marcadas
como “Apropiada para sostener ventiladores de 35 lb (15.9 kg) o
menos”.
4. El ventilador debe ir montado con un mínimo de 7 pies (2.1 m) de
separación entre el borde trasero de las aspas y el piso.
5. No coloques objetos en la trayectoria de las aspas.
6. Para evitar lesiones físicas o daños al ventilador y otros artículos,
ten cuidado al limpiarlo o al trabajar cerca de él.
7. Después de concluir las conexiones eléctricas, debes voltear los
conductores empalmados hacia arriba y meterlos con cuidado en
la caja eléctrica. Los cables deben estar separados con el cable
a tierra y el conductor a tierra del equipo a un lado de la caja
eléctrica.
8. Antes de la instalación, todos los tornillos de fijación tienen
que comprobarse y reajustarse donde sea necesario.
ADVERTENCIA: Para reducir el riesgo de lesiones
personales, no dobles los soportes de las aspas
(también llamados “bridas”) durante o después de
la instalación. No colocar objetos en la trayectoria
de las aspas.
ADVERTENCIA: Los diagramas eléctricos son sólo
para referencia. Si usas un kit de luces, consulta
el manual de instrucciones del kit de luces para
hacer las conexiones eléctricas. El uso opcional de
cualquier kit de luces debe estar aprobado por UL y
estar marcado como adecuado para ser usado con
este ventilador.
ADVERTENCIA: Para evitar una posible descarga
eléctrica, desconecta la electricidad en la caja
principal de fusibles antes de cablear. En caso de
no tener suciente conocimiento o experiencia
sobre cableado eléctrico, contactar a un electricista
certicado.
Información de seguridad
Tabla de contenido
PRECAUCIÓN: Para reducir el riesgo de lesiones
personales hay que usar sólo los tornillos incluidos
con la caja eléctrica.
ADVERTENCIA: Para reducir el riesgo de incendio,
descarga eléctrica o lesiones personales, instala solo
en una caja eléctrica clasicada como “apropiada
para sostener ventiladores de 35 lb (15.9 kg) o
menos” y usa los tornillos que vienen con ella.
LEE Y GUARDA ESTAS INSTRUCCIONES.
ADVERTENCIA: Para disminuir el riesgo de incendio o
descarga eléctrica, este ventilador sólo debe usarse con
la pieza # JY1156H-LD-F1-EL de control de velocidad
fabricada por Chungear Industrial Co., Ltd.
ADVERTENCIA: A n de reducir el riesgo de descargas
eléctricas, este ventilador tiene que instalarse con un
interruptor de pared con aislamiento.
