Home Decorators Collection CL11012 User manual

USE AND CARE GUIDE
1-800-986 3460
AMARETTO 70 INCH CEILING FAN
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
Item #1001 668 630
Model #CL11012
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday,
9 a.m. - 6 p.m., EST, Saturday

2
Installation .....................................................................
Table of Contents ..........................................................2
Safety Information .........................................................3
Warranty .........................................................................4
Pre-installation ..............................................................
Specifications ..........................................................................
Tools Required .........................................................................
Hardware Included ..................................................................
Package Contents ...................................................................
4
4
4
5
6
7
Assembly .......................................................................
Hanging the Fan ......................................................................
Attaching the Fan Blades .......................................................
Installing the Light Kit ............................................................
8
8
12
13
Table of Contents
15
Operation
Care and Cleaning 19
Troubleshooting 20
Service Parts 21
......................................................................
.......................................................
...........................................................
................................................................

3HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986 3460 for further assistance.
Safety Information
□ To reduce the risk of electric shock, ensure electricity has
been turned off at the circuit breaker or fuse box before
beginning.
□ All wiring must be in accordance with the National Electrical
Code “ANSI/NFPA 70-1999” and local electrical codes.
Electrical installation should be performed by a qualified
licensed electrician.
□ The outlet box and support structure must be securely
mounted and capable of reliably supporting a minimum of 35
lbs. Use only UL Listed outlet boxes marked “FOR FAN
SUPPORT.”
□ The fan must be mounted with a minimum of 7 ft. clearance
from the trailing edge of the blades to the floor.
□ To avoid personal injury or damage to the fan and other
items, be cautious when working around or cleaning the fan.
□ Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
□ After making electrical connections, spliced conductors
should be turned upward and pushed carefully up into the
outlet box. The wires should be spread apart with the
grounded conductor and the equipment-grounding conductor
on one side of the outlet box and ungrounded conductor on
the other side of the outlet box.
□ All setscrews must be checked and retightened where
necessary before installation.
□ This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) This device must
accept any interference received, including interference that
may cause undesired operation.
WARNING: To reduce the risk of electrical shock or fire, do
not use this fan with any solid-state fan speed control device.
It will permanently damage the electronic circuitry.
WARNING: To reduce the risk of personal injury, do not
bend the blade arms (also referred to as flanges), when
installing the brackets, balancing the blades, or cleaning the
fan.
WARNING: Do not insert foreign objects between rotating
fan blades.
WARNING: Changes or modications to this unit not
expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
WARNING:To reduce the risk of fire, electric shock, or
personal injury, mount the fan to the outlet box marked
acceptable for fan support with the screws provided with the
outlet box.
CAUTION: To reduce the risk of personal injury, use only
the screws provided with the outlet box.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures: Reorient or relocate the receiving
antenna. Increase the separation between the equipment and
receiver. Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for
help.
□Read and save these instructions.

4
SPECIFICATION S
TOOLS REQUIRED
Phillips
screwdriver
Electrical
Tape
Wire
stripper
Flat blade
screwdriver
Step
ladder
NOTE: These are approximate measures. They do not
include amps and wattage used by the light kit.
Warranty
Pre-Installation
Pre-Installation
We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period
of lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glass or acrylic
blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two year after the
date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or
superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All
costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper installa-
tion or by affixing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover
any changes in brass finish, including rusting, pitting, corroding, tarnishing or peeling. Brass finishes of this type give their longest useful
life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect.
Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby disclaim
any and all warranties, including but not limited to those of merchantability and fitness for a particular purpose to the extent permitted by
law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specified in the express warranty.
Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall
not be liable for incidental, consequential, or special damages arising out of or in connection with product use or performance except as
may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the above
exclusion or limitation may not apply to you. This warranty gives specific legal rights, and you may also have other rights which vary from
state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty
must be paid by the customer.
Contact the Customer Service Team at 1-800-986 3460 or visit www.HOMEDEPOT.COM/HOMEDECORATORS
70 in.
1
2
3
4
5
6
7
8
9
120
Fan size Watts RPM CFMSpeed Volts Amps
2.69 ft.
N.W. G.W. C.F.
0.04
0.05
0.06
2
3
3
31
39
48
2032
2695
3128
0.08 4 56 3894
0.10 6 64 4297
0.13 8 73 4929
0.17 11 82 5588
0.23 15 90 6243
0.38 26 107 7812
10.6 kg
(23.32 lb)
12.2 kg
(26.84 lb)

5HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986 3460 for further assistance.
Pre-Installation (continued)
HARDWARE IN CLUDED
NOTE:Hardware shown to actual size unless noted
otherwise in the table below.
AA
BB
CC
DD
EE
FF
GG
HH
Blade screw
Fiber washer (not to scale)
Part Descriptio n
16
16
11Blade holder screw
Flywheel screw
Light shade bracket screw
Wire nut（P2）
5
3
8
1
Hitch pin (preassembled)
Lock pin (not to scale) (preassembled)
Hanger ball set screw (preassembled)
Mounting bracket screw (preassembled)
1
1
5
1
1
2
3
Cross pin (not to scale) (preassembled)
1
Quantity
II
JJ
KK
LL
NN
OO
PP
QQ
Fan motor assembly coupling set screw (preassembled)
2
MM Fan motor assembly mounting ring screw (preassembled)
Light kit plate screw (preassembled) 4
AA
BB
CC
OO
DD
FF
GG
HH
II
JJ
KK
LL
NN
MM
EE
PP
QQ
RR
Motor screw (preassembled)
Rubber washer (preassembled)
1
1
RR
SS
Hex nut (preassembled)
Metal washer (preassembled)
SS
Wire nut（P3）

6
PACKAGE CONTENTS
Pre-Installation (continued)
H
A
I
J
K
L
M
N
O
P
R
S
D
E
F
Canopy cover
Hanger ball (preassembled)
Downrod (preassembled)
1
1
1
Part
A
B
C
Quantity
5
1
1
Descriptio n
Blade
Mounting bracket
Canopy
H Fan motor assembly
Flywheel
1
G 1Coupling cover
N
O
P
Metal cap (preassembled)
Finial (preassembled)
Light shade bracket
Light kit plate
26W LED asembly
Glass shade
Remote control
Receiver
1
1
1
Part
K
L
M
Quantity
1
1
1
Descriptio n
Blade holder
R
1.5V AAA Battery
1
Q 1
J 5
I 1 S 2
B
C
D
F
E
Q
G

7HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986 3460 for further assistance.
WARNING:To reduce the risk of fire, electric shock, or
personal injury, mount the fan to an outlet box marked
acceptable for fan support using the screws provided with the
outlet box. An outlet box commonly used for the support of
lighting fixtures may not be acceptable for fan support and
may need to be replaced. If in doubt, consult a qualified
electrician.
Installation
MOUNTING OPTIONS
1
1
1
3
2
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□
□
Secure the outlet box (1) (not included) directly to the
building structure. Use appropriate fasteners and materials
(not included). The outlet box and its bracing must be able
to fully support the weight of the moving fan (at least 35
lbs.). Do not use a plastic outlet box.
The illustrations to the right show three different ways to
mount the outlet box (not included).
□To hang your fan where there is an existing fixture but no
ceiling joist, you may need an installation hanger bar (3) (not
included), as shown.
NOTE: You may need a longer downrod to maintain proper
blade clearance when installing on a steep, sloped ceiling.
The maximum angle allowable is 18°. If the canopy touches
the downrod, remove the decorative canopy bottom cover
and turn the canopy 180° before attaching the canopy to the
mounting plate (2).

8

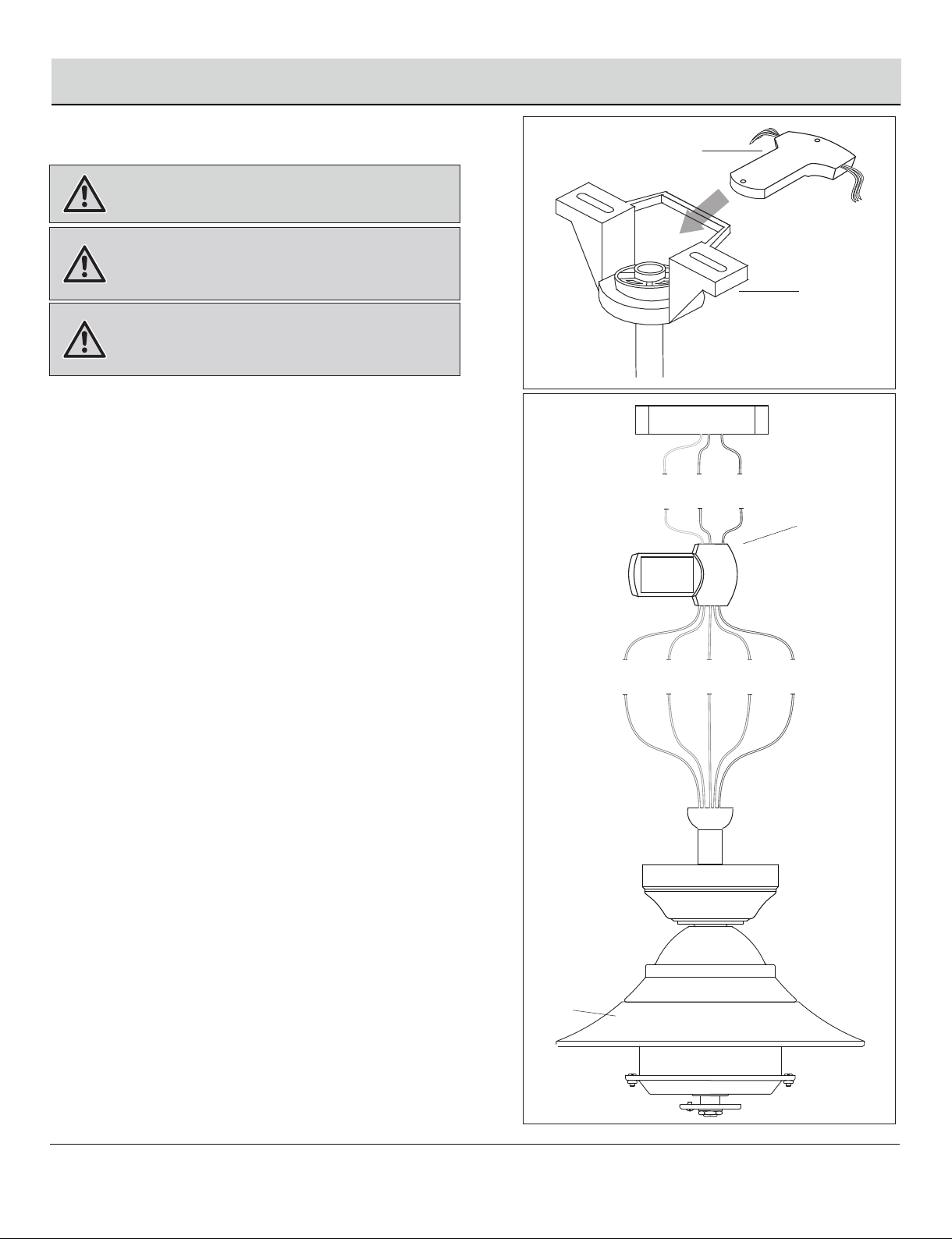

Assembly -Hanging the Fan
Attaching the mounting bracket to
1the electrical box
□Place the slots from mounting bracket (B) over the two
screws provided with the outlet box. Slide the mounting
bracket (B) until it locks in place at the narrow section
of the slots.
□Securely tighten the two mounting screws.
WARNING: To reduce the risk of fire, electric shock, or
other personal injury, mount the fan only to an outlet box or
supporting system marked acceptable for fan support and
use the mounting screws provided with the outlet box.
□Loosen the two set screws (KK) from the fan motor
assembly (H) coupling.
□Remove the hitch pin (HH) and lock pin (II) from the
downrod (F). Remove the hanger ball (E) from the
downrod (F) by loosening the hanger ball set screw (JJ),
and removing the cross pin (GG), then sliding the hanger
ball (E) off of the downrod (F).
□Carefully feed the fan wires up through the downrod (F).
Thread the downrod (F) into the fan motor assembly (H)
coupling. Line up the holes and replace the lock pin (II)
and the hitch pin (HH). Tighten the set screws (KK).
B
KK
HH
GG
F
E
JJ
H
Attaching the downrod to the
II
fan motor assembly
2
B

9HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986 3460 for further assistance.
Attaching the coupling cover, canopy
3
Assembly -Hanging the Fan (continued)
cover, and canopy to the downrod
□Slip the coupling cover (G), canopy cover (D), and canopy
(C) onto the downrod (F). Carefully reinstall the hanger
ball (E) onto the downrod (F), and ensure that the cross pin
(GG) is in the correct position, the set screws (JJ) are tight,
and the wires are not twisted.
F
TT
B
Hanging the fan motor assembly
4
D
to the mounting bracket
E
H
□Lift the fan motor assembly (H) into position, and place the
hanger ball (E) into the mounting bracket (B). Rotate the
fan motor assembly (H) until the check groove drops into
the registration slot (TT) and seats firmly. The downrod (F)
should not rotate if this is done correctly.
F
JJ
GG
G
E
C

Q
B
Assembly -Hanging the Fan (continued)
Making the electrical connections
5
WARNING: To avoid possible electrical shock, ensure the
electricity is turned off at the circuit breaker or main fuse box
before wiring.
WARNING: Check to see that all connections are tight,
including the ground, and that no bare wire is visible at the
wire nuts, except for the ground wire.
Motor to Receiver Electrical Connections:
Connect the WHITE wire from the fan to the WHITE wire marked”
Light N” from the Receiver.
Connect the BLUE wire from the fan to the BLUE wire marked
”Light L” from the Receiver.
Connect the YELLOW wire from the fan to the YELLOW wire
marked” MOTOR 1” from the Receiver.
Connect the RED wire from the fan to the RED wire marked”
MOTOR 2” from the Receiver.
Connect the GREY wire from the fan to the GREY wire marked”
MOTOR 3” from the Receiver.
Receiver to House Supply Wires Electrical connections:
Connect the WHITE wire(Neutral) from the outlet box to the
WHITE wire marked ”AC in N” from the receiver.
Connect the BLACK wire(Hot) from the outlet box to the BLACK
wire marked “AC in L” from the receiver.
If your outlet box has a GROUND wire (Green or Bare
Copper),connect this wire to the Hanger Ball and Hanger
Bracket and receiver Ground wires.
If your outlet box does not have a Ground Wire, then connect the
Hanger Ball and Hanger Bracket and Receiver Ground Wire
together.
Secure wire connection with the plastic P2 wire nuts(FF)
provided. Especially , for the ground wires, please use P3 wire
nut (SS) provided.
After all splices are made, check to make sure there are no
loose strands.
Q
H
□
□
□
□
□
Outlet Box
Blue
Blue
White
White Yellow
Yellow
Red
Red Grey
Grey
Black
Black
Green
Green
White
White
Note: Fan must be installed from a maximum distance of 40 feet
from the transmitting unit for proper signal transmission between
the transmitting unit and the fan’s receiving unit.
WARNING: To avoid possible electrical shock, ensure the
electricity is turned off at the main fuse box before wiring.
Insert the receiver (Q) into the mounting bracket (B)with the flat
side of the receiver (Q) facing the ceiling.
Follow the steps below to connect the fan to your house supply
wires. Secure the wire nuts supplied with your fan by wrapping the
connections with electrical tape.
10

HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986 3460 for further assistance.
Assembly -Hanging the Fan (continued)
LL
LL
C
D
Securing the fan motor assembly to the mounting bracket
6
□Remove one screw (LL) from the mounting bracket (B) and loosen the other screw (LL) approximately 1/4 turn.
□Carefully raise the canopy (C) up to the mounting bracket (B), and ensure the loosened screw (LL) is inserted into the key hole on
the canopy (C). Rotate the canopy (C) clockwise.
□Secure the canopy (C) by replacing the screw (LL) previously removed and tightening the screw (LL) previously loosened.
□Place the canopy cover (D) on the canopy (C), and rotate the canopy cover (D) clockwise until it locks into position.
B
11

□Attach the fan blades (A) to the blade holders (J) by
using three blade screws (AA) and fiber washers (BB).
Fastening the blade assemblies
Tighten screws (AA) and fiber washers (BB) securely.
7to the fan motor assembly
□Fasten the blade holders (J) to the flywheel (I) with the
blade holder screws (CC).
□Loosen the motor screws (OO) on the motor
assembly (H). Place the slot holes of the flywheel (I)
over the motor screws (OO) previously loosened and attach
the flywheel screws (DD). Tighten all screws.
AA
Assembly -Attaching the Fan Blade Assemblies
A
BB
J
J
I
CC
I
DD
OO
H
12

HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986 3460 for further assistance.
Assembly -Installing the Light Kit

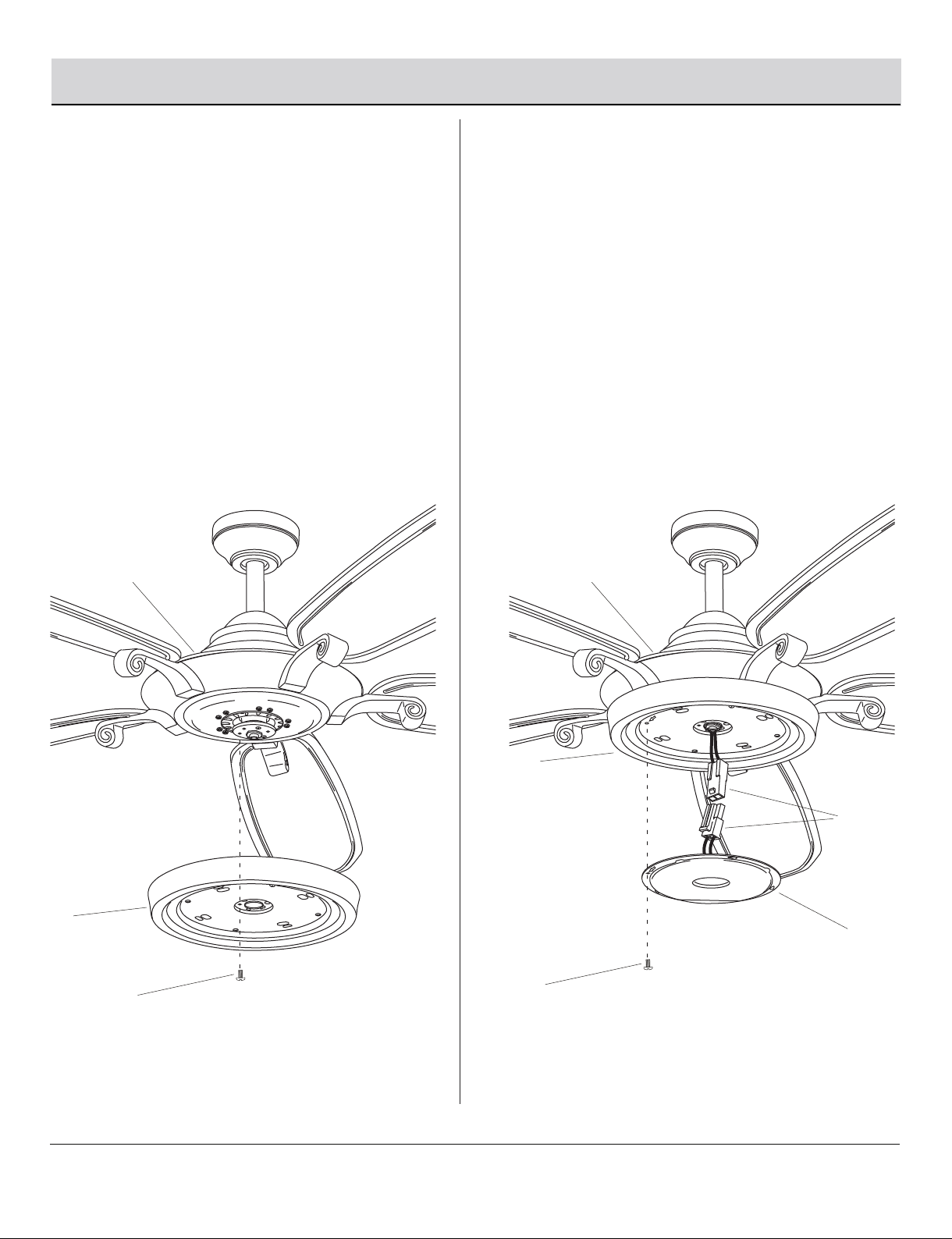

□Remove one of three screws (MM) from the fan motor
assembly (H) mounting ring, and loosen the other two
screws (MM), but do not remove.
□Place the key holes from the light kit plate over the(K)
two screws (MM) previously loosened from the fan
motor assembly (H) mounting ring. Turn the light kit
plate until it locks in place at the narrow section of (K)
the key holes. Secure by tightening the two screws
(MM) previously loosened and the one screw (MM)
previously removed.
□Remove one of four screws (NN) from the light kit
plate (K), and loosen the other three screws (NN), but do
not remove.
□
□
Attaching the light kit plate
to the mounting ring
Attaching the 26W LED Assembly
to the light kit plate
K
H
MM
K
L
H
NN
UU
Align the arrows on the 26W LED assembly(L)and
Light Kit Plate(K) .Place the key holes from the 26W
LED assembly (L) over the three screws (NN)
previously loosened from the light kit plate . Turn (K)
the 26W LED assembly (L) until it locks in place at the
narrow section of the key holes. Secure by tightening
the three screws (NN) previously loosened
and the one screw (NN) previously removed.
Firmly snap the wire connection plugs (UU) from the
motor assembly (H) and the 26W LED assembly (L)
together.
9
13
8

10
Assembly -Installing the Light Kit(continued)
11

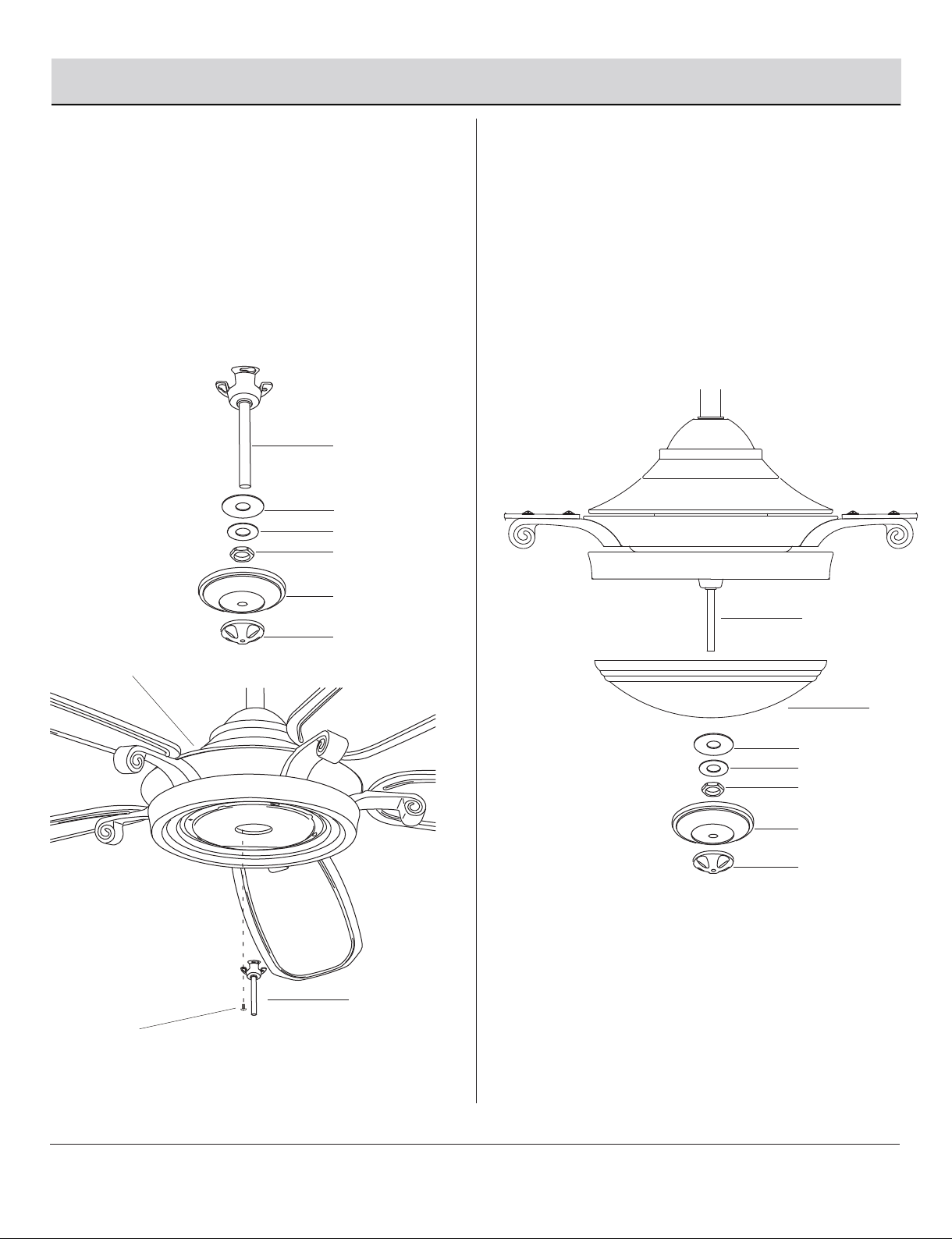

□Remove the rubber washer (PP), metal washer (QQ),
hex nut (RR), metal cap (N) and Finial (O) from the
light shade bracket (M).
□Attach the fan light shade bracket (M) to the fan
motor assembly (H) mounting ring by using three
light shade bracket screws (EE).
□Place the glass shade (P) over the light shade bracket
(M) stem, and secure with the rubber washer (PP),
metal washer (QQ), hex nut (RR), metal cap (N) and
Attaching the light shade
bracket to the mounting ring Installing the glass shade
M
QQ
RR
N
O
H
EE
M
P
M
PP
QQ
RR
N
O
PP
14
finial (0). Do not over-tighren.

HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986 3460 for further assistance.
Operation

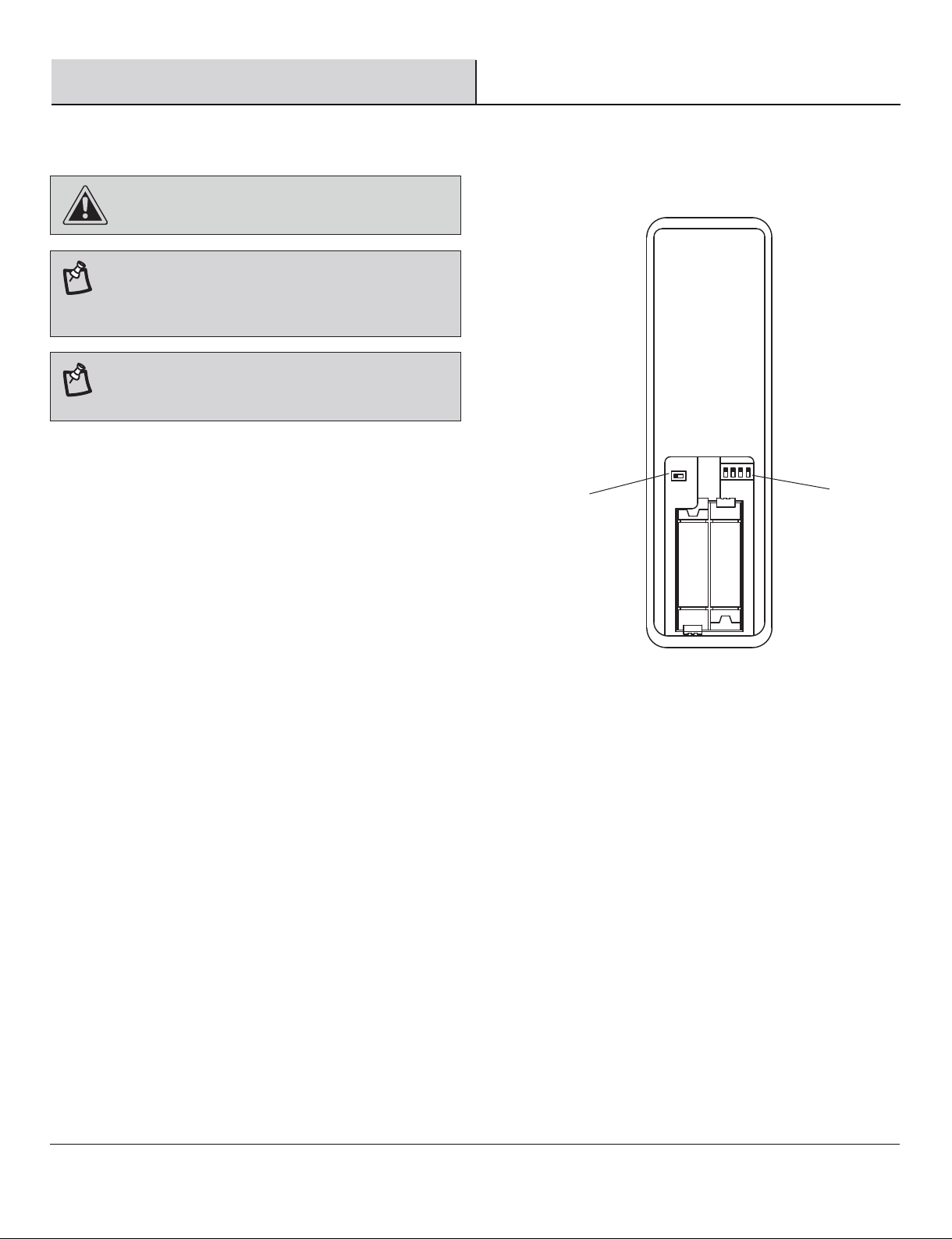

Installing the batteries
NOTE: The battery will weaken with age and should be
replaced before leaking takes place as this will damage the
remote control. Dispose of used battery properly and keep the
battery out of the reach of children.
NOTE: The remote ships from the factory with the dip switch
(VV) set to DIM. The light’s dimming capability will be lost if the
dip switch (VV) is switched to the ON postion.
Remove the battery cover by pressing on the arrow and
sliding the cover off.
□
Install two 1.5V AAA batteries (S).
□
Replace the battery cover on the remote control.
□
VV WW
DIM
ON
CAUTION: Do not use with a wall light dimmer switch.
15

DIM
ON
Learning process
The control system for this DC motor fans is
equipped with a learning frequency function which
has 16 code combinations to prevent potential
interference from other remote units. The frequency
on your Receiver and Transmitter units have been
preset at the factory. No frequency change is
necessary.
If the fan is non-functional or if you desire to install
another fan within the same home or area with a
separate frequency code, please see this "learning
process" section of this instruction manual to code-
paring the receiver and transmitter.
NOTE:
Turn the power off to your ceiling fan.
Please use a small size tool to change the frequency
settings on the control system(ww).
Return power to the unit.
Within 60 seconds of turning the fan's AC power ON,
press and hold the (FAN ON/OFF)button for 10
seconds to enter the learning function.
□
□
□
□
16
Operation (continued)
NOTE: After the AC power is on, do not press any other button
Once the receiver has detected the set frequency, the down light of your fan if applicable will blink twice.(there is no
indication if your fan is not equipped with a light).
The receiver has now learn the frequency which has been selected on the transmitter. After completing the steps
above, you should be able to operate the ceiling fan and light. If the fan is not responding to the transmitter. please turn
the power off to the receiver, and repeat the process.
□
□
on the remote control before
button. Doing so will cause the procedure to fail.
pressing the (FAN ON/OFF)
WW

Operation (continued)
2.Speed functions
The fan has memory function , it will resume the speed setting on the fan
prior to the power being turned off. And The LED bar will display the speed settings
for 5 seconds after the button is released.
NOTE:
If you are currently using Comfort breeze mode, pressing the button
will cancel Comfort breeze mode and resume normal fan operation
NOTE:
1.Fan button. - Press and release the button to turn the fan on or off.
+button, increases the fan speed
Pressing and releasing the + button one time will increase the
speed of the fan. Each setting increase will cause the LED bar to
illuminate slightly more, until the fan has reached the maximum
speed setting. At that time the LED bar will be fully illuminated.
Pressing and holding the + button will increase the fan speed
automatically through the speed settings and the increments will
be displayed on the LED bar. When the LED bar is fully illuminated,
the fan has reached maximum speed setting.
Pressing the + button while in Comfort breeze mode, will
automatically cancel the Comfort breeze mode and resume normal
fan operation.
- button, decreases the fan speed
Pressing and releasing the - button one time will decreases the
speed of the fan. Each setting decrease will cause the LED bar to
dim slightly more, until the fan has reached the minimum speed
setting. At that time the LED bar will be approximately 25%
illuminated.
Pressing and holding the - button will decreases the fan speed
automatically through the speed settings and the increments will
be displayed on the LED bar. When the LED bar is 25% illuminated,
the fan has reached minimum speed setting.
Pressing the - button while in Comfort breeze mode, will
automatically cancel the Comfort breeze mode and resume normal
fan operation.
□
□
□
□
□
□
17
Fan on/off
LED bar
Scale indicating
fan speed
Increases fan speed
Decreases fan speed
Timer
Cool weather
(Reverse)
Warm weather
(Forward)
Decreases the
light level
(Dimmer)
Increases the
light level
(Dimmer)
Light on/off
Comfort breeze
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986 3460 for further assistance.

There are three Comfort breeze settings. Pressing the button will
activate the Comfort breeze mode.
Operation (continued)
4. Timer
5. Fan reverse button
6. Light
7. Dimmer
□
Warm weather: pressing the button.
□
Press and release the light button to turn the light on or off.
□
Press to decrease the desired light level.
□
Press to increase the desired light level.
□
Cool weather: press the button
□
18
Pressing the timer button will activate the timer function. The fan
will automatically turn fan and light(if light is on)off after 2,4 or 8
hours.
When you activate the timer function, the LED of time above the
clock will illuminate.
NOTE: You must turn the fan on prior to using the timer function.
NOTE:
to change the direction of the rotation of the blades
the fan must be in operation.
(forward) A downward air flow creates a cooling effect.
This allows you to set your air conditioner on a higher
setting without affecting your comfort.
(reverse) An upward air flow moves warm air off the
ceiling. This allows you to set your heating unit on a
lower setting without affecting your comfort.
NOTE:
The fan has memory function. It will resume the
light setting (on or off and dim )prior to the power being
turned off.
3. Comfort breeze
Setting 1: Alternates through speeds 1-3.
□
Setting 2: Alternates through speeds 4-6.
□
Setting 3: Alternates through speeds 7-9.
□
Setting 1
Setting 2
Setting 3

Care and Cleaning
□ Check the support connections, brackets, and blade
attachments twice a year. Ensure they are secure.
Because of the fan’s natural movement, some
connections may become loose over time. It is not
necessary to remove the fan from the ceiling.
□ Clean your fan periodically. Use only a soft brush or
lint-free cloth to avoid scratching the finish. The plating is
sealed with a lacquer to minimize discoloration or
tarnishing.
□ (Optional) Apply a light coat of furniture polish to the wood
blades.
□ (Optional) Cover small scratches with a light application of
shoe polish.
Do
□ Do not use water when cleaning. Water could damage the
motor, or the wood, or possibly cause an electrical shock.
□ Do not apply oil to your fan or motor. The motor has
permanently-lubricated sealed ball bearings.
Do not
19 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986 3460 for further assistance.

Troubleshooting
WARNING: Ensure the power is off at the electrical
panel box before you attempt any repairs. Refer to the section
“Making the Electrical Connections” on page 10.
The fan wobbles.
The remote control is
not working.
Probl em Solutio n
The fan will not start.
The fan sounds noisy.
Frequency Interference
□Check main and branch circuit fuses or breakers.
□Check line wire connections to the fan and switch wire connections in the switch
housing.
□Make sure all motor housing screws are snug.
□Make sure the screws that attach the fan blade arm to the motor hub are tight.
□Make sure wire nut connections are not rattling against each other or the interior wall
of the switch housing.
□Allow a 24-hour "breaking-in" period. Most noises associated with a new fan disappear
during this time.
□If using the ceiling light kit, make sure the screws securing the glassware are tight.
Check that the light bulb is also secure.
□Make sure there is a short distance from the ceiling to the canopy. It should not touch
the ceiling.
□Make sure your ceiling box is secure and rubber isolator pads are used between the
mounting bracket and outlet box.
□Do not connect the fan with wall mounted variable speed control(s).
□Check that all blade and blade arm screws are secure.
□Most fan wobble problems are caused when blade levels are unequal. Check this level
by selecting a point on the ceiling above the tip of one of the blades. Measure from a point on
the center of each blade to the point on the ceiling. Rotate the fan until the next blade is
positioned for measurement. Repeat for each blade. Measurements deviation should be
within 1/8 in. Run the fan for 10 minutes.
□Use the enclosed blade balancing kit if the blade wobble is still noticeable.
□Turn the power off to your ceiling fan.
□Please use a small size tool to change the frequency settings on the control system.
□Return power to the unit.Note:After the AC power is on, do not press any other button on the
transmitter before pressing the " (FAN ON/OFF) " button,doing so will cause the procedure to fail.
□Within 60 seconds of turning the fan's AC power ON. Press the transmitter's "(FAN
ON/OFF)" button and hold the " (FAN ON/OFF)" button for 10 seconds.
□Once the receiver has detected the set frequency, the down light of your fan if
applicable will blink twice.(there is no indication if your fan is not equippedwith a light).
□The receiver has now learn the frequency which has been selected on the transmitter.
After completing the steps above,you should be able to operate theceiling fan and light. If
the fan is not responding to the transmitter. please turn the power off to the receiver,and
repeat the process.
20
