Home Decorators Collection CITYVIEW YG814-PN User manual

Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m.- 6 p.m., EST, Saturday
We appreciate the trust and condence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We
strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for
your home improvement needs. Thank you for choosing Home Decorators Collection!
THANK YOU
USE AND CARE GUIDE
CITYVIEW 54 IN. CEILING FAN
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Item #1006 446 189
Model #YG814-PN

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Information .................................
Warranty .........................................
Pre-installation . . . . . . ..............................
Specications ...................................
Tools Required . . . ................................
HardwareIncluded ...............................
Package Contents . . ..............................
Dual Mounting Instructions . ........................
Installation . ......................................
Assembly ........................................
StandardCeilingMounting.........................
Close-to-Ceiling Mounting . . . ......................
HangingtheFan .................................
Attaching the Fan Blades . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Light Kit . . ...........................
Operation ........................................
Remote Control Operating Instructions . . . . . . . . . . . . . . . . .
Installing the Remote Control Holder . .................
Reverse Switch Operating Instructions . . . . . . . . . . . . . . . . .
CareandCleaning .................................
Troubleshooting ...................................
Service Parts .....................................
2
Table of Contents
2
3
4
4
4
4
5
6
7
8
9
9
10
11
15
16
17
17
17
18
18
19
20
READ AND SAVE THESE INSTRUCTIONS

Please contact 1-800-986-3460 for further assistance.
HOMEDEPOT.COM/HOMEDECORATORS
To reduce the risk of electric shock, ensure electricity has been
turned off at the circuit breaker or fuse box before beginning.
All wiring must be in accordance with the National Electrical
Code “ANSI/NFPA 70-1999” and local electrical codes.
Electrical installation should be performed by a qualied
licensed electrician.
The outlet box and support structure must be securely mounted
and capable of reliably supporting a minimum of 35 lbs (15.9
kg) or less. Use only UL-listed outlet boxes marked “FOR FAN
SUPPORT.”
The fan must be mounted with a minimum of 7 ft. (2.1m)
clearance from the trailing edge of the blades to the oor.
Avoid placing objects in the path of the blades.
To avoid personal injury or damage to the fan and other items,
be cautious when working around or cleaning the fan.
Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
After making electrical connections, spliced conductors should
be turned upward and pushed carefully up into the outlet box.
The wires should be spread apart with the grounded conductor
and the equipment-grounding conductor on one side of the
outlet box and ungrounded conductor on the other side of the
outlet box.
All setscrews must be checked and retightened where
necessary before installation.
Suitable for use with solid-state speed control (MR181B-3
only).
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept
any interference received, including interference that may
cause undesired operation.
WARNING: Changes or modications to this unit not
expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for
help.
WARNING: To reduce the risk of electric shock, this fan
must be installed with an isolating wall control/switch.
WARNING: To reduce the risk of personal injury, do not
bend the blade arms (also referred to as anges), when
installing the brackets, balancing the blades or cleaning the
fan.
WARNING: Do not insert foreign objects between rotating
fan blades.
WARNING: To reduce the risk of re, electric shock or
personal injury, mount the fan to the outlet box marked
acceptable for fan support with the screws provided with the
outlet box.
CAUTION: To reduce the risk of personal injury, use only
the screws provided with the outlet box.
The following responsible party designated in FCC §2.909 is
responsible for this declaration:
Model Number: YG814-PN
Company Name: TAL INTERNATIONAL CORPORATION
Company Address: 2919 E. Philadelphia St., Ontario, CA 91761, U.S.A.
Full Name: James Lai Title: Manager
Telephone Number: [phone] Fax: [phone]
Safety Information
3

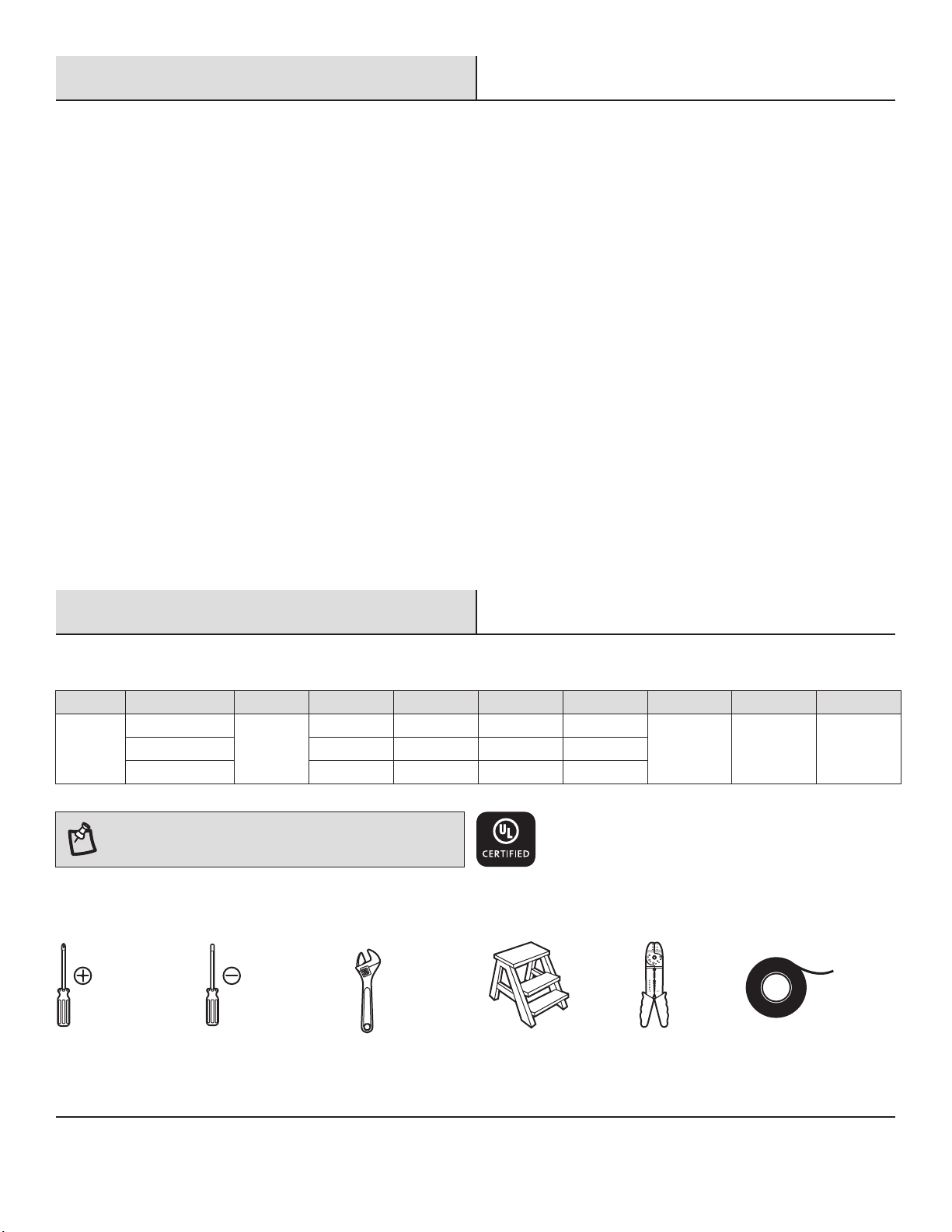

Pre-Installation
SPECIFICATIONS
TOOLS REQUIRED
The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the
factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any
glass), to be free from defects in workmanship and material present at time of shipment from the factory for a period of ve years after
the date of purchase by the original purchaser. The manufacturer also warrants that all other fan parts, excluding any glass or acrylic
blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the
date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or
superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All
costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper
installation or by afxing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not
cover any changes in brass nish, including rusting, pitting, corroding, tarnishing or peeling. Brass nishes of this type give the longest
useful life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a
defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby
disclaim any and all warranties, including but not limited to those of merchantability and tness for a particular purpose to the extent
permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specied in the
express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to
you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in connection with product use or
performance except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential
damages, so the above exclusion or limitation may not apply to you. This warranty gives specic legal rights, and you may also have other
rights which vary from state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a
claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-800-986-3460 or visit www.HOMEDEPOT.COM/HOMEDECORATORS
4
Warranty
Phillips
screwdriver
Flat blade
screwdriver
Step
ladder
Wire
stripper
Electrical
tape
Adjustable
wrench
2.31 cu. ft.54 in.
Low
Medium
High
120
Fan size Watts RPM CFMSpeed Volts Amps N.W. G.W. C.F.
0.26
0.44
0.57
12.02
35.64
66.67
61
113
161
2082
3949
5577
9.4 kg
(20.68 lbs.)
12.16 kg
(26.75 lbs.)
NOTE: These are approximate measures. They do not
include amps and wattage used by the light kit.

NOTE: Hardware not shown to actual size.
AA
BB
CC
DD
Plastic wire nut
Blade attachment screw with lock washer
1.5V AAA battery
Extension cord
Part Description
3
13
2
1
Quantity

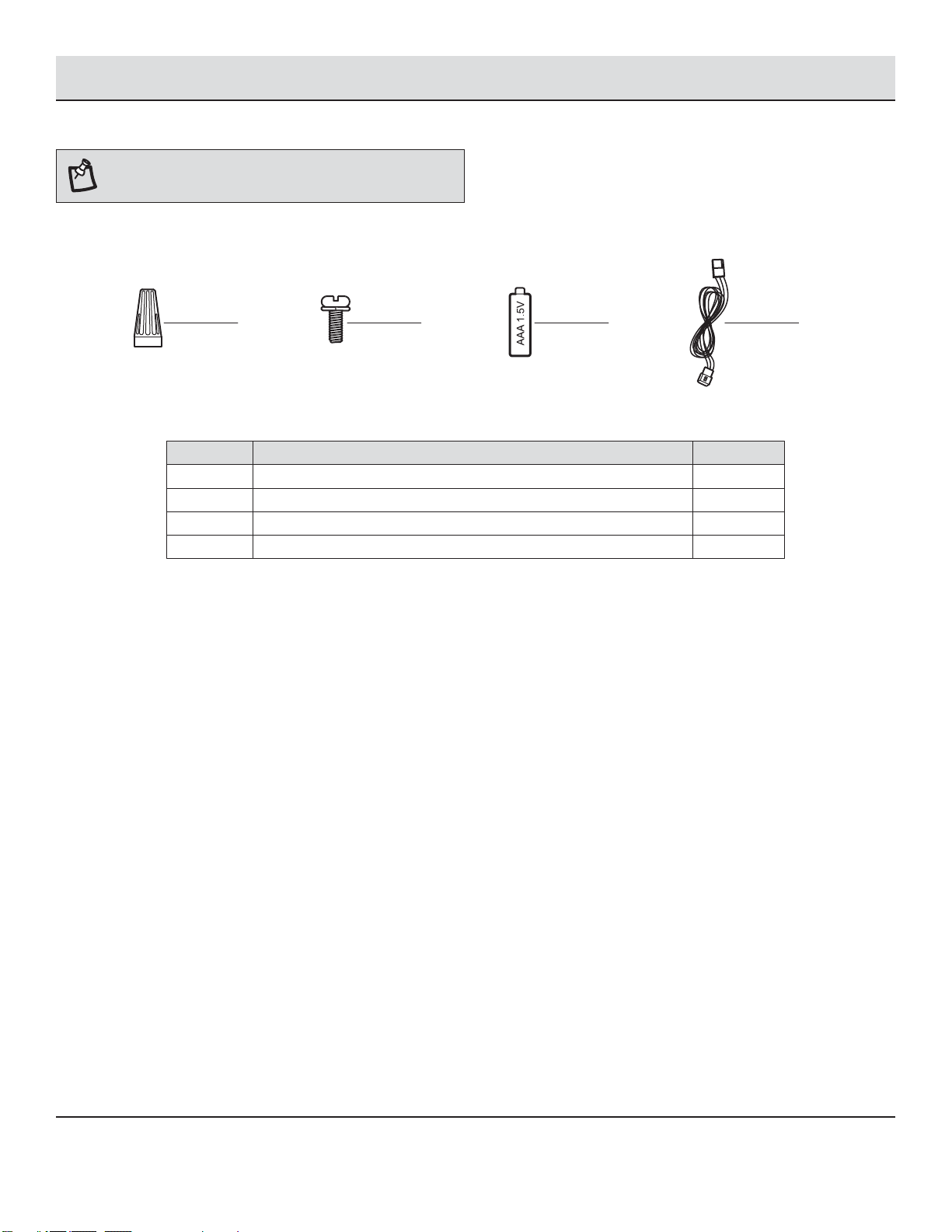

HARDWARE INCLUDED
5
Pre-Installation (continued)
Please contact 1-800-986-3460 for further assistance.
HOMEDEPOT.COM/HOMEDECORATORS
AA BB CC DD

Part
H
I
J
K
L
M
Description
Blade
Blade support plate
Light kit mounting plate
20W LED Light kit
Receiver
Remote control
Quantity
4
4
1
1
1
1
Part
A
B
C
D
E
F
G
Quantity
1
1
1
1
1
1
1
Description
Mounting bracket (preassembled)
Canopy ring (preassembled)
Canopy
Canopy bottom cover (preassembled)
Hanger ball/downrod assembly
Coupling cover
Fan motor assembly
G
I
J
K
F
H
A
B
C
D
E

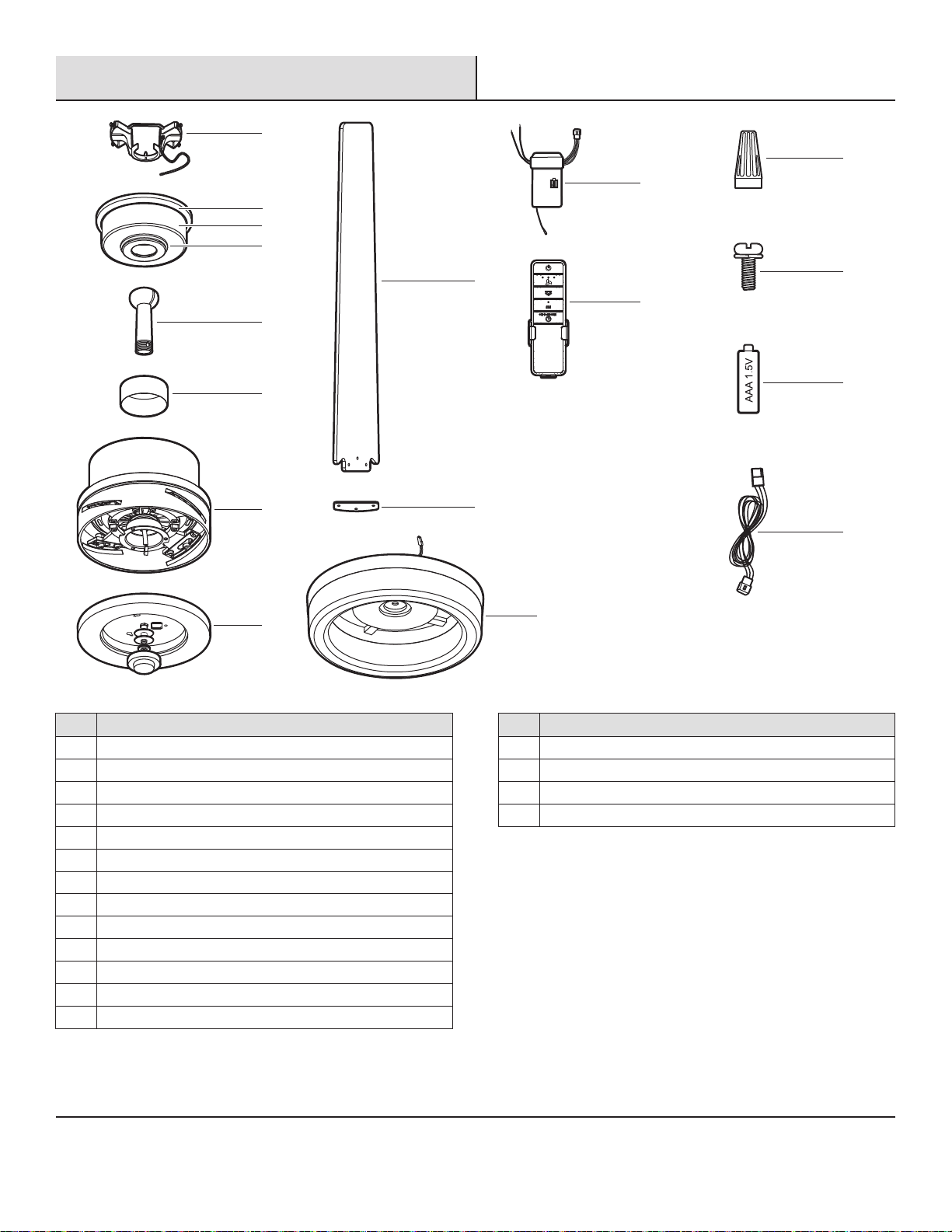

PACKAGE CONTENTS
6
Pre-Installation (continued)
M
L

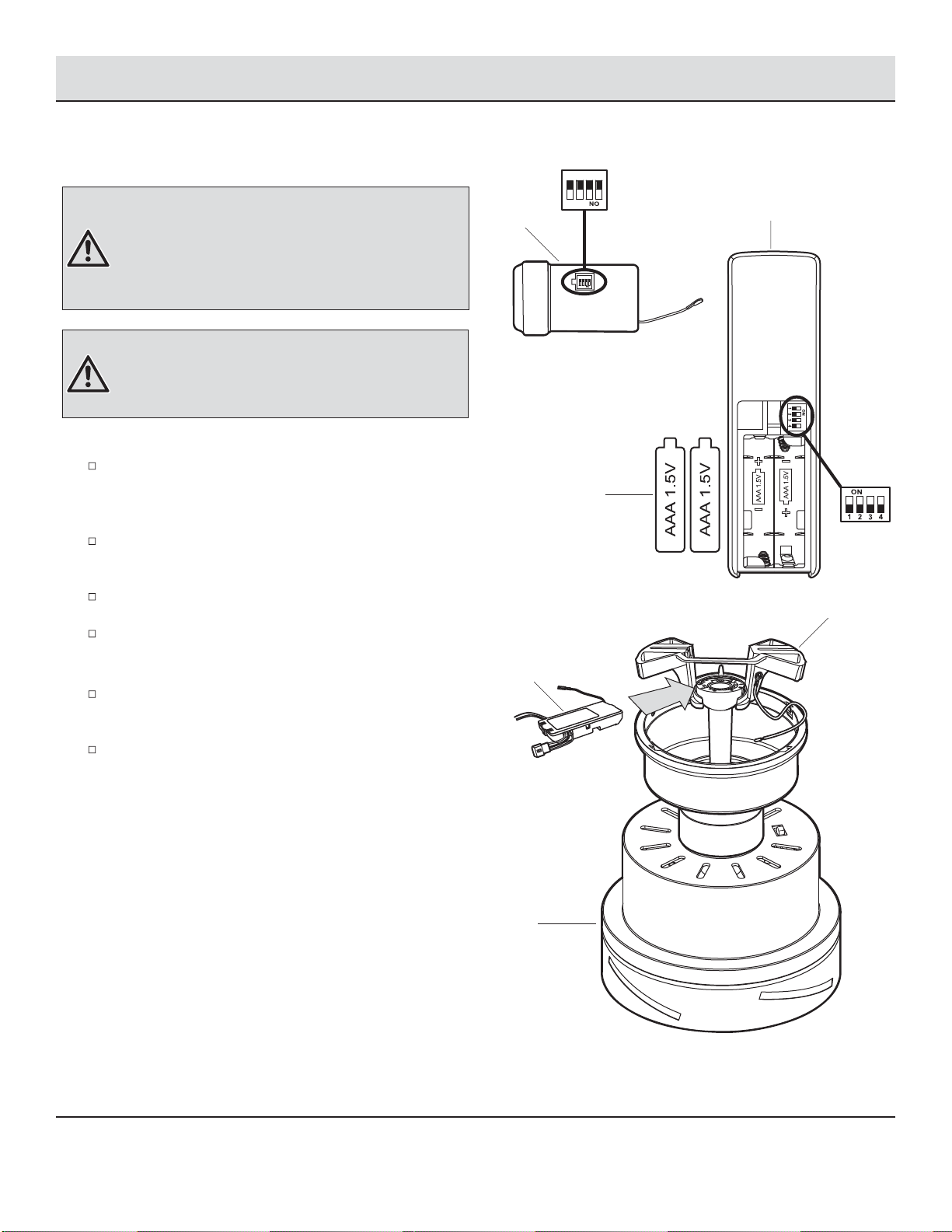

3412 DIP

Pre-Installation (continued)
This ceiling fan is supplied with two types of hanging assemblies:
the standard ceiling installation using the downrod with ball and
socket mounting, and the "close-to-ceiling" mounting. The
"close-to-ceiling" mounting is recommended in rooms with less
than 8 ft. ceilings or in areas where additional space is desired
from the oor to the fan blades.
When using the standard downrod installation, the distance from
the ceiling to the bottom of the fan blades will be approximately 12
in. The "close-to-ceiling" installation reduces the distance from
the ceiling to the bottom of the fan blades to approximately 9 in.
Once you have decided which ceiling installation you will use, refer
to the corresponding sections and procedures during the assembly
period. Where necessary, each section of the instructions will note
the different procedures to follow for the two types of installation.

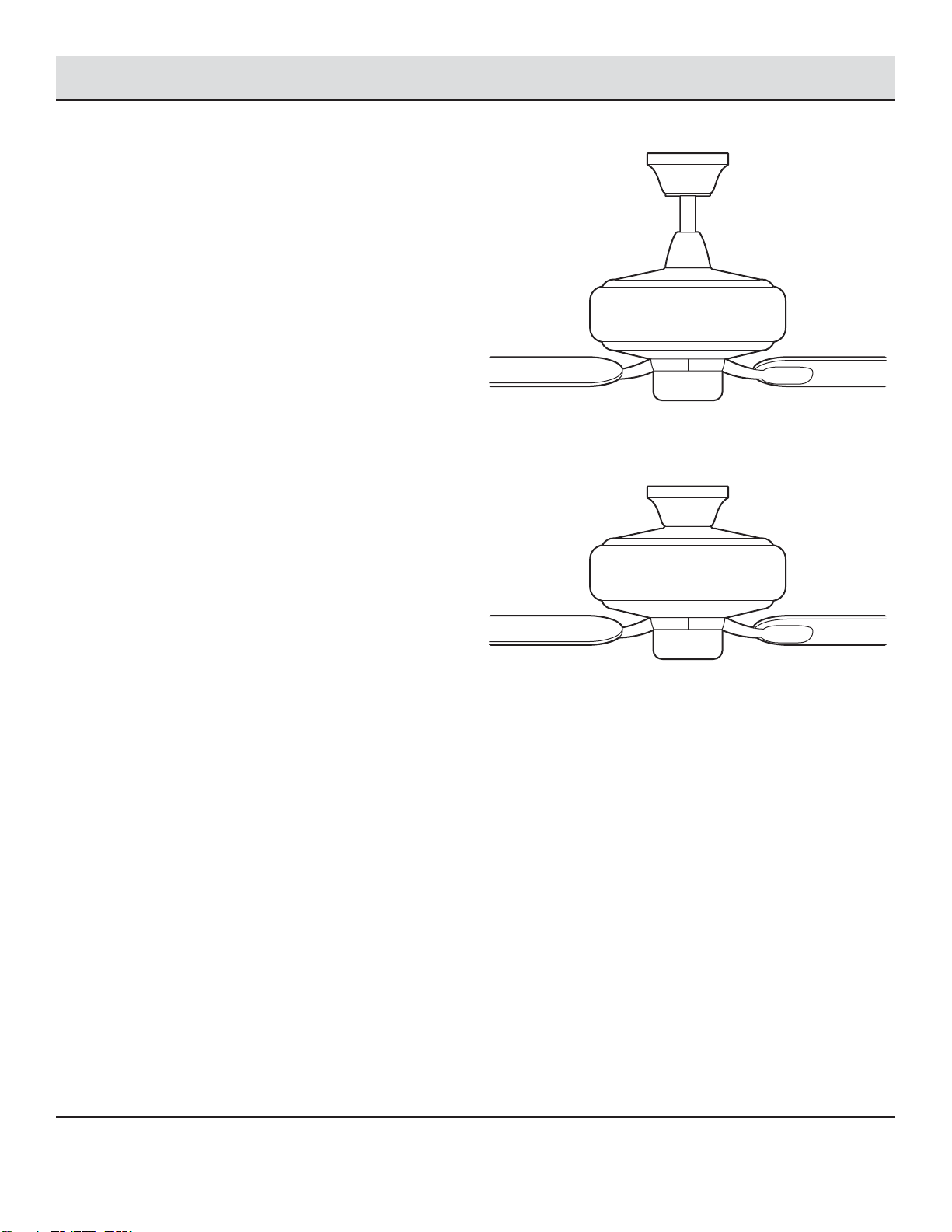

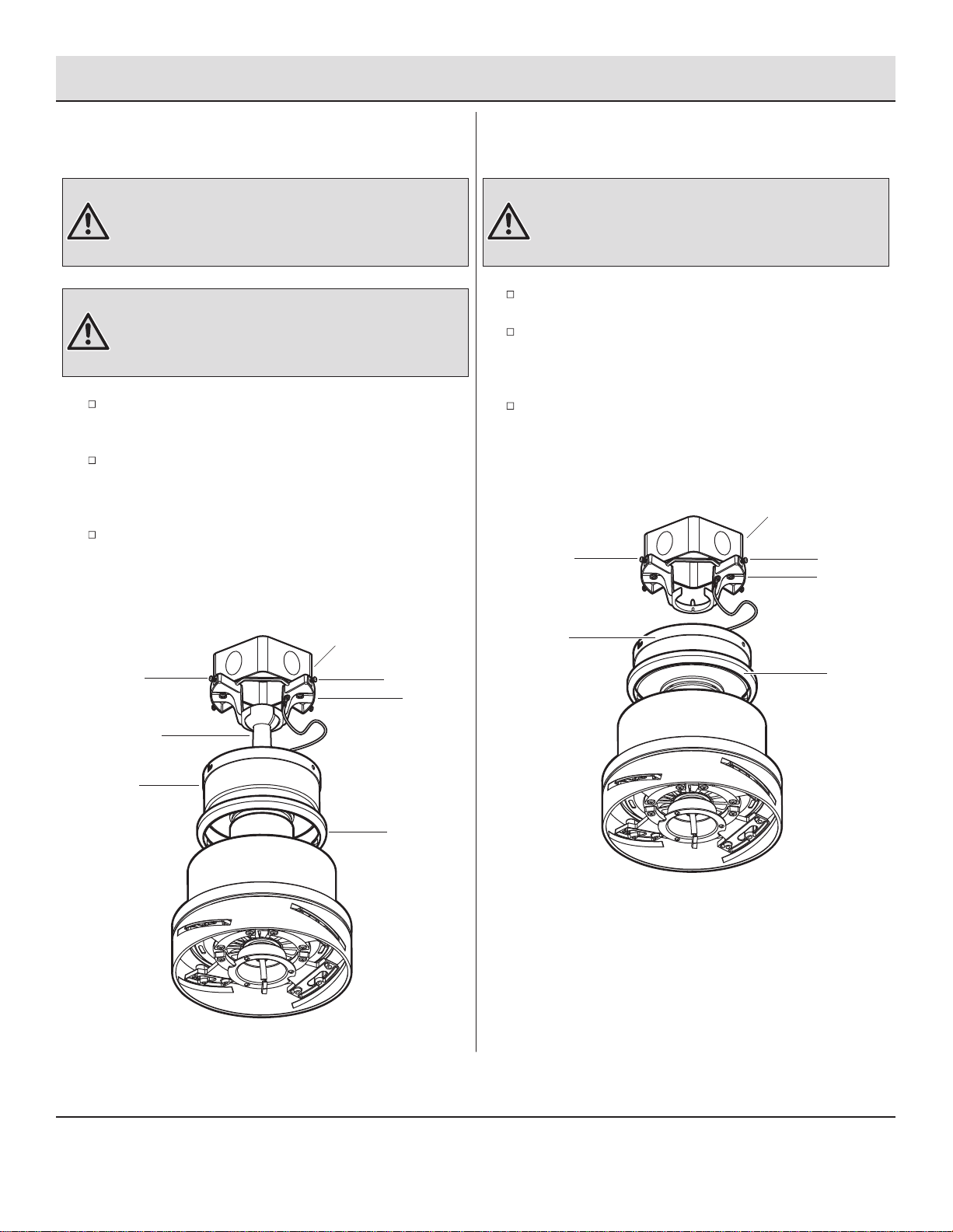

DUAL MOUNTING INSTRUCTIONS
Standard Ceiling Mounting
Close-to-Ceiling Mounting
7
Please contact 1-800-986-3460 for further assistance.
HOMEDEPOT.COM/HOMEDECORATORS

If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
Disconnect the power by removing the fuses or turning off
the circuit breakers.
Secure the outlet box (not included) directly to the building
structure. Use appropriate fasteners and materials (not
included). The outlet box and its bracing must be able to fully
support the weight of the moving fan (at least 35 lbs.). Do not
use a plastic outlet box.
The illustrations below show three different ways to mount the
outlet box (not included).
To hang your fan where there is an existing xture but no
ceiling joist, you may need an installation hanger bar (not
included) as shown above.
Outlet Box
Outlet Box
Hanger Bar
Outlet Box
Recessed
Outlet
Box Ceiling
Mounting
Bracket
WARNING: To reduce the risk of re, electric shock, or
personal injury, mount the fan to an outlet box marked
acceptable for fan support using the screws provided with the
outlet box. An outlet box commonly used for the support of
lighting xtures may not be acceptable for fan support and
may need to be replaced. If in doubt, consult a qualied
electrician.
NOTE: You may need a longer downrod to maintain proper
blade clearance when installing on a steep, sloped ceiling.
The maximum angle allowable is 18° away from horizontal. If
the canopy (C) touches the hanger ball/downrod assembly (E),
then remove the decorative canopy bottom cover (D) and turn
the canopy (C) 180° before attaching the canopy (C) to the
mounting bracket (A).
MOUNTING OPTIONS
Installation
8

WARNING: Failure to properly install the cotter pin (FF)
could result in the fan loosening and possibly falling.
NOTE: If a longer downrod (not included) is needed, take out
the screw located in the hanger ball (JJ), lower the hanger
ball (JJ) and remove the pin (KK). Remove all three pieces
from the downrod and assemble them onto the new longer
downrod before proceeding to the downrod installation.
Be sure to snap together the 3-PIN connectors, the male plug
(NN) from the fan and female plug from the extension cord
(DD).

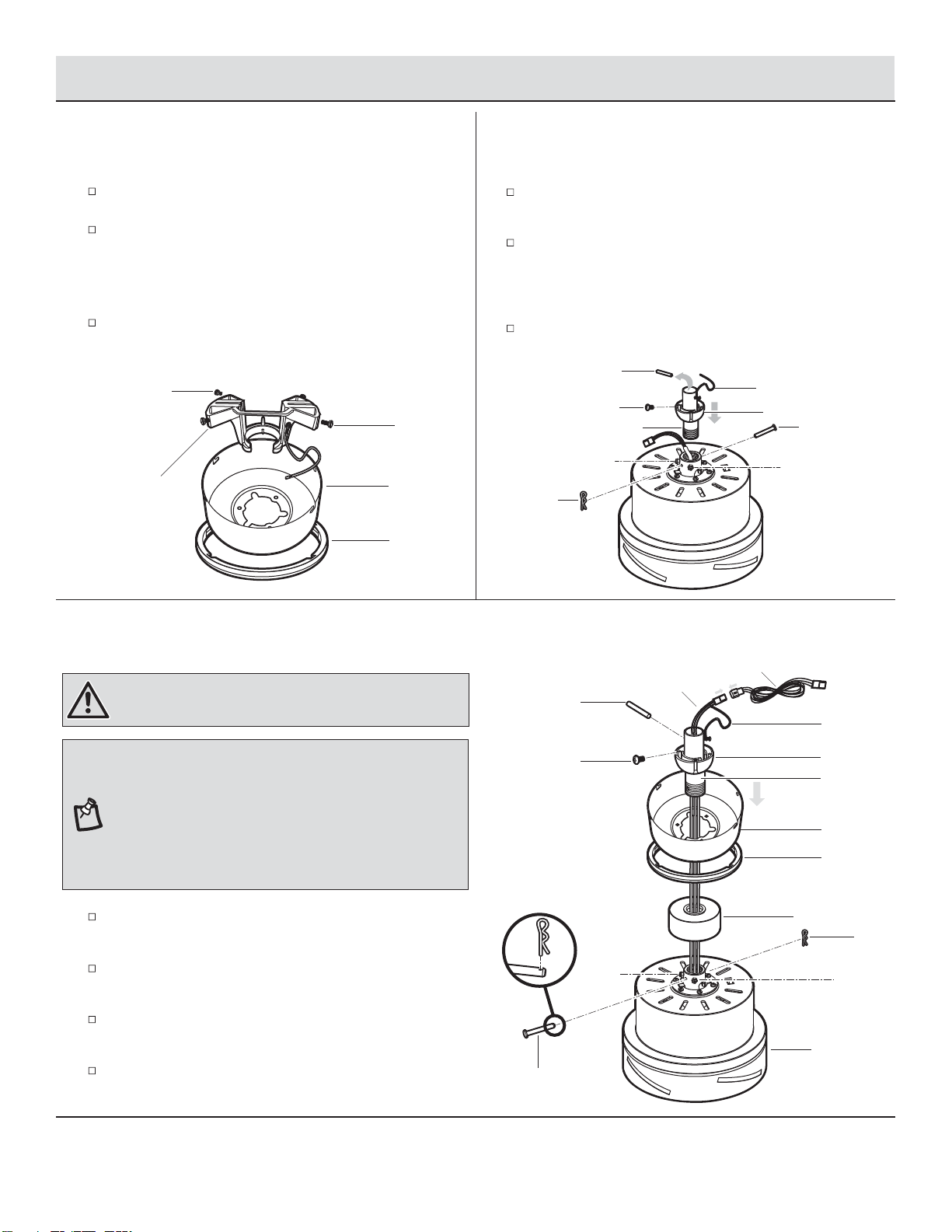

Assembly — Standard Ceiling Mounting
1Preparing the canopy Preparing the motor 2
Remove the cotter pin (FF) and clevis pin (GG), and loosen
the two collar setscrews (HH) from the motor collar.
Take out the setscrew (II) located in the hanger ball (JJ),
lower the hanger ball (JJ) and remove the cross pin (KK).
Remove the hanger ball (JJ) from the hanger ball/downrod
assembly (E).
Remove the ground lead (LL) from the downrod assembly
(E).
Remove the canopy ring (B) from the canopy (C).
Remove the two non-slotted canopy mounting screws with
lock washers (EE) from the canopy (C), and loosen the
slotted canopy mounting screws with lock washers (EE) on
the canopy (C).
Remove the canopy (C) from the mounting bracket (A) by
turning the canopy (C) counterclockwise.
3Assembling the fan
Carefully feed the motor wires up through the downrod
(MM). Thread the downrod (MM) into the collar.
Align the holes and replace clevis pin (GG) and cotter pin
(FF). Tighten the two collar setscrews (HH).
Slip the coupling cover (F), canopy ring (B), and canopy (C)
onto the downrod (MM).
Carefully reinstall the hanger ball (JJ) onto the downrod
(MM) and reinstall the ground lead (LL) onto the downrod
(MM). Being sure that the cross pin (KK) is in the correct
position, the setscrew (II) is tightened and wires are not
twisted.
A
EE
EE
C
B
II
E
KK
JJ
LL
FF
GG
HH HH
9
Please contact 1-800-986-3460 for further assistance.
HOMEDEPOT.COM/HOMEDECORATORS
B
G
F
C
HH
HH
GG
FF
II
KK
LL
MM
JJ
DD
NN

OO
WARNING: Failure to completely tighten the three collar
mounting screws (OO) could result in the fan becoming loose
and possibly falling.
Assembly — Close-to-Ceiling Mounting
1Preparing the canopy Preparing the motor 2
Remove the cotter pin (FF), clevis pin (GG) and two collar
setscrews (HH) from the motor collar.
Remove three of the six collar mounting screws with lock
washers (OO) (every other one) from the collar on top of the
fan motor assembly (G).
Remove the canopy ring (B) from the canopy (C).
Remove the mounting bracket (A) from the canopy (C) by
loosening the four canopy mounting screws with lock
washers (EE) on the top of the canopy (C). Remove the two
non-slotted canopy mounting screws with lock washers
(EE) and loosen the slotted canopy mounting screws with
lock washers (EE).
Remove the canopy bottom cover (D) from the canopy (C).
3Assembling the fan
Make sure the slot openings of the canopy ring (B) are on
top, and then proceed to place the canopy ring (B) and
canopy (C) over the collar at the top of the fan motor
assembly (G).
Align the mounting holes in the bottom of the canopy (C)
with the holes in the top of the fan motor assembly (G).
Fasten using the three collar mounting screws with lock
washers (OO) previously removed.
Tighten the collar mounting screws (OO) securely.
FF
GG
G
HH HH
10
A
EE
EE
C
B
D
B
G
OO
C

5b
5a Hanging instructions for
standard mounting
Hanging instructions for
close-to-ceiling mounting
WARNING: To reduce the risk of re, electric shock or
other personal injury, mount the fan only to an outlet box or
supporting system marked acceptable for fan support and
use the mounting screws provided with the outlet box.
WARNING: The tab in the ring must rest in the groove of
the hanger ball (E). Failure to properly seat the tab in the
groove could cause damage to the wiring.
WARNING: The hook is only to hold the fan while attaching
wiring. Failure to hang as instructed may result in the tab
breaking causing the fan to fall. The hook must pass from the
inside to the outside of the canopy.
Carefully lift the fan motor assembly (G) up to the mounting
bracket (A) and seat the hanger ball (E) in the mounting
bracket (A) socket. Make sure the tab on the mounting
bracket (A) socket is properly seated in the groove in the
hanger ball (E). This will help to balance the ceiling fan.
Carefully lift the fan motor assembly (G) up to the mounting
bracket (A) and hang the fan on the hook provided using
one of the holes at the outer rim of the canopy (C).
Assembly — Hanging the Fan
4 Attaching the fan to the
electrical box
Pass the 120-volt supply wires through the center hole in
the mounting bracket (A).
Attach the mounting bracket (A) on the outlet box by sliding
the mounting bracket (A) over the screws provided with the
outlet box. When using “close-to-ceiling” mounting, it is
important that the mounting bracket (A) be level. If
necessary, use leveling washers (not included) between the
mounting bracket (A) and the outlet box. Note that the at
side of the mounting bracket (A) is toward the outlet box.
Securely tighten the two mounting screws.
11
Please contact 1-800-986-3460 for further assistance.
HOMEDEPOT.COM/HOMEDECORATORS
A
Outlet Box
E
G
AA
G
C
C

12
NOTE: The battery will weaken with age and should be
replaced before leaking takes place as this will damage the
remote control. Dispose of the used battery properly and keep
the battery out of the reach of children.
Assembly — Hanging the Fan (continued)
6Preparing the receiver and remote
control
Setting the Code on the Remote:
Setting the Code on the Receiver:
Slide the code switches on the receiver (L) to the same
positions as set on the remote control (M).
After checking the switches, insert the receiver (L) into the
mounting bracket (A) with the at side of the receiver (L)
facing the ceiling.
NOTE: The frequencies on your receiver and remote control
have been preset at the factory. Before installing the receiver,
make sure the dip switches on the receiver and remote
control are set to the same frequency. The dip switches on
the remote control are located inside the battery
compartment.
Remove the battery cover on the back of the remote control
(M) by pressing rmly on the arrow and sliding the cover
off.
Slide the code switches to your choice of either up or down.
The factory setting is up.
Install two AAA batteries (CC) (included).
Replace the battery cover on the remote control (M).
G
L
A
M
CC
L
3412
DIP
3412
DIP

White Blue Black
White Blue Black
NOTE: The fan must be installed at a maximum distance of
20 ft. from the remote control for proper signal transmission
between the remote control and the fan's receiving unit.
NOTE: If a longer downrod (not included) is needed, use the
extension cord (DD) to connect with the motor wires and
receiver.
WARNING: Check to see that all connections are tight,
including ground, and that no bare wire is visible at the wire
nuts, except for the ground wire.
Assembly — Hanging the Fan (continued)

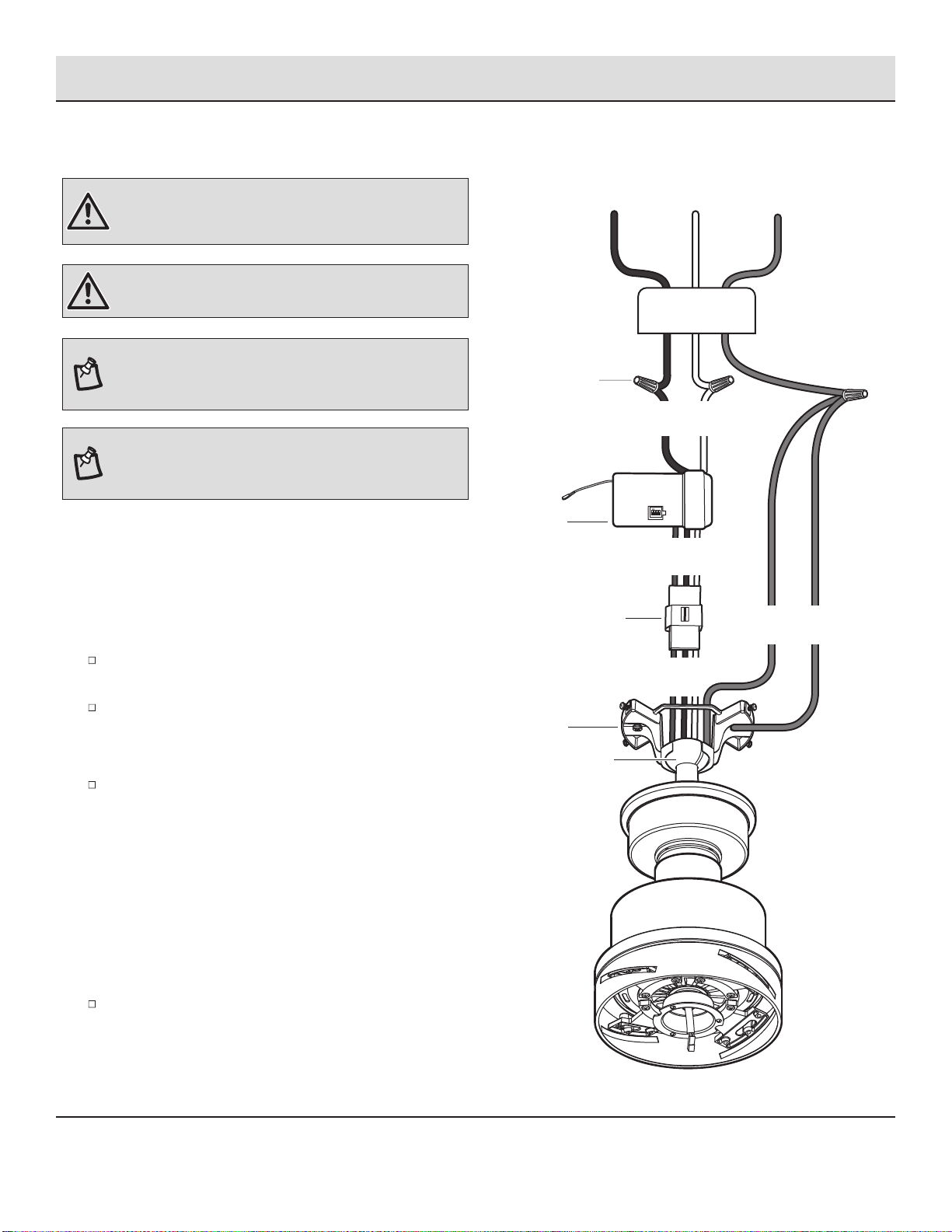

7Making the electrical connections
If you feel you do not have enough electrical wiring knowledge
or experience, have your fan installed by a licensed electrician.
Follow the steps below to connect the fan to your household
wiring. Use the plastic wire nuts (AA) with your fan. Secure the
plastic wire nuts (AA) with electrical tape. Make sure there are
no loose strands or connections.
WARNING: To reduce the risk of electric shock, this fan
must be installed with an isolating wall control/switch.
13
Please contact 1-800-986-3460 for further assistance.
HOMEDEPOT.COM/HOMEDECORATORS
AA
White
Green
Black
Black
Ground
conductor
White
Green
A
E
Outlet Box
3-Pin connectors
L
3412
DIP
Insert the receiver (L) into the mounting bracket (A) with
the at side of the receiver (L) facing the ceiling.
Make wire connections from the fan to the receiver (L).
From Fan To Receiver
3-Pin Connector -------------- 3-Pin Connector
Make wire connections from the receiver (L) and fan to
the outlet box as follows, using the wire nuts (AA).
From Receiver To Outlet Box
Black Wire "AC in L" --------- Black Wire (Hot)
White Wire "AC in N" -------- White Wire (Neutral)
From Fan To Outlet Box
Green Wires* ----------------- Green or Bare Wire (Ground)
* There are two green grounding leads: one from the mounting
bracket (A) and one from the hanger ball/downrod assembly (E)
if installed.
Turn the wire nut connections upward, spreading them
apart so the green (ground) and white wires will be on one
side of the outlet box and the black wire will be on the
other side. Carefully tuck the connections up into the
outlet box.

WARNING: Make sure the tab on the mounting bracket (A)
properly sits in the groove in the hanger ball (E) before
attaching the canopy (C) to the mounting bracket (A) by
turning the canopy (C) until it drops into place.
WARNING: The locking slots of the canopy (C) are provided
only as an aid to mounting. Do not leave the fan assembly
unattended until all four canopy mounting screws with lock
washers (EE) are engaged and rmly tightened.
WARNING: Locking slots of the canopy (C) are provided
only as an aid to mounting. Do not leave the fan assembly
unattended until all four canopy mounting screws with lock
washers (EE) are engaged and rmly tightened.
14
Assembly — Hanging the Fan (continued)
Standard ceiling mounting
8a Close-to-ceiling mounting 8b
Slide the canopy (C) up to the ceiling. Make sure you have
placed the wires safely into the outlet box.
Secure the canopy (C) to the mounting bracket (A) with the
four canopy mounting screws with lock washers (EE)
included with your fan.
Raise up canopy ring (B) and line up the four grooves with
the four screw heads on the canopy (C). Once lined up, slide
the canopy ring (B) and secure it to the canopy (C) until
snug.
Remove the fan from the hook on the mounting bracket (A).
Secure the canopy (C) to the mounting bracket (A) with the
four canopy mounting screws with lock washers (EE)
included with your fan.
Raise up canopy ring (B) and line up the four grooves with
the four screw heads on the canopy (C). Once lined up, slide
the canopy ring (B) and secure it to the canopy (C) until
snug.
EE
Outlet Box
Outlet Box
A
EE
B
C
E
EE
A
EE
B
C

WARNING: To reduce the risk of personal injury, do not
bend the blades (H) while installing, balancing the blades (H),
or cleaning the fan.
Assembly — Attaching the Fan Blades
9Attaching the blades
Insert the blade (H) through the slot in the housing. Align the
holes in the blade (H) and the fan motor assembly (G),
secure the blade in place with blade support plate (I) and
screws with lock washers (BB).
Repeat this procedure with the remaining blades (H).
WARNING: Do not insert foreign objects between rotating
fan blades (H).
15
Please contact 1-800-986-3460 for further assistance.
HOMEDEPOT.COM/HOMEDECORATORS
NOTE: Your fan blades are reversible. Select the blade side
nish which best accentuates your decor.
BB
I
G
H

CAUTION: Before starting installation, disconnect the
power by turning off the circuit breaker or removing the fuse
at the fuse box. Turning power off using the fan switch is not
sufcient to prevent electric shock.
PP
J
GG

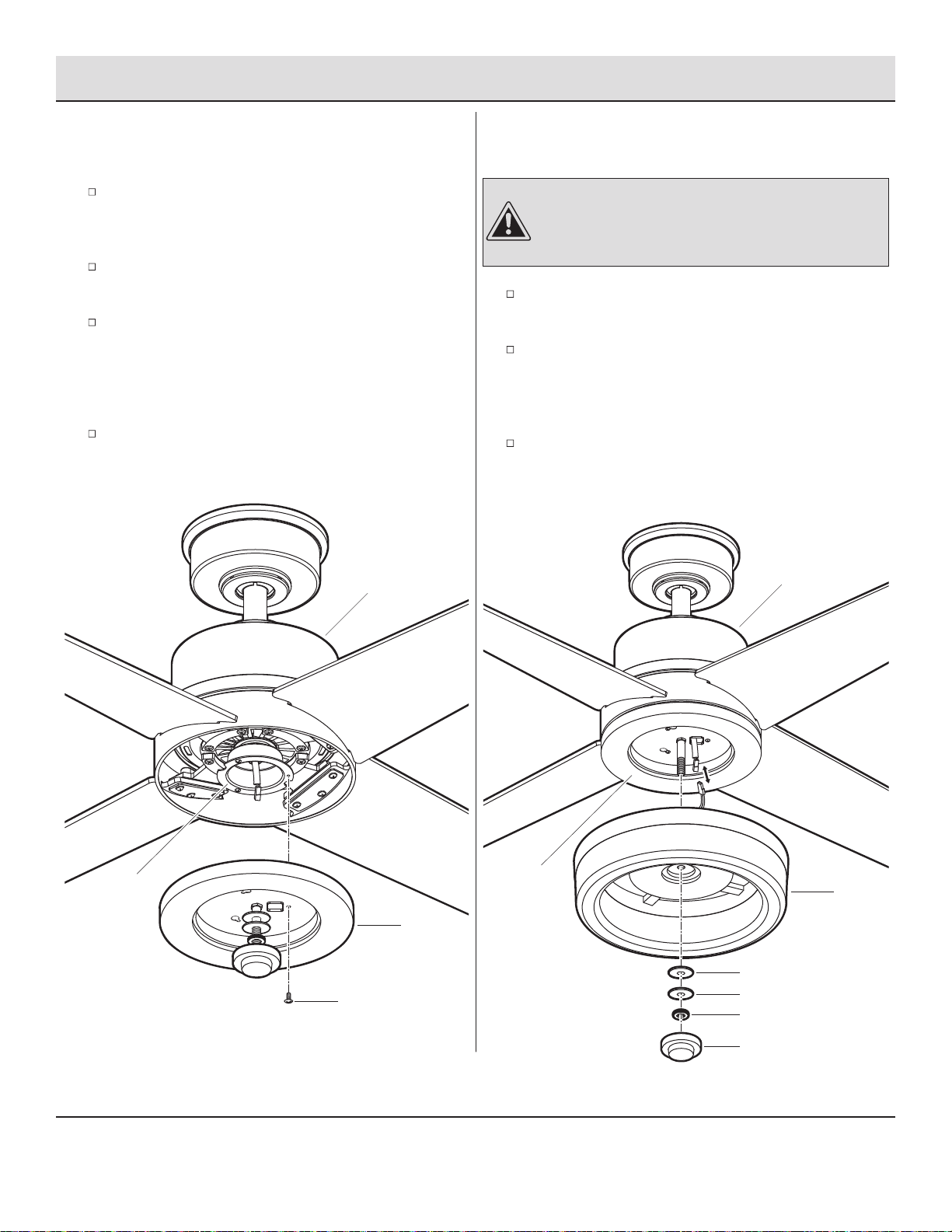

Assembly — Installing the Light Kit
10 Attaching the light kit to the light
kit mounting plate
11
Remove one of the three light kit mounting plate screws
(PP) from the mounting ring (QQ) and loosen the other two
screws (PP). (Do not remove.)
Take the 2-pin wire of the fan motor assembly (G) and pass
it through the square hole of the light kit mounting plate(J).
Place the key holes in the light kit mounting plate (J) over
the two screws (PP) previously loosened from the mounting
ring (QQ). Turn the light kit mounting plate (J) until the light
kit mounting plate (J) locks in place at the narrow section of
the key holes.
Securely tighten the two light kit mounting plate screws
(PP) previously loosened and the one (PP) previously
removed.
QQ
SS
TT
UU
K
RR
16
Remove the decorative nut (RR), nut (SS), at washer (TT)
and plastic washer (UU) from the light kit stem.
While holding the light kit (K) under the fan motor assembly
(G), make the 2-pin wire connections:
- White to white
- Black to black
Place the LED light kit (K) over the light kit stem and secure
with the plastic washer (UU), at washer (TT), nut (SS) and
decorative nut (RR) provided. Do not overtighten.
Attaching the light kit mounting
plate to the mounting ring
J

M
- Press and release the button to turn the fan on or off.
- Press and release 1 time - turns the fan on high speed.
- Press and release 2 times - turns the fan on medium speed.
- Press and release 3 times - turns the fan on low speed.
- Press and release 4 times - turns the fan off.
- Press and release the button to turn the light on or off.
Press and hold the button to activate the dimmer function.
- Press and hold this button for 3 seconds to enable Comfort
BreezeTM ; this will change your fan speed randomly, simulating a
relaxing breeze. To cancel this feature press or .
- While the fan is on press 1 time - turns on a 2 hour run timer.
- While the fan is on press 2 times - turns on a 4 hour run timer.
- While the fan is on press 3 times - turns on an 8 hour run timer.
Operation
REMOTE CONTROL OPERATING INSTRUCTIONS
17
Please contact 1-800-986-3460 for further assistance.
HOMEDEPOT.COM/HOMEDECORATORS
INSTALLING THE REMOTE CONTROL HOLDER
Attach the remote control holder (VV) with the two remote
control holder mounting screws (WW).
Replace the remote control holder cover (XX) into the
remote control holder (VV). WW
XX
VV

The reverse switch is located on the top of the motor housing. Slide
the switch to the left for warm weather operation. Slide the switch
to the right for cool weather operation.
Operation (continued)
REVERSE SWITCH OPERATING INSTRUCTIONS
18
NOTE: Wait for the fan to stop before reversing the direction
of the blade rotation.
Reverse switch
Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure.
Because of the fan’s natural movement, some connections
may become loose over time. It is not necessary to remove
the fan from the ceiling.
Clean your fan periodically. Use only a soft brush or
lint-free cloth to avoid scratching the nish. The plating is
sealed with a lacquer to minimize discoloration or
tarnishing.
(Optional) Apply a light coat of furniture polish to the wood
blades.
(Optional) Cover small scratches with a light application of
shoe polish.
Do
Care and Cleaning
Use water when cleaning. Water could damage the motor,
or the wood, or possibly cause an electrical shock.
Apply oil to your fan or motor. The motor has
permanently-lubricated sealed ball bearings.
Do not
Warm weather - (Counterclockwise Direction) A downward air ow
creates a cooling effect. This allows you to set your air conditioner
on a warmer setting without affecting your comfort.
Cool weather - (Clockwise Direction) An upward air ow moves
warm air off the ceiling. This allows you to set your heating unit on
a cooler setting without affecting your comfort.

Do not connect the fan with wall mounted variable speed control(s).
Make sure the frequency switches are set correctly.
The fan wobbles.
The remote control is
not working.
Problem Solution
Check the main and branch circuit fuses or breakers.
Check the line wire connections to the fan and switch wire connections in the switch housing.
Check to make sure the frequency switches from the remote control and receiver are set to the same
frequency.
Make sure all motor housing screws are snug.
Make sure the screws that attach the fan blade to the motor hub are tight.
Make sure the wire nut connections are not rattling against each other or the interior wall of the switch
housing.
Allow a 24-hour "breaking-in" period. Most noises associated with a new fan disappear during this time.
If using the ceiling light kit, make sure the glassware is secured tightly.
Make sure there is a short distance from the ceiling to the canopy. It should not touch the ceiling.
Make sure your ceiling box is secure and that rubber isolator pads are used between the mounting
bracket and outlet box.
The fan will not start.
The fan sounds noisy.
Verify that all blades and blade bracket screws are secure (most fan wobble problems are caused by
loose parts). Once the fan is properly installed, run the ceiling fan for 10 minutes to let the fan
self-adjust.
If wobble occurs after running the fan for 10 minutes, verify blade level using the following process:
- Select a point on the ceiling above the tip of one of the blades, then select any fan blade and measure
from the center of the selected blade to the point on the ceiling. Rotate the fan until the next blade is
positioned and repeat the measurement using the same point from the ceiling for every blade.
Measurement deviations should be within 1/8 in.
- If all deviations are less than 1/8 in. and the fan continues to wobble, please call Customer Service
(1-800-986-3460) to order a complimentary Blade Balancing Kit.
- If deviation is greater than 1/8 in. , please call Customer Service (1-800-986-3460) to order
complimentary replacements of your brackets.
Troubleshooting
WARNING: Make sure the power is off at the electrical
panel box before you attempt any repairs. Refer to step 7
“Making the electrical connections” on page 13.
19
Please contact 1-800-986-3460 for further assistance.
HOMEDEPOT.COM/HOMEDECORATORS

Part
A
B
C
D
E
F
G
H
I
J
K
L
M
Description
Mounting bracket (preassembled)
Canopy ring (preassembled)
Canopy
Canopy bottom cover (preassembled)
Hanger ball/downrod assembly
Coupling cover
Fan motor assembly
Blade
Blade support plate
Light kit mounting plate
20W LED Light kit
Receiver
Remote control
Part
AA
BB
CC
DD
Description
Plastic wire nut
Blade attachment screw with lock washer
1.5V AAA battery
Extension cord
A
L
M
E
H
I
K
F
G
J
AA
BB
CC
DD
Service Parts
20
3412 DIP
B
C
D
