USE AND CARE GUIDE
WINDWARD 68-INCH CEILING FAN

2
Table of Contents ................................................................2
Safety Information...............................................................2
Warranty ............................................................................... 3
Pre-Installation ....................................................................3
Installation............................................................................6
Assembly..............................................................................7
Operation ...........................................................................13
Care and Cleaning.............................................................16
Troubleshooting.................................................................16
1. To reduce the risk of electric shock, ensure the electricity has been
turned off at the circuit breaker or fuse box before you begin.
2. All wiring must be in accordance with the National Electrical Code
ANSI/NFPA 70 and local electrical codes. Electrical installation should
be performed by a qualied licensed electrician.
3. The outlet box and support structure must be securely mounted and
capable of reliably supporting a minimum of 35 lbs. (15.9 kg). Use
only UL-listed outlet boxes marked “Acceptable for Fan Support of
35 lbs. (15.9 kg) or less.”
4. The fan must be mounted with a minimum of 7 ft (2.1 m) of
clearance from the trailing edge of the blades to the oor.
5. Do not place objects in the path of the blades.
6. To avoid personal injury or damage to the fan and other items, use
caution when working around or cleaning the fan.
7. After making electrical connections, spliced conductors should be
turned upward and pushed carefully up into the outlet box. The
wires should be spread apart with the grounded conductor and the
equipment-grounding conductor on one side of the outlet box.
8. All set screws must be checked and retightened where
necessary before installation.
9. Use only with light kits marked suitable for damp location.
WARNING: To reduce the risk of personal injury,
do not bend the blade brackets (also referred to as
anges) during assembly or after installation. Do
not insert objects in the path of the blades.
WARNING: To reduce the risk of re or electric
shock, do not use this fan with any solid-state speed
control device.
WARNING: Electrical diagrams are for reference
only. If you are using a light kit, refer to the light kit
instructions manual to make the electrical
connections. Optional use of any light kit shall be
UL-listed and marked suitable for use with this fan.
WARNING: To avoid possible electrical shock, turn
the electricity off at the main fuse box before
wiring. If you feel you do not have enough electrical
wiring knowledge or experience, contact a licensed
electrician.
Safety Information
Table of Contents
CAUTION: To reduce the risk of personal injury,
use only the screws provided with the outlet box.
WARNING: To reduce the risk of re, electric shock
or personal injury, mount to outlet box marked
“Acceptable for fan support of 35 lbs. (15.9 kg) or
less”, and use screws provided with the outlet box.
READ AND SAVE THESE INSTRUCTIONS.
WARNING: To reduce the risk of re or electric shock,
this fan should only be used with fan speed control
part no. MDF40S-H04R, manufactured by Dawnsun
Electronic Co., LTD.
CAUTION: Do NOT use this fan with a dimmer switch
or wall control. Using a dimmer switch or wall control
will damage the fan.
CAUTION: Changes or modications not expressly
approved by the party responsible for compliance
could void the user’s authority to operate the
equipment.
WARNING: To reduce the risk of electric shock, this
fan must be installed with an isolating wall switch.

3HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Pre-Installation
Warranty
SPECIFICATIONS
NOTE: These are approximate measures. They do not
include the Amps and Wattage used by the light kit.
Size Speed Volts
Fan Power
Consumption
(without lights)
WATT
Airow
CFM
Airow Efciency
(Higher Is Better)
CFM/WATT
Net
Weight
Gross
Weight Cubic Feet
68 in.
Low
120
3 4,956 1,652
24.9 lb
(11.3 kg)
28.66 lb
(13 kg) 2.415 cu. ft.
Medium 14 8,044 574
High 36 10,770 299
TOOLS REQUIRED
Phillips
screwdriver
Flat blade
screwdriver
Adjustable
wrench
Electrical
tape
Wire cutter
/ Stripper
Step ladder
The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a
lifetime after the date of purchase by the original purchaser. The supplier warrants that the light kit, excluding any glass, to be free from defects in
workmanship and material at the time of shipment from the factory for a period of ve years after the date of purchase by the original purchaser.
The supplier also warrants that all other fan parts, excluding any glass or acrylic blades, to be free from defects in workmanship and material at the
time of shipment from the factory for a period of three years after the date of purchase by the original purchaser. We agree to correct such defects
without charge or at our option replace with a comparable or superior model if the product is returned. To obtain warranty service, you must present
a copy of the receipt as proof of purchase. All costs of removing and reinstalling the product are your responsibility. Damage to any part, such as by
accident, misuse, improper installation, or by afxing any accessories, is not covered by this warranty. Because of varying climatic conditions this
warranty does not cover any changes in brass nish, including rusting, pitting, corroding, tarnishing, or peeling. Brass nishes of this type give their
longest useful life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect.
Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. Interline hereby disclaims any
and all warranties, including but not limited to those of merchantability and tness for a particular purpose to the extent permitted by law. The
duration of any implied warranty which cannot be disclaimed is limited to the time period as specied in the express warranty. Some states do not
allow a limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall not be liable for incidental,
consequential, or special damages arising out of or in connection with product use or performance except as may otherwise be accorded by law.
Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion or limitation may not apply to you. This
warranty gives specic legal rights, and you may also have other rights which vary from state to state. This warranty supersedes all prior warranties.
Shipping costs for any return of product as part of a claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-800-283-7048.

4
Part Description Quantity
AA Blade attachment screws 19
BB Plastic wire connecting nut 3
CC Hanger pin 1
DD Locking pin 1
Pre-Installation (continued)
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
AA BB
CC DD

5HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Part Description Quantity
ASlide-on mounting bracket
(inside canopy) 1
B Ball/downrod assembly 1
C Canopy with canopy ring attached 1
D Decorative motor collar cover 1
E Fan-motor assembly 1
F Light kit pan 1
Part Description Quantity
G Blade 6
H Glass shade 1
I Light kit tter assembly 1
J Remote control (batteries included) 1
K Support plate 6
L Batteries 2
IMPORTANT: This product and/or components are
governed by one or more of the following U.S. Patents:
5,947,436; 5,988,580; 6,010,110; 6,046,416, 6,210,117
and other patents pending.
Pre-Installation (continued)
PACKAGE CONTENTS
B
I
H
J
D
F
G
C
A
2H 4H 8H
L
K
E

6
Installation
MOUNTING OPTIONS
WARNING: To reduce the risk of re, electric shock or
personal injury, mount to outlet box marked “Acceptable
for fan support of 35 lbs. (15.9 kg) or less”, and use
screws provided with the outlet box. An outlet box
commonly used for the support of lighting xtures may
not be acceptable for fan support and may need to be
replaced. If in doubt, consult a qualied electrician.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□Secure the outlet box directly to the building structure. Use
the appropriate fasteners and materials. The outlet box and
support structure must be securely mounted and capable of
reliably supporting a minimum of 35 lbs. (15.9 kg). Use only
UL-listed outlet boxes marked “Acceptable for fan support
of 35 lbs. (15.9 kg) or less” Do not use a plastic outlet box.
The illustrations below show three different ways to mount the
outlet box.
If the canopy touches the downrod, then remove the decorative canopy
bottom cover, and turn the canopy 180° before attaching the canopy to
the mounting plate.
To hang your fan where there is an existing xture but no ceiling joist,
you may need an installation hanger bar as shown above
(available at any Home Depot store).
NOTE: You may need a longer downrod to maintain
proper blade clearance when installing on a steep, sloped
ceiling. The maximum angle allowable is 30° away from
horizontal.
Outlet Box
Outlet Box
Recessed
Outlet
Box
Provide Strong
Support
Ceiling
Mounting
Plate
Outlet Box
Hanger Bar

7HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Standard Ceiling Mount
Routing the wires
Assembling the fan
Preparing for mounting
□Remove the canopy ring (FF) from the canopy (C) by turning
the ring counter clockwise until it unlocks.
□Remove the mounting bracket (A) from the canopy (C) by
loosening the two canopy screws (SS) located in the “L
shaped” slots.
□Remove and save the two canopy screws (II) in the round
holes. This will enable you to remove the mounting bracket (A).
□Route the wires exiting the top of the fan motor assembly
(E) through the center of the canopy ring (FF). Make sure the
slots on the canopy ring (FF) are on top.
□Insert the ball/downrod (B) through the canopy (C) and slide
the decorative motor collar cover (D) onto the end of the
ball/downrod (B). Make sure the slots on the canopy (C) are
on top.
□Route the wires exiting the top of the fan motor assembly (E)
through the downrod (B) as shown.
2
3
1
□Loosen, but do not remove, the setscrew (KK) on the collar (PP)
on top of the fan-motor assembly (E).
□Install the downrod (B) by inserting it into the motor collar (PP),
and turning it clockwise until the holes at the bottom of the ball/
downrod assembly (B) align with the holes in the collar on top of
the fan-motor assembly (E).
□Carefully insert the hanger pin (CC) through the holes in the collar
and ball/downrod assembly (B). Be careful not to jam the hanger
pin (CC) against the wiring inside the ball/downrod assembly (B).
□Insert the locking pin (DD) through the hole hear the end of the
hanger pin (CC) until it snaps into its locked position.
□Re-tighten the setscrew (KK) on the collar (PP) on top of the fan-
motor assembly (E).
WARNING: Failure to properly install the locking
pin (DD) could result in the fan becoming loose and
possibly falling.
CAUTION: To ensure wobble-free operation and to avoid
damage to the fan, the downrod (B) and the setscrew (KK)
must be completely tightened.
C
B
FF
D
E
FF
II
SS A
C
C
B
FF
D
E
DD
CC
KK
PP

8
Assembly - Hanging the Fan
Attaching the fan to the electrical
box Hanging the fan

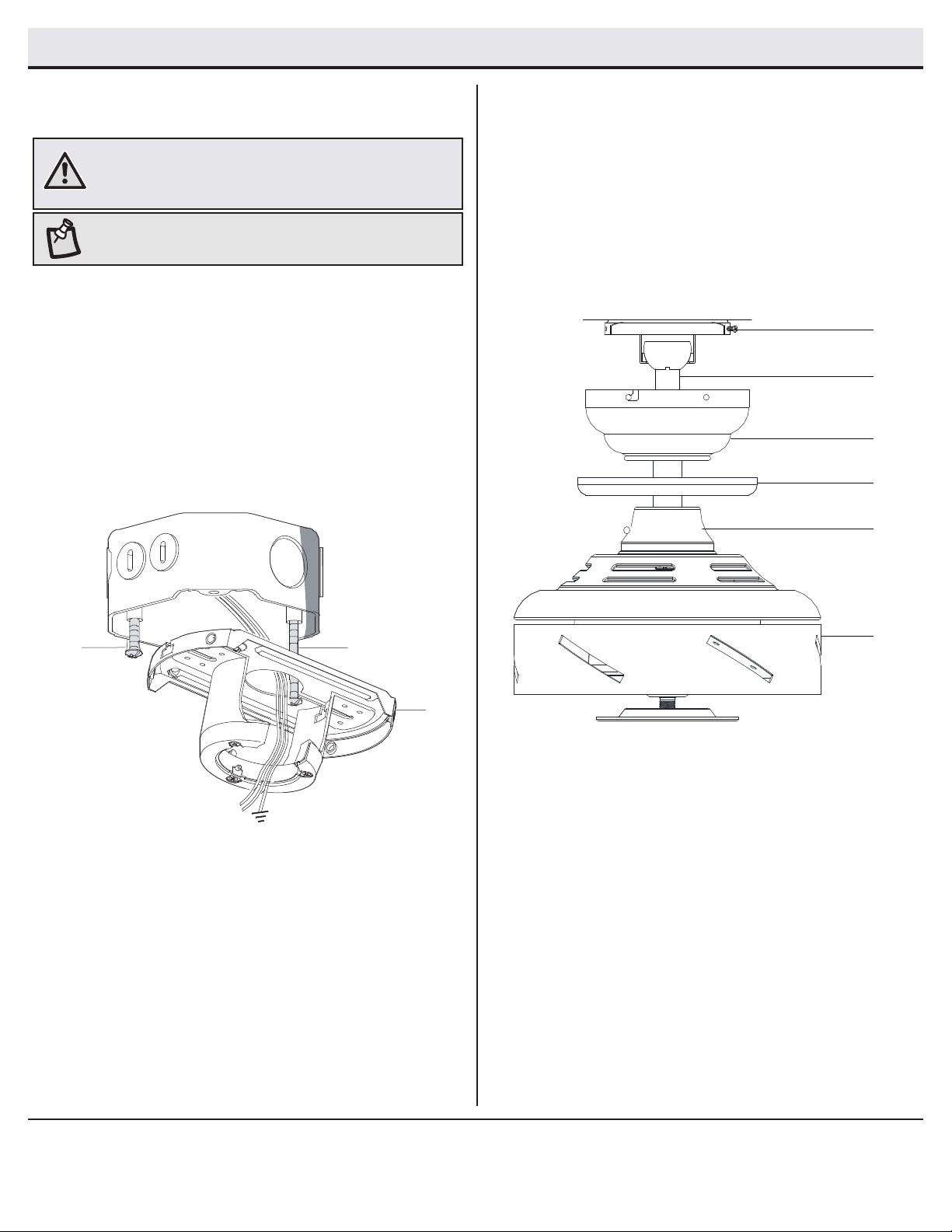

□Loosen the two mounting screws (JJ) in the outlet box.
□Pass the 120-Volt supply wires through the center hole in the
mounting bracket (A).
□Slide the mounting bracket (A) on to the mounting screws (JJ)
and center the mounting bracket (A) in relation to the outlet box.
If necessary, use leveling washers (not included) between the
slide-on mounting bracket (A) and the outlet box. The at side of
the slide-on mounting bracket (A) should face toward the outlet
box, as shown.
□Securely tighten the two mounting screws (JJ).
□Carefully lift the fan-motor assembly (E) up to the slide-on
mounting bracket (A).
□Insert the ball portion of the ball/downrod assembly into
the socket of the slide-on mounting bracket (A).
□Turn the ball/downrod assembly clockwise until it is seated
with the tab of the slide-on mounting bracket (A) aligned
with the slot in the ball.
12
WARNING: To reduce the risk of re, electric shock or personal
injury, mount to outlet box marked “Acceptable for fan support
of 35 lbs. 15.9 kg) or less”, and use screws provided with the
outlet box.
NOTE: The mounting bracket (A) is designed to slide into place on
an outlet box with the outlet box screws (JJ) installed.
A
B
E
C
D
FF
A
JJ JJ

9HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Hanging the Fan (continued)
Making the electrical connection
4
IMPORTANT: Use the plastic wire connectors (BB) supplied with
your fan. Secure the connectors with electrical tape and ensure
there are no loose strands or connections.
WARNING: Each wire nut supplied with this fan is designed to
accept up to one 12-gauge house wire and two wires from the fan.
If you have larger than 12-gauge house wiring or more than one
house wire to connect to the fan wiring, consult an electrician for
the proper size wire nuts to use.
□The fan comes with 78 in. lead wires for use with an extended
ball/downrod assembly. If using the ball/downrod assembly (B)
provided, you can cut the lead wires to your desired length (no
shorter than 12 in.). This will make extra room in the canopy (C).
If you do not wish to cut the wires, you will need to neatly wrap
them.
□Connect the fan motor green wires to the household green or
bare wire using a wire connecting nut (BB).
□Connect the fan motor white wires to the household white wire
using a wire connecting nut (BB).
□Connect the fan motor black wires to the household black wire
using a wire connecting nut (BB).
□Secure each wire connecting nut using electrical tape.
□Turn the wire connecting nut (BB) upward and push the wiring
into the outlet box (MM).
NOTE: The fan comes with 78 in. lead wires for use with an
extended ball/ downrod assembly. If using the ball/downrod
assembly (B) provided, you can cut the lead wires to your desired
length (no shorter than 12 in.)
NOTE: The blades must be installed before attempting to operate
the fan. If the blades are not installed, the motor will not function
properly.
E
C
FF
BB
Outlet box
in the ceiling (MM)
Green or bare wire
Black White
Black White Green(2)

10
Attaching the fan blades
1

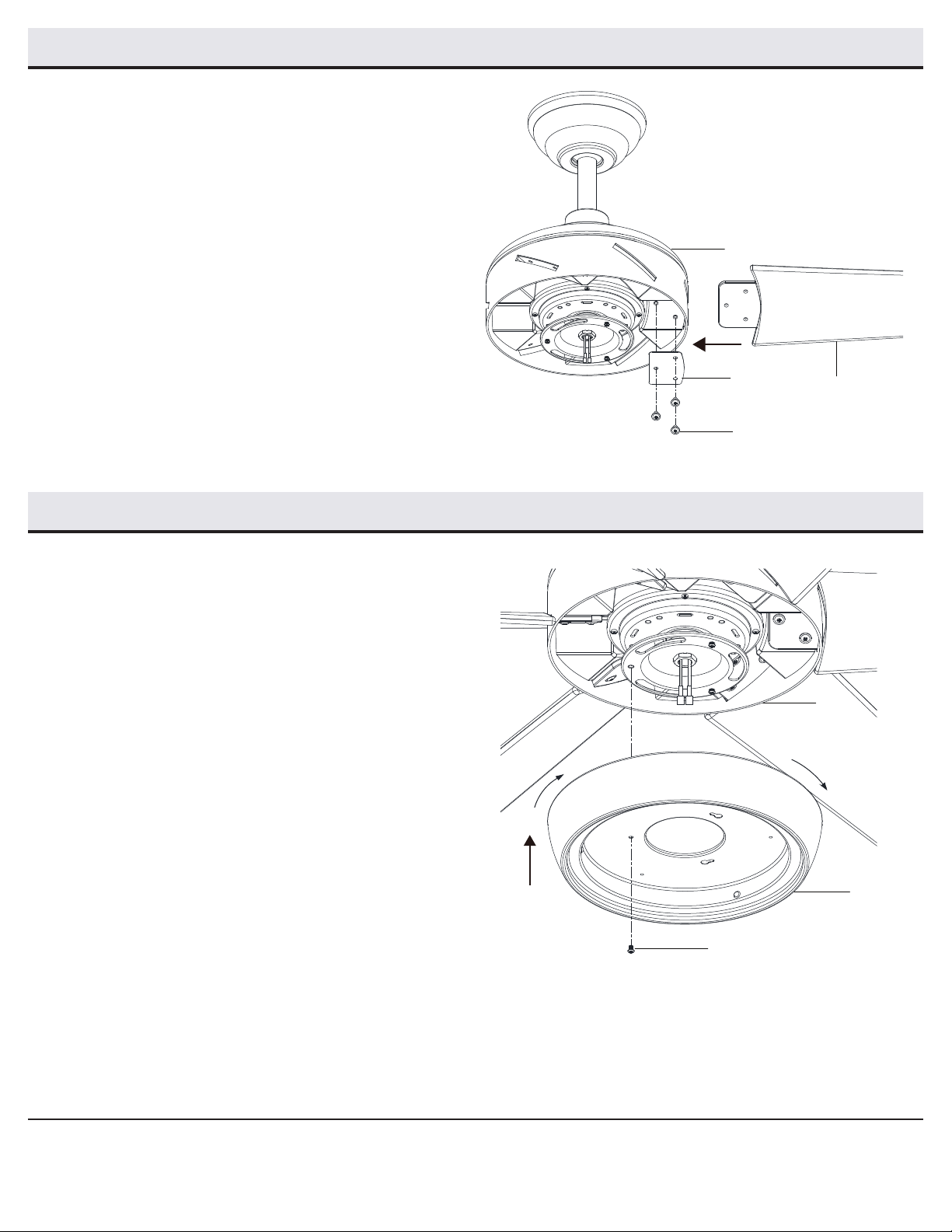

□Attach a blade (G) to the fan motor housing (E) by rst
inserting the blade (G) into the slot in the side of the fan
motor housing (E).
□Align the holes of support plate (K) to the blade (G) holes
and insert the screw (AA) into the blade. Repeat for the two
remaining screws.
□Tighten each screw (AA) securely.
□Repeat these steps for the remaining blades (G).
Assembly - Attaching the Fan Blades
Assembly - Attaching the Accessories
Installing the light kit pan
1
□Remove one screw (RR) from the black bracket below the fan
motor assembly (E), and loosen but do not remove the other
two screws.
□Push the light kit pan (F) up to the fan motor assembly (E) so
that the two loosened screw heads t into the keyhole slots.
Turn the light kit pan (F) clockwise.
□Re-install the screw (RR) that was removed in the rst step.
□Make sure all the screws are rmly tightened.
E
AA
G
K
F
E
RR

11 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Attaching the Accessories (continued)
Attaching the light kit tter assembly
2□Remove one screw (TT) from the light kit pan (F), and loosen,
but do not remove the other two screws.
□Connect the wires from the light kit tter assembly (I) to the
wires from the fan motor assembly (E) by connecting the
molded adaptor plugs together. Carefully tuck all wires and
splices into the switch cup.
□Push the light kit tter assembly (I) up to the light kit pan (F)
so that the two loosened screw heads t into the keyhole
slots. Turn the light kit tter assembly (I) clockwise to secure.
□Re-install the screw that was removed in the rst step.
□Make sure all the screws are rmly tightened.
Installing the glass shade
3
□Place the glass shade (H) into the light kit pan (F), aligning the
three at areas on the top of the ange of the glass shade (H)
with the three raised dimples in the light kit pan (F). Turn the
shade clockwise until it stops.
WARNING: Do not overtighten when installing the glass shade
into the light kit. Allow the glass shade to cool completely before
removing.
H
F
I
F
TT

12
Preparing the Remote Control
NOTE: The battery will weaken with age and should be replaced
before leaking takes place as this will damage the remote control.
Dispose of used battery properly and keep the battery out of the reach
of children.
□Remove the battery cover by pressing rmly on the arrow and
sliding the cover off.
□Install two 1.5V AAA batteries (included).
□Slide the dip switch in the battery compartment to the “1” setting.
□Conrm that the power to the fan is off at either the wall switch or
breaker box.
□Return power to the fan at the wall switch or breaker box.
□Press and release the “Learn” button located in the remote’s
battery compartment within 30 seconds.
□If pairing is successful, the fan’s light kit will ash and the blades
will begin to spin.
□Replace the battery cover on the remote control.
Pairing the Remote Control
NOTE: The remote control has already been paired to the ceiling fan
for your convenience. If you have two of the same model fans in your
home, please follow the steps below to control each fan independently.
0 1
0 1
LEARN
LEARN

13 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Operating Your Fan and Remote Control
2. Speed functions
+button, increases the fan speed
□Pressing and releasing the + button one time will increase the speed of the fan. Each setting increase will cause the LED bar to illuminate
slightly more, until the fan has reached the maximum speed setting. At that time the LED bar will be fully illuminated.
□Pressing and holding the + button will increase the fan speed automatically through the speed settings and the increments will be denoted
on the LED bar. When the LED bar is fully illuminated, the fan has reached maximum speed setting.
□Pressing the + button while in Comfort BreezeTM mode, will automatically cancel the Comfort BreezeTM mode and resume normal fan
operation.
–button, decreases fan speed
□Pressing and releasing the - button one time will decrease the speed of the fan. Each setting decrease will cause the LED bar to dim
slightly more, until the fan has reached the minimum speed setting. At that time the LED bar will be approximately 25% illuminated.
□Pressing and holding the - button will decrease the fan speed automatically through the speed settings and the increments will be denoted
on the LED bar. When the LED bar is 25% illuminated, the fan has reached the minimum speed setting.
□Pressing the - button while in Comfort BreezeTM mode, will automatically cancel the Comfort BreezeTM mode and resume normal fan
operation.
3. Comfort BreezeTM
There are three Comfort BreezeTM settings. Pressing the button will activate the Comfort BreezeTM mode.
□Setting 1: Alternates through speeds 1 – 3, the LED bar should ll approximately 33%.
□Setting 2: Alternates through speeds 1 – 6, the LED bar should ll approximately 66%.
□Setting 3: Alternates through speeds 1 – 9, the LED bar should be fully illuminated.
NOTE: If you are currently using Comfort BreezeTM mode,
pressing the button will cancel Comfort BreezeTM
mode and resume normal fan operation.
NOTE: You must turn the fan on prior to using the timer
function.
1. Fan button. - Press and release the button to turn the fan on
or off.
□Fan on. The fan memory function will resume the speed set on the
fan prior to the power being turned off. The LED bar will display the
current settings for 5 seconds after the button is released.
□Fan off. The fan memory function will store the current setting for
the next time the fan is in use. 2H 4H 8H
LED bar
scale indicating
fan speed
Comfort Breeze
Increases fan speed
Decreases fan speed
Fan on/off
Timer
Light on/off/dim
CCT changing
NOTE: On start up your ceiling fan will oscillate back
and forth. This is NORMAL OPERATION for DC ceiling fan
as it goes through its calibration cycle. The fan is NOT
DEFECTIVE.

14
Operating Your Fan and Remote Control

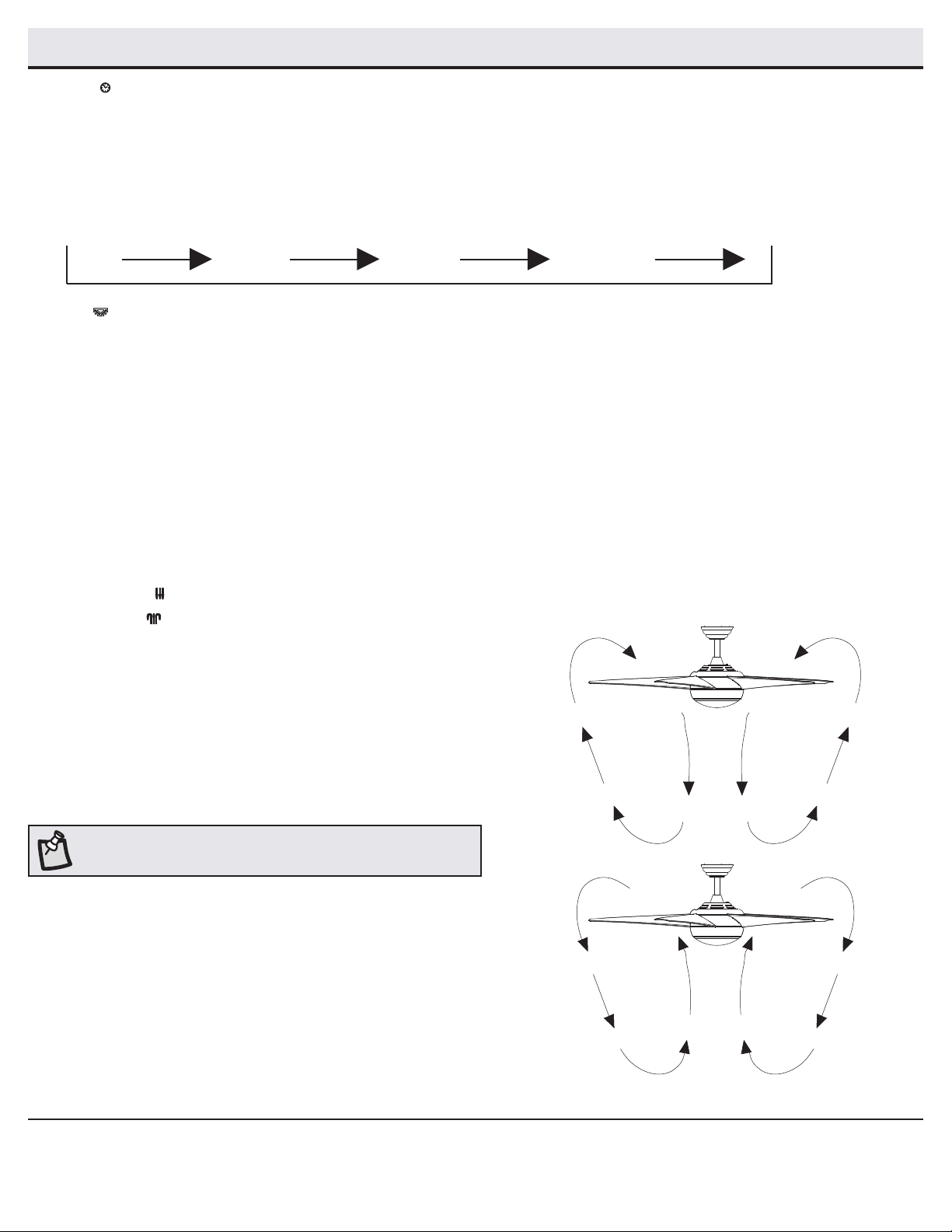

A. Warm weather - (Forward) A downward airow creates a cooling
effect. This allows you to set your air conditioner on a higher setting
without affecting your comfort.
B. Cool weather - (Reverse) An upward airow moves warm air off of the
ceiling. This allows you to set your heating unit on a lower setting
without affecting your comfort.
NOTE: Do not wait for the fan to stop before pressing the reverse button.
The fan will not reverse direction if the fan is not moving.
A. Warm weather
B. Cool weather
4. Timer
□Pressing the timer button will automatically turn the fan and light (if light is on) off after 2, 4, or 8 hours. When you activate the timer mode,
the LED to the left of the time above the clock will illuminate.
Off 2H 4H 8H Disables timer
5. Light
□Press and release the light button to turn the light on or off.
□Light on: The fan memory function will resume the light setting (on or off and dim) on the fan prior to the power being turned off.
□Press and hold the button to activate the dimmer function
6. Correlated Color Temperature (CCT) changing
Push and release the button to cycle through the three color temperature options.
□Option 1: 2700K (Soft White).
□Option 2: 3000K (Warm White).
□Option 3: 5000K (Daylight).
7. Fan reverse button (Must be pushed when the fan is in operation)
□Warm weather: LED bar will illuminate and the lights will ow from high to low.
□Cool weather: LED bar will illuminate and the lights will ow from low to high.

15 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Troubleshooting
Problem Solution
The fan will not start. □Check the main and branch circuit fuses or breakers.
□Check the line wire connections to the fan and switch wire connections in the switch housing.
□Check the battery in the remote control.
□Ensure you are in the normal range of 10-20 feet.
□Remember to turn off the power supply before checking the dip switch settings.
The fan is noisy. □Ensure all motor housing screws are snug.
□Ensure the screws that attach the fan blade bracket to the motor hub are tight.
□Ensure the wire nut connections are not rattling against each other or the interior wall of the switch housing.
□Allow a 24-hour “breaking in” period. Most noises associated with a new fan disappear during this time.
□If you are using the Ceiling Fan light kit, ensure the screws securing the glassware are tight. Check that the light
bulbs are also secure.
□Ensure the canopy is a short distance from the ceiling. It should not touch the ceiling.
□Ensure your outlet box is secure and rubber isolator pads were used between the mounting plate and outlet box.
The fan wobbles. □Check that all blade and blade arm screws are secure.
□Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a point on
the ceiling above the tip of one of the blades. Measure from a point on the center of the blade to the point on the
ceiling. Rotate the fan until the next blade is positioned for measurement, and measure from the same point on
each blade to the ceiling. Repeat for each blade. Any measurement deviation should be within 1/8 in. Run the fan
for ten minutes. If the fan continues to wobble please contact Customer Service and a balancing kit will be sent
to you at no charge.
The fan moves
backwards and
forwards when
turned on.
□This is normal start-up procedure for DC motor fans. The partial movement during start-up is the result of the DC
motor aligning the internal magnetic poles for proper motor operation. This design saves electricity and allows
the fan to operate much quieter than standard AC motor fans.
□Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling.
□Clean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning, as this could damage
the motor, or the wood, or possibly cause an electrical shock. Use only a soft brush or lint-free cloth to avoid scratching the nish.
□You can apply a light coat of furniture polish to the wood for additional protection and enhanced beauty. Cover small scratches with a
light application of shoe polish.
□You do not need to oil your fan. The motor has permanently-lubricated sealed ball bearings.
WARNING: Make sure the power is off before cleaning
your fan.
Care and Cleaning

Questions, problems, missing parts? Before returning to the store,
call Home Depot Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Retain this manual for future use.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.

¿Preguntas, problemas, partes o piezas faltantes? Antes de devolver a la tienda,
llama al Servicio al Cliente de Home Decorators Collection,
de lunes a viernes entre 8:00 a.m. y 7:00 p.m. (hora del Este),
y los sábados de 9:00 a.m. a 6:00 p.m. (hora del Este).
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
GRACIAS
Apreciamos la plena conanza depositada en Home Decorators Collection al comprar este ventilador de techo. Nos esforzamos en crear
continuamente productos de calidad diseñados para mejoras del hogar. Visítanos por Internet para ver nuestra línea completa de productos
disponibles a n de satisfacer la necesidades de mejoras de tu hogar. ¡Gracias por elegir Home Decorators Collection!
Artículo #1004 794 977, 1004 794 979,
1004 794 981, 1004 794 975
Modelo # 68000, 68002, 68004, 68009
Modelo ETL núm. 68-WWD
GUÍA DE USO Y CUIDADO
VENTILADOR DE TECHO WINDWARD DE 68 PLG (1.72 M)

2
Índice ....................................................................................2
Información de seguridad...................................................2
Garantía................................................................................3
Preinstalación ......................................................................3
Instalación............................................................................6
Ensamblaje........................................................................... 7
Funcionamiento.................................................................13
Mantenimiento y limpieza.................................................16
Solución de problemas ..................................................... 16
1. Para disminuir el riesgo de descarga eléctrica, asegúrate de cortar
la electricidad del cortacircuitos o la caja de fusibles antes de
comenzar.
2. Todo el cableado debe cumplir con el Código Nacional
de Electricidad ANSI/NFPA 70 y con los códigos locales
correspondientes. La instalación eléctrica debe hacerse por un
electricista certicado y calicado.
3. La caja eléctrica y la estructura de soporte tienen que montarse de
forma segura para poder sostener con conanza y como mínimo
35 lb (15.9 kg). Usa solo cajas eléctricas aprobadas por UL y
marcadas como “apropiadas para sostener ventiladores de 35 lb
(15.9 kg) o menos.”
4. El ventilador debe montarse con un mínimo de 7 pies (2.1 m) de
espacio libre desde el borde posterior de las aspas hasta el piso.
5. No coloques objetos en la trayectoria de las aspas.
6. Para evitar lesiones personales o daños al ventilador y otros artículos,
hay que tener cuidado al limpiarlo o al trabajar cerca de él.
7. Después de hacer las conexiones eléctricas, los conductores
empalmados deben voltearse hacia arriba y empujarse con
cuidado hacia dentro de la caja eléctrica. Los cables deben quedar
separados, con el cable y el conductor a tierra del equipo hacia
uno de los lados de la caja eléctrica.
8. Antes de la instalación, todos los tornillos deben de comprobarse y
reajustarse donde sea necesario.
9. Usar solo con kits de luces marcados como adecuados para uso
en lugares húmedos.
ADVERTENCIA: Para reducir el riesgo de lesiones personales,
no dobles los soportes de las aspas (también llamados
“bridas”) durante la instalación o después de esta. No colocar
objetos en la trayectoria de las aspas.
ADVERTENCIA: Para reducir el riesgo de incendio o descarga
eléctrica, no utilices este ventilador con ningún dispositivo de
estado sólido para control de velocidad.
ADVERTENCIA: Los diagramas eléctricos son solo para
referencia. Si usas un kit de luces, consulta el manual de
instrucciones del kit de luces para hacer las conexiones
eléctricas. Cualquier juego de luces opcional estará aprobado
por UL y marcado como adecuado para usar con este ventilador.
ADVERTENCIA: Para evitar una posible descarga eléctrica,
desconecta la electricidad en la caja principal de fusibles antes
de cablear. Si crees que no tienes suciente conocimiento o
experiencia sobre cableado eléctrico, contacta a un electricista
con licencia.
Información de seguridad
Tabla de contenido
PRECAUCIÓN: Para reducir el riesgo de lesiones personales,
use sólo los tornillos incluidos con la caja eléctrica.
ADVERTENCIA: Para reducir el riesgo de incendio, descarga
eléctrica u otras lesiones, instala sólo en una caja eléctrica
clasicada como“apropiada para sostener ventiladores de 35 lb
(15.9 kg) o menos”, y usa sólo los tornillos incluidos con la caja
eléctrica.
LEE Y GUARDA ESTAS INSTRUCCIONES.
ADVERTENCIA: Para disminuir el riesgo de incendio o descarga
eléctrica, este ventilador sólo debe usarse con la pieza #
MDF40S-H04R de control de velocidad fabricada por Dawsun
Electronic Co., LTD.
PRECAUCIÓN: NO usar este ventilador con control de pared o
interruptor con regulador de intensidad. Usar un interruptor
o control de pared con regulador de intensidad dañará este
ventilador.
PRECAUCIÓN: Los cambios o modicaciones sin previa
aprobación expresa de parte responsable de su cumplimiento
podrían anular el derecho del usuario a operar el equipo.
ADVERTENCIA: A n de reducir el riesgo de descargas
eléctricas, este ventilador tiene que instalarse con un
interruptor de pared con aislamiento.

3HOMEDEPOT.COM/HOMEDECORATORS
Para asistencia adicional, llama al 1-800-986-3460.
Preinstalación
Garantía
ESPECIFICACIONES
NOTA:Estas medidas son aproximadas. No incluyen ni el
amperaje ni el vataje consumido por el kit de luces.
Tamaño Velocidad Voltios
Consumo de
energía del
ventilador
(sin luces)
VATIOS
Flujo
de aire
CFM
Eciencia
de ujo de aire
(Mientras más alta,
mejor)
CFM/VATIOS
Peso
neto
Peso
bruto Pies3
68 plg
(1.73 m)
Baja
120
3 4,956 1,652
24.9 lb
(11.3 kg)
28.66 lb
(13 kg) 2,415 pies3
Media 14 8,044 574
Alta 36 10,770 299
HERRAMIENTAS NECESARIAS
Destornillador
Phillips
Destornillador
plano
Llave
ajustable
Cinta de
electricista
Cortacables /
Pelacables
Escalera de tijera
El proveedor garantiza de por vida que el motor del ventilador no presenta defectos de fabricación ni de materiales al momento del envío desde la fábrica hasta
después de la fecha de adquisición por el comprador original. El proveedor garantiza, por un período de cinco años a partir de la fecha de adquisicion por el
comprador original, que el kit de luces, sin incluir ningun vidrio, no presentará ningún defecto de fabricación o de material desde el momento de su salida de la
fábrica. El proveedor también garantiza,por tres años a partir de la fecha de adquisición por el comprador original,que ninguna de las demás piezas del ventilador,
excluyendo las aspas o vidrio, presenta defectos de fabricación ni de materiales al momento del envío desde la fábrica. Si el producto es devuelto, aceptamos
reparar sus defectos sin cargo alguno o, a nuestra entera discreción, reemplazarlo con un modelo similar o superior. Para obtener el servicio de garantía tiene que
presentarse una copia del recibo como comprobante de compra. Todos los costos de retiro y reinstalación del producto son responsabilidad del cliente. Los daños
a cualquier pieza por accidente, instalación o uso inadecuado, o por montar cualquier accesorio, no están cubiertos por esta garantía. Puesto que las condiciones
climáticas pueden variar, esta garantía no cubre ningún cambio del acabado en latón, como óxido, perforación, corrosión, manchas o descascaramiento. Este
tipo de acabados en latón tiene una la vida útil prolongada si se lo protege contra las condiciones climáticas cambiantes. Es normal que se produzca un cierto
movimiento oscilante y esto no debe considerarse un defecto. Cualquier servicio prestado por personal no autorizado invalidará la garantía. No hay ninguna
otra garantía expresa. Por este medio Interline se exime de toda garantía, incluyendo, pero sin limitarse a, aquellas de comercialización e idoneidad para un n
particular, en el alcance permitido por la ley. La duración de cualquier garantía implícita que no pueda exonerarse se limita al período especicado en la garantía
explícita. Algunos estados no permiten limitaciones sobre la duración de las garantías implícitas, así que es posible que la limitación anterior no se aplique en su
caso. El minorista no será responsable por daños incidentales, emergentes ni especiales derivados del uso o funcionamiento del producto, excepto en los casos
en los que la ley así lo disponga. Algunos estados no permiten excluir ni limitar daños directos o indirectos, así que es posible que la limitación o exclusión anterior
no se aplique en este caso. Esta garantía otorga derechos legales especiales al cliente y es posible que también goce de otros derechos que pueden variar según
el estado. Esta garantía sustituye a todas las garantías anteriores. Los costos de envío en cualquier devolución de productos como parte de una reclamación de
garantía corren por cuenta del cliente.
El equipo de servicio al cliente está disponible llamando al 1-800-283-7048.

4
Pieza Descripción Cantidad
AA Tornillos para montaje de aspas 19
BB Tuerca de plástico para conectar cables 3
CC Pasador de soporte 1
DD Pasador de cierre 1
Preinstalación (continuación)
SE INCLUYEN HERRAJES
NOTA:Los herrajes no se muestran en tamaño real.
AA BB
CC DD
