Home Decorators Collection JUNEDALE User manual

Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and condence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive
to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!
Item #1005 805 992
Model #52188
UL Model #52-JUNE
USE AND CARE GUIDE
JUNEDALE 52-INCH CEILING FAN
To view an instructional video on how to install this product:
1. Go to www.homedepot.com and enter either the Item or Model number, found in the top
right corner of the cover of this instruction manual, in the search eld.
2. Click on your product from the list of search results and click on the video link in the
“Product Overview” section.

2
Table of Contents ................................................................2
Safety Information...............................................................2
Warranty ............................................................................... 3
Pre-Installation ....................................................................3
Installation............................................................................6
Assembly..............................................................................7
Operation ...........................................................................15
Care and Cleaning.............................................................16
Troubleshooting.................................................................16
1. To reduce the risk of electric shock, ensure the electricity has been
turned off at the circuit breaker or fuse box before you begin.
2. All wiring must be in accordance with the National Electrical Code
ANSI/NFPA 70 and local electrical codes. Electrical installation should
be performed by a qualied licensed electrician.
3. The outlet box and support structure must be securely mounted and
capable of reliably supporting a minimum of 35 lbs (15.9 kg). Use
only UL-listed outlet boxes marked “Acceptable for Fan Support of
35 lbs (15.9 kg) or less.”
4. CAUTION: The fan must be mounted with a minimum of 7 ft. (2.1 m)
of clearance from the trailing edge of the blades to the oor.
5. Do not place objects in the path of the blades.
6. To avoid personal injury or damage to the fan and other items, use
caution when working around or cleaning the fan.
7. After making electrical connections, spliced conductors should be
turned upward and pushed carefully up into the outlet box. The
wires should be spread apart with the grounded conductor and the
equipment-grounding conductor on one side of the outlet box.
8. All set screws must be checked and retightened where
necessary before installation.
9. Suitable for damp location.
WARNING: To reduce the risk of personal injury, do
not bend the blade brackets (also referred to as
anges) during assembly or after installation. Do
not insert objects in the path of the blades.
WARNING: Electrical diagrams are for reference
only. If you are using a light kit, refer to the light kit
instructions manual to make the electrical
connections. Optional use of any light kit shall be
UL-listed and marked suitable for use with this fan.
WARNING: To avoid possible electrical shock, turn
the electricity off at the main fuse box before
wiring. If you feel you do not have enough electrical
wiring knowledge or experience, contact a licensed
electrician.
Safety Information
Table of Contents
CAUTION: To reduce the risk of personal injury,
use only the screws provided with the outlet box.
WARNING: To reduce the risk of re, electric shock
or personal injury, mount to outlet box marked
“Acceptable for fan support of 35 lbs (15.9 kg) or
less”, and use screws provided with the outlet box.
READ AND SAVE THESE INSTRUCTIONS.
WARNING: To reduce the risk of re or electric shock,
this fan should only be used with fan speed control
part no. AP-8RDL, manufactured by DawnSun
Electronic Technology Co., Ltd. Zhongshan.
CAUTION: Do NOT use this fan with a dimmer switch
or wall control. Using a dimmer switch or wall
control will damage the fan.
CAUTION: Changes or modications not expressly
approved by the party responsible for compliance
could void the user’s authority to operate the
equipment.
WARNING: To reduce the risk of electric shock, this
fan must be installed with an isolating wall switch.

3HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Pre-Installation
Warranty
SPECIFICATIONS
NOTE: These are approximate measures. They do not
include the Amps and Wattage used by the light kit.
Size Speed Volts
Fan Power
Consumption
(without lights)
WATT
Airow
CFM
Airow Efciency
(higher is better)
CFM/WATT
Net
Weight
Gross
Weight Cubic Feet
52 in.
Low
120
13 2559 196
17.2 lbs
(7.8 kg)
22.71 lbs
(10.3 kg) 1.65 cu. ft.
Medium 32 4071 127
High 62 5521 89
TOOLS REQUIRED
Phillips
screwdriver
Flat blade
screwdriver
Adjustable
wrench
Electrical
tape
Wire
cutter/
stripper
Step ladder
The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a
lifetime after the date of purchase by the original purchaser. The supplier warrants that the light kit, excluding any glass, to be free from defects in
workmanship and material at the time of shipment from the factory for a period of ve years after the date of purchase by the original purchaser.
The supplier also warrants that all other fan parts, excluding any glass or acrylic blades, to be free from defects in workmanship and material at the
time of shipment from the factory for a period of two years after the date of purchase by the original purchaser. We agree to correct such defects
without charge or at our option replace with a comparable or superior model if the product is returned. To obtain warranty service, you must present
a copy of the receipt as proof of purchase. All costs of removing and reinstalling the product are your responsibility. Damage to any part, such as by
accident, misuse, improper installation, or by afxing any accessories, is not covered by this warranty. Because of varying climatic conditions this
warranty does not cover any changes in brass nish, including rusting, pitting, corroding, tarnishing, or peeling. Brass nishes of this type give their
longest useful life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect.
Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. Interline hereby disclaims any
and all warranties, including but not limited to those of merchantability and tness for a particular purpose to the extent permitted by law. The
duration of any implied warranty which cannot be disclaimed is limited to the time period as specied in the express warranty. Some states do not
allow a limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall not be liable for incidental,
consequential, or special damages arising out of or in connection with product use or performance except as may otherwise be accorded by law.
Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion or limitation may not apply to you. This
warranty gives specic legal rights, and you may also have other rights which vary from state to state. This warranty supersedes all prior warranties.
Shipping costs for any return of product as part of a claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-800-986-3460.

4

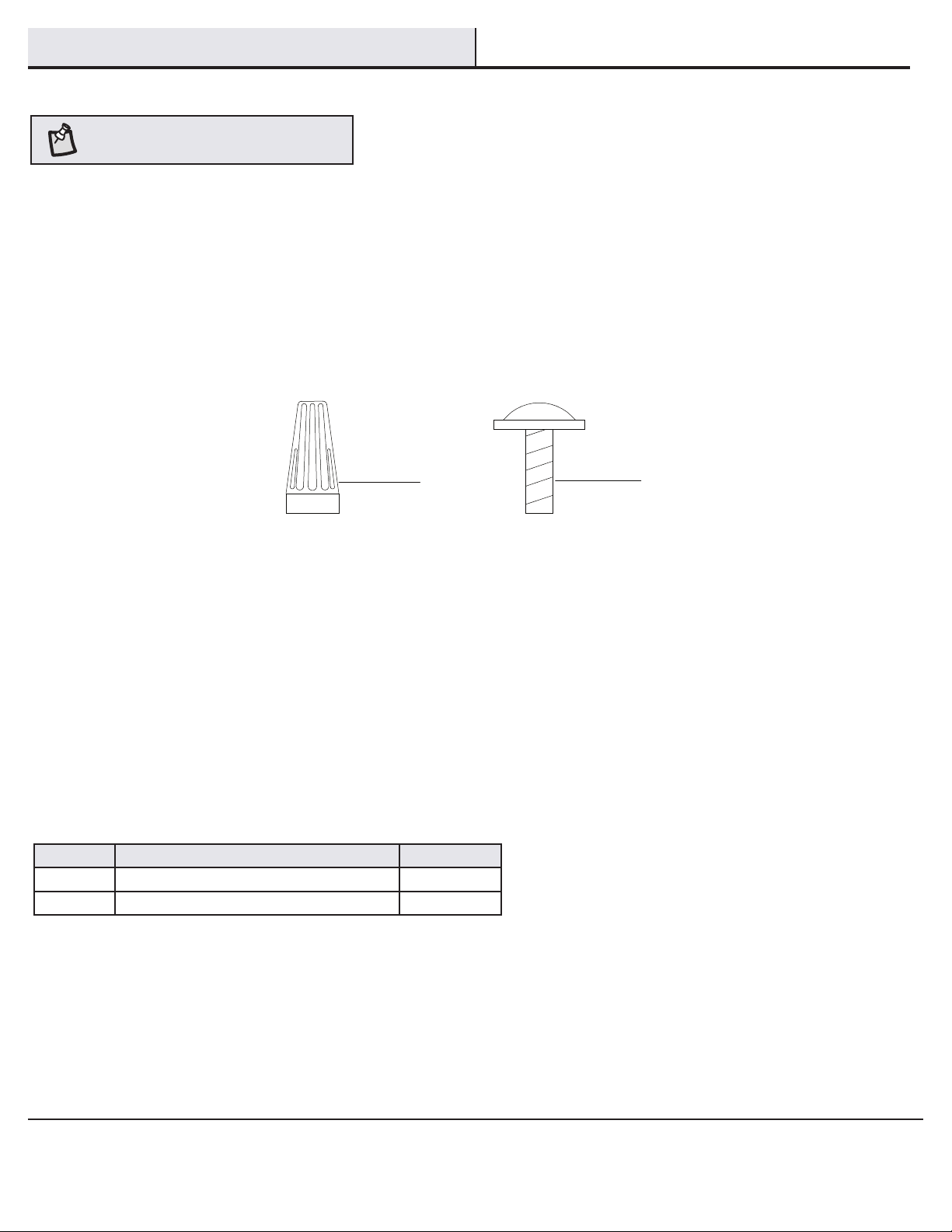

Part Description Quantity
AA Plastic wire connecting nut 3
BB Blade attachment screws 16
Pre-Installation (continued)
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
AA BB

5HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

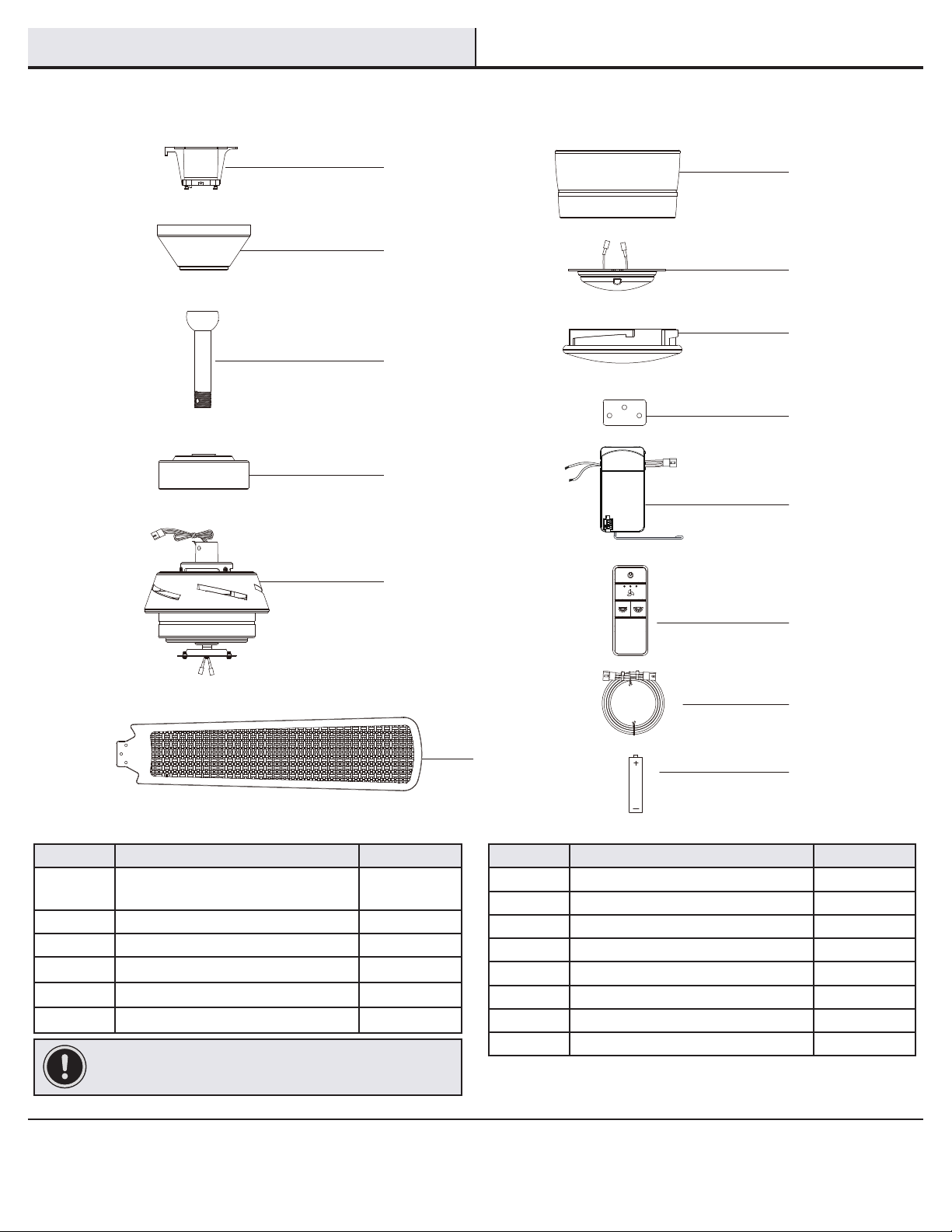

Part Description Quantity
ASlide-on mounting bracket
(inside canopy) 1
B Canopy 1
C Ball/downrod assembly 1
D Decorative motor collar cover 1
E Fan-motor assembly 1
F Blade 5
Part Description Quantity
G Light kit pan 1
H Light kit tter assembly 1
I Shade 1
J Blade support plate 5
K Receiver 1
L Remote control 1
M Extension wire 1
N Battery 1
IMPORTANT: This product and/or components are governed by
one or more of the following U.S. Patents: 5,947,436; 5,988,580;
6,010,110; 6,046,416; 6,210,117 and other patents pending.
Pre-Installation (continued)
PACKAGE CONTENTS
L
K
N
M
H
G
J
I
F
E
B
A
D
C

6
Installation
MOUNTING OPTIONS
WARNING:To reduce the risk of re, electric shock or
personal injury, mount to outlet box marked “Acceptable
for fan support of 35 lbs (15.9 kg) or less”, and use
screws provided with the outlet box. An outlet box
commonly used for the support of lighting xtures may
not be acceptable for fan support and may need to be
replaced. If in doubt, consult a qualied electrician.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□Secure the outlet box directly to the building structure. Use
the appropriate fasteners and materials. The outlet box and
support structure must be securely mounted and capable of
reliably supporting a minimum of 35 lbs (15.9 kg). Use only
UL-listed outlet boxes marked “Acceptable for fan support
of 35 lbs (15.9 kg) or less.” Do not use a plastic outlet box.
The illustrations below show three different ways to mount the
outlet box.
If the canopy touches the downrod, then remove the decorative canopy
bottom cover, and turn the canopy 180° before attaching the canopy to
the mounting plate.
To hang your fan where there is an existing xture but no ceiling joist,
you may need an installation hanger bar as shown above
(available at any Home Depot store).
NOTE: You may need a longer downrod to maintain
proper blade clearance when installing on a steep, sloped
ceiling. The maximum angle allowable is 20° away from
horizontal.
Outlet Box
Outlet Box
Recessed
Outlet
Box
Provide Strong
Support
Ceiling
Mounting
Plate
Outlet Box
Hanger Bar

7HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Blade Installation
Installing the blades
□Attach a blade (F) to the fan motor assembly (E) by inserting
the blade (F) into slots in the side of the fan motor
assembly (E) and aligning the three screws holes in the
blade with the holes in the center ywheel and secure with
screws (BB).
□Make sure all the screws are rmly tightened.
□Repeat these steps for the remaining blades.
2
EBB
F
Attaching the blade support plate
□Remove the paper backing from the adhesive lm on the
back side of the blade support plate (J).
□With the adhesive side of the support plate (J) facing towards
the blade (F), align the three holes in the blade (F) with the
three holes on the support plate (J) and rmly press the
support plate (J) to the blade (F).
□Repeat these steps for the remaining support plates.
1
J
F

8

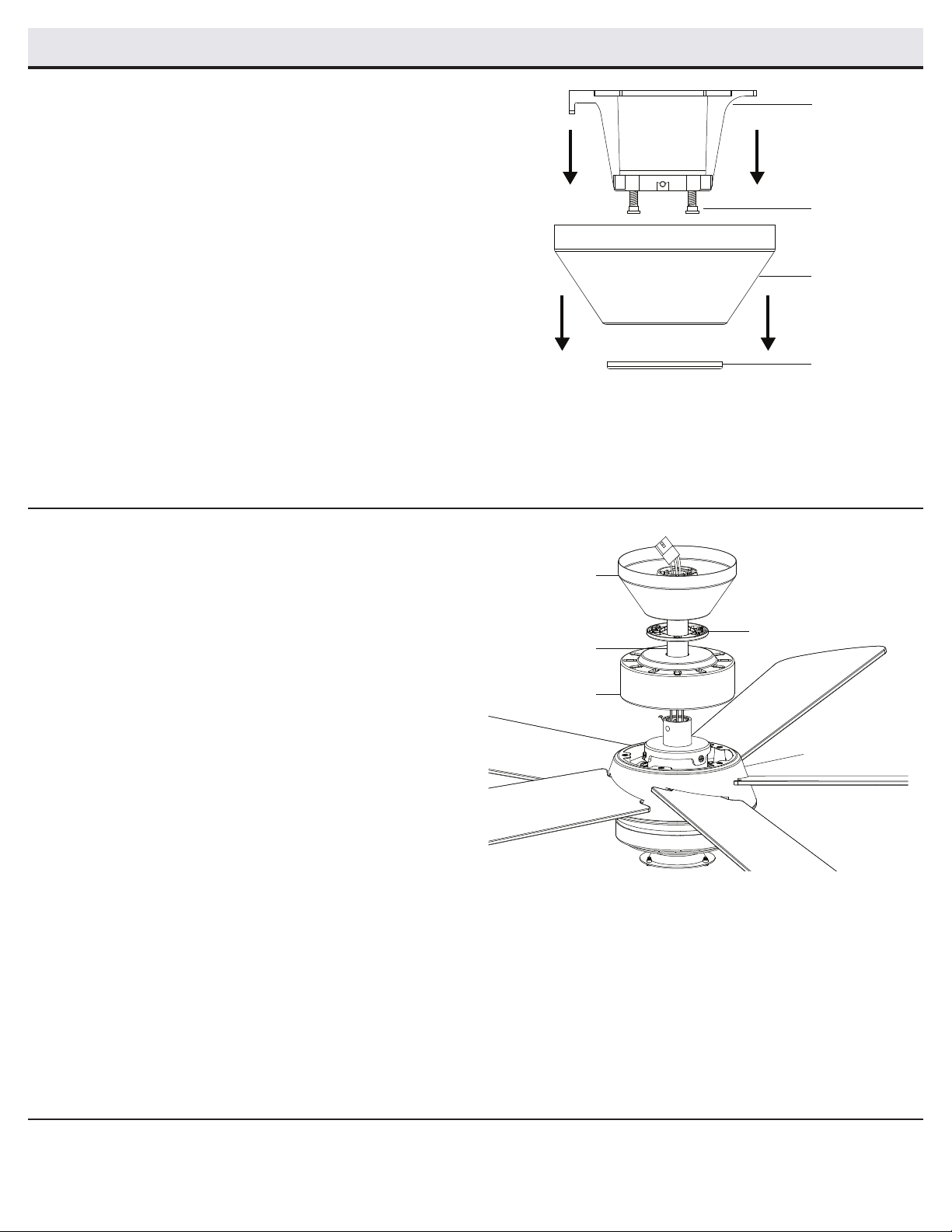

Assembly - Standard Ceiling Mount
Preparing for mounting
□Remove the magnetic canopy bottom cover (DD) from the
canopy (B) by pulling it off.
□Loosen the two canopy screws (CC) located in the bottom of
the mounting bracket (A).
□Turn the mounting bracket (A) counterclockwise and lift it up to
remove the mounting bracket from the canopy (B).
1
Routing the wires
□Route the wires exiting the top of the fan motor assembly (E)
through the decorative motor collar cover (D) and then the
center of the canopy bottom cover (DD).
□Make sure the opening of the canopy (B) is on top and insert
the ball/downrod (C) through the canopy (B).
□Route the wires exiting the top of the fan motor assembly (E)
through the downrod as shown.
2
A
CC
B
DD
B
C
D
DD
E

9HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Standard Ceiling Mount (continued)
Assembling the fan
□Loosen, but do not remove, the setscrew (EE) on the motor
collar (GG) on top of the fan motor assembly (E) by turning it
counterclockwise.
□Install the ball/downrod (C) by inserting it into the motor collar (GG)
and turning it clockwise until it is tight.
□Re-tighten the setscrew (EE) on the motor collar (GG) on top of the
fan motor assembly (E) by turning it clockwise.
CAUTION: To ensure wobble-free operation and to avoid
damage to the fan, the ball/downrod (C) and the setscrew
(EE) must be completely tightened.
3
NOTE: This fan is equipped with a safety tab (FF).
Should the setscrew (EE) ever become loose while the
fan is running in reverse, the safety tab (FF) will engage
and stop the fan from falling.
Attaching the fan to the electrical
box
□Loosen the two mounting screws (JJ) in the outlet box.
□Pass the 120-Volt supply wires through the center hole in the
mounting bracket (A).
□Slide the mounting bracket (A) on to the mounting screws (JJ)
and center the mounting bracket (A) in relation to the outlet box.
If necessary, use leveling washers (not included) between the
slide-on mounting bracket (A) and the outlet box. The at side of
the slide-on mounting bracket (A) should face toward the outlet
box, as shown.
□Securely tighten the two mounting screws (JJ).
1
WARNING: To reduce the risk of re, electric shock
or personal injury, mount to outlet box marked
“Acceptable for fan support of 35 lbs 15.9 kg) or less”,
and use screws provided with the outlet box.
NOTE: The mounting bracket (A) is designed to slide
into place on an outlet box with the mounting screws
(JJ) installed.
Assembly - Hanging the Fan
B
DD
D
FF
GG
E
C
EE
A
JJ
JJ

10
Hanging the fan
□Carefully lift the fan-motor assembly (E) up to the slide-on
mounting bracket (A).
□Insert the ball portion of the ball/downrod assembly (C)
into the socket of the slide-on mounting bracket (A).
□Turn the ball/downrod assembly (C) clockwise until it is
seated with the tab of the slide-on mounting bracket (A)
aligned with the slot in the ball.
2
Assembly - Hanging the Fan (continued)
Preparing the remote control
3
□Remove the remote control (L) battery cover by pressing rmly on
the arrow and sliding the cover off.
□Slide the dip switches (ZZ) to your choice of either up or down. The
factory setting is up.
□Slide the dip switches (ZZ) on the receiver (K) to the same position
as set on the remote control (L).
□Install the 23A 12V battery (included).
□Replace the battery cover on the remote control (L).
□Insert the silicone rubber stopper (OO) into the hole on the receiver
(K) to cover the dip switches.
NOTE: The frequencies on your receiver and hand unit have been
preset at the factory. Before installing the receiver, make sure the
dip switches on the receiver and hand unit are set to the same
frequency. The dip switches on the hand unit are located inside the
battery compartment.
NOTE: The remote control battery will weaken with age and
should be replaced before leaking takes place, as this will damage
the remote control. Dispose of used battery properly and keep the
battery out of the reach of children.
L
K
ZZ
1 2 3 4
ON
OO
1 2 34
ON YKO
1 2 34
ON YKO
A
C
E
B
D
DD

11 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Hanging the Fan (continued)

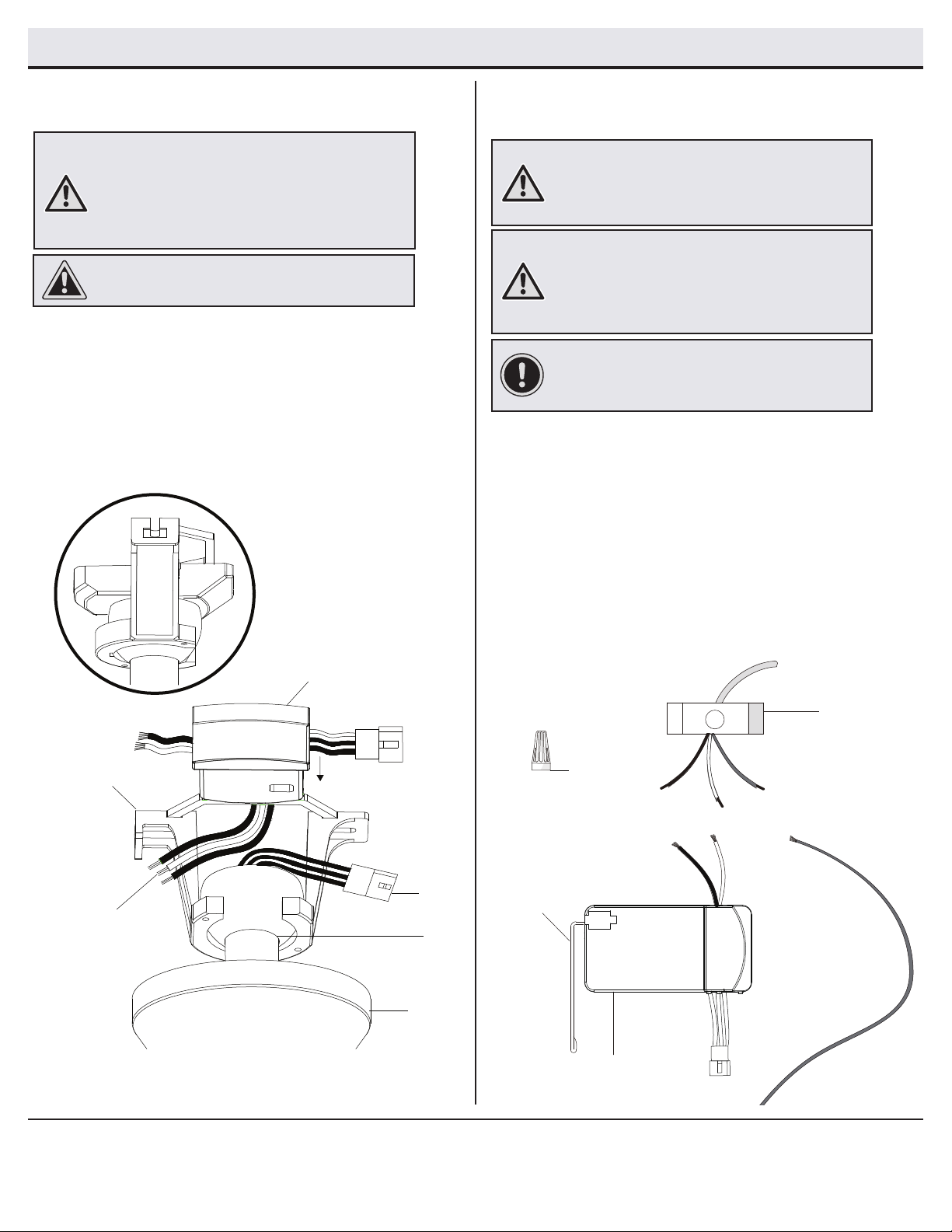

Installing the receiver
□Position the house supply wires (AAA) to one side of
the slide-on mounting bracket (A); position the fan
wires (BBB) to the opposite side.
□Insert the narrow end of the receiver (K) (as shown,
at side towards the ceiling) into the slide-on
mounting bracket until it rests on top of the ball/
downrod assembly (C).
4
WARNING: To reduce the risk of re or electric shock,
remember to disconnect power. The electrical wiring
must meet all local and national electrical code
requirements. The electrical source and fan must
be 110/120 volts, 60Hz. Do not use this product in
conjunction with any variable wall control. Incorrect
wire connection can damage this receiver.
CAUTION: If other fan wires are a different color, have
this unit installed by a licensed electrician.
Wiring the receiver to the
household wiring
5
WARNING: To avoid possible electrical shock, turn
the electricity off at the main fuse box before
wiring. If you feel you do not have enough electrical
wiring knowledge or experience, contact a licensed
electrician.
WARNING: Each wire nut supplied with this fan is
designed to accept up to one 12-gauge house wire
and two wires from the fan. If you have larger than
12-gauge house wiring or more than one house wire to
connect to the fan wiring, consult an electrician for the
proper size wire nuts to use.
IMPORTANT: Use the wire connecting nuts (AA)
supplied with your fan. Secure the connectors with
electrical tape and ensure there are no loose strands or
connections.
□Spread the wires apart so that the green and white wires
are on one side of the outlet box and the black wire is on the
other side.
□Connect the green fan wires to the household ground wire
(this may be a green or bare wire) using a wire connecting
nut (AA).
□Connect the receiver (K) black (or red) wire to the household
black (hot) wire using a wire connecting nut (AA).
□Connect the receiver (K) white wire to the household white
wire (neutral) using a wire connecting nut (AA).
□Secure each wire connecting nut using electrical tape.
Black (or red)
Black
Green (or Bare)
Green
Outlet Box
Receiver
Antenna
White
Receiver (K)
AA (x3)
Receiver (K) correctly
positioned in
mounting bracket.
C
B
AAA
BB
B
A
K

12
Assembly - Hanging the Fan (continued)

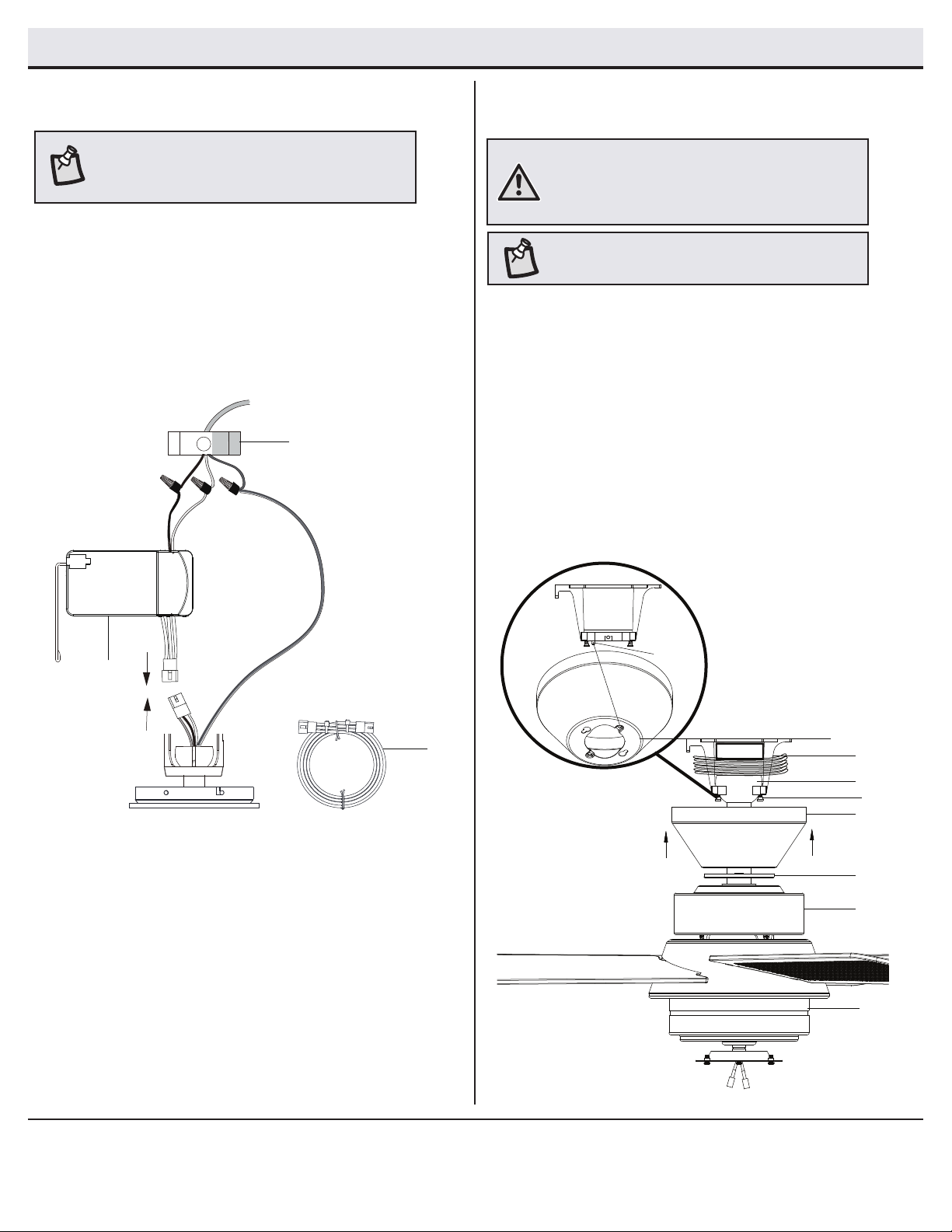

Wiring the fan to the receiver
6
□If using the 6 in. ball/downrod assembly (C) provided, wire the
receiver (K) to the fan wires by connecting the molded adaptor
plug from the receiver (K) with the molded adaptor of the fan
motor assembly (E) together.
□If you wish to use a longer downrod, you can use the extension
lead wire (42 in.) (M) provided by connecting the molded
adaptor together.
NOTE: The fan comes with 12 in. lead wires for use with
the provided 6 in. ball downrod assembly (B). If you wish
to use a longer downrod, you can use the extension lead
wire (M) provided.
Outlet box
in the ceiling
(MM)
Green
M
K
Mounting the fan-motor assembly
(standard mount)
7
WARNING: When using the standard ball/downrod
mounting, the tab in the ring at the bottom of the
mounting bracket must rest in the groove of the
hanger ball. Failure to properly seat the tab in the
groove could cause damage to the wiring.
NOTE: The magnet is pre-attached on the canopy bottom
cover for you to remove and install easily.
□Align the locking slots of the canopy (B) with the two
screws (CC) and alignment post (KK) in the mounting
bracket (A).
□Push up the canopy (B) and turn it clockwise until the
alignment post (KK) engages to the round hole and the
screws (CC) engage to the key slots.
□Firmly tighten the two mounting screws (CC).
□Align the oval shape on the canopy (B) with the canopy
bottom cover (DD). Push up the canopy bottom cover (DD)
until the screw (CC) heads engage to the slots on the
canopy bottom cover (DD) so that the magnetic canopy
bottom cover (DD) can be attached to the bottom of the
canopy (B) properly.
C
A
CC
DD
B
E
D
KK

13 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Attaching the Light Kit
Attaching the light kit tter assembly
2□Remove one screw (II) from the light kit pan (G), and loosen, but
do not remove, the other two screws.
□Connect the wires from the light kit tter assembly (H) to the
wires from the fan motor assembly (E) by connecting the molded
adaptor plugs together. Carefully tuck all wires and splices into
the switch cup.
□Push the light kit tter assembly (H) up to the light kit pan (G) so
that the two loosened screw heads t into the keyhole slots. Turn
the light kit tter assembly (H) clockwise to secure.
□Re-install the screw that was removed in the rst step.
□Make sure all the screws are rmly tightened.
Installing the light kit pan
1
□Remove one screw (HH) from the black bracket below the fan
motor assembly (E), and loosen but do not remove the other
two screws.
□Push the light kit pan (G) up to the fan motor assembly (E) so
that the two loosened screw heads t into the keyhole slots.
Turn the light kit pan (G) clockwise.
□Re-install the screw (HH) that was removed in the rst step.
□Make sure all the screws are rmly tightened.
HH
G
E
H
II
E
G

14
Installing the shade
3
□Place the shade (I) into the light kit pan (G) aligning the three
at areas on the top ange of the shade (I) with the three
raised dimples in the light kit pan (G).
□Turn the shade (I) clockwise until it stops.
Assembly - Attaching the Accessories
Mounting the remote control holder
□Slide the screw cover plate up to remove it from the wall
cradle.
□Position the wall cradle in the desired position and attach it to
the wall using the included wall cradle screws.
□Slide the screw cover plate back onto the wall cradle to
conceal the screws.
Screw cover
plate
NOTE: Screw wall anchors are included for extra support. The
included screws are designed to screw easily into the wall. If
you would like a more permanent or secure hold, install the wall
anchors prior to attaching the wall cradle to the wall.
Assembly - Attaching the Light Kit (continued)
WARNING: Allow the shade to cool completely before
removing.
CAUTION: Make sure the power is off before attaching or
removing the shade.
G
I

15 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

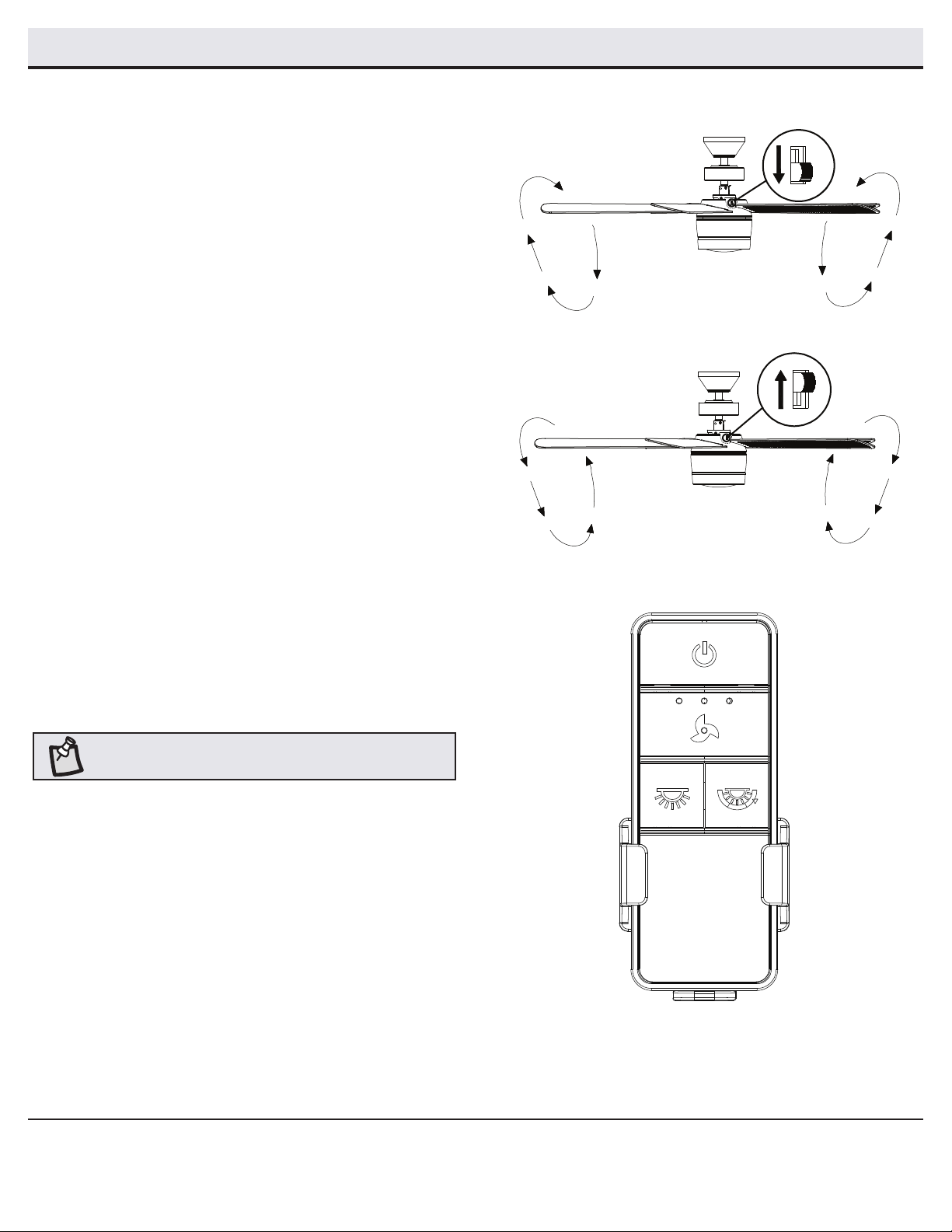

Operating Your Fan and Remote Control
POWER ON/OFF
Press and release the power button to turn the fan and light on or off.
LIGHT ON/OFF/DIMMING
Press and release the button to turn the light on or off.
Press and hold the button to activate the dimmer function.
CORRELATED COLOR TEMPERATURE (CCT) CHANGING
Push and release the button to cycle through the six color
temperature options.
Option 1: 2700K (Warm White).
Option 2: 3000K (Soft White).
Option 3: 3500K (Neutral White).
Option 4: 4000K (Cool White).
Option 5: 5000K (Daylight).
Option 6: 6500K (Cool Daylight).
NOTE: The default temperature of the ceiling fan light is 3000K
(Soft White).
FAN SPEED
LEDs on the fan speed button will illuminate to the corresponding speed.
Press and release 1 time: turns the fan on high speed.
Press and release 2 times: turns the fan on medium speed.
Press and release 3 times: turns the fan to low speed.
Press and release 4 times: turns the fan off.
The fan is shipped from the factory with the reversing switch positioned
to circulate air downward. If airow is desired in the opposite direction,
turn your fan off and wait for the blades to stop turning, then slide the
reversing switch (located on the top of the motor housing) to the opposite
position, and turn the fan on again. The fan blades will turn in the opposite
direction and reverse airow.
A. Warm weather (Forward) - A downward airow creates a cooling
effect. This allows you to set your air conditioner on a higher setting
without affecting your comfort.
B. Cool weather (Reverse) - An upward airow moves warm air off of
the ceiling. This allows you to set your heating unit on a lower setting
without affecting your comfort.
A. Warm weather
B. Cool weather

16
Troubleshooting
Problem Solution
The fan will not start. □Check the main and branch circuit fuses or breakers.
□Check the line wire connections to the fan and switch wire connections in the switch housing.
□Check the battery in the remote control.
□Ensure you are in the normal range of 10-20 feet.
□Remember to turn off the power supply before checking the dip switch settings.
The fan is noisy. □Ensure all motor housing screws are snug.
□Ensure the screws that attach the fan blade bracket to the motor hub are tight.
□Ensure the wire nut connections are not rattling against each other or the interior wall of the switch housing.
□Allow a 24-hour “breaking in” period. Most noises associated with a new fan disappear during this time.
□If you are using the ceiling fan light kit, ensure the screws securing the glassware are tight. Check that the light
bulbs are also secure.
□Ensure the canopy is a short distance from the ceiling. It should not touch the ceiling.
□Ensure your outlet box is secure and rubber isolator pads were used between the mounting plate and outlet box.
The fan wobbles. □Check that all blade and blade arm screws are secure.
□Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a point on
the ceiling above the tip of one of the blades. Measure from a point on the center of the blade to the point on the
ceiling. Rotate the fan until the next blade is positioned for measurement, and measure from the same point on
each blade to the ceiling. Repeat for each blade. Any measurement deviation should be within 1/8 in. Run the fan
for ten minutes. If the fan continues to wobble, please contact Customer Service and a balancing kit will be sent
to you at no charge.
□Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling.
□Clean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning, as this could damage the
motor, or the wood, or possibly cause an electrical shock. Use only a soft brush or lint-free cloth to avoid scratching the nish.
□You can apply a light coat of furniture polish to the wood for additional protection and enhanced beauty. Cover small scratches with a light
application of shoe polish.
□You do not need to oil your fan. The motor has permanently-lubricated sealed ball bearings.
WARNING: Make sure the power is off before cleaning
your fan.
Care and Cleaning
FCC Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
□Reorient or relocate the receiving antenna.
□Increase the separation between the equipment and receiver.
□Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
□Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.

Questions, problems, missing parts? Before returning to the store,
call Home Depot Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Retain this manual for future use.
