Home Decorators Collection 34777-HBUG User manual

USE AND CARE GUIDE
KITTERIDGE 52-INCH INDOOR CEILING FAN
THANK YOU
to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!
Item #/ Model #: 34777-HBUG
Item #/ Model #: 34777-HBUW
Item #/ Model #: 34777-HBUM
Item #/ Model #: 34777-HBUB
(1004292203)
(1004292254)
(1004292201)
(1004292211)
Questions, problems, missing parts? Before returning to the store,
call Home Depot Customer Service
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday

2
Table of Contents ................................................................ 2
Safety Information............................................................... 2
Warranty ............................................................................... 3
Pre-Installation .................................................................... 3
Installation............................................................................ 6
Assembly............................................................................ 7
Operation ........................................................................... 15
Care and Cleaning.............................................................15
Troubleshooting................................................................. 16
1. To reduce the risk of electric shock, ensure the electricity has
been turned off at the circuit breaker or fuse box before you
begin.
2. All wiring must be in accordance with the National Electrical
Code ANSI/NFPA 70 and local electrical codes. Electrical
electrician.
3. The outlet box and support structure must be securely mounted
and capable of reliably supporting 35 lbs. (15.9 kg). Use only UL
Listed outlet boxes marked “Acceptable for Fan Support of 35
lbs. (15.9 kg) or less.”
4. Do not operate the reversing switch while the fan blades are in
motion. You must turn the fan off and stop the blades before
you reverse the blade direction.
5. Do not place objects in the path of the blades.
Safety Information
Table of Contents
READ AND SAVE THESE INSTRUCTIONS.
installation should be performed by a qualified licensed
FCC Statement .
...................................................................17
WARNING: To reduce the risk of personal injury, do not
WARNING:
WARNING: To avoid possible electrical shock,
turn the electricity off at the main fuse box before
wiring. If you feel you do not have enough electrical
wiring knowledge or experience, contact a licensed
electrician.
CAUTION: To reduce the risk of personal injury,
use only the screws provided with the outlet box.
CAUTION: To avoid personal injury or damage to the fan
and other items, use caution when working around or
cleaning the fan.
bend the blade brackets when installing the brackets
balancing the blades, or cleaning the fan. Do not insert
foreign objects in between rotating fan blades.
To reduce the risk of fire, electric shock
or personal injury, mount to outlet box marked
“acceptable for fan support of 35 lbs. (15.9Kg)
or less” and use screws provided with the outlet box.
After making electrical connections, spliced conductors
should be turned upward and pushed carefully up into the
outlet box. The wires should be spread apart with the
grounded conductor and the equipment-grounding conductor
on one side of the outlet box and ungrounded conductor on
the other side of the outlet box.
All setscrews must be checked and retightened where
necessary before installation.
6.
7.
Changes or modifications not expresslyCAUTION:
approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
WARNING:
shock, do not use this fan with any solid-state speed
control device.
To reduce the risk of fire or electric
Thefan must bemounted with a minimumCAUTION:
of 7 ft (2.1m) clearance from the trailing edge of the
blades to the floor.

79.19
99.68
128.36
3842.99
3267.42
1821.39
3HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Pre-Installation
Warranty

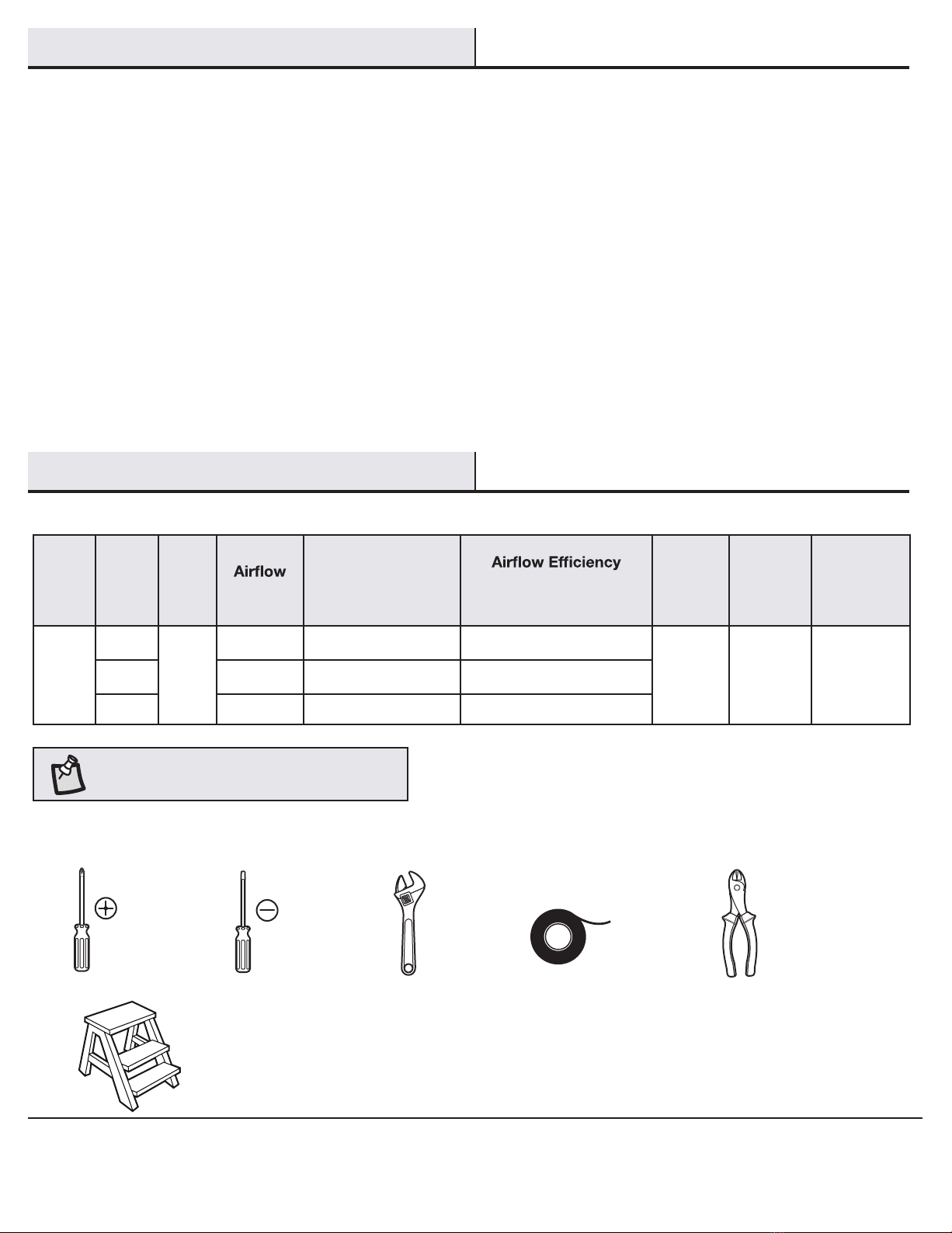

SPECIFICATIONS
TOOLS REQUIRED
NOTE: These are approximate measures. They do not
include the Amps and Wattage used by the light kit.
Phillips
screwdriver
Flat blade
screwdriver
Adjustable
wrench
Electrical
tape
Wire
cutter
Step ladder
Size Speed Volts CFM
Fan Power
Consumption
(Without Lights)
WATT
(Higher Is Better)
CFM/WATT
Net
Weight
Gross
Weight Cube Feet
52 in.
Low
120
14.19
13.07 lbs
(5.93 kgs)
14.64 lbs
(6.64kgs) 1.11 cu.ft
Medium 32.78
High 48.53
Contact the Customer Service Team at 1-800-986-3460 or visit www.HomeDepot.com/homedecorators.
We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period
of lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glass or acrylic
blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the
date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or
superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All
costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper installa-
tion or by affixing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover
any changes in brass finish, including rusting, pitting, corroding, tarnishing or peeling. Brass finishes of this type give their longest useful
life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect.
Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby disclaim
any and all warranties, including but not limited to those of merchantability and fitness for a particular purpose to the extent permitted by
law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specified in the express warranty.
Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall
not be liable for incidental, consequential, or special damages arising out of or in connection with product use or performance except as
may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the above
exclusion or limitation may not apply to you. This warranty gives specific legal rights, and you may also have other rights which vary from
state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty
must be paid by the customer.

4
Pre-Installation (continued)
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
AA
BB
CC
DD
EE
Blade screw (not to scale)
Canopy screw (not to scale) (preassembled) 4
Wire nuts (not to scale)
8
7
1
8
1
Hitch pin (not to scale) (preassembled)
Fiber washer (not to scale)
2
FF
GG Set screw (not to scale) (preassembled)
AA
BB
EE
FF
GG
CC
DD
Part Description Quantity
Lock pin (not to scale) (preassembled)
HH
2
HH Wall control mounting screw (not to scale)

5HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
PACKAGE CONTENTS
D
E
F
Hanger ball (preassembled)
Downrod (preassembled)
1
1
1
A
B
C
4
1
1
Blade
Mounting bracket
Canopy
Fan motor assembly
Wall control
1
Coupling cover
H
I
1
1
G
Bottom cover
B
F
E
D
C
A
H
Part Description Quantity Part Description Quantity
Pre-Installation (continued)
G
I
L
M
H
0

6
Installation
MOUNTING OPTIONS
WARNING:
personal injury, mounttooutletbox marked “acceptable
for fan support of 35 lbs. (15.9 Kg) or less” using the
screwsprovided with theoutlet box. An outlet box
not beacceptable for fan support and may need to be
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□Secure the outlet box directly to the building structure.
Use the appropriate fasteners and materials. The outlet box
and its bracing must be able to fully support the weight
of the moving fan (at least 35 lbs.). Do not use a plastic
outlet box.
The illustrations below show three different ways to mount the
outlet box.
If the canopy touches the downrod, then remove the decorative canopy
bottom cover, and turn the canopy 180° before attaching the canopy to
the mounting plate.
you may need an installation hanger bar as shown above.
NOTE: You may need a longer downrod to maintain
proper blade clearance when installing on a steep, sloped
ceiling. The maximum angle allowable is 23° away from
horizontal.
Outlet Box
Outlet Box
Recessed
Outlet
Box
Provide Strong
Support
Ceiling
Mounting
Plate
Outlet Box
Hanger Bar
To reduce the risk of fire, electric shock, or
commonly used for the support of lighting fixtures may
replaced. If in doubt, consult a qualified electrician.
To hang your fan where there is an existing fixture but no ceiling joist

7HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Standard Ceiling Mount

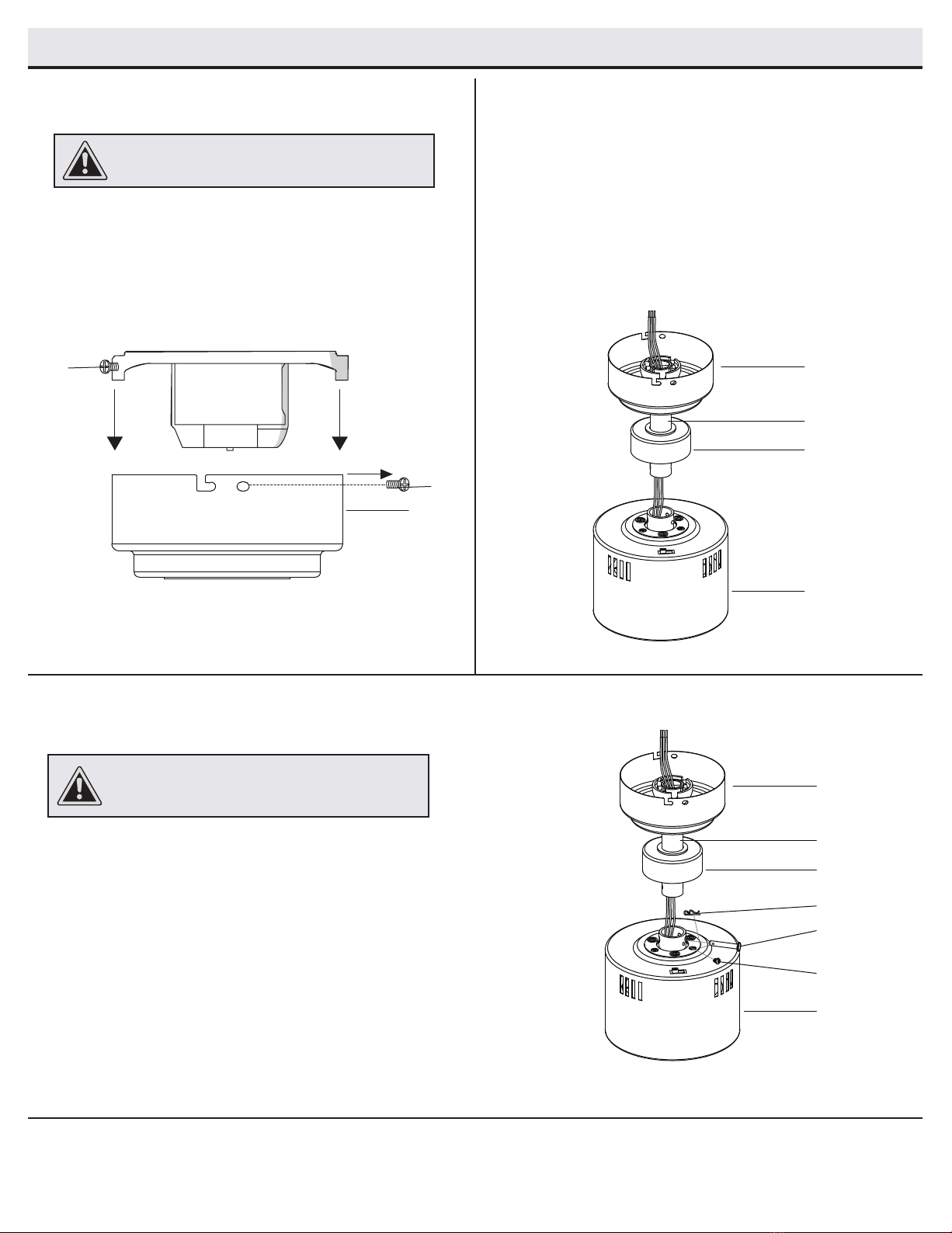

Routing the wires
Assembling the fan
Preparing for mounting
□Route the wires exiting the top of the fan motor
assembly (G) into the coupling cover (F).
□Make sure the slot openings are on top and route the
wires through the canopy (C) and then through the ball
and downrod (E) assembly.
2
3
1
□
□
□
CAUTION: To ensure wobble-free operation and to avoid
damage to the fan, the downrod (E) and the set screw
(GG) must be completely tightened.
WARNING: Make sure power is off before attempting
installation.
□Loosen the two canopy screws (AA) located in the “L
shaped” slots.
□Remove and save the two canopy screws (AA) in the round
holes.
AA
AA
C
C
E
F
G
Loosen the set screws (GG) in the downrod coupler until the inside
of the channel is clear of the screw tip.
Remove and save the lock pin (FF) on the end of the downrod (E).
Slide the ceiling canopy (C) onto the downrod (E) followed by the
coupling cover (F).
Attach the downrod (E) into the coupler until the lock pin (FF) can
be inserted through the hole in both the rod and coupler.
Tighten both set screws on the coupler.
Insert the lock pin (FF) through the hole in the coupler and
downrod (E) then attach the hitch pin (EE) on the other side.
□
□
□
C
E
F
G
GG
FF
EE

8
Assembly - Standard Ceiling Mount (continued)

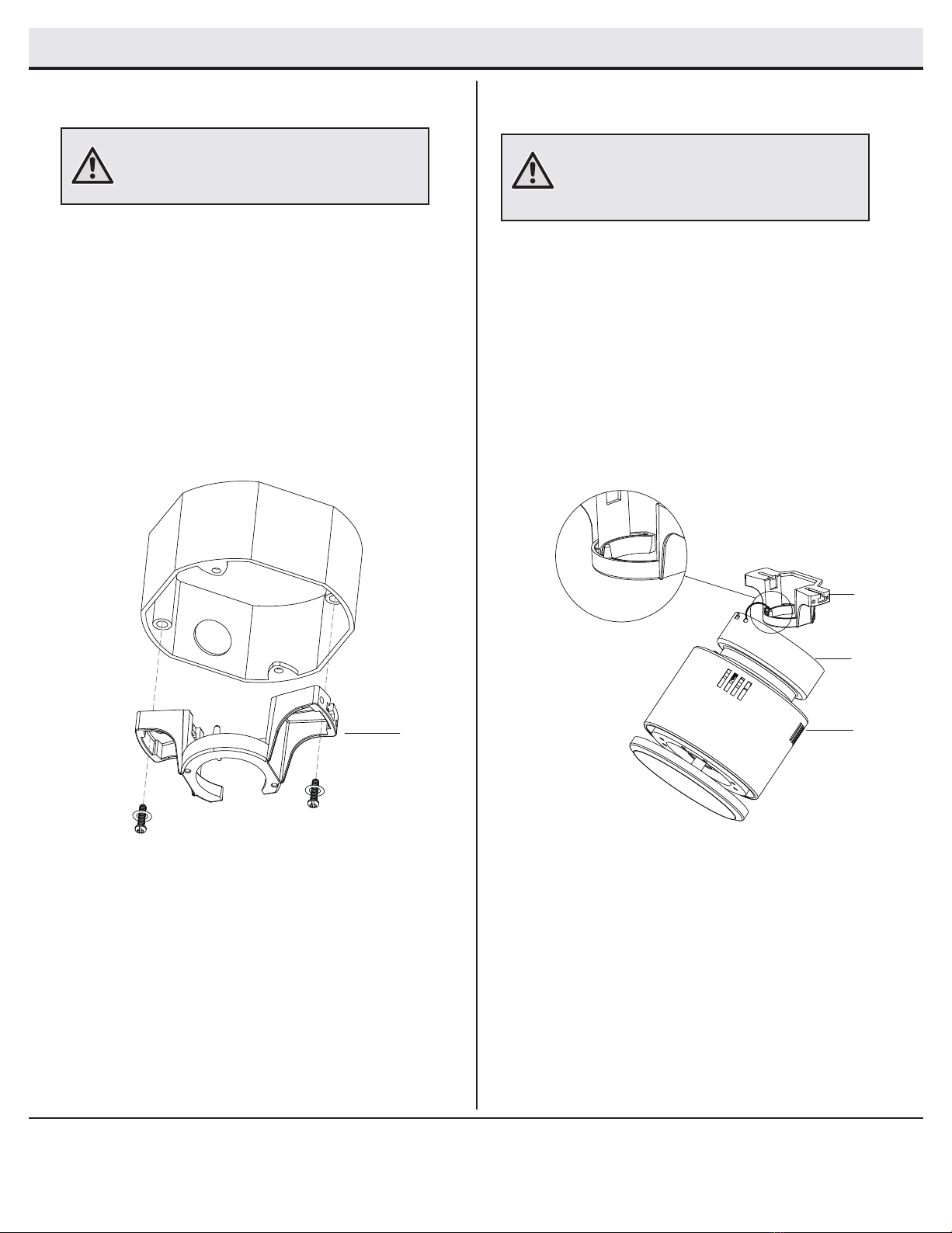

Attaching the fan to the electrical box
4Hanging the fan
□Carefully lift the fan motor assembly (G) up to the mounting
bracket (B).
□Seat the hanger ball (D) portion of the downrod assembly (E)
in the mounting bracket socket. Ensure that the tab on the
mounting bracket (B) socket is properly seated in the groove
in the hanger ball. If using flushmount, hang the fan on the
hook provided by utilizing one of the holes at the outer rim
of the ceiling canopy (C).
5
B
E
□Pass the 120-Volt supply wires through the center hole in the
mounting bracket (B).
□
□Securely tighten the two outlet box screws.
Install the ceiling mounting bracket (B) on the outlet box using the
two mounting screws provided with the outlet box. If necessary
use leveling washers (not included) between the mounting
bracket (B) and outlet box.
Note that the flat side of the mouting bracket (B) is toward the
outlet box. When using flushmount, it is important that the
mounting bracket be level.
WARNING:
To reduce the risk of fire, electric shock
or personal injury, mount to outlet box marked
“acceptable for fan support of 35 lbs. (15.9Kg)
or less” and use screws provided with the outlet box.
B
D
C
G

9
Assembly - Standard Ceiling Mount (continued)
Making the electrical connections
6
WARNING:
WARNING:
Follow the steps below to connect the fan to your house
supply wires. Secure the wire nuts (DD) supplied with your
fan by wrapping the connections with electrical tape.
□Connect the black (live) wire from the ceiling to the
black wire from the fan motor assembly (G).
□Connect the white (neutral) wire from the ceiling to
the white wire from the fan motor assembly (G).
□Connect the ground conductor of the 120-VOLT supply
(this may be a bare wire or a wire with green colored
insulation) to the green ground lead(s) of the fan.
There are two green grounding leads: one from the
mounting bracket (B) and one from the hanger ball/
downrod (E) assembly.
□Secure the wire connections with plastic wire nuts
(DD) provided with the electrical hardware.
□After connecting the wires, spread them apart so that
the green and white wires are on one side of the
outlet box (1) and the black and blue wires are on the
other side. Carefully tuck the wire connections up
into the outlet box (1).
the electricity is turned off at the circuit breaker or main
fuse box before wiring.
To avoid possible electrical shock, ensure
including the ground, and that no bare wire is visible at
the wire nuts, except for the ground wire.
Check to see that all connections are tight,
G
DD (X3)
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
1
Green WhiteBlack
B
E

10
Assembly - Standard Ceiling Mount (continued)
Mounting the fan
7
WARNING: When using the standard ball/downrod mounting, the
tab in the ring at the bottom of the mounting bracket must rest in
the groove of the hanger ball. Failure to properly seat the tab in
the groove could cause damage to the wiring.
BAA
AA
C
E
Attaching the fan blades
8
□Attach the fan blades (A) to the fan motor assembly (G)
by using the blade screws (BB) and fiber washers (CC).
Tighten blade screws (BB) securely.
□Repeat these steps for the remaining blades (A).
□
Installing the bottom cover
9
Place the bottom cover (H) into the fan motor assembly (G)
and rotate securely.
BB
CC
A
F
G
G
H
G
□Align the locking slots of the ceiling canopy (C) with the two
canopy screws (AA) in the mounting bracket (B). Push up tor
engage the slots and turn clockwise to lock in place.
□Firmly tighten the two canopy screws (AA).
□Install the two canopy screws (AA) (saved from Assembly
Step 1 “Preparing for mounting”) into the holes in the
canopy (C) and tighten firmly.

11
Assembly - Flushmount
Preparing for mounting Routing the wires
1 2
□
□
□
C
G
□Loosen the two canopy screws (AA) located in the “L
shaped” slots.
□Remove and save the two canopy screws (AA) in the round
holes.
□Remove the decorative canopy bottom cover from the
canopy (C).
Loosen three mounting screws (II) in the coupler located
on the top center of the motor housing until the inside
channel is clear.
Remove and save the set screws (GG) from the coupler.
Place the ceiling canopy (C) on top of the motor housing
and secure with the three mounting screws (II).
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
AA
AA
C
G
WARNING: Make sure power is off before attempting
installation.
II
II
C
GG

12
Assembly - Flushmount (continued)
Attaching the fan to the electrical box
3Hanging the fan 4
WARNING: The hook as shown is only to balance the
fan while attaching wiring. Failure to hang as shown
may result in hook breaking, causing the fan to fall.
The hook must pass from inside to the outside of the
canopy.
□Pass the 120-Volt supply wires through the center hole in the
mounting bracket (B).
□
□Securely tighten the two outlet box screws.
Install the ceiling mounting bracket (B) on the outlet box using the
two mounting screws provided with the outlet box. If necessary
use leveling washers (not included) between the mounting
bracket (B) and outlet box.
Note that the flat side of the mouting bracket (B) is toward the
outlet box. It is important that the mounting bracket be level.
WARNING:
To reduce the risk of fire, electric shock
or personal injury, mount to outlet box marked
“acceptable for fan support of 35 lbs. (15.9Kg)
or less” and use screws provided with the outlet box.
BB
□Carefully lift the fan motor assembly (G) up to the mounting
bracket (B).
□
B
C
G
If using flushmount, hang the fan on the hook provide by
utilizing one of the holes at the outer rim of the ceiling
canopy (C).

13
Assembly - Flushmount (continued)

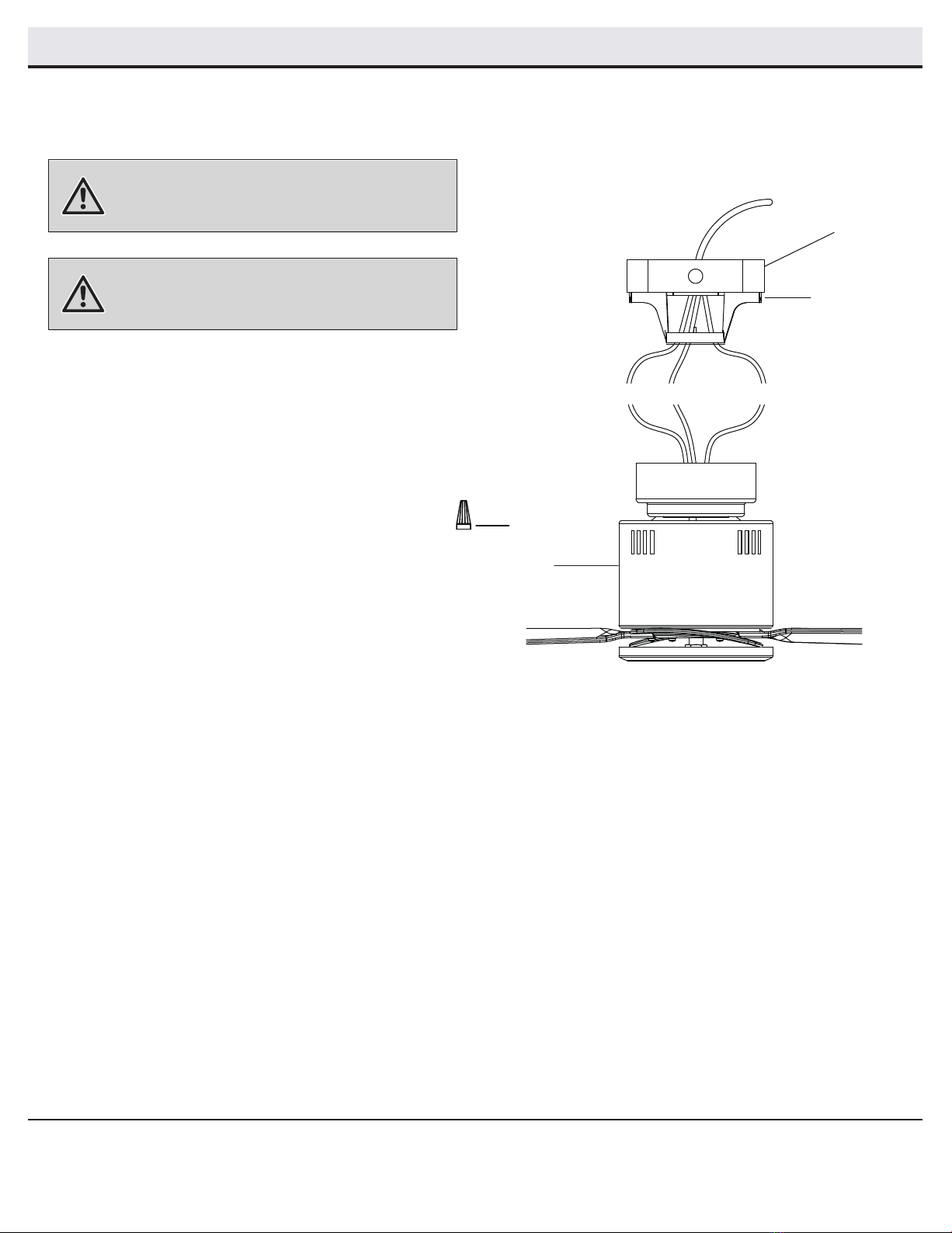

Making the electrical connections
5
WARNING:
WARNING:
Follow the steps below to connect the fan to your house
supply wires. Secure the wire nuts (DD) supplied with your
fan by wrapping the connections with electrical tape.
□Connect the black (live) wire from the ceiling to the
black wire from the fan motor assembly (G).
□Connect the white (neutral) wire from the ceiling to
the white wire from the fan motor assembly (G).
□Connect the ground conductor of the 120-VOLT supply
(this may be a bare wire or a wire with green colored
insulation) to the green ground lead(s) of the fan.There
is only one green ground lead from the mounting bracket (B),
since the hanger ball/downrod assembly is not used.
□Secure the wire connections with plastic wire nuts
(DD) provided with the electrical hardware.
□After connecting the wires, spread them apart so that
the green and white wires are on one side of the
outlet box (1) and the black and blue wires are on the
other side. Carefully tuck the wire connections up
into the outlet box (1).
the electricity is turned off at the circuit breaker or main
fuse box before wiring.
To avoid possible electrical shock, ensure
including the ground, and that no bare wire is visible at
the wire nuts, except for the ground wire.
Check to see that all connections are tight,
DD (X3)
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
G
1
Green WhiteBlack
B

14
Assembly - Flushmount (continued)
Mounting the fan
6
WARNING: The locking slots of the celling canopy are provided only
as an aid to mounting. Do not leave the fan assembly unattended
AA
AA
□Carefully unhook the fan from the mounting bracket (B) and
align the locking slots of the ceiling canopy (C) with the two
screws in the mounting bracket (B). Push up to engage the
slots and turn clockwise to lock the canopy (C) in place. Im-
□Install the remaining two canopy screws (AA) into the holes in
the canopy (C) and tighten firmly.
mediately tighten the two canopy screws (AA) firmly.
C
G
Attaching the fan blades
7
□Attach the fan blades (A) to the fan motor assembly (G)
by using the blade screws (BB) and fiber washers (CC).
Tighten blade screws (BB) securely.
□Repeat these steps for the remaining blades (A).
B
BB
CC
A
G
□
Installing the bottom cover
9
Place the bottom cover (H) into the fan motor assembly (G)
and rotate securely. G
H

15
Operation
NOTE: Wait for the fan to stop before reversing the direction
of the blade rotation.
The reverse switch is located on the surface of the motor assembly.
This switch controls directions: forward (switch left) or reverse
(switch right).
Warm weather - (Counterclockwise Direction) A downward air flow
creates a cooling effect. This allows you to set your air conditioner
on a warmer setting without affecting your comfort.
Cool weather - (Clockwise Direction) An upward air flow moves
warm air off the ceiling. This allows you to set your heating unit on
a cooler setting without affecting your comfort.
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Disconnect the power and remove the existing wall plate and
switch. Set all knobs on the dual slide wall-mounted control
in the OFF position. Installation of this control requires that a
three-conductor cable with ground wire be run between the
control wall box and the ceiling fan outlet box. Make wire
connections and secure with wire nuts supplied.
GREEN BLACK
GROUND
GROUND
TO MOTOR L
AC IN L
L
M
H
0
BLACK
BLACK
Push the control unit intothe switch box and secure it with the
two screws at each end of the unit (this procedure is the same
as if you were to put the original wall switch back into the wall).
Now attach the face plate to the wall control.
Speed Control
0: POWER OFF
H: HIGHT SPEED
M: MEDIUM SPEED
L: LOW SPEED
L
M
H
0
WHITE
WALL CONTROL INSTALLATION
REVERSE SWITCH OPERATING INSTRUCTIONS
L
M
H
0
LIVE
NEUTRAL
Connect the Black wire from the ceiling fan to the Black wire
“TO MOTOR L” from the wall-mounted control.
Make sure to use wire nuts on all connections.
Connect the Black (live) wire from the power supply to the Black
wire “AC IN L” from the wall-mounted control.
Connect the White (neutral) wire from the power supply to the
White wire from the fan motor assembly (G).
120V
POWER
SUPPLY
BLACK
WHITE
HH
Before you begin, TURN OFF THE ELECTRICITY atthemain
circuitpanel or fuse box. If you feel unsure of this procedure,
have a qualified electrician install thisunit.
WALL CONTROL OPERATION

16
Care and Cleaning
Troubleshooting
Problem Solution
The fan will not start. □Check the main and branch circuit fuses or breakers.
□Check the line wire connections to the fan and switch wire connections in the switch housing.
□Check the battery in the remote control.
□Ensure you are in the normal range of 10-20 feet.
□Turn the power off and ensure that the dip switch settings are the same on the remote control and receiver.
The fan is noisy. □Ensure all motor housing screws are snug.
□Ensure the screws that attach the fan blade bracket to the motor hub are tight.
□Ensure the wire nut connections are not rattling against each other or the interior wall of the switch housing.
□Allow a 24-hour “breaking in” period. Most noises associated with a new fan disappear during this time.
□If you are using the Ceiling Fan light kit, ensure the screws securing the glassware are tight. Check that the light
bulbs are also secure.
□Ensure the canopy is a short distance from the ceiling. It should not touch the ceiling.
□Ensure your outlet box is secure and rubber isolator pads were used between the mounting plate and outlet box.
The fan wobbles. □Check that all blade and blade arm screws are secure.
□Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a point on
the ceiling above the tip of one of the blades. Measure from a point on the center of the blade to the point on the
ceiling. Rotate the fan until the next blade is positioned for measurement, and measure from the same point on
each blade to the ceiling. Repeat for each blade. Any measurement deviation should be within 1/8 in. Run the fan
for ten minutes. If the fan continues to wobble please contact Hampton Bay Customer Service and a balancing kit
will be sent to you at no charge.
□Becauseof thefan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure. Itisnot necessary to remove the fan from the ceiling.
□Clean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning, as thiscould damage
plating is sealed with a lacquer to minimize discoloration or tarnishing.
□You can applya light coatoffurniture polish to the wood for additional protection and enhanced beauty. Cover small scratches with a
light application ofshoe polish.
□You donotneed tooil your fan. The motor has permanently-lubricated sealed ball bearings.
WARNING: Make sure the power is off before cleaning
your fan.
the motor, or the wood, or possibly cause an electrical shock. Use only a soft brush or lint-free cloth to avoid scratching the finish. The
□Always unplug the fan before cleaning, disassembly or servicing.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
•Reorientor relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on acircuitdifferent from that to which the receiver isconnected.
•Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment.
17 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
FCC Statement
The following responsible party designated in FCC §2.909 is responsible for this declaration：
Model Number: 34777-HBUG, 34777-HBUW, 34777-HBUM, 34777-HBUB
Company Name: Eurofase Inc
Company Address: 60 Industrial Parkway, Unit 802, Cheektowaga, NY
Full Name: Kent Yin Title: Product Development Manager
Telephone Number: 905-695-2055 Ext. 259 Fax: [phone]

Questions, problems, missing parts? Before returning to the store,
call Home Depot Customer Service
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Retain this manual for future use.
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday

GUÍA DE USO Y CUIDADO
VENTILADOR DE TECHO PARA
INTERIORES, 52 PLG KITTERIDGE
(1004292203)
(1004292254)
(1004292201)
(1004292211)
Artículo #/ Modelo #: 34777-HBUG
Artículo #/ Modelo #: 34777-HBUW
Artículo #/ Modelo #: 34777-HBUM
Artículo #/ Modelo #: 34777-HBUB
GRACIAS POR TU COMPRA
Apreciamos la plena confianza que has depositado en la colección Home Decorators al comprar este ventilar de techo. Nos esforzamos en
crear continuamente productos de calidad diseñados para mejorar tu hogar. Visítanos por Internet para ver nuestra línea completa de
productos disponibles a fin de satisfacer la necesidades de mejoras de tu hogar. ¡Gracias por elegir Home Decorators Collection!
¿Preguntas, problemas, partes o piezas faltantes? Antes de devolver a la tienda,
llamar al servicio al cliente de Home Decorators Collection de lunes a viernes,
entre 8:00 a.m. y 7:00 p.m. (hora del Este), y los sábados de 9:00 a.m. a 6:00 p.m. (hora del Este).
1-800-986 3460
HOMEDEPOT.COM/HOMEDECORATORS

2
Tabla de contenido................................................................ 2
Información de seguridad..................................................... 2
Garantía ................................................................................ 3
Preinstalación........................................................................ 3
Instalación............................................................................. 6
Ensamblaje .......................................................................... 7
Funcionamiento .................................................................. 15
Mantenimiento y limpieza.................................................... 16
Solución de problemas.......................................................... 16
Información de seguridad
Tabla de contenido
LEE Y GUARDA ESTAS INSTRUCCIONES.
Declaración de FCC...............................................................17
1. Para disminuir el riesgo de descarga eléctrica, asegura cortar la
electricidad en el cortacircuitos o en la caja de fusibles antes de
comenzar.
2. Todo el cableado tiene que cumplir con el Código Nacional de
Electricidad ANSI/NFPA 70 y los códigos eléctricos locales. La
instalación eléctrica debe hacerse por un electricista calificado
con licencia.
3. La caja eléctrica y estructura de soporte tienen que montarse de
forma segura para poder sostener con confianza 35 lb (15.9 kg).
(15.9 kg). Usar ya solo cajas eléctricas aprobadas por UL y
marcadas como“apropiadas para sostener ventiladores de 35 lb
(15.9 kg) o menos.”
4. No uses el interruptor de reversa mientras las aspas del
ventilador estén en movimiento. Tienes que apagar el ventilador
y detener las aspas antes de invertir el sentido de giro de las
aspas.
5. No colocar objetos en la trayectoria de las aspas.
6. Después de concluir las conexiones eléctricas, los conductores
empalmados deben voltearse hacia arriba y empujarse con
cuidado hacia dentro de la caja eléctrica. Los cables deben
quedar separados: el cable y el conductor a tierra del equipo
hacia uno de los lados de la caja eléctrica y el conductor sin
conexión a tierra, hacia el lado opuesto.
7. Antes de instalar, todos los tornillos de fijación tienen que
comprobarse y reajustarse donde sea necesario.
CUIDADO: Para evitar una posible descarga eléctrica,
desconecta la electricidad en la caja principal de
fusibles antes cablear. Si crees que no tienes suficiente
experiencia o conocimientos en cableado eléctrico,
contrata a un electricista con licencia.
CUIDADO: Para reducir el riesgo de lesiones personales
hay que usar sólo los tornillos incluidos con la caja
eléctrica.
CUIDADO: Para evitar lesiones personales o daños al
ventilador y otros artículos, hay que tener cuidado al
limpiarlo y al trabajar cerca de él.
CUIDADO: Para reducir el riesgo de lesiones personales,
no doblar los soportes de las aspas al instalar estos,
compensar las aspas o limpiar el ventilador. No insertes
objetos extraños entre las aspas del ventilador en
rotación.
ADVERTENCIA: Para reducir el riesgo de incendio,
descarga eléctrica o lesiones, montar sólo en una caja
eléctrica clasificada como “apropiada para sostener
ventiladores de 35 lb. (15.9 kg) o menos”, y usa sólo
los tornillos incluidos con la caja eléctrica.
CUIDADO: El ventilador tiene que montarse con
separación mínima de 7 pies (2.1 m) entre el borde de
salida de las aspas y el piso.
CUIDADO: Los cambios o modificaciones sin previa
aprobación expresa de parte responsable de su
cumplimiento podrían anular la autorización al usuario
para operar el equipo.
ADVERTENCIA: Para reducir el riesgo de incendio o
descarga eléctrica, no utilices este ventilador con ningún
dispositivo de estado sólido para control de velocidad.
