USE AND CARE GUIDE
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and condence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive
to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!
Item # 1001 xxx xxx
Model # 51504
UL Model # 52-GLH
SANDY COVE 52-INCH CEILING FAN

2
Table of Contents ................................................................2
Safety Information...............................................................2
Warranty ............................................................................... 3
Pre-Installation ....................................................................3
Installation............................................................................6
Assembly..............................................................................7
Operation ...........................................................................15
Care and Cleaning.............................................................16
Troubleshooting.................................................................16
1. To reduce the risk of electric shock, ensure the electricity has
been turned off at the circuit breaker or fuse box before you
begin.
2. All wiring must be in accordance with the National Electrical
Code ANSI/NFPA 70 and local electrical codes. Electrical
installation should be performed by a qualified licensed
electrician.
3. The outlet box and support structure must be securely mounted
and capable of reliably supporting 35 lbs. (15.9 kg). Use only
UL Listed outlet boxes marked”Acceptable for Fan Support of
35 lbs. (15.9 kg) or less”.
4. The fan must be mounted with a minimum of 7 ft (2.1 m)
clearance from the trailing edge of the blades to the oor.
5. Do not operate the reversing switch while the fan blades are
in motion. You must turn the fan off and stop the blades before
you reverse the blade direction.
6. Do not place objects in the path of the blades.
7. To avoid personal injury or damage to the fan and other items,
use caution when working around or cleaning the fan.
8. Electrical diagrams are for reference only. Light kits that are
not packed with the fan must be UL-listed and marked suitable
for use with the model fan you are installing. Switches must be
UL General Use Switches. Refer to the instructions packaged
with the light kits and switches for proper assembly.
9. After making electrical connections, spliced conductors should
be turned upward and pushed carefully up into the outlet box.
The wires should be spread apart with the grounded conductor
and the equipment-grounding conductor on one side of the
outlet box.
10. All setscrews must be checked and retightened where
necessary before installation.
WARNING: To reduce the risk of personal injury,
do not bend the blade brackets (also referred to as
anges) during assembly or after installation. Do not
insert objects in the path of the blades.
WARNING: To avoid possible electrical shock,
turn the electricity off at the main fuse box before
wiring. If you feel you do not have enough electrical
wiring knowledge or experience, contact a licensed
electrician.
WARNING: Electrical diagrams are for reference
only. Optional use of any light kit shall be UL-listed
and marked suitable for use with this fan.
WARNING: To reduce the risk of re or electric
shock, “this fan should only be used with fan speed
control part no. MR140A manufactured by Satellite
Industrial Co., LTD”
Safety Information
Table of Contents
CAUTION: To reduce the risk of personal injury,
use only the screws provided with the outlet box.
READ AND SAVE THESE INSTRUCTIONS.
CAUTION: Changes or modications not expressly
approved by the party responsible for compliance
could void the user’s authority to operate the
equipment.
CAUTION: Do NOT use this fan with a dimmer switch
or wall control. Using a dimmer switch or wall control
will damage the fan.
WARNING: To reduce the risk of electric shock, this
fan must be installed with an isolating wall switch.

3HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Pre-Installation
Warranty
The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a
lifetime after the date of purchase by the original purchaser. The supplier also warrants that all other fan parts, excluding any glass or acrylic
blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the date
of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior
model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper installation, or by afxing any
accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover any changes in brass nish,
including rusting, pitting, corroding, tarnishing, or peeling. Brass nishes of this type give their longest useful life when protected from varying
weather conditions. A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons
shall render the warranty invalid. There is no other express warranty. Home Decorators Collection hereby disclaims any and all warranties,
including but not limited to those of merchantability and tness for a particular purpose to the extent permitted by law. The duration of any
implied warranty which cannot be disclaimed is limited to the time period as specied in the express warranty. Some states do not allow a
limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall not be liable for incidental,
consequential, or special damages arising out of or in connection with product use or performance except as may otherwise be accorded by
law. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion or limitation may not apply to you.
This warranty gives specic legal rights, and you may also have other rights which vary from state to state. This warranty supersedes all prior
warranties. Shipping costs for any return of product as part of a claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-800-986-3460 or visit www.HomeDepot.com/homedecorators.

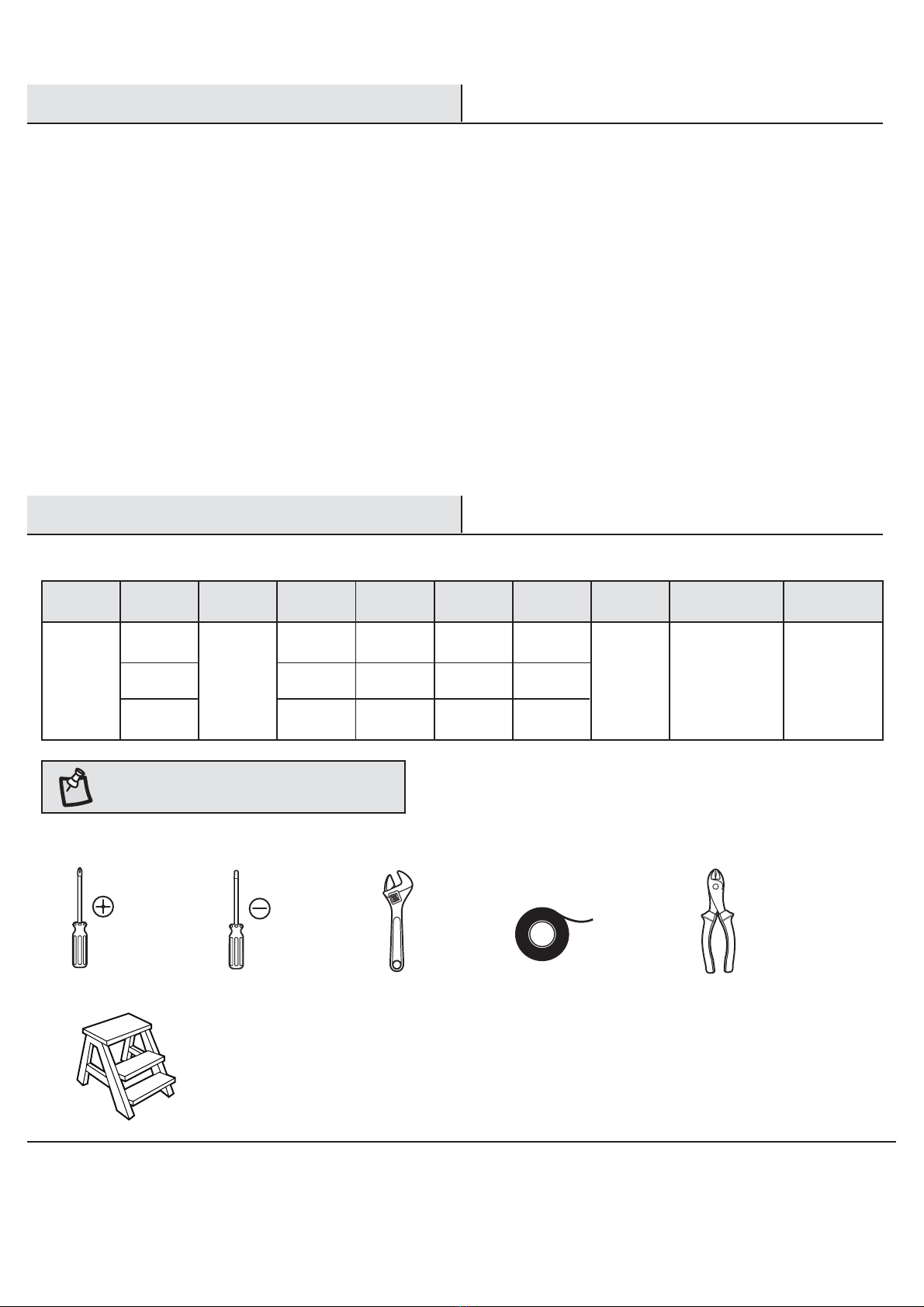

SPECIFICATIONS
TOOLS REQUIRED
NOTE:These are approximate measures. They do not
include the Amps and Wattage used by the light kit.
Phillips
screwdriver
Flat blade
screwdriver
Adjustable
wrench
Electrical
tape
Wire
cutter
Step ladder
Size Speed Volts Amps Watts RPM CFM Net
Weight
Gross
Weight Cube Feet
52 in.
Low
Medium
High
120
x.xx
x.xx
x.xx
xx.x
xx.x
xx.x
xx
xxx
xxx
xxxx
xxxx
xxxx
xx.x lbs.
(x.x kg)
xx.xx lbs.
(xx.x kg) x.xx cu.ft.

4
Part Description Quantity
AA Blade attachment screws 16
BB Plastic wire connector 3
Pre-Installation (continued)

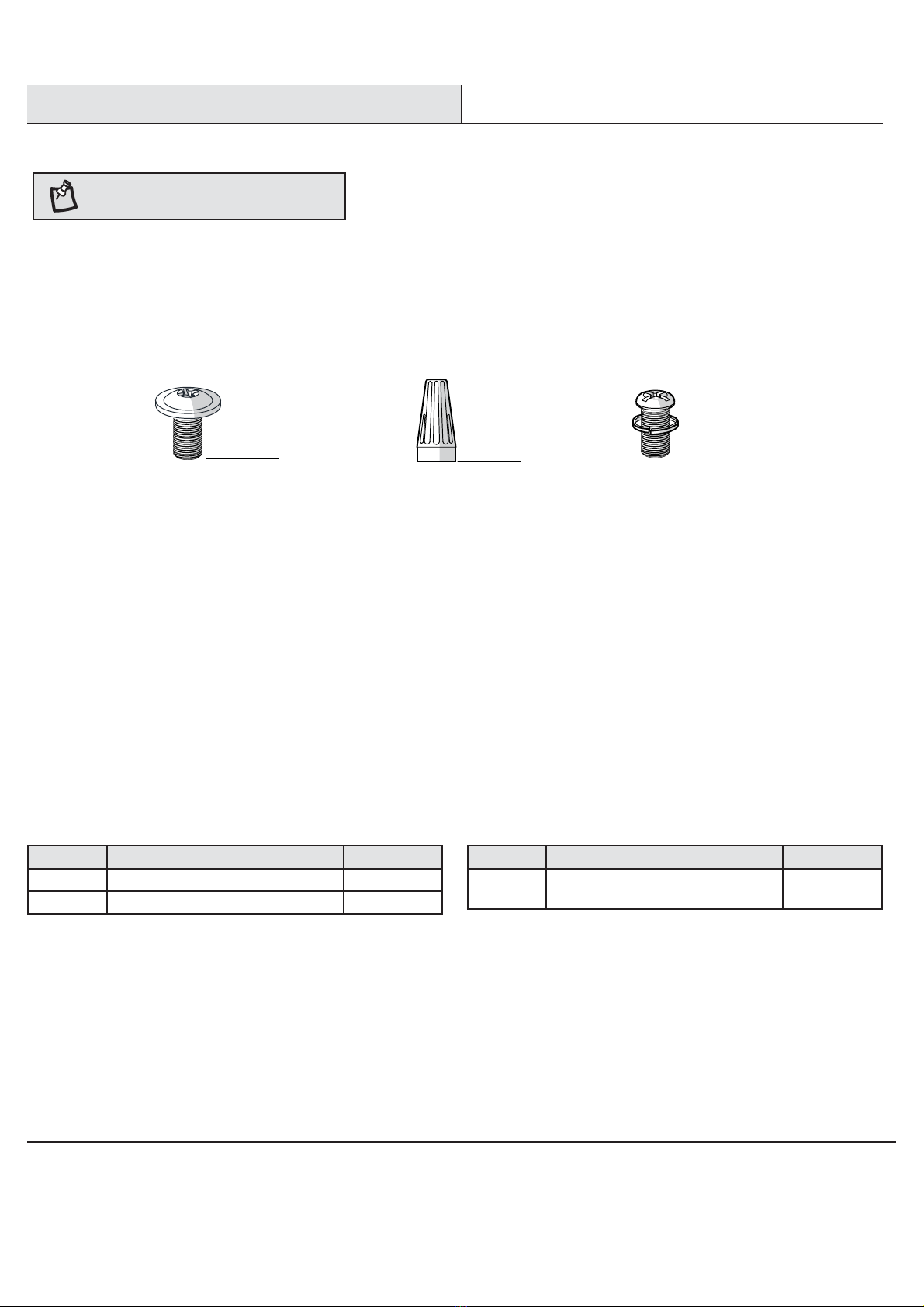

HARDWARE INCLUDED
NOTE:Hardware not shown to actual size.
Part Description Quantity
CC Blade bracket hardware (screw and
lockwasher)
11
AA BB CC

5HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Part Description Quantity
A Slide-on mounting bracket
(inside canopy)
1
B Ball/downrod assembly 1
C Canopy 1
D Decorative motor collar cover 1
E Fan-motor assembly 1
Part Description Quantity
F Light kit pan 1
G Blade bracket 5
H Blade 5
I Light kit tter assembly 1
J Glass bowl 1
K Light kit decorative cage 1
L LED bulbs (9-Watt, Maximum) 2
M Receiver 1
N Remote control (battery included) 1
IMPORTANT:This product and/or components are
governed by one or more of the following U.S. Patents:
5,947,436; 5,988,580; 6,010,110; 6,046,416, 6,210,117
and other patents pending.
Pre-Installation (continued)

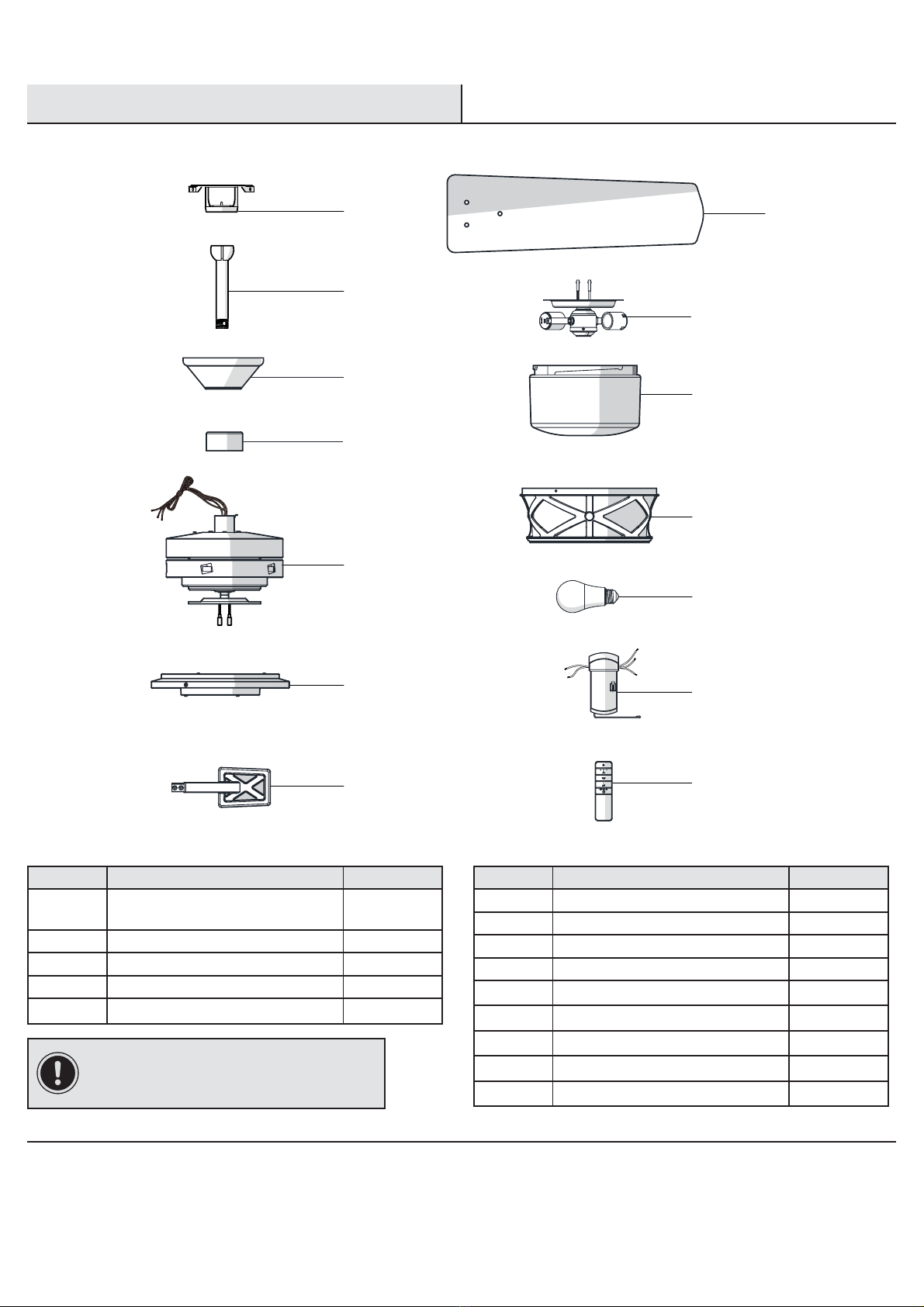

PACKAGE CONTENTS
A
B
C
H
D
J
E
L
I
M
1234
ON DIP
F
G
K
N

6
Installation
MOUNTING OPTIONS
WARNING: To reduce the risk of re, electric shock,
or personal injury, mount the fan to an outlet box
marked “Acceptable for fan support of 35 lbs.
(15.9kg) or less” and use the screws provided with
the outlet box. An outlet box commonly used for the
support of lighting xtures may not be acceptable for
fan support and may need to be replaced. If in doubt,
consult a qualied electrician.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
ƑDisconnect the power by removing the fuses or turning off
the circuit breakers.
ƑSecure the outlet box directly to the building structure.
Use the appropriate fasteners and materials. The outlet box
and its bracing must be able to fully support the weight
of the moving fan (at least 35 lbs.). Do not use a plastic
outlet box.
The illustrations below show three different ways to mount the
outlet box.
If the canopy (C) touches the ball/downrod assembly (B), then remove
the decorative canopy bottom cover and turn the canopy (C) 180°
before attaching the canopy (C) to the mounting plate.
To hang your fan where there is an existing xture but no ceiling joist,
you may need an installation hanger bar as shown above
(available at any Home Depot store).
NOTE:You may need a longer downrod to maintain
proper blade clearance when installing on a steep, sloped
ceiling. The maximum angle allowable is 30° away from
horizontal.
Outlet Box
Outlet Box
Recessed
Outlet
Box
Provide Strong
Support
Ceiling
Mounting
Plate
Outlet Box
Hanger Bar

7HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

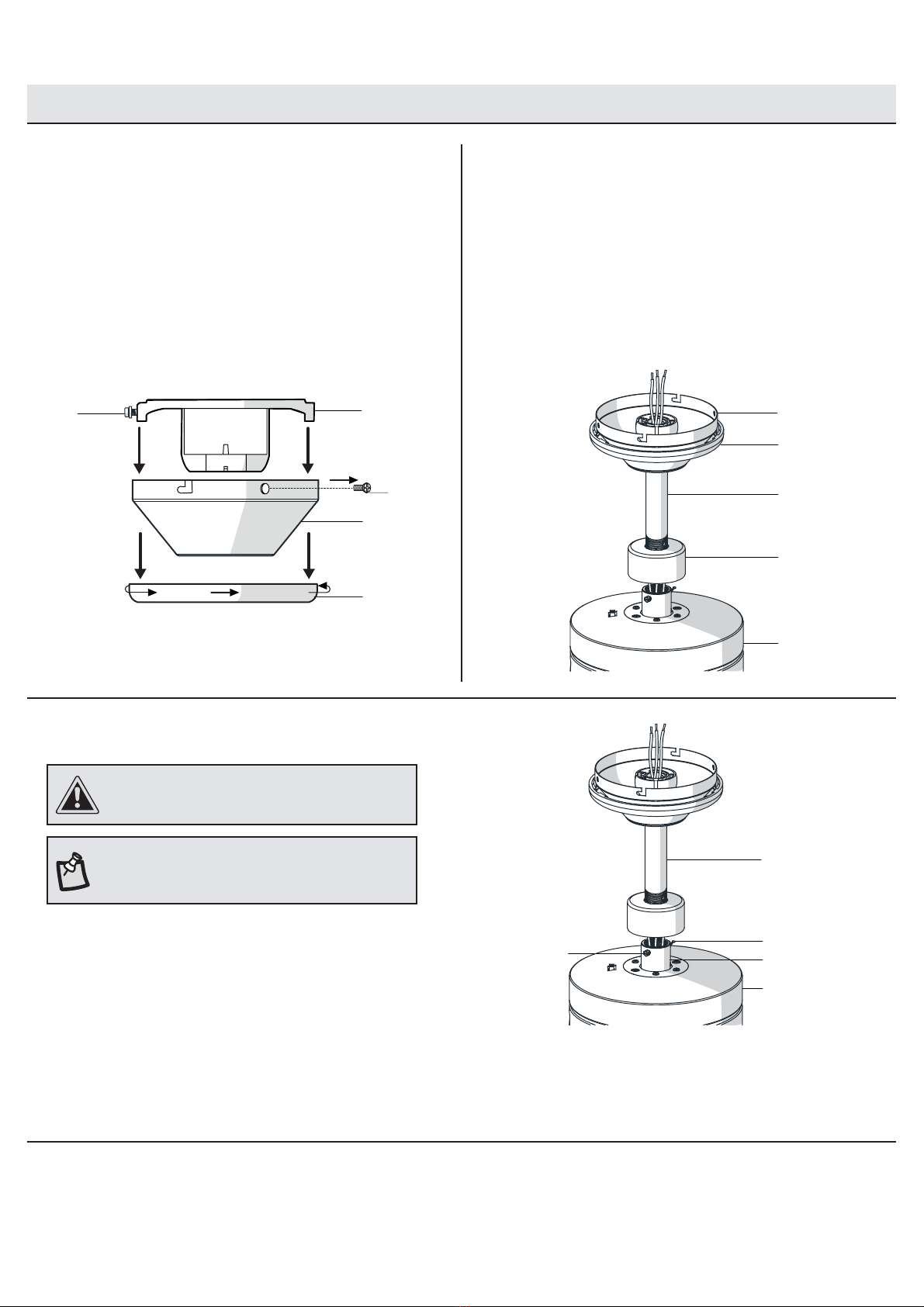

Assembly - Standard Ceiling Mount
Routing the wiresPreparation for standard mounting
ƑRoute the wires exiting at the top of the fan-motor
assembly (E) through the canopy ring (FF).
ƑInsert the ball/downrod (B) through the canopy (C) and
slide the decorative motor collar cover (D) onto the end
of the ball/downrod (B). Make sure the slots on the
canopy (C) are on top.
ƑRoute the wires exiting the top of the fan motor
assembly (E) through the downrod as shown.
21
ƑRemove the canopy ring (FF) from the canopy (C) by turning
the ring counterclockwise until it unlocks.
ƑRemove the mounting bracket (A) from the canopy (C) by
loosening the two canopy screws (DD) located in the “L
shaped” slots.
ƑRemove and save the two canopy screws (EE) in the round
holes. This will enable you to remove the mounting bracket
(A).
Assembling the fan
ƑLoosen, but do not remove, the setscrew (GG) on the collar
(II) on top of the fan-motor assembly (E).
ƑInstall the downrod (B) by inserting it into the motor collar
(II), and turning it clockwise until it is tight.
ƑRe-tighten the setscrew (GG) on the collar (II) on top of the
fan motor assembly (E).
3
NOTE:This fan is equipped with a safety tab (HH). Should
the setscrew (GG) ever become loose while the fan is
running in reverse, the safety tab (HH) will engage and
stop the fan from falling.
CAUTION: To ensure wobble-free operation and to avoid
damage to the fan, the downrod (B) and the setscrew
(GG) must be completely tightened.
C
A
FF
EE
DD
E
C
D
B
FF
HH
GG
B
E
II

8
Assembly - Hanging the Fan
Attaching the fan to the electrical
box
Hanging the fan
ƑPass the 120-Volt supply wires through the center hole in the
slide-on mounting bracket (A).
ƑInstall the ceiling slide-on mounting bracket (A) on the outlet
box by sliding the slide-on mounting bracket (A) over the two
screws (LL) provided with the outlet box. If necessary, use leveling
washers (not included) between the slide-on mounting bracket
(A) and the outlet box. Note that the at side of the slide-on
mounting bracket (A) is toward the outlet box.
ƑSecurely tighten the two mounting screws (LL).
ƑCarefully lift the fan-motor assembly (E) up to the slide-on
mounting bracket (A).
ƑSeat the hanger ball portion of the ball/downrod assembly (B)
in the mounting bracket socket. Ensure that the tab on the
slide-on mounting bracket (A) socket is properly seated in the
groove in the hanger ball.
12
WARNING: To reduce the risk of re, electric shock, or other
personal injury, mount the fan to an outlet box or supporting
system marked “Acceptable for fan support of 35 lbs.
(15.9kg) or less” and use the mounting screws provided
with the outlet box.
A
LL
LL
NOTE:The mounting bracket (A) is designed to slide into place
on an outlet box with the outlet box screws (LL).
A
B
C
D
E

9HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Hanging the Fan (continued)
3

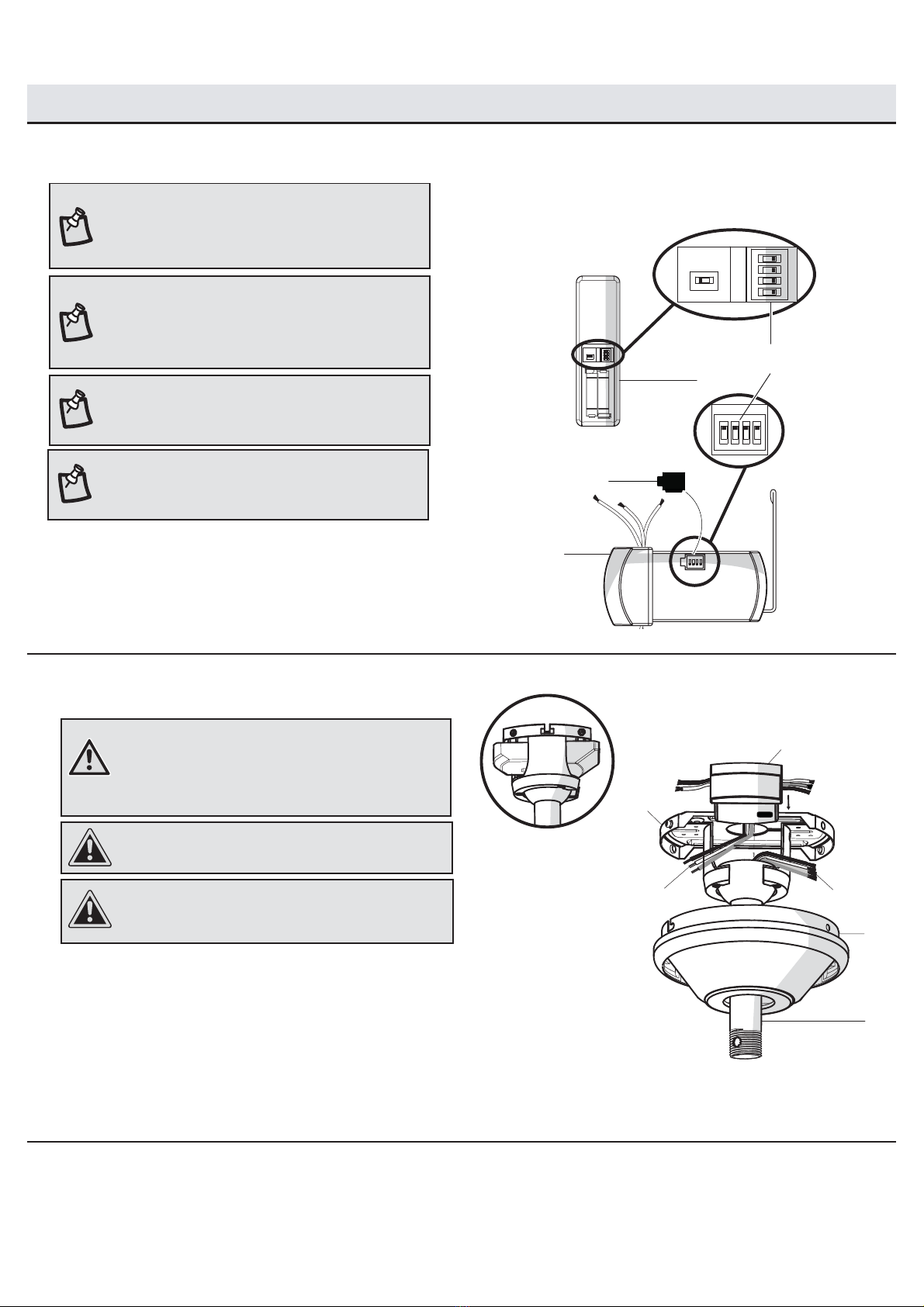

NOTE:The frequencies on your receiver and hand unit have
been preset at the factory. Before installing the receiver,
make sure the dip switches on the receiver and hand unit are
set to the same frequency. The dip switches on the hand unit
are located inside the battery compartment.
NOTE: The switch marked “O/D” controls the dimming
function of the lights. If using non-dimmable bulbs, use a
ballpoint pen or small screwdriver to set the switch to “O” to
disable the dimming function. If using dimmable bulbs, set
the switch to “D” to enable the dimming function. The remote
is preset at factory to the “O” position.
Setting the code on the remote
control and receiver
ƑRemove the remote control (N) battery cover by pressing
rmly on the arrow and sliding the cover off.
ƑSlide the dip switches (ZZ) to your choice of either up or
down. The factory setting is up.
ƑSlide the dip switches (ZZ) on the receiver (M) to the same
position as set on the remote control (N).
N
M
ZZ
12 34
ON
DO
1234
ON DIP
1234
ON
DO
12 34
ON
OO
NOTE:The battery will weaken with age and should be
replaced before leaking takes place as this will damage the
hand unit. Dispose of used battery properly and keep the
battery out of the reach of children.
4Installing the receiver
ƑPosition the house supply wires (AAA) to one side of the
slide-on mounting bracket (A); position the fan wires (BBB)
to the opposite side.
ƑInsert the narrow end of the receiver (as shown, at side
towards the ceiling) into the slide-on mounting bracket until
it rests on top of the ball/downrod assembly.
WARNING: To reduce the risk of re or electric shock,
remember to disconnect power. The electrical wiring must
meet all local and national electrical code requirements.
The electrical source and fan must be 110/120 volt, 60Hz.
Do not use this product in conjunction with any variable wall
control. Incorrect wire connection can damage this receiver.
CAUTION: If other fan wires are a different color, have this
unit installed by a licensed electrician.
CAUTION: Do not install the receiver in a damp location or
immerse in water (For indoor use only). Do not pull on or cut
the receiver leads shorter. Do not drop or bump the unit.
B
C
AAA BBB
A
M
ƑInstall two 1.5V AAA batteries (included).
ƑReplace the battery cover on the remote control (N).
ƑInsert the silicone rubber stopper (OO) into the hole on the
receiver (M) to cover the dip switches.
NOTE:This fan includes non-dimming LED bulbs. If you would
like to use dimming function, please install dimmable light
bulbs (60-watt maximum incandescent bulbs or dimmable
LED bulbs)

10

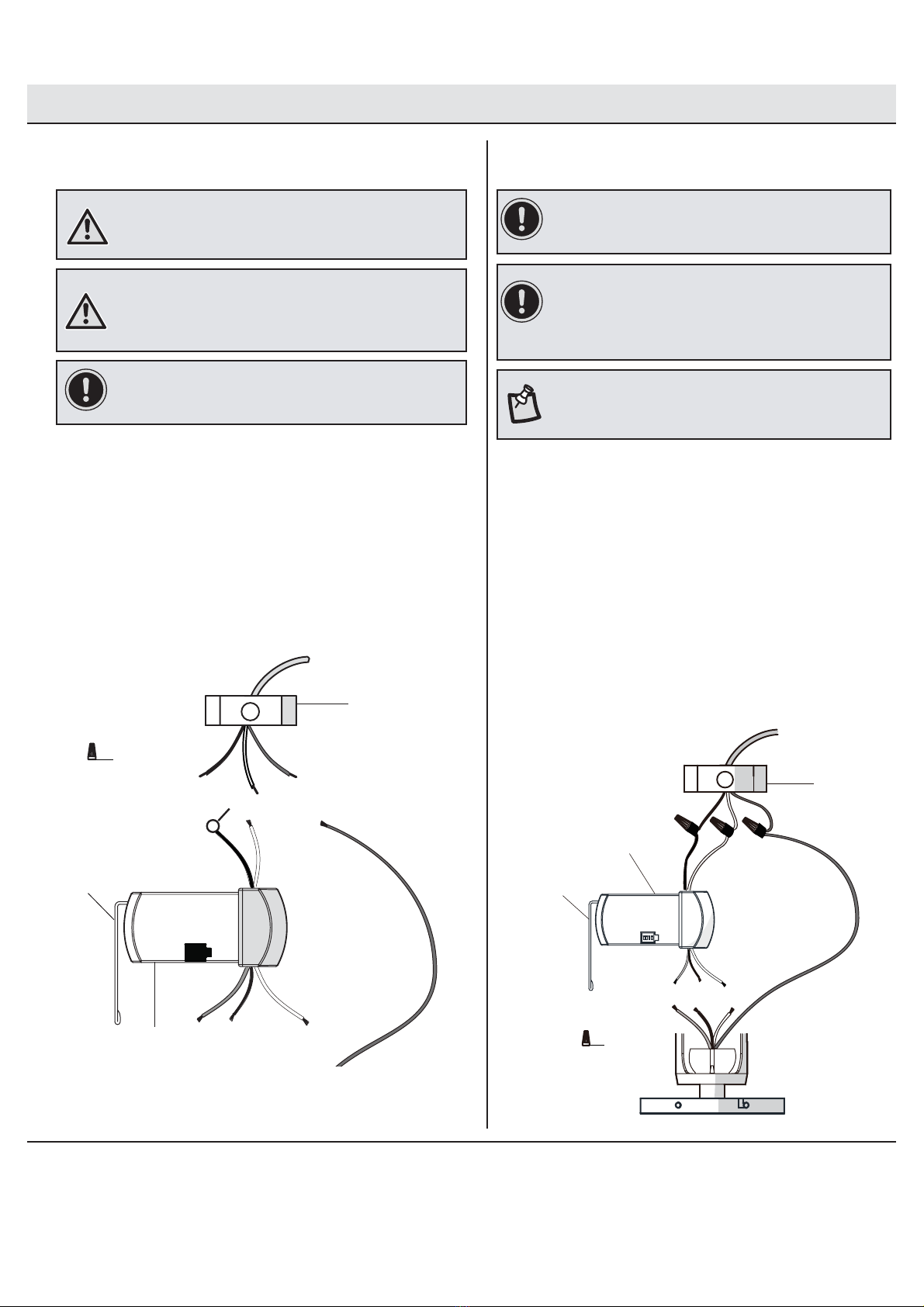

Assembly - Hanging the Fan (continued)
5Wiring the receiver to the household
wiring
IMPORTANT:Use the wire connecting nuts (BB) supplied with
your fan. Secure the connectors with electrical tape and ensure
there are no loose strands or connections.
WARNING: Each wire nut supplied with this fan is designed to
accept up to one 12-gauge house wire and two wires from the
fan. If you have larger than 12-gauge house wiring or more
than one house wire to connect to the fan wiring, consult an
electrician for the proper size wire nuts to use.
ƑSpread the wires apart so that the green and white wires
are on one side of the outlet box and the black wire is on the
other side.
ƑConnect the green fan wires to the household ground wire
(this may be a green or bare wire) using a wire connecting
nut (BB).
ƑConnect the receiver (M) red wire to the household black
(hot) wire using a wire connecting nut (BB).
ƑConnect the receiver (M) white wire to the household white
wire (neutral) using a wire connecting nut (BB).
ƑSecure each wire connecting nut using electrical tape.
Red
Black
Green (or Bare)
Green
Outlet Box
in the ceiling (MM)
Receiver
Antenna
White
Receiver (M)
BB (x3)
1234
ON DIP
WARNING: To avoid possible electrical shock, turn the
electricity off at the main fuse box before wiring. If you
feel you do not have enough electrical wiring knowledge or
experience, contact a licensed electrician.
Wiring the fan to the receiver
ƑThe fan comes with 54 in. lead wires for use with an
extended ball/downrod assembly. If using the 6 in. ball/
downrod assembly (B) provided, you can cut the lead wires
to your desired length (no shorter than 13.5 in.) This will
make extra room in the canopy (C), if you do not wish to cut
the wires, you will need to neatly wrap them.
ƑConnect the fan motor white wire to the receiver white wire
using a wire connecting nut (BB).
ƑConnect the fan motor black wire to the receiver black wire
using a wire connecting nut (BB).
ƑConnect the fan motor blue wire to the receiver blue wire
using a wire connecting nut (BB).
ƑSecure each wire connecting nut using electrical tape.
ƑTurn the wire connecting nut (BB) upward and push the
wiring into the outlet box (MM).
6
IMPORTANT:Use the wire connecting nuts (BB) supplied with
your fan. Secure the connectors with electrical tape and ensure
there are no loose strands or connections.
NOTE:The fan comes with 54 in. lead wires for use with an
extended ball/downrod assembly. If using the 6 in. ball/downrod
assembly (B) provided, you can cut the lead wires to your
desired length (no shorter than 13.5 in.).
IMPORTANT:If after this step, you decide to check that the
electrical connections have been successful, it is critical to
attach the light kit using the quick connector prior to testing.
The fan will not operate unless the light kit is connected to the
fan.
Outlet box
in the ceiling
(MM)
Receiver (M)
Blue
Receiver
Antenna
Black White
Green
BB (x3)
1234
ON DIP

11 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

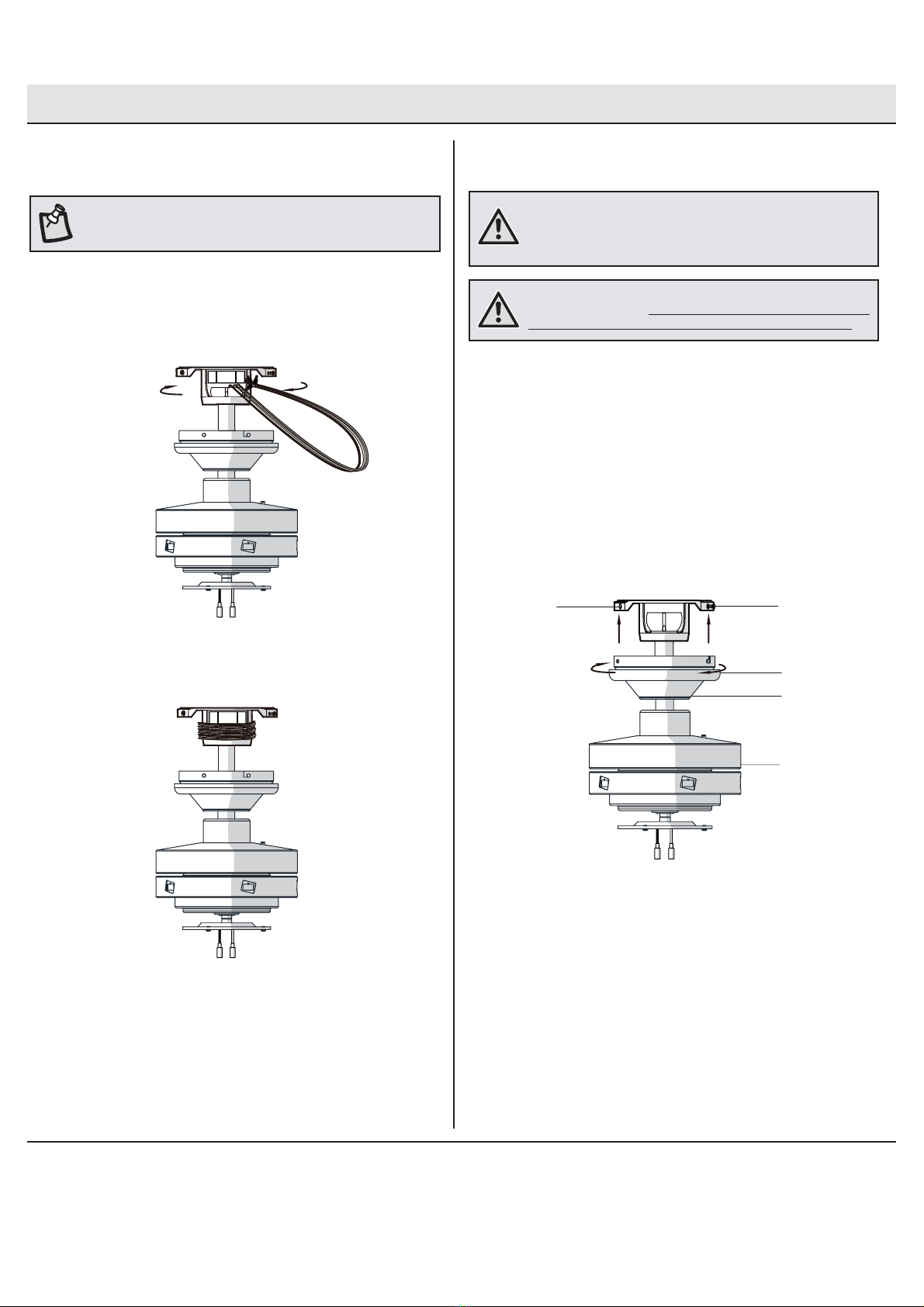

Assembly - Hanging the Fan (continued)
Wrapping the extra wire
ƑGently wrap the excess wire around the mounting bracket,
under the receiver.
ƑSecure with electrical tape.
7
NOTE:Follow this step ONLY if you did not cut the extra length off
from the wires coming from the ceiling fan to the receiver.
Mounting the fan-motor assembly
(standard mount)
ƑAlign the locking slots of the ceiling canopy (C) with the two
screws (DD) in the mounting bracket (A). Push up to engage
the slots and turn clockwise to lock in place.
ƑFirmly tighten the two mounting screws (DD).
ƑInstall the two mounting screws (saved from Assembly Step 1
“Preparing for mounting”) into the holes in the canopy (C) and
tighten rmly.
ƑInstall the decorative canopy ring (FF) by aligning the ring’s
slots with the screws in the canopy (C). Rotate the ring
clockwise to lock in place.
8
WARNING: When using the standard ball/downrod mounting, the
tab in the ring at the bottom of the mounting bracket must rest in
the groove of the hanger ball. Failure to properly seat the tab in
the groove could cause damage to the wiring.
WARNING: The locking slots of ceiling canopy are provided only
as an aid to mounting. Do not leave the fan assembly unattended
until all four canopy screws are engaged and rmly tightened.
E
C
DD
FF
A

12

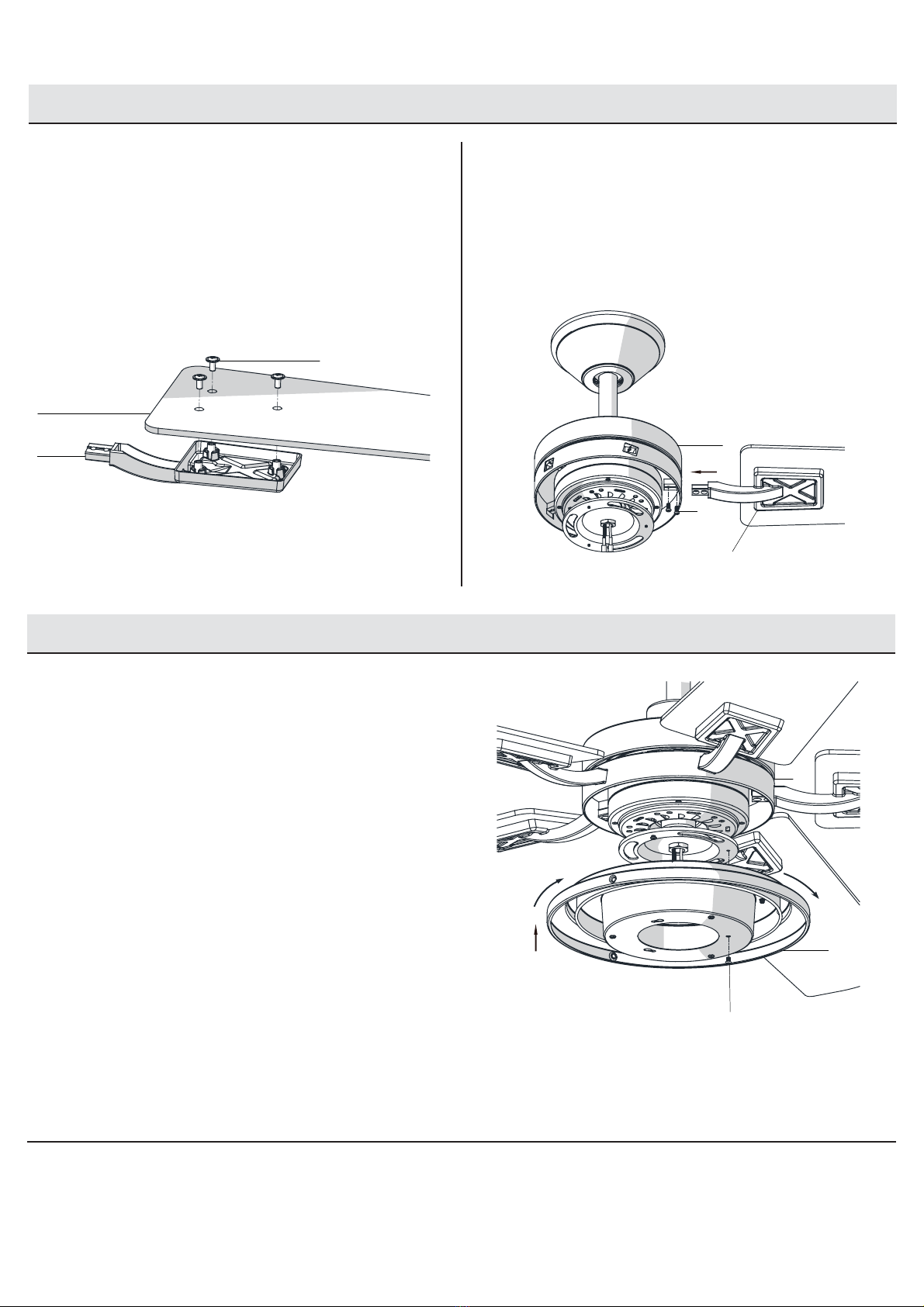

Assembly - Attaching the Blades
Attaching the blades to the blade
brackets
1
ƑAttach a blade (H) to blade bracket (G) by inserting the screws
(AA) into the holes in the blade and through the blade bracket
(G).
ƑTighten each screw securely.
ƑRepeat this step for each blade and blade bracket.
Fastening the blade assemblies to
the motor
2
ƑInsert the blade/ blade bracket assembly through the hole in
the side of center ywheel on the fan-motor assembly (E).
Align the two screw holes in the blade bracket with the screw
holes in the center ywheel and secure with screws (CC).
AA
H
G
E
CC
G

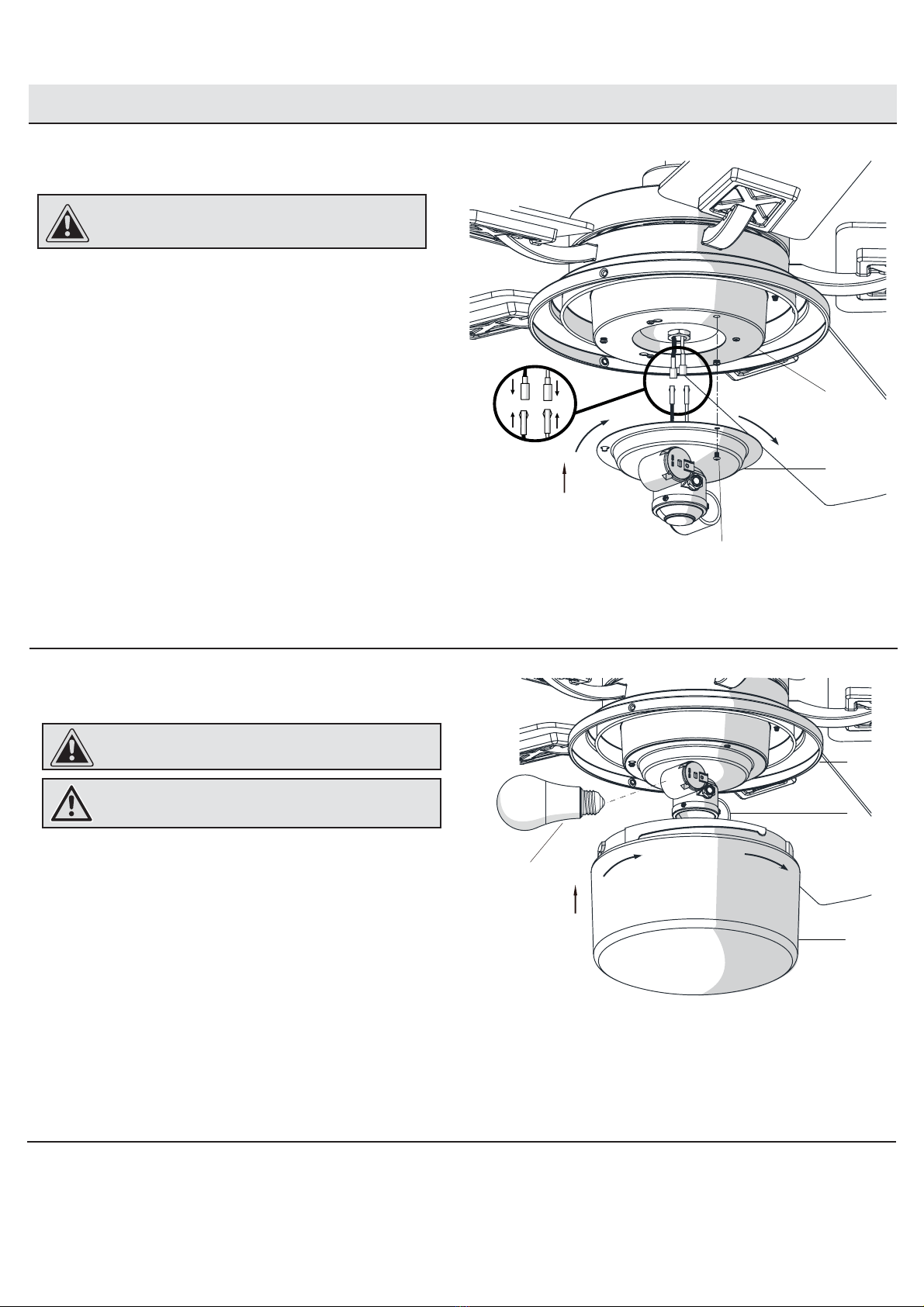

Attaching the light kit pan
1
ƑRemove one screw (NN) from the black bracket below fan motor
assembly (E), loosen but do not remove the other two screws.
ƑPush the light kit pan (F) up to the fan motor assembly (E) so
that the two loosened screw heads t into the keyhole slots.
Turn the light kit pan (F) clockwise.
ƑRe-install the screw (NN) that was removed in step 1.
ƑMake sure all the screws are rmly tightened.
F
E
NN
Assembly - Attaching the Light

13 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Attaching the Light (continued)
Attaching the light kit tter assembly
2
ƑRemove one screw (PP) from the round hole in the light kit
pan, and loosen, but do not remove the other two screws.
ƑConnect the blue wire exiting the bottom of the fan motor
assembly (E) with the black wire from the top of the light
kit tter assembly (I).
ƑConnect the white wire exiting the bottom of the fan motor
assembly (E) with the white wire from the top of the light
kit tter assembly (I).
ƑPush the light kit tter assembly (I) up to the light kit pan
so that the two loosened screw heads t into the keyhole
slots. Turn the light kit tter assembly (I) clockwise to
secure.
ƑRe-install the screw (PP) that was removed in step 1.
ƑMake sure all the screws are rmly tightened.
CAUTION: To reduce the risk of electric shock, disconnect
the electrical supply circuit to the fan before installing the
light xture.
Installing the bulbs and glass bowl
3
Ƒ With power off, install the two LED bulbs (L)(Max.9W,
included) by screwing into the light bulb sockets.
Ƒ Place the bowl (J) into the light kit pan (E), by aligning the
three at areas on the top ange of the bowl (J) with the
three raised dimples in the light kit pan.
Ƒ Turn the bowl clockwise until it stops.
CAUTION: Make sure the power is off before attaching or
removing the glass bowl.
WARNING: Allow the glass bowl to cool completely before
removing.
I
F
PP
J
I
F
L

14

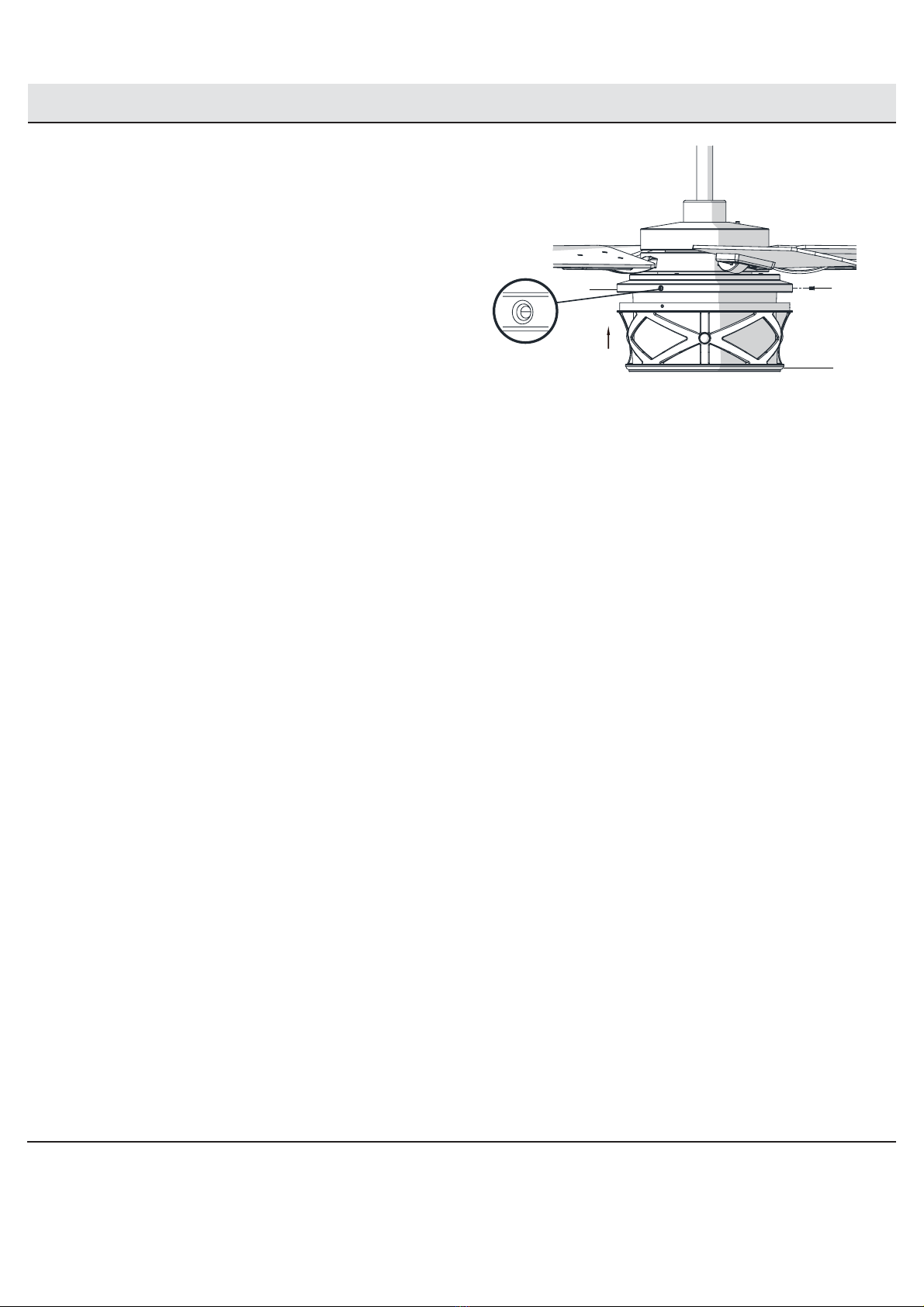

Attaching the light kit decorative cage
4
Assembly - Attaching the Light (continued)
ƑRemove three screws (QQ) on the side of the light kit pan
(F) and save them for later use.
ƑPush up the light kit decorative cage (K) to the light kit
pan. Ensure the holes on the light kit decorative cage are
aligning with the holes on the light kit pan.
ƑRe-install the three screws (QQ) removed in rst step, and
tighten them securely.
K
FQQ

15 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
YY

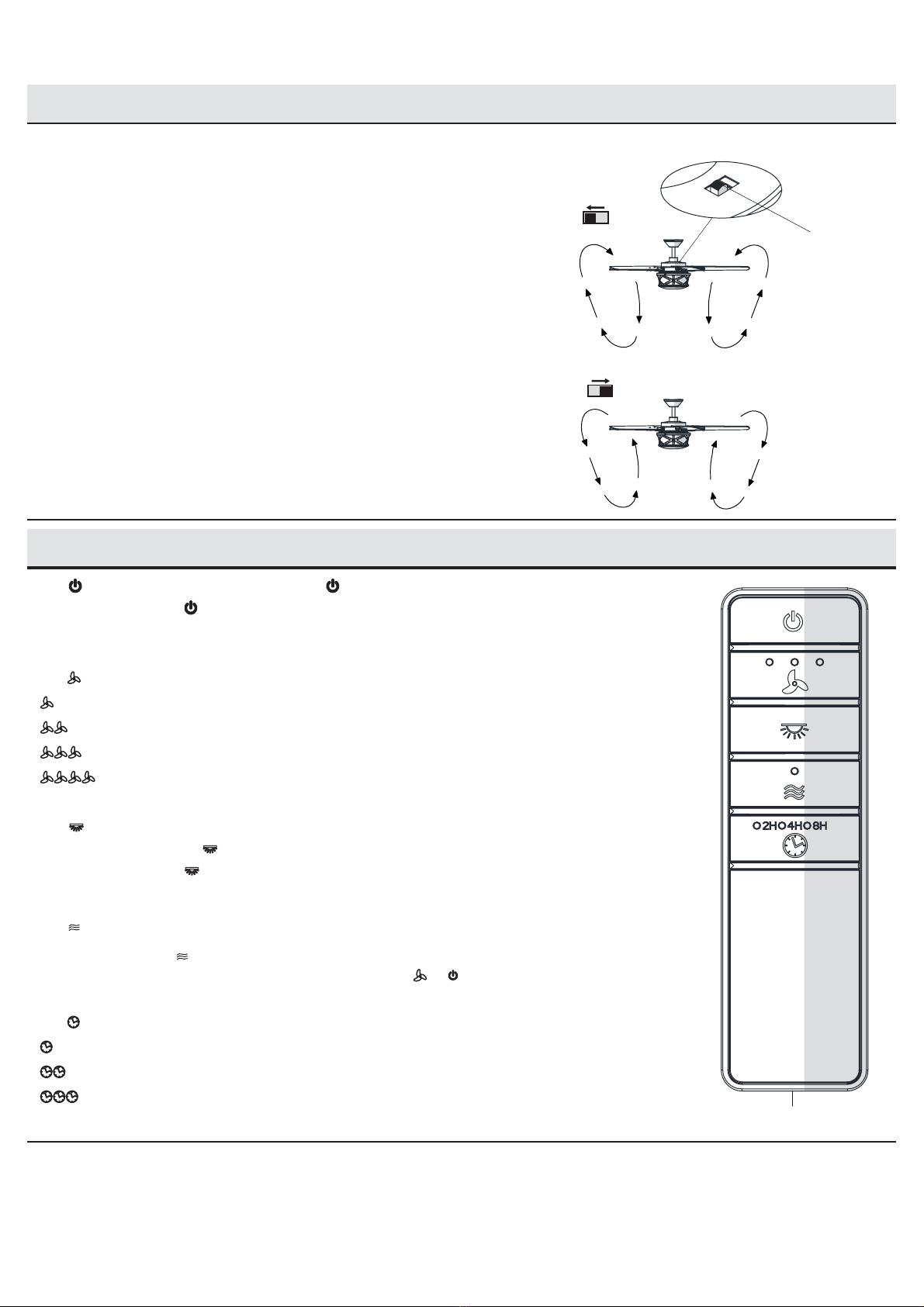

Operating Your Fan and Remote Control
Remote Control - Your fan is equipped with a remote control to operate
the speed and lights of your new ceiling fan.
Speed setting for warm or cool weather depends on factors such as
the room size, ceiling height, number of fans and so on.
The fan is shipped from the factory with the reversing switch (YY)
positioned to circulate air downward. If airow is desired in the
opposite direction, turn your fan off and wait for the blades to stop
turning, then slide the reversing switch (located on the top of the
motor housing) to the opposite position, and turn the fan on again. The
fan blades will turn in the opposite direction and reverse airow.
Warm weather - (Forward) A downward airow creates a cooling effect.
This allows you to set your air conditioner on a higher setting without
affecting your comfort.
Cool weather - (Reverse) An upward airow moves warm air off of the
ceiling. This allows you to set your heating unit on a lower setting
without affecting your comfort.
A. Warm weather
B. Cool weather
1. Power ON/OFF. - Press and release the button to turn the fan on or off.
ƑPress and hold the button for 5 seconds to use the “walk away time delay”; this will active the light
for 30 seconds (the light will be activated at 50% brightness).
2. Fan Speed - LEDs on the fan speed button will illuminate to the corresponding speed.
- Press and release 1 time - turns the fan on high speed.
- Press and release 2 times - turns the fan on medium speed.
- Press and release 3 times - turns the fan on low speed.
- Press and release 4 times - turns the fan off.
3. Light ON/OFF
ƑPress and release the button to turn the light on or off.
ƑPress and hold the button to activate the dimmer function (as long as you have NOT previously set
O/D dip switch in your remote to the “ON” position).
4. Comfort BreezeTM
ƑPress and release button to enable Comfort BreezeTM; this will change your fan speed randomly,
simulating a relaxing breeze. To cancel this feature press or .
5. Timer
- While the fan is on press 1 time - turns on a 2 hour run timer.
- While the fan is on press 2 times - turns on a 4 hour run timer.
- While the fan is on press 3 times - turns on an 8 hour run timer.
Operating Your Fan and Remote Control
N

16
Troubleshooting
Problem Solution
The fan will not start. ƑCheck the main and branch circuit fuses or breakers.
ƑCheck to make sure the wall switch is in the on position if applicable.
ƑCheck the line wire connections to the fan and switch wire connections in the switch housing.
ƑCheck the battery in the transmitter.
ƑEnsure you are in the normal range of 10-20 feet.
ƑEnsure the dip switch settings are the same on the transmitter and receiver.
ƑRemember to turn off the power supply before checking the dip switches settings.
The fan is noisy. ƑEnsure all motor housing screws are snug.
ƑEnsure the screws that attach the fan blade bracket to the motor hub are tight.
ƑEnsure the wire nut connections are not rattling against each other or the interior wall of the switch housing.
ƑAllow a 24-hour “breaking in” period. Most noises associated with a new fan disappear during this time.
ƑIf you are using the ceiling fan light kit, ensure the screws securing the glassware are tight. Check that the light
bulbs are also secure.
ƑEnsure the canopy is a short distance from the ceiling. It should not touch the ceiling.
ƑEnsure your outlet box is secure and rubber isolator pads were used between the mounting plate and outlet box.
The fan wobbles. ƑCheck that all blade and blade arm screws are secure.
ƑMost fan wobble problems are caused when blade levels are unequal. Check this level by selecting a point on the
ceiling above the tip of one of the blades. Measure from a point on the center of each blade to the point on the
ceiling. Rotate the fan until the next blade is positioned for measurement. Repeat for each blade. Any measure-
ment deviation should be within 1/8”. Run the fan for ten minutes. If the fan continues to wobble please contact
Customer Service and a balancing kit will be sent to you at no charge.
ƑBecause of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling.
ƑClean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning, as this could damage
the motor, or the wood, or possibly cause an electrical shock. Use only a soft brush or lint-free cloth to avoid scratching the nish. The
plating is sealed with a lacquer to minimize discoloration or tarnishing.
ƑYou can apply a light coat of furniture polish to the wood for additional protection and enhanced beauty. Cover small scratches with a
light application of shoe polish.
ƑYou do not need to oil your fan. The motor has permanently-lubricated sealed ball bearings.
WARNING: Make sure the power is off before cleaning
your fan.
Care and Cleaning

Questions, problems, missing parts? Before returning to the store,
call Home Depot Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Retain this manual for future use.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

GUÍA DE USO Y MANTENIMIENTO
¿Preguntas, problemas o piezas perdidas? Antes de devolver a la tienda,
llama al Servicio al Cliente de Home Decorators Collection, de lunes a viernes,
entre 8 a.m. y 7 p.m. (Hora Estándar del Este), y los sábados
de 9 a.m. a 6 p.m. (Hora Estándar del Este).
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
GRACIAS POR TU COMPRA
Apreciamos la conanza que has depositado en Home Decorators Collection al comprar este ventilador de techo. Nos esforzamos en crear
continuamente productos de calidad diseñados para mejorar tu hogar. Visítanos por Internet para ver nuestra línea completa de productos disponibles
con vistas a las necesidades de mejoras de tu hogar. ¡Gracias por elegir Home Decorators Collection!
Artículo núm. 1001 xxx xxx
Modelo núm. 51504
Modelo aprobado por UL núm. 52-GLH
VENTILADOR DE TECHO SANDY COVE DE 52 PLG

2
Tabla de contenido .............................................................. 2
Información de seguridad...................................................2
Garantía................................................................................3
Preinstalación .....................................................................3
Instalación............................................................................6
Ensamblaje........................................................................... 7
Funcionamiento.................................................................15
Mantenimiento y limpieza.................................................16
Solución de problemas ..................................................... 16
1. Para disminuir el riesgo de descarga eléctrica, asegúrate de
cortar la electricidad del cortacircuitos o la caja de fusibles
antes de comenzar.
2. Todo el cableado debe cumplir con el Código Nacional de
Electricidad ANSI/NFPA 70 y con los códigos locales de
electricidad. La instalación eléctrica debe ser hecha por un
electricista certicado y calicado.
3. La caja eléctrica y estructura de soporte deben montarse de
forma segura y tener capacidad para sostener de manera
conable un mínimo de 35 lb (15.9 kg). Usa solamente cajas
eléctricas aprobadas por UL marcadas como “apropiada para
sostener ventiladores de 15.9 kg o menos”.
4. El ventilador debe ir montado con separación mínima de 2.1 m
entre el borde trasero de las aspas y el piso.
5. No muevas el interruptor de reversa mientras las aspas
del ventilador estén en movimiento. Tienes que apagar el
ventilador y esperar a que se detengan las aspas antes de
ponerlas a girar en sentido contrario.
6. No coloques objetos en la trayectoria de las aspas.
7. Para evitar lesiones físicas o daños al ventilador y otros
artículos, ten cuidado al limpiarlo o al trabajar cerca de él.
8. Los diagramas eléctricos son sólo para referencia. Los kits
de luces no empaquetados con el ventilador tienen que estar
aprobados por UL y marcados como apropiados para usar con
el modelo de ventilador que estás instalando. Los interruptores
deben estar clasicados para uso general por UL. Consulta las
instrucciones adjuntas a los kits de luces e interruptores para
el ensamblaje adecuado.
9. Después de concluir las conexiones eléctricas, debes voltear
los conductores empalmados hacia arriba y meterlos con
cuidado en la caja eléctrica. Los cables deben estar separados
con el cable a tierra y el conductor a tierra del equipo a un lado
de la caja eléctrica.
10. Todos los tornillos de jación deben ser vericados y ajustados
donde sea necesario antes de la instalación.
ADVERTENCIA: Para reducir el riesgo de lesiones, no
dobles los soportes de las aspas (también llamados
bridas) durante el ensamblaje ni después de la instalación.
No coloques objetos en la trayectoria de las aspas.
ADVERTENCIA: Para disminuir el riesgo de incendio o
descarga eléctrica, no utilices este ventilador con ningún
dispositivo de estado sólido para control de velocidad.
ADVERTENCIA: Para evitar una posible descarga
eléctrica, corta la electricidad en la caja principal de
fusibles antes de instalar el cableado. Si crees que no
tienes suciente experiencia o conocimientos sobre
cableado eléctrico, contrata a un electricista con licencia.
ADVERTENCIA: Los diagramas eléctricos son sólo para
referencia. Cualquier juego de luces opcional deberá
estar aprobado por UL y marcado como adecuado para
usar con este ventilador.
ADVERTENCIA: Para disminuir el riesgo de incendio o
descarga eléctrica, este ventilador sólo debe usarse con
el control de velocidad (núm. de pieza MR140A) fabricado
por Satellite Electric Co., Ltd.
Información de seguridad
Tabla de contenido
PRECAUCIÓN:Parareducirelriesgodelesionespersonales,
usa solamente los tornillos incluidos con la caja eléctrica.
LEE Y GUARDA ESTAS INSTRUCCIONES.
PRECAUCIÓN: Los cambios o modicaciones sin previa
aprobación expresa de la parte responsable de su
cumplimiento podrían anular el derecho del usuario a
operar el equipo.
PRECAUCIÓN: NO usar este ventilador con control de
pared o interruptor regulador de intensidad. Usar un
interruptor o control de pared con regulador de intensidad
dañará este ventilador.
ADVERTENCIA: A fin de reducir el riesgo de descargas
eléctricas,esteventiladordebeinstalarseconuninterruptor
de aislamiento para montaje en pared.

3HOMEDEPOT.COM/HOMEDECORATORS
Para más asistencia, llama al 1-800-986-3460.
Pre-instalación
Garantía
El proveedor garantiza de por vida, a partir de la fecha de adquisición por el comprador original, que el motor del ventilador no presenta defectos de
fabricación ni de materiales al momento del envío desde la fábrica. El proveedor también garantiza, por un período de dos años a partir de la fecha de
adquisición por el comprador original, que todas las demás piezas del ventilador, sin incluir aspas de vidrio o acrílico, no presentarán ningún defecto de
fabricación ni de material al momento del envío desde la fábrica. Acordamos reparar tales defectos sin cargo alguno o, a nuestra discreción, reemplazar
el producto, si es devuelto, por un modelo de calidad igual o superior. Para obtener servicio de garantía debe presentarse una copia del recibo como
comprobante de compra. Todos los costos de retiro y reinstalación del producto correrán por tu cuenta. Los daños a cualquiera de las piezas como
resultado de accidentes, uso inadecuado, instalación inadecuada o instalación de cualquier accesorio, no están cubiertos por esta garantía. Debido a
que las condiciones climáticas pueden variar, esta garantía no cubre ningún cambio en el acabado en bronce, incluyendo óxido, perforación, corrosión,
manchas y descascaramiento. Este tipo de acabados en latón de brinda la vida útil más larga al dar protección contra condiciones climáticas cambiantes.
Cierta “oscilación” es normal y no debe considerase un defecto. Cualquier servicio prestado por personal no autorizado invalidará la garantía. No hay
ninguna otra garantía expresa. Por este medio, Home Decorators Collection queda exento de todas y cada una de las garantías, incluyendo, pero sin
limitarse a, aquellas de comercialización e idoneidad para determinado propósito, en el alcance permitido por la ley. La duración de cualquier garantía
implícita que no pueda eximirse está limitada al período especicado en la garantía explícita. Algunos estados no permiten limitar la duración de la
garantía; por consiguiente, la limitación anterior pudiera no aplicarse a su caso. El minorista no será responsable por daños directos, indirectos o
especiales que resulten o deriven del uso o funcionamiento del producto, excepto en los casos estipulados por la ley. Algunos estados no permiten excluir
ni limitar daños directos o indirectos, así que la limitación o exclusión anterior pudiera no aplicarse a su caso. Esta garantía otorga derechos legales
especícos y es posible que usted tenga también otros derechos, que varían de un estado a otro. Esta garantía sustituye todas las garantías anteriores.
Los costos de envío de cualquier devolución de productos como parte de una reclamación de garantía corren por cuenta del cliente.
Comuníquese con el equipo de servicio al cliente por el teléfono 1-800-986-3460 o visite www.HomeDepot.com/homedecorators.
ESPECIFICACIONES
HERRAMIENTAS NECESARIAS
NOTA:Estas medidas son aproximadas. No incluyen ni
el amperaje ni el vataje consumido por el kit de luces.
Destornillador
Phillips
Destornillador
plano
Llave
ajustable
Cinta de
electricista Cortacables
Escalera de tijera
Tamaño Velocidad Voltios Amperes Watts RPM CFM Peso
neto
Peso
bruto
Pies
cúbicos
1.3 m
Baja
Media
Alta
120
x.xx
x.xx
x.xx
xx.x
xx.x
xx.x
xx
xxx
xxx
xxxx
xxxx
xxxx
xx.x lb
(x.x kg)
xx.xx lb
(xx.x kg) x.xx pies³
