USE AND CARE GUIDE
MERRYN POINTE 52 IN. CEILING FAN
Item #752 973
#753 638
Model #
YG583-BN
# YG583-WH
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
THANK YOU

Operation .....................................................................

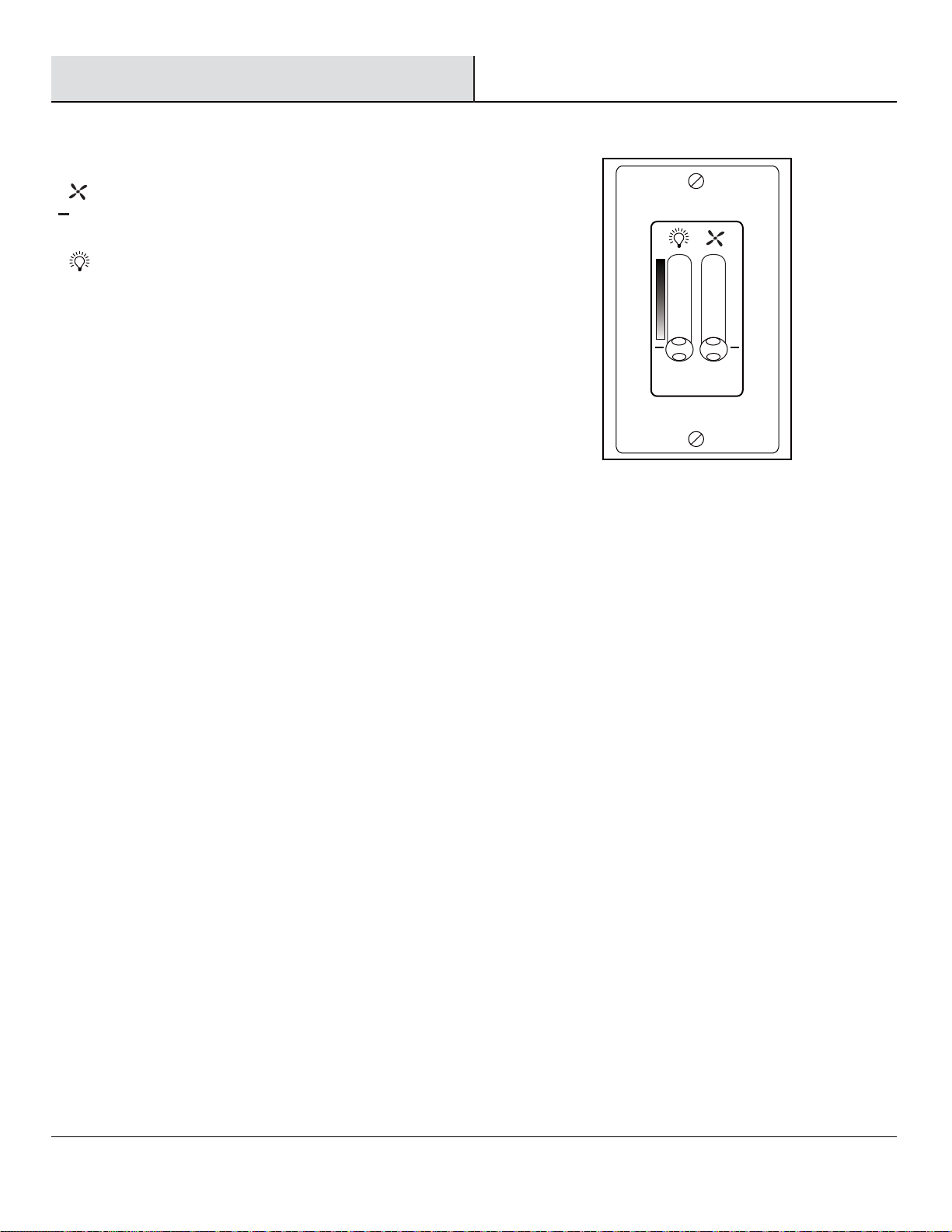

Wall Control Operating Instructions .......................................

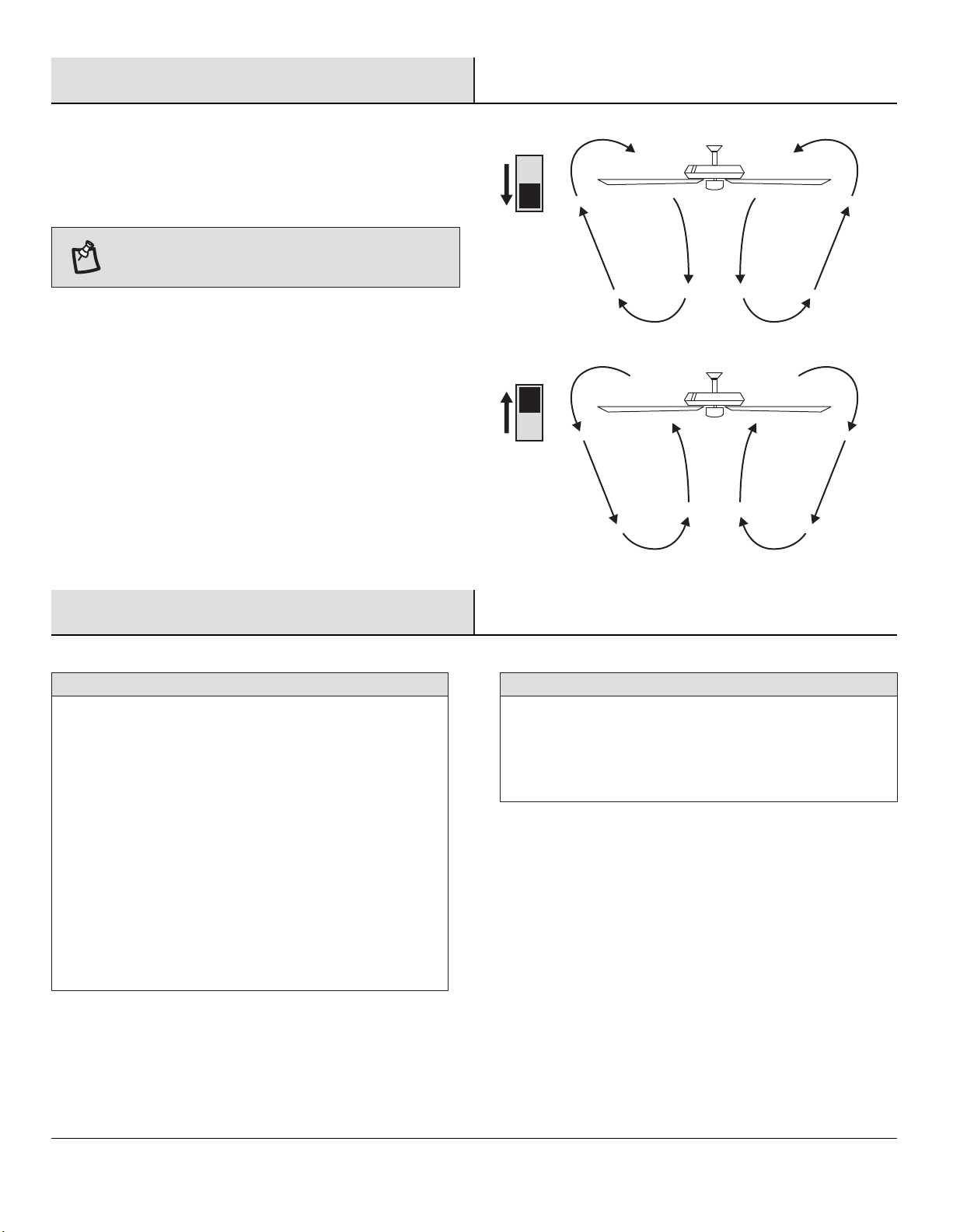

Reverse Switch Operating Instructions .................................
Care and Cleaning ......................................................
Troubleshooting ..........................................................
Service Parts ...............................................................
15
15
16
16
17
18
Table of Contents
2
Table of Contents ..........................................................
Safety Information .........................................................
Warranty .........................................................................
Pre-installation ..............................................................
Specifications ..........................................................................
Tools Required .........................................................................
Hardware Included ..................................................................
Package Contents ....................................................................
Installation .....................................................................
Assembly ........................................................................
Hanging the Fan .......................................................................
Attaching the Fan Blades .......................................................
Installing the Light Kit ............................................................
2
3
4
4
4
4
5
6
7
8
9
13
14

Safety Information
WARNING: To reduce the risk of electrical shock or fire, do
not use this fan with any solid-state fan speed control device.
It will permanently damage the electronic circuitry.
WARNING: To reduce the risk of personal injury, do not
bend the blade arms (also referred to as flanges), when
installing the brackets, balancing the blades or cleaning the
fan.
WARNING: Do not insert foreign objects between rotating
fan blades.
WARNING: To reduce the risk of fire, electric shock or
personal injury, mount the fan to the outlet box marked
acceptable for fan support with the screws provided with the
outlet box.
CAUTION: To reduce the risk of personal injury, use only
the screws provided with the outlet box.
3HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for
help.
1. To reduce the risk of electric shock, ensure electricity has
been turned off at the circuit breaker or fuse box before
beginning.
2. All wiring must be in accordance with the National Electrical
Code “ANSI/NFPA 70-1999” and local electrical codes.
Electrical installation should be performed by a qualified
licensed electrician.
3. The outlet box and support structure must be securely
mounted and capable of reliably supporting a minimum of 35
lbs (15.9 kg) or less. Use only UL-listed outlet boxes marked
“FOR FAN SUPPORT.”
4. The fan must be mounted with a minimum of 10 ft. (3.05m)
clearance from the trailing edge of the blades to the floor.
5. Avoid placing objects in the path of the blades.
6. To avoid personal injury or damage to the fan and other
items, be cautious when working around or cleaning the fan.
7. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
8. After making electrical connections, spliced conductors
should be turned upward and pushed carefully up into the
outlet box. The wires should be spread apart with the
grounded conductor and the equipment-grounding conductor
on one side of the outlet box and ungrounded conductor on
the other side of the outlet box.
9. All setscrews must be checked and retightened where
necessary before installation.
10. This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
Warning: Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void
the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications.

Warranty
4
We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period
of lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glass or acrylic
blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the
date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or
superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All
costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper installa-
tion or by affixing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover
any changes in brass finish, including rusting, pitting, corroding, tarnishing or peeling. Brass finishes of this type give their longest useful
life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect.
Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby disclaim
any and all warranties, including but not limited to those of merchantability and fitness for a particular purpose to the extent permitted by
law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specified in the express warranty.
Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall
not be liable for incidental, consequential, or special damages arising out of or in connection with product use or performance except as
may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the above
exclusion or limitation may not apply to you. This warranty gives specific legal rights, and you may also have other rights which vary from
state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty
must be paid by the customer.
Contact the Customer Service Team at 1-800-986-3460 or visit www.HOMEDEPOT.COM/HOMEDECORATORS

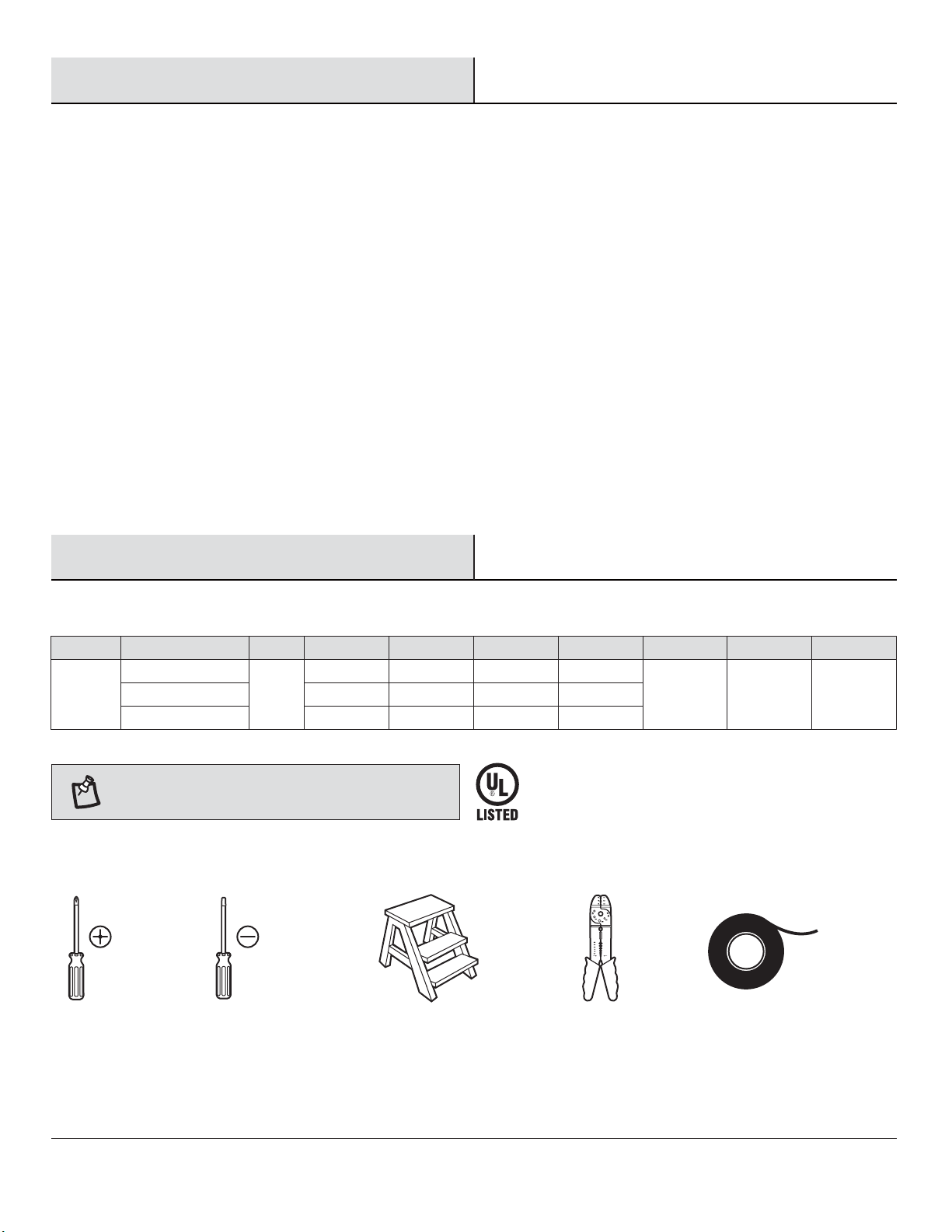

SPECIFICATIONS
SPECIFICATIONS
TOOLS REQUIRED
TOOLS REQUIRED
Phillips
screwdriver
Electrical
tape
Wire
stripper
Flat blade
screwdriver
Step
ladder
Pre-InstallationPre-Installation
NOTE: These are approximate measures. They do not
include amps and wattage used by the light kit.
8.8 kg
(19.36 lbs.)
10.09 kg
(22.2 lbs.) 1.513 cu. ft.
52 in.
Low (Speed 4)
Medium (Speed 3)
High (Speed 1)
120
Fan size
Fan size
Watts
Watts
RPM
RPM
CFM
CFM
Speed
Speed
Volts
Volts
Amps
Amps
N.W.
N.W.
G.W.
G.W.
C.F.
C.F.
0.17
0.24
0.35
9.73
20
42.31
112
185
281
2326
3752
5956

Pre-Installation (continued)
HARDWARE INCLUDED
HARDWARE INCLUDED
NOTE: Hardware shown to actual size unless noted
otherwise in the table below.
AA
BB
CC
DD
EE
FF
GG
HH
II
JJ
KK
LL
MM
NN
OO
PP
Plastic wire nut
Canopy mounting screw with lock washer (preassembled)
Blade arm screw and lock washer (not to scale)
Clevis pin (preassembled)
Cotter pin (preassembled)
Collar setscrew (preassembled)
Collar mounting screw with lock washer (preassembled)
Light kit mounting plate screw (preassembled)
Light kit mounting screw (preassembled)
Wall plate screw (not to scale)
Wall control screw (not to scale)
Plastic wire nut (not to scale)
Coupling cover screw (preassembled)
Hex wrench (not to scale)
Cross pin (preassembled)
Setscrew (preassembled)
Part
Part
Description
Description
4
4
7
1
1
2
6
3
3
2
2
4
1
1
1
1
Quantity
Quantity
5HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
MM
NN
OO
PP
LL
FF
GG
HH
II
JJ
KK
AA
BB
CC
DD
EE

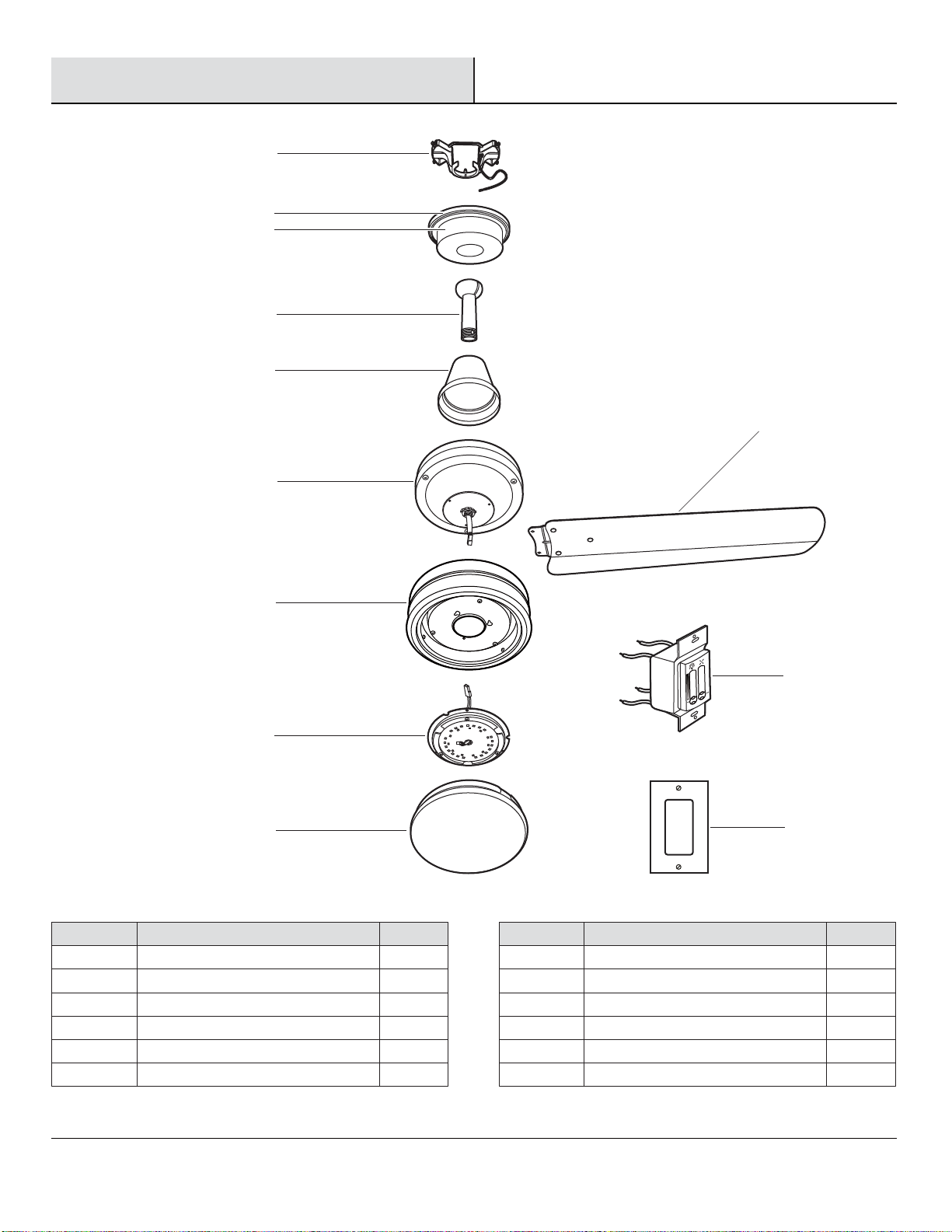

PACKAGE CONTENTS
PACKAGE CONTENTS
Pre-Installation (continued)
6
Part
Part
G
H
I
J
K
L
Description
Description
Blade
Light kit mounting plate
24 watt LED Light kit
Glass shade
Wall switch
Wall plate
Quantity
Quantity
3
1
1
1
1
1
Part
Part
A
B
C
D
E
F
Quantity
Quantity
1
1
1
1
1
1
Description
Description
Mounting bracket (preassembled)
Canopy ring (preassembled)
Canopy
Hanger ball/downrod assembly
Coupling cover
Fan motor assembly
G
J
F
H
I
L
K
E
A
D
B
C
1
2
3
4

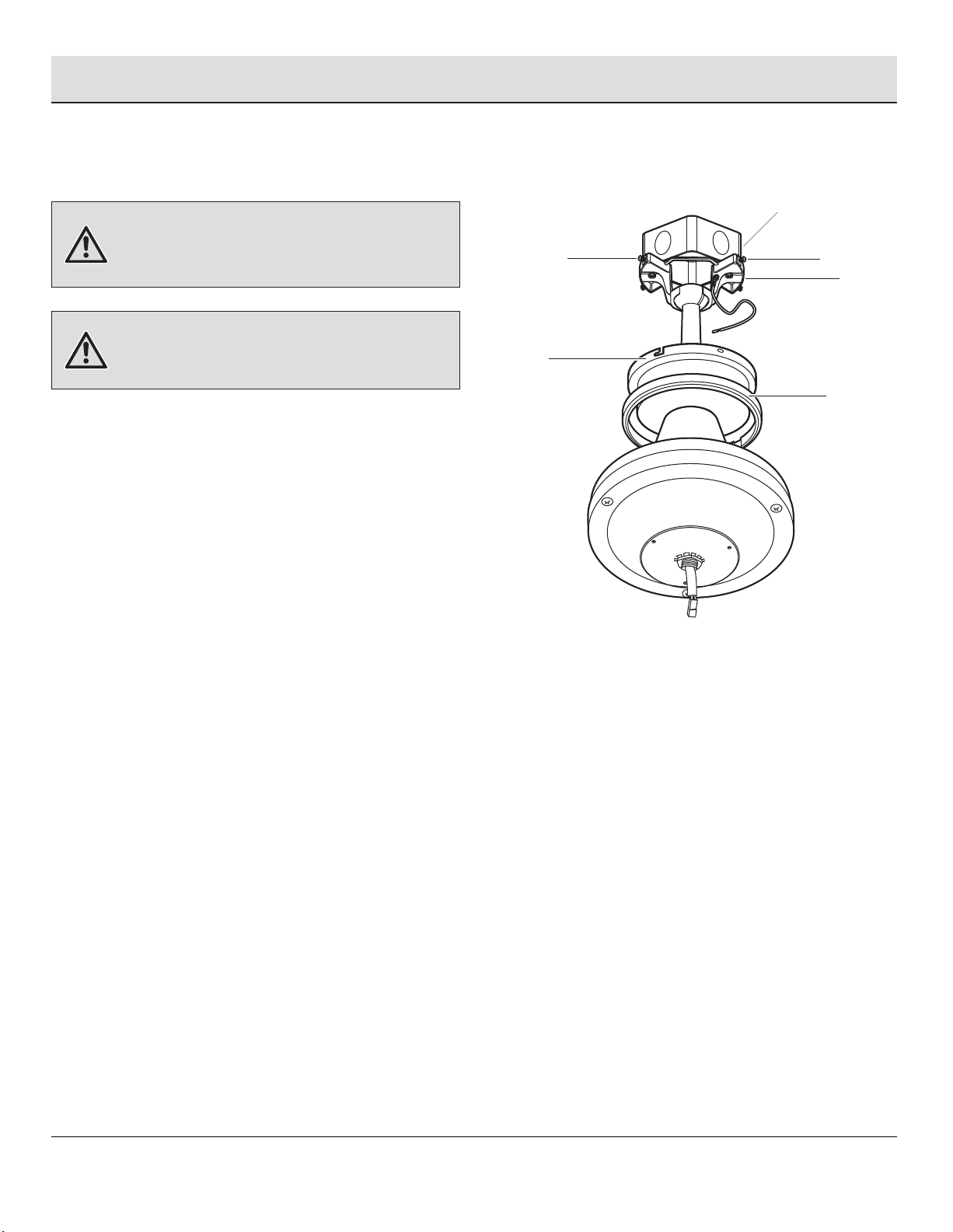

To hang your fan where there is an existing fixture but no ceiling
joist, you may need an installation hanger bar (RR) (not included)
as shown above.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□Secure the outlet box (QQ) (not included) directly to the
building structure. Use appropriate fasteners and materials
(not included). The outlet box and its bracing must be able
to fully support the weight of the moving fan (at least 35
lbs.). Do not use a plastic outlet box.
The illustrations below show three different ways to mount the
outlet box (QQ) (not included).
QQ
QQ
RR
QQ
QQ
A
Installation
MOUNTING OPTIONS
MOUNTING OPTIONS
WARNING: To reduce the risk of fire, electric shock, or
personal injury, mount the fan to an outlet box marked
acceptable for fan support using the screws provided with the
outlet box. An outlet box commonly used for the support of
lighting fixtures may not be acceptable for fan support and
may need to be replaced. If in doubt, consult a qualified
electrician.
NOTE: You may need a longer downrod to maintain proper
blade clearance when installing on a steep, sloped ceiling.
The maximum angle allowable is 18° away from horizontal. If
the canopy (C) touches the hanger ball/downrod assembly
(D), turn the canopy (C) 180° before attaching the canopy (C)
to the mounting bracket (A).
7HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

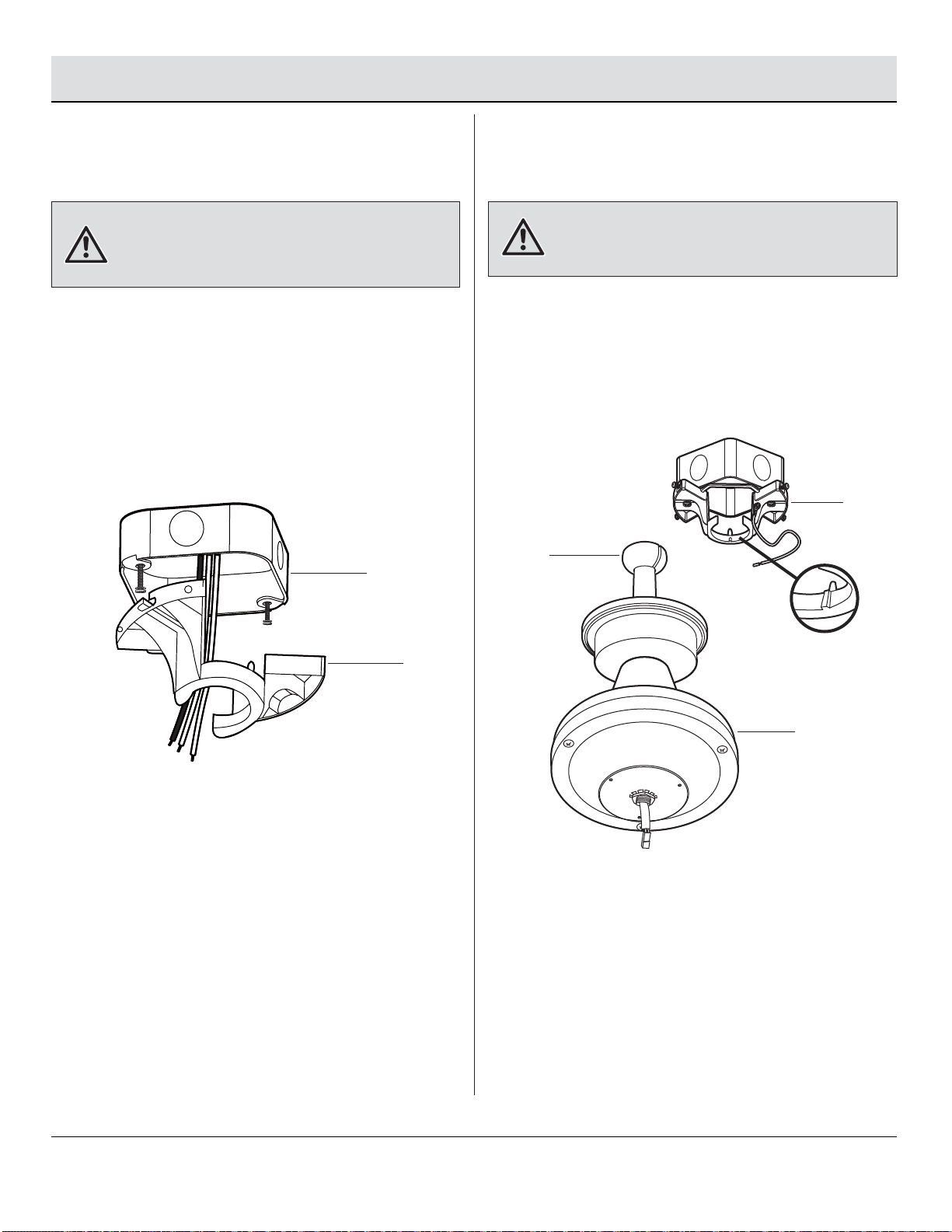

Assembly
8
1Preparing the canopy 2Preparing the motor
3Assembling the fan
C
B
MM NN
E
F
DD FF FF
EE
EE
DD
FF
FF
A
BB
BB
C
B
□Remove the canopy ring (B) from the canopy (C).
□Remove the two non-slotted canopy mounting screws
(BB) from the canopy (C), and loosen the slotted
canopy mounting screws (BB) on the canopy (C).
□Remove the canopy (C) from the mounting bracket (A)
by turning the canopy (C) counterclockwise.
PP
D
OO
SS
TT
SS
UU
PP
OO
WARNING: Failure to properly install the cotter pin (EE)
could result in the fan loosening and possibly falling.
NOTE: If a longer downrod (not included) is needed, take
out the screw located in the hanger ball (SS), lower the
hanger ball (SS) and remove the pin (OO). Remove all three
pieces from the downrod and assemble them onto the new
longer downrod before proceeding to the downrod installa-
tion.
□Remove the cotter pin (EE) and clevis pin (DD), and
loosen the two collar setscrews (FF) from the motor
collar.
□Take out the setscrew (PP) located in the hanger ball
(SS), lower the hanger ball (SS) and remove the cross
pin (OO). Remove the hanger ball (SS) from the
hanger ball/downrod assembly (D).
□Remove the ground lead (TT) from the downrod
assembly (D).
TT
□Carefully feed the motor wires up through the
downrod (UU). Thread the downrod (UU) into the
collar.
□Align the holes and replace clevis pin (DD) and cotter
pin (EE). Tighten the two collar setscrews (FF).
□Slip the coupling cover (E), canopy ring (B), and
canopy (C) onto the downrod (UU). Tighten the
coupling cover screw (MM) by using the hex wrench
(NN) provided.
□Carefully reinstall the hanger ball (SS) onto the
downrod (UU) and reinstall the ground lead (TT) onto
the downrod (UU). Be sure that the cross pin (OO) is in
the correct position, the setscrew (PP) is tightened
and wires are not twisted.

4Installing the mounting bracket
to the electrical box
Hanging the fan to the mounting
bracket
□Carefully lift the fan motor assembly (F) up to the
mounting bracket (A) and seat the hanger
ball/downrod assembly (D) in the mounting bracket
(A) socket. Make sure the tab on the mounting
bracket (A) socket is properly seated in the groove in
the hanger ball/downrod assembly (D). This will help
to balance the ceiling fan.
5
Assembly — Hanging the Fan
WARNING: To reduce the risk of fire, electric shock or
other personal injury, mount the fan only to an outlet box or
supporting system marked acceptable for fan support and
use the mounting screws provided with the outlet box.
WARNING: The tab in the ring must rest in the groove of
the hanger ball/downrod assembly (D). Failure to properly
seat the tab in the groove could cause damage to the wiring.
D
F
A
QQ
□Pass the 120-volt supply wires through the center
hole in the mounting bracket (A).
□Attach the mounting bracket (A) on the outlet box
(QQ) by sliding the mounting bracket (A) over the
screws provided with the outlet box (QQ). Note that
the flat side of the mounting bracket (A) is toward the
outlet box (QQ).
□Securely tighten the two mounting screws.
A
9HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

6Making the electrical connections
Assembly — Hanging the Fan (continued)
10
If you feel you do not have enough electrical wiring knowledge or experience, have your fan installed by a licensed electrician.
□Disconnect the power and remove the existing wall plate and switch from the wall outlet box.
□Set the knob on the wall switch (K) to the” “position.
□Make wire connections as follows using the wire nuts (AA).
a. Connecting the wires from the fan to the wires from the ceiling outlet box.
1. Connect the red wire form the ceiling outlet box to the blue wire from the ceiling fan.
2. Connect the black wire from the ceiling outlet box toe the black wire form the ceiling fan.
3. Connect the white wire from the ceiling outlet box to the white wire from the ceiling fan.
4. Connect the green wires from the bracket and down rod to the ground conductor wire on the ceiling box.
WARNING: To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring.
NOTE: Installation of this fan requires that a three-conductor cable with ground wire be run between ceiling and wall outlet box (VV).
QQ
Blue
Red
Green
White
White
Ground
conductor
Black
Black
K
VV
Line Voltage
(Black wire from main fuse box)
Ground
Black
Red
Black
Black/white
Yellow/green
Blue
White
(Neutral)
b. Connecting the wires from the switch to the wires from the wall outlet box.
□Make wire connections as follows using the wire nuts (LL).
1. Connect the blue wire from the switch to the red wire from the wall outlet box.
2. Connect the black wire form the switch to the black wire form the wall outlet box that feeds up to the fan.
3. Connect the black / white striped wire from the switch to the black LINE VOLTAGE wire from the outlet box that
feeds back to the main fuse box.
4. Connect the yellow / green striped wire form the switch to the ground terminal on the wall outlet box.
WARNING: Incorrectly connecting the black wires will cause the fan to not work and may damage the switch.
1
2
3
4

7Installing the wall switch
□Carefully tuck the wire connections inside the
junction box. Secure the wall switch (K) with the two
wall switch screws (KK) provided.
□Attach the wall plate (L) over the wall switch (K) and
secure with the two wall plate screws (JJ) provided.
Assembly — Hanging the Fan (continued)
WARNING: Hook up in "series only". Do not connect the
hot and neutral wires of the electric circuit to the wall switch
- damage to the switch and possible fire could occur.
WARNING: Remember to shut the power off at the circuit
breaker or fuse box.
K
KK
JJ
VV
L
1
2
3
4
11 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

Assembly — Hanging the Fan (continued)
8Installing the canopy
BB
QQ
A
BB
WARNING: The locking slots of the canopy (C) are provided
only as an aid to mounting. Do not leave the fan assembly
unattended until all four canopy mounting screws (BB) are
engaged and firmly tightened.
WARNING: Make sure the tab on the mounting bracket (A)
properly sits in the groove in the hanger ball/downrod
assembly (D) before attaching the canopy (C) to the mounting
bracket (A) by turning the canopy (C) until it drops into place.
□Slide the canopy (C) up to the ceiling. Make sure you
have placed the wires safely into the outlet box (QQ).
□ Secure the canopy (C) to the mounting bracket (A)
with the four canopy mounting screws with lock
washers (BB) included with your fan.
□ Slide the canopy ring (B) over the canopy (C) and
tighten by turning the ring (B).
12
B
C

Assembly — Attaching the Fan Blades
9
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
13
F
GCC
WARNING: To reduce the risk of personal injury, do not
insert foreign objects between rotating fan blades (G).
□Align the holes from the blade (G) to the holes from
the motor (F), and secure the blade in place with
screws and washers (CC) provided.
□Repeat this process to attach the other two blades
(G).
Fastening the blade
assemblies to the motor

H
F
II
I
J
10 Attaching the light kit mounting
plate to the mounting ring 11
□Remove one of the three light kit mounting plate
screws (HH) from the mounting ring (WW) and loosen
the other two screws. (Do not remove.)
□Place the key holes in the light kit mounting plate (H)
over the two screws (HH) previously loosened from
the mounting ring (WW). Turn the light kit mounting
plate (H) until the light kit mounting plate (H) locks in
place at the narrow section of the key holes.
□Securely tighten the two light kit mounting plate
screws (HH) previously loosened and the one (HH)
previously removed.
Attaching the LED light kit
and glass shade
Assembly — Installing the Light Kit
14
CAUTION: Before starting installation, disconnect the
power by turning off the circuit breaker or removing the fuse
at the fuse box. Turning power off using the fan switch is not
sufficient to prevent electric shock.
□Remove one of the three light kit mounting screws (II)
from the light kit mounting plate (H) and loosen the
other two screws (II). (Do not remove.)
□While holding the 24W LED light kit (I) under the fan
motor assembly (F), make the 2-pin wire
connections:
- White to white
- Black to black
□Place the key holes in the 24W LED light kit (I) over
the two mounting screws (II) previously loosened
from the light kit mounting plate (H). Turn the 24W
LED light kit (I) until the 24W LED light kit (I) locks in
place at the narrow section of the key holes. Secure
by tightening the two light kit mounting screws (II)
previously loosened and the one (II) previously
removed.
□Raise the glass shade (J) up against the light kit
mounting plate (H) and secure it to the fan by turning
the glass shade (J) clockwise until snug. DO NOT
OVERTIGHTEN.
H
WW
HH
F

Operation
WALL SWITCH OPERATING INSTRUCTIONS
WALL SWITCH OPERATING INSTRUCTIONS
Restore power to the ceiling fan, and test for proper operation.
“ ” button: The button is used to set the fan speed as follows:
= Turns the fan off, 1 = High Speed, 2 = Medium High Speed, 3
= Medium Speed, and 4 = Low Speed.
“ ” button: The button will turn the light on and off and will
also control the light brightness. Slide the button to set the desired
light brightness.
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
15
1
2
3
4

Operation (continued)
Care and Cleaning
□Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure.
Because of the fan’s natural movement, some
connections may become loose over time. It is not
necessary to remove the fan from the ceiling.
□Clean your fan periodically. Use only a soft brush or
lint-free cloth to avoid scratching the finish. The plating is
sealed with a lacquer to minimize discoloration or
tarnishing.
□(Optional) Apply a light coat of furniture polish to the wood
blades.
□(Optional) Cover small scratches with a light application of
shoe polish.
Do
Do
□Use water when cleaning. Water could damage the motor,
or the wood, or possibly cause an electrical shock.
□Apply oil to your fan or motor. The motor has
permanently-lubricated sealed ball bearings.
Do not
Do not
16
NOTE: Wait for the fan to stop before reversing the direction
of the blade rotation.
REVERSE SWITCH OPERATING INSTRUCTIONS
REVERSE SWITCH OPERATING INSTRUCTIONS
The reverse switch is located on the surface of the coupling cover.
This switch controls directions: forward (switch down) or reverse
(switch up).
Warm weather - (Counterclockwise Direction) A downward air flow
creates a cooling effect. This allows you to set your air conditioner
on a warmer setting without affecting your comfort.
Cool weather - (Clockwise Direction) An upward air flow moves
warm air off the ceiling. This allows you to set your heating unit on
a cooler setting without affecting your comfort.

□Do not connect the fan with wall mounted variable speed control(s).
□Make sure the frequency switches are set correctly.
The fan wobbles.
The remote control is
not working.
Troubleshooting
Problem
Problem
Solution
Solution
□Check the main and branch circuit fuses or breakers.
□Check the line wire connections to the fan and switch wire connections in the switch housing.
□Check to make sure the frequency switches from the remote control and receiver are set to the same
frequency.
□Make sure all motor housing screws are snug.
□Make sure the screws that attach the fan blade to the motor hub are tight.
□Make sure the wire nut connections are not rattling against each other or the interior wall of the switch
housing.
□Allow a 24-hour "breaking-in" period. Most noises associated with a new fan disappear during this
time.
□If using the ceiling light kit, make sure the glassware is secured tightly.
□Make sure there is a short distance from the ceiling to the canopy. It should not touch the ceiling.
□Make sure your ceiling box is secure and that rubber isolator pads are used between the mounting
bracket and outlet box.
The fan will not start.
The fan sounds noisy.
WARNING: Make sure the power is off at the electrical
panel box before you attempt any repairs. Refer to step 6
“Making the electrical connections” on page 10.
□Verify that all blades and blade bracket screws are secure (most fan wobble problems are caused by
loose parts). Once the fan is properly installed, run the ceiling fan for 10 minutes to let the fan
self-adjust.
If wobble occurs after running the fan for 10 minutes, verify blade level using the following process:
- Select a point on the ceiling above the tip of one of the blades, then select any fan blade and
measure from the center of the selected blade to the point on the ceiling. Rotate the fan until the next
blade is positioned and repeat the measurement using the same point from the ceiling for every blade.
Measurement deviations should be within 1/8 in..
- If all deviations are less than 1/8 in. and the fan continues to wobble, please call Customer Service
(1-800-986-3460) to order a complimentary Blade Balancing Kit.
- If deviation is greater than 1/8 in. , please call Customer Service (1-800-986-3460) to order
complimentary replacements of your brackets.
17 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

Part
Part
CC
DD
EE
FF
GG
HH
II
JJ
KK
LL
MM
NN
OO
PP
Description
Description
Blade arm screw and lock washer
Clevis pin (preassembled)
Cotter pin (preassembled)
Collar setscrew (preassembled)
Collar mounting screw with lock washer (preassembled)
Light kit mounting plate screw (preassembled)
Light kit mounting screw (preassembled)
Wall plate screw
Wall control screw
Plastic wire nut
Coupling cover screw (preassembled)
Hex wrench
Cross pin (preassembled)
Setscrew (preassembled)
Service Parts
H
I
J
K
L
18
Part
Part
A
B
C
D
E
F
G
H
I
J
K
L
AA
BB
Description
Description
Mounting bracket (preassembled)
Canopy ring (preassembled)
Canopy
Hanger ball/downrod assembly
Coupling cover
Fan motor assembly
Blade
Light kit mounting plate
24 watt LED Light kit
Glass shade
Wall switch
Wall plate
Plastic wire nut
Canopy mounting screw with lock washer
(preassembled)
A
D
E
F
G
B
C
AA
BB
CC
DD
EE
FF
GG
HH
II
JJ
KK
LL
MM
NN
OO
PP

Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Retain this manual for future use.
YG583001-A
