Home Decorators Collection GLENVILLE 1004151429 User manual

USE AND CARE GUIDE
QUESTIONS, PROBLEMS, MISSING PARTS? BEFORE RETURNING TO THE STORE,
CALL HOME DECORATORS COLLECTION CUSTOMER SERVICE
8 A.M. - 7 P.M., EST, MONDAY - FRIDAY, 9 A.M. - 6 P.M., EST, SATURDAY
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
GLENVILLE ELECTRIC FIREPLACE
1004151429/308824354/26MMP90480-PG77
We appreciate the trust and condence you have placed in Home Decorators through the purchase of this electric replace. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators!
THANK YOU

2
Maximum Load Warning
MAXIMUM LOAD 155 lb. (70.3 kg)
MAXIMUM LOAD 30 lb. (13.6kg)
MAXIMUM LOAD 35 lb. (16.1 kg)
Table of Contents
CAUTION: This unit is intended for use only with the products and maximum weights indicated. Use with other products or products heavier
than the maximum weights indicated may result in instability causing possible injury.
NOTE: Flat Panel TVs with base support should be placed squarely in the center of the stand with no overhang on any side.
Maximum Load Warning ...........................................2
Safety Information.....................................................3
Warranty ..................................................................... 5
Pre-Assembly............................................................. 6
Hardware Included ................................................... 6
Product Specications....................................................... 6
Tools Required ................................................................... 6
Package Contents.............................................................. 7
Assembly....................................................................8
Operation .................................................................20
FCC/IC Information......................................................... 22
Care & Cleaning....................................................... 22
Troubleshooting.......................................................23
Replacement Parts..................................................25

3
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Please read and understand this entire manual before
attempting
to assemble, operate or install the product. If you
have any question regarding the product, please call customer
service at 1-800-986-3460, 8 a.m.-7 p.m., EST, Monday-Friday,
9 a.m. - 6 p.m., EST, Saturday.
When using electrical appliances, basic precautions should
always be followed to reduce the risk of re, electrical shock,
and injury to persons including the following:
1. Read all instructions before using this appliance.
2. If possible, always unplug this appliance when not in use.
3. Only a qualied service person should repair this product.
4. Do not use outdoors.
5.
Do not cover the cord under the carpeting. Do not cover
with throw rugs, runners or the like. Arrange the cord away
from trafc areas and where it will not be tripped over.
6. To disconnect this appliance, turn the controls to the off
position, and then remove the plug from the outlet.
7. Connect to properly grounded outlets only.
8.
This appliance, when installed, must be electrically
grounded in accordance with local codes or, in the
absence of local codes, with the current CSA C22.1
Canadian Electrical Code. For U.S.A. installations, follow
local codes and the National Electrical Code, ANSI/NFPA
NO.70.
9. This appliance has hot and arcing or sparking parts inside.
Do not use it in areas where gasoline, paint or ammable
liquids are used or stored. This replace should not be
used as a drying rack for clothing. Do not hang Christmas
stockings or other decorations on or near this product.
10. There is a thermostat limiter inside the heater. When inner
temperature overheating or abnormal heating occurs, the
thermostat protective device will cut off the power supply
to avoid damage to the replace or risk of re.
Safety Information
DANGER:
High temperatures may be generated under
certain abnormal conditions. Do not partially or fully cover
or obstruct the front of this heater.
WARNING: If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
WARNING: Under no circumstances should this fireplace be
modified. Parts that must be removed for servicing must be re-
placed prior to operating this replace again.
WARNING: In order to avoid overheating, do not cover the
heater.
WARNING:
Use extreme caution when operating heater
near children and the disabled.
WARNING:
Do not insert or allow foreign objects to enter
any ventilation or exhaust opening as this may cause an electric
shock or re, or damage the appliance.
WARNING: To prevent a possible re, do not block air intakes
or exhaust in any manner. Do not use on soft surfaces, like a bed,
where the opening may become blocked.
WARNING:
This appliance has hot and arcing or sparking parts
inside. Do not use it in areas where gasoline, paint or ammable
liquids are used or stored. This replace should not be used as a
drying rack for clothing. Do not hang Christmas stockings or other
decorations on or near this product.
WARNING:
Use this appliance only as described in the manual.
Any other use not recommended by the manufacturer may cause
re, electric shock or injury to persons.
WARNING: This heater is not intended for use in bathrooms,
laundry areas and similar indoor locations. Never locate this
appliance where it may fall into a bathtub or other water container.
WARNING: This appliance is not a toy. Supervise children
playing near it.
WARNING:
This appliance is hot when in use. To avoid
burns, do not touch hot surfaces with bare skin. If provided,
use handles when moving this appliance. Keep combustible
materials, such as furniture, pillows, bedding, papers, clothes
and curtains at least 3 ft. (0.9 m) from the front of this appliance.
WARNING:
This heater may include a visual alarm to warn
that parts of the heater are getting excessively hot. If the
alarm ashes immediately turn the heater off and inspect for
any objects on or adjacent to the heater that may cause high
temperatures.
DO NOT OPERATE THE HEATER WITH THE ALARM FLASHING!
CAUTION:
Never leave the heater operating unattended.
Extreme caution is necessary if unsupervised children or invalids
are nearby.
CAUTION:
Before assembly, carefully use scissors or a utility
knife to cut and unwrap all parts. Make sure you do not discard
the hardware.

4
Safety Information (continued)
NOTE:
To avoid injury from unexpected starting or electrical
shock, do not plug the power cord into a source of power during
unpacking and assembly. The cord must remain unplugged
whenever you are adjusting/assembling the replace.
If any part is missing or damaged, do not attempt to use or
plug in the power cord until the missing or damaged part is
correctly replaced. To avoid electric shock, use only identical
replacement parts when servicing double-insulated tools.
NOTE:
Use care in assembling your new fireplace. Take your
time and use the hardware provided and a quality Phillips head
screwdriver. Never overtighten bolts.
• Do not sit on any part of the mantel.
• It is recommended to work on a soft surface like a rug or to
lay out a blanket to protect the furniture from getting scratched
during the assembly process
NOTE:
SAVE THESE
INSTRUCTIONS

5
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Warranty
1 Year Limited Warranty: The manufacturer warrants that your new Electric Fireplace is free from manufacturing and material defects for
a period of one year from date of purchase, subject to the following conditions and limitations.
1. Install and operate this appliance in accordance with the installation and operating instructions furnished with the
product at all times. Any unauthorized repair, alteration, willful abuse, accident, or misuse of the product shall nullify
this warranty.
2. This warranty is non-transferable, and is made to the original owner, provided that the purchase was made through
an authorized supplier of the product.
3. The warranty is limited to the repair or replacement of part(s) found to be defective in material or workmanship,
provided that such part(s) have been subjected to normal conditions of use and service, after said defect is conrmed
by the manufacturer’s inspection.
4. The manufacturer may, at its discretion, fully discharge all obligations with respect to this warranty by refunding
the wholesale price of the defective part(s).
5. Any installation, labor, construction, transportation, or other related costs/expenses arising from defective part(s),
repair, replacement, or otherwise of same, will not be covered by this warranty, nor shall the manufacturer assume
responsibility for same.
6. The owner/user assumes all other risks, if any, including the risk of any direct, indirect or consequential loss or
damage arising out of the use, or inability to use the product, except as provided by law.
7. All other warranties – expressed or implied –with respect to the product, its components and accessories, or any
obligations/liabilities on the part of the manufacturer are hereby expressly excluded.
8. The manufacturer neither assumes, nor authorizes any third party to assume on its behalf, any other liabilities with
respect to the sale of the product.
9. The warranties as outlined within this document do not apply to non-accessories used in conjunction with the
installation of this product.
10. This warranty gives you specic legal rights, and you may also have other rights which vary from state to state.
This warranty is void if:
a. The replace is subjected to prolonged periods of dampness or condensation.
b. There is any unauthorized alteration, willful abuse, accident, or misuse of the product.
c. You do not have the original receipt of purchase.

6
HARDWARE INCLUDED
II JJ
KK LL MM OONN PP QQ RR SS TT UU VV WW XX YY
Part Description Part Number Quantity
AA Shelf Pin PH-SPNPCSPLB2 8
BB Cam Lock Screw PH-KDBZNC001 20
CC Cam Lock Connector PH-KDCZNC001 20
DD Screw 3 x 15 mm PH-SCRBLK010 4
EE Door Bumper PH-BMPBLK002 2
FF Wood Dowel PH-DWLNTL001 28
GG Euro Hinge PH-HNG2H35CR95 4
HH Screw 3.5 x 15 mm PH-SCRNKL008 10
II Screw 4 x 50 mm PH-SCRBLK006 8
JJ Bolt 6.3 x 12 mm PH-BLTBLK002 36
KK Plastic Connector Block PH-PCBBLK001 18
LL Plastic Cover PH-KDPGRY001 4
MM Screw 3 x 12 mm PH-SCRBLK007 36
NN Handle With Screws K576 4
OO Tipping Restraint Hardware PH-BKTWHT003 1
PP Bolt 6.3 x 32 mm PH-BLTBLK001 2
QQ Flat Washer PH-WSRBLK002 2
RR Power Port TY111-USB 1
SS Screw 4 x 15 mm PH-SCRBLK009 2
TT Metal Bracket PH-BKTBLK007 2
UU Threaded Insert PH-THRZNC001 4
VV Drawer Slide PH-DSLPCDS3510 4
WW Metal Plate (pre-attached) PH-PLTBLK001 2
XX Plastic Connector Block PLASTIC CONNECTOR BLOCK 9
YY Floor Glide (pre-attached) PH-GLDBRW001 6
NOTE:
Hardware not shown to actual size.
Pre-Assembly
DDCC EE FF GG HH
AA BB
Phillips Screwdriver
PRODUCT SPECIFICATIONS
VOLTAGE 120VAC, 60 Hz
AMPS 12.5 Amps
WATTS 1500 Watts
PLANNING ASSEMBLY
Before beginning assembly of product, make sure all parts are present. Compare parts with Hardware Included and Package Contents lists.
If any part is missing or damaged, do not attempt to assemble, install or operate the product. Contact customer service for replacement
parts. Estimated Assembly Time: 60 Minutes
TOOLS REQUIRED

7
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Part Description Quantity
A Bottom Shelf 1
B Center Shelf 1
C Left Partition 1
D Right Partition 1
E Left Fixed Shelf 1
F Right Fixed Shelf 1
G Top Panel 1
H Left Side Panel 1
I Right Side Panel 1
J Base Back Rail 1
K Base Left Side Rail 1
L Base Right Side Rail 1
M Base Front Rail 1
N Base Front Block 1
O Upper Back Panel 1
P Back Panel 2
Q Drawer 2
R Door 2
S Adjustable Shelf 2
T Fireplace Insert 1
T
PACKAGE CONTENTS
Pre-Assembly (continued)
NOTE: All panels are labeled left
and right as viewed from the front of
unit.
N
M
K
L
J
A
R
R
D
C
HS
S
F
I
B
E
P
O
Q
Q
P
G

8
Assembly
1
3
2
Locate the Center Shelf (B).
Insert Wood Dowels (FF) into the pre-drilled holes in
the Center Shelf (B).
Preparing the center shelf
B
FF
Locate the Left Partition (C) and Right Partition (D).
Insert Cam Lock Screws (BB) into the pre-drilled holes
in the Left Partition (C) and secure using a Phillips
screwdriver. Repeat for the Right Partition (D).
Preparing the center panels
D
DD
EE
C
C
D
BB
Locate the Left Partition (C).
Attach the Door Bumpers (EE) to the Left Partition (C) as
indicated using the provided Screws (DD).
Secure the screws using a Phillips screwdriver.
Repeat on the Right Partition (D).
Attaching the door bumper

9
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly (continued)
4
6
5
Using the Left Partition (C) and the Center Shelf (B),
align the pre-installed wood dowels and cam lock
screws into the holes.
Secure by inserting Cam Lock Connectors (CC) into the
pre-drilled holes as shown.
Use a Phillips screwdriver to tighten all the Cam Lock
Connectors (CC).
Repeat to secure the Right Partition (D).
Preparing the center assembly
D
C
BB
E
F
FF
Insert Wood Dowels (FF) into the pre-drilled holes in
the Left Fixed Shelf (E).
Repeat for the Right Fixed Shelf (F).
Preparing the side panels
Insert Cam Lock Screws (BB) into the pre-drilled
holes in the Left Partition (C) and tighten using a
Phillips screwdriver.
Repeat for the Right Partition (D).
Preparing the side panels
F
B
CC
D
C

10
Assembly (continued)
7
9
8
Locate the Left Side Panel (H) and Right Side Panel (I).
Locate the Euro Hinges (GG) and secure both the upper
and lower hinge as indicated onto the Left Side Panel
(H) using the pre-attached screws.
Repeat for the Right Side Panel (I).
Attaching the door hinges
Insert Cam Lock Screws (BB) into the pre-drilled holes
in the Left Side Panel (H) and tighten using a Phillips
screwdriver.
Repeat for the Right Side Panel (I).
Preparing the side panels
Using the Left Fixed Shelf (E) and the center
assembly, align the pre-installed dowels and
cam lock screws into the holes.
Secure by inserting Cam Lock Connectors (CC) into
the pre-drilled holes as shown.
Use a Phillips screwdriver to tighten all the Cam
Lock Connectors (CC).
Repeat to secure the Right Fixed Shelf (F).
Preparing the center assembly
F
H
GG
I
CC
E
H
I
BB

11
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly (continued)
10
12
11
Insert Wood Dowels (FF) into the bottom edges of the
center assembly as indicated.
Preparing for the bottom assembly
Locate the Bottom Shelf (A).
Align the wood dowels on the bottom of the main
assembly with the pre-drilled holes on the Bottom
Shelf (A). Press the dowels rmly into the holes.
Secure the Bottom Shelf (A) onto the main assembly
with the Screws (II) using a Phillips screwdriver.
Attaching the bottom shelf
Align the cam lock screws on the center assembly
with the pre-drilled holes on the Left Side Panel (H).
Secure the Left Side Panel (H) onto the center
assembly using the Cam Lock Connectors (CC).
Tighten with a Phillips screwdriver.
Repeat for the Right Side Panel (I).
Attaching the side panels
I
CC
FF
H
A
II

12
Assembly (continued)
13
15
14
Align the Base Left Side Rail (K) with the Base Back Rail
(J) and push together.
Secure with the Bolts (JJ) through the plastic connector
blocks using a Phillips screwdriver.
Repeat to attach the Base Right Side Rail (L).
Attaching the base rails
Align the Base Front Rail (M) with the previously
assembled rails.
Secure with Bolts (JJ) using a Phillips screwdriver.
Attaching the front base rail
Locate the Base Rails (J, K, L, M).
Insert Bolts (JJ) through the Plastic Connector
Blocks (KK). Tighten with the Phillips screwdriver.
Repeat until all connector blocks are secured onto
all Base Rails as shown.
Preparing the base rails
M
JJ
L
K
J
L
JJ
K
M
J
KK
JJ

13
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly (continued)
16
18
17
Attach the previously assembled rails to the bottom of
the main assembly by inserting the Bolts (JJ) through
the Plastic Connector Blocks (KK) as indicated.
Tighten using a Phillips screwdriver.
Attaching the base rails
Find the metal plate (WW) on the back of the Top Surround
Rail. Rotate the metal plate to span the joint and secure with a
Screw (MM).
Repeat for both metal plate brackets.
Securing the surround bracket
Insert Bolts (PP) through the Flat Washers (QQ) from
behind the front base rail to secure the
Base Front Block (N).
Tighten using a Phillips screwdriver.
Attaching the base rails
N
PP
QQ
JJ
KK
WW MM

14
Assembly (continued)
19
21
20
Insert Wood Dowels (FF) into the pre-drilled holes along
the top edges of the main assembly as shown.
Preparing the top of the assembly
Place the Top Panel (G) onto a at surface.
Insert the Cam Lock Screws (BB) into the pre-drilled holes in
the bottom of the Top Panel (G).
Tighten the Cam Lock Screws using a Phillips Screwdriver.
Preparing the top panel
Locate the Power Port (RR).
Insert the Power Port (RR) into the cutout in the
center shelf (B), feeding the cord though rst.
Secure the Power Port in place by inserting a Screw
(HH) through the pre-drilled holes on each side of
the Power Port.
Installing the power port
RR
B
HH
FF
G
BB

15
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly (continued)
22
24
23
Push Plastic Covers (LL) into the screw hole openings of
areas that have already been assembled.
Covering the screws
Locate the Upper Back Panel (O) and the Left and
Right Side Panels (P, P).
Insert the Screws (MM) through the pre-drilled
holes in the back panels.
Tighten using a Phillips Screwdriver.
Installing the back panels
Place the Top Panel (G) onto the main assembly by
aligning the previously installed cam lock screws
and wood dowels with the pre-drilled holes.
From underneath, secure the cam lock screws by
inserting Cam Lock Connectors (CC) into the
pre-drilled holes.
Tighten using a Phillips Screwdriver.
Attaching the top panel
G
CC LL
MM
P
P
O

16
Assembly (continued)
25
27
26
When inserting each Drawer (Q), be sure that each hinge
on the main assembly is fully extended. This will ensure
that the drawer slides into place properly.
Assembling the drawers
Locate the Euro Hinges (GG).
Secure the hinges onto the Doors (R) using the
Screws (HH).
Attach both the upper and lower hinges on each
door as indicated by the diagram.
Preparing the doors
Locate the Handle (NN) and use pre-attached screws on
each handle to secure onto each Drawer (Q).
Preparing the drawers
Q
Q
Q
Q
NN
R
R
GG
HH

17
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
AA
S
S
Assembly (continued)
28
30
29
Slide the previously installed Euro Hinges on each door
into the corresponding hinge on the main assembly as
indicated by the diagram. Secure each hinge with the
pre-attached screw.
Attaching the doors
Insert the Shelf Pins (AA) into the pre-drilled holes on
the inside of both the left and right side cabinets.
Slide the Adjustable Shelf (S) into the cabinet
diagonally and situate so that it rests on top of the
Shelf Pins.
Attaching the adjustable shelves
Locate the Handles (NN) and use pre-attached
screws to secure onto each Door (R).
Attaching the door handles
R
R
R
R
NN

18
T
TT
SS
Assembly (continued)
31
32
Align the Metal Brackets (TT) behind the replace
Insert (T) and above the pre-drilled holes.
Secure with the mounting Screws (SS) on both sides.
Securing the replace insert
Lift the Fireplace Insert (T) carefully into the back of
the unit and center in the replace insert opening.
Do not drag the replace insert across the Base as it
may scratch your unit.
Installing the replace insert

19

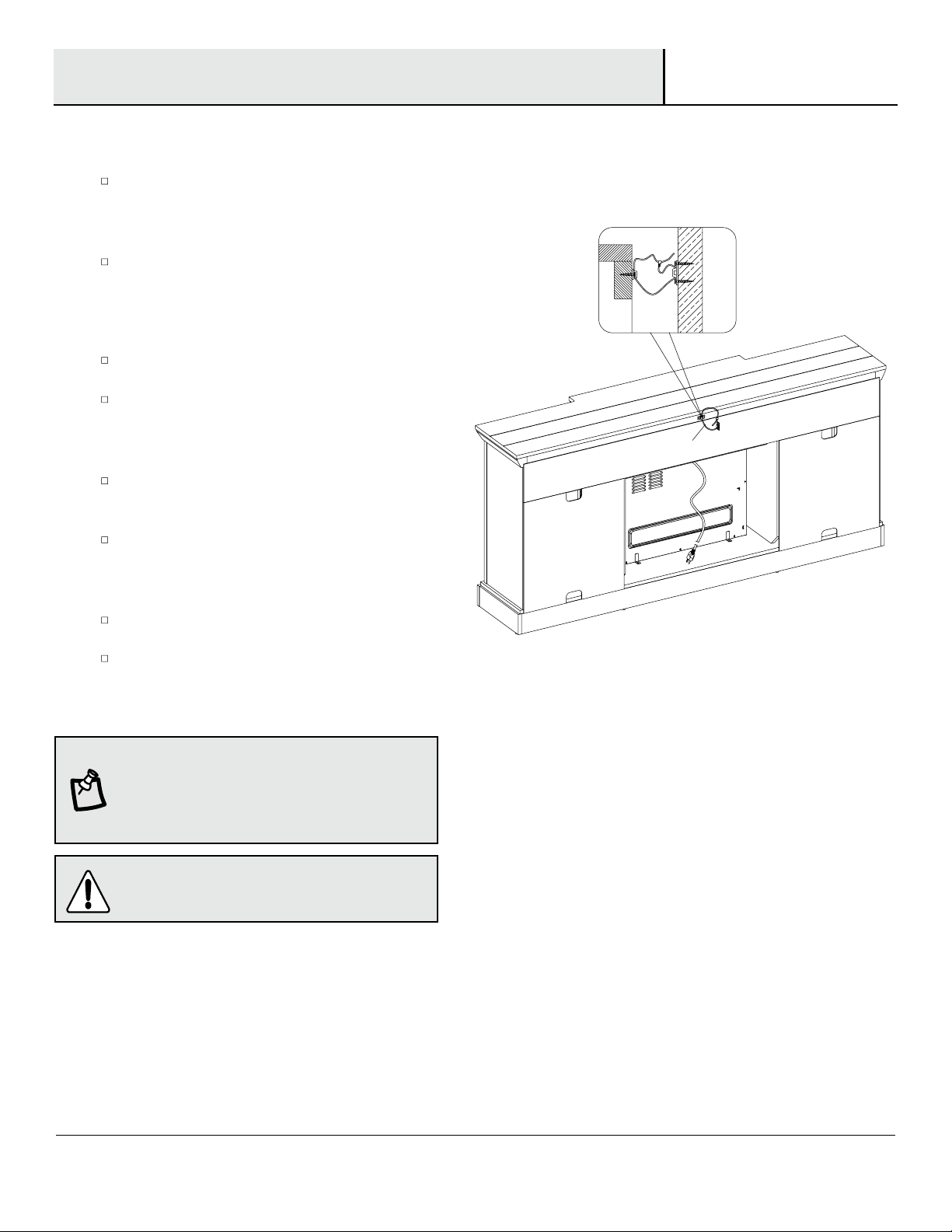

33
OO
G
When the Tipping Restraint Hardware (OO) is properly
installed, it can provide protection against unexpected
tipping of the Unit due to small tremors, bumps
or climbing.
Your Unit comes with two Tipping Restraint Hardware
(OO). Each Tipping Restraint Hardware (OO) includes
one Unit Anchor, one Wall Anchor, one Anchor Tether,
and four Anchor Screws. Use these to complete the
following steps for a proper installation.
Locate a secure wall stud behind the unit closest to
left side.
Align the Unit Anchor with a wall stud and attach with
two Anchor Screws using a Philips Head Screwdriver.
The Anchor Screws must pass through the Top Panel
(G) for proper installation.
Align the Wall Anchor in the center of the wall stud, at
level with the Unit Anchor, and attach with two Anchor
Screws using a Philips Head Screwdriver.
On the Anchor Tether, detach the cable from the
connector and loop the loose cable through the eyelets
on the Wall Anchor and Unit Anchor. Reattach the loose
cable to the connector, but do not tighten.
Locate a secure wall stud behind the unit closest to the
right side, and repeat the steps above.
Tighten both Anchor Tethers by pulling the cable
the through connector.
Installing the tipping restraint hardware
WARNING:
Installing the Tipping Restraint
Hardware will help prevent accidents or damage to the
unit.
NOTE:
Installation of the Tipping Restraint Hardware
(OO) will provide a small space between the wall and the
unit. This will allow you to run power cords and connector
cables to your television or other devices placed on top of
the Unit.
Assembly (continued)
Wall

20
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Operation
Operation
3 4
Adjusting the heater
Press the Heater button to set the thermostat. The replace
contains three infrared quartz heating elements.
The thermostat setting range is 62°F - 82°F or 17°C - 27°C
or always ON.
The thermostat is adjustable by 2°F or 1°C increments.
The up and down buttons“ ”on the remote will
increase / decrease temperature setting.
NOTE: To change between °F and °C press and hold the
HEATER button on the control panel for 3 seconds.
Push the Power button to supply power to all
functions of the replace and put the insert in a
standby mode.
Push the Power button again to turn off all functions.
1 2
Powering the replace
NOTE: Holding the Power button on the control panel for
10 seconds will disable the heater function.
NOTE: All previous settings are held in memory, so the
next time you power up the replace, the unit will turn on
with the same settings.
Adjusting the ame
There are 6 brightness levels that can be selected:
Settings F6 - F4 decrease in Amber brightness.
Settings F3 - F1 decrease in Spectrare brightness.
Pressing the Timer button will cycle through the timer
settings: 30 minutes, 1 Hour, 2H, 3H, 4H, 5H, 6H, 7H,
8H, 9H and off.
Setting the timer
NOTE: The control panel can be accessed at the upper-right corner of the insert.
Fig . 1
/
