Home Decorators Collection 28MM90007-PD01 User manual

USE AND CARE GUIDE
CHESTNUT HILL
XXX XXX/95568/28MM90007-PD01
We appreciate the trust and condence you have placed in Home Decorators through the purchase of this electric replace. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
imporvement needs. Thank you for choosing Home Decorators!
THANK YOU
QUESTIONS, PROBLEMS, MISSING PARTS? BEFORE RETURNING TO THE STORE,
CALL HOME DECORATORS COLLECTION CUSTOMER SERVICE
8 A.M. - 7 P.M., EST, MONDAY - FRIDAY, 9 A.M. - 6 P.M., EST, SATURDAY
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS

2

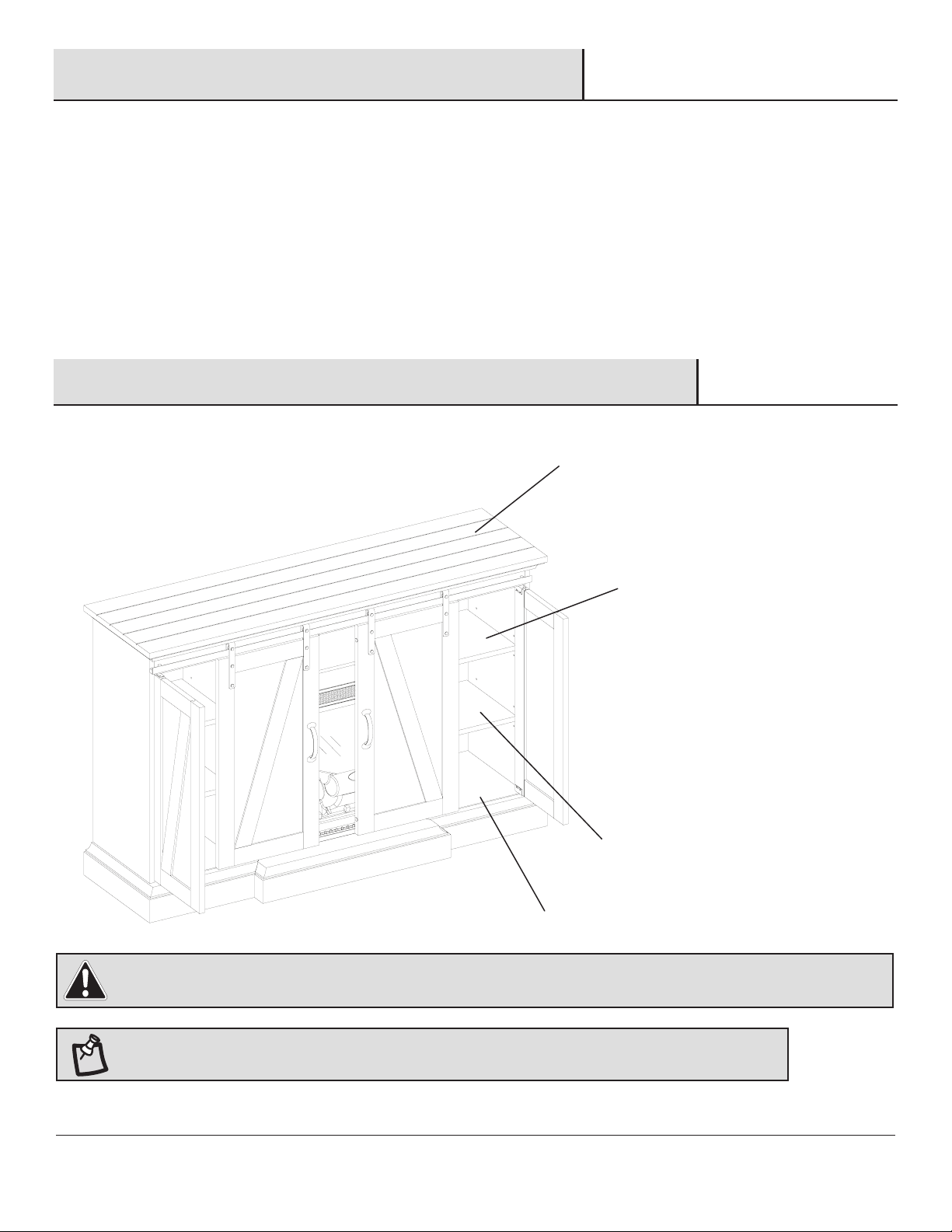

MAXIMUM LOAD 155 lb. (70.3 kg)
MAXIMUM LOAD 20 lb. (9.1 kg)
MAXIMUM LOAD 15 lb. (6.8 kg)
MAXIMUM LOAD 15 lb. (6.8 kg)
CAUTION: This unit is intended for use only with the products and maximum weights indicated. Use with other products or products heavier
than the maximum weights indicated may result in instability causing possible injury.
NOTE: Flat Panel TVs with base support should be placed squarely in the center of the stand with no overhang on any side.
Maximum Load Warning ...........................................2
Safety Information.....................................................3
Warranty ..................................................................... 5
Pre-Assembly............................................................. 6
Hardware Included ................................................... 6
Product Specications....................................................... 6
Tools Required ................................................................... 6
Package Contents.............................................................. 7
Assembly....................................................................8
Operation .................................................................18
FCC/IC Information......................................................... 20
Care & Cleaning.......................................................20
Troubleshooting.......................................................21
Replacement Parts.................................................. 23
Maximum Load Warning
Table of Contents

3
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Please read and understand this entire manual before
attempting
to assemble, operate or install the product. If you
have any question regarding the product, please call customer
service at service at 1-800-986-3460, 8 a.m.-7 p.m., EST,
Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.
When using electrical appliances, basic precautions should
always be followed to reduce the risk of re, electrical shock,
and injury to persons including the following:
1. Read all instructions before using this appliance.
2. If possible, always unplug this appliance when not in use.
3. Only a qualied service person should repair this product.
4. Do not use outdoors.
5.
Do not cover the cord under the carpeting. Do not cover
with throw rugs, runners or the like. Arrange the cord away
from trafc areas and where it will not be tripped over.
6. To disconnect this appliance, turn the controls to the off
position, and then remove the plug from the outlet.
7. Connect to properly grounded outlets only.
8.
This appliance, when installed, must be electrically
grounded in accordance with local codes or, in the
absence of local codes, with the current CSA C22.1
Canadian Electrical Code. For U.S.A. installations, follow
local codes and the National Electrical Code, ANSI/NFPA
NO.70.
9. This appliance has hot and arcing or sparking parts inside.
Do not use it in areas where gasoline, paint or ammable
liquids are used or stored. This replace should not be
used as a drying rack for clothing. Do not hang Christmas
stockings or other decorations on or near this product.
10. There is a thermostat limiter inside the heater. When inner
temperature overheating or abnormal heating occurs, the
thermostat protective device will cut off the power supply
to avoid damage to the replace or risk of re.
Safety Information
WARNING: Under no circumstances should this fireplace be
modified. Parts that must be removed for servicing must be re-
placed prior to operating this replace again.
DANGER:
High temperatures may be generated under
certain abnormal conditions. Do not partially or fully cover
or obstruct the front of this heater.
WARNING: If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
WARNING: In order to avoid overheating, do not cover the
heater.
WARNING:
Use extreme caution when operating heater
near children and the disabled.
WARNING:
Do not insert or allow foreign objects to enter
any ventilation or exhaust opening as this may cause an electric
shock or re, or damage the appliance.
WARNING: To prevent a possible re, do not block air intakes
or exhaust in any manner. Do not use on soft surfaces, like a bed,
where the opening may become blocked.
WARNING:
This appliance has hot and arcing or sparking parts
inside. Do not use it in areas where gasoline, paint or ammable
liquids are used or stored. This replace should not be used as a
drying rack for clothing. Do not hang Christmas stockings or other
decorations on or near this product.
WARNING:
Use this appliance only as described in the manual.
Any other use not recommended by the manufacturer may cause
re, electric shock or injury to persons.
WARNING: This heater is not intended for use in bathrooms,
laundry areas and similar indoor locations. Never locate this
appliance where it may fall into a bathtub or other water container.
WARNING: This appliance is not a toy. Supervise children
playing near it.
WARNING:
This heater may include an visual alarm to warn
that parts of the heater are getting excessively hot. If the alarm
illuminates, immediately turn the heater off and inspect for any
objects on or adjacent to the heater that may have blocked the
airow or otherwise caused high temperatures to have occurred.
DO NOT OPERATE THE HEATER WITH THE ALARM ILLUMINATING.
CAUTION:
Never leave the heater operating unattended.
Extreme caution is necessary if unsupervised children or invalids
are nearby.
CAUTION:
Before assembly, carefully use scissors or a utility
knife to cut and unwrap all parts. Make sure you do not discard
the hardware.

4
NOTE:
To avoid injury from unexpected starting or electrical
shock, do not plug the power cord into a source of power during
unpacking and assembly. The cord must remain unplugged
whenever you are adjusting/assembling the replace.
If any part is missing or damaged, do not attempt to use or
plug in the power cord until the missing or damaged part is
correctly replaced. To avoid electric shock, use only identical
replacement parts when servicing double-insulated tools.
NOTE:
Use care in assembling your new fireplace. Take your
time and use the hardware provided and a quality Phillips head
screwdriver. Never overtighten bolts.
• Do not sit on any part of the mantel.
NOTE:
SAVE THESE
INSTRUCTIONS
Safety Information (continued)

5
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Warranty
1 Year Limited Warranty: The manufacturer warrants that your new Electric Fireplace is free from manufacturing and material defects for
a period of one year from date of puchase, subject to the following conditions and limitations.
1. Install and operate this appliance in accordance with the installation and operating instructions furnished with the
product at all times. Any unauthorized repair, alteration, willful abuse, accident, or misuse of the product shall nullify
this warranty.
2. This warranty is non-transferable, and is made to the original owner, provided that the purchase was made through
an authorized supplier of the product.
3. The warranty is limited to the repair or replacement of part(s) found to be defective in material or workmanship,
provided that such part(s) have been subjected to normal conditions of use and service, after said defect is conrmed
by the manufacturer’s inspection.
4. The manufacturer may, at its discretion, fully discharge all obligations with respect to this warranty by refunding
the wholesale price of the defective part(s).
5. Any installation, labor, construction, transportation, or other related costs/expenses arising from defective part(s),
repair, replacement, or otherwise of same, will not be covered by this warranty, nor shall the manufacturer assume
responsibility for same.
6. The owner/user assumes all other risks, if any, including the risk of any direct, indirect or consequential loss or
damage arising out of the use, or inability to use the product, except as provided by law.
7. All other warranties – expressed or implied – with respect to the product, its components and accessories, or any
obligations/liabilities on the part of the manufacturer are hereby expressly excluded.
8. The manufacturer neither assumes, nor authorizes any third party to assume on its behalf, any other liabilities with
respect to the sale of the product.
9. The warranties as outlined within this document do not apply to non accessories used in conjunction with the
installation of this product.
10. This warranty gives you specic legal rights, and you may also have other rights which vary from state to state.
This warranty is void if:
a. The replace is subjected to prolonged periods of dampness or condensation.
b. Any unauthorized alteration, willful abuse, accident, or misuse of the product.
c. You do not have the original receipt of purchase.
Warranty

6

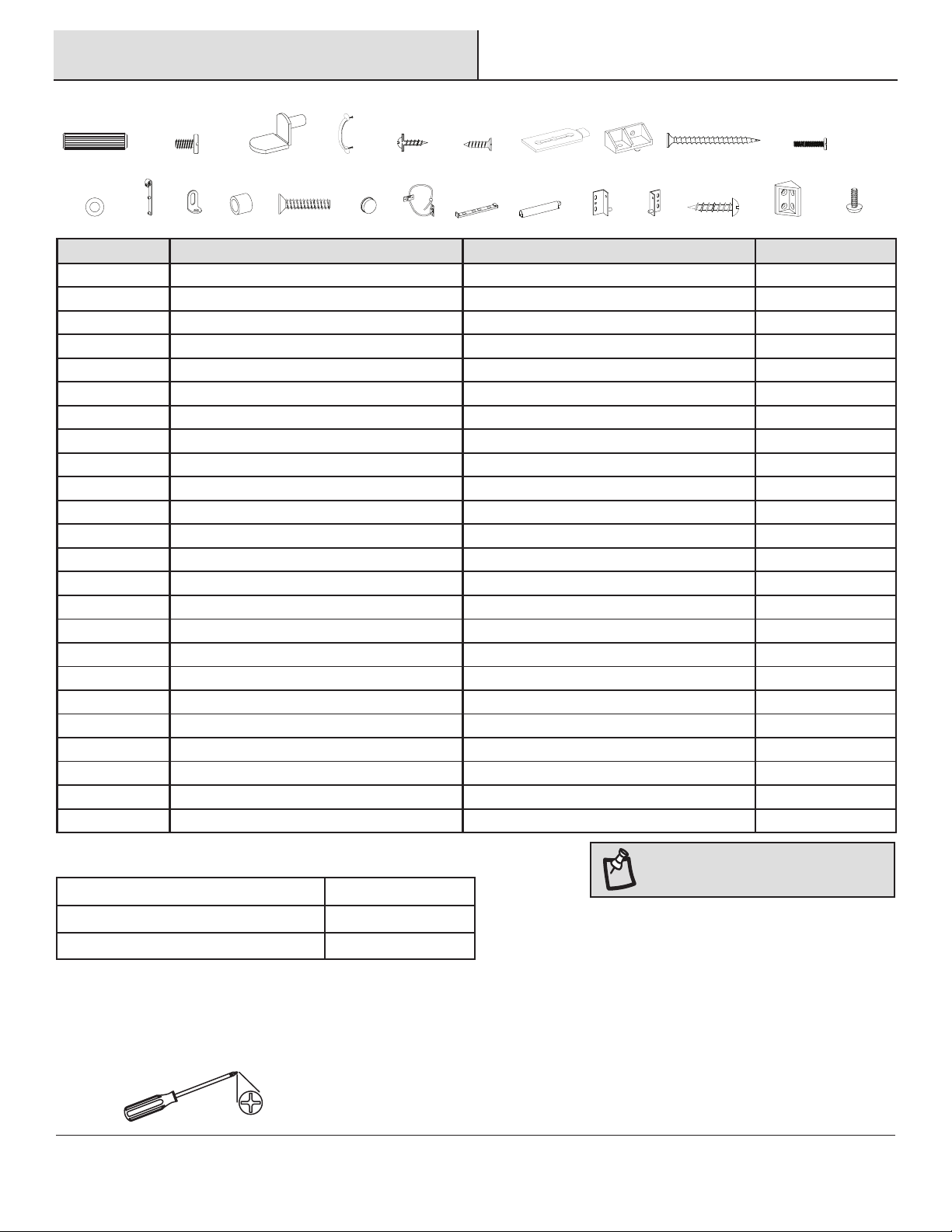

HARDWARE INCLUDED
DD
CC EE FF GG HH II JJ
KK LL MM NN OO PP QQ RR-1 RR-2 SS TT UU VV WW
Part Description Part Number Quantity
AA Wood Dowel PH-DWLNTL001 16
BB Small Flathead Screw PH-BLTBLK002 68
CC Shelf Pin PH-SPNPCSPLB2 16
DD Handle (with Screw) N/A 2
EE Short Screw N/A 38
FF Screw N/A 14
GG Track Guide N/A 2
HH 2 Hole Plastic Connector Block PH-PCBBLK001 26
II Long Screw PH-SCRBLK006 10
JJ Screw PH-BLTBLK001 8
KK Flat Washer N/A 16
LL Rolling Door Hanger N/A 4
MM Angle Bracket PH-BKTBLK009 2
NN Door Stopper N/A 2
OO Bolt N/A 2
PP Door Bumper PH-BMPCLR001 2
QQ Tipping Restraint Hardware PH-BKTWHT003 2
RR-1 Touch Latch Mount N/A 2
RR-2 Touch Latch Spring N/A 2
SS Right Pin Hinge PH-HNGBLK001 2
TT Left Pin Hinge PH-HNGBLK001 2
UU Screw N/A 8
VV Plastic Connector Block (Pre-attached) PH-BKTBLK010
WW Leveler PH-LVRBLK001
NOTE:
Hardware not shown to actual size.
Phillips Screwdriver
AA BB
PRODUCT SPECIFICATIONS
VOLTAGE 120VAC, 60 Hz
AMPS 12.5 Amps
WATTS 1500 Watts
PLANNING ASSEMBLY
Before beginning assembly of product, make sure all parts are present. Compare parts with Hardware Included and Package Contents lists.
If any part is missing or damaged, do not attempt to assemble, install or operate the product. Contact customer service for replacement
parts.
Estimated Assembly Time: 60 Minutes
TOOLS REQUIRED
Pre-Assembly

7
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Part Description Quantity
A Left Base Panel 1
B Right Base Panel 1
C Front Base Panel 1
D Back Base Panel 1
E Left Center Panel 1
F Right Center Panel 1
GTop Assembly 1
H Center Shelf 1
I Left Side Panel 1
J Right Side Panel 1
KSliding Door Track 1
L Upper Back Panel 1
M Back Panel 2
N Adjustable Shelves 4
O Left Sliding Door 1
P Right Sliding Door 1
Q Insert Securing Block 1
R Decorative Left Front Panel 1
S Decorative Right Front Panel 1
T Left Door 1
U Right Door 1
V Fireplace Insert 1
G
KL
H
Q
E
R
S
O
T
A
D
B
C
V
U
P
F
M
M
N
N
N
I
J
N

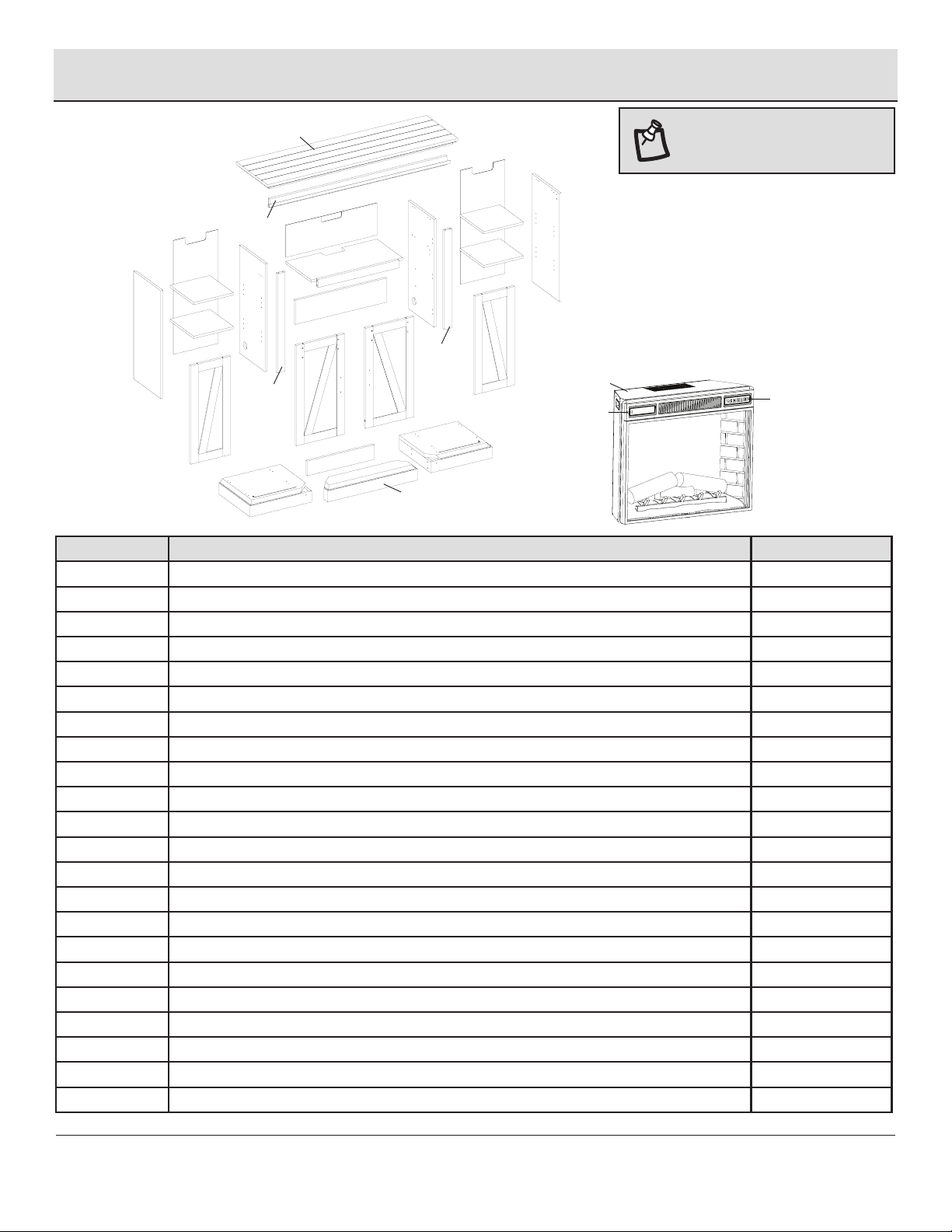

PACKAGE CONTENTS
NOTE: All panels are labeled left
and right as viewed from the front of
unit.
Pre-Assembly (continued)
Safer Sensor
Safer Sensor

8

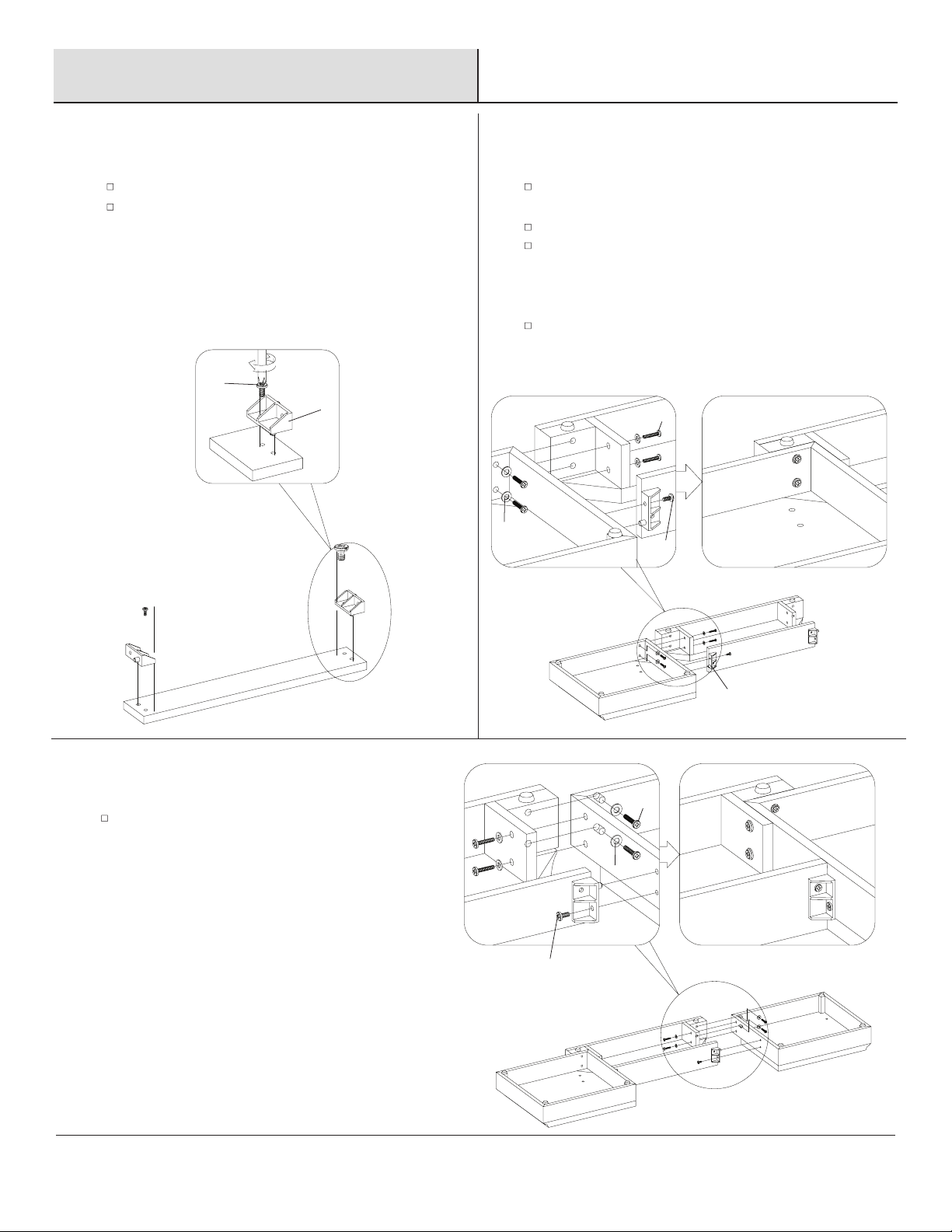

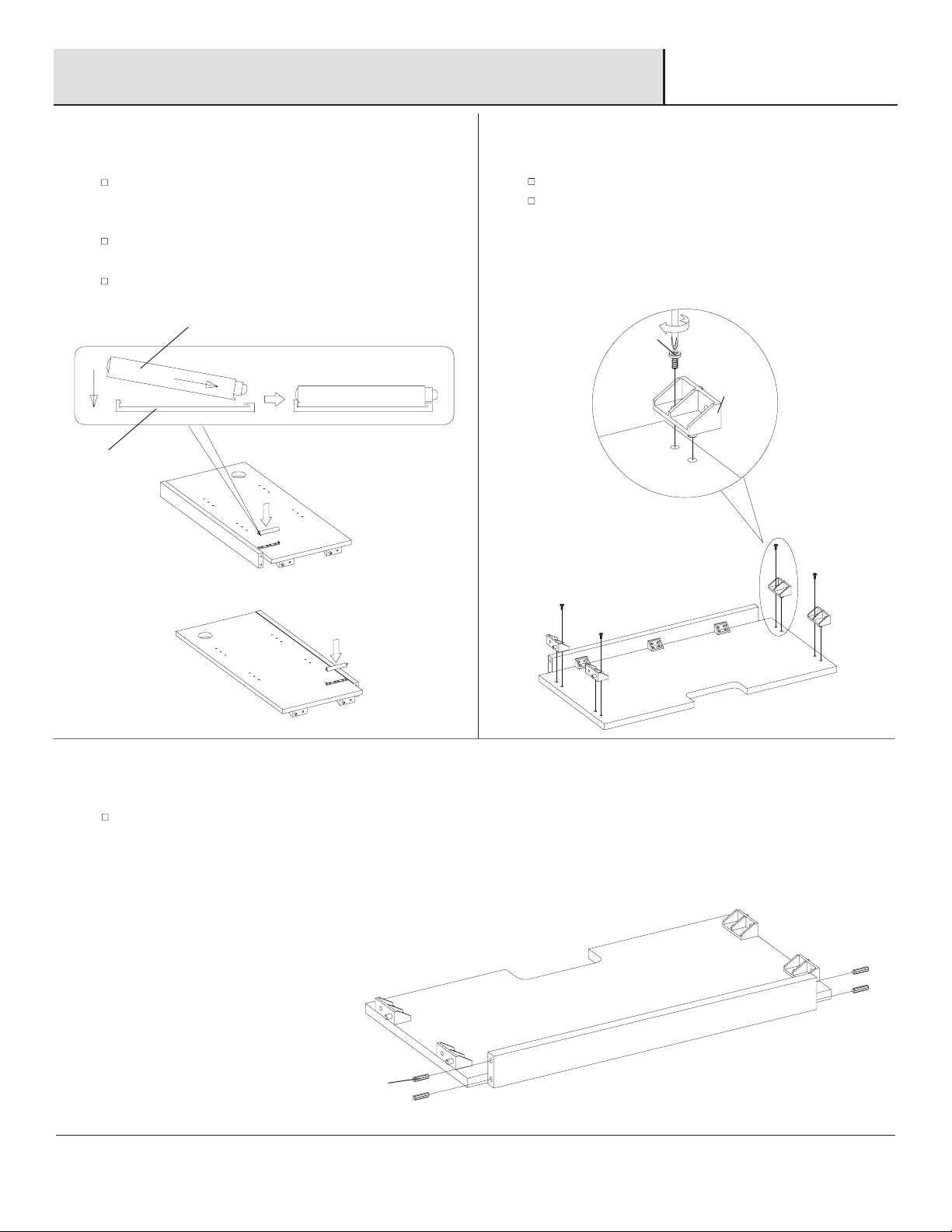

To attach the Left Base Panel (A), repeat the previous
step.
3Attaching the base panels
Place the Back Base Panel (D) on a at surface.
Insert Small Flathead Screws (BB) through the 2 Hole
Plastic Connector Blocks (HH) into the pre-drilled holes
in the Back Base Panel (D).
Place the Back Base Panel (D) and the Front Base Panel
(C) on their side.

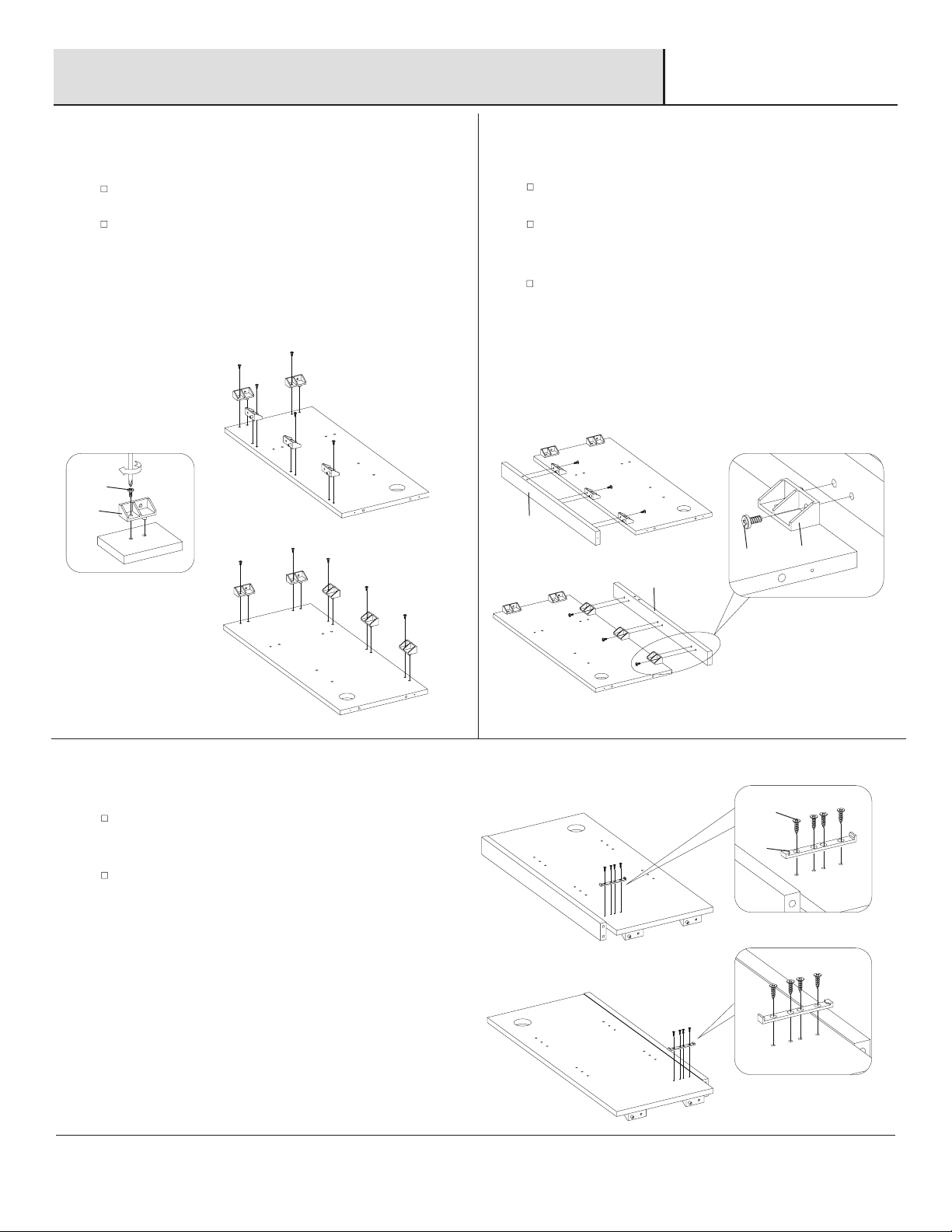

Place the Right Base Panel (B) face down.
To attach the Front Base Panel (C) to the Right Base
Panel (B), insert Screws (JJ) through the Flat Washers
(KK). Tighten to secure with a
Phillips Screwdriver.
To attach the Back Base Panel (D), insert a Small
Flathead Screw (BB) through the previously attached 2
Hole Plastic Connector Block (HH).
1Preparing the back base panel 2Attaching the base panels
D
C
C
B
B
A
D
D
BB
HH JJ
JJ
KK
KK
BB
BB
HH
Assembly

9
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Place the Left Center Panel (E) and the Right Center
Panel (F) on a at surface.
Attach the 2 Hole Plastic Connector Blocks (HH) by
inserting the Small Flatthead Screws (BB) through the
pre-drilled holes.
4Preparing the center panels
Align the Decorative Left Front Panel (R) with the Left
Center Panel (E).
Insert Small Flathead Screws (BB) through the
previously attached 2 Hole Plastic Connector Blocks
(HH). Secure with a Phillips Screwdriver.
Repeat to connect the Decorative Right Front Panel (S)
to the Right Center Panel (F).
5Attaching the decorative
front panels
Assembly (continued)
R
S
EE
E
BB
RR-1
FF
BB
HH
HH
FF
F
To attach the Touch Latch Mount (RR-1) to the Left
Center Panel (E), insert Screws (FF) through the
pre-drilled holes.
Repeat above, to attach the Touch Latch Mount (RR-1)
to the Right Center Panel (F).
6Attaching the touch latch mount

10
Push the Touch Latch Spring (RR-2) on an angle into the
Touch Latch Mount (RR-1), already attached to the Left
Center Panel (E).
Push the Touch Latch Spring (RR-2) down to snap into
the Touch Latch Mount (RR-1).
Repeat for the Right Center Panel (F).

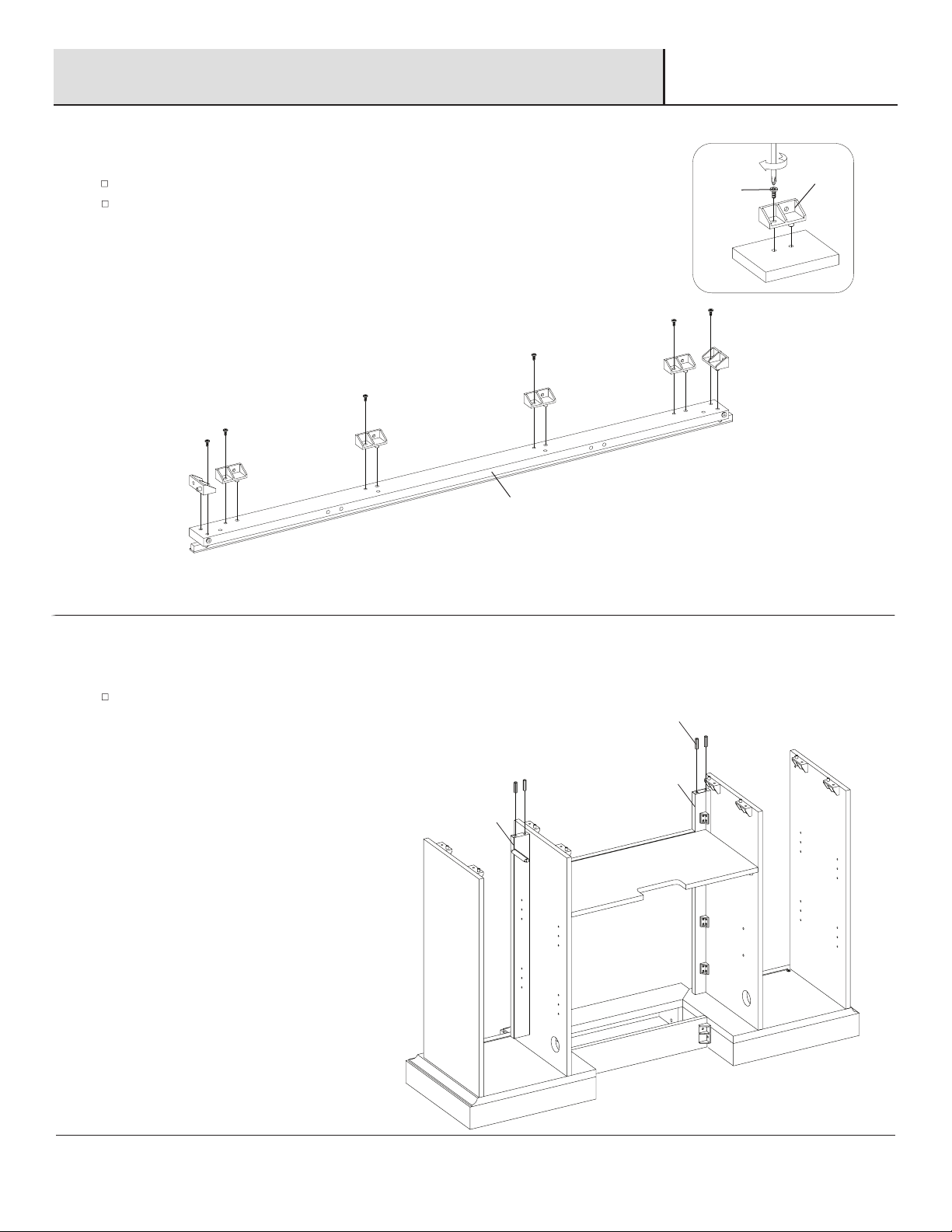

Insert Wood Dowels (AA) into the pre-drilled holes in
the Center Shelf (H).
Place the Center Shelf (H) onto a at surface.
Insert Small Flathead Screws (BB) through the 2 Hole
Plastic Connector Blocks (HH).
7
9
8
Attaching the touch latch spring
Preparing the center shelf
Preparing the Center Shelf
HH
RR-2
RR-1
AA
H
H
Assembly (continued)
BB
E
F
1
2

11
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Align the Center Shelf (H) with both the Left Center
Panel (E) and the Right Center Panel (F).
Push the pieces together.
Secure the Center Shelf (H) by inserting Small Flathead
Screws (BB) through the previously attached 2 Hole
Plastic Connector Blocks (HH).
Insert Wood Dowels (AA) into the pre-drilled holes in
both the Left Center Panel (E) and the Right Center
Panel (F).
10
12
11
Attching the center shelf
Attaching the base
Preparing center panels
Push the assembled base and the center panels together.
Insert Long Screws (II) through the bottom of the Left Base
Panel (A) and the Right Base Panel (B).
Using a Phillips Screwdriver, tighten the Long Screws (II) to
secure the Center Panels (E,F) to the Left Base Panel (A) and
the Right Base Panel (B).
HF
F
F
EE
E
A
II
B
AA
Assembly (continued)
BB
HH

12
Place the Left Side Panel (I) on a at surface.
Insert the Small Flathead Screws (BB) through the 2
Hole Plastic Connector Blocks (HH).
Repeat to prepare the Right Side Panel (J).
Push the Left Side Panel (I) together with the Left Base
Panel (A).
Insert Long Screws (II) through the bottom of the Left
Base Panel (A) to secure the Left Side Panel (I).
Repeat to attach the Right Side Panel (J).
Insert Wood Dowels (AA) into the pre-drilled holes in the
Left Side Panel (I).
Repeat for the Right Side Panel (J).
13
15
14
Preparing the side panels
Attaching the side panels
Preparing the side panels
II
Assembly (continued)
BB
AA
HH
II
I
A
B
JJ
J

13
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
HH
BB
K
S
R
AA
Place the Sliding Door Track (K) on a at surface.
Insert the Small Flathead Screws (BB) through the 2
Hole Plastic Connector Blocks (HH).
16
17
Preparing the sliding door track
Preparing the sliding door track
Insert Wood Dowels (AA) into the pre-drilled holes in the
Decorative Left and Right Front Panels (R,S).
Assembly (continued)

14
18
J
J
F
G
BB
HH
K
E
I
I
Attaching the sliding door track
Push the Sliding Door Track (K) down onto the previously
inserted Wood Dowels (AA) in the Decorative Left and
Right Front Panels (R,S).
Insert Small Flathead Screws (BB) through the
previously attached 2 Hole Plastic Connector Blocks
(HH). Secure to the Left and Right Side Panels (I,J).
Assembly (continued)

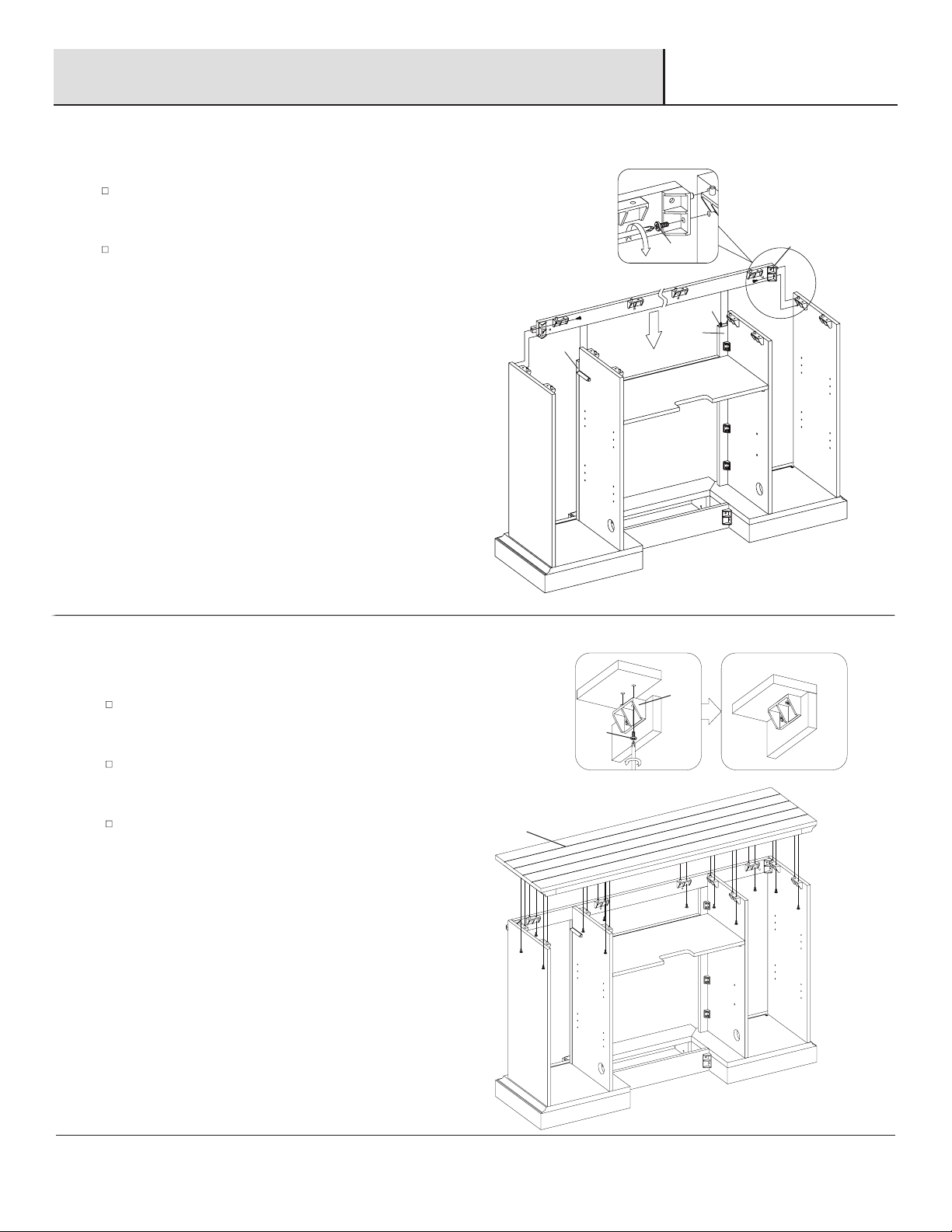

Place the Top Assembly (G) on top of the Left and Right
Side Panels (I,J), Left and Right Center Panels (E,F), and
the Sliding Door Track (K).
From underneath, insert Small Flathead Screws (BB)
through the previously attached 2 Hole Plastic
Connector Blocks (HH).
Secure tightly using a Phillips Screwdriver.
19 Attaching the top assembly
S
K
R
AA
BB HH

15
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

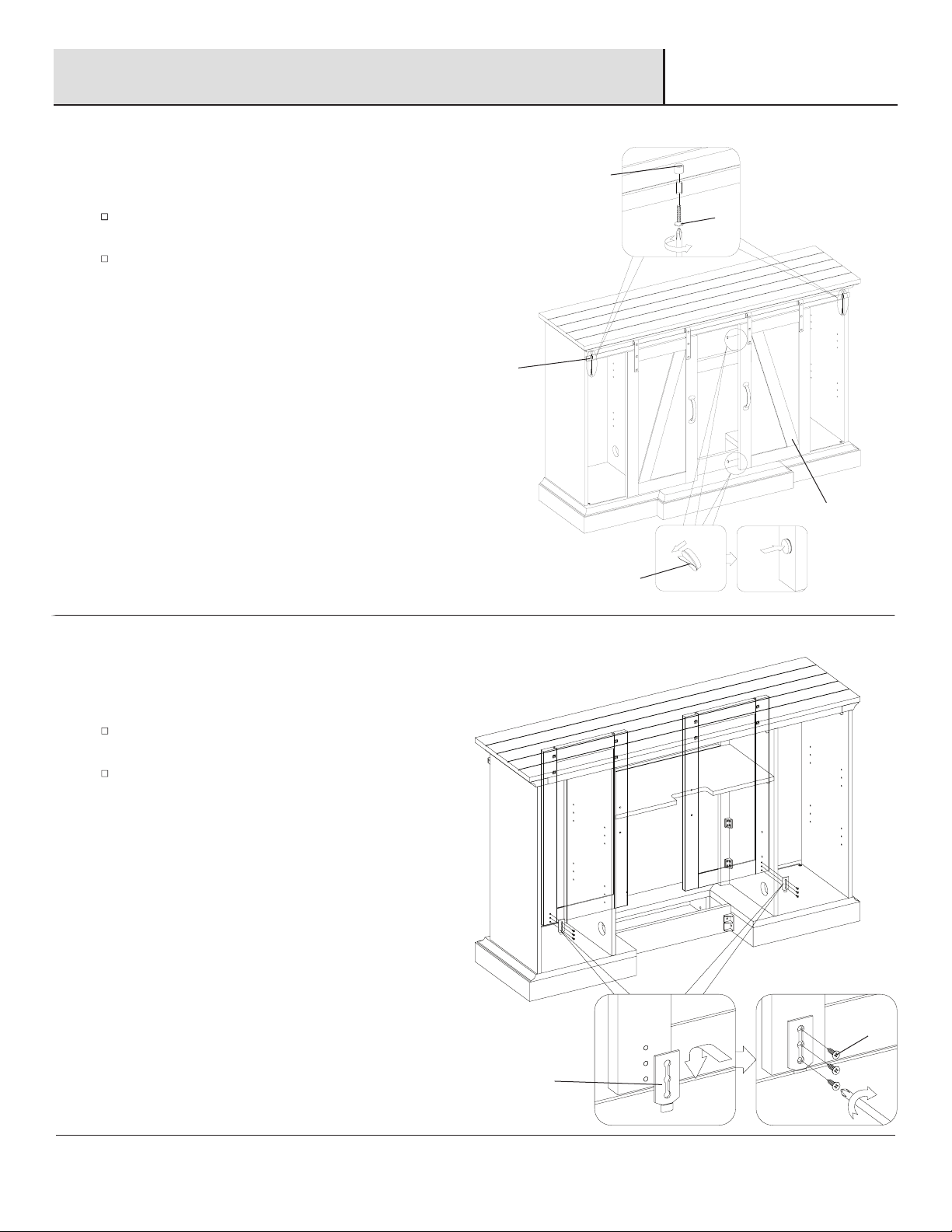

Place the Rolling Door Hangers (LL) on the outside of the
Left Sliding Door (O).
Insert Small Flathead Screws (BB) through Flat Washers
(KK) into the pre-drilled holes.
Secure tightly with a Phillips Screwdriver.
Repeat for the Right Sliding Door (P).
Align the Left Sliding Door (O) with the Sliding Door
Track (K).
With the Rolling Door Hanger (LL) latched onto the
Sliding Door Track (K), push the Left Sliding Door (O) to
the right.
Repeat to attach the Right Sliding Door (P).
Remove the preassembled screws from the Handles
(DD), then attach to the Left Sliding Door (O).
Repeat for the Right Sliding Door (P).
20
22
21
Attaching the rolling door hanger
Attaching the sliding doors
Attaching the handles
Assembly (continued)
DD
OO
O
PP
P
BB
LL
LL
K
KK

16
OO
NN
K
P
Stick the Door Bumpers (PP) onto the Right Sliding
Door (P).
Insert the Bolts (OO) through the Sliding Door Track (K)
to secure the Door Stoppers (NN).
Insert Screws (FF) through the Track Guide (GG) into the
pre-drilled holes in the Right Sliding Door (P).
Repeat for the Left Sliding Door (O).
23
24
Attaching the door stopper and
bumper
Attaching the track guide
PP
Assembly (continued)
GG
P
O
FF

17
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
N
E
I
J
N
N
N
CC
EE
L
M
M
Insert the Short Screws (EE) through the pre-drilled
holes in the Upper Back Panel (L) and the Side Back
Panels (M).
25
26
Installing the back panels
Attaching the adjustable shelves
Insert the Shelf Pins (CC) into the pre-drilled holes on
the inside of the Left Side Panel (I) and the Left Center
Panel (E).
Rest the Adjustable Shelf (N) on the Shelf Pins (CC).
Repeat for the right side.
Assembly (continued)

18
V

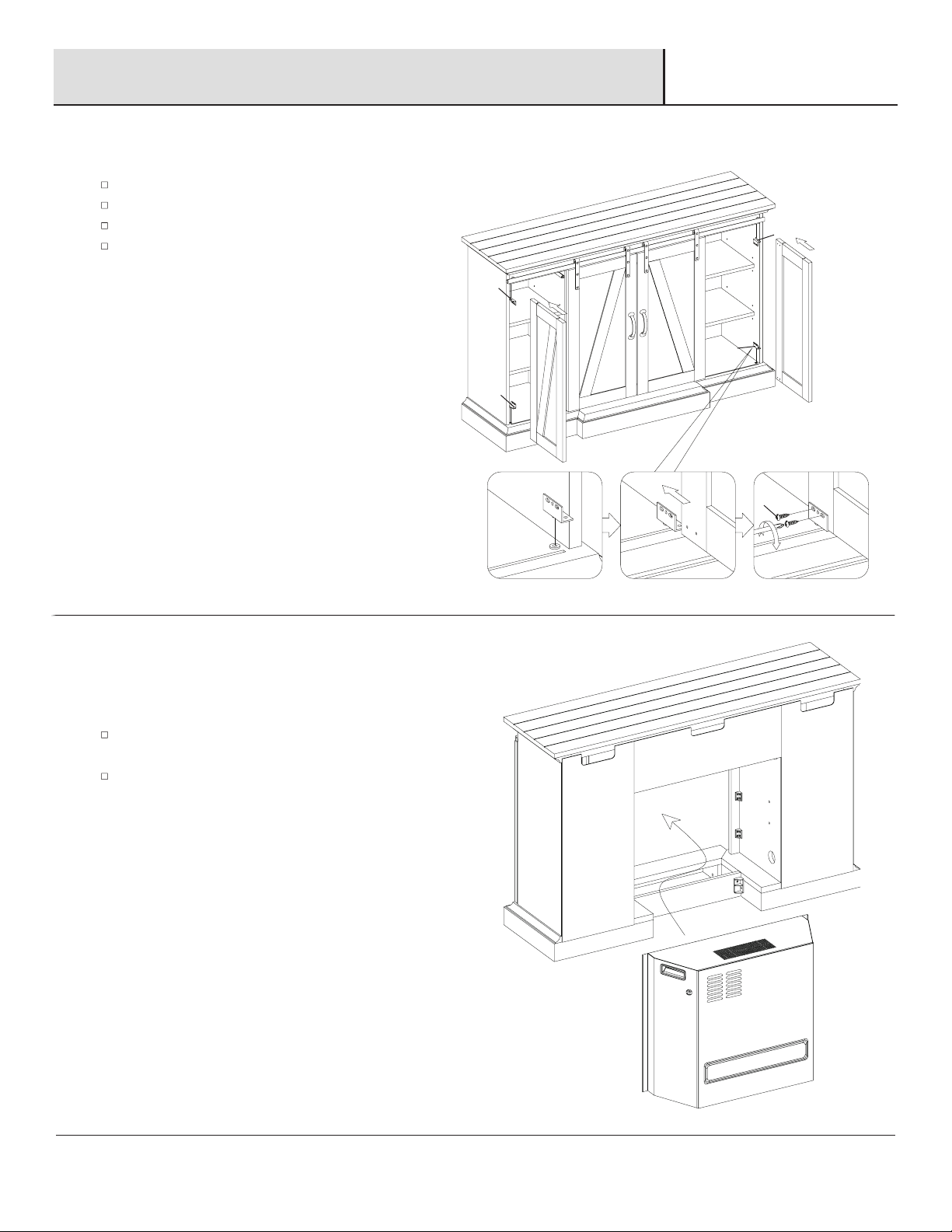

27 Attaching the doors
28 Installing the replace insert into
the mantel assembly
UU
TT
SS
SS
U
T
TT
Assembly (continued)
Lift the Fireplace Insert (V) carefully into the back of the
unit and center in the replace insert opening.
Do not drag the replace insert across the Base
as it may scratch your unit.
Insert the Right and Left Pin Hinges (SS,TT).
Slide Left Door (T) into the grooves.
Insert Screws (UU) to secure the Left Door (T) into place.
Repeat to attach the Right Door (U).

19
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Q
Q
E
F

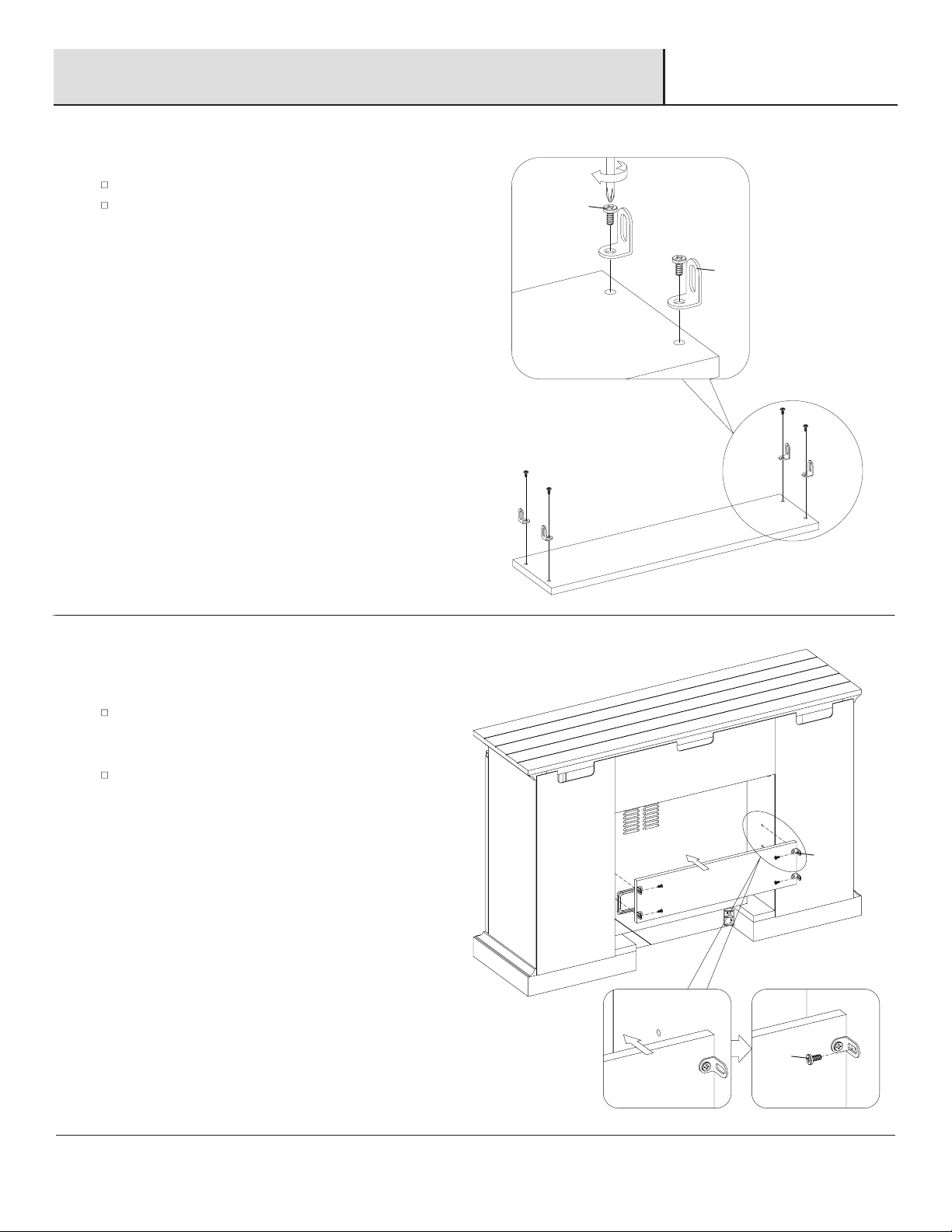

29 Preparing the insert securing block
30 Securing the replace insert
BB
BB
MM
MM
Assembly (continued)
Insert Small Flathead Screws (BB) through the Angle
Brackets (MM) into the pre-drilled holes on the Left
Center Panel (E).
Repeat to attach the Insert Securing Block (Q) to the
Right Center Panel (F).
Place the Insert Securing Block (Q) on a at surface.
Insert Small Flathead Screws (BB) through the Angle
Brackets (MM) into the pre-drilled holes.

20
31 Adjusting the level
WW
Assembly (continued)

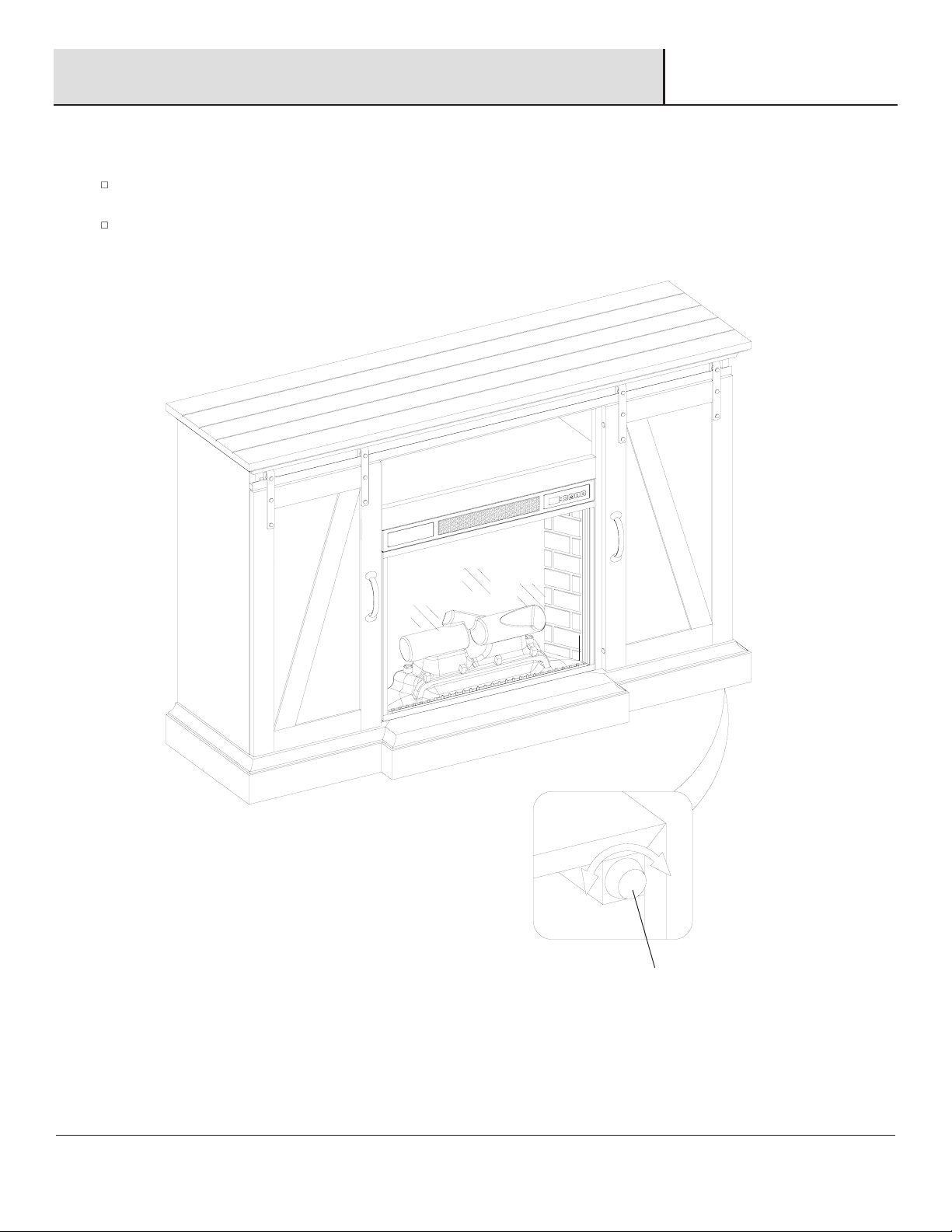

To balance your assembled media unit, turn the Levelers
(WW), as needed.
The pre-attached Levelers (WW) are located under the
base of the media unit.
