Home Decorators Collection 23DE9448-NB04 User manual

USE AND CARE GUIDE
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
CHARLES MILL ELECTRIC FIREPLACE
XXX XXX/85798Y/23DE9448-NB04
XXX XXX/85521Y/23DE9448-NC01
XXX XXX/85804Y/23DE9448-NE01
XXX XXX/85811Y/23DE9448-PT85
We appreciate the trust and condence you have placed in Home Decorators through the purchase of this electric replace. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
imporvement needs. Thank you for choosing Home Decorators!
THANK YOU

2

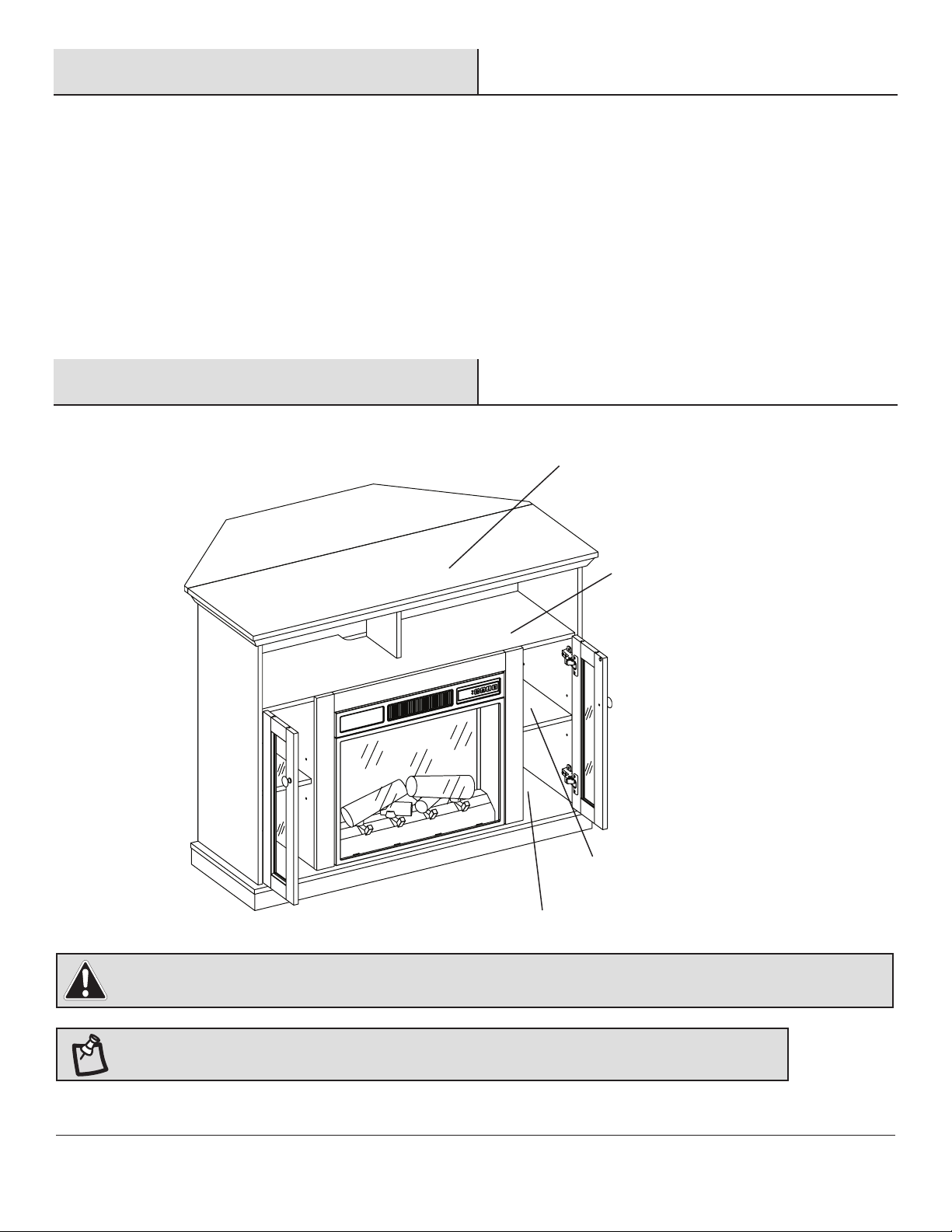

Maximum Load Warning
MAXIMUM LOAD 65 lb. (29.48 kg)
MAXIMUM LOAD 15 lb. (6.80 kg)
MAXIMUM LOAD 40 lb. (18.14 kg)
MAXIMUM LOAD 10 lb. (4.54 kg)
Table of Contents
CAUTION: This unit is intended for use only with the products and maximum weights indicated. Use with other products or products heavier
than the maximum weights indicated may result in instability causing possible injury.
NOTE: Flat Panel TVs with base support should be placed squarely in the center of the stand with no overhang on any side.
Maximum Load Warning...........................................2
Safety Information..................................................... 3
Warranty ..................................................................... 5
Pre-Assembly............................................................. 6
Hardware Included ................................................... 6
Product Specications....................................................... 6
Tools Required ................................................................... 6
Package Contents.............................................................. 7
Assembly.................................................................... 8
Operation .................................................................16
FCC/IC Information......................................................... 18

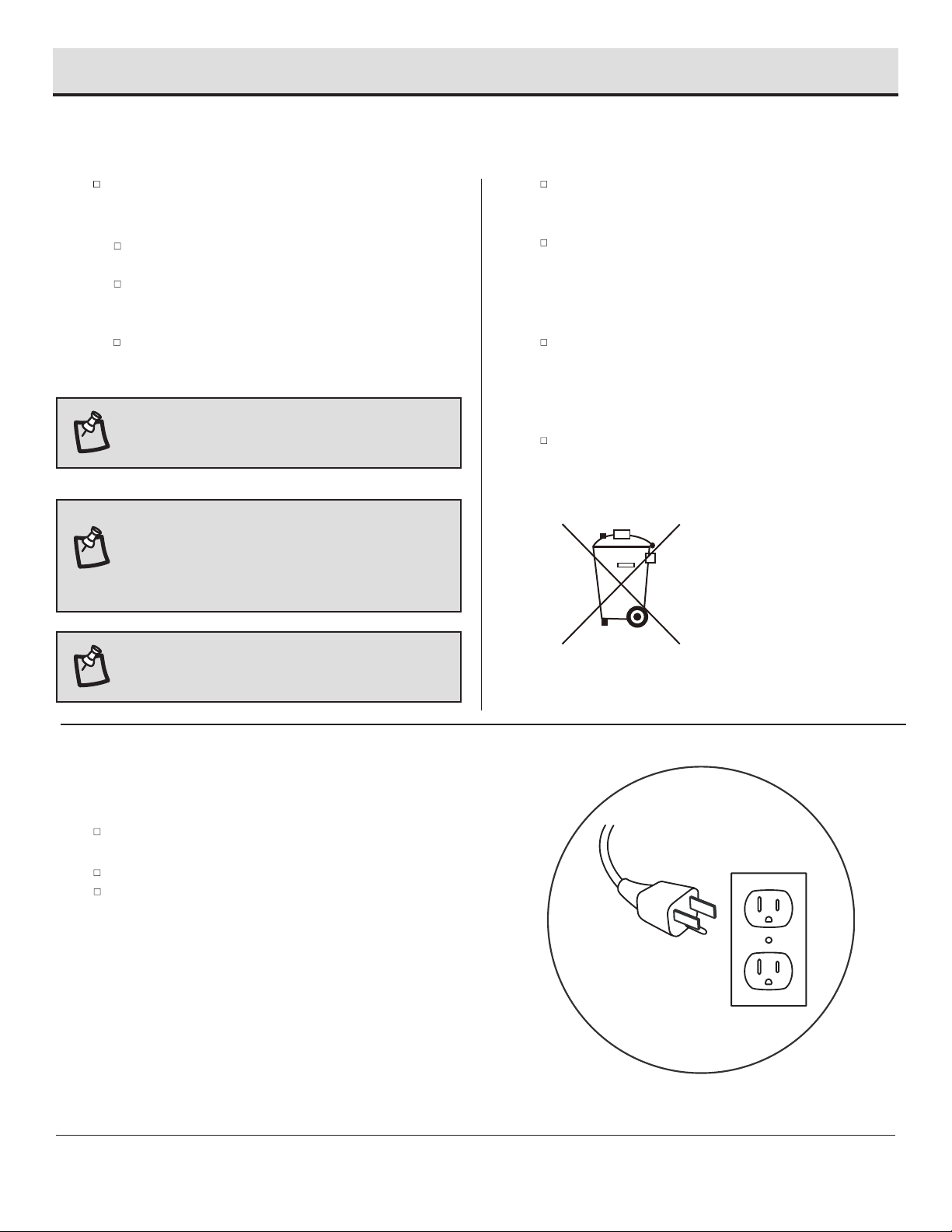

Care & Cleaning....................................................... 18
Troubleshooting....................................................... 19
Replacement Parts.................................................. 21

3
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Please read and understand this entire manual before
attempting
to assemble, operate or install the product. If you
have any question regarding the product, please call customer
service at service at 1-800-986-3460, 8 a.m.-7 p.m., EST,
Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.
When using electrical appliances, basic precautions should
always be followed to reduce the risk of re, electrical shock,
and injury to persons including the following:
1. Read all instructions before using this appliance.
2. If possible, always unplug this appliance when not in use.
3. Only a qualied service person should repair this product.
4. Do not use outdoors.
5.
Do not cover the cord under the carpeting. Do not cover
with throw rugs, runners or the like. Arrange the cord away
from trafc areas and where it will not be tripped over.
6. To disconnect this appliance, turn the controls to the off
position, and then remove the plug from the outlet.
7. Connect to properly grounded outlets only.
8.
This appliance, when installed, must be electrically
grounded in accordance with local codes or, in the
absence of local codes, with the current CSA C22.1
Canadian Electrical Code. For U.S.A. installations, follow
local codes and the National Electrical Code, ANSI/NFPA
NO.70.
9. This appliance has hot and arcing or sparking parts inside
Do not use it in areas where gasoline, paint or ammable
liquids are used or stored. This replace should not be
used as a drying rack for clothing. Do not hang Christmas
stockings or other decorations on or near this product.
10. There is a thermostat limiter inside the heater. When inner
temperature overheating or abnormal heating occurs, the
thermostat protective device will cut off the power supply
to avoid damage to the replace or risk of re.
Safety Information
DANGER:
High temperatures may be generated under
certain abnormal conditions. Do not partially or fully cover
or obstruct the front of this heater.
WARNING: If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
WARNING: Under no circumstances should this fireplace be
modified. Parts that must be removed for servicing must be re-
placed prior to operating this replace again.
WARNING: In order to avoid overheating, do not cover the
heater.
WARNING:
Use extreme caution when operating heater
near children and the disabled.
WARNING:
Do not insert or allow foreign objects to enter
any ventilation or exhaust opening as this may cause an electric
shock or re, or damage the appliance.
WARNING: To prevent a possible re, do not block air intakes
or exhaust in any manner. Do not use on soft surfaces, like a bed,
where the opening may become blocked.
WARNING:
This appliance has hot and arcing or sparking parts
inside. Do not use it in areas where gasoline, paint or ammable
liquids are used or stored. This replace should not be used as a
drying rack for clothing. Do not hang Christmas stockings or other
decorations on or near this product.
WARNING:
Use this appliance only as described in the manual.
Any other use not recommended by the manufacturer may cause
re, electric shock or injury to persons.
WARNING: This heater is not intended for use in bathrooms,
laundry areas and similar indoor locations. Never locate this
appliance where it may fall into a bathtub or other water container.
WARNING: This appliance is not a toy. Supervise children
playing near it.
WARNING:
This appliance is hot when in use. To avoid
burns, do not touch hot surfaces with bare skin. If provided,
use handles when moving this appliance. Keep combustible
materials, such as furniture, pillows, bedding, papers, clothes
and curtains at least 3 ft. (0.9 m) from the front of this appliance.
WARNING:
This heater may include a visual alarm to warn
that parts of the heater are getting excessively hot. If the
alarm flashes immediately turn the heater off and inspect for
any objects on or adjacent to the heater that may cause high
temperatures.
DO NOT OPERATE THE HEATER WITH THE ALARM FLASHING!
CAUTION:
Never leave the heater operating unattended.
Extreme caution is necessary if unsupervised children or invalids
are nearby.
CAUTION:
Before assembly, carefully use scissors or a utility
knife to cut and unwrap all parts. Make sure you do not discard
the hardware.

4
Safety Information (continued)
NOTE:
To avoid injury from unexpected starting or electrical
shock, do not plug the power cord into a source of power during
unpacking and assembly. The cord must remain unplugged
whenever you are adjusting/assembling the replace.
If any part is missing or damaged, do not attempt to use or
plug in the power cord until the missing or damaged part is
correctly replaced. To avoid electric shock, use only identical
replacement parts when servicing double-insulated tools.
NOTE:
Use care in assembling your new fireplace. Take your
time and use the hardware provided and a quality Phillips head
screwdriver. Never overtighten bolts.
• Do not sit on any part of the mantel.
NOTE:
SAVE THESE
INSTRUCTIONS

5
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Warranty
1 Year Limited Warranty: The manufacturer warrants that your new Electric Fireplace is free from manufacturing and material defects for
a period of one year from date of puchase, subject to the following conditions and limitations.
1. Install and operate this appliance in accordance with the installation and operating instructions furnished with the
product at all times. Any unauthorized repair, alteration, willful abuse, accident, or misuse of the product shall nullify
this warranty.
2. This warranty is non-transferable, and is made to the original owner, provided that the purchase was made through
an authorized supplier of the product.
3. The warranty is limited to the repair or replacement of part(s) found to be defective in material or workmanship,
provided that such part(s) have been subjected to normal conditions of use and service, after said defect is conrmed
by the manufacturer’s inspection.
4. The manufacturer may, at its discretion, fully discharge all obligations with respect to this warranty by refunding
the wholesale price of the defective part(s).
5. Any installation, labor, construction, transportation, or other related costs/expenses arising from defective part(s),
repair, replacement, or otherwise of same, will not be covered by this warranty, nor shall the manufacturer assume
responsibility for same.
6. The owner/user assumes all other risks, if any, including the risk of any direct, indirect or consequential loss or
damage arising out of the use, or inability to use the product, except as provided by law.
7. All other warranties – expressed or implied –with respect to the product, its components and accessories, or any
obligations/liabilities on the part of the manufacturer are hereby expressly excluded.
8. The manufacturer neither assumes, nor authorizes any third party to assume on its behalf, any other liabilities with
respect to the sale of the product.
9. The warranties as outlined within this document do not apply to non accessories used in conjunction with the
installation of this product.
10. This warranty gives you specic legal rights, and you may also have other rights which vary from state to state.
This warranty is void if:
a. The replace is subjected to prolonged periods of dampness or condensation.
b. Any unauthorized alteration, willful abuse, accident, or misuse of the product.
c. You do not have the original receipt of purchase.

6
A
Plastic
Connector
Block
19PCS
PH-PCBBLK001
Pre-Assembly
HARDWARE INCLUDED
DD
CC EE FF GG HH
II JJ KK LL
L-1 L-2
MM
Part Description Part Number Quantity
AA 2 Hole Plastic Connector Block PH-PCBBLK001 19
BB 3 Hole Plastic Connector Block PH-PCBBLK002 2
CC Short Flathead Screw N/A 24
DD Bolt PH-BLTBLK002 44
EE Floor Glide (Pre-attached) PH-GLDBRW001 5
FF Knob (with Screw) N/A 2
GG Long Flathead Screw N/A 9
HH Metal Plate (Pre-attached) PH-PLBLK001 2
II Small Plastic Connector Block N/A 6
JJ Long Washerhead Screw PH-SCRBLK001 34
KK Shelf Pin PH-SPNPCSPLB2 8
LL Hinge N/A 4
MM Wood Dowel PH-DWLNTL001 18
NN Short Washerhead Screw N/A 16
ZZ Touch-up Pen N/A 1
NOTE:
Hardware not shown to actual size.
Phillips Screwdriver
AA BB
16PCS
Ø4*12mm
BOLT
ZZNN
PRODUCT SPECIFICATIONS
VOLTAGE 120VAC, 60 Hz
AMPS 12.5 Amps
WATTS 1500 Watts
PLANNING ASSEMBLY
Before beginning assembly of product, make sure all parts are present. Compare parts with Hardware Included and Package Contents lists.
If any part is missing or damaged, do not attempt to assemble, install or operate the product. Contact customer service for replacement
parts.
Estimated Assembly Time: 60 Minutes
TOOLS REQUIRED

7
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Part Description Quantity
ABase Assembly 1
B Left Front Panel 1
C Left Partition 1
D Right Front Panel 1
E Right Partition 1
F Middle Front Panel 1
GTop Assembly 1
H Left Side Panel 1
I Right Side Panel 1
J Center Shelf 1
K Divider 1
L Upper Back Panel 1
M Side Back Panel 2
N Left Door 1
O Right Door 1
P Adjustable Shelf 2
Q Securing Block 1
R Corner Extension 1
S Corner Brace 1
T Fireplace Insert 1
A
G
H
I
C
E
BD
F
O
Q
N
J
K
LM
M
P
P
R
S
PACKAGE CONTENTS
Pre-Assembly (continued)
NOTE: All panels are labeled left
and right as viewed from the front of
unit.
T

8
Insert Wood Dowels (MM) into pre-drilled holes on the
Left Partition (C) and the Right Partition (E).
Attach the Left Front Panel (B) to the Left Partition (C)
using Short Flathead Screws (CC).
Repeat this process for the Right Front Panel (D) and
the Right Partition (E).
3Attaching the front panels
Attach 2 Hole Plastic Connector Blocks (AA) to the Left
Partition (C) using Bolts (DD).
Repeat this process for the Right Partition (E).
Attach the Small Plastic Connector Blocks (II) to the
Right Partition (E) using Short Flathead Screws (CC).
Repeat this process for the Left Partition (C).
1Preparing the partitions 2Preparing the partitions
E
C
DD
AA
CC
C
E
CC
II
Assembly
E
MM
B
C
D

9
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

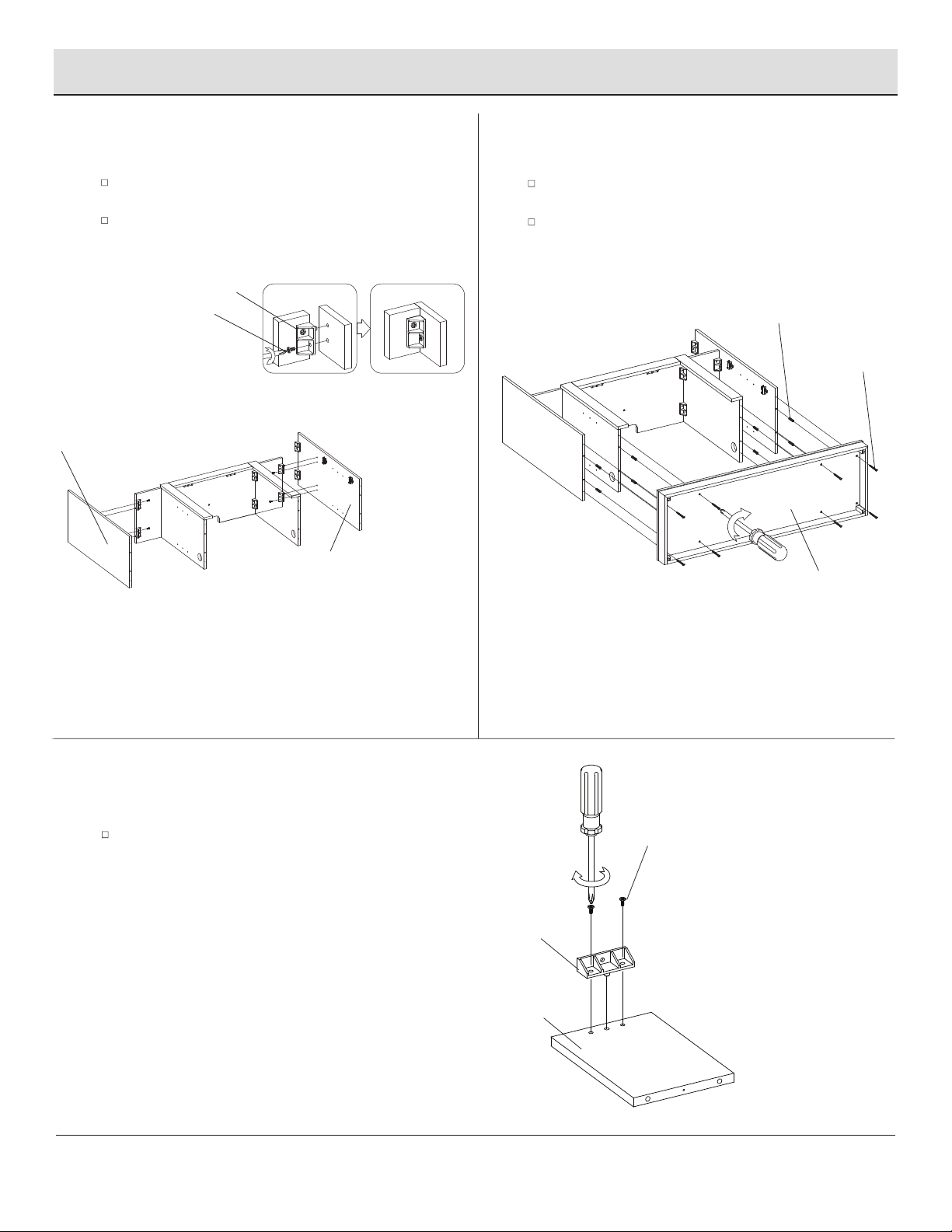

Assembly (continued)
Screw the Bolts (DD) through the 2 Hole Plastic
Connector Blocks (AA) into the Middle Front Panel (F)
and tighten.
Screw Bolts (DD) through 2 Hole Plastic Connector
Blocks (AA) onto the edge of the Center Shelf (J).
Insert the Wood Dowels (MM) into the pre-drilled holes
on the ends of the Middle Front Panel (F).
Connect the Left Front Panel (B) to the Middle Front
Panel (F) with the Long Washerhead Screws (JJ).
Repeat for the Right Front Panel (D).
4
6
5
Preparing the middle front panel
Preparing the center shelf
Attaching the middle front panel
F
AA
AA
DD
DD
J
JJ
HH
MM
FB
D

10
Assembly (continued)
Screw the Bolts (DD) through the 2 Hole Plastic
Connector Blocks (AA) into the Center Shelf (J)
to secure.
Attach the Hinge Mounting Plate (L-1) to the Left Side
Panel (H) using the Short Washerhead Screws (NN).
Repeat for the Right Side Panel (I).
Screw the Bolts (DD) through the 2 Hole Plastic
Connector Blocks (AA) onto the edge of the Left
Side Panel (H).
Repeat for the Right Side Panel (I).
7
9
8
Attaching the center shelf
Attaching the mounting plates
Preparing the side panels
DD
AA
H
I
DDAA
J
I
NN
L-1
H

11
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

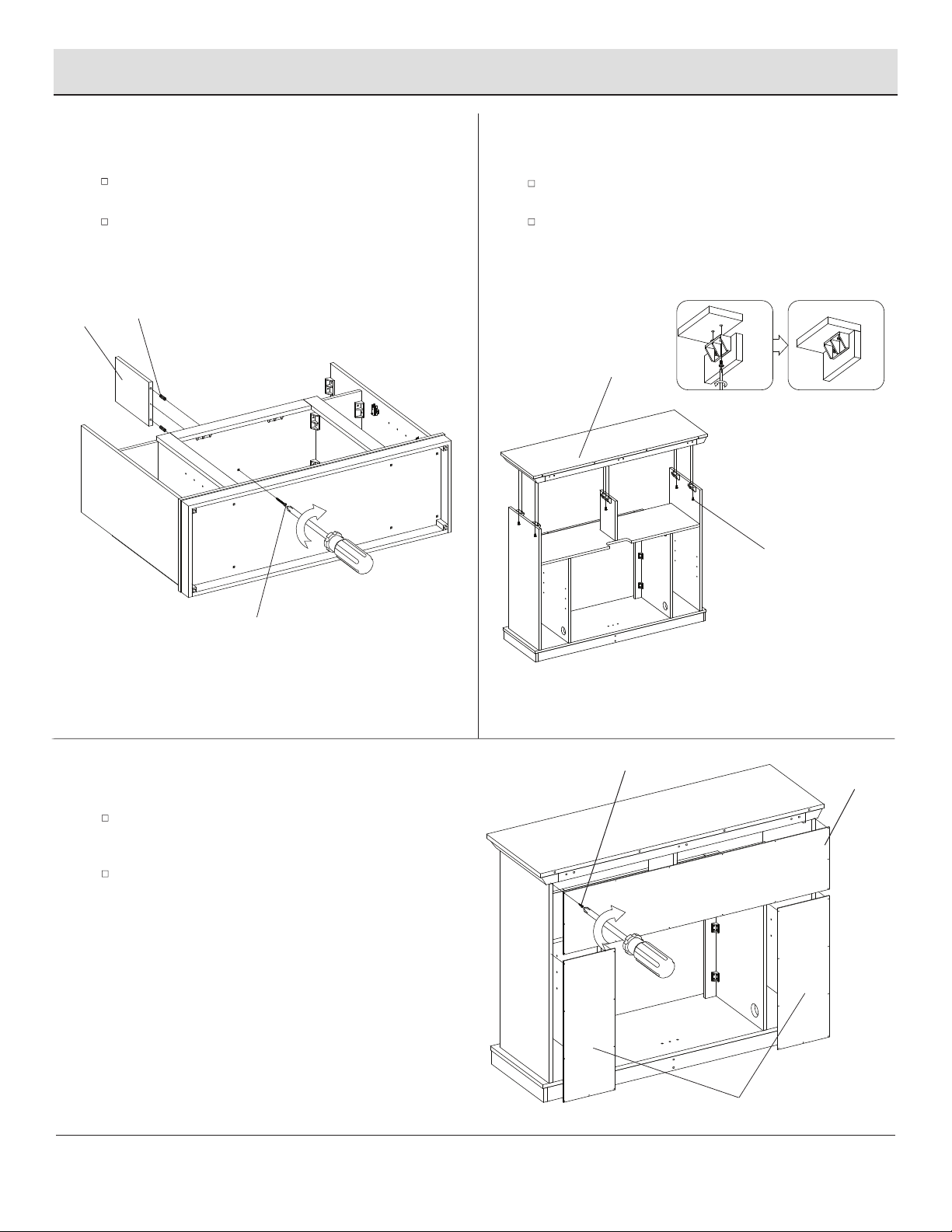

Assembly (continued)
Attach the Left Side Panel (H) and the Right Side Panel
(I) to the assembly from the step 7.
Secure using the Bolts (DD) through the 2 Hole Plastic
Connector Blocks (AA).
Insert the Wood Dowels (MM) into the pre-drilled holes
on the completed assembly from Step 10.
Using the Long Flathead Screw (GG) attach the Base
Assembly (A) to the bottom of the completed assembly
from Step 10.
10
12
11
Attaching the side panels
Preparing the divider
Attaching the base assembly
Attach a 3 Hole Plastic Connector (BB) to the Divider (K)
using Bolts (DD).
DD
AA
H
I
A
MM
GG
DD
BB
K

12
Assembly (continued)
Insert Wood Dowels (MM) into the pre-drilled holes in
the Divider (K).
Secure the Divider (K) to the Center Shelf (J) with the
Large Flathead Screw (GG).
Attach the Upper Back Panel (L) to the completed
assembly from Step 14 using the Long Washerhead
Screws (JJ).
Repeat for the Side Back Panels (M).
Attach the Top Assembly (G) to the completed assembly
from Step 13.
Secure using the Bolts (DD) through the
2 Hole Plastic Connector Blocks (AA).
13
15
14
Attaching the divider
Attaching the back panels
Attaching the top assembly
GG
DD
G
KMM
L
JJ
M

13
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
NN
L-2
N
O
FF
N
O
Assembly (continued)
Attach the Hinges (L-2) to the Right Door (O) using the
Short Washerhead Screws (NN).
Repeat for the Left Door (N).
Remove the preassembled screws from the Knobs (FF),
then attach the Knob (FF) to the Left Door (N) and Right
Door (O) with the screws.
16
18
17
Preparing the doors
Installing the doors
Attaching the knobs
Attach the Left Door (N) and the Right Door (O) by sliding
the Hinges (L-2) onto the Hinge Brackets (L-1).
Tighten the preassembled screw on the Hinge Bracket
(L-1) to secure each door in place.
Hinges are fully adjustable as shown.
O
N
L-1 L-2

14
Assembly (continued)
Choose desired height of the Adjustable Shelf (P) and
place the four Shelf Pins (KK) in the corresponding
holes.
Insert the Adjustable Shelf (P) on top of the Shelf Pins
(KK).
Lift the Fireplace Insert (T) carefully into the back of the
unit and center in the replace insert opening.
Do not drag the replace insert across the Base
Assembly (A) as it may scratch your unit.
19
21
20
Installing the adjustable shelves Installing the replace insert into
the mantel assembly
T
P
KK
Attaching the securing block
Attach the Securing Block (Q) by inserting Bolts (DD)
through the 3 Hole Connector (BB) and into the threaded
holes of the Base Assembly (A).
BB
DD
Q

15
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
S
R
DD
AA

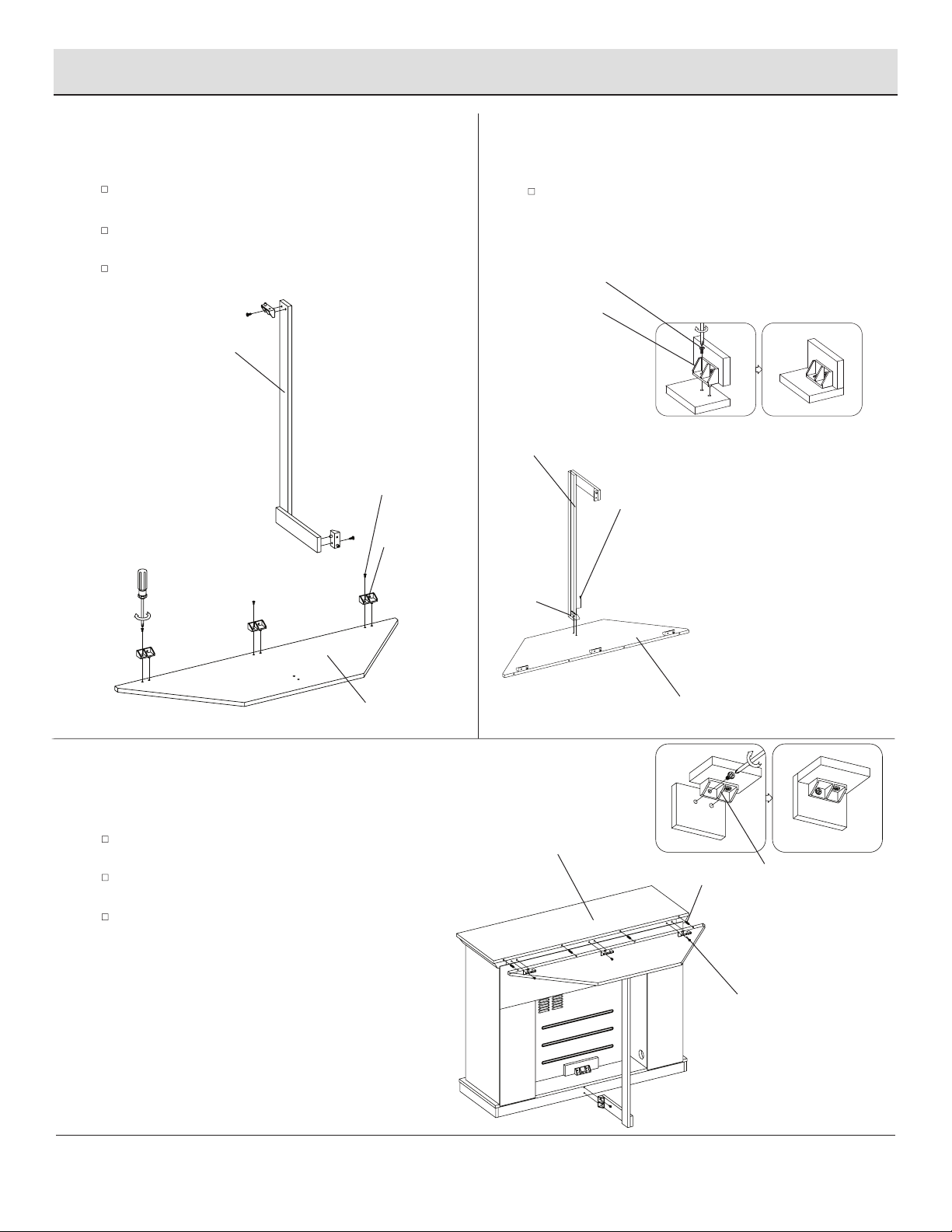

Assembly (continued)
Place the Corner Extension (R) face down on a scratch
free surface.
Attach 2 Plastic Connector Blocks (AA) to the Corner
Brace (S) using Bolts (DD).
Repeat process for the Corner Externsion (R).
Attach the Corner Brace (S) to the Corner Extension (R)
by inserting Bolts (DD) through the holes in the 2 Hole
Plastic Connector Block (AA) and tighten.
22 23
24
Preparing the corner extension Assembling the corner extension
Attaching the corner extension
Insert Wood Dowels (MM) into the holes in the back
edge of the Top Assembly (G).
Move the completed assembly from step 23 into place
at the back of the mantel.
Tighten Bolts (DD) through the Plastic Connectors (AA).
AA
DD
S
DD
AA
R
DD
G
AA
MM

16
Operation
Operation
3 4
Adjusting the heater
Press the Heater button to set the thermostat. The replace
contains three infrared quartz heating elements.
The thermostat setting range is 62°F - 82°F or 17°C - 27°C
or always ON.
The thermostat is adjustable by 2°F or 1°C increments.
The up and down buttons“ ”on the remote will
increase / decrase temperature setting.
NOTE: To change between °F and °C press and hold the
HEATER button on the control panel for 3 seconds.
Push the Power button to supply power to all
functions of the replace and put the insert in a
standby mode.
Push the Power button again to turn off all functions.
1 2
Powering the replace
NOTE: Holding the Power button on the control panel for
3 seconds will disable the heater function.
NOTE: All previous settings are held in memory, so the
next time you power up the replace, the unit will turn on
with the same settings.
Adjusting the ame
There are 6 brightness levels that can be selected:
Settings F6 - F4 decrease in Amber brightness
Settings F3 - F1 decrease in Spectrare brightness
Pressing the Timer button will cycle through the timer
settings; 30 minutes, 1 Hour, 2H, 3H, 4H, 5H, 6H, 7H,
8H, 9H and off.
Setting the timer
NOTE: The control panel can be accessed at the upper-right corner of the insert.
When a function is changed from the control panel or remote control there will be a
corresponding indicator (see Figure 1) on the upper-right of the projection screen.
The indicator shows the function changed and the level selected by the control
panel or remote control. When the function is turned off, the corresponding indicator
will ash several times and then fade off.
Fig . 1
/

17
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
NOTE: Please operate the remote control at a slow
measured pace. Press the remote control buttons with
an even motion and gentle pressure. Repeatedly pressing
buttons in rapid succession may cause the transmitter to
malfunction.
NOTE: Do not mix old and new batteries. Do not mix
alkaline, standard (carbonzinc), or rechargeable (nicad,
nimh, etc) batteries. Do not ingest batteries.
Operation (continued)
When the remote control stops operating or its range
seems reduced, it is time to replace the battery with
new ones.
On the back end of the remote, press and slide
the battery door open and remove the old battery.
Insert 2 AAA batteries, checking that the + and -
sides of the battery match inside the battery
compartment.
Replace the battery compartment door.
The battery may contain hazardous substances that
could endanger the enviroment and human health.
This symbol marked on the battery and/or packaging
indicates that used battery shall not be treated
as municipal waste. Instead it shall be left at the
appropriate collection point for recycling.
By correctly disposing used batteries, you prevent
potential negative consequences for the environment
and human health. Recycling used materials also
conserves natural resources.
For more information about collecting and recycling
used batteries, please contact your local municipality,
your waste disposal service or the point of sale where
you purchased this product.
5 6
Replacing the remote control battery Disposing of used batteries
7Power cord information
This heater is for use on 120 volts. The cord has a plug
as shown in the figure.
Connect to properly grounded outlets only.
Do not use a 2 prong adapter. Never use with an
extension cord or relocatable power tap (outlet/
power strip).
NOTE: Batteries should be removed if the product is
to be left unused for a long time.

18
Care and Cleaning
Dust your replace regularly with a soft non-lint-producing cloth or household dusting product.
Clean your replace with a gentle non-abrasive household cleaner. Dry your replace immediately with a soft cloth or towel.
Tips for using touch-up pen (ZZ): For scratches, stroke in direction of scratch. For worn areas, stroke in direction of wood grain. Rub
excess colorant promptly with a soft cloth.
The motors used on the fan and the ame generator assembly are pre-lubricated for extended bearing life and require no further
lubrication. However, we recommend periodic cleaning/vacuuming of the fan/heater.
Make sure the unit is turned OFF and unplugged whenever you are cleaning the heater or replace.
FCC/IC Information
NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
This Class B digital apparatus complies with Canadian ICES-003.
WARNING:
Disconnect power before attempting any maintenance or cleaning to reduce the risk of re, electrical shock or personal injury.
WARNING:
Make sure the power is turned off before proceeding with repairs. Any electrical repairs or rewiring of this unit should be
carried out by a licensed electrician in accordance with national and local codes. If repairing or replacing any electrical component or wiring,
the original wire routing, color coding and securing locations must be followed. During any service of this appliance, the power to the unit
must be turned off. First turn the main power switch to the OFF position. Then remove the electrical plug from the wall outlet.
WARNING:
Electrical outlet wiring must comply with local building codes and other applicable regulations to reduce the risk of fire,
electrical shock and injury to persons.
WARNING:
Do not use this replace if any part of it has been under water. Immediately call a qualied service technician to inspect the
replace and replace any part of the electrical system.
WARNING:
Changes or modications to this unit not expressly approved by the party responsible for compliance could
void user’s authority to operate the equipment.

19
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Troubleshooting
PROBLEM ROOT CAUSE CORRECTIVE ACTION
Display shows " " The thermostat sensor is
broken or disconnected.
Unplug the replace, remove the back panel
of the replace and check that the thermo-
stat is plugged into the main circuit board.
If this does not solve the problem contact
customer service for a replacement thermo-
stat sensor.
Display shows " " The thermostat sensor is broken. Contact customer service for a replacement
thermostat sensor.
Display shows " " Manual Reset overheat
protection has triggered.
Inspect the heater and check that the air
inlets and outlets are not blocked as this may
cause overheating. Unplug the heater for 30
minutes and allow it to cool down. Replug
and operate. Monitor the heater for signs of
overheating. If the problem persist discon-
tinue use of the heater and contact customer
service.
Display shows " " This is normal operation.
Check your heater cord and plug
connections. Faulty wall outlet connections
or loose plugs can cause the outlet or plug
to overheat. Be sure the plug ts tight in the
outlet. Heaters draw more current than small
appliances. Overheating of the outlet may
occur even if it has not occurred with the
use of other appliances. During use check
frequently to determine if your plug outlet or
faceplate is HOT! If so, discontinue use of the
heater and have a qualied electrician check
and/or replace the faulty outlet(s).
Heater does not blow warm air. The heater is in a cool down cycle.
Normal operation will continue to run for
several minutes before shutting down. Times
will vary based on tempertures. During this
time cool air will blow.
There is no power and the logs do not
glow. There is no power to the unit.
Check that the unit is plugged into a
standard 120V outlet. Press the Power button
several times and make sure power is set to
the “ON”position.
The logs glow, but no ame effect The ame effect turned off. Press the ame button several times.
The heater does not blow warm air.
Thermostat setting is
preventing the heater from
turning on.
Adjust the temperature settings to ensure
that the thermostat is set higher than the
current room temperature.

20
PROBLEM ROOT CAUSE CORRECTIVE ACTION
Flame effect works but heater func-
tion does not and the emberbed ashes
when the heater button is pressed. The heater is disabled.
With the power on press and hold the POWER
button on the control panel for 10 seconds.
Once re-enabled the emberbed lights will
ash multiple times.
The remote control is not working.
There are no batteries. Change the remote batteries.
The signal is poor.
Operate remote transmitter at a slow meas-
ured pace.
Press the remote control buttons with an
even motion and gentle pressure. Repeat-
edly pressing buttons in rapid succession
may cause the transmitter to malfunction.
The remote is too far from the heater.
Operate the remote at a distance less than
20 ft from the front of the
appliance; point the remote at the control
panel.
Troubleshooting (continued)
