Home Decorators Collection 100 Series User manual

Page 1
5 Light Chandelier in Brushed Nickel Finish
Home Depot SKU 100xxxxxxx (UPC 718212174159)
(Brushed Nickel Fixture)
INSTRUCTION MANUAL

Page 2
FEATURES:
1. Transitional 5 Light Chandelier in Brushed Nickel Finish.
2. Timeless Elegant Design.
3. Easy to assemble and install.
QUESTIONS, PROBLEMS, MISSING PARTS:
Before returning to your local Home Depot, please call our Customer
Service Team at 1-800-986-3460 or visit www.homedeot.com.
reference your SKU (100xxxxxxx Brushed Nickel fixture) or UPC
(718212174159 Brushed Nickel fixture).
Thank you for purchasing this Home Decorators Collection interior light
fixture. This product has been manufactured with the highest standards of
safety and quality.

Page 3
CAUTION:
1. Before starting installation of this fixture or removal of a previous
fixture, disconnect the power by turning off the circuit breaker or by
removing the fuse at the fuse box.
2. CONSULT A QUALIFIED ELECTRICIAN IF YOU HAVE ANY
ELECTRICAL QUESTIONS.
3. If you have any non-electrical questions about this fixture, please
contact our Customer Service Team at 1-800-986-3460 or visit
www.homedepot.com. Please reference your SKU (100xxxxxxx
Brushed Nickel fixture) or UPC (718212174159 Brushed Nickel fixture).
4. Keep your receipt and these Instructions for Proof of Purchase.

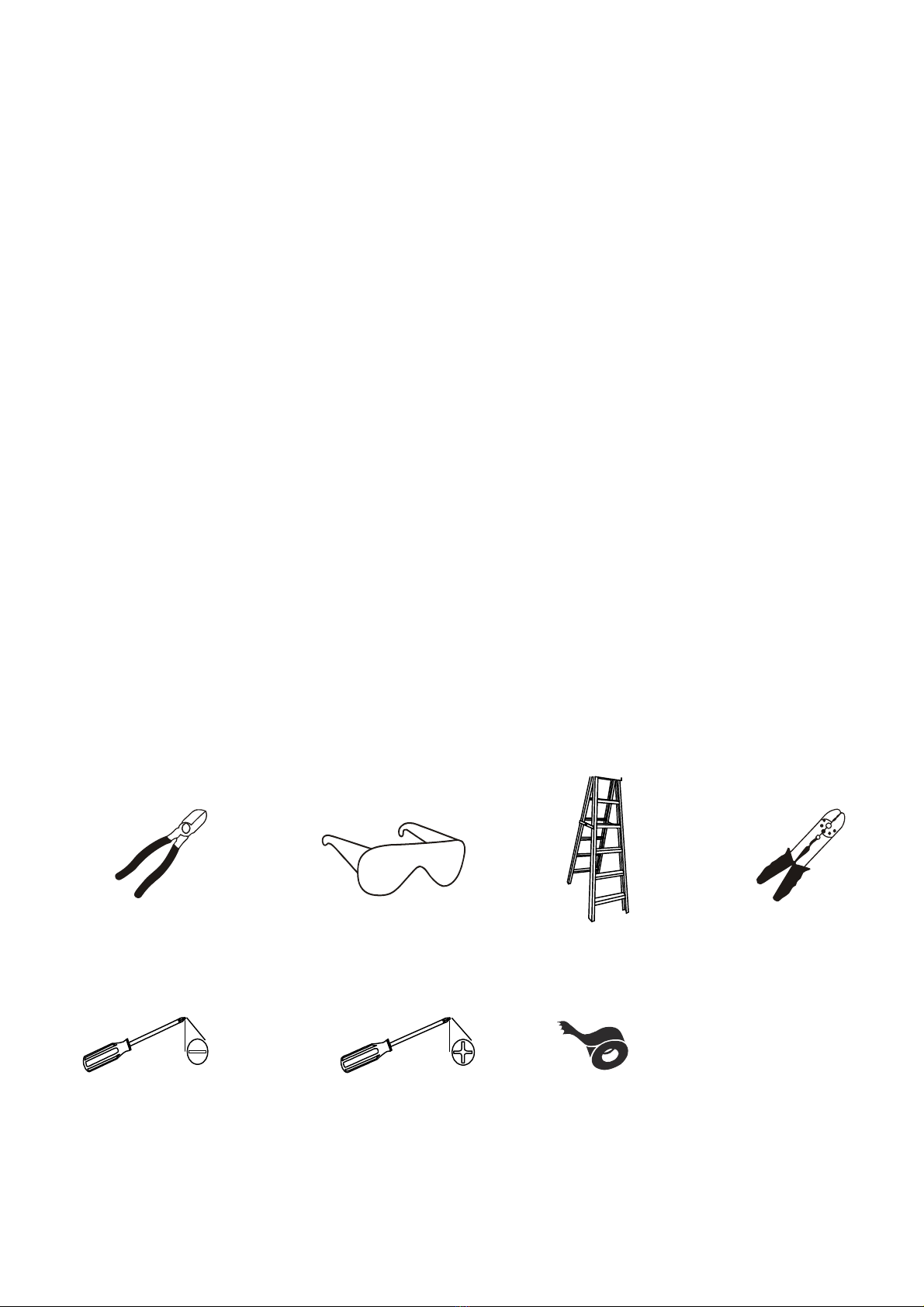

TOOLS REQUIRED FOR ASSEMBLY & INSTALLATION
(not included):
Safety goggles Step Ladder Wire strippers
Flathead screwdrive
r
Phillips screwdriver Electrical tape
Wire cutters

Page 4

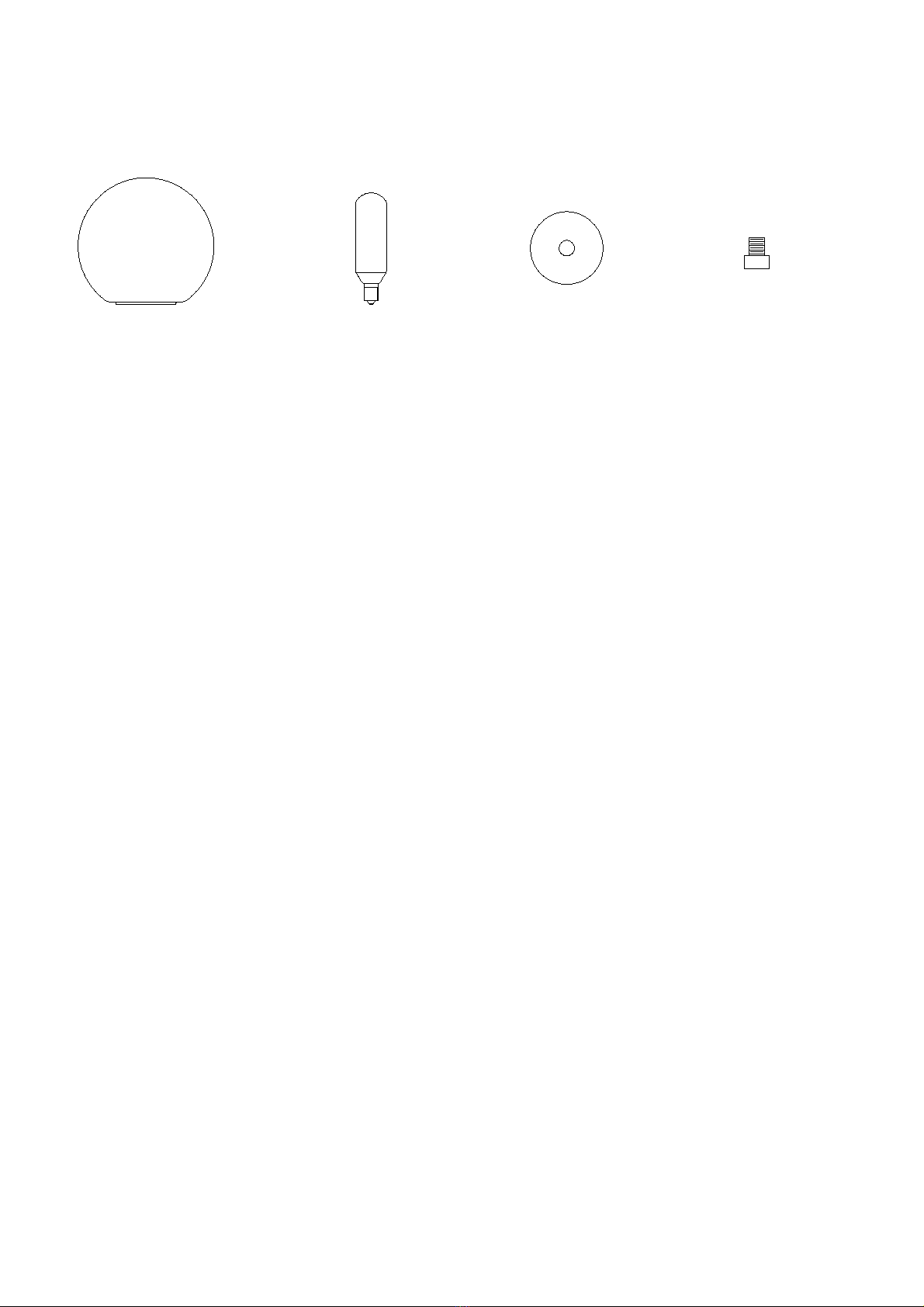

PARTS INCLUDED FOR ASSEMBLY (parts are not to scale):
5 Glass Shade (#7) 5 Bulb (#8)
ASSEMBLY INSTRUCTIONS:
1. Shut off power at the fuse box or circuit breaker box, if necessary remove old fixture
and all mounting hardware from outlet box.
2. Carefully unpack your new fixture and lay out all the parts on a clear area. Take care
not to lose any small parts necessary for installation.
3. Adjust the Arms (#4) to the proper position.
4. Take apart the Cylinder Nut (#20) from the Center Stem (#23), place the Spacer (#9)
onto the center stem (#23) and tighten with Cylinder Nut (#20).
5. Install the Light Bulb (#8) onto the socket. Put the Glass shade (#7) obliquely over one
end of the Bracket (#22). Move the Glass Shade (#7) slightly until the other end of bracket
slides into the Glass Shade interior. Hold the Glass Shade (#7) against the Bracket (#22),
while holding the Glass Shade, slide the Cup (#21) up towards the glass shade until they
are both touching. Holding the Cup (#21), move up the Column Nut (#1) fasten the Cup
securely. (See Image 5-1, 5-2, 5-3, 5-4, 5-5 on next page)
1 Spacer (#9) 1 Cylinder Nut (#20)

Page 5
ASSEMBLY:
7. Glass Shade
8. Bulb
22. Bracket
21. Cup
1. Column Nut
9. Spacer
20. Cylinder Nut
23. Center Stem
4. Arm
IMAGE-1
8. Bulb
Socket
22. Bracket
7. Glass
Shade
21. Cup
22. Bracket
7. Glass
Shade
21. Cup
1. Column Nut
22. Bracket
7. Glass
Shade
21. Cup
21. Cup
1. Column Nut
IMAGE-2 IMAGE-3
IMAGE-5IMAGE-4

Page 6

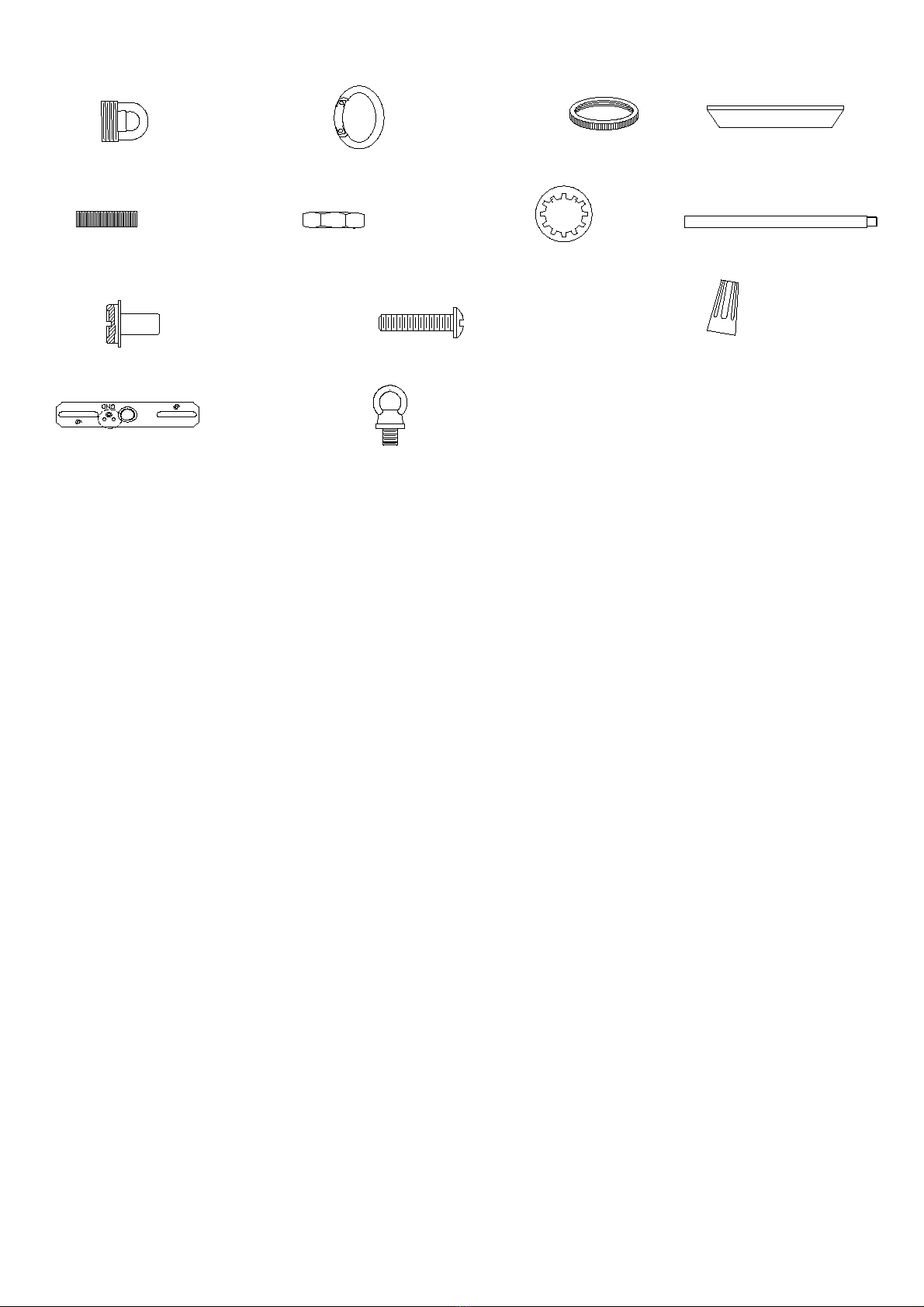

PARTS INCLUDED FOR INSTALLATION (parts are not to scale):
1 Lock Collar (#5)
1 Canopy (#6)
1 Nipple (#15)
2 Hex Nut (#12) 1 Lock Washer (#19) 4 Rod (#10)
1 Ground Screw (#16) 2 Outlet Box Screw (#17) 3 Wire Connector (#11) 1 Crossbar (#18)
INSTALLATION INSTRUCTIONS:
1. Place Hex Nut (#12) over end of Nipple (#15) and thread Nipple (#15) into Ceiling Loop
(#13) until snug.
2. Place the Hex Nut (#12) and Lock Washer (#19) over the other end of Nipple (#15), thread
the other end of Nipple with ceiling loop into the center hole of Crossbar (#18) until tight.
3. Take the crossbar assembly and mount to ceiling outlet box (#3) with outlet box screws
(#17). Tighten screws securely with screwdriver.
4. Determine the desired hanging height and thread the Rods (#10) to the Fixture Body (#2).
Then attach Fixture Loop (#23) by screwing into Rod (#10).
5.
6. Connect the ribbed wire from the fixture to the Neutral wire from the outlet box (#3) and
the smooth wire from the fixture to the hot wire from the outlet box (#3). Cover the two
wire connections using the two provided wire connectors (#11). Wrap the two wire
connections with electrical tape for a more secure connection. If your outlet box has
a ground wire (green or bare copper), connect fixture’s ground wire to it using the
wire connector (#11). Otherwise connect the silver ground wire from the fixture to
Ground screw (#16) on the Crossbar (#18). Note: If you have electrical questions,
consult your local electrical code for approved grounding methods.
7. Tuck these wire connections neatly into the ceiling outlet box and then raise the canopy all
the way to the ceiling. Raise the Lock Collar and thread onto Ceiling Loop protruding
through Canopy. Connect the Fixture Loop (#23) and Ceiling Loop (#13) with Quick Link (#14).
8. Installation is complete. Turn on the power at the circuit breaker or fuse box. Turn the light
switch on to activate the fixture.
1 Ceiling Loop (#13)
Slip Canopy (# 6) and Lock Collar (# 5) through over the Ceiling Loop (#13), while holding
the fixture, feed the fixture wire through the Lock Collar (#5), Canopy (#6), Ceiling Loop (#13)
and Nipple (#15), pull fixture wire until taut.
1 Quick Link (#14) 1 Fixture Loop (#23)

Page 7
INSTALLATION:
3. Outlet Box
Ground Wire
18. Crossbar
15. Nipple
12. Hex Nut
Hot Wire (Smooth)
11. Wire Connector
Neutral Wire (Ribbed)
19. Lock Washer
16. Ground Screw
17. Outlet Box Screw
5. Lock Collar

Page 8
TROUBLESHOOTING:
PRODUCT MAINTENANCE:
1. To clean the outside of the fixture, use a dry or slightly dampened clean cloth (use
clean water, never a solvent) to wipe the glass and surface of the fixture.
2. To clean the inside of the fixture, first disconnect power to the fixture by turning off
the circuit breaker or by removing the fuse at the fuse box. Next, use a dry or slightly
dampened clean cloth (use clean water, never a solvent) to wipe the inside glass and
interior surface of the fixture.
3. Do not use any cleaners with chemicals, solvents or harsh abrasives. Use only a dry
soft cloth to dust or wipe carefully.
LIMITED WARRANTY
The manufacturer warrants this lighting fixture to be free from defects in materials and workmanship for a
period of five (5) years from date of purchase. This warranty applies only to the original consumer
purchaser and only to products used in normal use and service. If this product is found to be defective, the
manufacturer’s only obligation, and your exclusive remedy, is the repair or replacement of the product at the
manufacturer’s discretion, provided that the product has not been damaged through misuse, abuse, accident,
modifications, alterations, neglect or mishandling. This warranty shall not apply to any product that is found
to have been improperly installed, set-up, or used in any way not in accordance with the instructions
supplied with the product. This warranty shall not apply to a failure of the product as a result of an accident,
misuse, abuse, negligence, alteration, or faulty installation, or any other failure not relating to faulty material
or workmanship. This warranty shall not apply to the finish on any portion of the product, such as surface
and/or weathering, as this is considered normal wear and tear.
The manufacturer does not warrant and specially disclaims any warranty, whether express or implied,
of fitness for a particular purpose, other than the warranty contained herein. The manufacturer
specifically disclaims any liability and shall not be liable for any consequential or incidental loss or
damage, including but not limited to any labor / expense costs involved in the replacement or repair of
said product.
Possible Cause Corrective Action
1. Bulb is burned out. 1. Replace light bulb.
2. Power is off. 2. Make sure power
supply is on.
3. Faulty wire connection. 3. Check wiring.
Bulb will not light.
4. Faulty switch. 4. Test or replace switch.
Fuse blows or circuit
breaker trips when light
is turned on.
Crossed wires or power wire
is grounding out. Check wire connections.

Page 9
5 Luz Lámpara en níquel cepillado en Finalizar
SKU 100xxxxxxx de Home Depot (UPC 718212174159)
(Lámpara en Níquel Cepillado)
MANUAL DE INSTRUCCIONES

Page 10
CARACTERÍSTICAS:
1. Transitional 5 Luz Lámpara en níquel cepillado en Finalizar.
2. Diseño clásico y elegante.
3. Fácil de ensamblar e instalar.
PREGUNTAS, PROBLEMAS, PIEZAS FALTANTES:
Antes de regresar a su oficina local de Home Depot, llame a nuestro
Servicio de Atención al 1-800-986-3460 o visite www.homedepot.com.
Por favor, referir a SKU (100xxxxxxx Lámpara en Níquel cepillado), UPC
(718212174159 Lámpara en Níquel cepillado).
Gracias por la compra de este accesorio Home Decorators Collection luz
interior. Este producto ha sido fabricado con los más altos niveles de
seguridad y calidad.
