HomingGame Key Master 2017 User manual

HomingGame wwww.hominggame.com [e-mail] whatsapp:[phone]
1
2017 New Japanversion
Key MasterManual

HomingGame wwww.hominggame.com [e-mail] whatsapp:[phone]
2
1.Test and Setting Instructions
See Video:https://youtu.be/b3fOaA1JBKs

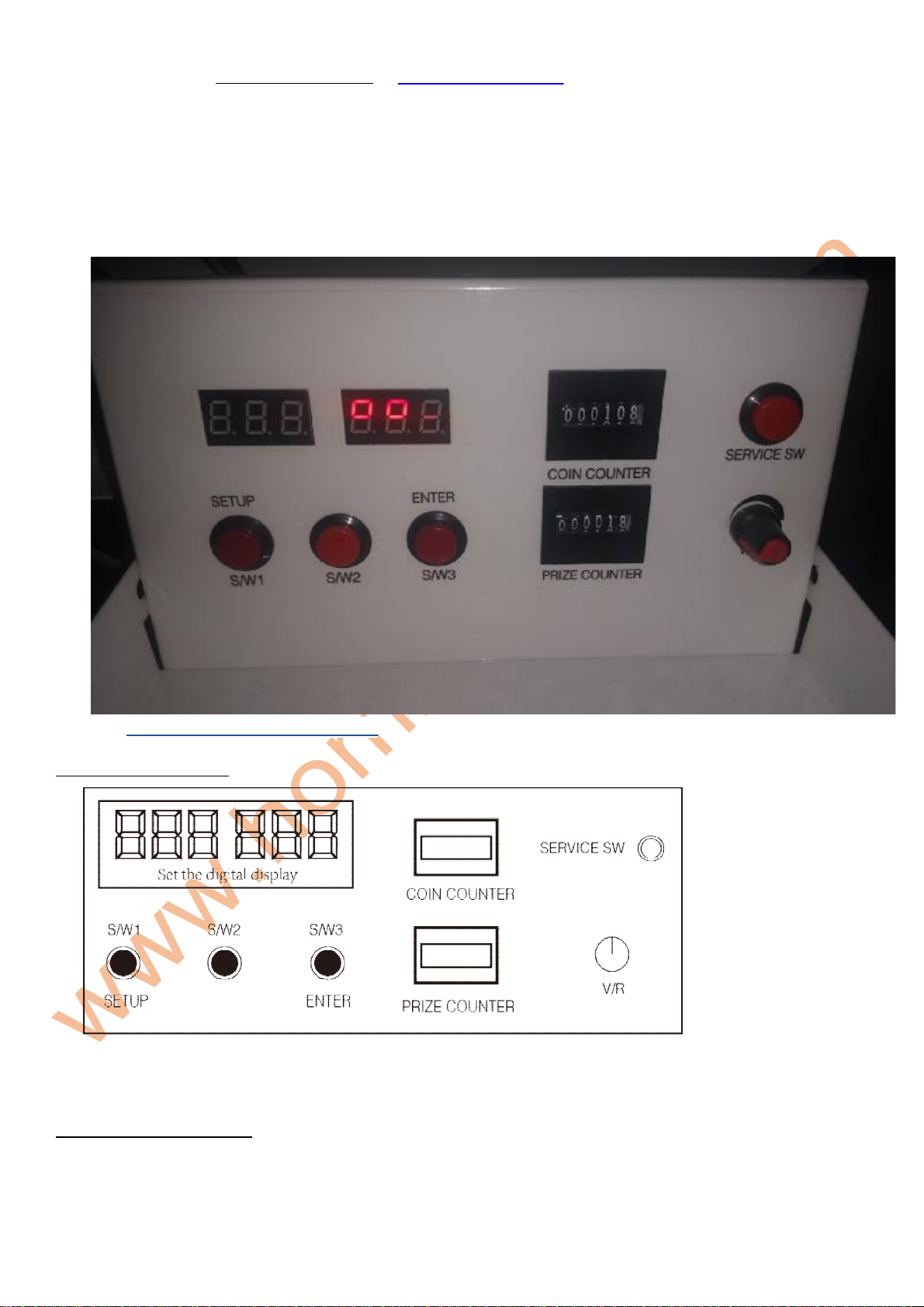

1.1 Setting Mode
SW1 :Nextand Confirm FunctionSW2/SW3: ShiftFunction
1.1.2 How to set up
1. SW1 a）choosing different modes and and functions
2. SW2/SW3: a) shift of different modes and functions
b) changeof function number value
1.pressing SW1 buttonto enter the mode
2.Shifting each mode by pressing SW2 or SW3
3.Choosing modes by pressing SW1
4.Each mode as follows:
-
Modes displaying

HomingGame wwww.hominggame.com [e-mail] whatsapp:[phone]
3
1.1.3 Setting 15 Prizes Coordinate Mode (Clear Permanent Account Mode)

HomingGame wwww.hominggame.com [e-mail] whatsapp:[phone]
4
1. Power offthemachine
2. In the mainboard,dial the Swith1-No.8button to On”direction.
3. Press Services Panel Sw1”and Sw2”buttonat thesame time,poweron the
machine,hold on 5 seconds.
4. Console Will appear Error14”(Alarm sound Warning!)
5. Power offthe machine, dialthe mainboardSwitch1-No.,8 buttonto Off”Direction
again.
6. Power onthemachineagain. Andthenthekey willgotoset each prize hookcoordinate
automatically.
7. The Whole settingneed20 Minutes.
8. Whenfinishthe all 15prizeprobabilitysetting,the mainboardwillsavethedatashows
save”Successfully”
9. Go backtotheplaying stand-bymode.

HomingGame wwww.hominggame.com [e-mail] whatsapp:[phone]
5
Notice: This actionalsowillclearthe whole machineaccount:suck likethe permant total
coin account(nMedal-00000000) to Zero",permanttotal prizeout
account(nPrize-00000000)to”Zero”.andclear the former 15prizehook coordinatesetting
data,reset data again.
How to Set the Japan Version Key master Each Hook coordinate Part
VideoPart 1:https://youtu.be/dTMLj96bwLU
VideoPart 2:https://youtu.be/sMxajAZjsto
Video Part 3:https://youtu.be/AInTCHsm9g4
1.1.4 Automatic calibration mode
1. The machine can be calibrated automatically inthis mode.
2. Poweroffthemachine atfirst,and thenpress Sw1 buttonandholdon,power
on machine atthesametime,keeppressingSw1buttonfor 3secondsand
then leaveit,enter into automatic calibration Mode.
3. In this mode,the key willmoveandgo into each prizehook one time,if notgo
into successfully,when finish this round checking.
4. The key willgo backtowrongcoordinatehook positiontoresetthe
coordinateagain.when finishcorrectingall the wrongcoordinatehook
setting.the mainboardwill savethedata.
5. Andthenthe keywillgo back toformer position,gobacktotheplaying
stand-bymode.
6. Whole Calibration needs some minutes.
See Video:https://youtu.be/NZ-xqz9MEw8

HomingGame wwww.hominggame.com [e-mail] whatsapp:[phone]
6
1.1.5 CleartheCurrentAccount.
W
Current Total Coin In-------(Medal-00000000)
Current Total Prize Out----(Prize-00000000)
Notice:When you wanttochange how manycoins pertime or prize
probability ,At first you must need Clear the Current Account.
How to Clear CurrentAccount ?
1. In the Playinggame stand-bymode.Press panel Sw1”button,will show
[Gsetup] enter into system setting.

HomingGame wwww.hominggame.com [e-mail] whatsapp:[phone]
7
2. And then Press Sw2 button,willshows:

HomingGame wwww.hominggame.com [e-mail] whatsapp:[phone]
8
3. and then press Sw1 button ,enter the checking account mode,will shows:
4. And then Press Sw3 button(Going into the Final Step),will shows:

HomingGame wwww.hominggame.com [e-mail] whatsapp:[phone]
9
5. Press Sw3 button again (going intothe Clear step)will Shows:
6. Atthis State,Press Sw1 button and hold on 5seconds,can clearthe current
account data,after finish will shows the following pictures:

HomingGame wwww.hominggame.com [e-mail] whatsapp:[phone]
10
Means clear the current accountdata successfully( can later operation reset
the prize probability,how many coins each time,playing time etc data)
7. Press Sw2”button to shiftto the following state[End]

HomingGame wwww.hominggame.com [e-mail] whatsapp:[phone]
11
8. and then press Sw1 button ,show this
9. Press Sw2 button,show this;

HomingGame wwww.hominggame.com [e-mail] whatsapp:[phone]
12
10.Press Sw1 button go backtopalying stand byMode(Finally finishthiswhole
clear currentaccountoperation,can set the prizeprobabilityNow ,pls review
the later operation notice how tosetthe prizeprobabilityetcorplaying the
game)---TheNormal Playing stand-byModelike this:
See Video:https://youtu.be/gfXfSlvLH2k

HomingGame wwww.hominggame.com [e-mail] whatsapp:[phone]
13
Must Clear theCurrent Data account BeforeChange the Prize probabilityetc
setting:
Video:https://youtu.be/QK36f858wXs

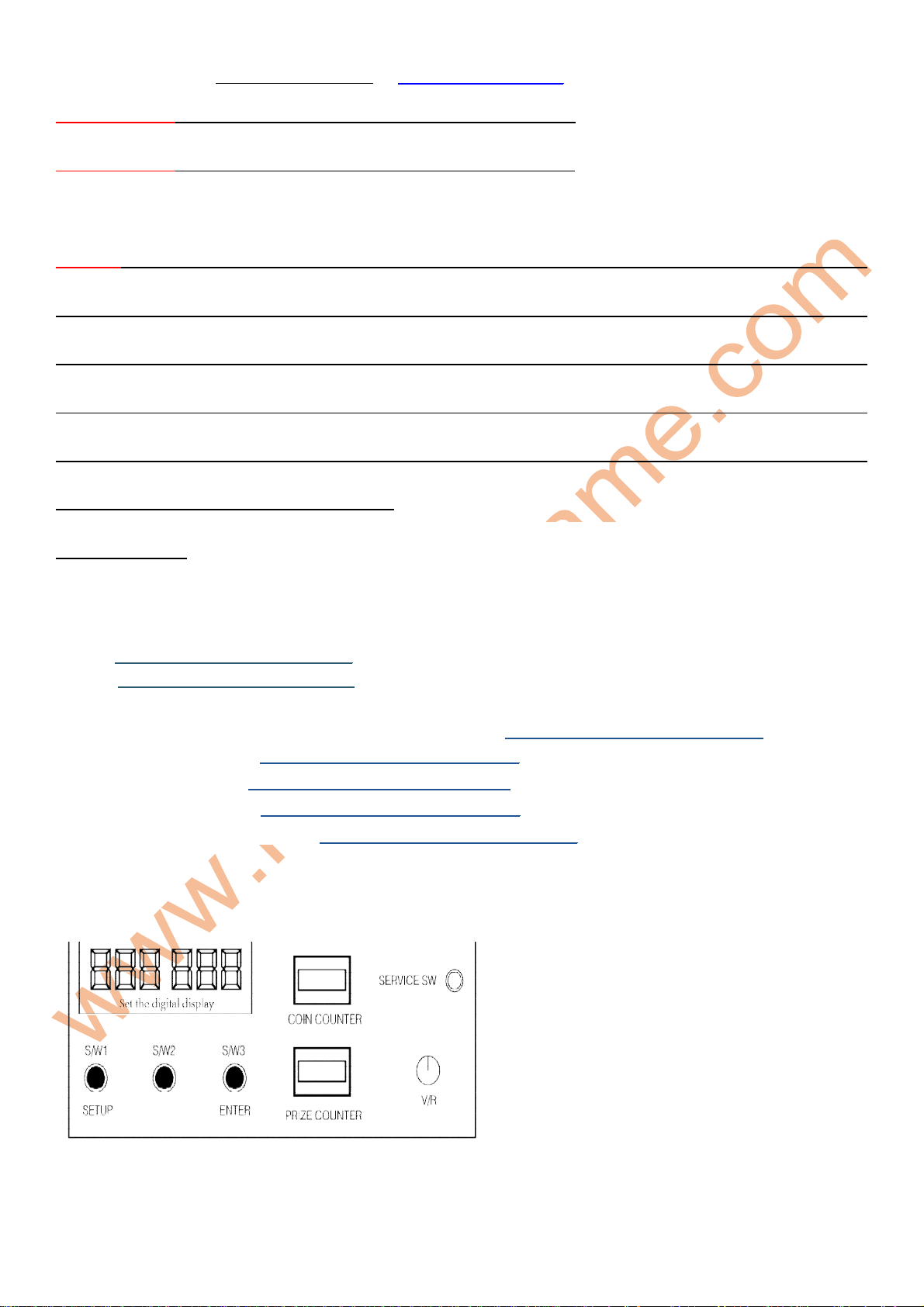

1.1.6 Setting Mode (Setting How many coin/time,Prize Probability)
Notice :BeforeChangethefollowing setting,mustbe Clear thecurrent data
account(currenttotal coin in and total prizeout).howto clear,pls review the
manual 1.1.5
Panel Button SW1,SW2,SW3 button Function:
SW1 button:Confirm And Save function

HomingGame wwww.hominggame.com [e-mail] whatsapp:[phone]
14
SW2 button:Next Stepor Increase Number function
SW3 button: Back Step or Reduce Number Function
Notice:Each Paramter optionwhen wantto change,at firstpress Sw1”button to
confirm,and then press Sw2”buttonor Sw3”button tochangethe
number.when finish changesetting ,press SW1”button again toconfirmand
back tothethis parameter option Postion(function board). And then canpress
the Sw2”button togo the next parameter option or Press the Sw3”button to
back to former parameter option.
See Video:
ChangeThe key master or Axe MasterSetting
Part 1 :https://youtu.be/dvZZl3_Bs1s
Part II :https://youtu.be/ajG_jF57s1U
Enter into the Setting Mode (how many coin per coin):https://youtu.be/dRYIDP0Ou70
set playing game times :https://youtu.be/4C3Su4APuzU
Prsention voice on/off :https://youtu.be/yUCQHZe0txw
Setting Prize probablity :https://youtu.be/tdZDA1KBEYA
Setting Prize Probability Part 2 :https://youtu.be/SlS5dGXEBC0

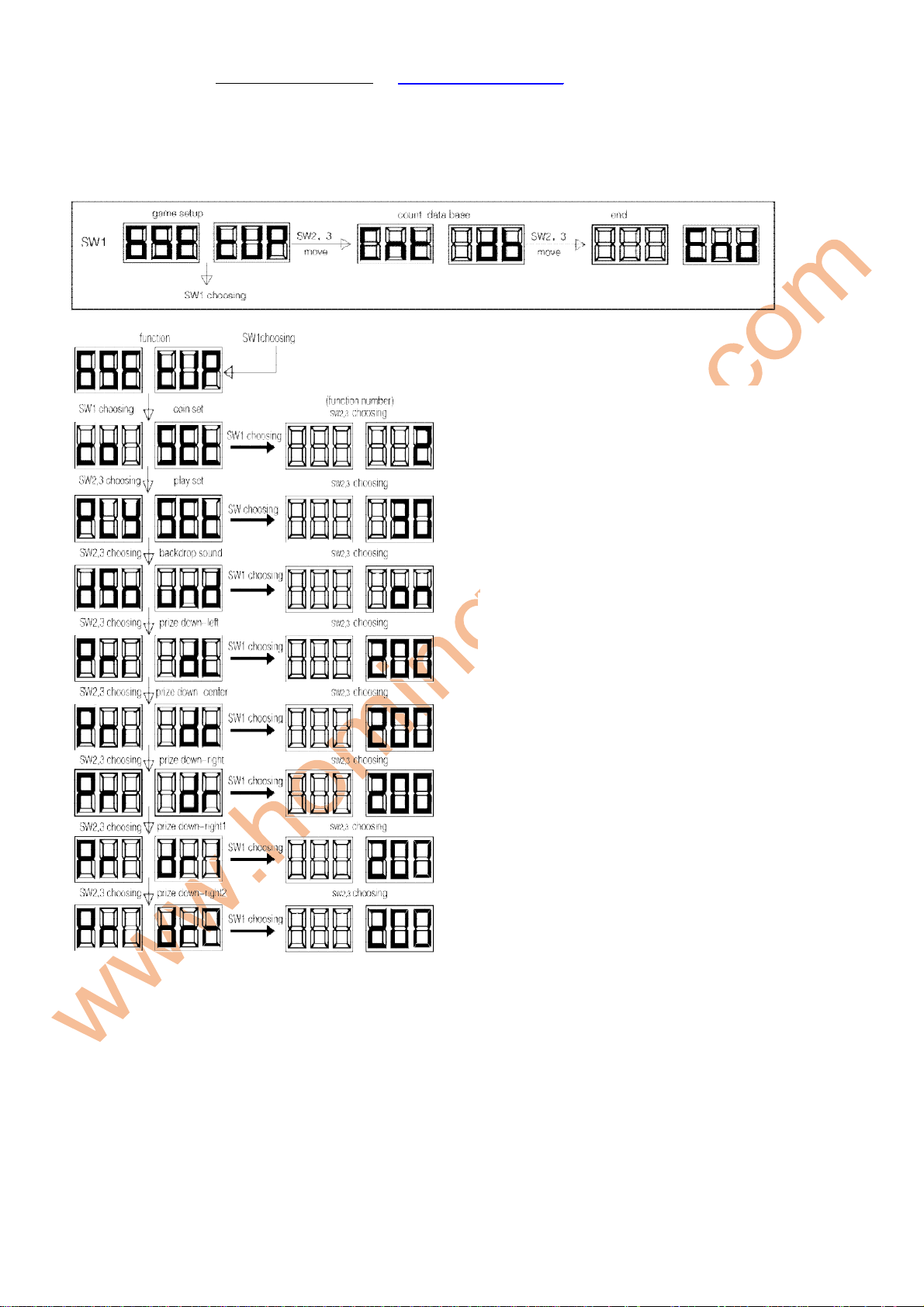

1.Enteringdifferent functions bypressing SW1 in
this mode.
2.Shifting in differentfunctions bypressing
SW2/SW3.
3.Setting function number by pressing SW1 after
choosing.
4.Changing function number bySW2/SW3
5.Pressing SW1 again to return to function board
after
changing function number

HomingGame wwww.hominggame.com [e-mail] whatsapp:[phone]
15
- ModeDisplay
Settingcoinnumber ofevery round game
Scope:0-
9/staringvalue:2coins/play 2coins
00:freemode
Settingtime ofevery round
Scope:/0-
99/staringvalue:30s/round30seconds
Unit:1second
PresentationVoiceON
On/off
Setting winning rateontheleft ofbottomlayer
Scope:0-9999/staringvalue1prize/200coins 200
Unit:1coin
Setting winning rateinthemiddleofbottomlayer
Scope:0-9999/staringvalue1prize/200coins 200
Unit:1coin
Setting winning rateontherightof bottomlayer
Scope:0-9999/staringvalue1prize/200coins 200
Unit:1coin
Setting winning rateontheright1ofbottomlayer
Scope:0-9999/staringvalue1prize/200coins 200
Unit:1coin
Setting winning rateontheright2ofbottomlayer 200
Scope:0-9999/staringvalue1prize/200coins
Unit:1coin

HomingGame wwww.hominggame.com [e-mail] whatsapp:[phone]
16

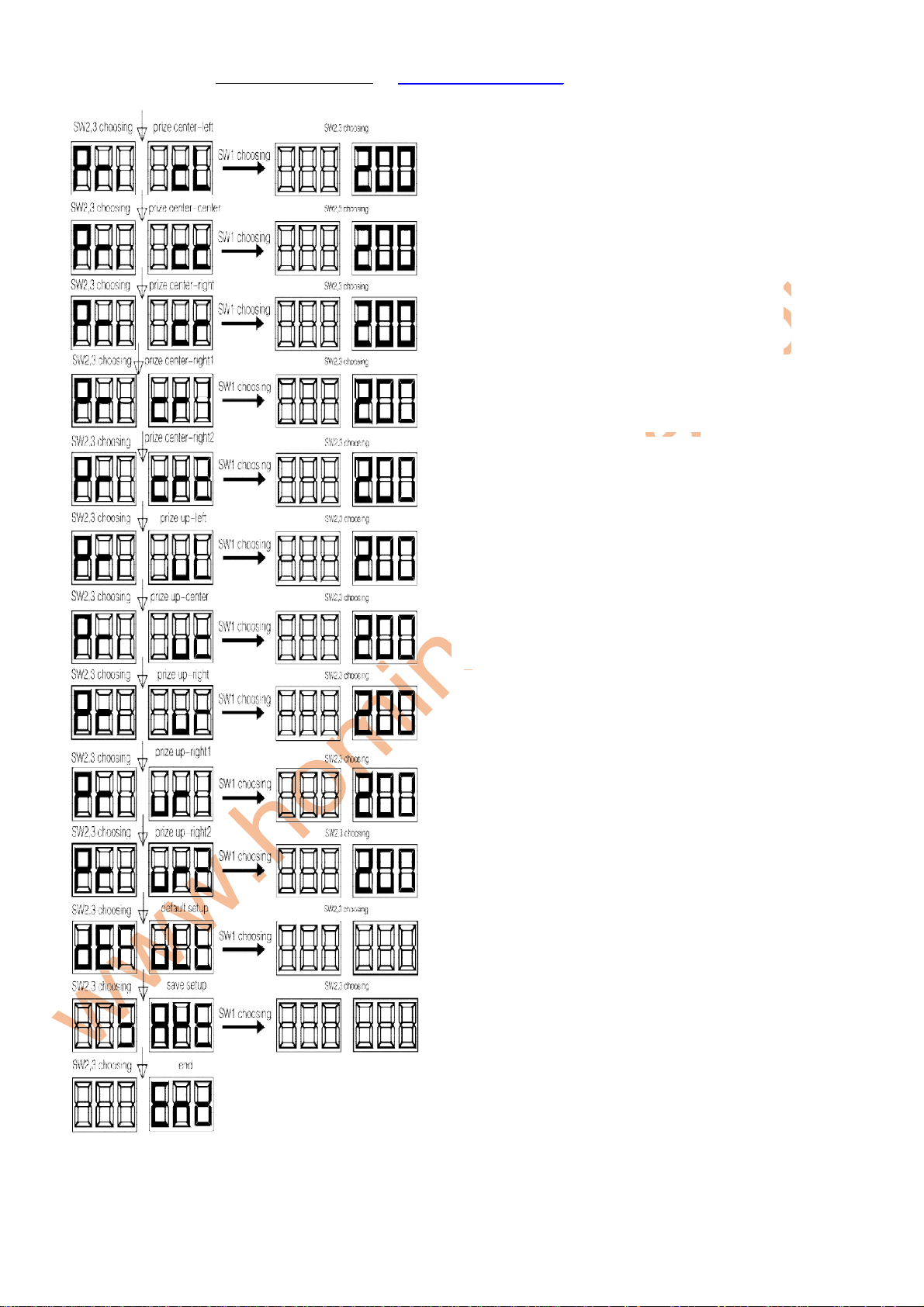

Setting winning rateontheleft of middlelayer
Scope:0-
9999/staringvalue1prize/200coins
Unit:1coin
Setting
winningrateonthemiddleof middlelayer
Scope:0-9999/staringvalue1prize/200coins
Unit:1coin
Setting winning rateontherightof middlelayer
Scope:0-
9999/staringvalue1prize/200coins
Unit:1coin
Setting winning rateontheright1of middlelayer
Scope:0-9999/staringvalue1prize/200coins
Unit:1coin
Setting winning rateontheright2ofmiddlelayer
Scope:0-9999/staringvalue1prize/200coins
Unit:1coin
Setting winning rateontheleft ofuplayer
Scope:0-9999/staringvalue1p
rize/200coins
Unit:1coin
Setting winning rateonthemiddleof uplayer
Scope:0-
9999/staringvalue1prize/200coins
Unit:1coin
Setting winning rateontherightof uplayer
Scope:0-9999/staringvalue1prize/200coins
Unit:1coin
Setting winning rateontheright1ofuplayer
Scope:0-9999/staringvalue1prize/200coins
Unit:1coin
Setting winning rateontheright2ofuplayer
Scope:0-9999/staringvalue1prize/200coins
Unit:1coin
Restart allsetup “GSETUP”Returnto staringvalue(keeppressing
SW1 5seconds)Note:pressingSW1untilshowing “-SUCC-”
everysetupfunctiomnumberwillreturntoinitialnumber(clear
countdatafirstandthen returnto initialnumber)
Save all game setupNote:press SW1tosave showing “-SAOK-”
and browsingautomatically(savingoperationeffectivelywhen
changing parameter)
*Attention:Ifyouwanttobere-setwinningrateofeachprize shelf,
youshouldclearrecordsandoperateaccordingtopage 18.
200
200
200
200
200
200
200
200
200
200
Note:1) Pressing SW1 toreturn toprevious menu when
showing “END”
2)shift to CNTDB mode by pressing SW2/SW3
