Honeywell R-MM14CCS User manual

OWNER’S MANUAL
Voltage rating: 120V~60Hz
Power rating : 1400W
REFURBISHED
Portable Air Conditioner
Model: R-MM14CCS
R-MM14CCSBB
Customer Support : [email protected]
For product inquiries : www.honeywellportableac.com Made in China
Read these instructions before use

THANK YOU.....................................................................................................
INDEX .............................................................................................................. 1
2
3
4
6
7
13
15
16
USER TIPS........................................................................................................
SAFETY ............................................................................................................
PARTS DESCRIPTION.....................................................................................
INSTALLATION.................................................................................................
10
USE & OPERATION..........................................................................................
CLEANING & MAINTENANCE..........................................................................
TROUBLESHOOTING GUIDE...........................................................................
14
WATER DRAINAGE..........................................................................................
TECHNICAL SPECIFICATIONS.........................................................................
17
SERVICE AND WARRANTY .............................................................................
2.
1.
3.
4.
5.
6.
7.
8.
10.
9.
11.
12.
EGAPNOITCES
Read all instructions carefully before setting up and operating the unit. Please keep
this instruction manual for future reference. This manual is designed to provide you
with important information needed to setup, operate, maintain and troubleshoot your
portable air conditioner. Failure to follow these instructions may damage and/or impair
operation and void the warranty.
1
INDEX

2
Congratulations on your purchase of this versatile Refurbished Honeywell Portable Air
Conditioner.
Honeywell Portable Air Conditioners are ideal for spot cooling. The compressor,
condenser and evaporator are housed in a compact unit. The air is filtered,
dehumidified and cooled while a flexible air outlet hose sends heat outside. The air
conditioner includes a window venting kit. No permanent installation is needed so the
unit is easy to move from room to room and offers a truly flexible air conditioning
solution.
Auto Evaporation System - The unit automatically evaporates the condensate through
the air outlet hose. No need to empty the drainage tank except in very high humidity
conditions.
Please read the instructions carefully.
THANK YOU

Cooling, Dehumidifying function Fan function
Important : After transporting the unit, place it UPRIGHT for 20 min.
before use to allow the refrigerant to stabilize.
Check that the unit is complete with all accessories as outlined in this
instruction manual.
Follow installation instructions to set up your unit.
Plug the unit into a properly grounded circuit.
To ensure optimal efficiency of the product, we recommend keeping doors and
windows closed when it is used as an air conditioner or dehumidifier.
If the product is being used with the fan function only, please position the unit near an
open window so that outside air is drawn into the unit, the air circulates in the room and
then exits via the door.
3
USER TIPS

4
SAFETY
READ AND SAVE THESE INSTRUCTIONS
Improper handling can cause serious damage to the appliance.
WARNING
7.
6.
5.
4.
3.
2.
1.
Unplug the unit when stored or not in use.
If service is needed contact an authorized service agent.
Always turn off and unplug the unit when cleaning or servicing.
DO NOT place objects on or sit on the unit.
This appliance is not intended for use by children. Children should be supervised
and should not play on or around the appliance.
DO NOT cover the air intake and exhaust when in use.
DO NOT operate the unit with a damaged plug or loose socket point. If the power
cord is damaged, it must be replaced by the manufacturer or an authorized service agent.

5
SAFETY
Use caution to prevent tripping on cord.
DO NOT use in areas where gasoline, paint or other flammable goods are stored.
11. Basic safety precautions should always be followed when using electrical appliances.
10.
DO NOT run the power cord under carpeting and rugs.
8.
9.

PARTS DESCRIPTION
124
5
3
x 1
x 1
x 2 x 1
Installation Kit : ** REFURBISHED UNITS
MAY NOT INCLUDE ALL ITEMS BELOW **
1. Window Bracket Kit.............................
2. Window Bracket Panel Adapter..........
3. Plastic Screws....................................
4. Hose Connector..................................
5. Plastic Hose........................................
1 Set
1 Piece
2 Pieces
1 Piece
1 Piece 6

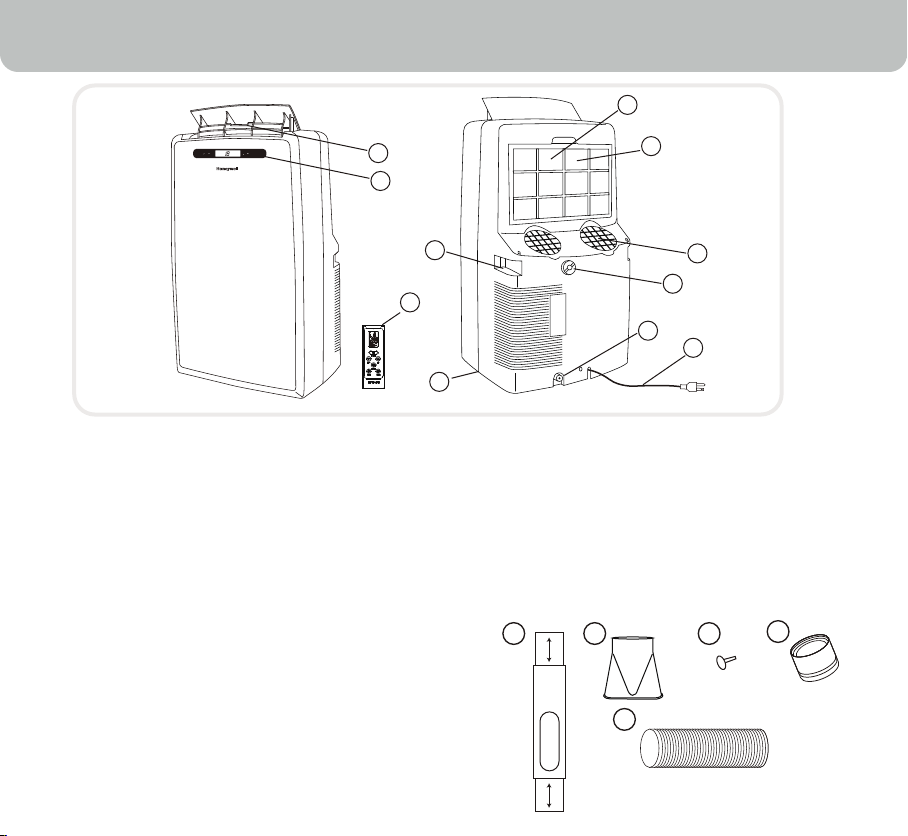

1. Control Panel ( Incl. Signal Receptor)
2. Air Outlet
3. Handle
4. Caster
5. Water Drain Cap (De-humidifier mode)
6. Air Filter
7. Back grill
8. Water drain Cap (Air Conditioning Mode)
9. Power Supply Cord
10. Hose Connector
11. Remote Control (Batteries not included)
1
2
6
7
5
4
310
11
9
8

1
2
Plastic Screw
7
INSTALLATION
Push-in Rotate
=

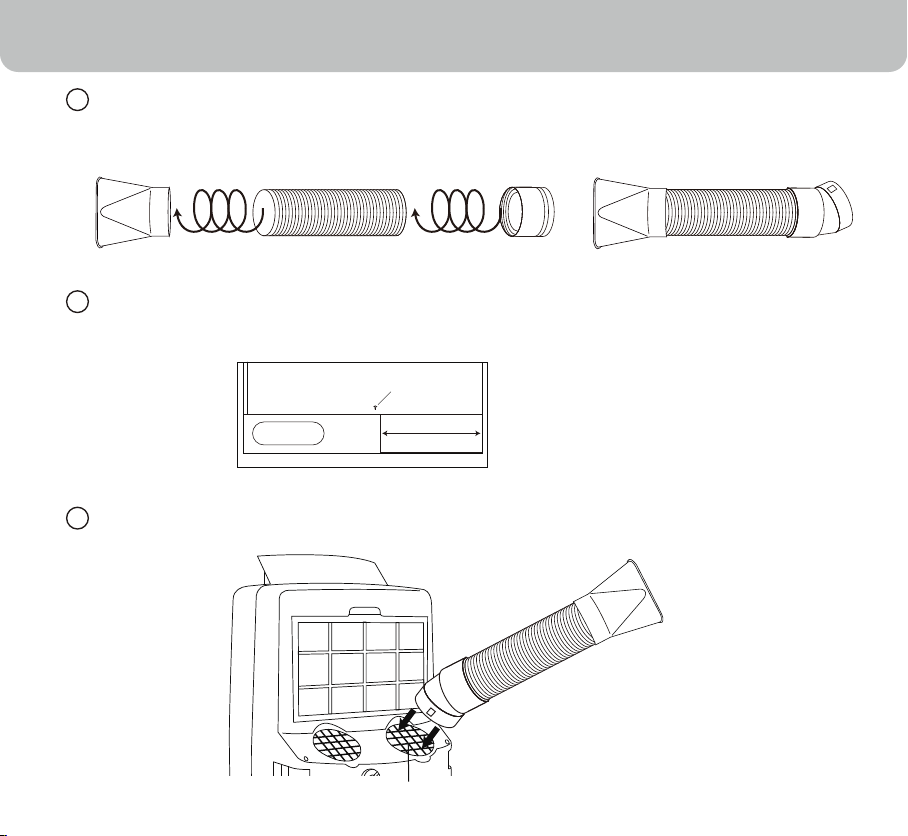

Install the plastic hose with window bracket adapter and hose connector on both sides.
Ensure proper fit on both ends.
Note : Do not install the window
bracket to your window. This step
is required only to adjust it to the
size of your window. The bracket
should be removed from the window
after the size is adjusted.
Adjust the window bracket as per width or height of your window and insert a plastic screw
to fix at the desired position.
Connect the plastic hose to the hose connector on back of the unit.
3

4
8
INSTALLATION
Connect the window bracket to the opposite end of the plastic hose. Ensure that
connections are tight and installed properly.
5Connect the window bracket to the window.
The Portable Air Conditioner is now ready to use.

9
NOTE:
1. The supplied exhaust hose can be extended from 12 inches (1 feet) to 47 inches
(3.9 feet).
RECOMMENDEDNOT RECOMMENDED
Warning:
• The length of the exhaust hose is designed acording to the product specifications.
Do not replace or lengthen it with any other pipe or hose as this could cause the
unit to malfunction.
• Make sure the back of the unit is at least 20 inches away from a wall.
Do not place the unit in front of curtains or drapes as this could obstruct the airflow.
MIN.
20”
35 cm
MAX. 100 cm
INSTALLATION

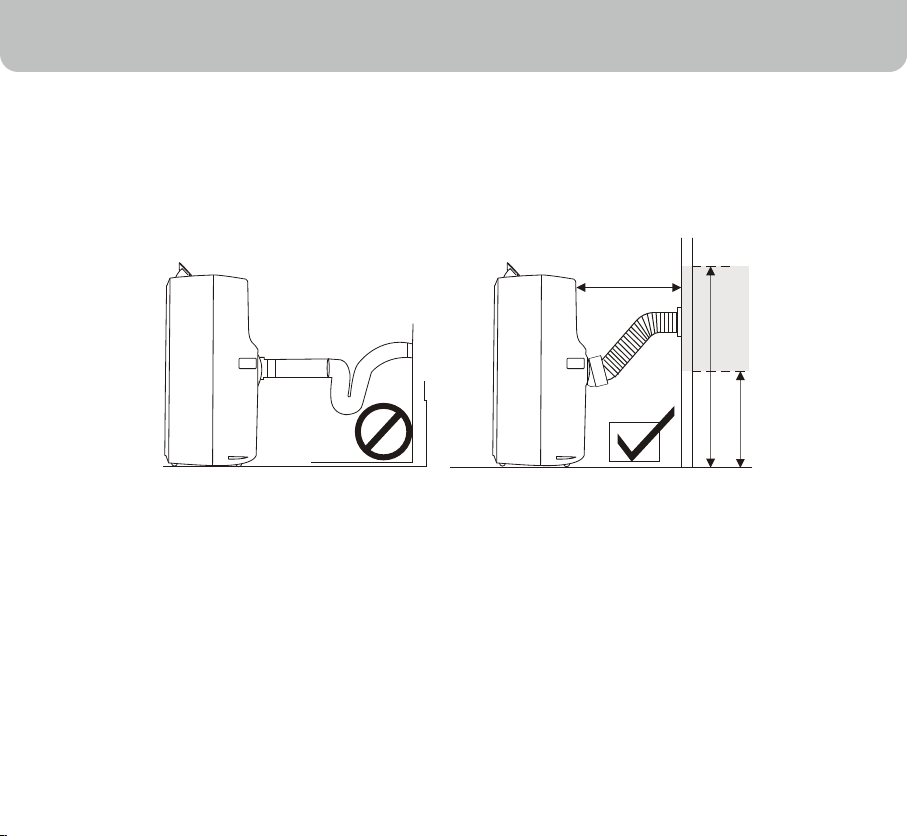

2. Do not bend (to the extent shown below) the exhaust hose.
A bent hose will block exhaust air and cause the unit to malfunction or shut-off.

10
USE & OPERATION

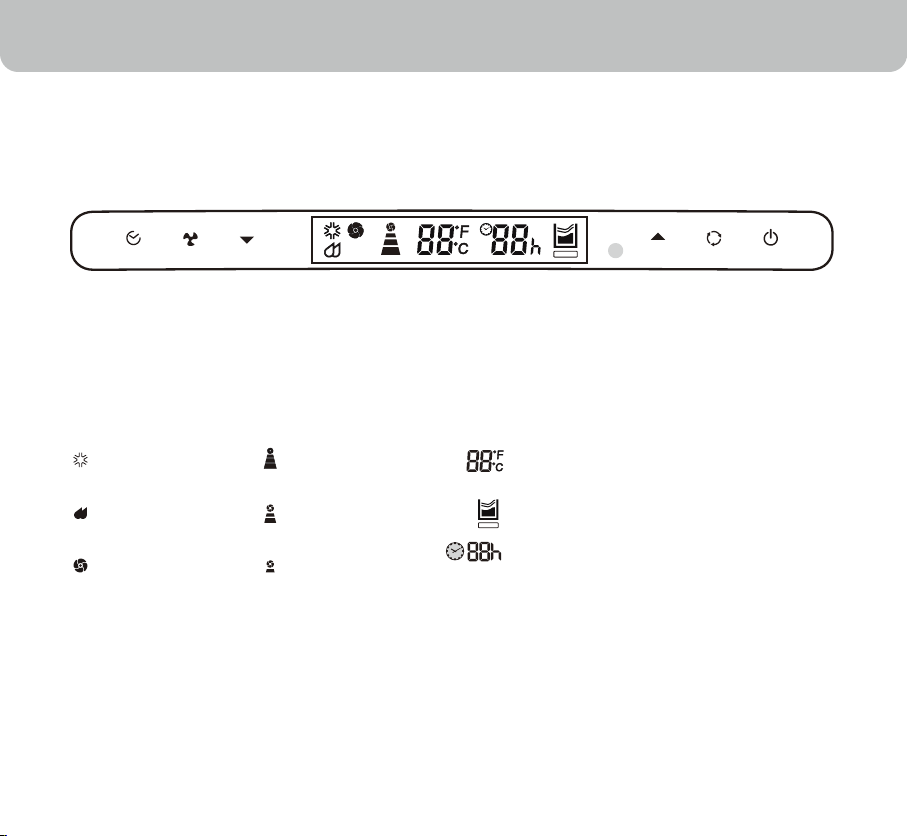

Indication symbols on LCD panel:
Cooling Mode High Fan Speed
Dehumidify
Mode
Medium Fan
Speed
Fan Mode Low Fan Speed
Display set temperature in Fahrenheit
or Celsius
Error – The machine will stop running
Display timer setting to automatically
turn on/off between 1 to 24 hours
STOP
STOP

11
USE & OPERATION
•Fan Mode
When fan mode is selected the indicator light will shine.
Air is circulated throughout the room with no cooling.
Note: unit does not need to be vented in Fan mode.
Fan Speed Control
The Fan Speed Control has 3 settings: High, Medium,
and Low.
In cooling mode, when “ “ or “ “ button is pressed, the set
temperature is displayed and may be adjusted.
After 10 seconds the display will revert back to room
temperature. Temperature is only adjustable in cool mode.
The time is adjustable between 1~24 hours.
Timer
Auto turn off :
Auto turn on :
With machine in running mode, press timer button to select
number of hours you would like the unit to run in air
conditioning mode until it automatically shuts off.
With machine in stand by mode, press timer button to select
number of hours until you would like the unit to automatically
start running in air conditioning mode.
Timer / Temp set controls
• Used for adjusting the timer and thermostat.
• The default display is room temperature.
•
Note : By pressing both “ “ / “ “ set buttons at the same
time, the display will toggle between Celsius and Fahrenheit.
Warning Light
Condensed water may accumulate in the unit. If the internal
tank becomes full, the Power Light will flash and the unit will
not operate until the unit has been drained.
Power Control
The power control turns the unit on and off.
Mode Control
The Mode Control has 3 settings:
•Cool •Dehumidify •Fan
The settings are adjusted with Mode Control button. A light
will indicate which setting is currently being used.
•Cooling Mode
When cooling mode is selected, the indicator light will shine.
During the cooling mode the air is cooled and hot air is
exhausted to the outside through the exhaust tube.
Adjust fan speed and air temperature to suit your desired
comfort level. Temperature setting range is 16°C ~ 32°C.
Note : The air exchange hoses must vent outside the
room when using cool mode.
• Dehumidify Mode
When dehumidify mode is selected, the indicator light will
shine. Air is dehumidified as it passes through the unit,
without being in full cooling mode If room temperature is
higher than 25 degree Celsius, fan speed can be adjusted;
otherwise fan speed is fixed to " LOW ".
Note : If the unit will be used mainly as dehumidifier, do
not connect the exhaust hose and let the warm air return
in the room. Continuous drainage is then necessary and
more efficient.
After switching the air conditioner off, you must wait 3 minutes before switching it back on again.

12
USE & OPERATION
REMOTE CONTROL (batteries not included)

13
CLEANING & MAINTENANCE
Remove air hose and window bracket and store with the portable air conditioner.
Clean and reinstall air filter.
2. To dry excess moisture, run the unit in fan mode for 30 minutes before storing.
If the appliance will not be used for a long time, be sure to drain the left-over
water condensation by removing the water drain cap (Air Conditioner mode) located
on the lower backside of the air conditioner. Use a shallow pan to collect the water
while draining.
The air filter should be cleaned after every two weeks of use.
Clean it as follows:
Turn off the appliance and remove the air filters.
Wash it with a solution of detergent in lukewarm water. After cleaning, dry in a
shaded and cool place, then reinstall.
Maintenance After Use:
Air Filter Maintenance:
Appliance Maintenance:
1.
2.
3.
4.
1.
1.
2.
Turn off the appliance before disconnecting the power supply.
Always clean with a soft dry cloth.

14
WATER DRAINAGE

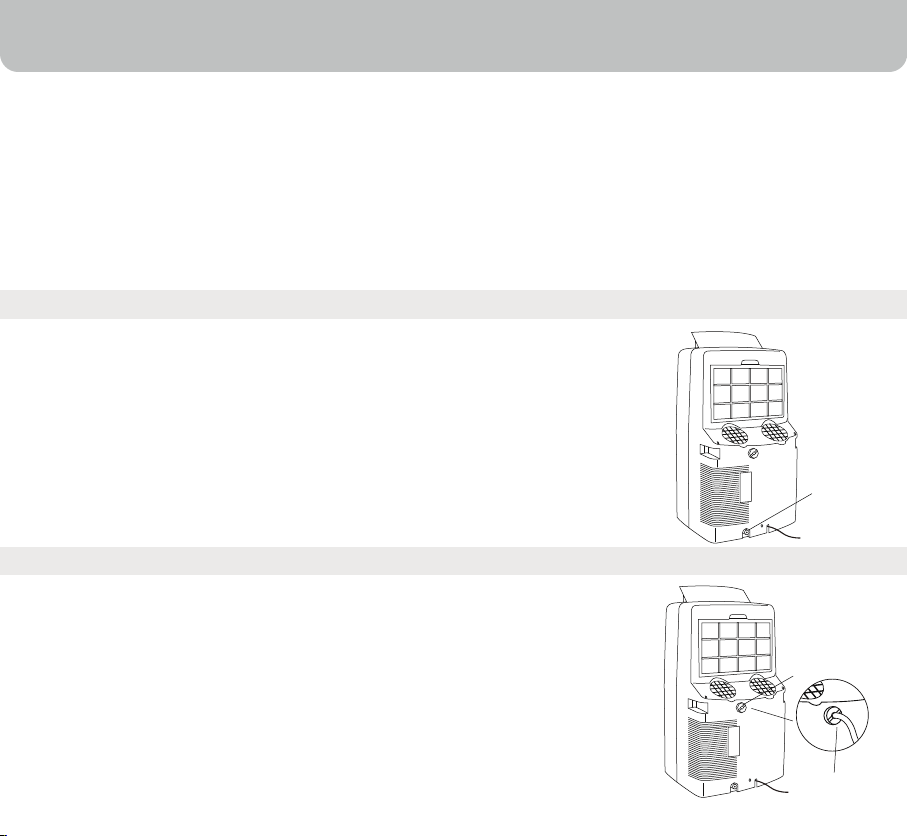

Continuous Water Drain (De-humidifier Mode)
Your machine is equipped with two drain plugs on the backside, De-humdifier mode and Air Condi-
tioning mode. Water will need to be drained only in two conditions :
• De-humidifier mode
• Air Conditioning mode, when ambient humidity is very high.
Whenever there is excess water accumulation inside the unit, and it needs to be drained. The
machine will stop running and will show an error message. This error message indicates that the
water needs to be drained out using below given procedures :
•
•
•
•
When the unit is running in de-humidifier mode you have to keep
emptying the water stored inside the water tank.
The unit has a threaded drain connection located on the back side
(refer to fig.).
Remove the drain plug, install the drain connector(5/8" universal
female mender) with 3/4" hose(locally purchased).
Once a hose is attached the water drains into the hose. The hose can
then be directed away from the dehumidifier into a floor drain.
Water Drain (Air Conditioning Mode)
•
•
•
•
Your machine is equipped with an Auto-Evaporation System, due to
which no water needs to be drained in Air Conditioning Mode.
However in high humidity areas, you may need to drain water from
this drain plug.
In order to drain water from this drain plug, please open the cap and
place a water tray under the drain plug.
Water will drain out automatically and will be collected in this tray.
Drain Plug
(De-Humidifier
Mode)
Drain Plug
Water Drain Pipe
(AC Mode)

15
TROUBLESHOOTING GUIDE
The following troubleshooting guide addresses the most common problems. If problems
persist, call customer service. Unplug and disconnect the appliance from the power
source before attempting to troubleshoot.
• Reinstall exhaust hose properly
(Refer page 9, Installation)
• Reduce temperature setting on
control panel.
• Remove blockage.
• Make sure the windows and door
are closed.
• Connect exhaust hose as per
instructions on page 9.
•Make sure the exhaust hose is
properly connected.
•Lower the set temperature.
Runs but no cooling
Runs a short while
only
Problem Possible Cause Solution
The air conditioning
unit does not start
• Drain the water through the drain
plug (Refer page 14, Water
Condensation Draingage).
• Remove and reconnect the power
cord.
• Reset the safety GFI plug, if
problem persists contact our
customer support.
•Check for power.
• Change remote control batteries.
•Excess water condensation inside
the tank.
•Air outlet or intake is blocked.
•Temperature setting is too high.
•Clean the air filter
•The exhaust hose is detached.
•The air filter is dirty.
•A door or window is open.
•There are tight bends in the air
exhaust hose.
•Air outlet is blocked.
•The thermostat temperature setting
is too close to room temperature.
plugged in.
•The safety GFI plug has tripped.
to be replaced
•The power cord is not properly
•No electricity.
•Batteries in the remote control need
Will not run and
water full indicator
light is ON

Waste
Results may vary according to application in different environments. Result will vary
on practical operation.
Please recycle where facilities exist. Check with your local authority
or retailer for recycling.
electrical products should be properly disposed.
120 V~ 60 Hz
16
TECHNICAL SPECIFICATIONS
Description of Product Portable Air Conditioner
MM14CCSledoM
ycneuqerF/egatloV
1400W
Power
14000 BTU
Cooling Capacity
Dehumidifying capacity 95 pints/24 hours
A014-R
Refrigerant
hour ( ON / OFF)42
remiT
Dimensions (W) x (D) x (H) (mm) 401 X 506 X 864mm
42.5 Kgth (Kg)gieW

17
SERVICE AND WARRANTY
90-DAY LIMITED WARRANTY
Read all the instructions before attempting to use this product.
90-DAY original consumer warranty on all parts of the sealed system, consisting of the compressor,
evaporator, condenser and factory connected refrigerant tubing.
This warranty does not apply to any damage resulting from commercial, abusive, unreasonable use
or supplemental damage. Defects that are the result of normal wear and tear will not be considered
manufacturing defects under this warranty.
AMERICA's REMANUFACTURING COMPANY (ARC) IS NOT LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES OF ANY NATURE. ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED
IN DURATION TO THE DURATION OF THIS WARRANTY.
Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages
or limitations on how long an applied warranty lasts, so the above limitations or exclusions may not
apply to you. This warranty gives you specific legal rights, and you
also may have other rights which vary from jurisdiction to jurisdiction. This warranty
applies only to the original purchaser of this product from the original date of purchase.
At its option, ARC will repair or replace this product if it is found to be detective in material or
workmanship.
This warranty does not cover damage resulting from any unauthorized attempts to repair or from
any use not in accordance with the instruction manual.
A.
B.
C.

SERVICE AND WARRANTY
18
D. Please read the Instruction Manual carefully before setting up or using this product. If you
believe this product to be suffering from a manufacturing fault, or if you have inquiries about
this product, please contact our Customer Support:
CUSTOMER SUPPORT
[email protected]
When contacting our Customer Support, please have the information below along with the
proof of purchase. All warranty requests must be accompanied by a proof of purchase, which
is a copy of the original receipt.
Model : .......................................................................................................................
Date of purchase: .......................................................................................................................
Purchased from : .......................................................................................................................
