Honeywell HWAC-1217S User manual

HWAC-1217S
HWAC-1817S
HWAC-2417S
Professional Installation Required!
Please read and retain these instructions.
Mini-Split Air Conditioner
Single Zone
Installation and Operations Manual

2
CONTENTS
Thank you for purchasing the HWAC-1217S, HWAC-1817S, or
HWAC-2417S Mini-Split Air Conditioner.
This manual will provide you with safety information, installation steps,
instructions for optimal use, and proper care and maintenance
for your product. Please read this manual carefully before operating.

MODEL HWAC-1217S HWAC-1817S HWAC-2417S
Cooling Capacity
Heating Capacity
12,000 BTU Cooling
12,500 BTU Heating
18,000 BTU Cooling
18,000 BTU Heating
23,000 BTU Cooling
24,000 BTU Heating
SEER Rating 17 17 17
Room Size (Sq. ft.) 300-500 600-800 900-1,200
Voltage / Frequency 115V / 60 Hz 230V / 60 Hz 230V / 60 Hz
Dehumidification 2.11 pnt/h 3.38 pnt/h 6.34 pnt/h
Operating Sound Level Indoor Unit: 42 dB
Outdoor Unit: 52 dB
Indoor Unit: 46 dB
Outdoor Unit: 55 dB
Indoor Unit: 49 dB
Outdoor Unit: 55 dB
Ambient Range 61°F-90°F61°F-90°F61°F-90°F
Refrigerant R410a R410a R410a
Cord Length 14.8 ft. (4.5 m) 14.8 ft. (4.5 m) 14.8 ft. (4.5 m)
Zone Capacity Single Single Single
Indoor Unit Dimensions
(W x D x H)
34.68”W x 8.07”D x
11.65”H
35.40”W x 8.90”D x
12.2”H
42.6”W x 9.17”D x
12.99”H
Outdoor Unit
Dimensions
(W x D x H)
28.74”W x 11.22”D x
21.46”H
31.90”W x 11.80”D x
21.90”H
32.48”W x 12.20”D x
25.79”H
Indoor Unit Weight 22 lbs. 24 lbs. 31 lbs.
Outdoor Unit Weight 57 lbs. 62 lbs. 94 lbs.
Safety Certification cETLus cETLus cETLus
SPECIFICATIONS
3

Always be careful when using the machine. To reduce the risk of fire, electrical shock, or other
injuries, keep these safety considerations in mind when installing, using, and maintaining your
machine.
.
WARNING
1. The air conditioner must be properly grounded on a level surface. Do not connect the grounding wire
to the gas pipeline, water pipeline, lightning rod, or telephone grounding wire.
2. Always switch off the device and cut the power supply when the unit is not in use for a long time.
3. Do not let the remote control or the indoor unit get wet.
4. Make sure the voltage meets the appliance’s electricity requirements.
5. Do not operate if the electrical plug or power cord is damaged.
6. Do not under any circumstances alter the electrical plug.
7. Do not turn off the main power switch during operation with wet hands.
8. Do not share the electrical socket with other appliances.
9. Always switch off the device and cut the power supply before performing any maintenance or
cleaning.
10. Do not yank on the power cable to unplug.
11. An earth leakage breaker with rated capacity must be installed.
12. Do not install the air conditioner in a place where there is flammable gas or liquid. The distance
between them should be more than 4.5 ft.
13. Do not use air conditioner in stormy weather. Power supply should be cut in time to prevent danger.
14. Do not block air inlets or air outlets.
15. Do not insert hands or any objects into the air inlets or air outlets.
16. Please pull on the mounting bracket and check if it is secure to the wall.
17. Don’t let the air conditioner blow against a heater appliance. Otherwise, it will lead to carbon
monoxide poisoning.
18. The appliance shall be installed according to the installation instructions supplied and in accordance
with national wiring regulations.
19. Do not modify any part of this product.
20. Do not operate this appliance for any other purpose other than its intended use.
SAFETY INSTRUCTIONS -INSTALLATION
4

Always be careful when using the machine. To reduce the risk of fire, electrical shock, or other
injuries, keep these safety considerations in mind when installing, using, and maintaining your
machine.
.
CAUTION
NOTE:
•This product contains fluorinated greenhouse gases. Never try to interfere with the
refrigerant circuit yourself or disassemble the product yourself and always ask a
professional. The specification of the fuse is printed on the circuit board, such as:
3.15A/250V AC, etc. Refrigerant leakage contributes to climate change. Refrigerant with
lower global warming potential (GWP) would contribute less to global warming than a
refrigerant with higher GWP, if leaked to the atmosphere. This appliance contains a
refrigerant fluid with a GWP equal to [2088]. This means that if 1 kg of this refrigerant fluid
would be leaked to the atmosphere, the impact on global warming would be [2088] times
higher than 1 kg of CO2 , over a period of 100 years.
1. Do not open windows and doors for a long time when the air conditioner is running. This will cause
the cooling or heating capacity to be weakened.
2. Do not stand /sit on top of the outdoor unit and do not place heavy items on it.
3. Do not apply cold air from the unit to the body for a prolonged time.
4. It is recommended that the temperature difference between indoor and outdoor temperature should
not be too large. Appropriate adjustments of the setting temperature can prevent the waste of
electricity.
5. If your air conditioner is not fitted with a supply cord and a plug, an all-pole switch must be installed
in the fixed wiring and the distance between contacts should be no less than 0.1 inch.
6. If your air conditioner is permanently connected to the fixed wiring, a residual current device (RCD)
having rated residual operating current not exceeding 30 mA should be installed in the fixed wiring.
7. The power supply circuit should have leakage protector and air switch of which the capacity should be
more than 1.5 times of the maximum current.
5

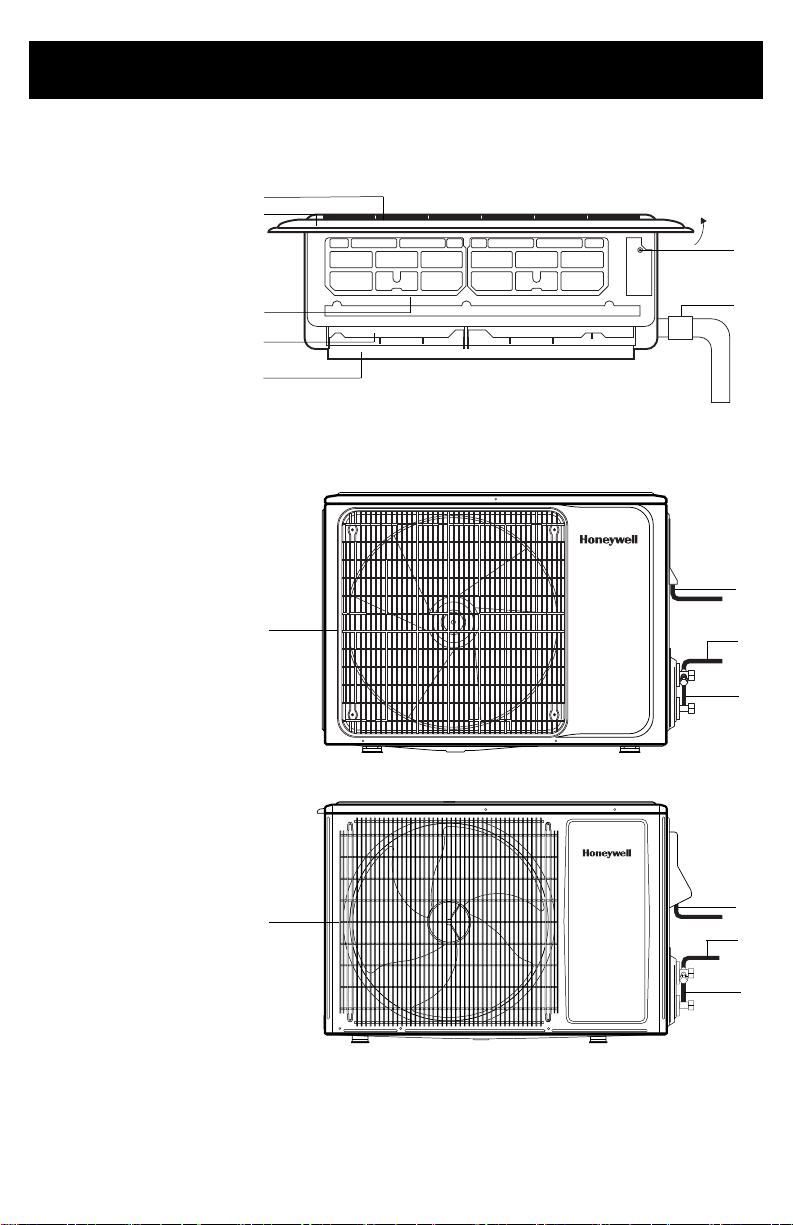

SAFETY INSTRUCTIONS -INSTALLATION

1. Air Inlet Grille
2. Panel
3. Air Filter
4. Air Louvre
5. Air Vent
6. Force Switch
7. Pipe Protector Ring
Indoor Unit, Open view
Outdoor Unit
PRODUCT VIEW
1
2
3
4
5
7
1
2
3
4
1. Air Outlet Grille
2. Power Cable
3. Connecting Pipe
4. Drain Hose Outlet/Pipe
6
6
1
2
3
4
12k and 24k BTU Version
18k BTU Version

Important Notices
•Before installing, please contact a local HVAC professional. If the unit is not
installed by a registered HVAC contractor, the warranty will be voided. Please
request a copy of the HVAC contractor’s invoice at the end of installation and keep
for your records.
•The air conditioner must be installed by professionals according to the national
wiring rules and this manual.
•To move and install the air conditioner in another place, please contact a certified
HVAC professional.
Requirements for Installation Location
•Avoid places of inflammable or explosive gas leakage or where there are strongly
aggressive gases.
•Avoid places subject to strong artificial electric/magnetic fields.
•Avoid places subject to noise and resonance.
•Avoid severe natural conditions (e.g., heavy lampblack, strong sandy wind, direct
sunshine, or high temperature heat sources).
•Avoid places within the reach of children.
•Allow for a short connection between the indoor and outdoor units.
•Select where it is easy to perform service and repair, also where ventilation is
good.
•The outdoor unit shall not be installed in any way that could occupy an aisle,
stairway, exit, fire escape, catwalk, or any other public area.
•The outdoor unit shall be installed as far as possible from doors, windows, and
plants/trees.
Requirements for the Mounting Plate
•The mounting plate must meet the relevant national or industrial standards in
terms of strength with welding and connection areas rustproofed.
•The mounting plate and its load carry surface shall be able to withstand 4 times
above the weight of the unit, or 440.9 lbs., whichever is heavier.
•The mounting plate of the outdoor unit shall be fastened with an expansion bolt.
•Ensure a secure installation to prevent damage to surrounding areas.
NOTE: Mounting plate not included.
7
NOTICE FOR INSTALLATION

Electrical Safety Requirements
•Be sure to use the rated voltage and air conditioners dedicated circuit for the
power supply, and the power cord diameter must meet the national requirements.
•When the maximum current of air conditioner is ≥ 16A, it must use the air switch
or leakage protection switch equipped with protection devices.
•The normal operating range is 90%-110% of the local rated voltage.
•The minimum clearance between the air conditioner and the combustibles is 4.5
ft.
•The interconnection cord connects the indoor and outdoor units. You must first
choose the right cable size before preparing it for connection.
•Cable types:
•Outdoor Power Cable: H07RN-F or H05RN-F
•Interconnection Cord: H07RN-F or H05RN-F
Minimum Cross-Sectional Area of Power Cable and Interconnection
Cord
•The size of the interconnection cord, power cable, fuse, and switch needed is
determined by the maximum current of the unit. The maximum current is
indicated on the nameplate located on the side panel of the unit. Refer to this
nameplate to choose the right cable, fuse, or switch.
NOTE: For the number of cores in the cable refer to the detailed wiring diagram adhered on the unit.
NOTICE FOR INSTALLATION
8
Appliance
Amps
AWG
Rated Current
of Appliance
Nominal Cross-
Sectional Area
10A 18 >3 and ≤6A 0.75mm²
13A 16 >6 and ≤10A 1mm²
18A 14 >10 and ≤16A 1.5mm²
25A 12 >16 and ≤25A 2.5mm²
30A 10 >25 and ≤32A 4mm²
40A 8>32 and ≤40A 6mm²
North America
Other Regions

Requirements for Operations at Raised Height
•When carrying out installation at 6.6 ft. or higher above the base level, safety belts
must be worn and ropes of sufficient strength be securely fastened to the outdoor
unit, to prevent falling that could cause personal injury or death as well as
property loss.
Grounding Requirements
•The air conditioner is the type I electrical appliance and must ensure a reliable
grounding.
•Do not connect the grounding wire to a gas pipe, water pipe, lightning rod,
telephone line, or a circuit poorly grounded to the earth.
•The grounding wire is specially designed and shall not be used for other purpose,
nor shall it be fastened with a common tapping screw.
Others
•The connection method of the air conditioner and the power cord and the
interconnection method of each independent element shall be subject to the
wiring diagram affixed to the machine.
Packing List
NOTICE FOR INSTALLATION
9
Name Quantity Unit Name Quantity Unit
Indoor Unit 1PC Outdoor Unit 1PC
Remote Controller 1PC Connecting Pipe 2PC
Batteries (7#) 2PC Plastic Tape 1Roll
Instructions 1Set Pipe Protection Ring 1PC
Drain Pipe 1PC Luting (Putty) 1Packet
Packing List of the Indoor Unit
Packing List of the Outdoor Unit

Clearance Requirements for Indoor Installation
INSTALLATION: INDOOR UNIT
10
5.9 in
7.9 in 7.9 in
78.7 in
NOTE: All measurements should be no less than posted from obstructions.
Mounting Plate
1. The wall for installation of the indoor unit
shall be hard and firm to prevent vibration.
2. Use the “+” type screw to fasten the
mounting plate. Horizontally mount the
mounting plate on the wall and ensure it is
level with the wall.
3. Pull the mounting plate by hand after
installing to confirm if it is solid.
Wall-Through Hole
1. Make a 60-80mm hole as appropriate, where
there are no obstructions for drilling. The
indoor connection pipe should slant
outwardly by 10-20°.
2. To protect the piping and the cables from
being damaged running through the wall,
the pipe protecting ring shall be installed and
sealed with the putty that is included on the
inside wall of the dwelling.
NOTE: Usually, the wall hole is 60mm ~ 80mm. Avoid
wiring and studs to maintain structural integrity of the
enclosure.
Indoor Outdoor
Pipe
Protection
Ring

Route of Pipeline
1. Depending on the position of the unit, the piping may be routed sideways from
the left or the right (Fig 1), or vertically from the back (Fig 2) (depending on the
pipe length of the indoor unit). In the case of sideway routing, cut off the outlet
cutting stock of the opposite side.
Drainpipe Connection
1. Remove the mountings and pull the indoor unit pipe out of the housing.
2. Connect the connecting pipe to the indoor unit:
•Aim at the pipe center, tighten the taper nut with fingers, and then tighten
the taper nut with a torque wrench. The torque used is shown on the table
below.
INSTALLATION: INDOOR UNIT
11
Pipe Size Torque
(1/4)" 15~25
(3/8)" 35~40
(1/2)" 45~60
(5/8)" 73~78
(3/4)" 75~80
Tightening Torque Table
Fig 2.Fig 1.
Stop Valve Taper Nut Connecting Pipe

Wrap the Piping
1. Use the insulation sleeve to wrap the joint part of the indoor unit and the
connection pipe. Then use the insulating material to pack and seal insulation
pipe, to prevent generation of condensate water on the joint part.
2. Connect the water outlet with drainpipes, and make the connection pipe,
cables, and the drain hose straight.
3. Use plastic cable ties to wrap the connecting pipes, cables and drain hose. Run
the pipe sloping downward.
Fixing the Indoor Unit
1. Hang the indoor unit on the peg board and move the unit from left to right to
ensure that the hook is properly positioned in the peg board.
2. Push toward the lower left side and the upper right side of the unit toward
the peg board, until the hook is embedded in the slot and makes a “click”
sound.
INSTALLATION: INDOOR UNIT
12
Connecting Pipe, Drain
Hose, and Cables
Plastic Strap

Wiring Diagram
•If the air conditioner is provided with an interconnection cord, the wiring of the
indoor unit is connected in the factory, there is no need of connection.
•If the interconnection cord is not provided, connection is needed in accordance
with the wiring diagram.
NOTE:
•This manual usually includes the wiring mode for the different kind of A/C. We
cannot exclude the possibility that some special type of wiring diagrams are not
included.
•The diagrams are for reference only. If the entity is different with this wiring
diagram, please refer to the detailed wiring diagram adhered on the unit.
INSTALLATION: INDOOR UNIT
13

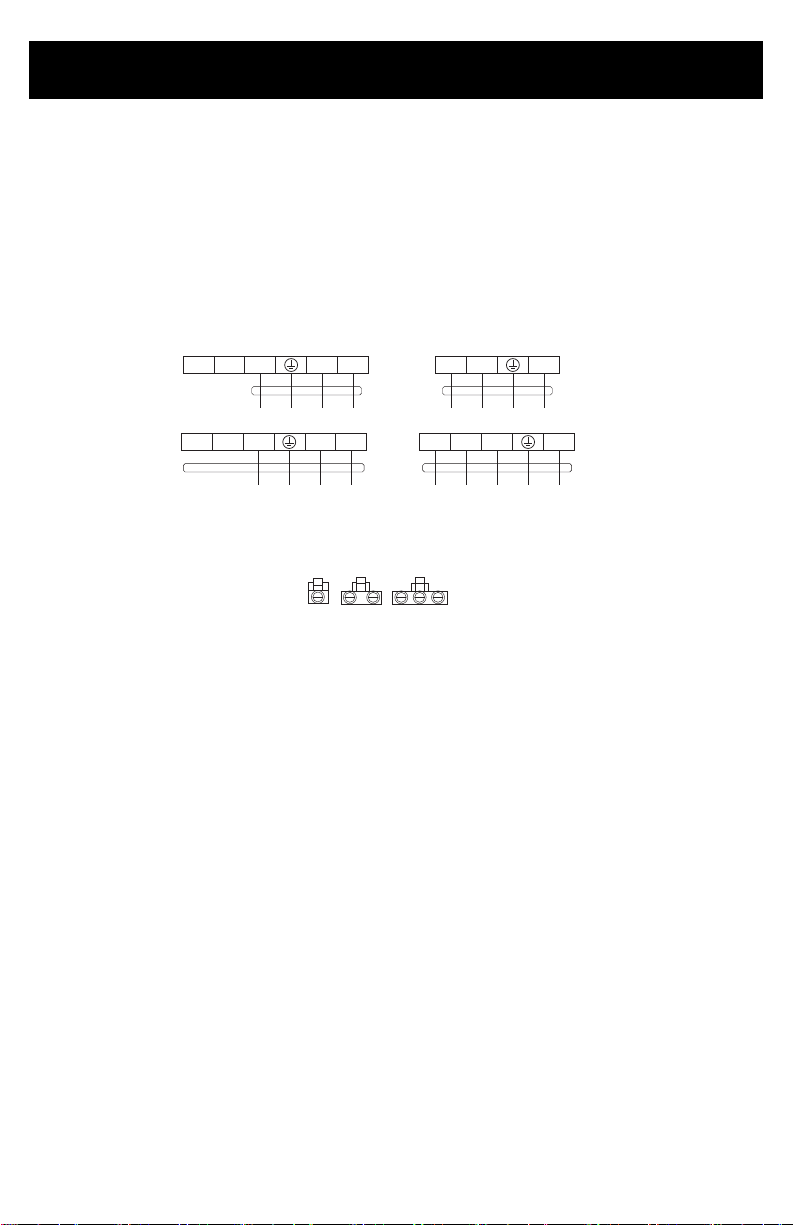

Constant Speed Variable Speed
Connector
If there is a connector, connect it
directly.
5 4 3 2(N) 1(L)
5 4 3 2(N) 1(L)
N SL
N SLoL

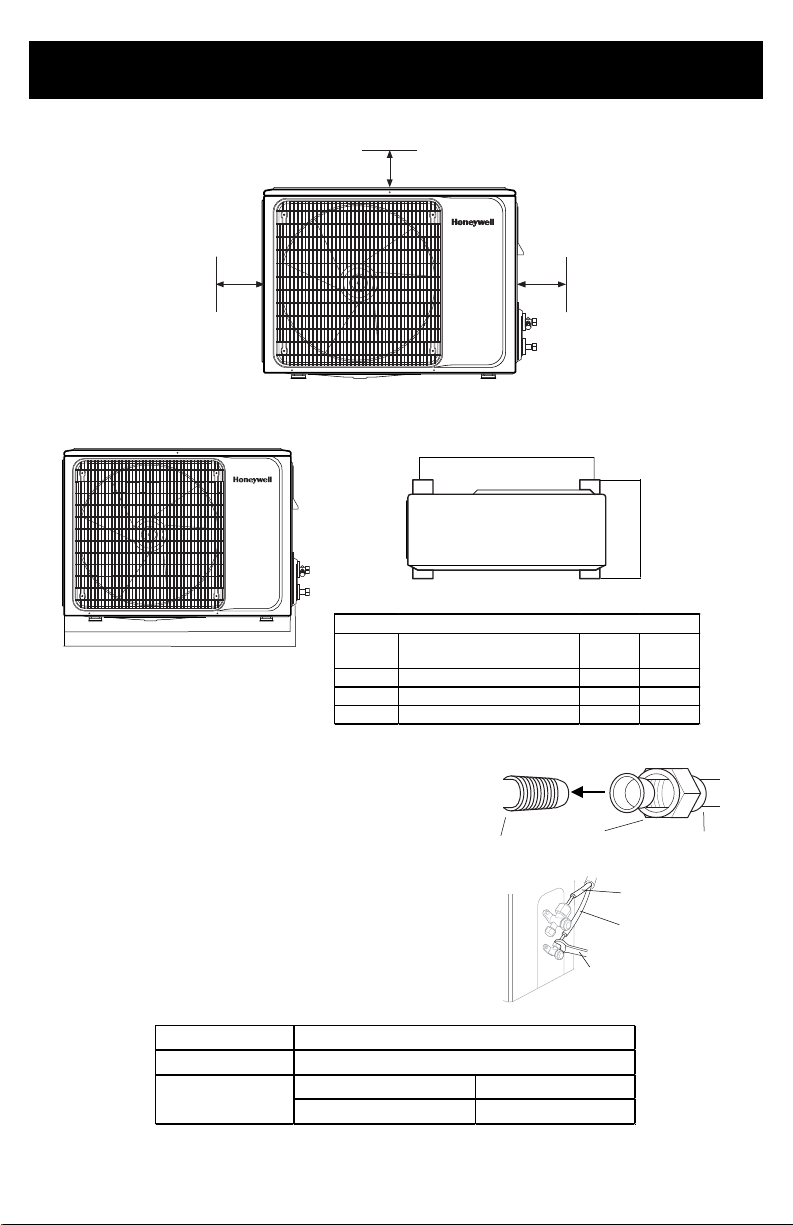

Unit Mounting Dimensions
Clearance Drawing for Outside Installation
Install the Connection Pipe
1. Aim the counter-bore of the connecting pipe at
the stop valve and tighten the taper nut with
fingers. Then tighten the taper nut with a torque
wrench to the correct specification mentioned on
pg. 10.
2. When extending the pipe, an extra amount of
refrigerant must be added so that the operation
and performance of the air conditioner will not be
compromised.
NOTE: This table is for reference only.
INSTALLATION: OUTDOOR UNIT
14
Piping Length
≤ 16.4ft.
CC ≤ 12000 BTU 20g/m
CC ≥ 18000 BTU 30g/m
16.4ft. - 49.2ft.
Not Needed
Amount of Refrigerant to be Added
Stop Valve Taper Nut Connecting Pipe
Spanner
Gas Side Pipe
Liquid Side Pipe
W1
W2
A
B
NOTE: All measurements should be no less than posted from obstructions.
11.8 in
7.9 in
11.8 in
NOTE: Technique to measure distance does not
change between unit design versions.
Unit
BTU
Outdoor Unit Size
W1(W2)*H*D (in. ")
A (in. ") B (in. ")
12K BTU 28.74(30.4)*21.46*11.22 21.1 10.9
18K BTU 30.90(33.5)*21.90*11.8 21.1 12.7
24K BTU 32.48(34.3)*25.79*12.2 24.6 13.7
Installation Outdoor Unit Bolt

Wiring Diagram
NOTE:
•This manual usually includes the wiring mode for the different kind of A/C. It is
possible that some special type of wiring diagrams are not included.
•The diagrams are for reference only. If the entity is different with this wiring
diagram, please refer to the detailed wiring diagram adhered on the purchased
unit.
Wiring Connection
1. Loosen the screws and remove the E-parts cover from the unit.
2. Connect the cables to the corresponding terminals of the terminal board of the
outdoor unit (see the wiring diagram), and if there are signals connected to the
plug, just create a butt joint.
3. Ground Wire: Remove the grounding screw out of the electric bracket, cover the
grounding wire end onto the grounding screw and screw it into the grounding
hole.
4. Fix the cable reliably with fasteners (Pressing board).
5. Put the E-parts cover back in its original place and fasten it with screws.
INSTALLATION: OUTDOOR UNIT
15
Constant Speed Variable Speed
Connector
If there is a connector, connect
it directly.
5 4 3 2(N) 1(L)
5 4 3 2(N) 1(L)
NS L
N SLoL

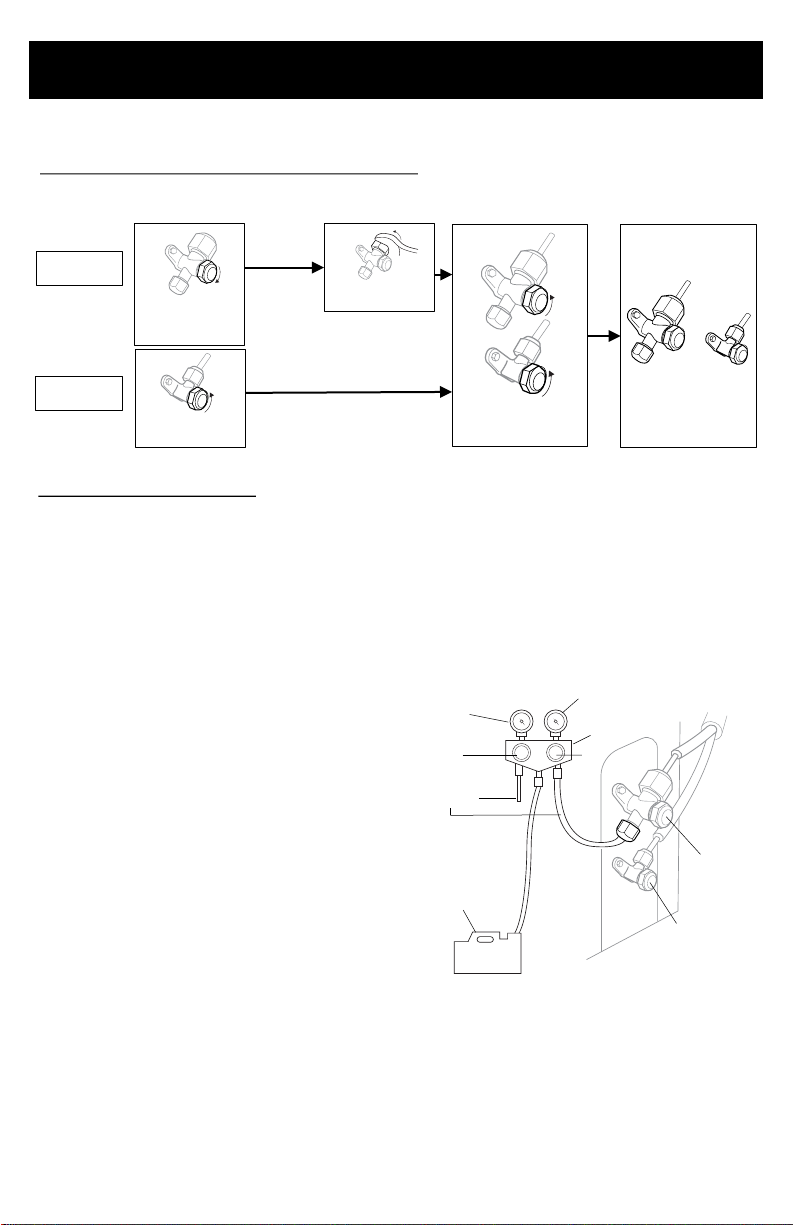

Expelling the Air
Outdoor Unit Refrigerant Discharging Method:
•After the pipe side connection is complete, proceed as follows.
Vacuum Pumping Method:
(R410A refrigerant evacuation must use the Vacuum Pumping Method)
•Before working on the air conditioner, remove the cover of the stop valve (gas
and liquid valves) and be sure to retighten afterward. This is done to prevent
potential air leakage.
1. To prevent air leakage, tighten all
the flare tube connecting nuts.
2. Connect the stop valve, charge
hose, manifold valve, and vacuum
pump.
3. Fully open the “Handle Lo” of the
manifold valve and apply the
vacuum for at least 15 minutes.
Check that the compound vacuum
gauge reads -0.1 Mpa (-76cmHg).
4. After applying the vacuum, fully
open the stop valve with a hex
wrench.
5. Check that both indoor and
outdoor connections are free of air
leakage.
INSTALLATION: OUTDOOR UNIT
16
Loosen the temporarily
fastened nut by half a
turn.
Loosen the Hex wrench
by half a turn.
Wait for 8 seconds. Quickly tighten and
connect the nut.
Fully open the spindles of
the liquid end and of the
other two ends.
Check that all indoor and
outdoor connections are
free of air leakage.
The installing torque
is the same as that of
the gas end of the
indoor unit.
Gas Part
Liquid Part
Compound meter
~76cmHg
Handle Lo Handle Hi
Manifold Valve
Pressure Gauge
Charge Hoses
Stop Valve
(Liquid Valve)
Stop Valve
(Gas Valve)
Vacuum Pump

•When the unit is heating, the condensing water
and defrosting water can go through the drain
elbow.
Installation:
•There are three drain holes to choose from.
Install the outdoor drain elbow in one of the ⌀
25 mm hole on the base plate and join the
drain hose to the elbow. Plug any unused
holes. This will provide a proper outlet for any
wastewater collecting in the outside unit.
NOTE: Drain elbow is not included.
CHECK AFTER INSTALLATION
Electrical Safety Check
1. If the supply voltage is as required.
2. If there is any faulty or misconnection in each of the power, signal and grounding
wires.
3. If the grounding wire of the air conditioner is securely grounded.
Installation Safety Check
1. If the installation is secure.
2. If the water drain is smooth.
3. If the wiring and piping are correctly installed.
4. Check that no foreign matter or tools are left inside the unit.
Leak Test of the Refrigerant
Depending on the installation method, the following methods may be used to check
for suspect leak, on areas such as the four connections of the outdoor unit and the
cores of the cut-off valves and t-valves:
1. Bubble Method: Spray a uniform layer of soapy water over the suspected leak
spot and observe carefully for bubbles.
2. Instrument Method: Checking for leaks by pointing the probe of the leak detector
according to the instruction to the suspect points of the leak.
INSTALLATION: OUTDOOR UNIT
17

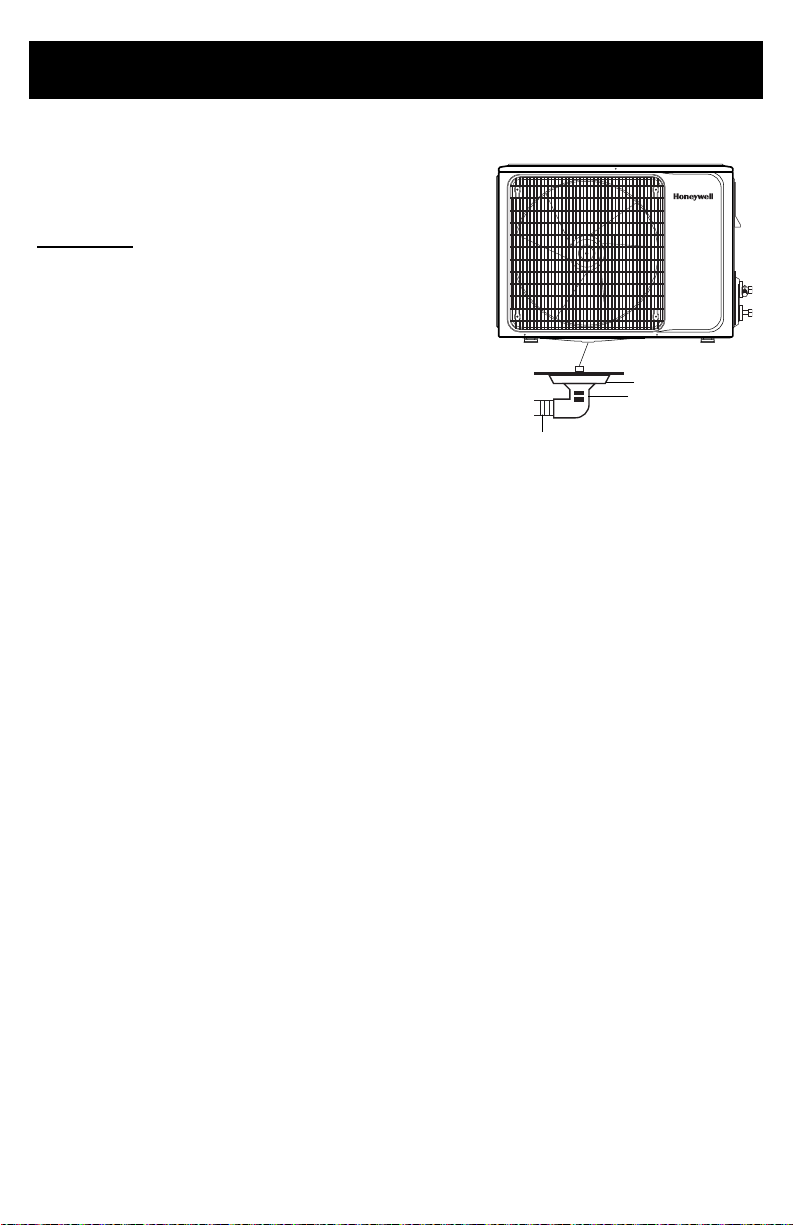

Chassis
Drain Elbow
Outdoor Condensation Drainage
Drain Hose
NOTE: Drain holes are in the same location between outdoor unit versions.

Temperature Range Conditions
•Outside the temperature range provided in following table, the air conditioner
may shut down.
•When the temperature is too high, the air conditioner may activate the automatic
protection device and shut the unit down.
•When the temperature is too low, the heat exchanger may freeze, leading to
water leakage or another malfunction.
•In long-term cooling or dehumidification with a relative humidity of above 80%
(doors and windows are open), there may be water condensation near the air
outlet.
Notes for Heating
•The fan of the indoor unit will not run immediately after cooling to prevent
expelling cold air.
•When it is cold and wet outside, the outdoor unit will develop frost over the heat
exchanger which will compromise the heating capacity. This is when the air
conditioner will start to defrost.
•During defrost, the air conditioner will stop heating for about 5-12 minutes.
•Vapor may come out from the outdoor unit during defrost. This is not a
malfunction, but a result of a fast defrost.
•Heating will resume after the defrost is complete.
Notes for Turning Off Unit
•When the air conditioner is turned off, the main controller will automatically
decide whether to stop immediately or after running for a short period of time
with lower air speed.
NOTICES FOR USE
18
> 109.4˚F
> 125.6˚F
Indoor < 64.4˚F
> 75.2˚F
> 19.4˚F
Indoor > 80.6˚F
Cooling
Heating
Outdoor
Outdoor

Emergency Operation
•If the remote controller is lost or broken, use the force switch button to operate
the air conditioner.
•If this button is pushed with the unit OFF, the air conditioner will operate in AUTO
mode.
•If this button is pushed with the unit ON, the air conditioner will stop running.
•The force switch is located on the right side of the unit and is in a tight space.
User may need a thin object such as a screwdriver to push the button.
Airflow Direction Adjustment
•Use up-down swing and left-right swing buttons on the remote controller to
adjust the airflow direction. Refer to the operation manual of the remote
controller for details.
NOTICES FOR USE
19

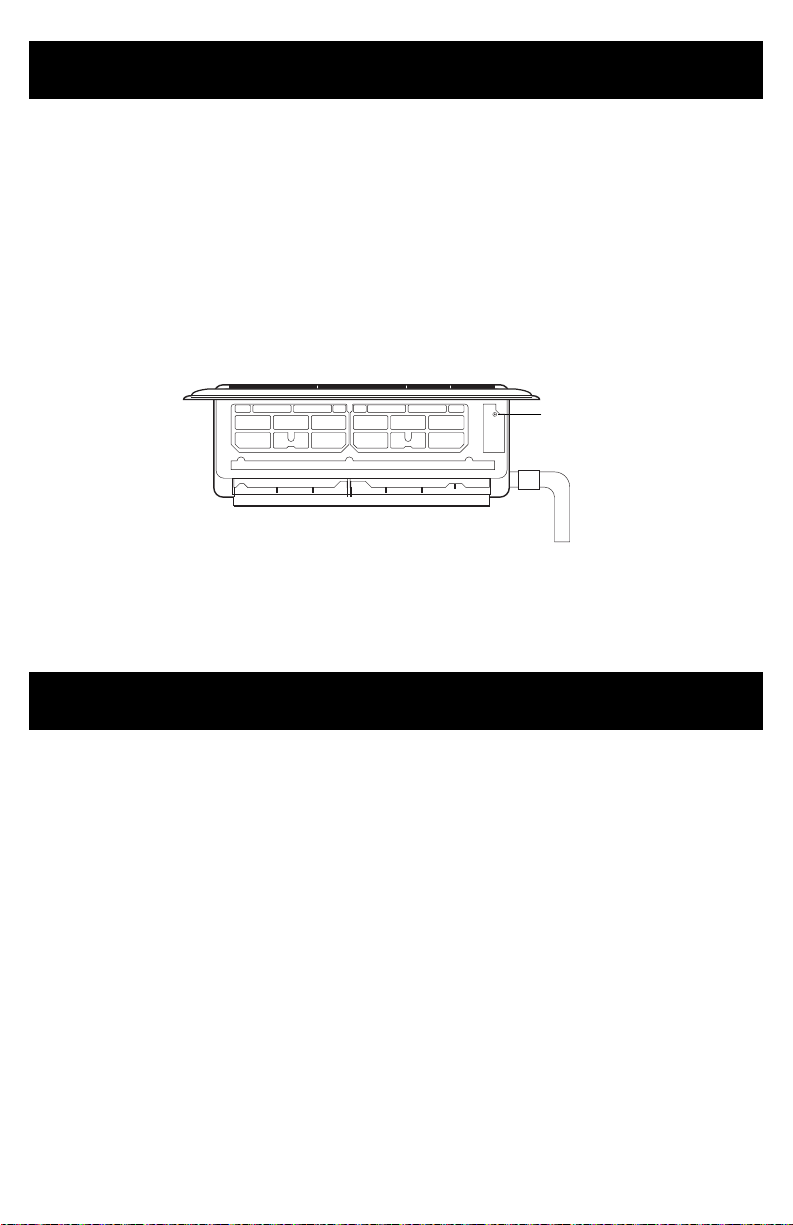

Test Operation Preparation
•Verify that all piping and connection cables are well connected.
•Confirm that the values at the gas side the liquid-side are fully open.
•Connect the power cord of the outdoor unit to an independent power socket.
•Install the batteries in the remote control.
Test Operation Method
1. Turn on the power and push the ON/OFF switch button of the remote controller
to start the air conditioner.
2. Select COOL, HEAT, SWING and other operation modes with the remote
controller and see if the operation is ok.
Specific Caution
1. Open the front panel of the indoor unit.
2. The connector can not touch the terminal board.
TEST OPERATION
Force Switch
(Front View –Open)

Always be careful when using the machine. To reduce the risk of fire, electrical shock, or other injuries, keep
these safety considerations in mind when installing, using, and maintaining your machine.
.
CAUTION
1. Do not let the remote controller drop or fall.
2. Do not let the remote controller get wet.
3. Do not expose the remote controller directly to the sunlight or excessive heat.
4. If the remote controller does not work normally, remove the batteries for 30 seconds before you
reinstall them. If that doesn’t work, replace the batteries.
5. When replacing the batteries, do not mix new batteries with old ones or mix batteries of different
types.
6. If the remote controller is not used for a long period of time, remove the batteries first to avoid the
risk of leakage that may damage the remote controller.
7. Properly dispose of discarded batteries.
SAFETY INSTRUCTIONS –UNIT OPERATION
20
