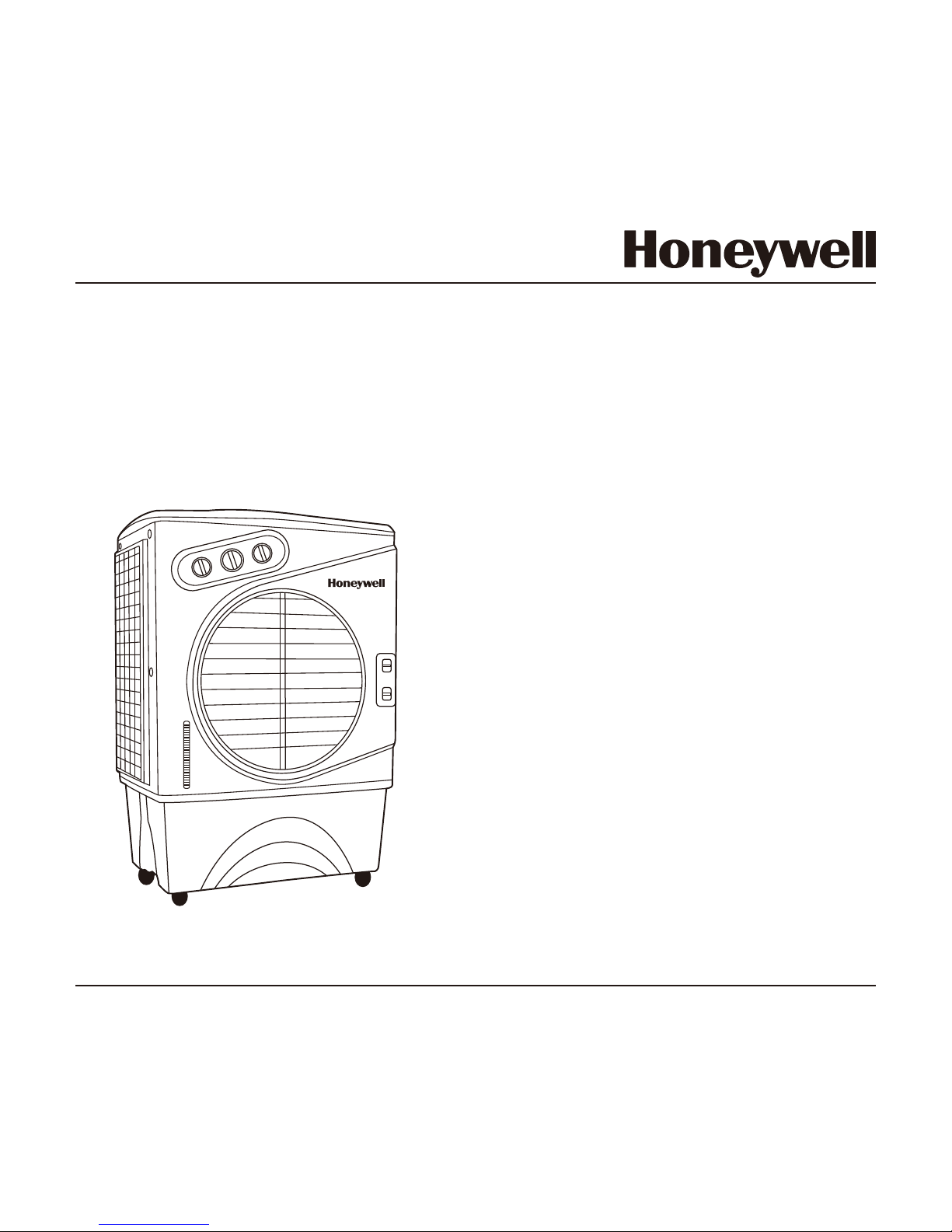

Honeywell CO60PM Series User manual

Portable Evaporative Air Cooler
OWNER’S MANUAL
Read and save these instructions before use
Ideal for Indoor & Outdoor Use
0
3
2
1
ON
COOL
SPEED SWING
ON
OFF
OFF
Model: CO60PM
Power rating: 220 Watts
Voltage rating: 220 Volt AC, 50Hz
Made in P.R.C.

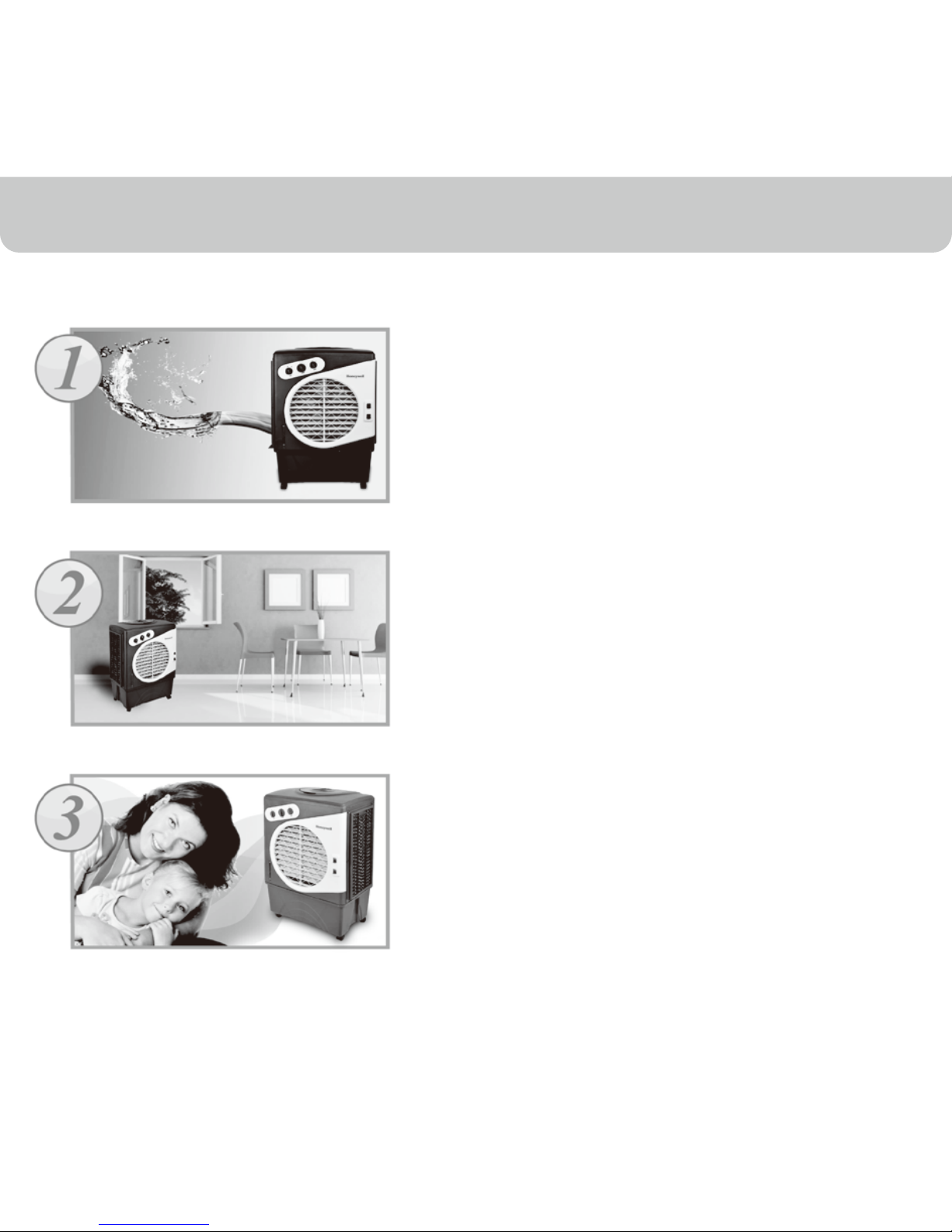

QUICK START GUIDE
Fill with water and plug into standard
power outlet.
Place near open door or window.
(When used in Indoors)
Note : Please make sure that the power outlet is
set to correct settings as per product specifications.
Note : Evaporative Air Coolers work on evaporative
cooling mechanism which requires cross ventillation.
Turn ON and enjoy the cooling breeze.
Note: Start with LOW speed and gradually increase
to higher speed for optimum cooling performance.

SECTION PAGE
1. THANK YOU .........................................................................................................
2. USER TIPS ...........................................................................................................
3. SAFETY RULES ...................................................................................................
4. PARTS DESCRIPTION .........................................................................................
5. USE & OPERATION .............................................................................................
Control Panel ....................................................................................................
Function Buttons ...............................................................................................
6. CLEANING & MAINTENANCE .............................................................................
7. TROUBLESHOOTING GUIDE .............................................................................
8. TECHNICAL SPECIFICATIONS ...........................................................................
9. ELECTRICAL WIRING DIAGRAM ........................................................................
2
3
5
7
8
8
8
Fill Water .......................................................................................................... 10
11
13
14
15
INDEX
1
Read all instructions carefully before setting up and operating the unit, and please keep
this instruction manual for future reference. This manual is designed to provide you with
important information needed to setup, operate, maintain, and troubleshoot your cooler.
Failure to follow these instructions may damage and/or impair its operation and void the
warranty.

THANK YOU!
THANK YOU!
2
Congratulations on your purchase of this versatile Honeywell Evaporative Air Cooler. For optimum
cooling performance from your unit, fill the water tank with water & ice (if available) to increase its
cooling power.
COOLER LOCATION (IMPORTANT TO READ)
(When used in Indoors)
Place the cooler in front of an open door or window. Ensure thatthere is adequate cross -
ventillation in the room by leaving adoor or window open opposite from the cooler.
Following these rules will ensure your cooler will work aseffectively as possible.

COOL ~ EFFICIENT ~ NATURAL
3

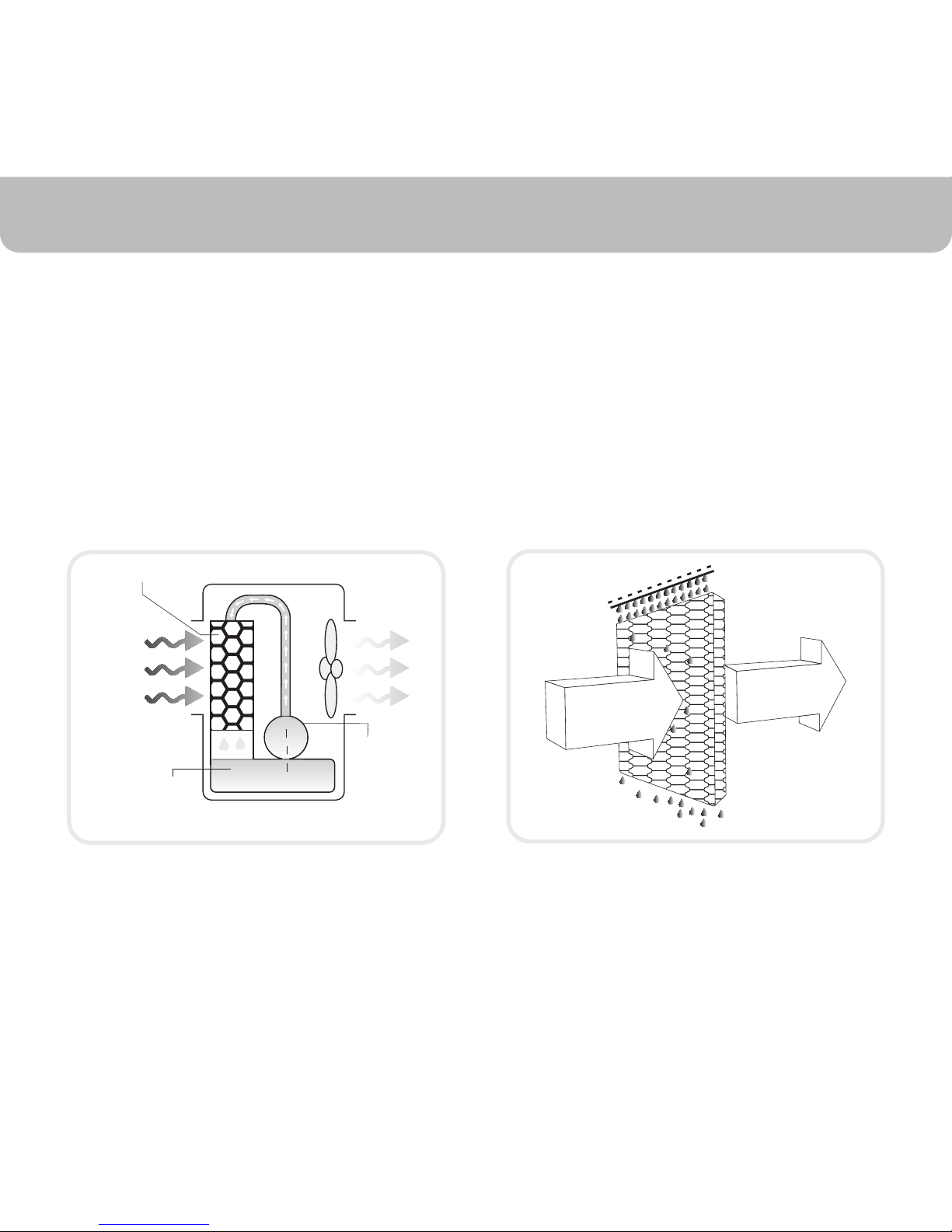

Pump
Water
Honeycomb Cooling Media
Evaporative Air Cooling Mechanism
Warm and
dry air
Cold and
humid air
Evaporative air cooling is the natural way of cooling, similar to a breeze blowing across a lake. This
breeze drops the temperature and has a relaxing cooling effect.
The evaporative air cooler cools the air by means of the evaporation of water. When water
evaporates into the air, the result is a mixture of air and water molecules. This chemical change
requires heat which is taken from the water molecules, resulting in cooler air propelled from the
unit.
USER TIPS

NOTE
4
USER TIPS
OFF
COOL
ON
OFF
SWING
ON
0
3
2
1
OFF
COOL
ON
OFF
SWING
ON
0
3
2
1
When the product is used for the first time the Honeycomb
cooling media will have an odour which will dissipate in a week
or so of initial use.
The recommended maximum relative humidity level is 60%
orless, which allows a noticeable temperature decrease.
Thetemperature decrease will be greater in drier climates
becausehigher evaporation occurs when the humidity is low.

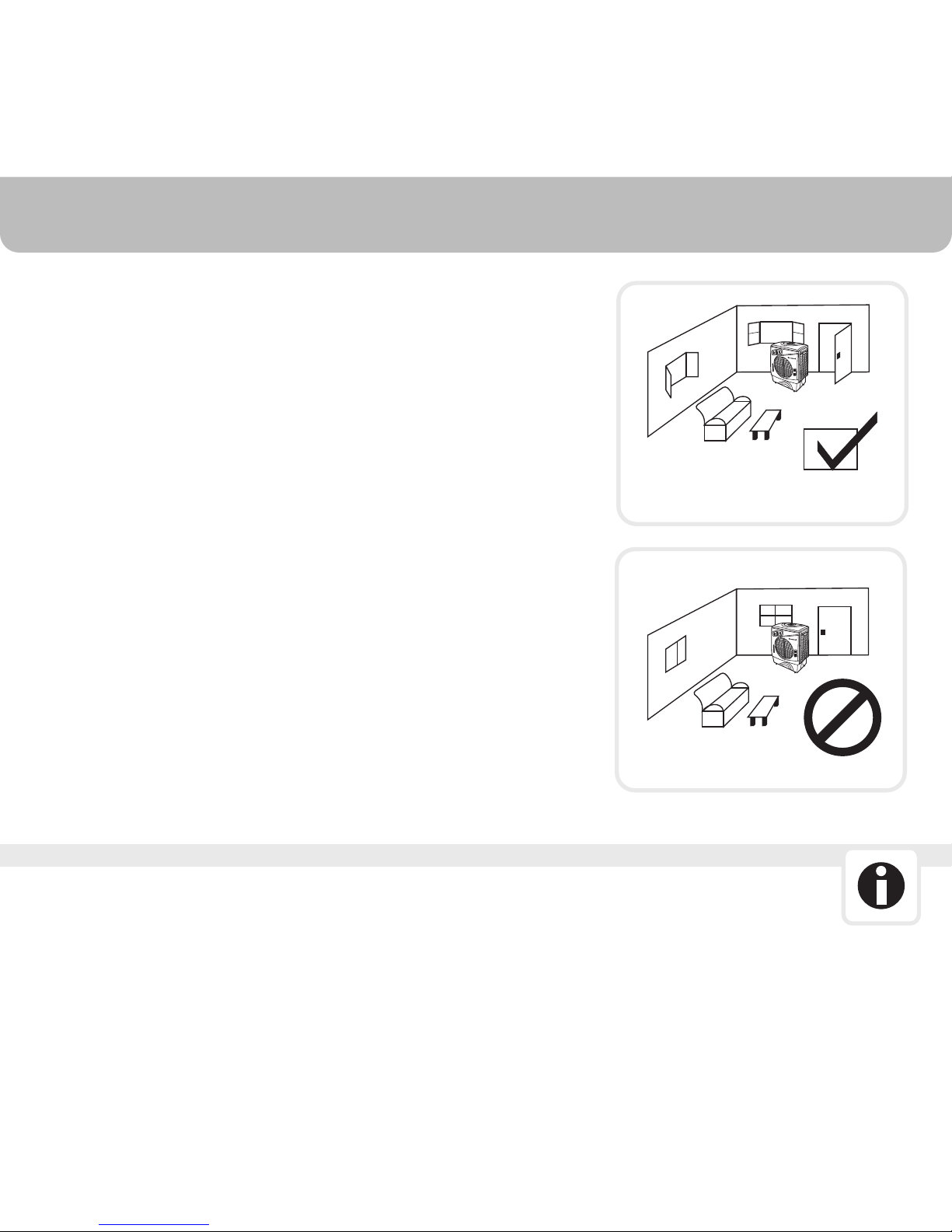

The evaporative air cooler should not be used in
enclosedspaces. It must be kept level and there must be water
in thewater tank. The room should have doors and windows
openedto allow free air flow. The evaporative air cooler works
bestwhen placed near an open window, so that outside air is
drawninto the evaporative air cooler, the air circulates in the
room,then exits via the door. The maximum cooling effect is
feltwhen a person is in the flow of air coming out of the
evaporativeair cooler.
The evaporative air cooler can also be used to humidify dry
airduring cool weather. To be used for humidification
thewindows and doors should be closed to allow the
humidifiedair to accumulate. The evaporative air cooler is not
an airconditioner as it does not use a compressor or refrigerant
gas.It should not be expected to cool as efficiently as a
refrigeratedair conditioner.

READ AND SAVE THESE INSTRUCTIONS:
SAFETY RULES
220 Volt AC 50Hz
SHOCK HAZARD
WATER LEVEL INDICATOR
5
MAX
MIN
OFF
COOL
ON
OFF
SWING
ON
0
3
2
1
When using electrical appliances, basic safety precautions should always be followed:
•
•
•
•
•
•
•
•
•
Your cooler runs on 220 Volts, 50 Hz current. Check
thehousehold voltage to ensure it matches the appliance's
ratespecification.
Before operating the product remove it from its packagingand
check it is in good condition.
DO NOT operate any product with a damaged cord or plug.We
recommend not using an extension cord with thisappliance.
DO NOT run power cord under carpeting, or cover it withrugs
or runners. Keep the cord away from areas where itmay be
tripped over.
Always unplug the product before refilling the water tank.
Always unplug the appliance from the power source
beforecleaning, servicing or relocating the unit."
Remove the power cord from the electrical receptacle
bygrasping and pulling on the power cord plug-end only,
neverpull the cord.
DO NOT use the product in areas where gasoline, paint
orother flammable goods and objects are stored.
When using the ''COOL'' setting, please check the water
tankto ensure it is full. Operation of this unit on the ''COOL''
settingwith an empty tank may result in damage to the water
pump.

OFF
COOL
ON
OFF
SWING
ON
0
123
Water / Ice compartment
SAFETY RULES
FLOOR LEVEL
6
•
•
•
•
•
•
•
•
•
•
•
•
•
DO NOT attempt to repair or adjust any electrical or
mechanicalfunctions of the cooler, as this may void the
warranty.
DO NOT cover the air inlet or outlet on the appliance as this
may cause motor damage.
DO NOT insert or allow objects to enter any ventilation
orexhaust opening as this may damage the product and
couldcause an electrical shock or fire.
DO NOT operate with the Honeycomb media removed as
thiswill overload and damage the motor.
DO NOT leave the appliance operating unattended for
anyextended period of time.
DO NOT let children play with this appliance, packaging
orplastic bags.
If the unit is damaged or it malfunctions, do not continue
tooperate it. Refer to the troubleshooting section and /or
pleaseseek professional advice.
Place the unit on a level floor.
This product is not intended for use in wet or damp locations.
Never locate the product where it may fall into a bathtub
orother water container. DO NOT use in bathrooms.
When the unit is not in use always store in a dry area.
This appliance is not intended for use by persons
(includingchildren or elderly) with reduced physical, sensory
or mentalcapabilities, or lack of experience and knowledge,
unless theyhave been given supervision or instruction
concerning use ofthe appliance by a person responsible for
their safety.
Always grip the side handles to move the unit.

7
PARTS DESCRIPTION
OFF
COOL
ON
OFF
SWING
ON
0
3
2
1
1
2
9
8
3
10
11
14
12
13 4
5
6
7
1 Water / Ice Inlet
2 Handle
3 Left Honeycomb Panel
4 Lever for Horizontal Louvers
5 Water Tank
6 Castors Wheels
7 Horizontal Louvers
8 Water Level Indicator
9 Control Panel
10 Right Honeycomb Panel
11 Continuous Water Inlet
12 Water Drain Plug
13 Backside Honeycomb Panel
14 Power Cord & Plug

CONTROL PANEL
COOL SPEED SWING
OFF ON OFF ON
03
2
1
NOTE:
Speed control may be marked as High / Med / Low in certain units.
USE & OPERATION
8

CONTROL KNOBS
SPEED / ON - OFF
COOL
OFF ON
SWING
OFF ON
SPEED
03
2
1
Connect to the power supply and turn the Speed knob. The fan
will start. Change the speed from 1 for Low to 2 for Medium to
3 High. To switch OFF the unit turn the Speed know to "0".
COOL
To begin cooling the desired area press the ''COOL'' button.
The indicator light will come on and the water pump will
operate. You can feel the cooler air after the Honeycomb
media is completely wet.
SWING
Press the ''SWING'' button. The indicator light will come on and
the louvers will begin to move from right to left automatically.
Manually adjust the horizontal louvers to change vertical
airflow.
HORIZONTAL LOUVERS
Manually adjust the horizontal louvers to change vertical
airflow.
9
USE & OPERATION

Hose Connector
USE & OPERATION
INSTALLING HOSE ADAPTER
Manual operation
10
NOTE : Continuous water supply connection is optional, and may
not be provided with all models.
Connect the garden hose Connector and turn on the water.
Verify water tight connections by visually examining boththe
float/hose connections.
Water can be filled into the air cooler by:
Continuous water supply
With the help of garden hose connected to the hose connector on
the unit, water will refill inside the tank on turning on the water tap.
Open the Water fill door located at the top of the unit (when facing front) & fill water up to the
maximum tank level. Water level display is located on the front of the unit. Refill the water tank
when water level is low. Do not fill water above the Max water level mark. Check water level in the
tank before running the ''COOL'' function. Please be sure water in the tank is always
above minimum water level mark. Running the unit with inadequate water may cause pump
failure. If ice is available you may add ice in the top compartment to enhance the cooling
performance.
As soon as the water inside the tank reaches the maximum level, the float valve inside the water tank
will stop the in-flow of in the water tank.
Due to the float valve and continuous supply of water. The water tank in this model will never be empty
and will refill on its own as soon as the float wall goes below the desired level of maximum water inside
the tank.

WARNING
CLEANING & DRAINING THE WATER TANK
•
•
•
•
•
•
•
•
11
Turn the power "off" and disconnect the unit from power supply.
Move the unit to a location where it can be drained and remove the
drainagetube/cap (see parts description on page 7).
Once the tank is empty, refill with clean water and drain it again. This should be
repeated weekly to maintain the integrity of the unit and to remove particles
filtered from the air.
Install the clean water tank to its original position and fill clean water inside the
tank.
CLEANING & MAINTENANCE
Before cleaning the unit, switch it to the ''off'' position and remove the plug from
the power socket.
To clean the outside, use a damp cloth to remove dirt and dust.
Never use corrosive elements or any chemicals to clean this product.
When the product is not in use, store the unit in a dry place out of direct sunlight.

CLEANING & MAINTENANCE
MAINTAINING AND CHANGING THE HONEYCOMB
•
•
•
•
•
12
This unit is supplied with three (3) Honeycomb Cooling Media's located on the back &
two sides. The removal procedure for all the media's is same as explained above.
NOTE:

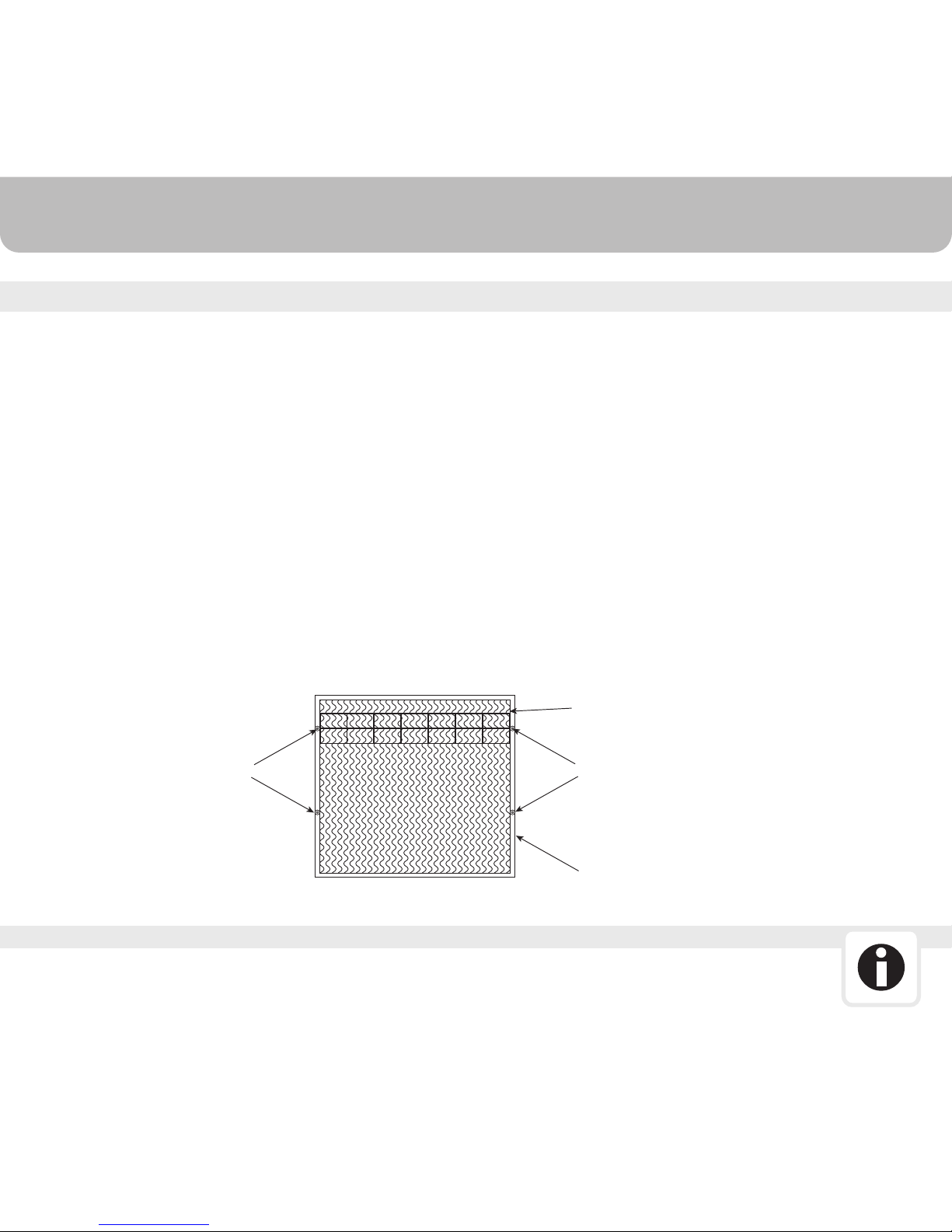

Hand ScrewHand Screw
Honeycomb Holder
Side Panel
Fig.1
The appliance is supplied with Honeycomb cooling media.
The cleaning frequency for the Honeycomb media depends on local air and waterconditions.
In areas where the mineral content of water is high, mineral depositsmay build up on the
honeycomb cooling media and restrict air flow. Draining thewater reservoir and refilling with
fresh water at least once a week will help reduce mineral deposits. If mineral deposits remain
on the Honeycomb media, the media should be removed and washed under fresh water. The
media should be cleaned every two months or sooner, depending on your needs.
Do not run the unit in COOL mode with stale water in the tank. It is recommendedto empty the
tank and refill it with fresh water if the water has been standing in the tank for an extended
period of time.
For best results, allow the honeycomb cooling media to dry after each use by turning off the
cool function 15 minutes before turning the unit off.
To change the Honeycomb, remove the hand screws which hold the side panel(Refer Fig.1).
Remove the Honeycomb holder and replace the Honeycomb.Refix theHoneycomb holder and
screw back the panel to the unit.

TROUBLESHOOTING GUIDE
No discharge of air Cord is not plugged in. Make sure power cord is plugged
in and the supply switch in ON.
Power is not on.
Not Cooling / Unit is
making noise
Pump is not turned ON. Turn on COOL function from
control panel.
Low or no water in tank,
when COOL is selected.
Refill water tank.
Odour omission New Unit.
Old Unit.
Damaged Pump or
Calciumdeposits on blower.
Contact service centre.
PROBLEM POSSIBLE CAUSE SOLUTION
Try to turn the unit ON by
changing the operation
settings of manual knobs on
the control panel.
When the unit is used for
thefirst time, the Honeycomb
cooling media will have an
odour, which will dissipate
within a week of initial use.
There may be an algae
issue,Replace the honeycomb
cooling media. Contact
service centre.
13

MODEL NO. CO60PM
220V
50Hz
200 Watts
60 Litre
Honeycomb
700 (L) x 466 (W) x 1017 (H)
20 Kg
Voltage
Frequency
Wattage
Water Tank Capacity
Cooling Media
Product Dimension
Net Weight
TECHNICAL SPECIFICATIONS
14

ELECTRICAL WIRING DIAGRAM
15

© 2012 AirTek International Corporation Limited
The Honeywell Trademark is used under license from
Honeywell International Inc.
Honeywell International Inc. makes no representation or
warranties with respect to this product.
Manufactured by AirTek International Corporation Limited.
:
