Captuvo SL22/42 ChargeBase
Quick Start Guide
CAPTUVO22-42-CB-QS Rev A
7/13

Overview
The ChargeBase is a 4-slot charging cradle that can power four
sleds and charge their batteries in four hours. If the Apple®iPod
touch®/ Apple iPhone is inserted into the sled, the iPod touch /
iPhone will also be charged.
We recommend use of Honeywell peripherals, power cables,
and power adapters. Use of any non-Honeywell peripherals,
cables, or power adapters may cause damage not covered by
the warranty.
Note: Due to the availability of different models, your ChargeBase
may look slightly different from the illustrations included in this
document.
Unpacking the ChargeBase
Open the shipping box and inspect the package to see that the fol-
lowing standard items are included:
• O n e C h a r g e B a s e ( M o d e l : S L - C B - C )
• One power supply
• O n e p o w e r c o r d
• Q u i c k S t a r t G u i d e
These items are needed to operate the ChargeBase. If any items
are missing or anything appears to be damaged, contact your Cus-
tomer Account Representative. Keep the original packaging in case
you need to return the ChargeBase for service or to store the
ChargeBase while not in use.
Convenient Storage
Since charging terminates when the battery has a full charge, the
ChargeBase a safe and convenient storage receptacle for your Cap-
tuvo SL42 sled.
!

Front Panel Sled Wells (Qty. 4)
Back Panel
Power Supply Connector

Power
The terminal requires 12 Volts DC input for battery charging; the
power adapter on the power cable converts the voltage from the
power source to 12 volts DC. Use only a UL Listed power supply,
which has been qualified by Honeywell with output rated at 12VDC
and 5A amps with the device.
Honeywell recommends that you leave the ChargeBase connected
to its power source at all times, so that it is always ready to use.

Connecting Power to the ChargeBase
1. Plug the A/C power cord into the power adapter.
2. Plug the power connector cable into the power connector on the
back panel of the ChargeBase.
3. Plug the A/C power cord into a standard wall outlet.
The ChargeBase is ready to begin charging the sled/iPod touch.

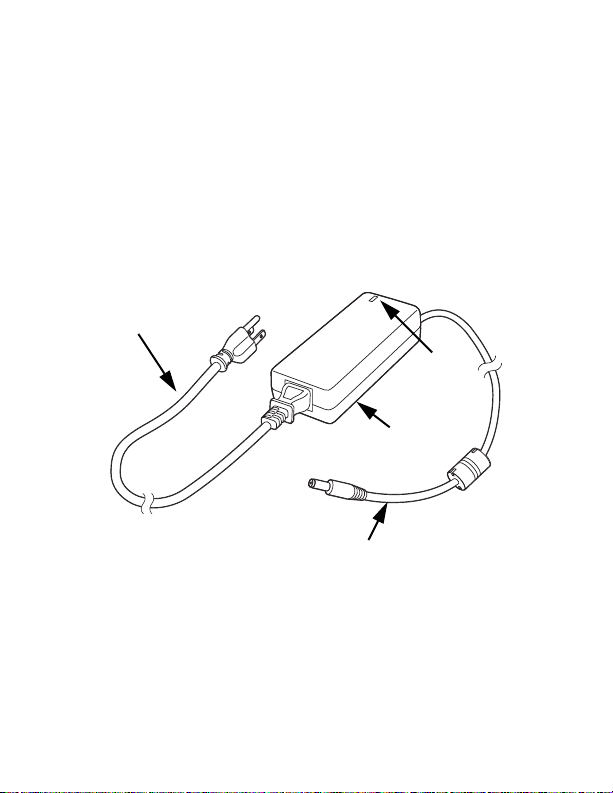

A/C Power Cord
Power Connector Cable
Power Adapter
LED

Charging the Battery
1. Install the main battery pack in the terminal.
2. Verify the ChargeBase has power.
3. Slide the sled into one of the four wells. Charging begins
immediately if required by the sled or the iPod touch. If the iPod
touch is installed in the sled, the battery icon at the top of the
screen indicates that it is charging. The sled and the iPod touch
charge simultaneously and completely depleted batteries will be
charged in four hours.
Ensure all components are dry prior to mating sleds/batteries
with peripheral devices. Mating wet components may cause
damage not covered by the warranty.
!

Agency Information
USA
FCC Part 15 Subpart B Class B
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the
limits for a Class B digital device pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protec-
tion against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio fre-
quency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio com-
munications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one
or more of the following measures:
• Reorient or relocate the receiving antenna.
• I n c r e a s e t h e s e p a r a tion between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio or television
technician for help.

If necessary, the user should consult the dealer or an experi-
enced radio/television technician for additional suggestions.
The user may find the following booklet helpful: “Something
About Interference.” This is available at FCC local regional
offices. Honeywell is not responsible for any radio or television
interference caused by unauthorized modifications of this
equipment or the substitution or attachment of connecting
cables and equipment other than those specified by Honeywell.
The correction is the responsibility of the user.
Use only shielded data cables with this system. This unit has
been tested with cables less than 3 meters. Cables greater than
3 meters may not meet class B performance.
Caution: Any changes or modifications made to this equipment
not expressly approved by Honeywell may void the FCC autho-
rization to operate this equipment.
Canada
Industry Canada ICES-003
This Class B digital apparatus complies with Canadian ICES-
003. Operation is subject to the following conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired operation.
Conformité à la règlementation canadienne
Cet appareil numérique de la Classe B est conforme à la norme
NMB-003 du Canada. Son fonctionnement est assujetti aux
conditions suivantes :

1. Cet appareil ne doit pas causer de brouillage préjudiciable.
2. Cet appareil doit pouvoir accepter tout brouillage reçu, y compris
le brouillage pouvant causer un fonctionnement indésirable.

Europe
The CE marking indicates compliance to 2004/108/EC EMC Direc-
tive with Standards EN55022 CLASS B, EN55024, EN61000-3-2,
EN61000-3-3. 2011/65/EU ROHS (Recast). In addition, complies to
2006/95/EC Low Voltage Directive, when shipped with recom-
mended power supply.
For further information please contact:
Hand Held Products Europe B.V.
Nijverheidsweg 9-13
5627 BT Eindhoven
The Netherlands
Honeywell International Inc. shall not be liable for use of our product with
equipment (i.e., power supplies, personal computers, etc.) that is not CE
marked and does not comply with the Low Voltage Directive.
La marquage CE indique que cet appareil est conforme à la Direc-
tive CEM 2004/108/CE et avec les normes EN55022 CLASSE B,
EN55024, EN61000-3-2, EN61000-3-3. 2011/65/EU ROHS
(Recast). De plus, il est conforme à la Directive sur les basses ten-
sions 2006/95/EC, lorsqu’il est fourni avec le bloc d’alimentation
recommandé.
Pour plus de renseignements, communiquez avec :
Hand Held Products Europe B.V.
Nijverheidsweg 9-13
5627 BT Eindhoven
The Netherlands
Honeywell ne sera pas tenu responsable de l’utilisation de ses produit avec
de l’équipement (c’est-à-dire, blocs d’alimentation, ordinateurs personnels,
etc.) qui ne porte pas la marque CE et n’est pas conforme à la Directive sur
les basses tensions.
La marquage CE apposée sur ce dispositif atteste qu’il est con-
forme à la Directive CEM 2004/108/CE et aux normes EN55022
CLASSE B, EN55024, EN61000-3-2, EN61000-3-3. 2011/65/EU
ROHS (Recast). En outre, s’il est fourni avec l’alimentation recom-
mandée, ce dispositif est conforme à la Directive « basse tension »
2006/95/CE. Pour plus d’informations, veuillez contacter :

Hand Held Products Europe B.V.
Nijverheidsweg 9-13
5627 BT Eindhoven
Pays-Bas
Honeywell ne peut pas être tenu responsable des éventuelles conséquences
de l'utilisation de ses produits avec des équipements (modules d'alimenta-
tion, ordinateurs personnels, etc.) ne comportant pas la marque CE et non
conformes à la Directive sur les basses tensions.
La marcatura CE indica conformità ai sensi della direttiva EMC
2004/108/EC con gli standard N55022 Classe B, EN55024,
EN61000-3-2, EN61000-3-3. 2011/65/EU ROHS (Recast). È con-
forme inoltre ai sensi della Direttiva bassa tensione 2006/95/EC se
spedito con l’alimentatore consigliato. Per ulteriori informazioni rivolgersi a:
Hand Held Products Europe B.V.
Nijverheidsweg 9-13
5627 BT Eindhoven
Paesi Bassi
Honeywell declina ogni responsabilità per l'utilizzo del prodotto con disposi-
tivi (ad esempio alimentatori, personal computer ecc.) non contrassegnati
dal marchio CE e non conformi alla Direttiva Bassa Tensione.
Die CE-Kennzeichnung wird die Einhaltung der EMV-Richtlinie
2004/108/EG mit den Normen EN55022 Klasse B, EN55024,
EN61000-3-2, EN61000-3-3 angezeigt. 2011/65/EU ROHS
(Recast). Ferner entspricht dieses Gerät der Niederspannungsricht-
linie 2006/95/EG, wenn es mit dem empfohlenen Netzteil geliefert wird. Weit-
ere Informationen sind unter folgender Adresse erhältlich:
Hand Held Products Europe B.V.
Nijverheidsweg 9-13
5627 BT Eindhoven
Niederlande
Honeywell haftet nicht für die Verwendung seiner Produkte mit Komponenten
(z. B. Stromversorgungen, PCs usw.), die nicht mit dem CE-Zeichen gekenn-
zeichnet sind und die nicht den Vorschriften der Niederspannungsrichtlinie
entsprechen.
El marcado CE indica que cumple con la Directiva 2004/108/EC
EMC y los estándares EN55022 Clase B, EN55024, EN61000-3-2,
EN61000-3-3. 2011/65/EU ROHS (Recast). Además, cumple con la

Directiva 2006/95/EC sobre el material eléctrico destinado a utilizarse con
determinados límites de tensión, cuando se envía con una fuente de ali-
mentación recomendada. Para obtener información adicional, póngase en
contacto con:
Hand Held Products Europe B.V.
Nijverheidsweg 9-13
5627 BT Eindhoven
Países Bajos
Honeywell no será responsable del uso de sus productos con equipos (p. ej.,
fuentes de alimentación, ordenadores personales, etc.) que no presenten la
marca CE y no cumplan con la Directiva sobre el material eléctrico destinado
a utilizarse con determinados límites de tensión.
El marcado CE indica que cumple con la Directiva 2004/108/EC
EMC con los Estándares EN55022 CLASE B, EN55024, EN61000-
3-2 y EN61000-3-3. 2011/65/EU ROHS (Recast). Además, cumple
con la Directiva 2006/95/EC sobre baja tensión cuando se envía
con la fuente de alimentación recomendada. Si desea obtener más infor-
mación, póngase en contacto con:
Hand Held Products Europe B.V.
Nijverheidsweg 9-13
5627 BT Eindhoven
Países Bajos
Honeywell no asumirá responsabilidad por el uso de sus productos con equi-
pos (p. ej., fuentes de alimentación, computadoras personales, etc.) que no
presenten la marca CE y no cumplan con la Directiva sobre baja tensión.
A marcação CE indica conformidade com a Diretiva EMC 2004/108/
EC, com os Padrões EN55022 CLASSE B, EN55024, EN61000-3-2
e EN61000-3-3. Além disso, indica conformidade com a Diretiva
para baixa tensão 2006/95/EC, quando o dispositivo é enviado com
a fonte de alimentação recomendada. Para obter mais informações, entre
em contato com:
Hand Held Products Europe B.V.
Nijverheidsweg 9-13
5627 BT Eindhoven
Holanda

Honeywell não se responsabiliza pelo uso de nossos produtos com equipa-
mentos (fontes de alimentação, computadores pessoais, etc.) que não este-
jam marcados com CE e em conformidade com a Diretriz de Baixa
Voltagem.
CE 表示设备符合 2004/108/EC EMC 指令和 EN55022 B 类、
EN55024、EN61000-3-2、EN61000-3-3 2011/65/EU ROHS
(Recast). 的标准要求。此外，在随附建议的电源时，设备还符合
2006/95/EC 低电 指令的要求。有关其他信息，请联系：
Hand Held Products Europe B.V.
Nijverheidsweg 9-13
5627 BT Eindhoven
The Netherlands
如果通过没有 CE 标记且不符合低电 指令的设备 （如，电源、个人计算机
等）使用我们的产品， Honeywell 不负任何责任。
CE 標誌代表本裝置符合 2004/108/EC EMC 指 令，遵循標準 EN55022 CLASS
B、EN55024、EN61000-3-2 和 EN61000-3-3。2011/65/EU ROHS
(Recast).. 若本機組附帶建議使用的電 裝置，同時也符合 2006/95/EC 低電
壓指令。 如需進一步資訊，請聯絡：
Hand Held Products Europe B.V.
Nijverheidsweg 9-13
5627 BT Eindhoven
The Netherlands
若配合未標示 CE 及不符合低電壓指令的設備 ( 即電源供應器、個人電腦等等 ) 使用我
的產品，Honeywell 概不負責。
CE マーキングは、本装置が 2004/108/EC EMC Directive の規格 EN55022
CLASS B、EN55024、EN61000-3-2、EN61000-3-3. 2011/65/EU ROHS
(Recast). に準拠していることを示します。また、推奨電源付 で出荷され
ている場合は、
2006/95/EC Low Voltage Directive にも準拠しています。詳細
については、下記にお問い合わせください。
Hand Held Products Europe B.V.
Nijverheidsweg 9-13
5627 BT Eindhoven
The Netherlands

CE マーキングがな く 、 Low Voltage Directive に適合 し ない機器 ( 電源装置、 パーソ ナ
ル コ ン ピ ュー タ など ) と と に当社の製品を使用し た場合、 Honeywell は一切の責任
を負いません。
CE 표시는 2004/108/EC EMC Directive의 표준 EN55022 CLASS B, EN55024,
EN61000-3-2, EN61000-3-3. 2011/65/EU ROHS (Recast). 을 준수함을 의
미합니다 . 또한 , 권장되는 전원 공급장치와 함께 제공되는 경우 는 2006/95/
EC Low Voltage Directive 를 준수함을 의미합니다 . 자세한 내용은 다음으로 문
의하시기 바랍니다 .
Hand Held Products Europe B.V.
Nijverheidsweg 9-13
5627 BT Eindhoven
The Netherlands
Honeywell 는Low Voltage Directive 의조항을 준수하지 않고 CE 기호를 획득하지 않은
장비 (예: 전원 공급 장치 , PC 등)와함께 당사 제품을 사용함으로써 발생하는 어떠한
문제 도 책임을 지지 않습니다 .
Маркировка СЕ означает соответствие Директиве по
электромагнитной совместимости 2004/108/EC со стандартами
EN55022 CLASS B, EN55024, EN61000-3-2, EN61000-3-3. 2011/
65/EU ROHS (Recast).Кроме того, соответствие Директиве по
низкому напряжению 2006/95/EC при отправке срекомендуемым
источником питания. Для получения более подробной ин ормации
обращайтесь по адресу:
Hand Held Products Europe B.V.
Nijverheidsweg 9-13
5627 BT Eindhoven
The Netherlands
Компания Honeywell не несет ответственность за использование нашего
товара соборудованием (например, источниками питания,
персональными компьютерами) без маркировки СЕ, которое не
соответствует Директиве по низкому напряжению.

Honeywell Scanning & Mobility Product
Environmental Information
Refer to www.honeywellaidc.com/environmental for the RoHS /
REACH / WEEE information.
Technical Assistance
Contact information for technical support, product service, and
repair can be found at www.honeywellaidc.com.
User Documentation
To download the CAPTUVO SL22/42 sled documentation, go to
www.honeywellaidc.com.
Limited Warranty
Refer to www.honeywellaidc.com/warranty_information for your
product’s warranty information.
Patents
For patent information, refer to www.honeywellaidc.com/patents.

有毒有害物质名称及含量的标识格式
(Names and Content of Hazardous Substances or Elements)
部件名称 (Parts Name) 有毒有害物质或元素
(Toxic and Hazardous Substances or Elements)
铅
(Pb)
汞
(Hg)
镉
(Cd)
六价铬
(Cr6+)
多溴联苯
(PBB)
多溴二苯
醚(PBDE)
印刷电 板 (PCB) oooo o o
配重块 (Weight xooo o o
充电器 (Adapter) xooo o o
外壳 (Housing) oooo o o
电源线 (Power Cord) xooo o o
o: 表示该有毒有害物质在该部件所有均质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下 (Indicates that
this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement in
China’s SJ/T11363-2006.)
x: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要求 (Indicates
that this toxic or hazardous substance contained in at least one of the homogeneous materials for this part is
above the limit requirement in China’s SJ/T11363-2006. )

Disclaimer
Honeywell International Inc. (“HII”) reserves the right to make
changes in specifications and other information contained in this
document without prior notice, and the reader should in all cases
consult HII to determine whether any such changes have been
made. The information in this publication does not represent a com-
mitment on the part of HII.
HII shall not be liable for technical or editorial errors or omissions
contained herein; nor for incidental or consequential damages
resulting from the furnishing, performance, or use of this material.
This document contains proprietary information that is protected by
copyright. All rights are reserved. No part of this document may be
photocopied, reproduced, or translated into another language with-
out the prior written consent of HII.
©2013 Honeywell International Inc. All rights reserved.
Web Address: www.honeywellaidc.com
Apple and iPod touch are trademarks of Apple Inc., registered in the
U.S. and other countries. App Store is a service mark of Apple Inc.
