Honeywell NOTIFIER AM-8200 Owner's manual

AM-8200
FIRE DETECTION PANEL
Programming
Manual
Firmware V.1.0

AM-8200 Programming Manual INDEX
AM-8200_manu-prog Doc. M-162.1-AM8200-ITA Rev A.2 NOTIFIER ITALIA
INDEX
General Description 1
Definitions 2
Front panel controls and signallings 4
Front panel LED indications 5
USER INTERFACE DESCRIPTION 6
Functions and Access level 6
Description of the keyboard operation to enter data in the programming folders 6

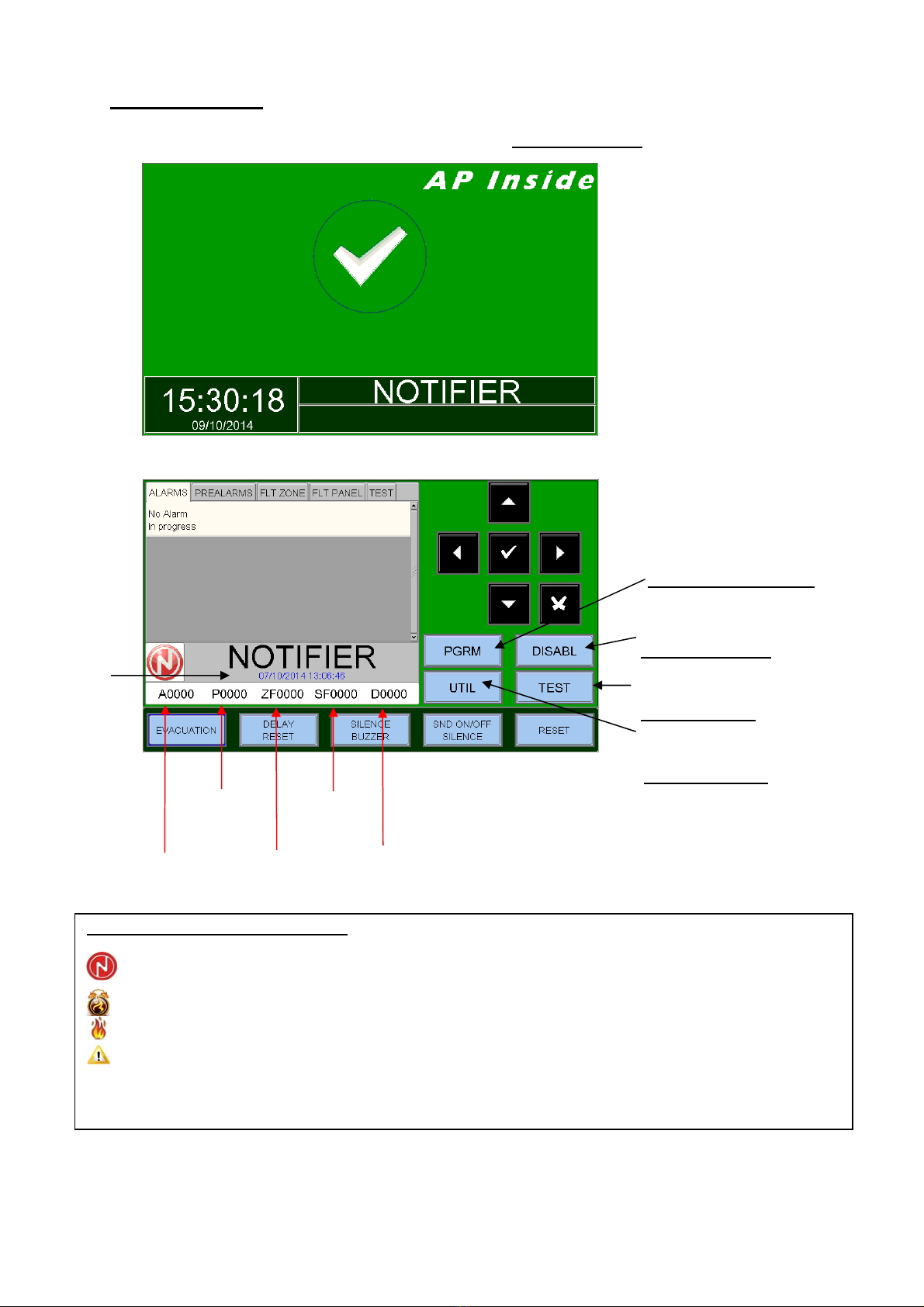

Normal condition 7

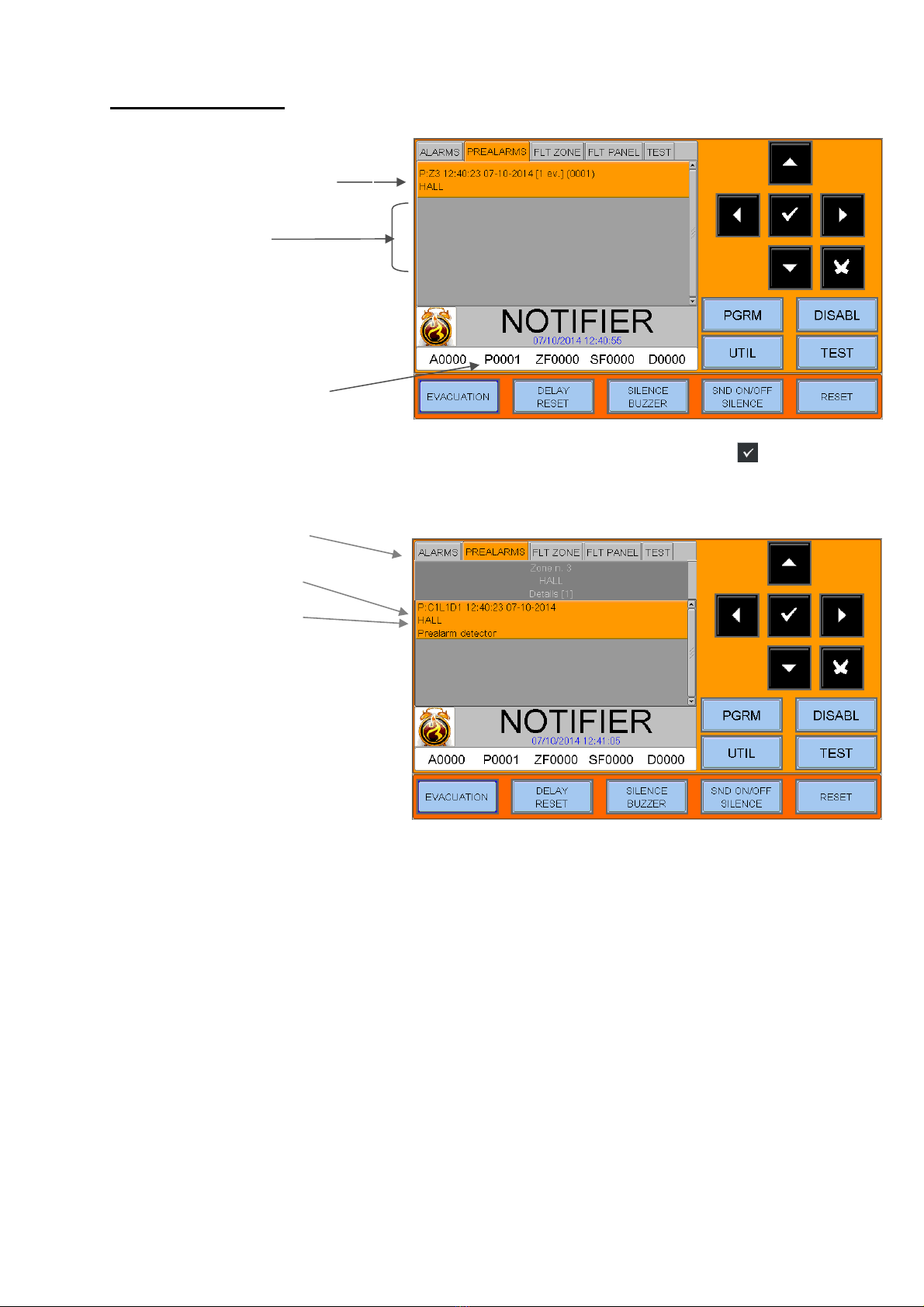

Pre-alarm condition 8

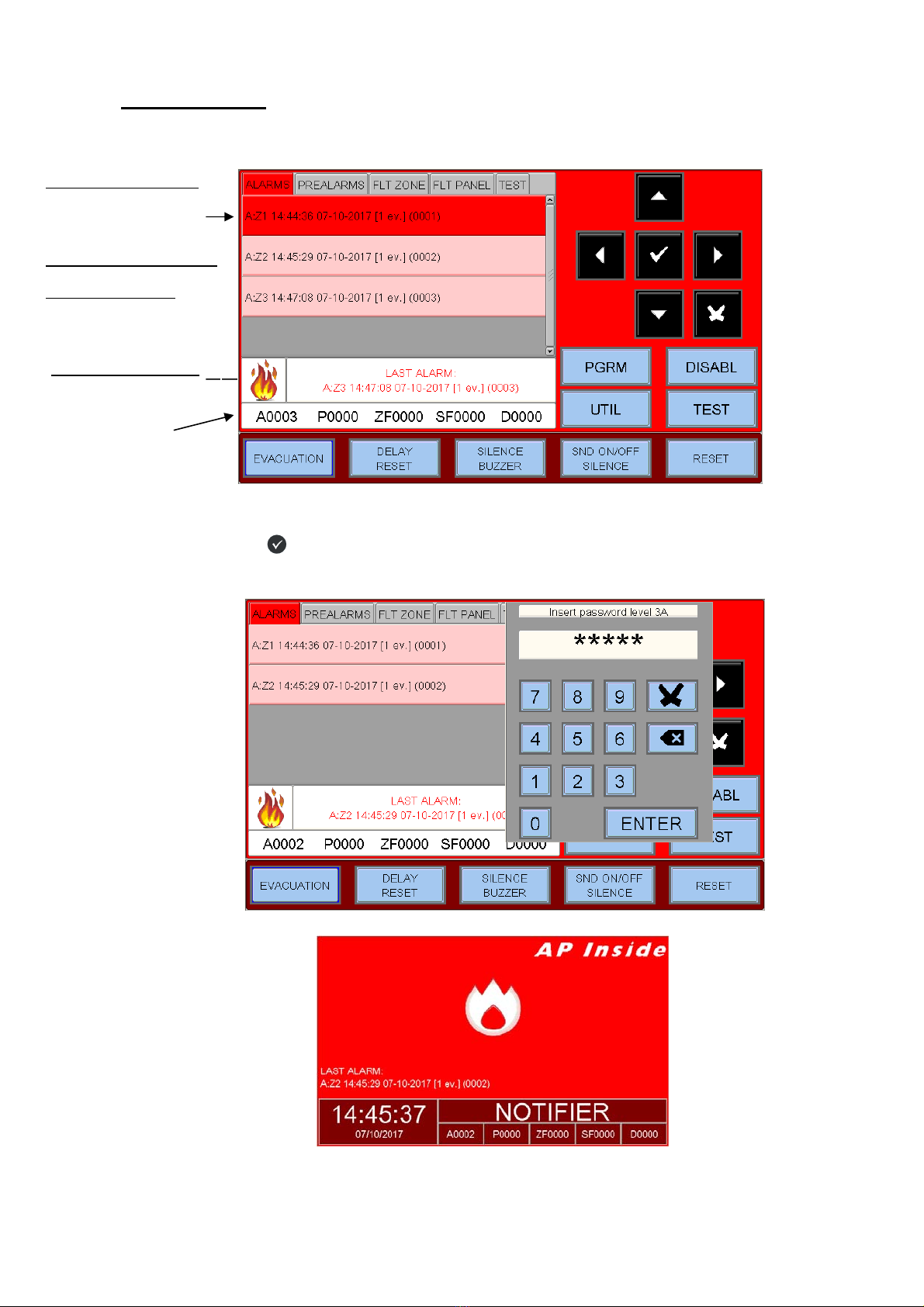

Alarm condition 9
Condition with fault zone events 10
Condition with System fault events 11
PROGRAMMING MENU 12
Programming Menù 13
System Menù 13
System Type 14
System Address 14
System Line 14
System Timings 15
Faults signaling timings TAB 16
System Password 17
System programming installation 17
Programming Points 18
Detectors 18
Modules 28
Input modules 28
Output modules 29
FAAST 30
NRXI-GATE 32

INDEX Programming Manual AM-8200
NOTIFIER ITALIA Doc. M-162.1-AM8200-ITA Rev A.2 AM-8200_manu-prog
Auto-learn 33
Summary of HW Type-ID for modules 35
Summary of SW Type-ID for modules 36
CLIP ONLY SW-Type-ID for UDS units 39
Groups Programming Menù 40
Zone Programming Menù 42
Configuration Menù 44
Utility Menù 46
System View 47
Language 47
Date and Time 47
Parameters 48
Local 48
Special 48
Drift warning function 48
Mod.NONA 49
Reability parameters 49
Sounder 50
Prints 50
HISTORY LOG 51
History Log Display 51
History Log Disable 52
History Log Save 52
VIEW / MODIFY STATUS 53
Detectors 53
Modules 54
Groupes 55
Zones 55
Active Module List 56
Firmware Version 56
Firmware Update 57

AM-8200 Programming Manual INDEX
AM-8200_manu-prog Doc. M-162.1-AM8200-ITA Rev A.2 NOTIFIER ITALIA
DISABLE MENÙ 57
Modify 58
Detectors 58
Modules 59
Zones 59
System Disable 59
TEST MENU 60
APPENDIX “A” – CONTROL BY EVENT EQUATION 62
Appendix B : Software Type_ID for MODULES 70

AM_8200 Programming Manual PAGE - 1
AM82000_manu-prog-ENG Doc. M-162.1-AM8200-ENG Rev A2 NOTIFIER ITALIA
Do not try to use the control unit and devices connected without reading this manual
DETECTION SYSTEM LIMITS
An alarm or fire detection system can be very useful for the prompt warning of any dangerous
event
such as fire. In some cases it can automatically manage events (transmission of messages
for room evacuation, automatic fire-extinguishing, TVCC system interface, access route or
door blockage, automatic warning to authorities, etc.), but in any case, it does not ensure
protection against damages to propriety).
Moreover, each system may not properly operate if it is not installed and maintained
according to the manufacturer’s instructions.
 It is assumed that the user of this manual has performed a training
course and that he knows the applicable rules in force.
 The system and all its components must be installed in an
environment having the following features:
 Temperature: -5 °C ¸ +40 °C.
 Humidity: 10 % - 93 % (without condensation).
 Peripheral devices (sensors, etc.) which are not perfectly compatible
with the control unit may cause damages to the same control unit,
and a bad operation of the system in any moment. Therefore, it is
essential to only use material which is guaranteed by NOTIFIER and
is compatible with its own control units.
 Please consult NOTIFIER Technical Service for an
y
doubt.
.
A
AT TT TE EN NT TI IO ON N: :
T
Th hi is s m ma an nu ua al l r re ef fe er rs s t to o f fu un nc ct ti io on ns s a av va ai il la ab bl le e i in n t th he e s so of ft tw wa ar re e r re ev vi is si io on n i in nd di ic ca at te ed d o on n c co ov ve er r. .
Current versions are : CPU : V 1.0.614 – LIB: V.1.0.325
G
GE EN NE ER RA AL L D DE ES SC CR RI IP PT TI IO ON N
AM-8200: fire detection panels built in accordance with standards EN.54.2, and EN.54.4
Multi processor System, Display TFT 7” (800 x 480 with Backlite) 256 colors touch-screen
Detection Lines:
AM-8200 Basic equipment panel is loaded with 2 loop detection lines.
One LIB-8200 card will add 2 loop to basic equipment AM-8200
AM-8200BB Extension box (with an additional 150W PSU) and is loaded with 2 loops (6 loops in total on the
AM-8200panel)
With one additional LIB-8200 card in the Extension Box the AM-8200 panel reach 8 loop capability.
Each Loop can be programmed as Advanced Protocol or CLIP compatible.

PAGE - 2 Programming Manual AM_8200
NOTIFIER ITALIA Doc. M-162.1-AM8200-ENG Rev A2 AM8200_manu-prog-ENG
A
AM M- -8 82 20 00 0 a as s 1 16 6 L Lo oo op p n ne et tw wo or rk k ( (N No od de e- -t to o- -N No od de e m ma ax x d di is st ta
an nc ce e: : 5 50 00 0m m) )
DEFINITIONS
LINE: Physical wiring where sensors, addressable manual Call Points, Sirens, addressable input and output
modules are connected.
POINTS: they are the addressable sensors and modules that can be connected to Lines.
Hardware Address: the device Physical address (Start address for multi-module devices) on loop.
It is set via the rotary switches or Dip-Switches on the addressable device
It’s possible to assign addresses from 1 to 99 on loops programmed in CLIP mode.
On the Loops programmed in ADVANCED mode, the hardware addresses range from 1 to 159.
Multiple modules (eg M-721 = 2-inputs and 1 output) in an ADVANCED loop occupy 1 Hardware Address of 159
and 3 SUB-ADDRESS, one for each module that compose the device.
The same module in a CLIP loop occupies 3 consecutive addresses of 99 available for modules.
SUB-ADDRESS: The sub-address programming is available only for addressable MODULES.
SUB-ADDRESSs are automatically assigned to the individual components of the multiple module, depending on
the programmed HARDWARE-TYPE.
Modules with a single input or single output have only one sub-address.
Modules with multiple inputs or multiple outputs have a sub-address for each input and each output.
The maximum number of "sub-addresses" that can be managed for each LIB-8200 (2 loop) is 700 that can be
distributed freely on the two loops of the card.
Example 1: 2 x M-721 modules with hardware addresses 1 and 2 will be composed as follows:
M721 - Indirizzo rotary switch = 1 Indirizzo in centrale M721 - Indirizzo rotary switch = 2 Indirizzo in centrale
1° Input SUB-ADDRESS=1 1.1 1° Input SUB-ADDRESS 1 2.1
2° Input SUB-ADDRESS=2 1.2 2° Input SUB-ADDRESS 2 2.2
Output SUB-ADDRESS=3 1.3 Output SUB-ADDRESS 3 2.3
AM-8200
CAN-BUS
CAN-BUS
CAN-BUS
CAN-BUS
AM-8200
AM-8200-BB
Max 500 m
Max 500 m
Max 500 m
PRINTER
LCD-8200

AM_8200 Programming Manual PAGE - 3
AM82000_manu-prog-ENG Doc. M-162.1-AM8200-ENG Rev A2 NOTIFIER ITALIA
Example 2: A CMX-10RME (10 OUTPUT) card with address 10 will be programmed.
Example 3: a WSS-PR-I02 optical/acoustic device with address 2 will be programmed
HARDWARE TYPE-: An identifier identifying the model of the device (both for sensors and for modules)
SOFTWARE TYPE: An identifier identifying the type of device behavior.
It can assume different meanings depending on the model or device type-hardware.
It may indicate device behavior (eg "activates for each fault")
Or it can indicate the type of cabling (eg double balancing, free contact output, etc.)
ZONES: are set of points in same physical area
Used as basic indications as stated in EN 54.2 to identify the position of an event.
500 physical zones in stand alone or in 16 loop network configuration.
2000 physical zones in128 loop network configuration
A maximum of 32 points can be associated to each zone.
GROUPS: A group is a software set of devices that can be used to program associations between Inputs and
Outputs and perform actions triggered by input or alarm events.
400 groups in 16 loop network configuration.
1600 groups in 128 loop network configuration
Groups have no limit in number of points.
CMX-10RME–Hardware Address = 10 SUB-address in Panel
1 ª Output SUB-ADDRESS 1 10.1
2 ª Output SUB-ADDRESS 2 10.2
3 ª Output SUB-ADDRESS 3 10.3
4 ª Output SUB-ADDRESS 4 10.4
5 ª Output SUB-ADDRESS 5 10.5
6 ª Output SUB-ADDRESS 6 10.6
7 ª Output SUB-ADDRESS 7 10.7
8 ª Output SUB-ADDRESS 8 10.8
9 ª Output SUB-ADDRESS 9 10.9
10 ª Output SUB-ADDRESS 10 10.10
WSS-PR-I02 - Address 2 SUB-address in Panel
Sounder SUB-ADDRESS = 1 2.1
Flash SUB-ADDRESS = 2 2.2

PAGE - 4 Programming Manual AM_8200
NOTIFIER ITALIA Doc. M-162.1-AM8200-ENG Rev A2 AM8200_manu-prog-ENG
F
FR RO ON NT T P PA AN NE EL L C CO ON NT TR RO OL LS S A AN ND D S SI IG GN NA AL LL LI IN NG GS S
K Ke ey ys s w wi it th h d de ed di ic ca at
te ed d f fu un nc ct ti io on ns s
EVACUATION: Command for activating the Siren output and all output modules programmed with Type SW = SND in the
absence of alarms and faults.
To do this you need to know the level 2 password.
DELAY RESET:
This button is active only in case of alarm if the immediate activation of the Sounder outputs in the exclusions menu has
been excluded.
The panel delays the activation of the above-mentioned outputs for the programmed times ( Prog\ Sist\ Al. Output Timing ).
During the delay time the Active Delay led flashes and it is possible to reset the current delay through the Delay Reset key.
SILENCE BUZZER:
by pressing this key, the operator can silence the Panel buzzer and is enabled to perform a RESET.
SOUNDER ON/OFF SILENCE: This operation must be done with level 2 password..
In case of alarm the following devices are activated:
 Sounder Output
 Output modules programmed with SW-Type-ID=SND
 the output modules activated for a CBE associations
By pressing this key, you can de-activate the following devices:
 Siren Output
 Output modules programmed through Type-ID SND and enabled for silencing
 All output modules activated through CBE associations and enabled for silencing
A subsequent pressure of this key will re-activate :
 Siren Output
 Output modules programmed through Type-ID SND
 All the output modules de-activated from the previous Silencing
RESET: This operation must be done with level 2 password
the pressure of this key clear alarms and faults from memory.
It de-activates the sounder and turns off all light signalling of sensors in alarm.
FUNCTION KEYS in LCD TOUCH SCREEN:
These keys are displayed in the bottom part of the LCD screen.
Activate the corresponding functions.
These functions change according to the selected menus.
Example: in the system status display, these keys allow the access to the
Programming, Utilities, Exclusion menus or the Test menu.
Keys to use: DURING THE PROGRAMMING or TO ENTER THE PASSWORDS
ARROWS: they are used to perform some selections.
NOTE: pressing and holding one of these keys for more than 1 second, you obtain the key automatic
repetition.
ENTER: after performing a selection, it confirms the entered datum.
ESCAPE: “Back”, this is the menu exit function

AM_8200 Programming Manual PAGE - 5
AM82000_manu-prog-ENG Doc. M-162.1-AM8200-ENG Rev A2 NOTIFIER ITALIA
FRONT PANEL LED INDICATIONS
ALARM (Red):
It flashes if there is at least one device in alarm and it has not been recognized yet. It is
permanently lit if all alarm events have been recognized.
REMOTE ALARM (Red):
it is permanently lit if the output towards the fire alarm transmission devices (telephone dial) has
been activated.
SILENCE SOUNDER (Yellow):
It is lit after the Sounder Silencing control is performed.
DELAY IN PROGRESS (Yellow):
It is lit if the immediate output activation has been disabled; apply to type C outputs (sounder
output) and type E (alarm transmission through telephone dial). Through this disablement, in
case of alarm the system delays the above mentioned outputs for the programmed times. During
the delay time the led flashes and it is possible to reset the current delay through the “reset delay”
key at lev.1.
EVACUATION (Yellow):
It is lit after the evacuation function is performed.
TEST (Yellow):
It is lit during Zone Walk Test
POWER (Green):
It is permanently lit if the control unit is powered (by 230Vac or by batteries charger).
FAULTS (Yellow):
It flashes if there is at least one fault of any type and it has not been recognized yet.
It is on if all faults have been recognized
SYSTEM (Yellow):
It is lit if there is at least a system fault (watch dog, CRC memory error, etc.)
POWER SUPPLY (Yellow):
It is lit if there is a power supply Fault.
GROUND FAULT (Yellow):
It is permanently lit when the positive or negative is earthed.
MASK (Yellow):
It is lit when there is at least one Zone or a Point Disabled in the system.
SOUNDER (Yellow):
It is lit if the siren output is disabled.
It flashes when the siren output is in Fault condition
FAULTS TRANSMISSION (Yellow):
It is lit if the Fault transmission output is disabled (telephone dial).
It flashes when the Fault transmission output is in Fault condition.
ALARM TRANSMISSION (Yellow):
It is lit if the alarm transmission is disabled (telephone dial).
It flashes when the alarm transmission output is in Fault condition
EXTINGUISHING (Yellow):
It is lit if the output towards the automatic fire-fighting system (UDS) is disabled
It flashes when the fire-fighting control output is in Fault condition

PAGE - 6 Programming Manual AM_8200
NOTIFIER ITALIA Doc. M-162.1-AM8200-ENG Rev A2 AM8200_manu-prog-ENG
If an invalid password is entered, the
following message will be displayed: “Invalid
password!: xxxxx “
where “xxxxx” is a 5-character code
This code is used to obtain the programmed
password in case it has been forgotten, by
referring to this code to NOTIFIER technical
servicing.
U
US SE ER R I IN NT TE ER RF FA AC CE E D DE ES SC CR RI IP PT TI IO ON N
 Functions and Access level
Functions EN.54 Level Factory default password
Alarm and Faults display Level 1 none
Alarm and Faults recognition Level 1 none
Delay Re-set (appropriate button) Level 1 none
Excluded Zones/Points display Level 1 none
Exclusions menu Level 2 22222
Test Menu Level 2 22222
Utility Menu Level 3 33333
Programming menu Level 3a 44444
 Description of the keyboard operation to enter data in the programming folders:
Through the arrows  you can enter the adjacent folders (displays)
Through the arrows  you can scroll the fields inside the folder (the selected field is displayed with the
characters in REVERSE.)
If the folder has an index field, the first two function keys appear through which you can scroll
The selected field can be changed by entering in editing mode through the enter key .
According to the type of datum there are different editing modes:
 Text entering (CBE, Labels associated with: devices, zones, etc.)
To enter the alphanumerical characters use the keyboard on Touch screen
 “Alpha-Numeric” Keyboard on Touch Screen:
This keyboards will be available on the Touch Screen when a Programmable Text have to be edit:
Selections (TYPE-ID, YES, NO, etc..) : type ENTER and through the arrows  all the selectable labels are
scrolled in sequence
The parameter is stored through the enter key,
If you do not want to store the changes use the escape key
To quit the folder system use the escape key .
To enter the passwords, when they are requested, use the numeric keyboard that appear on the screen.
Confirm the entered password by pressing the ENTER key.
- -

AM_8200 Programming Manual PAGE - 7
AM82000_manu-prog-ENG Doc. M-162.1-AM8200-ENG Rev A2 NOTIFIER ITALIA
Function associated with TEST key
input of the test menu.
Refer to Test Menu.
Function associated with DISABLE key
input of the disable menu.
Refer to Disable Menu
Function associated with UTIL key
input of the utility menu.
Refer to Utility Menu
Function associated with PGRM key
input of the program menu.
Refer to Programming Menu
 Normal condition
The following screen is displayed when the control panel is in Normal Condition
If you touch the screen the following screen is displayed
Icons that signals the Panel Conditions
- The NOTIFIER brand symbol appears in the absence of alarms and Faults.
- If there are Pre-alarms the alarm clock symbol is displayed
- If there are Alarms the Fire symbol is displayed
- If there are Faults the Triangle symbol is displayed.
N.B. The alarm state override all different type of events in case are both Alarms and Faults present.
Date - Time
Alarm Zones
Counter
Prealarm
Zones
Counter
Fault Zones
Counter
System Faults
Counter
Disabled Zones
Counter

PAGE - 8 Programming Manual AM_8200
NOTIFIER ITALIA Doc. M-162.1-AM8200-ENG Rev A2 AM8200_manu-prog-ENG
 Pre-alarm condition
The following screen appears when the control panel is in the zone pre-alarm condition
Use the arrow keys to scroll through the list of pre-alarm zones. By pressing the Enter key you will
access the list of points in the pre-alarm of the selected zone, with the arrow keys you can scroll through
the list of alarm devices
Any subsequent
zones in pre-alarm
Zone Counter in Pre-Alarm
Pre-alarm device
Text programmed for the
device
Zone View Window
 First zone in pre-alarm
 • time, date, progressive event
 • programmed text for the zone

AM_8200 Programming Manual PAGE - 9
AM82000_manu-prog-ENG Doc. M-162.1-AM8200-ENG Rev A2 NOTIFIER ITALIA
 Alarm Condition
The following display appears when the control unit is in condition of zone alarm.
Through the arrow keys you can scroll the list of the zones containing Faults.
By pressing the enter key you can access the list of point in alarm of the zone selected on the display,
through the arrow keys you can scroll the list of the devices in alarm.
Counter for zones
in alarm
FIRST ZONE IN ALARM
 Date and Time +
Event Number ID
 Text for the Zone
Device in Alarm
D = Detector
M = Module
Text programmed
For this Device
If more zones are in Alarm :
2 ZONES IN ALARM
LAST ZONE IN ALARM
 Date and Time +
Event Number ID

PAGE - 10 Programming Manual AM_8200
NOTIFIER ITALIA Doc. M-162.1-AM8200-ENG Rev A2 AM8200_manu-prog-ENG
 Condition with Fault zone events
The following display appears when the control panel is in condition of zone faults.
Fault events are also initially displayed for zone
Through arrow keys  you can scroll the list of the Zone Faults.
Through a first pressure of the enter key you can display the list of devices with the indication of the point
name; refer to the following figure:
Pressing the escape key or leaving the keypad inactive for 30 seconds. you return to the list of faulty areas
Counter
for Faulty zones
Zone with Fault events
Text programmed
for this zone
Detail of the Device in
Fault Condition
Text programmed
for the device
Fault Type description
Counter
of Faulty zones

AM_8200 Programming Manual PAGE - 11
AM82000_manu-prog-ENG Doc. M-162.1-AM8200-ENG Rev A2 NOTIFIER ITALIA
 Condition with System fault events
The Fault events relevant to the panel are defined as “System Faults” (ex. discharged battery, no mains, etc.).
The system Faults are displayed with the maximum detail level.
T
Th hr ro ou ug gh h a ar rr ro ow w k ke ey ys s    y yo ou u c ca an n s sc cr ro ol ll l t th he e l li is st t o of f t th
he e S Sy ys st te em m F Fa au ul lt ts s. .
Condition with alarm events from a zone under Test
Through a first pressure of the enter key you can display the list of devices with the indication of the point
name; refer to the following figure:
through the arrow keys  you can scroll the list of the tested devices of the zone.
Date and Time of
the Event
Counter for
System Faults
Description of the
System Fault
Event
Alarm event
from zone under test
Date and Time
of the Event
Detail of the Device in
Alarm Condition
Text programmed
for the device
Event description

PAGE - 12 Programming Manual AM_8200
NOTIFIER ITALIA Doc. M-162.1-AM8200-ENG Rev A2 AM8200_manu-prog-ENG
P
PR RO OG GR RA AM MM MI IN NG G M ME EN NU U
RECOMMENDED SEQUENCE TO PERFORM THE PANEL PROGRAMMING
The following operation sequence is recommended to perform the initial programming of the control unit, to
prevent mistakes and consequent loss of time.
The details of each operation are pointed out in the following pages.
- Perform the wiring of the control unit lines and perform the appropriate tests as described in the
installation manual before powering the control unit.
- Make some photo-copies of the programming sheet that can be found at the end of this manual and
record on these sheets the necessary information for ALL sensors, modules, software zones, CBE and
groups.
 From the Programming menu select the “System” menu.
 Select the “Line” item and program the type of connection which has been performed on the installed
lines ( open line or closed loop ).
 From the Programming menu select Point Programming
 Select the Auto-Learn item, and press the enter key and subsequently enter the number of lines for
which the procedure must be started.
Through this operation all the devices installed on the lines are recognized and loaded in the control unit
memory according to their Hardware TYPE ID and with the default data.
 At the end of the procedure check that the devices detected by the control unit during the Auto-
Learn are those really installed, and confirm.
This will record all data in the Panel memory.
In any case user can edit and modify the recorded data in case it needs.
 From the Point Programming menu select “Detectors”
 Associate the detector with the appropriate zone
 Program the detector CBE ( Control by Event action).
 From the Point Programming menu select the “Modules” item
 Program the Software Type-ID (if it is different from the default value assigned )
 Associate the module with the appropriate zone
 Program the module CBE ( Control by Event action).
At the end of this programming steps the control unit is ready to manage the Alarm system
Additional details can be added to the mentioned, as for example a text description for each
detector, module or zone.
For further information or specific parameters description see the following paragraphs.

AM_8200 Programming Manual PAGE - 13
AM82000_manu-prog-ENG Doc. M-162.1-AM8200-ENG Rev A2 NOTIFIER ITALIA
Refer to System Menu section
Refer to Point Programming section
Refer to Group Programming section
Refer to Zone Programming section
Refer to P Pr ro og gr ra am m section
Refer to D De el le et te e P Pr ro og gr ra am mm mi in ng gs s section
Programming menu
By pressing the “PGRM” function key you can access the programming menu, to perform the configuration of
the system or make changes to the programming.
To access the Programming menu
you must enter the Level 3A password
(44444 is the default password)
To enter the password, use the keyboard that appears on the
screen and press ENTER.
The following screen is displayed:
 Programming - System menu
By selecting “System” you can configure the configuration parameters which are valid for all the control unit.
-
Refer to SYSTEM TYPE section
Refer to System-Address section
Refer to System-Line section
Refer to System-Timing section
Refer to System-Password section
Refer to System-Installation section

PAGE - 14 Programming Manual AM_8200
NOTIFIER ITALIA Doc. M-162.1-AM8200-ENG Rev A2 AM8200_manu-prog-ENG
 Programming – System - System TYPE
This function allows the choice of system Network type as follows:
STANDALONE = Single Panel without Network connection with up to 8 lines
NET 16 = Network of Panels with up to 16 lines in total
NET 128 = Network of Panels with up to 128 lines in total
 Programming – System - System Address
The "Address" entry will assign the panel device number on the CAN-BUS network.
 Programming – System – LINE
Style: OPEN LINE, CLOSED LOOP
This function allows to change (in memory) the type of line connection,
Through a first pressure of the enter key the Line editing function is activated,
Press one of these key to select the Previous or Next line

AM_8200 Programming Manual PAGE - 15
AM82000_manu-prog-ENG Doc. M-162.1-AM8200-ENG Rev A2 NOTIFIER ITALIA
Through the arrow keys  select the line style (OPEN - LOOP)
Press the enter key to confirm the programming.
LINE STYLE: Open = Open Line, Closed = Closed Line
Protocol: ADV, CLIP: Configure the type of devices to handle.
ADV = Line managed with ADV protocol,
By selecting ADV the line can also handle up to 30 CLIP devices.
CLIP = Line managed with CLIP protocol (99 sensors + 99 modules)
Programming – System - Timings
In this sub-menu are programmed some delay times of the alarm outputs, the delay time for the sensor alarm
check, silencing inhibition, etc.
ALARM–OUT TAB
Through the arrow keys select the item which is required to be changed (“Siren” or “Tx Alarm”)
Through pressure of the enter key the editing function is activated.
Through the arrow keys  or through keyboard the data are entered, by pressing the enter key you can
confirm entered data.
Sounder activation delay is programmable in seconds ( max. 600 sec)
The “Siren” and “TX Alarms” activation delay timings are active only in case of alarm if the immediate
activation of the outputs has been excluded in the exclusions menu.
DETECTORS TAB
Press the right Arrow key  to change the time of check for the detectors:
Detectors verification time allows the control unit to perform a check for all installed sensors, for the set time,
before confirming the possible alarm.
Detectors Verification Time is programmable in seconds ( Max. 50 sec )
N.B. This function will be effective only on the enabled sensors (refer to the Point Programming menu)
Timing of "Sounder delay" is expressed
in seconds, with values from 0 to 600 sec
max.
Press the ENTER key to activate the
editing function.
Use the arrow keys to enter the data;
press enter to confirm the entered data.

PAGE - 16 Programming Manual AM_8200
NOTIFIER ITALIA Doc. M-162.1-AM8200-ENG Rev A2 AM8200_manu-prog-ENG
Through the arrow keys select the item which is required to be changed (“Check “ or “Check Enabl.”)
through pressure of the enter key the editing function is activated.
Through the arrow keys  data are entered and through the enter key entered data are confirmed.
VERIFY ENABLE: selecting “YES” the verification Function is ACTIVE with the programmed verification Time (
in seconds)
SILENCE TAB
SELF-SILENCING TIME is the time after which the output modules are reset, after being activated.
Press the right Arrow key  to change the parameters to manage the Silencing:
NOTE: the self-silencing function of each output module must be enabled in the Point Programming .
Silence Inhibit time is the time that output modules will remain active without the ability to be Silenced by an
operator.
By pressing the enter key the editing function is activated.
Through the arrows keys  data are entered and through the enter key entered data are confirmed.
FAULTS signalings timings TAB
Press the right Arrow key to change the parameters to manage the Fault signallings: :
 MAINS FAULT DETECTION TIME is the minimum time during which Mains Fault is signalled if there is
no mains
Through the arrow keys select the item which is required to be changed (“Mains”, “Tx Faults” ) by
pressing the enter key the editing function is activated
Through the arrow keys  data are entered and through the enter key entered data are confirmed.
Mains Loss
Timings are expressed in
seconds, from a minimum of
0 sec. to a max. of 300 sec.
Siren / HORN Type-ID outputs
Silence Inhibition:
Time after activation when is not possible
to Silence
Silence Autom:
Minimum activation time
Silence Autom.Enabl:
Enabling of use the Activation time
( otherways outputs are active until
Reset)
All timings are expressed in seconds,
from a minimum of 0 sec. to a max. of
255 sec.
