MAXPRO®NVR HYBRID SE Quick Install Guide
Document 800-15885V1 – Rev A –02/2014
Document 800-15885V1 – Rev A – 02/2014
Introduction
Welcome to your new Honeywell MAXPRO®NVR HYBRID SE. This guide helps you set up the NVR right out of the
box. Before installing your NVR, please read this guide carefully.
Unpack
Check that the items received match those listed on the order form and packing slip. The packing box should include, in
addition to your NVR unit and this guide:
Install the Hardware
Mount the MAXPRO NVR Hybrid SE Unit Mount the NVR either on a flat surface or in a rack using the rack mount ears
supplied.
Connect the Hardware
Rear Panel
Keyboard Controller (Optional) Follow the documentation included with
your IP keyboard controller to connect it to the NVR.
Not shown:
Rack mount ears
DVI-I to VGA adapter
RS485 adapter
I/O connectors
Note Other peripheral hardware (owner supplied) will also be needed for your installation (such as cameras,
network PoE switch for the camera network, network switch for a client workstation network, a monitor, and an
optional keyboard controller).
Recovery DVD
MAXPRO NVR Client Software (Single
Site) and Server Software DVD (includes
manuals)
MAXPRO Viewer Multi-Site Viewing
SoftwareKit (includes DVD and Getting
Started Guide). Not shown.
To access the front LEDs and HDDs (hard
drives), use the security key to unlock, then pull
the front panel toward you.
# Connector Connects to...
1Power switch
2AC Power Electrical outlet
3Video Inputs, Outputs (BNC) Analog cameras
4Control Outputs
5Alarm Inputs
6USB Ports (x4) Various devices
7eSATA
8LAN1 - Camera Network Port Network
9USB Ports (x2) Various devices
10 DVI Monitor (with VGA adapter)
2
# Connector Connects to...
11 HDMI Monitor
12 USB Ports (x2) Various devices
13 Optical output Not supported
14-18 Audio inputs and outputs Line in - line level
Speaker out
Microphone in - not used
19 Optical output Not used
20 RCA connector Spot Monitor (RCA)
21 LAN2 - Client Network Port Network
22 RS485 PTZ device
3
5
1
4
9
7
6
14–18
19
10
20
21
11
12
13
822
Connect up to 16 analog
cameras to the Video Input
connectors.
Connect supplied keyboard
and mouse before powering
up the NVR.
Connect a local monitor to
one of the monitor outputs.
Network Connections Connect a network PoE switch to the camera network port at the rear of the MAXPRO NVR unit.
Connect your cameras to the network PoE switch with CAT5 Ethernet cables. Optionally, connect the client workstation
network port to your client workstation network via a network switch. This allows remote access to your NVR. The default
client workstation network IP address must be changed to an available static IP address on your client workstation network.
Monitor(s) The MAXPRO NVR HYBRID SE comes with built-in graphics and two types of monitor outputs. The unit
supports connection of a single monitor using either of the outputs.
The recommended resolution for your monitor is 1280 x 1024 pixels (minimum 1024 x 768) and display colors of at least 32
bit.
Dual Network Configuration
Power Up the Unit
Note Honeywell recommends using an uninterruptible power supply (UPS) for the NVR unit, the camera network switch,
and the cameras to ensure that the NVR can continue to record video during a power outage. If you need to monitor
video during a power outage, consider a UPS for the monitor as well.
1. Before powering up the NVR, turn on camera(s) and other devices — such as a network switch or router — connected
to the NVR. It can take up to two minutes for IP cameras to boot up. Online cameras can be easily discovered by the
unit after starting up.
2. Press the power button on the front of the NVR.
Front Panel
3. After powering up, you are prompted to log on. The Default user is user name: Administrator, password: Password1.
The user name and password are case sensitive.
The setup wizard starts automatically but may take two minutes. Proceed to Honeywell IP Camera Configuration.
HDMI Output to TV/Digital monitor
DVI-I Output to TV/Digital monitor
DVI to SVGA Adapter Connect adapter to DVI output, then connect an
analog VGA monitor.
Network
MAXPRO®NVR HYBRID SE
USB
Camera Network PoE Switch
H4D2F1
HD4HDIH H3D2F1
HD3HDIH
HCD2F
HCD5HIH
Analog Cameras
Local Monitor (not supplied)
Contact your dealer to purchase Honeywell IP and analog cameras and encoder.
See More Information for details on supported Honeywell and third-party devices.
Client Workstation Network Switch
Honeywell and Third-Party
IP Cameras
Client Workstation
Router/
Firewall
Wireless
Router
Mobile Devices
CAT5e
CAT5e
CAT5e
CAT5e CAT5e CAT5e
CAT5e
DVI-I /VGA Adapter or HDMI
USB
Client Workstation
Network Port
(default 172.25.254.101)
Camera Network
Port (default
192.168.1.101)
HD1
HD2
HD3
HD4
RESET
OPEN
OPEN
Open CD-ROM
drive tray HDD activity
Power LED (green).
On = system powered up.
Power button
HDD drive button
unlocks HDD lever.
HDD lever opens the HDD
drive tray. Push in to lock.
Reset unit
HDD status
LEDs
Green =
HDD is
operating.
Red = fan
is off.
Fan status LED
Green = fan is operating.
Red = Fan is not operating.

www.honeywell.com/security
[phone] (North America only)
https://honeywellsystems.com/ss/techsupp/index.html
Document 800-15885V1 – Rev A – 02/2014
© 2014 Honeywell International Inc. All rights reserved. No part of this publication may be reproduced by any means without written
permission from Honeywell. The information in this publication is believed to be accurate in all respects. However, Honeywell cannot
assume responsibility for any consequences resulting from the use thereof. The information contained herein is subject to change
without notice. Revisions or new editions to this publication may be issued to incorporate such changes.
2 | MAXPRO®NVR HYBRID SE Quick Install Guide
www.honeywell.com/security/uk
[phone] (UK only)
https://honeywellsystems.com/ss/techsupp/index.html

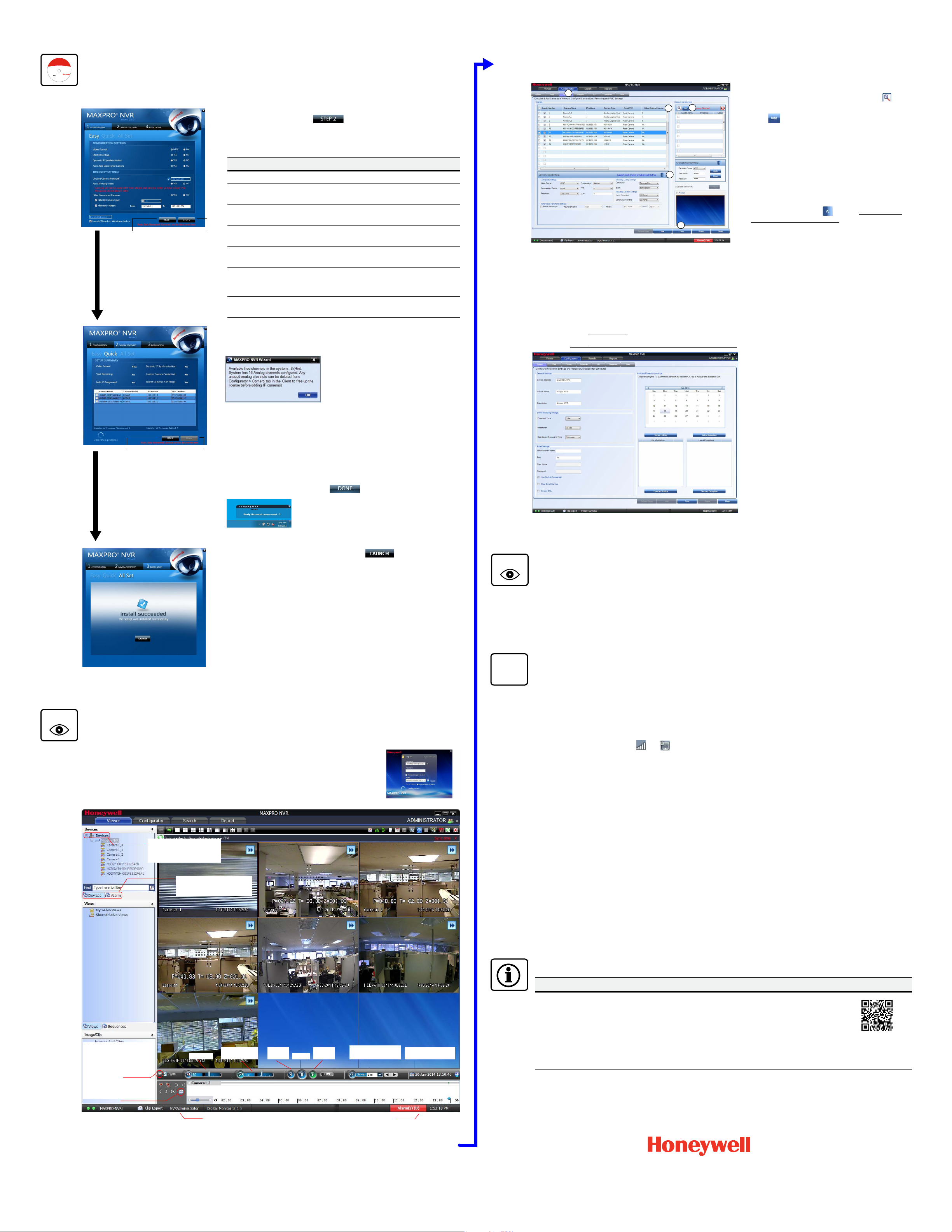

Honeywell IP Camera Configuration
Using the MAXPRO NVR Wizard (3 Clicks to Live Video)
Live View
1. Please wait while the system logs you on automatically as a Windows Logged-In User.
2. MAXPRO NVR launches and the Viewer tab displays (see below).
3. To view video from cameras, double-click MAXPRO NVR in the Devices list to display video
from all discovered cameras in the Viewer. You can also highlight and drag each camera
into a pane.
MAXPRO
®
VIEWER
Multi- sit e Viewin g Softwar e
Honeywell C onfidential
&Proprieta ry
HNMVIEWER
Software
Copyrig ht 2013
Honeywell I nte rnat ion al I nc.
Allr i gh t s reserved .
1. The CONFIGURATION dialog appears. When the network is ready (network
icon in Windows tray), click to accept the default settings and
proceed to CAMERA DISCOVERY.
To modify the settings for your unique system requirements, follow the
table below. After initial setup, you can do this in the MAXPRO NVR client.
2. The CAMERA DISCOVERY window appears.
A pop-up message explains the available free channels in the system and
how to delete unused analog channels to add IP cameras. Click OK.
Note 16 analog channels are pre-configured in the unit utilizing the 16 channel
license. To add an IP camera, unused pre-configured analog channels
can be deleted. See Third Party IP Device and Analog Camera
Configuration.
Each newly connected camera is identified and an IP address is assigned
to the camera by the Wizard, after which the camera reboots. It may take a
few minutes before cameras are discovered and added. You will see a
Discovery in progress… indicator as well as a pop-up message on the
lower right of your monitor. Click .
3. The INSTALLATION window appears. Click to start the MAXPRO
NVR application. Proceed to Live View.
Only Honeywell IP cameras (except equIP®Series S and HDZ Series - SD
and HD IP PTZ Domes) are discovered and added in the MAXPRO NVR
Wizard.
Field Description
Video Format NTSC, PAL
Start Recording Start recording as soon as the camera is added in
MAXPRO NVR.
Dynamic IP
Synchronization
NVR synchronizes any change in a device’s IP address.
Auto Add Discovered
Camera
Any newly connected device is automatically added to
the Devices list.
Choose Camera
Network
Choose your camera network.
Auto IP Assignment Assigns a valid static IP address to the camera. Use only
if you do not have a DHCP server and you want to assign
an IP address in your computer network range.
Filter Discovered
Cameras
Filter the discovered cameras based on the camera
model and/or IP range.
Return to
CONFIGURATION
page.
Click only after all
connected
cameras are
discovered and
added.
Reset values
without saving
changes.
Proceed to
CAMERA
DISCOVERY.
WATCH
List of Honeywell IP devices
and analog cameras
connected to and discovered
by MAXPRO NVR.
Devices tab: currently active.
Alarms tab: acknowledge and
clear alarms.
Number of alarms detected
Timeline
User currently logged on
Change
playing speed
Play in
reverse Pause
Play
forward
Select date and time
to start recording
Time jump control to
quickly locate video
Images/Clips: select images
and clips to view.
Double-click or drag the clip
to a Viewer panel to view.
To export a clip for forensics,
click the arrow
to switch to Full Timeline
mode, then click the Clip
Export icon.
Third Party IP Device and Analog Camera Configuration
Advanced Features
MAXPRO NVR Web Client
To access the Web Client, click on the MAXPRO NVR Web Client shortcut on the NVR desktop. Login to the Web Client with
default Username: admin and Password: trinity.
MAXPRO NVR HYBRID SE Default IP Addresses
If more than one MAXPRO NVR HYBRID SE unit is on the same network, it is recommended that you assign a unique IP
address and computer name to each unit (the default name is MAXPRO-NVR).
1. To change the IP address using Windows:
a. Click the network icon ( ) or ( )located next to the clock (lower right of screen), click Open Network and
Sharing Center, then click Change adapter settings.
b. Right click Camera Network or Client Workstation Network, and then select Properties.
c. Click Internet Protocol Version 4 (TCP/IPv4), then click Properties.
d. Click Use the following IP address, then in the IP address, Subnet mask, and Default gateway boxes, type the
IP address settings.
e. Click Use the following DNS server addresses, and then, in the Preferred DNS server and Alternate DNS
server boxes, type of the addresses of the primary and secondary DNS servers. This step is required when clients
connect through the Internet.
2. To change the computer name using Windows:
a. Click Start, right-click Computer, click Properties, click Advanced system settings, click the Computer Name
tab, and then click Change.
b. Under Computer name, delete the old computer name, type a new computer name, and then click OK. The
name cannot contain spaces or all numbers or any of the following characters: < > ; : " * + = \ | ?.
c. After changing the computer name, restart the computer.
d. Navigate to the C:\Program Files\Honeywell\MaxproNVR\TrinityFramework\bin folder, and then double-click
MaxproNVRMachineNameUtility.exe to open the MAXPRO NVR Utility.
e. The new computer name should automatically appear in the Machine Name field. If it does not, enter the name
manually. Click Update. The message Machine Name Updated successfully appears when the update is
complete.
More Information
3.
2.
1.
4.
5.
1. On the Configurator tab, click the Camera tab.
2. In the Discover cameras here area, click to
discover the connected IP cameras in the subnet.
3. Click to add the IP device to the Camera list
and ensure that the user name and password in the
Advanced Discovery Settings match the user name
and password of the camera.
To delete a pre-configured analog channel, select
the check box corresponding to the camera you
want to delete, then click Delete. A confirmation
message appears at the bottom of the display area.
Click Yes. The selected camera is deleted.
4. To change the default parameters of a camera,
select it and then click next to Launch Web
View For Advanced Set Up to open the camera
advanced settings pane where you can modify the
settings as required.
5. Click Save for your new settings to take effect.
Use the Search tab to search for recorded video (clips) or events.
Use the Configurator tab to configure video devices
and set up your MAXPRO NVR system.
Configurator tab sub-tabs:
System: Recording, email, holiday/exceptions for schedules.
Disk: Configure and monitor video storage hard drives.
Camera: Discover and add network cameras, live camera
configuration, recording, video motion detection
Schedule: Set recording schedules for live video.
I/O: Configure input and output for each camera.
Sequence: Select a sequence of cameras for live video.
User: Set user access and permission levels.
WATCH
Your MAXPRO NVR HYBRID SE unit has two configured network ports with the following default static IP addresses:
•192.168.1.101 for LAN1 (Camera Network)
•172.25.254.101 for LAN2 (Client Workstation Network)
IP
MAXPRO NVR HYBRID SE Third Party Devices
Please refer to the appropriate user guide
located on the software/documentation DVD or
on the Honeywell product web site at
www.honeywell.com/security.
The MAXPRO NVR Operator’s Guide provides
detailed information on adding and configuring
third party cameras, the multi-function Web
Client, as well as other advanced features.
A comprehensive list of all the third party devices
supported by MAXPRO NVR is available at
Honeywell Open Technology Alliance (HOTA)
www.security.honeywell.com/hota/.
