Honeywell BELMAR User manual

BELMAR 52” CEILING FAN
MODELS #50193, 50194
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-877-361-3883, Monday - Thursday, 8 am - 6 pm, EST and Friday,
8 am - 5 pm, EST.
Español p. 21

2
WELCOME
PREPARATION
Before beginning the assembly of this product, ensure
that all parts are present. Compare all parts with the
package contents list and hardware contents list. If
any part is missing or damaged, do not attempt to
assemble the product.
After opening the top of the carton, remove the
mounting hardware package from the foam inserts,
then remove the motor from the packaging and
place it on a soft surface, such as a carpet, to avoid
damage to the nish.
Estimated Assembly Time: Under 60 minutes
Tools Required for Assembly (not included): Electrical
Tape, Phillips Screwdriver, Pliers, Safety Glasses,
Step Ladder, and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape
Measure, Wiring Handbook, and Wire Cutters
CARE AND MAINTENANCE
At least twice each year, lower the canopy to check
the downrod assembly, and then tighten all screws
on the fan. Clean the motor housing with only a soft
brush or lint-free cloth to avoid scratching the nish.
Clean the blades with a lint-free cloth. You may
occasionally apply a light coat of furniture polish to
wood blades for added protection.
Important: Shut off the main power supply before you
begin any maintenance tasks. Do not use water or a
damp cloth to clean the ceiling fan.
FAN WEIGHT
The net weight of this fan is: 17.6 lbs. (7,98 kg).
TABLE OF CONTENTS
ATTACH YOUR RECEIPT HERE
Serial Number
Purchase Date
Care and Maintenance ........................2
Package Contents ...........................3
Safety Information ...........................4
Mounting Options ............................5
Mounting Bracket Installation ...................6
Standard or Angle Mounting Instructions . . . . . . . . . .7
Closemount Instructions......................10
Wiring ....................................11
Canopy Installation..........................12
Blade Installation ...........................13
Light Kit Installation .........................14
Operating Instructions .......................17
Replacement Parts List ......................18
Troubleshooting ............................19
Limited Lifetime Warranty.....................20

1
2
6
3
7
4
9
8
5
10
11
12
13
3
PACKAGE CONTENTS
Unpack your fan and check the contents. You
should have the following items:
1. Blade (5)
2. Canopy
3. Hanger Bracket
4. Canopy Cover
5. Yoke Cover
6. Downrod
7. Blade Arm (5)
8. Motor Housing
9. Light Kit
10. Finial Cap
11. Finial
12. Bulb (3)
13. Glass Shade
14. Loose parts bags containing (not shown):
Mounting hardware, blade attachment
hardware, electrical hardware, pull chains, wire
connectors, etc.

4
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate, or install the product.
• Before you begin installing the fan, disconnect the power by removing fuses or turning off the
circuit breakers.
• Make sure that all electrical connections comply with local codes, ordinances, the National Electrical
Code, and ANSI/NFPA 70-199. Hire a qualied electrician or consult a do-it-yourself wiring handbook if
you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. (2,14 m) from the blades
to the oor and at least 30 in. (76 cm) from the end of the blades to any obstruction.
DANGER
WARNING
WARNING
When using an existing outlet box, make sure
the outlet box is securely attached to the building
structure and can support the full weight of
the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is
essential in minimizing wobble and noise in the
fan after installation is complete.
To reduce the risk of re or electric shock, do not
use the fan with any solid-state speed-control
device or control the fan speed with a full-range
dimmer switch.
To reduce the risk of re, electric shock, or personal
injury, mount the fan to an outlet box marked
“ACCEPTABLE FOR FAN SUPPORT” and use the
mounting screws provided with the outlet box. Most
outlet boxes commonly used for the support of
lighting xtures are not acceptable for fan support
and may need to be replaced. Consult a qualied
electrician if in doubt. Secure the outlet box directly
to the building structure. The outlet box and its
support must be able to support the moving weight
of the fan, at least 35 lbs. (15,88 kg).
WARNING
CAUTION
CAUTION
To reduce the risk of re, electric shock, or
personal injury, do not bend the blade arms
when installing them, balancing the blades, or
cleaning the fan. Do not insert objects between
the rotating fan blades.
Read all instructions and safety information
before installing your new fan. Review the
accompanying assembly diagrams.
Be sure the outlet box is properly grounded or
that a ground (green or bare) wire is present.
!
!
!
!
!
!
!
!
!
!
!
!

5
MOUNTING OPTIONS
DANGER
Turn off the circuit breakers and the wall switch to
the fan supply line leads. Failure to disconnect
the power supply prior to installation may result in
serious injury or death.
Fig. 1
Fig. 2
Fig. 3

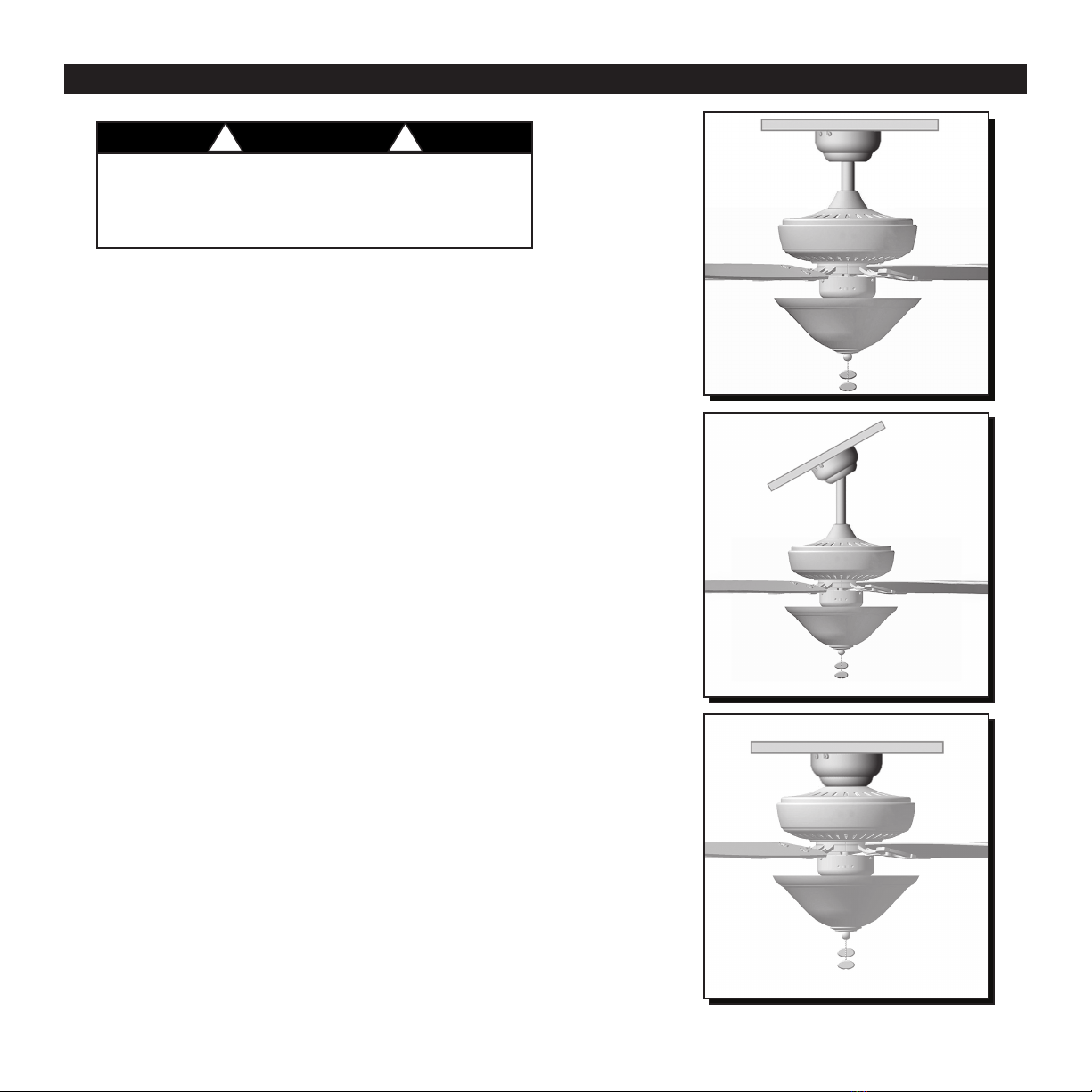

1. Your fan has 3 mounting options:
• Standard (Fig. 1)
• Angled (Fig. 2)
• Closemount (Fig. 3)
Note: The fans in gures 1 through 3 are not the actual
fan in your package, they are representation of the
3 different mounting options.
Important: If using the angle mount, check to ensure
the ceiling angle is not steeper than 16°.
Helpful Hint: Standard mounting is best suited for
ceilings 8 ft. or higher. For taller ceilings you may
want to use a longer downrod (sold separately).
Angled mounting is best suited for angled or
vaulted ceilings. A longer downrod is sometimes
necessary to ensure proper blade clearance.
Closemount-style mounting is more suitable for
ceilings lower than 8 ft. (2,44 m) high.
2. Ensure that the blades of the fan are 30 in. (76 cm)
from any obstruction.
3. Check the downrod length to ensure the blades will
be at least 7 ft. (2,14 m) above your oor.
! !

5. Secure the mounting bracket to the outlet box using
screws, spring washers, and at washers provided
with the outlet box (not included) (Fig. 5).
Note: It is very important that you use proper hardware
when installing the mounting bracket as it supports
the fan.
Important: If using the angle mount, ensure that the
open end of the mounting bracket is installed facing
the peak of the ceiling.
Fig. 4
Fig. 5
Mounting
Bracket
Screws
Mounting
Bracket
Canopy
Washer
Mounting Bracket
Screw
Washer
4. Loosen all mounting bracket screws. Remove the
two mounting bracket screws and washers from
the round holes of canopy. Set aside for later use.
Detach mounting bracket from canopy (Fig. 4).
6
MOUNTING BRACKET INSTALLATION

Set Screw
7
STANDARD OR ANGLE MOUNTING INSTRUCTIONS
7. Remove the downrod pin and downrod clip from
the downrod (Fig. 7). Downrod
Clip
Downrod
Pin
Fig. 7
Fig. 6
Fig. 8
Downrod
Canopy
Yoke
Cover
Motor
Assembly
Downrod Pin
Downrod Clip
8. Thread the wires from the motor assembly through
the yoke cover, canopy, and out the top of the
downrod (Fig. 8).
6. Partially loosen the motor housing set screws in the
yoke at the top of the motor housing (Fig. 6).

Fig. 10
Cut Wires
8
STANDARD OR ANGLE MOUNTING INSTRUCTIONS
9. Slide the downrod into the yoke of the motor
housing, align the holes, and reinstall the downrod
pin and downrod clip. Then retighten the set
screws (Fig. 9).
10. Depending on the length of downrod you use, you
may need to cut the lead wires back to simplify the
wiring. If you decide to cut back the lead wires,
it is suggested that you do so in the following
manner: Take the lead wires and make sure that
you have pulled them all the way through the top
of the downrod and measure 8 in. of lead wire, and
then cut the excess wire off with wire cutters (not
included) (Fig. 10).
11. If you cut back the lead wire in Step 10, strip 1/2
in. of insulation from the end of each wire. Twist
the stripped ends of each strand of wire within the
insulation with pliers (not included) (Fig. 11).
Note: If you did not cut back the lead wires in Step 10,
Step 11 is not necessary and you may proceed to
Step 12 instead.
Downrod
Downrod
Pin
Set Screw
Downrod
Clip
Fig. 9
Fig. 11
Stripped
Wires

Slot
Tab
9
STANDARD OR ANGLE MOUNTING INSTRUCTIONS
12. Install the ball end of the downrod into the
mounting bracket opening. Align the slot in the
ball with the tab in the mounting bracket. The rod
should not rotate if installed correctly (Fig. 12).
Mounting
Bracket
Downrod
Ball
Fig. 12

Closemount
Screws
Spring
Washer
Fig. 14
10
CLOSEMOUNT INSTRUCTIONS
15. Raise the fan and place the canopy on the
mounting bracket hook for wiring (Fig. 15).
Canopy
Canopy
Hook
Canopy
Cover
Fig. 13
Fig. 15
13. Remove the canopy cover from the bottom of the
canopy (Fig. 13).
Helpful Hint: The downrod, hanging ball, and canopy
cover are not used in this type of installation.
Closemount Screw Spring Washer
14. Align the canopy with the closemount screw holes
in the top of the motor assembly. Secure the
canopy to the top of the motor housing by installing
three closemount screws and spring washers into
the top of the motor housing (Fig. 14).

Black (live)
White (neutral)
Bare/Green (ground)
Black Blue White Green
OFF
Black (live)
Second Wire (live)
White (neutral)
Bare/Green (ground)
Black Blue White Green
OFF OFF
Wire Connector
16. Connect supply and fan wires according to the
diagram (Fig. 16) and these steps:
• Connect the Green wires from the fan and
mounting bracket to the Bare/Green (ground)
supply wire.
• Connect the Black and Blue wire from the fan to
the Black (live) supply wire.
• Connect the White wire from the fan to the White
(neutral) supply wire.
Secure all wiring connections together with wire
connectors and push all connected wires back into
the outlet box.
17. (Optional) If a second hot power wire is available
from outlet box, connect it to the blue (light power)
wire from the fan for separate light and fan control
(Fig. 17).
Important: The black fan wire is power for fan. The blue
fan wire is power for the light. The white wire from
the fan is common/neutral. The green wires from the
fan and mounting bracket are ground wires.
a
CAUTION
WARNING
If house wires are different colors than referred to in
the following step, stop immediately. A professional
electrician is recommended to determine wiring.
Incorrect wire connection can damage the receiver
and could cause re or injury.
Be sure outlet box is properly grounded or that a
ground (green or bare) wire is present.
! !
!
!
Fig. 16
Fig. 17
11
WIRING

12
CANOPY INSTALLATION

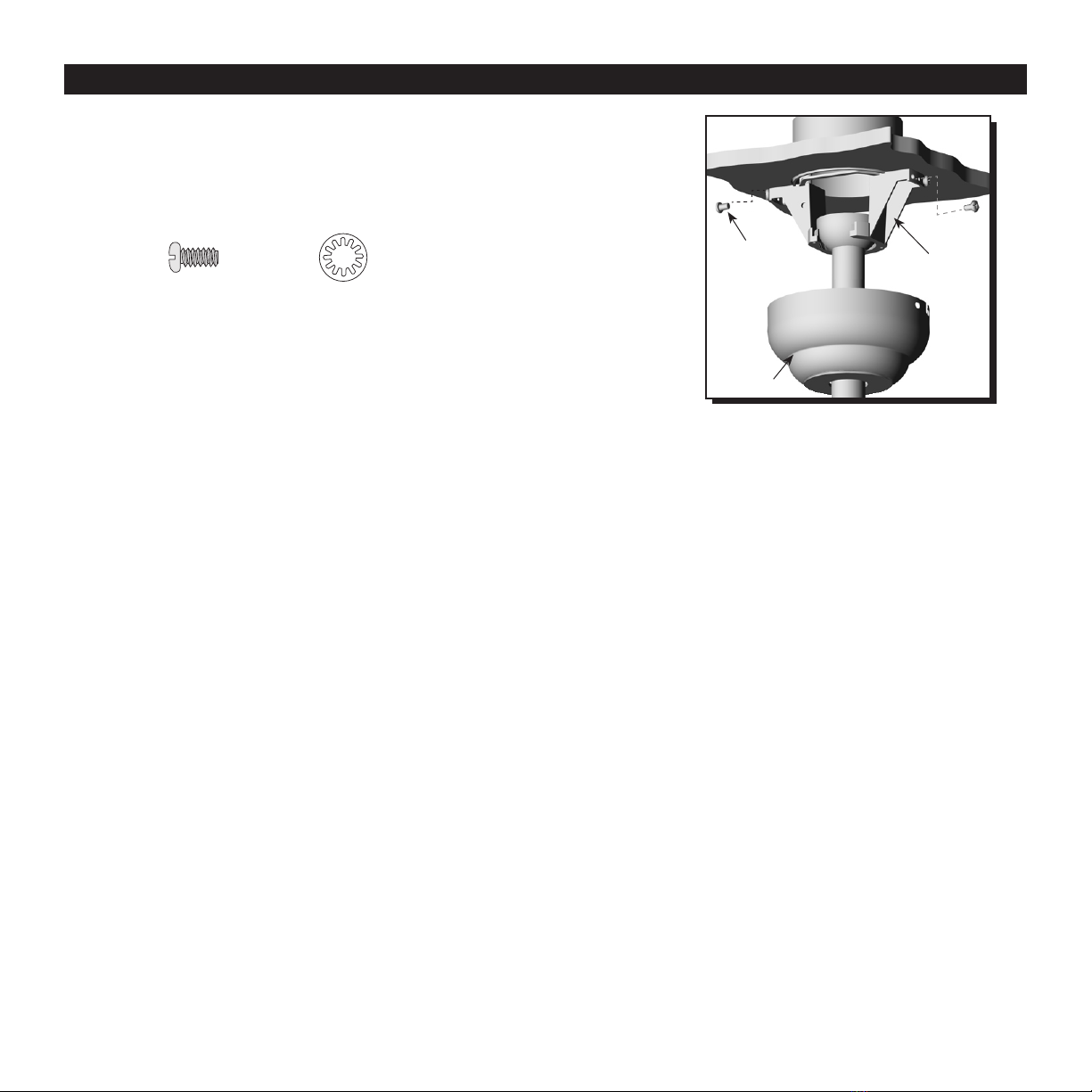

18. Lift the canopy up so the partially installed mounting
bracket screws are situated in the L-slots on each
side of the canopy. Rotate the canopy clockwise
and install the remaining mounting bracket screws
and washers from Step 4 (Fig. 18).
Mounting
Bracket
Canopy
Fig. 18
Mounting Bracket
Screw
Washer
Mounting
Bracket Screw
and Washer

13
BLADE INSTALLATION
Fig. 21
Twist Lock
Connector
Blade Arm
Blade
Blade Arm
Motor Screw
Blade Isolator
Cutout
Fig. 19
Fig. 20

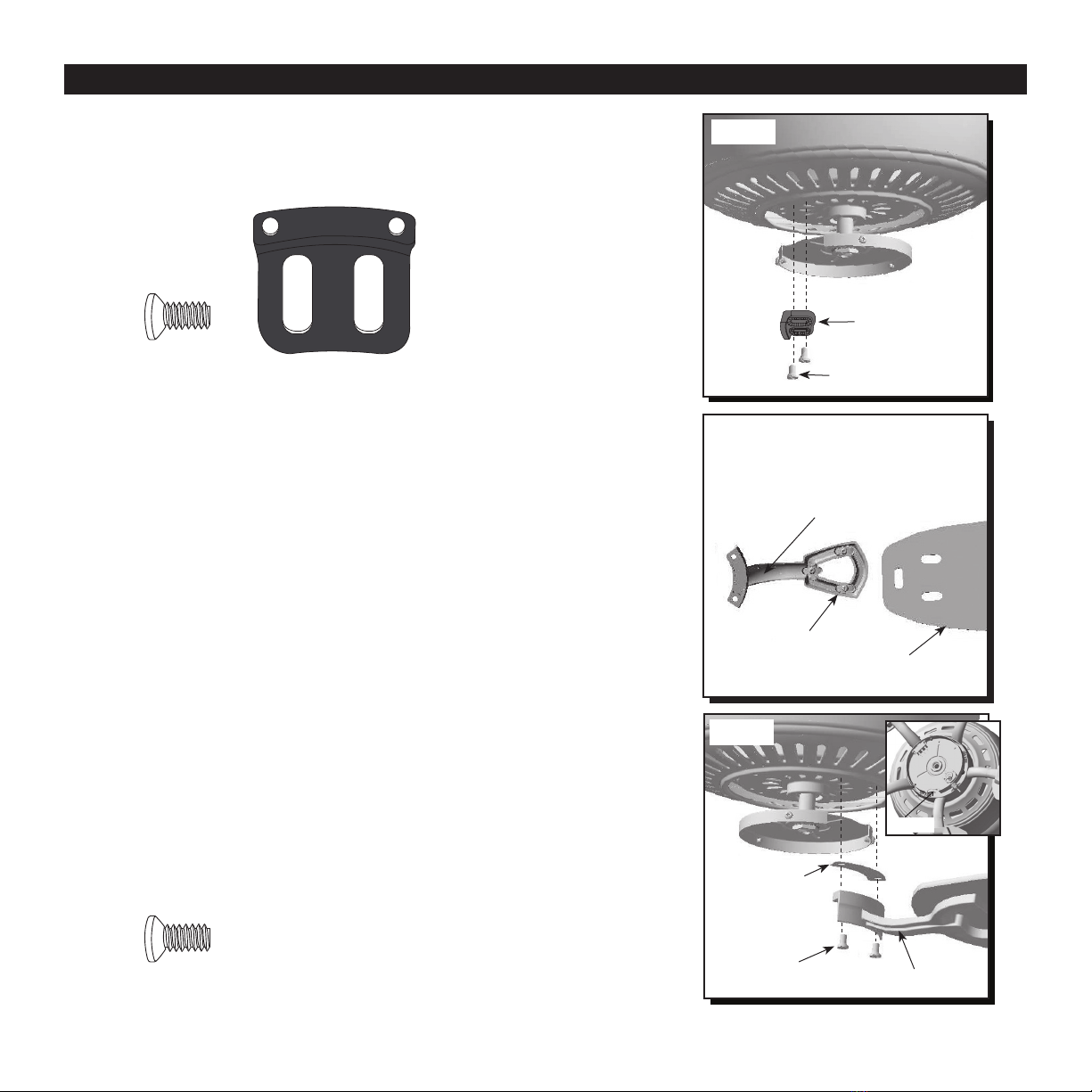

19. Remove motor screws from underside of the motor
and save for blade arm attachment. Discard the
plastic motor blocks but keep the motor screws
(Fig. 19).
Motor Screw
Motor Screw
Motor Block
20. The blades attach to blade arms using the Fast
AttachTM system. Align each twist lock connector in
the direction of its corresponding hole in the blade.
Place the blade over the twist lock connectors.
Rotate each twist lock connector so that it is
perpendicular to the hole in the blade. Repeat for
the remaining blades (Fig. 20).
Note: A cutout in the upper switch housing allows easy
access to the motor screw holes.
21. Insert two previously removed motor screws
through one blade arm and blade isolator and
into the motor. Tighten motor screws securely.
Repeat with remaining blade arms, making sure
to completely secure each blade arm before
proceeding with to the next (Fig. 21).w
Fig. 19
Motor Screw
Motor Block

14
LIGHT KIT INSTALLATION
Screw Washer
24. To install the fan with a light kit:
Remove screws and washers from upper switch
housing. Then connect the plug from the motor
assembly to the plug from the light kit, matching
the colors on each plug. Ensure that the plugs
connect tightly (Fig. 24).

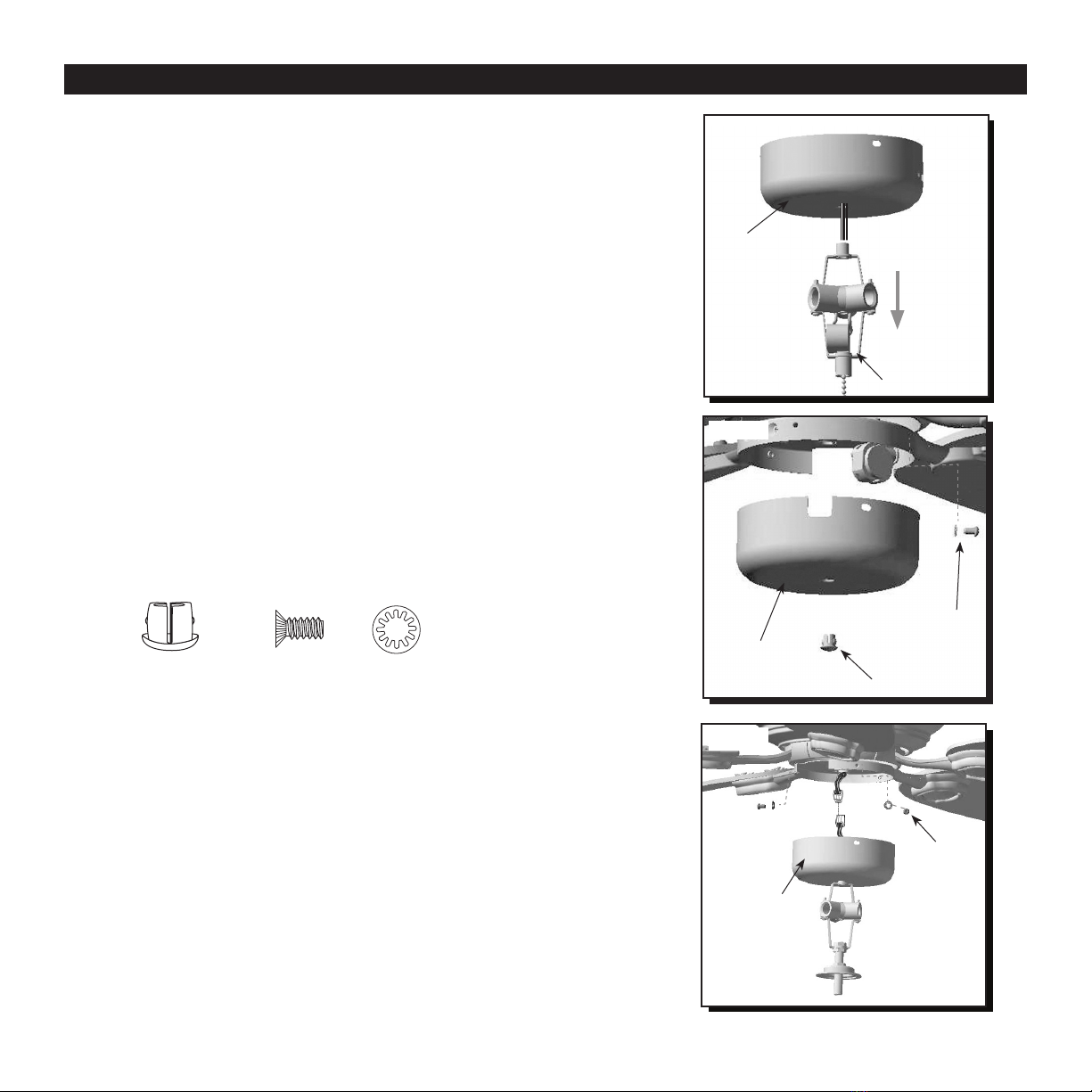

23. Remove the screws and washers from the upper
switch housing. Align holes in switch housing
cap with holes in upper switch housing. Re-insert
screws and washers that were previously removed.
Use a Phillips screwdriver (not included) to secure
all screws. Plug the hole in the switch housing cap
with the plastic cap (Fig. 23).
Proceed to step 29.
Plastic Cap
22. (Optional) To install the fan without a light kit:
Unscrew the hex nut located inside the switch
housing cap from the threaded rod in the center of
the cap to remove the light kit and wiring (Fig. 22).
Fig. 23
Fig. 24
Switch
Housing
Cap
Switch
Housing
Cap
Plastic Cap
Screw
and
Washer
Screw
and
Washer
Fig. 22
Switch
Housing
Cap
Light Kit

Nut
Rubber
Washer
Finial Cap
Finial
15
LIGHT KIT INSTALLATION
Fig. 27
Fig. 25
Fig. 26
Screw
and
Washer

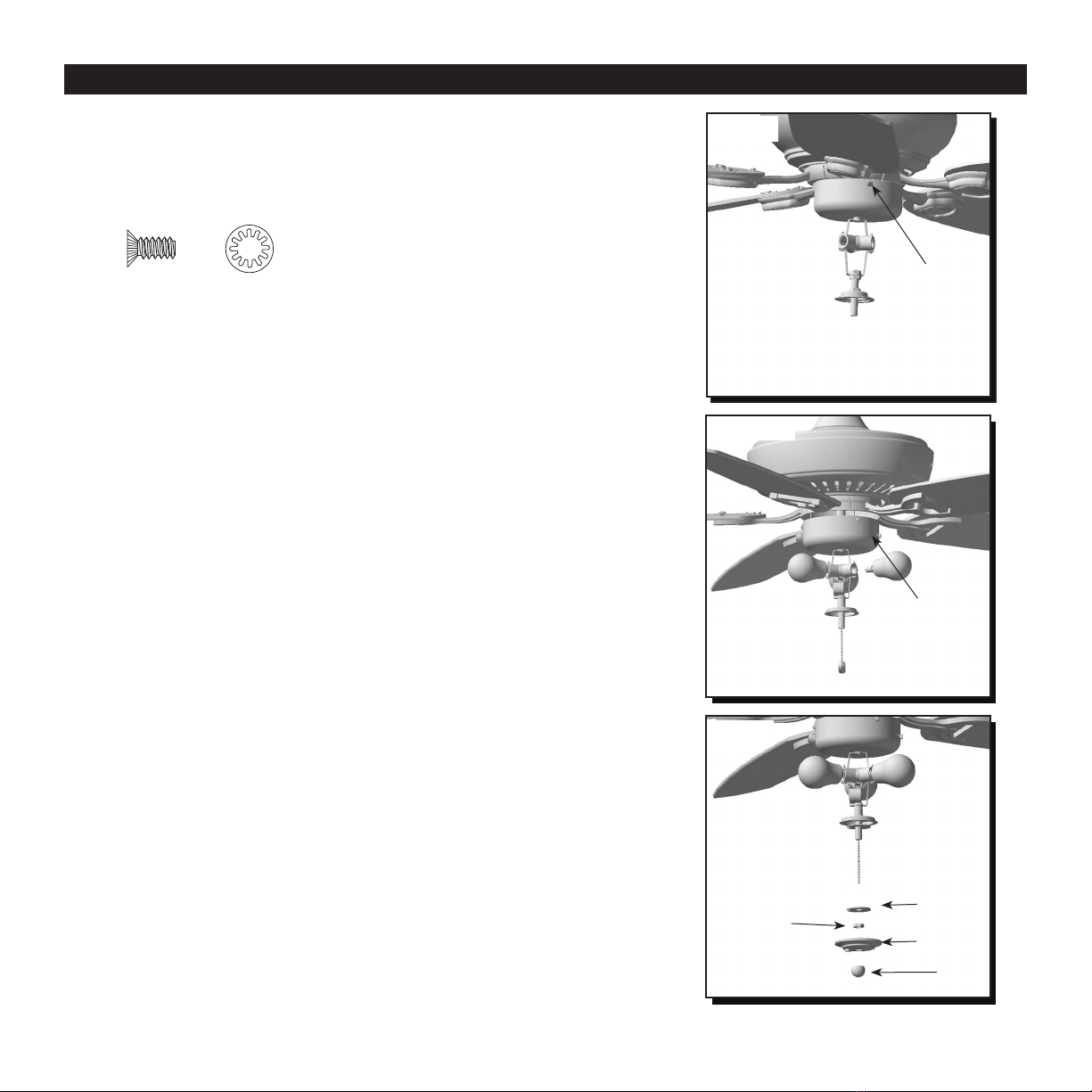

27. Remove the preinstalled rubber washer, nut, nial
cap, and nial from the light kit (Fig. 27).
26. Install each bulb (Fig. 26).
Important: When replacing the bulb, allow bulb and
light kit to cool before touching.
25. Align holes in the switch housing cap with holes
in upper switch housing. Re-insert screws and
washers that were previously removed. Use a
Phillips screwdriver (not included) to secure all
screws (Fig. 25).
Socket
Screw Washer

Finial
Finial Cap
Nut
Rubber
Washer
29. The pull chain extensions or custom pull chains
extensions (included) may be attached to fan and
light pull chains (Fig. 29).
Fig. 28
Fig. 29
Light
Pull Chain
Fan
Pull Chain
Light Pull Chain Fan Pull Chain
LIGHT KIT INSTALLATION
28. Feed pull chain through the center hole in the
glass globe, rubber washer and nut. Lift the glass
globe and rubber washer over the threaded rod.
Screw the nut onto the threaded rod to temporarily
hold the glass globe in place. Feed the pull chains
through both holes in the nial cap and the center
hole in the nial and lift the nial cap up until it is
ush with the glass globe. Screw the nial onto the
threaded rod to hole the light kit in place. (Fig. 28).
1616

17
OPERATING INSTRUCTIONS
Fig. 30
Fig. 31
Fig. 32
Reverse
Switch
30. Use the fan reverse switch, located on the side
of the light kit, to optimize your fan for seasonal
performance (Fig. 30).
Using a ceiling fan will allow you to raise your
thermostat in the summer and lower your
thermostat in the winter without sacricing comfort.
Important: Wait for the fan to stop before moving the
reverse switch. The reverse switch must be set
either completely left or right in order for the fan to
function correctly. If the reverse switch is set in the
middle position, the fan will not operate.
31. In warmer weather, push the reverse switch left,
which will result in downward airow creating a
wind chill effect (Fig. 31).
Note: Energy savings are possible by turning on the
ceiling fan and setting the thermostat a few degrees
warmer. To maximize savings, turn ceiling fan off
when no one is in the room.
32. In cooler weather, push the reverse switch right
and the fan to low, which will result in upward airow
that can help move stagnant, hot air off the ceiling
area. By mixing the air, the heat may not have to run
as often and may yield energy savings (Fig. 32).

REPLACEMENT PARTS LIST
18
For replacement parts, call the customer service department at 1-877-361-3883, 8 a.m. - 6 p.m., EST, Monday -
Thursday, 8 a.m. - 5 p.m., EST, Friday.
A C
B
18
PIECE DESCRIPTION MODEL 50193
PART #
MODEL 50194
PART #
ABlade Arm 50193-A 50194-A
B Blade 50193-B 50194-B
C Glass Globe 50193-C 50194-C
D
Loose parts bags containing
(not shown): Mounting
hardware, blade attachment
hardware, electrical
hardware, pull chains, wire
connectors, etc.
50193-D 50194-D

19
TROUBLESHOOTING
At least twice each year, lower the canopy to check the downrod assembly, and then tighten all screws
on the fan. Clean the motor housing with only a soft brush or lint-free cloth to avoid scratching the nish.
Clean the blades with a lint-free cloth. You may occasionally apply a light coat of furniture polish to wood
blades for added protection.
Important: Shut off the main power supply before you begin any maintenance tasks. Do not use water or
a damp cloth to clean the ceiling fan.
Problem: The fan does not move
1. Turn the power on or check the fuse.
2. Turn the power off. Loosen the canopy and check all connections.
3. Check that the connectors from the light kit tter and fan are connected properly.
4. Disable the power supply to the fan motor and re-start the motor.
5. The blade is overweight. Do not install the unapproved blades.
Problem: The fan is noisy.
1. Check and tighten all screws that hold the fan blades to the blade arms and the motor.
2. Replace the cracked blade.
Problem: There is excessive wobbling
1. Check and tighten all screws that hold the fan blades to the blade arms and the blade arms to the motor.
2. Switch one blade with a blade from the opposite side. Or balance the fan using a balancing kit.
3. Turn off the power. Loosen the canopy and verify that the mounting bracket is secure to the
electrical outlet box.
4. The bracket must be ush without movement against the outlet box.
Problem: The fan operates correctly, but the lights are not working (if applicable).
1. Re-install the bulb(s).
2. Ensure that the male and female plugs in the light kit tter are connected properly.
3. Turn the power off and check all connections at the ceiling outlet box.
4. Check to see if the light is over than 190W, since a limiter included.

20
LIMITED LIFETIME WARRANTY
Subject to the limitations set forth below, Hong Kong China Electric appliance Company (HKC) warrants the fan
motor for this ceiling fan to be free from defects in workmanship and material for the life of the product. Also,
subject to the limitations below, HKC warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts
made in whole or in part with glass) to be free from defects in workmanship and material for a period of one year
after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser, whether such purchaser purchased the product through a store
or contractor. Ceiling fan part defects must be reported within the rst year from the date of purchase. Parts made in
whole or in part with glass and the nishes of metal and other surfaces are not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any part caused
by ordinary wear and tear, accident, misuse, or improper installation, is not covered by this warranty. HKC
assumes no responsibility whatsoever for fan installation. Any service performed by a non-licensed electrician will
render the warranty invalid.
HKC’s sole responsibility shall be to repair or replace the motor, parts, or product within the terms stated above.
HKC SHALL NOT BE LIABLE FOR ANY LOSS OR DAMAGE OF ANY KIND, INCLUDING ANY INCIDENTAL
OR CONSEQUENTIAL DAMAGES RESULTING DIRECTLY OR INDIRECTLY, FROM ANY BREACH OF
WARRANTY, EXPRESS OR IMPLIED, OR ANY OTHER FAILURE OF THIS PRODUCT. SOME STATES DO
NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THIS
LIMITATION MAY NOT APPLY TO YOU.
IF THE ORIGINAL PURCHASER CEASES TO OWN THE FAN, THIS WARRANTY IS VOIDED.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials within the
warranty period associated with the defective part, HKC agrees to replace the defective part without charge, or at
its option, to replace the ceiling fan with a comparable or superior model.
HKC’S WARRANTIES ARE LIMITED TO THE WRITTEN WARRANTIES SET OUT IN THIS HKC CEILING
FAN LIMITED LIFETIME WARRANTY. ALL OTHER EXPRESS AND IMPLIED WARRANTIES, INCLUDING,
WITHOUT LIMITATION, THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE AND THE
IMPLIED WARRANTY OF MERCHANTABILITY ARE DISCLAIMED. SOME STATES DO NOT ALLOW THE
DISCLAIMER OF IMPLIED WARRANTIES, SO THIS DISCLAIMER MAY NOT APPLY TO YOU.
To obtain warranty service, please write down your model number and call Customer Service at
1-877-361-3883 Monday - Thursday, 8 am - 6 pm, EST and Friday, 8 am - 5 pm, EST. Please have a copy
of the receipt as proof of purchase.
The Honeywell Trademark is used under license from Honeywell International
Inc. Honeywell International Inc. makes no representations or warranties with
respect to this product. This product is manufactured for:
Hong Kong China Electric Appliance Manufacture Co., Ltd.
3059 Forest Hill Irene Rd, Suite 103
Germantown, TN 38138
1-877-361-3883
9074-EN r030414
