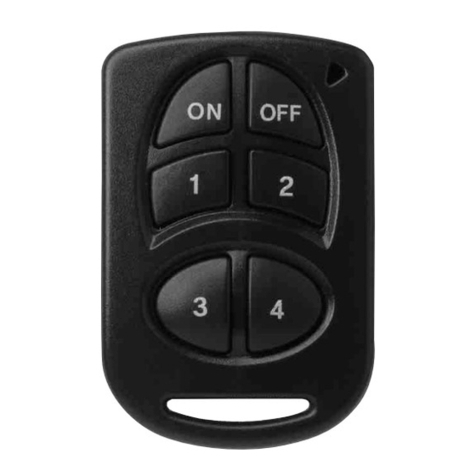

5805 6 Programming
Loops and Serial Numbers
The 5805-6 has 2 unique serial numbers. The First Serial number is on the Sticker on the unit. The Second serial
number is not located on the unit; it is merel 1 digit higher than the first. E.g. Serial number #1 is 000-8882, the
second would be 000-8883. Each serial number has 4 loops. This would be like having 2 ke fobs in one. Each
loop number will utilize its own zone, so 8 zones will be needed to program all button functions. The zone t pes of
the zones will determine what each button or button combination will do.
8 Loops, 2 Serial Numbers:
Button 1 = serial number 1, loop 3
Button 2 = serial number 1, loop 2
Button 3 = serial number 1, loop 4
Button 4 = serial number 1, loop 1
Button 5 = serial number 2, loop 3
Button 6 = serial number 2, loop 2
Button 7 (combo) = serial number 2, loop 1
Button 8 (combo) = serial number 2, loop 4
Below is a screen shot of what the programming would look like in the Compass software.
7 - Disarm
5 - Hold Up
3 - Side Light
1 - Arm Awa 2 - Arm Sta
4 - Front Light
6 - Medical
8 - Aux Lights
5. Serial # 2, L3
3. Serial # 1, L4
1. Serial # 1, L3
7. Serial # 2, L1
Disarm
2. Serial # 1, L2
4. Serial # 1, L1
6. Serial # 2, L2
8. Serial # 2, L4
