Honeywell Series 3000 MkII User manual

Technical Manual
Series 3000 MkII
Gas Detector

2
SERIES 3000 MKII TECHNICAL MANUAL S3KMKIIMAN_MAN0878_Issue 6_01/2014
1. Safety
Ensure that this Operating Manual is read and understood BEFORE installing / operating /
maintaining the equipment.
Pay particular attention to Warnings and Cautions.
All document Warnings are listed here and repeated where appropriate at the start of the relevant
chapter(s) of this Operating Manual.
Cautions appear in the sections / sub-sections of the document where they apply.
Warnings
Series 3000 MkII is designed for installation and use in Zone 1 or 2 or 21 or 22 hazardous
areas in Europe and Class I Division 1 or 2 and Class II Division 1 or 2 area applications
in North America.
Installation must be in accordance with the recognized standards of the appropriate
authority in the country concerned.
Access to the interior of the detector, when carrying out any work, must only be
conducted by trained personnel.
Before carrying out any work ensure local regulations and site procedures are followed.
Appropriate standards must be followed to maintain the overall certication of the detector.
To reduce risk of ignition of hazardous atmospheres, conduit runs must have a seal tting
connected within 18 inches of the enclosure.
To reduce the risk of ignition of hazardous atmosphere, de-classify the area or
disconnect the equipment from the supply circuit before opening the detector enclosure.
Keep assembly tightly closed during operation.
Never attempt to open a junction box / enclosure in potentially hazardous atmospheres.
The detector must be earthed / grounded for electrical safety and to limit the effects
of radio frequency interference. An earth / ground point is provided inside and outside the
unit. The internal grounding shall be used as the primary equipment ground. The external
terminal is only a supplemental bonding connection where local authorities permit or
require such a connection.
The enclosure of the remotely mounted sensor assembly contains Aluminium.
Care must be taken to avoid ignition hazards due to impact or friction when installed
in a Zone 1 location.
Take care when handling sensors as they may contain corrosive solutions.
Do not tamper or in any way disassemble the sensor.
Do not expose to temperatures outside the recommended range.
Do not expose sensor to organic solvents or ammable liquids.
At the end of their working life, sensors must be disposed of in an environmentally
safe manner. Disposal should be according to local waste management requirements
and environmental legislation.
Alternatively, sensors may be securely packaged and returned to
Honeywell Analytics clearly marked for environmental disposal.
Electrochemical cells should NOT be incinerated as they may emit toxic fumes.

3
SERIES 3000 MKII TECHNICAL MANUAL S3KMKIIMAN_MAN0878_Issue 6_01/2014
2. Information
Honeywell Analytics can take no responsibility for installation and / or use of its equipment if this is not
done in accordance with the appropriate issue and / or amendment of the Operating Manual.
The reader of this Operating Manual should ensure that it is appropriate in all details for the exact
equipment to be installed and / or operated. If in doubt, contact Honeywell Analytics for advice.
The following types of notices are used throughout this Operating Manual:
WARNING
Identies a hazardous or unsafe practice which could result in severe injury
or death to personnel.
Caution: Identies a hazardous or unsafe practice which could result in
minor injury to personnel, or product or property damage.
Note: Identies useful / additional information.
Every effort has been made to ensure the accuracy of our documents, however, Honeywell Analytics
can assume no responsibility for any errors or omissions in our documents or their consequences.
Honeywell Analytics greatly appreciates being informed of any errors or omissions that may be found
in the contents of any of our documents.
For information not covered in this document, or there is a requirement to send comments / corrections
about this document, please contact Honeywell Analytics using the contact details given on the back
page of this document.
Honeywell Analytics reserve the right to change or revise the information supplied in this
document without notice and without obligation to notify any person or organization of such
revision or change. If information is required that does not appear in this document, contact
the local distributor / agent or Honeywell Analytics.

4
SERIES 3000 MKII TECHNICAL MANUAL S3KMKIIMAN_MAN0878_Issue 6_01/2014
3. Table of contents
1 Safety
2
2 Information
3
3 Table of contents
4
4 Introduction
5
4.1 Product overview
5
4.2 Transmitter
5
4.3 Smart sensor
6
4.4 Accessories
6
4.4.1 Pipe mounting bracket
6
4.4.2 Sunshade / Deluge Protection
6
4.4.3 Remote sensor mounting kit
6
4.4.4 Duct mounting kit
6
4.4.5 Calibration gas ow housing
6
4.4.6 Collecting cone
7
5 Installation
8
5.1 Mounting and location of detectors
9
6 Electrical connections
11
6.1 Detector wiring schematic
12
6.2 Typical maximum installed cable lengths
12
6.3 Terminal connections
13
6.4 Cable and earth / ground connection
13
7 First time switch on
15
8 Magnetic switch activation
16
8.1 Default conguration
17
8.2 Calibration
18
8.2.1 Zeroing and span calibration
18
8.2.2 Zeroing and span calibration of Hydrogen Sulde sensors
21
9 Display and user interface
22
10 Monitoring mode
24
11 Review mode
24
12 Menu mode
24
12.1 Menu mode operation table
25
13 Detector fault / warning message display
26
13.1 Detector fault / warning operation
26
13.2 Reex™ cell fault diagnosis
26
14 General maintenance
27
14.1 Functional gas test
27
14.2 Detector operational life
28
15 Servicing
29
15.1 Sensor replacement
29
15.2 Serviceable sensor cell replacement
31
16 Remote sensor mounting kit installation details
32
17 General specications
34
18 Ordering information
35
19 Warranty / liability statement
36
20 CE certicates
37
21 Certication
39
21.1 UL/CSA control drawing
40
21.2 Sensor Cartridge and Remote Sensor Accessory control drawing
41
21.3 Main unit UL/CSA hazardous area nameplate
42
21.4 Main unit ATEX/IECEx hazardous area nameplate
42
21.5 Sensor label ATEX/UL/c-UL
43
21.6 Remote sensor ATEX/UL/c-UL hazardous area nameplate
43

5
SERIES 3000 MKII TECHNICAL MANUAL S3KMKIIMAN_MAN0878_Issue 6_01/2014
4. Introduction
The Series 3000 MkII gas detector is designed to detect toxic or oxygen gas hazards in Zone 1 or 2 or 21 or 22
hazardous areas in Europe and North American Class I Division 1 or 2 areas and Class II Division 1 or 2 areas. A
local LCD provides gas type and concentration information and when magnetically activated enables non-intrusive
one man calibration and operation. The sensor interface to the transmitter is Intrinsically Safe (IS) allowing it to be
‘hot swapped’ without the need for removing power to the detector. The replacement plug in smart sensors are
supplied pre-calibrated. A remote sensor mounting kit allows the sensor to be mounted up to 50 feet (15 meters)
from the explosion proof transmitter housing. The output from the transmitter is an industry standard 2 wire 4-20mA
loop (sink) suitable for connection to a wide range Honeywell Analytics or 3rd party control equipment / PLCs.
4.1 Product overview
The Series 3000 MkII detector comprises of the main parts shown below.
4.2 Transmitter
The transmitter cover has a glass window which allows use of the magnet to activate the three user
interface magnetic switches that are located on the front of the display module. This allows for non-
intrusive set up and operation. The display provides both numerical and icon information.
Terminal Module and
IS Barrier
Magnetic
MENU/ENTER Switch Test Pass Icon
Calibration Icon
Gas Type Warning/Fault Icon
Gas Reading Inhibit Icon
Magnetic
DOWN Switch
Measuring Units
Magnetic
UP Switch
Locking Screw
Cover
Seal
M20 or 3/4"NPT
cable/conduit entry (x2)
Transmitter Enclosure
Weatherproof Cover
Sensor Retainer
Smart Sensor
Display Module

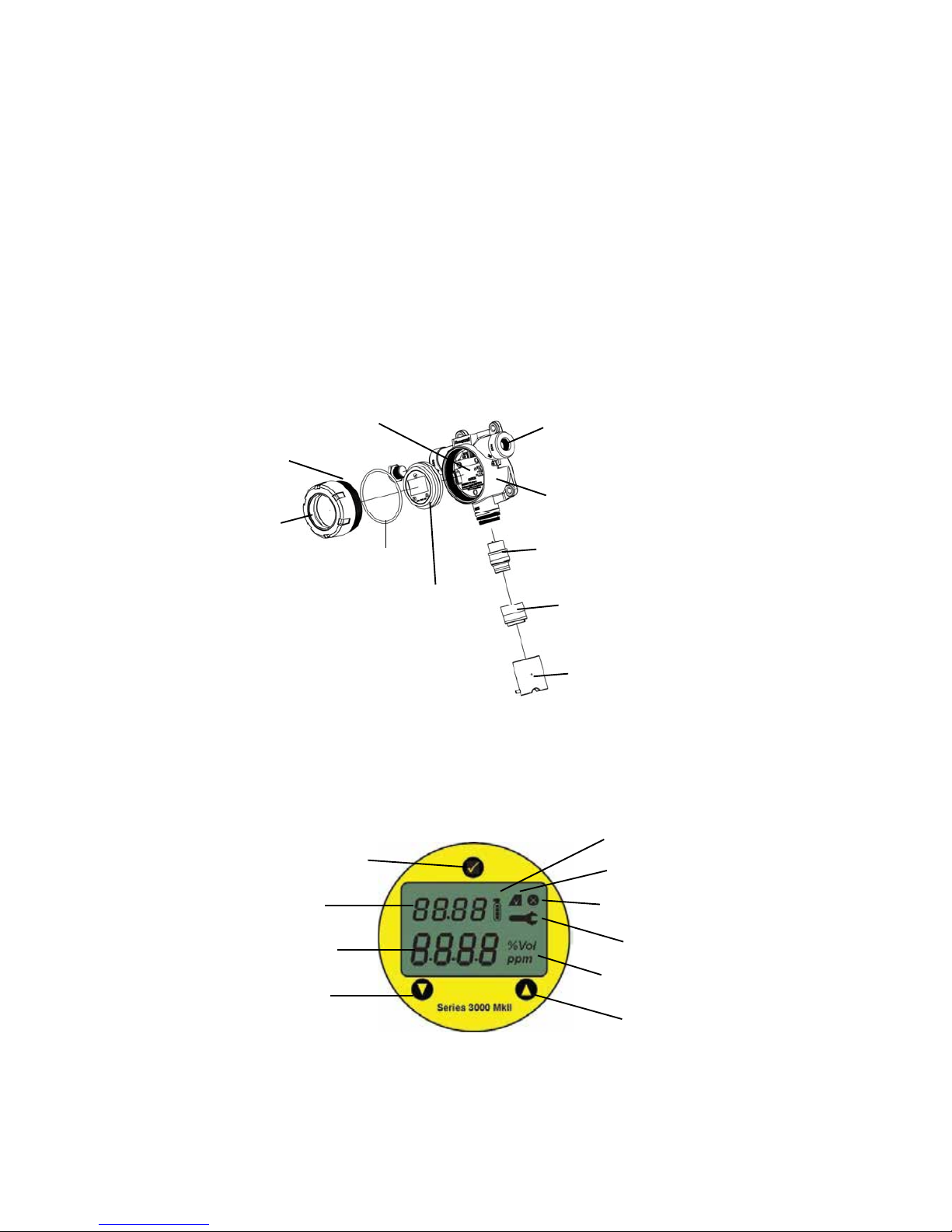

Diagram 1: Series 3000 MkII Exploded View
Diagram 2: Series 3000 MkII Display and Magnetic Switches

6
SERIES 3000 MKII TECHNICAL MANUAL S3KMKIIMAN_MAN0878_Issue 6_01/2014
The cover can be unscrewed to allow removal of the display module. Beneath the display module is
the terminal module and IS barrier where all electrical connections to the detector are made.
Electrical connections are made via 2 x M20 cable entries or 2 x 3/4"NPT conduit entries (certication
dependent). A suitable blanking plug is supplied which must be used to seal any unused entry.
The smart sensor plugs into the bottom of the transmitter and is secured by the sensor retainer.
The weatherproof cover is tted over the top of the sensor and screws onto the bottom of the transmitter
enclosure. The weatherproof cover has a spigot that allows the attachment of tubing for the application
of bump test gas.
4.3 Smart sensor
The smart sensor is manufactured from stainless steel and is supplied 100% tested and calibrated
(refer to section for start up procedure). The sensor is serviceable, allowing replacement of the sensor
cell (see section 15 for details of sensor or cell replacement).
The sensor can be ‘hot swapped’ without the need to remove power to the detector (subject to local
regulations and procedures).
4.4 Accessories
Series 3000 MkII has various accessories available as detailed below:
4.4.1 Pipe mounting bracket
The optional pipe mounting bracket (part number SPXCDMTBR) allows mounting of the Series 3000
MkII transmitter to a mounting pipe (horizontal or vertical) of diameter 20.0-80.0mm (0.8"-3.1").
4.4.2 Sunshade / Deluge Protection
The Sunshade / Deluge Deluge Cover (P/N:SPXCDSDP) is an optional accessory that may be tted to
the integral mounting plate. This accessory is designed to protect Series 3000 MkII from overheating in
exposed hot and arid climates, particularly offering additional protection from thermal shock in Tropical
Environments.
4.4.3 Remote sensor mounting kit
The remote sensor mounting kit (part number S3KRMK) allows the sensor to be remotely mounted via
an IS cable kit, up to 50 feet (15 meters) from the transmitter. The kit includes 50 feet of screened cable,
cable glands and remote terminal box. The cable can be cut to the required length and then terminated
at the remote terminal box. See section 16 for further installation details.
4.4.4 Duct mounting kit
The duct mounting kit (part number S3KDMK) can be used to allow detection of O2, CO, H2 and H2S
gases in ducts. Refer to manual part number MAN0639 for further details.
4.4.5 Calibration gas ow housing
The calibration gas ow housing (S3KCAL) is used to apply calibration test gas to the sensor. It push ts
onto the bottom of the sensor and can be tted without removing the weatherproof cover. See section
8.2 for further details on calibrating the detector.

7
SERIES 3000 MKII TECHNICAL MANUAL S3KMKIIMAN_MAN0878_Issue 6_01/2014
Note: The spigot on the side of the weatherproof cover is supplied for bump test purposes only
(see section 14.1 for further details).
4.4.6 Collecting cone
The collecting cone (part number S3KCC) can be used to assist in the detection of ‘non-sticky’ gases
that are lighter air (i.e. Hydrogen only). It is simply tted in place of the weatherproof cover.

8
SERIES 3000 MKII TECHNICAL MANUAL S3KMKIIMAN_MAN0878_Issue 6_01/2014
5. Installation
Prior to installation refer to the transmitter control drawing 3000E3160 and remote sensor control
drawing 3000E3157 shown in section 21.
Warnings
Series 3000 MkII is designed for installation and use in Zone 1 or 2 or 21 or 22 hazardous
areas in Europe and Class I Division 1 or 2 and Class II Division 1 or 2 area
applications in North America.
Installation must be in accordance with the recognized standards of the appropriate
authority in the country concerned.
Access to the interior of the detector, when carrying out any work, must only be
conducted by trained personnel.
Before carrying out any work ensure local regulations and site procedures are
followed. Appropriate standards must be followed to maintain the overall
certication of the detector.
To reduce risk of ignition of hazardous atmospheres, conduit runs must have a seal
tting connected within 18 inches of the enclosure.
To reduce the risk of ignition of hazardous atmosphere, de-classify the area or
disconnect the equipment from the supply circuit before opening the detector
enclosure. Keep assembly tightly closed during operation.
Never attempt to open a junction box / enclosure in potentially hazardous
atmospheres.
The detector must be earthed / grounded for electrical safety and to limit the effects
of radio frequency interference. An earth / ground point is provided inside and
outside the unit. The internal grounding shall be used as the primary equipment
ground. The external terminal is only a supplemental bonding connection where
local authorities permit or require such a connection.
Take care when handling sensors as they may contain corrosive solutions.
Do not tamper or in any way disassemble the sensor.
Do not expose to temperatures outside the recommended range.
Do not expose sensor to organic solvents or ammable liquids.
At the end of their working life, sensors must be disposed of in an environmentally
safe manner. Disposal should be according to local waste management
requirements and environmental legislation.
Alternatively, sensors may be securely packaged and returned to
Honeywell Analytics clearly marked for environmental disposal.
Electrochemical cells should NOT be incinerated as they may emit toxic fumes.
All cable entry devices and blanking elements shall be certied in type of explosion
protection ameproof enclosure “d”, suitable for the conditions of use and correctly
installed and have an ingress protection rating of at least IP6X.
Unused apertures shall be closed with suitable blanking elements.

9
SERIES 3000 MKII TECHNICAL MANUAL S3KMKIIMAN_MAN0878_Issue 6_01/2014
5.1 Mounting and location of detectors
Caution: The location of the detectors should be made in accordance with
any relevant local and national legislation, standards or codes of practice.
Always replace detectors with a detector of the same type.
The detector should be mounted where the gas is most likely to be present. The following points should
be noted when locating gas detectors.
• When locating detectors consider the possible damage caused by natural events e.g. rain or ooding.
• Consider ease of access for functional testing and servicing.
• Consider how escaping gas may behave due to natural or forced air currents.
Note: The placement of detectors should be determined following the advice of experts having specialist
knowledge of gas dispersion, experts having knowledge of the process plant system and equipment
involved, safety and engineering personnel. The agreement reached on the location of detectors should
be recorded.
Mount the Series 3000 MkII with the sensor pointing downwards. Integral mounting lugs (suitable for
M8 bolts) are provided on the Series 3000 MkII transmitter housing for mounting the detector to a wall.
An optional pipe mounting bracket (part number SPXCDMTBR) is available for mounting to a pipe /
pole of diameter 20.0¬-80.0mm (0.8" to 3.1").
Diagram 3: Pipe Mounted Diagram 4: Wall Mounted

10
SERIES 3000 MKII TECHNICAL MANUAL S3KMKIIMAN_MAN0878_Issue 6_01/2014
164mm (6.4”)
201mm (7.9”)
99mm (3.9”)108mm (4.2”)
130mm (5.1”)
164mm (6.4”) 99mm (3.9”)
201mm (7.9”)
Diagram 5: Pipe Mounting Outline Dimensions
Diagram 6: Wall Mounting Outline Dimensions

11
SERIES 3000 MKII TECHNICAL MANUAL S3KMKIIMAN_MAN0878_Issue 6_01/2014
6. Electrical connections
Prior to installation refer to the transmitter control drawing 3000E3160 and remote sensor control drawing
3000E3157 shown in section 21.
Warnings
Series 3000 MkII is designed for installation and use in Zone 1 or 2 or 21 or 22 hazardous
areas in Europe and Class I Division 1 or 2 and Class II Division 1 or 2 area applications in
North America.
Installation must be in accordance with the recognized standards of the appropriate
authority in the country concerned.
Use copper wiring only.
Access to the interior of the detector, when carrying out any work, must only be
conducted by trained personnel.
Before carrying out any work ensure local regulations and site procedures are
followed. Appropriate standards must be followed to maintain the overall
certication of the detector.
To reduce risk of ignition of hazardous atmospheres, conduit runs must have a seal
tting connected within 18 inches of the enclosure.
To reduce the risk of ignition of hazardous atmosphere, de-classify the area or
disconnect the equipment from the supply circuit before opening the detector
enclosure. Keep assembly tightly closed during operation.
Never attempt to open a junction box / enclosure in potentially hazardous
atmospheres.
The detector must be earthed / grounded for electrical safety and to limit the effects
of radio frequency interference. An earth / ground point is provided inside and
outside the unit. The internal grounding shall be used as the primary equipment
ground. The external terminal is only a supplemental bonding connection where
local authorities permit or require such a connection.
Take care when handling sensors as they may contain corrosive solutions.
Do not tamper or in any way disassemble the sensor.
Do not expose to temperatures outside the recommended range.
Do not expose sensor to organic solvents or ammable liquids.
At the end of their working life, sensors must be disposed of in an environmentally
safe manner. Disposal should be according to local waste management
requirements and environmental legislation.
Alternatively, sensors may be securely packaged and returned to
Honeywell Analytics clearly marked for environmental disposal.

12
SERIES 3000 MKII TECHNICAL MANUAL S3KMKIIMAN_MAN0878_Issue 6_01/2014
6.1 Detector wiring schematic
Caution: All electrical connections should be made in accordance with any
relevant local or national legislation, standards or codes of practice.
6.2 Typical maximum installed cable lengths
The formula for calculating the maximum installed cable length between a controller and detector D
(meters) is given below.
D = ( ( ( Vc - Vdmin - ( Im * RL ) ) / ( 2 * Im * Rc ) ) ) * 1000
Notes:
• Distance km=kilometres, mi=miles.
• Assuming Vc=24Vdc, Vdmin=17Vdc, Im=22mA
For the value of RC, use the data supplied by the manufacturer of the cable to be used for the
specic installation.
Vc
Vd
Im
Rc
Vc
Vd
Im
Rc
Vc
Vd
Im
Rc

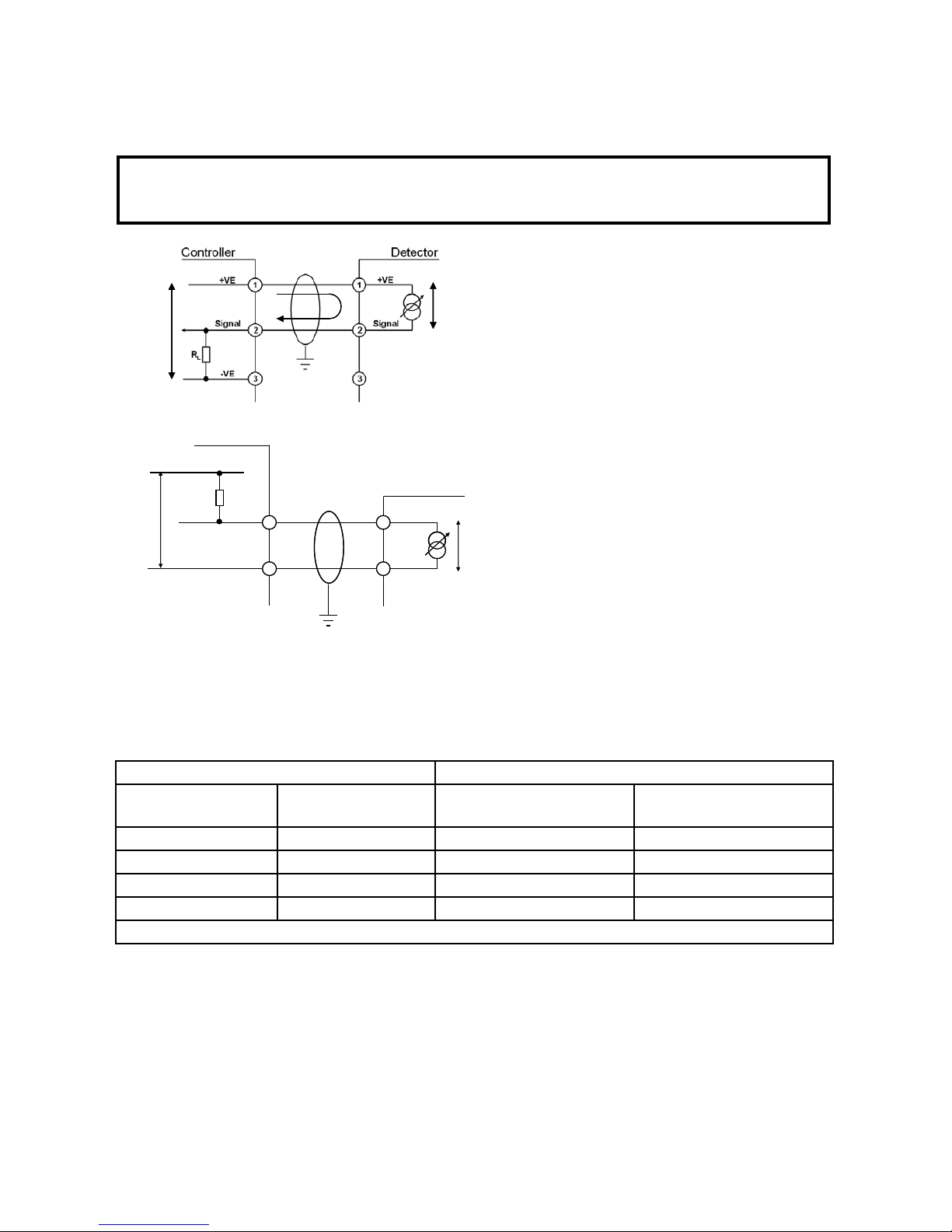

Diagram 7: Wiring Schematic Type 1
Controller
1
2
+VE
1
2
Detector
+VE
-VE
R
L
Signal
-VE
V
c
V
d
R
c
I
m
Controller
1
2
+VE
1
2
Detector
+VE
-VE
R
L
Signal
-VE
V
c
V
d
R
c
I
m
Diagram 8: Wiring Schematic Type 2
Detector Supply Vd
•17Vdc (+/-10%) < Vd< 32Vdc (max)
Maximum Detector Signal Im
•Im= 22mA (over range)
Cable Resistance Rc
•Subject to cable type
•Typical values are:
0.5mm2(20AWG*) = 36.8Ω/km (59.2Ω/mi)
1.0mm2(17AWG*) = 19.5Ω/km (31.4Ω/mi)
1.5mm2(16AWG*) = 12.7Ω/km (20.4Ω/mi)
2.0mm2(14AWG*) = 10.1Ω/km (16.3Ω/mi)
*nearest equivalent
Load Resistor of Control Panel RL
•Assumed 33Ω(min) / 250Ω(max)
Controller Supply Voltage Vc
•Subject to controller manufacturer
•Assumed nominal of 24Vdc
Typical cable data Cable distance km (mi)
Cable size Cable resistance
Rc Ω/km (Ω/mi)
Example 1 Input
impedance RL = 33Ω
Example 2 Input
impedance RL = 250Ω
0.5mm2 (20AWG*) 36.8 (59.2) 3.9 (2.4) 0.9 (0.6)
1.0mm2 (17AWG*) 19.5 (31.4) 7.3 (4.5) 1.7 (1.1)
1.5mm2 (16AWG*) 12.7 (20.4) 11.2 (7.0) 2.7 (1.7)
2.0mm2 (14AWG*) 10.1 (16.3) 14.1 (8.8) 3.4 (2.1)
*Nearest equivalent

13
SERIES 3000 MKII TECHNICAL MANUAL S3KMKIIMAN_MAN0878_Issue 6_01/2014
6.3 Terminal connections
All electrical connections are made at the terminal module. To access the terminal module follow the
procedure below:
1. Remove the detector’s cover by unscrewing it in a counter-clockwise direction.
2. Remove the display module by pulling it rmly away from the enclosure without twisting it.
6.4 Cable and earth / ground connection
Between the Controller and Transmitter use 2 core (plus screen 90% coverage), suitably mechanically
protected copper cable with a suitable M20 explosion-proof gland, or ¾ in. NPT steel conduit, with 0.5
to 2.0mm2 (equivalent approx. 20 to 14AWG) conductors. Ensure the cable gland is installed correctly
and fully tightened.
To ensure good EMC/RFI immunity bond the system to ground / earth as shown in the diagram below.
Notes:
• No two ‘Earth Points’ should be connected via screen and / or conduit so as to avoid ‘ground loops’.
(Except between the sensor and transmitter which is a digital link).
• Where multiple ‘Earth Points’ are unavoidable (e.g. transmitter mounted on metal superstructure
which is earthed then screen and / or conduit to controller should be isolated appropriately).
• ‘ Bonded Points’ (continuity of screen) may be achieved using appropriate glands / cable or conduit;
internal and external ‘Earth Points’ in the transmitter are provided.
Internal Earth/
Ground Connection
Conduit/Cable Entry
Display Module
Plug in Socket
Supplementary
External Earth/
Ground Connection
Note: Nominal tightening
torque of 6.9lb-in. to be
applied to the terminal
clamping screws.
Terminal
number
Detector
Terminal
Controller
Connection
1 + +VE
2 - Signal
Controller Transmitter Sensor
Earth Point
Cable Screen
Or
Metal Conduit
Bonded Point
Controller Transmitter Sensor
Earth Point
Cable Screen
Or
Metal Conduit
Bonded Point

14
SERIES 3000 MKII TECHNICAL MANUAL S3KMKIIMAN_MAN0878_Issue 6_01/2014
When all electrical connections have been made, ret the display module and cover using the
procedure below:
1. Ensure that none of the wires in the terminal area may cause an obstruction.
2. Align the display module plug with the socket on the terminal module.
3. Push the display module rmly, without twisting, until fully home.
4. Ret the cover by screwing clockwise until tight.

15
SERIES 3000 MKII TECHNICAL MANUAL S3KMKIIMAN_MAN0878_Issue 6_01/2014
7. First time switch on
After mounting and wiring the transmitter, the plug in sensor should be tted and the installation visually
and electrically tested as below.
WARNING
Prior to carrying out any work ensure local and site procedures are
followed. Ensure that the associated control panel is inhibited so as
to prevent false alarms.
Minimum and maximum controller alarm levels should not be set at less
than 10% or greater than 90% of the full scale range of the detector.
Caution: The following procedure should be followed carefully and only performed
by suitably trained personnel.
1. Check that the transmitter is wired correctly according to this manual and the associated control
equipment manual.
2. Unscrew the weatherproof cover, loosen the sensor retainer locking screw and unscrew the retainer.
3. Plug in the sensor taking care to align the sensor pins with the connector holes in the pcb.
Caution: For toxic sensors, remove the shorting clip from the bottom of the sensor
prior to installation. For O2 sensor, there is no shorting clip provided.
4. Ret the sensor retainer, tighten the locking screw and ret the weatherproof cover.
5. Apply power to the associated controller which will in turn provide power to the detector.
6. The detector output will be forced to 3mA (default fault / inhibit).
7. The detector display will enter a start up routine rst displaying all the LCD segments and symbols, then
the transmitter loads the data from the sensor and checks if it is the same type transmitter and sensor
software version numbers, gas type, the detection range and span calibration gas level, estimated
time to next calibration due, self test result, and nally warm up period shown as a countdown to 0.
(Countdown time varies from 30 seconds to 3 minutes, depending on the sensor type).
8. Once countdown is complete, the detector will enter normal ‘monitoring’ mode.
Note: Calibration is mandatory before the detector can be used for gas monitoring. Refer to Section
8.2 Calibration for the proper procedure.

16
SERIES 3000 MKII TECHNICAL MANUAL S3KMKIIMAN_MAN0878_Issue 6_01/2014
8. Magnetic switch activation
Series 3000 MkII uses magnetic switches to enable non-intrusive operation. To activate a magnetic switch,
hold the magnet up to the glass window directly over the magnetic switch area. The switch is activated
when you then remove the magnet. For example: to put the detector into Menu Mode hold the magnet
over the ‘’ magnetic switch for 5 seconds, and then remove the magnet. The detector enters menu
mode on removal of the magnet (not automatically after 5 seconds). Similarly, when changing values or
navigating in a menu using the ‘’ magnetic switches, hold the magnet up to the glass window directly
over the switch momentarily, and then remove to activate the switch. In some menus where the displayed
value can be changed the magnet can be held over the switch and the numeral on the display will scroll
through the available values. Remove the magnet when the required value is displayed.
For the purposes of this manual, the instruction to use ‘’, ‘’ or ‘’, means to activate the relevant
magnetic switch as described above.

17
SERIES 3000 MKII TECHNICAL MANUAL S3KMKIIMAN_MAN0878_Issue 6_01/2014
8.1 Default conguration
Series 3000 MkII detectors are supplied with a default conguration as shown below. The settings for
full scale range, calibration gas level, calibration interval, inhibit current & timeout and access password
can be changed to suit individual applications.
Notes:
1. Default ranges have been selected based upon recommended exposure limits set around the world.
2. Where ranges signicantly above the recommended defaults are needed select a gas cal point
near to the required alarm point or between 30 and 70% of full scale. Consideration must be given
to providing adequate ventilation of the calibration gas and ensure there is no exposure of the user
to toxic levels of gas.
For details of how to change the conguration for full scale range, calibration gas level, calibration
interval, inhibit current & timeout and access password refer to section 12.
Detector 4-20mA output signal
Fault / Under-range 3mA
Inhibit 3mA (default). Selectable 4mA (toxic), 17.4mA (oxygen)
Zero signal 4mA
Full scale 20mA
Overrange 22mA
Other settings
Inhibit time out 0 (no time out). Selectable 0 to 240 minutes (5 min steps). If 0 is
selected, output current is permanently inhibited.
Calibration Interval & Display / Output. Cal Interval 180 days (selectable 30-360). Three options for overdue
warning indication (selectable off, via display only or via display and
3mA output).
Password 000 (password disabled). If changed then password is activated.
Change back to 000 to de-activate.
Gas Selectable Full
Scale Range
Default Range Steps Selectable Cal
Gas Range
Default Cal
Point
Oxygen 25.0%/Vol only 25.0%VOL n/a 20.9%/Vol (Fixed) 20.9%/Vol
Hydrogen Sulde 10.0 to 50.0ppm 15.0ppm 0.1ppm
30 to 70% of
selected full
scale range
10ppm
Hydrogen Sulde 50 to 500ppm 100ppm 10ppm 50ppm
Carbon Monoxide 100 to 1,000ppm 300ppm 100ppm 100ppm
Sulfur Dioxide 5.0 to 20.0ppm 15.0ppm 5.0ppm 5.0ppm
Ammonia 50 to 200ppm 200ppm 50ppm 100ppm
Ammonia 200 to 1,000ppm 1,000ppm 50ppm 300ppm
Chlorine 5.0 to 20.0ppm 5.0ppm 5.0ppm 2.0ppm
Chlorine Dioxide 1.00ppm only 1.00ppm n/a 0.5ppm
Nitric Oxide 100ppm only 100ppm n/a 50
Nitrogen Dioxide 5.0 to 50.0ppm 10ppm 5.0ppm 5ppm
Hydrogen 1,000ppm only 1,000ppm n/a 500ppm
Hydrogen 9,999ppm only 9,999ppm n/a 5000ppm
Hydrogen Chloride 10.0 to 20.0ppm 10ppm 1.0ppm 5.0ppm
Hydrogen Cyanide 30.0ppm only 30.0ppm n/a 10.0ppm
Hydrogen Fluoride 12.0ppm only 12.0ppm n/a 5.0ppm
Ozone 0.4ppm only 0.4ppm n/a 0.2ppm
Phosphine 1.2ppm only 1.2ppm n/a 0.5ppm

18
SERIES 3000 MKII TECHNICAL MANUAL S3KMKIIMAN_MAN0878_Issue 6_01/2014
8.2. Calibration
WARNINGS
It is recommended to bump test the sensors frequently to ensure proper operation.
8.2.1 Zeroing and span calibration
Caution: Before initial calibration allow the detector to stabilize for 30
minutes after applying power. When in zeroing and span calibration mode
the current output from the detector is inhibited (default 3mA) to avoid false alarms.
It is recommended for most sticky gases the tubing should be PTFE with
short pieces of rubber tube to make the nal connection due to the
inexibility of PTFE. This minimizes adhesion of the gas to the tube surface
and allows for more accurate measurement.
For Hydrogen Sulde type sensors refer to section 8.2.2 before conducting
zero and span calibration.
Note: It is recommended that the calibration is made where the sensor / transmitter have stabilized with
their local environment. It is recommended that calibrations be performed at a stable temperature in
which the system is to be used. Re-calibration is recommended if the temperature of local environment
has varied by more than +/-15 degrees C from the temperature of calibration.
It is essential that the sensor is tested frequently to be sure the system is operating properly. Typically
gas detectors should be tested at least twice per year. However it is recommended that testing is
conducted on a more frequent basis after initial start up as sensor operation and performance will vary
in different environmental conditions and in the presence of other gases. It is the responsibility of the
user to determine an appropriate calibration frequency for the application.
To calibrate the detector, use an appropriate span gas cylinder, ow regulator set to 300-375mL/min,
tubing, magnet and calibration gas ow housing. A compressed air cylinder (20.9%Vol oxygen) should
be used to perform the zero calibration if the area where the detector is located contains any residual
amount of the target gas. If no residual gas is present then the background air can be used to perform the
zero calibration. Contact your Honeywell Analytics representative for details of suitable calibration kits.
To calibrate the detector follow the procedure below.
Note: the Oxygen sensor does not require a zeroing procedure. Background air (20.9%Vol oxygen)
can be used to span the oxygen sensor in place of a compressed air cylinder (20.9%Vol oxygen). For
oxygen sensors only do parts 1-4, 13, 14 (if compressed air cylinder is used), 15-19 and 24 of the
procedure below.
1. If using compressed air, push the calibration gas ow housing onto the bottom of the sensor and
apply the gas.
2. To access the calibration mode, hold the end of the magnet over the switch located at the top centre
of the detector display for at least 5 seconds and then remove.

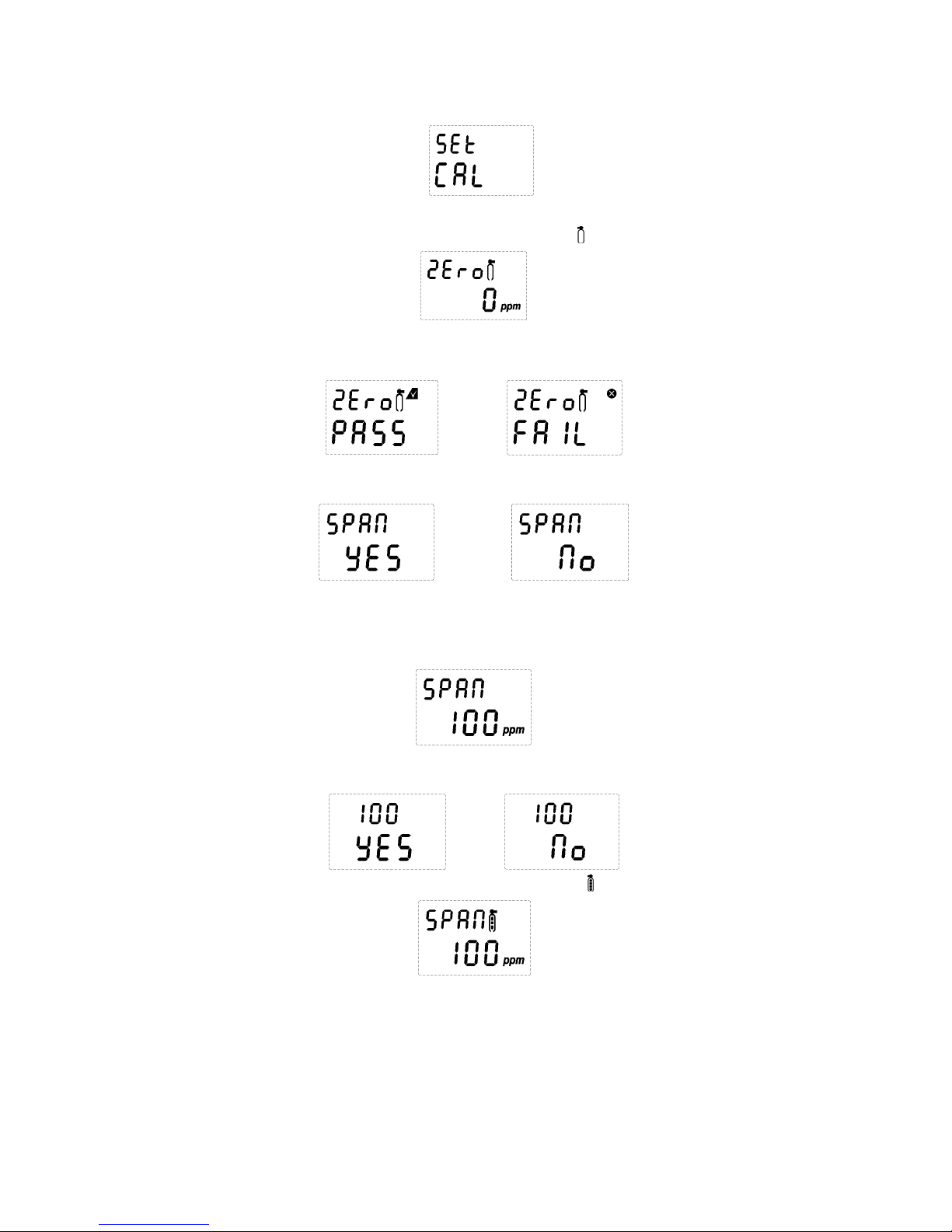

3. The display will indicate the rst menu mode menu ‘SEt CAL’.

19
SERIES 3000 MKII TECHNICAL MANUAL S3KMKIIMAN_MAN0878_Issue 6_01/2014
4. Put the magnet over the ‘’ switch and remove to enter the Calibration menu.
5. The display will show the current gas reading, ‘ZEro’ and the ‘ ’ icon ashes.
6. When the zero gas reading is stable use ‘ to conrm zero calibration.
7. If successful the display shows ‘ZEro PASS’ (if not successful, the display shows ‘ZEro FAIL’ and
returns to menu mode).
8. If using zero-air, turn it off. Zeroing is complete and saved.
9. The display shows ‘SPAn’ with ‘YES’ ashing.
10. If span calibration is required use ‘’ proceed to the next step. If span calibration is not required,
use ‘▲▼’ to select ‘No’ and ‘’ to return to menu mode.
11. The display shows the current calibration span gas concentration ashing. Use ‘▲▼’ to change the
calibration span gas concentration, and ‘’ when required span calibration level is set.
12. Span calibration point is displayed with ‘YES’ ashing. Use ‘’ to conrm or ‘▲▼’ to select ‘No’ and
return and enter a new span calibration point.
13. The display will show the current gas reading, ‘SPAN’ and the ‘
’ icon ashes.
14. Connect the regulator to the span gas cylinder.
15. Apply the span gas to the sensor using the calibration gas ow housing. The live gas reading is
displayed. When the reading is stable, use ‘’ to conrm span calibration.
16. If the sensor cell has been replaced the following display may be shown.

20
SERIES 3000 MKII TECHNICAL MANUAL S3KMKIIMAN_MAN0878_Issue 6_01/2014
Display in turn
Toggle by Up/Down Key
17. Use ‘▲▼’ to select ‘YES’ if the sensor cell has been replaced or ‘No’ if it has not been replaced.
WARNING
Answer Yes to “CELL/rEPL” ONLY in cases where the “Serviceable Sensor Cell
Replacement” procedure (sec. 15.2) was been performed. Answering Yes in cases
where the cell has not been replaced could result in the inability of the Series 3000
to recognize an old cell with an inadequate output.
It is recommended to bump test the sensors frequently to ensure proper operation.
18. If the sensor cell has been replaced use ‘’ to conrm the gas reading.
19. If the span calibration is successful the instrument will briey display ‘SPAn PASS’ (if fails ‘SPAN
FAIL’ displayed and returns to menu mode).
Note: the calibration due warning counter is reset after a successful calibration. See section 12 for
further details of setting a calibration due warning.
20. The display alternates between “Pur GAS” and the gas reading to indicate that the unit is expecting
the span gas to be removed from the sensor.
21. Promptly switch off the calibration span gas and remove the calibration gas ow housing from the
sensor to allow the gas to disperse.
22. When the reading falls below 50% of the calibration gas level the display indicates a countdown
(up to 180 seconds dependant on gas type).
23. When the countdown is nished, the calibration procedure is complete.
24. The instrument returns to the ‘SEt CAL’ menu. Activate the ‘▲’ or ‘▼’ switch to select another menu
or select ‘QuIT’ to return to normal monitoring mode.
Display in turn
Toggle by Up/Down Key
Display in turn
Toggle by Up/Down Key
Display in turn
Toggle by Up/Down Key
Display in turn
Toggle by Up/Down Key
