Honeywell 88173 User manual

WARNING
PERSONAL INJURY
DO NOT USE these products as safety or emergency stop
devices or in any other application where failure of the product
could result in personal injury.
Failure to comply with these instructions could result in
death or serious injury.
Installation Instructions for the
Enclosed Basic Series Limit Switches
Sensing and Control
Issue 5
88173
GENERAL INFORMATION
• Honeywell’sEnclosedBasicSeriesofLimitSwitchesare
usable in many applications. The wide variety of actuators
offered and their robust diecast housing make them ideal for
applications that require reliable switching and performance.
There are several styles of enclosed basic switches, includ-
ing side and flange mounting switches as well high capacity
and double pole type.
• Refertoswitchlabelingforapplicableelectricalratingsand
certifications
• Fortechnicalproductsupport,engineeringdrawings,
technical data, and additional information for products from
Honeywell’sEnclosedBasicSeriesofLimitSwitchesplease
visit sensing.honeywell.com, or call the support numbers on
the last page of this document.
MOUNTING
1. Mount switches on flat, rigid surface.
E6 Side Mounting Pattern
25,4 mm
[1.00 in]
2X CLEARANCE HOLE FOR #6
MOUNTING SCREW*
E6 SIDE MOUNTING
V6 Flange Mounting Pattern
41,6 mm
1.63 in
2X Ø 4,3 mm [0.17 in] MOUNTING HOLES
V6 FLANGE MOUNTING
G1 Side Mounting Pattern
31,0 mm
[1.22 in]
75,0 mm
[2.95 in]
2X Ø 5,5 mm [0.216 in] MOUNTING HOLES
G1 SIDE MOUNTING
H1 Flange Mounting Pattern
41,9 mm
1.65 in
2X Ø 0.22 5,5 mm [0.22 in]
MOUNTING HOLES
H1 FLANGE MOUNTING
2. Boot-sealedandside-mountingswitchesusesealingwash-
ers under screw heads on the sides between switch and
mounting surface on other side to maintain seal.
3. Unsealed, side mounting switches: Use lockwashers under
screw heads on one side; under nut on other side.
4. Connect conduit to conduit opening. Apply conduit sealing if
required by application.
INSTALLATION TIPS
1. Do not lubricate any internal part of the switch. The inter-
nal switch does not require any additional lubrication
2. When installing the switch, ensure that it is not the low
point in the conduit run. Doing so will ensure that con-
densation created in the conduit will not flow into the switch
housing.
3. Do not enlarge the mounting holes on side mounting
switch. Doing so will compromise the internal switching ele-
ment’ssealintegrity.

2 HoneywellSensingandControl
Enclosed Basic Series Limit Switches ISSUE 5 88173
FIELD ADJUSTABLE ACTUATOR MODELS
Some enclosed basic switches are field adjustable. This in-
cludesmodelswiththenomenclature“2RN2”,”2RQ2”,”2RN28”,
”2RQ28”,“2RN62”,“2RQ62”,“RQ2X2”,“RN2X1”.

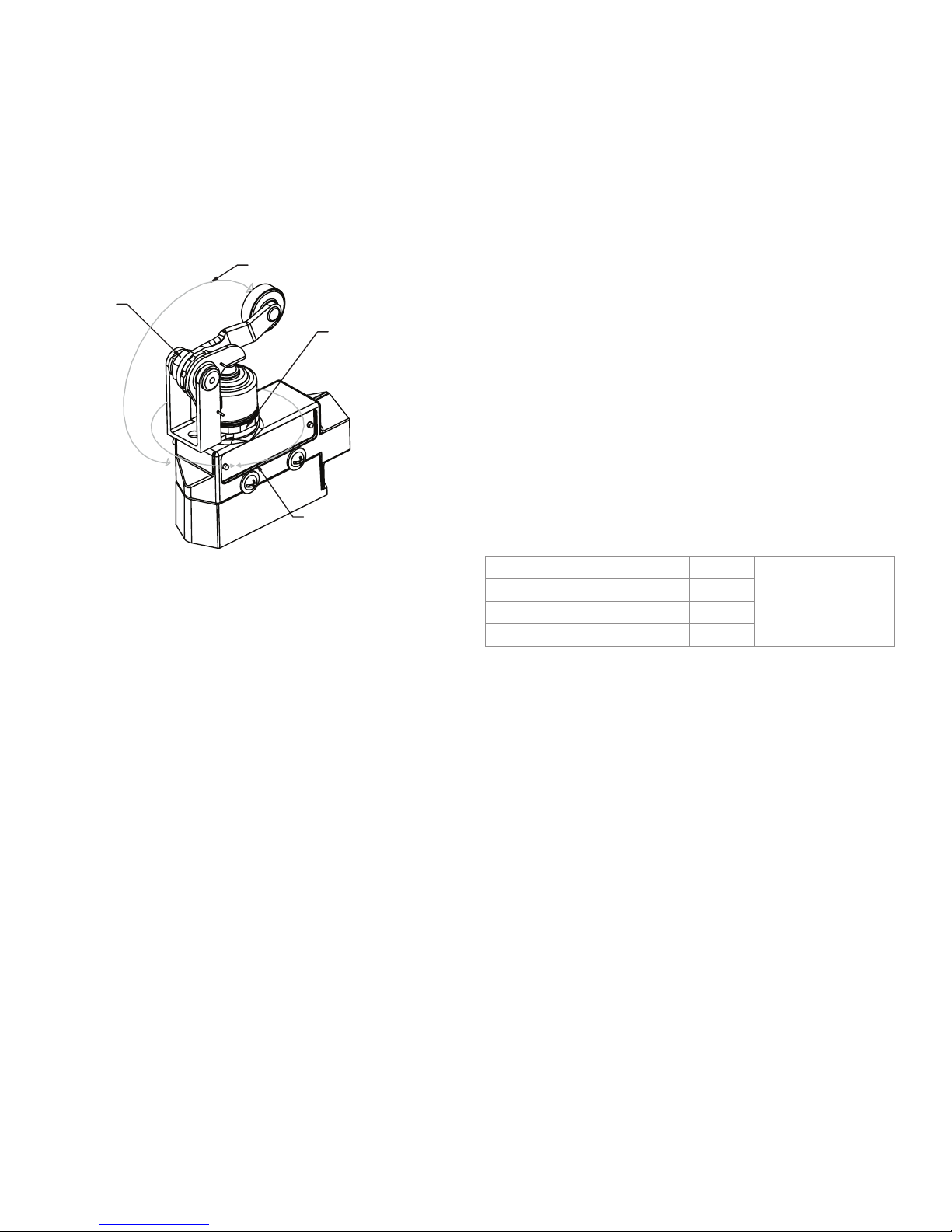

ADJUSTABLE RANGE
ADJUSTABLE RANGE
360~ABOUT THE PLUNGER AXIS
LEVER BASE
RETAINING NUT
LEVER
RETAINING NUT
The lever can be adjusted in two ways. The following process
details how to perform the adjustments.
Adjusting the horizontal position of the lever.
1. Loosentheleverbaseretainingnut,sothattheleverassem-
bly is free to rotate about the axis of the plunger.
2. Rotatethelevertothedesiredposition.Theleverisadjust-
able360degreesabouttheaxis.
3. Once the desired position is reached re-tighten the lever
base retaining nut. The lever base should not be able to
rotate when properly tightend.
Adjusting the vertical position of the lever.
1. Loosentheleverretainingnut,sothattheleverfreelyrotates.
2. Setthepositionofthelevertothedesiredposition.Roller
levers should be positioned so that they are able to actuate
the plunger.
3. Once the desired position is reached re-tighten the lever re-
taining nut. When pushed the lever should act upon the lever
mechanism to actuate the switch.
N18 TYPES
If actuator or basic switch is replaced, the actuator may need
adjustment to duplicate original switch operating point. To adjust
operating point, remove lower seal band from base of seal boot.
“Peelback”sealboottoexposebushing.Withbasicswitch
unoperated, slowly turn bushing clockwise until basic switch op-
erates. Do not turn further after operating click is heard. Turn
bushing back 1/2 turn. Tighten jam nut on bushing.
MAINTAINED CONTACT (RESET) MODELS
Listingswithan“X”intheirpartnumberaremaintainedcontact
switches. These switches remain actuated after the operating
force on either plunger has been applied. The actuated plunger
will“reset”whentheopposingplungerisactuated.
NOTE: The top plungers (the plungers on the stationary portion
of the housing) provide more accurate and uniform operation
thanthe“reset”plungersandshouldbeusedwhencloselyheld
operating characteristics are required.
Vertical Adjustment Range
N2&Q2-Rollerlever 225° To adjust: loosen
hex nut, adjust arm
to desired position,
tighten hexnut.
N4&Q4-Handop. 180°
N62&Q62-Rodlever 225°
N28&Q28-Oneway 180°
1. Oneleverarmserration:8.18°.
2. Oneserrationofleverarmandutedwasherasaunit:8°.
3. One serration of lever arm with one serration of fluted washer
inoppositedirection:0.18°.
LUBRICATING INSTRUCTIONS for Roller Plunger
Switches only (N80, N81, Q8, Q9, Q81)
Formaximumlife,periodicallyputadroportwooflightweight
oil on the roller. Specific application conditions will determine
lubricating frequency.

HoneywellSensingandControl3
Enclosed Basic Series Limit Switches ISSUE 5 88173
WIRING
• Honeywell’sEnclosedBasicSwitcheshaveinternalterminals
that allow for easy wiring and integration.
• Ifasidemountingswitchisbeingwireditispossibleforthe
switch to be mounted in place before wiring takes place. If
a flange mounting switch is being used it is likely that that
the switching and actuator assembly will need to be wired
before mounting switch.
The enclosed basic series switch will have one of two contact
forms available. They will either have a single pole double throw
(SPDT) or a double pole double throw (DPDT) arrangement. The
SPDT uses three terminals to wire a set of Common (C), Normally
Open (NO), and Normally Close (NC) contacts.
• Removethecoverortheangebasebylooseningthetwo
screws that secure it.
• Oncethecoveroftheangebaseisremovedtheswitch
terminals will be exposed. Switch terminals will be labeled
according to the contact they connect to. Please refer the
terminal layout section for more information on circuit dia-
grams and terminal screw layout.
• Connectwiretoterminalsbylooseningterminalscrews,
looping wire around the terminal screw shaft, and inside
of the cup washer on SPDT models or looping wire around
the terminal screw shaft and underneath locking washer on
DPDT models. Then retighten terminal screws ensuring wires
and connections are made.
• GroundingTerminal,enclosedbasicswitcheshaveaninter-
nal grounding screw mounted inside the removable cover or
flange base.
• Replacecoverorangebaseandretightencoverscrews
Standard Enclosed Basic Switch Terminal Layout
Single Pole Double Throw (SPDT)
Double Pole Double Throw (DPDT)

4 HoneywellSensingandControl
Enclosed Basic Series Limit Switches ISSUE 5 88173
REPLACEMENT PARTS AND ACCESSORIES
Basicswitch:orderaccordingtocataloglistingonbasicswitch
beingreplaced.Replacementpacketincludesbasicswitch,
mounting hardware, seal boot and bands where required.
Actuators or Accessories
Part Listing
N2 actuator (roller lever) 6PA2
Q2actuator(rollerlever) 6PA1
N28actuator(one-wayrollerlever) 6PA16
Q28actuator(one-wayrollerlever) 6PA41
N62actuators(rodlever) 6PA140-E6
Q62actuators(rodlever) 6PA62
N4 actuators (manual button) 6PA9
Q4actuators(manualbutton) 6PA7
N18actuators(spring) 6PA195
N18actuators(springandbushing) 6PA187-E6
Conduit seal 2PA1
2PA6
2PA16
Seal boot (black elastomer) 10PA2
Seal boot (orange silicon) 10PA1
BottomcoverE6 3PA13-E6
BottomcoverV6 3PA14-V6
PilotlightforBZG/H 15LT1
Conduit Sealing Packets
Packet Listing Cable O.D.
2PA6 10,2mmto11,1mm[0.400into0.435in]
2PA16 11,1mmto12,0mm[0.435into0.470in]
2PA1 13,5mmto14,5mm[0.530into0.570in]
Liquid Tight Conduit Fitting
Packet Listing Cable O.D.
2PA17 4,3mmto12,0mm[0.170into0.470in]
1/2 NPT

Sensing and Control
Honeywell
1985DouglasDriveNorth
GoldenValley,MN55422
www.honeywell.com
88173-5-EN IL50GLO PrintedinUSA.
October2012
©2012HoneywellInternationalInc.Allrightsreserved.
WARRANTY/REMEDY
Honeywellwarrantsgoodsofitsmanufactureasbeingfreeof
defectivematerialsandfaultyworkmanship.Honeywell’sstan-
dard product warranty applies unless agreed to otherwise by
Honeywellinwriting;pleaserefertoyourorderacknowledgement
or consult your local sales office for specific warranty details. If
warrantedgoodsarereturnedtoHoneywellduringtheperiodof
coverage,Honeywellwillrepairorreplace,atitsoption,without
charge those items it finds defective. The foregoing is buyer’s
sole remedy and is in lieu of all other warranties, expressed
or implied, including those of merchantability and tness for
a particular purpose. In no event shall Honeywell be liable for
consequential, special, or indirect damages.
While we provide application assistance personally, through our
literatureandtheHoneywellwebsite,itisuptothecustomerto
determine the suitability of the product in the application.
Specifications may change without notice. The information we
supply is believed to be accurate and reliable as of this printing.
However,weassumenoresponsibilityforitsuse.
Enclosed Basic Series Limit Switches ISSUE 5 88173
SALES AND SERVICE
Honeywellservesitscustomersthroughaworldwidenetworkof
salesofces,representativesanddistributors.Forapplication
assistance, current specifications, pricing or name of the nearest
Authorized Distributor, contact your local sales office or:
E-mail: [email protected]
Internet: sensing.honeywell.com
PhoneandFax:
AsiaPacic +656355-2828
  +656445-3033Fax
Europe  +44(0)1698481481
  +44(0)1698481676Fax
LatinAmerica [phone]
  [phone]Fax
USA/Canada [phone]
  [phone]
  [phone]Fax
