Honeywell RTH9600WF User manual

MCR34540
C
K
Rc
R
W-
O/B
Y
G
W2-
Aux/E
Y2
L
W
Y
G
R
C
Quick Start Guide
Smart Color Touchscreen
Programmable
Thermostat
RTH9600WF
Search for local rebates: HoneywellHome.com/Rebates
Install your thermostat.
Connect your home Wi-Fi network.
Register online for remote access.
1
2
3
Welcome
Getting set up and ready is simple. Read before installing.
This thermostat works with common 24 volt
systems such as forced air, hydronic, heat
pump, oil, gas, and electric. It will not
work with millivolt systems, such as a gas
fireplace, or with 120/240 volt systems such
as baseboard electric heat.
1.1 Switch OFF power to your
heating/cooling system
1.1a Important! To protect your
equipment, switch OFF the
power to your heating/
cooling system at the
breaker box or the system
switch.
1.1b Confirm power is OFF.
Try to turn on heating/
cooling equipment by
changing temperature
on your old thermostat.
Your power is OFF if your
system does not turn ON.
Install your thermostat
1
Circuit
breaker
box
Heating/
cooling system
power switch
C
M33823A
Terminal
designation
If you have an older thermostat with a
sealed mercury tube, see warning page
for proper disposal instructions.
1.2 Remove old thermostat
faceplate and leave wires
connected
1.2a Take a picture of the wire
connections for later
reference.
1.2b If no wire is connected to a
terminal labeled C or no C
terminal exists on the old
thermostat, view the
Alternate Wiring videos at
wifithermostat.com/videos
Important! C wire is required
and is the power source for your
thermostat. Without a C
wire, your thermostat will
not power up.
1.3 Label wires
Do not label by wire color.
Use the supplied sticky tags to label
each wire as you disconnect it. Label
wires according to old thermostat
terminal designations, not by wire
color.
Note: If no tag matches a terminal
designation, write the appropriate
letter on a blank sticky tag.
Note: Wrap the wires around a pencil
to prevent them from falling back into
the wall.
1.4 Remove wallplate
Remove the old wallplate from
the wall after all wires are
labeled and disconnected.
Blank tags
Sticky tag
Terminal
designation
C
C
MCR31537
1.5 Mount wallplate for
thermostat
Mount your new wallplate using
screws and anchors included
with the thermostat.
If necessary:
• Drill 3/16-in holes for drywall
• Drill 7/32-in holes for plaster
Note: You may be able to use
your existing wall anchors. Hold
the wallplate up to the existing
anchors to check for alignment.
LEVEL
HERE
MCR34499
C
K
Rc
R
W-
O/B
Y
G
W2-
Aux/E
Y2
L
G
C
R
Y
W
Wallplate
1.6 Connect wires
Important! C wire is required and
is the power source. Without a C wire,
your thermostat will not power up.
See the C Wire Addendum
document for more information.
View the Alternate Wiring videos
at wifithermostat.com/videos
1.6a Starting with the C Wire, match
the sticky tag on the wire to the
terminal labels.
1.6b Straighten wire and gently slide
into terminal hole until it clicks
into place. (If you need to
remove a wire, use a pen tip to
press the terminal release and
then pull the wire out.)
Note: Refer to the wiring picture
you took in Step 1.2.
Tip: To make it easier to slide the
wire into place, use a pen tip to
hold down the terminal release.
Note: The wiring for your
application might be different
than the wiring shown below.
Labels don’t match or have
heat pump system?
See User Guide.
Labels don’t match or have
heat pump system?
See User Guide.
1.7 Attach thermostat
to wallplate
Align the thermostat with
wallplate and snap into
place.
Before you begin
Thermostat
Wallplate
LEVEL
HERE
M34498A
1.8 Switch heating/cooling
system ON
Important!
1.8a Verify that the C wire is
connected at the thermostat
and at the heating/cooling
system.
1.8b Make sure the heating/
cooling system door is
firmly secured.
1.8c Switch power back ON for
your heating/cooling system
at the breaker box or its
power switch.
Turn over
or
M31535
1.6c In the image on the right, check
the box next to each connection.
You will use this checklist in
Step 1.9.
1.6d Verify wire is firmly secured by
gently pulling on wire.
1.6e Repeat steps a–d for all other
wires.
1.6f Push any excess wire back into
the wall opening after all wires
are installed.
Note: The Lterminal on the lower
right is used only for Heat Pump
systems.
Note: If the old thermostat for
Heat Pump System has separate
wires on Aux and E, use a wire nut
to attach both wires to a separate
wire. Slide this third wire into the
W2-Aux/E terminal.
Terminal release
Circuit
breaker
box
Heating/
cooling system
power switch
or
M31535
View the installation video
at wifithermostat.com/
support
You will also need:
• Small screw driver
• Pen
• Thermostat ID card
• Your home WiFi
network password
You will need your
camera to take a
picture of your old wire
connections.
Note: You will need a
picture of your wire
connections to wire
the new thermostat.
Remove jumper loop ONLY if
you have both R and Rc wires.
Important!
Check the box for each wire
you connect. You will need
this information in Step 1.9.
C
K
Rc
R
W-O/B
Y
G
W2-
Aux/E
Y2
L
EXAMPLE WIRING
Yours may look different
33-00595-02
M37768
72
Electrical Ratings
Terminal Voltage (50/60Hz) Max. Current Rating
W-O/B 2030 Vac 1.0 A
W2 (Aux/E) 2030 Vac 1.0 A
YCooling 2030 Vac 1.0 A
Y2 Cooling 2030 Vac 1.0 A
GFan 2030 Vac 0.5 A
Resideo Technologies, Inc.
1985 Douglas Drive North, Golden Valley, MN 55422
www.resideo.com 33-00595—02 M.S. 09-21 | Printed in Mexico
© 2021 Resideo Technologies, Inc. All rights reserved. The Honeywell Home trademark is used under license from
Honeywell International, Inc. This product is manufactured by Resideo Technologies, Inc. and its affiliates.
Need help?
Visit honeywellhome.com/wifi-thermostat
or call 18557335465 for assistance before
returning the thermostat to the store.
33-00595_A.indd 133-00595_A.indd 1 9/8/2021 12:33:20 PM9/8/2021 12:33:20 PM

M31570
M31570
If you get stuck...
At any point in the WiFi connection process, restart the thermostat by
removing the thermostat from the wallplate, wait for 5 seconds, and snap
it back into place. From the home screen, touch SETTINGS > Wi-Fi Setup >
Choose a Network. Continue with Step 2.1b.
Need more help?
Find additional information in the User Guide.
Getting Help

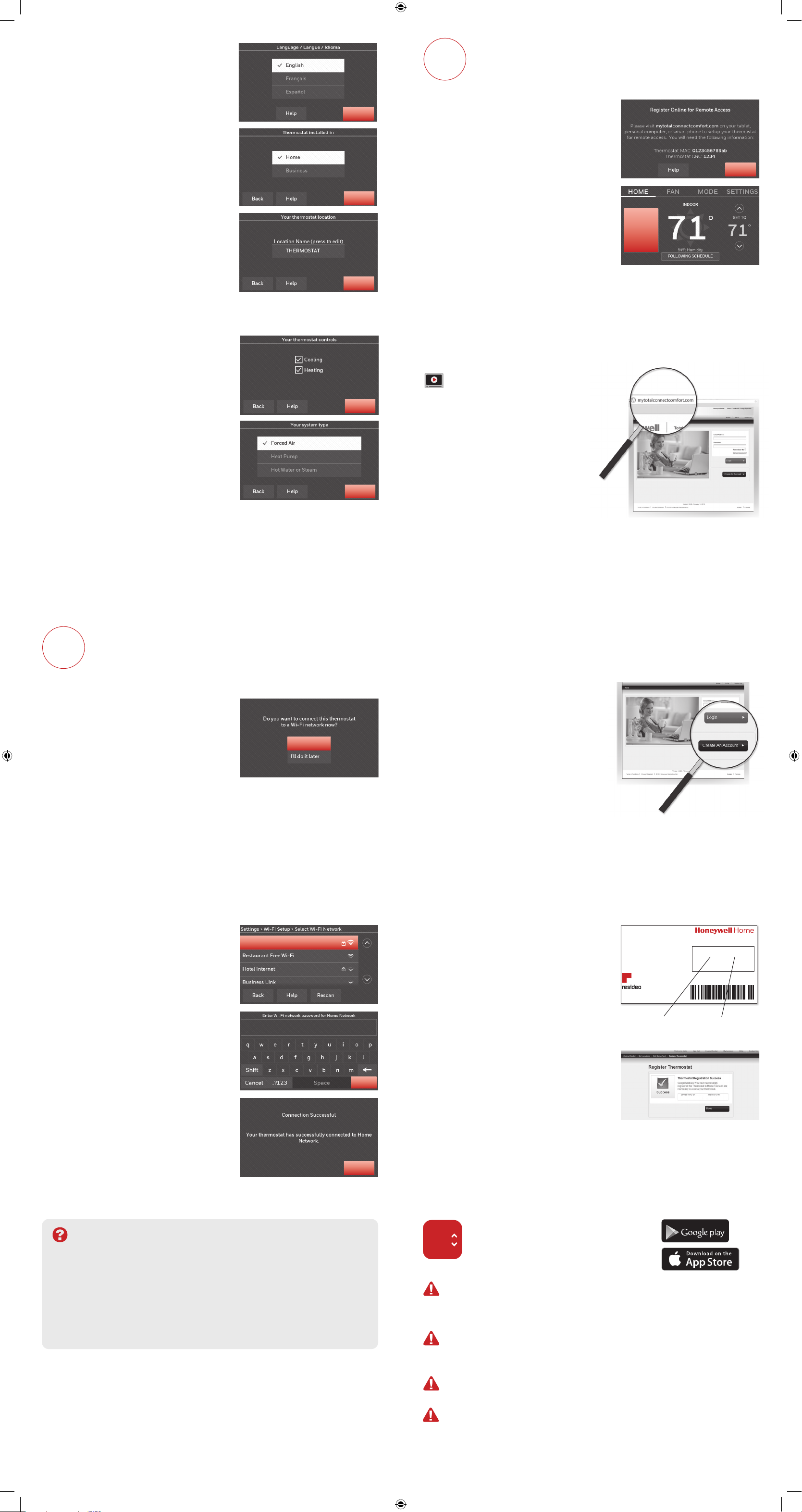

2.1 Connect the Wi-Fi network
After touching Done on the final screen
of the initial set up (Step 1.9g), the
thermostat displays an option to
connect to your WiFi network.
2.1a Touch Yes to connect the
thermostat to your WiFi
network. The screen displays the
message “Searching for wireless
networks. Please wait...” after
which it displays a list of all WiFi
networks it can find.
Note:If you cannot complete this step
now, touch I’ll do it later. The thermostat
will display the home screen. Complete
this process by selecting MENU > Wi-Fi
Setup. Continue with Step 2.1b.
2.1b Touch the name of the network
you want to use. The thermostat
displays a password page.
2.1c Using the keyboard, touch the
characters that spell out your home
network password.
2.1d Touch Done. The thermostat
displays “Connecting to your
network. Please wait...” then
shows a “Connection Successful”
screen.
Note: If your home network is not
shown on the list, touch Rescan .
2.1e Touch OK to display the
registration information screen.
Connect to your WiFi network
2
Ye s
Your Network
Done
OK
To view and set your thermostat remotely,
you must have a Total Connect Comfort
account. Follow the instructions below.
View the Thermostat
Registration video at
honeywellhome.com/wifi-thermostat
3.1 Open the Total Connect
Comfort web site
Go to www.mytotalconnectcomfort.com
Register online for remote access
3
3.2 Login or create an account
If you have an account,
click Login
– or –
click Create An Account.
3.2a Follow the instructions on the
screen.
3.2b Check your email for a response
from My Total Connect Comfort.
This may take several minutes.
Note: If you do not receive a response,
check your junk mailbox or use an
alternate e-mail address.
3.2c Follow activation instructions
in the email.
3.2d Log in.
3.3 Register your thermostat
After you are logged in to your Total
Connect Comfort account, register your
thermostat.
3.3a Follow the instructions on the
screen. After adding your
thermostat location you must enter
your thermostat’s unique identifiers:
• MAC ID
• MAC CRC
Note: These IDs are listed on the
Thermostat ID Card included in the
thermostat package. The IDs are not
case sensitive.
3.3b Notice that when the thermostat is
successfully registered, the Total
Connect Comfort registration
screen will display a SUCCESS
message.
You can now control your thermostat
from anywhere through your laptop,
tablet, or smartphone.
°
72
GET IT ON
Total Connect Comfort free app is
available for Apple®iPhone®, iPad®and
iPod touch®devices at iTunes®or at
Google Play®for all Android™ devices.
This thermostat works with common 24 volt systems such as forced air,
hydronic, heat pump, oil, gas, and electric. It will not work with millivolt
systems, such as a gas fireplace, or with 120/240 volt systems such as
baseboard electric heat.
CAUTION: MERCURY NOTICE If this product is replacing a control that
contains mercury in a sealed tube, do not place the old control in the trash.
Contact your local waste management authority for instructions regarding
recycling and proper disposal.
NOTICE: To avoid possible compressor damage, do not run air conditioner if
the outside temperature drops below 50°F (10°C).
CAUTION: ELECTRONIC WASTE NOTICE The product should not be
disposed of with other household waste. Check for the nearest authorized
collection centers or authorized recyclers. The correct disposal of end-of-life
equipment will help prevent negative consequences for the environment and
human health
The operation of this equipment is subject to the following two conditions: (1) this equipment or device may not cause harmful interference, and (2) this equipment or
device must accept any interference, including interference that may cause undesired operation.
To register your thermostat, follow the
instructions on Step 3.1.
Note: The Register Online screen
remains active until you complete
registration and/or touch Done.
Note: If you touch Done before you
register online, your home screen
displays an orange alert button telling
you to register. Touching that button
displays registration information and an
option to snooze the task.
Next
Next
© 2018 Resideo Technologies, Inc. All rights reserved. The Honeywell
Home logo is used under license from Honey well International Inc.
69-2723EFS—03 M.S. Rev. 12-18
Printed in U.S.A.
Resideo Inc., 1985 Douglas Drive Nor th,
Golden Valley, MN 55422
69-2723EFS-03
Thermostat ID Card
Use the MAC ID and CRC ID to register
this product at mytotalconnectcomfort.com
Carte d’identification de thermostat
Utilisez l’identification MAC et l’identification CRC pour enregistrer
ce produit à mytotalconnectcomfort.com
Tarjeta de identificación del termostato
Utilice la identificación MAC y la identificación CRC para inscribir este
producto en mytotalconnectcomfort.com
ww
w
.r
es
i
deo
.
com
MAC ID MAC CRC
1.9 Select setup
Before connecting to your WiFi
network, you need to set initial
thermostat options to define your
heating/cooling system:
• Language
• Home or business
Follow prompts on the screen to
select appropriate options.
1.9a Touch the language you want
the thermostat to display, then
touch Next.
1.9b Select Home or Business
application, then touch Next.
1.9c Touch Next or name the
thermostat location—touch
THERMOSTAT and follow the
rest of the instructions.
1.9d Select what your thermostat will
control and touch Next.
1.9e Select your system type and
touch Next The system type
determines other selection for
completing initial setup. Use
the checklist from Step 1.6 when
making selections.
1.9f Touch Next after making
selections on each screen.
1.9g Touch Done on the last screen.
The thermostat displays an
option to connect to your WiFi
network.
Next
Next
Next
Done
Register online
for remote
access
33-00595_A.indd 233-00595_A.indd 2 9/8/2021 12:33:22 PM9/8/2021 12:33:22 PM
